USER MANUAL Lumea 9900 Series BRI951 PHILIPS

Pink Philips hair dryer with digital display and brand logo (no visible text or symbols on device body)

Illustration of an open book with a grid pattern on the left and a closed page on the right, no text or symbols present.

1 2a 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 20 BRI950 (2a, 2b) BRI953, BRI955, BRI973 (2a, 2b, 2e) BRI951, BRI957, BRI958, BRI976, BRI977 (2a, 2b, 2c, 2d) PHILIPS

Suitable skin tones / Geeignete Hauttöne / Tonos adecuados de piel / Teints de peau compatibles / Toni di pelle adatti / Geschikte huidtinten / Tons de pele adequados

Image showing six colored textured surfaces with green checkmarks and red X marks, likely indicating inspection or validation status.

Suitable body hair colors / Geeignete Körperhaarfarben / Colores de vello corporal adecuados / Couleurs de poils du corps adaptées / Adatto ai seguenti colori di peli / Geschikte kleuren lichaamshaar / Cores de pelo adequadas

Row of colored squares with green checkmarks and red X marks, likely indicating approval or rejection status

English 6

Deutsch 32

Español 61

Français 88

Italiano 115

Nederlands 142

Português 169

Contents

Welcome 6

Device overview 7

Contraindications 7

Important safety instructions 9

How IPL works ____ 11

Suitable body hair colors 12

Recommended treatment schedule 12

What to expect ____ 13

How to use your Lumea 14

Learning more about your Lumea 19

Charging 19

Attachments 19

SmartSkin sensor 21

Selecting the light intensity 21

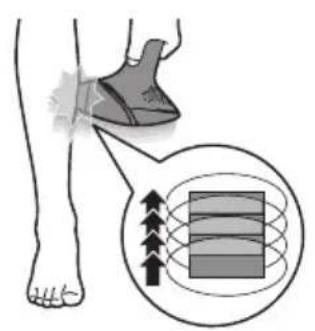

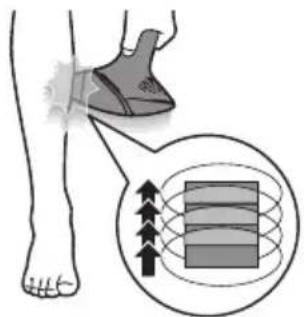

Two treatment modes: Stamp & Flash and Slide & Flash 22

Using your Lumea before and after sun exposure or tanning 23

Traveling with the device 23

After use 24

Troubleshooting 25

Warranty and support 27

Recycling 27

Technical specifications 28

Electromagnetic compatibility – Compliance information 29

Explanation of symbols 29

Welcome

Welcome to the world of Philips Lumea! You are only a few weeks away from silky-smooth skin.

Lumea uses Intense Pulsed Light (IPL) technology, known as one of the most effective methods to continuously prevent hair growth. In close collaboration with expert scientists and dermatologists, we adapted this light-based technology, originally used in professional beauty salons, for easy and effective use in the comfort of your home. Lumea is gentle and offers convenient and effective treatment at a light intensity that you find comfortable. Unwanted hairs are finally a thing of the past.

Lumea can be used on the body and on the female face (below the cheekbone).

To fully benefit from the support that Philips offers, register your product at

www.philips.com/support. For further information, please go to

www.philips.com/Lumea to find our experts' advice, tutorial videos and FAQs and make the most of your Lumea.

Note: Keep these instructions with your product at all times.

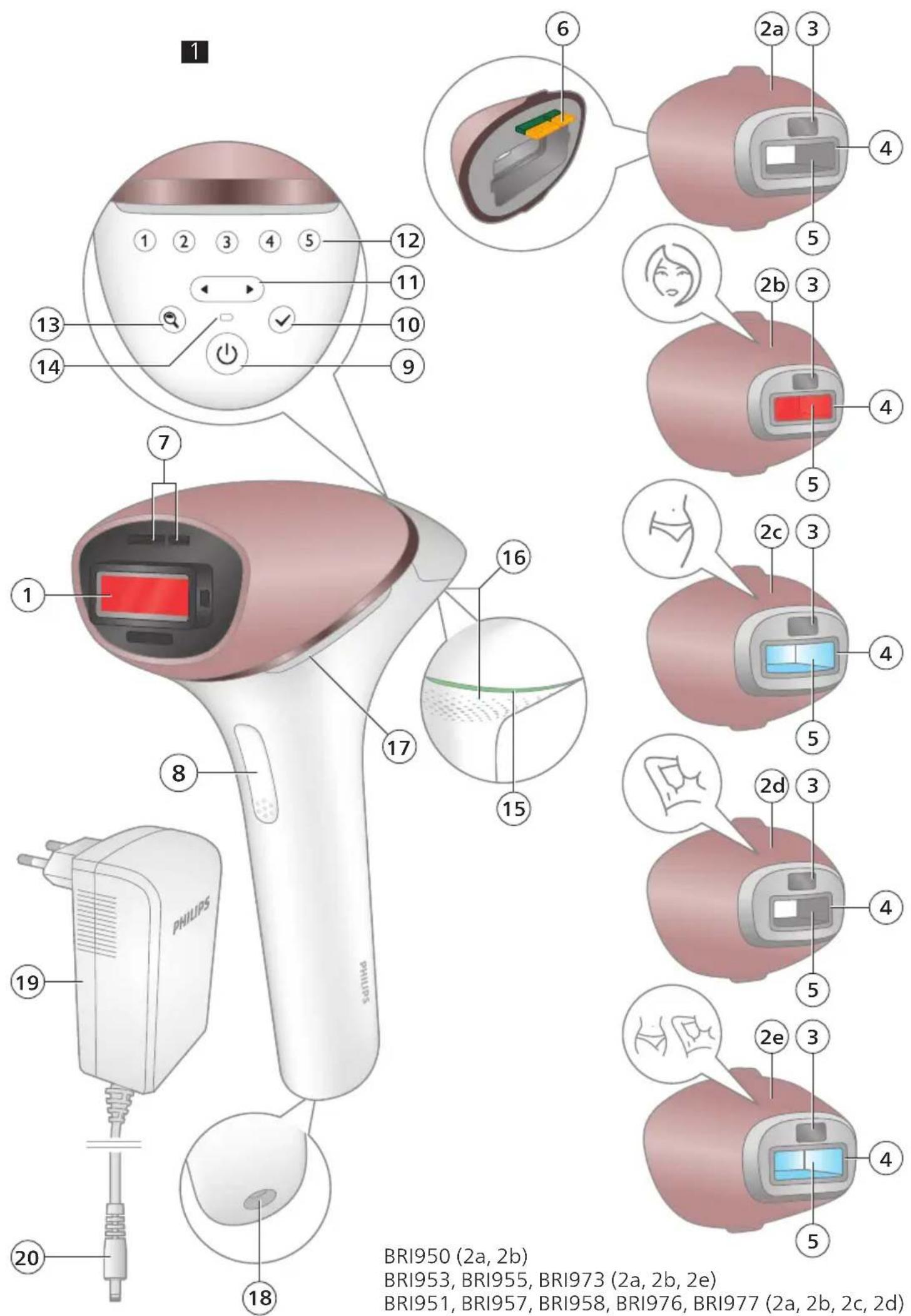

Device overview

1 Light exit window (with integrated UV filter)

2 Attachments

a Body attachment

b Face attachment

c Bikini attachment (BRI951, BRI957, BRI958, BRI976, BRI977)

d Underarm attachment

(BRI951, BRI957, BRI958, BRI976, BRI977)

e Precision attachment

(BRI953, BRI955, BRI973)

3 SmartSkin sensor

4 Integrated safety system

5 Reflector inside the attachment

6 Electronic contacts

7 Opening for electronic contacts

8 Flash button

9 On/off button

10 Confirmation button

11 Toggle buttons

12 Intensity lights

13 SmartSkin button

14 Charging light

15 'READY to flash' light

16 Air input vents for the fan

17 Air output vents

18 Device socket

19 Adapter

20 Small plug

21 Cleaning cloth (not shown)

22 Pouch (not shown)

Contraindications

Conditions

Never use the device:

• If you are under the age of 18 years or above 65 years.
• If you have skin tone marked with ✗ in the 'Suitable skin tones' table at the start of the user manual.
• If you are pregnant or breastfeeding as the device was not tested on pregnant or breastfeeding women.
• If you have any active implants such as a pacemaker, neurostimulator, insulin pump, etc.

Medications/History

Never use the device if you take any of the medications listed below:

• If your skin is currently being treated with or has been treated in the last 7 days with Alpha-Hydroxy Acids (AHAs), Beta-Hydroxy Acids (BHAs), topical tretinoin and azelaic acid.
• If you have taken any form of isotretinoin Accutane or Roaccutane in the last six months. This treatment can make skin more susceptible to tears, wounds and irritations.
• If you are taking photosensitizing agents or medications, check the package insert of your medicine and never use the device if it is stated that it can cause photo-allergic reactions, photo-toxic reactions or if you have to avoid sun when taking this medicine.

- If you take anticoagulation medications, including heavy use of aspirin, in a manner which does not allow for a minimum 1-week washout period prior to each treatment.

Never use the device:

• If you have received radiation therapy or chemotherapy within the past 3 months.
• If you are on painkillers which reduce the skin's sensitivity to heat.
• If you take immunosuppressive medications.

Pathologies/Disorders

Never use the device:

• If you have diabetes or other systemic or metabolic diseases.
• If you have congestive heart disease.
• If you have a disease related to photosensitivity, such as polymorphic light eruption (PMLE), solar urticaria, porphyria, etc.
• If you have a history of collagen disorder, including a history of keloid scar formation or a history of poor wound healing.
• If you have epilepsy with flashlight sensitivity.
• If your skin is sensitive to light and easily develops a rash or an allergic reaction.
• If you have a skin disease such as active skin cancer, you have a history of skin cancer or any other localized cancer in the areas to be treated.
• If you have a history of vascular disorder, such as the presence of varicose veins or vascular ectasia in the areas to be treated.
• If you have any bleeding disorder.
• If you have a history of immunosuppressive disease (including HIV infection or AIDS).
• If you have a skin pigmentation disorder such as vitiligo.

Skin conditions

Never use the device:

• If you have infections, eczema, burns, inflammation of hair follicles, open lacerations, abrasions, herpes simplex (cold sores), wounds or lesions and haematomas (bruises) in the areas to be treated.
• On irritated (red or cut), sunburned, tanned or fake-tanned skin.
• On the following areas: on moles, freckles, large veins, darker pigmented areas, scars, skin anomalies without consulting your doctor. This can result in a burn and a change in skin tone, which makes it potentially harder to identify skin-related diseases.
• On the following areas: warts, tattoos or permanent make-up.

Location/Areas

Never use the device on the following areas:

• Around the eyes and on or near the eyebrows. Lumea can only be used on the body and on the female face (below the cheekbone).
• On the lips, scalp, perineum, nipples, areolas, labia minora, vagina, anus and the inside of the nostrils and ears.
• On areas where you use long-lasting deodorants. This can result in skin reactions.
• Over or near anything artificial like silicone implants, subcutaneous injection ports (insulin dispenser) or piercings.
• Men must not use the device on the face and neck including all beard-growing areas, nor on the whole genital area. The hairs in these areas have different characteristics. The skin may get burnt (with pain, prolonged skin redness and pigmentary changes).

Note: This list is not exhaustive. If you are not sure whether you can use the device, we advise you to consult your doctor.

Important safety instructions

Warnings

Please read and follow these instructions to optimize the use of the device and prevent/minimize the risk of injury, skin reactions and side effects.

• Before you use Lumea, you should clean your skin and make sure it is hair-free, entirely dry and free from any lotion or gel.
• Keep the device and the adapter dry.
• The device is not washable. Never immerse the device in water and do not rinse it under the tap.
• Water and electricity are a dangerous combination. Do not use this device in wet surroundings (e.g. near a filled bath, a running shower or a filled swimming pool). Moisture can damage the device and lead to a potential safety hazard.
• Always check the device before you use it. Do not use the device or adapter if it is damaged. Always replace a damaged part with one of the original type.
• If the device or adapter is broken or damaged, do not touch any inner part to avoid electric shock.
• Do not use the device if the UV filter of the light exit window and/or attachment is broken, as safe operation cannot be guaranteed under these circumstances.
• Do not attempt to open or repair your device or change the non-replaceable batteries. Opening Philips Lumea may expose you to dangerous electrical components and to pulsed light energy, either of which may cause bodily and/or eye injury.
• Always return the device to a service center authorized by Philips for examination or repair. Repair by unqualified people could cause an extremely hazardous situation for the user.

- No modification of this equipment is allowed. Do not modify, override or cut off any part of the device (e.g. battery, adapter or the cord), as this causes a hazardous situation.

- Do not look at the flash while using the device. Use the device in a well-lit room so that the light is less glaring to your eyes. While not necessary for safety, you may wear sunglasses or goggles for your convenience if you find the light uncomfortable or too bright.

- Do not flash the same spot multiple times during a treatment. The surface of the attachment should overlap the previous spot to make sure you flash the complete skin area, but treating the same area multiple times does not increase efficacy.

- For hygienic reasons, the device should only be used by one person.

- Do not use hair removal creams in the area (to be) treated with the device, as chemicals may cause skin reactions.

- Do not use any pencil or pen to mark the areas to be treated. This may cause burns on your skin.

- The device can be stored at a temperature between -25 °C and 70 °C. Charge and use the device at a temperature between 5 °C and 35 °C. The device will not work properly outside of this temperature range. This may cause burns on your skin.

- Only use this product for its intended purpose and follow the general and battery safety instructions as described in this user manual. Any misuse can cause electric shock, burns, fire and other hazards or injuries.

- Hair removal by intense pulsed light sources can cause increased hair growth in some individuals. Based upon currently available data, the highest risk groups for this response are females of Mediterranean, Middle Eastern, and South Asian heritage treated on the face and neck.

- If you experience skin irritation or skin redness after treatment, wait until it disappears before applying any product to your skin. If you experience skin irritation after applying a product to your skin, wash it off with water. If you still get skin reactions, stop using the device and consult your doctor.

- If shaving, epilating or waxing causes skin irritation, we advise you not to use the device until the skin irritation has disappeared.

- This device is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.

- Keep Lumea out of the reach of children.

- Children should be supervised to ensure that they do not play with the device. Supervision is required to avoid potential risks such as exposure to the light output, electrocution, strangulation from the cables or choking on the attachments.

- Always avoid exposure to natural sunlight and artificial sunlight up to 4 weeks before your Lumea treatment and 48 hours afterward. Sensitive or tanned skin is more likely to result in burns or pigmentation changes. Protect your skin from sunlight with clothing or apply sun-blocking products of not less than SPF50 on the non-covered treatment areas. Read the instructions in chapter 'Using your Lumea before and after sun exposure or tanning' to learn how to use your Lumea safely.

- Do not use your Lumea within 2 weeks after using artificial tanning products (such as creams, sprays or pills). Artificially tanned skin is more likely to result in burns or pigmentation changes. Read the instructions in chapter 'Using your Lumea before and after sun exposure or tanning' to learn how to use your Lumea safely.

- If you notice a skin tone change since the last treatment, we advise you to perform a skin test and to wait 24 hours before your next treatment. If after this period skin reactions occur or persist, use a lower device setting which did not lead to skin reactions or stop using the device when already at the lowest setting (①).

- Always check the device before you use it. Make sure that the SmartSkin sensor window is clean when using the device, to avoid improper operation (see 'D Clean & store after treatment').

- The light exit window and the inner parts of the attachment can become very hot (>210 °C) during usage. Always let the light exit window, as well as the inner parts of the attachment, cool down before you touch them.

- This device has a detachable power supply unit. Only use the adapter provided with this device. Do not use an extension cord. The reference number (AD2069x20020HF) can be found on your device. The 'x' in this number refers to the plug type for your country.

- Never leave the device unattended when it is plugged in.

- Always unplug the product when it is fully charged.

- Do not expose the device to direct sunlight or to high temperatures (near hot stoves, in microwave ovens or on induction cookers). Batteries may explode if overheated.

- If the battery is damaged or leaking, avoid contact with skin or eyes. If this occurs, immediately rinse well with water and seek medical attention.

- If the device behaves in a different way during your normal routine (e.g. abnormal smell or vibrations, longer charging time) stop using and charging your device and contact customer support for help.

- Follow the recommended treatment schedule. Increasing the frequency, especially in the initial phase, can increase the risk of skin reactions.

How IPL works

Diagram of a mechanical or fluidic component with droplets and a central horizontal bar, enclosed in a circular frame (no text or symbols)

With Intense Pulsed Light technology, gentle pulses of light are applied to the skin and absorbed by the hair root. The lighter the skin and the darker the hair, the better the pulses of light are absorbed.

Diagram showing two droplets approaching a surface with droplets, labeled with number 2 (no text or symbols on the droplet itself)

The pulses of light stimulate the hair follicle to go into a resting phase. As a consequence, the hair sheds naturally and hair growth is prevented.

Diagram of a medical or laboratory procedure showing liquid droplets entering a container (no text or symbols)

The cycle of hair growth consists of different phases. IPL technology is only effective when the hair is in its growing phase. Not all hairs are in the growing phase at the same time. This is why we recommend you to follow the initial treatment phase (4 treatments, every treatment 2 weeks apart) and then the follow-up treatment phase (touch-ups every 4 weeks) to make sure all hairs are effectively treated in the growing phase.

Tip: To assure long lasting hair removal, touch-ups every 4 weeks are recommended.

Suitable body hair colors

Treatment with Lumea is not effective if you have light blond, grey, red or white hairs as hairs with these colors do not absorb enough light.

Note: To check if your body hair color allows usage of the device, consult the hair color table on the foldout page.

Recommended treatment schedule

Initial phase

To achieve effective hair reduction, follow the initial treatment schedule. Initial treatment schedule

For the first 4 treatments, use Lumea once every 2 weeks to ensure that all hairs are treated.

- Perform a treatment within 3 days before or after the planned treatment date.

- If you have not treated yourself within 3 days before or after the planned treatment date, restart the initial phase. Plan in 4 treatments, 1 treatment every 2 weeks.

Note: If you do not restart the initial phase, you may not see effective hair reduction.

Note: Replacing one of the IPL treatments with another hair removal method (waxing, epilating, etc.) will not help to reach the desired hair reduction.

If you want to remove hairs in between the Lumea treatments, you can use your normal hair removal method (excluding hair removal creams).

Touch-up phase

After the initial phase (4 treatments), we recommend touch-ups every 4 weeks.

Touch-up treatment schedule

Perform a treatment every 4 weeks. Repeat this 8 times to achieve effective hair reduction. This is to maintain results and enjoy smooth skin for months.

• We advise you to perform a treatment within 4 days before or after the planned treatment date.
• The results may vary based on your individual hair growth and also across different body areas.
• If you have completed the touch-up phase and you see the need to continue treatment (hair starts coming back), we advise you to restart the initial phase.

Note: Using the device more often does not increase efficacy.

Tip: Mark the treatment schedule on your calendar to remind yourself of the planned treatments.

What to expect

During initial phase

• After the first treatment, it can take 1 to 2 weeks for the hairs to fall out. In the first weeks following the initial treatments, you still see some hairs growing. These are likely to be hairs that were not in their growing phase during the first treatments.
• After 2-3 treatments, you should see a noticeable reduction in hair growth. However, to effectively treat all hairs, it is important to keep on treating according to the recommended treatment schedule.
• After 4 treatments, you should see a significant reduction of hair growth in the areas that you treated with Lumea. A reduction of hair density should be visible as well.

During touch-up phase

- Keep on treating with frequent touch-ups (every 4 weeks) to maintain the result.

How to use your Lumea

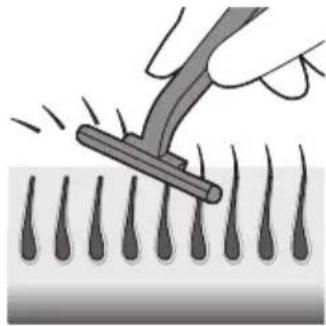

A Remove hair & clean your skin

Illustration of a hand using a tool to brush through droplets onto a surface (no text or symbols)

1 Remove hair before every treatment as long as hair is still visible. You can either shave, epilate or wax. Make sure you start to treat before new hair is visible on your skin. If you choose to wax, wait 24 hours before you use Lumea.

Note: If shaving, epilating or waxing causes skin irritation, we advise you not to use the device until the skin irritation has disappeared.

Illustration of a human foot and ankle joint (no text or symbols)

2 Clean and dry your skin. Make sure that it is free from any lotion or gel.

B Test skin 24 hours before treatment

1 2 3 4 5 ← ▶ ○

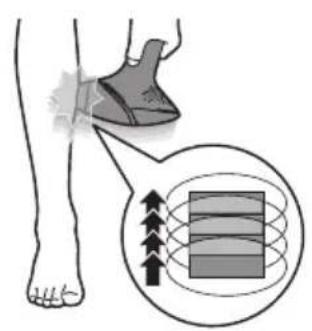

1 Test your skin to find the correct light setting:

- For every new body area and/or new attachment.

- After sun exposure or tanning (see 'Using your Lumea before and after sun exposure or tanning').

2 Select the correct attachment to test your skin (see 'Attachments').

Illustration of a hand holding a small electronic device with an arrow indicating rotation (no text or symbols present)

① ② ③ ④ ⑤

3 Press the on/off button ⏻ to turn on the device.
4 Choose an area for your skin test.

Illustration of a human foot and ankle joint with a shaded area indicating a specific area (no text or symbols present)

5 Press the device firmly onto your skin and hold it in place.

The integrated safety system prevents unintentional flashing without full skin contact.

READY

6 Confirm that the 'READY to flash' light lights up white to ensure that there is full contact with your skin.

- If the 'READY to flash' light is orange, your skin is too dark to treat. Try Lumea on a lighter body area.

Line drawing of a handheld device with a black arrow pointing to a button (no text or symbols)

7 Try each setting on your skin and find your comfortable setting. If the flash feels uncomfortable and you experience pain, lower the setting. If you still experience an uncomfortable feeling while using the lowest setting (①), please stop using the device.

- When the 'READY to flash' light is white, press the flash button on the handle once, to treat one spot with setting ①.

The device makes a soft popping sound. The flash gives you a warm sensation.

- You will see a flash of light.

Hand holding a device with numbered buttons and an open control pad, illustrating a function or action sequence.

Note: You can toggle through the light intensity settings by pressing the toggle button (see 'Selecting the light intensity').

- Move to next area. Treat one spot with setting ②

Anatomical diagram of a human leg with numbered labeled points pointing to specific regions.

• Move to next area. Treat one spot with setting ③
• Move to next area. Treat one spot with setting ④
• Move to next area. Treat one spot with setting ⑤

Simple clock icon with an arrow indicating rotation (no text or symbols)

24 hours

Warning symbol with exclamation mark inside triangle, commonly used to indicate caution or hazard

8 Wait 24 hours.

Note: Even though you found your comfortable setting during the skin test, it may occur that skin reactions show within 24 hours after usage.

9 Check your skin for any reactions (e.g. redness, irritation, rash).

If there are no skin reactions after 24 hours, start the treatment with the highest comfortable setting.

If the highest comfortable setting resulted in a skin reaction, choose a lower setting that did not result in any skin reactions.

If you did not test a lower setting, repeat the skin test.

C Treatment

Diagram showing a cable being inserted into an electrical outlet, with an arrow indicating direction of insertion.

IMPORTANT: First finish sections A (Remove hair & clean your skin) and B (Test skin 24 hours before treatment) before starting treatment.

1 Connect the power adapter to the device and plug into a power outlet or charge the device and use cordless.

2 Press the on/off button ⏻ to turn on the device.

3 Choose the setting you selected after the skin test (section B, step 9).

4 Press the device firmly onto your skin and hold it in place. The 'READY to flash' light should light up white.

5 Press the flash button to release a flash on your skin. The flash treats the skin in that spot.

The device makes a soft popping sound. The flash gives you a warm sensation.

After each flash, it takes up to 3.5 seconds until the device is ready to flash again. You can release a flash when the 'READY to flash' light lights up white.

6 Move to an adjacent spot and press the flash button again. The surface of the attachment that is in contact with your skin is slightly larger than the light exit window.

Do not flash the same spot multiple times during a treatment. The surface of the attachment should overlap the previous spot to make sure you flash the complete skin area, but treating the same area multiple times does not increase efficacy.

7 Continue until you have treated the full area. There are two treatment modes (see 'Two treatment modes: Stamp & Flash and Slide & Flash').

8 Turn off the device when you finished the treatment.

9 Remove hair before every next treatment, as long as hair is still visible.

Note: Do not try the device on difficult or sensitive areas (ankle and bony area).

D Clean & store after treatment

Diagram showing a cable being inserted into an electrical socket, with arrows indicating direction of insertion or disassembly.

1 Unplug the device from the power outlet if you have used it with the power adapter.
2 Let the device cool down.

Illustration of a hand holding a small object with liquid being poured into it (no text or symbols)

3 Moisten the soft cloth supplied with a few drops of water.

Illustration of a hand holding a small electronic device with an arrow indicating rotation (no text or symbols)

4 Take the attachment off the device.

A

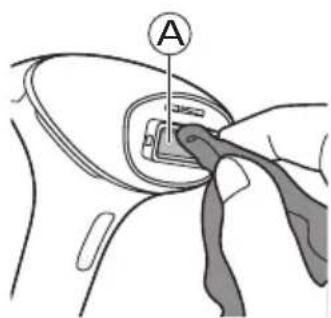

5 Clean the light exit window of the device (A).

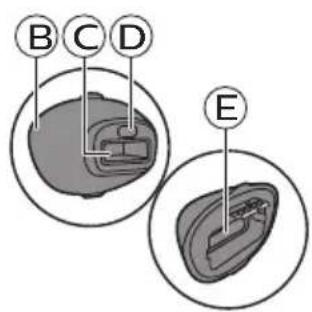

B C D E

6 Clean all surfaces of the attachment, including the metal reflector and window of the attachment (parts B, C, D, E).
7 Let all parts dry thoroughly.
8 Store in a dust-free and dry place.

Learning more about your Lumea

Charging

Fully charge the battery before you use the device for the first time and when it is empty. Charging the battery takes up to 1 hour and 40 minutes. Charge the device when the charging light lights up orange during use to indicate that the battery is low and will run out soon.

Fully charged battery provides at least 130 flashes at light intensity setting 5.

Charging the device

1 Turn off the device.
2 Insert the small plug into the device and the adapter into the power outlet.
- During charging, the charging light flashes white.
- When the battery is fully charged, the charging light lights up white continuously.
- Never cover the adapter and device during charging.

Note: The adapter and device can feel warm during charging. This is normal.

Note: This device is equipped with battery-overheat protection and does not charge if the room temperature exceeds 40 °C.

3 After charging, remove the adapter from the power outlet and pull the small plug out of the device.

Tip: Charge the device after each use to save battery life.

Note: The battery capacity is not enough for a full body treatment. We advise you to use the device corded while treating large body areas such as legs.

Attachments

For optimal results, it is important to use the correct attachment intended for the specific body area you want to treat. Lumea offers full-body treatment with several attachments designed for use on specific body areas. SenseIQ technology adapts the treatment program when a different attachment is connected.

Note: The device may not work anymore and show an error when there is dirt on the attachment connector. Clean the contact leads when this occurs.

To place the attachment, simply snap it onto the light exit window.

Illustration of a hand holding a small electronic device with an arrow indicating rotation (no text or symbols present)

To remove the attachment, pull it off the light exit window.

Illustration of a hand holding a small electronic device with an arrow indicating rotation (no text or symbols)

Body attachment

The body attachment has the largest treatment window and a curved-in design to effectively cover and treat areas below the neckline, especially large areas such as legs, arms and stomach.

Face attachment

Simple line drawing of a stylized human face inside a circle (no text or symbols)

The face attachment has a precise flat design with extra integrated red glass filter for safe and precise treatment on the sensitive skin above the upper lip, chin and sideburns. The device is only intended for removing unwanted body hair from areas below the cheekbones. When you use the device on areas with sharp contours like the jawline and chin, it may be difficult to establish full skin contact and release a flash.

Tip: Place your tongue between your upper lip and your teeth or puff out your cheeks to make the treatment easier.

Underarm attachment (BRI951, BRI957, BRI958, BRI976, BRI977)

Simple line drawing of a stylized object inside a circle (no text or symbols)

The underarm attachment has a specifically curved-out design to treat underarm hairs that might be hard to reach.

Bikini attachment (BRI951, BRI957, BRI958, BRI976, BRI977)

Simple line drawing of a human torso inside a circle (no text or symbols)

The bikini attachment has a specialized design for effective treatment of the bikini area. It has a curved-out design and has a higher light intensity compared to body attachment. Hair in this area tends to be thicker and stronger than leg hair.

Precision attachment (BRI953, BRI955, BRI973)

Simple line drawing of a human figure inside a circle (no text or symbols)

The precision attachment has a curved-out design for use on bikini and underarm areas. It has a medium sized window with a glass window. It is designed for precise and effective coverage of bikini and underarm areas.

SmartSkin sensor

Lumea offers SenseIQ technology for a personalized hair removal treatment. The integrated SmartSkin sensor measures the skin tone at the start of each session and during the session. This provides two features:

1 The SmartSkin sensor prevents you to treat areas of your skin that are too dark: if it detects a skin tone that is too dark for treatment with Lumea, the 'READY to flash' light starts blinking orange. It does not flash when you press the flash button. The device automatically disables. This prevents you from developing skin reactions.

2 The SmartSkin sensor will help you to select the light intensity setting that is comfortable for your skin. For this you can use the SmartSkin button 📄

Selecting the light intensity

Lumea provides 5 different light intensities, you will always be able to change to a light intensity setting you find comfortable.

1 Press the on/off button to turn on the device. The device starts to operate at light intensity setting 1.

Line drawing of a baby with a computer monitor displaying control buttons (no text or symbols)

Note: To adjust the light intensity setting manually without using the SmartSkin button, use the toggle button until you have reached the required setting. The corresponding intensity light level lights up white.

2 Press the SmartSkin button 🔒 and put the device to your skin.

3 After the device has scanned your skin, the light intensity indicators will blink white to indicate which intensities are most comfortable based on your skin tone.

4 Press the confirmation button ☑ to confirm that you want to use the indicated setting.

Lumea automatically uses the highest indicated intensity, which is shown by a blinking intensity indicator.

Lumea gives you the freedom to select the light intensity that you find most comfortable. Skin sensitivity can differ per person. Therefore, the skin test is the most important guide for selecting your light intensity setting (see 'B Test skin 24 hours before treatment').

5 Using Lumea should never be uncomfortably painful. If you experience discomfort, reduce the light intensity setting. You can do this by using the toggle buttons.

Note: The device is automatically disabled when your skin tone is too dark (dark, marked with ✗ in the 'Suitable skin tones' table at the start of the user manual), to prevent you from developing skin reactions. The 'READY to flash' light will blink orange to indicate if the skin tone is too dark.

6 After moving to another body area or sun exposure or tanning (see 'Using your Lumea before and after sun exposure or tanning'), perform a skin test to determine a comfortable light intensity setting. To re-activate the setting indication feature, press the SmartSkin button

Note: Perform a skin test before you start to treat another body area or after a skin tone change. Determine the light intensity setting for each body area separately.

Two treatment modes: Stamp & Flash and Flash

Illustration of a human leg with a shaded knee joint and arrow indicating movement (no text or symbols)

Your Philips Lumea has two treatment modes for more convenient use on different body areas:

- The Stamp & Flash mode is ideal to treat small or curvy areas like knees and underarms. Simply press and release the flash button to release a single flash.

Medical illustration showing foot and ankle with a shaded bandage and magnified view of a grid structure with directional arrows

- The Slide & Flash mode offers convenient use on larger areas like legs. Keep the flash button pressed while you slide the device over your skin to release several flashes in a row.

Using your Lumea before and after sun ex or tanning

Tanning with natural or artificial sunlight

Illustration of a person lying on their back with a cross symbol crossed, no text or symbols present

Exposing your skin to natural or artificial sunlight may result with tanning which influences the sensitivity and color of your skin. Therefore the following is important:

- Do not expose your skin to sunlight unprotected when using Lumea. During the entire IPL treatment period, and especially in the first 48 hours after treatment, protect your skin from sunlight with clothing or apply sun-blocking products of not less than SPF50 on the non-covered treatment areas.

- Do not start or resume using Lumea within 4 weeks after exposing your skin to sunlight unprotected (natural sunlight or tanning bed).

- Do not use Lumea on sunburned body areas.

Tanning with creams, sprays or pills

If you have used artificial tanning (creams, sprays or pills), wait at least 2 weeks before you use the device. Perform a skin test before starting or resuming your treatment with Lumea (see 'B Test skin 24 hours before treatment').

Traveling with the device

When you travel with the device, check with the airplane carrier to confirm that the device can be carried and/or used on the airplane.

After use

Aftercare

After use, you can apply lotions, creams, deodorant, moisturizer or cosmetics to the treated areas.

Warning: If you experience skin irritation or skin redness after treatment, wait until it disappears before applying any product to your skin. If you experience skin irritation after applying a product to your skin, wash it off with water. If you still get skin reactions, stop using the device and consult your doctor.

Common skin reactions

Your skin may show slight redness and/or may prickle, tingle or feel warm. This reaction disappears quickly.

Dry skin and itching may occur due to shaving or a combination of shaving and light treatment. You can cool the area with an ice pack or a wet face cloth. If dryness persists, you can apply a non-scented moisturizer on the treated area.

Rare side effects

Burns, excessive redness (e.g. around hair follicles) and swelling: these reactions occur rarely. They are the result of using a light intensity that is too high for your skin tone. If these reactions do not disappear within 3 days, we advise you to consult a doctor. Wait with the next treatment until the skin has healed completely and make sure you use a lower light intensity.
- Skin discoloration: this occurs very rarely. Skin discoloration manifests itself as either a darker patch (hyperpigmentation) or a lighter patch (hypopigmentation) than the surrounding area. This is the result of using a light intensity that is too high for your skin tone. If the discoloration does not disappear within 2 weeks, we advise you to consult a doctor. Do not treat discolored areas until the discoloration has disappeared and your skin has regained its normal skin tone.
- Skin infection is very rare but is a possible risk following a (micro)wound, a skin burn, skin irritation, etc.
- Epidermal heating (a sharply defined brownish area which often occurs with darker skin tones and is not accompanied with skin dryness): this reaction occurs very rarely. In case this reaction does not disappear within 1 week, we advise you to consult a doctor. Wait with the next treatment until the skin has healed completely and make sure you use a lower light intensity.
- Blistering (looks like small bubbles on the surface of the skin): this occurs very rarely. In case this reaction does not disappear within 1 month or when the skin gets infected, we advise you to consult a doctor. Wait with the next treatment until the skin has healed completely and make sure you use a lower light intensity.
- Scarring: often the secondary effect of a burn, which can take longer than a month to heal.

- Folliculitis (swelling around hair follicles combined with pustule formation): this reaction occurs very rarely and is the result of bacteria penetrating the damaged skin. In case this reaction occurs, we advise you to consult a doctor as folliculitis may need antibiotic ointment.

- Pain: this can occur during or after treatment if you use the device on skin that is not hair-free, if you use the device at a light intensity that is too high for your skin tone, if you flash the same area more than once and if you use the device on open wounds, inflammations, infections, tattoos, burns, etc.

Troubleshooting
Problem Possible cause Solution

The device/adapter becomes warm during use.	It is normal for the device and adapter to become warm (but not too hot to touch) during use.	Use the device in a slightly cooler environment and/ or let it cool down before continuing use.
	The fan is not working. Check if the attachment is well connected. Clean the connectors on the attachment if needed. In case the attachment is well connected and it is possible to produce flashes with the device, contact the Consumer Care Center in your country, your Philips dealer or a Philips service center.
	The cooling airflow of the fan is blocked by hands or a towel.	Make sure the cooling airflow of the fan is unblocked.
When I place the device on the skin, it does not release a flash. The 'READY to flash' light blinks orange.	Your skin tone in the area to be treated is too dark.	Treat other body areas with lighter skin tones with Lumea.
The 'READY to flash' light blinks orange and all 5 intensity lights blink as well.	The device needs to be reset.	To reset the device, take the plug out of the socket, wait for 30 minutes to let the device cool down. The device should function normally again. In case it does not work again, contact the Consumer Care Center in your country.
The 'READY to flash' light does not light up white.	The device is not completely in contact with your skin.	Place the device at a 90-degree angle on the skin so that the integrated safety system is in contact with your skin.
The device produces a strange smell.	The light exit window or the SmartSkin sensor is dirty.	Clean the light exit window and the SmartSkin sensor carefully.
	You have not removed the hairs on the area to be treated properly. These hairs may get burned and can cause the smell.	Pretreat your skin before you use Lumea.

Problem Possible cause Solution

The device does not flash, the fan is not switched on and all 5 intensity lights blink.	The attachment is not attached properly.	Make sure you attach the attachment completely. If necessary, clean the electronic contacts on the attachment.
The skin feels more sensitive than usual during treatment. I experience discomfort when I use the device.	The light intensity setting you use is too high.	Check if you have selected a comfortable light intensity setting. If necessary, select a lower setting.
	You did not remove the hairs on the areas to be treated.	Pretreat your skin before you use Lumea.
	The UV filter of the light exit window is broken.	If the UV filter is broken, do not use the device anymore. Contact the Consumer Care Center in your country, your Philips dealer or a Philips service center.
	You treated an area for which the device is not intended.	Never use the device on irritated (red or cut), sunburned, tanned or fake-tanned skin.Never use the device if you have infections, eczema, burns, inflammation of hair follicles, open lacerations, abrasions, herpes simplex (cold sores), wounds or lesions and haematomas (bruises) in the areas to be treated.Never use the device on the following areas: on moles, freckles, large veins, darker pigmented areas, scars, skin anomalies without consulting your doctor. Never use the device on warts, tattoos or permanent make-up, around the eyes and on or near the eyebrows, on the lips, perineum, scalp, nipples, areolas, labia minora, vagina, anus and the inside of the nostrils and ears. Men must not use it on the face and neck including all beard growing areas and whole genital area. This can result in a burn and a change in skin color, which makes it potentially harder to identify skin-related diseases.
	The treatment is still painful at the lowest setting (1).	Lumea may not be suitable for your skin. Contact the Consumer Care Center in your country, your Philips dealer or a Philips service center.
There is no glass window in my attachment.	This is normal. No action required: there is no glass window in the body and underarm attachments. Only the face attachment has a red glass filter. The precision and bikini attachments have a transparent glass window.
The skin reaction after treatment lasts longer than usual.	You have used a light intensity setting which is too high for you.	Select a lower intensity next time (see 'Selecting the light intensity').

Problem Possible cause Solution

The flash is very bright to my eyes. Do I need to wear goggles?	No, Philips Lumea does not hurt your eyes.	The scattered light produced by the device is harmless to your eyes. Do not look at the flash while using the device. It is not necessary to wear goggles during use. Use the device in a well-lit room so that the light is less glaring to your eyes. Be sure to make good skin contact to avoid scattered light.
The results of the treatment are not satisfactory.	You have used a light intensity setting which is too low for you.	Select a higher setting next time.
	You did not cover all areas to be treated.	The surface of the attachment should overlap the previous spot to make sure you flash the complete skin area, but treating the same area multiple times does not increase efficacy.
	The device is not effective on your body hair color.	If you have light blond, grey, red or white hair, the treatment is not effective.
	You do not use the device as often as recommended.	To remove all hairs successfully, we advise you to follow the recommended treatment schedule. You can reduce the time between treatments, but do not treat more often than once every two weeks.
	You respond more slowly to IPL treatment.	Continue using the device for at least 6 months, as hair growth can still decrease over the course of this period.

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Recycling

- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

• This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). Please take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery.
• Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Please take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery. Philips Lumea products contain recyclable materials and should not be put into the municipal waste stream. Refer to the Philips Lumea support website for recycling options. Do not dispose of in fire.

Technical specifications

Transport and storage conditions	Lumea remains operational within its specification in NORMAL USE after transport or storage in the following environmental conditions:-25 °C to 70 °C up to 90 % RH, non-condensing, 700 hPa to 1060 hPa
Operating conditions Lumea complies with its specifications when operated in NORMAL USE under the following environmental operating conditions:5 °C to 35 °C up to 90 % RH, non-condensing, 700 hPa to 1060 hPa
Emitted wavelengths 565 to 1400 nm
Pulse duration Between 1–2.5 milliseconds, for all settings
Flash interval Between 2–3.5 seconds depending on battery/mains-connected use
Optical exposure Body attachment: 2.5–5.6 J/cm2Underarm attachment: 2.5–6.5 J/cm2Precision attachment: 2.5–6.5 J/cm2Bikini attachment: 2.5–6.5 J/cm2Face attachment: 2.4–5.9 J/cm2
Adapter input 100–240 V 50/60 Hz 1.5 A
Adapter output 19.5 V 3.33 A 65.0 W
Average active efficiency ≥88.0 %
Efficiency at low load (10 %)	≥79.0 %
No-load power consumption	<0.21 W
Adapter type number The reference number (AD2069x20020HF) can be found on your device. The letter 'x' denotes type of plug, it can be: 0, 1, 2, 3, 5, 7, 9, or H.

Electromagnetic compatibility – Compliance information

This device complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Explanation of symbols

The warning signs and symbols are essential to ensure that you use this product safely and correctly and to protect you and others from injury. Below you find the meaning of the warning signs and symbols on the label and in the user manual.

This symbol identifies the manufacturer of the product: Philips Consumer Lifestyle B.V., Tussendiepen 4, 9206 AD Drachten, The Netherlands.

This symbol means that you have to read the user manual carefully before you use the device. Save the user manual for future reference.

This symbol means that the user should consult the instructions for use for important safety information such as cautions that cannot, for a variety of reasons, be presented on the device itself.

This symbol means that the user should consult the instructions for use for important safety information such as contraindications and warnings that cannot, for a variety of reasons, be presented on the device itself.

This symbol indicates the serial number of the device.

This symbol identifies the catalogue number of the device.

This symbol identifies that the equipment meets the safety requirements specified for Class II equipment.

This symbol indicates that the equipment is suitable for direct current only.

This symbol indicates that the equipment is suitable for alternating current only.

This symbol indicates that the device should not be used around the eyes and on or near the eyebrows.

This symbol means: 'Do not use this device in a bathtub, shower or water-filled reservoir.'

This symbol means that the transformer is designed to be short-circuit proof.

	This symbol means that the transformer is considered a Switch Mode Power Supply (SMPS) unit.
	This symbol means that the device is designed for indoor use.
	This symbol indicates the rated maximum ambient temperature at which the transformer may be operated continuously under normal conditions of use.
	This symbol indicates that the device is intended to be usable up to the maximum altitude of 3000 m.
	This recycling symbol identifies the material of which an item is made, to facilitate recycling or other reprocessing. The symbol may include a number and/or abbreviation.
	This symbol indicates that a specific separate supply unit is required for connecting electrical equipment to the supply mains.
	This symbol identifies the switch or switch position by means of which part of the equipment is switched on in order to bring it into the stand-by condition, and to identify the control to shift to or to indicate the state of low power consumption.
	This symbol indicates the protection against ingress of solid foreign objects ≥12.5 mm and against harmful effects due to the ingress of vertical dripping water when tilted at 15 degrees.
	This symbol indicates the protection against ingress of solid foreign objects ≥2.5 mm and that there is no protection for harmful effects due to the ingress of water.
	This symbol indicates the energy efficiency level.
	This symbol indicates that the power adapter should not be used if the plug pins are damaged.
	This symbol means an object is capable of being recycled - not that the object has been recycled or will be accepted in all recycling collection systems.
	This symbol indicates WEEE, waste electrical and electronic equipment. Electrical waste products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice (see 'Recycling').
	This symbol means that this product contains batteries which shall not be disposed of with normal household waste (2006/66/EC).
	The symbol for the Green Dot ('Der Grüne Punkt' in German). The Green Dot is the license symbol of a European network of industry-funded systems for recycling the packaging materials of consumer goods.
	This symbol is applied to products to indicate that they conform with relevant EU directives regarding health and safety or environmental protection.

The FSC (Forest Stewardship Council) logo signifies that the product comes from responsible sources—environmentally appropriate, socially beneficial and economically viable.

Inhalt

Willkommen 32

Produktüberblick 33

Gegenanzeigen 33

Diagram of a container with liquid droplets suspended from a surface, enclosed in a circular frame (no text or symbols)

Diagram showing two droplets approaching a surface with droplets on the ridges (no text or symbols)

Diagram of a droplet formation inside a circular container, showing liquid droplets and a horizontal strip (no text or symbols)

Illustration of a hand using a tool to brush through droplets onto a surface (no text or symbols)

Illustration of a human hand and foot with shaded areas indicating areas of interest (no text or symbols)

1 2 3 4 5 ← ▶ ○

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

①②③④⑤

Illustration of a human leg with a shaded ankle and arrow indicating movement or pressure point (no text or symbols)

READY

Line drawing of a handheld device with a black arrow pointing to a button (no text or symbols)

Hand holding a button on a device with numbered buttons and an 'OK' button, illustrating a function or action.

① ② ③ ④ ⑤

Simple clock icon with a circular arrow, no text or symbols present

24 hours

Warning symbol with exclamation mark inside triangle, commonly used for safety alerts

Diagram showing a cable with a connector and an electrical socket connected to a wall-mounted device, with directional arrows indicating connection.

Diagram showing cable connection with a plug and a socket, illustrating electrical switch behavior

Illustration of a hand holding a pipette above a cloth, no text or symbols present

Illustration of a hand holding a small electronic device with an arrow indicating rotation (no text or symbols)

Diagram showing a hand inserting a component labeled 'A' into a device, likely illustrating a mechanical or electrical process.

Illustration of a hand holding a small electronic device with an arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a small electronic component with an arrow indicating rotation (no text or symbols)

Körper-Aufsatz

Simple line drawing of a stylized human face inside a circle (no text or symbols)

Simple line drawing of a desk with a chair and arm, enclosed in a circle (no text or symbols)

Simple line drawing of a human torso inside a circle (no text or symbols)

Simple line drawing of a person's abdomen and backrest within a circle (no text or symbols)

Line drawing of a medical device with a circular inset showing internal components (no text or symbols)

Illustration of a human leg with a shaded knee area and arrow indicating movement (no text or symbols)

Diagram illustrating foot massage technique with magnified view of stress distribution around a bar magnet

Illustration of a hand holding a violin with a cross mark (no text or symbols)

Diagram of a mechanical component with liquid droplets and a central shaft, enclosed in a circular frame (no text or symbols)

Diagram showing two droplets approaching a surface with droplets on the ridges (no text or symbols)

Diagram of a droplet formation process inside a circular container (no text or symbols)

Illustration of a hand using a tool to spray particles into a surface, with droplets visible below (no text or symbols)

Illustration of a human foot and hand in contact, showing anatomical positioning (no text or symbols)

1 2 3 4 5 ← ▶ ○

Illustration of a hand holding a small electronic device with an arrow indicating rotation (no text or symbols)

① ② ③ ④ ⑤

Illustration of a human foot and ankle joint with a shaded area indicating movement or pressure (no text or symbols)

Line drawing of a handheld device with a black arrow pointing to a button (no text or symbols)

Hand-drawn diagram showing a hand pressing a button on a device with numbered buttons from 1 to 5 and an 'OK' button.

Anatomical diagram of human lower back with numbered labels pointing to specific regions.

Simple clock icon with a circular arrow, no text or symbols present

24 hours

Warning symbol with exclamation mark inside triangle, commonly used to indicate caution or hazard

Diagram showing a cable with a plug inserted into an electrical socket, with an arrow indicating direction of installation or connection.

Hand-drawn diagram showing finger pressing a button on a device with numbered labels ① to ⑤

Hand-drawn diagram showing a hand pressing a button on a water level with numbered buttons and an 'OK' button.

Illustration of a human foot and ankle joint with a black arrow indicating movement or force direction (no text or symbols)

Medical illustration showing foot and leg anatomy with a device and magnified view of the foot's leg area, likely for surgical or orthopedic procedure.

Diagram showing cable installation with a connector and a magnified view of the socket, indicating cable movement or installation direction.

Illustration of a hand holding a small object with liquid being poured into it (no text or symbols)

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small electronic device with an arrow indicating left motion (no text or symbols)

Illustration of a hand holding a small electronic device with an arrow indicating rotation (no text or symbols)

Simple line drawing of a stylized human face inside a circle (no text or symbols)

Simple line drawing of a stylized object inside a circle (no text or symbols)

Simple line drawing of a human figure in a circle (no text or symbols)

Simple line drawing of a human figure in a circle, no text or symbols present

Line drawing of a medical device with a circular dial and control panel, no text or symbols present

Illustration of a human leg with a foot and a shaded area indicating a specific area, showing a right-pointing arrow (no text or symbols present)

Diagram illustrating foot massage technique with labeled motion arrows and a magnified circular diagram showing magnetic field lines around a rectangular object.

Illustration of a person crossing a horizontal line with a circular object, no text or symbols present

Diagram of a container with liquid droplets inside, enclosed in a circular frame (no text or symbols)

Diagram showing three droplets approaching a surface with droplets on the ridges (no text or symbols)

Diagram of a droplet formation process inside a circular container (no text or symbols)

Illustration of a hand using a tool to brush through droplets on a surface (no text or symbols)

Illustration of a human foot and ankle joint (no text or symbols)

Illustration of a hand holding a car component with an arrow indicating rotation (no text or symbols)

Illustration of a human foot and ankle joint with a shaded area indicating movement or pressure (no text or symbols)

Line drawing of a handheld device with a scroll wheel and a black arrow pointing to the left side (no text or symbols)

①②③④⑤ ← +

Anatomical diagram of human lower limbs with numbered labels pointing to specific regions.

Simple clock icon with an arrow indicating rotation (no text or symbols)

24 hours

Warning symbol with exclamation mark inside a triangle

Line drawing of a medical device with a black arrow pointing to a button (no text or symbols)

Medical illustration showing foot and ankle with a shaded area and magnified view of muscle fibers or muscle layers

Diagram showing cable connection with a plug and a wall socket, illustrating installation or disassembly process.

Illustration of a hand holding a droplet over a surface, with a pipette above (no text or symbols)

et rangement

Illustration of a hand holding a small device with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding a connector with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small electronic device with an arrow indicating rotation (no text or symbols)

Simple line drawing of a stylized human face inside a circle (no text or symbols)

Simple line drawing of a book with a bookmark, enclosed in a circle (no text or symbols)

Simple line drawing of a human torso inside a circle (no text or symbols)

Simple line drawing of a person's abdomen and hip, enclosed in a circle (no text or symbols)

Line drawing of a medical device with a circular dial and control panel (no text or symbols)

Illustration of a human leg with a foot and a shaded knee joint, showing a black arrow pointing to the knee area (no text or symbols present)

Medical illustration showing foot and ankle with a shaded knee joint, accompanied by an electrostatic coil diagram illustrating magnetic field lines around a rectangular coil.

Illustration of a person holding a stringed object with a circular object, no text or symbols present

Diagram of a mechanical component with droplets and a central body, enclosed in a circular frame (no text or symbols)

Diagram showing two droplets approaching a surface with droplets, labeled with number 2 (no text or symbols on the droplet itself)

Diagram of a droplet formation process inside a circular container (no text or symbols)

Illustration of a hand using a tool to spray particles into a surface (no text or symbols)

Illustration of a human foot and hand in a seated posture (no text or symbols)

Illustration of a hand holding a connector with an arrow indicating rotation (no text or symbols)

Hand-drawn diagram showing finger pressing a button on a device with numbered buttons from 1 to 5

Illustration of a human foot with a shaded ankle area and arrow indicating movement (no text or symbols)

Line drawing of a handheld device with a black arrow pointing to a button (no text or symbols)

Hand-drawn diagram showing a hand pressing a button on a device with numbered buttons labeled 1 to 5.

Anatomical diagram of human leg with numbered labels pointing to specific regions or areas.

Simple clock icon with an arrow indicating rotation (no text or symbols)

24 hours

8 Attendete 24 ore.

Warning symbol with exclamation mark inside triangle, commonly used to indicate caution or hazard

Diagram showing a cable with a plug connected to an electrical outlet, with an arrow indicating direction of installation or connection.

① ② ③ ④ ⑤

Hand holding a button on a device with numbered buttons and an 'Power' indicator, illustrating a function or control interface.

Illustration of a human foot and ankle joint with a shaded area indicating a specific area (no text or symbols present)

Medical illustration showing foot and leg anatomy with a device and magnified view of the foot's leg area, likely for surgical or orthopedic procedure.

Diagram showing cable installation with a plug and a device, illustrating electrical connection or repair process.

Illustration of a hand holding a small object with liquid being poured into it (no text or symbols)

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small electronic device with an arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a small device with an arrow indicating rotation (no text or symbols)

Simple line drawing of a stylized human face inside a circle (no text or symbols)

Simple line drawing of a stylized object inside a circle (no text or symbols)

Simple line drawing of a human figure inside a circle (no text or symbols)

Simple line drawing of a person's abdomen and hip, enclosed in a circle (no text or symbols)

Line drawing of a medical device with a circular inset showing a control panel (no text or symbols)

Illustration of a foot and ankle with a shaded area indicating a specific area, no text or symbols present.

Medical illustration showing foot and ankle with a magnified view of muscle fibers or muscle layers, including directional arrows and concentric circles.

Illustration of a person crossing a horizontal line with a circular object, no text or symbols present

Diagram of a mechanical or fluidic component with droplets and a central body, enclosed in a circular frame (no text or symbols)

Diagram showing two droplets approaching a surface with droplets (no text or symbols)

Diagram of a medical or laboratory procedure showing liquid droplets entering a container (no text or symbols)

Illustration of a hand using a tool to brush through droplets on a surface (no text or symbols)

Illustration of a human leg with shaded areas indicating specific regions (no text or symbols)

Illustration of a hand holding a small electronic component with an arrow indicating rotation (no text or symbols)

Illustration of a human foot with a shaded object and arrow indicating movement or pressure (no text or symbols)

Line drawing of a handheld device with a scroll wheel and a black arrow pointing to the right side (no text or symbols)

①②③④⑤ ← ●

Anatomical diagram of human lower back with numbered labels pointing to specific regions.

Simple clock icon with an arrow indicating rotation (no text or symbols)

24 hours

Warning symbol image with exclamation mark inside triangle

Diagram showing a cable with a plug inserted into an electrical socket, with an arrow indicating direction of installation or repair.

Hand-drawn diagram showing finger pressing a button on a device with numbered buttons from 1 to 5

Hand-drawn diagram showing a hand pressing a button on a device with numbered buttons from 1 to 5 and an 'OK' button.

Illustration of a human foot and ankle joint with a shaded area indicating movement or pressure (no text or symbols)

Line drawing of a handheld device with a button and arrow indicating left side (no text or symbols)

Medical illustration showing foot and ankle with a shaded implant and magnified view of internal tissue structure with directional arrows

Diagram showing cable connection with a plug and a wall socket, illustrating installation or repair process.

Illustration of a hand holding a small object with liquid being poured into a pipette (no text or symbols)

Illustration of a hand holding a small electronic device with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small electronic device with an arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

Lichaamsopzetstuk

Simple line drawing of a human face inside a circle (no text or symbols)

Simple line drawing of a chair inside a circle (no text or symbols)

Simple line drawing of a human torso inside a circle (no text or symbols)

Simple line drawing of a person's abdomen and backrest within a circle (no text or symbols)

Illustration of a medical device with a circular dial and control panel, no text or symbols present

Illustration of a foot and ankle joint with a shaded area and arrow indicating movement or pressure (no text or symbols)

Diagram illustrating foot massage technique with labeled motion arrows and a magnified circular diagram showing wave patterns around a rectangular object.

Illustration of a person crossing a horizontal line with a circular object above, no text or symbols present

Diagram of a container with liquid droplets inside, enclosed in a circular frame (no text or symbols)

Diagram showing two droplets approaching a surface with droplets, no text or symbols present

Diagram of a droplet formation process inside a circular container (no text or symbols)

Illustration of a hand using a tool to spray liquid droplets onto a surface (no text or symbols)

Illustration of a human foot and ankle joint (no text or symbols)

1 2 3 4 5 ← ▶ ○

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

① ② ③ ④ ⑤

Illustration of a human foot and ankle joint with a shaded area indicating a specific area (no text or symbols present)

Line drawing of a handheld device with a black arrow pointing to a button (no text or symbols)

Hand-drawn diagram showing a hand pressing a button on a device with numbered buttons from 1 to 5.

Anatomical diagram of human lower back with numbered labels pointing to specific regions

Simple clock icon with a circular arrow, no text or symbols present

24 hours

8 Espere 24 horas.

Warning symbol with exclamation mark inside triangle, commonly used to indicate caution or hazard

Diagram showing a cable with a plug connected to an electrical outlet, with an arrow indicating direction of connection or movement.

Hand-drawn diagram showing finger pressing a button on a device with numbered buttons labeled ① to ③

Hand holding a device with numbered buttons and an 'OK' button, illustrating a control or action interface.

Illustration of a human foot and ankle joint with a shaded area indicating a specific area (no text or symbols present)

Line drawing of a handheld device with a black arrow pointing to a button (no text or symbols)

Illustration of a foot and ankle with a foot highlighted, showing a medical or therapeutic device (no text or symbols present)

Diagram showing a cable being inserted into an electrical socket, with arrows indicating direction of insertion or disassembly.

Illustration of a hand holding a small object with liquid being poured into a pipette (no text or symbols)

Illustration of a hand holding a small electronic device with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small electronic device with an arrow indicating left motion (no text or symbols)

Illustration of a hand holding a small electronic device with an arrow indicating rotation (no text or symbols)

Acessório corporal

Simple line drawing of a stylized human face inside a circle (no text or symbols)

Acessório para as axilas (BRI951, BRI957, BRI958, BRI976, BRI977)

Simple line drawing of a stylized object inside a circle (no text or symbols)

Simple line drawing of a human torso inside a circle (no text or symbols)

Simple line drawing of a human figure inside a circle (no text or symbols)

Line drawing of a medical device with a circular inset showing a control panel (no text or symbols)

Illustration of a foot and ankle with a shaded area and arrow indicating movement or pressure (no text or symbols)

Medical illustration showing foot and ankle with a shaded area and magnified view of a coil or coil structure with directional arrows.

Illustration of a person holding a cross-shaped object, possibly a medical or symbolic symbol (no text or symbols present)

com luz solar natural ou artificial
