S047 - Warming device BUFFALO - Free user manual and instructions

Product type	Hot holding appliance (bain-marie)
Brand	Buffalo
Model	S047
Power supply	230 V ~ 50 Hz, 1300 W, 5.5 A
Dimensions (H x W x D)	245 x 340 x 605 mm
Weight	11 kg
Tank capacity	Between MIN and MAX marks (not specified)
Number of pans supplied	2 pans 1/3 and 2 pans 1/6
Separator bars	Yes, included
Drain tap	Yes
Adjustable thermostat	Yes
Power indicator light	Red, turns off when temperature reached
Resettable thermal circuit breaker	Yes, under the appliance between the rear feet
Exterior material	Stainless steel
Usage	Indoor use only
Cleaning	Exterior with a damp cloth, removable parts with warm soapy water
Electrical connection	Grounded mains socket (brown wire L, blue N, green/yellow E)
Compliance	CE, WEEE

Frequently Asked Questions - S047 BUFFALO

How to turn on the Buffalo S047?

Plug in the appliance, fill the tank with water between the MIN and MAX marks, turn the switch to On (red light on), then set the thermostat to the desired temperature. The light turns off when the temperature is reached.

What water to use in the bain-marie?

Buffalo recommends using fresh water each time. Do not exceed the MAX mark and do not let the level drop below MIN during operation.

How to clean the Buffalo S047?

Turn off and unplug the appliance, let it cool down. Clean the exterior with a damp cloth. Wash the removable pans and separator bars with warm soapy water. Dry thoroughly.

What to do if the appliance stops heating?

First check that the appliance is plugged in and turned on. If the thermal circuit breaker has tripped, wait for the appliance to cool down, then press the reset button located under the appliance between the rear feet with a round-tipped instrument until you hear a click.

How to drain the water from the Buffalo S047?

Turn off the appliance and let the water cool down. Open the drain tap and place a suitable container to collect the water.

What are the dimensions and weight of the S047?

Dimensions: 245 x 340 x 605 mm (H x W x D). Weight: 11 kg.

Is the Buffalo S047 supplied with pans?

Yes, it comes with 2 pans 1/3 and 2 pans 1/6, as well as separator bars.

Can I use the appliance without water?

No, never operate the appliance without water. The level must always remain above the MIN mark to avoid damaging the heating element.

What electrical power does the Buffalo S047 require?

It operates on 230 V ~ 50 Hz, with a power of 1300 W and a current of 5.5 A. It must be connected to a grounded socket.

How to know when the temperature is reached?

The red indicator light turns off when the set temperature is reached. You can then lower the thermostat to maintain the temperature.

USER MANUAL S047 BUFFALO

Exterior view of a stainless steel rectangular kitchen appliance with a side-mounted control panel and a yellow warning label (no readable text or symbols on the device itself)

Exterior view of a stainless steel multiflorine heat exchanger with four side outlets and control panel (no visible text or symbols)

Table of Contents

Safety Tips ....I

Product Description ....I

Introduction ....I

Pack Contents 2

Operation 2

Maintaining Water Levels 2

Emptying the Appliance 2

Thermal Cut-Out Reset 3

Cleaning, Care & Maintenance ....3

Troubleshooting 3

Technical Specifications 4

Electrical Wiring 4

Compliance 4

Inhoudsopgave

Veiligheidstips 5

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation
• BS EN Codes of Practice
- Fire Precautions
- IEE Wiring Regulations
• Building Regulations

• DO NOT immerse the appliance in water, or use jet/pressure washers to clean it.
• DO NOT touch hot surfaces with bare hands. Always use the handles/protective gloves.
• DO NOT overfill the appliance. Keep the water level below the 'MAX' level.
• DO NOT allow the water level to drop below the 'MIN' level during operation.
• DO NOT move the appliance when it contains hot liquid.
• DO NOT use the appliance for anything other than its intended use.
• Always switch off and disconnect the power supply to the appliance when not in use.
• Not suitable for outdoor use.
• Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.
• If the power cord is damaged, it must be replaced by an BUFFALO agent or a recommended qualified technician in order to avoid a hazard.

Product Description

Model Tap Pans Pots
L310	√	×	×
L371	×	×	×
S007	×	√	×
S047	√	√	×
S077	×	×	√

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this appliance will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• B U F F A L O B a i n s •M.2 litre pots x 2 (S077 only)
- Pans 2 x 1/3 and 2 x 1/6 (S007/S047 only) - Instruction manual
• Support bars (S007/S047 only)

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

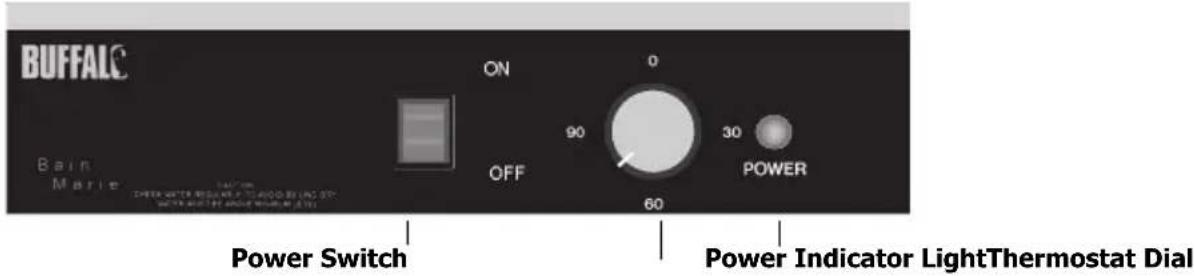

Operation

I. Connect the appliance to the power supply.
2. Fill the tank with water to a level between the 'MIN' and 'MAX' marks on the inside of the tank.

Note: BUFFALO recommend that fresh water be used each time the appliance is used.

1. Switch the power switch to the On position [I]. The red power indicator light will turn on.

2. Turn the thermostat to the desired temperature to heat-up the appliance.

3. Once the appliance has heated the water the power indicator light turns Off.

4. Reduce the heat setting on the Thermostat to maintain temperature.

WARNING: Do not allow the water to drop below the 'MIN' level during operation. Severe damage to the heating element could result.

Maintaining Water Levels

It is important to regularly check the water level in the Bains Marie tank.

• Always keep the water level above the 'MIN' mark on the inside of the tank during operation.

- Damage to the heating element can occur if the tank boils dry and the element may have to be replaced.

- This is not covered by the BUFFALO warranty.

Emptying the Appliance

Note: Always switch the appliance off allow the water to cool before emptying.

L310/S047 - Turn on the tap to drain the water. Ensure a suitable container is used to collect the water.

L371/S007/S077 - Use a suitable container to remove the water from the appliance.

Thermal Cut-Out Reset

This appliance is fitted with a Thermal Cut-Out safety feature. Should the temperature exceed safe levels the appliance will automatically cut power.

The Safety Cut-out switch is located on the underside of the appliance. To reset the appliance after a sufficient cool-down period:

I. Press the small reset switch down until it clicks, using a blunt pointed instrument.

1. The appliance is now reset and can be used as normal.

WARNING: Ensure the appliance has cooled down and is empty before resetting the switch, as it may need to be tipped slightly to gain access to the switch.

Cleaning, Care & Maintenance

Note: Always switch off and disconnect the appliance from the power supply before cleaning. Always allow the appliance to cool before emptying or cleaning.

- Wipe down the exterior of the appliance with a damp cloth.

- Some cleaning agents may cause damage when used for a prolonged period on stainless steel. Use a suitable stainless steel cleaner.

• Dry the exterior thoroughly.

- Wash all removable parts in warm, soapy water.

Troubleshooting

If your BUFFALO appliance develops a fault, please check the following table before making a call to the Helpline.

Fault Probable Cause Action
The unit is not working The unit	is not switched on Check the unit is plugged in correctly and switched on
	Plug and lead are damaged Call BUFFALO agent or qualified technician
	Fuse in the plug has blown Replace the plug fuse
	Power supply Check power supply
	Internal wiring fault Call BUFFALO agent or qualified technician
	The Thermal Cut-Out switch has activated Reset Thermal Cut-Out switch
	The thermostat has not been set correctly Set the thermostat to a higher temperature
	The heating element has failed Call BUFFALO agent or qualified technician

Technical Specifications

Model Voltage Power Current				Dimensions h x w x d mm	Weight
L310 230V 50Hz 1300W		5.5A 245 x 340 x 605 8.5kg
S047	230V 50Hz 1300W 5.5A			245 x 340 x 605 11kg
S007	230V 50Hz 1300W 5.5A			245 x 340 x 580 10.5kg
L371	230V 50Hz 1300W 5.5A			245 x 340 x 580 8kg
S077	230V 50Hz 1300W 5.5A			295 x 340 x 580 10.7kg

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard. The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO. Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •

• Declaración de conformidad • Declaração de conformidade • Överensstämmelseförsäkran •
• Overensstemmelseserklæring • Konformitetserklæring • Selvitys vaatimustenmukaisuudesta •

EMC Directive 89/336/EEC

Low Voltage Directive 89/336/EEC

EN55014-1:2000+AI:2001

EN55014-2:1997:+AI:2001

EN61000-3-2:2000

EN61000-3-3:1995+A|:2001

EN60335-1:2002+AI:2004+AII:2004

EN60335-2-30:2003

EN60366:2003+AI:2006

BUFFALO

Fourth Way

Avonmouth

Bristol

BSII 8TB

United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
