Product Type	Daylight lamp / Light monitor
Brand	Mybeo
Model	306994
Power supply (input)	220-240 V AC, 50/60 Hz
Power supply (output)	20 V DC, 0.6 A
Number of LEDs	72 SMD
Color temperature	2700 - 6500 K
Brightness levels	5
Lighting modes	3: cool white, warm white, mixed white
Timer function	Yes, adjustable in minutes
Timer display	Yes, level in minutes
Support base	Yes, adjustable
Replaceable light source	No, the entire luminaire must be replaced
Water protection	Not waterproof, use in dry location
Usage	Indoor use only
Safety	Not suitable for children under 36 months; do not open; do not immerse
Package contents	Daylight lamp, 20 V DC power supply
Recycling	Do not dispose of with household waste; deposit at WEEE collection point

Frequently Asked Questions - 306994 Mybeo

How to turn the lamp on and off?

Press the ON/OFF/TIMER button to turn on. To turn off, hold this button for about 3 seconds until the light turns off.

How to adjust brightness?

Use the brightness level button to scroll through the 5 available levels.

What are the available lighting modes?

The 3 modes are: cool white, warm white and mixed white. Use the lighting mode button to cycle through them.

How to use the timer function?

First turn on the lamp, then press the timer button and select the desired duration. The duration is displayed in minutes. Once the time is up, the lamp turns off automatically.

Is the light source replaceable?

No, the light source is not replaceable. At the end of its life, the entire luminaire must be replaced.

Which power adapter to use?

Use only the provided power supply: 20 V DC, hollow plug 3.5 mm x 1.35 mm, input 220-240 V AC.

Can I use the lamp outdoors?

No, the lamp is not waterproof. Use it only in a dry location, away from humidity, water, and snow.

What to do if the lamp does not turn on?

Check that the adapter is properly connected to the lamp and to a working power outlet. If the problem persists, contact customer service.

Is this device safe for children?

The device is not a toy. It is not suitable for children under 36 months due to small parts. Supervision is required when children are present.

How to recycle the lamp at end of life?

Do not dispose of the device with household waste. Deposit it at a collection point for waste electrical and electronic equipment (WEEE) or return it to the store when purchasing an equivalent product.

USER MANUAL 306994 Mybeo

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

- CHOKING HAZARD. The device contains small parts that may be swallowed by children. Not suitable for children under 3 years.

• This product is not a toy!

- To reduce the risk of injury, strict monitoring is required when this product is used around children.

- The daylight lamp should occasionally be inspected for damage, such as a damage to the housing or damage to the parts. If a defect is found, do not operate the daylight lamp.

• To reduce the risk of electric shock, do not immerse the product in water. Do not keep the device in places where it can easily fall down.
• Do not open the product and do not remove any inner and outer parts.
• The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.

Thank you for choosing a mybeo product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1. Scope of delivery

• Daylight lamp
  • 20V DC hollow power plug (3.5mm x 1.35mm)

2. Technical data

Power supply (Daylight lamp) 20V DC 0.6A
Voltage supply (Adapter)	220-240V AC 50/60Hz (Input)20V DC 0.6A (Output)
Lighting elements 72 x SMD
Light temperature 2700 - 6500K
Features	5 Brightness levelsON/OFF + 3 light modesBaseTimer function

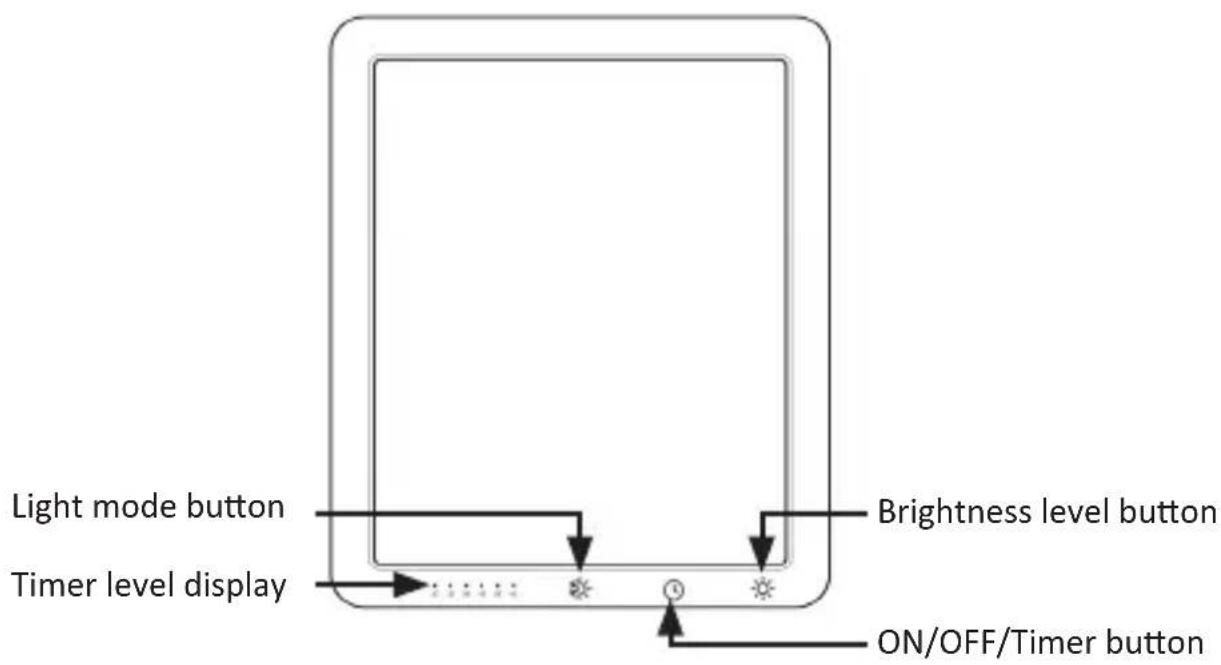

3. Product details

Light mode button Timer level display Brightness level button ON/OFF/Timer button

4. Start-up

Remove the device from the packaging and remove all packaging material. Set up the daylight lamp using the stand and align it as required. Connect the supplied 20V DC hollow plug power supply unit to the daylight lamp and a properly connected socket.

To switch on the device, press the “ON/OFF/TIMER” button. To switch the device off, press and hold the “ON/OFF/TIMER” button for about 3 seconds until the light goes out.

You can use the brightness level button to switch through the various brightness levels.

You can use the light mode button to switch through the different light modes. You can choose between cool white, warm white and mixed white.

5. Timer function

To use the timer function, you must switch on the lamp. When switched on, press the timer button and select the desired time. You can see the currently set timer in minutes in the timer level display. As soon as the set time has elapsed, the lamp switches off.

6. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

7. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 306994 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

12 English
