USER MANUAL Skipper MB6000 UFESA

4. 3mm 6mm 9mm 12mm a b c d

Illustration of a hand holding a device with an arrow pointing to it, no text or symbols present

Illustration of a laptop connected to a power bank via cable (no text or symbols)

Illustration of hands using a pliers to adjust or trim a piece, with an arrow indicating rotation (no text or symbols)

Line drawing of a hand using a hairbrush to trim teeth, with an arrow indicating the step (no text or symbols present)

Illustration of hands using a pliers to cut a piece, showing a curved arrow indicating rotation (no text or symbols)

Line drawing of hands using pliers to cut a piece of material, with an arrow indicating the process (no text or symbols present)

Line drawing of a person's face with a beard and a tool, labeled 'Fig. 7' (no text or symbols on the figure itself)

Line drawing of a person applying a toothbrush to their beak (no text or symbols)

Line drawing of a person applying a toothbrush to their ear (no text or symbols)

Line drawing of a person applying a toothbrush to their ear (no text or symbols)

Side profile sketch of a person's head and neck with a finger inserted, labeled 'Fig. 11' (no text or symbols on the diagram itself)

Side profile sketch of a person's head and neck with a hairpin inserted, labeled 'Fig. 12' (no text or symbols on the diagram itself)

Illustration of hands assembling a mechanical component (no text or symbols visible)

Illustration of hands assembling a mechanical component (no text or symbols visible)

WE WOULD LIKE TO THANKS YOU FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1 Blades
2 On switch
3 Digital display screen
4 Limit comb 3mm(a)/6mm(b)/9mm(c)/12mm(d)
5 USB charging cable
6 Brush
7 Lubricating oil

SAFETY INSTRUCTIONS

This device can be used by children aged 3 or over under supervision. This device can be used by children aged 8 years and above and persons with reduced physical, sensory or mental abilities or lack of experience and knowledge if they are supervised or have received proper instructions regarding use of the device in a safe manner and understand the dangers

involved. Children must not play with the device. Cleaning and maintenance operations to be performed by the user must always be supervised.

This device can only be connected with the USB interface (5VDC, Output Max 1A).

Follow the DEVICE CHARGE instructions in order to charge it.

Follow the device BATTERY REMOVAL instructions for removal of the batteries from the device.

This appliance is intended for use at a maximum altitude of 2000m above sea level.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances.

Do not use the device on wet hair.

Do not use connect or disconnect the device to the mains with your hands or feet wet. Do not use any accessories other than those supplied.

Do not use this device near to bathtubs, showers, sinks or other tanks that contain water.

The mains connection cable must not be tangled or wrapped around the product during use. Do not pull on the cable to unplug it or use it to carry the product.

Do not wrap the cable around the device.

Proceed according to the cleaning section of this manual for cleaning. Do not use the product on animals.

Unplug the product immediately from the mains in the event of any breakdown and contact an authorised Technical support service.

In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official Technical support service may carry out repairs or procedures on the device.

Any incorrect use or improper handling of the product shall render the warranty null and void. Only an authorised technical support service centre may carry out repairs on this product.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

CHARGING THE DEVICE

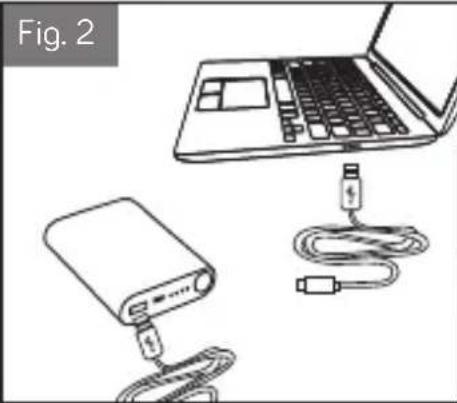

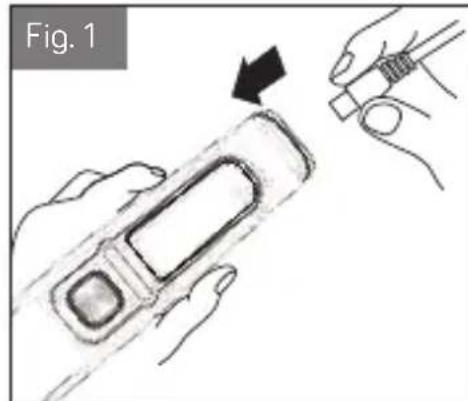

Before using your beard trimmer for the first time, charge for 2-3 hours, and charge 2 hours regularly. Ensure the product is switched off. First insert the plug on the end of the USB charging cable lead into the unit ☐(Fig. 1) and then connect the USB charging cable to the USB interface. This appliance is suitable for 5V DC Max 1A charger, computer and other power interface (Fig. 2), the charging indicator is red when the battery is charging connecting the USB interface, the charging indicator is green when the battery is full.

Your hair clipper cannot be overcharged. However, if the product is not going to be used for an extended period time (2-3 months), unplug it from the mains and store. Fully recharge your hair clipper when you like to use it again.

To preserve the life of your batteries, let them run out every 2 months then recharge for 2-3 hours again.

INSTRUCTIONS FOR USE

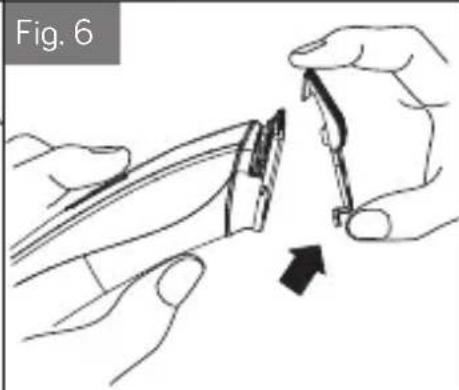

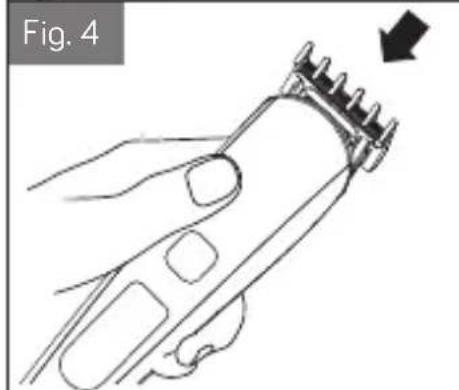

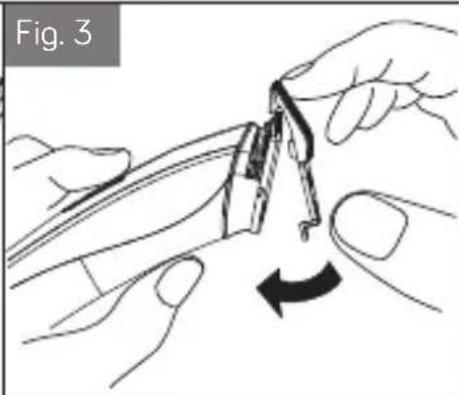

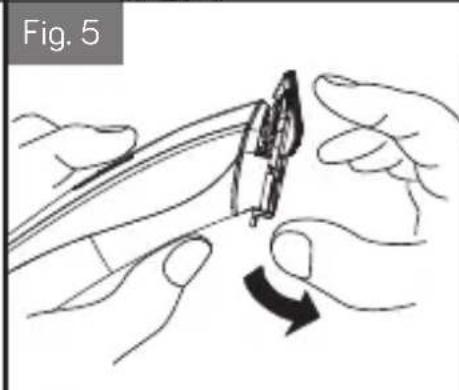

Prior to turning the device on, select the desired comb guide (a,b,c or d) fitting it by pushing forward in a proper way (fig 3-4). If the hand combing needs to be replaced, pull upwards by hand. Open the bottom end of the comb lock and push forward (fig 5-6).

Choose between four levels of matching comb to cut hair of different lengths. The length of the cut is indicated on each limit comb as follows:

Number	Level	length (mm)
1	1	3
2	2	6
3	3	9
4	4	12

HOW TO TRIM BEARD

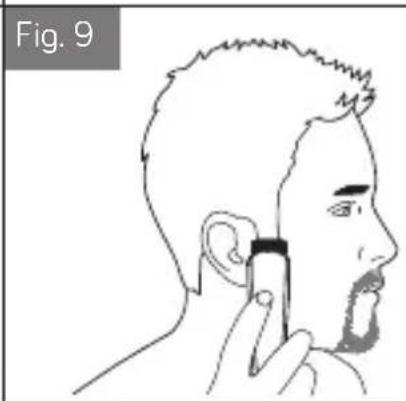

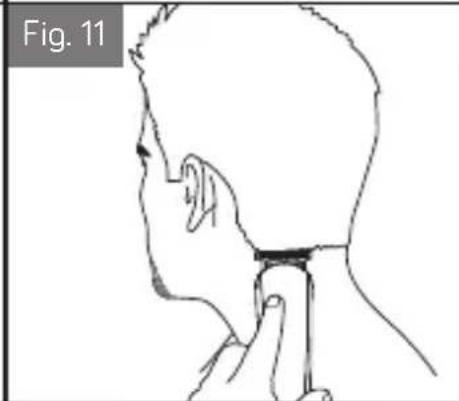

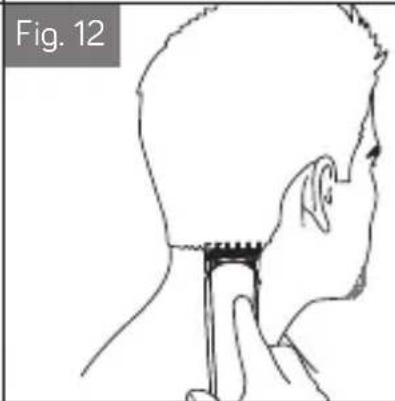

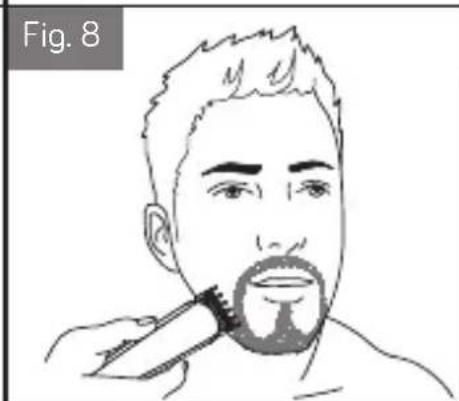

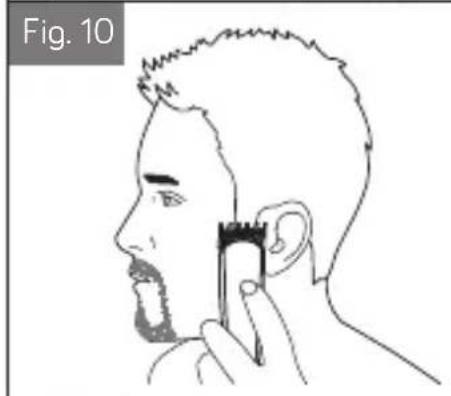

For different beard styling please refer from Fig.7 to Fig.12

MAINTENANCE AND CLEANING

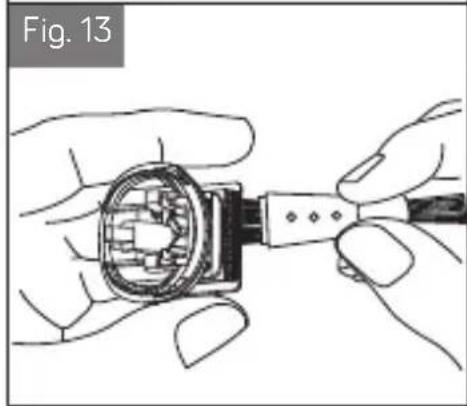

Unplug the product when you do not intend to use it for an extended period of time to prolong its shelf-life. Allow the device to cool down prior to storage. Separate the tool head from the body and use the cleaning brush to remove dust from the internal parts (Fig.13).

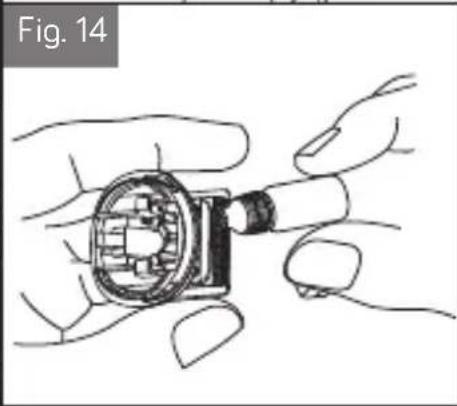

Apply a drop of oil on one of the edges of the blades for their maintenance, and turn on the device for a few seconds to distribute it. This should be done when you notice a certain amount of difficulty during the trimming operation (Fig. 14)

Ensure that the device is unplugged prior to cleaning it.

This device may only be cleaned with a damp cloth, and chemical products must never be used for the same.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection center closest to your home.

The product may contain batteries. Remove them before disposing of the product and dispose in special containers approved for this purpose.

REMOVING BATTERY

The appliance must be disconnected from the supply mains when removing the battery

Ensure that the clipper is discharged of all power First remove the comb.

Then remove the blade.

Unscrew the 2 screws in the blade base of the unit. Unscrew the other screw on the lower back housing of the clipper. Lift or pry the clipper halves apart, exposing the battery.

Cut the metal pieces on both ends of the battery and remove it from the PCB.

Pull downward the battery set from the unit.

The battery must be removed from the appliance before it is scrapped. The battery is to be disposed of safety.

We hope that you will be satisfied with this product.

FRENCH

NOUS VOUS REMERCIONS D'AVOIR CHOISI UFESA, NOUS SOUHAITONS QUE CE PRODUIT VOUS APPORTE SATISFACTION ET QUE VOUS AYEZ PLAISIR À L'UTILISER.

AVERTISSEMENT

VEUILLEZ LIRE ATTENTIVEMENT LES CONSIGNES D'UTILISATION AVANT DE COMMENCER À UTILISER LE PRODUIT. VEUILLEZ CONSERVER CES INSTRUCTIONS DANS UN ENDROIT SÛR POUR POUVOIR VOUS Y RÉFÉRER ULTÉRIEUREMENT.

DESCRIPTION

ÉLIMINATION DU PRODUIT

Diagram showing two types of waste sorting symbols: one with crossed-out bins and the other with crossed-out bins and a blank rectangular bar.

B&B TRENDS, SL. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under

this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BOLETIM DE GARANTIA

Check out your nearest service station at https://sat.ufesa.com/
