USER MANUAL Powerstation PRO AC Mophie

$$ D = \begin{array}{l} 1 0 0 W \ 1 0 0 W \text { MAX } \end{array} $$

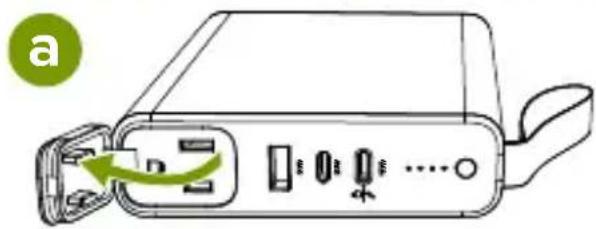

a

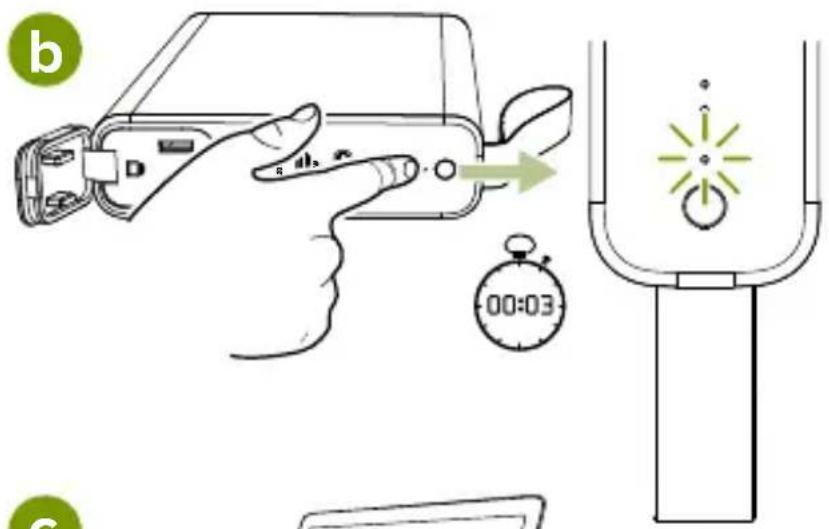

b 00:03

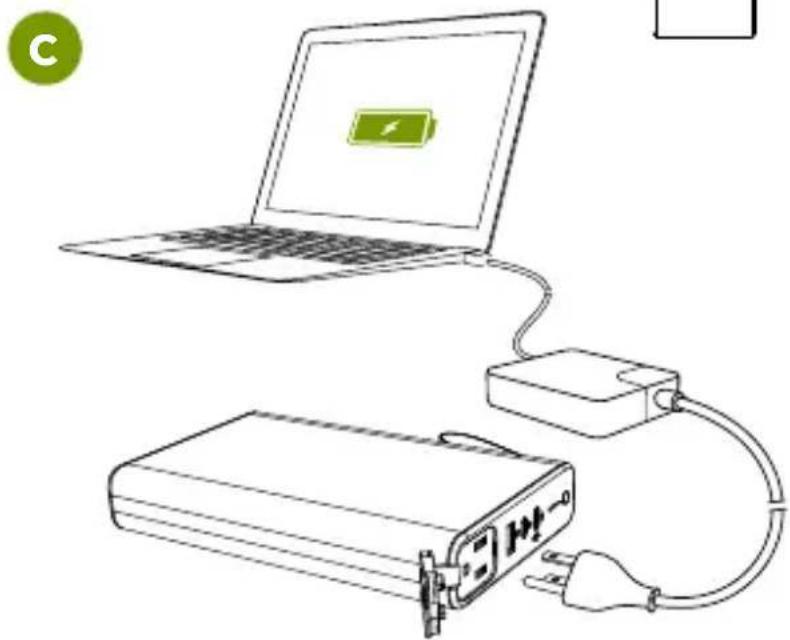

Line drawing of a laptop connected to a battery pack and plug, with a battery icon on the screen (no text or symbols)

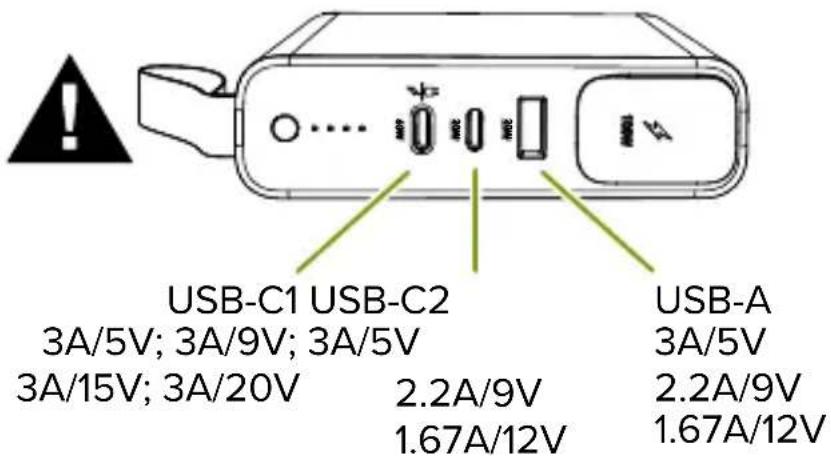

USB-C1 USB-C2 3A/5V; 3A/9V; 3A/5V 3A/15V; 3A/20V 2.2A/9V 1.67A/12V USB-A 3A/5V 2.2A/9V 1.67A/12V

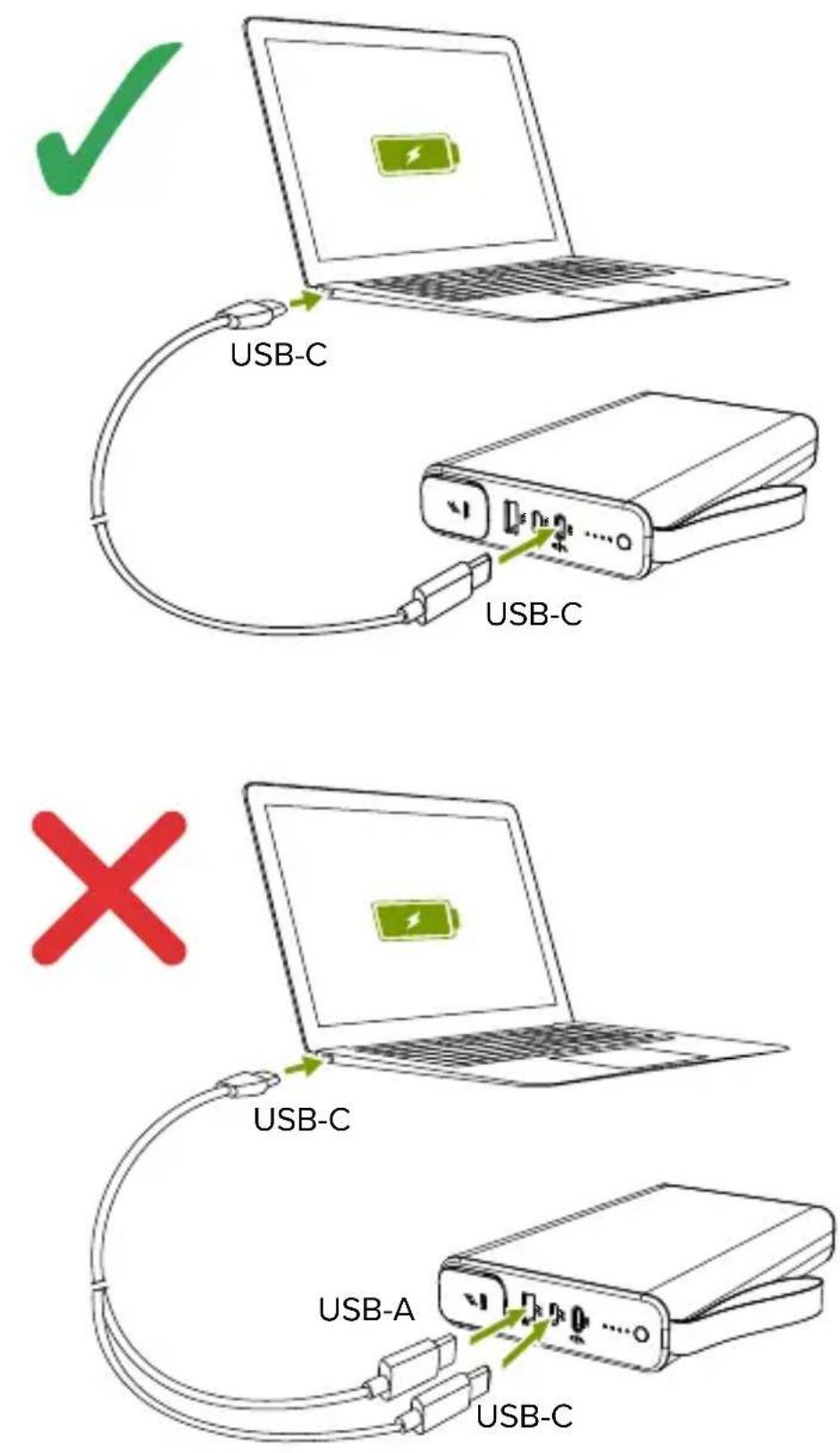

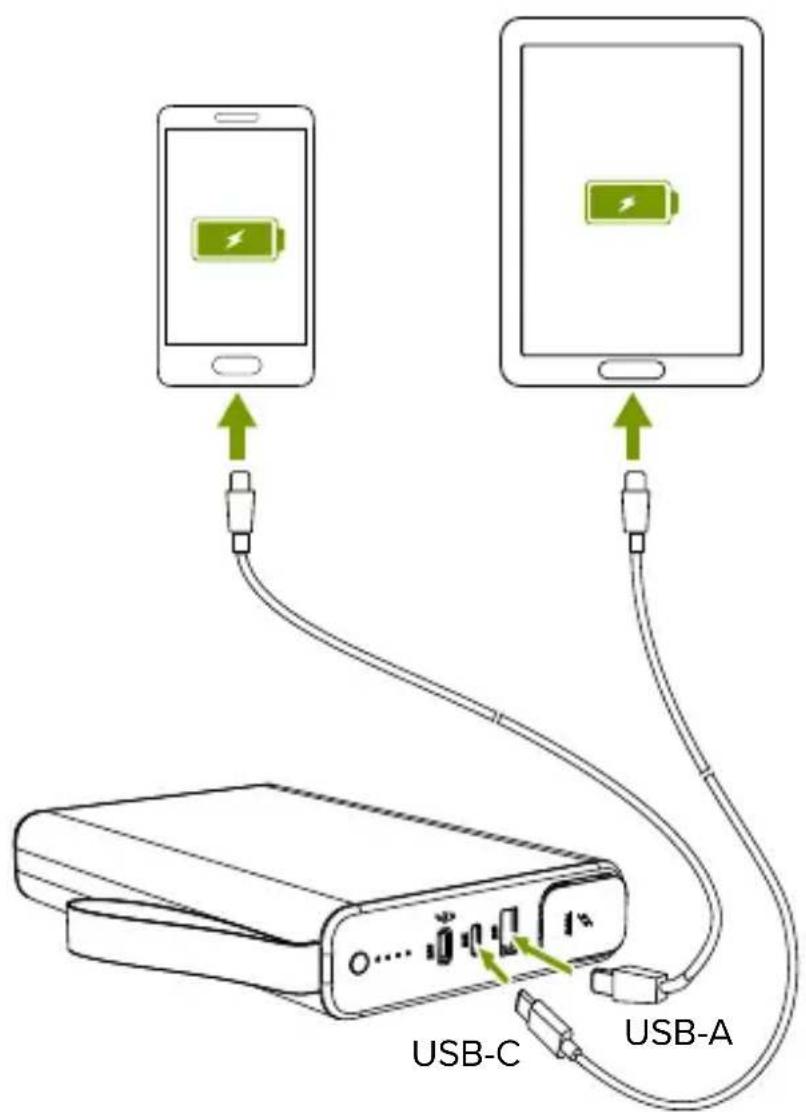

USB-C USB-A

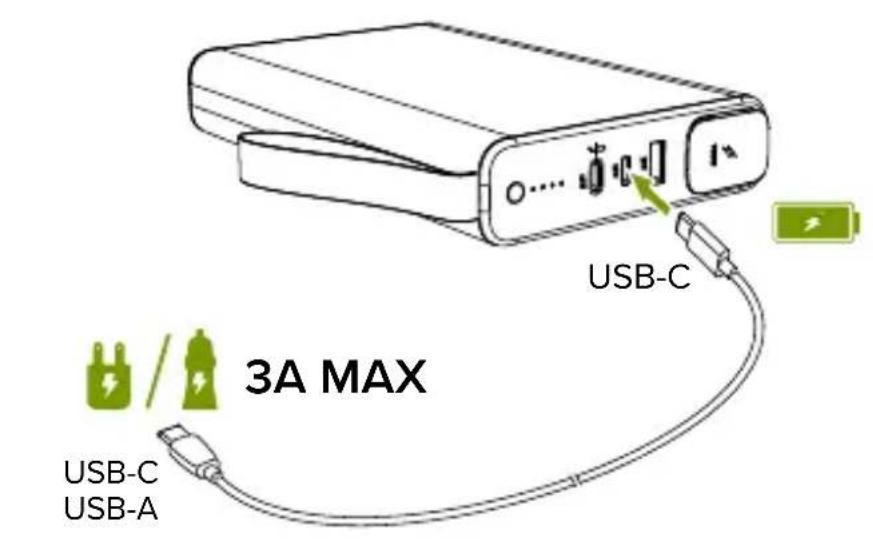

USB-C 3A MAX USB-C USB-A

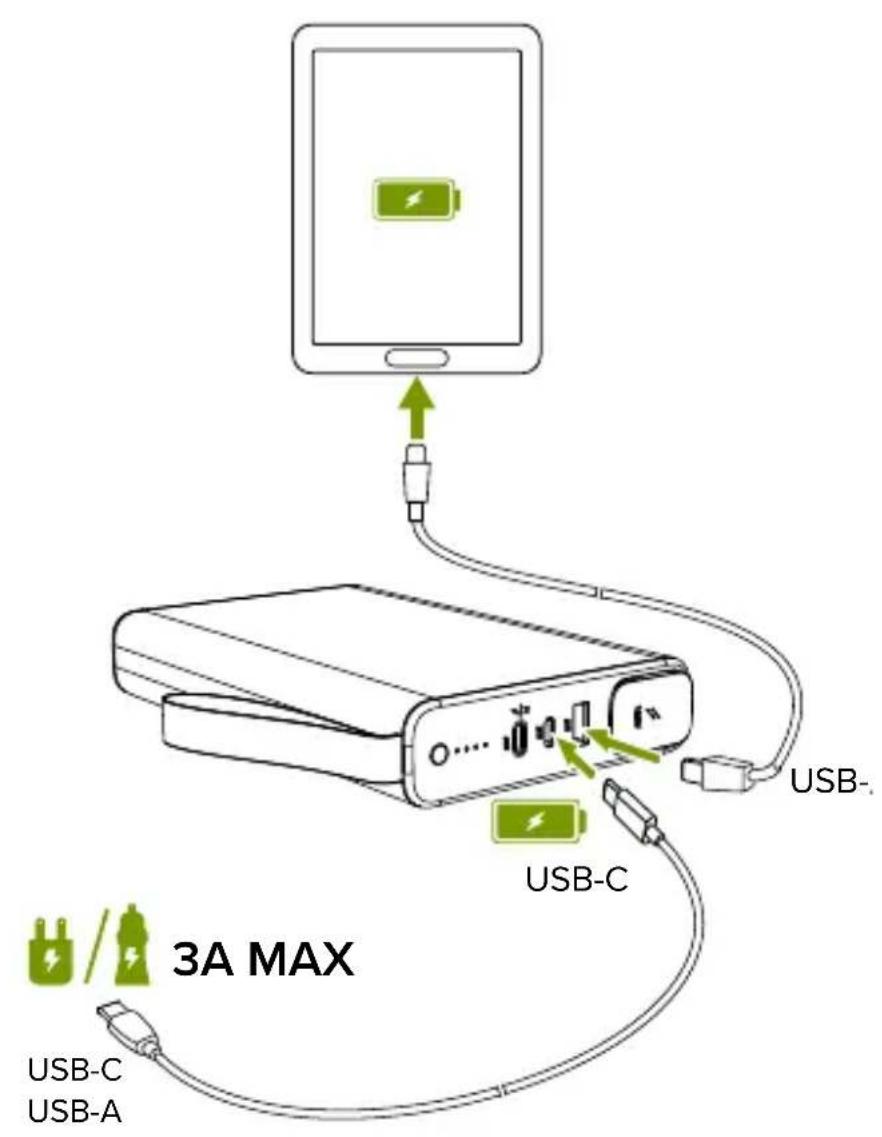

USB- USB-C 3A MAX USB-C USB-A

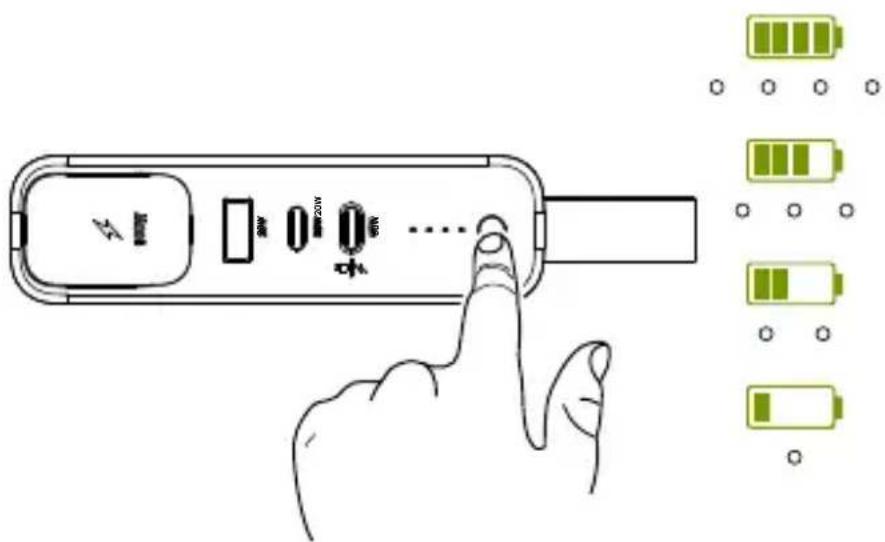

Diagram showing a hand pointing to a device with battery icons and a list of battery symbols, illustrating a process or status.

EN

INSTALLATION INSTRUCTIONS, OPERATING INSTRUCTIONS, MOVING AND STORAGE INSTRUCTIONS

Warranty

At mophie, we are dedicated to making the best quality products. To back this up, this product is warranted for 2 years. For full details regarding warranty terms and exclusions, please visit: mophie.com/warranty. This warranty does not affect any statutory rights that you may be entitled to. Keep a copy of your purchase receipt as proof of purchase. Be sure to register your product at mophie.com.

Exclusions & Limitations

Except for the limited warranty expressly set forth or to the extent restricted or prohibited by applicable law, mophie expressly disclaims any and all other warranties express or implied, including any warranty of quality, merchantability, or fitness for a particular purpose, and you specifically agree that mophie shall not be liable for any special, incidental, indirect, punitive, or consequential damages for breach of any warranty of any type on any mophie product. In addition to and without limiting the generality of the foregoing disclaimers, the limited warranty does not, under any circumstances, cover the replacement or cost of any electronic device or personal property inside or outside of the mophie product.

Customer Service

Telephone: 1-888-8mophie

International: [phone]

Web: www.mophie.com/cs

IMPORTANT SAFETY INSTRUCTIONS

Warning

Improper use of this product may result in product damage, excess heat toxic fume, fire or explosion, for which damages you ("Purchaser"), and not mophie llc ("Manufacturer") are responsible. When using this product, basic precautions should always be followed, including the following:

Read all the instructions before using the product.
To reduce the risk of injury, close supervision is necessary when the product is used near children. Failure to do so is sole responsibility of purchaser, who agrees to indemnify Manufacturer for any unintended use/misuse by a minor.
Do not put fingers or hands into the product.
Use of an attachment not recommended or sold by power pack manufacturer may result in a risk of fire, electric shock, or injury to persons.
To reduce risk of damage to the electric plug and cord, pull the plug rather than the cord when disconnecting the powerstation.
Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
Do not operate the power pack with a damaged cord or plug, or a damaged output cable.
Do not disassemble the power pack, take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock.
To reduce the risk of electric shock, unplug the power pack form the outlet before attempting any instructed servicing.
When charging the internal battery, work in a well-ventilated area and do not restrict ventilation in any way. It should not be operated in an enclosed, unventilated space such as a carrying bag, pocket, or purse. Failure to follow these instructions may cause damage to the powerstation battery by overheating.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Do not expose a power pack to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
Have servicing performed by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the product is maintained.
Do not touch AC output port together at any point.
Do not insert any foreign object into the ports or openings of the product

Do not clean the product with harsh chemicals, soaps or detergents. Just wipe the case with a soft cloth.
Make sure the product's charging ports do not become contaminated with lint or other debris.
Batteries should be recycled or disposed of as per state and local guidelines. Never dispose of batteries in the garbage. Disposal of batteries in the garbage is unlawful under state and environmental law and regulations. Always take used batteries to your local battery-recycling center.
Damage in drop: Beware of the components damages due to the drop of the equipment, and if being damaged, please power off immediately and contact your dealer or our customer center
In the unlikely event of leakage or explosion use sand or a chemical fire extinguisher.
The product may become warm under extended high power operation. Do not cover, wrap, or otherwise restrict the product during operation.
Do not disassemble the product. There are no user-serviceable parts inside. Incorrect reassembly may result in shock or fire hazard. Do not drop or subject to strong impacts.
Do not operate the product if it has received a sharp blow, or has otherwise been damaged in any way.
Do not puncture, crush or subject to mechanical shock. Doing so may cause electric shock to users and damage equipment.
The product, along with its accessories, are not toys and should be kept away from children.
Before using your powerstation battery for the first time, fully charge it (so that pressing the charge status button lights all 4 status LEDs).
Do not connect a device with a power draw of more than 100 watts to the powerstation battery's AC connector.
All products have gone through a thorough quality assurance inspection. If you find that your device is excessively hot, is emitting odor, is deformed, abraded, cut or is experiencing or demonstrating an abnormal phenomenon, immediately stop all product use and contact Manufacturer.

Storage: -4^ - 140^ ( -20^ - 60^ ), Discharge: 14^ - 104^ ( -10^ - 40^ ),

Charge: 32°F – 95°F (0°C – 35°C)

Legal

This product is meant for use only in conjunction with the appropriate device. Please consult your device packaging to determine whether this product is compatible with your particular device. Manufacturer is not responsible for any damages to any device incurred through the use of this product.

Manufacturer shall not in any way be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this product in conjunction with any device or accessory other than the appropriate device for which this product is designed. Manufacturer will not be responsible for any damages you or any third party may suffer as a result of misuse of this product as outlined above. If you are responsible for product use with an unintended device and damages result from such use, you agree to indemnify Manufacturer for any resulting injuries to any third part(ies).

This device complies with part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced technician for help.

CAUTION: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC Rules, this device must be used with certified peripherals and shielded cables. All peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables may result in interference to radio or reception.

MODIFICATION: Any changes or modifications of this device could void the warranty.

This device CONFORMS TO UL STD.60950-1, CERTIFIED TO CSA STD.NO. 60950-1, CONFORMS TO UL STD.2054.
