USER MANUAL Signature Elite ES10 DENON

Safety Instructions....3

What's In The Box....4

How to Connect Your System....4

Signature Elite Series Speaker Positioning....5

Specifications ....7

EXPECT GREAT SOUND

Thank you for choosing the Polk Signature Elite Series of loudspeakers. This new line is bold, stylish and quality-built for performance. The high efficiency Signature Elite Series speakers feature Polk patented Dynamic Balance® tuned drivers and tweeters for clearer highs and more realistic mid-range. Power Port® technology creates bigger, more musical, deep bass impact. The Polk Signature Elite speakers are equipped with an expanded array of high performance state-of-the-art audio technologies that elevate home theater and music with incredible detail. And with their American modern styling, each speaker features gorgeous curves and aggressive accents that fits any décor. Pure and simple, the Polk Signature Elite Series speakers are American HiFi engineered and designed with your entertainment in mind.

Having built our reputation as "The Speaker Specialists" for more than 45 years, we take pride in our superior sound and build quality, which features many patented and award-winning audio innovations. For the people of Polk, building audio products is not just a job—it's a passion. And if you're going to remember one thing, remember this: We live by the truest principle of what audio should deliver—great sound at an affordable price for everyone!

Technical Assistance or Service

If anything is missing or damaged, or if your speaker fails to operate, notify Polk Audio Customer Service immediately at 800-377-7655 (M-F, 9 a.m. - 5:30 p.m. EST, US & Canada only). If, after following the hookup directions, you experience difficulty, please double-check all wire connections. Should you isolate the problem to the speaker, contact the authorized Polk Audio dealer where you made your purchase, or contact Polk Audio Customer Service at 800-377-7655 (M-F, 9 a.m. -5:30 p.m. EST, US & Canada only) or via email [e-mail]. Outside the US & Canada, please visit www.polkaudio.com for support contact details.

WARNING: Listen Carefully

Polk Audio loudspeakers and subwoofers are capable of playing at extremely high volume levels, which could cause serious or permanent hearing damage. Polk Audio, Inc. accepts no liability for hearing loss, bodily injury or property damage resulting from the misuse of its products. Keep these guidelines in mind and always use your own good judgment when controlling volume:

- Limit prolonged exposure to volumes that exceed 85 decibels (dB). For more about safe volume levels, go to the Occupational Health and Safety Administration (OSHA) guidelines at http://www.osha.gov/

Product Disposal

Certain international, national and/or local laws and/or regulations may apply regarding the disposal of this product. For more information, please contact the retailer where you purchased this product or the Polk Importer/Distributor in your country. More information is also available at www.polkaudio.com or by contacting Polk Audio at 5541 Fermi Court, Carlsbad, California 92008, USA. Phone: [phone].

This symbol on our electrical products or their packaging indicates that it is forbidden in Europe to discard the product in question as domestic waste. In order to ensure that you dispose of the products correctly, please dispose of the products according to local laws and regulations on the disposal of electrical and electronic equipment. In doing so you are contributing to the retention of natural resources and to the promotion of environmental protection by the treatment and disposal of electronic waste.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Only use attachments/accessories specified by the manufacturer.

10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled, or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Signature Elite Series

Owner's Manual

Notes On Use

WARNINGS

• Avoid high temperatures. Allow for sufficient heat dispersion when installed in a rack.
• Keep the unit free from moisture, water, and dust.
• Do not obstruct the ventilation holes.
• Do not let foreign objects into the unit.
• Do not let insecticides, benzene, and thinner come in contact with the unit.
• Never disassemble or modify the unit in any way.
• Ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths or curtains.
• Naked flame sources such as lighted candles should not be placed on the unit.
• Do not expose the unit to dripping or splashing fluids.
• Do not place objects filled with liquids, such as vases, on the unit.

A Note About Recycling:

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with the local recycling regulations. When discarding the unit, comply with local rules or regulations.

EU Declaration of Conformity

Hereby, [Sound United, LLC] declares that our product is in compliance with following EU/EC Directives. The full text of the EU declaration of conformity is available at the following internet address:

RoHS: 2011/65/EU, and amendment directive (EU) 2015/863 EU declaration of conformity URL:

https://www.polkaudio.com/declarations-of-conformity"

Sound United, LLC

5541 Fermi Court

Carlsbad, CA 92008

EU contact: Sound United Europe, A division of D&M Europe B.V. Beemdstraat 11, 5653 MA Eindhoven, The Netherlands

WHAT'S IN THE BOX

Each box contains:

1. Loudspeaker(s)
2. Owner's manual
3. Registration card
4. Adhesive-backed rubber pads (eight for bookshelf speakers or four for center channel speakers)
5. Wall mount template (for ES35, ES15 and ES10 only) (Speaker cable not included)

HOW TO CONNECT YOUR SYSTEM

To get the best sound quality, it's important to wire your speakers correctly.

Wire Preparation

Follow the hookup directions included with your receiver/ amplifier. Strip 1/2" (12.7mm) of insulation from each of the two conductors of the wire to expose the bare metal and twist each of the individual conductors into single unfrayed strands. Note that one of the terminals on the rear of each speaker is red (+) and the other is black (-). Make certain that you connect the wire from the positive (+) terminal of your amplifier or receiver to the red (+) terminal on your speaker and the wire from the negative (-) terminal of your amplifier or receiver to the black (-) terminal on your speaker. Most wire has some indicator (such as color-coding, ribbing or writing) on one of the two conductors to help you maintain consistency.

These recommendations are for all connections from the amplifier/receiver to each speaker:

Runs Gauge mm2

Lengths up to 25' (5 m) 16 or better 1,5 or better
Lengths greater than 25' (5 m) but less than 50' (15 m)	14 2,5 or better
Lengths greater than 50' (15 m) but less than 75' (25 m)	12 4,0 or better
Lengths greater than 75' (25 m) 10 6,0 or better

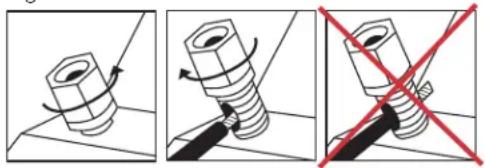

Binding Posts

To connect wire to the binding post, unscrew the binding post cap and insert the bare wire into the hole near the base of the binding post. Do not insert the insulated part of the wire into the hole as this will not give you a good connection. Tighten the binding post cap until it seats firmly with the wire, but do not over tighten.

Three-panel illustration showing a bolt being twisted with a red X symbol, no text or symbols present

Connectors

You have several options when choosing connectors for your speaker wires, and it's really a matter of personal preference. Three of the more commonly used are banana plugs, spade lugs and bare wire. If you know where you want to locate your speakers and plan to set up your system and leave them there, then bare wire will work fine. Just make sure there are not stray strands of wire that could come into contact. If you like to experiment with different speaker locations, spade lugs or banana plugs offer more convenient options when it comes to disconnecting and reconnecting wires.

Banana Plugs (US only)

Signature Elite binding posts have openings in the ends of their caps to accept individual and dual banana plugs. To use banana plugs, carefully pry out the binding post plugs to expose banana plug holes. The binding posts can accept dual banana plugs.

Basic Tower, Center, Bookshelf and

Satellite Surround Speaker Hookup

(ES60, ES55, ES50, ES35, ES30, ES20, ES15, ES10)

Make sure that the red (+) and black (−) connectors on your amplifier or receiver connect to the red (+) and black (−) connectors on your speakers. If your speakers sound "thin," with little bass and little or no center image, odds are that one of the speaker wires is connected backwards. Double check all connections.

Power Amplifier + - + ○ ○ -

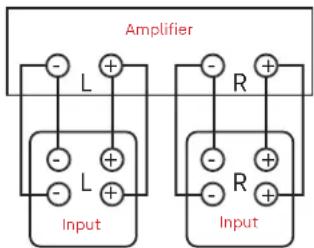

Bi-Wiring (ES60, ES55 and ES50 Towers)

Bi-wiring can provide noticeable improvements in the overall transparency of your loudspeakers. After removing the jumpers, run separate speaker wires to the low and high frequency drivers from a single amplifier (the upper set of binding posts are for the high frequency drivers, the lower set of binding posts are for the low frequency drivers). Connect one set of speaker wires to the upper terminals on each speaker and one set of wires to the lower terminals. Connect the other ends of both wire sets to the same amplifier outputs. See Amplifier/AVR's user manual for configuration instructions.

Amplifier Input Input

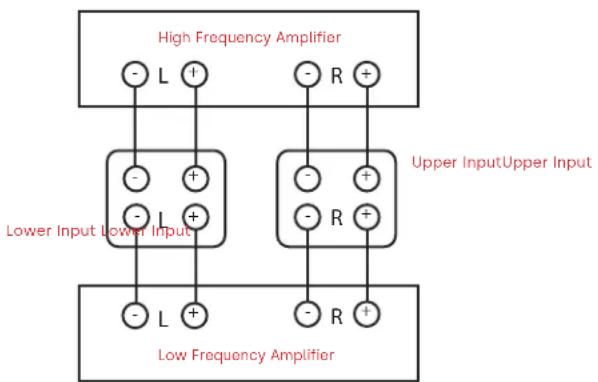

Bi-Amping (ES60, ES55 and ES50 Towers)

Bi-amping allows you to use separate amplifiers for the high and low frequency sections of your loudspeaker for greater dynamic range and lower distortion. We recommend that your separate amplifiers have identical gain to preserve the speaker's voicing balance. After removing the jumpers, connect the speaker wires from the high frequency amplifier outputs to the upper set of terminal posts on each speaker. Follow the same procedure for connecting the low frequency amplifier outputs to the lower set of terminals. Remember to maintain correct wiring polarity (+ to +, - to -) in all connections. See Amplifier/AVR's user manual for configuration instructions.

Placement Recommendations for the ES35 and ES30 Center Channel Speaker

The most popular placement for your ES35 or ES30 center channel speaker is on a shelf below your flat screen TV (if you have an older box TV, a popular option is to place your center channel speaker on top of it, anchoring the dialogue and effects to the screen). Note: For older TV's, the ES35 and ES30 are NOT magnetically shielded.

Also compatible as a left, center or right speaker (L/C/R), the ES35 center channel speaker includes built in keyhole slots for easy wall-mounting (see instructions on wall mount template for more information).

Processor Mode

Note: Set these speakers (ES35, ES30, ES20, ES15, ES10) to "small" in your receiver's Bass Management Settings. Set to "large" for tower speakers (ES60, ES55, ES50).

The "bass management" or "speaker configuration" menus of most surround receivers offer the choice of "normal" or "wide" modes for smaller speaker operation. In discrete channel digital processors, these modes are referred to as "small" and "large." Normal (small) mode filters bass frequencies from center channel, bookshelf and satellite surround speakers, and sends them instead to the front left and right main speakers or to the subwoofer output (LFE) jack. Wide (large) mode sends an unfiltered, full-range signal to these speakers. Use the Small (normal) mode for optimum center and surround channel performance and reliability.

SIGNATURE ELITE SERIES SPEAKER POSITIONING

To maximize the sound quality of your speaker system—whether you've purchased tower speakers, a center channel speaker, bookshelf speakers, or satellite surround speakers—correct placement is everything. Take a look at the following examples and give them a try based on the Signature Elite Series speakers you've purchased.

Note: Your Signature Elite Series speakers are compatible with 2.0, 2.1, 3.1, 5.1, 7.1 and 9.1 setups (optional subwoofer shown in graphics).

polk

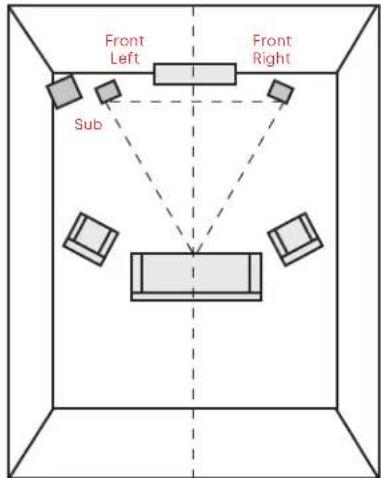

Listening in 2.1 System

Get the most realistic stereo image by placing speakers as far apart as the listeners are sitting from them. If room conditions require that you place the speakers farther apart, you may choose to angle the speakers toward the middle to support a more solid center image.

Front Left Front Right Sub

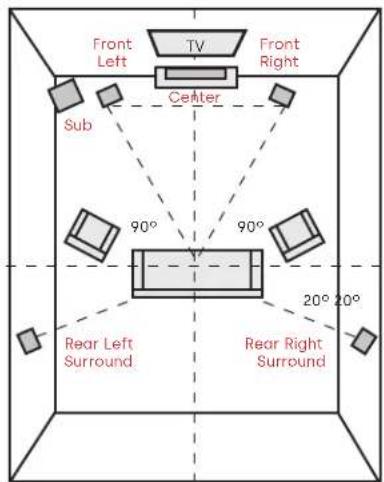

Listening in 5.1 Surround

You can use the Signature Elite Series speakers as rear surround speakers in a Polk Audio home theater surround system. Ideal rear channel surround speaker placement is on a side wall, slightly behind and above the listening position.

Note: If you cannot place rear surrounds on the side walls, position them on the rear wall above the listening position.

Front Left TV Front Right Center Sub 90° 90° 20° 20° Rear Left Surround Rear Right Surround

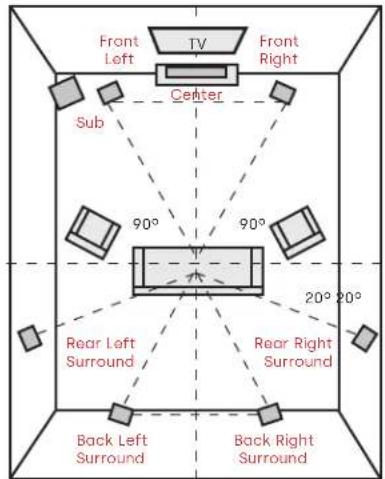

Listening in 7.1 Surround

Enjoy added depth to your surround sound experience with four rear surround speakers instead of two.

Front Left TV Front Right Center Sub 90° 90° 20° 20° Rear Left Surround Rear Right Surround Back Left Surround Back Right Surround

Wall Mountable Speakers (ES35, ES15, ES10)

These speakers feature built-in keyhole slots and a threaded screw insert (ES10 only) for easy wall mounting. Use included wall mount template to safely wall mount these speakers.

Adding Adhesive-Backed Rubber Feet

(ES30, ES35, ES20, ES15, ES10)

To keep your Signature Elite Series speakers firmly in place and prevent damage to floors or furniture, it's a smart idea to attach the included adhesive-backed rubber feet to the bottom of your speaker.

Line drawing of a 3D rectangular cabinet or refrigerator with no text or symbols

Isometric line drawing of a rectangular box with a handle, no text or symbols present

Peel and stick in corners of speaker enclosure

Cleaning Your Polk Speakers

You bought Polk quality for a reason. Keep your speakers looking good for years to come with these simple tips.

Line drawing of a hand gripping a piece of material, with a diagonal line above (no text or symbols)

Symbol of a hand spraying spray inside a circle, no text or numbers present

Clean cabinet with a damp cloth. Do not use furniture polish on veneer.

Signature Elite Series Specifications

ES60 ES55 ES50
	Full Range Passive Floorstanding Loudspeaker	Full Range Passive Floorstanding Loudspeaker	Full Range Passive Floorstanding Loudspeaker
Transducers
Tweeter 1-1 in Terylene High-ResDome Tweeter		1-1 in Terylene High-ResDome Tweeter	1-1 in Terylene High-ResDome Tweeter
Mid-bass 3-6.5 in Dynamic BalanceMica ReinforcedPolypropylene Drivers		2-6.5 in Dynamic BalanceMica ReinforcedPolypropylene Drivers	2-5.25 in Dynamic BalanceMica ReinforcedPolypropylene Drivers
Crossover Frequency 2.4 kHz 2.4 kHz 2.3 kHz
General
Recommended Amplification (wpc)	50-300W 40-200W 40-200W
Impedance Compatible with 8Ω AV Receivers and Amplifiers
Overall Frequency Response 32 Hz-40 kHz 33 Hz-40 kHz 38 Hz-40 kHz
Sensitivity (2.83V @ 1m) 90 dB		89 dB	88 dB
Electrical Inputs	Dual gold-plated 5-way binding posts	Dual gold-plated 5-way binding posts	Dual gold-plated 5-way binding posts
Weights and Dimensions
Height (inches)	44.5	41.5	37.4
Width (inches)	8.5	8.5	7.5
Depth (inches)	15.7	12.5	10.9
Width including feet (inches)	11.7	11.7	10.3
Weight	52 lbs.	44 lbs.	32 lbs.

Signature Elite Series Specifications
ES35 ES30 ES20 ES15 ES10
	Left/Center/Right (L/C/R) Loudspeaker	Dedicated Center Center Loudspeaker	Full Range Passive Bookshelf Loudspeaker	Full Range Passive Bookshelf Loudspeaker	Uni-Pole Surround Loudspeaker
Transducers
Tweeter 1-1 in Terylene High-Res Dome Tweeter	1-1 in Terylene High-Res Dome Tweeter	1-1 in Terylene High-Res Dome Tweeter	1-1 in Terylene High-Res Dome Tweeter	1-1 in Terylene High-Res Dome Tweeter	1-1 in Terylene High-Res Dome Tweeter
Mid-bass 6-3 in Dynamic Balance Mica Reinforced Polypropylene Drivers	2-5.25 in Dynamic Balance Mica Reinforced Polypropylene Drivers	1-6.5 in Dynamic Balance Mica Reinforced Polypropylene Driver	1-5.25 in Dynamic Balance Mica Reinforced Polypropylene Driver	1-4 in Dynamic Balance Mica Reinforced Polypropylene Driver
Crossover Frequency	2.7 kHz 2.8 kHz 2.4 kHz 2.3 kHz 2.1 kHz
Wall Mounting Option- Key Hole slot	Yes No No Yes Yes
Wall Mounting Option-1/4"-20 Threaded Insert	No	No No No Yes
General
Recommended Amplification (wpc)	20-150W	20-125W	20-125W	20-100W	20-100W
Impedance	Compatible with 8Ω AV Receivers and Amplifiers
Overall Frequency Response	68 Hz-40 kHz	55 Hz-40 kHz	41 Hz-40 kHz	44 Hz-40 kHz	80 Hz-40 kHz
Sensitivity (2.83V @ 1m)	89 dB	88 dB	86 dB	85 dB	84 dB
Electrical Inputs	Single gold-plated 5-way binding posts	Single gold-plated 5-way binding posts	Single gold-plated 5-way binding posts	Single gold-plated 5-way binding posts	Single gold-plated 5-way binding posts
Weights and Dimensions
Height (inches)	4.1	7.5	14.8	12	8.4
Width (inches)	24.4	20	8.5	7.5	5.4
Depth (inches)	6.1	10.6	13.8	10.2	6.1
Weight	14 lbs	19 lbs	17 lbs	13 lbs	6 lbs

LIMITED 5-YEAR WARRANTY

Polk Audio, Inc. warrants to the original purchaser only that this Polk Audio Loudspeaker Product (the "Product") will be free from defects in materials and workmanship for a period of five (5) years from the date of original retail purchase from a Polk Audio Authorized Dealer. However, this Warranty will automatically terminate prior to the expiration of the five (5) years if the original retail purchaser sells or otherwise transfers the Product to any other party. The original retail purchaser shall hereinafter be referred to as "you." To allow Polk Audio to offer the best possible warranty service, please fill out the Product Registration Card(s) and send it to the Factory, at the address provided on the Product Cards(s) within ten (10) days of the date of purchase.

Defective Products must be shipped, together with proof of purchase, prepaid insured to the Polk Audio Authorized Dealer from whom you purchased the Product, or an authorized service center. Products must be shipped in the original shipping container or its equivalent; in any case the risk of loss or damage in transit is to be borne by you. If upon examination at the Factory or Polk Audio Authorized Dealer it is determined that the unit was defective in materials or workmanship at any time during this Warranty period, Polk Audio or the Polk Audio Authorized Dealer will, at its option, repair or replace this Product at no additional charge, except as set forth below. All replaced parts and Products become the property of Polk Audio. Products replaced or repaired under this warranty will be returned to you, within a reasonable time, freight prepaid.

This warranty does not include service or parts to repair damage caused by accident, disaster, misuse, abuse, negligence, inadequate packing or shipping procedures, commercial use, voltage inputs in excess of the rated maximum of the unit, cosmetic appearance of cabinetry not directly attributable to defect in materials or workmanship, or service, repair, or modification of the Product which has not been authorized or approved by Polk Audio. This warranty shall terminate if the Serial number on the Product has been removed, tampered with or defaced. This warranty is in lieu of all other expressed Warranties. If this Product is defective in materials or workmanship as warranted above, your sole remedy shall be repair or replacement as provided above. In no event will Polk Audio, Inc. be liable to you for any incidental or consequential damages arising out of the use or inability to use the Product, even if Polk Audio, Inc. or a Polk Audio Authorized Dealer has been advised of the possibility of such damages, or for any claim by any other party. Some states do not allow the exclusion or limitation of consequential damages, so the above limitation and exclusion may not apply to you. All implied warranties on this Product are limited to the

duration of this expressed Warranty. Some states do not allow limitation on how long an implied Warranty lasts, so the above limitations may not apply to you. This Warranty gives you specific legal rights, and you also may have other rights which vary from state to state.

This Warranty applies only to Products purchased in the United States of America, its possessions, and U.S. and NATO armed forces exchanges and audio clubs. The Warranty terms and conditions applicable to Products purchased in other countries are available from the Polk Audio Authorized Distributors in such countries.

Polk Audio is a DEI Holdings, Inc. Company. Polk Audio, Polk, Power Port and Dynamic Balance are registered trademarks of Polk Audio, LLC. All other trademarks are the property of their respective owners.

Designed and Engineered in U.S.A. Made in China.
