| Product type | 2-way musical projector, water resistant |
| Brand | Ecler |
| Model | eCMP12 |
| Dimensions (W x H x D) | 407 x 410 x 378 mm (443 mm with mounting bracket) |
| RMS power | 300 W at 8 Ω |
| Power tappings for 100 V line | 50/100/200 W/OFF |
| Power tappings for 70 V line | 25/50/100 W/OFF |
| Impedance | 8 Ω |
| Dispersion (H x V) | 107° x 107° |
| Max SPL | 125 dB continuous / 131 dB peak |
| Protection rating | IP56 |
| Woofer | 12" (30.5 cm) |
| Tweeter | 1.7" (43 mm) coaxial |
| Materials | Polypropylene, aluminum (grille), galvanized steel (bracket) |
| Connection | Connection terminal block |
| Available color | Grey (RAL538C) |
| Maintenance and cleaning | Clean with a dry cloth. Do not expose to rain or humidity. |
| Safety | Follow safety instructions (grounding, disconnection from mains, etc.) |
| Repairability | Maintenance must be carried out by Ecler accredited technical services |
| Warranty | See warranty on www.ecler.com or included card |
Frequently Asked Questions - eCMP12 Ecler
User questions about eCMP12 Ecler
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Speaker in PDF format for free! Find your manual eCMP12 - Ecler and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. eCMP12 by Ecler.
USER MANUAL eCMP12 Ecler


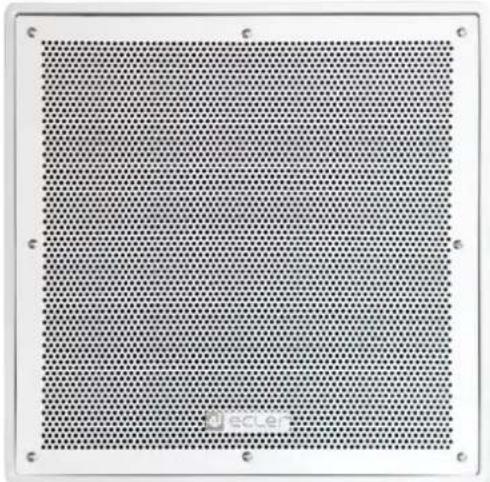

Front view of a square grid-patterned panel with corner markers (no text or symbols)
