SPECIFICATIONS

Product model	MERB276FGE02A
Fresh Food Storage Compartment Volume 199L
Frozen Food Storage Volume 71L
Defrosting Type Auto defrost
Temperature Rise Time 7h
Freezing Capacity 3.5kg/24h
Rated Voltage 220-240V~
Rated Current 0.6A
Overall Dimension (H x W x D)	1800x545x625mm

PRODUCT OVERVIEW

Names of components

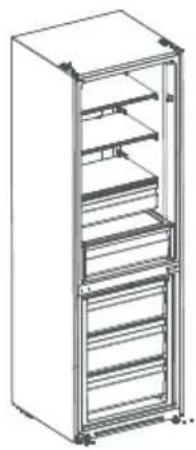

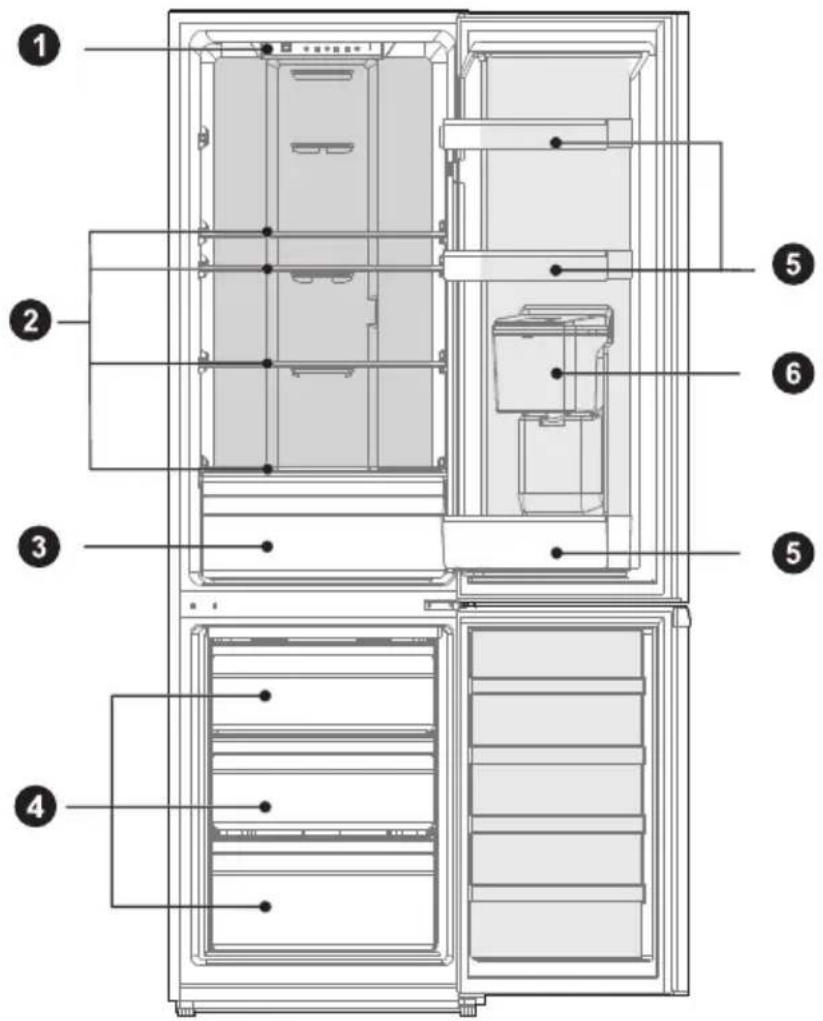

Technical diagram of a refrigerator interior with numbered components for identification

1 LED lighting

4 Drawer

2 Shelf

5 Door Tray

3 Fruits and vegetables box

6 Water dispenser (optional)

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

PRODUCT INSTALLATION

Install Instruction

For refrigerating appliances with climate class

• Depending on the climate class, This refrigerating appliance is intended to be used at ambient temperatures range as specified following table.
• The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specific range.
• You can find the climate class on the product label.

Effective temperature range

- The product is designed to operate normally in the temperature range specified by its class rating.

Class Symbol		Ambient temperature range °C
		IEC 62552 (ISO 15502) ISO 8561
Extended temperate SN + 10 to + 32 + 10 to + 32
Temperate N + 16 to + 32 + 16 to + 32
Subtropical ST + 16 to + 38 + 18 to + 38
Tropical T + 16 to + 43 + 18 to + 43

Dimensions and Clearances

- Too small of a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 100 mm of clearance from each adjacent wall when installing the appliance.

>100mm >100mm 100mm

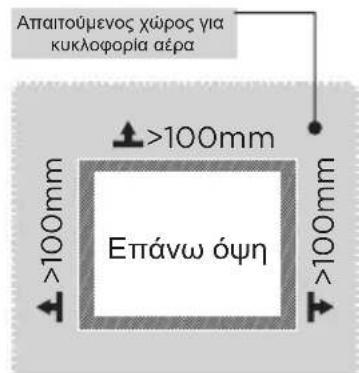

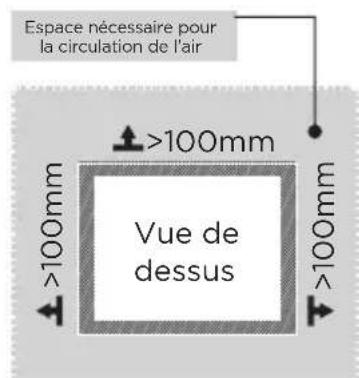

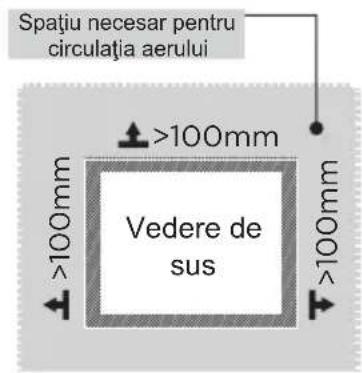

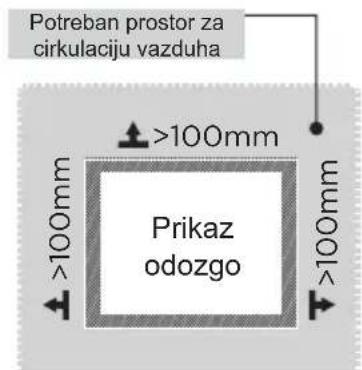

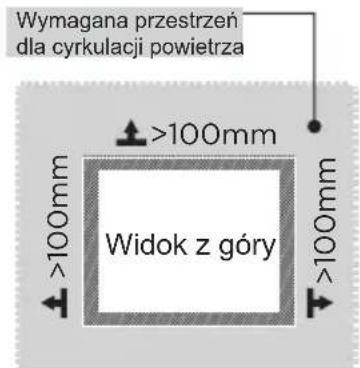

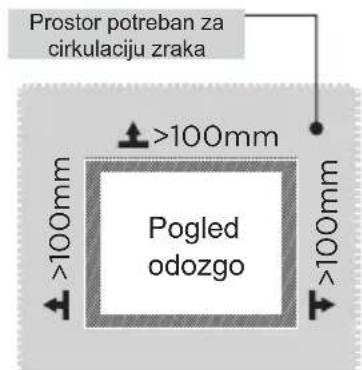

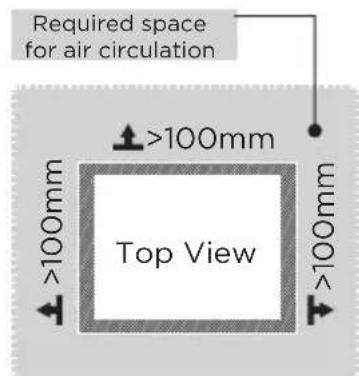

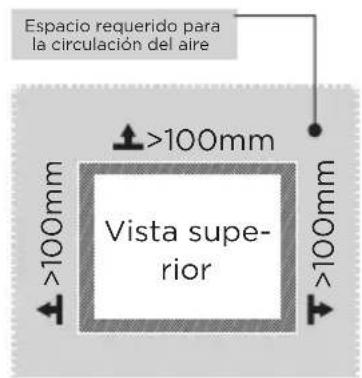

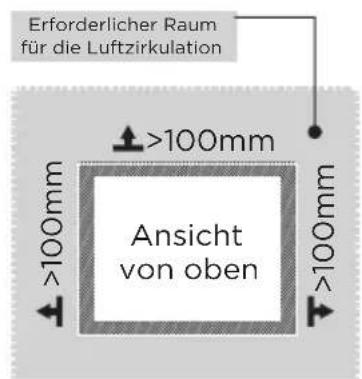

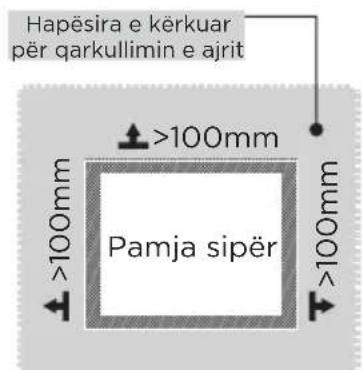

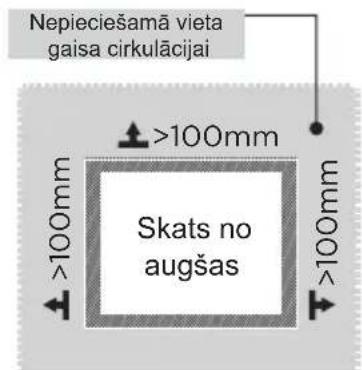

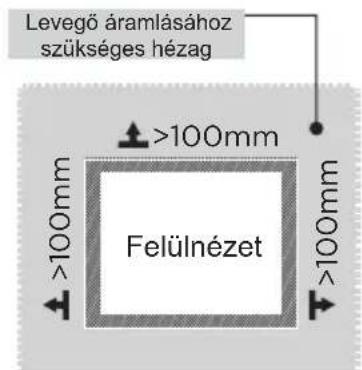

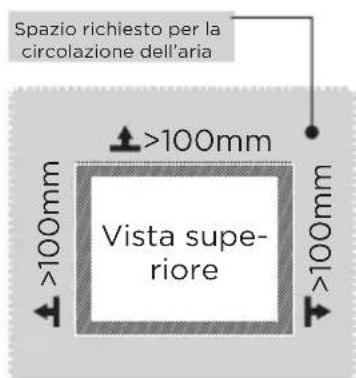

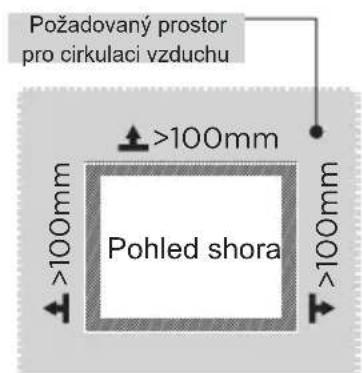

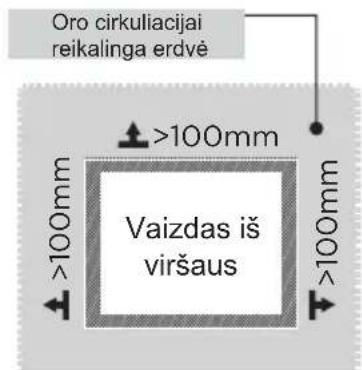

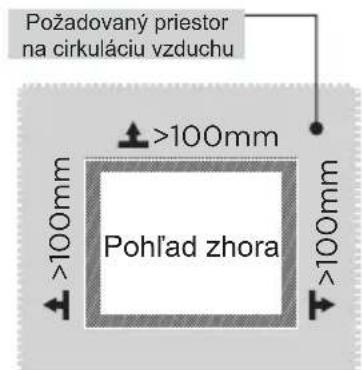

Required space for air circulation >100mm Top View >100mm >100mm >100mm

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

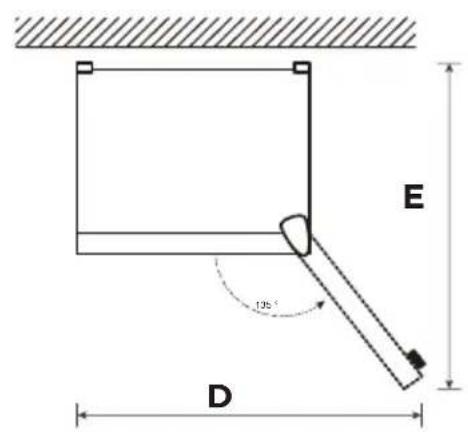

Space requirement diagram (when the door is open and when the door is closed)

B A

B C

E 125° D

Width Overall Height Depth			Width doors open 135°	Depth doors open 135°
A B C D E
545 1800	625 820 1070

Notice: All dimensions in mm

Leveling feet

To avoid vibration, the unit must be leveled.

If required, adjust the leveling screws to compensate for the uneven floor.

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws counterclockwise 📋 to raise the unit, clockwise 📋 to lower it.

Moving the appliance

1. Before the refrigerator is moved, take all objects inside out, pull the power plug out.
2. Fix the glass partitions, vegetable holder, freezing chamber drawers and ect. with tape, and tighten the leveling feet; close the doors and seal them with tape.
3. Move the appliance with more than two people carefully. During moving, the appliance shall not be excessively laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .
4. After installing the appliance, connect the power plug into a socket out to switch on the appliance.

ATTENTION

Precautions before operation:

Before making changes the refrigerator must be disconnected from power. precautions should be taken to prevent any personal injury.

Placement

• Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.
• Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.
• Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.
• The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for leveling if unstable).

Door right-left change (optional)

Based on the location where you plan to use your refrigerator, you may find it more convenient to reverse the position of the door.

CAUTION

CAUTION: To avoid injury to yourself or your property, we recommend that someone assist you during the door reversal process.

Preparing to reverse the door position

You will need: A standard screwdriver, a Phillips screwdriver, and the included Allen wrench.

• Make sure that your refrigerator is unplugged and empty.
• Have someone available to assist you in the process.
- Keep all of the parts you remove to reuse them later.

Tools needed for changing the door:

Cross screwdriver Putty knife

thin-blade screwdriver

5/16" socket and ratchet Masking tape

Step

1. Please power off this appliance, before conduct this operation. Remove all food from the inner door liner. Tape the door shut with tape.

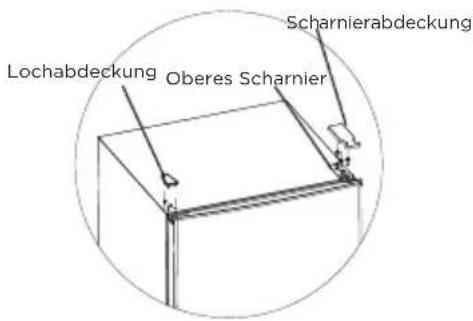

2. Dismantle the hole cover, hinge cover and upper hinge.

Pure technical line drawing of a rectangular electronic component with no text or symbols

Line drawing of a two-door refrigerator with a door and top handle (no text or symbols)

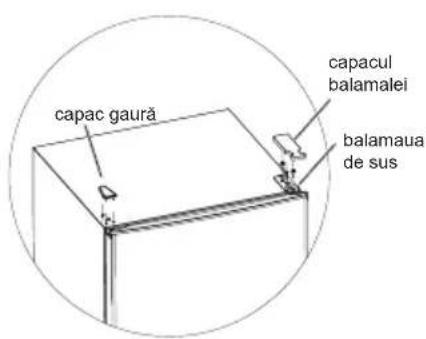

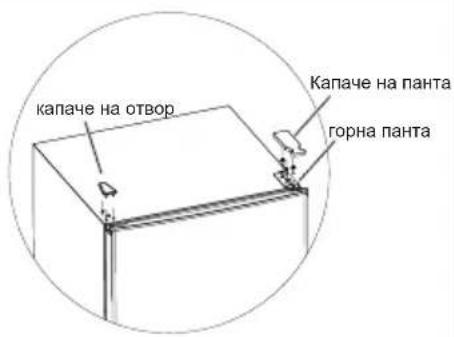

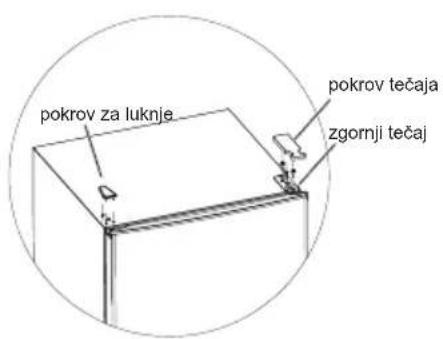

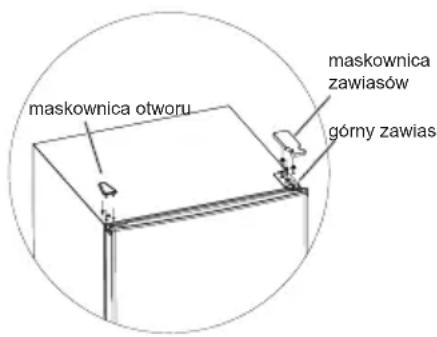

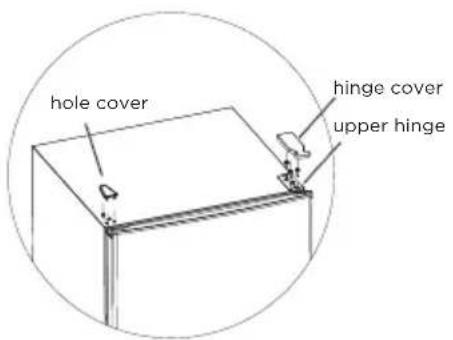

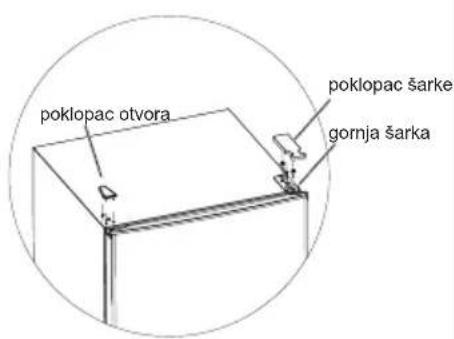

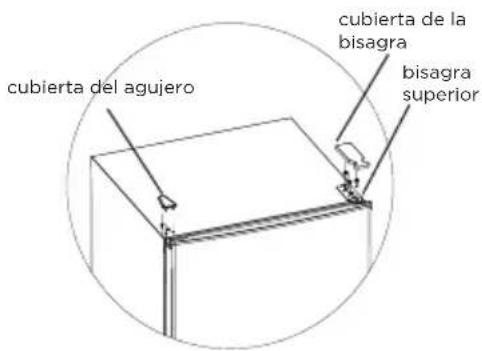

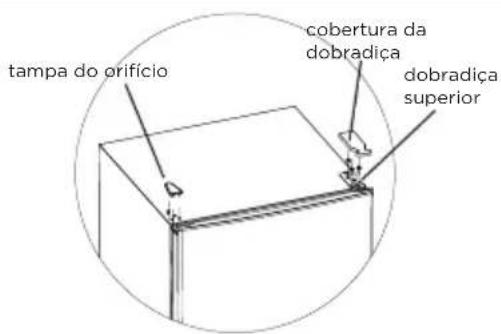

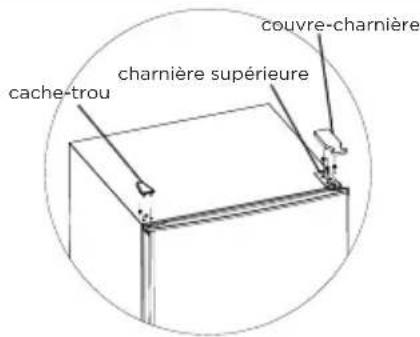

hole cover hinge cover upper hinge

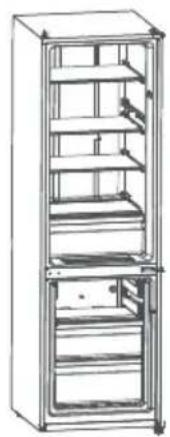

1. Take off refrigerating chamber door, middle hinge (use a allen wrench to remove the middle hinge screw) and hole cap of other side.
2. Take off freezing chamber door, dismantle bottom hinge, hole caps, levelling foot, install the bottom hinge on the other side.

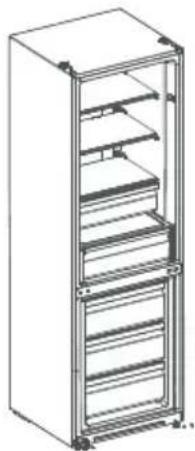

Line drawing of a tall refrigerator with multiple shelves and doors (no text or symbols)

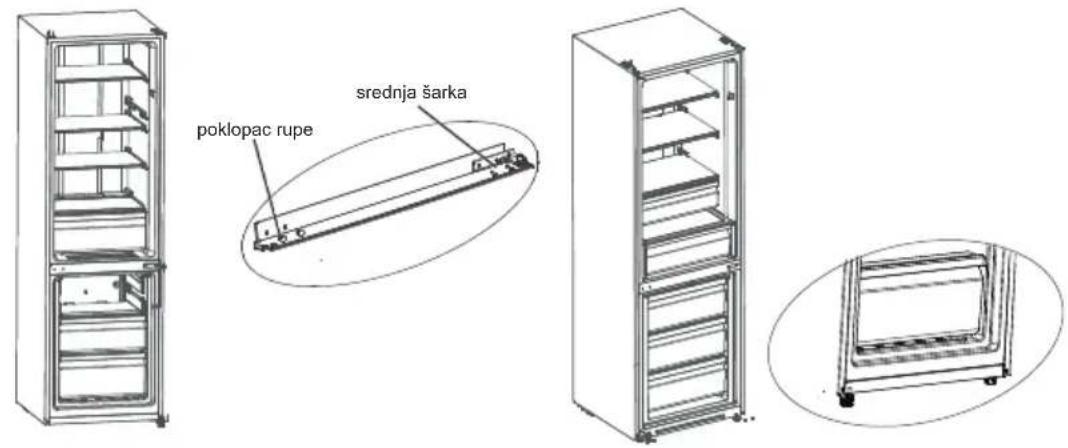

hole cap middle hinge

Line drawing of a refrigerator with multiple compartments (no text or symbols)

Simple line drawing of a rectangular frame with wheels and a side panel (no text or symbols)

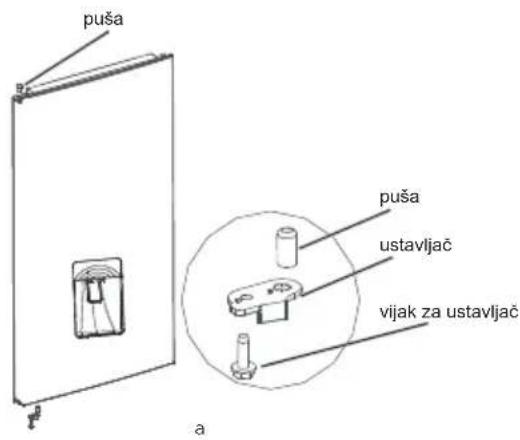

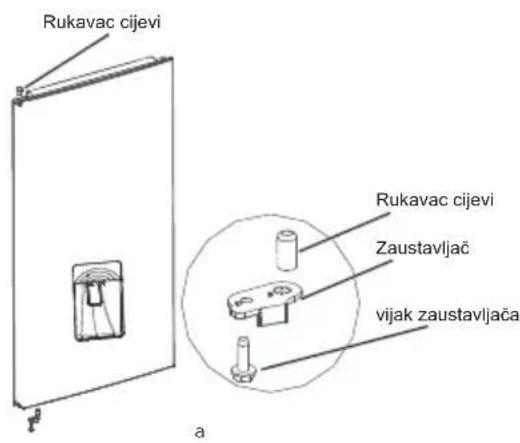

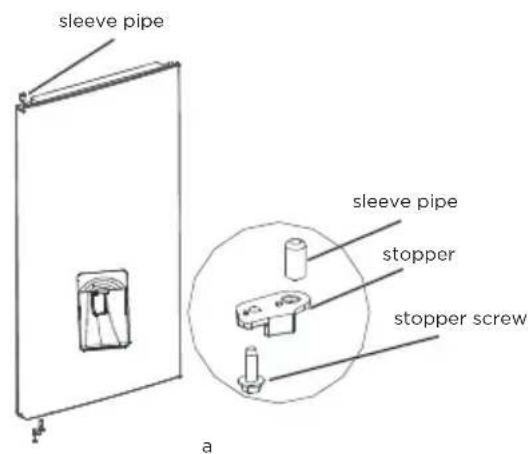

1. a) Dismantle the stopper, sleeve pipe of refrigerating chamber door. assemble the sleeve pipe and stopper on bottom left of door with screw. b) Dismantle the stopper and sleeve pipe from right of freezing chamber door, assemble the sleeve pipe and stopper on bottom left of door by screw. Take off the sleeve pipe and hole caps on the freezing chamber door and mount it on the other side.

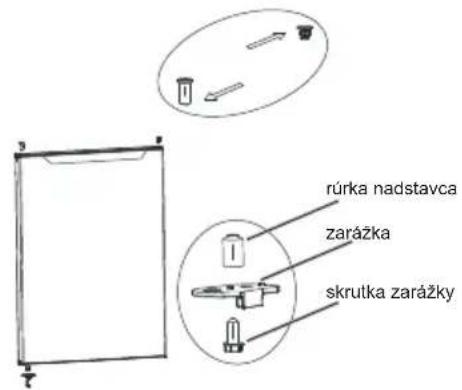

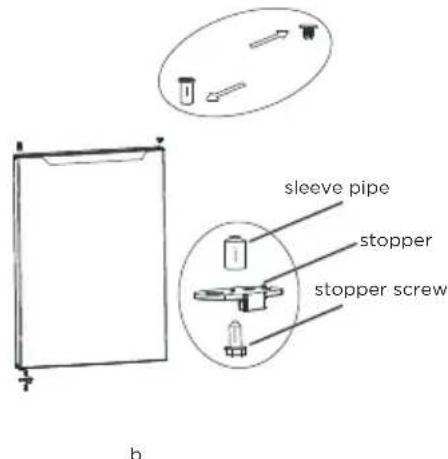

sleeve pipe sleeve pipe stopper stopper screw a

sleeve pipe stopper stopper screw b

1. Put freezing door on bottom hinge and install middle hinge, hole caps.

2. Put the refrigerating chamber door on middle hinge and install upper hinge, hinge cover.

3. Put the refrigerating chamber door on middle hinge and install upper hinge, hinge cover.

The following must be confirmed before installing the top hinge cover. The screws that hold th hinge should be tightly pressed against the hinge surface to ensure that the screw is not deflected, Afted the finger is installed, make sure there is no shaking.

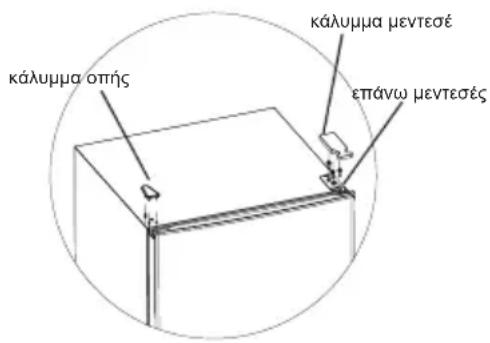

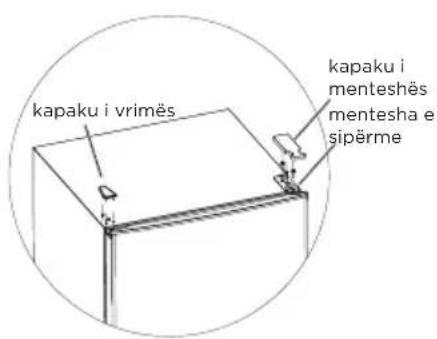

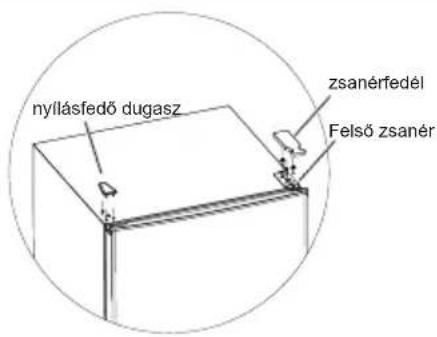

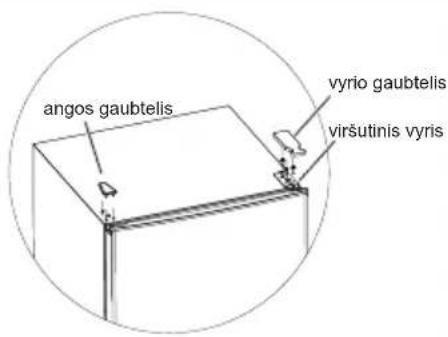

middle hinge hole cap hinge cover hole cover

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

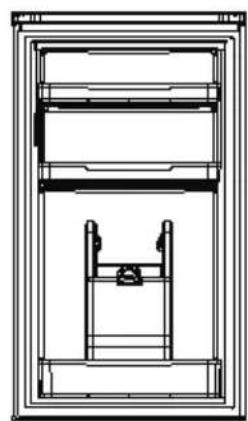

Usage of water dispenser (optional)

1. First open Water inlet cover, fill with drinking water to "MAX" marked as the maximum amount of water.
2. Use the cup to push the trigger to the inside, the water will flow out, when the trigger back to the original position, the water stops.
3. Water dispenser can only be used for pure water, not suitable for beverages or fruit juice.

Technical line drawing of a mechanical lifting device (no text or symbols)

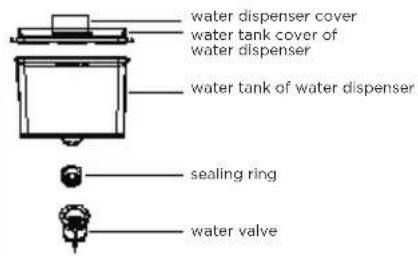

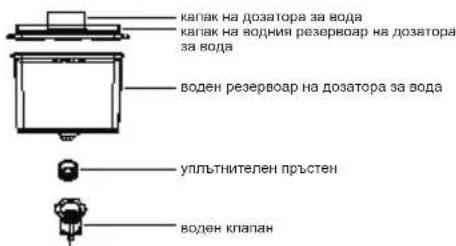

water dispenser cover water tank cover of water dispenser water tank of water dispenser sealing ring water valve

PUSH

Changing the light

- Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. This product contains a light source of energy efficiency class .

Step

1. Please take out the plug before removal.
2. Remove the lampshade with a screwdriver.

1

2

1. Take down the lamp panel.
2. Remove the connection terminal.

3

4

Connecting the appliance

Before initial start, keep the refrigerator still for two hour before connecting it to power supply.

ATTENTION

Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

Tips for energy saving

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

OPERATION INSTRUCTIONS

Control panel

A SET TEMPERATURE 1 2 3 4 5 6 FAST COOL 2°C 3°C 4°C 6°C 8°C

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

Key

A Alarm/power off/power on button

Display screen

1	temperature setting 1
2	temperature setting 2
3	temperature setting 3
4	temperature setting 4
5	temperature setting 5
6	temperature setting 6

Display

When power-on the refrigerator, the display screen (including the key light) will shine in full for 3s, then the refrigerator runs according to temperature setting 4.

Display of normal running

On the occurrence of a failure, the corresponding LED light will give a combined display of failure code (in recycling display);

Where there is no failure, the LED light will display the existing temperature setting.

ATTENTION

The actual control panel may differ from model to model.

Operating instructions

Gear setting

- The temperature setting will be changed once every time when you press the key SET. Then, the refrigerator will run under the new setting value after 15s. Setting1—Setting 2 Setting 3 Setting 4 Setting 5 Setting 6 → Setting 1→.....

Fast cool mode:

- Enter: Circulating modulation rapid cooling mode.

- Operate: Indicator of rapid cooling lights up, and the refrigerator operates at 2°C.

- Fast cool mode automatically disabled for 24H.

- Fast cool function can be used as Super freezing function.

Temperature control of freezing chamber

- The freezing temperature is relatively low in "COOLER" position, while the freezing temperature is relatively high in "COOL" position, thus, "NORMAL" position is generally used.

- When ambient temperature is high in summer, the temperature shall be in the range from "NORMAL" to "COOL". If the ambient temperature is above 35°C, then "COOL" position shall prevail.

- When ambient temperature is low in winter, the temperature shall be in the range from "NORMAL" to "COOLER". If the ambient temperature is below 10^ , then "COOLER" position shall prevail.

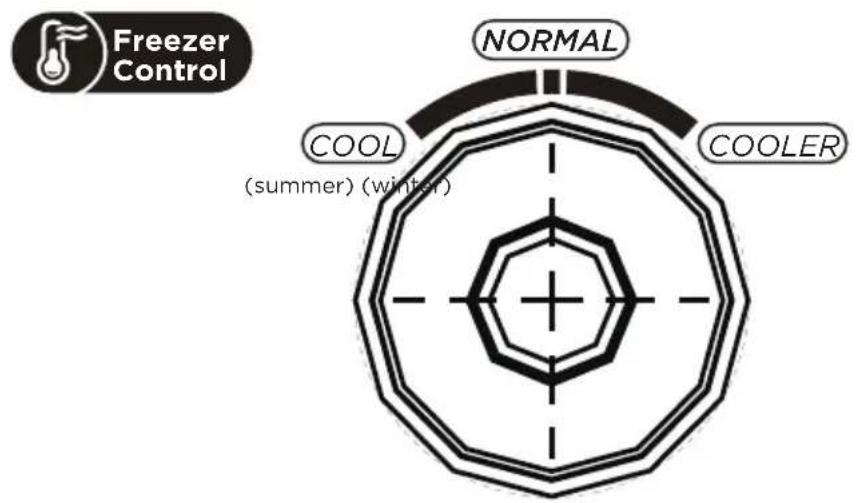

Freezer Control NORMAL COOL (COOLER) (summer) (winter)

Error code

• The following warnings appearing on the display indicate corresponding faults of the refrigerator.
• Though the refrigerator may still have cooling and freezing function with the following faults, the user shall contact a maintenance specialist for maintenance, so as to ensure normal use of the refrigerator.

Fault Code Fault Description

The LED 1 and LED 2 lit Refrigerator temperature sensor circuit

The LED 1 and LED 3 lit Freezer defrost sensor

The LED 1 and LED 4 lit Ambient temperature sensor

Refrigerating chamber

• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term, suggested storage time 3 days to 5 days.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.

Freezing chamber

• The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for quick freezing and easy access. Please be noted food shall be consumed within the shelf time.

Order	Compartments TYPE	Target storage temp. [°C]	Appropriate food
1 Fridge +2 ~ +8			Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2 (***)-Freezer	≤-18		Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3 ***-Freezer	≤-18		Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
4 **-Freezer	≤-12		Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
5 *-Freezer	≤-6		Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
6 0-star -6 ~ 0			Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no more than 3 days).Partially encapsulated processed foods (non-freezable foods).
7 Chill -2 ~ +3			Fresh/ frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days).Seafood (less than 0 for 15 days, it is not recommended to store above 0°C.
8 Fresh food 0 ~	+4		Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days)
9 Wine +5 ~ +20 Red wine, white wine, sparkling wine, etc.

ATTENTION

please store different foods according to the compartments or target storage temperature of your purchased.

CLEANING AND MAINTENANCE

Overall cleaning

• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
• Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the refrigerator should be cleaned regularly to avoid odor.
• Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.
• Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
• For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.
• Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.
• Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

ATTENTION

Please unplug the refrigerator for defrost and cleaning.

Defrosting

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

Cleaning of door tray

• According to the direction arrow in the figure below, use both hands to squeeze the tray, and push it upward, then you can take it out.
  • After washing the tray having been taken out, you can adjust its installing height in accordance with your requirement.

Illustration of hands holding a rectangular device with arrows indicating movement or force (no text or symbols)

Cleaning of glass shelf

• As the innermost part of the refrigerator liner where contacting the shelves has a backstop, you shall raise the shelves upward, then you can be able to take it out.
• Adjust or clean the shelves according to your requirement.

Illustration of a hand holding a flat surface with upward arrows, showing a magnified view of a small object (no text or symbols present)

Cleaning the vegetable drawer

1. Remove the contents of the drawer. Hold the handle of the vegetable drawer and pull it out completely until it stops.
2. Lift the vegetable drawer up and remove it by pulling it out.

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Out of operation

Power failure:

In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.

Long-time nonuse:

The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.

Moving:

Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

ATTENTION

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired.

TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved.

Problem Possible reason
Failed operation	·Check whether the appliance is connected to power or whether the plug is in well contact
	·Check whether the voltage is too low
	·Check whether there is a power failure or partial circuits have tripped
Odor	·Odorous foods shall be tightly wrapped
	·Check whether there is any rotten food
	·Clean the inside of the refrigerator
Long-time operation of the compressor	·Long operation of the refrigerator is normal in summer
	·when the ambient temperature is high It is not suggestible having too much food in the appliance at the same time
	·Food shall get cool before being put into the appliance
	·The doors are opened too frequently
Light fails to get lit	·Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged
	·Have the light replaced by a specialist
Door can not be properly closed	·The door is stuck by food packages Too much food is placed
	·The refrigerator is tiltedr.
Loud noises	·Check whether the floor is level and whether the refrigerator is placed stably
	·Check whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door seal
	Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting
	The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal When housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.
	Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

APPENDIX

Special for new European standard

The ordered parts in the following table can be acquired from Service provider channel

Ordered part Provided by		Minimum time required for Provision
Thermostats Professional maintenance personnel		At least 7 years after the last model is launched on the market
Temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Light sources Professional maintenance personnel		At least 7 years after the last model is launched on the market
Door handles Professional repairers and final users		At least 7 years after the last model is launched on the market
Door hinges Professional repairers and final users		At least 7 years after the last model is launched on the market
Trays Professional repairers and final users		At least 7 years after the last model is launched on the market
Baskets Professional repairers and final users		At least 7 years after the last model is launched on the market
Door gaskets Professional repairers and final users		At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy.

(Remember to bring the purchase invoice)

1. If your product breaks down which needs to repair, please contact after-sales service provider.

ATTENTION

The model information in the product database, as well as the model identifier, can be obtained througha weblink scanned by a QR code, if any, on the energy efficiency label of the product.

For more information about the energy efficiency of the appliance, visit https://ec.europa.eu and search using the model name.

The model name can be found on the rating label of the appliance.

Coldest zone in the refrigerator

OPTIONAL: OK-temperature indicator

- The OK-temperature indicator can be used to determine temperatures below +4^ . Gradually reduce the temperature if the sign does not indicate "OK".

Diagram showing a warning symbol with exclamation mark inside a box and an arrow pointing to a 'OK' button, indicating cancellation or error.

- To ensure the temperature in this area, do not change the positioning of the shelf. Inforced air refrigerators (equipped with a fan or No Frost models), the symbol of the coldest zone is not represented because the temperature inside is homogeneous.

Temperature indicator setting

• To help you set your refrigerator well, it is equipped with a temperature indicator that will monitor the average temperature in the coldest zone.
• WARNING: This indicator is intended to work only with your refrigerator, do not use it in another refrigerator (in fact, the coldest zone is not the same), or for any other use.

Checking the temperature in the coldest zone

• With the temperature indicator, you can check regularly that the temperature of the coldest zone is correct. Indeed, the internal temperature of the refrigerator depends on several factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. Take these factors into consideration when setting the device.
• When the indicator shows "OK", this means that your thermostat is well adjusted and the internal temperature correct.
• If the indicator of temperature turns WHITE, this means that the temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 12 hours before performing a new visual inspection of the indicator. When fresh food has been introduced or the door has been left open, it is possible for the indicator of temperature to turn WHITE after a while.

DOC AND CERTIFICATIONS

Declaration of Conformity

We hereby confirm that the following customer model names and Midea model names match each other respectively.

Brand Midea Model Marketing Model Factory Model
Midea	HD-359RWENJ (CE-BCD276WE-JT)	MERB276FGE02A	CE-BCD276WE-JT

Manufacturer's Name: Guangzhou Midea Hualing Refrigerator Co., Ltd. Manufacturer's Address: No. 5 Xinguangsi Road, Qianfeng Zhujiang, Nansha District, Guangzhou City, Guangdong Province, P.R.China

We, Guangzhou Midea Hualing Refrigerator Co., Ltd., hereby declare that the above-mentioned products comply with the above-mentioned currently valid regulations and standards.

Technical diagram of a refrigerator interior with numbered components for identification

1 Luce LED

4 Cassetto

2 Ripiano

>100mm >100mm 100mm

Isometric line drawing of a rectangular electronic component with multiple leads (no text or symbols)

Line drawing of a two-door refrigerator with a side panel (no text or symbols)

Freezer Control NORMAL COOL (summer) COOLER (winter)

Codice errore

Illustration of hands holding a tray with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward movement, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion.

No. 5 Xinguangsi Road, Qianfeng Zhujiang, Nansha District, Guangzhou City, Guangdong Province, P.R.China

Technical diagram of a refrigerator interior with numbered components for identification

1 Iluminación LED

4 Cajón

2 Repisa

>100mm >100mm >100mm >100mm

Technical line drawing of a rectangular electronic component with embedded pins (no text or symbols)

Line drawing of a two-door refrigerator with a door and top handle (no text or symbols)

Line drawing of a tall refrigerator with open doors and shelves (no text or symbols)

Line drawing of a refrigerator with multiple shelves and doors (no text or symbols)

Simple line drawing of a rectangular frame with wheels and a side panel (no text or symbols)

NORMAL COOL (summer) COOLER (winter)

Código de error

Illustration of hands holding a tray with arrows indicating movement or force (no text or symbols)

Illustration of a hand interacting with a flat surface, showing upward arrows and a magnified inset of a small object (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Sin funcionamiento

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion.

No. 5 Xinguangsi Road, Qianfeng Zhujiang, Nansha District, Guangzhou City, Guangdong Province, R. P. China

Technical diagram of a refrigerator interior with numbered components for identification

1 Luz LED

4 Gaveta

2 Prateleira

5 Bandejas da porta

3 Caixa de frutas e legumes

6 Dispensador de água (opcional)

ATENÇÃO

>100mm >100mm >100mm >100mm

Pure technical line drawing of a rectangular component with internal notches and connectors (no text or symbols)

Line drawing of a two-door refrigerator with a double door and top handle (no text or symbols)

Line drawing of a multi-tiered refrigerator cabinet with shelves and doors (no text or symbols)

Line drawing of a refrigerator with multiple shelves and top panel (no text or symbols)

Line drawing of a four-legged cart or shelf unit with wheels and a handle (no text or symbols)

Freezer Control NORMAL COOL (summer) COOLER (winter)

Código de erro

- Os seguintes avisos que aparecem no visor indicam avarias correspondentes do frigorífico.

Illustration of hands holding a rectangular device with arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a flat surface with upward arrows, showing a small magnified view of a building (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Fora de serviço

Falha de energia:

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

No. 5 Xinguangsi Road, Qianfeng Zhujiang, Nansha District, Guangzhou City, Guangdong Province, P.R.China

Technical diagram of a refrigerator with numbered parts for identification

1 Φωτισμός LED

4 Συρτάρι

2 Páφι

5 Ράφι πόρτας

3 Φρουτοθήκη

>100mm >100mm >100mm >100mm

Pure technical line drawing of a rectangular component with internal spring-like notches (no text or symbols)

Line drawing of a two-door refrigerator with a side door and top-mounted top (no text or symbols)

Technical line drawing of a mechanical lifting device (no text or symbols)

Simple line drawing of a container with a lid and two small icons below (no text or symbols)

NORMAL COOL (summer) COOLER (winter)

Κωδικός σφάλματος

Illustration of hands holding a tray with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Διακοπή λειτουργίας

Διακοπή ρεύματος:

Diagram showing a warning symbol with exclamation marks and an 'OK' label, indicating a change or modification process.

No. 5 Xinguangsi Road, Qianfeng Zhujiang, Nansha District, Guangzhou City, Guangdong Province, P.R.China

INSTALLATION DU PRODUIT 04

MODE D'EMPLOI 11

NETTOYAGE ET ENTRETIEN 16

DÉPANNAGE 18

ANNEXE 20

DOCUMENTS ET CERTIFICATIONS 22

CARACTÉRISTIQUES

Technical diagram of a refrigerator with numbered components for identification

1 Lumière LED

4 Tiroir

2 Étagère

5 Plateau de porte

>100mm >100mm >100mm >100mm

Pure technical line drawing of a rectangular component with internal notches and connectors (no text or symbols)

Line drawing of a single refrigerator with front door and side door (no text or symbols)

Line drawing of a double refrigerator with shelves and doors (no text or symbols)

Line drawing of a multi-tiered refrigerator cabinet with shelves and doors (no text or symbols)

Line drawing of a rectangular metal frame with wheels and a horizontal panel (no text or symbols)

Freezer Control NORMAL COOL (summer) COOLER (winter)

Code d'erreur

Illustration of hands holding a rectangular device with arrows indicating movement or force (no text or symbols)

Illustration of a hand interacting with a flat surface, showing upward arrows and a magnified inset of a wall detail (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Hors service

Panne de courant :

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion.

Adresse du fabricant : No. 5 Xinguangsi Road, Qianfeng Zhujiang, Nansha District, Guangzhou City, Guangdong Province, R.P. Chine

Technical diagram of a refrigerator interior with numbered components for identification

1 LED-Beleuchtung

4 Schubfach

2 Ablagefach

5 Türablage

>100mm >100mm >100mm >100mm

Isometric line drawing of a rectangular electronic component with multiple metal contacts (no text or symbols)

Line drawing of a single refrigerator with lid and front panel (no text or symbols)

Lochabdeckung Oberes Scharnier Scharnierabdeckung

Freezer Control NORMAL COOL (summer) (winter) COOLER

Fehlercode

Illustration of hands holding a tray with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward movement, and an inset showing a ceiling-mounted device (no text or symbols present)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Diagram showing a warning symbol transforming from a downward arrow to an upward arrow, with 'OK' indicating completion or cancellation.

Anschrift des Herstellers: No. 5 Xinguangsi Road, Qianfeng Zhujiang, Nansha District, Guangzhou City, Guangdong Province, P.R.China

Technical diagram of a refrigerator interior with numbered components for identification

1 Oświetlenie LED

4 Szuflada

2 Półka

5 Balkonik na drzwi

>100mm >100mm >100mm

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a single refrigerator with front door and side door (no text or symbols)

Line drawing of a multi-tier refrigerator with shelves and doors (no text or symbols)

Line drawing of a refrigerator with multiple shelves and top doors (no text or symbols)

Simple line drawing of a four-legged cart or stand (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand interacting with a flat surface, showing upward arrows and a magnified inset of a building (no text or symbols)

Diagram of a mechanical component with an arrow indicating motion or force (no text or symbols present)

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Adres producenta: No. 5 Xinguangsi Road, Qianfeng Zhujiang, Nansha District, Guangzhou City, Guangdong Province, Chiny

Technical diagram of a refrigerator interior with numbered components for identification

1 Osvětlení LED

4 Šuplík

2 Police

5 Police dveří

>100mm >100mm >100mm

Pure technical line drawing of a rectangular component with internal spring-like notches (no text or symbols)

Line drawing of a two-door refrigerator with a side door (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a mechanical component with an arrow indicating motion or force (no text or symbols)

Mimo provoz

Výpadek napájení:

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Adresa výrobce: No. 5 Xinguangsi Road, Qianfeng Zhujiang, Nansha District, Guangzhou City, Guangdong Province, ČLR

Technical diagram of a refrigerator interior with numbered components for identification

1 LED világítás

4 Fiók

2 Polc

5 Ajtórekesz

>100mm >100mm >100mm >100mm

Pure technical line drawing of a rectangular component with internal notches and connectors (no text or symbols)

Line drawing of a two-door refrigerator with a door handle (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Üvegpolc tisztítása

Illustration of a hand holding a flat surface with upward arrows, showing a small inset image of a building on top (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

PRODUKTA PÄRSKATS 03

PRODUKTA UZSTĀDĪŠANA 04

LIETOŠANAS INSTRUKCIJAS 11

TİRİŞANA UN APKOPE 15

TRAUCĒJUMMEKLĒŠANA 17

PIELIKUMS 19

DOKUMENTI UN SERTIFIKĀTI 21

SPECIFIKĀCIJAS

Produkta modelis MERB276FGE02A

Technical diagram of a refrigerator interior with numbered components for identification

>100mm >100mm >100mm >100mm

Pure technical line drawing of a rectangular component with internal notches and mounting holes (no text or symbols)

Line drawing of a two-door refrigerator with a door handle (no text or symbols)

Freezer Control NORMAL COOL (summer)(winter) COOLER

Klūdas kods

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Nedarbojas

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator interior with numbered components for identification

1 LED apšvietimas

4 Stalčius

2 Lentyna

5 Durelių dėklas

>100mm >100mm >100mm >100mm

Pure technical line drawing of a rectangular component with internal notches and connectors (no text or symbols)

Line drawing of a two-door refrigerator with a door handle (no text or symbols)

angos gaubtelis vyrio gaubtelis viršutinis vyris

Freezer Control NORMAL COOL (summer)(winter) COOLER

Klaidos kodas

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Neveikimas

Maitinimo sutrikimas:

Diagram showing a process step with warning symbols and an 'OK' label, indicating completion or cancellation.

Technical diagram of a refrigerator interior with numbered components for identification

1 LED svetlo

4 Zásuvka

2 Polica

5 Dverná zásuvka

3 Box na ovocie a zeleninu

6 Dávkovač vody (volitel'né)

UPOZORNENIE

>100mm >100mm >100mm >100mm

Požadovaný priestor na cirkuláciu vzduchu >100mm Pohl'ad zhora >100mm >100mm

UPOZORNENIE

Pure technical line drawing of a rectangular component with internal notches and connectors (no text or symbols)

Line drawing of a two-door refrigerator with a door handle (no text or symbols)

kryt otvoru kryt pântu horný pânt

Line drawing of a double refrigerator with shelves and doors (no text or symbols)

Line drawing of a multi-tiered refrigerator cabinet with shelves and doors (no text or symbols)

Simple line drawing of a rectangular frame with wheels and a central tray (no text or symbols)

1. a) Rozoberte zarážku a rúrku nadstavca dvierok mraziacej komory. Zmontujte rúrku nadstavca a zarážku na dvierkach vl'avo dole pomocou skrutky.
   b) Rozoberte zarážku a rúrku nadstavca dvierok mraziacej komory vpravo. Zmontujte rúrku nadstavca a zarážku na dvierkach vl'avo dole pomocou skrutky. Odoberte rúrku nadstavca a kryty otvorov dverí mraziacej komory a pripevnite ich na opačnú stranu.

rúrka nadstavca

rúrka nadstavca zarážka skrutka zarážky

a

rúrka nadstavca zarážka skrutka zarážky

b

NORMAL COOL (summer)(winter) COOLER

SK

Kód chyby

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with upward arrows, no text or symbols present

Čistenie priehradky na zeleninu

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Mimo prevádzku

Výpadok energie:

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator interior with numbered components for identification

1 LED lampica

4 Fioka

2 Polica

5 Polica za vrata

>100mm >100mm >100mm

Potreban prostor za cirkulaciju vazduha >100mm Prikaz odozgo >100mm >100mm

PAŽNJA

Slika iznad služi samo za referencu. Stvarna konfiguracija će zavisiti od kupljenog proizvoda ili izjave distributera.

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Čišćenje staklene police

• Kako najdublji unutrašnji deo podloge frižidera gde kontakt sa policama ima graničnik, morate da podignite police nagore, a zatim ih možete izvaditi.
• Podesite ili očistite police prema vašim potrebama.

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Prestanak rada

Nestanak struje:

U slučaju nestanka struje, čak i ako je to leti, hrana unutar uređaja može da se sačuva nekoliko sati; tokom nestanka struje, učestalost otvaranja vrata treba smanjiti i više ne stavljati svežu hranu u uređaj.

Diagram showing a process step with warning symbols and an 'OK' label, indicating completion or cancellation.

- Da bi se održavala ujednačena temperatura u ovoj oblasti, nemojte menjati položaj police. Kod frižidera sa protokom vazduha (uređaji sa ventilatorom ili modeli „bez zaleđivanja”) simbola najhladnije zone nema jer je temperatura unutrašnjosti svuda ista.

Indikator podešavanja temperature

Technical diagram of a refrigerator interior with numbered components for identification

1 LED svjetlo

4 Ladica

2 Polica

5 Plitica u vratima

>100mm >100mm >100mm >100mm

Prostor potreban za cirkulaciju zraka >100mm Pogled odozgo >100mm >100mm

HR

PAŽNJA

Gornja slika služi samo kao referenca. Stvarna konfiguracija ovisit će o fizičkom proizvodu ili izjavi distributera.

Dijagram s podacima o potrebnom prostoru (s otvorenim i zatvorenim vratima)

B A

B C

E 130° D

Širina	Sveukupna visina	Dubina	Širina otvaranja vrata 135°	Dubina otvaranja vrata 135°
A B C D E
545 1800 625 820 1070

Napomena: Sve dimenzije u mm

Nožice za niveliranje

Kako biste izbjegli vibracije, uređaj je potrebno nivelirati.

Ako je potrebno, podesite vijke za niveliranje kako biste kompenzirali neravnine poda.

Prednja strana treba biti malo viša od stražnje kako bi se olakšalo zatvaranje vrata.

Pure technical line drawing of a rectangular component with internal spring-like notches (no text or symbols)

Line drawing of a two-door refrigerator with a side door (no text or symbols)

poklopac otvora poklopac šarke gornja šarka

1. Skinite vrata hladnjaka, srednju šarku (uklonite vijak srednje šarke imbus ključem) i čep otvora s druge strane.
2. Skinite vrata zamrzivača, skinite donju šarku, čepove otvora i nožicu za niveliranje. Montirajte donju šarku na drugu stranu.

srednja šarka poklopac rupe

1. a) Skinite stoper i rukavac cijevi vrata hladnjaka te vijkom učvrstite rukavac cijevi i stoper na donju lijevu stranu vrata.
   b) Skinite stoper i rukavac cijevi s desne strane vrata zamrzivača te vijkom učvrstite rukavac cijevi i stoper na donju lijevu stranu vrata. Skinite rukavac cijevi i čepove otvora s vrata zamrzivača te ih prebacite na drugu stranu.

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Čišćenje staklene police

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Čišćenje ladice za povrće

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Van funkcije

Prekid napajanja:

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

- Kako biste osigurali temperaturu u tom području, nemojte mijenjati položaj police. Hladnjaci s hlađenjem pod pritiskom (opremljeni ventilatorom ili modeli bez inja), simbol najhladnije zone nije predstavljen jer je unutarnja temperatura homogena.

Postavka indikatora temperature

• Kao pomoć pri pravilnom postavljanju hladnjaka imate indikator temperature koji će pratiti prosječnu temperaturu u najhladnijoj zoni.
• UPOZORENJE: Ovaj indikator namijenjen je isključivo radu s vašim hladnjakom, nemojte ga koristiti na drugom hladnjaku (najhladnija zona nije ista) ili za drugu namjenu.

Technical diagram of a refrigerator interior with numbered components for identification

1 LED osvetlitev

4 Predal

2 Polica

5 Pladenj za vrata

3 Predal za sadje in zelenjavo

6 Razpršilnik vode (izbirno)

POZOR

Pure diagram of a rectangular container with internal spring-like slots, no text or symbols present

Line drawing of a two-door refrigerator with a side door (no text or symbols)

pokrov za luknje pokrov tečaja zgornji tečaj

Line drawing of a double refrigerator with shelves and doors (no text or symbols)

prekrivni pokrovček srednji tečaj

Line drawing of a multi-tiered refrigerator cabinet with shelves and doors (no text or symbols)

Simple line drawing of a rectangular frame with wheels and a central tray (no text or symbols)

1. a) Odstranite ustavljač, pušo vrat predela za hlajenje, sestavite pušo in ustavljač na spodnji levi strani vrat z vijakom.
   b) Odstranite ustavljač in pušo z desne strani vrat predela za zamrzovanje, sestavite pušo in ustavljač na spodnji levi strani vrat z vijakom. Odstranite pušo in pokrove za luknje na vratih predela za zamrzovanje in jih namestite na drugo stran.

Freezer Control NORMAL COOL (summer)(winter) COOLER

Koda napake

Lučki LED 1 in LED 4 svetita Senzor temperature okolice

Predel za hlajenje

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Čiščenje steklene police

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Nedelovanje

Izpad napajanja:

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator interior with numbered components for identification

RO

1 Iluminare LED

4 Sertar

2 Raft

5 Tavă uşă

>100mm >100mm >100mm

Pure technical line drawing of a rectangular component with internal spring-like notches (no text or symbols)

Line drawing of a two-door refrigerator with a side door (no text or symbols)

capac gaură capacul balamalei balamaua de sus

NORMAL COOL (summer)(winter) COOLER

RO

Cod eroare

Compartiment frigorific

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Scoaterea din uz

Pană de curent:

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Adresa producătorului: No. 5 Xinguangsi Road, Qianfeng Zhujiang, Nansha District, Guangzhou City, Guangdong Province, R.P China

Technical diagram of a refrigerator interior with numbered components for identification

1 LED осветление

4 Чекмедже

2 Рафт

5 Тава на вратата

>100mm >100mm >100mm

Pure technical line drawing of a rectangular electronic component with no text or symbols

Line drawing of a two-door refrigerator with a side door (no text or symbols)

Technical line drawing of a refrigerator with an inset view of its side panel (no text or symbols)

Technical line drawing of a door frame with internal compartments and a central support structure (no text or symbols)

Freezer Control NORMAL COOL COOLER (summer)(winter)

Код на грешка

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with upward arrows, showing a small inset image of a building on top (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Не работи

Спиране на тока:

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator interior with numbered components for identification

1 Ndriçimi LED

4 Sirtar

2 Raft

5 Tabakaja e derës

INSTALIMI I PRODUKTIT

>100mm >100mm >100mm >100mm

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a two-door refrigerator with a side door and top handle (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Pastrimi i raftit prej xhami

Illustration of a hand holding a flat surface with upward arrows, no text or symbols present

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Kur nuk përdoret

Ndërprerje energjie:

Diagram showing a warning symbol with exclamation marks before and after an 'OK' button, indicating a change in system behavior.

Adresa e prodhuesit: No. 5 Xinguangsi Road, Qianfeng Zhujiang, Nansha District, Guangzhou City, Guangdong Province, R.P. e Kinës

make yourself at home
