USER MANUAL DW543 DEWALT

Technical diagram of a drill press with numbered parts for identification

A

4 3 2 2

B

Technical diagram showing a mechanical assembly with labeled component 6 and directional arrow indicating motion or movement.

Technical line drawing of a mechanical component with directional arrows indicating force or movement (no text or symbols)

5

C
D

15 17 16 8 9

E

18	19
20	21
	23
22
	24

Dansk 1

Deutsch 7

English 13

Español 19

Français 23

Italiano 31

Nederlands 37

Norsk 43

Português49

Suomi 55

Svenska 61

Ελληνικα 67

NEDBRYDNINGSHAMMER DW543 OG TILSVARENDE K-MODEL

Tillykke!

MEDIUM DUTY DEMOLITION HAMMER DW543 AND CORRESPONDING K-MODEL

Congratulations!

You have chosen a DEWALT Power Tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional Power Tool users.

Table of contents

Technical data en - 1

Declaration of conformity en - 1

Safety instructions en - 2

Package contents en - 3

Description en - 3

Electrical safety en - 3

Mains plug replacement (U.K. & Ireland only) en - 3

Using an extension cable en - 4

Assembly and adjustment en - 4

Instructions for use en - 5

Maintenance en - 5

Guarantee en - 6

Technical data

	DW543
Voltage V 230
(U.K. & Ireland only) V 240/115
Power input W 1,100
Impact energy	J 1-8.2
Chisel positions	8
Tool holder	SDS-max®
Weight	kg 5.5

Fuses:
Europe	230 V tools	10 Amperes, mains
U.K. & Ireland 240 V tools	13 Amperes, in plugs

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

Declaration of conformity

CE

DW543 & DW543K

DEWALT declares that these Power Tools have been designed in compliance with: 89/392/EEC, 89/336/EEC, 73/23/EEC, EN 50144, EN 55104, EN 55014, EN 61000-3-2 & EN 61000-3-3.

Level of sound pressure according to 86/188/EEC & 89/392/EEC, measured according to EN 50144:

			DW543
L_pA	(sound pressure)	dB(A) ^	96.7
L_wA	(acoustic power)	dB(A)	104.7

* at the operator's ear

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

Weighted root mean square acceleration value according to EN 50144:

	DW543
	8.6 m/s ^2

Director Engineering & Product Development Horst Großmann

X. fopman

DEWALT, Idstein, Germany

Safety instructions

When using Power Tools, always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions before attempting to operate this product.

Keep these instructions in a safe place!

General

1 Keep work area clean Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose Power Tools to humidity. Keep work area well lit. Do not use Power Tools in the presence of inflammable liquids or gases.

3 Guard against electric shock

Prevent body contact with earthed surfaces (e.g. pipes, radiators, cookers and refrigerators). For use under extreme conditions (e.g. high humidity, when metal swarf is being produced, etc.) electric safety can be improved by inserting an isolating transformer or a (FI) earth-leakage circuit-breaker.

4 Keep children away

Do not let children come into contact with the tool or extension cord. Keep all people away from the work area.

5 Extension cords for outdoor use

When the tool is used outdoors, always use extension cords intended for outdoor use and marked accordingly.

6 Store idle tools

When not in use, Power Tools must be stored in a dry place and locked up securely, out of reach of children.

7 Dress properly

Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

8 Wear safety goggles

Also use a face or dust mask in case the operations produce dust or flying particles.

9 Beware of maximum sound pressure

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

10 Secure workpiece

Use clamps or a vice to hold the workpiece. It is safer and it frees both hands to operate the tool.

11 Do not overreach

Keep proper footing and balance at all times.

12 Avoid unintentional starting

Do not carry the plugged-in tool with a finger on the switch. Be sure that the switch is released when plugging in.

13 Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

14 Disconnect tool

Shut off power and wait for the tool to come to a complete standstill before leaving it unattended. Unplug the tool when not in use, before servicing or changing accessories.

15 Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

16 Use appropriate tool

The intended use is laid down in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

17 Do not abuse cord

Never carry the tool by its cord or pull it to disconnect from the socket. Keep the cord away from heat, oil and sharp edges.

18 Maintain tools with care

Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Inspect the tool cords at regular intervals and, if damaged, have them repaired by an authorized DEWALT repair agent. Inspect the extension cords periodically and replace them if damaged. Keep all controls dry, clean and free from oil and grease.

19 Check for damaged parts

Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function. Check for misalignment and seizure of moving parts,

breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed.

Do not use the tool if the switch is defective. Have the switch replaced by an authorized DeWALT repair agent.

20 Have your tool repaired by an authorized DeWALT repair agent

This Power Tool is in accordance with the relevant safety regulations. To avoid danger, electric appliances must only be repaired by qualified technicians.

Package contents

The package contains:

1 Medium Duty Demolition Hammer
1 Side handle
1 Tube of chisel lubricant
1 Chisel bit
1 Kitbox (K-models only)
1 Instruction manual
1 Exploded drawing

- Check for damage to the tool, parts or accessories which may have occurred during transport.

- Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. A)

Your DEWALT Medium Duty Demolition Hammer has been designed for professional chipping, chiselling and demolition applications.

1 ON/OFF-switch with lock-on button (10)

2 Electronic impact power control dial

3 Power-ON indicator LED

4 Service indicator LED

5 Mode indicator lever

6 Tool holder for SDS-max® accessories

7 Collar

8 Side handle

9 Side handle clamp knob

10 Lock-on button

11 Switch handle cover

12 Lower service access cover

13 Upper service access cover

14 Gearbox access cover

Soft start feature

The soft start feature allows the speed to build up more slowly, thus preventing the chisel or point from "bouncing" around on the masonry when starting up.

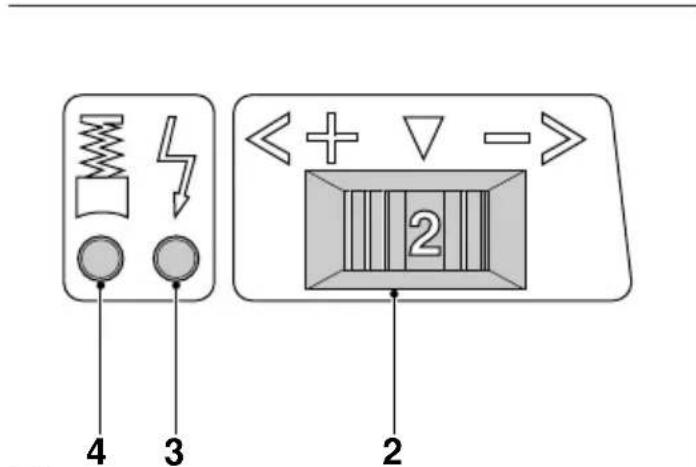

Electronic impact control (fig. B)

The electronic impact control (2) offers the following advantages:

• use of smaller accessories without risk of breakage
• chiselling light and brittle materials without shattering
• optimal tool control for precise chiselling

Service and power-ON indicator LEDs (fig. B)

The red service indicator LED (4) lights up when the carbon brushes are nearly worn out to indicate that the tool needs servicing. After approx. 8 hours of use the motor will automatically be shut off. The carbon brushes are not user-serviceable. Take the tool to an authorized DEWALT repair agent.

The green power-ON indicator LED (3) lights up when the tool is switched ON. If the indicator LED is lit but the tool does not start, the electrical motor may be defective. If the indicator LED does not light up and the tool does not start, the ON/OFF-switch or the mains cord may be defective.

Electrical safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your DEWALT tool is double insulated in accordance with EN 50144; therefore no earth wire is required.

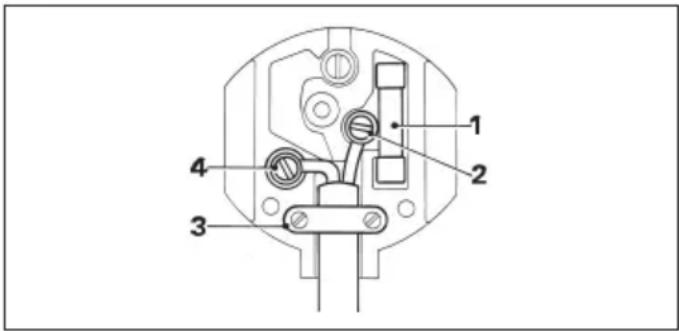

Mains plug replacement (U.K. & Ireland only)

- Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.

- Disconnect the plug from the supply.

- Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.

- Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).

- The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).

- Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

1 2 3 4

- Never use a light socket.

- Never connect the live (L) or neutral (N) wires to the earth pin marked E or 12

For 115 V tools, use plugs to BS4343 standard.

Using an extension cable

If an extension cable is required, use an approved triple-core extension cable suitable for the power input of this tool (see technical data). The minimum conductor size is 1.5 mm^2 . When using a cable reel, always unwind the cable completely. Also refer to the table below.

Conductor size (mm2) Cable rating (Amperes)
0.75 6
1.00 10
1.50 15
2.50 20
4.00 25
Cable length (m)
7.5 15 25 30 45 60
Voltage Amperes Cable rating (Amperes)
115	0 -	2.0	6	6	6	6	6	10
	2.1 -	3.4	6	6	6	6	15	15
	3.5 -	5.0	6	6 10	15 20 20
	5.1 -	7.0	10 10	15 20	20 25
	7.1 -	12.0	15 15	20 25	25	-
	12.1 -	20.0	20	20	25	-	-	-

Conductor size (mm ^2 ) Cable rating (Amperes)

0.75 6

1.00 10

1.50 15

2.50 20

4.00 25

Cable length (m)
			7.5	15	25	30	45	60
Voltage Amperes Cable rating (Amperes)
115	0 -	2.0	6	6	6	6	6	10
	2.1 -	3.4	6	6	6	6	15	15
	3.5 -	5.0	6	6	10	15	20	20
	5.1 -	7.0	10	10	15	20	20	25
	7.1 -	12.0	15	15	20	25	25	-
	12.1 -	20.0	20	20	25	-	-	-

Voltage Amperes Cable rating (Amperes)
220/240	0 -	2.0	6	6	6	6	6	6
	2.1 -	3.4	6	6	6	6	6	6
	3.5 -	5.0	6	6	6	6	10	15
	5.1 -	7.0	10	10	10	15	15
	7.1 -	12.0	15	15	15	15	20	20
	12.1 -	20.0	20	20	20	20	25	-

Assembly and adjustment

Prior to assembly and adjustment always unplug the tool.

Setting the electronic impact power control dial (fig. B)

- Turn the dial (2) to the desired level. The higher the number, the greater the impact energy. With dial settings from “1” (low) to “7” (full power) the tool is extremely versatile and adaptable for many different applications. The required setting is a matter of experience.

E.g.:

- when chiselling ceramic tiles or soft, brittle materials, set the dial to position "1" or "2" (low);

- when breaking concrete up to 15 cm thick, set the dial to "7" (full power).

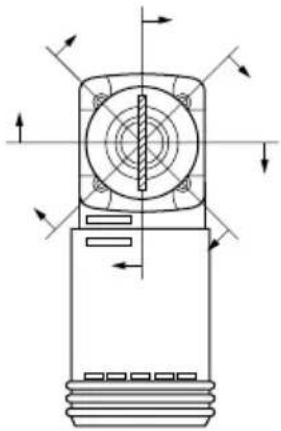

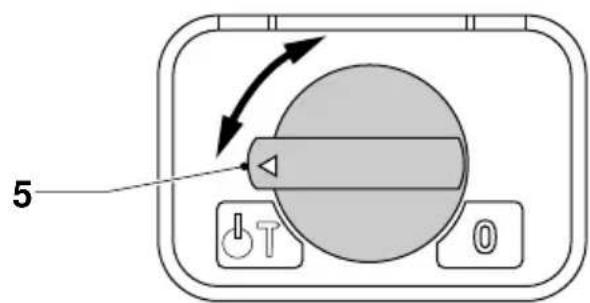

Determining the chisel position (fig. C & D)

The chisel can be locked into 8 different positions.

- Set the mode indicator lever (5) to the rear position.

- Insert the chisel as described below.

- Rotate the mode indicator lever (5) back to the forward position indicated by the impacting symbol .

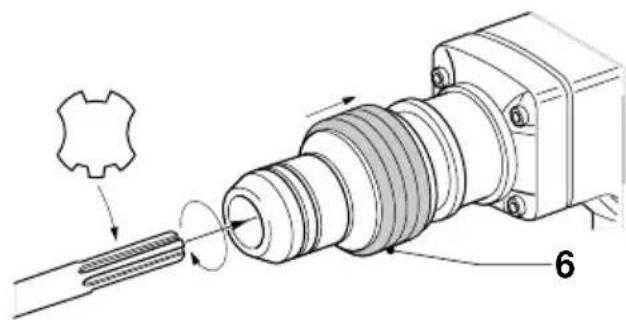

Inserting and removing SDS-max ^® accessories (fig. D)

This model uses SDS-max ^® chisels (refer to the inset in fig. D for a cross-section of an SDS-max ^® chisel shank).

- Insert the bit shank into the tool holder locking sleeve (6) and turn the bit slightly until the sleeve snaps in position.

- Pull on the chisel to check if it is properly locked. The hammering function requires the chisel to be able to move axially several centimetres when locked in the tool holder.

- To remove a chisel pull back the tool holder locking sleeve (6) and pull the chisel out of the tool holder.

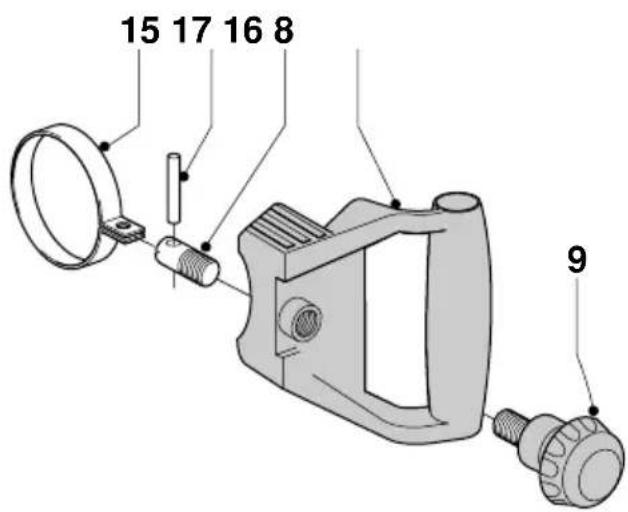

Assembling and fitting the side handle (fig. E)

The side handle (8) can be mounted on either side of the tool to suit both RH- and LH-users.

Always operate the Demolition Hammer with the side handle properly assembled.

• Unscrew the side handle clamp knob (9) and disassemble the side handle (8).
• Snap the steel ring (15) over the collar behind the tool holder. Squeeze both ends together, mount the bush (16) and insert the pin (17).
• Fit the side handle (8) and screw on the clamp knob (9). Do not tighten.
• Rotate the side handle to the desired working position.
• Lock the side handle mounting assembly in place by tightening the clamp knob (9).

Instructions for use

• Always observe the safety instructions and applicable regulations.
- Be aware of the location of pipework and wiring.
- Apply approx. 20 kg pressure to the tool. Excessive force does not speed up chiselling but decreases tool performance and may shorten tool life.

Chipping and chiselling (fig. A)

• Set the electronic impact power control dial (2).
  • Fit and adjust the side handle (8).
• Set the mode indicator lever (5) to the upright or rear position.
• Insert the appropriate accessory.
• Rotate the chisel or point by hand to lock it into one of 8 positions.
• Rotate the mode indicator lever (5) back to the forward position indicated by the impacting symbol .
• Press the ON/OFF-switch (1).
• For continuous operation, depress the lock-on button (10) on the ON/OFF-switch.

- To stop the tool, simply press the ON/OFF-switch (1) once more. Always switch OFF the tool when work is finished and before unplugging.

Various types of SDS-max ^® chisels are available as an option.

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your DEWALT Power Tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

The Demolition Hammer is not user-serviceable. Take the tool to an authorized DEWALT repair agent as soon as the service indicator LED (4) lights up.

Lubrication

Your Power Tool requires no additional lubrication.

Cleaning

Keep the ventilation slots clear and regularly clean the housing with a soft cloth.

Accessory maintenance

Accessory maintenance at the right time guarantees optimal results in application and a long and efficient accessory life.

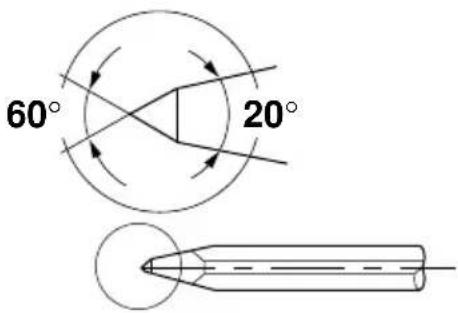

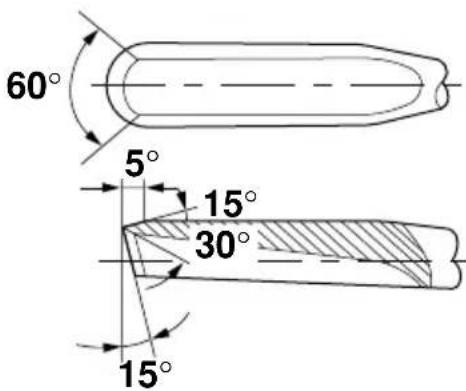

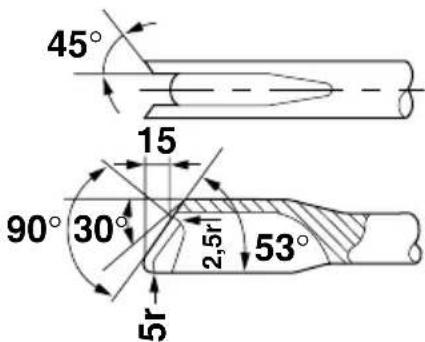

• Grind the chisels on grinding disks. Refer to fig. F for the appropriate angles of the following chisels:
• spade-shaped chisel (18)
• cold chisel (19)
• pointed chisel (20)
• U-shaped chisel (21)
• hollow chisel (22)
• mortar chisel (23)
• toothed chisel (24)

- These chisels can be reground only a limited number of times. If in doubt, contact your dealer for recommendations.

- Ensure that the cutting edge does not show discolouration caused by too much pressure. This may impair the hardness of the accessory.

Unwanted tools and the environment

Take your tool to an authorized DEWALT repair agent where it will be disposed of in an environmentally safe way.

GUARANTEE

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to a participating Dealer, or an authorized DEWALT repair agent, for a full refund or exchange. Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
• Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual.

MARTILLO DE DEMOLICION DW543 Y MODELO K CORRESPONDIENTE

¡Enhorabuena!

Director Engineering & Product Development Horst Großmann

X. Jopman

L'emballage contient:

Director Engineering & Product Development Horst Großmann

X. Jopman

Director Engineering & Product Development Horst Großmann

X. fopmann

DEWALT, Idstein, Tyskland

Sikkerhetsforskrifter

Director Engineering & Product Development Horst Großmann

X. Jopman

15 Tire as chaves de ajuste

Director Engineering & Product Development Horst Großmann

X. Jopman

DEWALT, Idstein, Saksa

Turvallisuusohjeet

Director Engineering & Product Development Horst Großmann

X. fopman

DEWALT, Idstein, Tyskland

Säkerhetsinstruktioner
