Brand	DOMO
Model	DO1013SV
Category	Stick / Handheld Vacuum
Power type	Cordless, rechargeable battery
Charger input voltage	Not specified
Runtime	Not specified
Charging time	Not specified
Dust tank capacity	Not specified
Main functions	Rotating floor brush, speed control, 2-in-1 crevice tool, use as handheld vacuum
Rotating brush	Yes, removable and washable
Filters	Washable with water, replacement recommended regularly
Safety	Automatic shut-off in case of overload or blockage, motor protection
Maintenance	Cleaning the tank and filters after each use, cleaning the brush
Spare parts available	Filters, battery, rotating brush, nozzle
Warranty	2 years (6 months for accessories and consumables)
Customer service	[phone], [e-mail]
Country of origin	Not specified

Frequently Asked Questions - DO1013SV DOMO

How to charge the DOMO DO1013SV vacuum cleaner?

Assemble the charging station, plug the charger into the station from the back, then place the stick vacuum in the charger aligning the contacts. The indicator lights red then green when charging is complete. The device cannot be used while charging.

What to do if the vacuum does not start?

Check that the battery is charged. If the indicator does not light up, place the device on the charger for a few hours. If the problem persists, contact customer service.

How to clean the dust tank and filters?

Press the tank release button to remove it. Take out the filters, empty the tank. Separate the filter parts and wash them under running water. Dry completely before reassembling. Clean after each use for optimal performance.

How to use the vacuum in handheld mode?

Press the wand removal button to detach it. You can then use the handheld vacuum with the floor brush or the 2-in-1 crevice tool. Store the wand in the opening on the charging station.

What to do if the vacuum does not suck properly?

Check that the tank is not full and the filters are not dirty. Clean them if necessary. Ensure the floor nozzle is not blocked and the rotating brush is not jammed by hair or debris.

How to clean the rotating brush?

Remove the floor nozzle by pressing the release button. Open the clip on the side, remove the brush. Remove hair and dirt, then rinse under running water. Dry completely before putting back.

Runtime decreases, what to do?

Fully charge the device. If the problem persists, check that hair is not blocking the brush. The battery may be defective or worn; it is replaceable. Contact customer service to obtain a replacement battery.

What types of waste should not be vacuumed with this device?

Never vacuum liquids, detergents, needles, matches, sharp or flammable objects. Avoid vacuuming cement, powder, or large objects that could block the device and damage the motor.

Can I use the vacuum outdoors?

No, the device is designed for indoor domestic use only. Do not use it outdoors or on wet surfaces.

How to obtain spare parts or accessories?

Genuine Domo spare parts are available online. Contact customer service at [phone] or by email at [e-mail] for any order or information.

USER MANUAL DO1013SV DOMO

Black DOKO vacuum cleaner with extended handle and white base (no visible text or symbols)

DO1013SV

Handleiding Steelstofzuiger 2-in-1
Mode d'emploi Aspirateur	balai 2-en-1
Gebrauchsanleitung Handstaubsauger 2-in-1
Instruction booklet 2-in-1 Stick vacuum cleaner

Two black-and-white icons: a warning triangle with an exclamation mark and an open book (no text or symbols)

Read all instructions carefully - save this instruction manual for future reference.

NL Nederlands 3
FR Français 8
DE Deutsch 13
EN English 18

GARANTIE

Geachte klant,

Technical diagram of a vacuum cleaner with numbered parts labeled for identification.

Technical line drawings of two mechanical components with arrows indicating motion (no text or symbols)

Black and blue DCM5 vacuum cleaner with handle and base mount (no visible text or symbols)

REINIGING EN ONDERHOUD

HET TOESTEL PROPER MAKEN

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

PROBLEEM EN OPLOSSING

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical line drawings of two mechanical components, one with a pin and arrow indicating direction (no text or symbols)

Exterior view of a black and blue DCM3 vacuum cleaner (no visible text or symbols)

NETTOYAGE ET ENTRETIEN

NETTOYER L'APPAREIL

Exploded view of a mechanical component, showing cross-sections and internal structure (no text or symbols)

NETTOYER LA BROSSE DE SOLS

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a vacuum cleaner with numbered parts labeled for identification.

Technical line drawings of two mechanical components, one with a pin and arrow indicating motion, the other with a bracket and arrow indicating rotation (no text or symbols)

Exterior view of a black and blue DCM3 vacuum cleaner (no visible text or symbols)

Technical line drawing of a mechanical assembly with an upward arrow indicating motion (no text or symbols)

Prohibition sign with a trash bin crossed out and a black rectangular base, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  · farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
• Attention: This appliance cannot be used with an external timer or a separate remote control.
• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

- Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

· Do not leave a working appliance unattended.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

- Do not use the appliance outdoors.

- Only use the appliance for its intended use.

· Always use the appliance on a steady, dry and level surface.

- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· All repairs should be carried out by the manufacturer or its aftersales service.

· Never immerse the appliance, the cord or the plug in water or any other liquid.

- Make sure that children do not touch the cord or appliance.

- Keep the cord away from sharp edges and hot parts or other heat sources.

· Before use, remove all packaging materials and any promotional stickers.

- Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or flammable objects.

- Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.

- Make sure that the air intake or the floor suction opening do not become blocked.

· Make sure that the machine does not come into contact with liquids.

- First charge a new battery up completely.

- Pull the plug from the outlet when the vacuum cleaner is fully charged.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

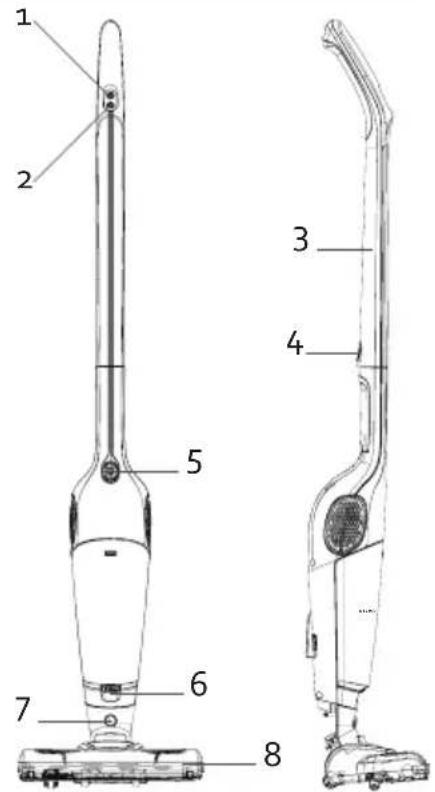

PARTS

1. On-off button
2. Speed control
3. Handle
4. Button for removing handle
5. On-off button hand-held
6. Unlock button for dust reservoir
7. Release button floor nozzle
8. Floor nozzle with rotating floor brush
9. Charging station cord
10. Charging station
11. Crevice vacuum cleaner

10 11 9

Technical diagram of a vacuum cleaner with numbered parts labeled for identification.

BEFORE THE FIRST USE

To set up the machine properly, please follow the steps below:

1. Slide the handle in to the upright vacuum cleaner until you hear a click.
2. Make sure that the floor nozzle is clicked on tightly to the stick vacuum cleaner.

CHARGING

1. Click the two parts of the charging station together before use.

2. Attach the charger to the charging station via the in-built connector on the back.

3. Put the stick vacuum cleaner into the charging station, so that the contact points on the vacuum cleaner are aligned with the contact points on the charging station. Push the vacuum cleaner

Technical line drawings of two mechanical components with arrows indicating motion (no text or symbols)

and the charging station together so that the stick vacuum cleaner remains standing vertically on the station. Make sure it all is stable.

1. The on/off button of the hand-held vacuum cleaner will light up red and will become green once the appliance has been fully charged. This light will turn off after a while.

2. The machine cannot be started during charging.

USE

• Press the on-off button on the handle to turn the machine on. The on/off button of the hand-held vacuum cleaner is green. If the battery is almost empty, the light will flash on and off.
• When you switch on the machine, the rotating floor brush at the bottom of the floor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up.
• Press the speed control to increase or lower the suction power.

- The appliance is equipped with a safety which will ensure that the machine shuts itself off if, for example, objects which are too large are sucked up, or if fingers become tangled in the floor brush. This is to ensure personal safety and to protect the motor. To reverse the floor brush, press the on/off button.

USING THE HAND-HELD VACUUM CLEANER

You can also use the appliance as a hand-held vacuum cleaner. Press the button on the back of the handle to remove it. The handle can be stored in the slot provided in the charging station.

Use the hand-held vacuum cleaner with the floor nozzle of the 2-in-1 crevice tool. This tool can easily be inserted and removed from the opening at the front of the hand-held vacuum cleaner.

Black and white photo of a DCMO vacuum cleaner with blue handle (no visible text or symbols)

CLEANING AND MAINTENANCE

CLEANING THE MACHINE

Clean the machine with a slightly moist soft cloth. Dry the machine off well. Never submerge the machine in water!

CLEANING THE DUST RESERVOIR

1. Press the dust reservoir unlock button to remove it from the vacuum cleaner.
2. Then take the filters out of the dust reservoir. Empty the dust reservoir.
3. Take part A from part B and remove the sponge from part B.
4. All parts can be cleaned under running water. Do take care to dry them completely before using them again in the machine.

We advise replacing the filters regularly to ensure an optimal operation of the machine. Dirty filters will reduce the suction power drastically. After every cleaning, clean the dust reservoir and the filters to extend the life span of your machine.

Exploded view of a mechanical component, showing cross-sections and internal structure (no text or symbols)

CLEANING THE FLOOR BRUSH

1. Remove the floor nozzle from the upright vacuum cleaner. Press the release button of the floor nozzle and remove it from the machine.

2. Open the release button on the left of the floor brush and click to release the cover.

3. Remove the rotating floor brush from the floor nozzle.

4. Remove hairs and other dirt that have wrapped around the floor brush. If you do not clean the floor brush regularly, it will become damaged and your machine will become unusable.

5. The rotating floor brush may be rinsed off under running water. Make sure that it is completely dry before using it.

6. Place the floor brush back into the floor nozzle when it is clean.

7. Click the closure valve back into place to close it. Close the release button.

8. Push the nozzle back onto the stick. The machine is now again ready for use.

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Stuck hairs can damage the machine or your floor. Always remove the hairs stuck on the brushes.

PROBLEM AND SOLUTION

Problem Solution
The machine does not start up. · The battery is empty. Charge the machine.
The machine does not vacuum. · The filters are dirty/the dust reservoir is full.· The floor nozzle is clogged/the floor brush is blocked.· Clean the machine as described in this manual.
The running time of the machine is shorter and shorter.	· The machine is not sufficiently charged. Charge the machine fully and try again.· The battery is broken or old. Replace the battery.· Stuck hairs.Remove the hairs stuck on the brushes.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.
