Sicherheitshinweise
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
▶ Do not allow persons unfamiliar with the glue gun or these instructions to operate the device.
▶ Do not allow children to use the glue gun unless under the supervision of an adult. Children can injur themselves.
▶ Children or persons with mental or physical limitations may only use the glue gun and the charger under supervision or after having been instructed. A thorough introduction reduces operating errors and injuries.
Before each use, check the glue gun, charger, cable and plug. If damage is detected, do not use the glue gun and the charger. Never open the glue gun or the charger yourself, and have repairs carried out only by a qualified repair person using only identical replacement parts. Damaged glue guns, chargers, cables and plugs increase the risk of an electric shock.
▶ Do not leave the switched on glue gun unattended.
Protect the glue gun against heat, e.g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
▶ Do not touch the hot nozzle. Danger of burns.
▶ Charge the glue gun only with chargers recommended by the manufacturer. Otherwise there is danger of fire.
▶ Keep the charge contacts on the glue gun and the charger away from paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Have your glue gun and charger serviced only by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
▶ After use, place down the glue gun in a safe manner and allow it to cool down completely before packing it away. The hot nozzle can cause damage and/or burns.
▶ Do not use the cable for pulling the plug out of the socket outlet. Keep the cable away from heat or oil. Damaged or entangled cables increase the risk of an electric shock.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.
English | 15
Keep the battery charger away from rain or moisture.
Penetration of water in the battery charger increases the risk of an electric shock.
▶ Only charge Bosch lithium ion batteries or batteries installed in Bosch products with the voltages listed in the technical data. Otherwise there is danger of fire and explosion.
- Keep the battery charger clean. Contamination can lead to danger of an electric shock.
In case of damage and improper use of the battery, vapours may be emitted. Provide for fresh air and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Children should be supervised to ensure that they do not play with the battery charger.
Functional Description
Intended Use
The glue gun is intended for solvent-free bonding of e. g., paper, cardboard, cork, wood, leather, textiles, foam, plastic, ceramics and porcelain.
Product Features
The numbering of the product features refers to the illustration of the glue gun on the graphics pages.
1 Drip tray
2 Battery charger
3 Feed trigger
4 Nozzle
5 Glue stick*
6 Heating indicator
7 On/Off button
8 Battery charge-control indicator
9 Charger contacts (charger)
10 Charger contacts (glue gun)
11 Glue-stick storage compartment
*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.
16 | English
Technical Data
| Cordless Glue Gun | PKP 7,2 LI | |
| Article number | 3 603 B64 0.. | |
| Heating time | s | approx. 15 |
| Gluing temperature | °C | approx. 200 |
| Glue stick, diameter | mm | ∅ 7 |
| Glue stick, length | mm | 100–150 |
| Weight according to EPTA-Procedure 01/2003 | kg | 0.3 |
| Battery | Li-lon | |
| Rated voltage | V= | 7.2 |
| Capacity | Ah | 1.3 |
| Number of battery cells | 2 | |
| Operating duration per battery charge (continuous operation) | min | approx. 45 |
| Please observe the article number on the type plate of your glue gun. The trade names of individual glue guns can vary. | ||
| Battery Charger | ||
| Article number | ||
| - EU | 1 600 A00 0 DG | |
| - UK | 1 600 A00 0 DH | |
| Output voltage | V= | 9 |
| Charging current | mA | 1000 |
| Allowable charging temperature range | °C | 0-40 |
| Charging time | h | 2.0 |
| Weight according to EPTA-Procedure 01/2003 | kg | 0.5 |
| Protection class | ☐/II | |
English | 17
Assembly
Battery Charging (see figure A)
▶ Observe the mains voltage! The voltage of the power supply must correspond with the data given on the nameplate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V.
The battery is supplied partially charged.
To ensure full battery capacity, completely charge the battery (at least 1.5–2 hours) before using for the first time.
The glue gun cannot be used during the charging procedure; it is not defective, when it does not function during the charging procedure.
The lithium ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.
The “Electronic Cell Protection (ECP)” protects the lithium ion battery against deep discharging. When the battery is discharged, the glue gun is switched off by a protective circuit: The glue is no longer heated.
! WARNING
After the automatic shut-off of the glue gun, do not press the On/Off button again. The battery could become damaged.
| Battery Charge Indicator | ||
| red | green | Meaning |
| - | ● | The battery is being charged |
| - | ○ | The battery is fully charged |
| ● | - | The battery has less than 30% of its capacity and should be charged |
| ○ | - | The battery is completely discharged |
- Flashing O Continuous light
- Plug the mains plug of the charger 2 into a socket outlet. Afterwards, place the glue gun into the charger cradle.
Disconnect the battery charger from the mains supply when not using it for longer periods.
▶ Protect the battery charger against moisture!
Observe the notes for disposal.
18 | English
Operation
Starting Operation
Switching On
- To start the operation, press the On/Off button 7 until the heating indicator 6 lights up green.
Heating indicator
green
Meaning
for approx. 15 s
The glue is being heated
The glue gun is ready for operation
- Flashing O Continuous light
Switching Off
- To switch off, press the On/Off button 7 until the heating indicator 6 goes out.
Automatic shut-off:
Note: When the glue gun is not used for more than 5 minutes, it automatically shuts off.
- Switch the glue gun on again and check the battery charge-control indicator 8. When the battery charge-control indicator lights up red continuously, the battery must be recharged.
▶ After use, place down the glue gun in a safe manner and allow it to cool down completely before packing it away. The hot nozzle can cause damage and/or burns.
Working Advice
▶ Do not allow the hot glue or the nozzle tip to come into contact with persons or animals. Glue and nozzle tip reach a temperature of approx. 200 °C; danger of burning. If hot glue comes into contact with the skin, hold the affected area immediately under a stream of cold water for several minutes. Do not try to remove the glue from the skin.
Use only glues recommended by the manufacturer of the glue gun (see page 112).
Bonded connections can loosen under the effect of moisture.
Preparations for Gluing
The surfaces to be glued must be clean, dry and free of grease.
English | 19
The materials to be glued as well as the surface on which you are working may not be easily ignitable or inflammable.
Check the suitability of heat-sensitive materials first on a test workpiece.
The ambient temperature and the workpieces to be glued may not be colder than +5 °C and warmer than +50 °C.
Materials, such as metal, which cool off the glue quickly, should be preheated with a hot air gun.
Gluing
- Insert the appropriate glue stick 5 for the material being glued via the opening at the rear of the glue gun.
- Switch the glue gun on and allow it to heat up (see “Switching On”, page 17).
The glue gun is ready for operation after approx. 15 seconds. - Press the feed trigger 3 applying moderate pressure.
- Apply the glue only on one side (also see “Practical Advice”, page 19).
- After applying the glue, immediately press the surfaces to be glued together. Correcting the gluing location is still possible at this point.
The glued spot can be subjected to full load after a cool-down period of approx. 2 minutes.
Practical Advice
| Material/Workpiece | Recommendation |
| Large-surfaces, long workpieces | Apply the glue in the form of points |
| Rigid foam (e.g. styrofoam or polystyrene) | Apply glue to base material and not to the styrofoam or polystyrene |
| Flexible materials (e.g. textiles) | Apply the glue in lines |
Remove glue residue after cooling with a sharp object. If required, glued spots can be separated again by applying heat.
▶ Do not use inflammable solvents for cleaning the surfaces to be glued. Solvent remainders can ignite from the hot glue, or hazardous vapours can develop.
Glue remainders on clothing cannot be removed.
Glued spots can be painted.

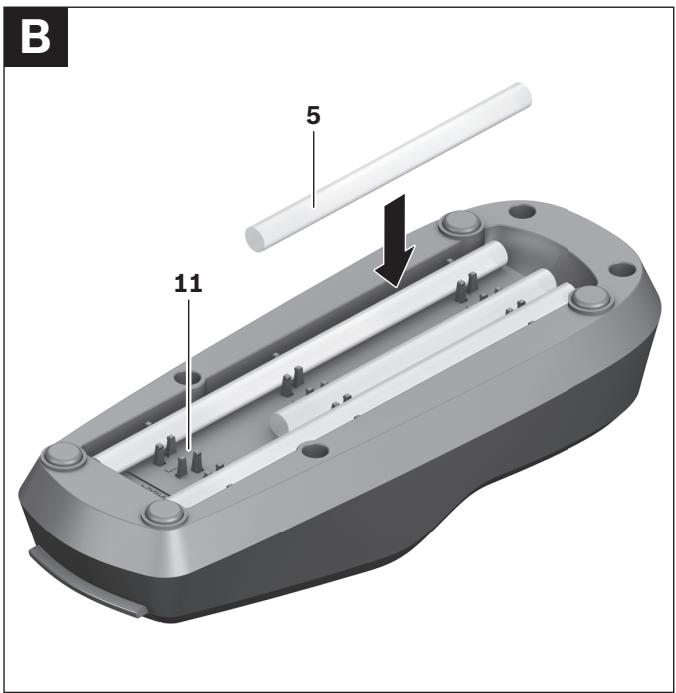

Glue-stick Storage Compartment (see figure B)
The bottom side of the charger 2 comprises a storage compartment 11, in which up to four glue sticks 5 can be stored.
20 | English
Maintenance and Service
Maintenance and Cleaning
▶ Warning! Before any maintenance or cleaning, switch the glue gun off.
▶ For safe and proper working, always keep the glue gun clean.
An inserted glue stick 5 cannot be removed out of the rear opening of the glue gun.
If the glue gun and the charger should fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer services agent for Bosch power tools.
The dip tray 1 can be removed from the charger 2 for cleaning. After excess glue has hardened, it can be removed with a blunt object. Do not use solvent for cleaning.
In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the glue gun or the charger.
After-sales Service and Customer Assistance
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under: www.bosch-pt.com
Our customer service representatives can answer your questions concerning possible applications and adjustment of products and accessories.
Great Britain
Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ Tel. Service: +44 (0844) 736 0109 Fax: +44 (0844) 736 0146 E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd. Unit 23 Magna Drive Magna Business Park City West Dublin 24 Tel. Service: +353 (01) 4 66 67 00 Fax: +353 (01) 4 66 68 88
1 609 929 W64 | (8.7.10)
Bosch Power Tools
English | 21
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: +61 (01300) 307 044
Fax: +61 (01300) 307 045
Inside New Zealand:
Phone: +64 (0800) 543 353
Fax: +64 (0800) 428 570
Outside AU and NZ:
Phone: +61 (03) 9541 5555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: +27 (011) 6 51 96 00
Gauteng - BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: +27 (011) 4 93 93 75
Fax: +27 (011) 4 93 01 26
E-Mail: bsctools@icon.co.za
KZN - BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: +27 (031) 7 01 21 20
Fax: +27 (031) 7 01 24 46
E-Mail: bsc.dur@za.bosch.com
Western Cape - BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: +27 (021) 5 51 25 77
Fax: +27 (021) 5 51 32 23
E-Mail: bsc@zsd.co.za
Bosch Headquarters
Midrand, Gauteng
Tel.: +27 (011) 6 51 96 00
Fax: +27 (011) 6 51 98 80
E-Mail: rbsa-hq.pts@za.bosch.com
22 | English
Disposal
The glue gun, charger, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of the glue gun, battery charger and batteries into household waste!
Only for EC countries:
According to the European Guideline 2002/96/EC, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.
Batteries no longer suitable for use can be directly returned at:
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
E-Mail: boschservicecentre@bosch.com
Battery packs/batteries:
▶ Integrated batteries may only be removed for disposal. Opening the housing shell can damage or destroy the glue gun.
Discharge the battery until the battery charge-control indicator 8 lights up red. Unscrew all screws from the housing and open the housing shell. Disconnect the battery connections and remove the battery.
Please observe the instructions in section "Transport", page 22.
Transport
Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.
When dispatching lithium-ion batteries, compulsory labeling may be required. Please observe the respective national regulations.
Subject to change without notice.
