USER MANUAL KFP1320 KITCHENAID

Exterior view of a Kitchen Aid kitchen blender with clear glass casing and control buttons (no text or symbols on the device itself)

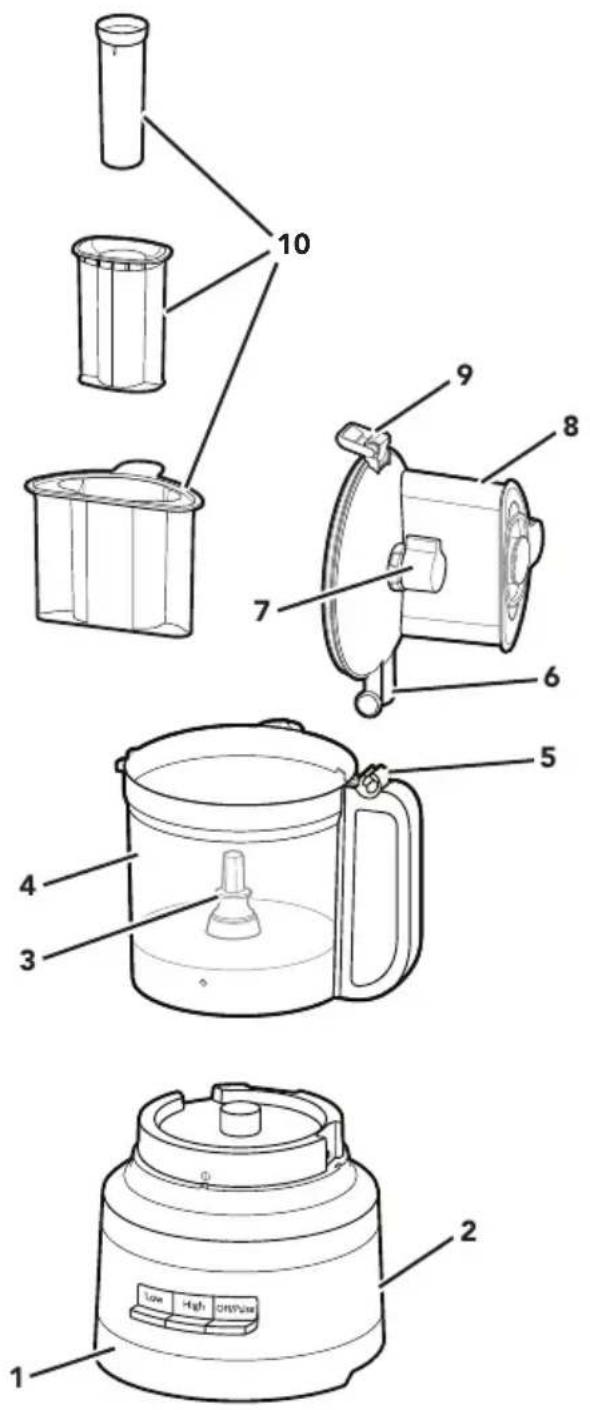

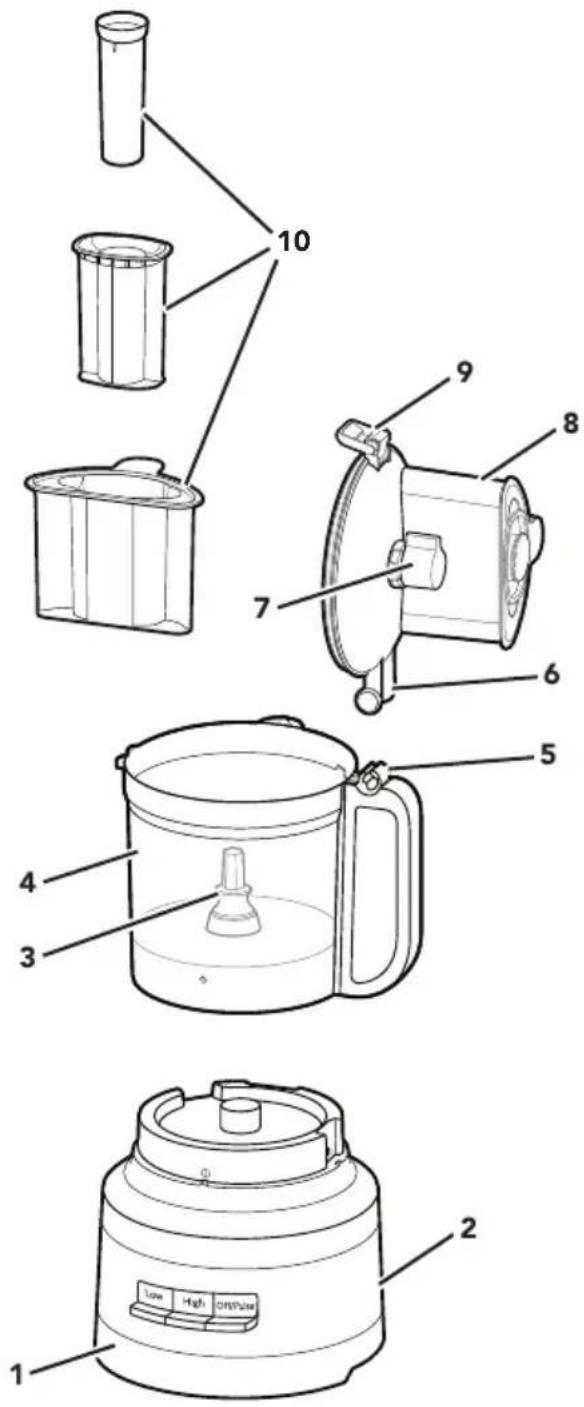

PARTS AND FEATURES

Labeled diagram of a food appliance with numbered parts for identification and assembly reference.

1 Heavy-Duty Base
2 Power Cord and Cord Storage (not shown)
3 Drive Pin
4 13-Cup (3.1 L) Work Bowl
5 Handle Hinge
6 Lid Hinge
7 Slicing Knob
8 Work Bowl Cover with 3-in-1 Feed Tube
9 Lid Latch

Technical diagram showing numbered components of a cooking pot with labeled parts 11 through 24

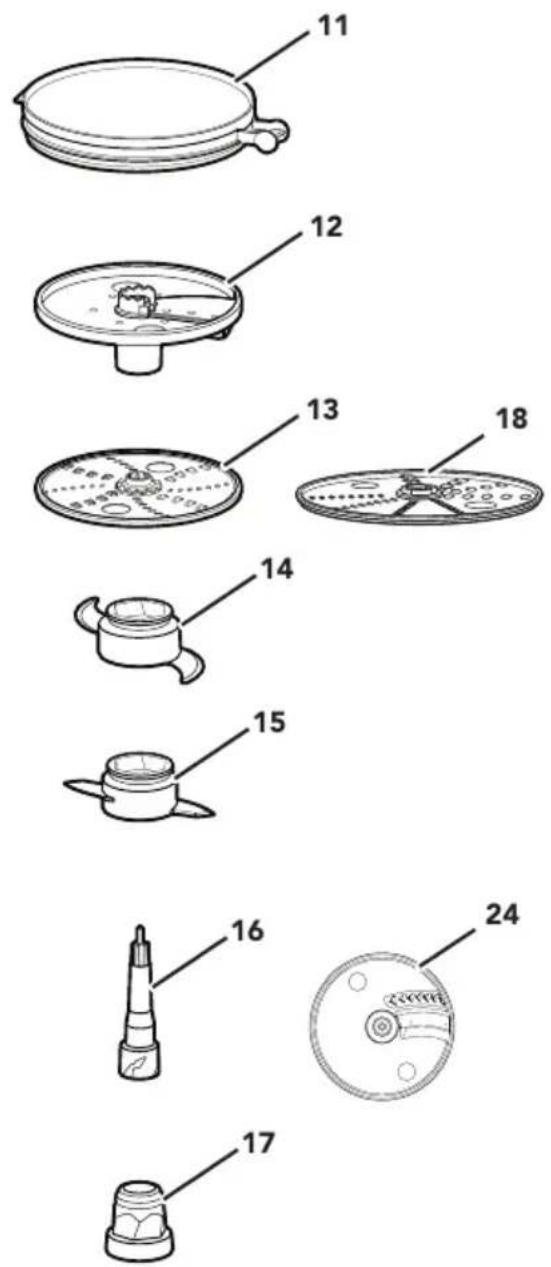

10 3-in-1 Food Pusher
11 Refrigerator Lid
12 Externally Adjustable Slicing Disc (thin to thick)
13 Reversible Fine/Medium Shredding Disc
14 Multipurpose Stainless Steel Blade
15 Dough Blade
16 Drive Adapter (Upper)
17 Drive Adapter (Lower)
18 Medium Shredding Disc

PARTS AND FEATURES

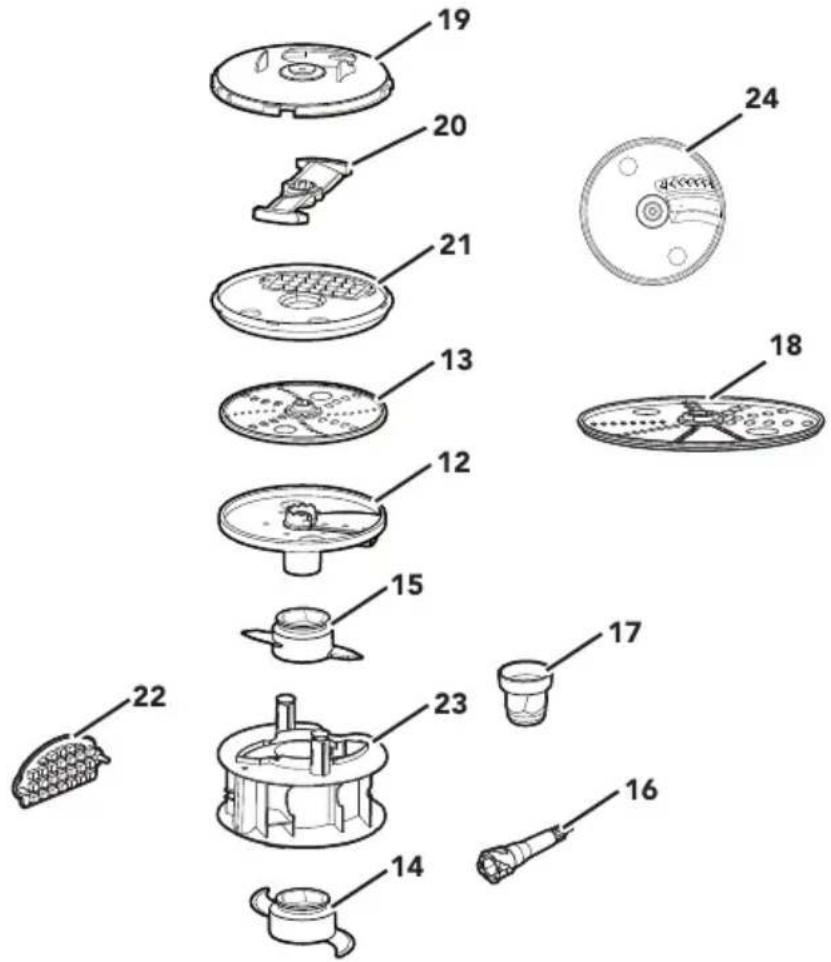

Exploded view diagram of a food appliance with numbered parts for identification

19 Dicing Kit Cover
20 Dicing Blade
21 Dicing Kit Base

22 Dicing Kit Clean Out Tool
23 Storage Caddy
24 French Fry Disc

ACCESSORY GUIDE

Accessory	Included with Model
	KFP1319 KFP1318 KFP1317 KFP1320
External Adjustable Slice	● ● ● ●
Storage Caddy	● ● ● ●
Wide Mouth Opening	● ● ● ●
3-in-1 Feed Tube	● ● ● ●
Multipurpose Blade	● ● ● ●
Dough Blade	● ● ●
Fine and Medium Shred	● ● ●
Medium Shred			●
Storage Lid	●			●
Dicing Kit	●			●
French Fry Disc				●

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. To protect against risk of electrical shock, do not put Food Processor in water or other liquid.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with appliance.

4. Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the Power Cord.

5. Avoid contacting moving parts.

6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair, or electrical or mechanical adjustment.

7. The use of attachments not recommended or sold by KitchenAid may cause fire, electric shock, or injury.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter.

10. Keep hands and utensils away from moving Blades or discs while processing food to reduce the risk of severe injury to persons or damage to the Food Processor. A scraper may be used but must be used only when the Food Processor is not running.

PRODUCT SAFETY

1. Blades are sharp. Handle carefully.
2. To reduce the risk of injury, never place cutting Blade or discs on Base without first putting Bowl properly in place.
3. Be certain Cover is securely locked in place before operating appliance.
4. Never feed food by hand. Always use Food Pusher.
5. Do not attempt to defeat the Cover interlock mechanism.
6. Do not fill the Bowl above the marked maximum fill line (or rated capacity) to avoid risk of injury due to damage to the Cover or Bowl.
7. Allow the appliance to cool completely before putting on or taking off parts, and before cleaning the appliance.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

ELECTRICAL REQUIREMENTS

Voltage: 120 V\~

Frequency: 60 Hz

NOTE: This Food Processor is equipped with a polarized plug (one Blade is wider than the other). To reduce the risk of electrical shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

ACCESSORIES SELECTION GUIDE

Action Setting Food	Accessory
Chop	Low or Pulse	CheeseChocolateFruitsFresh herbsNutsTofuVegetables	Multipurpose Stainless Steel Blade
Mince or Purée	High or Pulse
Mix	Low	Pasta SaucePestoSalsaSaucesBatters
Slice (thin to thick)	Low	Fruit (soft)PotatoesTomatoesVegetables (soft)	Externally Adjustable Slicing Disc
	High	CheeseFruit (hard)Vegetables (hard)
Shred (fine to medium)	Low	PotatoesVegetables (soft)	Reversible Fine/Medium Shredding Disc OR Medium Shredding Disc
	High	CabbageCheeseChocolateFruits (hard)Vegetables (hard)
Dice	Low	PotatoesVegetablesFruitCheese	Dicing Kit
Knead	Low	YeastDough	Dough Blade
French Fry Cut	Low	Vegetables (hard)Potatoes	French Fry Disc

FOR DETAILED INFORMATION ON USING THE FOOD PROCESSOR

Visit www.kitchenaid.com/quickstart for additional instructions with videos, inspiring recipes, and tips on how to use your Food Processor.

PRODUCT ASSEMBLY

Before first use

Before using your Food Processor for the first time, wash all parts and accessories either by hand or in the dishwasher (see "Care and Cleaning" section).

NOTE: Your Food Processor is designed so that all accessories may be stored inside the Work Bowl.

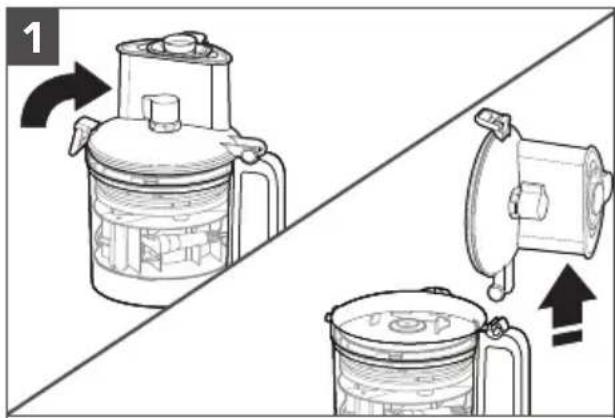

Illustration of three different cooking pots with directional arrows indicating rotation (no text or symbols)

Lift up the Lid Latch to unlock the Cover. Tilt the Work Bowl Cover back and lift it straight up so that the Lid Hinge pulls out of the Handle Hinge.

2

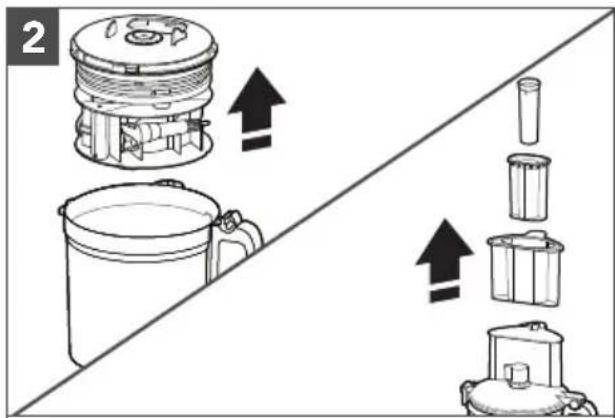

Remove all parts and accessories from the Work Bowl, and lift the Food Pusher out of the Feed Tube.

IMPORTANT: Place the Food Processor on a dry, level countertop with the controls facing forward. Do not plug in the Food Processor until it is completely assembled.

3

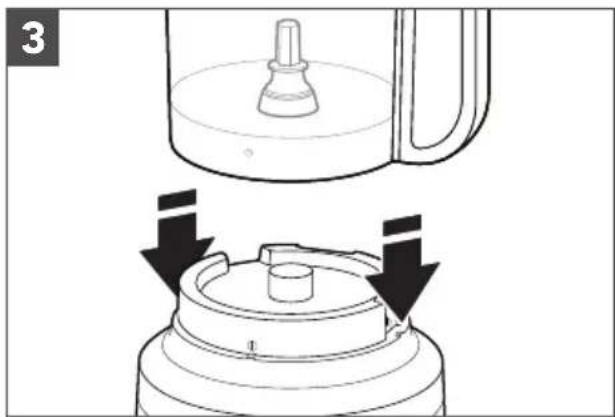

Place the Work Bowl on the Base, aligning the Handle with the raised button on the right side of the Base. The Bowl will click into place and should be flush against the Base when properly aligned.

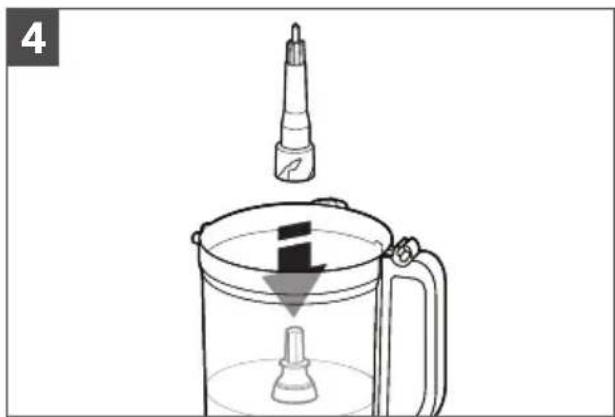

4

Place the Drive Adapter in the Work Bowl, lowering it onto the Drive Pin.

PRODUCT ASSEMBLY

NOTE: For ease of assembly, install the desired Blade or Disc before attaching the Work Bowl Cover.

5

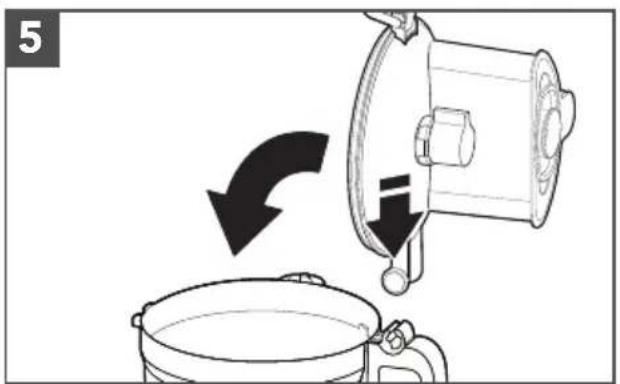

To attach the Work Bowl Cover, hook the Lid Hinge into the Handle Hinge on the Work Bowl and close the Cover.

Line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Once the Work Bowl Cover is closed, the Lid Latch will lock in position.

NOTE: Your Food Processor will not operate unless the Work Bowl Cover is fully closed, the large Food Pusher is in place, and the Work Bowl is properly seated on the Base.

INSTALLING THE MULTIPURPOSE BLADE OR DOUGH BLADE

Line drawing of a portable water dispenser with lid and handle, showing internal components and motion arrows (no text or symbols)

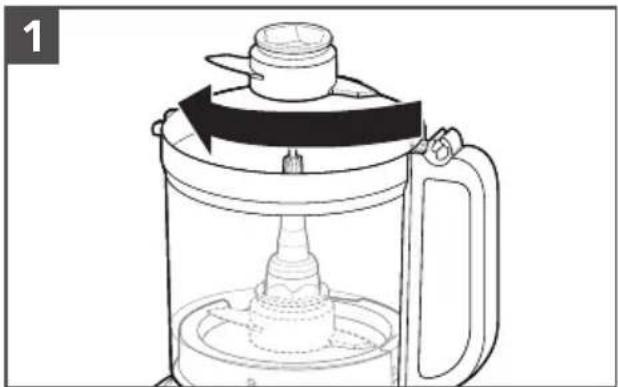

Install the Lower Drive Adapter onto the Upper Drive Adapter. Place the Blade on the Drive Adapter. Rotate the Blade so it falls down to the Base of the Adapter.

Line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

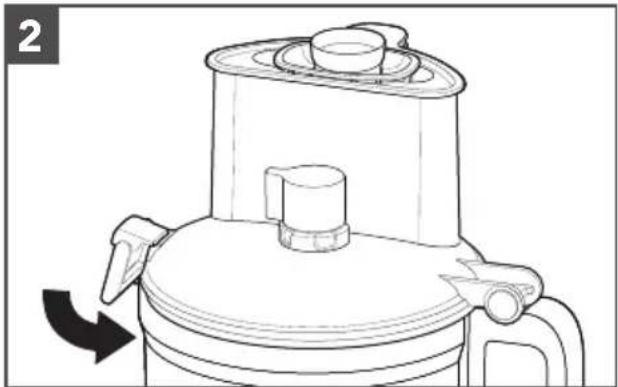

Install the Work Bowl Cover, and be sure the Lid Latch is pushed down to the locked position.

PRODUCT ASSEMBLY

INSTALLING THE EXTERNALLY ADJUSTABLE SLICING DISC

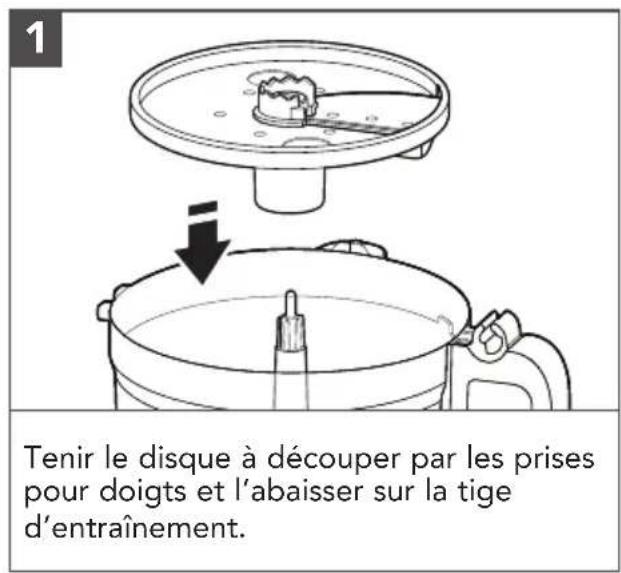

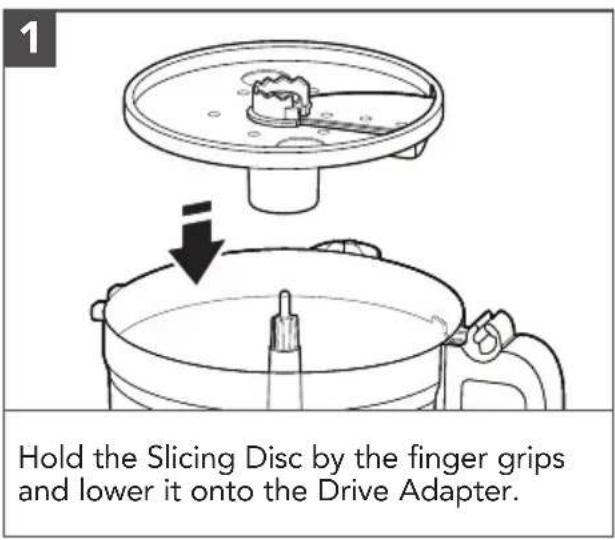

1 Hold the Slicing Disc by the finger grips and lower it onto the Drive Adapter.

To attach the Work Bowl Cover, hook the Lid Hinge into the Handle Hinge on the Work Bowl and close the Cover.

TIP: You may need to adjust the Drive Adapter with a slight turn on the power shaft until it drops into place. For easiest installation, make sure the Adjustment Knob is in the "0" position.

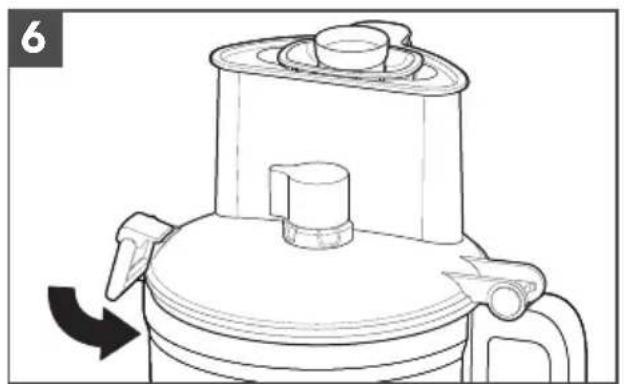

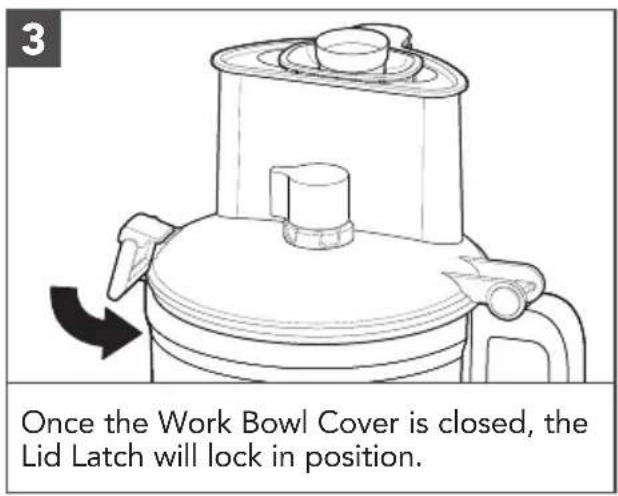

Once the Work Bowl Cover is closed, the Lid Latch will lock in position.

NOTE: Your Food Processor will not operate unless the Work Bowl Cover is fully closed, the large Pusher is inserted to the Max Fill Line, and the Work Bowl is properly seated on the Base.

ADJUSTING THE SLICING THICKNESS

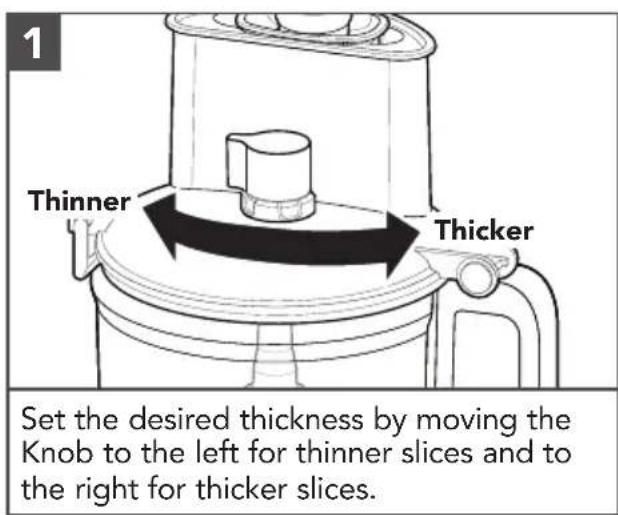

1 Thinner Thicker Set the desired thickness by moving the Knob to the left for thinner slices and to the right for thicker slices.

NOTE: The Knob only works with the Externally Adjustable Slicing Disc. Changing thickness settings with other discs or Blades installed will have no effect on operation.

PRODUCT ASSEMBLY

INSTALLING THE DICING KIT

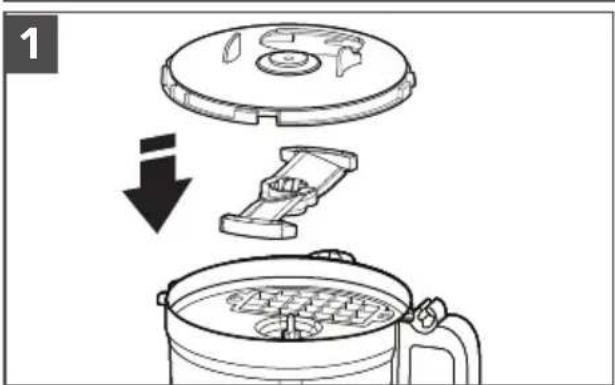

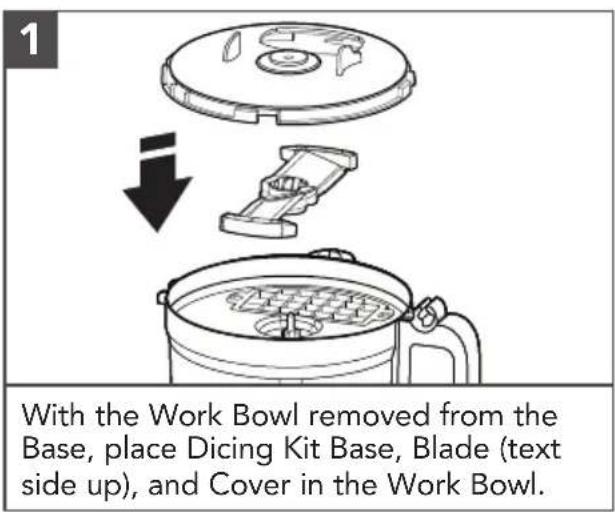

With the Work Bowl removed from the Base, place Dicing Kit Base, Blade (text side up), and Cover in the Work Bowl.

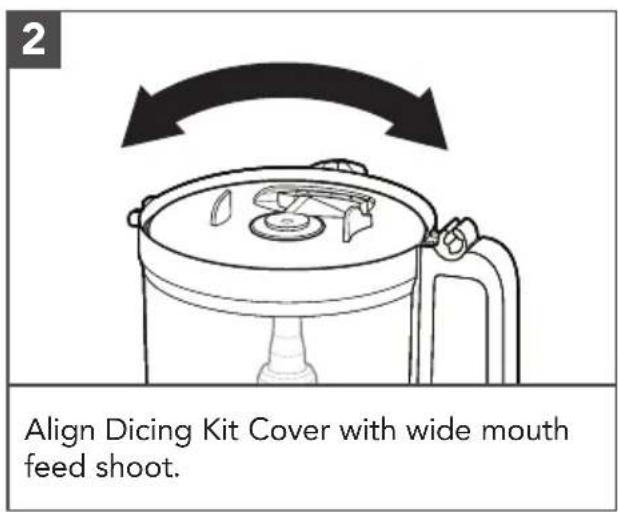

2 Align Dicing Kit Cover with wide mouth feed shoot.

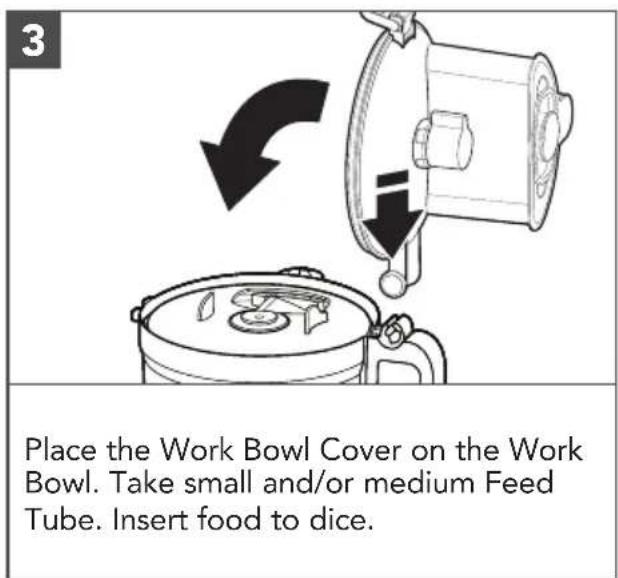

Place the Work Bowl Cover on the Work Bowl. Take small and/or medium Feed Tube. Insert food to dice.

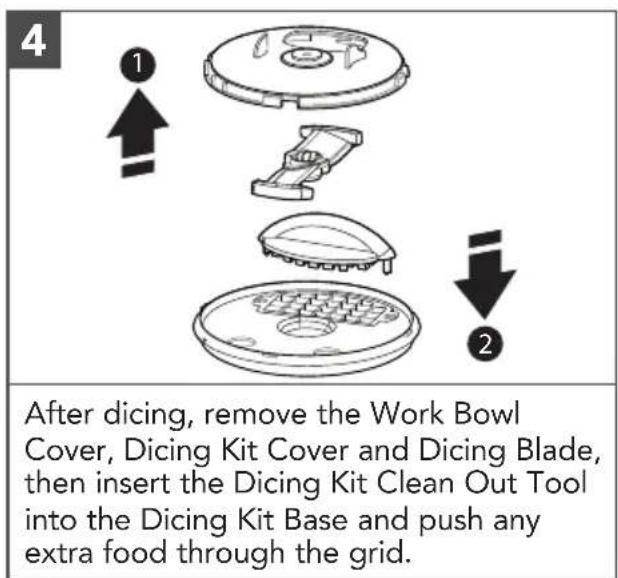

After dicing, remove the Work Bowl Cover, Dicing Kit Cover and Dicing Blade, then insert the Dicing Kit Clean Out Tool into the Dicing Kit Base and push any extra food through the grid.

PRODUCT USAGE

WARNING Rotating Blade Hazard Always use food pusher. Keep fingers out of openings. Keep away from children. Failure to do so can result in amputation or cuts.

Before operating the Food Processor, be sure the Work Bowl, Blades/Disc, and the Work Bowl Cover are properly assembled with the Large Pusher in place or the unit will not operate (see the "Product Assembly" section).

PRODUCT USAGE

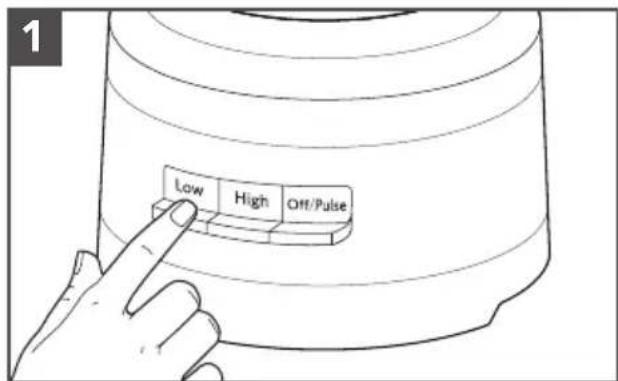

1 Low High Off/Pulse

To turn on, press Low or High. The Food Processor will run continuously and the indicator light will glow.

To turn off, press Low or High again, or press Off/Pulse.

2 Low High Off/Pulse

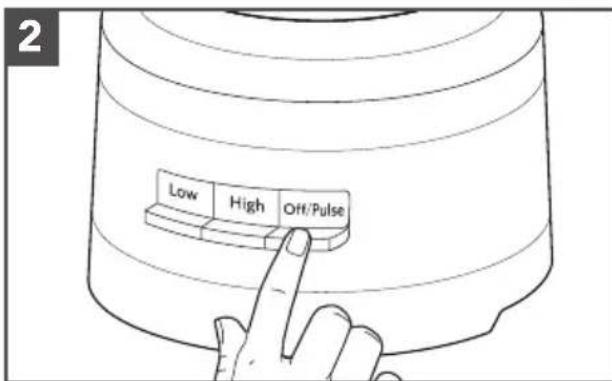

To use the Pulse function:

Press Off/Pulse for short bursts, or press and hold for longer bursts. The Pulse function runs at high speed only. The Food Processor will turn off when the Off/Pulse button is released.

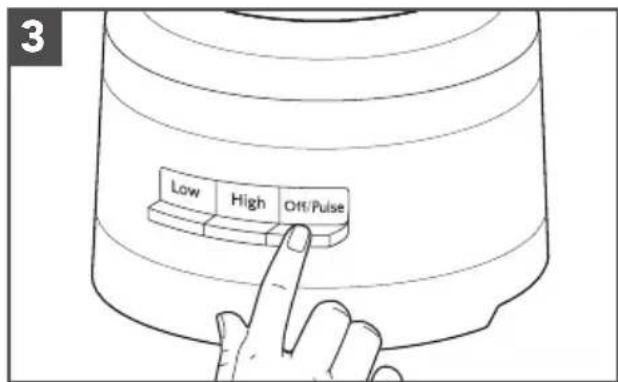

3 Low High Off/Pulse

When finished, press the Off/Pulse button. The indicator light will go out and the Blade or Disc will slow to a stop.

4 Low High Off/Pulse

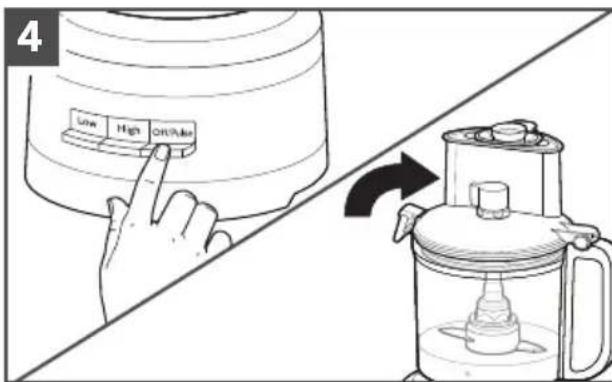

Wait until the Blade or disc comes to a complete stop before removing the Work Bowl Cover. Be sure to turn off the Food Processor before removing the Work Bowl Cover, or before unplugging the Food Processor.

USING THE 3-IN-1 FEED TUBE

The 3-in-1 Feed Tube features a 3-piece Food Pusher.

Use the entire Feed Tube and the large Food Pusher to process large items.

NOTE: The unit will not start if food is loaded above the Max fill line. Large pusher must be inserted to this line in order for unit to operate.

Use the medium Food Pusher in the Feed Tube to process smaller items.

Use the small Food Pusher to slice or shred the smallest, thinnest items.

Use the drizzle hole in the small Food Pusher to slowly drizzle oil or other liquid ingredients into the Work Bowl.

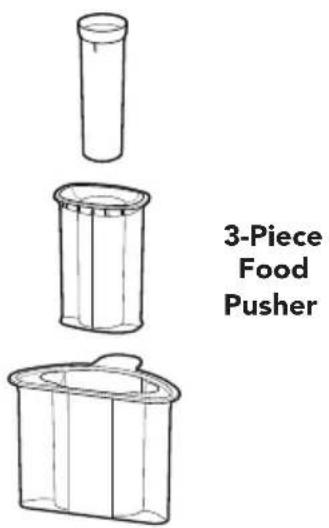

3-Piece Food Pusher

PRODUCT DISASSEMBLY

REMOVING PROCESSED FOODS

1

Low High Off/Pulse

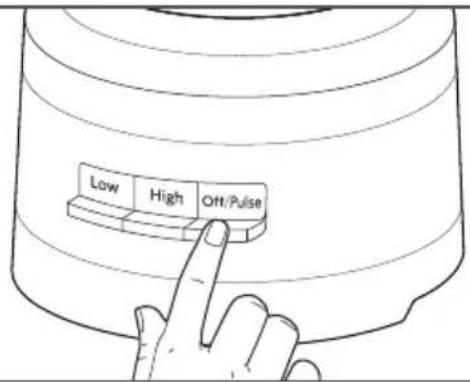

Turn the Food Processor off: Press the Off/Pulse button and unplug the Food Processor before disassembling.

Illustration of a blender with two steps showing the process: adding a lid to a container and adding a lid to a base, separated by a diagonal line (no text or symbols)

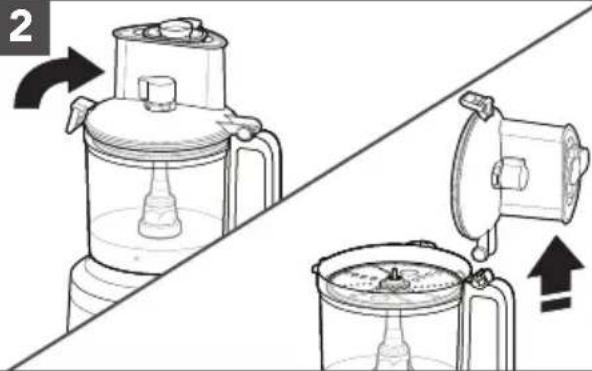

Lift the Lid Latch to unlock the Work Bowl Cover, then lift the Cover to remove.

3

Line drawing of a cooking pot with an upward arrow indicating upward motion (no text or symbols)

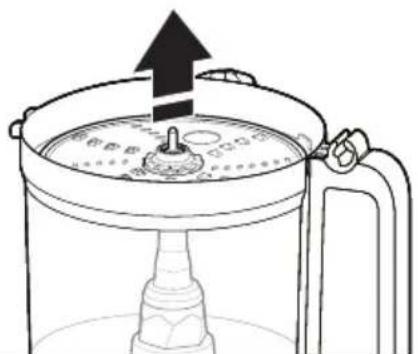

If using the disc, remove it before removing the Bowl. Holding the disc by the finger holes, lift it straight up.

4

Line drawing of a mechanical component with an upward arrow, no text or symbols present

Remove the Drive Adapter and Multipurpose Blade, if using. The Blade will stay in place on the Drive Adapter when you remove the Adapter.

5

Line drawing of hands operating a portable device with cables and a plug (no text or symbols)

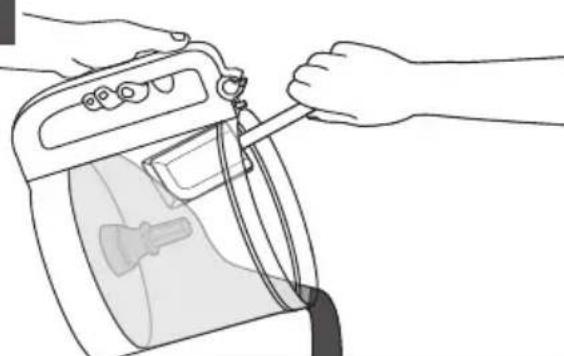

Lift the Work Bowl off of the Base to remove food from the Bowl with a spatula.

CARE AND CLEANING

IMPORTANT: Allow the appliance to cool completely before putting on or taking off parts, and before cleaning the appliance. The BPA-free Bowl requires special handling. If you choose to use a dishwasher instead of hand washing, please follow these guidelines.

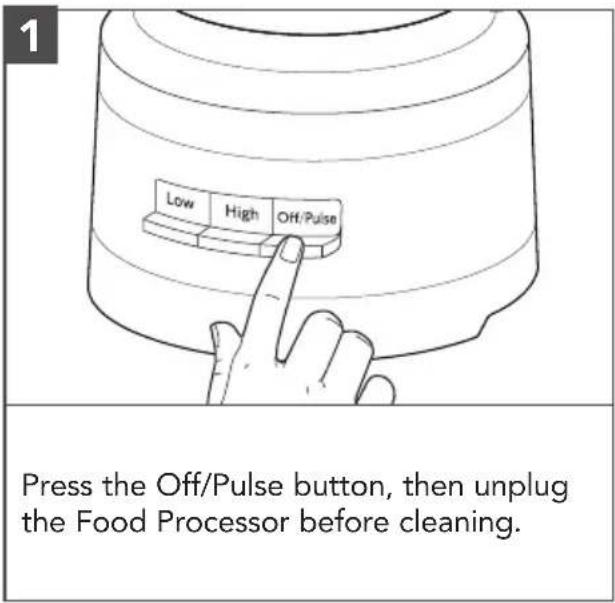

1 Press the Off/Pulse button, then unplug the Food Processor before cleaning.

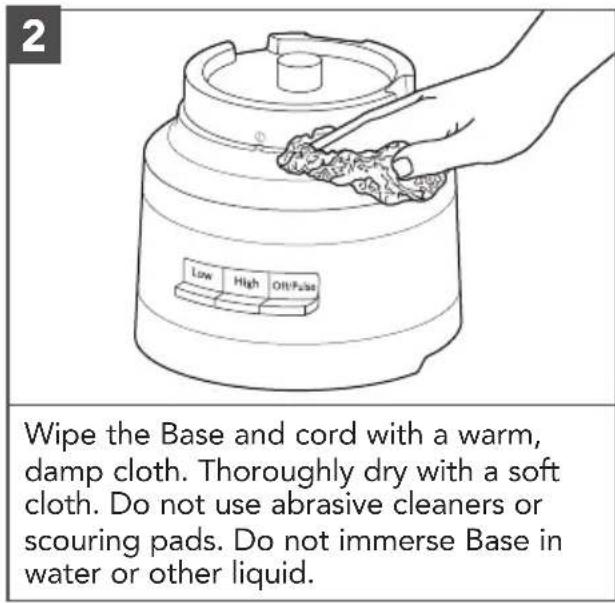

2 Wipe the Base and cord with a warm, damp cloth. Thoroughly dry with a soft cloth. Do not use abrasive cleaners or scouring pads. Do not immerse Base in water or other liquid.

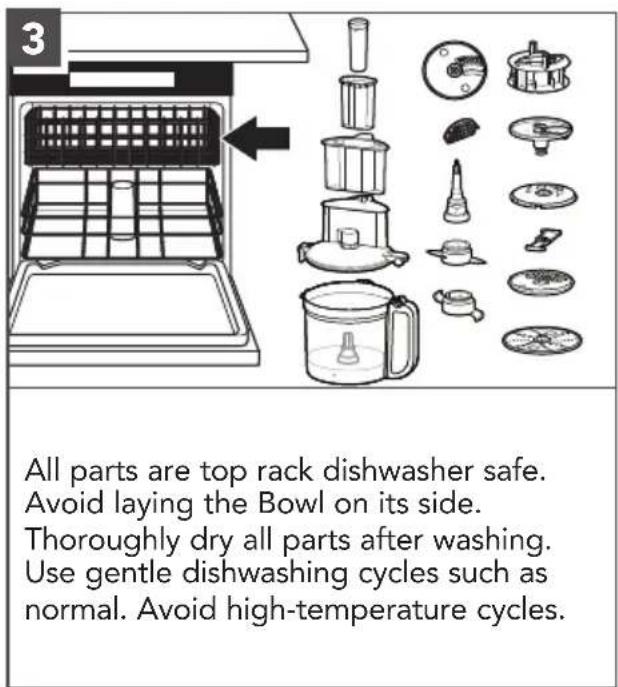

3 All parts are top rack dishwasher safe. Avoid laying the Bowl on its side. Thoroughly dry all parts after washing. Use gentle dishwashing cycles such as normal. Avoid high-temperature cycles.

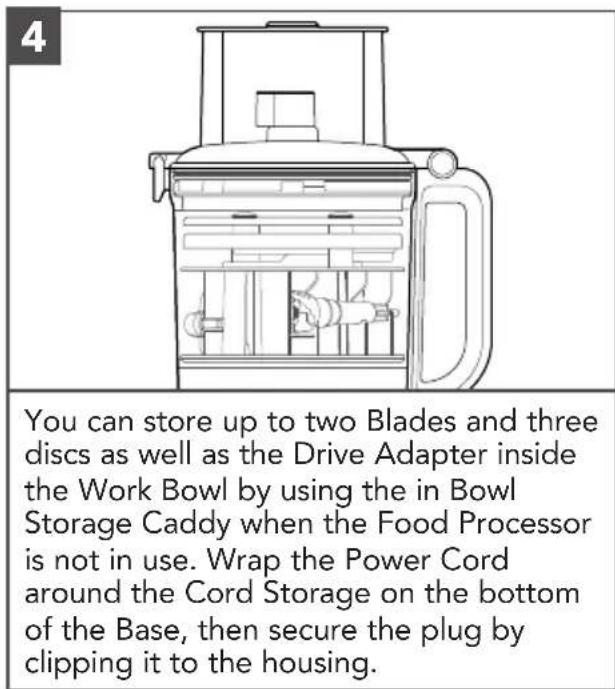

4 You can store up to two Blades and three discs as well as the Drive Adapter inside the Work Bowl by using the in Bowl Storage Caddy when the Food Processor is not in use. Wrap the Power Cord around the Cord Storage on the bottom of the Base, then secure the plug by clipping it to the housing.

NOTE: If washing the Food Processor parts by hand, avoid the use of abrasive cleansers or scouring pads. They may scratch or cloud the Work Bowl and Cover.

TROUBLESHOOTING GUIDE

Problem Solution
If your Food Processor should malfunction or fail to operate, check the following:	Check to see if the Food Processor is securely plugged into a grounded electrical outlet.
	Make sure that the Bowl and Lid are properly aligned and locked in place.
	Have you pressed more than one button at the same time?
	Unplug the Food Processor, then plug it back into the outlet.
	Do you have the Large Pusher inserted to the Max Fill Line?
Is the fuse in the circuit to the Food Processor in working order?	If you have a circuit breaker box, be sure the circuit is closed.
The Food Processor may need to cool to room temperature:	If the speed light turns off and the Off/Pulse light flashes, wait until the Off/Pulse light turns off and retry.The Food Processor may take from 5-15 minutes to cool completely.
The motor may be locked:	If the speed light stays on while the Off/Pulse light flashes, press the Off/Pulse button to reset the motor.
Food Processor not shredding or slicing properly:	Make sure the raised-Blade side of the disc is positioned face up on the Drive Adapter.
	Make sure ingredients are suitable for slicing or shredding.
	Make sure the disc is positioned in the process position (near the top of the Bowl), and not the storage position (low and inside of the Bowl).
If the Work Bowl Cover won't close when using the disc:	Make sure the disc is installed correctly, and is positioned properly on the Drive Adapter.
If the problem cannot be corrected:	See the “Warranty and Service” sections.Do not return the Food Processor to the retailer.Retailers do not provide service.

WARRANTY AND SERVICE

KITCHENAID® FOOD PROCESSOR WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for Food Processors operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty:	One Year Full Warranty from date of purchase.
KitchenAid Will Pay for Your Choice of:	Hassle-Free Replacement of your Food Processor.See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.
KitchenAid Will Not Pay for:	A. Repairs when your Food Processor is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse.C. Any shipping or handling costs to deliver your Food Processor to an Authorized Service Center.D. Replacement parts or repair labor costs for Food Processor operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIESIMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY – 50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Food Processor should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Food Processor returned to us. Your replacement unit will also be Covered by our one year limited warranty. If your Food Processor should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address (no P.O. Box numbers, please).

When you receive your replacement Food Processor, use the carton, packing materials, and prepaid shipping label to pack up your original Food Processor and send it back to KitchenAid.

HASSLE-FREE REPLACEMENT WARRANTY – CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Food Processor should fail within the first year of ownership, we will replace your Food Processor with an identical or comparable replacement. Your replacement unit will also be Covered by our one year limited warranty.

If your Food Processor should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at 1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement Food Processor, use the carton, packing materials, and prepaid shipping label to pack up your original Food Processor and send it back to KitchenAid.

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to: Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Food Processor for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

For service information in Mexico:

Call toll-free 01-800-0022-767.

PRODUCT REGISTRATION

Register your new KitchenAid appliance now:

US: https://register.kitchenaid.com

CAN: https://register.kitchenaid.com/en-ca/pr_reg

PIÈCES ET CARACTÉRISTIQUES

Labeled diagram of a portable kitchen appliance with numbered parts for identification.

Technical diagram showing numbered components of a cooking or cleaning device with labeled parts 11 through 24.

Exploded view diagram of a mechanical device with numbered parts for identification

ASSEMBLAGE DU PRODUIT

Illustration of three different cooking pots with directional arrows indicating rotation (no text or symbols)

ASSEMBLAGE DU PRODUIT

Line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Line drawing of a portable kitchen appliance with a lid and handle, showing internal components and a black arrow indicating rotation (no text or symbols)

Line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

ASSEMBLAGE DU PRODUIT

ASSEMBLAGE DU DISQUE À TRANCHER RÉGLABLE DE L'EXTÉRIEUR

ASSEMBLAGE DU PRODUIT

INSTALLATION DE L'ENSEMBLE DE TRANCHAGE EN DÉS

1

Line drawing of a cooking pot with a lid and side arm, showing a curved arrow indicating rotation (no text or symbols)

1 Low High Off/Pulse

2 Low High Off/Pulse

Low High Off/Pulse

4 Low High On/Ubs

Three technical line drawings of a cylindrical container with an open lid, shown from different angles (no text or symbols)

Poussoir à 3 pièces

DÉMONTAGE DU PRODUIT

RETRAIT DE LA PRÉPARATION OBTENUE

1

Low High Off/Pulse

Illustration of a blender with two steps showing the process: adding a lid to a container and adding a lid to a base, separated by an arrow (no text or symbols present)

Diagram of a cooking pot with an upward arrow indicating upward motion (no text or symbols)

Line drawing of a mechanical component with an upward arrow and base, no text or symbols present

Line drawing of hands connecting a device to a cable, no text or symbols present

Low High Off/Pulse

Low High Off/Pulse

Line drawing of a mechanical device with internal components and no visible text or symbols

É.-U.: https://register.kitchenaid.com

CANADA : https://register.kitchenaid.com/en-ca/pr_reg

Labeled diagram of a food oven with numbered parts for identification

Technical diagram showing 17 labeled parts of a cooking or cleaning device, including a pan, lid, kettle, and tool.

Technical diagram showing 17 labeled parts of a cooking pot or lid, including pan, lid, pot, and container with numbered annotations.

PIEZAS Y CARACTERÍSTICAS

Exploded view diagram of a mechanical device with numbered parts for identification

Illustration of three different cooking pots with directional arrows indicating rotation (no text or symbols)

Line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Line drawing of a portable oven with lid and side arm, showing internal structure and heat source (no text or symbols)

Line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Diagram illustrating a cooking process with a lid, a handle, and a steamer, showing step-by-step assembly.

Line drawing of a cooking pot with lid and side arm, showing a curved arrow indicating rotation (no text or symbols)

Diagram showing a kitchen appliance being lifted by a valve, with no text or symbols present.

Diagram showing three-step assembly of a device with labeled parts and directional arrows indicating movement.

1 Low High Off/Pulse

2 Low High Off/Pulse

Low High Off/Pulse

4 Low High on/abs

Three technical line drawings of a cylindrical container with an open lid, shown from different angles (top, front, side) — no text or symbols present.

Low High Off/Pulse

Illustration of a blender with three steps showing the process: adding, then adding, and finally adding (no text or symbols present)

Line drawing of a cooking pot with an upward arrow indicating heating (no text or symbols)

Diagram of a mechanical device with an upward arrow and base, no text or symbols present

Line drawing of hands operating a portable device with cables and a connector (no text or symbols)

1 Low High Off/Pulse

2 Low High Off-Pole

Line drawing of a mechanical device with internal components (no text or symbols)

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

White silhouette of a telephone handset on black background (no text or symbols)

PRODUCT QUESTIONS OR RETURNS

QUESTIONS SUR LE PRODUIT OU LES RETOURS

MEXICO: KitchenAid.com.mx

LATIN AMERICA: KitchenAid-Latam.com

KitchenAid®

®/TM ©2021 KitchenAid. All rights reserved. Used under license in Canada.
