USER MANUAL WTE1811 W WHIRLPOOL

© Copyright Whirlpool Europe S.r.l. 2009. All rights reserved

Instructions for use

Mode d'emploi

Gebruiksaanwijzing

Diagram illustrating the internal components of a refrigerator with labeled parts A, B, C, D, and F.

Illustration of a fish inside a refrigerator with an open door (no text or symbols)

MONATE LEBENSMITTEL

1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned rack inside, showing a handle and lid (no text or symbols)

ABTAUEN UND REINIGEN DES GEFRIERFACHS

Simple line drawing of a refrigerator with open door (no text or symbols)

REINIGEN DES KÜHLRAUMS

Line drawing of an open refrigerator with a water drop diagram above it (no text or symbols)

Line drawing of a refrigerator with a double door and an arrow pointing to the front panel (no text or symbols)

Abb. A

STÖRUNG - WAS TUN

Simple line drawing of a cabinet or enclosure with a label '1' pointing to the top panel (no text or symbols on the main diagram)

Technical line drawing of a mechanical component with a bracket and mounting holes (no text or symbols)

Illustration of a hand using a tool to cut or apply a metal component (no text or symbols visible)

Pure technical diagram showing a tool interacting with a surface, no text or symbols present

Line drawing of a door handle with two circular buttons and a handle, no text or symbols present

Technical line drawing of a mechanical joint or bracket (no text or symbols)

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural line drawing of a corner joint detail (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

INSTRUCTIONS FOR USE

BEFORE USING THE APPLIANCE

SAFEGUARDING THE ENVIRONMENT

PRECAUTIONS AND GENERAL RECOMMENDATIONS

HOW TO OPERATE THE REFRIGERATOR COMPARTMENT

HOW TO DEFROST AND CLEAN THE FREEZER

HOW TO CLEAN THE REFRIGERATOR COMPARTMENT

CLEANING AND MAINTENANCE

TROUBLESHOOTING GUIDE

AFTER-SALES SERVICE

INSTALLATION

DOOR REVERSIBILITY

ELECTRICAL CONNECTION

BEFORE USING THE APPLIANCE

- Your new appliance is designed to be used in the household and similar applications such as:

• kitchen areas in shops, offices and other working environments
• farm houses
• by clients in hotels, motels, residences, bed & breakfasts.

To ensure best use of your appliance, carefully read the operating instructions which contain a description of the product and useful advice.

Keep these instructions for future reference.

1. After unpacking the appliance, make sure it is not damaged and that the door closes properly. Any damage must be reported to the dealer within 24 hours of delivery of the appliance.
2. Wait at least two hours before switching the appliance on in order to ensure that the refrigerant circuit is fully efficient.
3. Installation and electrical connection must be carried out by a qualified technician according to the manufacturer's instructions and in compliance with local safety regulations.
4. Clean the inside of the appliance before using it.

SAFEGUARDING THE ENVIRONMENT

I. Packaging

The packing material is 100% recyclable and bears the recycling symbol. For disposal, comply with local regulations. Keep the packing materials (plastic bags, polystyrene parts, etc.) out of the reach of children, as they are a potential source of danger.

2. Scrapping/Disposal

The appliance is manufactured using recyclable material.

This appliance is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring the correct disposal of this appliance, you can help prevent potentially negative consequences for the environment and health.

The symbol on the appliance, or on the accompanying documents, indicates that this appliance should not be treated as domestic waste but must be taken to a special collection centre for the recycling of electrical and electronic equipment.

When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside and become trapped.

Scrap the appliance in compliance with local regulations on waste disposal, taking it to a special collection centre; do not leave the appliance unattended even for a few days, since it is a potential source of danger for children.

For further information on the treatment, recovery and recycling of this product, contact your competent local office, the household waste collection service or the shop where you purchased the appliance.

Information:

This appliance does not contain CFCs. The refrigerant circuit contains R134a (HFC) or R600a (HC) (see the rating plate inside the appliance).

Appliances with Isobutane (R600a): isobutane is a natural gas with low environmental. Caution is required, however, since isobutane is flammable. Therefore, it is essential to ensure that refrigerant pipelines are not damaged.

This product may contain Fluorinated Greenhouse Gases covered by the Kyoto Protocol; the refrigerant gas is inside a hermetically sealed system.

Refrigerant gas: R134a has a Global Warming Potential of (GWP) 1300.

Declaration of conformity

This appliance has been designed for preserving food and is manufactured in compliance with Regulation (CE) No. 1935/2004.

CE

This appliance has been designed, manufactured and marketed in compliance with:

- safety objectives of the "Low Voltage" Directive 2006/95/CE (which replaces 73/23/CEE and subsequent amendments);

- the protection requirements of Directive "EMC" 2004/108/CE.

Electrical safety of the appliance can only be guaranteed if it is correctly connected to an approved earthing system.

PRECAUTIONS AND GENERAL RECOMMENDATIONS

INSTALLATION

• The appliance must be handled and installed by two or more persons.
• Be careful not to damage the floors (e.g. parquet) when moving the appliance.
• During installation, make sure the appliance does not damage the power cable.
• Make sure the appliance is not installed near a heat source.
  • To guarantee adequate ventilation, leave a space on both sides and above the appliance and follow the installation instructions.
• Keep the appliance ventilation openings free.
• Do not damage the appliance refrigerant circuit pipes.
  • Install and level the appliance on a floor strong enough to take its weight and in a place suitable for its size and use.
  • Install the appliance in a dry, well ventilated place. The appliance is designed to operate in areas where the temperature comes within the following ranges, according to the climatic class given on the rating plate.

The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

Climatic Class Amb. temp.(°C)		Amb. temp.(°F)
SN From 10	to 32 From 50 to	90
N From 16	to 32 From 61 to	90
ST From 16	to 38 From 61 to	100
T From 16	to 43 From 61 to	110

• Make sure the voltage specified on the rating plate corresponds to that of your home.
- Do not use single/multi adapters or extension cords.
- For the water connection, use the pipe supplied with the new appliance; do not reuse that of the previous appliance.
• Power cable modification or replacement must only be carried out by qualified personnel or After-sales Service.
- It must be possible to disconnect the appliance from the power supply by unplugging it or by means of a mains two-pole switch installed upline of the socket.

SAFETY

• Do not use the appliance to store aerosol cans or receptacles containing propellants or flammable substances.
• Do not store or use petrol, flammable liquids or gas in the vicinity of this or other electrical appliances. The fumes can cause fires or explosions.
• Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.
• Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • To avoid the risk of children becoming trapped and suffocating, do not allow them to play or hide inside the appliance.
• Do not swallow the contents (non-toxic) of the ice packs (in some models).
• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.

USE

• Before carrying out any maintenance or cleaning operation, unplug the appliance or disconnect it from the power supply.
• All appliances equipped with an automatic icemaker and water dispenser must be connected to a water supply that only delivers drinking water (with mains water pressure of between 0.17 and 0.81 Mpa (1.7 and 8.1 bar)). Automatic ice-makers and/or water dispensers not directly connected to the water supply must be filled with drinking water only.
• Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
• Do not store glass containers with liquids in the freezer since they may burst.

The Manufacturer declines any liability if the above advice and precautions are not respected.

HOW TO OPERATE THE REFRIGERATOR COMPARTMENT

This appliance is a refrigerator with a or freezer compartment.

Defrosting of the refrigerator compartment is completely automatic.

Switching on the refrigerator for the first time Insert the plug into the mains socket.

The thermostat is used to adjust the temperature of both compartments: refrigerator and freezer.

How to adjust the temperature of the compartments:

I. For correct operation and optimum storage of food, follow instructions given in the enclosed product sheet for thermostat adjustment.
2. To adjust the temperature in the refrigerator compartment, set the thermostat control knob to:

• lowest/MIN numbers for the LEAST COLD internal temperatures;
• highest/MAX numbers for the COLDEST internal temperatures.

Thermostat set to 0: no operation, no light.

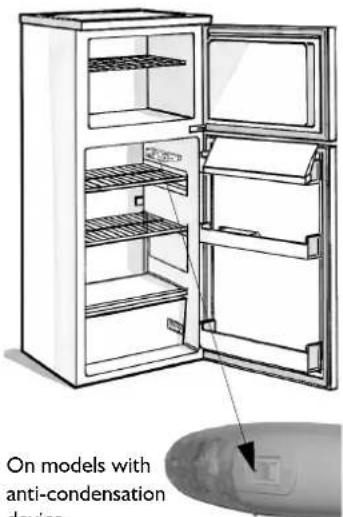

3. Press the corresponding button (fig. G) to activate the anti-condensation device.

Note:

The ambient air temperature, frequency of door opening and the position of the appliance can affect internal temperatures. These factors must be taken into account when setting the thermostat.

How to use the refrigerator compartment

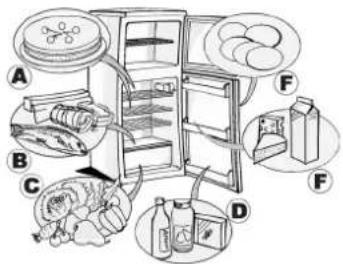

Position the food as illustrated in the figure.

A. Cooked food
B. Fish, meat
C. Fruit and vegetables
D. Bottles
E. Eggs
F. Butter, cheese and dairy products

Note:

• The space between the shelves and the rear wall of the refrigerator compartment must be unobstructed to allow circulation of air.
• Do not place food in direct contact with the rear wall of the refrigerator compartment.
• Do not place hot food in the refrigerator or freezer.
• Store liquids in closed containers.
• Storing vegetables with a high water content can result in condensation in the crisper drawer: this will not affect the correct operation of the appliance.

On models with anti-condensation device

On models with anti-condensation device
Fig. G

Diagram illustrating the use of refrigerators and food containers with labeled parts A, B, C, D, and F.

The freezer is a star-compartment .

This compartment can be used to store frozen foods for the period of time indicated on packaging. The freezer can also be used to freeze fresh food by positioning it on the rack; place frozen food in the lower part of the compartment so that there is no contact with fresh food that has yet to be frozen.

The quantity of fresh food that can be frozen in 24 hours is shown on the rating plate.

Important:

Before freezing, wrap and seal fresh food in:

• aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing fresh food.
• In the event of a power cut, the freezer compartment will maintain a sufficiently low temperature for food storage. However, it is advisable to avoid opening the compartment door during such periods.

Important:

The table alongside shows the recommended maximum storage time for frozen fresh foods.

When purchasing frozen food products:

• Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.
• When shopping, leave frozen food purchases until last and transport the products in a thermally insulated cool bag.
• Place the items in the freezer compartment as soon as you get home.
• If food has defrosted even partially, do not re-freeze it. Consume within 24 hours.
• Avoid, or reduce temperature variations to the minimum. Respect the best-before date on the package.
  • Always observe the storage information on the package.

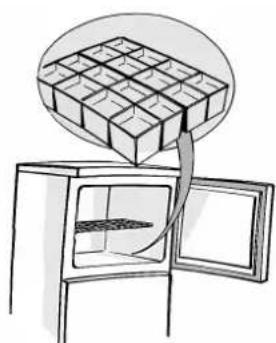

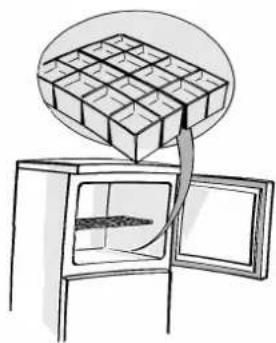

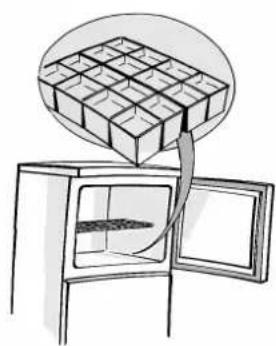

Making ice cubes

• Fill the ice cube tray 3/4 with water and place it at the bottom of the freezer compartment.
  If the tray sticks to the bottom of the compartment, do not use pointed or sharp instruments to detach it.

Line drawing of a fish inside a refrigerator with an open door (no text or symbols)

MONTHS	FOOD
1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned rack inside, showing a tray and lid (no text or symbols)

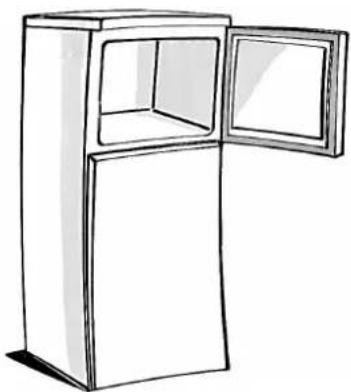

HOW TO DEFROST AND CLEAN THE FREEZER

Defrost the freezer compartment once or twice a year, or when the ice on the walls reaches a thickness of about 3 mm. If possible, defrost the freezer when it is nearly empty.

I. Remove the food from the freezer, wrap in newspaper and group together in a cool place or in a portable cooler.
2. Disconnect the appliance from the mains power supply.
3. Leave the door open to allow the frost to melt.
4. Remove the defrost water from the compartment bottom.
5. Clean the interior with a sponge dampened in lukewarm water and neutral detergent.

Do not use abrasive products.

1. Rinse the interior and dry thoroughly.

Note: Do not use sharp or pointed metal instruments to scrape off ice; do not heat the freezer compartment artificially.

Simple line drawing of a refrigerator with open doors (no text or symbols)

HOW TO CLEAN THE REFRIGERATOR COMPARTMENT

Periodically clean the inside of the refrigerator compartment.

Defrosting of the refrigerator compartment is completely automatic.

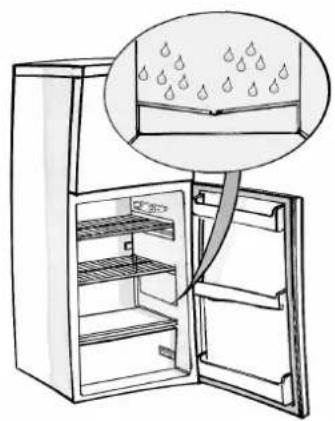

Droplets of water on the rear wall of the refrigerator compartment indicate that the periodic automatic defrost cycle is in progress.

The defrost water is automatically routed to a drain outlet and into a container from which it evaporates.

Before carrying out any cleaning operations, disconnect the appliance from the power supply.

• Use a sponge dampened in lukewarm water and/or neutral detergent.
• Rinse and dry with a soft cloth.

Do not use abrasive substances.

Illustration of an open refrigerator with a water drop diagram showing liquid flow (no text or symbols)

CLEANING AND MAINTENANCE

For built-in appliances

• Periodically clean air vents with a vacuum cleaner or a brush (see figure A).
- Clean the outside using a soft cloth.

Vacation

I. Empty the refrigerator and freezer compartments.
2. Disconnect the appliance from the power supply.
3. Defrost the freezer compartment, and clean and dry both compartments.
4. Leave the doors open to prevent formation of unpleasant odours.

Line drawing of a refrigerator with a double door and front panel, no text or symbols present

Fig. A

TROUBLESHOOTING GUIDE

I. The appliance is not working.

• Is there a power failure?
• Is the plug properly inserted in the socket?
• Is the double-pole switch on?
- Has the fuse blown?
• Is the power cord damaged?
• Is the thermostat set to 0 (Stop)?

1. Temperature inside the compartments is not low enough.

• Is the door shut properly?
• Is the appliance installed near a heat source?
• Is the thermostat setting correct?
- Are the air circulation grilles blocked?

1. Temperature inside the refrigerator compartment is too low.

• Is the thermostat setting correct?

1. Water collects at the bottom of the refrigerator compartment.

• Is the defrost water drain blocked?

1. The inside light is not working.

Perform the checks for problem 1, and then:

• Disconnect the appliance from the power supply.
  To inspect the bulb, refer to the instructions and illustration on the attached table.

- Check the bulb and replace it, if necessary, with a new one. Replace using maximum 15W bulb.

1. Excessive frost build-up in the freezer compartment

• Is the door shut properly?
• Is food obstructing proper door closure?

Attention:

• The front edge of the appliance may be hot. This prevents the formation of condensation and is not a defect.
• Gurgling and hissing noises due to expansion in the refrigerant circuit are normal.

AFTER-SALES SERVICE

Before contacting the After-Sales Service:

I. See if you can solve the problem yourself (see "Troubleshooting guide").
2. Switch the appliance on again to see if the problem has been solved. If it has not, switch off the appliance again and repeat the operation after one hour.
3. If the problem persists after this course of action, contact After-Sales Service. Specify:
• the nature of the problem,
• the appliance model,

• the Service number (the number after the word SERVICE on the rating plate inside the appliance),
• your full address,
• Your telephone number and area code.

SERVICE

0000 000 00000

Note: The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the

INSTALLATION

• Install the appliance away from heat sources.
• Install the appliance in a dry, well-ventilated place.
- Do not obstruct the top and bottom vent zones.
- Clean the inside (see chapter "How to clean the refrigerator compartment").

Electrical connection

• Electrical connections must be made in accordance with local regulations.
• Voltage and power consumption are indicated on the rating plate (at the side of the crispers).

Freestanding appliances (not built-in)

• To optimize appliance efficiency, leave a 5 cm gap above the appliance and make sure that adjacent kitchen units are sufficiently distanced to allow air circulation.
• Ensure that the appliance is level, using the front adjustment feet if necessary.

- Regulations require that the appliance be earthed. The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the above procedures and reminders.

• If the plug and socket are not of the same type, have the socket replaced by a qualified electrician.
• Do not use extension leads or adapters.

Disconnecting the appliance

- It must be possible to disconnect the appliance by unplugging it or by means of a two-pole switch fitted upline of the socket.

DOOR REVERSIBILITY

The doors of your Fridge Freezer can be reversed.

• Ensure the Fridge Freezer is unpugged and empty.
  • We recommend you have someone to assist you.

Tools required

• Phillips style screwdriver
- Flat bladed screwdriver
- 8mm and 10mm Socket or spanner.

When laying the Fridge Freezer on it's back in order to gain access to the base, you should never tip it back by more than 45^ and must rest it on soft foam packaging or similar material to avoid damaging the cooling pipes at the rear of the Fridge Freezer.

Remove the two screws at the rear of the Fridge Freezer. Lift the top off the Fridge Freezer.

Use the 8 mm socket or spanner to remove the 3 hinge bolts. Remove the 3 bolts from the opposite side.

Remove bracket and plastic surround. Remove and replace the pin in the bracket. Replace on opposite side of the Fridge Freezer cabinet.

Lift the top door off middle hinge bracket and pull away from the body of the Fridge Freezer. Remove retaining screw from the top of the cabinet and replace on the other side.

Remove the middle hinge using an 8 mm socket/spanner. Take care not to lose the white spacer. Put hinge to one side. Lift door off the bottom bracket.

Remove blanking plates from the middle of the cabinet and replace in opposite side. Remove the blanking plates from the doors and replace the hinge bushes on the other side.

Simple line drawing of a cabinet or enclosure with a label '1' pointing to the top panel (no text or symbols on the main structure)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand using a tool to cut or apply a component (no text or symbols visible)

Pure technical diagram showing a tool interacting with a surface, no text or symbols present

Line drawing of a door handle with two circular buttons and a handle attachment (no text or symbols)

Technical line drawing of a mechanical joint or bracket (no text or symbols)

Remove the levelling feet by unscrewing.

Remove bottom bracket using an 8 mm socket or spanner. Remove and replace pin using a 10 mm spanner to undo the nut and a flat bladed screwdriver to remove the pin. You may need to push the pin through from the underside to remove fully.

Remove screw on base and replace on other side. Remove blanking plates from unused side of the Fridge Freezer and replace in holes left by the brackets.

Replace doors and brackets in reverse order. When replacing feet take care to ensure the larger foot is on the side without the bracket.

Check both doors are aligned horizontally and vertically, and that the seals are closed on all sides before finally tightening the bottom hinge

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural or structural line drawing with no text, numbers, or symbols

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

ELECTRICAL CONNECTION

I) For Great Britain only

Warning - this appliance must be earthed

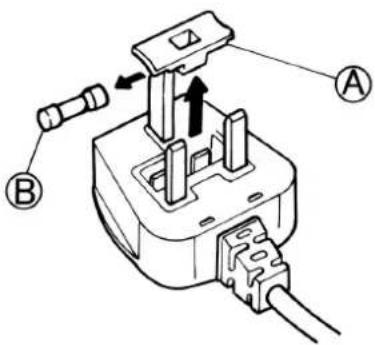

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

I. Remove the fuse cover (A) and fuse (B).

1. Fit replacement 13A fuse into fuse cover.

2. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted.

Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical store.

Diagram of a plug electrical socket with labeled components A and B, showing internal wiring and a valve mechanism.

2) For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type.

3) Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact Whirlpool Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified Whirlpool technician in compliance with the manufactures instructions and current standard safety regulations.

MODE D'EMPLOI

AVANT D'UTILISER L'APPAREIL

CONSEILS POUR LA PROTECTION DE L'ENVIRONNEMENT

PRÉCAUTIONS ET RECOMMANDATIONS GÉNÉRALES

COMMENT FAIRE FONCTIONNER LE COMPARTIMENT RÉFRIGÉRATEUR

COMMENT FAIRE FONCTIONNER LE COMPARTIMENT CONGÉLATEUR

COMMENT DÉGIVRER ET NETTOYER LE COMPARTIMENT CONGÉLATEUR

COMMENT NETTOYER LE COMPARTIMENT RÉFRIGÉRATEUR

NETTOYAGE ET ENTRETIEN

DIAGNOSTIC RAPIDE

SERVICE APRÈS-VENTE

INSTALLATION

CHANGEMENT DU SENS DE L'OUVERTURE DES PORTES

AVANT D'UTILISER L'APPAREIL

Illustration of a refrigerator with labeled food items including a plate, refrigerator, milk carton, and various household items.

COMMENT FAIRE FONCTIONNER LE COMPARTIMENT CONGÉLATEUR

Line drawing of a fish inside a refrigerator with an open door (no text or symbols)

MOIS	ALIMENTS
1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned tray inside, showing a lid and lid open (no text or symbols)

COMMENT DÉGIVRER ET NETTOYER LE COMPARTIMENT CONGÉLATEUR

Simple line drawing of a refrigerator with open door (no text or symbols)

COMMENT NETTOYER LE COMPARTIMENT RÉFRIGÉRATEUR

Line drawing of an open refrigerator with a water drop diagram above it (no text or symbols)

NETTOYAGE ET ENTRETIEN

Line drawing of a refrigerator with a double door and front panel, no text or symbols present

Fig. A

DIAGNOSTIC RAPIDE

Technical diagram showing six steps of a mechanical assembly or cleaning procedure, labeled 1 to 6.

Pure geometric diagram with crosshair and circular pattern (no text or symbols)

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural or structural line drawing with no text, numbers, or symbols

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

GEBRUIKSAANWIJZING

ALVORENS HET PRODUCT TE GEBRUIKEN MILIEUTIPS

ALGEMENE VOORZORGSMAATREGELEN EN ADVIEZEN

GEBRUIK VAN HET KOELVAK

GEBRUIK VAN HET VRIESVAK

DE VRIEZER ONTDOOIEN EN REINIGEN

REINIGEN VAN HET KOELVAK

REINIGING EN ONDERHOUD

STORINGEN OPSPOREN

KLANTENSERVICE

INSTALLATIE

Diagram illustrating the internal components of a refrigerator with labeled parts A, B, C, D, and F.

GEBRUIK VAN HET VRIESVAK

Illustration of a fish-shaped container with an open lid, placed inside a refrigerator (no text or symbols)

MAANDEN VOEDSEL

1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned rack inside, showing a lid and lid open (no text or symbols)

DE VRIEZER ONTDOOIEN EN REINIGEN

Line drawing of a simple refrigerator with open doors (no text or symbols)

REINIGEN VAN HET KOELVAK

Line drawing of an open refrigerator with a water droplet inside, showing liquid level (no text or symbols)

REINIGING EN ONDERHOUD

Line drawing of a refrigerator with a double door and an arrow indicating upward motion (no text or symbols)

Afb. A

STORINGEN OPSPOREN

Simple line drawing of a cabinet or enclosure with a label '1' pointing to the top panel (no text or symbols on the main structure)

Technical line drawing of a mechanical component with a bracket and mounting holes (no text or symbols)

Illustration of a hand using a tool to cut or apply a component (no text or symbols visible)

Pure technical diagram showing a tool interacting with a surface, no text or symbols present

Line drawing of a door handle with two circular buttons and a handle, no text or symbols present

Technical line drawing of a mechanical joint or bracket (no text or symbols)

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural or structural line drawing with no text, numbers, or symbols

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

INSTRUCCIONES DE USO

Illustration of a refrigerator with labeled food items including a dog, fish, milk carton, and a cow, accompanied by thought bubbles.

PUESTA EN MARCHA DEL COMPARTIMENTO DE BAJA TEMPERATURA

Line drawing of a fish-shaped container with lid placed on top, open to open inside a refrigerator (no text or symbols)

MESES	ALIMENTOS
1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned rack inside, showing a handle and lid (no text or symbols)

CÓMO DESCONGELAR Y LIMPIAR EL COMPARTIMENTO CONGELADOR

Simple line drawing of a refrigerator with open door (no text or symbols)

CÓMO LIMPIAR EL COMPARTIMENTO FRIGORÍFICO

Illustration of an open refrigerator with a water drop diagram showing liquid flow (no text or symbols)

LIMPIEZA Y MANTENIMIENTO

Aparatos empotrados

Line drawing of a refrigerator with a double door and front panel, no text or symbols present

Fig. A

Simple line drawing of a cabinet or enclosure with a wall-mounted door and a label '1' on the top (no text or symbols on the main structure)

Technical line drawing of a mechanical component with a bracket and mounting holes (no text or symbols)

Illustration of a hand using a tool to cut or install a mechanical component (no text or symbols visible)

Pure technical diagram showing a vertical rod inserted into a horizontal line with circular holes, no text or symbols present.

Line drawing of a door handle with a lever and a small object, no text or symbols present

Technical line drawing of a mechanical joint or bracket (no text or symbols)

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural or structural line drawing with no text, numbers, or symbols

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

MANUAL DE INSTRUÇÕES

ANTES DE USAR O APARELHO

Diagram illustrating a refrigerator interior with labeled food items including refrigerants, bottles, and household items.

COMO USAR O CONGELADOR

Illustration of a fish inside an open refrigerator with a lid (no text or symbols)

MESES	ALIMENTOS
1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned tray and an open door, no text or symbols present.

COMO DESCONGELAR E LIMPAR O COMPARTIMENTO DO CONGELADOR

Simple line drawing of a refrigerator with open door (no text or symbols)

Line drawing of an open refrigerator with a water drop diagram above it (no text or symbols)

Line drawing of a refrigerator with a double door and front panel, no text or symbols present

Fig. A

Simple line drawing of a cabinet or enclosure with a wall-mounted door and a label '1' on the top (no text or symbols on the main structure)

Technical line drawing of a mechanical component with a bracket and mounting holes (no text or symbols)

Illustration of a hand using a tool to cut or apply a component (no text or symbols visible)

Pure technical diagram showing a tool interacting with a surface, no text or symbols present

Line drawing of a door handle with two circular buttons and a handle, no text or symbols present

Technical line drawing of a mechanical joint or bracket (no text or symbols)

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural or structural line drawing with no text, numbers, or symbols

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

ISTRUZIONI PER L'USO

PRIMA DI USARE L'APPARECCHIO

CONSIGLI PER LA SALVAGUARDIA DELL'AMBIENTE

GUIDA RICERCA GUASTI

SERVIZIO ASSISTENZA TECNICA

INSTALLAZIONE

REVERSIBILITA' DELLE PORTE

PRIMA DI USARE L'APPARECCHIO

Diagram illustrating the internal components of a refrigerator with labeled parts A, B, C, D, and F.

COME FAR FUNZIONARE IL COMPARTO CONGELATORE

Illustration of a fish-shaped container with an open lid, placed on a side table (no text or symbols)

MESI	CIBI
1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned rack inside, showing a handle and lid (no text or symbols)

COME SBRINARE E PULIRE IL COMPARTO CONGELATORE

Line drawing of a simple open refrigerator with lid open (no text or symbols)

COME PULIRE IL COMPARTO FRIGORIFERO

Illustration of an open refrigerator with a water drop diagram showing liquid flow (no text or symbols)

Line drawing of a refrigerator with a double door and front panel, no text or symbols present

Fig. A

GUIDA RICERCA GUASTI

Simple line drawing of a cabinet or enclosure with a label '1' pointing to the top panel (no text or symbols on the main diagram)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand using a tool to cut or apply a component (no text or symbols visible)

Pure technical diagram showing a vertical rod inserted into a horizontal surface with small circular holes, no text or symbols present.

Line drawing of a door handle with two circular buttons and a handle attachment (no text or symbols)

Technical line drawing of a mechanical joint or bracket (no text or symbols)

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural line drawing of a corner joint detail (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

Diagram of a refrigerator with labeled parts including a plate, fish, refrigerator, and food items like milk and juice.

Illustration of a fish-shaped container with an open lid, placed on a front panel (no text or symbols)

ΜΗΝΕΣ ΤΡΟΦΙΜΑ

1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned rack inside, showing a handle and lid (no text or symbols)

Simple line drawing of a refrigerator with open door (no text or symbols)

Line drawing of an open refrigerator with a water droplet inside, showing liquid level on the lid (no text or symbols)

Line drawing of a refrigerator with a double door and front panel, no text or symbols present

Eik. A

Step-by-step instructions for installing a mechanical component, showing steps from mounting to assembly.

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural line drawing of a corner joint detail (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

BRUKSANVISNING

INNAN APPARATEN ANVÄNDS

MILJÖRÅD

FÖRSIKTIGHETSÅTGÄRDER OCH ALLMÄNNA FÖRSLAG

ANVÄNDNING AV KYLDELEN OCH DESS FUNKTIONER

ANVÄNDNING AV FRYSDELEN OCH DESS FUNKTIONER

AVFROSTNING OCH RENGÖRING AV FRYSDELEN

RENGÖRING AV KYLDELEN

RENGÖRING OCH UNDERHÅLL

FELSÖKNING

SERVICE

INSTALLATION

OMHÄNGNING AV DÖRRARNA

INNAN APPARATEN ANVÄNDS

Diagram of a refrigerator with labeled parts including a plate, fish, milk, and food items

ANVÄNDNING AV FRYSDELEN OCH DESS FUNKTIONER

Line drawing of a fish-shaped container with an open refrigerator (no text or symbols)

MÅNADER LIVSMEDEL

1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned rack inside, showing a handle and lid (no text or symbols)

AVFROSTNING OCH RENGÖRING AV FRYSDELEN

Line drawing of a simple refrigerator with open door and side compartments (no text or symbols)

RENGÖRING AV KYLDELEN

Rengör kyldelen regelbundet.

Illustration of an open refrigerator with a water drop diagram above it (no text or symbols)

RENGÖRING OCH UNDERHÅLL

Line drawing of a refrigerator with a double door and front panel, no text or symbols present

Fig. A

Felsökning

I. Apparaten fungerar inte.

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural line drawing of a corner joint detail (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

BRUKSANVISNING

F∅R APPARATET TAS I BRUK

MILJ∅VENNLIG BRUK

GENERELLE RÅD

BRUK AV KJ∅LESEKSJONEN

BRUK AV FRYSESEKSJONEN

AVRIMING OG RENGJ∅RING AV FRYSESEKSJONEN

RENGJ∅RING AV KJ∅LESEKSJONEN

RENGJ∅RING OG VEDLIKEHOLD

FEILS∅KINGSLISTE

SERVICE

INSTALLASJON

OMHENGLING AV D∅RENE

F∅R APPARATET TAS I BRUK

Diagram illustrating food preparation steps with labeled items A, B, C, D, and F around a refrigerator.

BRUK AV FRYSESEKSJONEN

Illustration of a fish inside a refrigerator with an open refrigerator (no text or symbols)

MÅNEDER MATVARER

1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned rack inside, showing a handle and lid (no text or symbols)

AVRIMING OG RENGJ∅RING AV FRYSESEKSJONEN

Det anbefales å avrime fryseseksjonen 1 til 2 ganger i året, eller när islaget på veggene har nädd en tykkelse på 3 mm. Avrimingen bør foretas när det er minimalt med matvarer i seksjonen.

Simple line drawing of a refrigerator with open door (no text or symbols)

RENGJ∅RING AV KJ∅LESEKSJONEN

Illustration of an open refrigerator with a water drop diagram showing liquid flow (no text or symbols)

RENGJ∅RING OG VEDLIKEHOLD

Innbygde apparater

Line drawing of a refrigerator with a double door and front panel, no text or symbols present

Fig. A

FEILS∅KINGSLISTE

Simple line drawing of a cabinet or enclosure with a label '1' pointing to the top panel (no text or symbols on the main structure)

Technical line drawing of a mechanical component with a bracket and mounting holes (no text or symbols)

Illustration of a hand using a tool to cut or apply a component (no text or symbols visible)

Pure technical diagram showing a tool interacting with a surface, no text or symbols present

Line drawing of a door handle with two circular buttons and a handle, no text or symbols present

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural line drawing of a corner joint detail (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

BRUGERVEJLEDNING

F∅R APPARATET TAGES I BRUG

OPLYSNINGER OM MILJ∅HENSYN

ADVARSLER OG GENERELLE RÅD

BRUG AF K∅LESKABET

BRUG AF FRYSEREN

AFRIMNING OG RENG∅RING AF FRYSEREN

RENG∅RING AF K∅LESKABET

RENG∅RING OG VEDLIGEHOLDELSE

FEJLFINDINGSOVERSIGT

SERVICE

OPSTILLING

VENDING AF D∅RENE

F∅R APPARATET TAGES I BRUG

OPLYSNINGER OM MILJ∅HENSYN

I.Emballage

Diagram illustrating the food preparation steps of a refrigerator with labeled items A, B, C, D, and F.

BRUG AF FRYSEREN

Illustration of a fish inside an open refrigerator with a lid (no text or symbols)

MÅNEDER MADVARER

1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned rack inside, showing an open door and a magnified view (no text or symbols)

AFRIMNING OG RENG∅RING AF FRYSEREN

Line drawing of a simple open refrigerator with lid open (no text or symbols)

RENG∅RING AF K∅LESKABET

Line drawing of an open refrigerator with a water droplet inside, showing liquid level (no text or symbols)

RENG∅RING OG VEDLIGEHOLDELSE

Line drawing of a refrigerator with a double door and front panel, no text or symbols present

Fig. A

FEJLFINDINGSOVERSIGT

Simple line drawing of a cabinet or enclosure with a wall-mounted screen and a label '1' on the top (no text or symbols on the main structure)

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Illustration of a hand using a tool to cut or apply a component (no text or symbols visible)

Pure technical diagram showing a tool interacting with a surface, no text or symbols present

Line drawing of a door handle with two circular buttons and a handle, no text or symbols present

Technical line drawing of a mechanical joint or bracket (no text or symbols)

Skru de justerbare ben af.

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural or structural line drawing with no text, numbers, or symbols

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

KÄYTTÖOHJEET

ENNEN TUOTTEEN KÄYTTÖÖNOTTOA YMPÄRISTÖNSUOJELUA KOSKEVIA OHJEITA

YLEISIÄ VAROTOIMIA JA SUOSITUKSIA JÄÄKAAPPIOSASTON KÄYTTÖ

Diagram of a refrigerator interior with labeled food items including a plate, refrigerator, milk carton, and various kitchen utensils.

Illustration of a fish inside a refrigerator with an open door (no text or symbols)

KK	RUOKALAJI
1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned rack inside, showing an open door and a magnified view (no text or symbols)

PAKASTIMEN SULATUS JA PUHDISTUS

Line drawing of a simple open refrigerator with lid open (no text or symbols)

JÄÄKAAPPIOSASTON PUHDISTUS

Illustration of an open refrigerator with a water drop diagram showing liquid flow (no text or symbols)

PUHDISTUS JA HUOLTO

Line drawing of a refrigerator with a double door and front panel, no text or symbols present

Kuva A

VIANETSINTÄ

I. Laite ei toimi.

Simple line drawing of a cabinet or enclosure with a label '1' pointing to the top panel (no text or symbols on the main structure)

Technical line drawing of a mechanical component with a bracket and mounting holes (no text or symbols)

Illustration of a hand using a tool to cut or apply a component (no text or symbols visible)

Pure technical diagram showing a tool interacting with a surface, no text or symbols present

Line drawing of a door handle with two circular buttons and a handle, no text or symbols present

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural line drawing of a corner joint detail (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

INSTRUKCJA OBSŁUGI

PRZED PRZYSTAPIENIEM DO EKSPLOATACJI PRODUKTU

PORADY DOTYCZĄCE OCHRONY ŚRODOWISKA

ŚRODKI OSTROŻNOŚCI I WSKAZÓWKI OGÓLNE

JAK URUCHOMIĆ KOMORE CHŁODZIARKI

JAK URUCHOMIĆ KOMORE ZAMRAŻARKI

JAK ODSZRONIĆ I WYCZYŚCIĆ KOMORE ZAMRAŻARKI

JAK WYCZYŚCIĆ KOMORE CHŁODZIARKI

CZYSZCZENIE I KONSERWACJA

INSTRUKCJA WYSZUKIWANIA USTEREK

SERWIS TECHNICZNY

INSTALACJA

Illustration of a refrigerator with food items including a plate, fish, milk carton, and various food items labeled A through F.

JAK URUCHOMIĆ KOMORE ZAMRAŻARKI

Illustration of a fish inside a refrigerator with an open door (no text or symbols)

MIESIĄCE PRODUKTY

1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned rack inside, showing a lid and door (no text or symbols)

JAK ODSZRONIĆ I WYCZYŚCIĆ KOMORE ZAMRAZARKI

Line drawing of a simple refrigerator with open doors (no text or symbols)

JAK WYCZYŚCIĆ KOMORE CHŁODZIARKI

Illustration of a refrigerator with an open door and a close-up of its lid showing liquid droplets (no text or symbols)

CZYSZCZENIE I KONSERWACJA

Line drawing of a refrigerator with a double door and front panel, showing an upward arrow (no text or symbols)

Rys. A

INSTRUKCJA WYSZUKIWANIA USTEREK

Step-by-step instructions for installing a battery panel, showing steps from mounting to cleaning.

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

NÁVOD K POUŽITÍ

PŘED PRVNÍM POUŽITÍM SPOTŘEBIČE RADY K OCHRANĚ ŽIVOTNÍHO PROSTŘEDÍ VŠEOBECNÉ POKYNY A UPOZORNĚNÍ JAK POUŽÍVAT CHLADICÍ ODDÍL JAK POUŽÍVAT MRAZICÍ ODDÍL JAK ODMRAZOVAT A ČISTIT MRAZICÍ ODDÍL JAK ČISTIT CHLADICÍ ODDÍL ÚDRŽBA A ČIŠTĚNÍ JAK ODSTRANIT PORUCHU SERVIS INSTALACE ZMĚNA STRANY OTEVÍRÁNÍ DVERÍ

PŘED PRVNÍM POUŽITÍM SPOTŘEBIČE

Diagram illustrating the internal components of a refrigerator with labeled parts A, B, C, D, and F.

JAK POUŽÍVAT MRAZICÍ ODDÍL

Illustration of a fish inside a refrigerator with an open door (no text or symbols)

MÉSÍCE	JÍDLA
1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned tray and an open door, no text or symbols present.

JAK ODMRAZOVAT A ČISTIT MRAZICÍ ODDÍL

Line drawing of a simple open refrigerator with one lid open (no text or symbols)

JAK ČISTIT CHLADICÍ ODDÍL

Line drawing of an open refrigerator with a water drop diagram overlay (no text or symbols)

ÚDRŽBA A ČIŠTĚNÍ

Line drawing of a refrigerator with a label pointing to the front panel (no text or symbols on the refrigerator itself)

JAK ODSTRANIT PORUCHU

Simple line drawing of a cabinet or enclosure with a label '1' pointing to the top panel (no text or symbols on the main structure)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand using a tool to cut or install a mechanical component (no text or symbols visible)

Pure technical diagram showing a vertical rod inserted into a horizontal surface with small circular holes, no text or symbols present.

Line drawing of a door handle with a lever and a small weight, no text or symbols present

Technical line drawing of a mechanical joint or bracket (no text or symbols)

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural or structural line drawing with no text, numbers, or symbols

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

NÁVOD NA POUŽITIE

PRED UVEDENÍM SPOTREBIČA DO ČINNOSTI

OCHRANA ŽIVOTNÉHO PROSTREDIA

RADY A BEZPEČNOSTNÉ POKYNY

AKO POUŽÍVAŤ CHLADIACI PRIESTOR

AKO POUŽÍVAŤ MRAZIACI PRIESTOR

AKO ROZMRAZOVAŤ A ČISTIŤ MRAZIACI PRIESTOR

AKO ČISTIŤ CHLADIACI PRIESTOR

STAROSTLIVOSŤ A ÚDRŽBA

PRÍRUČKA NA ODSTRAŇOVANIE PROBLÉMOV

SERVIS

INŠTALÁCIA

MOŽNOST OBRÁTENIA SMERU OTVÁRANIA DVERÍ

PRED UVEDENÍM SPOTREBIČA DO ČINNOSTI

Illustration of a refrigerator with labeled food items including a plate, fish, milk carton, and a dog.

AKO POUŽÍVAŤ MRAZIACI PRIESTOR

Illustration of a fish inside an open refrigerator with a lid (no text or symbols)

MESIACE POTRAVINY

1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned rack inside, showing a lid and lid open (no text or symbols)

AKO ROZMRAZOVAŤ A ČISTIŤ MRAZIACI PRIESTOR

Simple line drawing of a refrigerator with open door (no text or symbols)

AKO ČISTIŤ CHLADIACI PRIESTOR

Chladiaci priestor pravidelne čistite.

Illustration of a refrigerator with an open door and a close-up of its lid showing liquid droplets (no text or symbols)

STAROSTLIVOSŤ A ÚDRŽBA

Vstavané spotrebiče

Line drawing of a refrigerator with an arrow pointing to the front panel (no text or symbols on the refrigerator itself)

PRÍRUČKA NA ODSTRAŇOVANIE PROBLÉMOV

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

HASZNÁLATI UTASÍTÁS

A KÉSZÜLÉK HASZNÁLATA ELŐTT

KÖRNYEZETVÉDELMI TANÁCSOK

ÁLTALÁNOS ÓVINTÉZKEDÉSEK ÉS JAVASLATOK

A HÚTÓTÉR ÜZEMELTETÉSE

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Diagram of a refrigerator interior with labeled food items including a plate, refrigerator, and various containers

Illustration of a fish inside an open refrigerator with a lid (no text or symbols)

HÓNAP ÉTEL

1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned lid and an open door, no text or symbols present.

Line drawing of a single refrigerator with open doors (no text or symbols)

Line drawing of an open refrigerator with a water droplet inside, showing liquid level (no text or symbols)

Line drawing of a refrigerator with an arrow pointing to the front panel (no text or symbols on the refrigerator itself)

HIBAKERESÉSI ÚTMUTATÓ

Technical diagram showing six steps of a mechanical assembly or cleaning procedure, labeled 1 to 6.

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural or structural line drawing with no text, numbers, or symbols

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

Diagram illustrating the internal components of a refrigerator with labeled parts A, B, C, D, and F.

Line drawing of a fish inside a refrigerator with an open door (no text or symbols)

МЕСЯЦЫ ПРОДУКТЫ

1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned rack inside, showing a lid and lid open (no text or symbols)

Simple line drawing of a refrigerator with open doors (no text or symbols)

Illustration of an open refrigerator with a water droplet inside, showing liquid level (no text or symbols)

Line drawing of a refrigerator with a downward arrow labeled 'P' pointing to the front panel (no text or symbols on the refrigerator itself)

Рис. А

Simple line drawing of a cabinet or enclosure with a label '1' pointing to the top panel (no text or symbols on the main diagram)

Technical line drawing of a mechanical component with a bracket and mounting holes (no text or symbols)

Illustration of a hand using a tool to cut or apply a metal component (no text or symbols visible)

Pure technical diagram showing a tool interacting with a surface, no text or symbols present

Line drawing of a door handle with two circular buttons and a handle, no text or symbols present

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural line drawing of a corner joint detail (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

Diagram of a refrigerator with labeled parts including a plate, refrigerator, milk carton, and food items

Line drawing of a fish-shaped object on an open refrigerator (no text or symbols)

МЕСЕЦИ	ХРАНИ
1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned rack inside, showing a handle and lid (no text or symbols)

Simple line drawing of a refrigerator with open doors (no text or symbols)

Line drawing of an open refrigerator with a water droplet inside, showing liquid level (no text or symbols)

Line drawing of a refrigerator with an arrow pointing to the front panel (no text or symbols on the refrigerator itself)

ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

Simple line drawing of a cabinet or enclosure with a label '1' pointing to the top panel (no text or symbols on the main diagram)

Technical line drawing of a mechanical component with a bracket and mounting holes (no text or symbols)

Illustration of a hand using a tool to cut or install a mechanical component (no text or symbols visible)

Pure technical diagram showing a tool interacting with a surface, no text or symbols present

Line drawing of a door handle with two circular buttons and a handle, no text or symbols present

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural or structural line drawing with no text, numbers, or symbols

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols

INSTRUCTIUNI DE FOLOSIRE

ÎNAINTE DE A FOLOSI APARATUL
RECOMANDĂRI PENTRU PROTECTIA MEDIULUI ÎNCONJURĂTOR
MĂSURI DE PRECAUTIE ȘI RECOMANDĂRI GENERALE
PUNEREA ÎN FUNCTIUNE A COMPARTIMENTULUI FRIGIDER
PUNEREA ÎN FUNCTIUNE A COMPARTIMENTULUI CONGELATOR
CUM SE DEZGHEAȚĂ ȘI CUM SE CURĂȚĂ COMPARTIMENTUL CONGELATOR
CUM SE CURĂȚĂ COMPARTIMENTUL FRIGIDER
ÎNTRETINEREA ŞI CURĂTAREA
GHID DE DETECTARE A DEFECTIUNILOR
SERVICIUL DE ASISTENȚĂ TEHNICĂ
INSTALAREA
REVERSIBILITATEA UŞILOR

ÎNAINTE DE A FOLOSI APARATUL

Illustration of a refrigerator with labeled food items including fish, milk carton, cheese, and vegetables.

PUNEREA ÎN FUNCTIUNE A COMPARTIMENTULUI CONGELATOR

Line drawing of a fish inside an open refrigerator with a door open (no text or symbols)

LUNI	ALIMENTE
1-3
4-7
8-12

Diagram of a microwave oven with a grid-patterned tray inside, showing a lid and lid open (no text or symbols)

CUM SE DEZGHEAȚĂ ȘI CUM SE CURĂȚĂ COMPARTIMENTUL CÔNGELATOR

Simple line drawing of a refrigerator with open doors (no text or symbols)

CUM SE CURĂȚĂ COMPARTIMENTUL FRIGIDER

Illustration of an open refrigerator with a water drop diagram above it (no text or symbols)

ÎNTRETINEREA ŞI CURĂTAREA

Line drawing of a refrigerator with a double door and front panel, no text or symbols present

Fig. A

GHID DE DETECTARE A DEFECTIUNILOR

Simple line drawing of a cabinet or enclosure with a label '1' pointing to the top panel (no text or symbols on the main structure)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand using a tool to cut or apply a component (no text or symbols visible)

Pure technical diagram showing a tool interacting with a surface, no text or symbols present

Line drawing of a door handle with two circular buttons and a handle attachment (no text or symbols)

Technical line drawing of a mechanical joint or bracket (no text or symbols)

Line drawing of a rectangular box with a recessed top and side handles (no text or symbols)

Two white metal bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure architectural line drawing of a corner joint detail (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Simple line drawing of a two-tier refrigerator with no text or symbols
