USER MANUAL WSIO 3O34 PFE X WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance, please

register your appliance on: www.whirlpool.eu/register

Before using the appliance carefully read Safety Instructions guide.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO HAVE MORE DETAILED INFORMATION

PRODUCT DESCRIPTION

APPLIANCE

Technical diagram of a refrigerator interior with numbered components and labeled service bar

1. Upper rack
2. Cutlery rack
3. Foldable flaps
4. Upper rack height adjuster
5. Upper spray arm
6. Lower rack
7. Power Clean® support
8. Lower spray arm
9. Filter Assembly
10. Salt reservoir
11. Detergent and Rinse Aid dispensers
12. Rating plate
13. Control panel

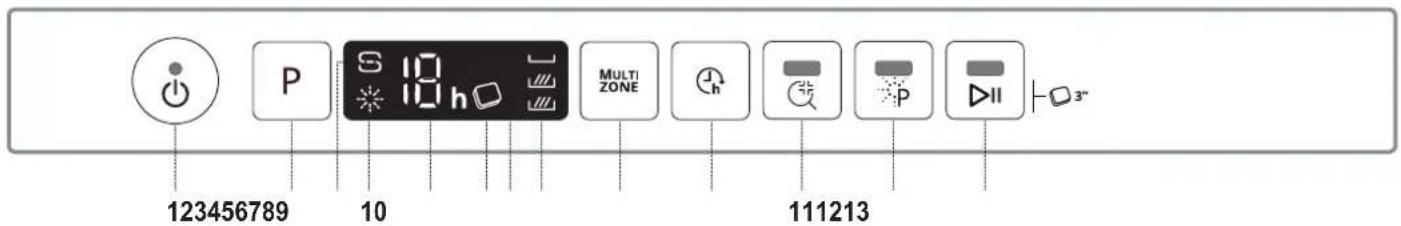

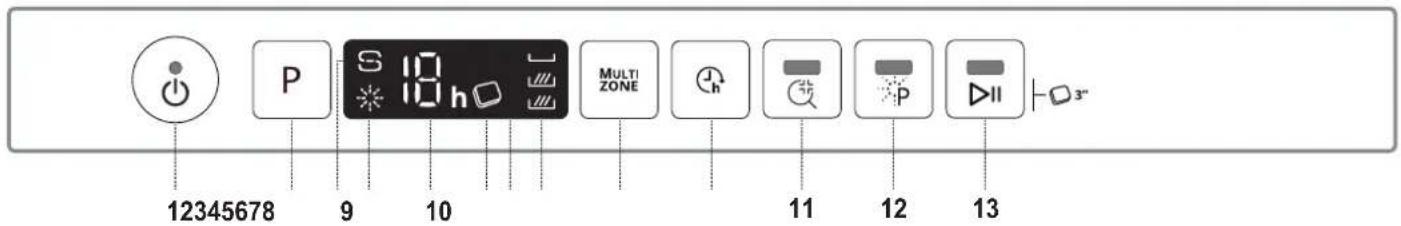

CONTROL PANEL

12345678 9 10 MULTI ZONE 11 12 13

1. ON-OFF/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse Aid refill indicator light
5. Program number and delay time indicator
6. Tablet indicator light

7. Display

8. Multizone indicator lights

9. Multizone button
10. Delay button
11. Sani Rinse button with indicator light
12. Power Clean® button with indicator light
13. START/Pause button with indicator light / Tablet (Tab)

FIRST TIME USE

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

- It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY.

- It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher (see PRODUCT DESCRIPTION) and must be filled when the SALT REFILL indicator light in the control panel is lit.

Illustration of a hand pouring granular material into a bowl on a stand next to a sash (no text or symbols)

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).
2. Only the first time you do this: fill the salt reservoir with water.
3. Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle to avoid corrosion.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier.

The factory sets the default value for the water hardness.

• Switch on the appliance by pressing the ON/OFF button.
• Switch off the appliance by pressing the ON/OFF button.
• Hold down button P for 5 seconds, until you hear a beep.
• Switch on the appliance by pressing the ON/OFF button.
  • The current selection level number and the salt indicator light both flash.
• Press button P to select the desired hardness level (see WATER HARDNESS TABLE).

Water Hardness Table
Level		°dHGerman degrees	°fHFrench degrees	°ClarkEnglish degrees
1	Soft	0 - 6	0 - 10	0 - 7
2	Medium	7 - 11	11 - 20	8 - 14
3	Average	12 - 16	21 - 29	15 - 20
4	Hard	17 - 34	30 - 60	21 - 42
5	Very hard	35 - 50	61 - 90	43 - 62

- Switch off the appliance by pressing the ON/OFF button.

Setting is complete!

As soon as this procedure is complete, run a program without loading.

Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator light switches off.

If the salt container is not filled, the water softener and the heating element may be damaged as a result of limescale accumulation.

Using of Salt is recommended with any type of dishwasher detergent.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light ✦ in the control panel is lit.

Simple line drawing of a kitchen appliance with no text or symbols

B

Diagram of a hand operating a device with control panel and buttons (no text or symbols visible)

A

1. Open the dispenser B by pressing and pulling up the tab on the lid.
2. Pour in the rinse aid (max.110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.
   NEVER pour the rinse aid directly into the appliance tub.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.

• Switch the dishwasher on using the ON/OFF button.
• Switch it off using the ON/OFF button.
• Press button P three times - a beep will be heard.
• Switch it on using the ON/OFF button.
• The current selection level number and rinse aid indicator light flash.
• Press button P to select the level of rinse aid quantity to be supplied.
• Switch it off using the ON/OFF button

Setting is complete!

If the rinse aid level is set to ZERO (ECO), no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid.

A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specific to the model, please follow instruction above to check this for your machine.

• If you see bluish streaks on the dishes, set a low number (1-2).
• If there are drops of water or limescale marks on the dishes, set a mid-range number (3-4).

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.

D C

1. When measuring out the detergent refer to the mentioned earlier information to add the proper quantity. Inside the dispenser D there are indications to help the detergent dosing.
2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

PROGRAMS TABLE

Program			Drying phase	NaturalDry	Available options*)	Duration of wash program (h:min)**	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
1. Eco	Eco	50°	√	√		3:40 9.0 0.67
2. 6thSense® 50-60°			√	√		1:20 - 3:00 7.0	- 14.0 0.70 - 1.10
3. Intensive		65°	√	√		2:45 17.5 1.60
4. Fast Wash&Dry		50°	√	√		1:25 11.5 1.10
5. Crystals		45°	√	√		1:40 12.0 1.20
6. Rapid 30' 50°			-	√		0:30 9.0 0.50
7. Prewash		---				0:10 4.5 0.01
8. Self-Clean 65°			-	-		0:50 8.0 0.85

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.

Note for Test Laboratories:

For information on comparative EN testing conditions, please send an email to the following address: [e-mail]

Pre-treatment of the dishes is not needed before any of the programs.

*) Not all options can be used simultaneously.

**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

1 ECO

Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.

2 6th SENSE®

For normally soiled dishes with dried food residues. Senses the level of soiling on the dishes and adjusts the program accordingly. When the sensor is detecting the soil level an animation appears in the display and the cycle duration is updated.

3 INTENSIVE

Program recommended for heavily soiled crockery, especially suitable for pans and saucepans (not to be used for delicate items).

4 FAST WASH&DRY

Normally soiled crockery. Everyday cycle, that ensures optimal cleaning and drying performance in shorter time.

5 CRYSTALS

Program for delicate items, which are more sensitive to high temperatures, for example glasses and cups.

6 RAPID 30'

Program to be used for half load of lightly-soiled dishes with no dried food residues. Does not include drying phase.

7 PREWASH

Use to refresh crockery planned to be washed later. No detergent to be used with this program.

8 SELF-CLEAN

Program to be used to perform maintenance of the dishwasher, to be carried out only when the dishwasher is EMPTY using specific detergents designed for dishwasher maintenance.

Notes:

Please note that cycle Rapid 30' is dedicated for lightly soiled dishes.

OPTIONS AND FUNCTIONS

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL).

If an option is not compatible with the selected program see PROGRAMS TABLE, the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled.

MULTI ZONE

MULTIZONE

If there are not many dishes to be washed, a half loading may be used in order to save water, electricity and detergent.

Select the program and then press the MULTIZONE button: the symbol of the chosen rack will appear on the display. By default the appliance washes dishes in all racks.

To wash only the specific rack, press this button repeatedly:

shown on the display (only lower rack)

shown on the display (only upper rack)

shown on the display (only cutlery rack)

shown on the display (option is OFF and the appliance will wash dishes in all racks).

Remember to load the upper or lower rack only, and to reduce the amount of detergent accordingly. If upper rack is removed, please apply detergent directly to tub instead of detergent dispenser.

DELAY

The start time of the program may be delayed for a period of time between 1 and 12 hours.

1. Press the DELAY button: the corresponding «h» symbol appears on the display; each time you press the button, the time (1h, 2h, etc. up to max. 12h) from the start of the selected wash cycle will be increased.
2. Select the wash program, press the START/PAUSE button and within 4 seconds close the door: the timer will begin counting down.
3. Once this time has elapsed, the indicator light «h» switches off and the wash cycle begins.

To adjust the delay time and select a shorter period of time, press the DELAY button. To cancel it, press the button repeatedly until the selected delayed start indicator light «h» switches off.

The DELAY function cannot be set once a wash cycle has been started.

SANI RINSE

This option can be used to sanitize washed dishes. It will increase final rinse temperature and add antibacterial wash to the selected program. Select the washing program, press the SANI RINSE button; the indicator light will light up. To deselect the option, press the same button again. Ideal to clean crockery and feeding bottles. The dishwasher door must be kept shut for the entire duration of the program in order to guarantee reduction of germs. If the door is opened the indicator lamp starts flashing.

WARNING: the crockery and plates could be extremely hot at the end of the cycle.

POWER CLEAN®

Thanks to the additional power jets this option provides a more intensive and powerful wash in the lower rack, in the specific area. This option is recommended for washing pots and casseroles. Press this button to activate POWER CLEAN (the indicator lights up).

TABLET (Tab)

This setting allows you to optimize the performance of the program according to the type of detergent used.

Press the START/PAUSE button for 3 seconds (the corresponding symbol will light up) if you use combined detergents in tablet form (rinse aid, salt and detergent in 1 dose).

If you use powder or liquid detergent, this option should be off.

OPERATION INDICATOR

A LED light projected on the floor indicates that the dishwasher is working. One of the following operating modes can be selected: a) Disabled function.

b) When the cycle starts the light goes on for few seconds, stays off during the cycle and flashes at the end of the cycle. c) The light stays on during the cycle and flashes at the end of the cycle (default mode).

If the delayed start was set, the light goes on either for the first few seconds or the entire duration of the countdown, based on whether mode b) or c) was set.

The light goes off every time the door is opened. To select the mode you prefer, switch on the machine, hold down button P until one of the three letters appears on the display, press button P until you reach the desired letter (or mode), hold down button P to confirm the selection.

Note: If NaturalDry is active and it opens the door, then Operation Indicator will not flash at the end of cycle.

NaturalDry

NaturalDry is a convection drying system which automatically opens the door during/after drying phase to ensure exceptional drying performance every day. Door opens at the temperature that is safe to your kitchen furniture, thus door will not be opened when the option of SANI RINSE is on.

As additional steam protection, special designed protection foil is added together with the dishwasher. To see how to mount protection foil please refer to (INSTALLATION GUIDE).

NaturalDry functionality could be disabled by the user as follows:

1. Go to the Dishwasher software menu pressing and holding P button (6 sec).
2. You are currently in Light Control Menu (please refer to OPERATION INDICATOR description), if you don't want to change anything please press and hold P button (until one of the two letters appears on the display).
3. You switched to NaturalDry Control Menu, you could change status of NaturalDry functionality by pressing P button:
   E-enabled d-disabled

To confirm the change and exit from the Control Menu please press and hold P button (3 sec).

LOADING THE RACKS

CUTLERY RACK

Technical diagram of a multi-layered electrical or mechanical system with labeled components and connections

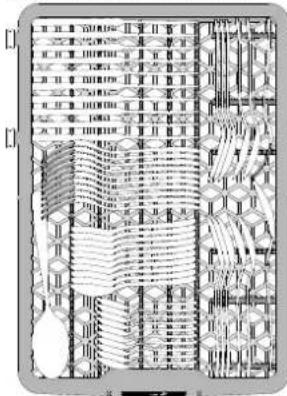

The third rack was designed to house the cutlery. Arrange the cutlery as shown in the figure.

A separate arrangement of the cutlery [☐] makes collection easier after washing and improves washing and drying performance.

Knives and other utensils with sharp edges must be positioned with the blades facing downwards.

UPPER RACK

Top-down schematic of a multi-level electronic device or enclosure with labeled components (no text or symbols)

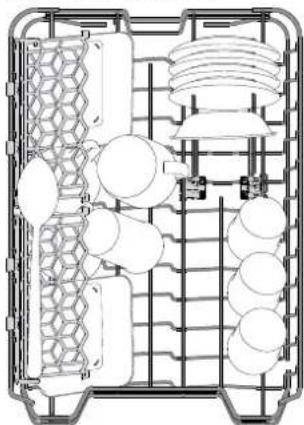

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

The upper rack has tip-up supports which can be used in a vertical position when arranging tea/ dessert saucers or in a lower position to load bowls and food containers.

(loading example for the upper rack)

ADJUSTING THE HEIGHT OF THE UPPER RACK

The height of the upper rack can be adjusted: high position to place bulky crockery in the lower basket and low position to make the most of the tip-up supports by creating more space upwards and avoid collision with the items loaded into lower rack.

The upper rack is equipped with a Upper Rack height adjuster (see figure), without pressing the levers, lift it up by simply holding the rack sides, as soon as the rack is stable in its upper position. To restore to the lower position, press the levers A at the sides of the rack and move the basket downwards.

We strongly recommend that you do not adjust the height of the rack when it is loaded.

NEVER raise or lower the basket on one side only.

Technical diagram showing a mechanical or electrical assembly with labeled components and directional arrows

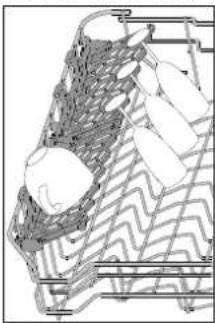

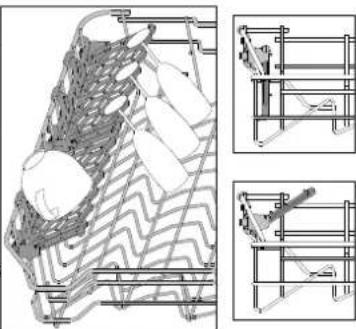

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

The side foldable flaps can be fold or unfold to optimize the arrangement of crockery inside the rack. Wine glasses can be placed safely in the foldable flaps by inserting the stem of each glass into the corresponding slots.

Depending on the model:

- to unfold the flaps there is needed to slide it up and rotate or release it from the snaps and pull it down.

- to fold the flaps there is needed to rotate it and slide flaps down or pull it up and attach flaps to the snaps.

Architectural line drawing of a building facade with internal structural lines and two side-view diagrams (no text or symbols)

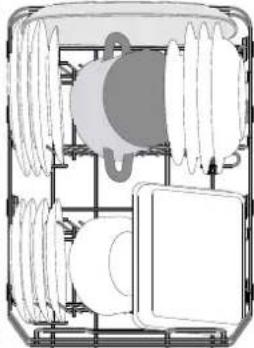

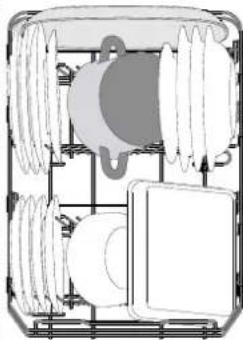

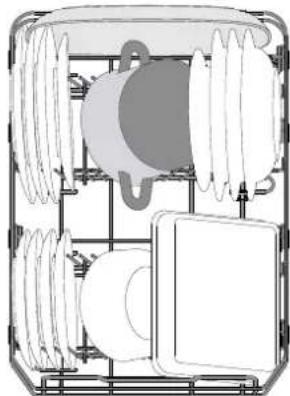

LOWER RACK

Technical diagram of a mechanical assembly with multiple components and no visible text or symbols

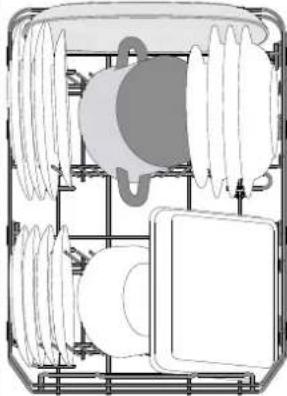

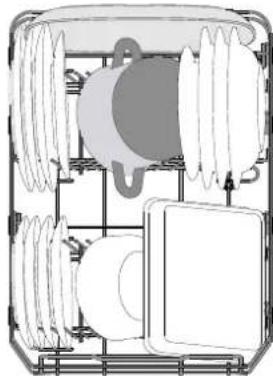

For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm.

The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.

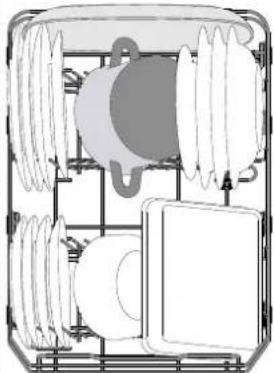

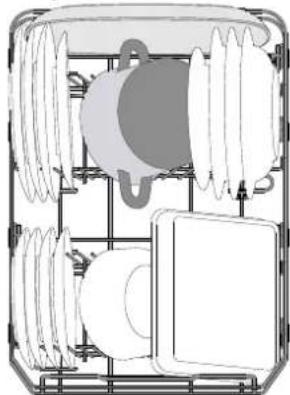

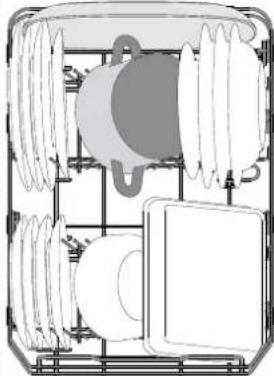

(loading example for the lower rack)

POWER CLEAN®

Power Clean ^® uses the special water jets in the rear of cavity to wash more intensively the high dirty items. The lower rack has a Power Clean support, a special pull-out support in the rear of the rack that can be used to support frying pans or baking pans in upright position, thus taking up less space.

PowerCLEAN

Placing the pots/casseroles faced to the Power Clean ^® component please activate the POWER CLEAN ^® on the panel.

How to use Power Clean*:

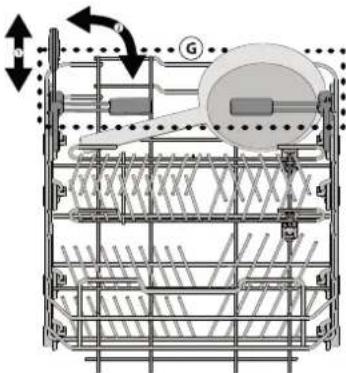

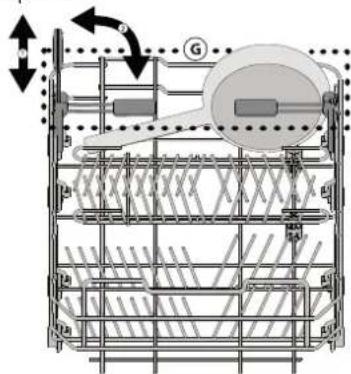

1. Adjust the Power Clean® area G folding down the rear plate holders to load pots.

2. Load pots and casseroles inclined vertically in Power Clean® area. Pots have to be inclined towards the power water jets.

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or force

DAILY USE

1. CHECK WATER CONNECTION

Check that the dishwasher is connected to the water supply and that the tap is open.

2. SWITCH ON THE DISHWASHER

Open the door and press the ON/OFF button.

1. LOAD THE RACKS (see LOADING THE RACKS).

4. FILLING THE DETERGENT DISPENSER

5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE

Select the most appropriate program in accordance with the type of crockery and its soiling level (see PROGRAMS DESCRIPTION) by pressing the P button.

Select the desired options (see OPTIONS AND FUNCTIONS).

6. START

Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec. When the program starts you hear a single beep. If the door was not closed within 4sec., the alarm sound will be played. In this case, open the door, press START/Pause button and close the door again within 4 sec.

7. END OF WASH CYCLE

The end of the wash cycle is indicated by beeps and by the flashing of the wash cycle number on the display. Open the door and switch off the appliance by pressing the ON/OFF button.

Wait for a few minutes before removing the crockery - to avoid burns. Unload the racks, beginning with the lower one.

The machine will switch off automatically during certain extended periods of inactivity, in order to minimise electricity consumption. If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

MODIFYING A RUNNING PROGRAM

If a wrong program was selected, it is possible to change it, provided that it has only just begun: open the door, press and hold the ON/OFF button, the machine will switch off.

Switch the machine back on using the ON/OFF button and select the new wash cycle and any desired options; Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec.

ADDING EXTRA CROCKERY

Without switching off the machine, open the door (START/Pause led starts blinking) (be ware of HOT steam!) and place the crockery inside the dishwasher. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

ACCIDENTAL INTERRUPTIONS

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

ADVICE AND TIPS

TIPS

Before loading the baskets, remove all food residues from the crockery and empty the glasses. You do not need to rinse beforehand under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely.

Warning: lids, handles, trays and frying pans do not prevent the sprayer arms from rotating.

Place any small items in the cutlery basket.

Very soiled dishes and pans should be placed in the lower basket because in this sector the water sprays are stronger and allow a higher washing performance.

After loading the appliance, make sure that the sprayer arms can rotate freely.

UNSUITABLE CROCKERY

• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.
• Parts in synthetic material which do not withstand high temperatures.
  • Copper and tin crockery.
• Crockery soiled with ash, wax, lubricating grease or ink.
  The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

DAMAGE TO GLASS AND CROCKERY

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
• Use a delicate detergent suitable for crockery
• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

TIPS ON ENERGY SAVING

- When the household dishwasher is used according to the manufacturer's instructions, washing tableware in a dishwasher usually consumes less energy and water than hand dishwashing.

- In order to maximize dishwasher efficiency it is recommended to initiate the wash cycle once dishwasher is fully loaded. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Information on correct loading of tableware can be found in Loading chapter. In case of partial loading it is recommended to use dedicated wash options if available (Half load/ Zone Wash, Multizone), filling up only selected racks. Incorrect loading or overloading the dishwasher may increase resources usage (such as water, energy and time, as well as increase noise level), reducing cleaning and drying performance.

- Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

HYGIENE

To avoid odour and sediment which can be accumulated in the dishwasher please run a high temperature program at least one a month. Use a tea spoon of detergent and run it without the loading to clean your appliance.

CARE AND MAINTENANCE

CLEANING THE FILTER ASSEMBLY

Regularly clean the filter assembly so that the filters do not clog and that the waste water flows away correctly.

Using dishwasher with clogged filters or foreign objects inside filtration system or sprayarms may cause unit malfunction resulting in lose of performance, noisy work or higher resources usage.

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water.

The dishwasher must not be used without filters or if the filter is loose.

At least once per month or after each 30 cycles, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical filter A in an anti-clockwise direction and pull it out (Fig 1).
2. Remove the cup filter B by exerting a slight pressure on the side flaps (Fig 2).
3. Slide out the stainless-steel plate filter C (Fig 3).
4. In case you find foreign objects (such as broken glass, porcelain, bones, fruit seeds etc.) please remove them carefully.
5. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).

1 A

2 B A

3 C

Mechanical assembly diagram showing a lever mechanism inside a container with a curved component (no text or symbols)

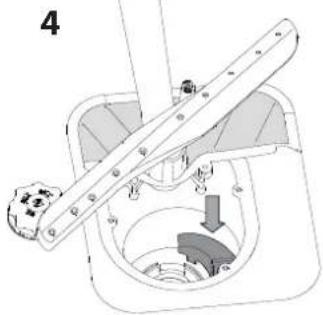

After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

CLEANING THE WATER INLET HOSE

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

CLEANING THE SPRAY ARMS

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

Technical line drawing of a mechanical assembly with hand and curved arrow indicating rotation (no text or symbols)

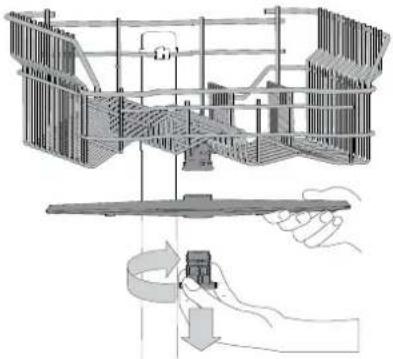

To remove the upper spray arm, turn the plastic locking ring in a clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

The lower spray arm may be removed by pulling it upwards.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing scale buildup on heater, contributing also to better cleaning efficiency.

This system regenerates itself with salt, therefore it is required to refill salt container when empty.

Frequency of regeneration depends on water hardness level setting - regeneration takes place once per 6 Eco cycles with water hardness level set to 3.

Regeneration process starts in final rinse and finishes in drying phase, before cycle ends.

• Single regeneration consumes: 3.5L of water;
  • Takes up to 5 additional minutes for the cycle;
  • Consumes below 0.005kWh of energy.

TROUBLESHOOTING

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service which contact details can be found in the warranty booklet. Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
Salt indicator is lit	Salt reservoir is empty. (After refill the salt indicator may remain lit for several wash cycles).	Refill reservoir with salt (for more information - see page 2).Adjust water hardness - see table, page 2.
Rinse aid indicator is lit	Rinse aid dispenser is empty. (After refill the rinse aid indicator may remain lit for several wash cycles).	Refill dispenser with rinse aid (for more information - see page 2).
The dishwasher won't start or does not respond to commands.	The appliance has not been plugged in properly.	Insert the plug into the socket.
	Power outage.	For safety reasons, dishwasher will not re-start automatically when power returns.Open dishwasher door, press START/Pause button and close the door within 4 seconds.
	The dishwasher door is not closed.NaturalDry pin is not pulled in.	Vigorously push the door until you hear the "click".
	Cycle is interrupted by door opening for more than 4 seconds.	Press START/Pause and close the door within 4 seconds.
	It does not respond to commands.Display shows:9 or 12 and On/Off LED is blinking rapidly	Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and restart the program. If problem persists, unplug the appliance for 1 minute, then plug it back in.
The dishwasher won't drain.Display shows:3 and On/Off LED is blinking rapidly	The wash cycle has not finished yet. Wait until the	wash cycle finishes.
	The drain hose is bent. Check that the drain hose is	not bent (see INSTALLATION INSTRUCTION).
	The sink drain pipe is blocked. Clean the sink drain pipe.	pipe.
	The filter is clogged up with food residues. Clean the filter (see CLEANING THE FILTER ASSEMBLY).
The dishwasher makes excessive noise.	The dishes are rattling against each Position the crockery correctly (see LOADING THE RACKS).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER). Restart the current cycle by switching OFF the dishwasher, then switch it on again, select a new program, press START/Pause and close the door within 4 seconds. Please do not add any detergent.
The dishes are not clean.	The crockery has not been arranged properly.	Arrange the crockery correctly (see LOADING THE RACKS).
	The spray arms cannot rotate freely, being hindered by the dishes.	Arrange the crockery correctly (see LOADING THE RACKS).
	The wash cycle is too gentle. Select an appropriate wash cycle (see PROGRAMS TABLE).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER).
	The cap on the rinse aid compartment has not been shut correctly.	Make sure the cap of the rinse aid dispenser is closed.
	The filter is soiled or clogged. Clean the filter assembly (see CARE AND MAINTENANCE).
	There is no salt. Fill the salt reservoir (see FILLING THE SALT RESERVOIR).
The dishwasher does not fill the water.Display shows: H,6 and On/Off LED is blinking rapidly	No water in the water supply or the tap is closed.	Make sure there is water in the water supply or the tap running.
	The inlet hose is bent.	Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dishwasher and reboot.
	The sieve in the water inlet hose is clogged; it is necessary to clean it	After having carried out the verification and cleaning, turn off and turn on the dishwasher and restart a new program.
Dishwasher finishes the cycle prematurely.Display shows: 15 and On/Off LED is blinking rapidly	Drain hose positioned too low or siphoning into home sewage system.	Check if end of drain hose is placed at correct height (see INSTALLATION).Check for siphoning into home sewage system, install air admittance valve if necessary.
	Air in water supply.	Check water supply for leaks or other issues letting air inside.
Detergent leaks.	Depends on the liquid detergent used and can be emphasized in case of delay option is activated.	Small leaks will not cause machine malfunction and can be avoided by changing liquid detergent type or using tablets.

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Using QR code on your product.

- Visiting our website docs.whirlpool.eu/docs and parts-selfservice.europeanappliances.com

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet).

When contacting our After-sales Service, please state the codes provided on your product's identification plate.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu.

®/TM/© 2024 Whirlpool. Produced under license.

Wearnut Rider 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm Wearnut 100mm

Technical diagram of a refrigerator interior with numbered components and labeled parts

Illustration of a hand pouring granular material into a bowl on a stand, with a separate food item nearby (no text or symbols)

Diagram showing two labeled views (A and B) of a refrigerator interior with compartments, fixtures, and a hand holding a tray.

Diagram of a food processing machine with labeled components and parts, including hand tool, container, and cleaning steps.

Technical diagram of a multi-layered industrial or mechanical system with labeled components and internal structures

Technical line drawing of a mechanical or electrical component with labeled parts (no readable text or symbols)

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

Architectural line drawing of a building facade with internal structural elements and two side-view diagrams (no text or labels)

Top-down schematic of a mechanical or electrical component with layered structure (no text or symbols)

POWERCLEAN

Technical diagram of a mechanical assembly with structural framework and directional arrows (no text or labels)

Mechanical assembly diagram showing a lever mechanism with a rotating component and a curved arrow indicating motion (no text or symbols)

Architectural diagram of a multi-level building structure with hand operating a beam (no text or labels)

Illustration of a hand using a tool to interact with a container containing circular components (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and labeled service badge

Illustration of a hand pouring granular material into a bowl on a stand, with a sliced fruit nearby (no text or symbols)

Line drawing of a refrigerator interior with monitor, toilet, sink, and door (no text or symbols)

B

Diagram of a hand operating a washing machine with a water level gauge and control panel (no text or symbols)

A

Diagram of a food preparation or processing setup with labeled components and hand actions

Technical diagram of a mechanical or electrical component with labeled sections and internal structures

Technical line drawing of a mechanical or electrical assembly with no visible text, numbers, or symbols.

Technical diagram showing mechanical assembly with labeled components A and B, and directional arrows indicating movement or force.

SKLOPNÉ OPĚRKY S NASTAVITELNOU POLOHOU

Architectural line drawing of a building facade with structural details and cross-sectional views (no text or symbols)

DOLNÍ KOŠ

Technical diagram of a mechanical or electrical component with layered structure (no visible text or symbols)

POWERCLEAN

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or force

DENNÍ POUŽÍVÁNÍ

1. ZKONTROLUJTE PŘIPOJENÍ K VODOVODNÍ SÍTI

Technical line drawing of a mechanical assembly with hand operating a tool (no text or symbols)

Illustration of a hand using a tool to interact with a mechanical device, featuring gears and a valve (no text or symbols)

Wired 1000lm Control Panel Control Panel Control Panel

BEDIENUNGSANLEITUNG

GUIDE

Technical diagram of a refrigerator interior with numbered components and labeled parts including a service badge and product images.

Illustration of a hand pouring granular material into a bowl on a stand, with a sliced seed or fruit nearby (no text or symbols)

Technical diagram of a double-chamber air conditioner unit with labeled components A and B, showing internal compartments and control panels.

Diagram of a food processing machine with labeled components and directional arrows indicating input/output flow.

Technical diagram of a multi-layered electrical or mechanical system with labeled components and connections

Top-down architectural floor plan of a building with grid layout and furniture placement (no text or labels)

Technical diagram showing a structural assembly with labeled components A and B, likely from an engineering or mechanical drawing.

KLAPPBARE KLAPPEN MIT VERSTELLBARER POSITION

Architectural or engineering diagram showing layered structures with no visible text or symbols

Technical diagram of a mechanical or electrical enclosure with internal components (no text or symbols visible)

Technical diagram of a structural framework with labeled components and directional arrows indicating motion or force vectors.

TÄGLICHER GEBRAUCH

Mechanical assembly diagram showing a lever mechanism with a gear and pulley (no text or labels)

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to interact with a container and a gear mechanism (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and labeled parts, including a service badge and product photos.

Illustration of a hand pouring granular material into a bowl with a spoon, next to a sliced food item (no text or symbols)

Diagram showing two labeled views (A and B) of a refrigerator interior with hand gestures and fan controls.

Diagram of a kitchen appliance with labeled parts and a hand pouring into a container, showing food and fixtures.

Technical diagram with labeled components and structural layout, showing layered structures and annotations in Chinese.

Architectural floor plan showing room layouts and structural elements (no text or labels)

Diagram of a shopping cart interior with patterned seating and handrails (no text or labels)

CESTO INFERIOR

Diagram of a mechanical or electrical component with layered structure (no text or symbols)

Pure electrical circuit lines without any symbols

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

USO DIARIO

Technical diagram of a mechanical assembly with a hand operating a tool, showing internal components and motion arrows (no text or labels)

Illustration of a hand using a tool to interact with a mechanical component, showing gears and a valve (no text or symbols)

TÄNAME, ET OSTSITE WHIRLPOOL TOOTE.

Technical diagram of a refrigerator interior with numbered components and labeled service bar

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced fruit (no text or symbols)

Diagram showing two views of a refrigerator with labeled compartments and a hand holding a bag, labeled A and B.

Diagram of a food preparation or processing setup with labeled components and hand actions

Architectural floor plan with labeled building sections and structural layout

Architectural floor plan showing room layouts and structural elements (no text or labels)

Technical diagram showing a mechanical or electrical assembly with labeled components A and B, likely from an engineering or manufacturing context.

REGULEERITAVA PAIGUTUSEGA KOKKUKÄIVAD LABAD

Technical line drawing of a mechanical assembly with internal components and two inset views (no text or symbols)

ALUMINE REST

Technical diagram of a mechanical assembly with multiple components and no visible text or symbols

Technical diagram of a structural framework with labeled components and directional arrows indicating motion or force vectors.

IGAPÄEVANE KASUTAMINE

1. VEEÜHENDUSE KONTROLL

Mechanical assembly diagram showing a lever mechanism inside a container with a curved component (no text or symbols)

Technical diagram of a mechanical assembly with hand and base components, no visible text or symbols

Diagram of a hand operating a mechanical device with gears and a valve, no text or symbols present

MERCI D'AVOIR CHOISI UN PRODUIT WHIRLPOOL.

Technical diagram of a microwave oven with numbered components and labeled parts, including internal structure and component labels.

Illustration of a hand pouring granular material into a bowl with a side view of a sliced fruit (no text or symbols)

Diagram showing two labeled views (A and B) of a refrigerator interior with hand gestures and icons, likely illustrating appliance or appliance design.

Diagram of a food delivery or cleaning device with labeled components and hand icons for handling parts

OPTIONS ET FONCTIONS

Technical diagram of a multi-layered electrical or mechanical system with labeled components and connections

Architectural floor plan of a multi-level building with grid layout and furniture placement (no text or labels)

Technical diagram showing structural components with labeled parts A and B, likely from an engineering or mechanical drawing.

VOLETS PLIABLES À POSITION RÉGLABLE

Architectural or engineering diagram showing structural elements and cross-sections (no text or symbols)

Technical diagram of a mechanical or electrical component with layered structure and no visible text or symbols

PANIER INFÉRIEUR

Technical diagram of a structural steel frame assembly with labeled components and directional arrows indicating motion or force.

UTILISATION QUOTIDIENNE

1. VÉRIFIER LE BRANCHEMENT DE L'EAU

INTERRUPTIONS IMPRÉVUES

Technical diagram of a mechanical assembly with hand operating a lever and rotating component (no text or labels)

Illustration of a hand using a tool to lift a container with a gear and a rotating wheel (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and labeled parts including battery, refrigerator, and control panel.

Illustration of a hand pouring granular material into a bowl on a stand, with a slice of food nearby (no text or symbols)

Diagram of a food delivery or processing device with labeled parts and directional arrows indicating flow or movement.

Technical diagram of a server rack with labeled components and internal structure layout

Technical line drawing of a mechanical assembly with components like gears, springs, and housing (no text or labels)

Technical diagram showing a structural assembly with labeled components A and B, likely from an engineering or mechanical drawing.

ÁLLÍTHATÓ MAGASSÁGÚ LEHAJTHATÓ POLCOK

Technical diagram showing a cross-sectional view of a building layout with labeled components and two side-view diagrams.

ALSÓ KOSÁR

Technical diagram of a mechanical or electrical component with internal components and no visible text or symbols

POWER CLEAN® AZ ALSÓ KOSÁRBAN

ADU D D D ADU D POWERCLEAN

Technical diagram of a mechanical or structural assembly with labeled components and directional arrows indicating motion or force.

MINDENNAPI HASZNÁLAT

1. ELLENÖRIZZE A VÍZBEKÖTÉST

Technical diagram of a mechanical assembly with hand and curved component (no text or symbols)

Diagram of a hand operating a mechanical device with gears and a lever, no text or symbols present

Technical diagram of a refrigerator interior with numbered components and labeled parts

Illustration of a hand pouring granular material into a bowl on a stand next to a sash (no text or symbols)

Diagram showing two labeled views (A and B) of a refrigerator interior with hand operating controls and a water level indicator.

Diagram of a food processing machine with labeled components and directional arrows indicating processing flow

The image is too blurry to recognize any text content.

rodoma ekrane (parinktis išjungta, o prietaisas plaus indus visose lentynélèse).

Technical diagram of a server rack with labeled components and connections

Top-down architectural floor plan of a multi-level building with grid layout and furniture placement (no text or labels)

Technical diagram showing electrical wiring connections with labeled components and a marked section A

REGULIUOJAMOS PADĖTIES UŽLENKIAMI SKYDELIAI

Architectural line drawing of a building facade with internal structural elements and two inset views (no text or symbols)

Technical diagram of a mechanical or electrical component with multiple circular components and internal structure (no text or symbols)

Technical diagram of a structural steel frame with labeled components and directional arrows indicating movement or force.

KASDIENIS NAUDOJIMAS

1. PATIKRINKITE PRIJUNGIMA PRIE VANDENTIEKIO

Mechanical assembly diagram showing a lever mechanism inside a container with a curved component (no text or symbols)

Technical diagram of a mechanical assembly with hand and curved arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to interact with a mechanical component, showing gears and a valve (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and labeled parts

Illustration of a hand pouring granular material into a bowl with a spoon, next to a sliced fruit (no text or symbols)

Technical diagram showing two labeled views (A and B) of a household air conditioner unit with internal compartments and control panel.

Diagram of a food delivery or processing device with labeled parts and directional arrows indicating components.

Technical diagram of a multi-layered electronic circuit or memory layout with labeled components and connections

Architectural floor plan showing room layouts and structural elements (no text or labels)

Technical diagram showing a mechanical or electrical assembly with labeled components and directional arrows

ATLOKÄMIE PLAUKTI AR PIELÄGOJAMU NOVIETOJUMU

Architectural floor plan showing room layouts and structural details (no text or labels)

APAKŠEJAIS STATIVS

Technical diagram of a mechanical or electrical component with layered structure (no text or symbols)

Technical diagram of a mechanical assembly with structural framework and directional arrows (no text or symbols)

IKDIENAS LIETOŠANA

1. PÄRBAUDIET ÜDENS SAVIENOJUMU

Mechanical assembly diagram showing a lever mechanism with a rotating component and directional arrow (no text or labels)

Technical line drawing of a mechanical assembly with hand and base components (no text or symbols)

Diagram of a hand operating a mechanical device with gears and a valve, no text or symbols present

Technical diagram of a refrigerator interior with numbered components and labeled service badge

Illustration of a hand pouring granular material into a bowl on a stand, with a sliced lid nearby (no text or symbols)

Instellen is voltooid!

Diagram showing two labeled views (A and B) of a refrigerator interior with hand operating controls and a water drop indicator.

Instellen is voltooid!

Diagram of a food processing machine with labeled components and parts, including handshells, feedstock, and waste bins.

Architectural floor plan with labeled building sections and structural layout

Architectural floor plan of a building showing internal layout and structural elements (no text or labels)

Technical diagram showing a mechanical assembly with labeled components and section line A

Technical diagram of a mechanical assembly with layered components and no visible text or symbols

Diagram of a multi-panel device with fan-like components and a central circular component (no text or symbols)

Technical diagram of a mechanical or structural assembly with labeled components and directional arrows indicating motion or force.

DAGELIJKS GEBRUIK

1. WATERAANSLUITING CONTROLEREN

Architectural line drawing of a multi-level building structure with hand holding a scale and directional arrow (no text or symbols)

Illustration of a hand operating a mechanical device with rotating components (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and labeled parts, including a barcode and appliance labels.

Illustration of a hand pouring granular material into a bowl on a stand next to a sash (no text or symbols)

Technical diagram showing front and side views of a refrigerator with labeled parts A and B, including a hand holding a fan.

Diagram of a food processing machine with labeled components and hand actions, including a hand holding a spoon and a spoon lifting a cup.

Architectural floor plan of a multi-story building with tiered roof and adjacent structures (no text or labels visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing labeled components A and B with directional arrows and structural elements

SKŁADANE PÓŁECZKI Z REGULOWANYM POŁOŻENIEM

Architectural line drawing of a building facade with internal structural lines and two inset views (no text or symbols)

DOLNY KOSZ

Technical diagram of a mechanical or electrical component with internal components (no text or symbols visible)

POWERCLEAN

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or movement.

CODZIENNA EKSPLOATACJA

1. SPRAWDZENIE PRZYŁACZA WODY

Mechanical assembly diagram showing a lever mechanism inside a container with a gear and shaft (no text or symbols)

Technical diagram of a mechanical assembly with hand and curved arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

Technical diagram of a refrigerator interior with numbered components and labeled parts, including a barcode and control panel.

Illustration of a hand pouring granular material into a bowl with a spoon, next to a sliced food item (no text or symbols)

Diagram showing two labeled views (A and B) of a refrigerator interior with hand holding a bag, illustrating appliance design or cleaning.

Diagram of a cleaning or packaging device with labeled parts D and C, showing components like handbags, brushes, and a spray bottle.

Technical diagram of a multi-layered electrical or mechanical system with labeled components and connections

Architectural floor plan showing room layouts and structural elements (no text or labels)

Carregue neste cesto a loiça frágil e leve: copos, chávenas, pires, tigelas.

Technical diagram showing a mechanical or electrical assembly with labeled components A and B, and internal structure elements.

Architectural site plan showing building layouts and structural details (no text or labels)

CESTO INFERIOR

Technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Technical diagram of a structural steel frame with labeled components and directional arrows indicating movement or force.

UTILIZAÇÃO DIÁRIA

Diagram showing a hand operating a mechanical device with labeled parts A and B, indicating directional movement or force.

3 4 C

Technical diagram of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with a rotating component and a hand holding a tool (no text or symbols visible)

Diagram illustrating a mechanical or laboratory procedure with labeled components and directional arrows, likely for a scientific or technical procedure.

1. Upper rack
2. Cutlery rack
3. Foldable flaps
4. Upper rack height adjuster
5. Upper spray arm
6. Lower rack
7. Power Clean® support
8. Lower spray arm
9. Filter Assembly
10. Salt reservoir
11. Detergent and Rinse Aid dispensers
12. Rating plate
13. Control panel

PANOUL DE COMANDĂ

123456789 10 MULTI ZONE 111213

Illustration of a hand pouring granular material into a bowl on a stand next to a food item (no text or symbols visible)

SETAREA DURITĂȚII APEI

Diagram showing a hand operating a water pump with labeled components and control panel

A

Architectural floor plan with labeled building sections and structural diagrams

Architectural floor plan showing room layouts and equipment layout (no text or labels)

Technical diagram showing structural components with labeled parts A and B, including a directional arrow indicating movement or force.

CLAPETE RABATABILE CU POZITIE REGLABILĂ

Technical diagram showing structural components and cross-sections with labeled parts and annotations

COŞUL INFERIOR

Top-down schematic of a mechanical or electrical component with layered components and no visible text or symbols

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or force

UTILIZAREA ZILNICĂ

Technical diagram of a mechanical assembly with a hand holding a tool, showing internal components and motion arrows (no text or labels)

Illustration of a hand using a tool to interact with a container, showing mechanical components and an upward arrow (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and labeled parts, including a barcode and control panel.

Illustration of a hand pouring granular material into a bowl on a stand, with a sliced seed or nut nearby (no text or symbols)

Simple line drawing of a kitchen appliance with no text or symbols

B

Illustration of a hand operating a kitchen appliance with a water level gauge (no text or symbols)

A

Architectural floor plan showing building layouts and structural elements (no text or labels)

Architectural floor plan of a building showing internal layout with furniture and fixtures (no text or labels)

Ukladajte doň krehké a l'ahké nádoby: poháre, šálky, tanieriky, nízke šalátové misky.

Technical diagram showing a mechanical or electrical assembly with labeled components A and B, and directional arrows indicating flow or movement.

SKLÁPACIE KLAPKY S NASTAVITEL'NOU POLOHOU

Architectural site plan showing building layouts and structural elements (no text or labels)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Pure electrical circuit lines without any symbols

Po umiestnení hrncov/kastrólov oproti komponentu Power Clean® aktivujte na ovládacom paneli POWER CLEAN.

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or force

KAŽDODENNÉ POUŽÍVANIE

1. SKONTROLUJTE PRIPOJENIE K VODOVODU

Mechanical assembly diagram showing a lever mechanism inside a housing (no text or symbols)

Technical diagram of a mechanical assembly with hand and base components, no visible text or symbols

Diagram of a hand operating a mechanical device with gears and a handle, showing motion direction (no text or symbols)

Spodné ostrekovacie rameno možno vybrat potiahnutím nahor.

SYSTÉM NA ZMÄKČOVANIE VODY

Illustration of a hand pouring granular material into a bowl on a stand, with a separate gear-like object nearby (no text or symbols)

Line drawing of a kitchen appliance with monitor, toilet, and door (no text or symbols)

B

Illustration of a hand operating a washing machine with a dial and control panel (no text or symbols visible)

A

Diagram of a food delivery or processing unit with labeled components and directional arrows indicating flow or movement.

Cropped image of a technical diagram or schematic with labeled components and grid patterns, possibly from an engineering or architectural drawing.

Top-down architectural floor plan showing room layouts and structural elements (no text or labels)

Technical diagram showing structural components with labeled parts A and B, likely from an engineering or mechanical drawing.

Architectural or engineering diagram showing layered structure with no visible text or symbols

НИЖНІЙ КОШИК

Top-down schematic of a vehicle showing internal components like wheels, seats, and dashboard (no text or labels)

POWERCLEAN

Technical diagram of a mechanical assembly with structural framework and directional arrows (no text or labels)

Mechanical assembly diagram showing a lever mechanism with a curved component and a gear (no text or symbols)

Technical diagram of a mechanical assembly with hand operating a rotating component (no text or symbols)

Illustration of a hand using a tool to interact with a mechanical component, showing gears and a valve (no text or symbols)
