Product type	Electric height-adjustable desk
Brand	IKEA
Model	BEKANT 902.529.70
Height adjustment	64-125 cm (EU) / 57.4-122.4 cm (NA)
Maximum load	70 kg
Noise level	Lower than 55 dB(A)
Power supply	DC 29V, 200W power adapter (220W for Japan)
Operating temperature	+5 to +40°C
Storage temperature	-10 to +50°C
Relative humidity	20% to 80% at 30°C
Intended use	Indoor desk for sit-stand work
Main functions	Electric height adjustment with manual control and safety key
Safety	Automatic stop at end stops, safety key to be kept out of reach of children
Maintenance	Check screw tightness after one week of use
Spare parts	Contact IKEA customer service
Compliance	EU declaration of conformity included
Recycling	Sort according to local regulations, crossed-out wheelie bin symbol
Manufacturer	ROL ERGO
Manufacturer address	Box 702, SE-343 81 Älmhult, SWEDEN

Frequently Asked Questions - BEKANT 902.529.70 IKEA

How to adjust the height of the BEKANT desk?

Insert the safety key into the manual control, then press the up or down arrow buttons to raise or lower. Make sure no obstacles block the movement.

What is the maximum load of the desk?

The maximum load is 70 kg. Do not exceed this limit to avoid damaging the mechanism.

What to do if the desk no longer moves?

Check that all cables are connected and the safety key is properly inserted. Unplug the power for one minute then plug back in. If the problem persists, contact IKEA customer service.

Can I use this desk in a standing position?

Yes, the desk is designed for sitting or standing work. The height can be continuously adjusted between 64 and 125 cm (EU version).

How to maintain the desk?

After about one week of use, check that the screws are properly tightened. For cleaning, use a slightly damp soft cloth. Avoid abrasive products.

What are the important safety precautions?

Do not leave the safety key within reach of children. During adjustment, keep a safe distance to avoid getting caught. Unplug the power before any maintenance.

What to do if only one column slides?

Restart the desk. If the problem persists, contact IKEA customer service as this may indicate an internal defect.

Can the desk be used outdoors?

No, the desk is intended for indoor use only in dry rooms (offices or similar environments).

How to reset the desk if the movement stops and reverses?

Check that no object is blocking the movement. Remove the obstacle and restart. If the problem persists, contact IKEA customer service.

Where to find spare parts?

Contact your IKEA store or customer service. The manufacturer is ROL ERGO, but IKEA handles spare parts.

USER MANUAL BEKANT 902.529.70 IKEA

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Translated from the original instructions.

Advice and instructions for BEKANT sit/stand desk.

Sound level: lower than 55 dB(A)

Height setting interval:

EU-version: 64-125 cm

NA-version: 57.4-122.4

Maximum load: 70 kg

Temperature interval at usage:

+5 up to +40 degrees C

Temperature interval at storage:

-10 up to +50 degrees C

Humidity: 20% up to 80% at +30 degrees C.

Power supply unit: DC 29V, 200W / 220W (JP)

Manufacturer: ROL ERGO

Model:

ASW0579-2902002W /

ASW0643-29020002W (JP)

This appliance shall only be used together with the included power supply unit.

Every person who is responsible for this table at installation or employment of the table in daily use or in service and repair work should carefully read these instructions. Keep these instructions close to your sit/stand table.

Installation instructions

• The table is assembled according to separate assembly instructions.
• Connect the cable from one leg to the other. Connect the hand control to one of the legs and the power supply to the other leg. The cables to the legs, hand control, and power supply should be placed in the accompanying net. Place the electrical cables so that they do not get damaged, see assembly instruction.
• Connect the electrical cable to a wall socket. NB! The electrical cable must have full mobility.
• Insert the safety key in the socket on the hand control.
• The table is now ready for use. The motors stop automatically when the table reaches its lowest and highest position respectively.

Usage of the table

• The table shall only be used as a working table with the possibility to continuously adjust working height between sitting and standing position. The table shall only be used indoors and in dry premises (office environment or similar).
• The table must not be overloaded - maximum load is 70 kg/154 lbs. The motors may be run continuously for maximum 1 minute. Afterward, the motors must stand by for approx. 9 minutes before they can be used again.

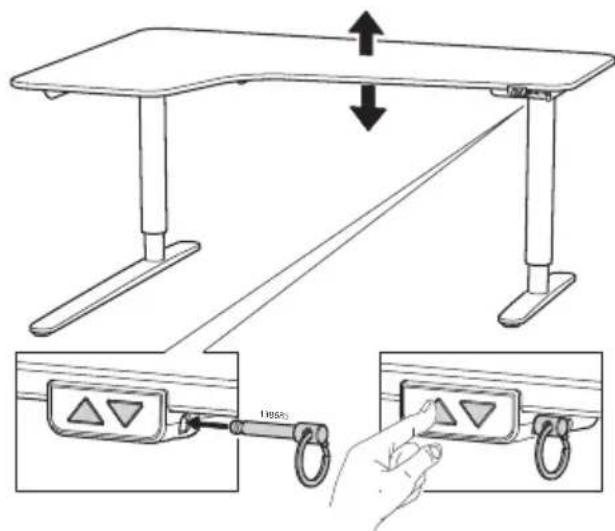

Follow these instructions when adjusting table height:

1. Insert the safety key in the socket on the hand control.
2. Make sure no objects are in the way of the table adjusting height freely.
3. In order to run the table up/down, press the manoeuvre button with an arrow pointing up and down respectively.

Safety regulations

• When the table is run up/down, keep the necessary safety distance to avoid the risk of getting squeezed between the moving table top and fixed objects in the surrounding area.
• When the table is run up/down, the user shall keep watch so that nobody is injured or no object is damaged. The table top must not bump into a fixed object so that the table is overturned. Always remove any office chair before the table is run up/down.
• When the table is left unattended, the safety key must be removed from the hand control and placed out of reach of children.
• The table tripod must not be altered or reconstructed in any way. In service and repair work of the table, the electrical cable must always be disconnected from the wall socket.
• Alterations to the control box are absolutely forbidden!
• The table must not be used as a hoisting device for persons.

Maintenance and repair instructions

• After approx. 1 week of use, check that the screws are properly tightened.

- If the table cannot be lowered or raised, check the connections between the legs and the wall socket and be sure the safety key is inserted in the hand control.

- If any part of the electrical system is replaced, the electrical cable must first be disconnected from the wall socket. Replace the electrical part and then connect the electrical cable to the wall socket. The table is now ready for use.

If the table still does not work, please contact your nearest IKEA store or customer service.

EU Declaration of Conformity is included in the packaging as a separate document.

Manufacturer: IKEA of Sweden AB

(commercial registration number: 556074-7551)

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Telephone no.: [phone]

SAVE THESE INSTRUCTIONS

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Perform a reset by

Simultaneously pressing the up and down buttons for minimum of 8 seconds

Press and hold the down button and the desk will slowly move to the lowest point possible

The desk/stand is ready for normal use

TroubleshootingIKEA BEKANT - iDrive
Problem Check Try
The underframe will not move. 1. Make sure that all cables are undamaged and connected.2. Make sure that the safety key is correctly inserted into the hand control.3. Unplug the desk from the wall socket for approximately one minute and reconnect.	Connect the cables and insert the safety key.Follow the installation instructions and perform a reset.If problem remains, contact IKEA customer service.
Only one leg is moving. Perform a reset. If there's still	only one leg moving, contact IKEA costumer service.
Both legs are moving but at different speeds.		Perform a reset. If legs still are moving at different speeds, contact Ikea customer service.
The underframe only moves short distances.	Make sure that the desk is not overloaded, and that the safety key is correctly inserted in the hand control.	Move any load off the desk and insert the safety key securely.Perform a reset. If the problem remains, contact IKEA customer service.
The underframe stops and reverses during operation.	Make sure that nothing is blocking the table.	Remove the obstacle. Perform a reset. If the problem remains, contact IKEA customer service.
The underframe can only move in one direction (up or down).		Perform a reset. If problem remains, contact IKEA customer service.
The desk is not horizontal.

Perform a reset.

Power supply: DC 29V, 200W / 220W (JP)

Manufacturer: ROL ERGO

Model:

ASW0579-2902002W /

ASW0643-29020002W (JP)

Manufacturer: IKEA of Sweden AB

(registration number: 556074-7551)

Address: Box 702, SE-343 81 Älmhult, SWEDEN"

Restart:

Reset the table

SAVE THESE INSTRUCTIONS

Perform a reset

DC 29V, 200W / 220W (JP)

Manufacturer: ROL ERGO.

Model:

ASW0579-2902002W /

ASW0643-29020002W (JP)

Manufacturer: IKEA of Sweden AB

Perform a reset by

Manufacturer: IKEA of Sweden AB

(company registration number: 556074-7551)

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Telephone number: [phone]

KEEP THESE INSTRUCTIONS

Restart

Reset

Restore settings

DC 29V, 200W / 220W (JP)

Manufacturer: ROL ERGO

Model:

ASW0579-2902002W /

ASW0643-29020002W (JP)

Perform a reset:

Restart

Restart the device

Simultaneously press and hold the up and down buttons for at least 8 seconds.

Press and hold the button and the desk will slowly move to the lowest possible point.

The work desk/stand is ready for normal use.

DC 29V, 200W / 220W (JP)

Perform a reset

DC 29V, 200W / 220W (JP)

Manufacturer: ROL ERGO

Model:

ASW0579-2902002W /

ASW0643-29020002W (JP)
