BE-570234 - Hair Dryers Huslog - Free user manual and instructions

USER MANUAL BE-570234 Huslog

QR code image with a central circular logo, likely linking to a digital resource or website.

Hairdryer with ionization

Batch No.: 613104

Equipment Delivery Point:

mPTech Sp. z o.o.

Krakowska 119

50-428 Wrocław

Poland

Designed in Poland

Made In China

Manufacturer:

mPTech Sp. z o.o.

Nowogrodzka 31

00-511 Warsaw

Poland

Helpline: ([phone]

Email: [e-mail]

Website: huslog.eu

TABLE OF CONTENTS

1. Safety of use ....8
2. Specification....10

2.1 Technical data.... 10
2.2 Contents 10

1. Structure of the device .... 11
2. Use of the device....11
3. Troubleshooting....12
4. Cleaning and maintenance of the device....13
   7.Explanation of symbols 13
5. Use of the manual 14
6. Warranty and Service 14
7. Declaration of conformity with EU directives 14

1. Safety of use

WARNING

The surfaces of the device can become very hot!

Please use caution during use!

WARNING!

Do not use the appliance near showers, baths, washbasins or other tanks containing water.

—INTENDED USE—

The device is designed for drying human hair. The product is not intended for drying

animal hair or objects, e.g. clothing. The device is intended for indoor use only and may not be used for commercial purposes – any other use will be considered inappropriate and therefore dangerous.

The manufacturer is not responsible for injuries resulting from improper use of the device.

—IMPORTANT SAFETY INSTRUCTIONS—

The device can be operated and cleaned by children over 8 years of age and people with limited mental or physical dispositions only when they are under the supervision of caregivers or after handing over the instructions for use of the device in a safe way, understanding the danger posed by the use of the device. The device is not a toy for children. Disconnect the appliance from the power grid before cleaning or maintaining it. Maintenance and cleaning of the product should only be carried out by or under the supervision of adults. If the power cord is damaged, it must be replaced by the manufacturer's service, service center representative or qualified persons.

—DO NOT RISK—

The device is intended for indoor use. Do not use the device in areas where the use of electrical equipment is prohibited and where it may cause interference or other hazards. Do not switch on or use the appliance near flammable materials. Do not place any flammable objects on the device - this may damage the device or even cause a fire. Do not move a switched-on device. For safety, connect the device to a network with a residual current device with a sensitivity of max. 30mA The electrical connection may only be made by an authorized electrician. The electrical connection should meet the requirements of applicable law.

—SURROUNDINGS—

Make sure that children under 8 years of age and pets are not left unattended in the vicinity of the operating device, because during operation, the internal and external surfaces of the device heat up strongly – there is a risk of burns, and the power cord may cause tripping, tipping over or other injuries.

—WATER AND OTHER LIQUIDS—

Do not expose the appliance to water or other liquids. This may adversely affect the operation and service life of electronic and electrical components. Avoid working in an environment with high humidity – steamed kitchens, bathrooms, as well as water droplets from other sources can cause moisture to appear in the housing of the device, and this can lead to damage to the device, and in extreme cases, electric shock.

When using the appliance in the bathroom, unplug the power cord from the power socket after use. Proximity to water poses a risk even if the appliance has been switched off.

—PROFESSIONAL SERVICE—

This product may only be repaired by a qualified manufacturer's service or an authorized service centre. Repair of the device by an unqualified service or by an unauthorized service point may result in damage to the device and loss of warranty. The manufacturer is not responsible for problems caused by self-modifications made by the user.

2. Specification

2.1 Technical data

Ionized Dryer
Model	BE-570234
Batch number	613104
Power	1800-2000W
Power supply	220-240V ~ 50-60 Hz

2.2 Contents

• Ionized Dryer
  Air Concentrator
  Diffuser
  User Manual

If any of the above items are missing or damaged, please contact your dealer.

We recommend to keep the packaging in case of any complaint.

It is possible to download the electronic version of the user manual from the following Internet address:

https://huslog.eu/

Or by scanning the QR code:

QR code image with a central circular logo, likely linking to a digital resource or website.

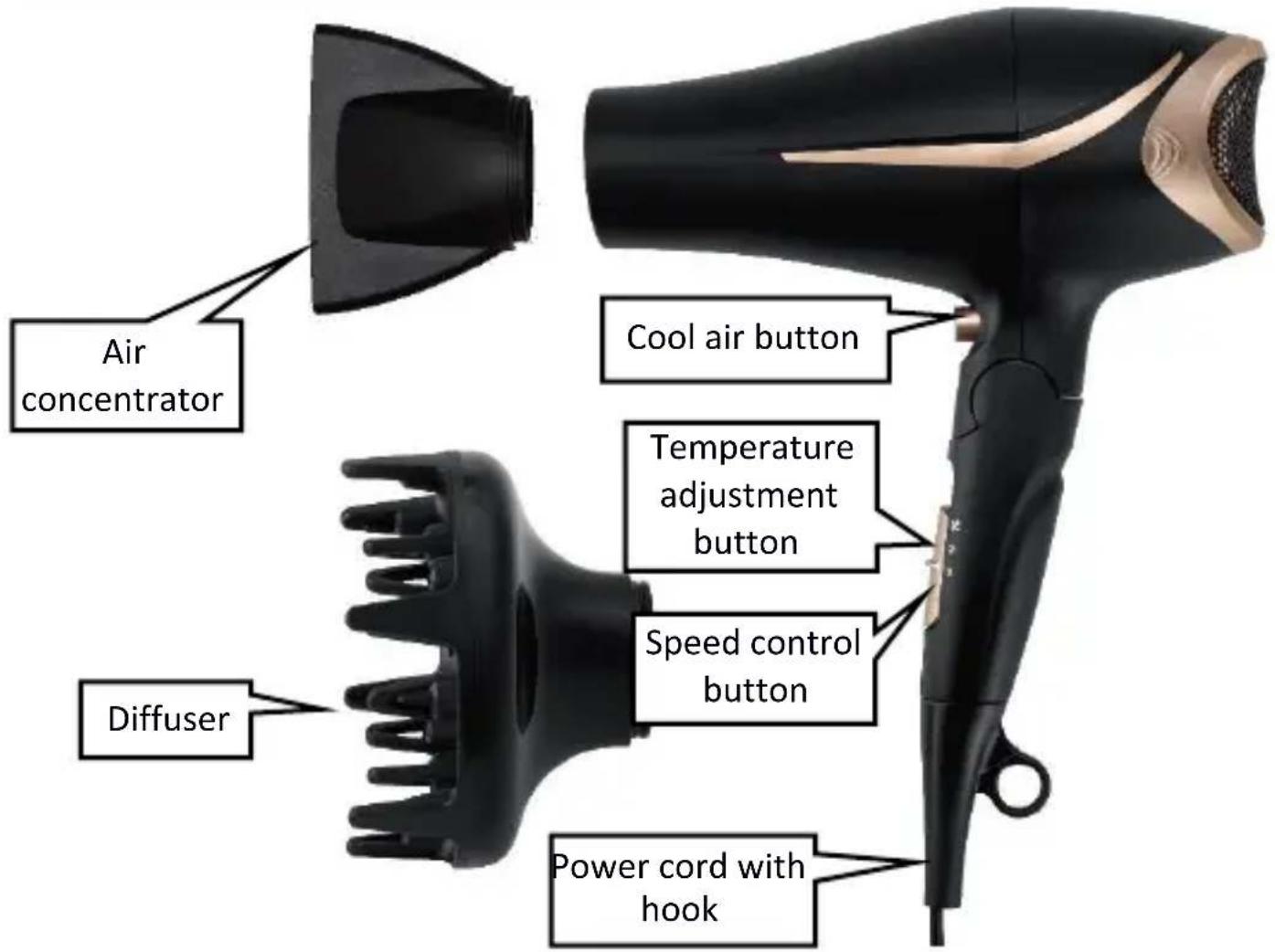

3. Structure of the device

Air concentrator Cool air button Temperature adjustment button Diffuser Speed control button Power cord with hook

4. Use of the device

Before operating the device, ensure that your hands are not wet. The device should remain unplugged from the power source.

Ensure that the cord is routed in such a way that it cannot be damaged, cut, bumped or pulled, which could cause damage to the device or injury to the bystanders.

If you notice that the housing, cord or power plug is damaged, then do not turn on the device.

Be careful that water does not get inside the housing of the device! This is an electrical appliance, and water can cause a short circuit that can damage the ice or cause electric shock.

PREPARATION FOR FIRST USE

Remove the appliance and accessories from the packaging, remove the protective film and unroll the power cord. Make sure that there are no objects and other materials that are not resistant to high temperature in the vicinity of the intended

place of use of the product. Install the concentrator at the air outlet of the dryer. If the appliance housing and the power cord have no visible damage, plug the power plug into the mains socket.

The device has a hook, thanks to which it can be hung, for example, on a hook (not part of the set) when it is not in use. When suspending the device, pay attention to whether there is no risk of accidentally knocking it off or pulling on the power cord. The device should be out of reach of children when not in use

When the speed control button is in position 0, the machine is switched off. Moving it to one of the two consecutive positions will turn on the dryer at low or high rpm, respectively.

The temperature control button allows you to set one of the three airflow temperature levels.

In addition, pressing and holding the cold air supply button allows you to temporarily reduce the temperature of the coming out from the air dryer.

The ionization function starts automatically when the dryer is switched on.

The assembly of the hub included in the kit is carried out by applying them to the air outlet opening and gently pressing it against the housing of the device. To remove the tip, pull it gently, twisting it around its own axis.

USE OF THE PRODUCT

After washing your hair, wipe it first with a towel to remove excess water – this will speed up the drying process with a dryer. Then apply the selected tip and connect the device to the power socket and move the speed and temperature control buttons to the selected position. Dry the hair by directing the stream of air coming out of the device towards the head and move it evenly until all the hair is dry.

After use, disconnect the device from the power source, allow it to cool, and then store it in a safe place.

5. Troubleshooting

In case of problems with the device, please refer to the following tips.

This device does not contain any parts that can be repaired by users.

The device does not switch on even when plugged into the power grid	Check that the plug or power cord is not damaged.Check the correct connection of the plug to the mains socket.Check that the electrical outlet is not damaged – select another one.
If the problem has not been resolved, please contact the manufacturer's service.

6. Cleaning and maintenance of the device

WARNING! The appliance cannot be immersed in water or washed under running water!

Before cleaning the appliance, make sure that your hands are dry and the appliance is to cool down and disconnected from the power grid.

The device is maintenance-free.

Clean the device with a soft cloth slightly dampened with water, then dry with a dry cloth or paper towel. Protect the dryer from dust and other contaminants. Do not use detergents, solvents or abrasives to clean.

7. Explanation of symbols

The packaging of the device can be recycled according to local requirements.

Symbol indicating corrugated board (packaging mat.).

The symbol indicates that the package contains a user manual which must be read before use.

WARNING! Do not use this appliance near baths, showers, sinks or other tanks filled with water.

For indoor use only

Symbol indicating a device of protection class II with double insulation (for the power supply).

The mark placed on the product means that this product complies with the basic requirements and other provisions of the so-called “New Approach” of the European Union.

The device is marked with the symbol of a crossed-out garbage container, in accordance with the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Products marked with this symbol should not be disposed of or disposed of with other household waste after their time of use. The user is obliged to dispose of waste electrical and electronic equipment by delivering it to the designated point at which such hazardous waste is recycled. The accumulation of this type of waste in indicted places and the proper process of its recovery contribute to the protection of natural resources. Proper recycling of waste electrical and electronic equipment has a beneficial effect on human health and the environment. For information on where and how to dispose of waste electrical and electronic equipment in an environmentally safe manner, the user should contact the relevant local authority, waste collection point or point

8. Use of the manual

Without the prior written consent of the manufacturer, no part of this manual may be reproduced, distributed, translated or transmitted in any form or by any electronic or mechanical means, including by photocopying, recording or storing in any storage and information-sharing systems.

The illustrations of the device in this user manual may differ from the actual product.

All brands and product names are trademarks or registered trademarks of the respective companies.

9. Warranty and Service

The product has a 2-year warranty, starting from the date of sale of the product. In the event of a defect, the product should be returned to the store where it was purchased, remembering the need to present proof of purchase. The product should be complete and preferably placed in its original packaging.

10. Declaration of conformity with EU directives

CE

Hereby mPTech Sp. z o.o. declares that this product complies with the basic requirements and other provisions of the Directives of the so-called “New Approach” of the European Union.
