Tuttofrutta G20162 - Blender G3 Ferrari - Free user manual and instructions

USER MANUAL Tuttofrutta G20162 G3 Ferrari

Technical model: LB6030

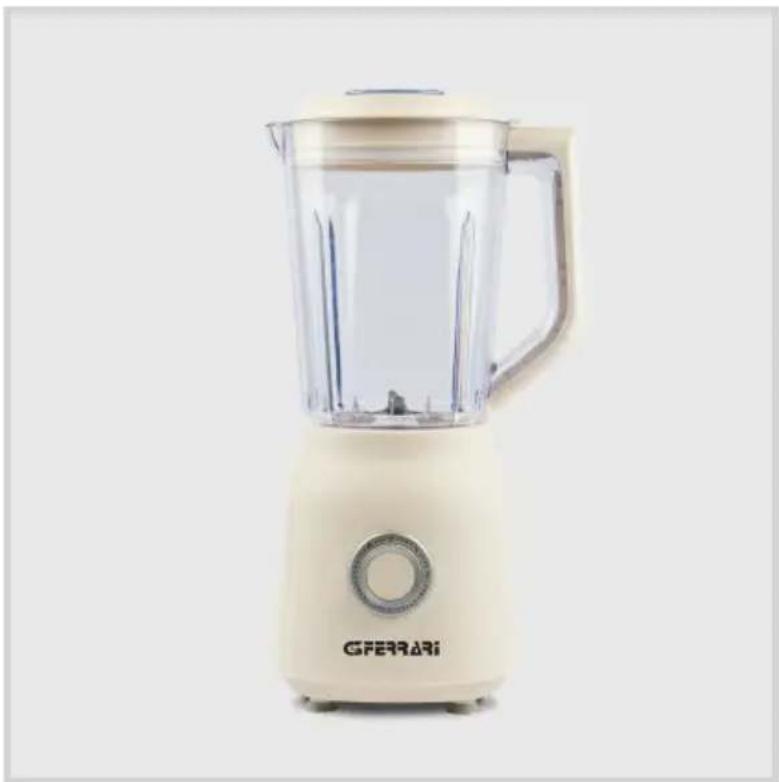

White French blender with a clear glass handle and brand logo (GFERRARI) on the side, no visible text or symbols on the device itself.

Safety instructions.... p. 7

General information.... p. 9

G20162.... p. 10

Operating....p. 10

Safe mode.... p. 10

First use.... p. 10

Cleaning.... p. 10

Technical features....p. 11

Waste of electric and electronic equipment (WEEE Directive).... p. 29

PORTUGUES:....p. 11

ESPAÑOL......p. 15

DEUTSCH p. 19

FRANCAIS p. 24

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

hotel, motel, bed & breakfast o residence.

A B D C F E G H

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical

adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance cannot be used by children, even if they're more than 8 years old.

- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of appliance in a safe way and understand the hazards involved.

- Children must not play with the appliance.

Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INSTRUCTIONS

Before using the unit for the first time, carefully wash all the parts and accessories intended to come in touch with food, such as the container, lid, rostrum and blades.

CAUTION: close the lid before start processing the food. Disconnect the power plug from the socket before touching any accessory, especially the blades. If some food stops the blades, before removing the food, unplug the device from the electrical outlet.

Bring knob on "0" (OFF) position before inserting the plug in the socket.

Do not insert too large pieces of food inside container, especially hard foods. It is recommended to pre-chop food. Do not process very hot food (maximum temperature 60 Celsius degree).

At the end of the process, wait for the blade to completely stop before removing the food from the container. Once you finished using the unit, it is recommended to wrap the power cord so as to ensure a better cleaning and to avoid any risk of damage.

Never leave the appliance unattended while it is running.

Do not let the appliance running continuously for more than 2 minutes, make at least 5 minutes rest.

Never exceed the maximum quantity indicated on the container. When processing fruits, it is recommended to remove the pit and peel.

For a better cleaning, it is recommended using warm tap water and restricting the use of detergents. In this case, rinse thoroughly. Do not immerse the motor unit in water or other liquids; clean the motor housing with a damp cloth. Blades and rostrum are very sharp: be careful not to cut yourself during cleaning or when removing the accessories.

DESCRIPTION G20162

A. Measuring cup

B. Lid

C. Cover seal

D. Gradueted container

E. Joint

F. Blades

G. Motor unit

H. Power knob

OPERATING

1) Place the motor unit (G) on a flat and stable surface.
2) Insert the glass (D) on the motor unit (G). Make sure the assembling has taken place in a correct way, since otherwise the safety device inhibits the product from running.
3) Place the food in the container (D) without exceeding maximum capacity of 1500ml.
4) Lower the lid (B) correctly above the container.
5) Connect the power plug and switch on appliance with the knob (H). This blender has 2 speeds and the PULSE function.
6) During use, always keep the lid close, in the case some food blocks the blades from running, unplug the device before removing it.

For best results, process food first at lower speed, then at the highest. The blender is ideal for making milkshakes, smoothies, sorbets, sauces, creams, cocktails etc... This appliance is not suitable for crushing ice, frozen foods, cereals, rice and coffee, as they may damage the blades.

SAFE MODE

This model has a safety device: the device only works if the container (D) is properly inserted into the motor block (G). If the glass is removed, or if it is not properly inserted, the motor stops. If it happens, properly assemble the glass container.

FIRST USE

Remove and install the glass few times without plugging the unit or adding fruits or vegetables. Follow these steps to make practice. Wash the lid and the jug with warm water and dishwashing liquid. Other accessories with electrical parts, such as the motor block, must be cleaned with a damp cloth and dry immediately.

CLEANING - Disconnect the power plug from the electrical outlet.

Do not immerse the motor unit in water, but wash it with a damp cloth and non-abrasive detergent. Also avoid any infiltration of water into the motor housing. Container, blades and lid can be washed like everyday crockery with non-abrasive sponge and mild detergent or in a dishwasher. Dry them thoroughly, before assembling them to the unit. For a quick cleaning, fill up half the glass with tap water and and turn on the

device for a few seconds. It is possible to remove the blade set. To do this, turn the container upside down and rotate the blade set clockwise until you unblock it. When mounting, tighten strongly.

TECHNICAL FEATURES

• Power supply: AC 220-240V\~50-60Hz. Power 600W
- Capacity: 1500ml
- Safety device

PORTUGUES: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
