USER MANUAL RMRT30X6BL-IS Avanti

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products LLC

P.O. Box 520604

Miami, FL 33152

www.avantiproducts.com

TABLE OF CONTENTS

Appliance Safety3
Important Safeguides4
Help Us Help You5
Parts and Features6
Important Safety Instructions7
Installation Instructions7
Before Using Your Appliance7
Installation of Your Appliance7
Electrical Connection8
Operating Your Appliance9 – 10
Freezing Fresh Foods10
Care and Maintenance11
Cleaning Your Appliance11
Power Failure / Vacation Time, Moving Your Appliance11
Energy Saving Tips11
Troubleshooting Guide12
Service for Your Appliance13
Your Avanti Products Warranty14
Instrucciones en Español15 – 26
Instructions en Français27 - 38
Registration Information and Registration CardLast Page

APPLIANCE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

Avanti RMRT30X6BL-IS - APPLIANCE SAFETY - 1

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the wards" DANGER", "WARNING" or "CAUTION".

Avanti RMRT30X6BL-IS - APPLIANCE SAFETY - 2

DANGER

Avanti RMRT30X6BL-IS - APPLIANCE SAFETY - 3

Danger means that failure to heed this safety statement may result in severe personal injury or death.

Avanti RMRT30X6BL-IS - APPLIANCE SAFETY - 4

WARNING

Avanti RMRT30X6BL-IS - APPLIANCE SAFETY - 5

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, or property or equipment damage.

All safety messages will alert you to what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

Avanti RMRT30X6BL-IS - APPLIANCE SAFETY - 6

FLAMMABLE REFRIGERANT GAS

Avanti RMRT30X6BL-IS - APPLIANCE SAFETY - 7

DANGER - Risk of fire or explosion. Flammable refrigerant used.

DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant tubing.

DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. DO NOT puncture refrigerant tubing.

CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner's guide before attempting to service this product. All safety precautions must be followed.

CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local regulations. Flammable refrigerant used.

CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully. Flammable refrigerant used.

CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the vicinity of the cooler.

Avanti RMRT30X6BL-IS - APPLIANCE SAFETY - 8

text_image Warning symbol image with exclamation mark inside triangle

PROP. 65 WARNING FOR CALIFORNIA RESIDENTS

WARNING:

Cancer And Reproductive Harm

www.p65warnings.ca.gov

IMPORTANT SAFEGUARDS

Avanti RMRT30X6BL-IS - IMPORTANT SAFEGUARDS - 1

Before the beverage cooler is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the beverage cooler, follow basic precautions, including the following:

Avanti RMRT30X6BL-IS - IMPORTANT SAFEGUARDS - 2

DANGER

Avanti RMRT30X6BL-IS - DANGER - 1

  • Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord
  • Replace all panels before operating
  • It is recommended that a separate circuit, serving only your beverage cooler, be provided. Use receptacles that cannot be turned off by a switch or pull chain
  • Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
  • Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
  • Do not connect or disconnect the electric plug when your hands are wet
  • Unplug the appliance or disconnect the power before cleaning or servicing. Failure to do so can result in electrical shock or death.
  • Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this material. All other servicing should be referred to a qualified technician.

Avanti RMRT30X6BL-IS - DANGER - 2

WARNING

Avanti RMRT30X6BL-IS - WARNING - 1

  • Use two or more people to move and install the appliance. Failure to do so can result in back or other injury.
  • To ensure proper ventilation for your appliance, the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 55^ (13°C) and below 90^ (32 °C). This unit must be installed in an area protected from the elements, such as wind, rain, water spray or sunlight.
  • The appliance should not be located next to ovens, grills or other sources of high heat.
  • The appliance must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.
  • Do not kink or pinch the power supply cord of the appliance.
  • The fuse (or circuit breaker) size should be 15 amperes.
  • It is important for the appliance to be leveled in order to work properly. You may need to make several adjustments to level it.
  • All installation must be in accordance with local plumbing code requirements.
  • Make certain that the pipes are not pinched or kinked or damaged during installation.
  • Check for leaks after connection.
  • Never allow children to operate, play with or crawl inside the appliance
  • Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage or discolor the interior.
  • Do not use this apparatus for other than its intended purpose.

HELP US HELP YOU...

Read this guide carefully.Write down the model and serial numbers.
It is intended to help you operate and maintain your new appliance properly.You'll find them on a plate located on the rear outside wall of the appliance.
Keep it handy to answer your questions.If you don't understand something or you need more help, please call:Please write these numbers here:
Avanti Customer Service800-220-5570Date of Purchase
Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.Model Number
Serial Number
CAUTION:THIS APPLIANCE IS NOT DESIGNED FOR THE STORAGE OF MEDICINE OR OTHER MEDICAL PRODUCTS.Use these numbers in any correspondence or service calls concerning your appliance.If you received a damaged appliance, immediately contact the dealer (or builder) that sold you the appliance.Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.FIRST, contact the people who serviced your appliance. Explain why you are not pleased.In most cases, this will solve the problem.NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:Customer ServiceAvanti Products10880 NW 30 StreetMiami, FL 33172 USA

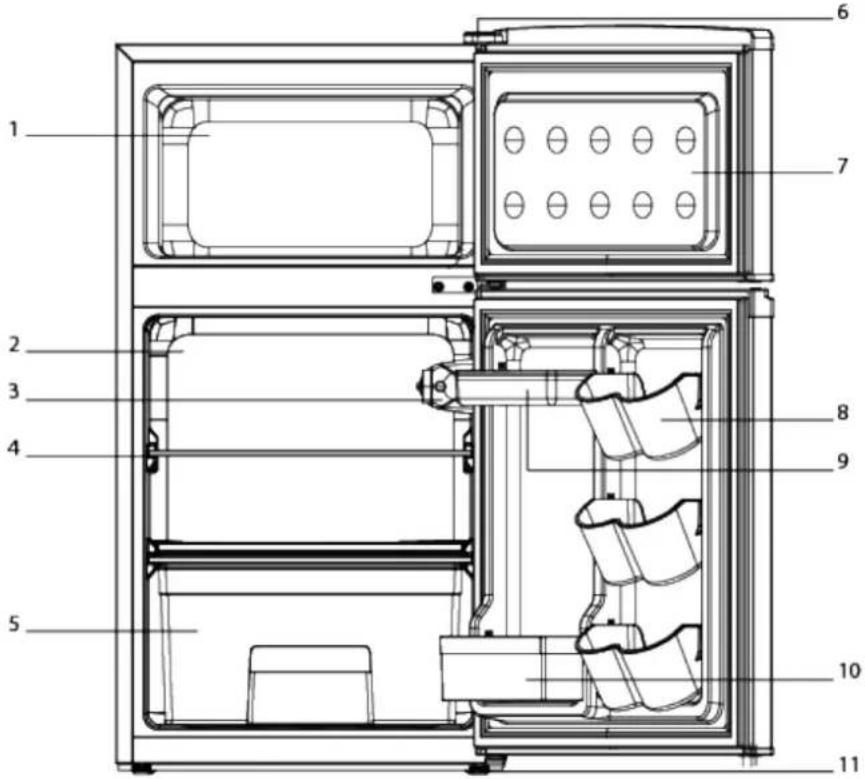

PARTS AND FEATURES
Avanti RMRT30X6BL-IS - WARNING - 2

text_image Technical diagram of a multi-level refrigerator with numbered compartments and internal components
1FREEZER SECTION
2REFRIGERATOR SECTION
3TEMPERATURE CONTROL
4REFRIGERATOR SHELF
5CISPER WITH COVER
6TOP HINGE
7FREEZER DOOR
8CAN HOLDER BINS (3)
9REFRIGERATOR DOOR BIN (1)
10BOTTLE BIN (1)
11BOTTOM HINGE

Handle Installation Instructions Align the handle with the base on the front of the door.

Slide the handle into the base.

Push the handle inward until you hear a click and the handle is held firmly in place.

Avanti RMRT30X6BL-IS - WARNING - 3

Avanti RMRT30X6BL-IS - WARNING - 4

Avanti RMRT30X6BL-IS - WARNING - 5

IMPORTANT SAFETY INSTRUCTIONS

~ WARNING ~To reduce the risk of fire, electrical shock, or injury when using your refrigerator-freezer, follow these basic precautions:
Read all instructions before using the refrigerator-freezer.DANGER or WARNING: Risk of child entrapment.Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerator-freezers are still dangerous. . . even if they will “just sit in the garage a few days.”Before you throw away your old refrigerator-freezer: Take off the doors. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the refrigerator-freezer.Never clean refrigerator-freezer parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other refrigerator-freezer. The fumes can create a fire hazard or explosion.-Save these instructions-

INSTALLATION INSTRUCTIONS

ÿ Before Using Your Appliance

I Remove the exterior and interior packing.
I Check to be sure you have all of the following parts:

I 1 Refrigerator Shelf
I 1 Vegetable Crisper
I 1 Glass Crisper Cover
I 1 Instruction Manual
I 2 Chromed Handles
  • Before connecting the unit to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
  • Clean the interior surface with lukewarm water using a soft cloth.

ÿ Installation of Your Appliance

  • Place your refrigerator-freezer on a floor that is strong enough to support the refrigerator-freezer when it is fully loaded. To level your refrigerator-freezer, adjust the leveling legs at the bottom of unit.
  • ALLOW 5 INCHES OF SPACE BETWEEN THE BACK AND SIDES OF THE UNIT, WHICH ALLOWS THE PROPER AIR CIRCULATION TO COOL THE COMPRESSOR AND CONDENSER.
  • Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the refrigerator-freezer not to perform properly.
  • Avoid locating the unit in moist areas.
  • Plug the unit into an exclusive properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.

\~ Warning\~

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied.

This appliance requires a standard 115Volts\~/60Hz electrical outlet with three-prong ground.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

EXTENSION CORD

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this unit. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.

SURGE PROTECTOR

Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed.

If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you have any questions regarding the type and size of surge protector needed contact a licensed electrician in your area.

Damages due to power surges are not considered a manufacturer covered defect and will void your product warranty.

OPERATING YOUR APPLIANCE

ÿ Setting the Temperature Control

Your unit has only one control for regulating the temperature in the compartment. The temperature control is located on the upper right hand side of the compartment.

The first time you turn the unit on, set the temperature control to "7". The range of the temperature control is from position "0" to "7". After 24 to 48 hours, adjust the temperature control to the setting that best suits your needs. The setting of "4" should be appropriate for home or office use.

To turn the refrigerator off, turn the temperature control to "0".

NOTE:

  • Turning the temperature control to "0" position stops the cooling cycle but does not shut off the power to the unit.
  • If the unit is unplugged, has lost power, or is turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the unit will not start.

Interior Light

When you open the door the light will be ON automatically. When you close the door the light will turn OFF automatically.

NOTE:

- IF THE UNIT IS UNPLUGGED, HAS LOST POWER, OR IS TURNED OFF, YOU MUST WAIT 3 TO 5 MINUTES BEFORE RESTARTING THE UNIT. IF YOU ATTEMPT TO RESTART BEFORE THIS TIME DELAY, THE REFRIGERATOR-FREEZER WILL NOT START.

NOTE:

WE DO NOT RECOMMEND THE INSTALLATION OF THE REFRIGERATOR WHERE THE TEMPERATURE WILL DROP BELOW 50°F (13°C) OR RISE ABOVE 110°F (43°C). THE COMPRESSOR WILL NOT BE ABLE TO MAINTAIN PROPER TEMPERATURES INSIDE THE REFRIGERATOR.

FOR INSTALLATIONS WHERE THE TEMPERATURES WILL DROP BELOW 50° SET THE FREEZER TEMPERATURE CONTROL TO THE "COLDEST" SETTING. THIS WILL IMPROVE THE OPERATIONS OF THE REFRIGERATOR UNDER THESE CONDITIONS.

Defrosting Your Refrigerator

When? For the most efficient operation and minimum energy consumption, defrost the freezer compartment when the frost on the refrigerator walls is excessive or 14 inch thick.

There is no need to defrost the refrigerator compartment, because ice depositing on the inner back wall is defrosted automatically. Ice may deposit on the inner back wall during the compressor operation; later on, when the compressor is not operating the ice will defrost and the water drops collect and drain through the outlet in the inner back wall into the drain pan situated above the compressor, from where is evaporates.

How?

  • Reset the thermostat to the "0" position and disconnect the power supply.
  • Remove the frozen food from the refrigerator and place it in a cooler to protect the food.
  • Leave the door open for a while so that you can easily scrap off the frost.
    • Use a plastic scraper but be careful not to damage the inner surfaces of the freezer.
  • Wipe up the scraped off frost and ice before it is completely defrosted.

CAUTION: Do not use boiling water because it may damage the plastic parts. In addition, never use a sharp or metallic instrument to remove frost as it may damage the cooling coils and will void the warranty. We recommend using a plastic scraper.

ÿ Freezing Fresh Foods

  • Proper use of the appliance, adequately packed food, correct temperature and taking into account hygienic precautions will substantially influence the quality of freezing the food or storing of the frozen foods.
    • This compartment is designed for the long-term storage of frozen food.
    • The storage life of frozen foods varies and the recommended storage time should not be exceeded.
  • Pre-packed commercially frozen food should be stored in accordance with the frozen foods manufacturer's instructions for a three star frozen food storage compartment or home freezer.
  • Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet, carefully follow these instructions regarding storage times.
  • Carefully select food you intend to freeze, it should be of adequate quality and suitable for freezing.
  • Use correct packaging and wrap it tight.
  • The packaging should be airtight and shouldn't leak since this could cause substantial vitamin loss and dehydration of foods.
  • Foils and bags should be soft enough to tightly wrap around the foods.
  • When preparing foods to be frozen, consider sanitary precautions.
    • Mark packages with following data: kind and amount of foods and the date of loading.
    • It is extremely important that the food is frozen as quickly as possible.
  • If the loading amount is too large, the quality of freezing is reduced which affects the quality of frozen foods.

CARE AND MAINTENANCE

Changing the Light Bulb

• Unplug the AC power cord from the wall.
- Squeeze the tabs at the top and bottom of the light bulb cover simultaneously.
- Remove the light bulb cover.
- Unscrew the bulb.
- Replace with a 10 watts bulb that is the same shape and size.
- Replace the light bulb cover.

Avanti RMRT30X6BL-IS - Changing the Light Bulb - 1

natural_image Line drawing of a device with internal components and two rectangular plates, no text or symbols present

ÿ Cleaning Your Appliance

  • Unplug the unit, and remove the food and baskets.
  • Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
  • Wash the baskets with a mild detergent solution.
    • The outside of the unit should be cleaned with mild detergent and warm water.

CAUTION

Failure to unplug the refrigerator-freezer could result in electrical shock or personal injury.

ÿ Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your refrigerator-freezer if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your food.

ÿ Vacation Time

Short vacations: Leave the unit operating during vacations of less than three weeks.

Long vacations: If the appliance will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary

ÿ Moving Your Appliance

  • Remove all the food.
    • Securely tape down all loose items inside your unit.
  • Turn the leveling screws up to the base to avoid damage.
  • Tape the door shut.
  • Be sure the unit stays in the upright position during transportation.

ÿ Energy Saving Tips

  • The unit should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of direct sunlight.
  • Let hot foods cool to room temperature before placing them in the unit. Overloading the unit forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
  • Be sure to wrap foods properly, and wipe containers dry before placing them in the unit. This cuts down on frost build-up inside the freezer.
  • Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

ÿ PROBLEMS WITH YOUR APPLIANCE?

You can solve many common refrigerator-freezer problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service.

TROUBLESHOOTING GUIDE

PROBLEMPOSSIBLE CAUSE
Unit does not operate.Not plugged in.The circuit breaker tripped or there is a blown fuse.
Compressor turns on and off frequently.The room temperature is hotter than normal.A large amount of food has been added to the refrigerator - freezer.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The refrigerator -freezer does not have the correct clearances.
Vibrations.Check to assure that the refrigerator - freezer is level.
The unit seems to make too much noise.The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your refrigerator - freezer.Contraction and expansion of the inside walls may cause popping and crackling noises.The unit is not level.
The door will not close properly.The unit is not level.The door is reversed and not properly installed.The gasket is dirty.The baskets are out of position.
SERVICE FOR YOUR APPLIANCE
We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can have the confidence that if you ever need additional information or assistance the Avanti Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information800-323 5029Whatever your questions are about our products, help is available.
Part Orders800-220 5570You may order parts and accessories that will be delivered directly to your home.You may order these items by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220 5570An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out.

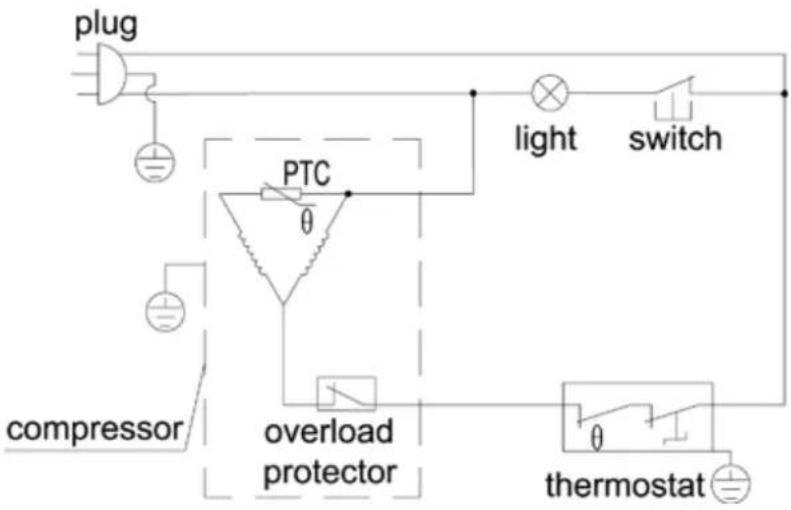

WIRING DIAGRAM
Avanti RMRT30X6BL-IS - ÿ PROBLEMS WITH YOUR APPLIANCE? - 1
YOUR AVANTI PRODUCTSWARRANTYStaple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.
WHAT IS COVERED - LIMITED ONE-YEAR WARRANTYAvanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti appliances of 4.2 cubic feet capacity or less must be brought/sent to the appliance service center for repair.
LIMITED SECOND THROUGH FIFTH YEAR WARRANTYFor the second through the fifth year from the date of original purchase, Avanti Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Costs involved to move the product to the service center and back to the user's home, as maybe required, are the user's responsibility.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED:The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following:
A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
Content losses of food or other content due to spoilage.Incidental or consequential damagesParts and labor costs for the following will not be considered as warranty:Evaporator doors, door springs, and/or frames.Inner door panels, door shelves, door rails, and/or door supports.Vegetable crispers.Light bulbs and/or plastic housing.Plastic cabinet liners.Punctured evaporator that voids the warranty on the complete sealed system.Shipping and handling costs associated with the replacement of the unit.Repairs performed by unauthorized servicers.Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or any other acts of God.Failure of the product if it is used for other than it intended purpose.The warranty does not apply outside the Continental USA.Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas.
In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.
OUT OF WARRANTY PRODUCTAvanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired.WARRANTY - REFRIGERATION - COMPRESSOR
text_image Technical diagram of an open refrigerator with numbered compartments and labeled parts
natural_image Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Avanti RMRT30X6BL-IS - ÿ PROBLEMS WITH YOUR APPLIANCE? - 2

natural_image Technical line drawing of a mechanical handle or bracket with an arrow indicating direction (no text or symbols present)

Avanti RMRT30X6BL-IS - ÿ PROBLEMS WITH YOUR APPLIANCE? - 3

natural_image Line drawing of a mechanical component with internal parts and mounting brackets (no text or symbols)

Avanti Products - Customer Service

10880 NW 30th Street

Miami, FL, USA

33172

PIÈCES ET CARACTÉRISTIQUES
Avanti RMRT30X6BL-IS - ÿ PROBLEMS WITH YOUR APPLIANCE? - 4

text_image Technical diagram of an open refrigerator with numbered compartments and internal compartments labeled 1 through 11.
1CONGELATEUR
2REFRIGERATEUR
3CONTRÔLE DE LA TEMPERATURE
4TABLETTE DE REFRIGERATEUR
5BACS A LEGUMES AVEC COUVERCLE EN VERRE
6CHARNIERE SUPERIEURE
7PORTE DE CONGELATEUR
8BACS DE CANNETTES (3)
9BAC DE PORTE (1)
10BAC DE BOUTEILLE (1)
11CHARNIERE INFERIEURE
natural_image Hand holding a circular object with a knob, next to stacked rectangular objects (no text or symbols visible)
natural_image Line drawing of a mechanical component with internal parts and two horizontal plates (no text or symbols)

ÿ Panne de courant

Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:

Avanti Products, LLC. P.O.Box 520604 – Miami, Florida 33152

ÿ Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

ÿ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

-(detach here)-

Avanti Registration Card

NameModel # Serial #
AddressDate Purchased Store / Dealer Name
CityStateZipE-mail Address
Area CodePhone NumberOccupation
Did You Purchase An Additional WarrantyAs your Primary Residence, Do You:
£ Extended£ None£ Own £ Rent
Reason for Choosing This Avanti Product:Please indicate the most important factorsThat influenced your decision to purchase this product:Your Age:£ under 18 £ 18-25 £ 26-30£ 31-35 £ 36-50 £ over 50Marital Status:£ Married £ Single
£ Price£ Product Features£ Avanti Reputation£ Product Quality£ Salesperson Recommendation£ Friend / Relative Recommendation£ Warranty£ Other:Is This Product Used In The:£ Home £ BusinessHow Did You Learn About This Product:£ Advertising£ In-Store Demo£ Personal Demo

Comments:

RMRT30X 09162020PRINTED IN CHINA
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Avanti

Model : RMRT30X6BL-IS

Category : Fridge
