Brand	Elba
Model	Excellence EX 106 M
Product type	Gas cooker with electric oven
Gas supply	Butane/propane gas or natural gas (depending on configuration)
Electrical supply	220-240 V ~ 50/60 Hz
Number of burners	4 (1 auxiliary, 1 semi-rapid, 1 rapid, 1 compact double ring)
Burner power	Auxiliary: 1.00 kW; Semi-rapid: 1.75 kW; Rapid: 3.00 kW; Double ring: 4.00 kW
Ignition	Electronic integrated in the knobs
Gas safety	Thermocouple (automatic gas shut-off in case of flame extinction)
Oven type	Electric multifunction

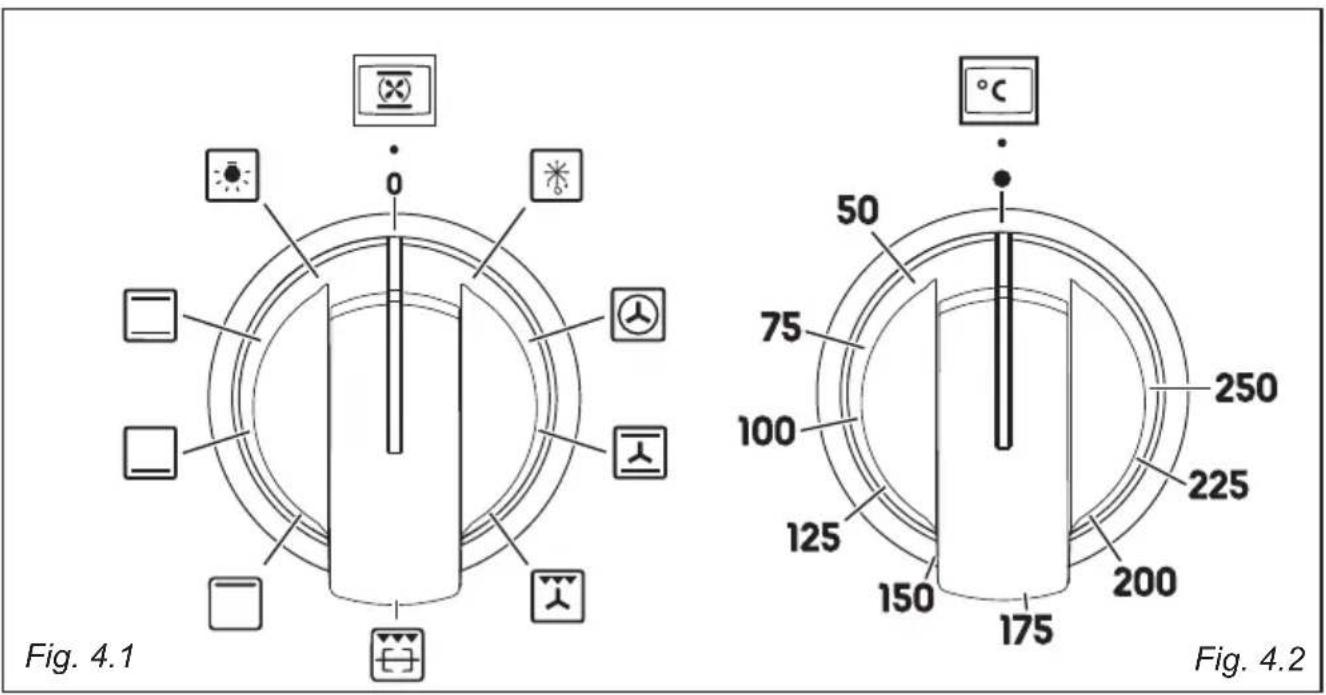

Number of oven functions	8 (natural convection, bottom, top, grill, fan grill, forced convection, hot air, defrost)
Oven thermostat	50 °C to 250 °C
Programmer	Touch electronic with clock, timer, semi-automatic and automatic cooking

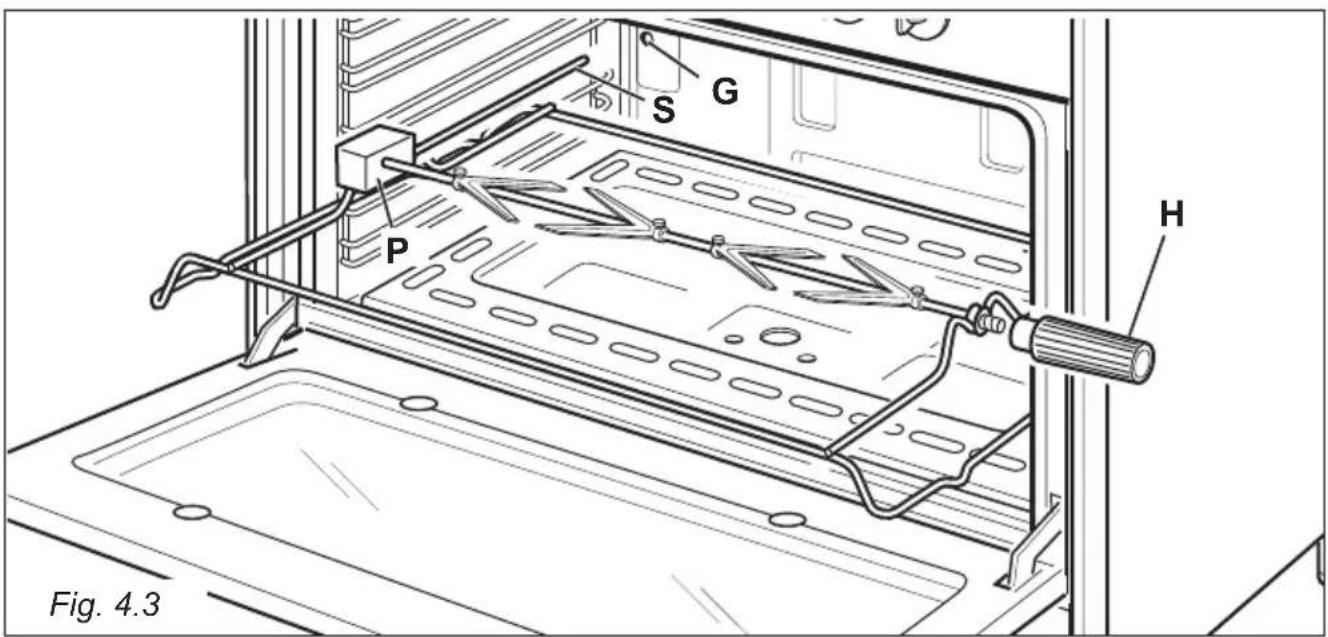

Rotisserie	Yes, included
Interior light	Halogen lamp (class G)
Oven door	Removable for cleaning
Cooking surface	Ceramic glass (cooktop)
Catalytic panels	Available on certain models

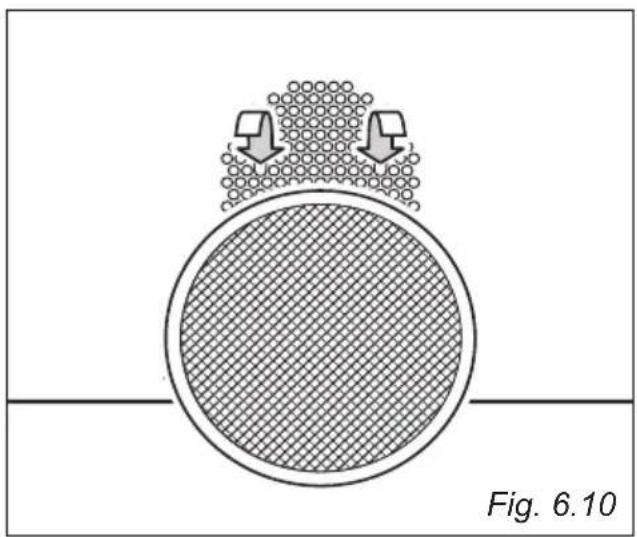

Anti-grease filter	Yes, removable and washable
Child safety	Programmer lock
Anti-tilt bracket	Supplied, to be fixed to the wall
Glass lid	Available on certain models
Maintenance	Cleaning with non-abrasive products, washable burners, filter to clean after cooking
Additional information	112-page manual available in PDF

Frequently Asked Questions - Excellence EX 106 M Elba

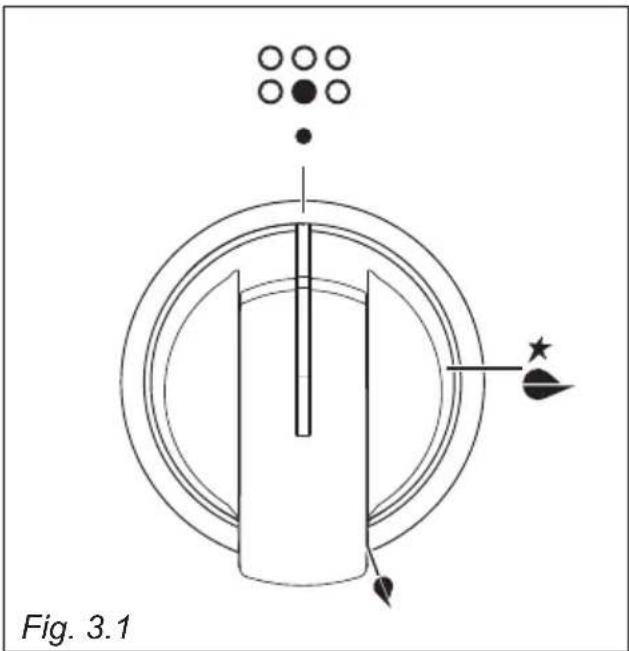

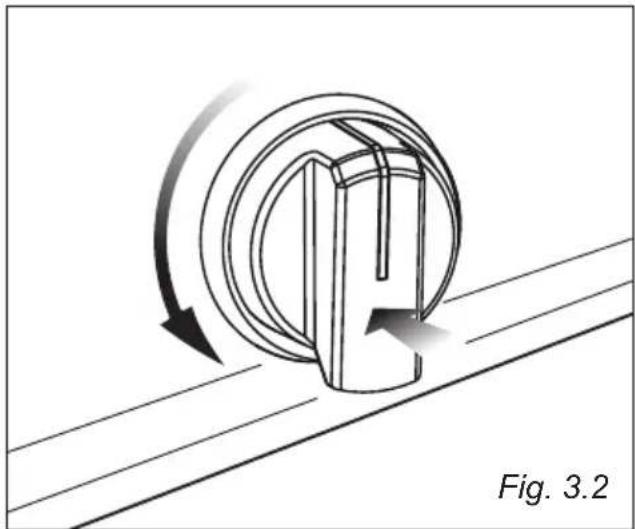

How to ignite the burners?

Press the knob and turn it to the maximum flow position (large flame). Keep pressed until the spark ignites the gas (about 10 seconds). In case of a power cut, bring a flame close to the burner. Then release the knob and adjust the desired flow.

What to do in case of accidental flame extinguishing?

The thermocouple automatically cuts off the gas supply. Return the knob to the closed position, wait at least 1 minute, then repeat the ignition procedure.

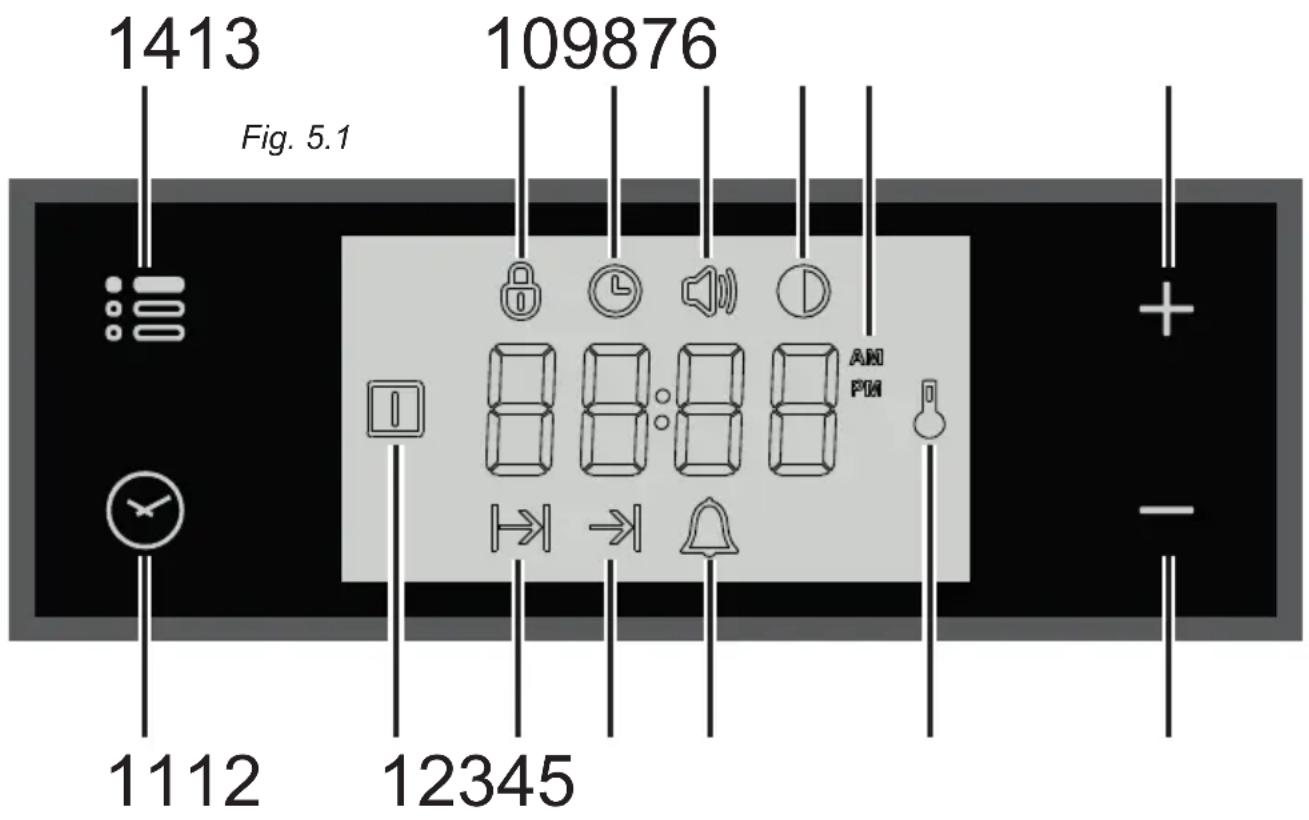

How to use the touch-control electronic programmer?

The programmer allows setting the time, a timer, semi-automatic cooking (stop after duration) or automatic (programmed start and stop). Touch the keys with your fingers. Refer to the dedicated chapter of the manual for detailed steps.

How to clean the ceramic glass cooktop?

Use a soft cloth dampened with warm water and neutral detergent. Never use abrasive products, metal sponges or sharp scrapers that could scratch the surface. Wipe and dry thoroughly.

How to install the anti-tilt bracket?

Mark the location on the wall, drill two 8 mm holes, insert the wall plugs. Attach the bracket with the supplied screws without tightening. Slide the cooker against the wall by inserting the bracket into its rear housing, then tighten the screws. Make sure not to pinch the power cord or gas hose.

Can I use aluminum pans?

Yes, but avoid concave or convex bottoms. Make sure the pans are centered on the burner for optimal stability. Do not place empty pans on the ceramic glass.

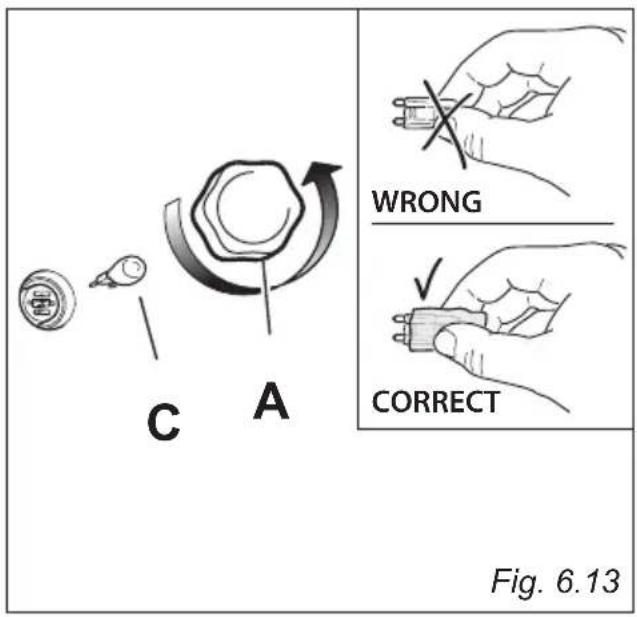

How to replace the oven light bulb?

Disconnect the power supply. Let the oven cool down. Remove the glass protective cover. Replace the halogen bulb with a new one of the same wattage (220-240 V, 50-60 Hz, resistant to 300°C). Do not use bare hands to avoid contaminating the bulb. Reassemble the cover.

What to do if the oven does not heat?

Check that the function selector and thermostat are set correctly. Ensure the clock is set (the oven does not work without it). Check the electrical supply (circuit breaker). If the problem persists, contact the After-Sales Service.

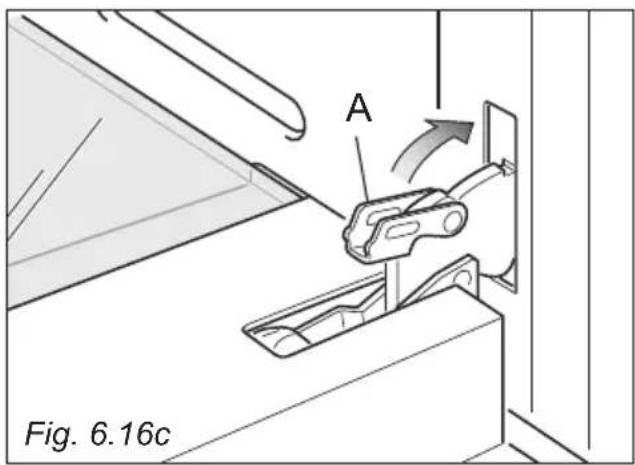

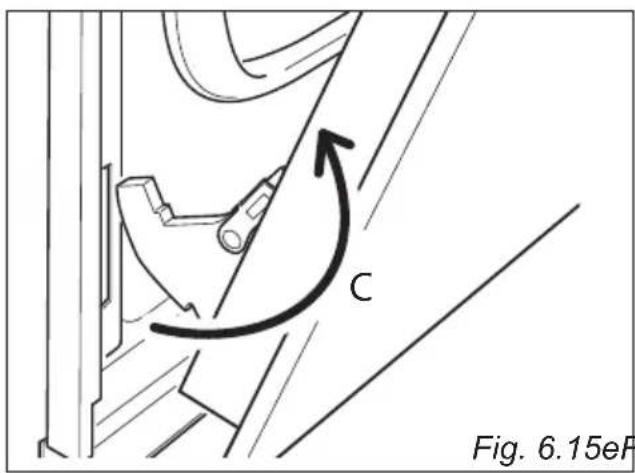

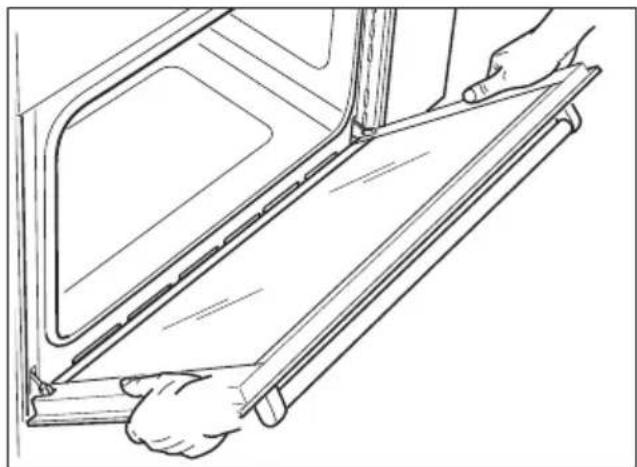

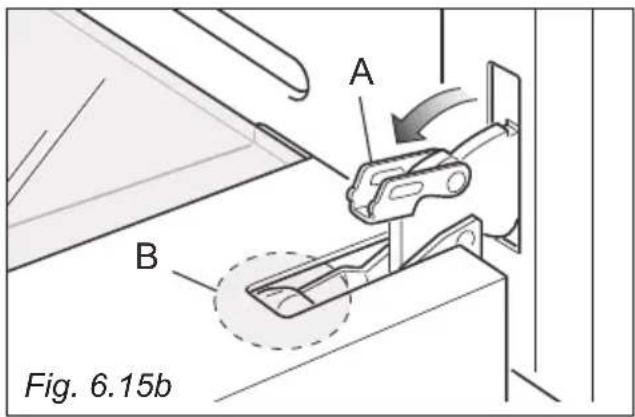

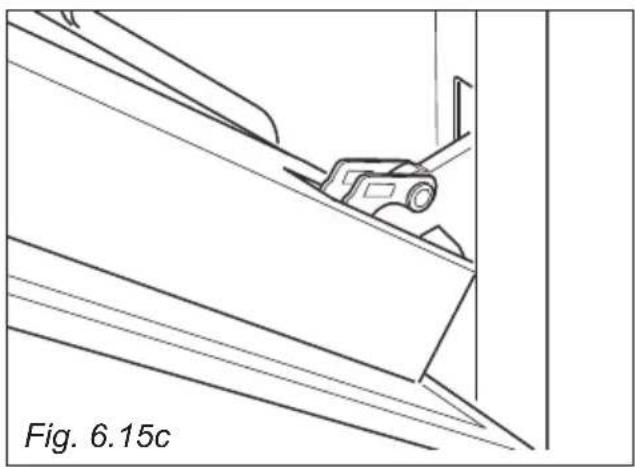

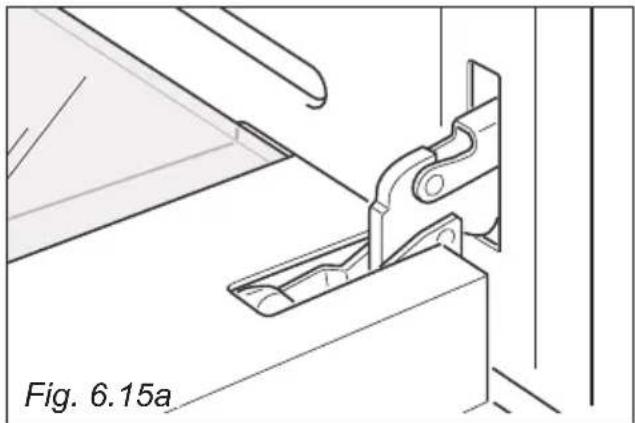

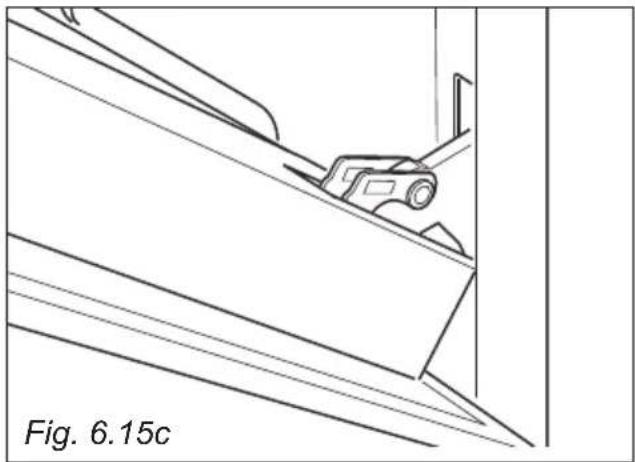

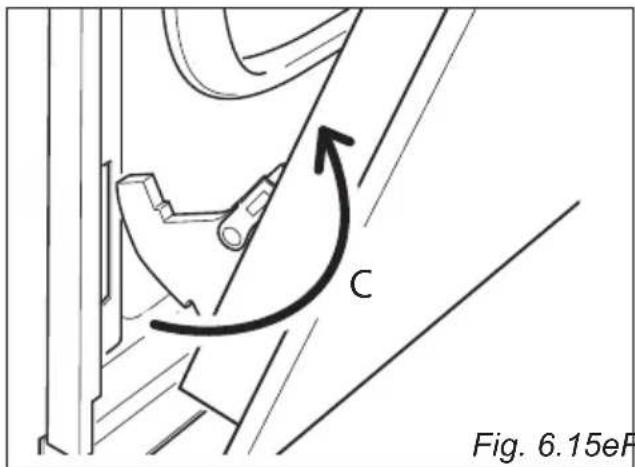

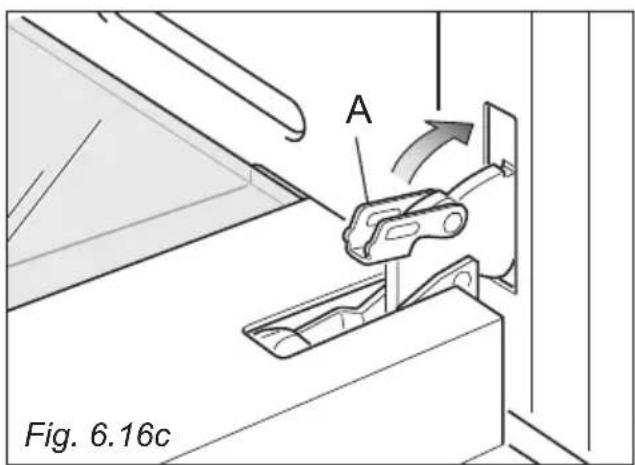

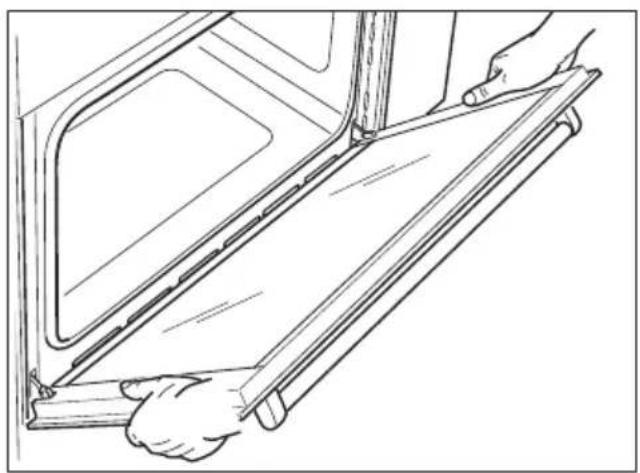

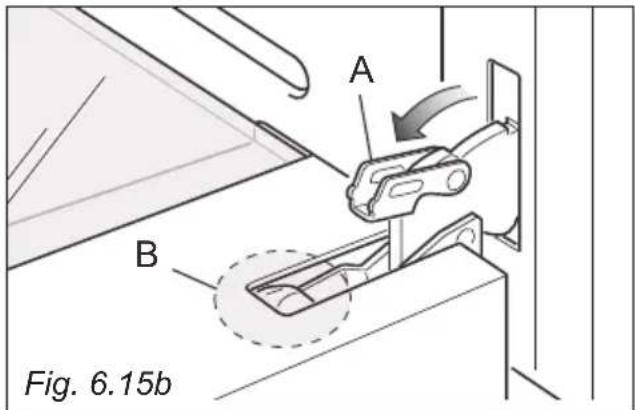

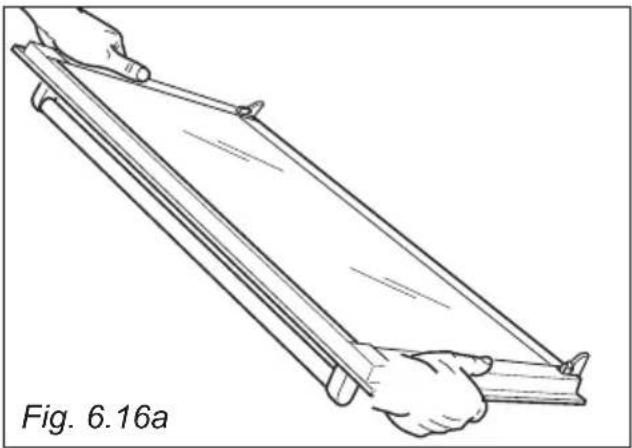

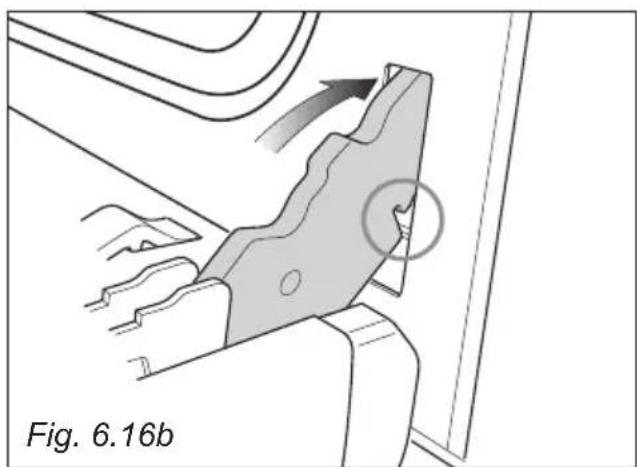

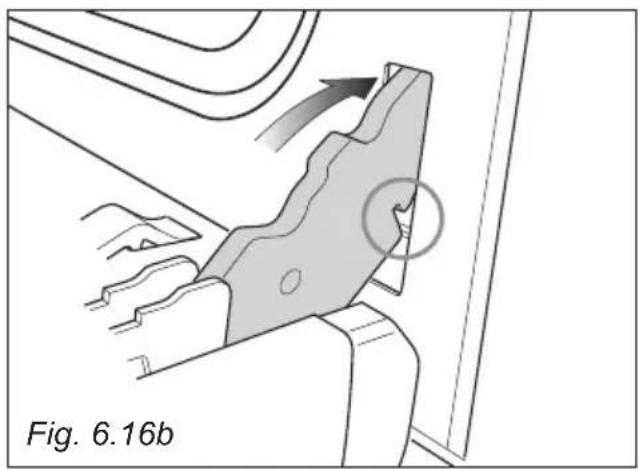

How to remove the oven door?

Open the door fully. Open the levers on the left and right hinges. Gently close the door until the levers catch on the door. Remove the hinge hooks following the arrows. To reassemble, insert the hooks, open the door fully, close the levers. Beware of sudden hinges.

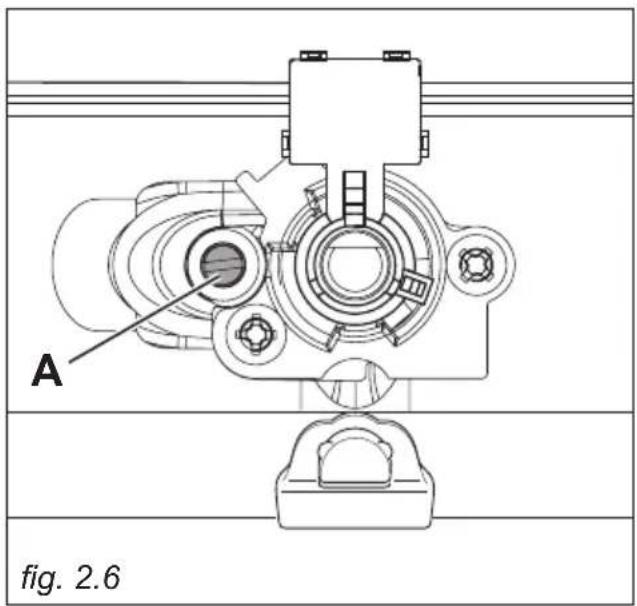

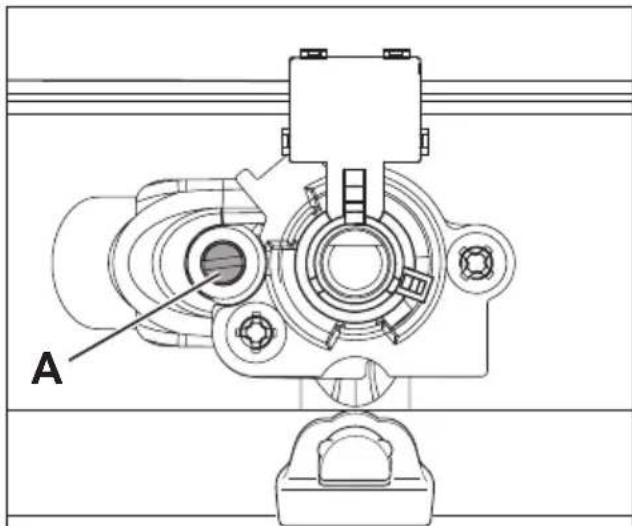

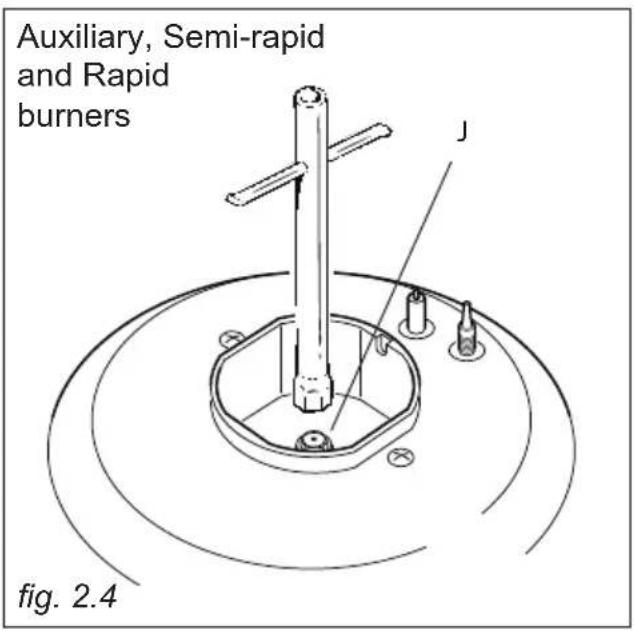

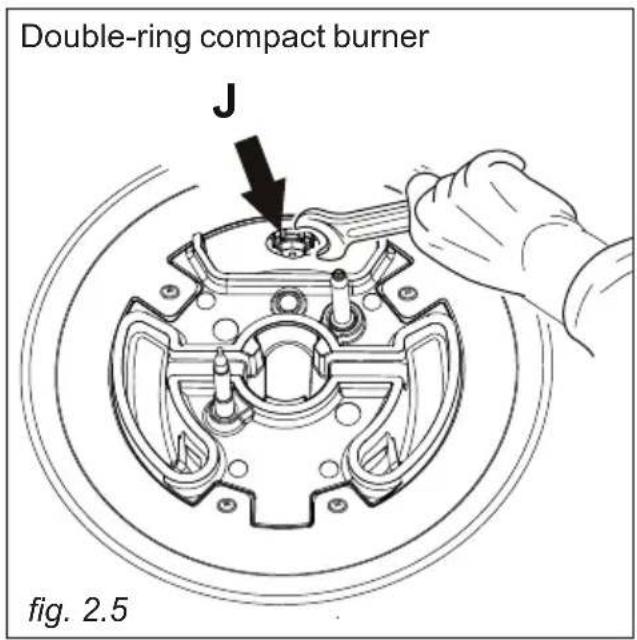

How to adjust the reduced flow of the burners?

Ignite the burner, turn the knob to the low (minimum) position. Remove the knob and turn the adjustment screw with a fine screwdriver until obtaining a flame of about 4 mm. For LPG, screw the screw fully. Refer to the manual for details.

USER MANUAL Excellence EX 106 M Elba

Fresh vegetables including garlic, garlic bulbs, and red chili peppers on a white background (no text or symbols)

ELBA

TALENT FOR COOKING

Close-up of a stainless steel double boiler with multiple gas stove covers and heat sinks (no visible text or symbols)

Made in Italy

English Installation advices - Instructions for the use

The manufacturer cannot be held responsible for possible inaccuracies due to printing or transcription errors in the present booklet.

The manufacturer reserves the right to make all modifications to its products deemed necessary for manufacturer commercial reasons at any moment and without prior notice, without jeopardising the essential functional and safety characteristics of the appliances.

Thank you for having purchased and given your preference to our product.

The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.

Please preserve this booklet carefully. It may be useful in future, either to yourself or to others in the event that doubts should arise relating to its operation.

This appliance must be used only for the task it has explicitly been designed for, that is for cooking foodstuffs. Any other form of usage is to be considered as inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the event of damage caused by improper, incorrect or illogical use of the appliance.

IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS

IMPORTANT: This appliance is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non domestic application and therefore should not be used in a commercial environment.

The appliance guarantee will be void if the appliance is used within a non domestic environment i.e. a semi commercial, commercial or communal environment.

Read the instructions carefully before installing and using the appliance.

• This appliance has been designed and manufactured in compliance with the applicable standards for the household cooking products, including those for surface temperatures.
  Some people with sensitive skin may have a more pronounced temperature perception with some components although these parts are within the limits allowed by the norms.
  The complete safety of the appliance also depends on the correct use, we therefore recommend to always pay a extreme attention while using the product, especially in the presence of children.
• After having unpacked the appliance, check to ensure that it is not damaged and that the oven door closes correctly.
  In case of doubt, do not use it and consult your supplier or a professionally qualified technician.
• Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be left around within easy reach of children, as these may cause serious injuries.
• Some appliances are supplied with a protective film on steel and aluminium parts. This film must be removed before using the appliance.
• IMPORTANT: The use of suitable protective clothing/gloves is recommended when handling or cleaning this appliance.

• Do not attempt to modify the technical characteristics of the appliance as this may become dangerous to use. The manufacturer declines all responsibility for any inconvenience resulting from the inobservance of this condition.

• CAUTION: this appliance must only be installed in a permanently ventilated room in compliance with the applicable regulations.

• Do not operate your appliance by means of an external timer or separate remote-control system.
• Do not carry out cleaning or maintenance operations on the appliance without having previously disconnected it from the electric power supply.
• WARNING: Ensure that the appliance is switched off before replacing the oven lamp to avoid the possibility of electric shock.
• Do not use a steam cleaner because the moisture can get into the appliance therefore making it unsafe.
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in bare feet.
• If you should decide not to use this appliance any longer (or decide to substitute another model), before disposing of it, it is recommended that it be made inoperative in an appropriate manner in accordance to health and environmental protection regulations, ensuring in particular that all potentially hazardous parts be made harmless, especially in relation to children who could play with unused appliances.
• The various components of the appliance are recyclable. Dispose of them in accordance with the regulations in force in your country. If the appliance is to be scrapped, remove the power cord.
  • After use, ensure that the knobs are in the off position.
• Children less than 8 years of age shall be kept away unless continuously supervised.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The manufacturer declines all liability for injury to persons or damage to property caused by incorrect or improper use of the appliance.

• WARNING: During use the appliance and its accessible parts become hot; they remain hot for some time after use.

• Care should be taken to avoid touching heating elements (on the hob and inside the oven).

• The door is hot, use the handle.
• To avoid burns and scalds, young children should be kept away.

• Models with warming drawer only: care should be taken to avoid touching heating element inside the drawer.

• Make sure that electrical cables connecting other appliances in the proximity of the cooker cannot come into contact with the hob or become entrapped in the oven door.

• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• WARNING: If the hob is cracked or otherwise damaged by falling objects etc., disconnect the appliance from the electrical power supply to avoid the possibility of electric shock and call Customer Service.
• WARNING: When correctly installed, your product meets all safety requirements laid down for this type of product category. However special care should be taken around the rear or the underneath of the appliance as these areas are not designed or intended to be touched and may contain sharp or rough edges, that may cause injury.
• FIRST USE OF THE OVEN - it is advised to follow these instructions:

- Furnish the interior of the oven as described in the chapter "CLEANING AND MAINTENANCE".

- Switch on the empty oven on max to eliminate grease from the heating elements.

- Disconnect the appliance from the electrical power supply, let the oven cool down and clean the interior of the oven with a cloth soaked in water and neutral detergent; then dry carefully.

- CAUTION: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

- Do not line the oven walls or base with aluminium foil. Do not place baking trays or the drip tray on the base of the oven chamber.

- Do not cover the hob with aluminium foils.

- FIRE RISK! Do not store flammable material in the oven or in the storage compartment.

- Always use oven gloves when removing the shelves and food trays from the oven whilst hot.

- Do not hang towels, dishcloths or other items on the appliance or its handle – as this could be a fire hazard.

- Clean the oven regularly and do not allow fat or oils to build up in the oven base or tray. Remove spillages as soon as they occur.

- Do not stand on the cooker or on the open oven door.

- Always stand back from the appliance when opening the oven door to allow steam and hot air to escape before removing the food.

- SAFE FOOD HANDLING: Leave food in the oven for as short a time as possible before and after cooking. This is to avoid contamination by organisms which may cause food poisoning. Take particular care during warmer weather.

- WARNING: Take care NOT to lift the cooker by the door handle.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- The appliance must not be installed behind a decorative door in order to avoid overheating.

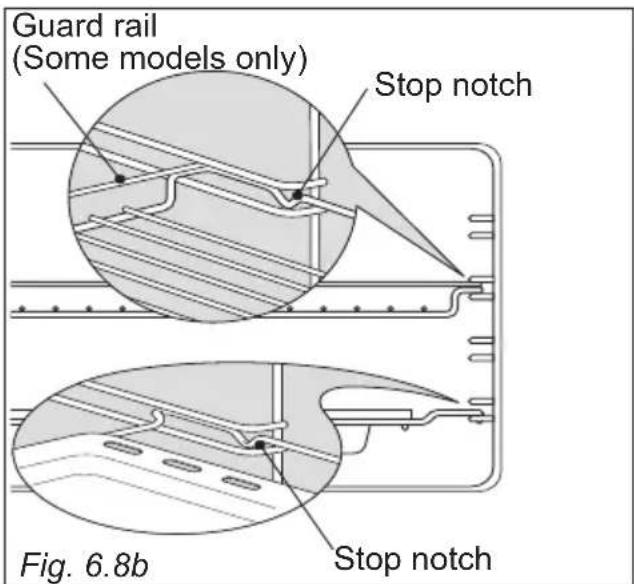

- The oven accessories (e.g. oven wire rack) must be fitted correctly as indicated at page 49.

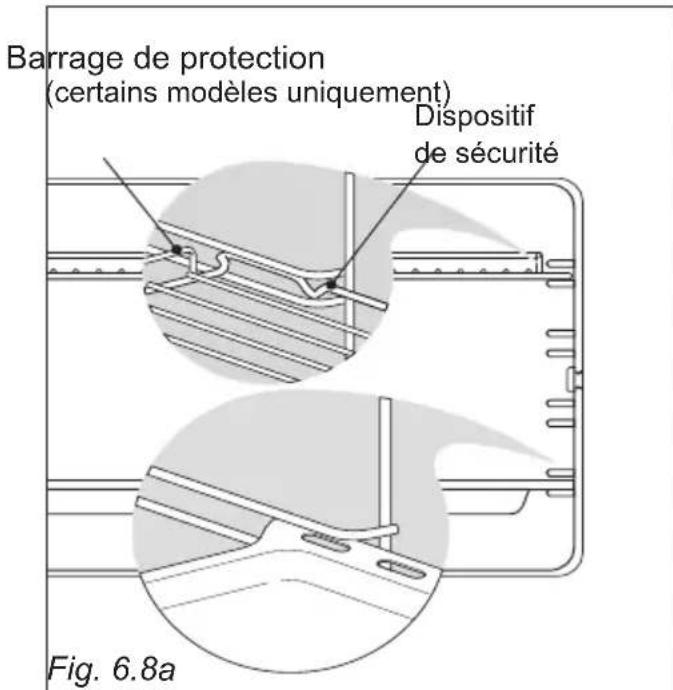

• IMPORTANT NOTE: The oven shelves (for some products one shelf only is provided) have not been designed to place the food directly on the shelf itself. When cooking, always place the food in special containers or use specific materials suitable for the food contact.
• If the power supply cable is damaged, it must be replaced only by an authorized service agent in order to avoid a hazard.
• If the appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised.

- WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

Advice for the installer

IMPORTANT:

• The appliance is designed and approved for domestic use only and should not be installed in a commercial, semi commercial or communal environment.
  Your product will not be guaranteed if installed in any of the above environments and could affect any third party or public liability insurances you may have.
• This appliance is to be installed, regulated and adapted to function only by an authorized person in compliance with the current local regulations in force and in observation of the instructions supplied by the manufacturer.
  Failure to comply with this condition will render the guarantee invalid.
• Incorrect installation, for which the manufacturer accepts no responsibility, may cause personal injury or damage.
• This appliance shall only be serviced by authorized personnel.
• Always disconnect the appliance from mains power supply before carrying out any maintenance operations or repairs.
• Important: The use of suitable protective clothing/gloves is recommended when handling or cleaning of this appliance.
• The walls of the units must not be higher than work top and must be capable of resisting temperatures of 70^ above room temperature.
• We would point out that the adhesive which bonds the plastic laminate to the furniture must withstand temperatures not less than 150^ to avoid delamination.
• Do not install the appliance near inflammable materials (eg. curtains).
• Some appliances are supplied with a protective film on steel and aluminium parts. This film must be removed before using the cooker.

WARNING!

When correctly installed, your product meets all safety requirements laid down for this type of product category. However special care should be taken around the rear or the underneath of the appliance as these areas are not designed or intended to be touched and may contain sharp or rough edges, that may cause injury.

1 INSTALLATION

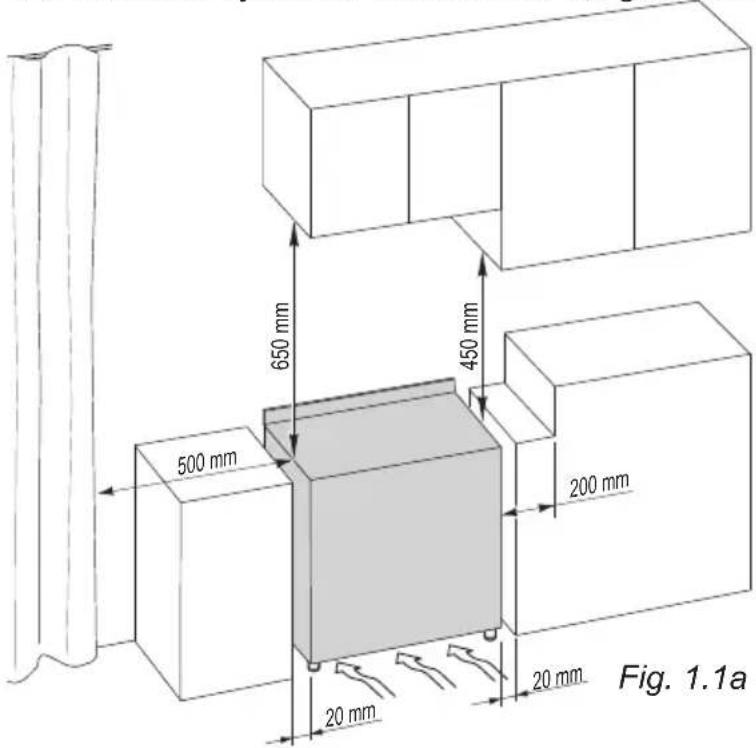

The installation conditions, concerning protection against overheating of the surfaces adjacent to the cooker, must conform to figs. 1.1a or 1.1b.

The appliance must be kept no less than 200 mm away from any side wall which exceeds the height of the hob surface (figs. 1.1a or 1.1b).

The veneered syntetical material and the glue used must be resistant to a temperature of

150°C in order to avoid ungluing or deformations.

Curtains must not be fitted immediately behind appliance or within 500 mm of the sides.

If the cooker is located on a pedestal it is necessary to provide safety measures to prevent falling out.

The appliance must be housed in heat resistant units.

The walls of the units must not be higher than work top and must be capable of resisting temperatures of 70^ C above room temperature.

Do not install the appliance near inflammable materials (eg. curtains).

■ Class 1

(fig. 1.1a)

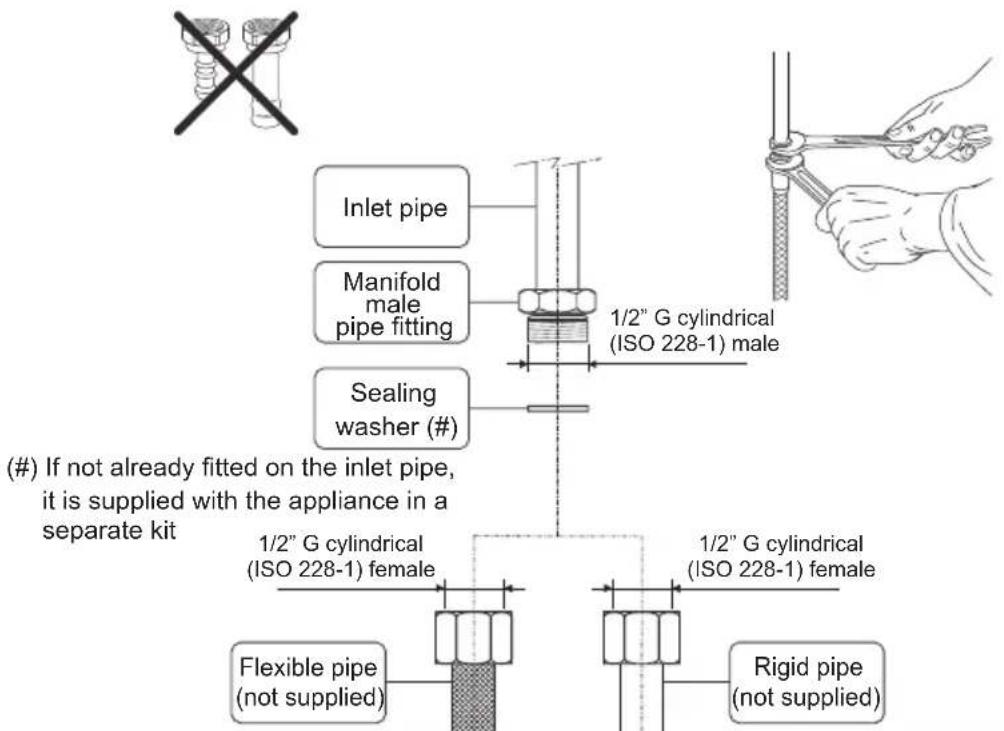

Gas connection made using rubber hose which must be visible and easily inspected or using rigid or flexible metal pipe.

A space of at least 2 cm must be left between the cooker and any adjacent furniture, which must not exceed the height of the cooktop.

■ Class 2
■ Subclass 1

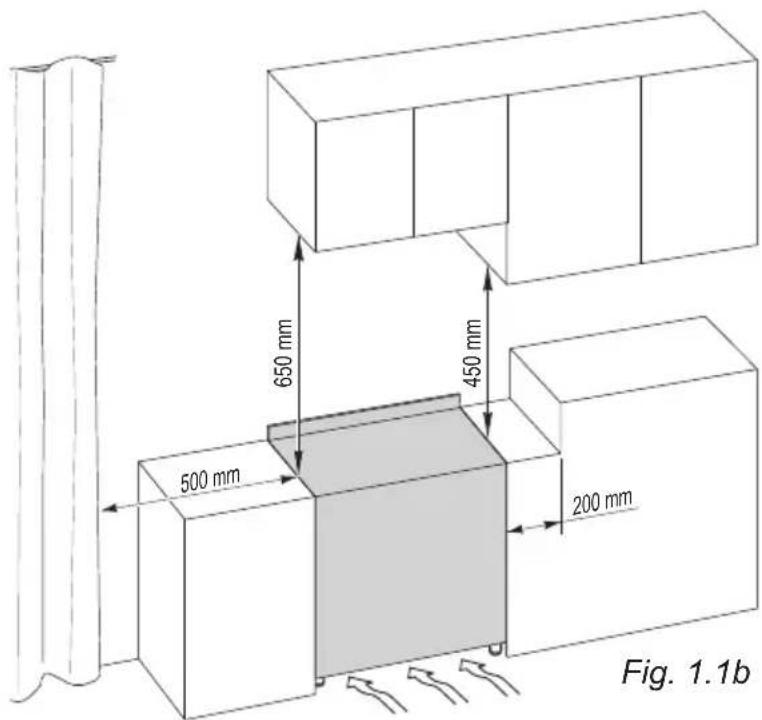

(fig. 1.1b)

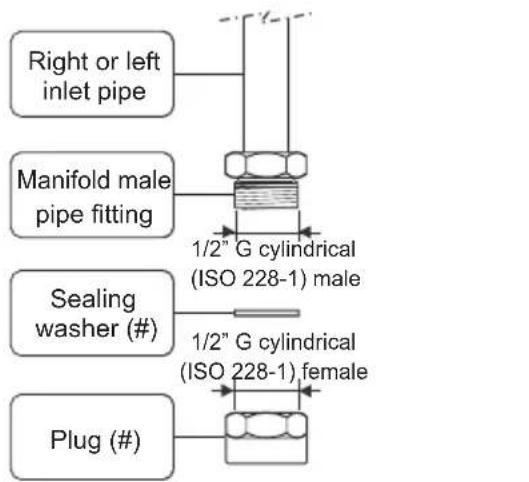

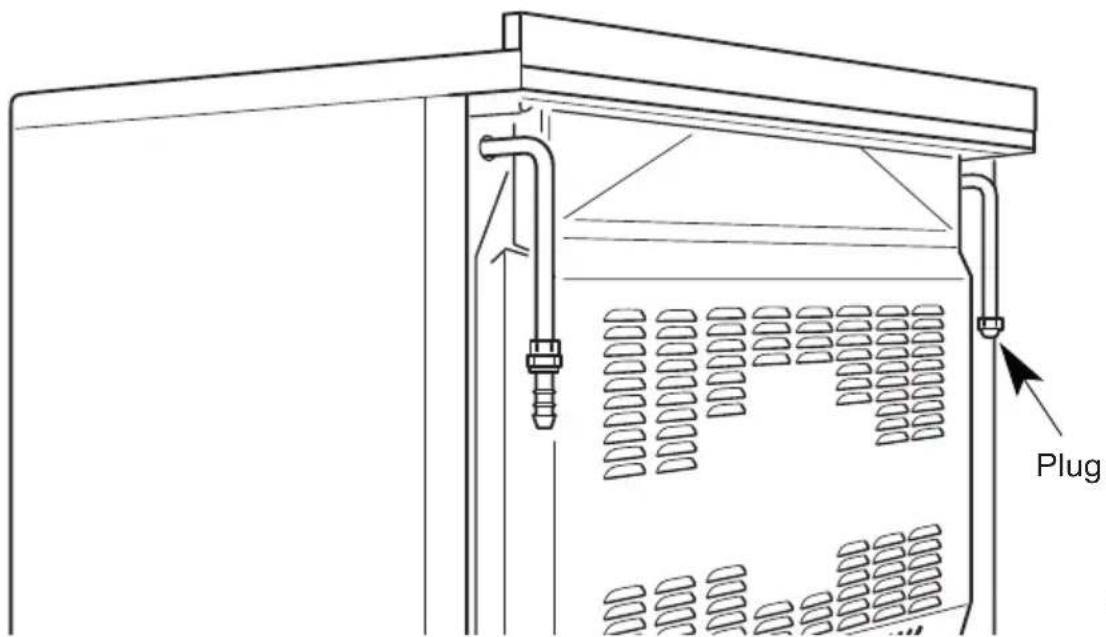

Gas connection made using rigid or flexible metal pipe.

Mechanical assembly diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols)

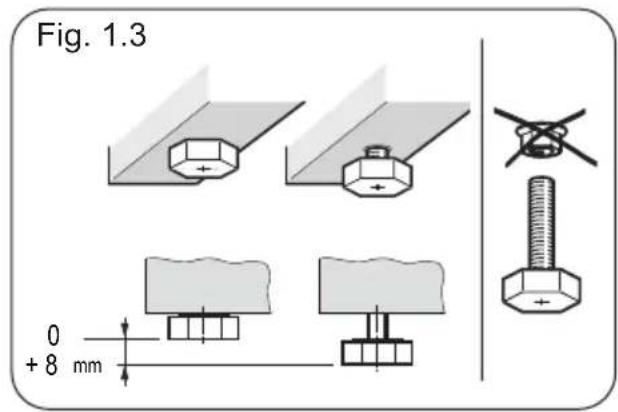

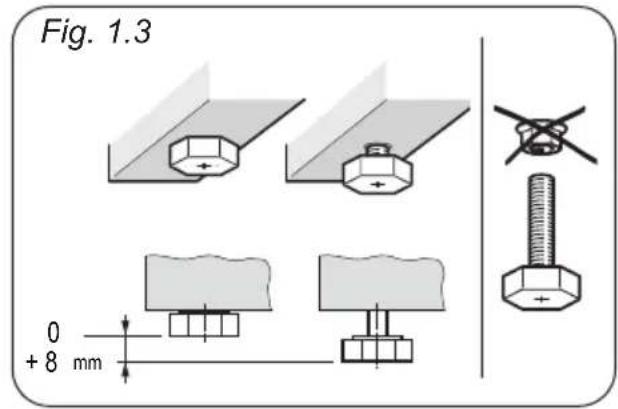

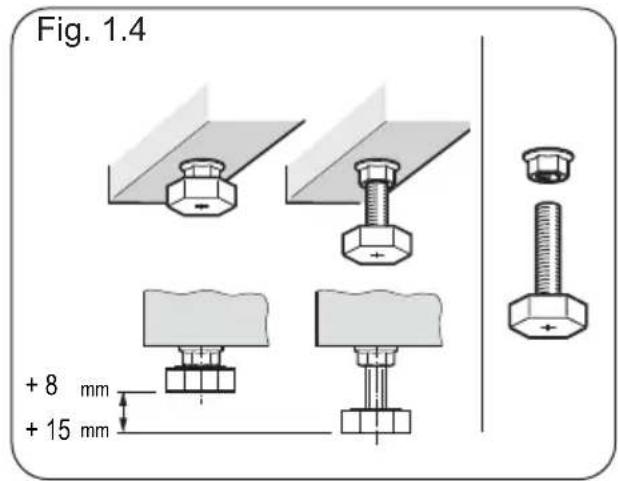

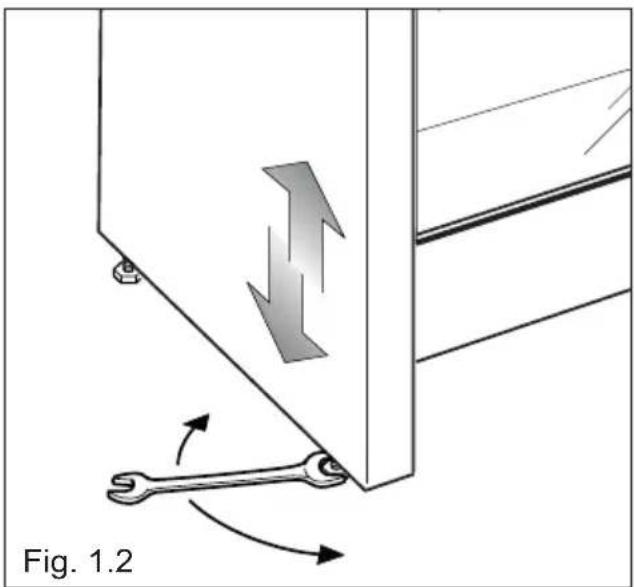

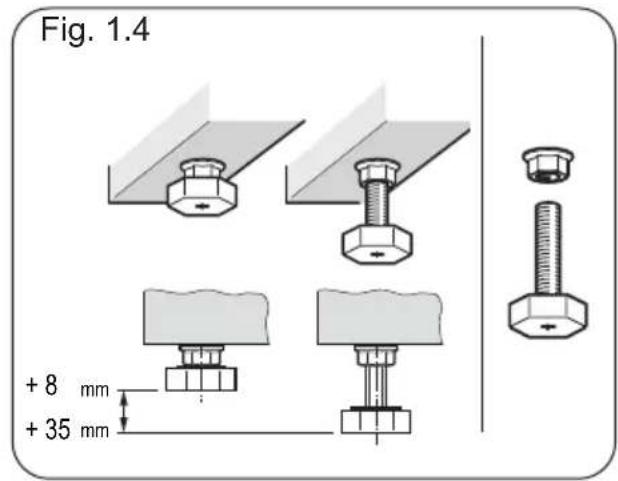

The cooker is equipped with 4 LEVELLING FEET and may be levelled by screwing or unscrewing the feet with a spanner (fig. 1.2).

The adjustable feet are already fitted to the cooker but the locking nuts which can be found in the oven packaging require to be fitted as detailed on figures 1.3 - 1.4.

It is important to observe the prescriptions of figures 1.3 - 1.4.

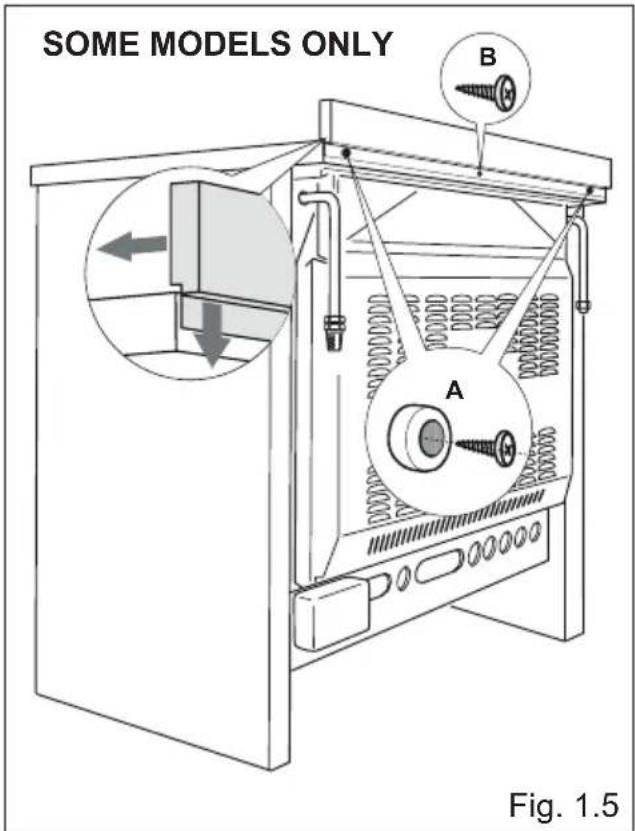

BACKGUARD (SUPPLIED WITH SOME MODELS ONLY)

Before installing the cooker, assemble the backguard "C" (fig. 1.5).

• The backguard "C" can be found packed at the rear of the cooker.
• Before assembling remove any protective film/adhesive tape.
• Remove the two spacers "A" and the screw "B" from the rear of the cooktop.
• Assemble the backguard as shown in figure 1.5 and fix it by screwing the central screw "B" and the spacers "A".

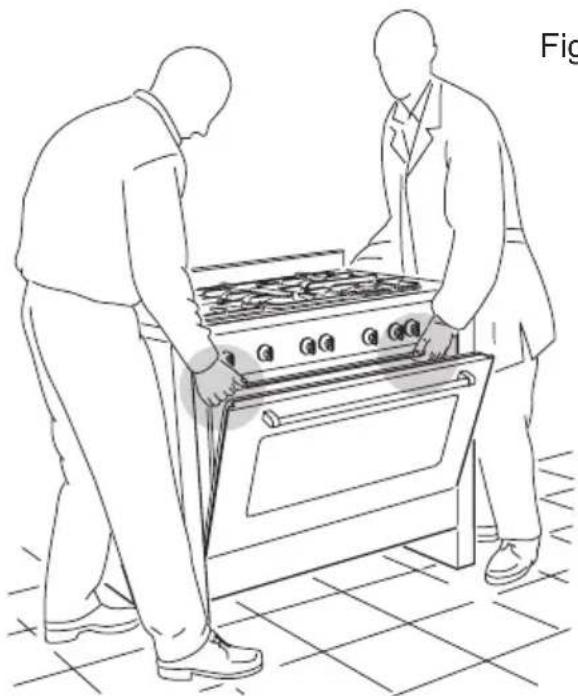

MOVING THE COOKER

WARNING: When raising cooker to upright position always ensure two people carry out this manoeuvre to prevent damage to the adjustable feet (fig. 1.6).

Line drawing of two people installing or adjusting a large outdoor stove (no text or symbols)

Fig. 1.6

WARNING

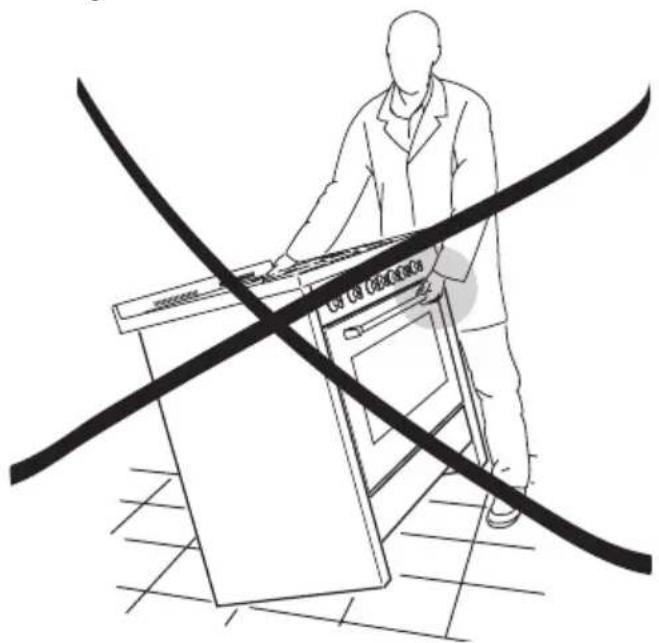

Be careful: do not lift the cooker by the door handle when raising to the upright position (fig. 1.7).

WARNING

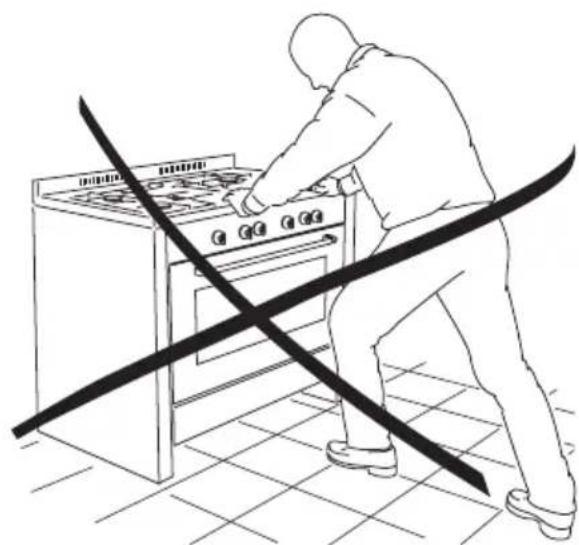

When moving cooker to its final position DO NOT DRAG (fig. 1.8).

Lift feet clear of floor (fig. 1.6).

Fig. 1.7

Line drawing of a person operating a bench with a ruler, crossed by two diagonal lines (no text or symbols)

Fig. 1.8

Line drawing of a person using an electric stove to clean or adjust equipment (no text or symbols)

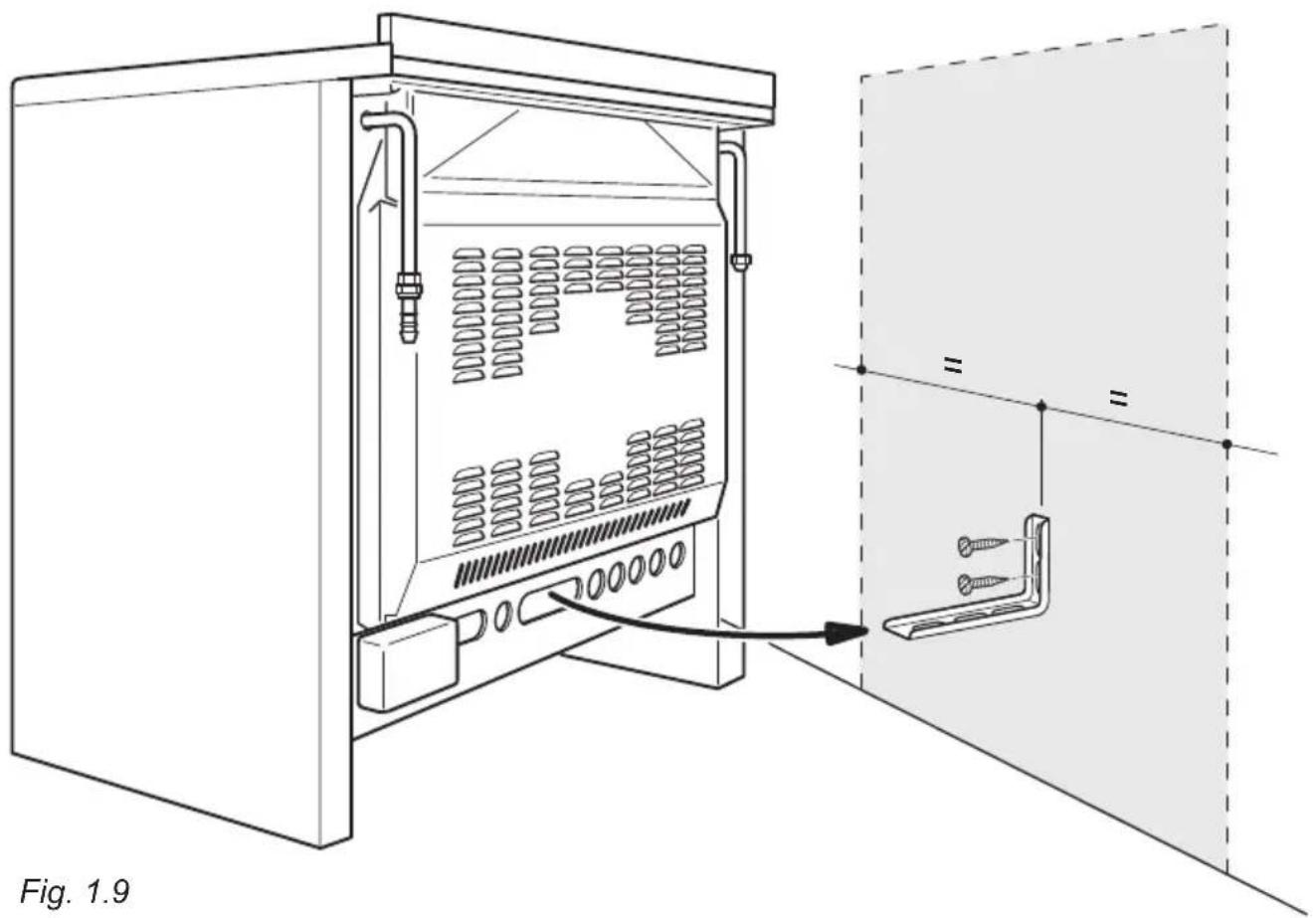

ANTI-TILT BRACKET

Warning: This appliance must be restrained to prevent accidental tipping by fitting a bracket to the rear of the appliance and securely fixing it to the wall.

To fit the anti-tilt bracket:

1. After you have located where the cooker is to be positioned, mark on the wall the place where the 2 screws of the anti-tilt bracket have to be fitted. Please follow the indications given in fig. 1.9.
2. Drill two 8 mm diameter holes in the wall and insert the plastic plugs supplied. Important! Before drilling the holes, check that you will not damage any pipes or electrical wires.
3. Loosely attach the anti-tilt bracket with the 2 screws supplied.
4. Move the cooker to the wall and adjust the height of the anti-tilt bracket so that it can engage in the slot on the cooker's back, as shown in fig. 1.9.
5. Tighten the screws attaching the anti-tilt bracket.
6. Push the cooker against the wall so that the anti-tilt bracket is fully inserted in the slot on the cooker's back.

Attention!

When sliding the cooker into place pay special attention not to trap the power supply cable in the stability bracket.

Pay special attention to the gas connection hose.

Technical line drawing of an electrical cabinet with internal components and a close-up view showing a bracket (no text or symbols)

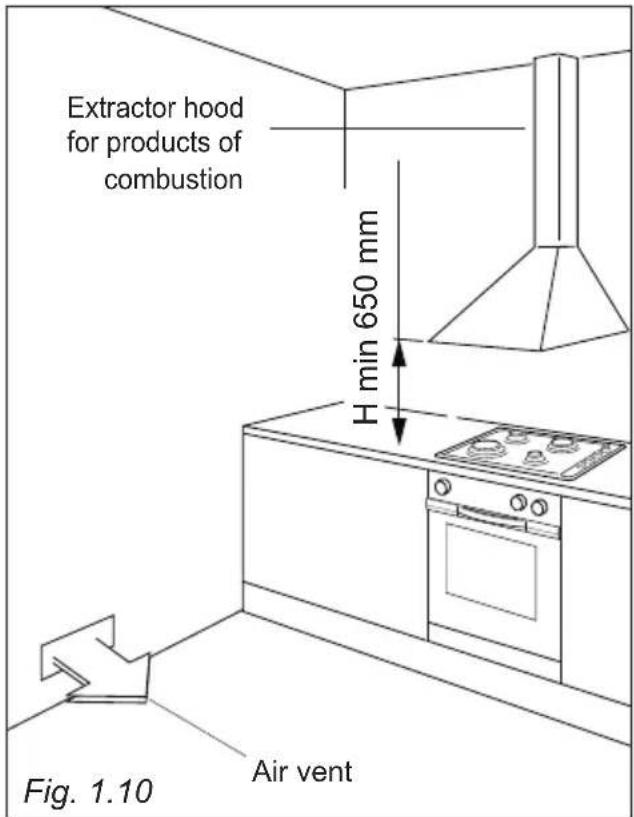

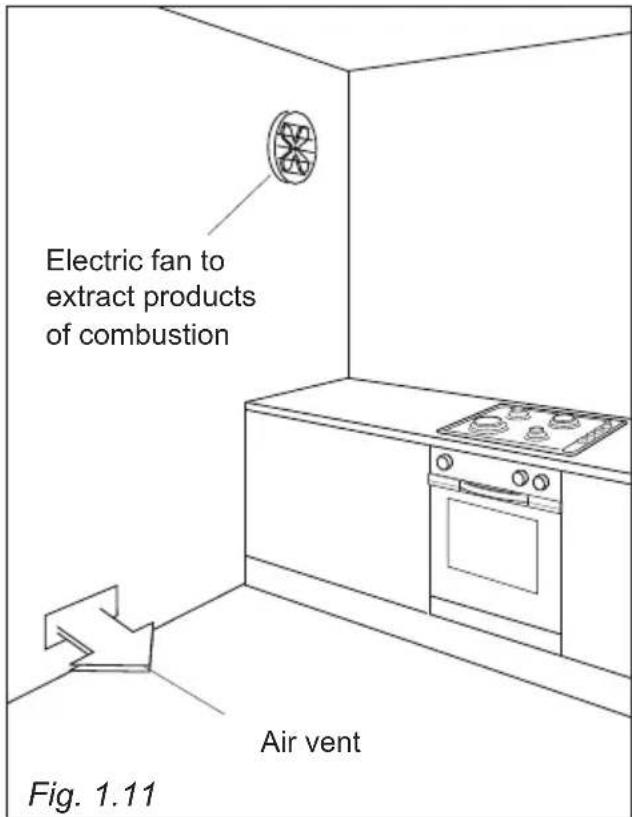

VENTILATION REQUIREMENTS

The appliance must be installed in compliance with applicable local regulations concerning ventilation and the evacuation of exhaust gases.

Intensive and prolonged use may require extra ventilation, e.g. opening a window, or more efficient ventilation increasing the mechanical suction power if this is fitted.

The room where the gas appliance is to be installed must have a natural flow of air so that the gas can burn (in compliance with applicable local regulations).

The flow of air must come directly from one or more openings made in the outside walls with a free area of at least 100 cm ^2 (or refer to applicable local regulations).

The openings should be near the floor and preferably on the side opposite the exhaust for combustion products and must be made so that they cannot be blocked from either the inside or the outside.

When these openings cannot be made, the necessary air can come from an adjacent room which is ventilated as required, as long as it is not a bed room or a danger area (in compliance with applicable local regulations).

In this case, the kitchen door must allow the passage of the air.

There must be a distance of at least 650mm between the hob of the cooker and any wall cupboard or extractor hood positioned immediately above (see fig. 1.10).

DISCHARGING PRODUCTS OF COMBUSTION

Extractor hoods connected directly to the outside must be provided, to allow the products of combustion of the gas appliance to be discharged (fig. 1.10).

If this is not possible, an electric fan may be used, attached to the external wall or the window; the fan should have a capacity to circulate air at an hourly rate of 3-5 times the total volume of the kitchen (fig. 1.11).

The fan can only be installed if the room has suitable vents to allow air to enter, as described under the heading "Choosing suitable surroundings".

GAS INSTALLATION REQUIREMENTS

Important!

• This appliance must be installed and serviced only by a suitably qualified, registered installer. The installer shall refer to the local standards in force.
• Failure to install the appliance correctly could invalidate any manufacturer's warranty.
• Before installation, make sure that the local distribution conditions (gas type and pressure) and the adjustment of this appliance are compatible. The appliance adjustment conditions are given on the plate or the label.
• If the gas pressure (for which the appliance is to be used) is variable or if it is not within the values indicated on the rating plate, it is mandatory to install a proper gas pressure regulator which must be adjusted to guarantee the correct operating pressure to the appliance (as per rating plate).

The regulator must be installed, adjusted and tested by a qualified technician.

- WARNING: Using the appliance with a wrong and/or variable gas pressure may be extremely dangerous and may result in serious injury to the user. Damage to the appliance could occur if not observing this condition.

The manufacturer declines every responsibility for any inconvenience resulting from the inobservance of this condition.

This appliance is supplied for use on LPG (check the gas regulation label attached on the appliance).

OR

This appliance is supplied for use on Natural gas or LPG (check the gas regulation label attached on the appliance).

• Appliances supplied for use on Natural gas: they are adjusted for this gas only and cannot be used on any other gas (LPG) without modification. The appliances are manufactured for conversion to LPG.
• Appliances supplied for use on LPG: they are adjusted for this gas only and cannot be used on any other gas (Natural gas) without modification. The appliances are manufactured for conversion to Natural gas.

If the Natural gas/LPG conversion kit is not supplied with the appliance this kit can be purchased by contacting the After-Sales Service.

FOR SOUTH AFRICA ONLY

The appliance is predisposed and adjusted to operate with the gas G30/G31 (LPG USE). Operating pressure: 2,8 kPa.

This appliance is manufactured for conversion to G20 (NATURAL GAS) if required and is supplied with a conversion kit.

This appliance must only be connected to NATURAL GAS after a NATURAL GAS conversion kit has been fitted.

CONNECTING THE APPLIANCE TO THE GAS SUPPLY

The gas connection must be carried out by an authorised person according to the relevant standards.

Ensure that the room in which the cooker is to be installed is adequately ventilated, in compliance with applicable regulations.

• Connect the cooker to the gas mains utilizing rigid or flexible pipes.
• The gas supply is connected at the rear of the cooker to the right or left terminal of the gas inlet pipe (fig. 2.1a). The connection pipe must not cross the rear of the appliance.
• The unused inlet pipe must be closed off with the plug and sealing washer supplied (fig. 2.1b).

Fig. 2.1a

Fitting the plug on the unused terminal of the gas inlet pipe

(#) Already fitted on the right or left inlet pipe

Fig. 2.1b

POSSIBLE GAS CONNECTIONS

GAS CONNECTION WITH A RUBBER HOSE

Important!

A rubber hose connection shall only be made if permitted by the applicable local regulations.

The gas connection is made up of:

- the terminal fitting of the inlet pipe (right-hand or left-hand);

- sealing washer;

- the appropriate hose holder (for Natural gas or LPG). If not supplied with the appliance it can be purchased by contacting the After-Sales Service.

Connecting the cooker to Natural gas

1. If not already fitted, fit the Natural gas hose holder on the inlet pipe, making sure that you place the sealing washer between them (as shown in fig. 2.2).
2. Connect the cooker to the gas supply using a suitable rubber hose (internal diameter 15 mm).

The hose must comply with the applicable local regulations and be of the correct construction for the type of gas being used.

1. Make sure that the hose is tightly and securely fitted at both ends.
2. Use a standard hose clamp (not supplied) to fasten the hose.

Connecting the cooker to LPG

1. If not already fitted, fit the LPG hose holder on the inlet pipe, making sure that you place the sealing washer between them (as shown in fig. 2.2).
2. Connect the cooker to the gas supply using a suitable rubber hose (internal diameter 6 mm).

The hose must comply with the applicable local regulations and be of the correct construction for the type of gas being used.

1. Make sure that the hose is tightly and securely fitted at both ends.
2. Use a standard hose clamp (not supplied) to fasten the hose.
3. Install a gas pressure regulator.

Important!

To comply with applicable local regulations, a gas pressure regulator (conforming to the local regulations in force) must be installed when connecting the cooker to an LPG cylinder.

When connecting the cooker to the gas supply with a rubber hose, make sure that

• the hose is as short as possible, without twists or kinks.
• the hose is not longer than 750 mm (or refer to applicable local regulations) and does not come into contact with sharp edges, corners or moving parts. Use a single rubber hose only; never connect the appliance with more than one rubber hose.
• the hose is not under tension, twisted, kinked, or too tightly bent, neither while the appliance is in use nor while it is being connected or disconnected.
• the hose does not come into contact with any part of the cooker with a surface temperature of 70°C or above (or refer to applicable local regulations).
• the hose is not subject to excessive heat by direct exposure to flue products or by contact with hot surfaces.

• the hose can easily be inspected along its entire length to check its condition.

• the hose is replaced at the printed due date or if it shows signs of wear or damage, and replaced regardless of its condition after a maximum of three years.

• you inform the customer that the gas cylinder valve or the gas supply valve immediately by the cooker should be closed when the cooker is not in use.
• you inform the customer that the hose should not be subjected to corrosion by acidic cleaning agents.

After connecting the cooker to the gas supply, make sure that you

• check that the connections are correctly sealed using a soapy solution, but never a naked flame.
• check whether the injectors are correct for the type of gas being used. If not, follow the instructions under "GAS MAINTENANCE".
• replace the sealing washer/s on the slightest sign of deformation or imperfection. The sealing washer/s is/are the part/s which guarantee/s a good seal in the gas connection.
• use two spanners when fitting the hose holder (fig. 2.2).

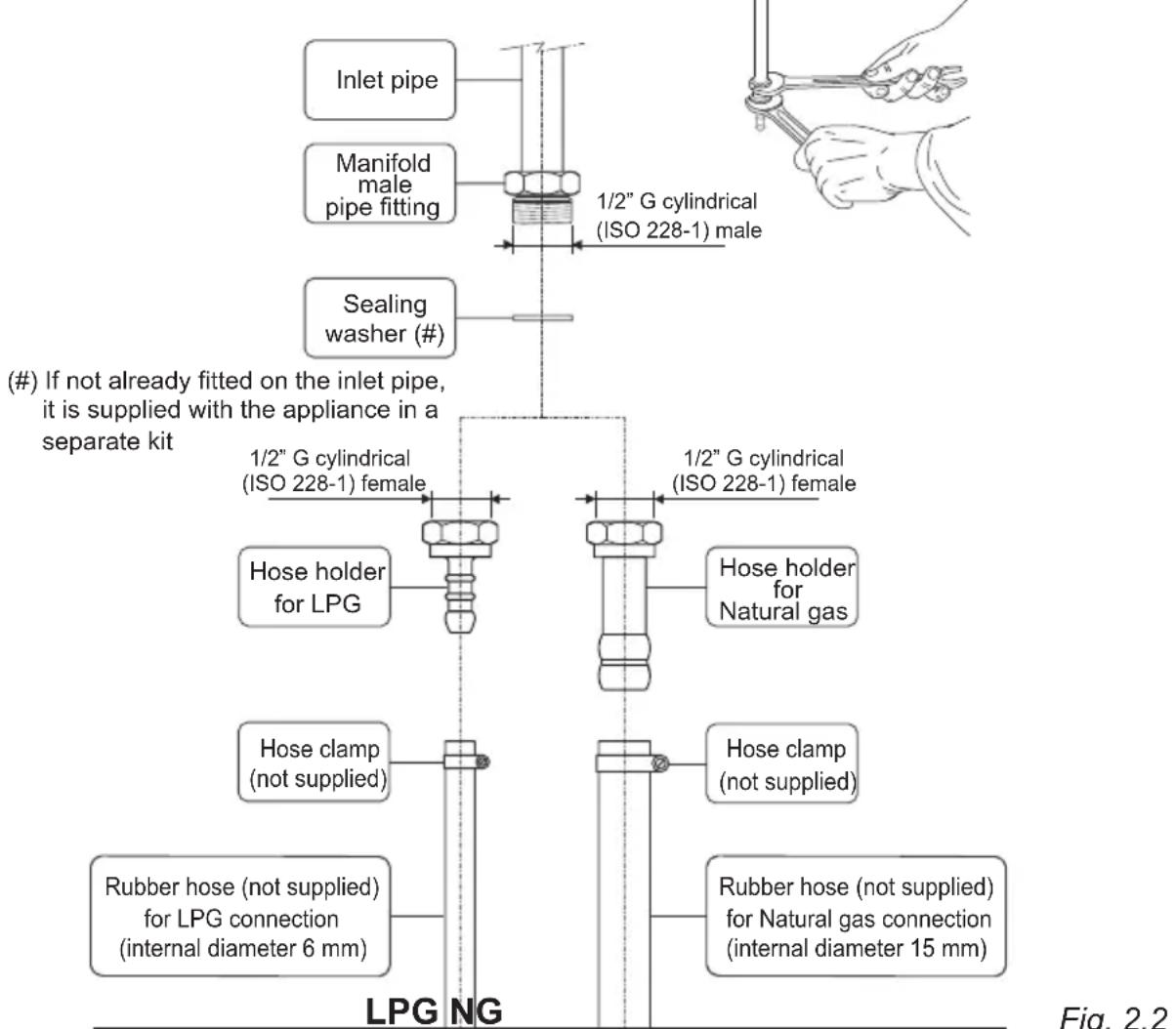

Gas connection with rubber hose holders

Note: if not already fitted on the inlet pipe, the hose holders are supplied with the product in a separate kit; if not supplied with the appliance they can be purchased by contacting the After-Sales Service.

(Important: to be used ONLY IF PERMITTED by the local applicable regulations)

GAS CONNECTION WITH RIGID PIPES OR A FLEXIBLE PIPE

The gas connection is made up of:

• the terminal fitting of the inlet pipe (right-hand or left-hand)
• sealing washer.

Important!

If fitted, remove the hose holder from the terminal fitting of the inlet pipe.

When connecting the cooker to the gas supply with rigid pipes or a flexible pipe, make sure that

• you use rigid pipes or a flexible pipe complying with applicable local regulations. The flexible pipe shall be of the correct construction for the type of gas being used.
• if compression fittings are used, you tighten them firmly using two spanners (fig. 2.3).
• the connection with rigid metal pipes does not cause stress or pressure to the gas piping.
• the flexible pipe is not under tension, twisted, kinked or too tightly bent, neither while the appliance is in use nor while it is being connected or disconnected.
• the flexible pipe does not exceed 2000 mm in length (or refer to applicable local regulations) and does not come into contact with sharp edges, corners or moving parts. Use a single flexible pipe only; never connect the cooker with more than one flexible pipe.
• the flexible pipe can easily be inspected along its entire length to check its condition; if it has an expiry date, it should be replaced before that date.
• if using a flexible pipe which is not entirely made of metal, make sure that it does not come into contact with any part of the cooker with a surface temperature of 70^ or above (or refer to applicable local regulations).
• the rigid or flexible pipe is not subject to excessive heat by direct exposure to flue products or by contact with hot surfaces.
• the rigid or flexible pipe is replaced if it shows signs of wear or damage.
• a gas pressure regulator, in compliance with the applicable local regulations, is installed when connecting to an LPG cylinder.
• you inform the customer that the cylinder valve or the supply valve immediately by the appliance should be closed when the cooker is not in use.
• you inform the customer that the rigid or flexible pipe should not be subjected to corrosion by acidic cleaning agents.

After connecting the cooker to the gas supply, make sure that you

• check that the connections are correctly sealed using a soapy solution, but never a naked flame.
• check whether the injectors are correct for the type of gas being used. If not, follow the instructions under “GAS MAINTENANCE”.
• replace the sealing washer/s on the slightest sign of deformation or imperfection. The sealing washer/s is/are the part/s which guarantee/s a good seal in the gas connection.
• use two spanners when connecting the rigid or flexible pipe (fig. 2.3).

Gas connection with rigid or flexible pipe
Note: if already fitted on the inlet pipe, remove the rubber hose holder

Fig. 2.3

GAS MAINTENANCE

For the gas category check the data label attached on the appliance.

TABLE FOR THE CHOICE OF THE INJECTORS
Cat: I 3+			G30/G3128-30/37 mbar
BURNERS	Nominal power [kW]	Reduced power [kW]	∅ injector[1/100 mm]
Auxiliary (A) 1,00 0,40 50
Semi-rapid (SR) 1,75 0,45 65
Rapid (R) 3,00 0,75 85
Double-ring compact (DCC)	4,00 1,50 100

TABLE FOR THE CHOICE OF THE INJECTORS
Cat: II 2H 3+			G30/G3128-30/37 mbar	G2020 mbar
Cat: II 2E 3+			G30/G3128-30/37 mbar	G20/G2520/25 mbar
BURNERS	Nominal power [kW]	Reduced power [kW]	∅ injector[1/100 mm]	∅ injector[1/100 mm]
Auxiliary (A) 1,00 0,40	50 72 (X)
Semi-rapid (SR) 1,75	0,45 65 97 (Z)
Rapid (R) 3,00 0,75	85 128 (H3)
Double-ring compact (DCC)	4,00 1,50	100 150 (H3)

AIR VENT NECESSARY FOR GAS COMBUSTION = (2 m3/h x kW)
BURNERS Air necessary for combustion [m 3/h]
Auxiliary (A) 2,00
Semi-rapid (SR)	3,50
Rapid (R)	6,00
Double-ring compact (DCC)	8,00

LUBRICATION OF THE GAS TAPS

- In case of difficulty in the gas taps operation, call Service.

IMPORTANT

All intervention regarding installation maintenance of the appliance must be fulfilled with original factory parts. The manufacturer declines any liability resulting from the non-compliance of this obligation.

REPLACEMENT OF THE INJECTORS

If the injectors are not supplied they can be obtained from the "Service Centre".

Select the injectors to be replaced according to the "Table for the choice of the injectors".

The nozzle diameters, expressed in hundredths of a millimetre, are marked on the body of each injector.

REPLACEMENT OF THE INJECTORS OF THE COOKTOP BURNERS

To replace the injectors proceed as follows:

• Remove pan supports and burners from the cooktop.
• Using a wrench, substitute the nozzle injectors "J" (figs. 2.4, 2.5) with those most suitable for the kind of gas for which it is to be used.

The burners are conceived in such a way so as not to require the regulation of the primary air.

ADJUSTING OF THE MINIMUM OF THE TOP BURNERS

In the minimum position the flame must have a length of about 4 mm and must remain lit even with a quick turn from the maximum position to that of minimum.

The flame adjustment is done in the following way:

• Turn on the burner.
• Turn the tap to the MINIMUM position.
  • Take off the knob.
• With a thin screwdriver turn the screw "A" until adjustment is correct (fig. 2.6).

Normally for G30/G31 (LPG), the regulation screw is tightened up.

IMPORTANT: The appliance must be installed by a qualified technician according with the current local regulations and in compliance with the manufacturer instructions. Incorrect installation might cause harm and damage to people, animals or objects, for which the manufacturer accepts no responsibility.

Before carrying out any work on the electrical section of the appliance, it must be disconnected from the mains.

Connection to a good earth wiring system is absolutely essential.

The manufacturer accepts no responsibility for any inconvenience caused by failure to comply with this rule.

GENERAL

• Connection to the mains must be carried out by qualified personnel in accordance with current regulations.
• The appliance must be connected to the mains checking that the voltage corresponds to the value given in the rating plate and that the electrical cable sections can withstand the load specified on the plate.
• Models supplied with plug: The plug must be connected to an earthed socket in compliance with safety standards.
• Models supplied without plug: The appliance is supplied without a power supply plug and therefore if you are not connecting directly to the mains, a standardized plug suitable for the load must be fitted.
• The appliance can be connected directly to the mains placing an omnipolar switch with minimum opening between the contacts of 3 mm between the appliance and the mains.
• The power supply cable must not touch the hot parts and must be positioned so that it does not exceed 50°C at any point.
• Once the appliance has been installed, the switch or socket must always be accessible.
• If the power supply cable is damaged it must be substituted by a suitable cable available in the after sales service.

N.B. For connection to the mains, do not use adapters, reducers or branching devices as they can cause overheating and burning.

If the installation requires alterations to the domestic electrical system or if the socket and appliance plug are incompatible, call an expert.

He should also check that the socket cable section is suitable for the power absorbed by the appliance.

ELECTRICAL FEEDER CABLE CONNECTION

Important! This appliance must be connected to the electricity supply only by an authorised person.

WARNING: If the power supply cable is damaged, it must be replaced only by an authorised service agent in order to avoid a hazard.

To connect the supply cable:

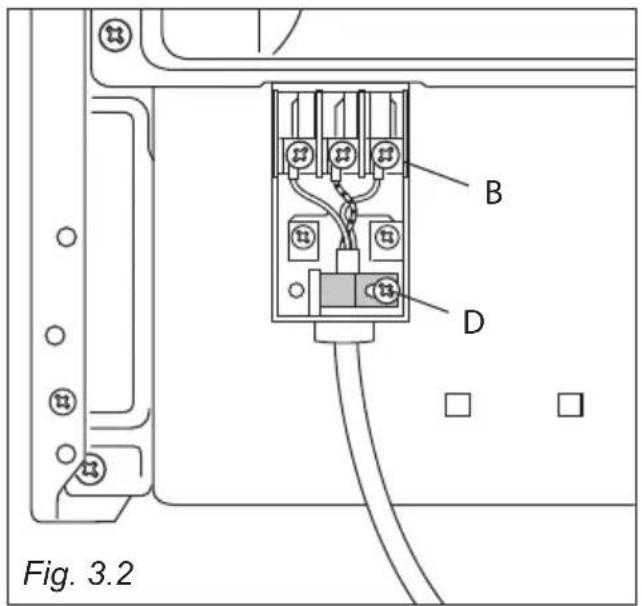

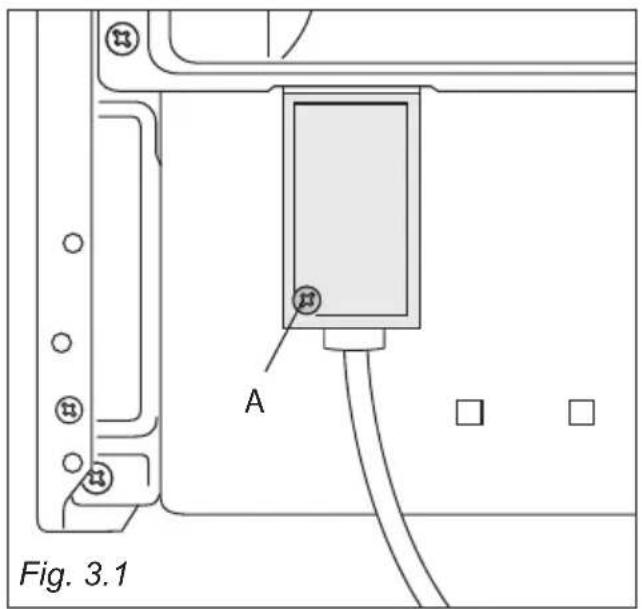

• Remove the screw securing the cover "A" on the rear of the cooker (fig. 3.1).
• Unscrew cable clamp "D" (fig. 3.2).
• Connect the wires to the terminal block "B" as shown in the diagram in figure 3.3.
  • Take up any slack in the cable and secure with the cable clamp "D".
• Replace the cover "A".

Note: The earth conductor must be left about 3 cm longer than the others.

FEEDER CABLE SPECIFICATIONS

- Type H05RR-F or Type H05V2V2-F" (resistance to temperatures of 90°C)

220-240 V ac 3 × 1.5 mm^2 (*) (**)

(*) Connection possible with plug and outlet
(**) Connection with wall box connection.

Advice for the user

1 COOKING HOBS

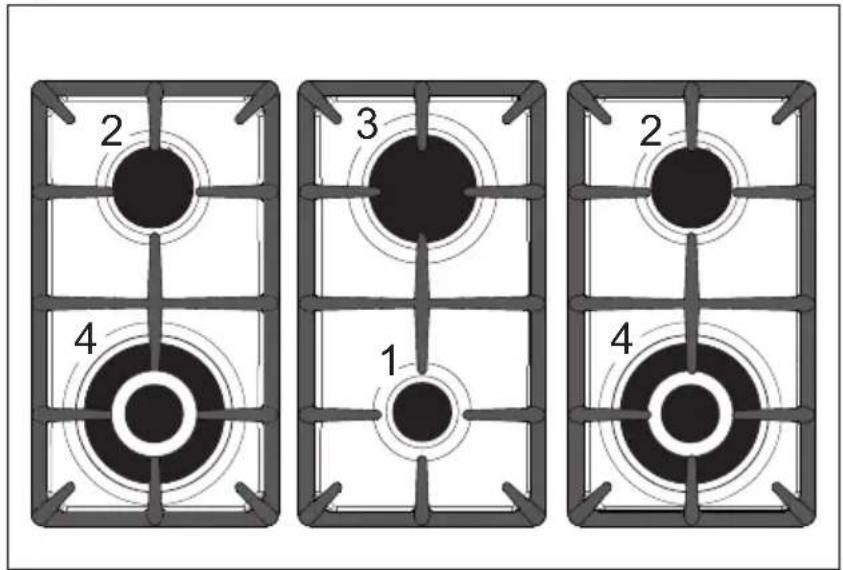

Fig. 1.1

GAS BURNERS

1. Auxiliary burner (A) 1,00 kW
2. Semi-rapid burner (SR) 1,75 kW
3. Rapid burner (R) 3,00 kW
4. Double-ring compact (DCC) 4,00 KW

Notes:

• The electric ignition is incorporated in the thermostat control knob.
• The appliance has a safety valve system fitted, the flow of gas will be stopped if and when the flame should accidentally go out.

CAUTION:

If the burner is accidentally extinguished, turn the gas off at the control knob and wait at least 1 minute before attempting to relight.

CAUTION:

Gas appliances produce heat and humidity in the environment in which they are installed. Ensure that the cooking area is well ventilated by opening the natural ventilation grilles or by installing an extractor hood connected to an outlet duct.

CAUTION:

If the appliance is used for a prolonged time it may be necessary to provide further ventilation by opening a window or by increasing the suction power of the extractor hood (if fitted).

11 10
Fig. 2.1

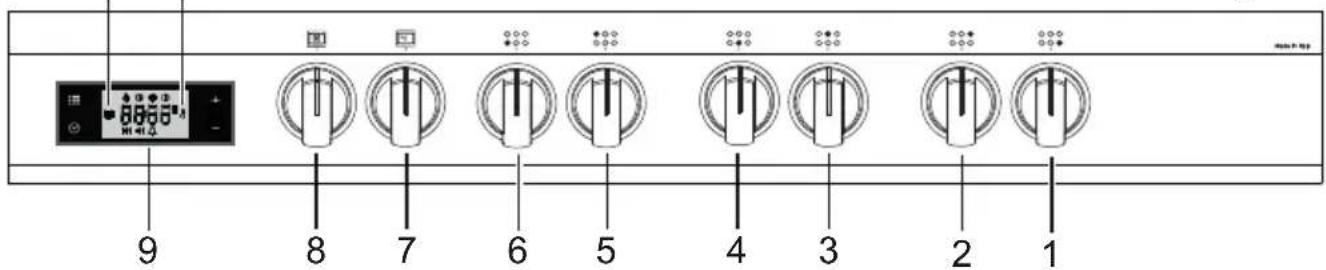

CONTROLS DESCRIPTION

1. Front left burner control knob
2. Rear left burner control knob
3. Central rear burner control knob
4. Central front burner control knob
5. Rear right burner control knob
6. Front right burner control knob
7. Multifunction oven thermostat control knob
8. Multifunction oven selector control knob
9. Electronic clock/programmer "Touch-control"

Pilot lamp:

1. Oven thermostat indicator

2. Power on indicator

NOTES:

The knobs and symbols may vary.

The symbols may be printed on the knob itself.

Note:

Your appliance has been fitted with a cooling fan to achieve optimum efficiency of the controls and to ensure lower surface temperatures are maintained.

When the oven is operating the cooling fan motor switches ON/OFF depending on temperature.

Depending on cooking temperatures and times, the cooling fan may run on even after appliance has been switched off. The duration of this time is dependent on previous cooking temperature and duration.

GAS BURNERS

Gas flow to the burners is adjusted by turning the knobs (illustrated in figs 3.1) which control the safety valves.

Turning the knob, so that the symbols printed on the knob itself point to the symbol printed on the control panel, achieves the following functions:

- symbol closed valve

- symbol

maximum aperture or flow

- symbol

minimum aperture or flow

√ The maximum aperture position permits rapid boiling of liquids, whereas the minimum aperture position allows slower warming of food or maintaining boiling conditions of liquids.
√ To reduce the gas flow to minimum rotate the knob further anti-clockwise to point the indicator towards the small flame symbol.
√ Other intermediate operating adjustments can be achieved by positioning the indicator between the maximum and minimum aperture positions, and never between the maximum aperture and closed positions.

Caution!

The cooking hob becomes very hot during operation.

Keep children well out of reach.

Diagram of a mechanical or scientific apparatus with concentric rings and directional arrows, labeled Fig. 3.1 (no readable text or symbols)

NOTES:

The knobs and symbols may vary. The symbols may be printed on the knob itself.

Diagram of a mechanical component with rotational motion arrows, labeled Fig. 3.2 (no text or symbols on the diagram itself)

N.B. When the cooker is not being used, set the gas knobs to their closed positions and also close the cock valve on the gas bottle or the main gas supply line.

To ignite the burner, the following instructions are to be followed:

1. Press in the corresponding knob and turn counter-clockwise (fig. 3.2) to the
   full flame position marked by the ★ symbol (fig. 3.1) and hold the knob in until the flame has been lit.

In the case of a mains failure light the burner with a match or lighted taper.

1. Wait for about ten seconds after the gas burner has been lit before letting go of the knob (valve activation delay);

2. Adjust the gas valve to the desired position.

If the burner flame should go out for some reason, the safety valve will automatically stop the gas flow.

To re-light the burner, return the knob to the closed “ ● position, wait for at least

1 minute and then repeat the lighting procedure.

If your local gas supply makes it difficult to light the burner with the knob set to maximum, set the knob to minimum and repeat the operation.

CHOICE OF THE BURNER

On the control panel, near every knob there is a diagram that indicates which burner is controlled by that knob.

The suitable burner must be chosen according to the diameter and the capacity used.

The burners and pans must be used in accordance with the following instructions:

DIAMETERS OF PANS WHICH MAY BE USED ON THE BURNERS

BURNERS	MINIMUM	MAXIMUM
Auxiliary	12 cm	14 cm
Semi-rapid	16 cm	24 cm
Rapid	24 cm	26 cm
Double-ring compact	26 cm	28 cm

do not use pans with concave or convex bases

It is important that the diameter of the pot be suitable to the potentiality of the burner so as not to compromise the high output of the burners and therefore energy waste. A small pot on a large burner does not give you a boiling point in a shorter amount of time since the capacity of heat absorption of a liquid mass depends on the volume and the surface of the pot. Too large a pot can cause damage to the burner and surrounding hob area.

CAUTION: Make sure the pans are central to the burner for maximum stability and greater efficiency.

Make sure the pans are not in contact with the control knobs, otherwise the flame could overheat the knobs and permanently damage them.

Fig. 3.3

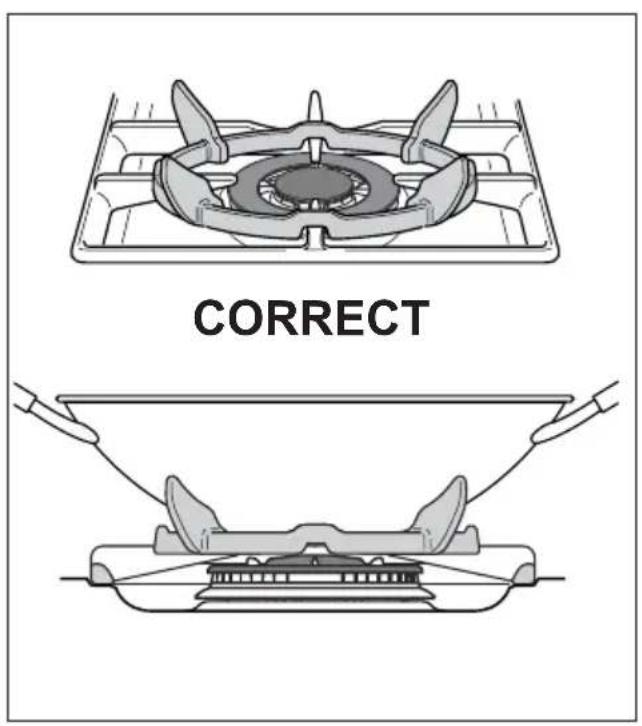

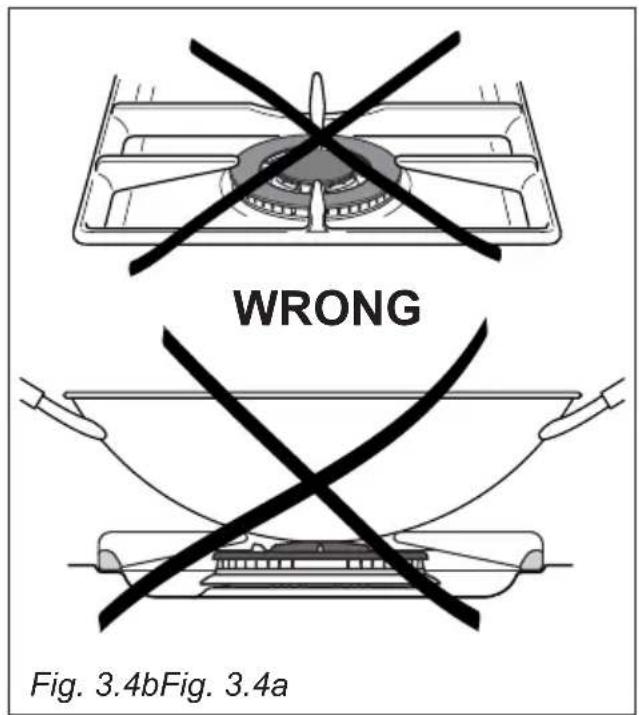

WOK STAND (Some models only) (figs. 3.4a - 3.4b)

This special grille for woks should be placed over the pan-rest for the Double-ring compact burner.

Warning:

• Using woks without this special grille may cause the burner to malfunction.
- Do not use the grille for ordinary, flat-bottomed saucepans.

IMPORTANT:

The special grille for wok pans MUST BE PLACED ONLY over the pan-rest for the Double-ring compact burner.

GENERAL FEATURES

As its name indicates, this is an oven that presents particular features from an operational point of view.

In fact, it is possible to insert 8 different programs to satisfy every cooking need.

The 8 positions, thermostatically controlled, are obtained by 4 heating elements which are:

• Bottom element
• Top element
• Grill element
• Circular element

NOTE:

Upon first use, it is advisable to operate the oven for 30 minutes in the position ☐

and for another 30 minutes at the maximum temperature (thermostat knob on position 250) in the positions and

☐, to eliminate possible traces of grease on the heating elements.

Clean the oven and accessories with warm water and washing-up liquid.

OPERATING PRINCIPLES

Heating and cooking in the MULTIFUNCTION oven are obtained in the following ways:

a. by normal convection

The heat is produced by the upper and lower heating elements.

b. by forced convection

A fan sucks in the air contained in the oven muffle, which sends it through the circular heating element and then sends it back through the muffle.

Before the hot air is sucked back again by the fan to repeat the described cycle, it envelops the food in the oven, provoking a complete and rapid cooking.

It is possible to cook several dishes simultaneously.

c. by semi-forced convection

The heat produced by the upper and lower heating elements is distributed throughout the oven by the fan.

d. by radiation

The heat is irradiated by the infra red grill element.

e. by radiation and ventilation

The irradiated heat from the infra red grill element is distributed throughout the oven by the fan.

f. by ventilation

The food is defrosted by using the fan only function without heat.

Models with glass lid only: The cooker lid must be kept open when the oven or the grill is in use.

ATTENTION: The oven door becomes very hot during operation.

Keep children away.

WARNING: The door is hot, use the handle.

ATTENTION: During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

CAUTIONS: Do not line the oven walls or base with aluminium foil.

Do not place baking trays or the drip tray on the base of the oven chamber.

NOTES: The knobs and symbols may vary. The symbols may be printed on the knob itself.

THERMOSTAT KNOB (fig. 4.2)

To turn on the heating elements of the oven, set the function selector knob on the desired program and the thermostat knob onto the desired temperature.

To set the temperature, it is necessary to make the knob indicator meet the chosen number. The elements will turn ON or OFF automatically according to the energy need which is determined by the thermostat.

The thermostat indicator light on the control panel will illuminate when the oven is switched on and turns off when the oven reaches the correct temperature.

The light will cycle on and off during cooking.

FUNCTION SELECTOR KNOB (fig. 4.1)

Rotate the knob clockwise to set the oven for one of the following functions:

OVEN LIGHT

By turning the knob onto this setting we light the oven cavity. The oven remains alight while any of the functions is on.

TRADITIONAL CONVECTION COOKING

The upper and lower heating elements are switched on. The heat is diffused by natural convection and the temperature must be regulated between 50^ C and the maximum temperature with the thermostat knob.

It is necessary to preheat the oven before introducing the foods to be cooked.

Recommended for:

For foods which require the same cooking temperature both internally and externally, i. e. roasts, spare ribs, meringue, etc.

LOWER HEATING ELEMENT

In this position only the lower element is switched on.

Heat is distributed by natural convection.

The temperature must be regulated between 50^ C and the maximum position with the thermostat knob.

Recommended for:

To complete cooking of dishes that require higher temperature at the bottom.

UPPER HEATING ELEMENT

In this position only the upper element is switched on.

Heat is distributed by natural convection.

The temperature must be regulated between 50^ C and the maximum position with the thermostat knob.

Recommended for:

To complete cooking of dishes that require higher temperature at the top.

GRILLING

The infra-red heating element is switched on. The heat is diffused by radiation.

Use with the oven door closed and with the thermostat knob to between 50 and 225°C for 15 minutes, then to position 175°C.

In this position also the rotisserie motor is switched on for cooking with the rotisserie.

For correct use see chapter "USE OF THE GRILL" and "USE OF THE ROTISSERIE".

Note: It is recommended that you do not grill for longer than 30 minutes at any one time.

Attention: the oven door becomes very hot during operation. Keep children away.

Recommended for:

Intense grilling action for cooking with a broiler; browning, crisping, "au gratin", toasting, etc.

VENTILATED GRILL COOKING

The infra-red ray grill and the fan are on. The heat is mainly diffused by radiation and the fan then distributes it throughout the oven. The temperature must be regulated between 50^ C and 175^ C maximum for max 30 minutes, with the thermostat knob.

It is necessary to preheat the oven for about 5 minutes.

Use with the oven door closed.

Attention: The oven door becomes very hot during operation. Keep children away.

For correct use see chapter "GRILLING AND AU GRATIN".

Recommended for:

For grill cooking when a fast outside browning is necessary to keep the juices in, i. e. veal steak, steak, hamburger, etc.

HOT AIR COOKING

The circular element and the fan are on.

The heat is diffused by forced convection and the temperature must be regulated between 50°C and the maximum temperature with the thermostat knob.

It is not necessary to preheat the oven.

Recommended for:

For foods that must be well done on the outside and tender or rare on the inside, i. e. lasagna, lamb, roast beef, whole fish, etc.

CONVECTION COOKING WITH VENTILATION

The upper and lower heating elements and the fan turn on.

The heat coming from the top and bottom is diffused by forced convection.

The temperature must be regulated between 50^ and the maximum temperature with the thermostat knob.

Recommended for:

For foods of large volume and quantity which require the same internal and external degree of cooking; for ie: rolled roasts, turkey, legs, cakes, etc.

DEFROSTING FROZEN FOODS OR SLOW HEATING AND KEEPING FOOD WARM

Only the oven fan is on. To be used with the thermostat knob on “” because the other positions have no effect. The defrosting is done by simple ventilation without heat.

Recommended for:

To rapidly defrost frozen foods: 1 kilogram requires about one hour.

The defrosting times vary according to the quantity and type of foods to be defrosted.

SLOW HEATING AND KEEPING FOOD WARM

The temperature must be regulated between 60^ C and 80^ C with the thermostat knob. The upper and lower heating elements and the fan turn on.

The heat coming from the top and bottom is diffused by forced convection.

Recommended for:

To keep foods hot after cooking. To slowly heat already cooked foods.

COOKING ADVICE

STERILIZATION

Sterilization of foods to be conserved, in full and hermetically sealed jars, is done in the following way:

a. Set the switch to position .
b. Set the thermostat knob to position 185^ C and preheat the oven.
c. Fill the dripping pan with hot water.
d. Set the jars onto the dripping pan making sure they do not touch each other and the door and set the thermostat knob to position 135°C.

When sterilization has begun, that is, when the contents of the jars start to bubble, turn off the oven and let cool.

SIMULTANEOUS COOKING OF DIFFERENT FOODS

The MULTIFUNCTION oven set on position 🏠 and 🏠 gives simultaneous heterogeneous cooking of different foods.

Different foods such as fish, cake and meat can be cooked together without mixing the smells and flavours.

This is possible since the fats and vapors are oxidized while passing through the electrical element and therefore are not deposited onto the foods.

The only precautions to follow are:

• The cooking temperatures of the different foods must be as close to as possible, with a maximum difference of 20^ - 25^ .
• The introduction of the different dishes in the oven must be done at different times in relation to the cooking times of each one.

The time and energy saved with this type of cooking is obvious.

REGENERATION

Set the switch to position 📄 and the thermostat knob to position 150°C.

Bread becomes fragrant again if wet with a few drops of water and put into the oven for about 10 minutes at the highest temperature.

ROASTING

To obtain classical roasting, it is necessary to remember:

• that it is advisable to maintain a temperature between 180 and 200^ .
  • that the cooking time depends on the quantity and the type of foods.

USE OF THE GRILL

Preheat the oven for about 5 minutes. Introduce the food to be cooked, positioning the rack as close to the grill as possible.

The dripping pan should be placed under the rack to catch the cooking juices and fats.

Grilling with the oven door closed.

GRILLING AND "AU GRATIN"

Grilling may be done using the grill+fan setting 📁. in this setting the hot air completely surrounds the food that is to be cooked, to give a more even and rapid cooking process.

The temperature must be regulated between 50^ C and 225^ C maximum with the thermostat knob. And after having preheated the oven, simply place the food on the shelf. Close the door and let the oven operate with the thermostat on, until grilling is complete.

Adding a few dabs of butter before the end of the cooking time gives the golden “au gratin” effect.

Grill with the oven door closed.

Do not grill for longer than 30 minutes at any one time.

CAUTION: The oven door becomes very hot during operation. Keep children well out of reach.

Attention: During use the appliance becomes hot. Keep children well out of reach.

OVEN COOKING

To cook, before introducing the food, preheat the oven to the desired temperature.

When the oven has reached the desired temperature, introduce the food, control the cooking time and turn off the oven 5 minutes before the theoretical time to recuperate the stored heat.

COOKING EXAMPLES

Temperatures are approximate as they vary depending on the quality and amount of food.

Remember to use ovenproof dishes and to adjust the oven temperature during cooking if necessary.

DISH TEMPERATURE

Lasagne	220°C
Baked pasta 220°C
Pizza 225°C
Creole rice 225°C
Baked onions 190°C
Spinach crêpes 185°C
Potatoes baked in milk 185°C
Stuffed tomatoes 180°C
Cheese soufflé 170°C
Roast veal 180°C
Grilled veal chops 210°C
Chicken breasts with tomato 180°C
Grilled chicken - roast chicken 190°C
Veal loaf 175°C
Roast beef 170°C
Fillet of sole 175°C
Aromatic hake 170°C
Beignets	160°C
Ring cake 150°C
Plum tart 170°C
Jam tartlets 160°C
Sponge cake 170°C
Sweet dough 160°C
Sweet puffs 170°C
Plain sponge cake 170°C

ROTISSERIE

This is used for spit roasting under the grill and comprises:

• an electric motor fitted to the rear of the oven;
• a stainless steel skewer provided with slide-out heatless handgrip and two sets of adjustable forks;
• a skewer support to be fitted in the middle runner.

The rotisserie motor is operated by a switch knob (fig. 4.1 position).

The rotation direction of the rotisserie can be either clockwise or counter-clockwise.

USE OF THE ROTISSERIE (fig. 4.3)

• Insert the tray into the lowest rack holders of the oven and insert the rod support into the intermediate rack holders.
• Put the meat to be cooked onto the rod, being careful to secure it in the center with the special forks.

• Important! Take care, the forks are sharp!

• Insert the rod into the side gear opening "P" (fig. 4.3).
• Remove the grip "H" by turning it to the left.
• Insert completely the rotisserie support; the shaft "S" must be inserted in the spit motor collar "G".
• Fit the heat shield and switch on the grill and turnspit.

The rotation direction of the rotisserie can be either clockwise or counterclockwise.

Grilling with the oven door closed.

Attention: The oven door becomes very hot during operation.

Keep children away.

It is recommended that you do not grill for longer than 30 minutes at any one time.

Description of display symbols:

1. Oven on
2. Cooking time
3. End of cooking time
4. Timer
5. Oven temperature
6. AM/PM time format
7. Screen brightness
8. Acoustic signal volume

9. Time of day setting

10. Programmer 'touch' control panel key lock

Description of the ‘touch control’ panel symbols:

1. Program selection
2. Digit backward setting for all functions
3. Digit forward setting for all functions
4. Menu selection

IMPORTANT NOTE: When using the timer and during a semi-automatic or automatic cooking, the countdown of the function with less time remaining prevails on the display.

ATTENTION - MOST IMPORTANT:

ELECTRONIC PROGRAMMER DISPLAY CLEANING

Strictly follow the information indicated in the chapter "CLEANING AND MAINTENANCE".

"TOUCH-CONTROL" KEYS

The “touch-control” keys shall be operated by the fingers (just by touching the key). When using touch controls it is best to use the ball of your finger rather than the tip. Program and menu selection: after starting the procedure, the selection is automatically deactivated after approx. 5 seconds from the last touch on the display.

SETTING THE CLOCK

When connecting for the first time, or after a power failure, the word "OFF" flashes on the display and the " ℓ " symbol is lit. Adjust the time touching the "+" or "-" key.

Important: The oven does not operate, in manual cooking, without first having set the clock.

To change the time with the appliance already installed, touch the "key for more than 2 seconds, then touch it again until the "symbol flashes. Then adjust the time, within 5 seconds, using the "+" or "—"".

Important: It is not possible to adjust the clock if a cooking program is in progress.

USING THE TIMER

You can use the timer at any time, even when the oven is not in use.

ATTENTION - MOST IMPORTANT: This is only an alarm that DOES NOT switch off the oven or grill.

REMEMBER TO TURN OFF THE OVEN/GRILL MANUALLY.

The timer can be set for a maximum time of 23 hours and 59 minutes.

1. To set the timer, with the appliance already connected, touch the " ”key (several times) until the “ ” symbol flashes on the display. Set the time (increase in minutes) within 5 seconds using the “+” or “—”. key. At the end of the adjustment the display shows the countdown.

2. At the end of the count, the timer starts beeping and the “” symbol flashes on the display. Touch any key to turn off the acoustic signal that would otherwise stop after 7 minutes.

3. Turn the oven off manually (switch and thermostat knobs in the off position) if you do not wish to continue with manual cooking.

To reset the timer in operation at any time:

1A. Only timer function active (no semi-automatic or automatic cooking in progress): touch the " ” key for 3 seconds..

1B. With semi-automatic or automatic cooking in progress: touch the key several times "until the " symbol flashes on the display. Then touch the "—" key within 5 seconds until "00:00" appears on the display.

1. The time of day is shown on the display.

SEMI-AUTOMATIC COOKING

This is used to automatically switch off the oven after the desired cooking time has elapsed. Check the clock shows the correct time.

The semi-automatic cooking program can be set for a maximum period of 10 hours.

1. Select the function and temperature (function and temperature knobs). The oven will come on.
2. Touch the "☐" key until the "☐" symbol flashes on the display. Set the cooking time (increase in minutes - consider the preheating time, if necessary) within 5 seconds using the "+" or "—". At the end of the adjustment the display shows the countdown.
3. At the end of the count the oven turns off, the timer starts beeping, the " " symbol flashes and the word "End" appears on the display.
4. Turn the temperature and function knobs to the off position.
5. Touch the " ☑" key to deactivate the acoustic signal (which otherwise will stop after 7 minutes) and to return the programmer to manual mode (the time is shown on the display). If instead the acoustic signal is deactivated with one of the other keys, after deactivation also touch the " ☑" key to return the programmer to manual mode (the time is shown on the display).

To cancel the semi-automatic cooking program at any time:

1A. Only semi-automatic cooking function active (no timer in use): touch the " 🔒 " key for 3 seconds, the " ➕ symbol and the word "End" (fine) are shown on the display.
1B. With active timer: touch the "☐" key several times until the "☐" symbol flashes. Then touch the “—” key within 5 seconds until "☐:☐" appears on the display, replaced after a few seconds by the "☐" symbol and the word "End".
2. Touch the " ✅" key again to return the programmer to manual mode (the time of day is shown on the display). If cooking is finished turn the temperature and function knobs to the off position, otherwise continue cooking and then remember to turn the oven off manually.

AUTOMATIC COOKING

Use automatic cooking to automatically turn the oven on, cook, and then turn the oven off. Check the clock shows the correct time.

1. Select the function and temperature (function and temperature knobs). The oven will come on.
2. Decide the cooking time considering the preheating time, if necessary, and set it as described above in the "SEMI-AUTOMATIC COOKING" chapter.
3. Touch the "☐" key several times until the "→" symbol appears on the display. Then set the time at which you want the oven to turn off, touching the "+" or "-" key.

4. If the cooking is not started immediately, the display shows the current time of day and the "12" and " " symbols. The oven turns off but now it is set for automatic operation.

5. To check the cooking time, touch the " ✅ " key once, the " |→| " symbol flashes.

6. To check the turn-off time, touch the key ⏻ several times until the → symbol flashes.

To cancel the automatic cooking program at any time, proceed as described in the "SEMI-AUTOMATIC COOKING" chapter.

Turn the temperature and function knobs to the off position, otherwise continue cooking and then remember to turn the oven off manually.

ATTENTION - VERY IMPORTANT (AUTOMATIC OR SEMI-AUTOMATIC COOKING):

If a very short power interruption occurs, the oven keeps the programming.

If the interruption is instead longer than a few tens of seconds, the automatic cooking is cancelled. In this case, turn the temperature and function knobs to the off position and restart programming if necessary.

USER PREFERENCES SETTINGS

PROGRAMMER 'TOUCH CONTROL' PANEL KEY LOCK

This function is used to prevent the accidental touch of the programmer selection keys and to avoid unintentionally activating or modifying its functions.

The key lock can be activated at any time, with a cooking in progress or with the oven off.

To lock:

• Touch the " : " key for more than 2 seconds until the " 🔒 " indicator light starts flashing. Then touch the "+" key to activate the key lock, the word "On", appears on the display, wait a few seconds until the operation is completed. When this function is active, the " 🔒 indicator light is on.

To unlock:

- Touch the " :≡ " key for more than 2 seconds until the " 🔒 " indicator light starts flashing. Then touch the “—” key to deactivate the key lock, the word "OFF" appears on the display, wait a few seconds until the operation is completed. When this function is not active, the " 🔒 indicator light is off.

ACOUSTIC SIGNAL TONE SETTING

It is possible to select three sound tones.

• Touch the " : : : " key for more than 2 seconds, then touch the same key several times until the " symbol flashes.
• Touch the “+” or “—”; key; the display shows the tone set (“b-01”, “b-02” or “b-03”).
• The last tone displayed remains active.

It is possible to select three brightness levels.

• Touch the " : " key for more than 2 seconds, then touch the same key several times until the " symbol flashes.
• Touch the “+” or “—”; key; the display shows the brightness set (“d-01”, “d-02” or “d-03”).
• The last brightness displayed remains active.

TIME FORMAT

It is possible to choose the 24 hour or 12 hour clock format.

• To activate the 12 hour format, touch the “+”, key for more than 5 seconds until the "Amor" "Symbol is activated.
• To activate the 24 hour format, touch the “+”, key for more than 5 seconds until the "Amor" "Symbol is deactivated.

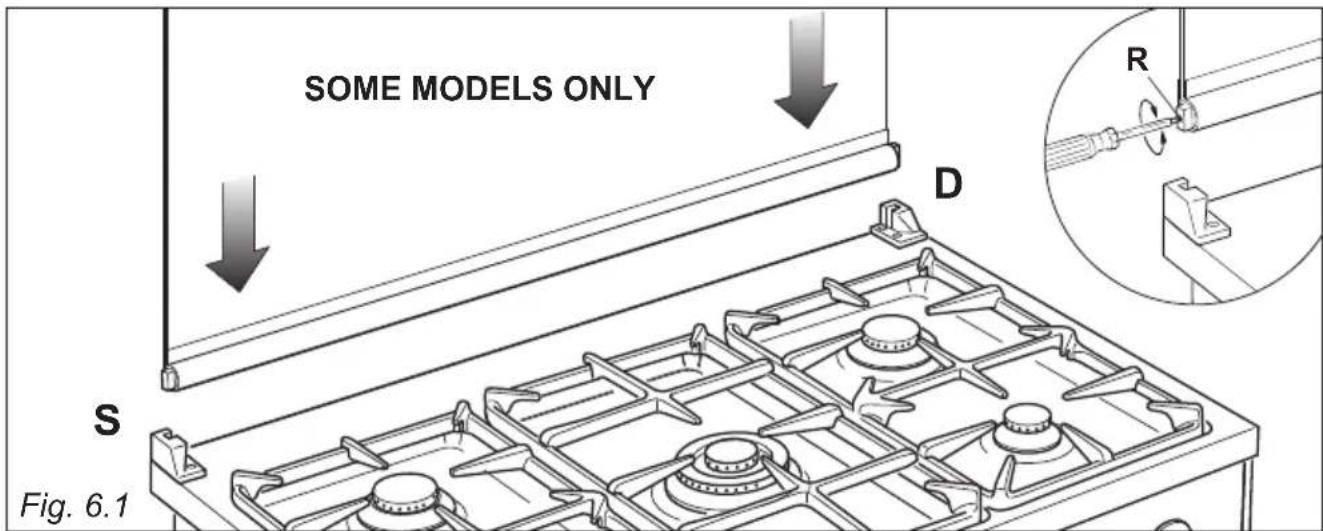

GLASS LID (SUPPLIED WITH SOME MODELS ONLY)

For cleaning purposes, the lid can be easily removed upwards once taken to the upright position.

Should the hinges slip off, replace them in their housing being careful that:

- The right housing must receive the hinge marked "D" while the left housing must receive the hinge marked "S" (fig. 6.1).

REGULATING OF THE BALANCE

Lower the lid and check the correct balance. While opened at 45^ it should hang up. The springs of the hinges can be adjusted if necessary by turning the screws “R” clockwise (fig. 6.1).

Models with glass lid

Prohibition sign showing a crossed lever mechanism cutting off leaves, no text or symbols present

Do not shut lid when burner alight. ATTENTION

√ Do not lower the glass lid when the gas burners are still hot or when the oven is working or still hot.
√ Do not lay on the glass lid hot pans and heavy kitchen utensils.
√ Dry off any liquid which may have spilt on the cover before opening it.

GENERAL ADVICE

• Before you begin cleaning, you must ensure that the appliance is disconnected from the electrical power supply.
• When the appliance is not being used, it is advisable to keep the gas tap closed.
• The periodical lubrication of the gas taps must be done only by specialized personnel.
• If a tap becomes stiff, do not force; contact your local After Sales Service Centre.
• It is advisable to clean when the appliance is cold and especially when cleaning the enamelled parts.
• Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces.
• Avoid using cleaning products with a chlorine or acidic base.
• Important: The use of suitable protective clothing/gloves is recommended when handling or cleaning of this appliance.

WARNING: When correctly installed, your product meets all safety requirements laid down for this type of product category. However special care should be taken around the rear or the underneath of the appliance as these areas are not designed or intended to be touched and may contain sharp or rough edges, that may cause injury.

ELECTRONIC PROGRAMMER DISPLAY CLEANING

Clean the programmer display using a soft cloth, warm water and neutral soap, or a soft cloth with a liquid detergent (non-abrasive).

When cleaning, be careful to move the cloth in one direction only.

Then wipe the display with a damp cloth and dry it with a soft cloth.

IMPORTANT:

DO NOT use chlorine-based or acid-based cleaning products, abrasive products or non-neutral detergents as they may cause irreparable damage to the surface. DO NOT spray cleaning liquids directly on the programmer display.

STAINLESS STEEL AND ALUMINIUM PARTS, PAINTED AND SILK-SCREEN PRINTED SURFACES

Clean using an appropriate product.

Always dry thoroughly.

IMPORTANT: these parts must be cleaned very carefully to avoid scratching and abrasion. You are advised to use a soft cloth and neutral soap.

CAUTION: Do not use abrasive substances or non-neutral detergents as these will irreparably damage the surface.

Note: Continuous use may cause a change in the glaze around the burners, corresponding to the areas exposed to the heat.

Important: The manufacturer declines all liability for possible damage caused by the use of unsuitable products to clean the appliance.

Attention!

The appliance gets very hot, mainly around the cooking areas. It is very important that children are not left alone in the kitchen when you are cooking.

Do not use a steam cleaner because the moisture can get into the appliance thus make it unsafe.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

ENAMELLED PARTS

All the enamelled parts must be cleaned with a sponge and soapy water or other non-abrasive products.

Dry preferably with a microfibre or soft cloth.

Acidic substances like lemon juice, tomato sauce, vinegar etc. can damage the enamel if left too long.

INSIDE OF OVEN

The oven should always be cleaned after use when it has cooled down.

The cavity should be cleaned using a mild detergent solution and warm water. Suitable proprietary chemical cleaners may be used after first consulting with the manufacturers recommendations and testing a small sample of the oven cavity.

Abrasive cleaning agents or scouring pads/cloths should not be used on the cavity surface.

NOTE: The manufacturers of this appliance will accept no responsibility for damage caused by chemical or abrasive cleaning.

Let the oven cool down and pay special attention no to touch the hot heating elements inside the oven cavity.

GAS TAPS

Do not let cleaning products come into contact with the valves.

Periodic lubrication of the gas taps must be carried out by specialist personnel only.

In the event of operating faults in the gas taps, call the Service Department.

BURNERS AND PAN SUPPORTS

These parts must be cleaned using a sponge and soapy water or other suitable non-abrasive products. Dry with a soft cloth.

Warning! Not dishwasher safe.

After cleaning, the burners and their flame spreaders must be well dried and correctly replaced.

It is very important to check that the burner flame spreader and the cap have been correctly positioned. Failure to do so can cause serious problems with correct combustion and may cause irreversible damage to the hob surface.

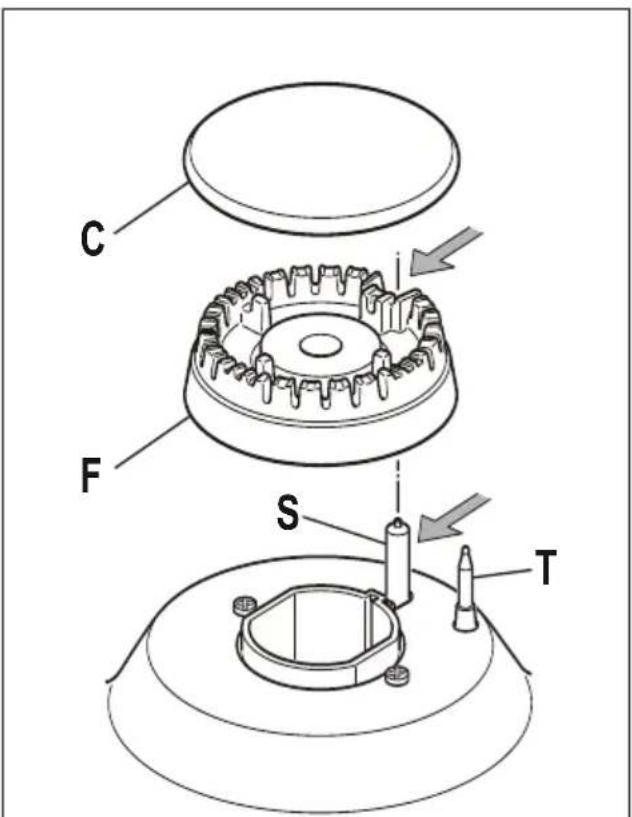

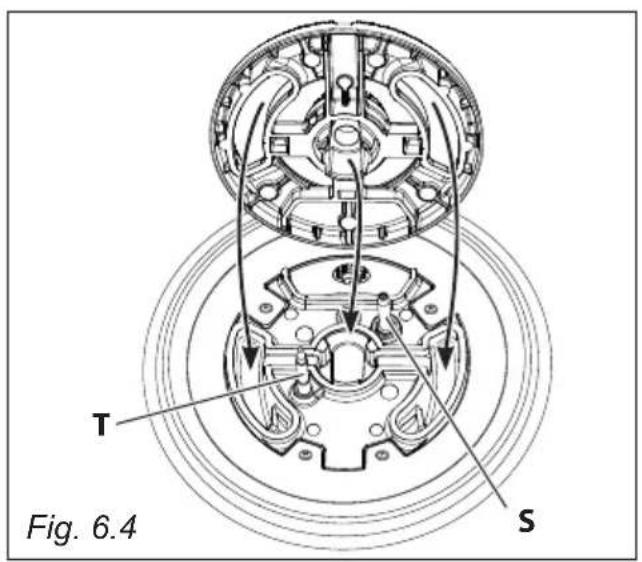

Check that the electrode "S" (figs. 6.2 - 6.4) next to each burner is always clean to ensure troublefree sparking.

Check that the probe "T" (figs. 6.2 - 6.4) next to each burner is always clean to ensure correct operation of the safety valves.

Both the probe and ignition plug must be very carefully cleaned.

Note: To avoid damage to the electric ignition do not use it when the burners are not in place.

Note: Continuous use may cause a change in the glaze around the burners and grids, corresponding to the areas exposed to the heat. This is a natural phenomenon and does not prevent the parts from working properly.

CORRECT REPLACEMENT OF THE AUXILIARY SEMI-RAPID AND RAPID BURNERS

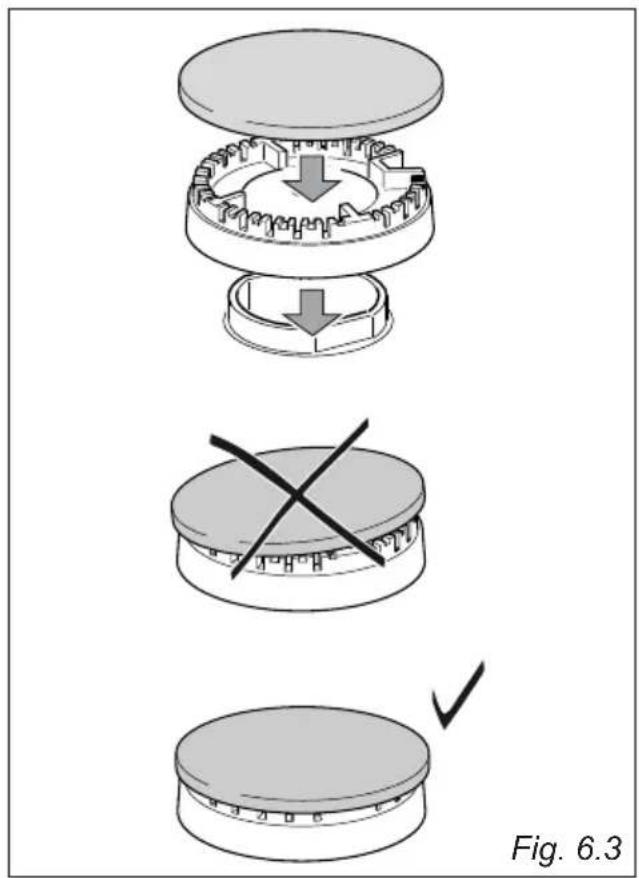

It is very important to check that the burner flame distributor "F" and the cap "C" has been correctly positioned (see figs. 6.2 - 6.3) - failure to do so can cause serious problems.

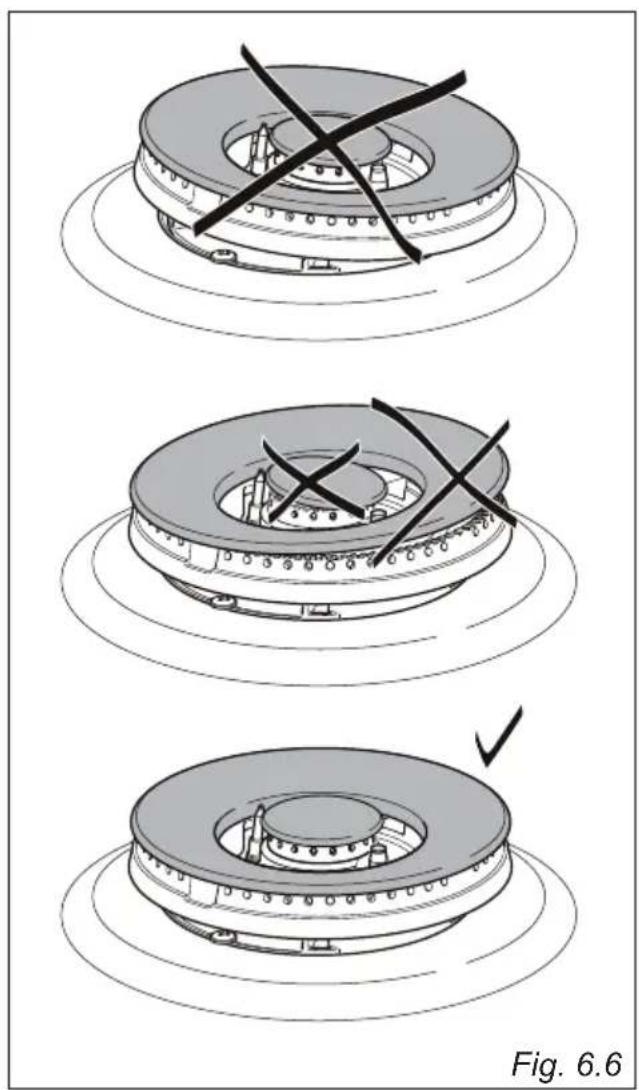

CORRECT REPLACEMENT OF THE DOUBLE RING COMPACT BURNER

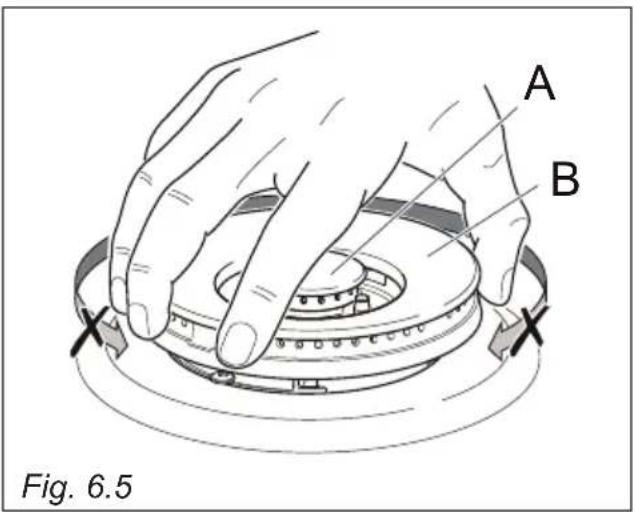

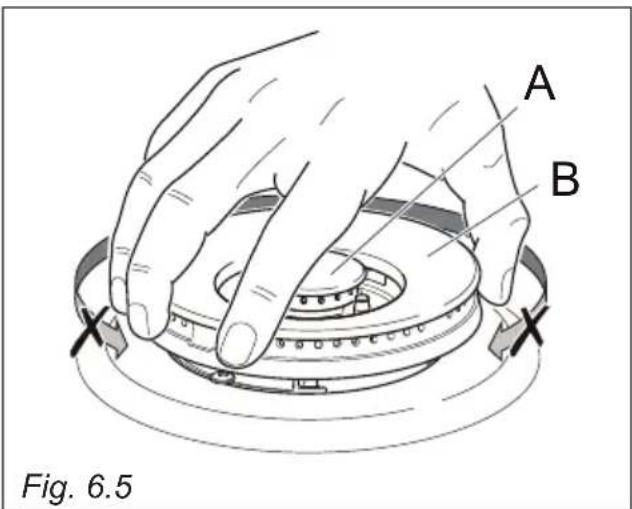

The double ring compact burner must be correctly positioned (see fig. 6.6); the burner rib must be enter in their logement as shown by the arrow (fig. 6.4).

The burner correctly positioned must not rotate (fig. 6.5).

Then position the cap “A” and the ring “B” (figs. 6.5 - 6.6).

Fig. 6.2

Three-step diagram showing a mechanical component with cross marks, no text or symbols present

ASSEMBLY AND DISMANTLING OF THE SIDE RUNNER FRAMES

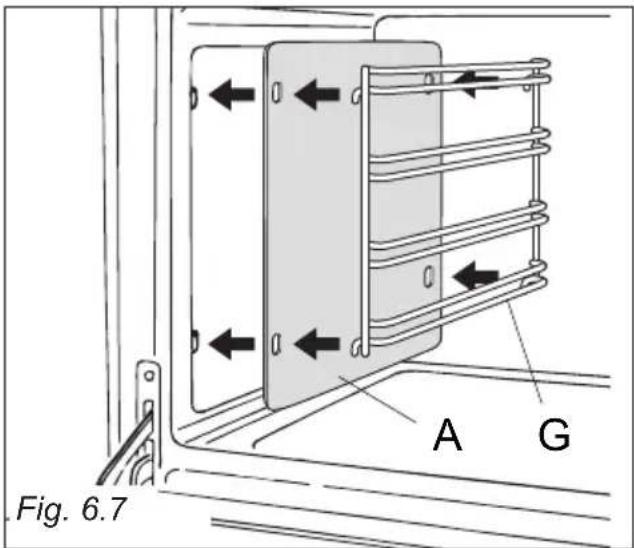

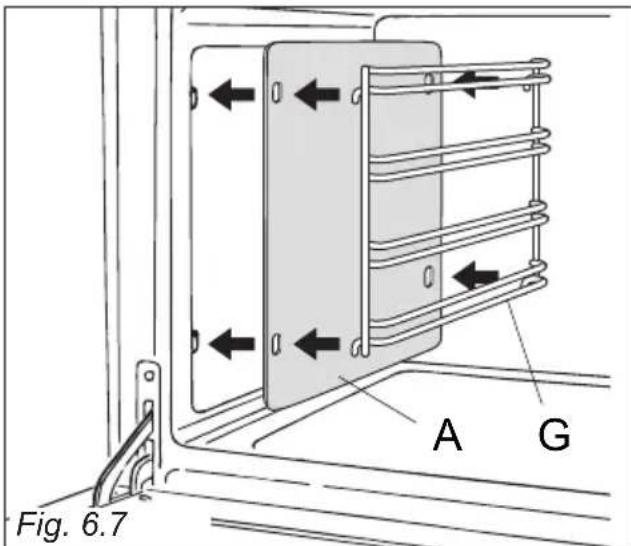

- Hang up the wire racks "G" on the oven walls (fig. 6.7).

In the models with catalytic panels supplied: interpose the catalytic panels "A" (fig. 6.7).

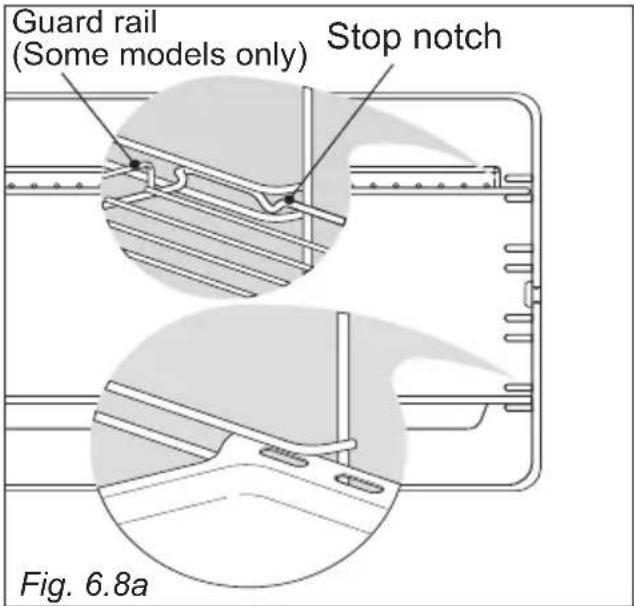

- Slide in, on the guides, the shelf and the tray (figs. 6.8a, 6.8b).

The shelf must be fitted so that the safety catch, which stops it sliding out, faces the inside of the oven.

Some models only: The shelf must be fitted so that the safety catch, which stops it sliding out, faces the inside of the oven; the guard rail shall be at the back.

• To dismantle, operate in reverse order.

OVEN TRAY

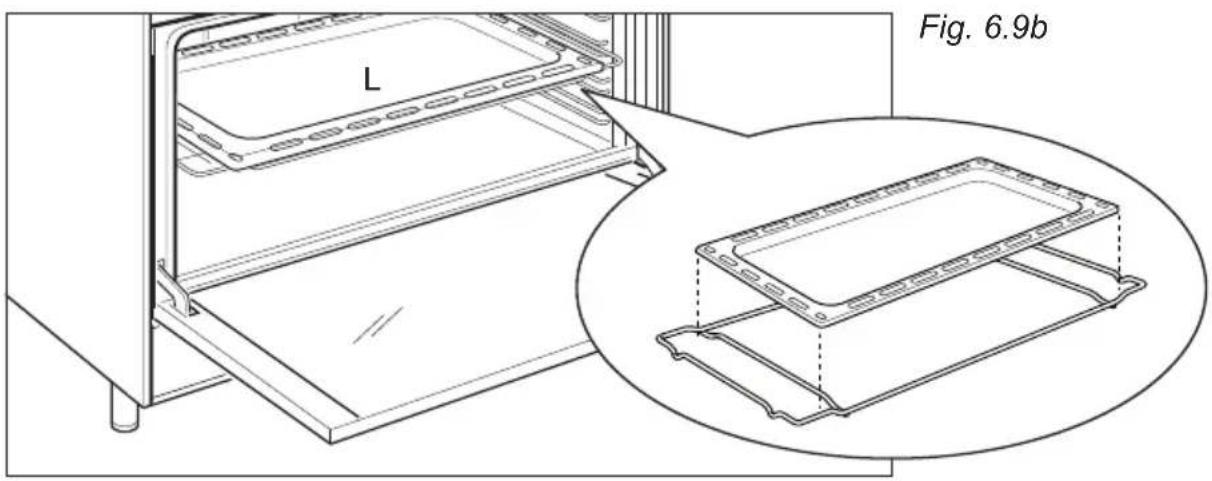

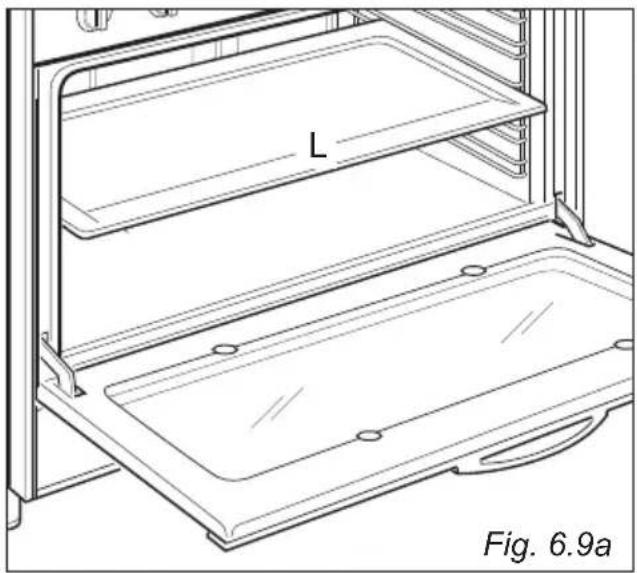

The oven tray "L" must be inserted into the side runners (figs. 6.8a, 6.9b).

Only for the "fan assisted" models:

The oven tray must be correctly placed on its wire support then inserted into the side runners (figs. 6.8b, 6.9b).

Line drawing of a refrigerator interior showing the door, tray, and shelf (no text or symbols)

Technical line drawing of a kitchen appliance with an open drawer and a close-up view of the tray (no text or symbols)

GREASE FILTER (some models only)

- A special screen can be fitted at the back of the oven to catch grease particles, mainly when meat is being roasted.

Slide in the grease filter on the back of the oven as in fig. 6.10.

- Clean the filter after any cooking!

The grease filter can be removed for cleaning and should be washed regularly in hot soapy water.

Always clean the filter after cooking as any solid residues on it might adversely affect the oven performance.

• Always dry the filter properly before fitting it back into the oven.

CAUTION: When baking pastry etc. this filter should be removed.

Diagram showing two devices above a circular grid pattern, labeled Fig. 6.10 (no text or symbols on the diagram itself)

TELESCOPIC SLIDING SHELF SUPPORTS (some models only)

The telescopic sliding shelf support makes it safer and easier to insert and remove the oven shelf.

It stops when it is pulled out to the maximum position.

Important! When installing the sliding shelf support, make sure that you fit:

• The slides to the top wire of a rack. They do not fit on the lower wire.
  • The slides so that they run out towards the oven door.
• Both sides of each pair of shelf slides.
• Both sides on the same level.

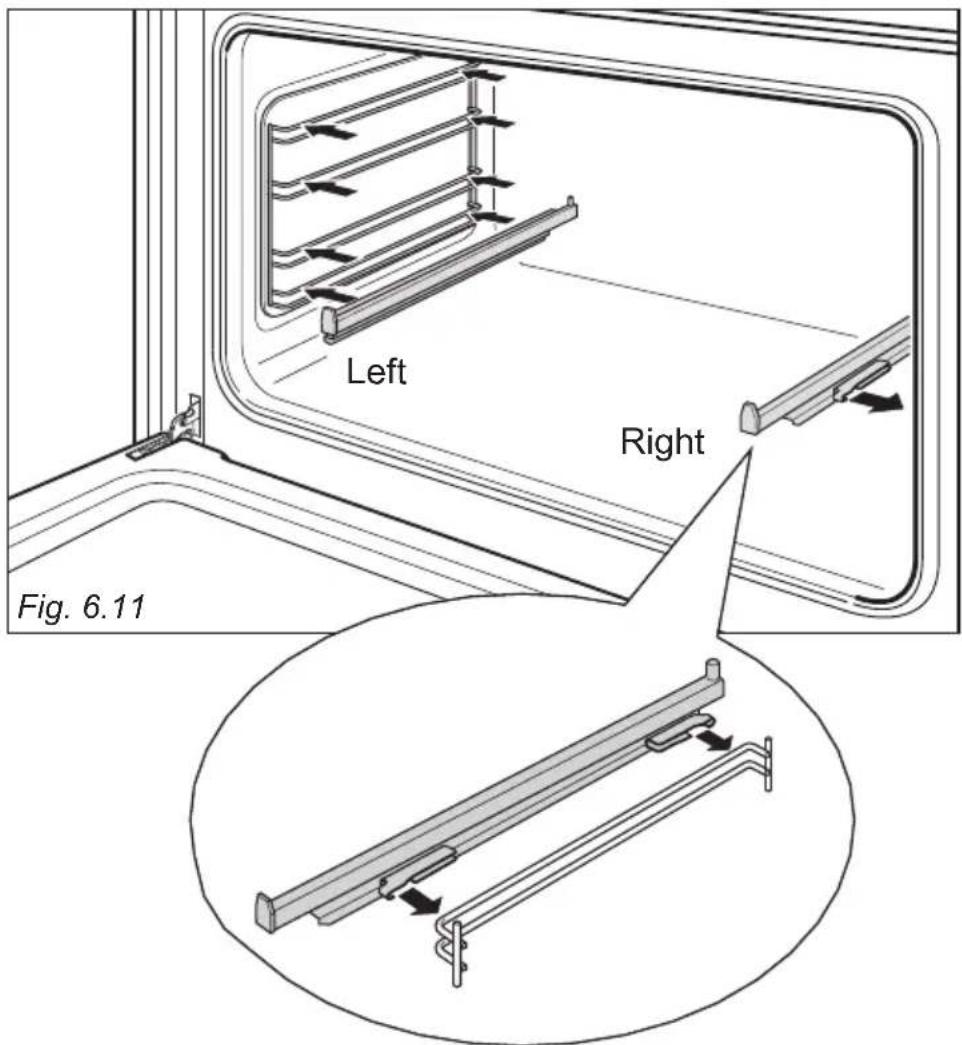

To fix the sliding shelf supports onto the side racks:

• Fit the side runner frames into the holes on the side walls inside the oven. (fig. 6.11).
• Fit the sliding shelf supports onto the top wire of a rack and press (fig. 6.11). You will hear a click as the safety locks clip over the wire.

IMPORTANT NOTE: When cooking with the rotisserie DO NOT position the grill tray on the sliding shelf supports.

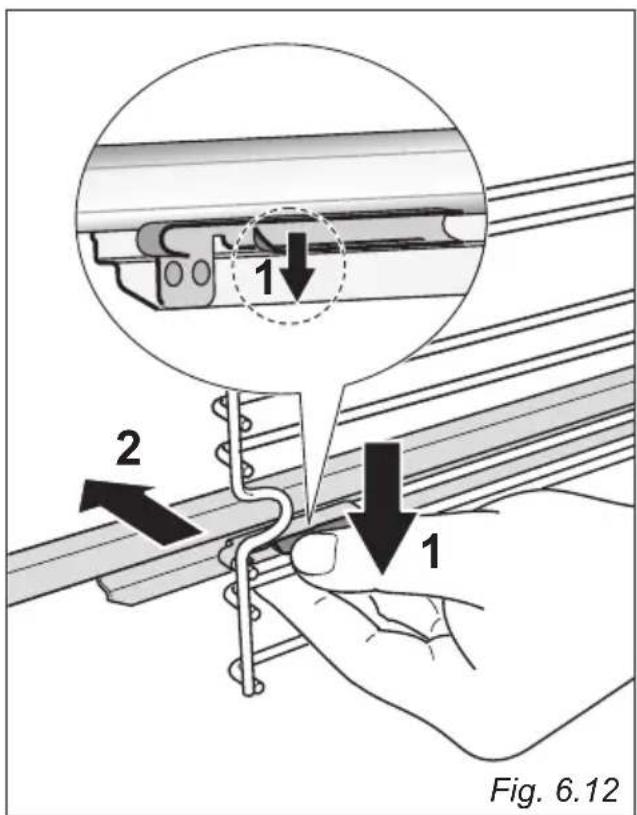

To remove the RH and LH sliding guides from the wire support:

• Find the safety locks. These are the tabs that clip over the fixing wire (arrow 1 in fig. 6.12).
• Pull the safety locks away from the fixing wire to release the sliding guide (arrow 2 in fig. 6.12).

Cleaning the sliding shelf supports:

• Wipe the supports with a damp cloth and a mild detergent only.
• Do not wash them in the dishwasher, immerse them in soapy water, or use over cleaner on them.

ADVICE FOR USE AND MAINTENANCE OF SELF CLEANING PANELS

The self cleaning panels are covered with a special microporous enamel which, absorbs and removes oil and fat splashes during normal baking over 200°C.

If, after cooking very fatty foods, the panels remain dirty, operate the oven empty on max temperature for about 30 minutes.

These panels do not require to be cleaned, however it is advised to periodically remove them from the oven (at least the side panels) and to wash them with tepid soapy water and then wipe off with a soft cloth.

DO NOT CLEAN OR WASH THEM WITH ABRASIVE PRODUCTS OR WITH PRODUCTS CONTAINING ACIDS OR ALKALIS.

The side panels are reversible and when the microporous enamel degrades, they can be turned to the other side.

REPLACING THE OVEN LAMP

WARNING: Ensure the appliance is switched off and disconnected from the electrical power supply before replacing the lamp to avoid the possibility of electric shock.

• Let the oven cavity and the heating elements to cool down.
• Switch off the electrical supply.
• Remove the protective cover "A" (fig. 6.13).
• Replace the halogen lamp “C” with a new one suitable for high temperatures (300°C) having the following specifications: 220-240 V, 50-60Hz and same power (check watt power as stamped in the lamp itself) of the replaced lamp.

IMPORTANT WARNING: Never replace the bulb with bare hands; contamination from your fingers can cause premature failure. Always use a clean cloth or gloves.

• Refit the protective cover.

Note: Oven lamp replacement is not covered by your guarantee.

The intended purpose of the lamp, fitted on this appliance, is to illuminate the oven cavity and thus help the user to better monitor the food while cooking. This lamp is not suitable for other usage (e.g. environments lighting).

This product contains a light source of energy efficiency class G.

STORAGE COMPARTMENT

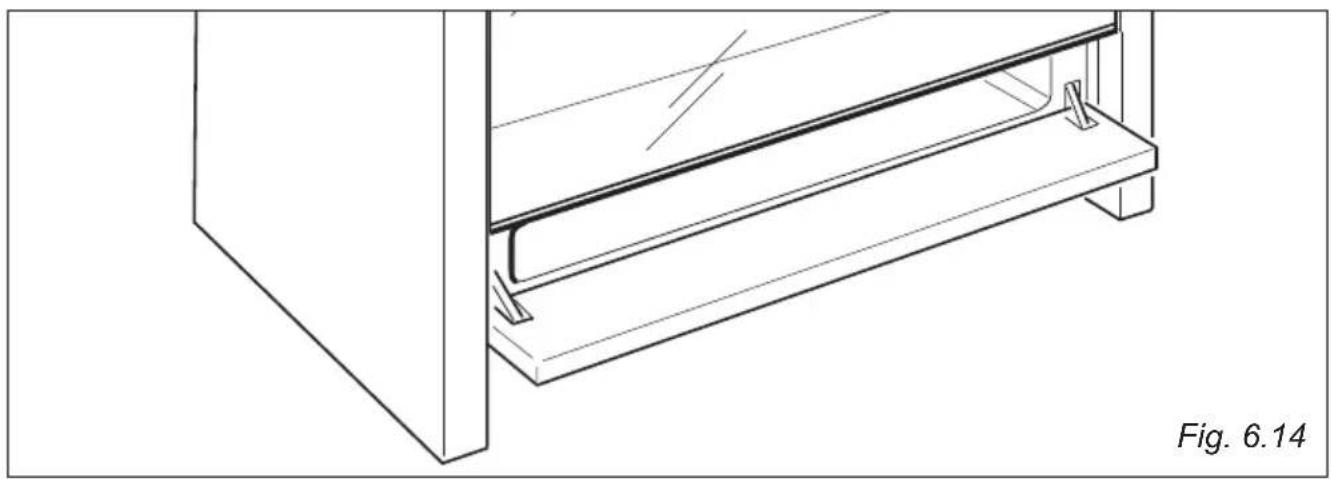

The storage compartment is accessible through the pivoting panel (fig. 6.14).

Technical line drawing of a structural support frame with no text or symbols

Do not store flammable material in the oven or in the storage compartment.

REMOVING THE OVEN DOORS

The oven door can easily be removed as follows:

• Open the door to the full extent (fig. 6.15a).
• Open the lever "A" completely on the left and right hinges (fig. 6.15b).
• Hold the door as shown in fig. 6.15d.
• Gently close the door (until left and right hinge levers "A" are hooked to part "B" of the door (figs. 6.15b, 6.15c).
• Withdraw the hinge hooks from their location following arrow "C" (fig. 6.15e).
• Rest the door on a soft surface.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Important!

Always keep a safe distance from the door hinges, paying special attention to position of your hands.

If the door hinges are not correctly hooked, they could unhook and close suddenly and unexpectedly with risk of injury.

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Line drawing of hands installing or adjusting a door panel on a cabinet (no text or symbols)

Fig. 6.15e Fig. 6.15

REFIT THE DOORS

1. Hold the door firmly (fig. 6.16a).
2. Insert the hinge tongues into the slots, making sure that the groove drops into place as shown in the figure 6.16b.
3. Open the door to its full extent.
4. Fully close the levers "A" on the left and right hinges, as shown in the figure 6.16c.
5. Close the door and check that it is properly in place.

Line drawing of two hands holding a long rectangular object, labeled Fig. 6.16a (no text or symbols on the object itself)

Technical diagram showing a mechanical component with an arrow indicating motion, labeled as Fig. 6.16b (no text or symbols on the diagram itself)

Cher Client

Mechanical assembly diagram showing a lever mechanism with directional arrows indicating motion (no text or symbols)

INSTALLATION DES PIEDS REGLABLES

Fig. 1.5

AVERTISSEMENT

Line drawing of two people installing or adjusting a large outdoor stove (no text or symbols)

Fig. 1.6

AVERTISSEMENT

Line drawing of a person using a computer with a diagonal line crossing over it, no text or symbols present

Fig. 1.8

Line drawing of a person using an electric stove to clean electrical panels, with diagonal lines indicating resistance (no text or symbols)

ÉQUERRE ANTI-BASCULEMENT

Technical line drawing of an electrical enclosure with internal components and a separate panel assembly (no text or symbols)

Fig. 1.9

CONDITIONS A L'EGARD DE LA VENTILATION

EVACUATION DES PRODUITS DE COMBUSTION

Fig. 2.5

Fig. 2.6

Pure electrical circuit symbol for a battery, no text or labels present

L1 NPE 2)
Fig. 3.3

Diagram of a mechanical component with rotational motion arrows, labeled Fig. 3.2 (no text or symbols on the diagram itself)

Prohibition sign showing a crossed-out fence with smoke, enclosed in a circle (no text or symbols)

CONSEILS GENERAUX

Three-step diagram showing a mechanical component with cross marks, no text or symbols present

Line drawing of an open refrigerator with labeled panel L and tray, no text or symbols present

Technical line drawing of a kitchen appliance with an inset view showing a tray and casing (no text or symbols)

Diagram showing two devices above a circular grid pattern, labeled Fig. 6.10 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with two parallel rods and mounting brackets, no text or symbols present.

POUR RETIRER LES SUPPORTS DE GRILLE COULISSANTS:

Technical line drawing of a structural support frame with no text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Important!

Technical line drawing of a mechanical component on a sloped surface, labeled Fig. 6.15c (no text or symbols on the diagram itself)

Line drawing of hands installing or adjusting a metal panel inside a vehicle (no text or symbols)

Fig. 6.15e Fig. 6.15

REMONTAGE DE LA PORTE DU FOUR

Line drawing of two hands holding a long rectangular object, labeled Fig. 6.16a (no text or symbols on the object itself)

Technical diagram of a mechanical component with directional arrows and a circled feature, labeled Fig. 6.16b (no readable text or symbols)

www.elba-cookers.com
