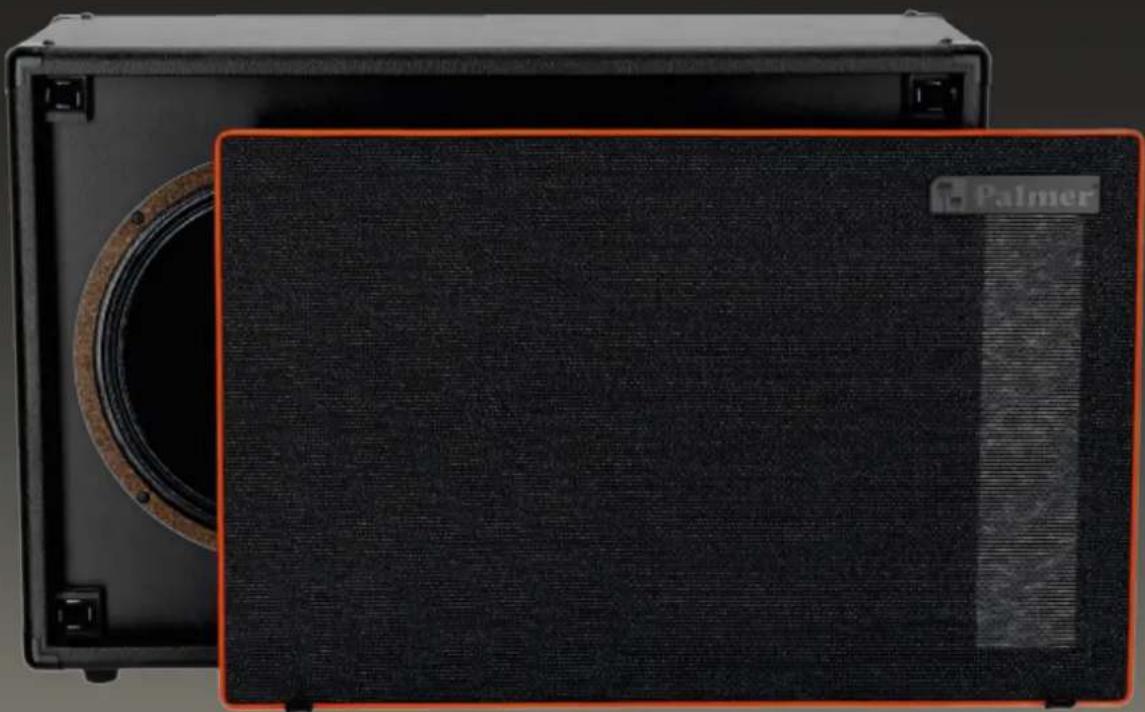

Exterior view of a black industrial amplifier box with a circular vent and orange border (no visible text or symbols)

year

guarantee

guitar cabinets

PCAB112BX

PCAB212BX

PCAB212X

be true to your sound

Yellow triangular warning sign with a black-and-white icon of an ear and sound waves

cab 112 Palmer® POWER HANDLING: WATTS IN/OUT IMPEDANCE: OHMS ATTENTION: This speaker produces sound pressure levels (spl) which can damage hearing and cause permanent loss. Hearing protection is recommended. Palmer® is a registered brand of the Adam Hall Group Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Designed and Engineered in Germany,Assembled in P.R.C. Adam Hall Ltd, | The Seedbed Business Centre | SS3 9QY Essex United Kingdom MODEL: SERIAL: UK CA CE

cab 212 Palmer® RIGHT LEFT/MONO OHMS OHMS OHMS ATTENTION: This speaker produces sound pressure levels (spl) which can damage hearing and cause permanent loss. Hearing protection is recommended. Palmer® is a registered brand of the Adam Hall Group Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Designed and Engineered in Germany, Assembled in P.R.C, Adam Hall Ltd. | The Seedbed Business Centre | SS3 9QY Essex United Kingdom POWER HANDLING: MODEL: SERIAL: WATTS (MONO) WATTS/SIDE (STEREO)

1.2.1) MONO- UND STEREO-MODUS

Technical line drawing of a mechanical device with a central panel and directional arrow (no text or symbols)

Simple line drawing of a 3D cube with a circular aperture and dashed lines indicating projection or perspective (no text or symbols)

Line drawing of a speaker emitting sound waves into a rectangular box (no text or symbols)

Pure electrical circuit lines without any symbols

ANMERKUNG

Front view of a rectangular electronic device with four labeled circular components (no text or symbols beyond labels)

WICHTIGER HINWEIS

Simple line drawing of a circle with a curved arc and a small circular mark (no text or symbols)

EINSCHLAGMUTTER

Pure geometric line pattern with no text, numbers, or symbols

BEI HOHEM DRUCK AUF DIE SCHRAUBE KANN DIE EINSCHLAGMUTTER HERAUS- GEDRÜCKT WERDEN

GEDRUC

Diagram showing two speakers connected to an AMP with a capacitor, illustrating signal transmission or circuit connection.

PARALLELSCHALTUNG

Diagram showing two speakers connected to an AMP component with polarity indicators

GRUNDSÄTZLICH GILT:

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation

be true to your sound

Thank you for your purchase of a Palmer Custom Cabinet. Palmer offers a wide range of different cabinets allowing you to select the speaker of your choice. We hope you will enjoy this product! Please feel free to contact us any time should you need support: [e-mail]

INTENDED USE

This product is a device for event technology, as well as studio, TV and broadcast!

This product has been developed for professional use in the field of event technology, studio, TV and broadcast. It is not suitable for household use!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology, as well as studio, TV and broadcast!

Use of the product outside the specified technical data and operating conditions is considered inappropriate! Liability for damage and third-party damage to persons and property due to inappropriate use is excluded!

The product is not suitable for:

▶ Persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.
Children (children must be instructed not to play with the device).

SAFETY INSTRUCTIONS

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Use the device in the prescribed manner only.
5. Do not open the device and do not perform any modifications.

CHOKING HAZARD! KEEP OUT OF THE REACH OF CHILDREN! THE PRODUCT CONTAINS SMALL PARTS AND PACKAGING MATERIAL THAT CAN BE SWALLOWED! PLASTIC BAGS MUST BE KEPT OUT OF THE REACH OF CHILDREN!

Yellow triangular warning sign with a black-and-white icon of an ear and sound waves

CAUTION, HIGH VOLUME AUDIO PRODUCTS!

Hearing damage from high volume and continuous exposure: Use of this product may produce high sound pressure levels (SPL) which may cause hearing damage. Avoid exposure to high volume levels.

NOTES FOR PORTABLE INDOOR EQUIPMENT

1. this product is intended for indoor use.
2. temporary operation! Event equipment is generally designed for temporary operation only.
3. continuous operation or permanent installation may lead to impairment of the function and premature ageing of the product.

1) CONNECTING THE CABINET TO YOUR AMP

Depending on the type of cabinet, there are a range of options as far connections are concerned. It is important for safe operation that these options are understood. If in doubt, please contact us under [e-mail].

1.1) 1X12 CABINETS

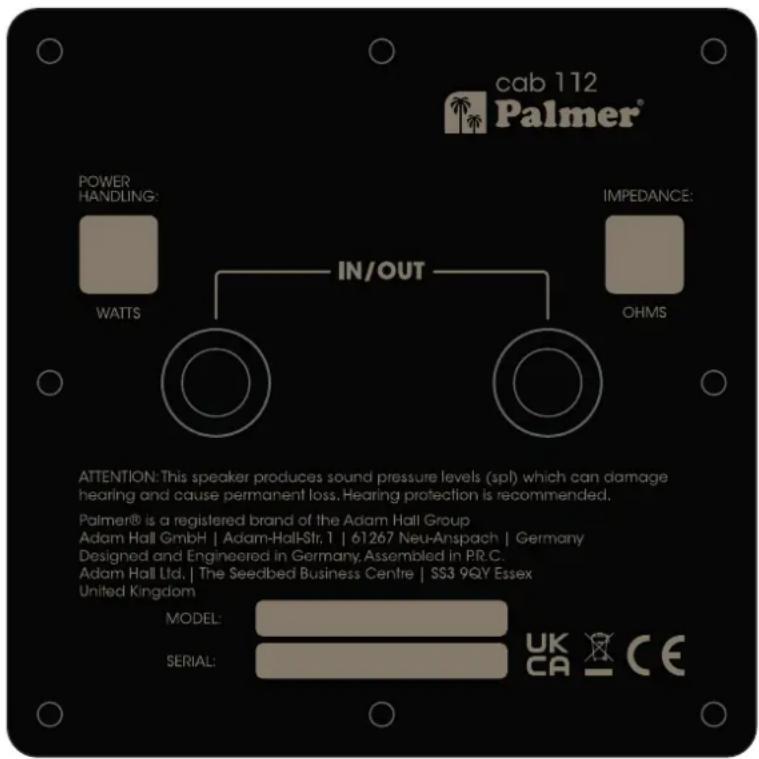

The below picture shows the jackplate for the 112 cabinets.

cab 112 Palmer® POWER HANDLING: WATTS IN/OUT IMPEDANCE: OHMS ATTENTION: This speaker produces sound pressure levels (spl) which can damage hearing and cause permanent loss. Hearing protection is recommended. Palmer® is a registered brand of the Adam Hall Group Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Designed and Engineered in Germany,Assembled in P.R.C. Adam Hall Ltd, | The Seedbed Business Centre | SS3 9QY Essex United Kingdom MODEL: SERIAL: UK CA CE

You may use either of the sockets as an input.

NOTE

Never use both sockets as inputs (i.e. do not connect two amps or speaker outputs to this cabinet). This can damage the amplifier(s) and speaker.

CONNECTING A SECOND CABINET

The two sockets are wired in parallel. This means you can connect a second cabinet to this cabinet. When connecting a second cabinet, make sure the impedances of both cabinets are identical. Because the sockets are wired in parallel, the resulting impedance will be halved.

Example: The first Palmer cabinet has an impedance of 8 Ohms. The Second cabinet must also have an overall impedance of 8 Ohms. Connect the second cabinet to one of the sockets of the first cabinet. The overall impedance that the amp now "sees" is 4 Ohms.

NOTE

Ideally the power handling of both cabinets should be similar. If the power handling of the cabinets is similar or the same, then you can add them. I.e. Two cabinets with a power handling of 75W each can handle 150W when linked together.

1.2) 2X12 CABINETS

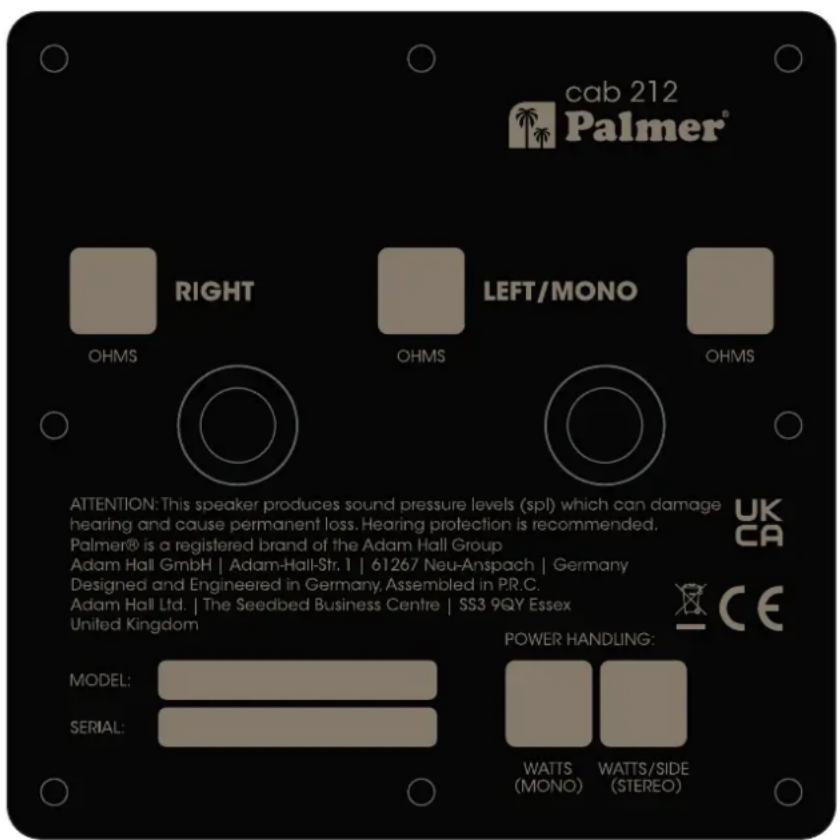

The below picture shows the jackplate for the 212 cabinets.

cab 212 Palmer® RIGHT OHMS LEFT/MONO OHMS OHMS ATTENTION: This speaker produces sound pressure levels (spl) which can damage hearing and cause permanent loss. Hearing protection is recommended. Palmer® is a registered brand of the Adam Hall Group Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Designed and Engineered in Germany, Assembled in P.R.C. Adam Hall Ltd. | The Seedbed Business Centre | SS3 9QY Essex United Kingdom POWER HANDLING: MODEL: SERIAL: WATTS (MONO) WATTS/SIDE (STEREO)

1.2.1) MONO AND STEREO MODE

TO RUN THE CABINET IN MONO MODE

Connect the speaker out of your amplifier to the socket marked "Left/Mono". In this case both speakers are wired in parallel and both will sound.

Example: If the cabinet is loaded with two 16 Ohms speakers, then the total impedance at the "Left/Mono" socket will be 8 Ohms.

TO RUN THE CABINET IN STEREO MODE

First connect the socket marked "Right". As soon as a jack connector is plugged into this socket, the connection between the two speakers is broken. The cabinet can now be used like two individual 112 cabinets. The signal/amp connected to the "Right" socket will feed the right speaker and the signal/amp connected to the "Left/mono" socket will feed the left speaker.

NOTE

Switching between the modes Mono and Stereo is done via a switching jack socket used for the "Right" input – plugging a jack connector to this socket will switch the cabinet into stereo mode. When in Stereo mode, each speaker runs individually. If your cabinet is loaded with 16 Ohms speakers, then you will have 2x 16 Ohms inputs.

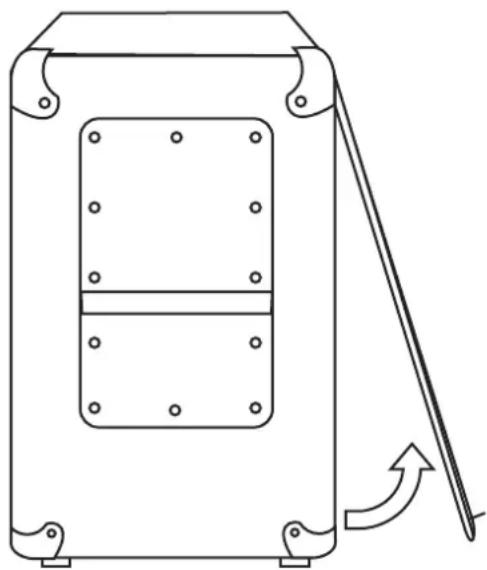

2) REMOVING THE GRILL

For servicing or if you want to position your microphone closer the front grill of the cabinets can be removed. The grill is fastened with Velcro pads. The first removal of the Grill can be a bit tough since it is firmly inserted during production – subsequent removals will become easier. Pull the straps at the lower edge of the grill, pull slowly with constant force and do not jerk. If necessary insert a screwdriver into the loop of the strap so you can apply more force.

Technical line drawing of a mechanical device with a central panel and directional arrow (no text or symbols)

3) INSERTING/REPLACING SPEAKERS

To insert or replace a speaker carry out the following steps:

1) Remove the grill.
2) Lay the cabinet down on its back on a clean padded surface (use a blanket, carpet or similar to make sure the back of the cabinet doesn't get any scratches and the jackplate is not strained).

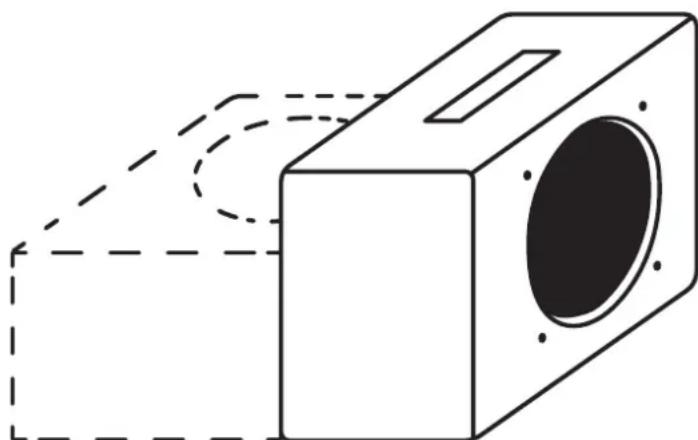

Simple line drawing of a 3D cube with a speaker and dashed lines indicating projection or perspective (no text or symbols)

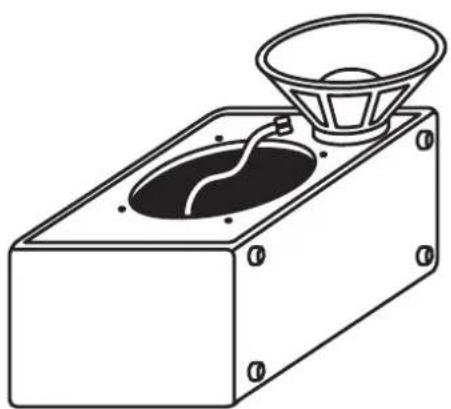

3) Place the speaker on to the baffle next to the cutout - close enough so you can connect the leads of the jackplate to the speaker.

Line drawing of a speaker emitting sound waves into a rectangular box (no text or symbols)

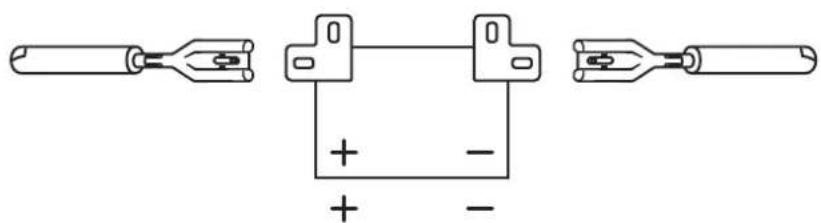

4) Carefully connect the faston connectors on the end of the cables coming from the jackplate to the connectors of the speaker.

Pure electrical circuit lines without any symbols

ANMERKUNG

Do not apply excess force here. If necessary wriggle the connector until it slides on.

One of the wires of the cable is marked red or via a colored line or marking - connect this wire to the connector marked with a "+" on the speaker.

On the 212 cabinets there are two cable pairs, one pair for each speaker. Make sure to wire both speakers the same way (red or marked lead to "+"). Otherwise the speakers will be out of phase and the sound will be poor.

5) Place the speaker into the cutout and position the speaker so it matches the holes in the baffle.

ANMERKUNG

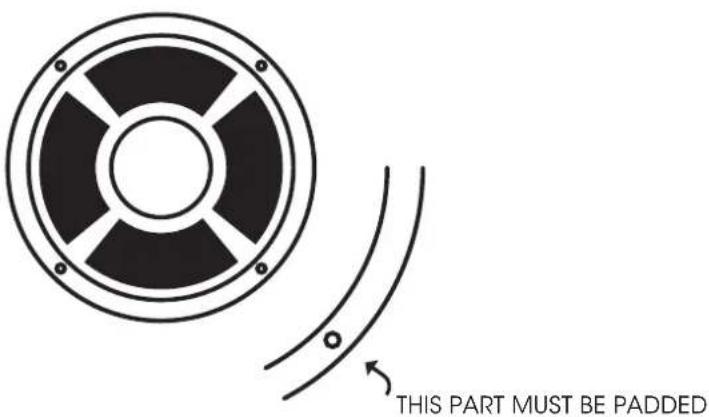

Some speakers ship with padding on both sides of the basket, others only have padding on one side. As the speakers on the Palmer cabinets are front loaded, make sure they are padded on the back. If they are not padded you can resort heat insulation tape as it is used for windows and doors or similar.

THIS PART MUST BE PADDED

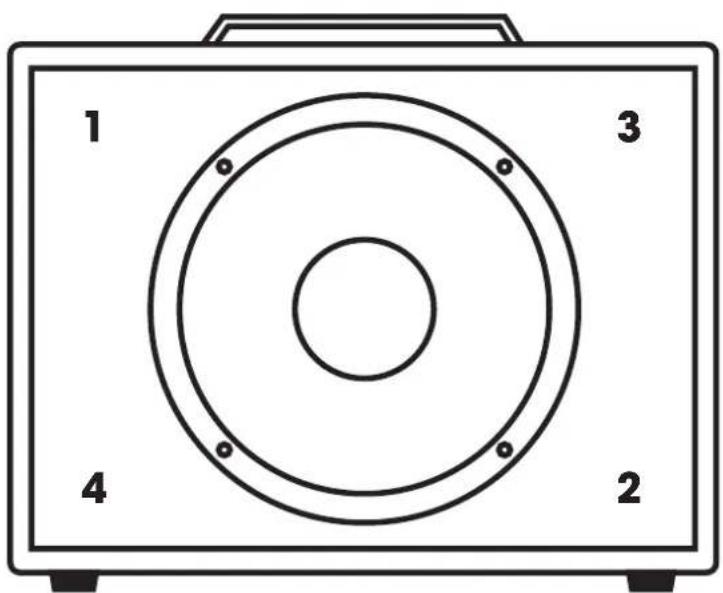

6) Use the supplied screws and fasten the speaker to the baffle in the following order (1-4). Once all screws are tightened, retighten them.

NOTE

Do not over tighten the screws. Do not use a power-drill or power-screwdriver!

Line drawing of a speaker with four labeled buttons (1-4) and a central concentric circle (no text or symbols beyond labels)

IMPORTANT NOTE

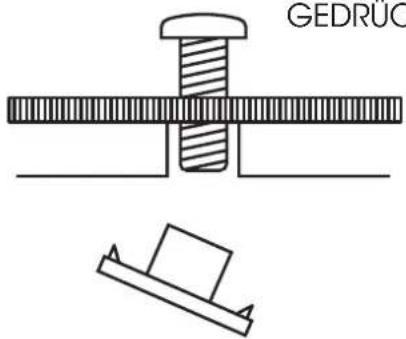

The baffle is equipped with four M5 T-Nuts (drive-in-nuts).

When inserting the screws into the holes and when tightening them APPLY MINIMAL DOWNPRESSURE! Too much pressure on the screw will push the T-Nut out.

Simple line drawing of a circle with a curved arrow and a small circular symbol at the top (no text or labels)

T-NUTE

Pure geometric line pattern with no text, numbers, or symbols

TOO MUCH PRESSURE
ON THE SCREW WILL PUSH THE T-NUT OUT!

Pure mechanical diagram showing a bolt inserted into a shaft (no text or symbols)

Tighten the screws slowly and carefully to make sure they do not cant - the nut can jam!

7) Put the Grill back on.
8) Test the cabinet.

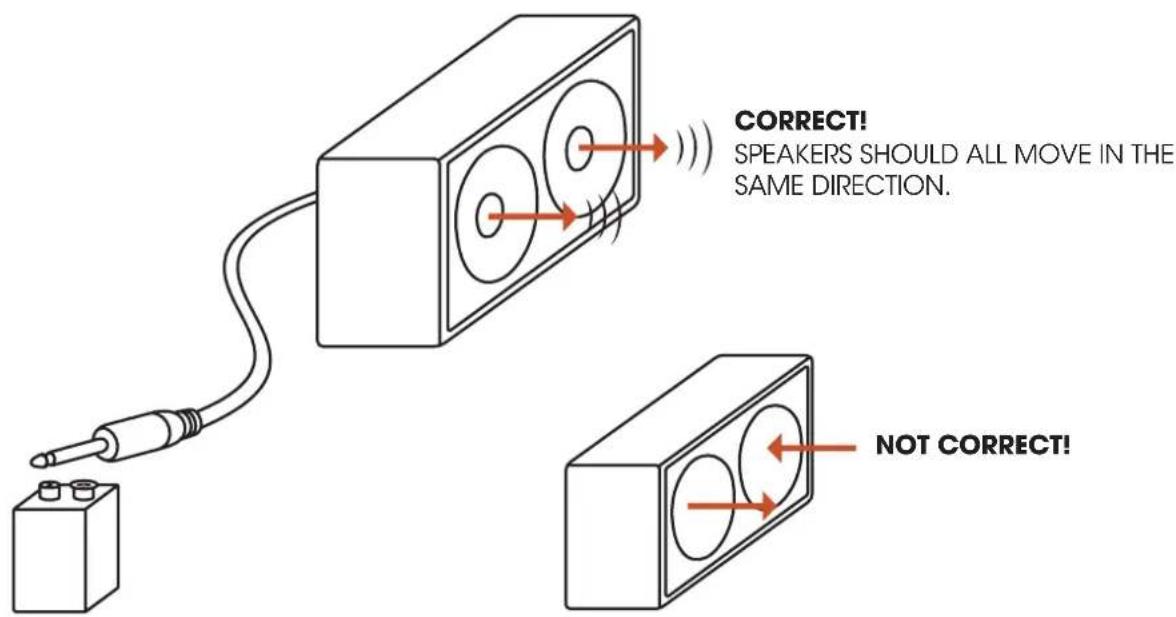

There is a simple method to check if all the speakers in a multi-speaker-cabinet are in phase. All you need is a 9V battery and a speaker cable. Connect the speaker cable to the cabinet and take the jack connector at the other end and let it touch the poles of a 9V Battery (one pole on the tip and the other on the sleeve of the jack connector). This will result in a Plop and the speakers will move either inwards or outwards depending on which way you connect the battery. It is important that both speakers move in the same direction. If they don't then you know that they are out of phase (check that the wiring on all speakers is the same).

CORRECT! SPEAKERS SHOULD ALL MOVE IN THE SAME DIRECTION. NOT CORRECT!

NOTE

Some speakers have a lighter cone and will also move if the air pressure changes within the cabinet. For example, if you do the above battery test on a 212 cabinet with Celestions Vintage 30 and you just give the speakers a short impulse then it may appear that the speakers are moving in different directions. In this case, make the battery connection and hold it – the speakers should all move in the same direction and stay there as long as you keep the battery connected.

CHECKING THE IMPEDANCE

You can check the impedance of your cabinet using a simple Ohmmeter or Multimeter. Connect a speaker cable to the cabinet and hold the test prods of the multimeter to the other end. Set the Multimeter to Ohms (resistance) and note the reading.

NOTE

Keep in mind, the reading of the multimeter does not show the impedance (which is frequency dependant), it is just showing the resistance. So the readout will not be exact but close enough to verify that the speakers are wired correctly. For example an 8 Ohm speaker can have a readout of roundabout 6.5 or 7 Ohms.

Be sure to test the cabinet with an amp before you take it on tour or to a gig. Start at lower volumes and then slowly increase the level. If there is no sound then stop playing, turn the amp off or to standby and double check all the connections.

4) CALCULATING IMPEDANCES

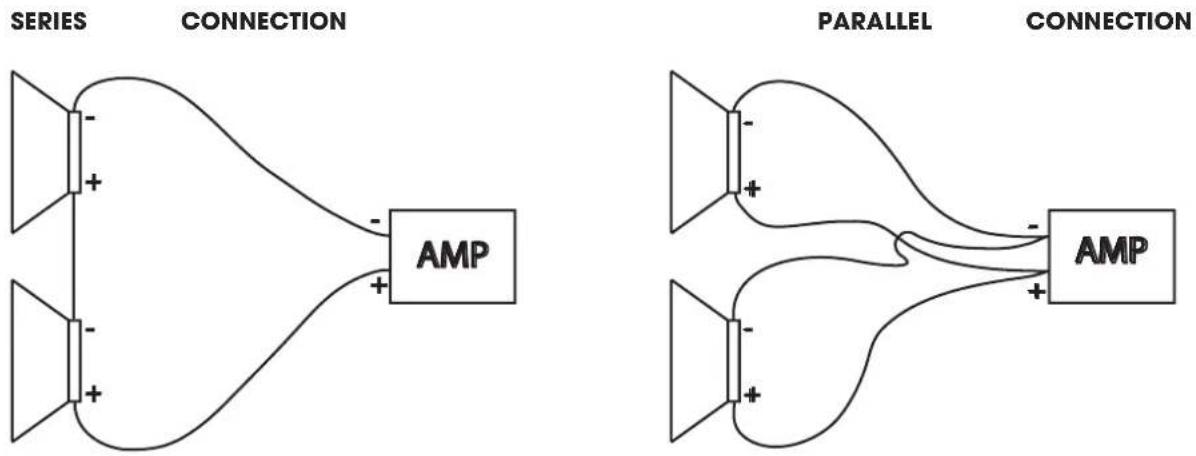

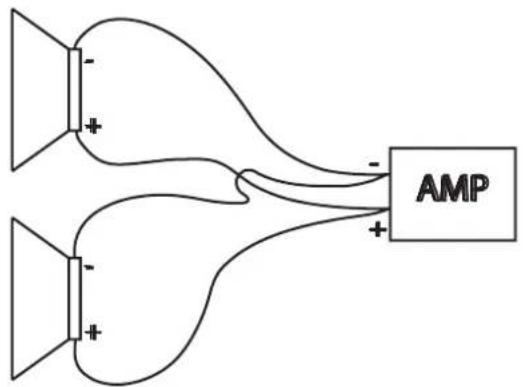

There are generally two ways to wire two or more speakers, please see the below diagram:

If speakers with equal impedance are connected in series, the impedances are added. Example: Two 8 Ohm speakers wired in series will have an overall impedance of 16 Ohms (8 x 2).

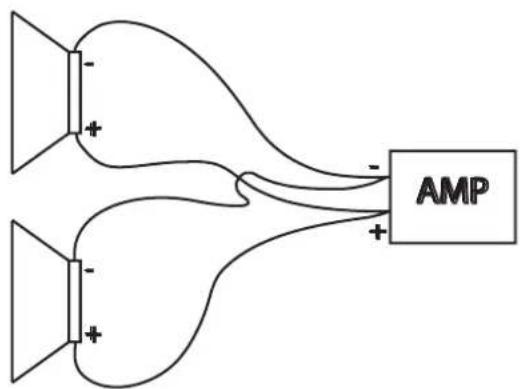

If speakers with equal impedance are connected in parallel, the impedance is divided by the number of speakers

Example: Two 16 Ohm speakers wired in parallel will have an overall impedance of 8 Ohms (16 divided by 2).

5) GLOSSARY

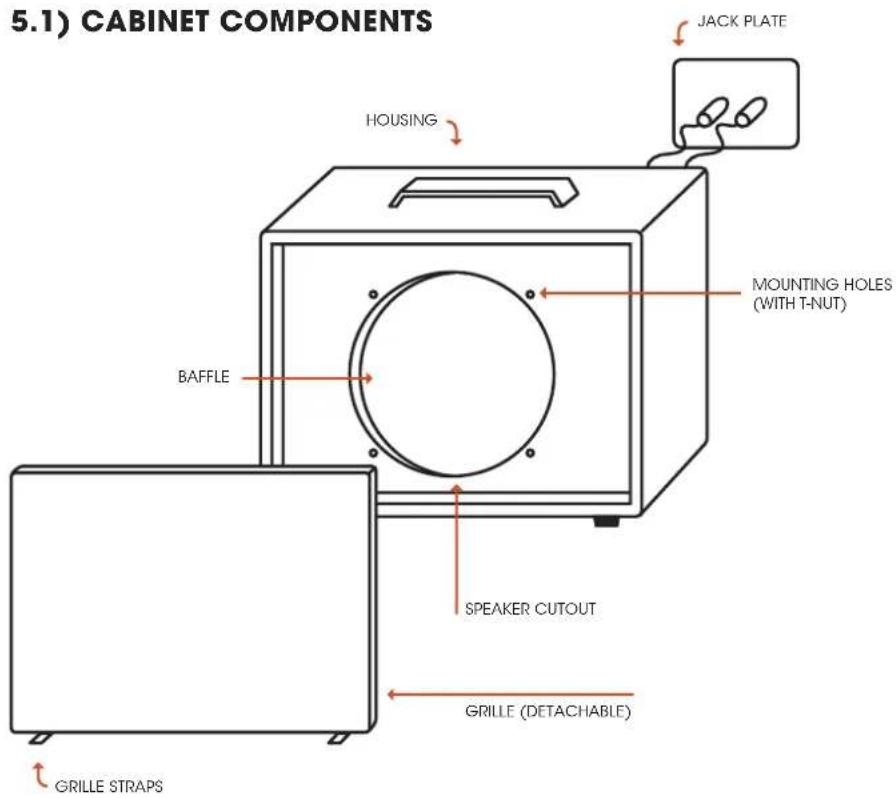

5.1) CABINET COMPONENTS JACK PLATE HOUSING BAFFLE MOUNTING HOLES (WITH T-NUT) SPEAKER CUTOUT GRILLE (DETACHABLE) GRILLE STRAPS

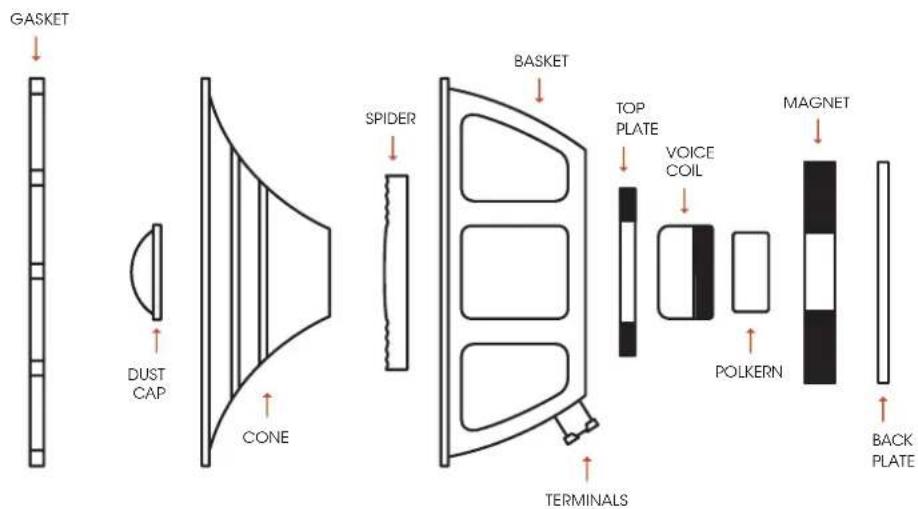

The key working components of a loudspeaker are shown in the diagram below. When an electrical current passes through a wire coil (the voice coil) in a magnetic field, it produces a force which varies with the current applied. The cone, connected to the voice coil, moves in and out, creating waves of high and low air pressure.

The coil and magnet assembly are the 'motor structure' of the loudspeaker. The movement is controlled by the loudspeaker's suspension which comprises the cone surround and the 'spider'. The surround and spider allow the coil to move freely along the axis of the magnet's core (or 'pole') without touching the sides of the magnetic gap.

GASKET DUST CAP CONE SPIDER BASKET TOP PLATE VOICE COIL MAGNET POLKERN BACK PLATE TERMINALS

TECHNICAL DATA

GENERAL

Product number PCAP112BX PCAP212BX PCAP212X
Number of speaker openings 1 2 2
For speaker diameter 12"
Connectors on connector plate 2 x In/Parallel	Out 2 x Input mono/stereo	2 x Input mono/stereo
Connector type 6.3 mm jack
Type of speaker installation Front-loaded
Front grill removable Yes
Back Open Closed
Acoustic installation (inside)	No
Front grill material	Cloth
Cabinet material	Particle board/MDF baffle
Cabinet covering	Imitaion leather
Baffle material	MDF
Dimensions ( W x H x D )	580 x 450 x 290 mm	710 x 480 x 295 mm	710 x 480 x 295 mm
Weight	12 kg	15 kg	15 kg
Inclusive	Connection plate with labelling fields, Connecting cable,Fastening screws
Ambient temperature	0 - 40°C
rel. humidity	< 80%, non consending
