Completely read and understand this manual PRIOR to using this product.

Limited Warranty Statement

All Maruyama commercial/ industrial products are warranted to the original purchaser to be free from defects in material and workmanship from the date of purchase for the time periods listed as follows:

Lifetime for solid steel driveshaft and ignition coils.

5 years for qualified IRON 5-YR ^™ commercial, institutional, or industrial use.

1 year for residential or 2 years for commercial use with competitor's oil.

90 days for rental use.

Engine - Refer to engine manufacturer's warranty statement. Only Maruyama engines are covered by this limited warranty statement.

Any part of a Maruyama product found to be defective within the applicable warranty period shall, at Maruyama's option, be repaired or replaced without charge. Warranty consideration is obtained by delivering any Maruyama product believed to be defective to an Authorized Maruyama Servicing Dealer within the applicable warranty period.

The purchaser shall not be charged for diagnostic labor that leads to the determination that a warranted part is defective, if the diagnostic work is performed at a Maruyama Dealer.

Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only for regular inspection to the effect of “repair or replace as necessary” shall be warranted for the warranty period. Any warranted part, which is scheduled for replacement as, required maintenance shall be warranted for the period of time up to the first scheduled replacement point for that part. Maruyama Mfg. Co., Inc. is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

The purchaser is responsible for the performance of the required maintenance, as defined by Maruyama Mfg. Co., Inc. in the Owner's/Operator's Manual.

EMISSION-RELATED PARTS WARRANTY: In addition to the above warranty coverage, Maruyama Mfg. Co., Inc. will repair or replace, free of charge, for the original purchaser and each subsequent purchaser any emission-related part or parts found to be defective in material and workmanship for two (2) years from original retail delivery date. Emission-related parts are the carburetor assembly, the ignition coil assembly, the ignition rotor, the spark plug, the catalytic converter and the fuel tank. Any replacement part that is equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not reduce the warranty obligations of Maruyama Mfg. Co., Inc.

This warranty does not cover the following:

1. Maintenance items (excluding defects in materials and workmanship) including hoses, spark plugs, starter rope, air and fuel filters, clutch shoes, vibration isolators, throttle cables and all cutting attachments, etc.
2. Extra expenses including shipping and handling, travel, payment for lost time or pay and for any inconvenience and storage.
3. Alterations or modifications including aftermarket parts not authorized by Maruyama U.S., Inc.
4. Wear, accident, abuse, neglect, misuse, negligence, improper fuels, lubricants, fuel mixtures (when applicable), or failure to operate or maintain the product in accordance with instructions approved by Maruyama.

Repair or replacement as provided under this warranty is the exclusive remedy of the consumer. Maruyama shall not be liable for any incidental or consequential damages for breach of any express or implied warranty on these products except to the extent prohibited by applicable law. Any implied warranty of merchantability or fitness for a particular purpose on these products is limited in duration to the warranty period as defined in the limited warranty statement. Maruyama reserves the rights to change or improve the design of the product without notice and does not assume obligation to update previously manufactured products.

This warranty provides you with specific legal rights, which may vary from state to state.

It is the Owner's and Dealer's responsibility to make sure the Warranty Registration Card is properly filled out and mailed to Maruyama U.S., Inc. Proof of purchase and registration will be required in order to obtain warranty service.

To locate an Authorized Maruyama Servicing Dealer nearest you, contact:.

Maruyama U.S., Inc. 4770 Mercantile Drive, suite100, Fort Worth, TX 76137 U.S.A. [phone] [e-mail] www.maruyama-us.com

WARNING:

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

THE AIR INDEX OF THIS ENGINE IS 3 0 2 4 6 8 10 MOST CLEAN LEAST CLEAN NOTE: THE LOWER THE AIR INDEX, THE LESS POLLUTION. THIS ENGINE IS CERTIFIED TO BE EMISSIONS COMPLIANT FOR THE USE EXTENDED: 300HOURS CHECK THE OWNER'S MANUAL FOR FURTHER DETAILS.

M42BK-QC

FEDERAL EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS

The U.S. Environmental Protection Agency (EPA), and Maruyama Manufacturing Company, Inc. are pleased to explain the emission control system warranty on your small off-road engine. New 1997 and later model year small off-road engines must be designed, built and equipped, at the time of sale, to meet the U.S. EPA regulations for small off-road engines. The equipment engine must be free from defects in materials and workmanship which cause it to fail to conform with U.S. EPA standards for the first two years of engine use from the date of sale to the ultimate purchaser. Maruyama Manufacturing Company, Inc. must warrant the emission control system on your small off-road engine for the period of time listed above provided there has been no abuse, neglect or improper maintenance of your small off-road engine.

Emission durability of 300 hours.

Your emission control system may include parts such as the carburetor or fuel injection system, the ignition system, and catalytic converter. Also included may be hoses, belts, and connectors and other emission related assemblies.

Where a warrantable condition exists, Maruyama Manufacturing Company, Inc. will repair your small off-road engine at no cost to you, including diagnosis (if the diagnostic work is performed at an authorized dealer), parts, and labor.

MANUFACTURER'S WARRANTY COVERAGE:

The 1997 and later model year small off-road engines are warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or replaced by Maruyama Manufacturing Company, Inc. free of charge.

OWNER'S WARRANTY RESPONSIBILITIES:

(a) As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your owner's/operator's manual.

Maruyama Manufacturing Company, Inc. recommends that you retain all receipts covering maintenance on your small off-road engine, but Maruyama Manufacturing Company, Inc. cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. Any replacement part or service that is equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not reduce the warranty obligations of the engine manufacturer.

(b) As the small off-road engine owner, you should be aware, however, that Maruyama Manufacturing Company may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
(c) You are responsible for presenting your small off-road engine to a Maruyama Manufacturing Company, Inc. service center as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact Maruyama U.S., Inc. at 1-866-783-7400, or [e-mail].

COVERAGE

Maruyama Manufacturing Company, Inc. warrants to the ultimate purchaser and each subsequent purchaser that your small off-road engine will be designed, built and equipped, at the time of sale, to meet all applicable regulations. Maruyama Manufacturing Company, Inc. also warrants to the initial purchaser and each subsequent purchaser that your small off-road engine is free from defects in materials and workmanship which cause the engine to fail to conform with applicable regulations for a period of two years.

The 1997 and later model years, EPA requires manufacturers to small off-road engines for two years. These warranty periods will begin on the date the small off-road engine is purchased by the initial purchaser. If any emission-related part on your engine is defective, the part will be replaced by Maruyama Manufacturing Company, Inc. at no cost to the owner.

Maruyama Manufacturing Company, Inc. shall remedy warranty defects at any authorized Maruyama Manufacturing Company, Inc. engine dealer or warranty station. Any authorized work done at an authorized dealer or warranty station shall be free of charge to the owner if such work determines that a warranted part is defective. Any manufacturer-approved or equivalent replacement part may be used for any warranty maintenance or repairs on emission-related parts, and must be provided free of charge to the owner if the part is still under warranty, Maruyama Manufacturing Company, Inc. is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

EPA considers emission-related warranted parts to include all the parts listed below. These warranted parts are: the carburetor assembly, the ignition coil assembly, the ignition rotor, the spark plug, the catalytic converter, and the fuel tank.

MAINTENANCE REQUIREMENTS

The owner is responsible for the performance of the required maintenance as defined by the Maruyama Manufacturing Company, Inc. in the owner's/operator's manual.

LIMITATIONS

This Emission Control System Warranty shall not cover any of the following:

(a) repair or replacement required because of misuse or neglect, lack of required maintenance, repairs improperly performed or replacements not conforming to Maruyama Manufacturing Company, Inc. specifications that adversely affect performance and/or durability, and alterations or modifications not recommended or approved in writing by Maruyama Manufacturing Company, Inc., and
(b) replacement of parts and other services and adjustments necessary for required maintenance at and after the first scheduled replacement point.

CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS

The California Air Resources Board (CARB), and Maruyama Manufacturing Company, Inc. are pleased to explain the emission control system warranty on your 2015 small off-road engine. In California, new small off-road engines must be designed, built and equipped to meet the State's stringent anti-smog standards. Maruyama Manufacturing Company, Inc. must warrant the emission control system on your small off-road engine for the period of time listed above provided there has been no abuse, neglect or improper maintenance of your small off-road engine.

Your emission control system may include parts such as the carburetor or fuel injection system, the ignition system, and catalytic converter. Also included may be hoses, belts, and connectors and other emission related assemblies.

Where a warrantable condition exists, Maruyama Manufacturing Company, Inc. will repair your small off-road engine at no cost to you, including diagnosis, parts, and labor.

MANUFACTURER'S WARRANTY COVERAGE:

The 1995 and later small off-road engines are warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or replaced by Maruyama Manufacturing Company, Inc.

OWNER'S WARRANTY RESPONSIBILITIES:

(a) As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your owner's/operator's manual.

Maruyama Manufacturing Company, Inc. recommends that you retain all receipts covering maintenance on your small off-road engine, but Maruyama Manufacturing Company, Inc. cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance

(b) As the small off-road engine owner, you should be aware, however, that Maruyama Manufacturing Company may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.

(c) You are responsible for presenting your small off-road engine to a Maruyama Manufacturing Company, Inc. distribution center as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact Maruyama U.S., Inc. at 1-866-783-7400, or [e-mail].

Emission System Parts

Exhaust Emission

Carburetor

Muffler

Catalytic Converter

Ignition Coil / Magneto

Spark Plug

Air Filter

EGR Valve (piston)

Fuel Filter

Evaporative Emission

Fuel Tank

Contents

Page US-

Limited Warranty Statement.... 1

FEDERAL EMISSION CONTROL 3

CALIFORNIA EMISSION CONTROL.... 5

Contents 6

Introduction.... 7

Safety 7

Operator Safety 7

Multi - Cutter with Tool Attachments Safety ..... 8

Fuel Safety 8

Multi - Cutter with Tool Attachments Operating Safety.... 9

Safety and Instruction Decals 12

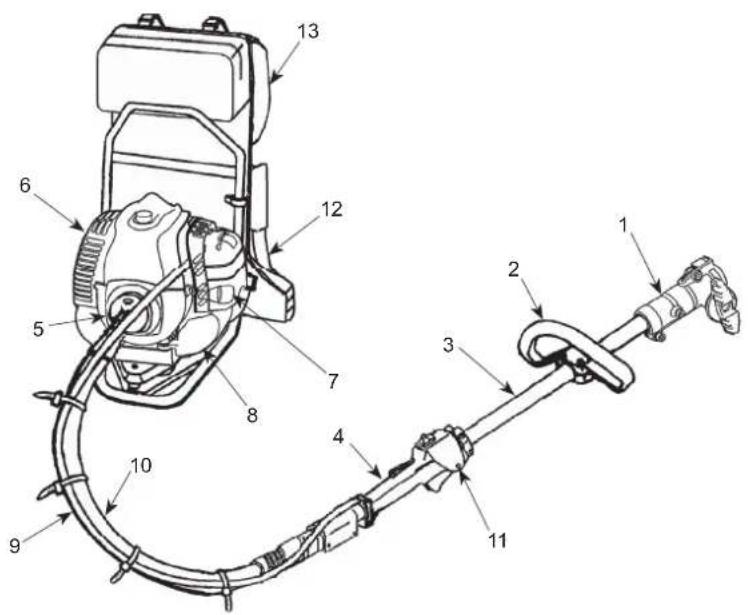

Product Description 12

Assembly 13

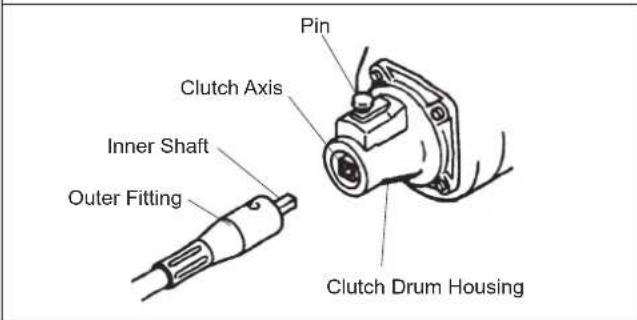

Installing Flexible Shaft.... 13

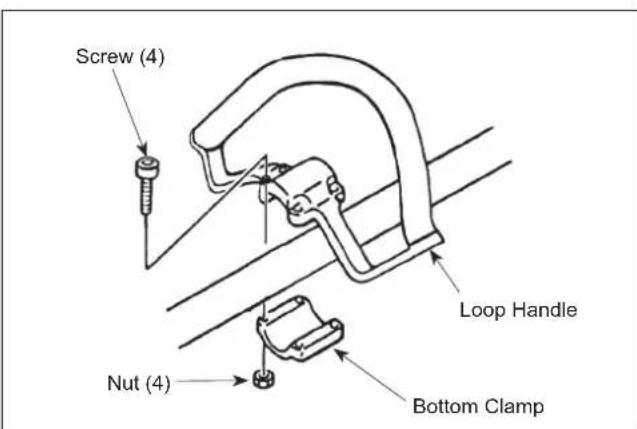

Loop Handle Installation 13

Connecting Stop Switch Wires.... 13

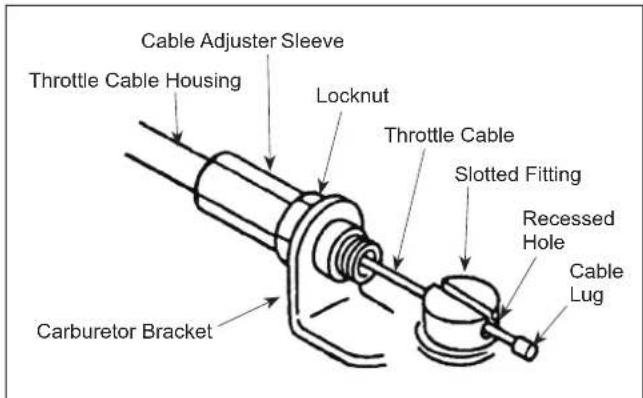

Connecting Throttle Cable.... 14

Cable Adjustment 14

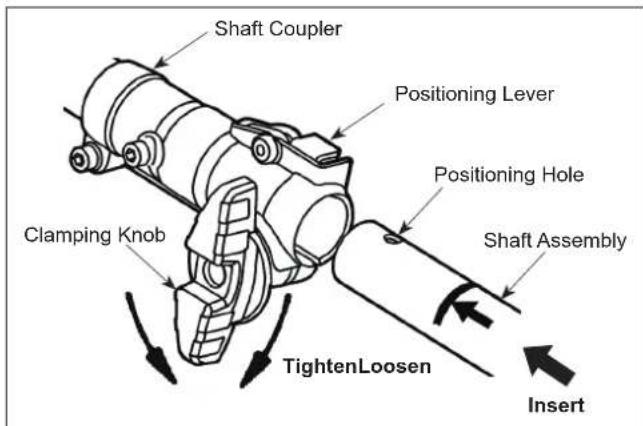

Attaching and Detaching for the Power Unit and the Shaft Assembly 15

Before Operation.... 16

Oil and Fuel 16

Mixing Gasoline And Oil 17

Starting And Stopping 18

Page US-

Maintenance.... 19

Idle Speed Adjustment.... 19

Air Filter 20

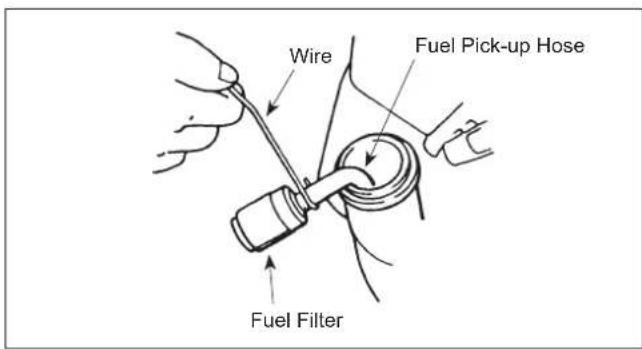

Fuel Filter 20

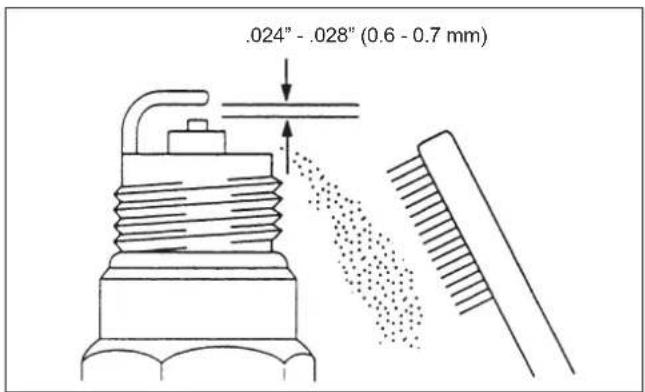

Spark Plug.... 21

Cylinder Cooling Fins 21

Spark Arrester 22

Exhaust Muffler 23

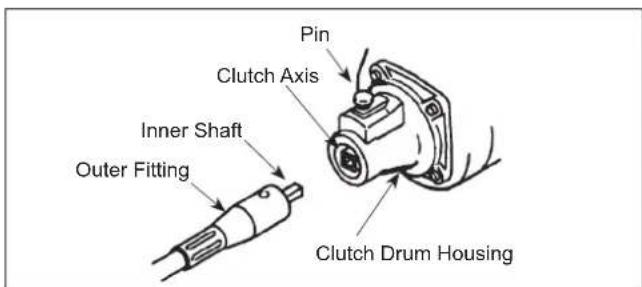

Flexible Shaft 23

General Cleaning and Tightening.... 24

Storage 24

Troubleshooting.... 25

Maintenance Period 25

Specifications.... 26

Tool Attechments 26

Introduction

Thank you for purchasing a MARUYAMA product.

MARUYAMA, it's distributors, and dealers want you to be completely satisfied with your new product. Please feel free to contact your local Authorized Service Dealer for help with service, genuine MARUYAMA parts, or other information you may require.

Whenever you contact your Authorized Service Dealer or the factory, always know the serial number of your product. This number will help the Service Dealer or Service Representative provide exact information about your specific product. You will find the model and serial number located in a unique place on the product (Product Description on page US-12).

For your convenience, write the product model name and serial number in the space below.

Model Name ____

Serial No. ____

Read this manual carefully to learn how to operate and maintain your product correctly. Reading this manual will help you and others avoid personal injury and damage to the product. Although MARUYAMA designs, produces and markets safe, state of the art products, you are responsible for using the product properly and safely. You are also responsible for training persons who you allow to use the product about safe operation.

The MARUYAMA warning system in this manual identifies potential hazards and has special safety messages that help you and others avoid personal injury, even death.

DANGER, WARNING and CAUTION are signal words used to identify the level of hazard. However, regardless of the hazard, be extremely careful.

DANGER signals an extreme hazard that will cause serious injury or death if the recommended precautions are not followed.

WARNING signals a hazard that may cause serious injury or death if the recommended precautions are not followed.

CAUTION signals a hazard that may cause minor or moderate injury if the recommended precautions are not followed. Two other words are also used to highlight information. “Important” calls attention to special mechanical information and “Note” emphasizes general information worthy of special attention.

Safety

Operator Safety

1. Read and understand this Owner's/Operator's Manual before using this product. Be thoroughly familiar with the proper use of this product.

2. Never allow children to operate the Multi-Cutter. It is not a toy. Never allow adults to operate the unit without first reading the Owner's/Operator's Manual.

3. Always wear eye protection that complies with ANSI (American National Standards Institute) Z87-1.

1. Always wear hearing protection.

1. Always wear heavy, long pants, a long sleeved shirt, boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals, or go barefoot. Secure hair so it is above shoulder length.

2. Never operate this Multi-Cutter when you are tired, ill, or under the influence of alcohol, drugs or medication.

3. Never start or run the engine inside a closed room or building. Breathing exhaust fumes can cause death.

1. Keep handles clean of oil, fuel and dirt.

Multi-Cutter with Tool Attachments Safety

1. Make sure the Unit is assembled correctly and that the tool attachment is correctly installed and securely fastened as instructed in the Assembly section.
2. Inspect the Unit before each use. Replace damaged parts. Check for fuel leaks. Make sure all fasteners are in place and tightened securely. Follow the maintenance instructions beginning on page US-19.
3. Make sure the tool attachment does not rotate at engine idle speed. Refer to Idle Speed Adjustment, page US-19.
4. Inspect the tool attachment head and replace any parts that are cracked, chipped or damaged before using the Multi-Cutter.
5. Install all required shields and guards prior to operating the Multi-Cutter or its attachments. Note: Remove blade cover from Hedge Trimmer attachments prior to operation.
6. Never use a tool attachment head or replacement parts that are not approved by MARUYAMA.
7. Maintain the Multi-Cutter power unit and tool attachments according to the recommended maintenance intervals and procedures in the Maintenance section on page US-19.
8. Shut off the engine and wait until the tool attachment head has completely stopped moving before checking, performing maintenance on or working on the Multi-Cutter.
9. If running problems or excessive vibration occur, stop immediately and inspect the unit for the cause. If the cause cannot be determined or is beyond your ability to correct, return the Multi-Cutter with tool attachment to your servicing dealer for repair.

Fuel Safety

1. Gasoline is highly flammable and must be handled and stored carefully. Use a container approved for fuel to store gasoline and/or fuel/oil mixture.
2. Mix and pour fuel outdoors, where there are no sparks or flames.
3. Do not smoke near fuel or Multi-Cutter, or while using the Multi-Cutter.
4. Do not overfill the fuel tank. Stop filling 1/4-1/2 in. (6 mm-13 mm) from the top of the tank.
5. Wipe up any spilled fuel before starting the engine.

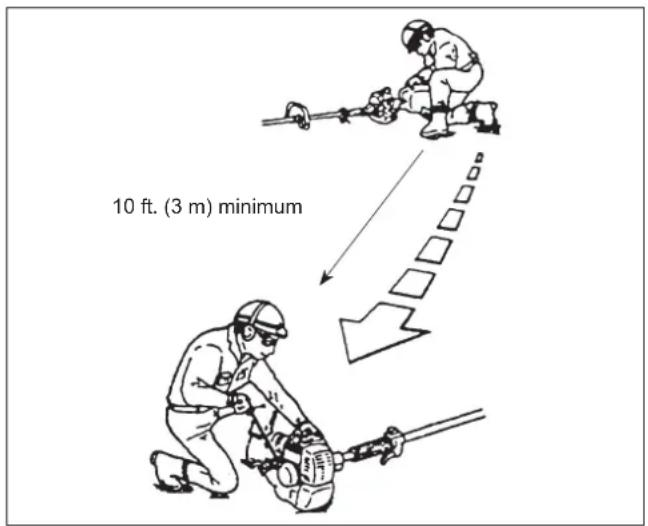

6. Move the Multi-Cutter at least 10 ft. (3 m) away from the fueling location before starting the engine.

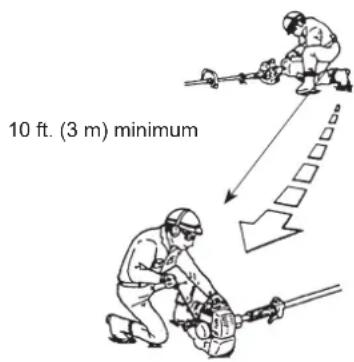

10 ft. (3 m) minimum

1. Do not remove the fuel tank cap while the engine is running, or right after stopping the engine.

2. Allow the engine to cool before refueling.

3. Drain the tank and run the engine dry before storing the unit.

4. Store fuel and Multi-Cutter away from open flame, sparks and excessive heat. Make sure fuel vapors cannot reach sparks or open flames from water heaters, furnaces, electric motors, etc.

Multi-Cutter with Tool Attachments Operating Safety

String Trimmer Operating Safety

1. THIS STRING TRIMMER CAN CAUSE SERIOUS INJURIES. Read the instructions carefully. Be familiar with all controls and the proper use of the String Trimmer.

2. Inspect your work area before you begin. Remove objects such as broken glass, nails, wire and rocks which can become dangerous projectiles if thrown by the Trimmer. Remove string, rope or similar materials which can become entangled in the Trimmer head.

3. This Trimmer will throw objects and cut. Keep children, bystanders and animals outside a 50 ft.(15m) radius from the operator and Trimmer. Beyond the 50 ft. (15 m) there still may be a risk of injury to bystanders from thrown objects. It is recommended that bystanders wear eye protection. A thrown object can ricochet.

4. If you are approached while operating the Trimmer, stop the engine and Trimmer head rotation.

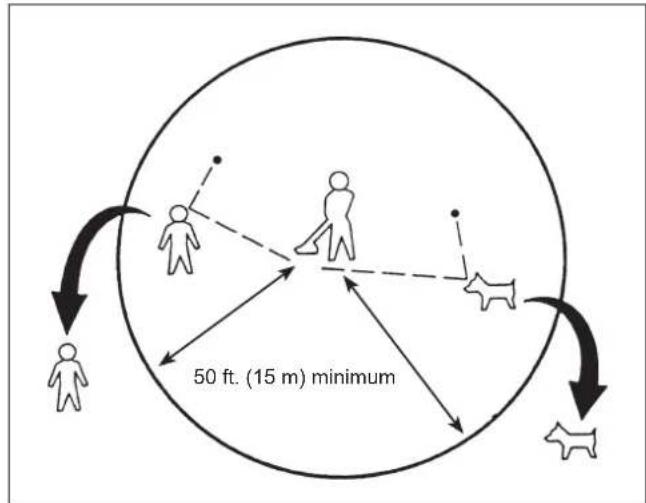

50 ft. (15 m) minimum

1. Never allow children to operate the Trimmer.

2. Use the Trimmer only in daylight or good artificial light.

3. Never operate the Trimmer without proper guards or other protective safety devices in place.

4. Use only flexible, non-metallic, monofilament cutting line of the correct diameter. Never use wire rope, string, etc.

5. Always keep the Trimmer on the right side of your body.

6. Do not raise the Trimmer head above waist level.

7. Do not put hands or feet near or under any rotating parts. Keep clear at all times. Keep all parts of your body away from the rotating Trimmer head and hot surfaces such as the muffler.

8. Keep firm footing and balance. Do not overreach.

9. Use the right tool for the job. Do not use the Trimmer for any job that is not recommended by MARUYAMA.

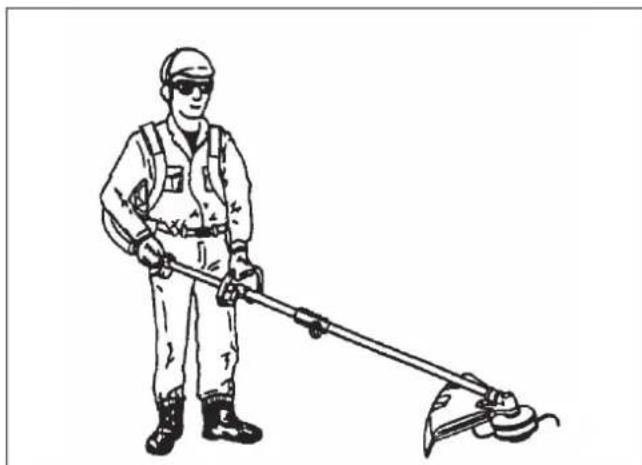

Line drawing of a person in protective gear using a long-handled tool (no text or symbols)

Edger Operating Safety

1. THIS EDGER CAN CAUSE SERIOUS INJURIES. Read the instructions carefully. Be familiar with all controls and the proper use of the Edger.
2. Make sure the 3 mm hex wrench has been removed from the gearcase and boss adapter before you start the engine.
3. Inspect your work area before you begin. Remove objects such as broken glass, nails, wire and rocks which can become dangerous projectiles if thrown by the Edger. Remove string, rope or similar materials which can become entangled in the Edger head.
4. This Edger will throw objects and cut. Keep children, bystanders and animals outside a 50 ft. (15m) radius from the operator and Trimmer. Beyond the 50 ft. (15 m) there still may be a risk of injury to bystanders from thrown objects. It is recommended that bystanders wear eye protection. A thrown object can ricochet. (See the String Trimmer Operating Safety)
5. If you are approached while operating the Edger, stop the engine and Edger blade rotation.
6. Never allow children to operate the Edger.
7. Use the Edger only in daylight or good artificial light.
8. Never operate the Edger without proper guards or other protective safety devices in place.
9. Do not put hands or feet near or under any rotating parts. Keep clear at all times. Keep all parts of your body away from the rotating Edger blade and hot surfaces such as the muffler.
10. Keep firm footing and balance Do not overreach.
11. Use the right tool for the job. Do not use the Edger for any job that is not recommended by MARUYAMA.

Pruner Operating Safety

1. THIS PRUNER CAN CAUSE SERIOUS INJURIES. Read the instructions carefully. Be familiar with all controls and the proper use of the Pruner.
2. The Pruner is designed to cut wood and can therefore be potentially dangerous. Careless or improper use can cause serious or even fatal injury.
3. This Pruner can conduct electricity. Do not use where contact can be made with live electrical circuits. Never use around electrical power sources and lines. Failure to observe this warning can result in serious injury or death.
4. Beware of where material will fall after being cut. Do not stand underneath falling material.
5. Inspect your work area before you begin. Remove objects such as broken glass, nails, wire and rocks which can become dangerous projectiles if thrown by the Pruner. Remove string, rope or similar materials which can become entangled in the Pruner head.
6. This Pruner will throw objects and cut. Keep children, bystanders and animals outside a 50 ft. (15m) radius from the operator and Trimmer. Beyond the 50 ft. (15 m) there still may be a risk of injury to bystanders from thrown objects. It is recommended that bystanders wear eye protection. A thrown object can ricochet. (See the String Trimmer Operating Safety)
7. If you are approached while operating the Pruner, stop the engine and Pruner chain motion.
8. Use the Pruner only in daylight or good artificial light.
9. Do not put hands or feet near or under any rotating parts. Keep clear at all times. Keep all parts of your body away from the Pruner chain and hot surfaces such as the muffler.
10. Keep firm footing and balance. Do not overreach.
11. Watch for wires. Keep sufficient distance away from electrical power lines.
12. Use the right tool for the job. Do not use the Pruner for any job that is not recommended by MARUYAMA.

Hedge Trimmer Operating Safety

1. THIS HEDGE TRIMMER CAN CAUSE SERIOUS INJURIES. Read the instructions carefully. Be familiar with all controls and the proper use of the Hedge Trimmer.
2. The Hedge Trimmer is designed to trim foliage and small branches, and can therefore be potentially dangerous. Careless or improper use can cause serious injury.
3. Inspect your work area before you begin. Remove objects such as broken glass, nails, wire and rocks which can become dangerous projectiles if thrown by the Hedge Trimmer. Remove string, rope or similar materials which can become entangled in the Hedge Trimmer cutter.
4. Keep children, bystanders and animals outside operating area.
5. If you are approached while operating the Hedge Trimmer, stop the engine and cutting blades.
6. Never allow children to operate the Hedge Trimmer.
7. Use the Hedge Trimmer only in daylight or good artificial light.
8. Do not put hands or feet near or under any moving parts. Keep clear at all times. Keep all parts of your body away from the cutting blade and hot surfaces such as the muffler.
9. Keep firm footing and balance. Do not overreach.
10. Use the right tool for the job. Do not use the Hedge Trimmer for any job that is not recommended by MARUYAMA.

Cultivator Operating Safety

1. THIS CULTIVATOR CAN CAUSE SERIOUS INJURIES. Read the instructions carefully. Be familiar with all controls and the proper use of the Cultivator.
2. Avoid using the Cultivator near rocks, graval, stones and similar material that would cause harmful missiles.
3. Inspect your work area before you begin. Remove objects such as broken glass, nails, wire and rocks which can become dangerous projectiles if thrown by the Cultivator. Remove string, rope or similar materials which can become entangled in the Cultivator head.
4. This Cultivator will throw objects and cut. Keep children, bystanders and animals outside a 50 ft. (15m) radius from the operator and Trimmer. Beyond the 50 ft. (15 m) there still may be a risk of injury to bystanders from thrown objects. It is recommended that bystanders wear eye protection. A thrown object can ricochet. (See the String Trimmer Operating Safety)
5. If you are approached while operating the Cultivator, stop the engine and cultivate tool rotation.
6. Use the Cultivator only in daylight or good artificial light.
7. Do not put hands or feet near or under any rotating parts. Keep clear at all times. Keep all parts of your body away from the rotating tool and hot surfaces such as the muffler.
8. If the cultivator tines become jammed, stop the engine immediately. Make certain all moving parts have stopped, and disconnect the spark plug before attempting to remove any obstruction.
9. Use the right tool for the job. Do not use the Cultivator for any job that is not recommended by MARUYAMA.

Safety and Instruction Decals

Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost.

Product Description

M42BK-QC

(Multi-Cutter Power Unit)

Technical diagram of a mechanical device with numbered components for identification

14

1. Shaft coupler
2. Loop Handle
3. Shaft Assembly
4. Shaft Grip
5. Clutch Drum Housing
6. Engine
7. Air Filter
8. Fuel Tank
9. Throttle Cable and Stop Switch Wires
10. Flexible Shaft
11. Throttle Trigger and Stop Switch
12. Knap Sack Band
13. Pad
14. Serial Number (on rear of engine)

Assembly

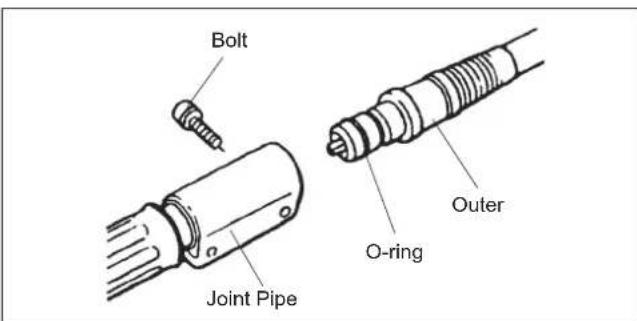

Installing Flexible Shaft

1. Remove the bolt and insert the outer fitting (with o-ring) into the joint pipe, and tighten the bolt.

2. Insert the outer fitting into the clutch drum housing with pulling up the Pin. Be sure pin returns to original position by spring and outer fitting never comes off from clutch drum housing.

Bolt Joint Pipe Outer O-ring

Pin Clutch Axis Inner Shaft Outer Fitting Clutch Drum Housing

Loop Handle Installation

The loop handle kit contains a package of four screws and nuts and the bottom clamp for the loop handle.

Screw (4) Loop Handle Nut (4) Bottom Clamp

1. Place the loop handle and the bottom clamp on the shaft approximately 11 inches (28cm) from the end of the stop switch/throttle trigger assembly for an initial handle position.

2. Install the four screws and nuts. Leave the screws fingertight.

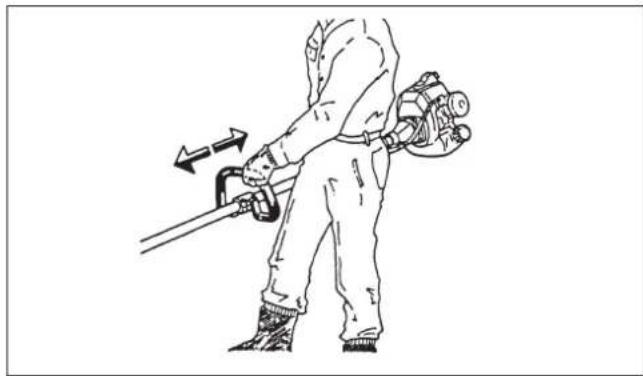

3. Reposition the loop handle up or down the drive-shaft to the most comfortable position, but no closer than 9 inches (22.8 cm) from the end of the stop switch.

Line drawing of a person in protective gear using a tool, no text or symbols present

1. Tighten the screws and nuts.

Connecting Stop Switch Wires

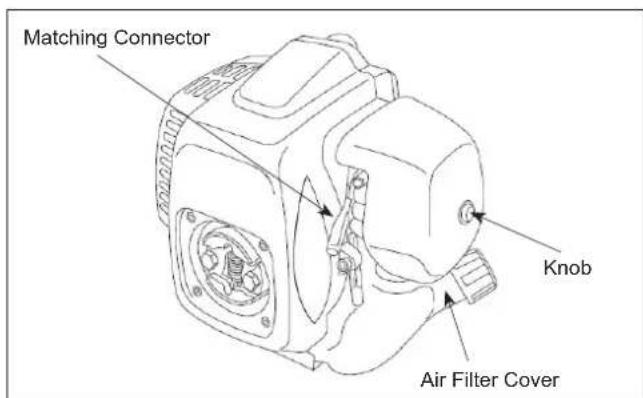

Matching Connector Knob Air Filter Cover

Stop Switch Wires

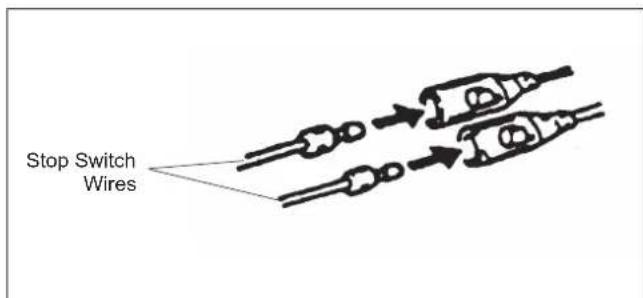

Plug the stop switch wires into the matching connectors from the engine. Note that wire polarity is not important.

Connecting Throttle Cable

1. Loosen the knob and remove the air filter cover, insert the throttle cable through the cable adjuster sleeve on the carburetor bracket. Make sure the end of the cable housing is seated positively in the sleeve.

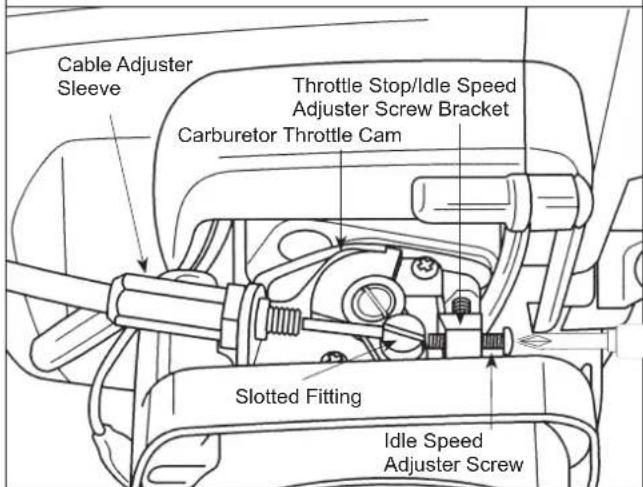

2. Position the slotted fitting on the carburetor so the recessed hole for the cable lug is away from the cable adjuster sleeve.

Cable Adjuster Sleeve Throttle Cable Housing Locknut Throttle Cable Slotted Fitting Recessed Hole Cable Lug Carburetor Bracket

Cable Adjuster Sleeve Throttle Stop/Idle Speed Adjuster Screw Bracket Carburetor Throttle Cam Slotted Fitting Idle Speed Adjuster Screw

1. Rotate the carburetor throttle cam clockwise and slip the throttle cable through the slot in the slotted fitting, making sure the cable lug drops into the recessed hole.
2. Operate the throttle trigger a few times to make sure that it works correctly.
3. Lap and fix the stop switch wires and connectors with clamp.

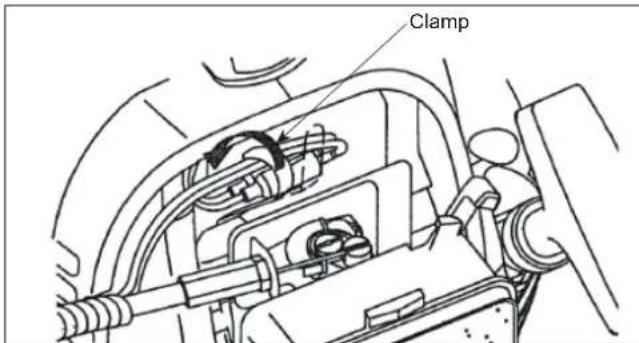

Clamp

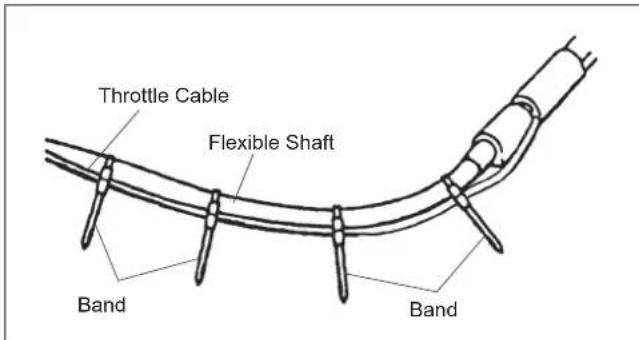

1. Bind the throttle cable and the flexible shaft with four bands.

Throttle Cable Flexible Shaft Band Band

Cable Adjustment

• Throttle cable should be paralleled to flexible shaft. In case of twisting, they should be restored by parallel.

• Throttle cable should be adjusted under the bended flexible shaft as shown.

• Adjust the cable adjuster sleeve so the stop on the carburetor throttle cam just contacts the throttle stop and the cable position keep 1-2mm play between cable lug and slotted fittings when the throttle trigger is fully depressed.

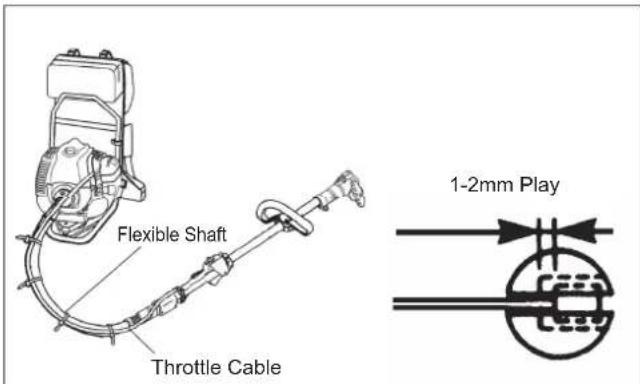

Flexible Shaft Throttle Cable 1-2mm Play

1. When the throttle cable is adjusted correctly, tighten the lock nut.

Attaching and Detaching for the Power Unit and the Shaft Assembly

Attaching

1 First, loosen the clamping knob before attaching the shaft assembly to the shaft coupler. Note : Do not over loosen the clamping knob or it may fall out.

2 Insert the shaft assembly to the shaft coupler with the positioning hole faced up as shown. Connect the both drive shafts completely in the matching position by moving the shaft assembly to forward and backward and left turn and right turn. When the shaft assembly is positioned correctly, spring tensioned positioning lever will be returned to the initial position.

3 Tighten the clamping knob firmly.

Shaft Coupler Positioning Lever Positioning Hole Shaft Assembly Clamping Knob TightenLoosen Insert

Incorrect Assembled Positioning lever is lowered state Correct Assembled Positioning lever is raised state Positioning Lever

Detaching

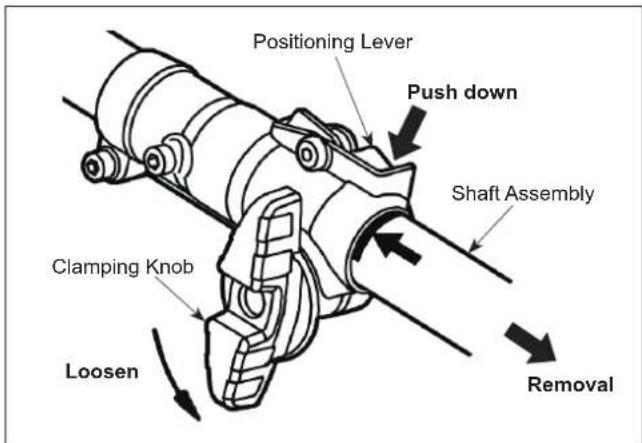

1 First, loosen the clamping Knob before detaching the shaft assembly to the shaft coupler.
2 Pull out the shaft assembly from the shaft coupler while holding the positioning lever down.
3 Note : Do not over loosen the clamping knob or it may fall out.

Positioning Lever Push down Shaft Assembly Clamping Knob Loosen Removal

Before Operation

Oil and Fuel

DANGER

POTENTIAL HAZARD

- In certain conditions gasoline is extremely flammable and highly explosive.

WHAT CAN HAPPEN

- A fire or explosion from gasoline can burn you, others, and cause property damage.

HOW TO AVOID THE HAZARD

• Use a funnel and fill the fuel tank outdoors, in an open area, when the engine is cold. Wipe up any gasoline that spills.
• Do not fill the fuel tank completely full. Add gasoline to the fuel tank until the level is 1/4 to 1/2 in. (6 mm to 13 mm) below the bottom of the filler neck. This empty space in the tank allows gasoline to expand.
• Never smoke when handling gasoline, and stay away from an open flame or where gasoline fumes may be ignited by a spark.
• Store gasoline in an approved container and keep it out of the reach of children.

• Never buy more than a 30-day supply of gasoline.

• Do not smoke near fuel.

• Mix and pour fuel outdoors and where there are no sparks or flames.

WARNING

POTENTIAL HAZARD

- Gasoline contains gasses that can build up pressure inside a gas tank.

WHAT CAN HAPPEN

- Fuel can be sprayed on you when removing gas cap.

HOW TO AVOID THE HAZARD

- Remove fuel cap slowly to avoid injury from fuel spray.

1. Always shut off the engine before refueling. Never remove the fuel tank cap while the engine is running or right after just stopping the engine.
2. Always open the fuel tank cap slowly to release any possible overpressure inside the tank.
3. Do not overfill the fuel tank. Stop filling 1/4-1/2 in. (6 mm-13 mm) from the top of the tank.
4. Tighten the tank fuel cap carefully but firmly after refilling.
5. Wipe up any spilled fuel before starting the engine.
6. Move the unit at least 10 ft. (3 m) away from the fueling location and fuel storage container before starting the engine.

10 ft. (3 m) minimum

Recommended Oil Type

Only use a two-stroke engine oil formulated for use in high-performance, air-cooled two-stroke engines.

MARUYAMA brand two-stroke oil is formulated for use in high-performance, air-cooled two-stroke engines.

IMPORTANT: Do not use National Marine Manufacturer's Association (NMMA) or BIA certified oils. This type of two-stroke engine oil does not have the proper additives for air-cooled, two-stroke engines and can cause engine damage.

Do not use automotive motor oil. This type of oil does not have the proper additives for air-cooled, two-stroke engines and can cause engine damage.

Recommended Fuel Type

Use clean, fresh lead-free gasoline, including oxygenated or reformulated gasoline, with an octane rating of 89 or higher. To ensure freshness, purchase only the quantity of gasoline that can be used in 30 days. Use of lead-free gasoline results in fewer combustion chamber deposits and longer spark plug life. Use of premium grade fuel is not necessary or recommended.

Use Of Fuel Additives

IMPORTANT: NEVER USE ALCOHOL, GASOHOL CONTAINING MORE THAN 10% ALCOHOL BECAUSE ENGINE FUEL SYSTEM DAMAGE COULD RESULT.

DO NOT USE FUEL ADDITIVES OTHER THAN THOSE MANUFACTURED FOR FUEL STABILIZATION DURING STORAGE SUCH AS MARUYAMA'S STABILIZER/ CONDITIONER OR A SIMILAR PRODUCT. MARUYAMA'S STABILIZER/ CONDITIONER IS A PETROLEUM DISTILLATE BASED CONDITIONER/STABILIZER.

MARUYAMA DOES NOT RECOMMEND STABILIZERS WITH AN ALCOHOL BASE SUCH AS ETHANOL, METHANOL OR ISO-PROPYL. ADDITIVES SHOULD NOT BE USED TO TRY TO ENHANCE THE POWER OR PERFORMANCE OF MACHINE.

Mixing Gasoline And Oil

IMPORTANT: The engine used on this Multi-Cutter is of a two-stroke design. The internal moving parts of the engine, i.e., crankshaft bearings, piston pin bearings and piston to cylinder wall contact surfaces, require oil mixed with the gasoline for lubrication.

Failure to add oil to the gasoline or failure to mix oil with the gasoline at the appropriate ratio will cause major engine damage which will void your warranty.

For your fuel premix, use MARUYAMA Premium two-stroke Oil Mix, or equivalent ISO-L-EGD & JASO FD oil with a minimum 89 octane high Quality gasoline. MARUYAMA two-stroke oil is specially formulated to meet the requirements of high-performance,

low-emission air-cooled two-stroke engines. Use of other oils may lead to service issues which may Not be covered by your warranty.

Fuel Mixture

The fuel: oil ratio is 50 parts gasoline to 1 part oil or 50:1.

50:1

Note: Never use a mixing ratio less than 50:1 regardless of the oil package mixing instructions. Ratios less than 50:1, (for example, 60:1, 80:1, 100:1), reduce the amount of lubrication to the internal moving parts of the engine and can cause damage.

Fuel Mixture Chart

Gasoline 50:1 two-stroke oil
1 gallon 2.6 oz.
2 gallons 5.1 oz.
5 gallons 12.8 oz.

1 liter 20 mL
5 liters 100 mL

Mixing Instructions

IMPORTANT: Never mix gasoline and oil directly in the Multi - Cutter fuel tank.

1. Always mix fuel and oil in a clean container approved for gasoline.
2. Mark the container to identify it as fuel mix for the Multi - Cutter.

3. Use regular unleaded gasoline and fill the container with half the required amount of gasoline.

4. Pour the correct amount of oil into the container then add the remaining amount of gasoline.

5. Close the container tightly and shake it momentarily to evenly mix the oil and the gasoline before filling the fuel tank on the Multi - Cutter.
6. When refilling the Multi - Cutter fuel tank, clean around the fuel tank cap to prevent dirt and debris from entering the tank during cap removal.
7. Always shake the premix fuel container momentarily before filling the fuel tank.
8. Always use a spout or funnel when fueling to reduce fuel spillage.
9. Fill the tank only to within 1/4-1/2 in. (6 mm-13 mm) from the top of the tank. Avoid filling to the top of the tank filler neck.

Starting And Stopping

Before Starting The Engine

1. Fill the fuel tank as instructed in the Before Operation section of this manual (page US-16).
2. Rest the Multi-Cutter on the ground.
3. Make sure the cutting attachment is clear of any broken glass, nails, wire, rocks or other debris.
4. Keep all bystanders, children and animals away from the working area.

Cold Starting Procedure

This Multi-Cutter is equipped with a fuel primer and a choke system. To start a “cold” engine properly, perform the following procedure:

1. Pump the primer bulb at the bottom of the carburetor until fuel can be seen flowing through the fuel return line to the fuel tank.

(Flowing fuel should be almost clear, not foamy or full of bubbles.)

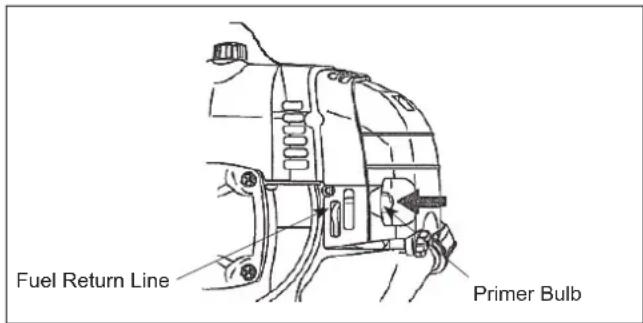

Fuel Return Line Primer Bulb

1. Move the choke lever to the closed ( || ) position and move the stop switch to the “ON” position.
2. Lock the throttle trigger in the fast-idle start position, then pull the starter grip.

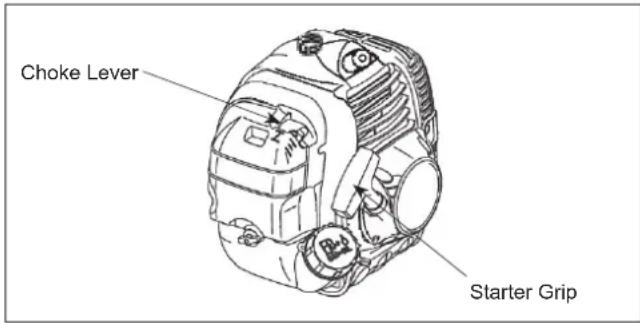

Choke Lever Starter Grip

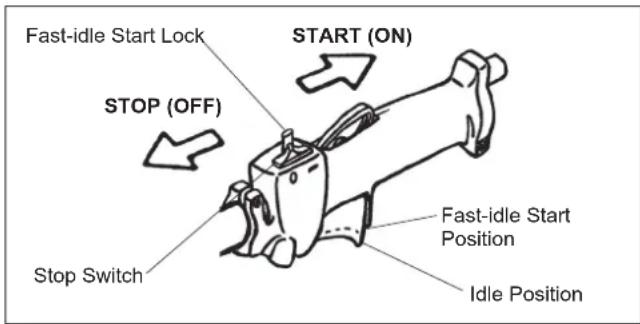

Fast-idle Start Lock STOP (OFF) Stop Switch START (ON) Fast-idle Start Position Idle Position

CAUTION

- Do not pull the Starter rope all the way out.

WARNING

- Do not disassemble the Starter. Please ask for an authorized MARYAMA service dealer.

1. After the engine starts, squeeze and release the throttle trigger to return it to the idle position, then move the choke lever to the open (|↑|) position.

If the engine stops running before you move the choke lever to the open ( || ) position:

Go ahead and open the choke, pull the starter grip with the throttle trigger positioned at Fast-idle position

Hot Restart

To start an engine that is already warmed up (hot restart), or if the ambient temperature exceeds 68^ F ( 20^ C):

1. Pump the primer bulb at the bottom of the carburetor until fuel can be seen flowing through the fuel return line to the fuel tank.
2. Move the choke lever to the open ( || ) position and move the stop switch to the “ON” position.
3. Leave the throttle trigger in the idle position and pull the starter grip.
4. If the engine fails to start after three to four pulls, follow the instruction in the Cold Starting Procedure section (page US-18).

If the engine fails to start after you follow the above procedures, contact an authorized MARUYAMA dealer.

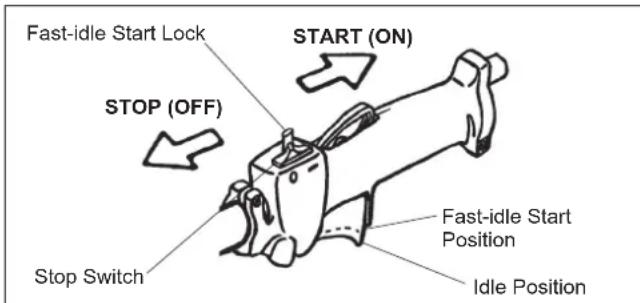

To Stop The Engine

1. Release the throttle trigger.
2. Slide the stop switch to the "STOP" position.

Fast-idle Start Lock STOP (OFF) Stop Switch START (ON) Fast-idle Start Position Idle Position

Maintenance

Maintenance, replacement or repair of emission control devices and systems may be performed by any repair establishment or individual; however, warranty repairs must be performed by a dealer or service center authorized by MARUYAMA Manufacturing Company, Inc. The use of parts that are not equivalent in performance and durability to authorized parts may impair the effectiveness of the emission control system and may have a bearing on the outcome of a warranty claim.

Maintenance on today's low-emission engines is even more critical for longest life and best performance. particularly critical are air and fuel filters, spark plug heat range, cooling air intake area and proper gaps of coil and plug.

Idle Speed Adjustment

This Multi-Cutter is equipped with non-adjustable fuel mixture carburetor. The engine idle speed is the only adjustment for the operator.

WARNING

- Idle speed adjustment should be checked each time the unit is operated.

WARNING

POTENTIAL HAZARD

• Engine must be running to make carburetor adjustments.
• When engine is running, attached tool and other parts is rotating / moving and other parts are moving.

WHAT CAN HAPPEN

- Contact with rotating / moving tool or other moving parts could cause serious personal injury or death.

HOW TO AVOID THE HAZARD

• Keep hands, feet and clothing away from attached tool and other moving parts.
• Keep all bystanders and pets away from unit while making carburetor adjustments.

The Attached Tool may be rotating/ moving during idle speed adjustment. Wear the recommended personal protective equipment and observe all safety instructions. Keep hands and body away from the Attached Tool.

When the throttle trigger is released, the engine should return to an idle speed between 2400 and 2800 RPM, or just below the clutch engagement speed. The Attached Tool must not rotate/move and the engine should not stall (stop running) at engine idle speed.

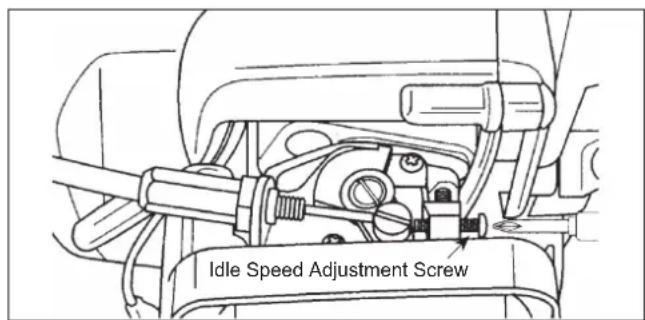

To adjust the engine idle speed, rotate the idle speed adjustment screw on the carburetor.

Idle Speed Adjustment Screw

• Turn the idle speed screw in (clockwise) to increase the engine idle speed.
• Turn the screw out (counterclockwise) to the engine idle speed.

If idle speed adjustment is necessary, and after adjustment the Attached Tool rotates/moves or the engine stalls, stop using the Multi-Cutter immediately!

Contact your local authorized MARUYAMA Dealer for assistance and servicing.

Air Filter

Maintenance Interval

• The air filter should be cleaned daily, or more often when working in extremely dusty conditions.
• Replace after every 100 hours of operation.

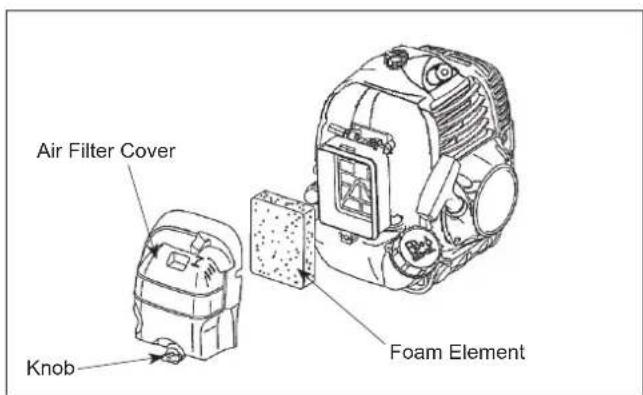

Air Filter Cleaning

1. Loosen the knob and remove the air filter cover.
2. Remove the foam element and filter screen from the air filter body.
3. Clean the foam element and filter screen with warm, soapy water. Let the screen and element dry completely.
4. Apply a light coat of motor oil (SAE 30 or equivalent viscosity) to the foam element and squeeze out all excess oil.
5. Reassemble the foam element to the air filter body.
6. Reinstall the air filter cover and tighten the knob.

Air Filter Cover Knob Foam Element

Fuel Filter

Maintenance Interval decrease

The fuel filter should be replaced after every 100 hours of operation.

Fuel filters needing more frequent replacement may indicate debris in fuel tank.

Fuel Filter Replacement

The fuel filter is attached to the end of the fuel pick-up hose inside the fuel tank.

To replace the fuel filter:

1. Make sure the fuel tank is empty.
2. Remove the fuel cap.
3. Using a wire hook, gently pull the fuel filter out through the fuel filler opening. Use caution not to "fishhook" the fuel hose. Replace immediately if punctured!
4. Grasp the fuel hose next to the fuel filter fitting and remove the filter, but do not release the hose.
5. While still holding on to the fuel hose, attach the new fuel filter.
6. Drop the new fuel filter back into the fuel tank.
7. Make sure that the fuel filter is not stuck in a corner of the tank, and that the fuel hose is not doubled over (kinked) before refueling.

Wire Fuel Pick-up Hose Fuel Filter

Spark Plug

Maintenance Interval

• The spark plug should be removed from the engine and checked after each 25 hours of operation.
• Replace the spark plug after every 100 hours of operation.

Spark Plug Maintenance

1. Twist the high tension lead boot on the spark plug back and forth a couple of times to loosen the boot, then pull the boot off of the spark plug.
2. Remove the spark plug.
3. Clean the electrodes with a stiff brush.
4. Adjust the electrode air gap to .024-.028 in. (0.6-0.7mm).
5. Replace the spark plug if it is oil-fouled, damaged, or if the electrodes are worn down.
6. Do not overtighten the spark plug when installing. The tightening torque is 95-148 in.-lbs. (10.7-16.6 N·m).
7. Always use only the specific heat range of spark plug. This is particularly critical with today's lowemission engines. For best results, use the exact replacement.

.024" - .028" (0.6 - 0.7 mm)

Cylinder Cooling Fins

Maintenance Interval

• The cylinder cooling fins should be cleaned after every 25 hours of operation, or once a week, whichever comes first.
• Air must flow freely around and through the cylinder cooling fins to prevent engine overheating. Leaves, grass, dirt and debris buildup on the fins will increase the operating temperature of the engine, which can reduce engine performance and shorten engine life.

Cooling Fin Cleaning

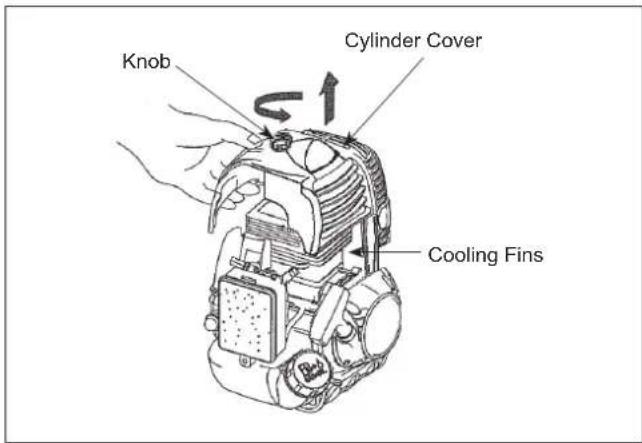

1. With the engine at ambient (room) temperature, loosen the knob and remove the air filter cover.
2. Loosen the knob and lift off the cylinder cover.
3. Clean all dirt and debris from the cooling fins and from around the cylinder base.
4. DO NOT overlook cleaning of the cooling air intake area below the crankcase and above the fuel tank! This area must be free of debris and obstruction for the engine to cool properly.
5. Reinstall the cylinder and air filter covers.

Knob Cylinder Cover Cooling Fins

Spark Arrester

WARNING

POTENTIAL HAZARD

- Muffler surface becomes hot when Multi-Cutter is in operation and remains hot for some time after the engine is shut off.

WHAT CAN HAPPEN

- Contact with hot muffler surfaces could cause a burn.

HOW TO AVOID THE HAZARD

• Make sure the muffler is cool before inspecting and cleaning the spark arrester.

Maintenance Interval

• The spark arrester should be inspected and cleaned after every 25 hours of use.
• Replace the screen if it cannot be thoroughly cleaned, or if it is damaged.

Spark Arrester Maintenance

1. With the engine at ambient (room) temperature, loosen the knob and remove the air filter cover.
2. Loosen the knob and lift off the cylinder cover.

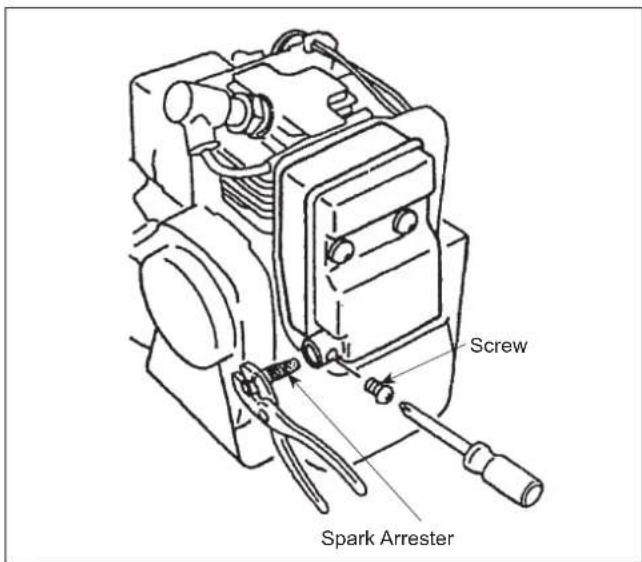

3. Remove a screw located on the side of the exhaust outlet holds the spark arrester in place.
4. Withdraw the spark arrester, using a suitable pair of pliers.

Note: Do not crush or distort the spark arrester flange during removal.

1. The screen can be cleaned using a non-flammable solvent and stiff wire brush.
   Note: If any part cannot be thoroughly cleaned, it must be replaced.
2. To install insert the spark arrester into the exhaust outlet while aligning the holes in the arrester flange and outlet for the retaining screw. Then install the screw.
3. Reinstall the cylinder and air filter covers.

Screw Spark Arrester

Exhaust Muffler

Maintenance Interval

The muffler should be inspected and cleaned after each 100 hours of use.

Muffler Maintenance

1. With the engine at ambient (room) temperature, loosen the knob and remove the air filter cover.
2. Loosen the knob and lift off the cylinder cover.
3. Withdraw the spark arrester using a suitable pair of pliers.
   Note: Do not crush or distort the spark arrester flange during removal.

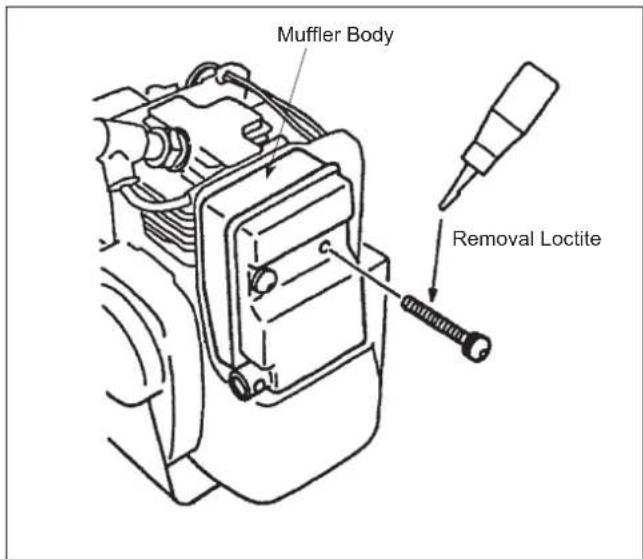

4. Remove the three socket head screws holding the muffler body from cylinder.
5. Clean exhaust port of cylinder, exhaust outlet of muffler and spark arrester with safety solvent and stiff brush.
   IMPORTANT: Be careful not to allow any dirt or debris to fall into the exhaust ports, as this can cause engine damage.
6. To reassemble the muffler body to the cylinder, apply Removal Loctite to the three socket head screws, then reinstall and tighten the three screws.
7. Reinstall the spark arrester onto the muffler body, then reinstall and tighten the screw.
8. Reinstall the cylinder and air filter covers.

Muffler Body Removal Loctite

Flexible Shaft

Maintenance Interval

The flexible shaft should be lubricated after each 20 hours of operation

Flexible Shaft Lubrication

1. Pull out the outer fitting from the clutch drum housing, with pulling up the pin.

Pin Clutch Axis Inner Shaft Outer Fitting Clutch Drum Housing

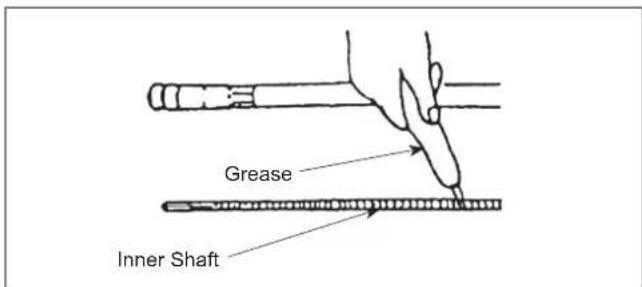

1. Pull out the inner shaft from the flexible outer, and apply half a tubeful of grease to entire length of the inner shaft evenly.

Grease Inner Shaft

1. Insert the inner shaft into the flexible outer and reinstall the outer fitting to the clutch drum housing, with pulling up the pin.

General Cleaning and Tightening

WARNING

POTENTIAL HAZARD

- When engine is running, Attached Tool is rotating/ moving and other parts are moving.

WHAT CAN HAPPEN

- Contact with rotating/moving Tool or other moving parts could cause serious personal injury or death.

HOW TO AVOID THE HAZARD

• Always turn off your Multi-Cutter before you clean or perform any maintenance on it.

The MARUYAMA Multi-Cutter will provide maximum performance for many, many hours if it is maintained properly. Good maintenance includes regular checking of all fasteners for correct tightness, and cleaning the entire machine.

Storage

For long term storage of the Multi-Cutter:

1. Empty the fuel tank into a suitable fuel storage container.
2. Pump the primer bulb on the carburetor until all fuel is discharged through the clear fuel return hose.
3. Run the engine to remove any fuel that may remain in the carburetor.
4. Perform all regular maintenance procedures and any needed repairs.

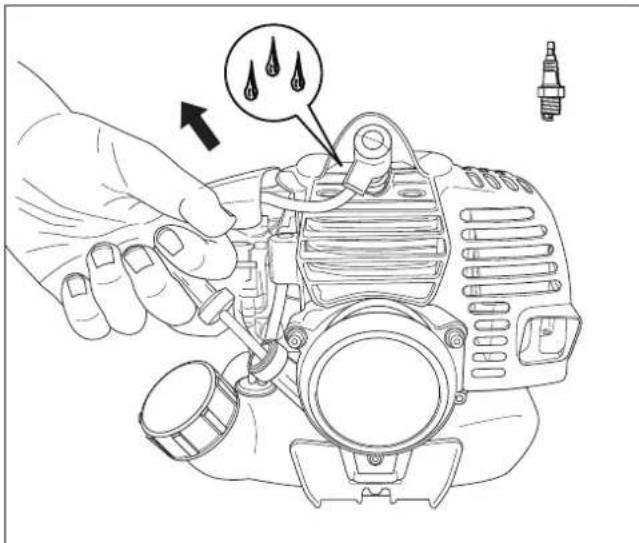

5. Remove the spark plug and squirt a very small amount of oil into the cylinder.

Technical diagram showing engine component assembly with labeled parts and a magnified view of oil drop drop indicator

CAUTION

POTENTIAL HAZARD

- Oil may squirt out of the spark plug opening when you pull the starter grip.

WHAT CAN HAPPEN

- Oil can cause eye injuries.

HOW TO AVOID THE HAZARD

- Protect your eyes and keep your face away from the spark plug opening.

1. Pull the starter grip once.
2. Slowly pull the starter grip to bring the piston to the top of the cylinder (TDC).
3. Reinstall the spark plug.
4. Store the Multi-Cutter in a dry place away from excessive heat, sparks or open flame.

Troubleshooting

Problem Cause Action
Engine Will Not Start STOP switch set	to off positionEmpty fuel tankPrimer bulb wasn't pushed enoughEngine flooded	Move switch to on positionFill fuel tankPress primer bulb until fuel flows through fuel return lineUse warm engine starting procedure
Engine Will Not Idle Idle speed set incorrectly Set idle speed
Engine Lacks Power or Stall When Cutting	Throttle wire has come looseDirty air filterClogged spark arrester or exhaust port.	Tighten throttle wireClean or replace air filterClean spark arrester or exhaust port.

If further assistance is required, contact your local authorized MARUYAMA service dealer.

Maintenance Period

	Maintenance Daily		Every 25 hours	Every 50 hours	Every 100 hours
	Check and replenish fuel	●
	Check for fuel leakage	●
	Check bolts, nuts and screws for tightness or missing	●
	Check engine idle speed adjustment	●
■	Clean air filter element	●
	Clean spark plug and adjust eleatrode gap		●
■	Remove dust and dirt from cylinder fins		●
●	Clean spark arrester		●
	Tighten bolts and nuts			●
●	Remove carbon deposits in exhaust port			●
	Replace fuel filter				●
●	Remove carbon deposits on piston head and combustion chamber				●
●	Remove carbon deposits in transfer port				●
	Replete fuel tube, fuel tank cap gasket It is recommended to replace every 3 years

●: Service to be performed by an authorized MARUYAMA engine dealer.
■: Service more frequently under dusty conditions.

NOTE:

The service intervals indicated are to be used as a guide.

Service to be performed more frequently as necessary depending on operating condition.

Use MARUYAMA standard 50:1 two-stroke engine oil.

Specifications

	M42BK-QC
Weight ※1(lbs.) 23.5 (10.6kg)
Engine Displacement (cm3)	41.5
Anti Vibration Dual Isolatin-grip and engine mount
Carburetor Walbro Diaphragm Type
Ignition Syatem Solid State
Fuel Tank Capacity (qts.)	1.06 (1.0L)
Gas to Oil Ratio 50:1
Spark Plug NGK BPM8Y
Spark plug Gap (in.) .024- .028 (0.6-0.7mm)
EPA and CARB Approved	Phase 3, Tier 3

Emission durability of 300 hours.
※ 1. Dry weight without fuel.

Tool Attachments

For an installation and the operation shall be referred each attachment's manual within listed the attachments which have to be packaged on Multi-Cutter Tool Attachments.

QC-S/QC-ST Straight Shaft Attachment
QC-HT Hedge Trimmer Attachment
QC-HTS /QC-HTR	Swiveling Hedge Trimmer Attachment
QC-P/QC-PS/QC-PL	Pruner Attachment
QC-E/QC-ES	Edger Attachment
QC-T	Cultivator Attachment
QC-LB	Landscape Blade Attachment
QC-LS	Landscape Sweeper Attachment

MARUYAMA®

Line drawing of a worker in protective gear using a handheld tool (no text or symbols)

Technical diagram of a mechanical device with numbered components and exploded view

Line drawing of a person using a power tool to clean or operate equipment (no text or symbols)

.024 - .028en. (0.6 - 0.7 mm)

Technical diagram showing a hand using a valve to adjust or install a mechanical component with droplet and spark plug symbols.

CUIDADO

PELIGRO EN POTENCIA

Line drawing of a person in protective gear using a tool on a cleaning machine (no text or symbols)

Technical diagram of a mechanical device with numbered components and exploded view

Line drawing of a person in protective gear using a tool, with arrows indicating motion direction (no text or symbols)

3m (10pi.) minimum

Technical diagram showing engine component repair with labeled parts and directional arrow indicating action

ATTENTION

DANGER POTENTIEL
