USER MANUAL MN267CB INVENTUM

Black model of a modern microwave oven with digital display and control knobs (no visible text or symbols)

1. safety instructions page 16 11. quick start page 23
2. appliance description page 20 12. auto menu page 24
3. before first use page 21 13.defrosting page 25
4. setting the clock page 21 14. parental control page 25
5. setting the kitchen timer page 21 15. extra page 25
6. cooking in the microwave page 22 16. cleaning & maintenance page 26
7. grill or combination cooking page 22 17. problems & solutions page 26
8. convection with preheating function page 23 General terms and conditions of service page 51
9. convection without preaheating page 23 and warranty
10. multi-stage cooking page 23

Deutsch

1 Safety instructions

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home. Do not use corrosive chemicals or vapors in this appliance. This microwave oven is especially designed to heat. It is not designed for industrial or laboratory use.
• Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
• Do not place any object between the door of the microwave oven. Don't allow soil or cleaner residue to accumulate on the sealing surfaces.
• Warning: If the door or door seal are damaged, the microwave oven must not be operated until it has been repaired by a competent person.
• Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
• Warning: It is hazardous for anyone other than a competent person to carry out any service or repairs that involve the removal of the cover which gives protection against exposure to microwave oven energy.
• An electrical appliance is not a toy, and should therefore always be placed outside the reach of children. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
• This appliance shall not be used by children from 0 to 8 years. This appliance can be used by children over the age of 8 and above if they are continuously supervised. This can be used by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years.

- Cleaning and maintenance shall not be made by children.

• Children must not play with the appliance.

- Only use utensils suitable for use in microwave ovens.

- Never use the microwave oven when empty.

- The microwave oven should be cleaned regularly and any food deposits should be removed.

- When heating food in plastic or paper containers, keep an eye on the microwave oven due to the possibility of ignition.

- When you see smoke, switch off and unplug the microwave oven. Keep the door closed in order to stifle any flames.

- Do not overcook the food.

- Do not use the microwave oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside.

- Remove metal wire twisties and metal handles from paper or plastic containers/bags before placing them in the microwave oven.

- Install or locate this microwave oven only in accordance with the installation instructions.

- Eggs in the shell and whole hard-boiled eggs should not be heated in the microwave oven since they may burst, even after the microwave oven is shut off.

• Always carry out regular checks of the appliance and the power cord to ensure no damage is evident. Should there be any signs that the appliance or the power cord is damaged in the slightest degree, the entire appliance should be returned to the Customer Service Department. For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.

- Only use and store the appliance indoors.

- Do not use the microwave oven near water, in a wet basement/garage or near a swimming pool.

- Attention! Avoid touching hot surfaces, especially the inside of the appliance.

- Do not cover any vents of the microwave oven.

- Do not let the cord hang over the edge of the table or counter and keep it away from the heated surface.

- Failure to maintain the microwave oven clean could lead to deterioration of the surface that could adversely affect the life of the appliance and possible result in a hazardous situation.

• The contents of feeding bottles and baby food jars shall be stirred or shakes and the temperature checked before consumption, in order to avoid burns.
• Attention: heating of beverages in the microwave oven can result in delayed eruptive boiling. Therefore always place a plastic or ceramic spoon in the cup. Be careful when handling the container.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
  • Always use the appliance on a secure, dry, level surface.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• Never leave the appliance unattended when in use.
• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• Never unplug it from the socket by pulling on the cable.
  • Always ensure that your hands are dry before handling the plug, switch or power cord.
• Before moving the appliance, make sure it is switched of. Use both hands when moving the appliance.
• Never immerse any part of the main body, lid, power cord and plug in water or any other liquid to protect against electrical hazards.
• If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.
• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas;
• in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

• Never use a pressure cleaner or steam cleaner to clean the microwave oven.
• Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

- Be careful with the following materials if they can be used in the microwave oven:

• aluminium foil yes*
• paper yes**
• cling film yes
• aluminium tray no
• microwave dishes yes
• heatproof plastic yes
• unglazed pottery no
• metal cooking utensils no
• ovenproof glass and ceramics yes
• normal glass yes
• metallic twists no
• plate with metallic decoration no
• mercury thermometer no
• closed jar no***
• bottle with narrow neck no
  -roasting bags yes

* By covering thinner parts of foods (such as chicken legs), you prevent them from cooking too quickly.

** Use undecorated kitchen paper to cover food and to absorb grease.

*** Remove the lid and make sure the jar is not heated too long. The jar may break.

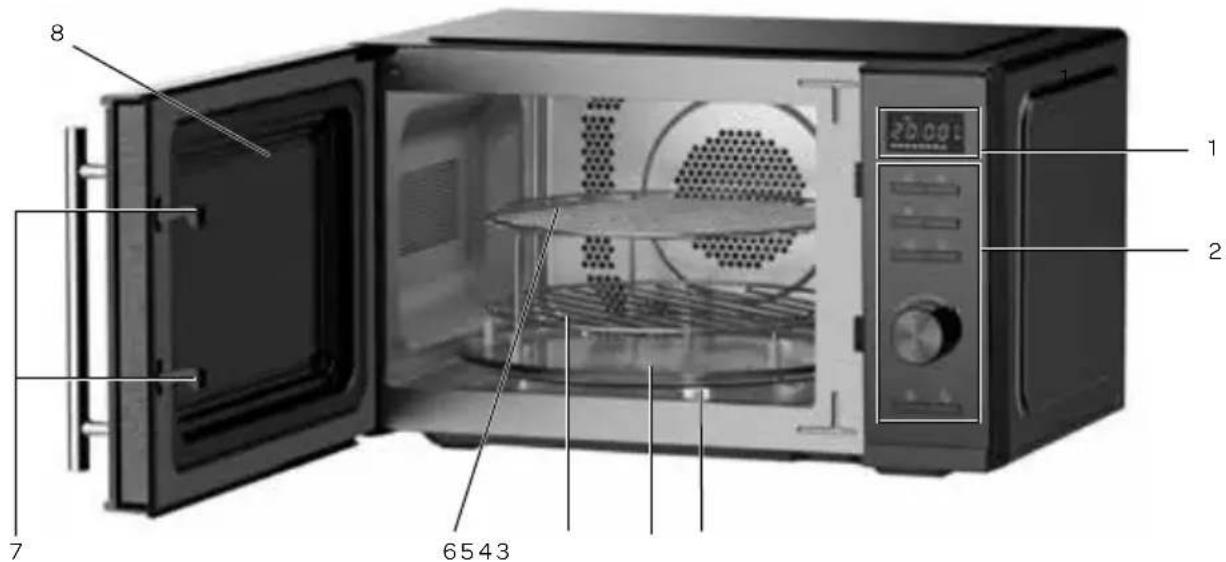

2 appliance description

8 7 6543 1 2 20:00:1

1. Display
2. Control panel
3. Turntable ring assembly
4. Glass tray
5. Lower grill rack
6. Higher grill rack
7. Door with handle and safety interlock system
8. Observation window

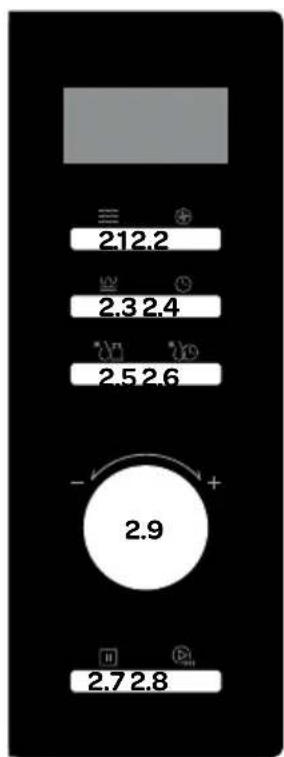

212.2 2.3 2.4 2.5 2.6 - + 2.9 2.7 2.8

2.1 Button for microwave setting
2.2 Button fo convection setting
2.3 Button for grill and combination
2.4 Button for clock/timer
2.5 Button for defrost setting by weight
2.6 Button for defrost setting by time
2.7 STOP/reset button
2.8 START/+30 SEC-button
2.9 Turn knob for adjusting or choosing auto menu

3 before first use

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation.

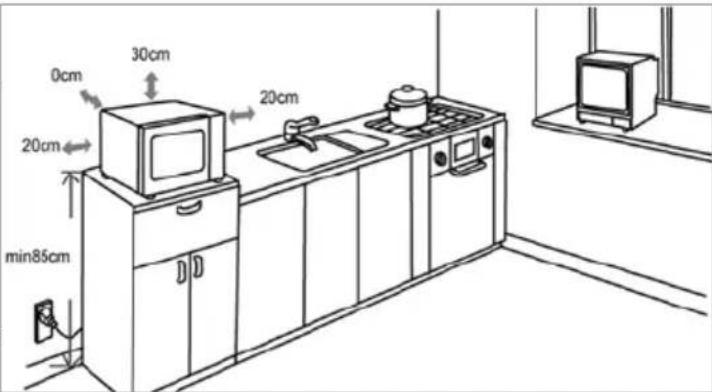

Place the appliance on a flat and stable surface. Make sure there is enough open space around the appliance for the intake and/or outlet vents.

The minimum installation height is 85 cm. The rear surface of the appliance shall be placed against a wall. Leave a minimum clearance of 30 cm above the microwave. A minimum clearance of 20 cm is required between the microwave oven and any adjacent walls. Do not remove the feet of the microwave. Blocking the intake and/or outlet openings can damage the microwave.

0cm 30cm 20cm 20cm min85cm 20cm

Using the microwave oven may cause interference to your radio or TV reception. Place the microwave oven therefore as far away from such devices as possible. Do not place the microwave oven near a heat source. Clean the microwave oven and the accessories with a damp cloth. The appliance is now ready for use. Note: the new appliance can give off a bit of a 'new' smell at the first use, this is perfectly normal and causes no harm to the appliance. Check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance and plug it in a socket.

Attention! The wave guide cover inside the microwave divides the microwaves and must never be removed.

4 setting the clock

As soon as the microwave oven is plugged in, it will display 0:00 and the buzzer will ring once.

• Press the button Ⓛ twice. The display shows 00:00.
• Turn 📋 to adjust the hour. The input should be between 0-23 (24 hour).
• Press the button again and the minutes will flash.
• Turn 📋 to adjust the minutes. The input should be between - 0-59.

• Press the button again to confirm the time.

• If the clock is not set, it would not function when powered. The display will show 0:00.

• If you do not press the button ⏻ during the process of setting the clock within 1 minute, the microwave oven will return to the previous setting.

5 setting the kitchen timer

• Press the button once. The display will show 00:00.
• Turn to adjust the correct cooking time. The maximum time is 95 minutes.
• Press the button to confirm the setting.
• When the set time has ended, the buzzer will ring 5 times and the display will return to the current time.

6

cooking in the microwave

• Press the button ≈ and the display will show P100. Press the button ≈ repeatedly to change the power or use 📄P100-P80-P50-P30-P10.
• Press the button to confirm the power.
• Turn to adjust the cooking time. The cooking time can be set from 0:00 to 95:00.
• Press the button again to confirm the cooking time and start the microwave.

Microwave power Application
P10 = 90 Watt Softening	butter or ice cream
P30 = 270 Watt Soup, hotchpot or defrosting
P50 = 450 Watt Hotchpot, fish
P80 = 720 Watt Rice, fish, chicken, grounded meat
P100 = 900 Watt Heating, milk, boiling water, vegetables, heating beverages

The step quantities for adjusting the time are as follows:

0-1 minute : 5 seconds

1-5 minutes : 10 seconds

5-10 minutes : 30 seconds

10-30 minutes : 1 minute

30-95 minutes : 5 minutes

7

grill or combination cooking

• Press the button ∪-∞ and the display will show G-1. Press the button ∪-∞ repeatedly to change the program or use -G-1, C-1, C-2, C-3 or C-4.
• Press the button to confirm the program.
  • Turn to set the right cooking time. The cooking time can be set from 0:00 to 95:00.
• Press the button again to start the program.

Extra: If half the grill time passes, the oven will ring twice. This is normal. For a better grilling result, you should turn the food over. Close the door and press again to continue grilling.

Grill and combination settings
Display	Microwave ≈	Grill Convection ∪	⊕
G-1		●
C-1	●		●
C-2	●	●
C-3		●	●
C-4	● ●	●

8 convection with preheating function

Cooking with convection lets you cook the food as in a traditional oven. The microwave is not used. It is recommended that you should preheat the oven to the necessary temperature before placing the food in the oven.

• Press the button and the display will show 150^ C .
• Press the button repeatedly to change the temperature or use. The temperature can be set from 150 to 240°C.
• Press the button to confirm the temperature.
• Press the button 🚫, again to start the preheating. When the preheating temperature is reached, the buzzer will ring twice to remind you to place the food in the oven. The preheated temperature is displayed and will flash.
• Place the food in the oven, close the door and use 📋 to set the desired cooking time. The maximum is 95 minutes.
• Press the button to start the baking.

Extra:

• Until the preheating temperature is reached it is not possible to set a cooking time. When the temperature is reached, the door must be opened to set the cooking time.
• If the time is not put in within 5 minutes, the oven will stop preheating. The buzzer will ring five times and turn back to waiting state.

9 convection without preheating

• Press the button and the display will show 150^ C .
• Press the button ✪ repeatedly to change the temperature or use 📋

The temperature can be set from 150 to 240°C.

• Press the button (▶) to confirm the temperature.
• Turn to adjust the cooking time. The maximum is 95 minutes.
• Press the button to start the baking.

10 multi-stage cooking

You can set a maximum of two stages at once with the microwave oven. If one stage is defrosting, it should be put as the first stage. The buzzer will ring once after each stage and when the next stage will begin.

Example: if you want to defrost the food for 5 minutes and then cook it with 80% microwave power for 7 minutes follow the next steps:

• Press the button * once and the display shows d-2.
  • Turn 📁 to adjust the defrosting time to 5 minutes.
• Press the button and use to set the microwave power to 80% - P80.
• Press the button to confirm the setting.
  • Turn 📋 to adjust the cooking time to 7 minutes.
• Press the button to start cooking.

11 quick start

- Press the button ☑ to cook with full power (900 Watt) for 30 seconds. Each press on the same button increases the time with 30 seconds. The maximum is 95 minutes.

or

• Turn to the left to set the cooking time instantly and press to heat the microwave to full power (900 Watt).
• Press during the use of the microwave, grill, convection or a combination the button ⏻ to increase the cooking time full power with 30 seconds.

When pressed repeatedly on the same button the time increases with 30 seconds.

Extra:

- This function does not work while defrosting or while using a auto menu.

• Turn 📋 to the right to select the desired menu and A-1, A-2, A-3..... A-10 will be displayed.
• Press the button 📋 to confirm the menu
• Turn 📋 to select the desired weight and the display will show g.
• Press the button to start the menu.

Extra:

• When you choose the menu A-8 - cake, please do not place the cake into the oven at the beginning. The oven first needs to be preheated to 180°C. After several minutes, the buzzer will ring twice to remind you to place the cake into the oven. After placing the cake in the oven, press again to start the baking. The time will countdown and the cake will be baked perfectly.
• While preparing chicken with menu A-10, the oven will ring twice. This is normal. To get a better grilling result you should turn over the chicken. Close the door and press the button again to continue grilling.

Overview auto menu

Menu ☑	Weight (g) Display
A-1 AUTO REHEAT	150 g	150
	250 g	250
	350 g	350
	450 g	450
	600 g	600
A-2 POTATO	1 ( ± 230 g)	1
	2 ( ± 460 g)	2
	3 ( ± 690 g)	3
A-3 MEAT	150 g	150
	300 g	300
	450 g	450
	600 g	600
A-4 VEGETABLES	150 g	150
	350 g	350
	500 g	500
A-5 FISH	150 g	150
	250 g	250
	350 g	350
	450 g	450
	650 g	650
A-6 PASTA	50 g (with 450 ml. water)	50
	100 g (with 800 ml. water)	100
	150 g (with 1200 ml. water)	150
A-7 SOUP	200 ml	200
	400 ml	400
	600 ml	600
A-8 CAKE 475 g		475
A-9 PIZZA	100 g	100
	200 g	200
	300 g	300
A-10 CHICKEN	500 g	500
	750 g	750
	1000 g	1000
	1200 g	1200

13 defrosting

Defrosting by weight

• Press the button * to defrost by weight. The display shows d-1.
  • Turn to select the weight of the food. The weight should be between 100 and 2000 gram.
• Press the button to start defrosting.

Note: when the second power stage has passed, the buzzer will sound to remind you to turn the food over.

Defrosting by time

• Press the button *to defrost by time. In the display appears d-2.
• Turn 📋 to select the desired defrosting time. The maximum time is 95 minutes.
• Press the button to start defrosting.

Extra: when half of the time has passed, the buzzer will sound to remind you to turn the food over. The defrost power is P30 and cannot be changed.

14 parental control

This microwave oven has parental control. You can block the control panel so your child can not accidentally activate the microwave oven.

Activating the lock-out:

Press the button for 3 seconds. A long beep will sound and the display will show. The display will show the current time when set or 0:00.

De-activating the lock out:

To deactivate the lock out, press the button ^11 for 3 seconds. A long beep will sound and the icon will disappear.

15 extra

• When using the microwave oven, press to see the current time for 2-3 seconds.
• While using a function of the microwave oven, you can check the setting by the button ≈, ∪ - ≈. The power or temperature will be displayed for 2-3 seconds.
  • The buzzer will ring once when turning at the beginning.
• must be pressed again to continue cooking after the door has been openend.
• On the program is set, but not activated within five minutes, the setting will be canceled and the current time will be displayed (when set).
• The buzzer will only sound once by sufficient pressing the button. If you do not press the button correctly there will be no soundsignal and the function will not activate.
  • The buzzer will ring five times to remind you when the cooking has ended.

16 cleaning & maintenance

Before cleaning the microwave oven be sure to switch it off and unplug it. Leave the microwave oven to cool down completely.

Interior

Clean the inside of the appliance after every use. Use a damp cloth. For a thorough cleaning use warm soapy water and dry the interior.

Accessories

Clean the separate accessories such as the turntable, the roller stay and the grill rack with warm soapy water. These accessories can also be cleaned in the dishwasher. Thoroughly dry everything before using them again.

Exterior

Clean the exterior of the appliance with a damp cloth or sponge. If necessary use a mild detergent. Also clean the door and the door seal.

17 problems & solutions

Check the solutions below before contacting your supplier or our technical department in case of a problem.

Problem Solution
The microwave oven does not start	Is the power cord plugged in?Is the fuse or circuit breaker blown?
The microwave oven does not heat	Did the door close correctly? Open the door and shut it well again.
The turntable makes noise Clean the roller ring for the turntable and the bottom of the microwave oven.
The food is not well defrosted Has the power and time been set correctly? Did you stir or turn the food at least once whilst defrosting?

Positions de combinaison
Affichage Micro-ondes ≈	Gril Air chaud ∪	∅
G-1		●
C-1	●		●
C-2	●	●
C-3		●	●
C-4	● ● ●

general terms and conditions of service and warranty

A 5 year warranty is provided for this product. Your warranty is valid if the product has been used in accordance with the user instructions and for the purpose for which it was made. Also the original proof of purchase must be submitted, stating the date of purchase, the name of the retailer and the item number of the product. For extensive warranty information you are referred to our website: www.inventum.eu/service/garantie-informatie

instagram.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908
