USER MANUAL IVR0882S INVENTUM

Front view of a white refrigerator with open door, showing three empty compartments filled with food items (no visible text or symbols)

1. safety instructions page 15

2. appliance description page 21

3. before first use page 21

4. how to operate the appliance page 22

5. food storage in the appliance page 23

6. cleaning & maintenance page 23

7. troubleshooting page 24

General terms and conditions of service and warranty page 48

Deutsch

Simple 3D illustration of a mechanical part with a labeled line (no text or symbols on the object itself)

1 2 3 4 5

3 ingebruikname

Diagram of two heat exchanger-like structures with directional arrows indicating flow or movement (no text or labels)

Illustration showing three steps of a robotic manipulation: adding a mouse, moving a grid, and removing a tool (no text or symbols present)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating movement or force.

1 Safety instructions

GENERAL SAFETY INSTRUCTIONS

• Fully read the instruction manual prior to using the appliance.
• Carefully store the instruction manual for future reference or subsequent owners.
• Only use this appliance for the purpose described in the instruction manual. This appliance is intended as a built-in device.
• Do not allow children to play or hide inside the appliance - there is a risk of becoming trapped and suffocating.
• Keep the appliance out of reach of children. Children do not see the dangers when handling electrical appliances. Therefore, never allow children to work with electrical appliances without supervision. Keep the appliance and supply cord out of reach of children younger than 8 years of age.
• The manufacturer is not responsible for damage which is caused by improper use or incorrect operation.

Warning: Danger of suffocation!

Packaging material is dangerous to children. Keep the packaging material out of the reach of children.

• This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised by someone who is responsible for their safety, or have been instructed in how to use the appliance safely and have understood the risks involved in not using it properly.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
  • Children must not play with the appliance.
• Cleaning and user maintenance must not be performed by children unless they are supervised.
• This appliance is intended to be used in household and similar applications, such as:

- Staff kitchen areas in shops, offices and other working environments;

• Farm houses and by clients in hotels, motels and other

residential environments;

• Bed and breakfast type environments;
• Catering and similar non-retail applications.
• If the safety instructions and warnings are not observed, the manufacturer cannot be held liable for any resulting damage.
• Damage as a result of incorrect connection, incorrect installation or incorrect use does not fall under the warranty.

REFRIGERANT

Caution:

fire

- The refrigerant isobutene R600a is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. WARNING: Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damaged prior to disposal.

If the refrigerant circuit should be damaged, avoid open flames and sources of ignition and thoroughly ventilate the room in which the appliance is situated. It is dangerous to alter the specifications or modify this product in any way. Any damage to the power supply cord may cause a short-circuit, fire, and/or electric shock.

SAFETY INSTRUCTIONS FOR INSTALLATION

• The appliance must be handled and installed by two or more persons.
• Wear safety gloves to unpack and install the appliance.
• Only connect the appliance to alternate current, to an earthed mains socket. Make sure that the voltage in your home corresponds with the voltage printed on the type plate of the appliance.

• After unpacking the appliance, make sure that it has not been damaged during transport. If this is the case, do not install the appliance before consulting the dealer of our service department.

• The appliance may only be fitted by a certified installer.

• The electrical connection must meet national and local regulations.
• The connection point, mains socket and mains plug must always be accessible.
• The appliance must always be earthed.
• Do not operate the appliance with an external timer or a separate remote control system.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Warning: Risk of electric shock

- Make sure that the power supply cord does not get damaged during installation or is running along sharp edges.

• Be careful not to damage the floor when you move the appliance.
• When moving the appliance, do not lift it or pull it by the door(s).
• Make sure the appliance is not positioned near a heat source.
• Do not place heat generating appliances such as (microwave) ovens above the appliance.
• Make sure that there is sufficient ventilation, leave a space of at least 4 cm at the back of the appliance.

Caution:

Do not damage the refrigerant circuit pipes of the appliance.

Caution:

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Install the appliance on a firm and stable surface.
• Install the appliance in a dry and well ventilated area. The appliance is intended for operation in environments where ambient temperatures fall within the following ranges, depending on the appliance. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

Climate class Ambient temperature
SN From 10°C to	32°C
N From 16°C to	32°C
ST From 18°C to	38°C
T From 18°C to	43°C

SAFETY INSTRUCTIONS FOR OPERATION

• Only use the refrigerator compartment for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
• Do not use the appliance outdoors.

- Wait at least three hours before switching the appliance on, to ensure the refrigerant circuit is fully efficient.

Warning: Risk of fire

- Do not store explosive substances such as aerosol cans or other flammable materials in or near your appliance.

• Do not store glass bottles or containers with liquids in the freezer compartment, since they may break.
• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer, since they may cause frost burns.
• Do not re-freeze frozen goods after they have thawed out. This may cause health issues like food poisoning.

SAFETY INSTRUCTIONS FOR CLEANING AND MAINTENANCE

• Always disconnect the appliance from the mains supply before carrying out any work or maintenance on it.
• Do not use a high-pressure cleaner or steam cleaner to clean the appliance

Caution:

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use abrasive or harsh cleaners such as window sprays, scouring cleaners, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door lines or gaskets. Do not use paper towels, scouring pads or other harsh cleaning tools.

Warning: Risk of electric shock

- Always carry out regular checks of the appliance and the power supply cord to ensure no damage is evident. Should there be any signs that the appliance or power supply cord is damaged in the slightest degree, contact the customer service department. If the power supply cord is damaged, it must only be replaced by the manufacturer, its service organization agent or similarly qualified persons, in order to prevent hazardous situations. For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.

INFORMATION ABOUT HOW TO AVOID FOOD CONTAMINATION

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that come in contact with food and accessible drainage systems.
  • Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

Order Com	partments TYPE	Target storage temp. [°C]	Appropriate food
1 Fridge +2 -	+8 Eggs, cooked food	d, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2 (***)*-Freezer ≤-18 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worst the taste and nutrition), suitable for frozen fresh food.
3 ***-Freezer ≤-18 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worst the taste and nutrition), suitable for frozen fresh food.
4 **-Freezer ≤-12 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worst the taste and nutrition), suitable for frozen fresh food.
5 *-Freezer ≤-6 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worst the taste and nutrition), suitable for frozen fresh food.
6 0-star -6 +0 Fresh pork, beef, fish, chicken, some packaged processed foods, etc.(recommended to eat within the same day, preferably no more than 3 days). Partially encapsulated processed foods (non-freezable foods).
7 Chill		-2 ~ +3	Fresh/ frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0°C).
8 Fresh food		0 ~ +4	Fresh pork, beef, fish, chicken, cooked food, etc. (recommended to eat within the same day, preferably no more than 3 days).
9 Wine +5 ~	+20 Red wine, white wine, sparkling wine, etc.

NOTE:

Please store different foods according to the compartments or target storage temperature of your purchased products..

- If the refrigerating appliance is left empty for long periods, switch off. Defrost, clean and dry it and leave the door open to prevent mould developing within the appliance.

Water dispenser cleaning (special for water dispenser products):

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

WARNING

- Food needs to be packed in bags and liquids in bottles or capped containers before putting into the refrigerator to avoid the problem that the inside of the appliance is not easy to clean.

ENVIRONMENTAL PROTECTION

The appliance is energy-efficient. Save even more energy when using the appliance with the following tips, and how to dispose of your appliance in an environmentally-friendly way.

Saving energy

• A high ambient temperature will have a negative effect on the energy consumption. Direct sunlight and other heat sources near the appliance also have a negative effect.
• Keep ventilation holes free. Covered and dirty holes cause a high energy consumption. Ensure sufficient space around the refrigerator, so that a proper ventilation and air flow around the appliance is possible.
• Do not open the doors of the appliance more often than necessary and leave the doors open as briefly as possible.
  • The distance between the shelves and the rear wall ensures a free air circulation. Do not place food against the rear wall.
• Set the thermostat to a lower setting if circumstances allow.
• Allow cooked food that you want to store in the appliance to cool down to room temperature before placing it in the appliance.
• A door rubber that does not close properly could increase the energy consumption. Therefore, have it replaced by a qualified person in time.
• If the instructions are not observed, this could lead to a higher energy consumption.

Environmentally-friendly disposal

Recycling - WEEE

• Dispose of packaging in an environmentally-friendly manner.
• This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

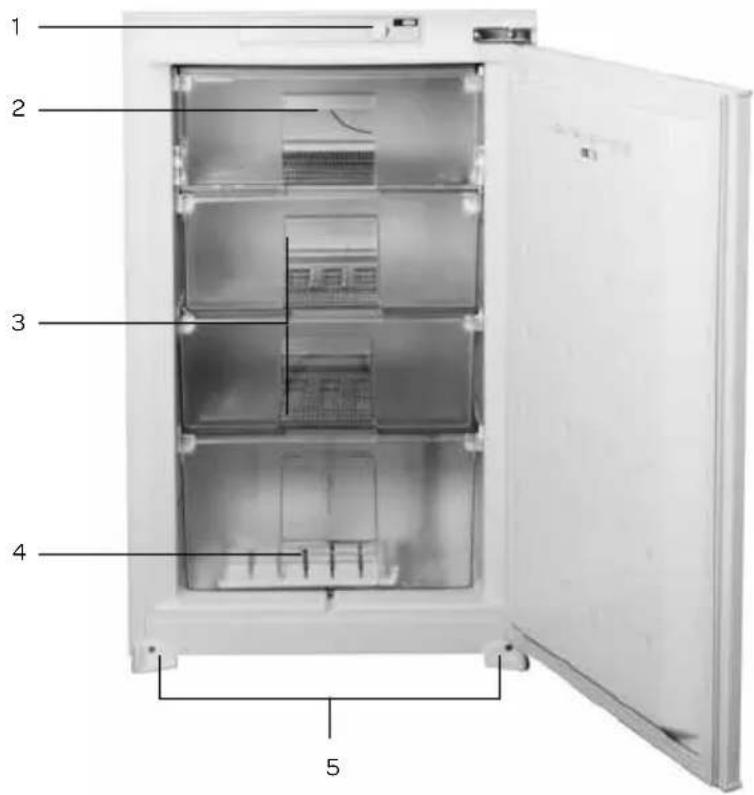

2 appliance description

1. Thermostat
2. Freezercompartment with cover
3. Freezer drawers
4. Bottom drawer
5. Adjustable feet
6. Ice scraper

Simple 3D model of a mechanical part with a labeled dimension line (no text or symbols on the object itself)

1 2 3 4 5

3 before the first use

Leave the appliance to stand for at least 3 hours before you insert the plug into the socket. Otherwise, you may damage the compressor.

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic, polystyrene and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation. Place the appliance on a flat and stable surface. Clean the appliance thoroughly, especially in the interior, before use (see Cleaning & Maintenance).

The installation procedure is given in the Installation Instructions.

The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must correspond with the details on the rating label of the appliance. The rating label is located on the inside left of the appliance. There can be an odor when you first switch on the appliance. It will disappear after the appliance starts to cool.

Install the plastic distance guide by turning it 90° as shown in the figure to prevent the condensor from touching the wall.

To ensure well functioning of your appliance make sure the adjustable front legs are adjusted so your appliance is level and stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the appliance.

Diagram showing two curved heat exchanger-like structures with directional arrows indicating flow or movement (no text or symbols)

First clean the interior of the appliance. Use warm water and a neutral detergent. After cleaning, rinse the interior with clean water and rub dry. Leave the appliance to dry for 1 to 2 hours.

4 how to operate the appliance

THERMOSTAT SETTING

The thermostat automatically regulates the inside temperature of the compartment. By rotating the knob from position 1 to 5, colder temperatures can be obtained. Note: rotating the knob beyond position 1 to “•” will stop the appliance.

4 5 3 2 1

FREEZER THERMOSTAT SETTING

1-2: for short-term storage of food in the freezer compartment, you can set the knob between the minimum and medium position.

3-4: for long-term storage of food in the freezer compartment, you can set the knob to the medium position.

5: for freezing fresh food. The appliance will run for colder temperatures.

Set the thermostat on setting 3. The appliance now cools continuously until the set temperature has been reached. Do not place anything in the freezer until the set temperature is reached. This usually takes 2 or 3 hours. Then set the thermostat at the desired setting and place food into the freezer.

FOR A+ MODELS

The freezer compartment, marked with the **** symbol, is used for storing frozen food and freezing fresh or cooked food. It also allows the making of ice cubes.

Attention:

The ambient air temperature, how often the door is opened and the position of the appliance can affect the internal temperature. These factors must be taken into account when setting the thermostat.

• Never introduce volatile, inflammable or explosive fluids such as alcohol, acetone or petrol because of the risk of explosion.
• A 5 minute delaying function is applied to prevent damage to the compressor of your appliance, when you take the plug out and then plug it in again to operate it or when an energy breakdown occurs. Your appliance will start to operate normally after 5 minutes.

ACCESSORIE

Ice tray

• Fill the ice tray with water and place it in the freezer compartment.
  • After the water has completely turned into ice, you can twist the tray as shown below to get the ice cubes out of the tray.

Illustration showing three hand gestures: a bowl on a keyboard, a hand holding a waffle with rotation arrows, and a hand holding a cross-shaped object (no text or symbols)

5 food storage in the appliance

FREEZER COMPARTMENT

The freezer compartment is used for freezing fresh foods and for storing frozen foods for the period of time on the packaging and for making ice cubes.

• Do not freeze too large an amount of food at one time; the faster the food is frozen, the longer is preserves its qualities.
• Wrap and seal fresh food properly. The packaging should be air tight and shouldn't leak.
• Place frozen food in the freezer compartment as soon as possible after purchase. Make sure that it doesn't defrost during transport.
• The length of time you can keep food depends very much on the quality of the food.
  • Always mark the date and the content on the pack and do not exceed the stated storage time.
• Do not place hot food or evaporating liquids in the freezer.
• Do not store glass bottles or containers with liquids in the freezer which will freeze. The freezing may cause the bottles to break. Highly carbonated drinks can even explode. Never keep lemonade, fruit juice, beer, wine, champagne, etc. in the freezer.
• Once the food is thawed, it must not be refrozen: you must cook it as quickly as possible in order to consume or to freeze again.
  • To avoid the cold air escaping, try not to open the door too often and not leave the door open for a long time.
• In case of a power failure or malfunction, the freezer compartment will maintain a sufficiently low temperature for food storage. However, avoid opening the door to slow down the temperature rise within the appliance.
• The storage time and the recommended temperature for storing frozen foods are indicated on the packaging. For storing and using, follow the instructions on the packaging. If no information is provided, food should not be stored for more than 3 months.

6 cleaning & maintenance

Before cleaning the refrigerator always unplug the appliance.

Clean the interior of the appliance. Use warm water and a neutral detergent to prevent any bad smells occurring. After cleaning, rinse the interior with clean water and rub dry. Leave the appliance to dry for 1 to 2 hours. Simply remove the drawers to clean them by hand. Do not clean the interior accessories in the dishwasher.

Clean the outside of the freezer and the gasket with a soft moist cloth.

We recommend that you dus the back of the appliance with a cloth or vacuum cleaner once a year in order to maintain a good output and low energy consumption.

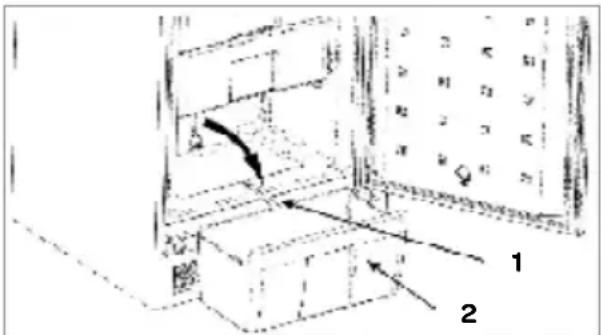

DEFROSTING THE FREEZER COMPARTMENT

Defrost the freezer compartment when the layer of ice reaches a thickness of 3 to 5 mm. Keep the contents of the freezer in a cool place and wrapped in blankets or newspapers. Switch the thermostat off to “•” and unplug the appliance. Defrost the freezer compartment.

You can speed up the defrosting process by placing a bowl of hot water in the freezer.

1. Remove the bottom drawer and place it on the floor aligning it to the front of the freezer.
2. Pull the drain pipe from the back of the wall inside the freezer compartment and place it in the groove on the front side of the floor of the appliance.

Remove water which not flows into the drawer with a sponge.

Clean the interior of the appliance. Use warm water and a neutral detergent to prevent any bad smells occurring. After cleaning, rinse the interior with clean water and rub dry. Leave the appliance to dry for 1 to 2 hours.

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating movement or flow.

Switch the thermostat on to the right setting. When the freezer compartment reaches its correct temperature, replace the food items.

Warning: Never remove the ice with the aid of sharp objects, defrost sprays, a hair-drier, a heater, or similar items. This may lead to unsafe situations and may cause irreparable damage to the appliance.

TIPS

• High ambient temperatures have a negative effect on energy use. Keep the refrigerator in a position away from direct sunlight or other sources of heat.
• Keep ventilation openings free. Clogged openings lead to higher use of energy.
• Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, mind to close it as soon as possible.
• Turn the thermostat to a lower setting when the circumstances allow it.
• Before storing fresh cooked food, make sure the food has cooled at least to room temperature.
• Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3 to 5mm thick.
• If the gasket is damaged or if it turns out that the sealing is poor, the energy consumption is substantially higher. To restore efficiency, replace the gasket.
• Keep the condensor on the rear wall always clean, free of dust or any impurities.
  • Always consider the instructions, otherwise the energy consumption is substantially higher.

7 troubleshooting

If your appliance is not working properly, it may be a minor problem, therefore check the following:

Problem Cause Solution
Appliance is not functioning - Appliance is not plugged in- There is a power failure- The thermostat is set on ●	- Plug the appliance in- Check the fuse box- Set the thermostat on setting 1-5
Temperature inside the freezer is too high or too low	Thermostat has been set incorrectly	Set the thermostat correctly
	Air circulation vents are blocked Clean the ventilation openings
Appliance is excessively noisy Has the appliance been installed correctly?	Check the installation
	Are the pipes at the back touching or vibrating?	Check it and move the appliance forwards

Note: gurgling and hissing noises due to expansion in the refrigerant circuit are normal.

Simple 3D model of a mechanical part with a labeled dimension line (no text or symbols on the object itself)

1 2 3 4 5

3 Inbetriebnahme

Diagram of two heat exchanger-like structures with cooling fins and a valve mechanism (no text or labels)

Illustration showing three different methods of handling a tray with a handle, one being twisted and the other crossed out (no text or symbols present)

5

Technical diagram of a mechanical or electrical device with labeled components and directional arrows indicating movement or flow.

Simple line drawing of a mechanical part with a handle and a labeled dimension (no text or symbols beyond the number 6)

1 2 3 4 5

3 mise en service

Diagram of two parallel heat exchanger-like structures with directional arrows indicating flow or movement (no text or symbols)

Illustration showing three different methods of handling a keyboard, with one being crossed out by a black X (no text or symbols present)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or movement.

General terms and conditions of service and warranty

5-year Inventum warranty!

1. Customers enjoy a 5-year full manufacturer's warranty on all Inventum products.
2. Within this period, a defective product or part, which makes normal functioning of the product or part impossible, will always be repaired free of charge or, if repair is not possible and/or does not provide a solution, replaced (by the same or equivalent product). The assessment of this lies with Inventum.
3. In order to make a claim under the 5-year Inventum warranty you must, within two months after discovering the fault or defect, either return the product to the shop where you bought it, or contact the Inventum customer service department by using the form at www.inventum.eu/service.
4. The warranty period starts from the date stated on the product's original sales receipt.
5. To invoke the warranty, you must always send a copy of the original proof of purchase with the service request and present the original proof of purchase to the service technician.
6. The 5-year warranty applies only to normal domestic use of Inventum products within the Netherlands.

Warranty exclusions

1. The 5-year Inventum guarantee does not apply in case of: normal wear and tear, consumables, improper use, insufficient or incorrect maintenance, incorrect and/or inexpert assembly and installation of the appliance, repairs by unauthorised third parties, business or commercial use, missing serial number, damage caused by an external cause. This enumeration is not exhaustive.
2. B-choice products and products that have been built-in in a showroom are not covered by the 5-year Inventum warranty. All optical damage such as dents, scratches and slight traces of use are excluded from any warranty.

Reporting malfunctions on Inventum products

1. Faults or defects on Inventum products can be reported by using the service request form on the website www.inventum.eu/service or through the seller of the product.
2. A copy of the original proof of purchase must be included with the request.
3. Inventum's service department determines whether the product will be repaired or replaced, based on the request and the sales receipt.

Important to know

• Products sent without prior notification will not be accepted. Further to the notification you will be informed by Inventum whether a warranty applies and whether you must return the product.
• The replacement or repair of a defective product, or a part thereof, does not lead to an extension of the original warranty period.
• Products eligible for replacement or repair must be emptied and clean.

For a detailed explanation of the warranty conditions and items excluded from them, please visit Inventum's website www.inventum.eu/algemene-voorwaarden

These general warranty and service conditions apply to Inventum brand products purchased after 27 April 2022 and intended for use within the Netherlands.

For Inventum products used outside the Netherlands, but within a EU Member State, the warranty rules of that country apply. Inventum provides warranty and service by a white goods technician only in the Netherlands.

As a consumer, you are entitled by law to a properly working product. Does the product break down sooner than you might expect? This means that the product is not in conformity. In that case, the law offers you, the buyer, with a number of legal remedies for your protection. This legal protection is not affected by the above commercial warranty given by Inventum on Inventum products used within the Netherlands.

Modifications and printing errors reserved

facebook.com/inventum1908

pinterest.com/inventum1908

youtube.com/inventum1908

instagram.com/inventum1908
