USER MANUAL HGBC 3150 Hoover-Grepa

BULT-IN FRIDGE FREEZER...... page 5 to page 8 EN

COMBINÉ ENCASTRABLE de page 9 à page 12 FR

Line drawing of a double refrigerator with two doors, no text or symbols present

_

-

| _

1

COMBINATO INCASSO

QUADRO COMANDI VANO FREEZER DEL FRIGORIFERO BICOMPRESSORE

Line drawing of a kitchen appliance with handle, ventilation slots, and a knob (no text or symbols)

SBRINAMENTO

(Figura 2)

Line drawing of a refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Smontare la cerniera centrale e le relative rondelle.

3

Line drawing of a window with a scroll wheel and control panel (no text or symbols)

Simple line drawing of a door with a handle and lid, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Diagram showing a device with a handle and directional arrow, likely illustrating a mechanical or fluid system concept.

Line drawing of a refrigerator with door and side panels, showing internal flow arrows (no text or symbols)

Line drawing of a refrigerator with two doors and an arrow indicating upward motion (no text or symbols)

Technical diagram showing a mechanical assembly with dimension annotations including 20 and an asterisk symbol

Technical line drawing of a mechanical component with a fastener inserted (no text or symbols)

Technical line drawing of a mechanical assembly with a rod inserted into a housing (no text or symbols)

Technical line drawing of a mechanical component with screws inserted (no text or symbols)

540x50mm 580 380x50mm 540x50mm 380x37mm

Open the top door of the fridge-freezer to access the control panel.

Press button (1) to turn the freezer compartment on/off.

The manufacturer normally supplies the appliance with the temperature on an intermediate setting, so you simply have to connect the appliance.

NOTE: if no temperature is displayed when you connect the appliance, press button (1) to turn on the freezer compartment.

The appliance's electronic memory stores the control panel settings when you turn off the appliance, so you simply have to press button (1) to turn the freezer compartment on again.

If the appliances stops because the electricity goes off, press button (1) to start up the fridge-freezer when the electricity comes back on.

NOTE: When you press the button and the freezer compartment is turned off, the compressor takes 15 seconds before it stops. If you press in the button again this time, the appliance will keep working. This prevents the appliance being accidentally turned off, when cleaning it for example.

Use these buttons to set the freezer compartment temperature.

Press button (2) to lower the temperature and button (3) to raise the temperature.

These LEDs show whether the temperature increases or decreases in the freezer compartment.

More LEDs come on and the lights get brighter as the temperature decreases.

The freezer compartment is off when all the LEDs are off. Each LED has two display modes. A dull light means the freezer is set to an intermediate temperature, while a bright light means the freezer is set to a colder temperature.

(Figure 1)

2

-25

-22

-18

SUPER

3

-18

目

□

ALARM

1

The red alarm light comes on if the freezer compartment temperature is -7^ . If the temperature goes below -8^ the light will automatically turn off.

NOTE: If the appliance is turned off for a long time or is switched on for the first time, the red light will come on until the freezer temperature decreases.

The orange light comes on when SUPER mode is working. To select this mode keep pressing button (2) so that all LEDs come on with a bright light and press the button again until the orange light comes on.

This mode powers the compressor of the freezer compartment continually for a maximum of 50 hours, for quick freezing. Press button (3) to stop Super mode, before the end of the 50-hour period.

NOTE: If the compressor is not operating when you select SUPER mode, the system will wait for the compressor to work before starling SUPER mode.

FREEZING OF THE DUAL COMPRESSOR FRIDGE

If you want considerably faster freezing times, you can also remove the *box. Set the freezer control panel to SUPER and the orange light will come on (see figure 1). After 24 hours, put foods directly on the metal rack. Freezing takes 24 hours and you can then put the box back and arrange the foods in the freezer. After 50 hours the electronic memory board will automatically reset the temperature to the previous intermediate setting.

The maximum quantities of food that you can freeze are indicated on the rating plate (see figure 2).

Remove all boxes apart from the bottom one for freezing and storage standards' tests.

FREEZING OF THE SINGLE COMPRESSORE FRIDGE

Create the necessary space to contain the load to be frozen which will be evenly distributed on the shelf. After a few hours, introduce the food to be frozen. After 24 hours, freezing is completed. In order to avoid excessive cooling of the food inside the fridge compartment during the freezing phase, if necessary, slightly move back the position of the thermostat when entering the food to be frozen. At the end of the freezing process, turn the thermostat knob back to the usual value.

For testing regulations of freezing and storage, remove all drawers except for the bottom one. The maximum quantity of foodstuffs that can be frozen is specified on the name plate (see figure 2).

SINGLE COMPRESSOR AND DUAL COMPRESSOR FRIDGE COMPARTMENT CONTROL PANEL BOX

Turn the knob on the control panel to set and adjust the temperature of the fridge and freezer.

The thermostat panel is inside the fridge, in the top right-hand corner. The appliance is turned off when the knob is set to „0“. We recommend you set the temperature to 2 or 3.

CAUTION: If the product is equipped with 2 compressors, it will be possible to switch off the freezer by acting directly upon the control panel of the freezer compartment.

Line drawing of a kitchen utensil with handle and side knob (no text or symbols)

DEFROSTING

(Figure 2)

Line drawing of a refrigerator with shelves and doors (no text or symbols)

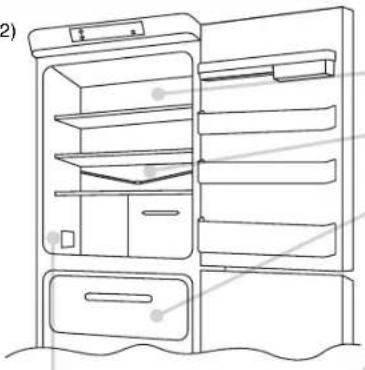

The fridge compartment is automatically defrosted when the compressor is not working.

A small amount of frost or drops of water on the back of the fridge compartment when the fridge is working is normal.

Make sure the water outlet is always clean. Make sure foods do not touch the back or sides of the fridge.

We recommend you defrost the freezer compartment when the frost is more than 3 mm thick.

N.B. This is the rating plate. If you need to contact our Service Department in the event of faults, remember to give them the information on the plate.

Note: If the room temperature is very warm, the appliance may work continuously and a layer of frost will deposit on the back of the fridge compartment. In this case, turn the knob to lower settings (1-2).

DRAINING WATER

The appliance has a system for draining water from defrosting.

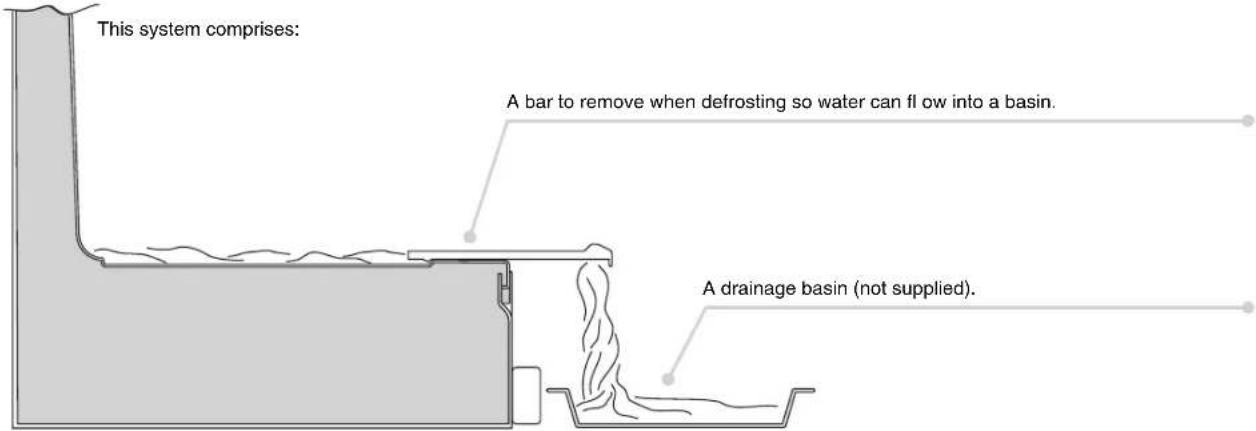

This system comprises: A bar to remove when defrosting so water can flow into a basin. A drainage basin (not supplied).

REVERSING THE FRIDGE-FREEZER DOORS

Remove the pin and bushing from the toppanel.

1

Technical line drawing of a mechanical device with no visible text or symbols

Remove the top door.

2

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Remove the middle hinge and washers.

3

Line drawing of a window with a scroll wheel and ventilation duct (no text or symbols)

Remove the bottom door.

4

Line drawing of a door with a slanted door and handle, no text or symbols present

Remove the pin of the bottom right-hand hinge and refi t it on the bottom left-hand hinge.

5

Technical line drawing of a mechanical component with no visible text or symbols

Reverse the bracket cover snap, which is snap-fi tted on the bracket.

6

Diagram showing a device with directional arrows indicating movement or force, labeled in Chinese.

Fit the hinge and doors, working from top to bottom 1 → 2 → 3

7

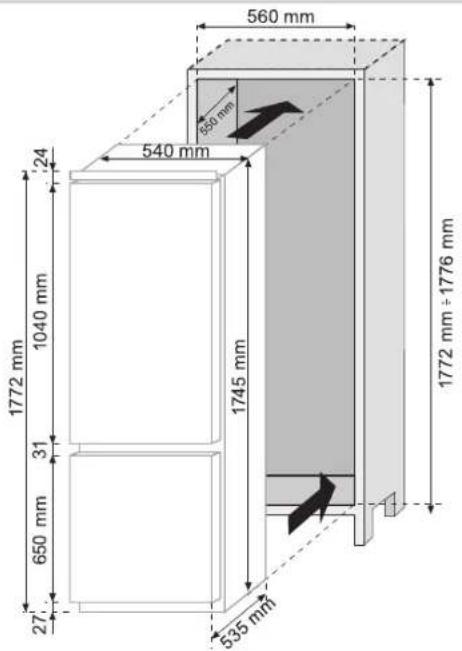

SIZE OF THE APPLIANCE AND UNIT

560 mm 650 mm 540 mm 1772 mm 1040 mm 31 650 mm 27 535 mm 1772 mm + 1776 mm

INSTALLING THE APPLIANCE IN A UNIT

Secure the seal (supplied) to the appliance, on the opposite side from the hinges.

1

Line drawing of a refrigerator with two doors and a side door, showing airflow direction (no text or symbols)

Install the appliance in the unit, Aligning it on the opposite side from the hinges.

2

Line drawing of a double refrigerator with an arrow indicating upward motion (no text or symbols)

Make sure the top bracket of the appliance is against the unit.

3

Secure the top of the appliance to the unit with the screws provided.

4

Secure the bottom of the appliance with the screws provided.

5

Fit the ventilation grid. Loosen the screws on the middle right-hand hinge.

6

7

Position the plate close to the column.

8

Fit the bracket to the unit with the screws provided.

9

Tighten the screws in the middle right-hand hinge.

10

Repeat the same steps for the middle left-hand hinge.

11

ALIGNING UNIT DOORS WITH THE FRIDGE-FREEZER DOORS

The appliance is supplied with fi ttings (slides and slide brackets) to align the fridge-freezer doors with the doors of the unit.

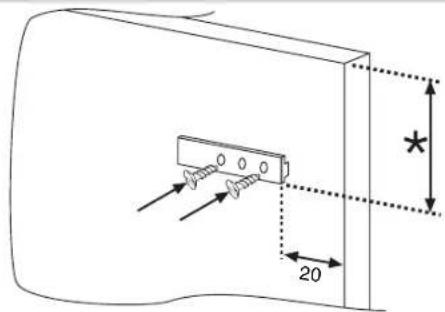

Fix the slide on the inside of the unit door, at the height you want. Make sure it is approximately 20 mm from the outside edge door.

Technical diagram showing a mechanical component with dimension annotations including 20 and an asterisk symbol

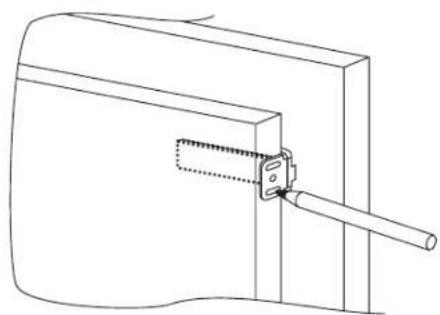

Open the doors of the unit and fridge. Position the slide bracket around the slide and secure to the appliance door.

Technical line drawing of a mechanical component with a fastener inserted (no text or symbols)

Mark the holes for the screws and drill with a 2.5 mm diameter bit.

Technical line drawing of a mechanical assembly with a rod inserted into a bracket (no text or symbols)

Fit the appliance door to the door of the unit, using the slots on the slide bracket as a guide.

Technical line drawing of a mechanical assembly with screws and a fastener (no text or symbols)

ENSURING YOUR FRIDGE-FREEZER WORKS PROPERLY

After fi tting the appliance, place the rear of the unit against the wall to prevent access to the compressor unit.

To make sure the fridge-freezer works properly, air must circulate to cool the condenser which is situated at the bottom of the appliance.

The unit must have a rear outlet with top opening that is not obstructed and a front opening which is covered by the ventilation grid.

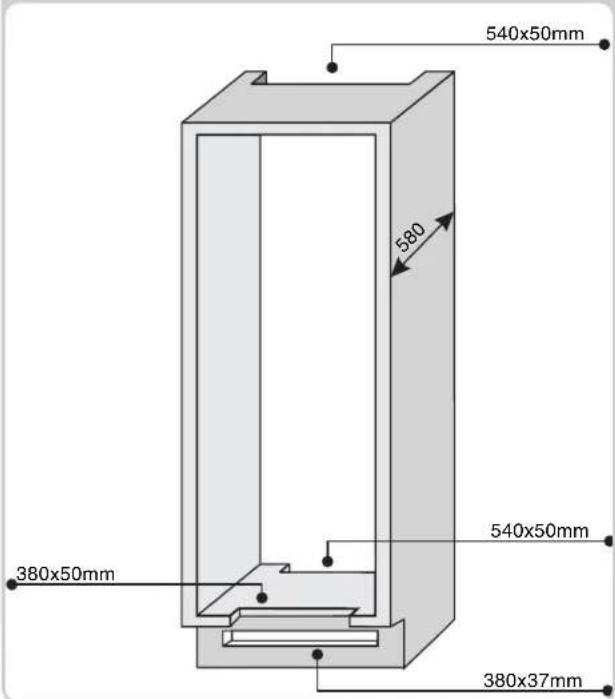

Size of the unit cut outs.

540x50mm 580 380x50mm 540x50mm 380x37mm

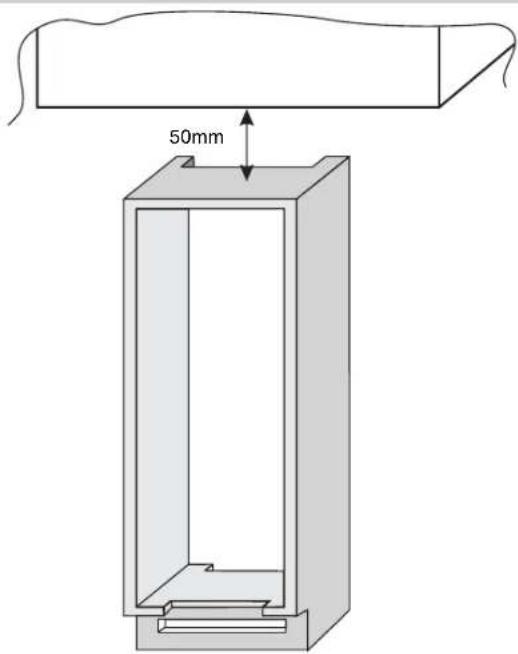

Room to leave between the unit and ceiling.

50mm
