| Product type | Heated drawer and cabinet |
| Brand | Porter & Charles |
| Model | WD60-29 |
| Power supply | 220-240 V ~ 50/60 Hz |
| Temperature range | 30 °C to 80 °C |
| Capacity | 12 place settings (service for 12 people) |
| Maximum supported weight | 25 kg |
| Approximate dimensions (W x D x H) | 596 x 562 x 293 mm |
| Heating system | Hot air circulation via electric resistance and fan |
| Functions | Defrosting (30°C), Dough rising/Cup warming (40°C), Dish warming (60°C), Food warming (80°C) |
| Anti-slip coating | Yes, removable and hand washable |
| Exterior cleaning | Damp cloth, possibly with mild dish soap; for stainless steel, specific product |
| Interior cleaning | Damp cloth, avoid water in air vents |
| Safety | Mandatory grounding; do not use as heater; keep children away; high temperature (up to 80°C) |
| Installation | Built-in, possible combination with manufacturer's appliances, requires fixed intermediate shelf |
| Repairability | Repairs only by manufacturer's authorized technician |
| Warranty | Valid upon return of warranty certificate and presentation of invoice |
Frequently Asked Questions - WD60-29 Porter & Charles
User questions about WD60-29 Porter & Charles
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Warming drawers and cabinets in PDF format for free! Find your manual WD60-29 - Porter & Charles and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WD60-29 by Porter & Charles.
USER MANUAL WD60-29 Porter & Charles
Before going any further, we want to thank you for preferring our product. We are sure that this modern, functional and practical Warming drawer, manufactured with top quality materials, will fully meet your expectations.
We ask you to read the instructions in this booklet very carefully as this will allow you to get the best results from using your Warming drawer.
KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.
ATTENTION!
To benefit from our guarantee you must send in the "Guarantee Certificate" and, when requesting Technical Assistance, you must present the Warming drawer purchase invoice, stamped and dated by the shop where you bought the appliance.
If this requisite is not fulfilled, the guarantee is not valid.
Always keep the instruction manual handy. If you lend the Warming drawer to someone else give them the manual as well!
Environmental protection
Disposal of the packaging
The packaging bears the Green Point mark.
Dispose of all the packaging materials such as cardboard, expanded polystyrene and plastic wrapping in the appropriate bins. In this way you can be sure that the packaging materials will be re-used.
Disposal of equipment no longer used
According to European Directive 2002/96/EC on the management of waste electrical and electronic equipment (WEEE), home electrical appliances should not be put into the normal systems for disposal of solid urban waste.
Outdated appliances should be collected separately to optimise component material recovery and re-cycling rates and to prevent potential harm to human health and the environment. The symbol of a rubbish container superimposed by a diagonal cross should be put on all such products to remind people of their obligation to have such items collected separately.
Consumers should contact their local authorities or point of sale and request information on the appropriate places to leave their old home electrical appliances.
Before disposing of your appliance, render it non-usable by pulling out the power cable, cutting this and disposing of it.
Contents
Installation instructions ....3
Before installation....3
Installation 3
Electrical Connection....4
Safety Instructions ....5
Precautions during use....6
Appliance Description....7
Main Components ....7
How the Warming drawer works....7
Before using for the first time....8
Control Panel....8
Using the Warming drawer 8
Selecting function 8
Heating times....9
Load capacity....10
Cleaning and Maintenance....11
Appliance front and control panel 11
Interior of the Warming drawer 11
Mat with non-slip surface....11
What should I do if the Warming drawer doesn't work? 12
Installation....25
Combination possibilities 25
Installation instructions
Before installation
Check that the input voltage indicated on the characteristics plate is the same as the voltage of the power outlet you are going to use.
Open the drawer and take out all the accessories and remove the packing material.
Attention! The front surface of the crockery heater may be wrapped in a protective film. Before using the Warming drawer for the first time, remove this film carefully.
Make sure that the Warming drawer is not damaged in any way. Check that the drawer opens and closes correctly. If you find any damage, contact the Technical Assistance Service.
Attention: the power socket should be easily accessible after the Warming drawer has been installed.
The Warming drawer should only be built-in in combination with those appliances indicated by the manufacturer. If it is fitted in combination with other appliances, the guarantee is no longer valid since it is impossible to guarantee that the Warming drawer will work correctly.
Installation
To build-in the Warming drawer in combination with another appliance there must be a fixed, interim shelf in the housing unit to support the weight of both appliances.
The appliance to be combined with the Warming drawer will be placed directly on the latter without any need to have a separating shelf.
To build-in the appliance which is combined with the Warming drawer, follow the instructions set out in the respective instructions and fitting booklet.
The relevant installation dimensions are indicated in mm in the diagrams shown at the end of this booklet. Proceed as follows:

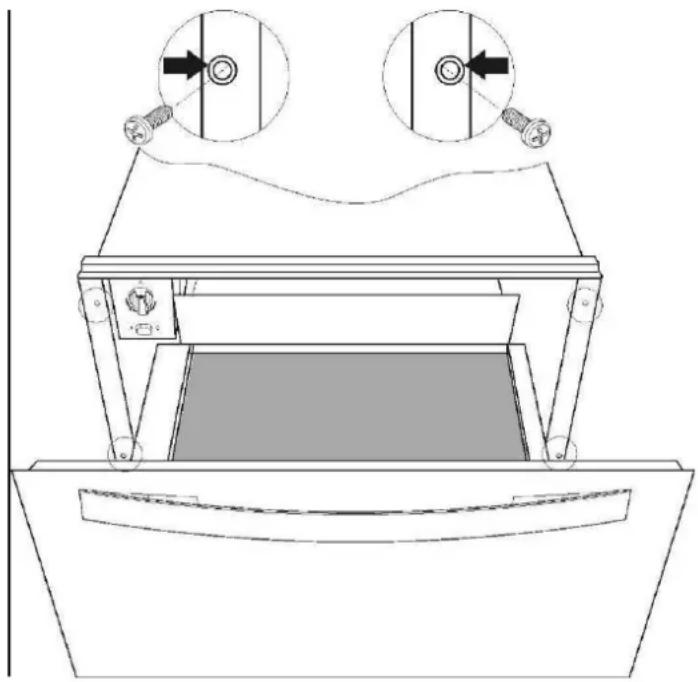

- Place the Warming drawer on the shelf and slide it towards the interior of the niche in such a way that it is centred and completely lined up with the front of the unit.
- Check that the Warming drawer's frame is properly levelled and is sitting evenly on the shelf.
- Open the drawer and fix the Warming drawer to the sides of the unit using the two screws provided.
Electrical Connection
Electrical installation must be performed by an electrician qualified in accordance with the legislation in force.
Before connecting the Warming drawer to the electric mains, check that the voltage and frequency of the mains matches that which is shown on the rating plate located in the heating block inside.
The electric connection is made via an omnipolar switch, which is suitable for the intensity to be tolerated and which has a minimum gap of 3mm between its contacts, which will ensure disconnection in case of emergency or when cleaning the Warming drawer. If a plug is used for the electric connection, then it must be accessible after installation.
The connection should include correct earthing, in compliance with current norms. WARNING: THE WARMING DRAWER MUST BE EARTHED.
If the flexible supply cable fitted to the Warming drawer ever needs to be changed, it should be replaced by an official After Sales Service, because it requires special tools.
The manufacturer and retailers do not accept responsibility for any damage that may be caused to people, animals or property if these installation instructions are not observed.
Safety Instructions
- Warning! Before connecting the appliance compare the power data (voltage and frequency) indicated on the characteristics plate with those of the power supply in question. If these data do not match there may be problems. In case of doubt, contact an electrician.
- Warning! If the electrical wire plug is removed, the appliance must be installed and connected by a technician. Contact a qualified electrician who knows and respects current safety standards. The manufacturer cannot be held responsible for damage resulting from fitting or connecting errors.
- Warning! The electrical safety of the appliance can only be guaranteed if it is earthed. The manufacturer cannot be held responsible for damage resulting from the absence of or defects in the installation's protection system (e.g. electrical shock).
- Warning! Only use the appliance once it has been fitted into its built-in position. Only in this manner can it be guaranteed that users cannot access the electrical components.
-
Warning! Never open up the appliance's frame. Possible contacts with electrical conducting parts or changes to electrical or mechanical components may represent a danger to users' safety and prejudice the correct working of the appliance.
-
Warning! Repairs and maintenance, especially of parts carrying electrical current, must only be done by technicians authorised by the manufacturer. The manufacturer and retailers do not accept responsibility for any damaged caused to people, animals or property as a result of repairs and maintenance carried out by non-authorised personnel.
- Warning! Repairs undertaken during the guarantee period must only be done by technicians authorised by the manufacturer. If this is not the case then any damage resulting from the repair in question is excluded from the guarantee.
-
Warning! The appliance must be disconnected from the electrical current when installation and repair work is being done. To disconnect the appliance from the current, one of the following conditions must apply:
-
The switchboard fuses / circuit breakers must be disconnected.
- The plug should be removed from the socket. To remove the plug from the socket do not pull on the electric cable but rather pull out the plug itself directly.
Precautions during use
- This appliance complies with current safety standards. Improper use of the appliance may put the user at risk.
- Read the operating instructions carefully before using the appliance for the first time. In this way you will avoid the risk of injuring yourself or damaging the appliance.
- Use the appliance to keep the crockey and the food warm. Any other type of use is unacceptable and may be dangerous. The manufacturer does not accept responsibility for breakdowns or faults arising from improper or erroneous use of the appliance.
- Depending on the temperature selected and the operating time, the temperature inside the appliance may reach 80 °C. To take crockery out of the Warming drawer protect your hands by using oven gloves or an oven cloth.
-
Take special care with children and do not allow them to play close to the appliance. If the appliance is inadvertently switched on it will heat up and may cause serious burns.
-
Children should only be allowed to use the appliance without direct adult supervision if they have been given instructions on how to use the appliance safely and how to identify dangerous situations that may arise if the appliance is used in an improper manner.
- Do not sit or hang on the drawer. The telescopic runners will be damaged. The maximum load capacity of the drawer is 25 kg.
- Do not store synthetic containers or easily inflammable objects inside the Warming drawer. When you switch on the appliance such containers and objects may melt or catch fire. Fire danger.
- Do not use the appliance to heat up the air temperature in the kitchen. The high temperatures reached may cause easily inflammable objects close to the appliance to catch fire.
- Do not use high pressure or steam jet cleaning devices. The steam may affect electrical components and cause a short circuit. The steam pressure may also cause damage to the appliance's surface and components in the long term.
- When you stop using the appliance at the end of its working life, disconnect it from the power supply and render the electrical cable unusable so that the appliance is not a danger if, for example, children use it for playing.
EN
Appliance Description

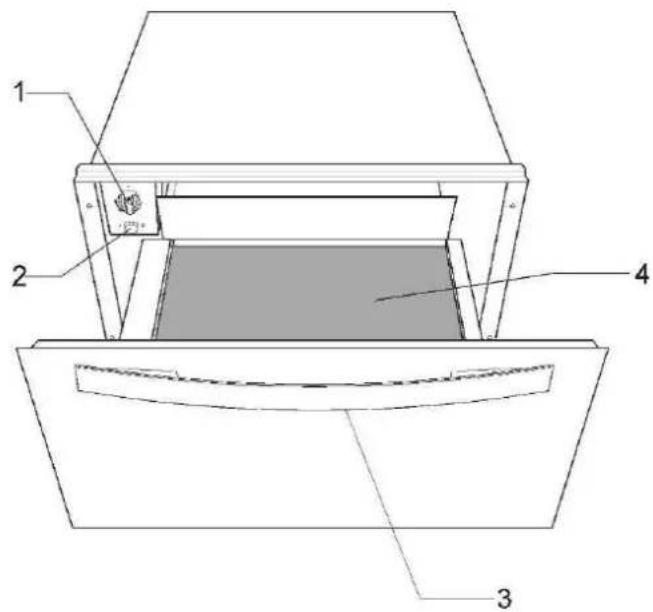

Main Components
On/Off switch (lights up)
-
Function selector
-
Handle
-
Anti-slip mat
How the Warming drawer works
This appliance is equipped with a warm air circulation system. A fan distributes the heat generated by an electrical heating element throughout the interior of the appliance.
The thermostat allows the user to define and control the temperature wanted for the crockery.
The circulating hot air that is generated heats up the crockery quickly and evenly.
A metal grille protects both the heating element and the fan.
The base of the drawer is fitted with a non-slip mat to prevent plates and dishes sliding around when the drawer is opened and closed.
Use
Before using for the first time
Before using the appliance for the first time you should clean the interior and the exterior, following the cleaning instructions given in the section "Cleaning and Maintenance".
Then heat the Warming drawer for at least 2 hours. For this, turn the temperature control to the maximum position (see section ‘Selecting temperature’).
Make sure the kitchen is well-ventilated when you are doing this.
The appliance's parts are protected by a special product. For this reason, during the first heating an odour will be released. Both the odour and any smoke that may form will disappear after a short time and neither signifies that there is anything wrong with the connection or the appliance.
Control Panel
The control panel has a function and the on/off switch. The control panel is only visible when the drawer is open.
Using the Warming drawer
To use the Warming drawer, proceed as follows:
- Put the crockery in the drawer.
- Select the function you want by turning the thermostat control to the desired position.
- Switch on the appliance by pressing the switch, which will light up.
- Close the drawer.
Be careful not to use too much force when closing the drawer since it may open up again.
Before taking out the warm crockery you must switch off the Warming drawer by pressing the switch again.
Selecting function
By turning the thermostat control you can select temperatures between 30 and 85 °C.
Do not force the thermostat control to the left of the “0” position or to the right of the maximum position since this may damage the appliance.
As soon as the temperature selected is reached, the heating is turned off. When the temperature drops to a value below that selected, the heating is turned back on.
The temperature scale is not marked with absolute temperatures in ^ C but instead has symbols which correspond to the optimum temperatures for groups of crockery:
| Symbol | °C | Function |
| 30 | Defrosting | |
| 40 | Proving doughCups / glasses warming | |
| 60 | Crockery warming | |
| 80 | Food warming |
Heating times
Various factors affect heating times:
• Material and thickness of the crockery
- Load quantity
• How the crockery is arranged
- Temperature setting
It is therefore not possible to give any precise heating times.
However, as a guide, the following times are given for the thermostat setting and for uniform heating of the crockery:
| Load | Time (min) |
| Crockery for 6 people | 30 – 35 |
| Crockery for 8 people | 35 – 40 |
| Crockery for 12 people | 40 – 45 |
As you use the Warming drawer more and more you will learn the best settings for your crockery.

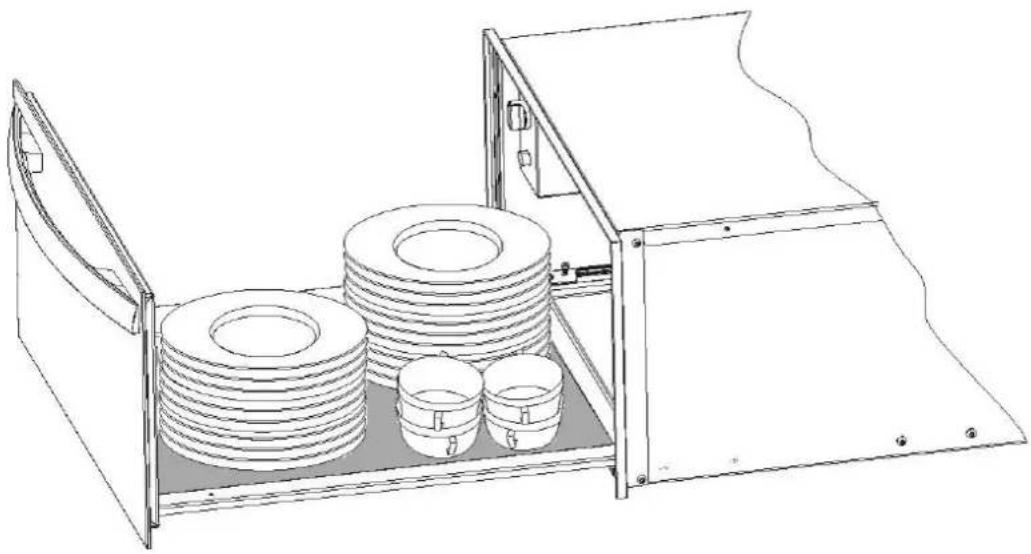

Load capacity
Load capacity depends on the size of the crockery items,
| WD60-14 | WD60-21 | WD60-29 |
| 6 persons servings | 8 persons servings | 12 persons servings |
| 6 x 24cm Dinner Plates | 8 x 24cm Dinner Plates | 12 x 24cm Dinner Plates |
| 6 x 10cm Soup Bowls | 8 x 10cm Soup Bowls | 12 x 10cm Soup Bowls |
| 1 x 19cm Serving Dish | 1 x 19cm Serving Dish | 1 x 19cm Serving Dish |
| 1 x 17cm Serving Dish | 1 x 17cm Serving Dish | 1 x 17cm Serving Dish |
| 1 x 32cm Meat Plates | 2 x 32cm Meat Plates | 2 x 32cm Meat Plates |
| or | or | or |
| 20 dishes with ∅28 cm | 30 dishes with ∅28 cm | 40 dishes with ∅28 cm |
| or | or | or |
| 80 espresso coffee cups | 120 espresso coffee cups | 160 espresso coffee cups |
| or | or | or |
| 40 tea cups | 60 tea cups | 80 tea cups |
| or | or | or |
Cleaning is the only maintenance action that is required normally.
Warning! Cleaning must be done with the Warming drawer disconnected from the electrical power supply. Remove the plug from the power socket or disconnect the Warming drawer power supply circuit.
Do not use aggressive or abrasive cleaning products, abrasive sponges or pointed objects since stains or abrasion marks may appear.
Do not use high pressure or steam jet cleaning appliances.
Appliance front and control panel
The Warming drawer can be cleaned using just a damp cloth. If it is very dirty, add a few drops of washing-up liquid to the washing water.
Wipe the surfaces dry using a dry cloth.
For stainless steel fronted Warming drawers, special products for treatment of stainless steel surfaces can be used. These products prevent the surfaces becoming dirty again for some time. Apply a thin layer of such a product on the surface using a soft cloth.
On aluminium fronted Warming drawers use a gentle glass cleaning product and a soft cloth that does not release fluff. Wipe horizontally without pressing on the surface since aluminium is sensitive to scratches and cuts.
Interior of the Warming drawer
Clean the inside of the Warming drawer regularly using a damp cloth. If it is very dirty add a few drops of washing-up liquid to the washing water.
Wipe the surfaces dry using a dry cloth.
Avoid water entering through the air circulation opening.
Only use the Warming drawer again when it is completely dry.
Mat with non-slip surface
The non-slip surface mat can be removed to facilitate cleaning of the drawer.
The mat can be cleaned by hand using hot water with a few drops of washing-up liquid.
Dry thoroughly.
The non-slip mat should only be replaced when it is completely dry.
What should I do if the Warming drawer doesn't work?
WARNING! Any type of repair must only be done by a specialised technician. Any repair done by a person not authorised by the manufacturer is dangerous.
Before contacting Technical Assistance, check on the following:
- The crockery doesn't heat up enough.
Check whether:
- The appliance has been switched on.
- The appropriate temperature has been selected.
- The air circulation orifices are covered by the crockery.
- The crockery was left to heat up for sufficient time.
Heating time depends on several factors, such as, for example:
- Crockery material type and thickness.
- Quantity of crockery.
- How the crockery is arranged.
The crockery doesn't heat up at all. Check whether:
- You can hear the noise of a fan.
If the fan is operating then the heating element is broken; if the fan is not operating then the fan is broken. - The switchboard fuses / circuit breakers have fused / tripped out.
- The crockery is heating up too much.
- The temperature selector is broken.
- The on/off switch does not light up.
- The switch's pilot light has blown.
