USER MANUAL WB70E 972 X EX WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT In order to receive a more complete assistance, please register your product on www.whirlpool.eu/register

Before using the appliance carefully read the Safety Instruction.

PRODUCT DESCRIPTION

APPLIANCE

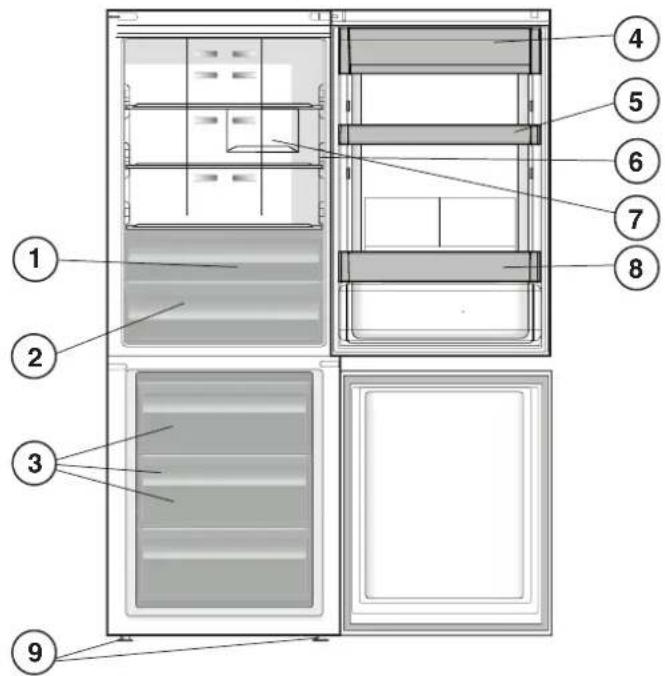

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

1. Fruit and vegetable compartment *
2. Food Care Zone 0 °C / Safe Defrost *
3. Freezer and storage compartment
4. Dairy Shelf *
5. Movable shelves *
6. Temperature Indicator *
7. Bottle rack *
8. Bottle shelf *
9. Levelling feet

* Varies by number and/or position, available only on certain models.

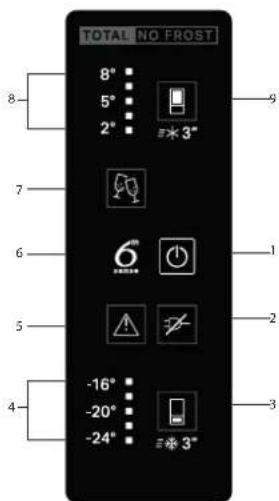

CONTROL PANEL

TOTAL NO FROST 8° 5° 2° 3° 7 6 5 -16° -20° -24° 3 1 2 3

1. On/Standby Indicator and Button
2. Black Out Alarm Long Black-Out Alarm Indicator (see the below Alarm Table)
3. Freezer Temperature / Fast Freeze button
4. Freezer Temperature Led
5. Stop Alarm Button (see the below Alarm Table)
6. 6 ^th Sense Indicator
7. Party Mode
8. Fridge Temperature Led
9. Fridge Temperature / Fast Cool button

ACCESSORIES

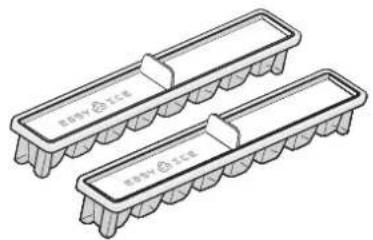

EASY ICE BOTTLE RACK

Two identical 3D-printed rectangular blocks with textured bases, no text or symbols visible.

Line drawing of a metal rack structure with triangular supports (no text or symbols)

FIRST TIME USE

HOW TO START THE APPLIANCE

After plugging the appliance to the mains, it starts the operation automatically. After starting the appliance, wait at least 4-6 hours before placing food into the fridge and into the freezer compartment.

When the appliance is connected to the power supply, the display lights up and all the icons appear on the display for approximately 1 second. The default (factory) values of the fridge - freezer compartment settings light-up.

DAILY USE

See Use and Care Guide for more details on functions / see last page for information on how to obtain the Use and Care Guide

FUNCTIONS

ON/STANDBY INDICATOR /BUTTON

To put the product in Stand-by, press and hold for 3 seconds. All the icons turn off except:

FRIDGE TEMPERATURE

To adjust the Fridge Temperature, press the ☐ Fridge °C button. The Fridge Temperature can be adjusted between +2°C and +8°C, as shown by the Fridge Temperature LEDs.

FAST COOL

Using Fast Cool function it is possible to increase the cooling in the refrigerator compartment. The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press & hold for 3 sec. the Fridge °C button to activate Fast Cool function. When activated, the Fast Cool indication will be displayed by the Fridge Temperature LEDs as shown in the beside sequence. The function is automatically disabled after 6 hours, or can be manually disabled by pressing Fridge °C button.

FREEZER TEMPERATURE

To adjust the Freezer Temperature, press the Freezer °C button. The Freezer Temperature can be adjusted between -16°C and -24°C, as shown by the Freezer Temperature LEDs.

FAST FREEZE

The use of this function is recommended when placing a very high quantity of food to be frozen in the freezer compartment. 24 hours before freezing fresh food, press & hold for 3 sec. the Freezer button to activate the Fast Freeze function. When activated, the Fast Freeze indication will be displayed by the Freezer Temperature LEDs as shown in beside sequence. After 24 hours place the food to be frozen in the upper basket of freezer compartment. The function is automatically disabled after 48 hours, or can be manually disabled by pressing Freezer °C button.

PARTY MODE

Use this function to chill drinks inside the freezer compartment. Press the Party Mode button to activate/deactivate this function. Once the Party mode has been activated, after 30 minutes an acoustic alarm will remind you to remove drink/bottle from the freezer compartment. To mute the alarm press the Stop alarm button, or deactivate the function pressing the Party mode button. Important: do not leave the bottle inside the freezer compartment longer than the function is active (30 minutes).

6 ^TH SENSE INDICATOR

6^th Sense technology automatically works to ensure the optimal conditions to preserve the stored food.

SMART DISPLAY

This optional function can be used to save energy. To activate the Smart Display, press 📄 Fridge °C and 🌐 Freezer °C buttons at the same time for 3 seconds until an audible signal sounds. To deactivate this function repeat the same procedure.

Remember that this function does not disconnect the appliance from the power supply, but only reduce the power consumed by external display.

FOOD CARE ZONE 0 °C / SAFE DEFROST \*

A compartment designed to keep delicate food such as meat and fish fresh. The low temperature in the compartment makes it possible to store the food for up to one week - tests performed on meat products - without changing its nutrients, appearance and flavour. The compartment is also very suitable for healthy food defrosting, as low-temperature defrosting prevents any proliferation of microorganisms, while protecting its taste and organoleptic properties. It is not suitable for fruit, vegetables and green salad. But it can be used for stuffed fresh pasta and even cooked food or leftovers.

TEMPERATURE INDICATOR \*

Temperature indicator informs you if the temperature in this cavity is cold enough for storage with the word "OK". 1. Check that OK appears clearly on the indicator light (see the picture below).

1. If the word "OK" does not appear it means that the temperature is too high: set a lower temperature and wait approximately 10 hours until the temperature has been stabilised.
2. Check the indicator light again: if necessary, readjust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before adjusting the REFRIGERATOR OPERATION knob to a higher setting.

SHELVES \*

Due to the special guides the shelves are removable and the height is adjustable, allowing easy storage of large containers and food.

FRUIT AND VEGETABLE BIN \*

The salad crispers fitted inside the fridge have been specially designed for the purpose of keeping fruit and vegetables fresh and crisp. Open the humidity regulator (position B) if you want to store food in a less humid environment like fruit, or close it (position A) to store food in a more humid environment like vegetable.

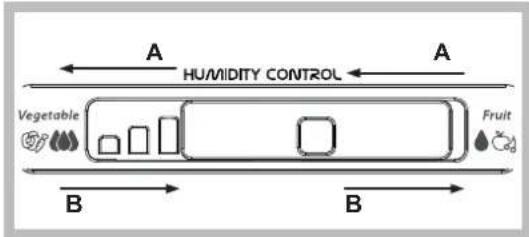

A HUMIDITY CONTROL A Vegetable Fruit B B

ALARM TABLE

ALARM TYPE SIGNAL CAUSE SOLUTION

Door open alarm	The acoustical alarm is activated and the Alarm Indicator ⚠ blinks.	The door has remained open for more than 2 minutes.	Close the door or press the Stop Alarm to mute the acoustical alarm.
Temperature Alarm	The Temperature LEDs display blinks (°C) and the Alarm Indicator ⚠ remains on.	The inside freezer temperature is not adequate.	Press the Stop Alarm button ⚠; the acoustical alarm stops, the Temperature Display (°C) blinks and the Alarm Indicator ⚠ remains on until a temperature < -10°C is reached.
Long Black-Out alarm	The Black Out Alarm icon ⚡ remains on, the Alarm indicator ⚠ blinks.	Prolonged power failure, able to cause the inside temperature to increase to 0°C.	Press the Stop Alarm button ⚠; the acoustical alarm stops, the Temperature Display (°C) blinks and the Alarm Indicator ⚠ remains on until a temperature < -10°C is reached.

SOME OF THE FUNCTIONAL SOUNDS YOU MIGHT HEAR

A hissing sound when switching on the appliance for the first time or after a long pause.

Hissss Hiss

Buzzing sound when water valve or fan start working.

Buzzz Buzzz

A gurgling sound when refrigerant fluid enters into the pipes.

Illustration of a wine bottle pouring liquid into a glass bowl, next to a computer monitor and a coiled tube (no text or symbols)

A cracking sound when compressor starts.

Crack Crack

BRRR sound is from the compressor running.

Illustration of three objects: a globe with a tree, a storage cabinet, and a bag with a bag (no text or symbols)

The CLICK is from the thermostat which adjusts how often the compressor is running.

Three grayscale illustrations of a door, cabinet, and lamp (no text or symbols)

HOW TO STORE FOOD AND BEVERAGE

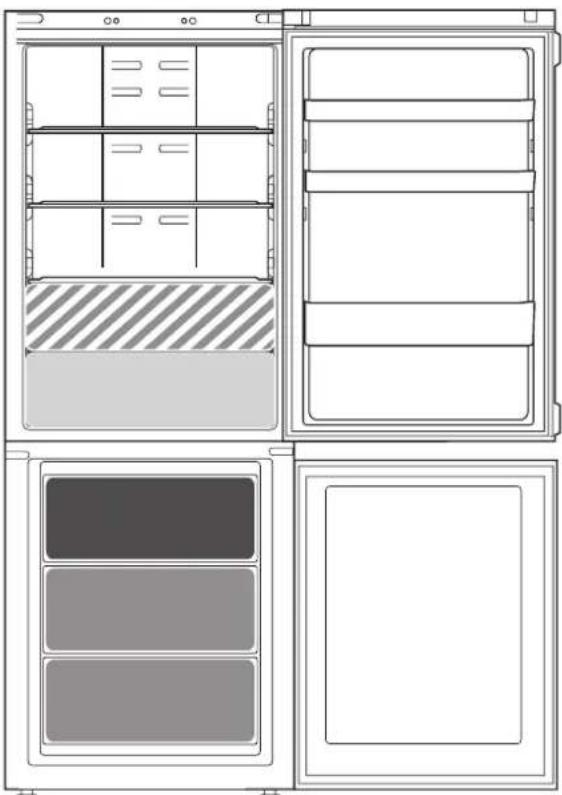

Technical line drawing of a refrigerator interior showing front, side, and top views with no text or symbols

Legend

COOL ZONE

Suggested for the storage of beverage, milk and food as dairy food, delicatessen, yogurt, eggs, butter, sauces, pickles, desserts

FRUIT & VEGETABLE DRAWER

COOLER ZONE:

FOOD CARE ZONE 0 °C / SAFE DEFROST \*

Suggested for the storage of meat, fish, cold cuts, stuffed fresh pasta, cooked food, leftovers. This zone is also suggested for food defrosting.

FAST FREEZING ZONE DRAWER

Max cool zone suggested to freeze fresh food and cooked food.

NORMAL FREEZER DRAWERS

Suggested for the storage of frozen food and ice cream.

Note: The Grey tone of the legend doesn't match with the color of drawers

FRIDGE COMPARTMENT

Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods.

Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them.

If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment.

Foods which give off a large amount ethylene gas and those that are sensitive to this gas, such as fruit, vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage.

To avoid bottles falling over, you can use the bottle holder (available on selected models).

Do not store food too close together to enable sufficient air circulation.

FREEZER COMPARTMENT

The freezer is the ideal storage location for store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

The maximum number of kilograms of fresh food that can be frozen within a 24-hour period is indicated on the rating plate (...kg/24h).

If you have a little quantity of food to store in the freezer, we recommend to use the coldest areas of your freezer compartment, corresponding to the middle area.

* Available only on certain models

Policies, standard documentation and additional product information can be found by:

- Visiting our website docs.whirlpool.eu

• Using QR Code

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate. The model information can be retrieved using the QR-Code indicated on the energy label. The label also includes the model identifier that can be used to consult the https://eprel.ec.europa.eu database portal.

БЛАГОДАРИМ ВИ, ЧЕ ЗАКУПИХТЕ ПРОДУКТ НА WHIRLPOOL

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Two identical 3D-printed rectangular blocks with textured bases, no text or symbols visible.

Line drawing of a metal rack structure with multiple supports (no text or symbols)

Gurgle Gurgle

Crack Crack

Illustration of three objects: a tree with 'Brrm' label, a globe-like structure, and a server unit (no text or symbols on objects)

Three grayscale illustrations showing a door, a refrigerator, and a hanging object with a 'Click' button (no text or symbols on objects)

КАК ДА СЕ СЪХРАНЯВАТ ХРАНИ И НАПИТКИ

Technical line drawing of a refrigerator interior showing front, side, and top views with no text or symbols

Легенда

ХЛАДНА ЗОНА

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Two identical 3D-printed rectangular blocks with textured bases, no text or symbols visible.

Line drawing of a metal rack structure with triangular supports (no text or symbols)

PŘED PRVNÍM POUŽITÍM

ZAPNUTÍ SPOTŘEBIČE

Illustration showing wine being poured into a glass with a sink, next to a refrigerator and a coiled heater (no text or symbols)

Crack Crack

Illustration of three objects: a tree with 'Brmm' label, a globe with a continent, and an open refrigerator with a bag (no text or symbols on objects)

Three simple icons: a hand pointing at a panel, a refrigerator, and a hanging clock with 'Click' button (no text or symbols on objects)

Technical line drawing of a refrigerator interior showing front, side, and top views with no text or symbols

Vysvětlivky

CHLADNÁ ZÓNA

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Two identical 3D-printed rectangular blocks with textured bases, no text or symbols visible.

Line drawing of a metal rack structure with multiple supports (no text or symbols)

ESMAKASUTUS

SEADME KÄIVITAMINE

Diagram showing a wine being poured into a glass, with a magnifying glass labeled 'Gargle' and a computer monitor displaying '100'.

Illustration of three abstract objects: a globe with a tree, a globe with a shield, and a refrigerator with a bag (no text or symbols)

Crack Crack

Three simple icons showing a door, a refrigerator, and a hanging lamp with 'Click' labels (no text or symbols on objects)

Technical line drawing of a refrigerator interior showing front, side, and top views with no text or symbols

Kirjeldus

JAHE TSOON

MERCI D'AVOIR CHOISI UN PRODUIT WHIRLPOOL

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Two identical 3D-printed rectangular blocks with textured bases, no text or symbols visible.

Line drawing of a metal rack structure with triangular supports (no text or symbols)

PREMIÈRE UTILISATION

MISE EN MARCHE DE L'APPAREIL

Illustration of three objects: a tree with 'Brrrr' label, a globe-like structure, and an open refrigerator (no text or symbols on objects)

Three simple icons showing a door, a refrigerator, and a hanging lamp with a 'Click' button (no text or symbols beyond basic symbols)

Technical line drawing of a refrigerator interior showing front, side, and top views with no text or symbols

Légende

ZONE FROIDE

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Two identical rectangular electronic components with metallic leads, no text or symbols visible

Line drawing of a metal rack structure with triangular supports (no text or symbols)

ELSŐ HASZNÁLAT

A KÉSZÜLÉK BEKAPCSOLÁSA

Gurale 1 Gurale

Illustration of three objects: a globe with a tree, a storage unit, and a computer monitor (no text or symbols)

Crack Crack

Three grayscale illustrations showing a door, a refrigerator, and a hanging lamp with 'Click' labels (no text or symbols on objects)

Technical line drawing of a refrigerator interior showing front, side, and top views with no text or symbols

Jelmagyarázat

HIDEG ZÓNA

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Two identical 3D-printed rectangular blocks with textured bases, no text or symbols visible.

Line drawing of a metal rack structure with multiple supports (no text or symbols)

PRIMO UTILIZZO

ACCENSIONE DELL'APPARECCHIO

Gurale Gurale

Crack Crack

Illustration of three objects: a tree with a globe, a box with a bag, and a container (no text or symbols)

Three simple icons showing a door, a refrigerator, and a lamp with a 'Click' button (no text or symbols beyond basic symbols)

Technical line drawing of a refrigerator interior showing front and side views with no text or symbols

Legenda

ZONA FREDDA

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Two identical 3D-printed rectangular blocks with textured bases, no text or symbols visible.

Line drawing of a metal rack structure with triangular supports (no text or symbols)

PIRMĀ LIETOŠANAS REIZE

KÄ IEDARBINÄT IERİCI

Crack Crack

Illustration of three objects: a tree with a figure, a globe, and a server unit (no text or symbols)

ŠKIS rodas no termostata, kas regulē to, cik bieži jäieslédzas kompresoram.

Three grayscale illustrations showing a hand pointing at a panel, a refrigerator, and a hanging device with a 'Click' button (no text or symbols on objects)

Technical line drawing of a refrigerator interior showing front, side, and top views with no text or symbols

Apzimējums

VÊSÃ ZONA

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Two identical 3D rectangular electronic components with textured bases, no visible text or symbols.

Line drawing of a metal rack structure with multiple supports (no text or symbols)

NAUDOJIMAS PIRMA KARTA

KAIP PRIETAISA PARENGTI NAUDOJIMUI

Crack Crack

BRRR garsas girdimas veikiant kompresoriui.

Illustration of three industrial or ecological objects: a tree with 'Brrrr' label, a globe-like structure, and a server unit (no text or symbols on objects)

Three simple diagrams showing a hand pressing a button, a refrigerator, and a hanging pendulum with a 'Click' label (no text or symbols on diagrams)

Line drawing of a refrigerator interior showing front, side, and top views with no text or symbols

Legenda

VÈSIOJI ZONA

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Two identical 3D-printed rectangular blocks with textured bases, no text or symbols visible.

Line drawing of a metal rack structure with multiple supports (no text or symbols)

PIERWSZE UŻYCIE

URUCHOMIENIE URZĄDZENIA

Gurale Gurale

Crack Crack

Illustration of three objects: a tree with 'Brmm' label, a globe-like structure, and a refrigerator with a bag (no text or symbols on objects)

Three grayscale illustrations showing a door, a refrigerator, and a hanging device with a 'Click' button (no text or symbols on objects)

Line drawing of a refrigerator interior showing front and side views with no text or symbols

Legenda

STREFA NISKIEJ TEMPERATURY

VĂ MULȚUMIM CĂ AȚI ACHIZIȚIONAT UN PRODUS WHIRLPOOL

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

TĂVITĂ PENTRU CUBURI DE GHEAȚĂ RAFT PENTRU STICLE

Two identical rectangular electronic components with metallic leads, no text or symbols visible

Line drawing of a metal rack structure with triangular supports (no text or symbols)

PRIMA UTILIZARE

PUNEREA ÎN FUNCTIUNE A APARATULUI

Gurgle Gurgle

Crack Crack

Illustration of three objects: a tree with 'Brrrr' label, a globe-like structure, and an open box labeled 'Brrrr' (no text or symbols on objects)

Three simple diagrams showing a hand pointing at a panel, a refrigerator, and a hanging device with a 'Click' button (no text or symbols beyond basic icons)

DEPOZITAREA ALIMENTELOR ŞI A BĂUTURILOR

Technical line drawing of a refrigerator interior showing front and side views with no text or symbols

Legendă

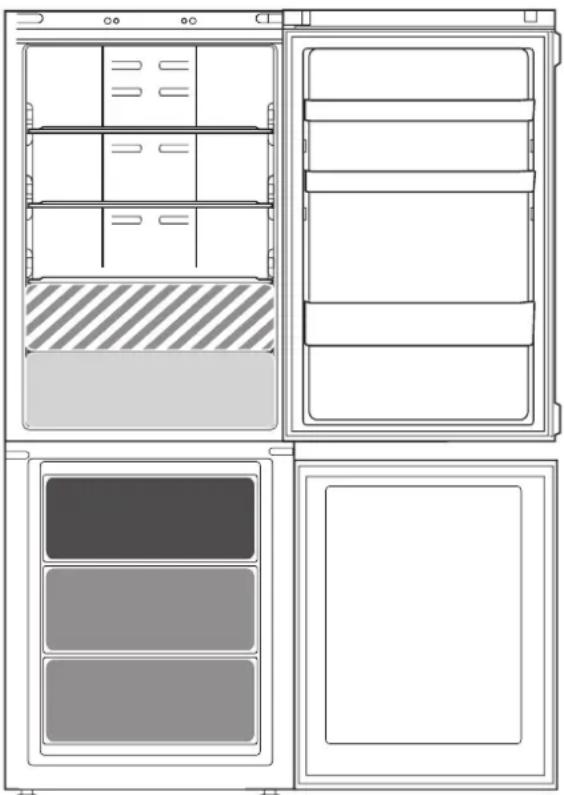

ZONA RECE

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Two identical 3D-printed rectangular blocks with textured bases, no text or symbols visible

Line drawing of a metal rack structure with triangular supports (no text or symbols)

Diagram showing wine being poured into a glass with a sink, alongside a thermometer and a separate device labeled 'Gurle'.

Illustration of three objects: a tree with 'Brrrr' label, a globe-like structure, and an open refrigerator with a bag (no text or symbols on objects)

Crack Crack

Three simple icons showing a hand pointing at a panel, a refrigerator, and a hanging tag with 'Click' labels (no text or symbols beyond basic icons)

Technical line drawing of a refrigerator interior showing front and side views with no text or symbols

Обозначения

ХОЛОДНАЯ ЗОНА

Technical diagram of a refrigerator interior with numbered components for identification

1. Zásuvka na ovocie a zeleninu *
2. Zásuvka na uchovávanie čerstvých potravín 0 °C / Bezpečné rozmrazovanie *
3. Mraziaci a úložný priestor
4. Polička na mliečne výrobky *
5. Posúvatelné police *
6. Indikátor teploty *
7. Polica na fl'aše *
8. Priehradka na flaše *
9. Vyrovnávacie nožičky

Two identical 3D-printed rectangular blocks with textured bases, no text or symbols visible.

Line drawing of a metal rack structure with triangular supports (no text or symbols)

PRVÉ POUŽITIE

ZAPNUTIE SPOTREBIČA

INDIKÁTOR TEPLOTY \*

Crack Crack

Illustration of three objects: a tree with 'Brrrr' label, a globe-like structure, and a server unit (no text or symbols on objects)

Three grayscale illustrations showing a door, a refrigerator, and a hanging lamp with a 'Click' button (no text or symbols on objects)

Technical line drawing of a refrigerator interior showing front, side, and top views with no text or symbols

Legenda

CHLADNÁ OBLAST

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Two identical 3D-printed rectangular blocks with textured bases, no text or symbols visible.

Line drawing of a metal rack structure with triangular supports (no text or symbols)

Gurale Gurale

Illustration of three objects: a tree with 'Brmm' label, a globe-like structure, and a refrigerator with a bag (no text or symbols on objects)

Three simple icons showing a door, a refrigerator, and a hanging button with 'Click' labels (no text or symbols beyond basic icons)

Technical line drawing of a refrigerator interior showing front, side, and top views with no text or symbols

Умовні позначки

ЗОНА ОХОЛОДЖЕННЯ

VĂ MULȚUMIM CĂ AȚI ACHIZIȚIONAT UN PRODUS WHIRLPOOL

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

TĂVITĂ PENTRU CUBURI DE GHEAȚĂ RAFT PENTRU STICLE

Two identical rectangular electronic components with metallic leads, no text or symbols visible

Line drawing of a metal rack structure with triangular supports (no text or symbols)

PRIMA UTILIZARE

PUNEREA ÎN FUNCTIUNE A APARATULUI

Gurgle Gurgle

Crack Crack

Illustration of three objects: a tree with 'Brmm' label, a globe-like structure, and an open refrigerator with a bag (no text or symbols on objects)

Three simple icons: a door with a click, a refrigerator, and a hanging button labeled 'Click' (no text or symbols beyond basic icons)

DEPOZITAREA ALIMENTELOR ŞI A BĂUTURILOR

Technical line drawing of a refrigerator interior showing front and side views with no text or symbols

Legendă

ZONA RECE

Line drawing of a metal rack structure with multiple supports (no text or symbols)

Illustration of two rectangular electronic components with metallic leads and connectors (no text or symbols)

السxtخدام الأول مرة

Technical line drawing of a refrigerator interior showing front, side, and top views with no text or symbols
