USER MANUAL EOE-7050 WH EDESA

Illustration of a washing machine with a wavy line above it and a simple icon below (no text or symbols)

ES Manual de instrucciones
EN Instruction manual
DE Bedienungsanleitung
FR Manuel d'instructions

Three safety symbols with X marks: a bottle, a welding torch, and a cake, all marked with 'X' symbol.

INSTALACIÓN

Diagram showing various electrical and mechanical components with labels like screw, wrench, and magnified views

Line drawing of a kitchen oven with screw and screw assembly, showing internal components and a close-up inset (no text or symbols)

Line drawing of an oven with internal grating and a side panel, showing no text or symbols

ANTES DE EMPEZAR

does not control any of the oven functions.

The oven can be provided with lateral guides fitted to the oven wall. Insert the grid and oven sheet provided on the lateral guides. To remove the guides proceed as follows for the two types:

To remove the lateral telescopic guides: To remove the lateral guides:

Diagram showing a mechanical assembly with a magnified view of a hand holding a cylindrical object (no text or symbols present)

Diagram showing a person opening a window with a striped pattern, next to an inset of a striped panel (no text or symbols)

LIMPIEZA

Line drawing of a microwave oven with control knobs and a circular diagram showing the interiormost pan (no text or symbols)

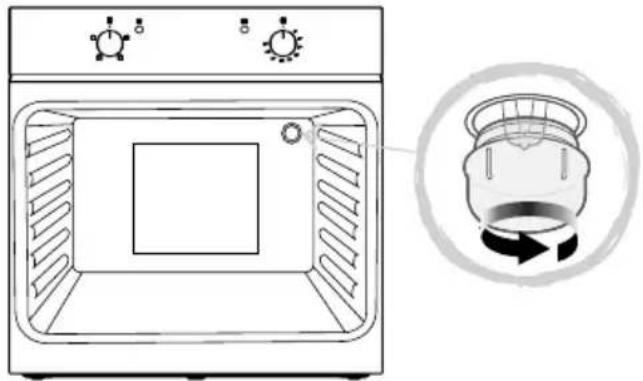

25 W, 300 °C, Tipo G9

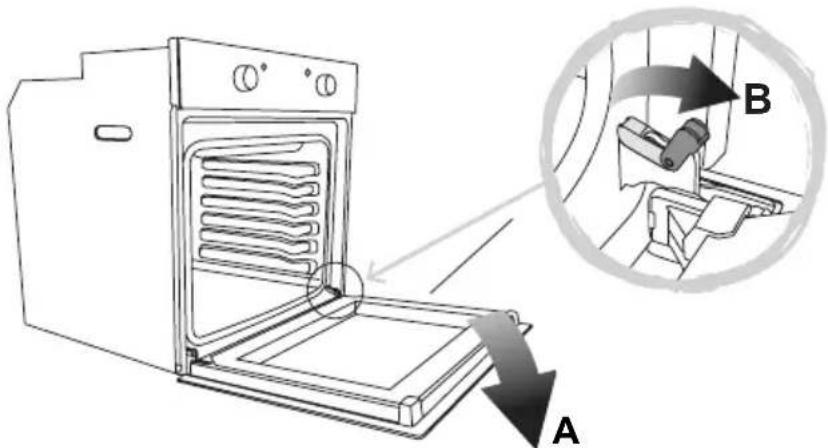

Diagram of an oven with labeled parts A and B, showing internal structure and airflow direction

Technical line drawing of a mechanical assembly with mounting base and clamping elements (no text or symbols)

These instructions are for your safety. Please read the following instructions carefully before proceeding with the installation and use of this appliance. Keep the instruction manuals for future reference.

Warning: All installation work must be carried out by a suitably qualified person, strictly following local building regulations and these instructions.

To avoid the risks that are always present when you use an electrical appliance it is important that this oven is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. After unpacking the oven please check that it is not damaged. If in doubt, do not use the appliance but contact Customer Services or

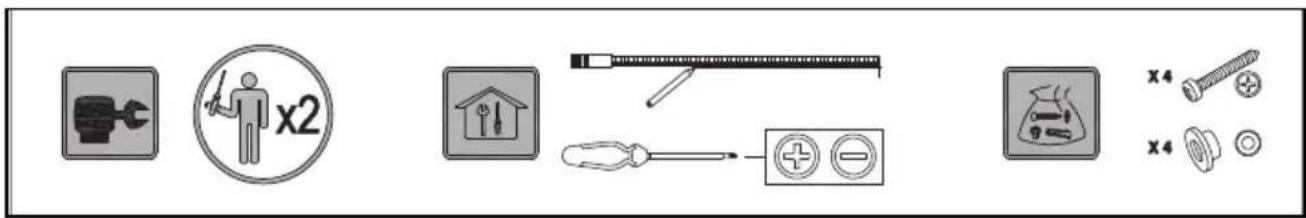

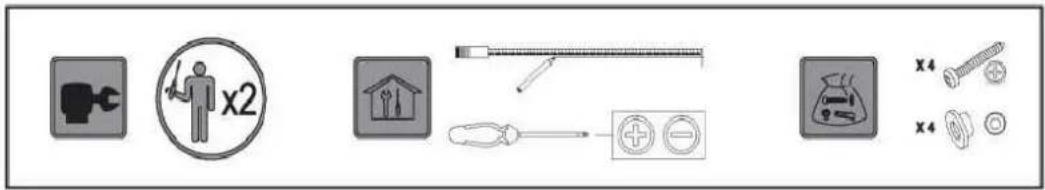

Check the package and make sure you have all of the parts listed and decide upon the appropriate location for your product. If this product contains glass please take care with fitting or handing to prevent personal injury or damage to the product. The specification plate shown on this appliance displays all the necessary identification information for ordering replacement parts. If you sell the appliance, give it away, or leave it behind when you move house, please ensure that you pass on this manual so that the new owner can become familiar with the appliance and its safety warnings.

All installation work must be carried out by a suitably qualified person, strictly following local

building regulations and these instructions.

• Warning: Ensure that the appliance is switched off at the fused spur before replacing the lamp to avoid the possibility of electric shock.
• Warning: Accessible parts may become hot during use. Children should be kept away.
• Warning: If the door or door seals are damaged, the oven must not be operated until it has been repaired. Contact Customer Services for advice.
• During installation do not allow the supply cord to touch the hot parts of the appliance.
  • Make sure that the supply cord is not caught under or in the appliance and avoid damage to the supply cord.
• Do not install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak allow the machine to dry naturally. Do not use and contact Customer Services for advice.
• Please dispose of the packing material carefully.
• Do not use flammable sprays in close vicinity to the appliance. Warning: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge

if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision. Keep the appliance and its supply cord out of the reach of children less than 8 years old.

- If the supply cord becomes damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a danger or injury.

- The appliance is not intended to be operated by means of an external timer or separated remote control system.

- The appliance is for domestic use only and only for cooking food. Do not use this appliance as a source of heat.

- The manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance.

- Danger of burns! During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

- Do not lean on the door or place any objects on the door of the appliance. This can damage the door hinges.

- The oven must be installed in accordance with installation instructions and all dimensions must be followed.

- Before connecting the appliance to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label.

- Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact your retailer if it is damaged.

- Danger of electric shock! Do not attempt to repair the appliance yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

- To avoid damaging the cord, do not squeeze, bend or chafe it on sharp edges. Keep it away from hot surfaces and open flames.

- Lay out the cord in such a way that no unintentional pulling or tripping over it is possible. Keep the appliance and its cord out of reach of children. Do not operate the appliance with wet hands or while standing on a wet floor. Always turn the appliance off before disconnecting it from the power supply.

- Disconnect the oven from the power supply when not in use and before cleaning.

- Warning: This appliance is supplied with a three core supply cord and must be connected direct to the mains electricity supply via a omni-polar or double pole switch having a 3mm minimum contact gap on each connector.

• The fused spur should be installed in an easily reachable place so that in case

of emergency the appliance can be disconnected from power immediately.

• The fixed wiring must be protected against heat surfaces.
• Do not hang any objects on the handle of the oven door.
- Caution: Do not cover the bottom of the oven with aluminium foil or other objects. There is a risk of fire and damage to the enamel in the oven!
- Do not allow aluminium foil, plastic, paper or fabric contact with heating elements. Never leave the appliance unattended during use, especially when cooking with flammable substances (e.g. hot oil, fat, etc.).
- Do not store or never use harsh chemicals, sprays, flammable or non-food in or near the oven.
- This oven is designed specifically for heating or cooking food. The use of corrosive chemicals in heating or cleaning will damage the unit and may cause injury.
- Should any food inside the oven catch fire, keep the door closed. Switch the oven off and disconnect the power supply. Always exercise caution when opening the door.
- Move to the side, and open the door slowly to vent the hot air and/or steam. Make sure your face is away from the opening and make sure there are no children or pets near the oven.
• 5 Only use utensils that are suitable for use in this type of oven.
• 5 The oven should be cleaned regularly and any food deposits removed.
- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass. They can scratch the surface, which may result in shattering of the glass.
• A steam cleaner is not to be used.
- Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
- Children less than 8 years of age shall be kept away unless continuously supervised.
- The appliance must not be installed behind a decorative door in order to avoid overheating.

Three safety symbols with 'X' marks: a bottle, a test tube, and a cloth cover, all marked with X.

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

This appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3 mm between contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power cord for damage. If the supply cord becomes damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Warning: This is a Class i appliance and MuST be earthed.

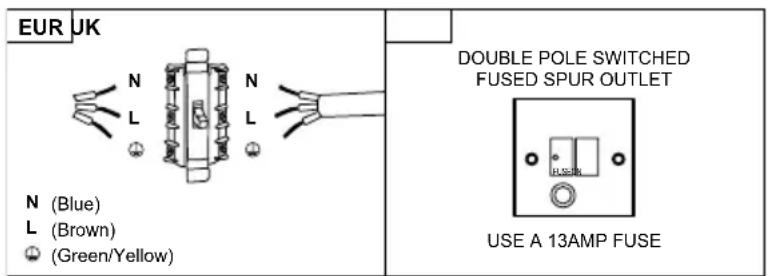

This appliance is supplied with a 3 core mains cable coloured as follows:

• Brown = L or Live
• Blue = N or Neutral
• Green and Yellow = E or Earth

EUR UK N (Blue) L (Brown) (Green/Yellow) N L N L DOUBLE POLE SWITCHED FUSED SPUR OUTLET USE A 13AMP FUSE

The fuse must be rated at 13 amps.

To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners. After unpacking the appliance please check that it is not damaged. If in doubt, do not use the appliance but contact Customer Services.

The manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. Any permanent electrical installation must comply with the latest wiring regulations applicable to your country and for your own safety a qualified electrician or contractor should undertake the electrical installation.

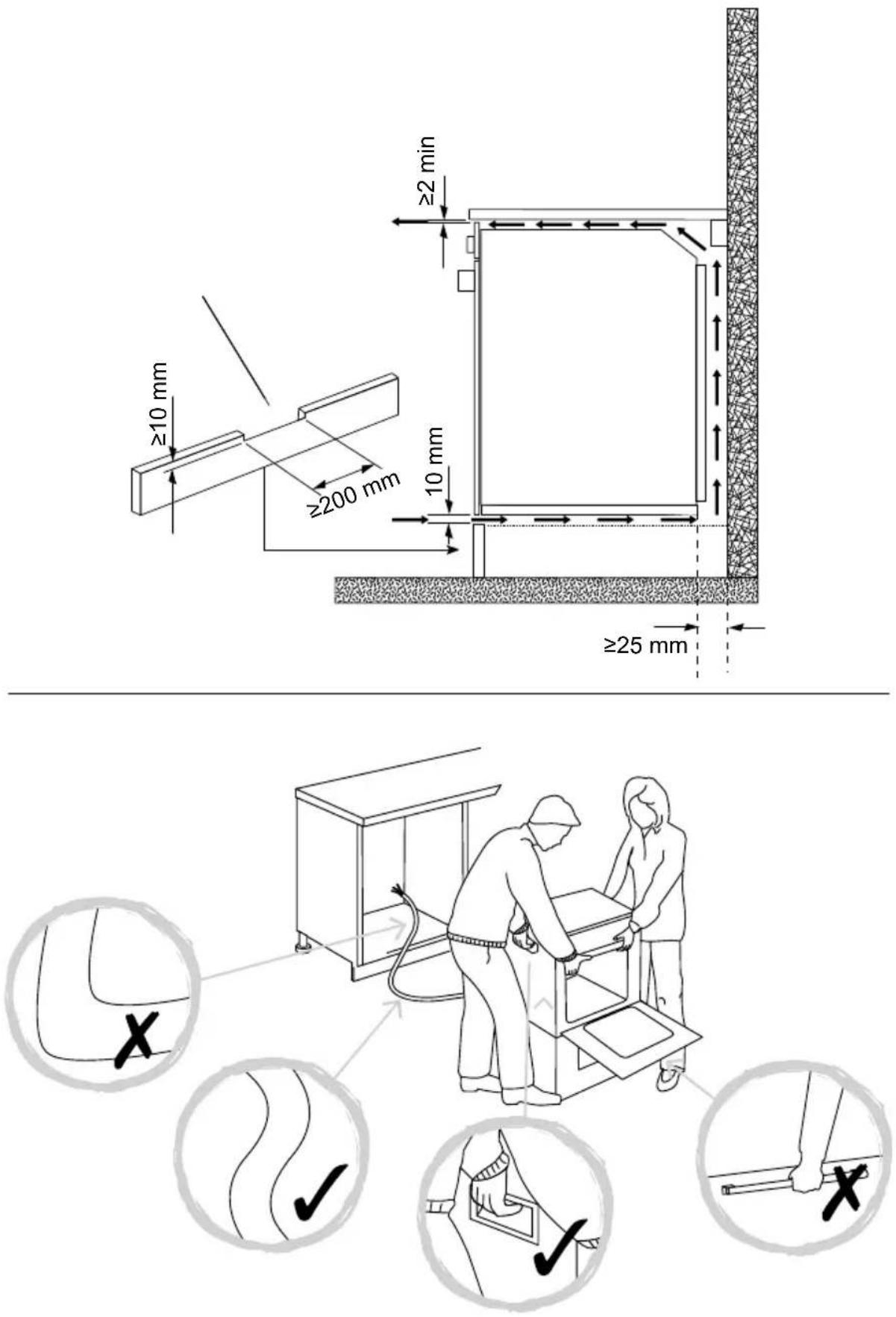

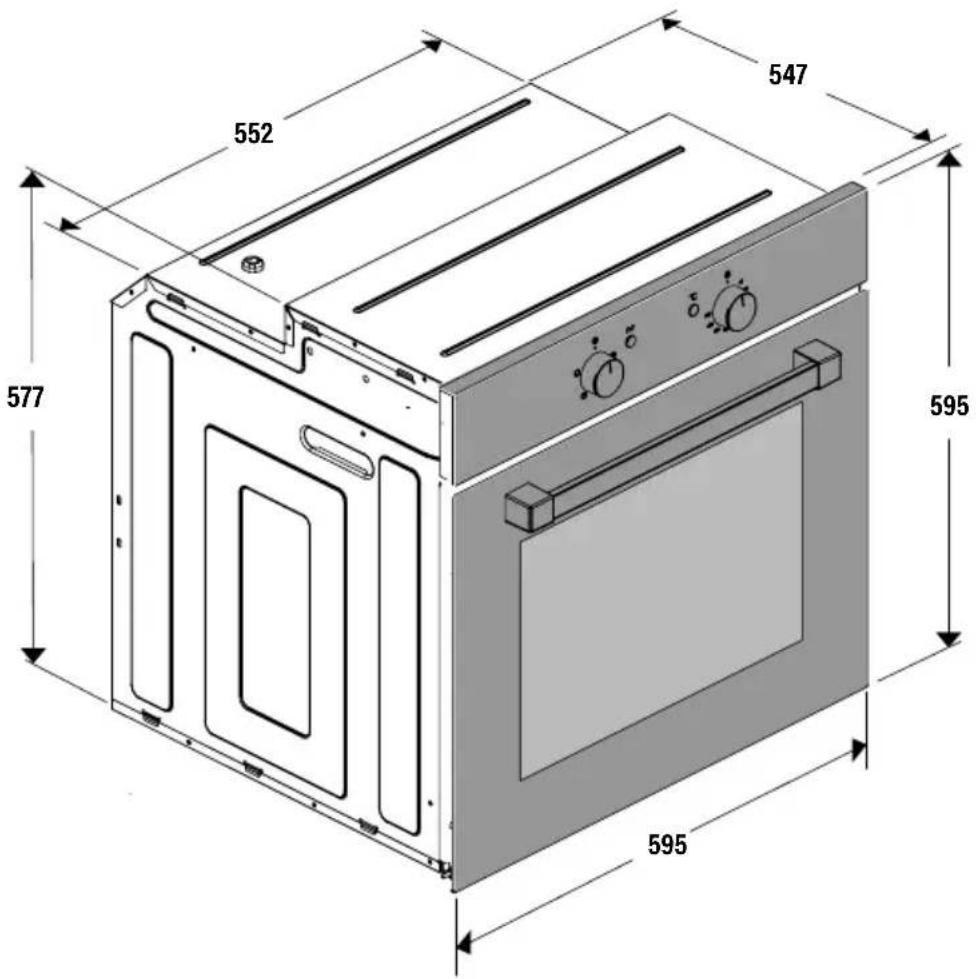

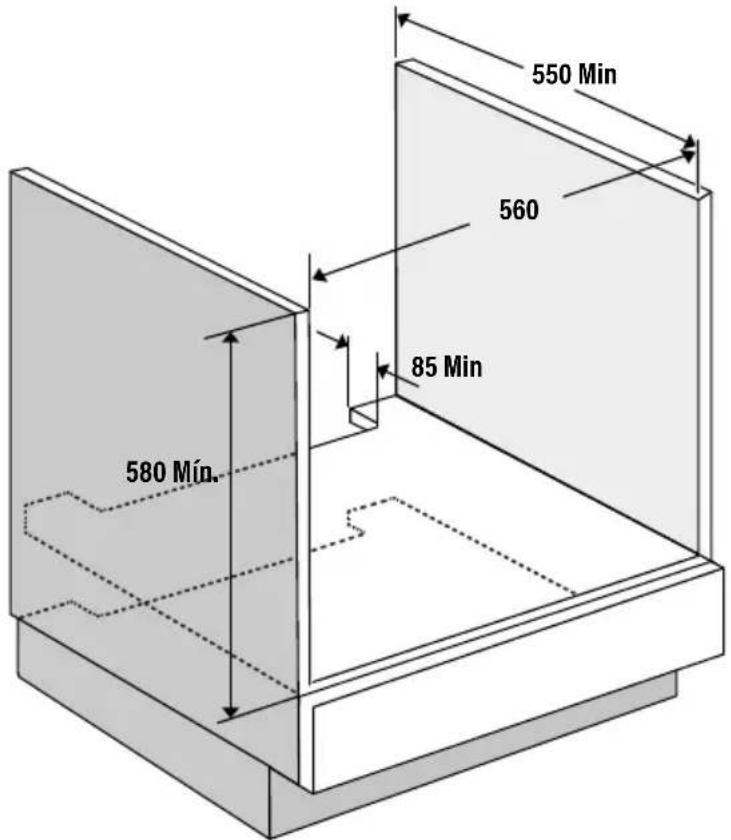

552 547 577 595 595

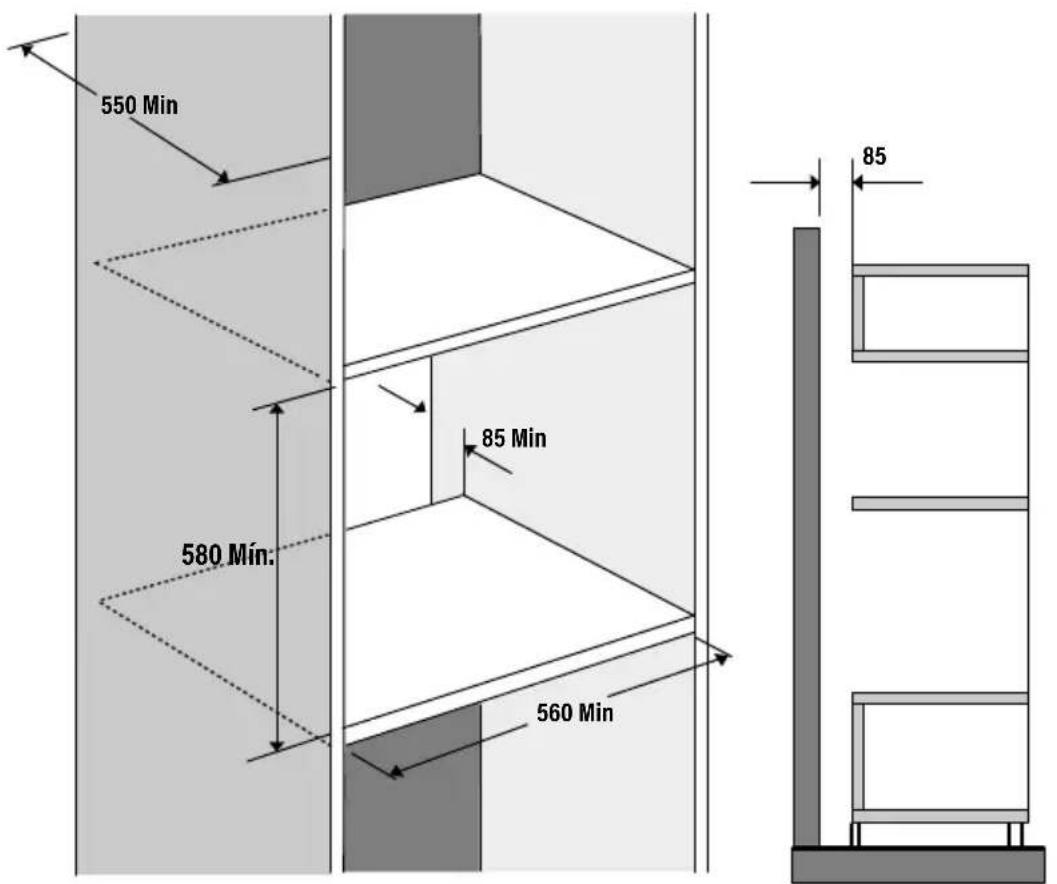

550 Min 560 85 Min 580 Min.

550 Min 85 Min 580 Min. 560 Min 85

≥10 mm ≥200 mm ≥2 min 10 mm ≥25 mm

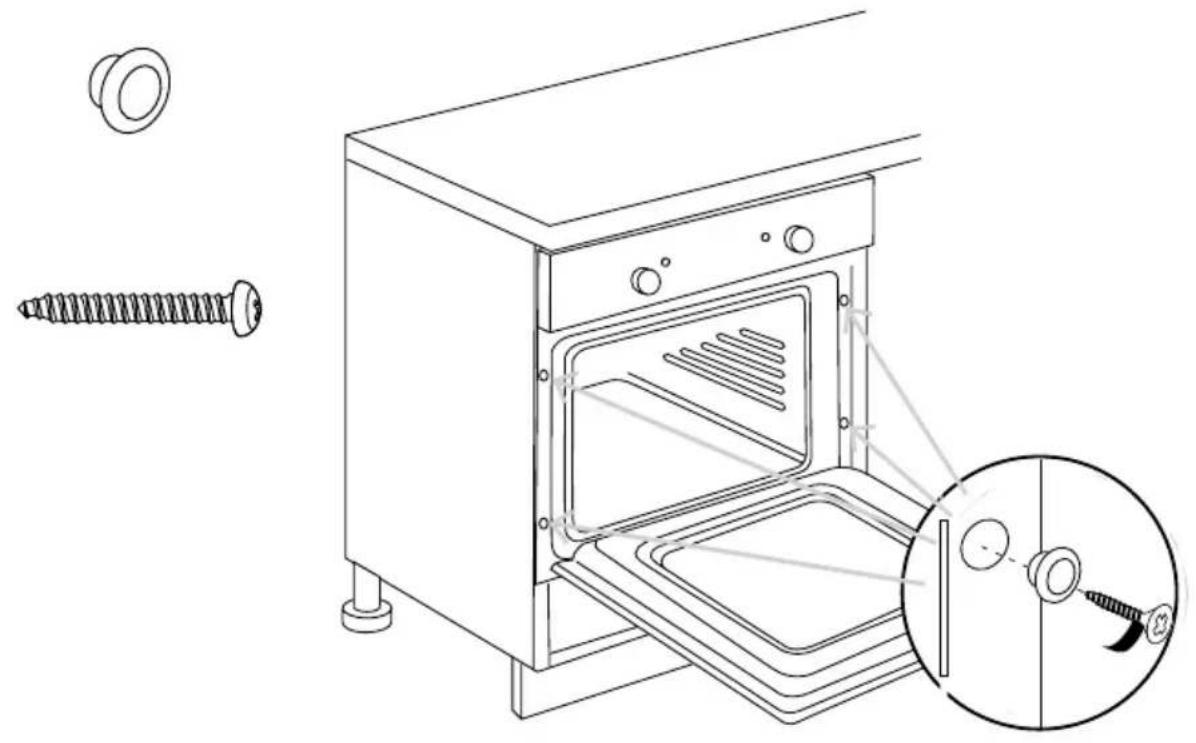

Line drawing of a kitchen oven with screw and screw assembly, showing internal components and a close-up inset (no text or symbols)

Line drawing of an oven with internal grating and a side panel, showing no text or symbols

BEFORE YOU START

Switch on the appliance at the switched fused connection unit. The appliance is ready for use.

WARNING: Read the instructions before using the appliance.

Check the package and make sure you have all of the parts listed. Decide on the appropriate location for your product. This product contains glass, please take care when fitting or handling to prevent personal injury or damage to the product.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass on this manual so that the new owner can become familiar with the appliance and its safety warnings.

Note! Before using the oven for the first time we recommend that the oven is switched on and set to its highest temperature. Keep the oven door closed and leave the appliance on for 1.5 hours with nothing in it.

Ensure adequate ventilation during this process by opening doors and windows in the room. Any odours created during this operation are due to the evaporation of substances used to protect the appliance during storage prior to installation.

FUNCTION & SETTINGS

ICON T° DEFAULT FUNCTION DESCRIPTION
				OVEN LIGHT			Automatic when selecting the cooking mode for all models. The oven light remains on when using the oven.
		160°C		CONVECTION MODE			Provides traditional cooking with heat from the upper and lower elements.
		160°C		LOWER ELEMENT MODE For slow cooking and heating food.
		160°C		FAN-ASSISTED CIRCULAR ELEMENT MODE			Provides uniform heating with the fan and allows different dishes to be cooked at the same time on different levels.
		200°C		FAN-ASSISTED LOWER ELEMENT MODE			This provides heating by semi-convection with the lower element for delicate dishes.
		160°C		FAN-ASSISTED CONVECTION MODE			This provides convection heating of the upper and lower elements for uniform cooking.
		160°C GRILL					For gratinating and browning food.
		190°C MAXI-GRILL					As above, but the grill element provides a larger area for roasting.
		190°C		FAN-ASSISTED GRILL			This provides fast browning so that food remains juicy. For convection baking, this is the most energy-efficient function.
				THAWING MODE			The fan works without heat to reduce the thawing time for frozen food.
		200°C PRE-HEATING					200°C 5 MINUTES
		200°C AQUASMART					1) 200°C 5 Minutes2) 20 Minutes TOP FAN
	Food	Programme and temperature		Time Position Preheat Accessories
MEAT AND POULTRY	Beef 1,5 Kg			50 - 60 min		1	NO
	Pork 1,5 Kg			85 - 95 min		2	NO
	Lamb 1,5 Kg			40 - 50 min		2	NO
	Turkey 4 Kg			115 - 125 min		1	NO
	Chicken 1,25 Kg			50 - 60 min		1	NO
VEGETABLES	Roasted red peppers 1,25 Kg			30 - 40 min	[BWHC]	2	NO
	Stuffed tomatoes 4 servings			15 - 19 min		2	NO
FISH AND SEAFOOD	Baked Hake/Cod 1,5 Kg			7 - 9 min		2 YES
	Roasted lobster 1 Kg			4 - 5 min		4 YES
SUNDRY	Pizza			18 - 22 min		1 YES
	Defrosting, all types of food					2	NO
	Fermenting dough for bread/cakes	40°C 50°C	40°C - 50°C	25 - 30 min		0	NO
PERFORMANCE TESTING ACCORDING TO STANDARD IEC/EN60350	Butter cookies		175°C	22 min		3 YES
	Fairy Cakes	[8276]	185°C	23 min		2 YES
			* 160°C	45 min		3 1	NO
	Fat-free sponge cake		180°C	25 min		1	NO
			* 180°C	40 min		3 1	NO
	Apple tart		185°C	40 -45 min		2	NO
			* 180°C	50 - 55 min		3 1	NO
	Surface browning		* 250°C	2 - 3 min	[285C]	4	Pre-heat for 5 min

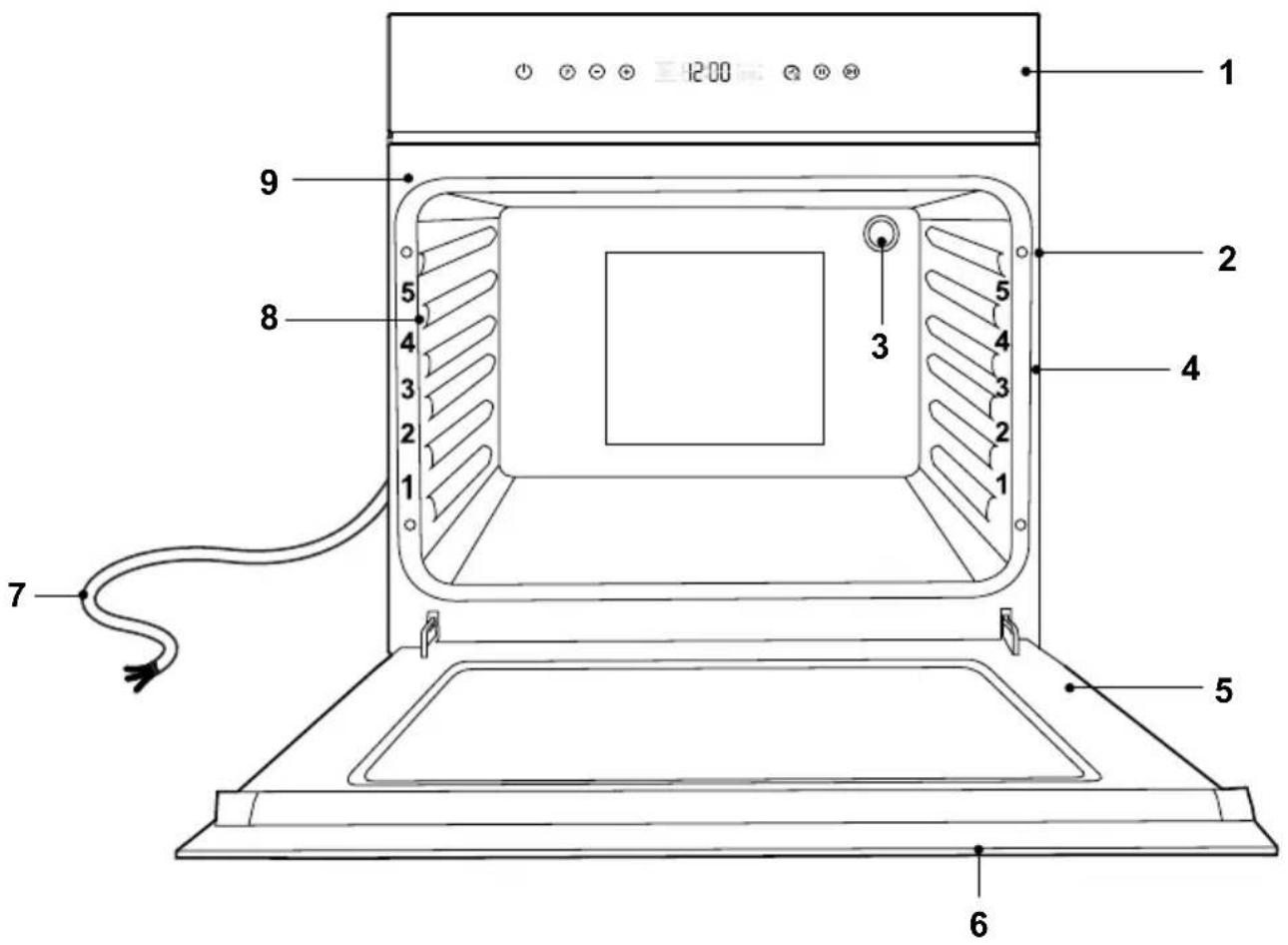

12:00 1 2 3 4 5 6 7 8 9 1 2 3 4 5

1. Control panel.
2. Fixing openings (4x).
3. Oven lamp.
4. Shelf level markings.

5. Door.

6. Door handle.

7. Power cable.
8. Side rails.
9. Side handles for carrying the oven.

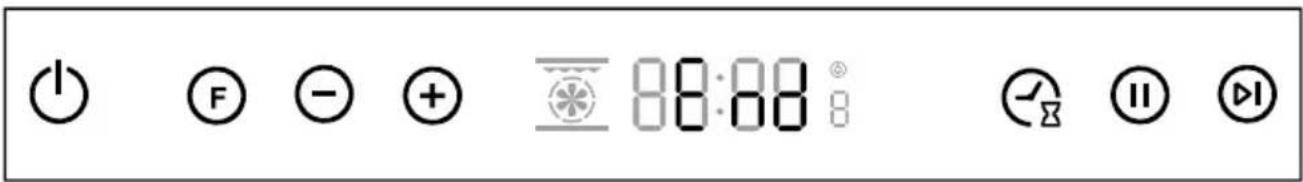

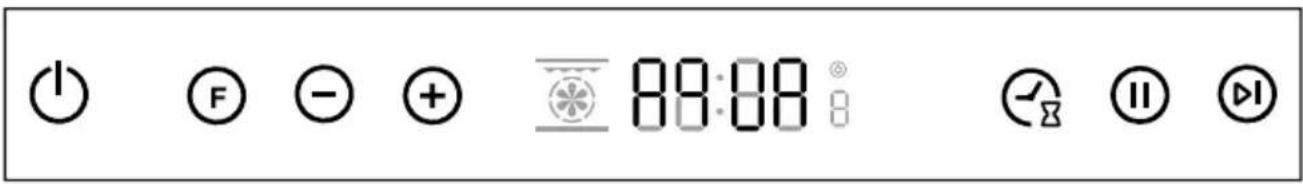

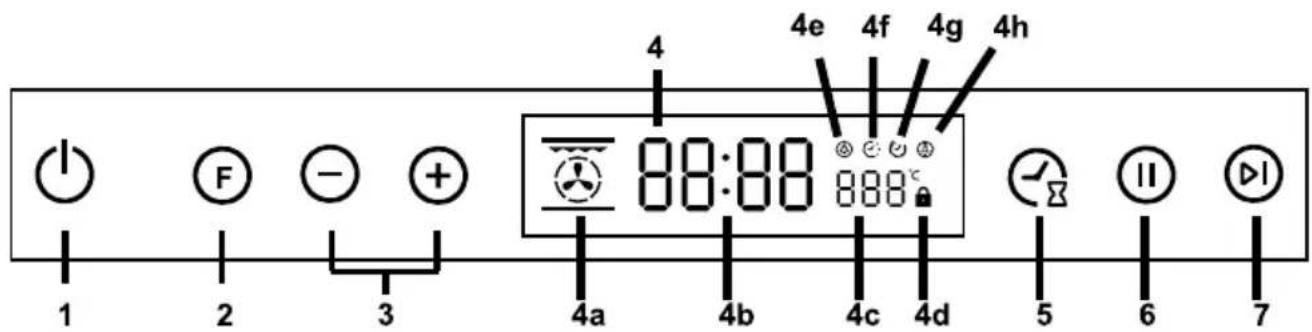

4 4e 4f 4g 4h 88:88 888°C 1 2 3 4a 4b 4c 4d 5 6 7

	1 Power button 4a Oven function display
	2 Function selection button 4b Time zone
	3 Decreasing and increasing button 4c Ten zone
	4 Display zone			4d Child lock symbol
	5 Timer setting button 4e Alarm symbol
	6 Cancel 4f		ng duration time (countdown)
	7	Confirmation		4g	End time of cook
				4h	Lamp symbol

Setting the clock

When turning on the oven (and also after any possible power cut) the numbers 12.00 will appear in the panel and will flash.

To set the right minute-time. Press ⏻ to set the right hour-time, press or ⊕ to ⏻ adjust. There is a 5-second lapse for acceptance during which no button must be touched. The rate of change will increase considerably a few seconds after the buttons have been depressed.

To change the clock time, during 3 seconds and 12:00 flashes and set the correct time with + and -.

WARNING! any power cut cancels the programmed functions, including the clock. When the power supply returns, the indicator will flash and can be reprogrammed

Cooking selection

Select a cooking function from among those available using the keys ⊕⊖ (3). Confirm your selection with the key (7). Each cooking function includes a preset temperature, which may be varied with the keys ⊕⊖ (3).

Press and hold the function selection button for 2 seconds, to change the direction to select the functions.

Warning alarm Ⓐ (Only in stand-by mode)

An independent audible signal that can be set to a maximum time of 23 hours and 59 minutes. To set the minute-time, press ⏻ once. Press ⏻ to set the hour-time. The alarm indicator will flash for 5 seconds, during which time we can select the required time by pressing ⚠ and ⊖ or press ⚠ to start the countdown. The countdown will start immediately. At the end of the time, the indicator will flash and an intermittent sound signal will be triggered, which can be interrupted by pressing the button. If it is not stopped, it will do so automatically after 30 seconds. The warning alarm

does not control any of the oven functions.

Semi-automatic cooking

Cooking duration time Ⓔ (Only when a function is selected and configured by Ⓤ)

By pressing ⏻ once, set the cooking time using Ⓐ and ⏻. The cooking will start immediately and appear on the ⏻ indicator. At the end of the set time, the cooking will be interrupted and the intermittent sound signal will be heard. Cancel it as indicated above.

B. Setting the cooking end time ⏻ (Only when a function is selected not configured by 91)

By pressing ☑ during 2 seconds, set the chosen cooking end minute-time using ⚠ and ⚡. Press again to set hour-time. Pressing ⚠ to confirm. The cooking will start immediately. When the cooking time ends, the cooking will stop and the intermittent sound signal will be heard. Cancel it as indicated above.

The programming can also be cancelled at any time by pressing Ⓐ. Pressing after this will prepare the oven for manual operation.

Automatic cooking. Ⓗ + ⏻

(Start and end of cooking)

1) Programme the cooking time by pressing ⏻ and selecting the required time with Ⓗ and .⊖
2) Set the end of the cooking time by pressing ☑ during 3 seconds and selecting the required time with Ⓗ and Ⓗ. After these operations, the Ⓗ and Ⓗ indicators will continue to be shown on the display, showing that the oven has been programmed.

Practical example:

We want to cook for 45 minutes and for the cooking to end at 2 p.m.

• We select the function and temperature confirm by Ⓓ.
• We press 📋 and select 0.45 by using Ⓗ and . And press to confirm.
• We press 📋 during 3 seconds three times and select 14.00 with ⓐ and . And press to confirm.
• After these operations, the current time will reappear on the display and the Ⓗ and & indicators will show that our programming has been understood and memorised.
• At 1.15 p.m. (2 p.m. less 45 minutes), the oven will start automatically.
• At 2 p.m. the cooking will stop automatically and the intermittent sound signal will be heard.
• We can switch it off by pressing any button.

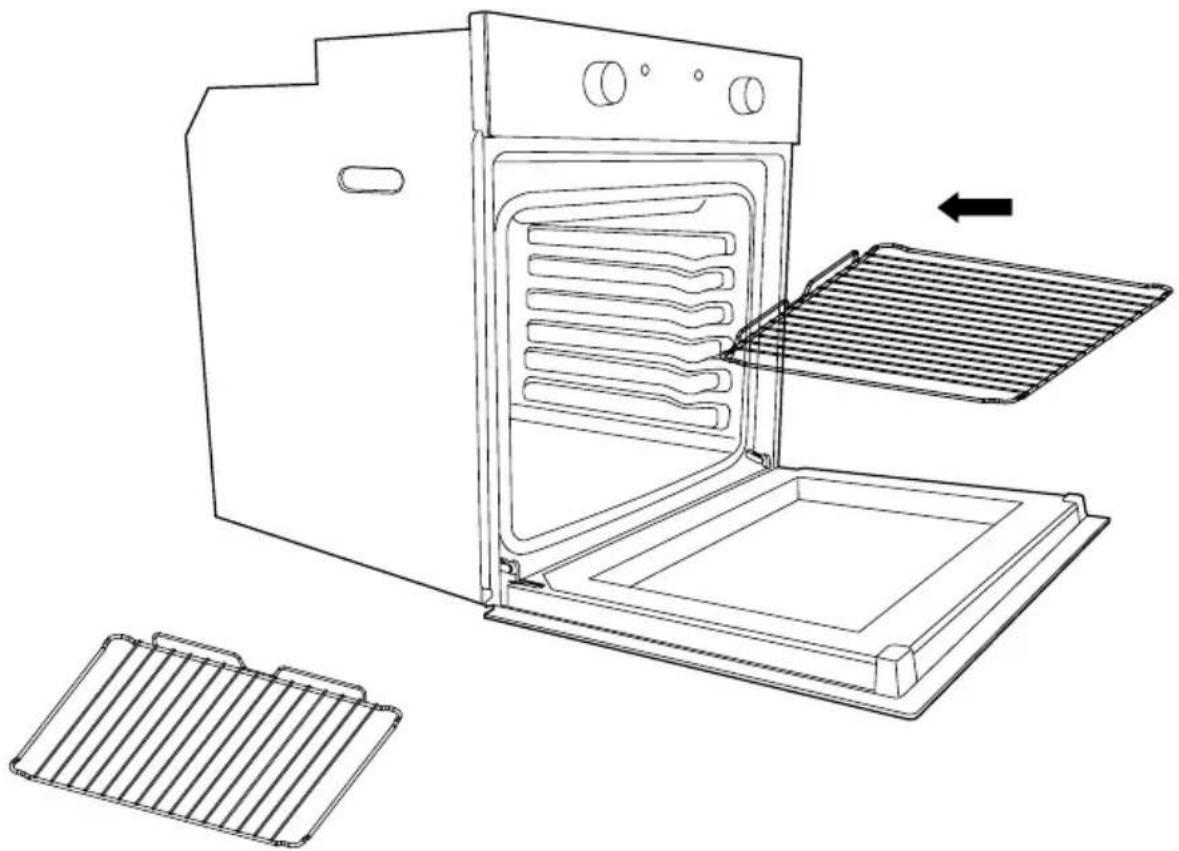

OVEN ACCESSORIES

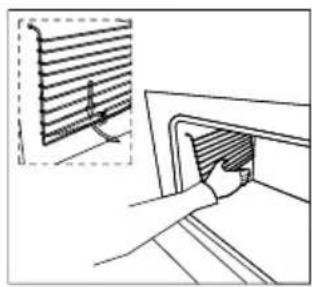

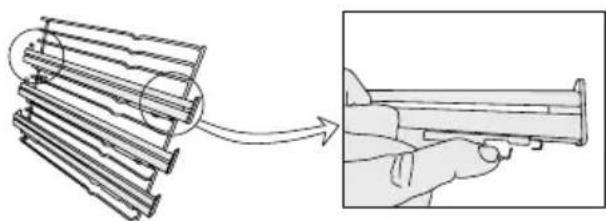

The oven can be provided with lateral guides fitted to the oven wall. Insert the grid and oven sheet provided on the lateral guides. To remove the guides proceed as follows for the two types:

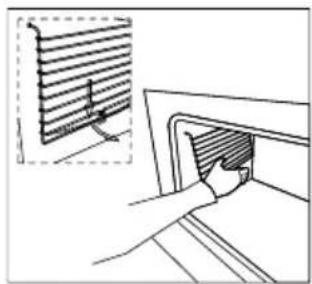

To remove the lateral telescopic guides: To remove the lateral guides:

Diagram showing a mechanical assembly with a cylindrical component being inserted into a binocular lens (no text or symbols present)

Illustration of a person opening a wall-mounted device with a magnified inset showing the exterior wall (no text or symbols)

CLEANING

Before cleaning or performing maintenance, disconnect the oven from the power supply. To extend the life of your oven, it must be cleaned frequently, keeping in mind that:

• Do not use abrasive powders or corrosive substances which could ruin the surfaces.
• The inside of the oven should preferably be cleaned immediately after use, when it is still warm, with hot water and soap. The soap should be rinsed away and the interior dried thoroughly. Avoid using abrasive detergents (for example cleaning powders, etc.) and abrasive sponges for dishes
  or acids (such as lime scale remover, etc.) as these could damage the enamel. If the grease spots and dirt are particularly tough to remove, use a special product for oven cleaning, following the instructions provided with the product.
• If the oven is in use for an extended period of time, condensation may form. Once the oven has cooled, remove the condensation using a dry cloth.
• There is a rubber seal surrounding the oven opening which creates a heat seal. Check the condition of this seal on a regular basis. If necessary, clean it and avoid using abrasive products or objects to do so. Should it become damaged, please contact the customer services helpline. We recommend you avoid using the oven until it has been repaired.
• Never put aluminium foil at the bottom of the oven, as the build up of heat could compromise cooking and even damage the enamel.

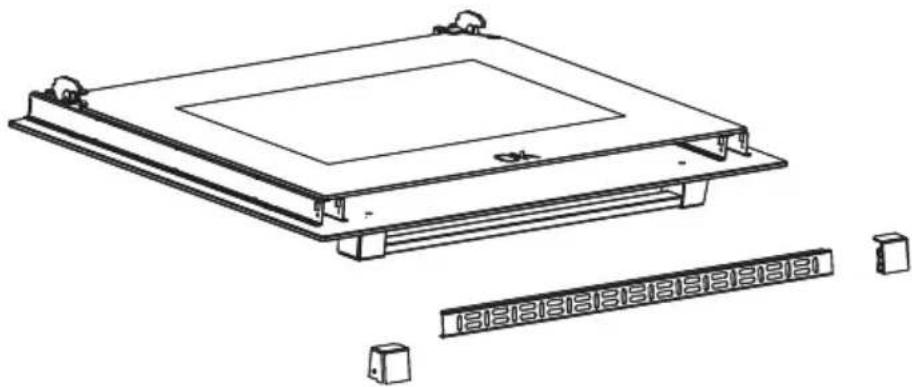

• Clean the glass door (5) using non-abrasive products or sponges and dry it with a soft cloth.

• Open the door (5).

• Clean all oven accessories with warm water or washing up liquid and polish dry with a soft clean cloth.
• Clean the oven interior with a soft clean cloth.
• Wipe the front of the appliance with a damp cloth.
• Let the oven and all accessories dry well.

WARNING: Always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact customer services.

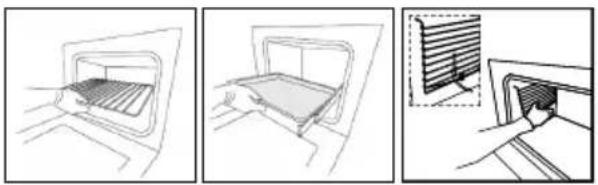

OVEN CLEANING SYSTEM EQUIPPED WITH THE AQUASMART SYSTEM

1. Take out the internal components: tray, screen, side screens.

1. Pour 200 ml of soapy water on the bottom of the oven.

1. Select AQUA function and press

I F - + 88:08 : √ II DI

1. Double Grill + Fan 200°C will work for 20 minutes. The word AQUA and 20 minutes countdown clock will be shown alternative for every 3 seconds.
2. Top Fan will be working during 20 minutes. The word AQUA and 20 minutes countdown clock will be shown alternative for every 1 second
3. Once finished, "END" word will appear on the display for 30 seconds, and the oven will return to Stand-By mode.

I F - + 88:88 : √ II DI

REPLACING THE OVEN LIGHT BULB

• Remove all pans and grills from inside the oven to easily access the lamp cover (3).
• Unscrew the glass cover and remove the old lamp. Dispose of it safely and ecologically.
• Insert a new G9 halogen lamp into the lamp holder. Note: Please do not handle the lamp with bare skin to avoid reducing its life. Use a cloth or tissue.
• Replace the lamp cover.

Line drawing of a microwave oven with a circular inset showing the interiormost pan (no text or symbols)

25 W, 300 °C, Tipo G9

WARNING! Ensure that the appliance is switched off and completely cool before replacing the lamp to avoid the possibility of electric shock or burns.

REMOVING THE DOOR FROM THE OVEN

To simplify cleaning interior of the oven, the door (5) can be removed. Follow below steps to do so:

• Open the door (5) fully to position "A".
• Lift the two mobile links of the hinges to position "B".
• Close the door (5) to the half-way position.

- Lift the door (5) upwards and remove it by sliding the hinges outwards. Hold the door (5) by the sides close to the hinges when doing this.

• After cleaning, replace the door (5) in the reverse order.

Diagram showing a oven with heat exchanger and labeled parts A and B, illustrating cooling or heating process.

REMOVING THE REAR GLASS FOR CLEANING

• To simplify cleaning, the rear glass panel can be removed.
• After loosening 2 screws fixing the side supports of the glass, remove the supports and then the glass panel. Handle with care!
  • After cleaning, replace the glass panel in the reverse order.
• Inner glass must be placed so that the "ok" is visible.

Technical line drawing of a mechanical assembly with mounting brackets and a labeled component (no text or symbols present)

FAQS SOLUTION
What should I do if the oven does not heat up? Check to see if one of the following actions resolves the issue: The oven may not be switched on. Switch on the oven. (Switch On/Off).Check to see if the required settings have been applied.A household fuse may have blown or a circuit breaker may have tripped.Refuse the fuses or reset the circuit. If this happens repeatedly, call the Service Center.
What should I do if, even though the oven function and temperature have been set, the oven does not heat up?	There may be problems with the internal electrical components. Call the Service Centre
What should I do if I cannot change the set temperature?	Make sure to have used the temperature knob (Control Elements)
What should I do if the oven light does not illuminate?	The oven light is faulty.Replace the oven light bulb. (Replacing the oven light bulb)
The grill does not heat up properly? The grill power is set too low. Turn the temperature control to a higher temperature.

ENERGY SAFE ADVICE

• Use the maximum available space in the oven cavity
• If you were using the oven, once the recipe is finished, take advantage of the heat inside the oven and cook another recipe.
• Take out the internal cooking accessories that you aren't using.
• During cooking process, try to not open the door very often, because of the loss temperature.
• Do not cook frozen products, defrost them before.

Three safety symbols with X marks: a bottle, a test tube, and a sand block, all marked with 'X' and crossed out.

Diagram showing five different types of electrical or mechanical components with icons and labels, including a plug, cross symbol, household, battery, and screw.

Diagram showing a mechanical assembly with a magnified inset of a hand holding a cylindrical component (no text or symbols present)

Line drawing of a door with a handle, showing a close-up of the window and a small inset detail (no text or symbols)

REINIGUNG

Line drawing of a microwave oven with a circular inset showing the interiormost pan (no text or symbols)

25 W, 300°C, Typ G9

Diagram of an oven with labeled parts A and B, showing internal structure and directional arrow

Technical line drawing of a mechanical component with mounting holes and a base plate (no text or symbols)

Diagram showing various electrical and mechanical components with symbols and labels, including plug, circuit, battery, and screw parts.

Line drawing of a door with a hand inserting a component into the opening (no text or symbols)

NETTOYAGE

Diagram showing a oven with heat exchanger and labeled parts A and B, illustrating a cooling or heating process.

Technical line drawing of a mechanical assembly with mounting holes and a base plate (no text or symbols)

Illustration of a washing machine with a flowing wave above it, symbolizing sound or energy (no text or symbols present)

Sticker

RATING PLATE

CNA group
