BAZOOKA Installation Manual MODELS • MODELE N° • MODELO: BT6014/6018, BT8014/8018, BT1014/1018, BTA6100, BTAB100, BTA10100, BT6024DVc6028DVc, BT8024DVc/8028DVc, BT1024DVc/1028DVc, BTA6200, BTA8200, BTA10200, MBT8014, MBT1014, MBTA8100, MBTA8200, MBTA10100, MBTA10200,BT21214,BTI224DVc

Dear Friend,

Thank you for selecting Bazooka® subwoofer speaker systems for your stereo system. Today, the Bazooka represents Bazooka Mobile Audio's continued commitment to efficiency and design. An innovative manufacturing process developed by SAS® for the Bazooka provides consumers with state-of-the-art speaker system design.

At SAS, we take pride in manufacturing the most revolutionary bass speaker systems ever created, featuring our patented Bass Tubes ^® enclosure design, and we hope you will take pride in owning them.

Several years ago, we realized that efficiency was the wave of the future in Autosound, so we made a commitment to design, manufacture, and deliver the most efficient speaker systems possible.

Today we market our patented speaker systems worldwide and the high quality of the Bazooka brand is well respected by consumers and dealers of all nationalities.

When properly installed, Bazooka subwoofer speaker systems will give you years of clean uninterrupted sound reproduction. Therefore, I urge you to take a few minutes of your time to review this instruction booklet. It was designed to give you a better understanding of our products and to explain how to apply them properly.

Thank you again for choosing Bazookas. Our early commitment to quality has made them the product of choice, and I am sure you will agree that you have made the right one! Enjoy!

JON C. JORDAN

President

SAS/BAZOOKA

CONTENTS

HELPFUL HINTS BEFORE YOU BEGIN PG 4

VEHICLE PLACEMENT RECOMMENDATIONS PG 5-6

MOUNTING THE BAZOOKA PG 7-9

WIRING DIAGRAMS PG 10-11

SPECIFICATIONS PG 12&15

FEATURES PG 13-14

WIRING PG 16-20

TROUBLESHOOTING PG 21-22

WARRANTY PG 24-25

HELPFUL HINTS—BEFORE YOU BEGIN

Please take time to read through this manual and plan out your installation before you begin!

Locate an area in the rear of the vehicle where you would like to place the Bazooka speaker systems. The location you have selected must meet the following requirements in order for the Bazooka to be properly installed in the vehicle:

1) The woofer (grill end) should be facing into a corner. (See vehicle placement recommendations on pg. 5-6)
2) Ideally, there should be 2 to 4 inches between the woofer and the corner it is pointing into.
3) The mounting area should be carefully checked to be sure that the mounting screws will not damage the gas tank, electrical wiring, fuel lines, or the spare tire during the mounting of the strap bases.
4) The strap mounting bases should be screwed securely to a rigid surface that is part of, or anchored to, the structure of the vehicle.

VEHICLE PLACEMENT RECOMMENDATIONS

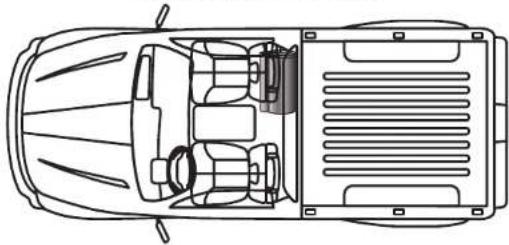

TRUCK INSTALLATION
tube size is exaggerated for emphasis

Top-down line drawing of a car showing internal compartments and structural elements (no text or symbols)

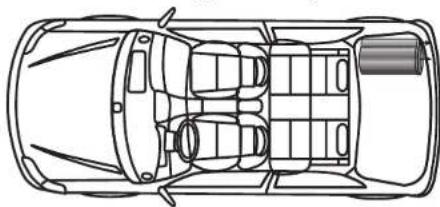

HATCHBACK INSTALLATION
tube size is exaggerated for emphasis

Top-down line drawing of a car interior layout (no text or symbols)

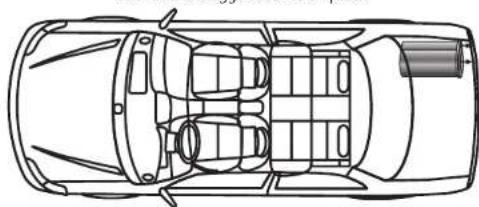

SEDAN INSTALLATION
tube size is exaggerated for emphasis

Top-down line drawing of a car interior layout (no text or symbols)

BOAT PLACEMENT RECOMMENDATIONS

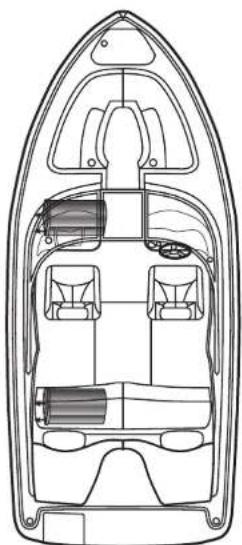

Technical line drawing of a boat interior layout with compartments and structural elements (no text or labels)

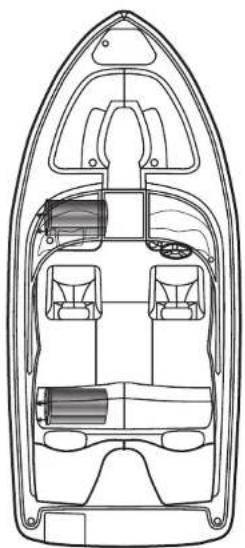

BOW RIDER/SKI BOAT
tube size is exaggerated for emphasis

• Under passenger console
• Under seat storage compartment

Top-down schematic of a boat interior layout showing compartments, seating areas, and equipment (no text or labels)

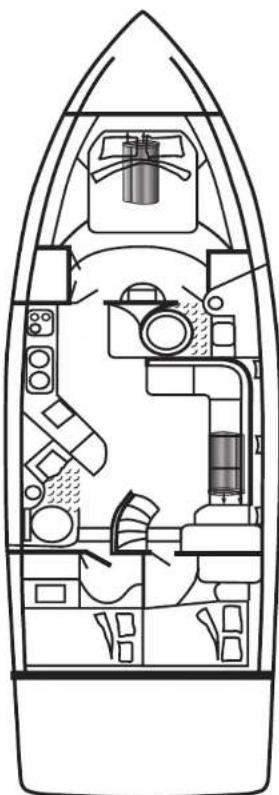

SPORT YACHT
tube size is exaggerated for emphasis

• Under bed storage compartment
• Under seat storage compartment

MOUNTING THE BAZOOKA

Figure 1

Logo should face up Top

1. With the topside of the buckle facing up (see figure 1), lace the strap through the mounting base as illustrated in figure 2

BAZOOKA Figure 3

1. After the strap is completely laced through the mounting base, make a loop with the strap, where it runs across the middle of the base as illustrated in figure 3. This loop is necessary to access the two mounting holes in the base.

Diagram of a film reel with a central aperture and base, showing no text or symbols

Figure 4

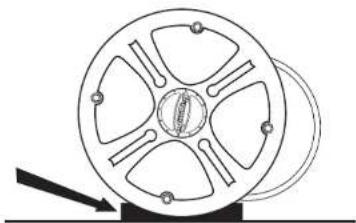

1. Place each mounting base under the Bass Tubes® enclosure so that the apex at the bottom of the tube sits inside the mounting base as in figure 4.

Figure 5 3 3

1. Move the bases so that they are spaced approximately 3" from each end of the enclosure as illustrated in figure 5.
2. Remove the Bass Tubes® enclosure without moving the mounting bases and set it aside.
3. Screw each mounting base securely in place with screws provided as illustrated in figure 3.

ENGLISH

See Model Size For Length Figure 6

1. Remove any slack in the strap by feeding it out of the mounting base on the loose end of the strap opposite the buckle.
2. Place the Bass Tubes® enclosure on the mounting bases and fasten the buckles as illustrated in figure 7. The strap should loop through the buckle and be tightened securely by holding the strap in place with one hand and pulling the loose end away from the buckle, but against the cabinet.

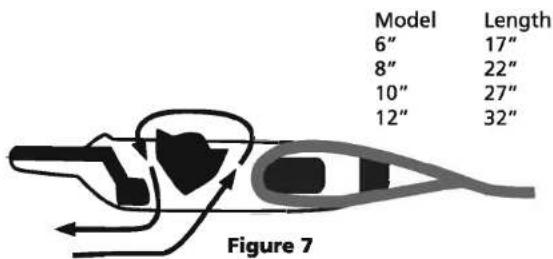

Model 6" Length 8" 22" 10" 27" 12" 32" Figure 7

Technical Note:

Due to the jarring and shifting that can occur in a vehicle, the mounting straps may stretch or loosen. We recommend that you check the straps regularly to assure that your Bass Tubes® enclosure is mounted securely in place.

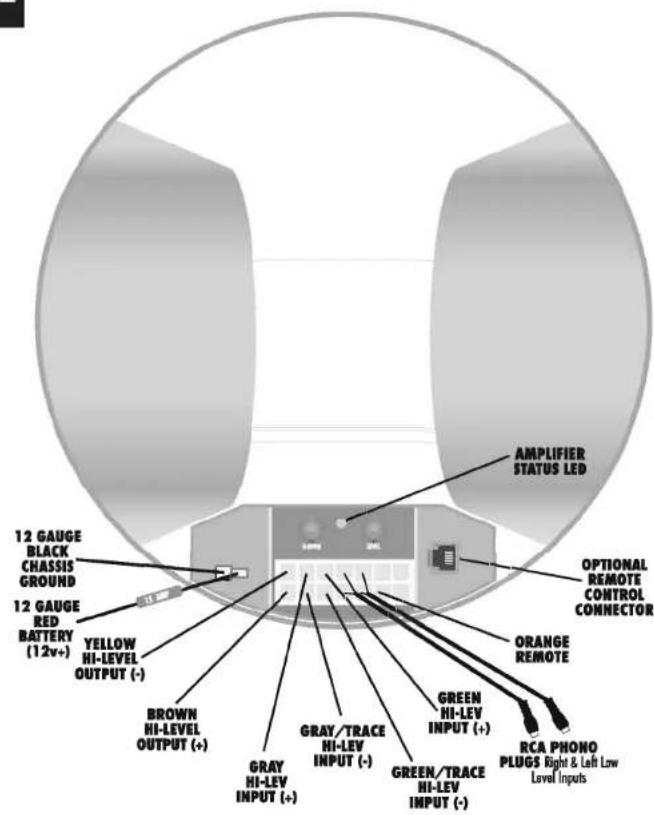

A100 WIRING DIAGRAM

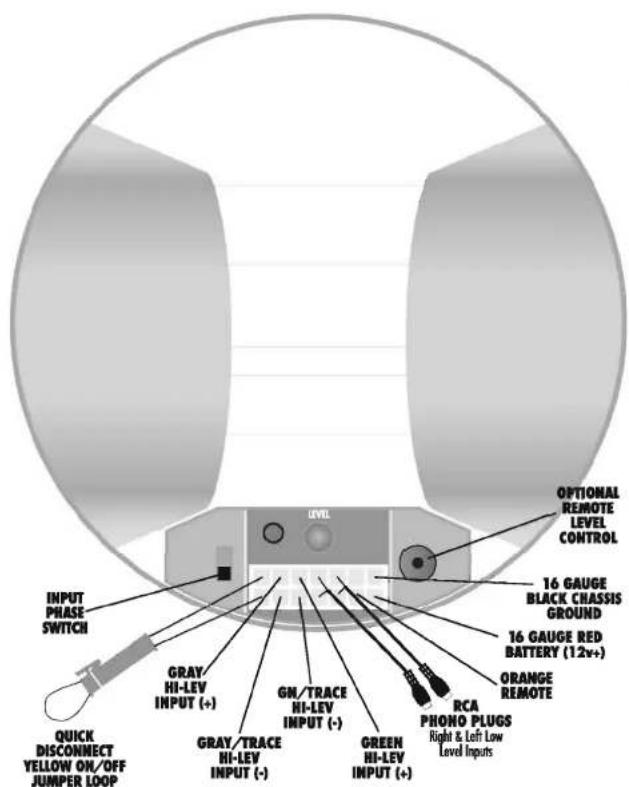

OPTIONAL REMOTE LEVEL CONTROL LEVEL INPUT PHASE SWITCH 16 GAUGE BLACK CHASSIS GROUND 16 GAUGE RED BATTERY (1.2v+) ORANGE REMOTE RCA PHONO PLUGS Right & Left Low Level Inputs GRAY HI-LEV INPUT (+) GRAY/TRACE HI-LEV INPUT (-) GN/TRACE HI-LEV INPUT (-) GREEN HI-LEV INPUT (+) QUICK DISCONNECT YELLOW ON/OFF JUMPER LOOP

NOTE:

REMOVE AUTO TURN-ON LOOP TO USE ORANGEREMOTE WIRE FOR NORMAL REMOTE TURN-ON

ENGLISH

ENGLISH

12 GUGE BLACK CHASS GROUND BATELY RED HI-LEVEL OUTPUT (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) (+) BROWN HI-LEVEL OUTPUT (+) GRAY HI-LEV GRAY HI-LEV GREEN/TRACE HI-LEV INPUT (+) GREEN HI-LEV INPUT (+) ORANGE REMOTE PUO5 PRONO Level/Inputs. REC PHONO LED/Inputs. ANAMPLIFIER INTOS LED OPTIONAL REMOTE CONTROL CONNECTOR

AMPLIFIED TUBE SPECIFICATIONS

	BTA0100	BTA0100	BTA0100	BTA0200	BTA0200	BTA0200	CSRA5
Worker Size	6.5"	8"	10"	6.5"	8"	10"	8"
Visa Cell Size	1.5" high power, /high temp.	1.5" high power, /high temp.	1.5" high power, /high temp.	1.5" high power, /high temp.	1.5" high power, /high temp.	1.5" high power, /high temp.	1" high power, /high temp.
Magnet Size	13 oz.	15 oz.	28 oz.	20 oz.	28 oz.	28 oz.	28 oz.
Frequency response*	39-85 lbs.	39-85 lbs.	39-85 lbs.	39-250 lbs.	39-250 lbs.	39-250 lbs.	sub 29-1000x/16-pos 100-290x
Efficiency**	103 dB**	105 dB**	107 dB**	100 dB**	102 dB**	104 dB**	105 dB**
Power Handling	100 watts	100 watts	100 watts	200 watts	200 watts	200 watts	sub 100x a 1/16-pos 25x a 4
Dimensions	10.75" x 0.75" x 0"	10.125" x 0.5" x 10"	10.675" x 10.3" x 12.2"	10.325" x 6.75" x 8"	10.325" x 0.5" x 10"	10.7" x 10.3" x 12.7"	10.325" x 0.5" x 10"
Weight	12 lbs.	14 lbs.	24 lbs.	15 lbs.	20 lbs.	23 lbs.	20 lbs.
Impedance	2 ohms DVC	2 ohms DVC	2 ohms DVC	4 ohms	4 ohms	4 ohms	2 ohms DVC

PASSIVE TUBE SPECIFICATIONS

	BT041/401B	BT044/401B	BT105/101B	BT024VDC/4028DVC	BT024VDC/8028DVC	BT1024VDC/1028DVC	BT2314	BT234DVC
Worker Size	6.5"	8"	10"	6.5"	10"	10"	12"	12"
Video Grid Size	1.5" high power/high temp.	2" high power/high temp.	3" high power/high temp.	1.5" high power/high temp.	2" high power/high temp.	3" high power/high temp.	4" high power/high temp.	5" high power/high temp.
Magnet Size	20 cc.	28 cc.	28 cc.	28 cc.	36 cc.	36 cc.	36 cc.	36 cc.
Frequency response*	39-1500 fs.	39-1500 fs.	39-1000 fs.	39-1500 fs.	39-1500 fs.	39-1000 fs.	30-1000 fs.	30-1000 fs.
Efficiency**	100 dB*	102 dB*	104 dB*	100 dB*	102 dB*	104 dB*	106dB*	106dB*
Power Handling	6-100 watts/channel	6-150 watts/channel	6-200 watts/channel	6-150 watts/channel	6-200 watts/channel	6-250 watts/channel	6-250 watts/channel	6-300 watts/channel
Dimensions	10" x 6.75" x 8"	10" x 8.5" x 10"	20.75" x 10.3" x 12.2"	18" x 6.75" x 8"	18" x 8.5" x 10"	20.35" x 10.3" x 12.2"	22.55" x 12.1" x 14.4"	22.55" x 12.1" x 14.4"
Weight	11 lbs.	15.5 lbs.	23 lbs.	13 lbs.	19 lbs.	26 lbs.	280bs.	300bs.
Impedance	4 ohms/8 ohms	4 ohms/8 ohms	4 ohms/8 ohms	4 ohms/8 ohms	4 ohms/8 ohms	4 ohms/8 ohms	4 ohms	4 ohms

MODEL FEATURES

Feature
Potented Bass Tubes® enclosure design	X	X	X	X	X	X	X
Optimized for Corner Loading	X	X	X	X	X	X	X
Water resistant enclosure	X	X	X	X	X	X	X
Fits in all vehicles	X	X	X	X	X	X	X
Upgrades any 12 volt sound system	X	X	X	X	X	X	X
Perfect for leased vehicles	X	X	X	X	X	X	X
Home audio quality sound	X	X	X	X	X	X	X
New and improved cosmetics	X	X	X	X	X	X	X
Dual voice coil inputs
Large oversized edge roll
Oversized magnet and motor structure
Built-in 100 watt mono amplifier					X	X	X
Built-in 200 watt mosfat mono amplifier
Noise rejecting balanced input circuit					X	X	X
Fixed 85 hz 18 dB subwoofer crossover					X	X	X
Variable 60 - 250 hz subwoofer crossover
Built-in 12dB subsonic filter at 35 hz					X	X	X
Optional remote level control					X	X	X
Optional remote crossover control
Optional Universal Mounting System	X	X	X	X	X	X	X
Jet black paint finish	X	X	X	X	X	X	X
Platinum colored binding posts	X	X	X	X
One year warranty	X	X	X	X	X	X	X
Salt leg and UV certified for 5 years
Waterproof woofers
Stainless steel hardware
Weather resistant velcro reinforced mounting straps

BT6024DVC/6028DVC

BT8024DVC/8028DVC

BT1024DVC/1028DVC

BT1224DVC

BT6200

BT8200

BT10200

MBT8014

MBT1014

MBTA8100

MBTA10100

MBTA8200

MBTA10200

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

x

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

MARINE TUBE SPECIFICATIONS

MBT8014MBT1014MBTA8100MBTA10100MBTA8200MBTA10200
Woofer Size 8" 10" 8" 10" 8" 10"
Voice Coil Size	1.5" high power./high temp.	1.5" high power./high temp.	1.5" high power/high temp.	1.5" high power./high temp.	1.5" high power./high temp.	1.5" high power./high temp.
Magnet Size	28 oz.	28 oz.	15 oz.	28 oz.	28 oz.	28 oz.
Frequency response*	39-1500 hz.	39-1000 hz.	39-85 hz.	39-85 hz.	39-250 hz.	39-250 hz.
Efficiency**	102 dB*	104 dB*	105 dB*	107 dB*	102 dB*	104 dB*
Power Handling	6-150 watts/channel	6-200 watts/channel	100 watts	100 watts	200 watts	200 watts
Dimensions	18" x 8.5" x 10"	20.75" x 10.3" x 12.2"	18.125"x8.5"x10"	20.875"x10.3"x12.2"	18.325" x 8.5" x 10"	21.1" x 10.3" x 12.2"
Weight	15.5 lbs.	23 lbs.	14 lbs.	24 lbs.	20 lbs.	25 lbs.
Impedance	4 ohms	4 ohms	2 ohms DVC	2 ohms DVC	4 ohms	4 ohms

* The built in crossover limits the frequency response of the Amplified Bazooka.
** The efficiency levels of all Bazooka subwoofer speckles systems are measured.
** The efficiency levels of all Bazooka subwoofer speaker systems are measured in the typical environment: In the low bass region with one watt of power.

AMPLIFIED MODELS:

(BTA6100, BTA8100, BTA10100, BTA6200, BTA8200, BTA10100, MBTA8100, MBTA10100, MBTA8200, MBTA10200)

DO NOT substitute the fuse included with the Amplified Bazooka subwoofer with anything other than the SAME fast blow current rated fuse. Substitution or deletion will void the product's warranty and may cause damage to your car or the amplifier.

SHOULD I USE HIGH OR LOW LEVEL INPUTS?

If the source unit has only speaker outputs, use the high-level inputs of the Amplified Bazooka subwoofer. If the source unit has both high and low level outputs, we recommend using the high level inputs over the low level inputs, due to the configuration of the Amplified Bazooka subwoofer's balanced input circuit. Not all head units, even those that promise high output voltage in their marketing materials, indeed have high-voltage RCA outputs. Because of this, Bazooka Mobile Audio recommends using the speaker level inputs when in doubt—they will always provide sufficient drive level to the amplifier. PLEASE NOTE THAT THE WIRING IN A FACTORY STEREO MAY NOT BE ELECTRICALLY IN PHASE EVEN WHEN YOU HAVE MADE THE PROPER CONNECTIONS.

Take the time after you make your wire connections to run through the quick phase check procedure in the "AM I IN PHASE?" section at the end of this manual, and NEVER USE BOTH high and low-level inputs at the same time!

INPUT SIGNAL CONNECTIONS

High-Level Inputs:

If the source unit has both front and rear speaker outputs, use only one set of speaker outputs for the high-level input of the Amplified Bazooka. Connect the GREEN wire from the 14-pin Molex plug of the Amplified Bazooka subwoofer to the source units left (+) positive speaker output. Connect the GREEN W/BLACK stripe wire of the plug to the source units left (-) negative speaker output. Connect the GRAY wire of the plug to the source units right (+) positive speaker output. Connect the GRAY W/BLACK stripe wire of the plug to the source units right (-) negative speaker output. When using high-level inputs, take the time after you make all wiring connections to run through the AM I IN PHASE

procedure at the end of this manual to confirm that your inputs are in correct electrical phase and the proper bass response is being produced.

Low-Level Inputs:

If your source unit only has low-level RCA phono jack output, use only the low-level inputs of the Amplified Bazooka. Connect the low-level RCA phono jack inputs of the Amplified Bazooka subwoofer to the source with a shielded RCA patch cord. To avoid possible noise problems, be sure to run the patch cord away from all power wires and factory wire harnesses. When using the low-level inputs DO NOT make any connections to the Green and Gray high-level input wires of the Amplified Bazooka subwoofer and make sure these wires are insulated to avoid the possibility of a short circuit.

POWER WIRE (All Models)

The power wire must be fused and connected directly to the positive terminal of the battery to provide a power source with a low voltage drop and low noise. Do not make the power connection at the fuse block or any point other than the battery. Improper power sources can reduce output and cause distortion.

The fuse holder should be connected to the battery's positive terminal. The fuse is designed to prevent fire or damage to your car, should the battery wire short to ground. Wait to insert the fuse into its holder until all wire connections have been made.

If it is necessary to lengthen the battery wire, add the required length between the amplifier and the fuse holder, not the fuse holder and the battery. If you need to extend the battery wire, use 16 gauge or larger for all A100, and 12 gauge or larger for all A200 models. It is best to use as short a wire as possible. Be sure you DO NOT run the power wire next to the input cables of the amplifier this will induce noise. Avoid running the power wire near the radio's antenna or power leads, or near sensitive equipment or harnesses. The power wire carries substantial currents and could induce noise.

GROUND WIRE (All Models)

The ground wire must be connected directly to the vehicle chassis near the amplifier. We do not recommend extending the ground wire in any installation, as this can cause unwanted ground loops. The ground point in the car should be a piece of chassis metal that is part of or welded to the main body of the vehicle. Painted surfaces should be scraped or sanded clean to expose the bare metal before the ground lug is bolted down. (Cover the bare metal area with paint

or grease after you finish mounting the ground wire to prevent rust.)

REMOTE TURN ON OPTIONS

OPTION ONE:

When you are using this option with all amplified Bass Tubes® models: For the most versatility the Orange Remote Turn On Wire should be connected to the source unit's "Accessory", "Auto-Antenna" or "Remote" lead -- any of which will supply 12 Volts positive when the source is turned on.

OPTION TWO:

When you are using this option with all BTA100 AND MBTA100: If the source does not have an Auto-Antenna lead (or if the Auto-Antenna goes down during tape operation), you can connect the Amplified Bazookas' Remote Turn On Wire to an accessory or ignition point at the vehicle fuse block. In this configuration, the Amplified Bazooka subwoofer will be on whenever the ignition is on. This method may allow noise or turn-on-and-off transients to become amplified when the source unit is not in use, and therefore is a less desirable than option one. Locate the Auto/Off Jumper Loop located on the wiring harness; SAS ships the Amplified Bazooka subwoofer with this Jumper in the ON Position. The Quick Disconnect YELLOW On/Off Jumper Loop must be plugged into the harness.

The built-in crossover on the Amplified Bazooka subwoofer is an 18 dB per octave electronic low pass filter, it has a 60 Hz to 250 Hz variable crossover point. Select the crossover point that you feel best fits your system design. Set the potentiometer labeled XOVER to the point you selected, 60 Hz being all the way to the left (counterclockwise) and 250 Hz being all the way to the right (clockwise). When you have set the crossover, proceed to the next step.

PHASE SWITCH (All A100 MODELS ONLY)

When one of the High-level Input channels is out of phase electrically with the other High-level Input channel, your Amplified Bazooka subwoofer will sound as if it has little or no output and any output that is produced may sound distorted. If you suspect that your Amplified Bazooka subwoofer is out of phase, use the AM I IN PHASE procedure to diagnose and correct the Amplified Bazooka subwoofer output, and proper bass response will be produced.

To correct this situation, simply flip the phase switch on the Amplified Bazooka. When the input signal is in correct electrical phase, the level of bass output will be greatest when the balance control of the radio is set to the center position.

SETTING THE LEVEL (ALL A200 MODELS ONLY)

Locate the potentiometer labeled LEVEL. This is the level control. Start with the level control turned all the way to the left (counterclockwise). The bass should be off or very low at this point. Turn up your head unit until the sound from the existing speakers starts to clip or distort. This is the point in your system where you will get maximum volume with the least amount of distortion. With the head unit at this point, turn the level gain control up slowly until the bass volume blends well with the existing high frequency speakers. This should be the proper setting for the level gain control. Now that the level is set, you may want to go back to the x-over control and adjust the x-over point by ear to meet the desired sonic quality of your system design.

LED POWER INDICATOR

If power, ground and remote are connected properly, the LED light will illuminate.

WHITE = OFF

If you find you like to change the level of bass depending on what you are listening to and want an easy way to make this possible, you can purchase an optional Remote Level Control.

All A200 MODELS

Remote Bass Control and Crossover (RBCM-RS):

If you find you like to vary the crossover point in addition to changing the level of bass depending on what you are listening to and want an easy way to make this possible, you can purchase an optional Remote Level and Crossover Control.

These Remote Controls are accessories that are available from your Bazooka dealer or directly from Bazooka. Be sure to check out other optional accessories for your Bazooka at

PASSIVE MODELS

Diagram of two white cylindrical objects with circular holes and a plus sign, enclosed in an oval frame (no text or symbols)

(BT6014/6018, BT8014/8018, BT1014/1018, MBT8014, MBT1014 ONLY)

On the back of all Bazooka passive single voice coil models you will find a terminal cup with two 5-way platinum colored binding posts, red being positive and black being negative. Hook the positive speaker output from your amplifier to the red positive terminal of the Bazooka. Hook the negative speaker output from your amplifier to the black negative terminal. Repeat these steps for each Bazooka used.

Diagram of four identical mechanical components with plus and minus signs, no text or symbols present

(BT6024DVC/6028DVC, BT8024DVC/8028DVC, BT1024DVC/1028DVC)

On the back of all Bazooka dual voice coil passive models you will find a terminal cup with four 5-way platinum colored binding posts, red being positive and black being negative. Hook the positive speaker output from your amplifier to the red positive terminal of the Bazooka. Hook the negative speaker output from your amplifier to the black negative terminal. Repeat these steps for each Bazooka used.

TROUBLESHOOTING

Am I In Phase?

If your inputs are out of phase and you turn the balance control of your radio all the way to one side, right or left, the bass output from the Bazooka® will increase. When you bring the balance control back to the center position the bass level will drop. This confirms that one of your input channels is wired out of phase with the other.

When one of the Amplified Bazooka's High-level Input channels is out of phase electrically with the other High-level Input channel, your Bazooka will sound as if it has little or no output and any output that is produced may sound distorted. If you suspect that your Bazooka is out of phase, use the AM I IN PHASE procedure to diagnose and correct the Bazookas' output, and proper bass response will be produced. channels is wired out of phase with the other. To correct this situation, simply flip the phase switch on the amplified Bazooka ^e . When the input signal is in correct electrical phase, the level of bass output will be greatest when the balance control of the radio is set to the center position.

Do You Have A Phase Problem?

If the bass response in your application appears to be lower then you expected or sounds muffled and or distorted, you may be experiencing Phase Cancellation.

Phase Cancellation

When two speakers in the same frequency range produce sound waves that are inverted from one another or 180^ out of phase, the sound waves will cancel each other out to some degree. This effect will be heard as a drop in the output level and/or a muffled or muddy quality in the Bass Response. The source of this Phase Cancellation can be at any point in the signal path. The obvious cause of this problem would be a speaker connection that was reversed in polarity, but that is not always the case. Sometimes amplifier channels will shift phase 180^ for no good reason, or a signal processor could have a setting for phase that has been set incorrectly or the

source material could just be recorded in error. Also speaker placement and the acoustics of the listening environment can effect the phase. No matter what or where the cause is located, the solution is an easy one.

PHASE CORRECTING PROCEDURE

Disconnect all but one Bazooka ^® from your system. Be sure that any loose wire connections are insulated to avoid the chance of short-circuiting any of the electronic equipment. Listen to the system and take note of the level of the Bass Response. Connect the next Bazooka ^® and compare the level of the combined output to that of the single unit. If the Bass Response increases, the Phasing is correct and you can repeat this process on the next Bazooka. If the level of the Bass Response drops, the Phasing is incorrect and you should reverse the speaker connections to this Bazooka ^® and compare again. In short to INCREASE IS GOOD, to DECREASE IS BAD! Using this method, any number of Bazooka ^® subwoofers can be kept in absolute phase.

PRACTICE SAFE LISTENING

Continuous exposure to high volumes of sound may cause permanent hearing loss. High-powered auto sound systems are capable of producing sounds well over 130 dB. Even short periods of play at high volume levels can impair your ability to hear necessary traffic sounds and may constitute a hazard. Please use common sense and practice SAFE LISTENING!

LIMITED WARRANTY (UNITED STATES)

Southern Audio Services, Inc., warrants all products to be free from defects in material and workmanship for a period of one (1) year from the date of purchase.

In the event the product is not as warranted, SAS' sole obligation shall be to repair or replace the defective product at SAS' option: SAS limits its obligation under any implied warranties under state laws to a period not to exceed the limited warranty period. SAS and its authorized BAZOOKA ^® dealers specifically disclaim liability for any incidental or consequential damages. Some states to not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state.

What is covered:

This warranty covers all defects in materials or workmanship (parts and labor) in the product.

What is not covered:

This warranty does not cover the following:

1. Damages occurring during shipment of the product to SAS for repair (claims must be presented to the carrier).
2. Damages caused by accident, abuse, negligence, misuse or improper operation or installation.
3. Damages caused by an act of God, including without limitation, fire, flood, storms, or other acts of nature.
4. Any product, which has a serial number, defaced, altered, modified, or removed.
5. Any product that has been altered or modified without SAS' consent.

How to obtain warranty services:

1. You are responsible for delivery of the product to an authorized BAZOOKA® dealer or contact SAS at 1-800-THE TUBE for a Return Authorization number. The Return Authorization number must be clearly written on the outside of the box. Freight must be prepaid to SAS. Warranty replacement parts will be returned freight prepaid. The entire enclosure may be returned for warranty service, but return will be freight collect.
2. You must provide proof of the date of purchase of the product. If proof of purchase is not provided, original date of manufacture will be used to determine warranty period.
3. You must package the product securely to avoid damage during shipment.
4. After acquiring a Return Authorization number, ship to the address below.

PLEASE RETURN THIS PORTION IMMEDIATELY

MODEL#

SERIAL#

PURCHASE DATE

DEALER PURCHASED FROM

DEALER ADDRESS

TELEPHONE

PURCHASERS NAME

STREET ADDRESS

CITY

STATE ZIP

TELEPHONE

E-MAIL

Chère/Cher ami(e),

FONCTIONS PGES 60-61

CÂBLAGE PGES 63-68

DÉPISTAGE DES PANNES PGES 68

GARANTIE PGES 69-70

CONSEILS UTILES-AVANT DE COMMENCER

Top-down line drawing of a car showing internal components and structural layout (no text or symbols)

Top-down line drawing of a car interior layout (no text or symbols)

Top-down line drawing of a car interior layout (no text or symbols)

FRANÇAIS
RECOMMANDATIONS POUR LE POSITIONNEMENT DANS UN BATEAU

Technical line drawing of a boat interior layout with no visible text or symbols

EMBARCATION POUR LE SKI

Top-down schematic of a boat interior layout showing seating, compartments, and equipment (no text or labels)

YACHT

Diagram of a film reel with a moving arrow indicating motion (no text or symbols)

Figure 4

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Y

Y

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

MBT8014

BTA10200

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

MBTA10200

MBTA8200

MBTA10100

MBTA8100

MBTA1014

MBTA8200

BTA10200

BTA6200

CARACTÉRISTIQUES DU TUBE À AMPLIFICATEUR

	BRA100	BRA100	BRA100	BRA200	BRA200	BRA1200	CRA5
Talla hous puiries de graves	6,5"	8"	10"	6,5"	8"	10"	8"
Talla de la boîne mède	1,5" puirées diéte,/temp. abente	1,5" puirées diéte,/temp. abente	1,5" puirées diéte,/temp. abente	1,5" puirées diéte,/temp. abente	1,5" puirées diéte,/temp. abente	1,5" puirées diéte,/temp. abente	1,5" puirées diéte,/temp. abente
Talla de l'armani	13 oz.	15 oz.	20 oz.	20 oz.	20 oz.	20 oz.	20 oz.
Agueras en fréquence*	39-85 oz.	39-85 oz.	39-85 oz.	39-250 oz.	39-250 oz.	39-250 oz.	sub 26-100oz/40-pens 100-200oz
Efficulé**	100 dfr*	105 dfr*	107 dfr*	100 dfr*	102 dfr*	104 dfr*	105 dfr*
Puisées adérateilés	100 wets	100 wets	100 wets	200 wets	200 wets	200 wets	sub 100oz/1-60-pens 25x+4
Dimensions	18,225 × 6,75" × 8"	18,125" × 6,5" × 10"	20,875" × 10,3" × 12,2"	18,225" × 6,75" × 8"	18,225" × 8,5" × 10"	21,7" × 10,3" × 12,2"	18,225" × 8,5" × 10"
Finish	12 lbs.	14 lbs.	24 lbs.	15 lbs.	20 lbs.	25 lbs.	20 lbs.
Liquidante	2 acres DVC	2 acres DVC	2 acres DVC	4 acres	4 acres	4 acres	2 acres DVC

CARACTÉRISTIQUES PASSIVES DU TUBE

	BT6014/6018	BT6014/6018	BT1004/1018	BT6024DVC/6028DVC	BT6024DVC/8028DVC	BT1024DVC/1028DVC	BT1214	BT1224DVC
Taille hors portes de proces	6,5"	8"	10"	6,5"	8"	10"	12"	12"
Taille de la latente mobile	1,5" puissono diette /temp. diette	2" puissono diette /temp. diette	3" puissono diette /temp. diette	1,5" puissono diette /temp. diette	2" puissono diette /temp. diette	3" puissono diette /temp. diette	4" puissono diette /temp. diette	5" puissono diette /temp. diette
Taille de l'octre	20 oz.	20 oz.	20 oz.	20 oz.	36 oz.	36 oz.	36 oz.	36 oz.
Dépresse en fréquence*	39-1500 Ic.	39-1500 Ic.	39-1500 Ic.	39-1500 Ic.	39-1500 Ic.	39-1000 Ic.	30-1000 Ic.	30-1000 Ic.
Éfrikaite**	100 dft**	102 dft**	104 dft**	100 dft**	102 dft**	104 dft**	106dft**	106dft**
Pérezor subtableille	6-100 watts/channel	6-150 watts/channel	6-300 watts/channel	6-150 watts/channel	6-300 watts/channel	6-350 watts/channel	6-350 watts/channel	6-300 watts/channel
Dimensions	18" x 6,75" x 8"	18" x 8,5" x 10"	20,75" x 10,5" x 12,2"	18" x 6,75" x 8"	18" x 8,5" x 10"	20,5" x 10,5" x 12,2"	22,5" x 12,1" x 14,4"	22,5" x 12,1" x 14,4"
Puls	11 lbs.	15,5 lbs.	23 lbs.	13 lbs.	19 lbs.	26 lbs.	28 lbs.	30 lbs.
Impédance	4 ohms/8 ohms	4 ohms/8 ohms	4 ohms/8 ohms	4 ohms/8 ohms	4 ohms/8 ohms	4 ohms/8 ohms	4 ohms	4 ohms

CARACTÉRISTIQUES DU TUBE POUR LES APPLICATIONS MARINES

	MISTA054	MISTA104	MISTA100	MISTA1000	MISTA200	MISTA1020
Taille bout-parteur de graves	8"	10"	8"	10"	8"	10"
Taille de la habitante mobile	1.5" puissance diveno /tamp, diveno	1.5" puissance diveno /tamp, diveno	1.5" puissance diveno /tamp, diveno	1.5" puissance diveno /tamp, diveno	1.5" puissance diveno /tamp, diveno	1.5" puissance diveno /tamp, diveno
Taille de l'airment	20 oz.	20 oz.	15 oz.	20 oz.	20 oz.	20 oz.
Alpenses en fréquence*	39-1500 lbs.	39-1000 lbs.	39-85 lbs.	39-85 lbs.	39-250 lbs.	39-250 lbs.
Efficaté**	102 dB**	104 dB**	105 dB**	107 dB**	102 dB**	104 dB**
Puissance admiralie	6-150 watts/channel	6-200 watts/channel	100 watts	100 watts	200 watts	200 watts
Dimensions	18" x 8.5" x 10"	20.25" x 10.3" x 12.2"	18.125"x10.5"x10"	20.825"x10.2"x12.2"	18.325" x 8.5" x 10"	21.7" x 10.3" x 12.2"
Pais	15.5 lbs.	23 lbs.	14 lbs.	24 lbs.	20 lbs.	25 lbs.
Impédance	4 holes	4 holes	2 holes DVC	2 holes DVC	4 holes	4 holes

(BTA6100, BTA8100, BTA10100, BTA6200, BTA8200, BTA10100, MBTA8100, MBTA10100, MBTA8200, MBTA10200)

Top-down technical line drawing of a car showing internal components and structural layout (no text or symbols)

Top-down line drawing of a car showing front, rear, side, and top views (no text or symbols)

Top-down line drawing of a car interior layout (no text or symbols)

Technical line drawing of a boat interior layout with no visible text or symbols

Top-down schematic of a boat interior layout showing seating, compartments, and equipment (no text or labels)

Diagram of a mechanical component with a rotating wheel and base, showing motion direction (no text or symbols)

Figura 4

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Y

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Y

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Y

X

X

X

X

X

X

X

X

MBTA8100

MBTA1014

MBTA10200

MARINE TUBE SPECIFICATIONS

MBT8014MBT1014MBTA8100MBTA10100MBTA8200MBTA10200
Tamaño del Woofer	8" 10" 8" 10" 8" 10"
Tamaño de la bobina	1.5" high power./high temp.	1.5" high power./high temp.	1.5" high power./high temp.	1.5" high power./high temp.	1.5" high power./high temp.	1.5" high power./high temp.
Tamaño del lman 28 oz.	28 oz. 15 oz. 28 oz. 28 oz. 28 oz.
Raspuesta en frecuencia*	39-1500 hz.	39-1000 hz.	39-85 hz.	39-85 hz.	39-250 hz.	39-250 hz.
Eficiencia~	102 dB*	104 dB~	105 dB*	107 dB*	102 dB*	104 dB*
Potencia	6-150 watts/channel	6-200 watts/channel	100 watts	100 watts	200 watts	200 watts
Dimensiones	18" x 8.5" x 10"	20.75" x 10.3" x 12.2"	18.125"x8.5"x10"	20.875"x10.3"x12.2"	18.325" x 8.5" x 10"	21.7" x 10.3" x 12.2"
Peso	15.5 lbs.	23 lbs.	14 lbs.	24 lbs.	20 lbs.	25 lbs.
Impedancia	4 ohms	4 ohms	2 ohms DVC	2 ohms DVC	4 ohms	4 ohms
