USER MANUAL UT6200 Bazooka

UT6200 / UT6200RL UT8200 / UT8200RL

Installation Instructions

POWER RAIL

READY!

3D rendered image of a black mechanical belt with a circular end, labeled 'With n' (no other text or symbols)

With mounting base

Path of strap

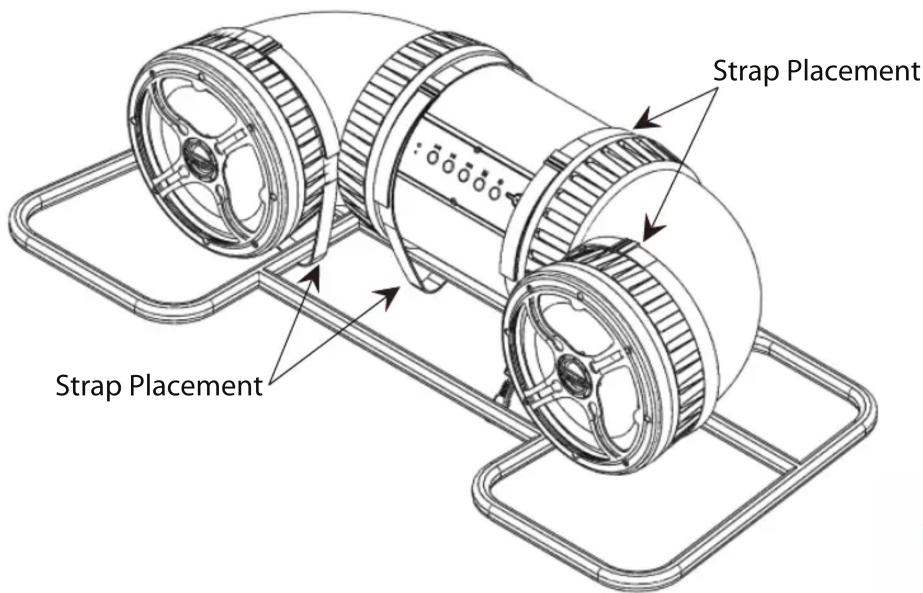

Place the Bazooka UTube on the ATV rack. If being mounted to a flat surface use the mounting bases. Remove bases from strap if being used on a bar rack or if you do not want to mount strap bases. Wrap strap around the UTube then adjust strap to correct length. Fasten the buckles as Illustrated. The strap should loop through the buckle and be tightened securely by holding the strap in place with one hand and pulling the loose end away from the buckle, but against the cabinet. Then secure the hook & loop ends to the strap. Repeat with the 3 remaining straps.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with gears and chains (no text or symbols)

Remove fuse from 6 ft power cable. Attach the red wire to the positive battery terminal. Attach the black wire to the negative battery terminal. Run power cable to the location of the UTube. making sure power wire does not hinder the safe operation of the vehicle. Plug the red power cable end into the UTube's red input power plug. The black 12vdc accessory plug can be used to power any 12vdc accessory up to 15 amps. Use the black accessory pigtail to wire your accessories.

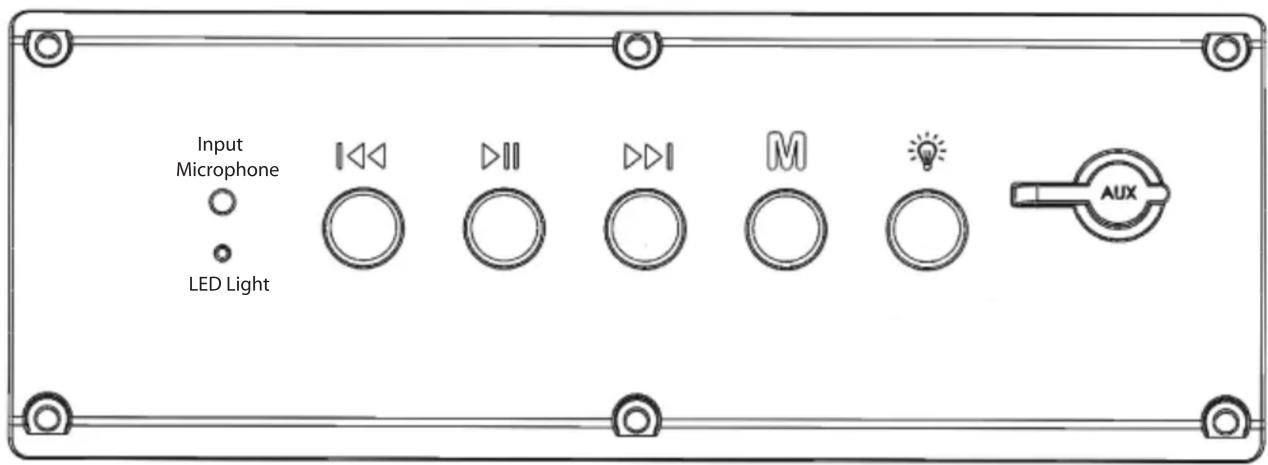

Button 1 ☐ Press to go back one track, Press and hold to decrease volume.

Button 2 ▷ Press to play/pause, Press to answer/hang up phone, Double press for last number radial or open Siri on Iphone, Press and hold to unpair bluetooth device.

Button 3 ▶▶Press to go forward one track, Press and hold to increase volume.

Button 4 M Press to power on, press while power is on to switch input between aux. and bluetooth inputs, Press and hold to power off.

Button 5 📋 Auxiliary 12vdc output on/off switch.

AUX Socket Used for a 1/8" audio cable

LED light status indicator:

LED Light Description

Blinking: Bluetooth module is pairing

Solid blue: Bluetooth module is paired

Blue/Red: Bluetooth module is in AUX input mode

Bluetooth module audio indicators:

Audio Response Description

Power on: Module is turned on

Power off: Module is turned off

Beep: After LED light stops blinking means module is paired

Beep: When play/pause button is pressed and held means module is unpaired from Bluetooth device.

Double Beep: When forward button is pressed and held means module has reached maximum volume.

RF fuctions and the RF remote are only available the UT6200RL and UT8200RL models

MUSIC

FUNCTIONS

Switch aux. 12vdc (15 amp) ouput.

Remote switch buttons 2-4 are not used with the UT6200RL or the UT8200RL models

Note: * When pressing for Power Off, be sure to hold until Power Off is indicated (audible). Failure to do so may toggle the Bluetooth Receiver into AUX/BT Mode and it will remain in this mode on subsequent Power on/off. If this occurs, press button again to select BT/AUX mode. Receiver should automatically pair with the last device it was paired with. To pair with a new device press and hold the Play/Pause button.
