Architecture 21026 - Toys LEGO - Free user manual and instructions

USER MANUAL Architecture 21026 LEGO

LEGO.com/architecture

Venice

Built on over 100 islands in a marshy lagoon at the edge of the Adriatic Sea, Venice has a skyline that rises from the water to create a unique architectural experience. There are no roadways or cars in the historic city; instead 177 canals crossed by over 400 bridges give access to innumerable narrow, mazelike alleys and squares.

While the origin of the city dates back over 1500 years, the golden age of Venice occurred during the late Middle Ages and Renaissance periods when it became one of the most powerful republics in the eastern Mediterranean.

Today the city is facing major challenges including gradual subsidence, flooding, and problems caused by its popularity as a tourist destination. More than 60,000 people visit Venice each day—more than the population of the city itself—putting pressure on the city to accommodate these guests while maintaining its unique nature and identity.

Venezian canal scene with historic buildings and gondolas under a blue sky (no visible text or symbols)

Rialto Bridge

The Rialto Bridge (Ponte di Rialto) spans the Grand Canal at the heart of the historic city. Built between 1588 and 1591, it replaced earlier wooden bridges that had linked the districts of San Marco and San Polo since the 12th century.

When the last wooden bridge collapsed in 1524, several projects were considered before the city authorities requested plans for a stone bridge in 1551. The architect Antonio da Ponte competed with illustrious competitors such as Michelangelo and Palladio before winning the contract.

His single span design with a 24 ft. (7.5 m) arch included three walkways: two along the outer edges and a wider central walkway between two rows of small shops. The entire structure was built on some 12,000 wooden pilings that still support the bridge over 400 years later.

[ "To build a city where it is impossible to build a city is madness in itself, but to build there one of the most elegant and grandest of cities is the madness of genius." ]

Alexander Herzen

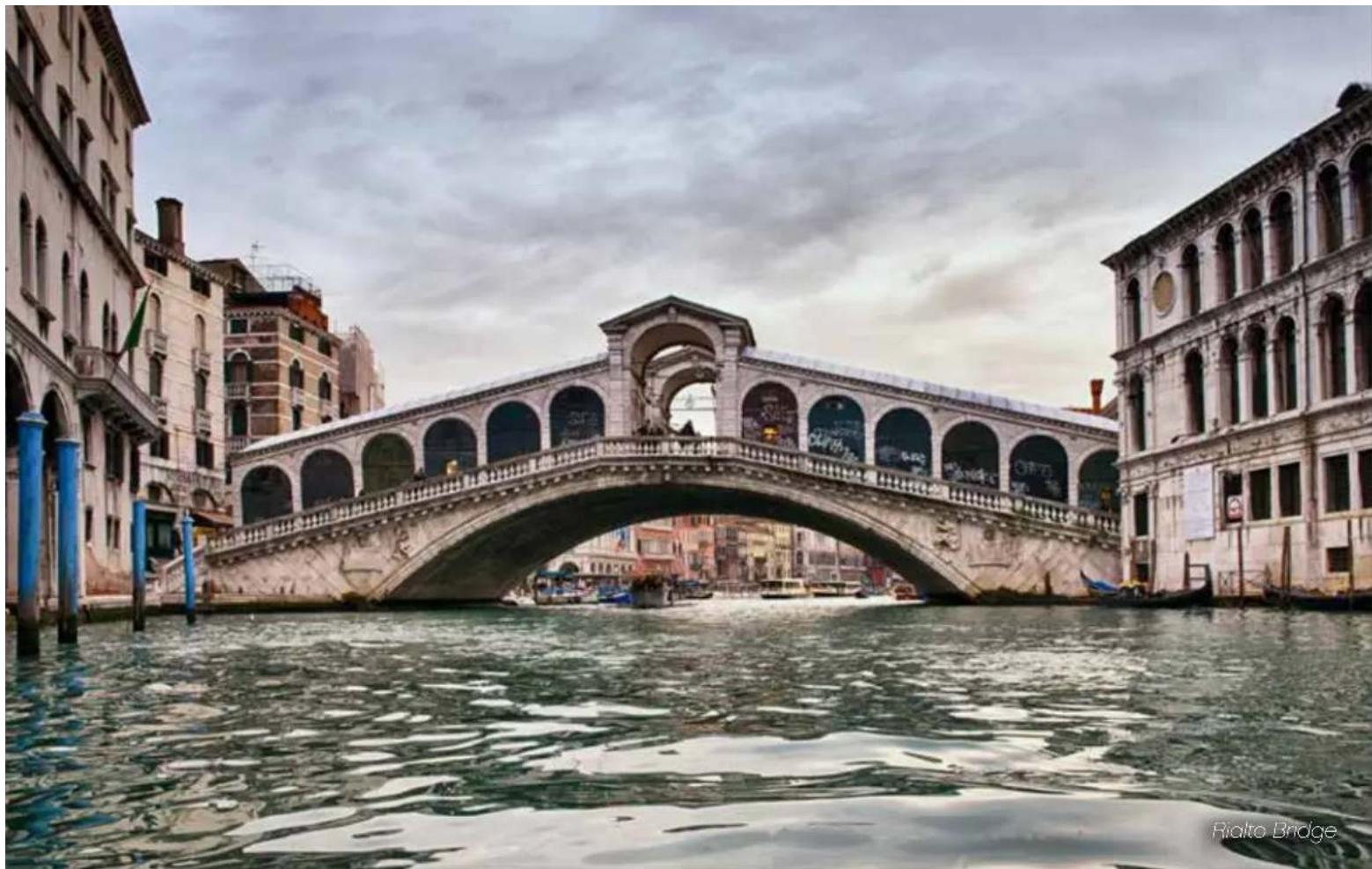

Exterior view of a historic stone arch bridge spanning a canal, with Venetian buildings and boats visible in the water (no signage or text)

Bridge of Sighs

Bridge of Sighs (Ponte dei Sospiri) is an enclosed bridge constructed in white limestone that passes over the Rio di Palazzo, connecting the old city prison to the interrogation rooms in the Doge's Palace. Designed by Antonio Contino, the nephew of Antonio da Ponte who created the Rialto Bridge, the bridge was completed in 1602.

The bridge's romantic name is thought to refer to the sighs of convicts as they saw their last view of Venice before being taken to their prison cells. In reality, very little of the city could be seen through the stone grills covering the windows and the majority of prisoners at that time were small-time criminals.

[ "I stood in Venice, on the Bridge of Sighs, A palace and a prison on each hand." ]

Lord Byron

Scenic view of a Venetian canal with an ornate stone archway and gondola, no visible text or symbols on the main structure.

St. Mark's Campanile

As one of the tallest structures in the city, St. Mark's Campanile (Campanile di San Marco) is one of Venice's most recognizable symbols. From here the visitor has an incredible view of the city and lagoon as well as the Italian Alps in the distance.

The 323 ft. (98.6 m) bell tower stands alone in the corner of St. Mark's Square, near the front entrance to the basilica. The brick structure is 39 ft. (12 m) wide on each side and 160 ft. (50 m) tall, upon which sits a belfry housing five bells. A spire caps the tower with a golden weather vane on top.

Though the design of the Campanile is from the 16th century, the tower itself was completely rebuilt in 1912 after the original one collapsed in 1902. The inauguration of the new tower occurred exactly 1000 years after the foundation of the original tower was laid.

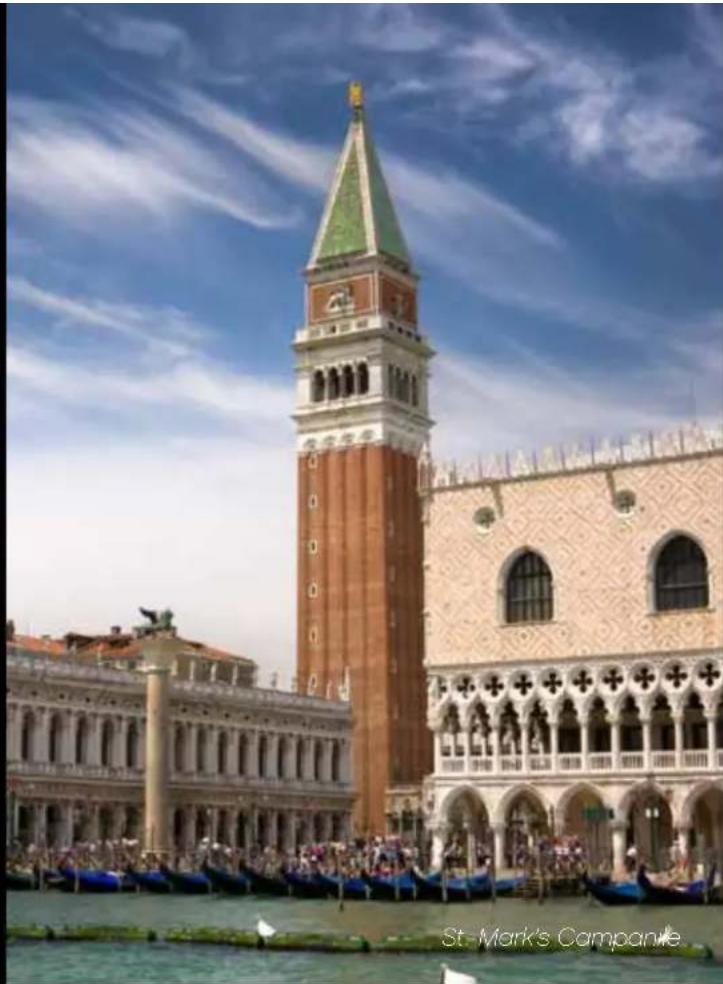

Exterior view of St. Mark's Camparille in Vienna, featuring the historic Giza and ornate historic building under a blue sky with scattered clouds.

St. Mark's Basilica

St. Mark's Basilica (Basilica di San Marco) is the most famous church in Venice and the best-known example of the city's unique Italo-Byzantine architecture.

Built to house the relics of Mark the Evangelist, little is known about the original church buildings, but the current structure is thought to have been constructed between 1073 and 1093. The basilica is laid out in the design of a Greek cross and the tallest of the five domes reach 141 ft. (43 m) in height.

While the layout of the church has remained constant over the centuries, the decoration on the inside and outside of the church has changed greatly. Venice's involvement in crusades and conquests saw mosaics, columns, and friezes from all over the Mediterranean

added to the original opulent, golden mosaic interior. Outside, the exterior brickwork was gradually covered with marble cladding and carvings as Venetian vessels returned with the spoils of war and trade.

A symbol of the wealth and power of the Venetian Republic, St. Mark's Basilica remains one of the city's most impressive landmarks today.

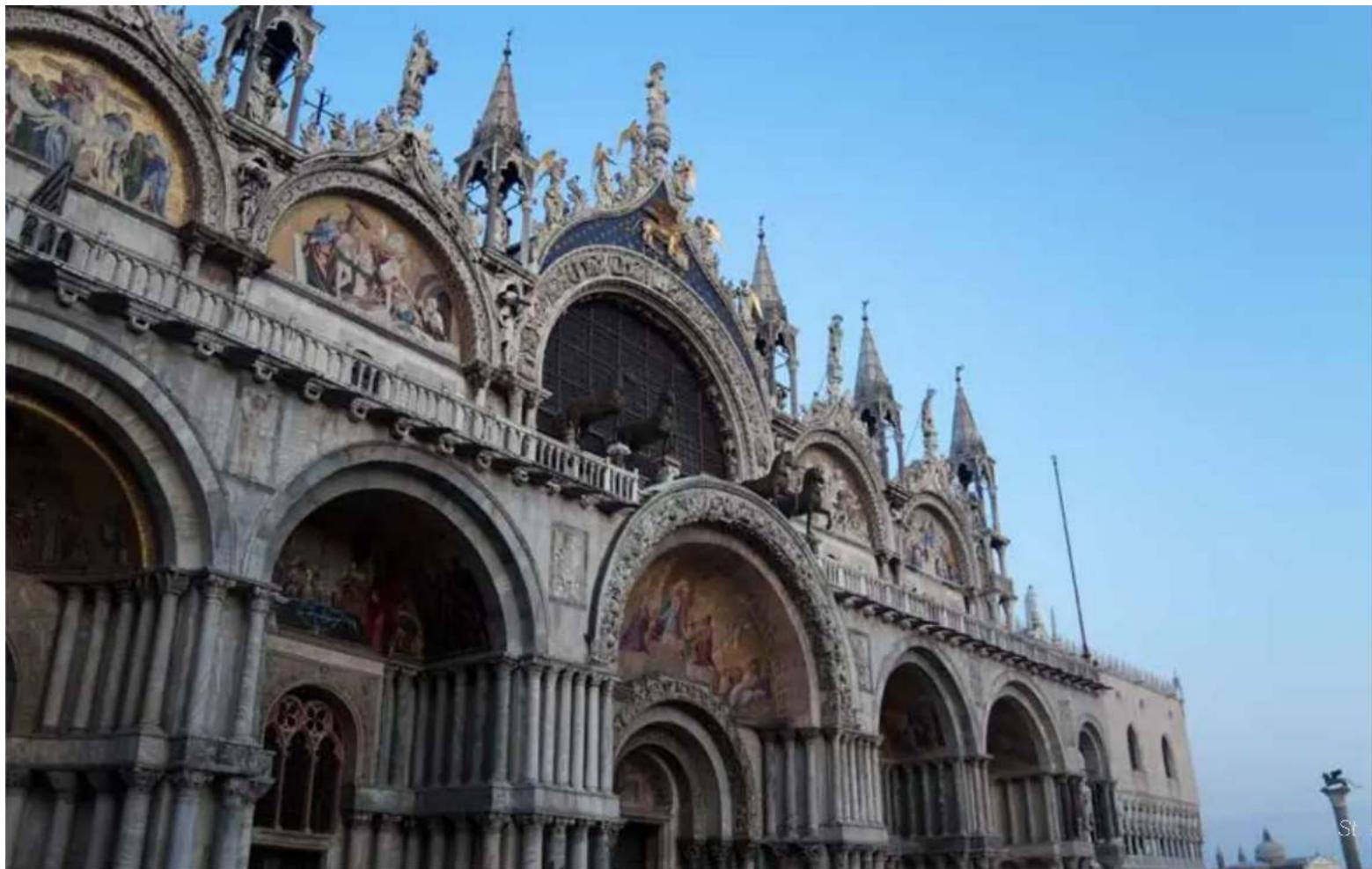

Exterior view of the St. Peter's Basilica in Venice, featuring ornate architectural details and arched colonnades under a clear blue sky.

St. Theodore and the Lion of Venice columns

Two granite columns stand guard at the entrance to St. Mark's Square (Piazza di San Marco).

On top of the western column is a statue of St. Theodore, the first patron of the city. Here he holds a spear and his foot rests upon a crocodile—representing the dragon he was said to have slain. On the eastern column stands the winged Lion of Venice, the symbol of the second patron of the city, St. Mark.

Both columns are believed to have been erected in about 1268 and it is believed that the city executed convicted criminals between the two columns in days gone by. To this day, superstitious Venetians avoid walking between this pair of columns.

[ "There is a glorious city in the sea. The sea is in the broad, the narrow streets, Ebbing and flowing... " ]

Samuel Rogers

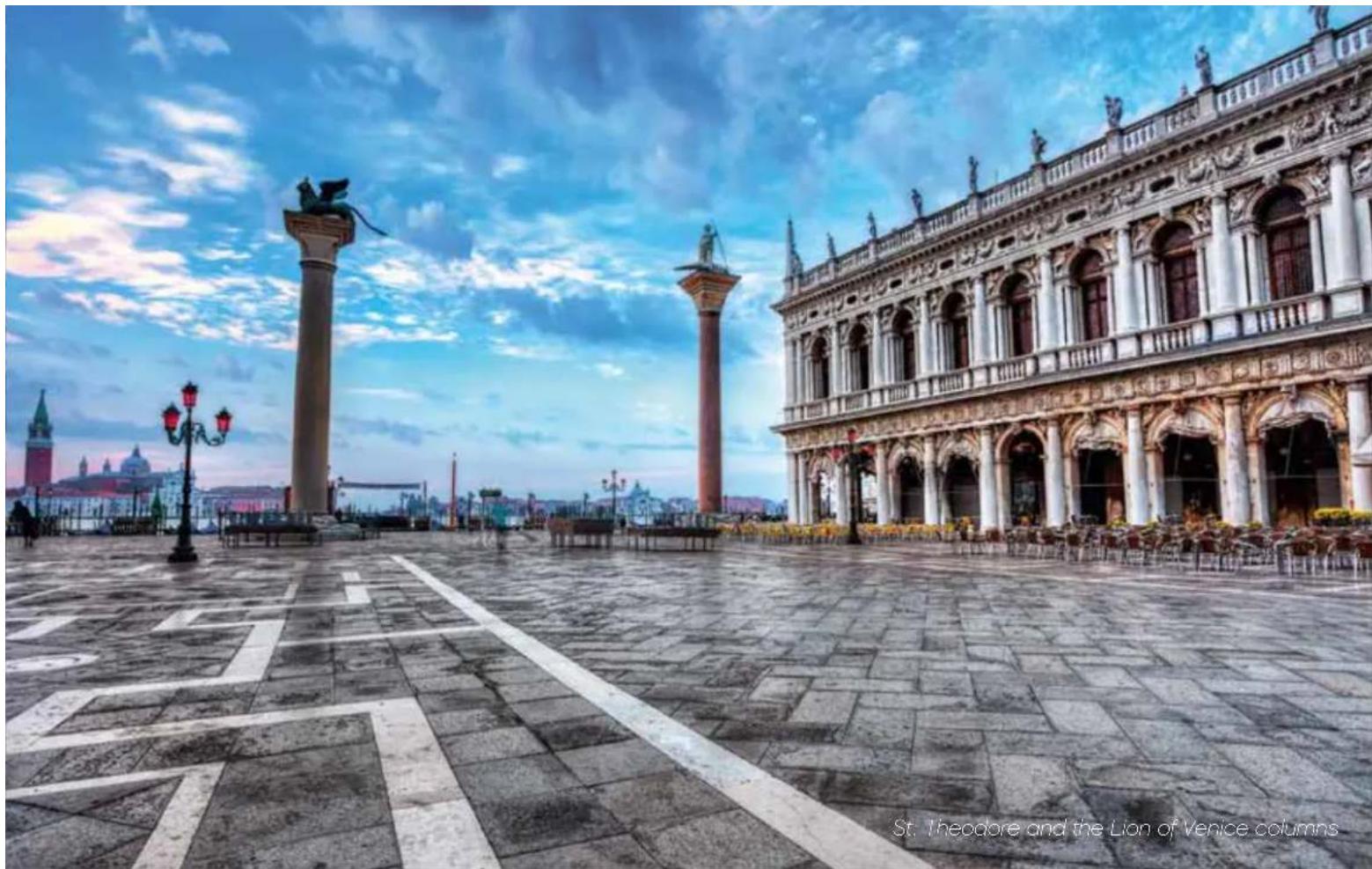

Exterior view of St. Theodore and the Lion of Venice columns in Vienna, featuring historic architecture and a prominent column with a tall tower (no signage visible)

Venise

Venezian canal scene with historic buildings and gondolas under a blue sky (no visible text or symbols)

Le pont du Rialto

Exterior view of a historic stone arch bridge spanning a canal, with Venetian buildings and boats visible (no signage or text)

Le pont des Soupirs

Exterior view of the St. Peter's Basilica in Venice, featuring the historic clock tower and ornate architecture under a blue sky (no signage visible)

Exterior view of the St. Peter's Basilica in Venice under a clear blue sky, featuring ornate architectural details and arched colonnades (no signage visible)

Venezian canal scene with historic buildings and gondolas under a blue sky (no visible text or symbols)

Puente de Rialto

Exterior view of a historic stone arch bridge spanning a canal, with Venetian buildings and boats visible in the water (no signage or text)

Exterior view of the St. Peter's Basilica in Venice, featuring the historic clock tower and ornate architecture under a blue sky (no signage visible)

Exterior view of the St. Peter's Basilica in Venice, featuring ornate architectural details and arched colonnades under a clear blue sky.

3D rendering of a rectangular plastic tray with multiple circular indentations, labeled '1x' at the bottom (no other text or symbols)

3

Two LEGO brick blocks with circular holes, labeled '1x' (no additional text or symbols)

4

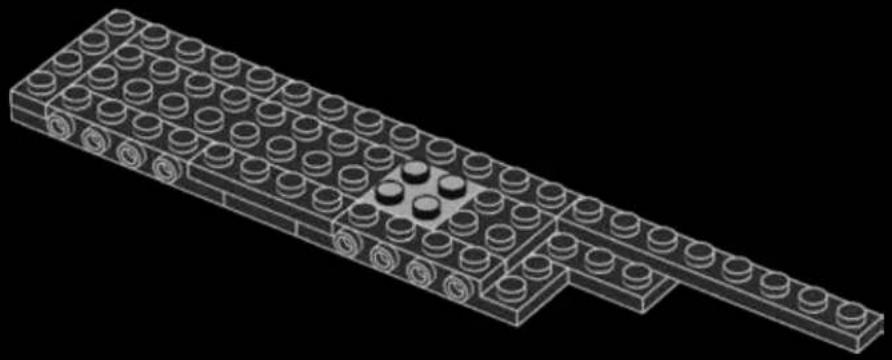

Isometric line drawing of a 3D rectangular block with multiple circular holes, no text or symbols present.

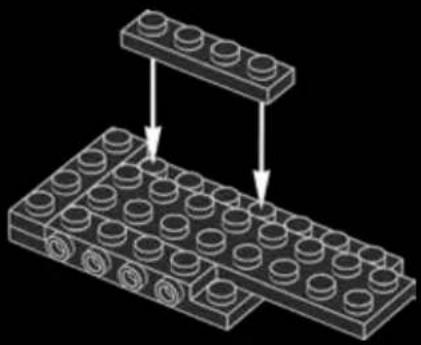

Isometric diagram of a LEGO base with circular holes and two upward arrows indicating assembly or positioning (no text or symbols)

3D diagram of a four-pin LEGO base with 1x label (no other text or symbols)

5

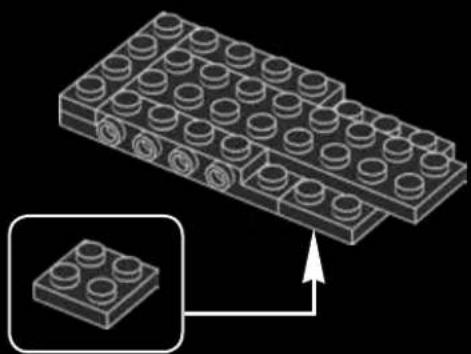

Diagram of a LEGO brick structure with an arrow pointing to a smaller inset showing its base (no text or symbols present)

34

3D rendering of a rectangular electronic component with circular pins, labeled '1x' at the base (no other text or symbols)

6

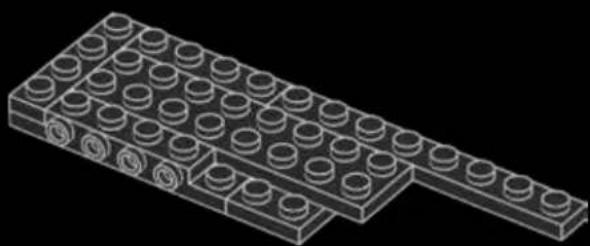

Isometric line drawing of a LEGO brick structure with multiple circular holes (no text or symbols)

3D rendering of a rectangular plastic tray with multiple circular indentations, labeled '1x' at the bottom (no other text or symbols)

7

Isometric line drawing of a multi-tiered LEGO brick structure with circular holes (no text or symbols)

3D rendering of a rectangular electronic component with multiple circular holes, labeled '1x' (no other text or symbols)

8

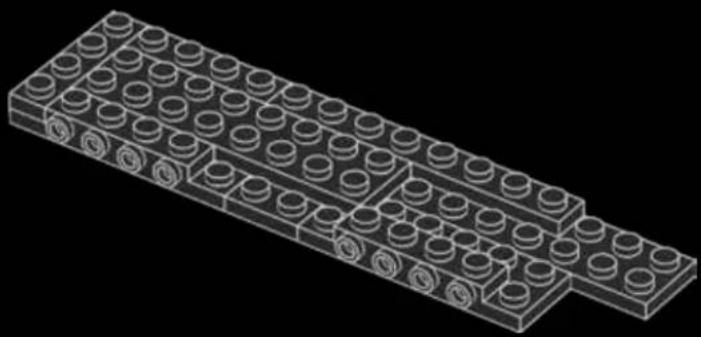

Isometric line drawing of a multi-layered LEGO structure with circular holes (no text or symbols)

Three LEGO brick blocks arranged horizontally on a black background (no text or symbols)

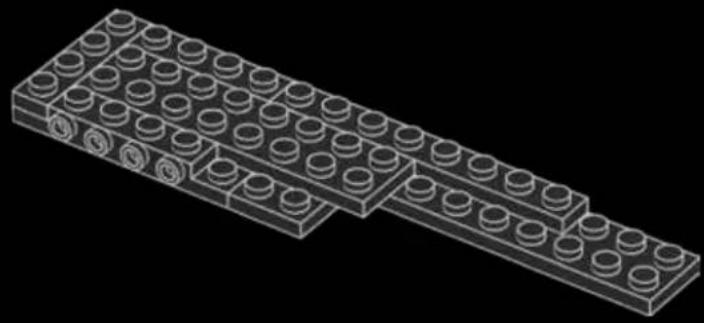

9

Diagram of a LEGO structure showing a rectangular block with circular holes and an inset view of its base (no text or symbols)

3D rendering of a rectangular electronic component with multiple pins, labeled '1x' (no other text or symbols)

10

Isometric line drawing of a LEGO brick structure with circular holes and a central hole (no text or symbols)

3D rendering of a rectangular plastic tray with multiple circular indentations, labeled '1x' at the bottom (no other text or symbols)

11

3D architectural diagram of a multi-story building with circular elements and a central hole (no text or symbols)

3D rendering of a LEGO brick with rounded square holes, labeled '1x' at the bottom (no other text or symbols)

12

3D rendering of a LEGO rectangular tray with circular indentations (no text or symbols)

3D rendering of a rectangular electronic component with multiple circular holes, labeled '2x' (no other text or symbols)

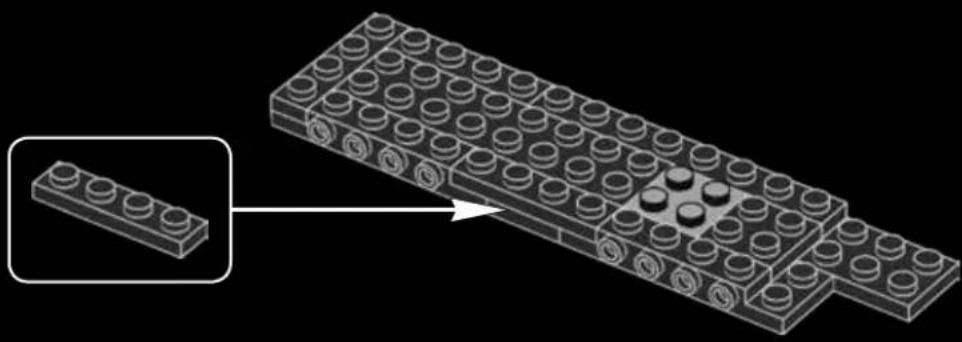

13

3D rendering of a LEGO rectangular tray with circular indentations (no text or symbols)

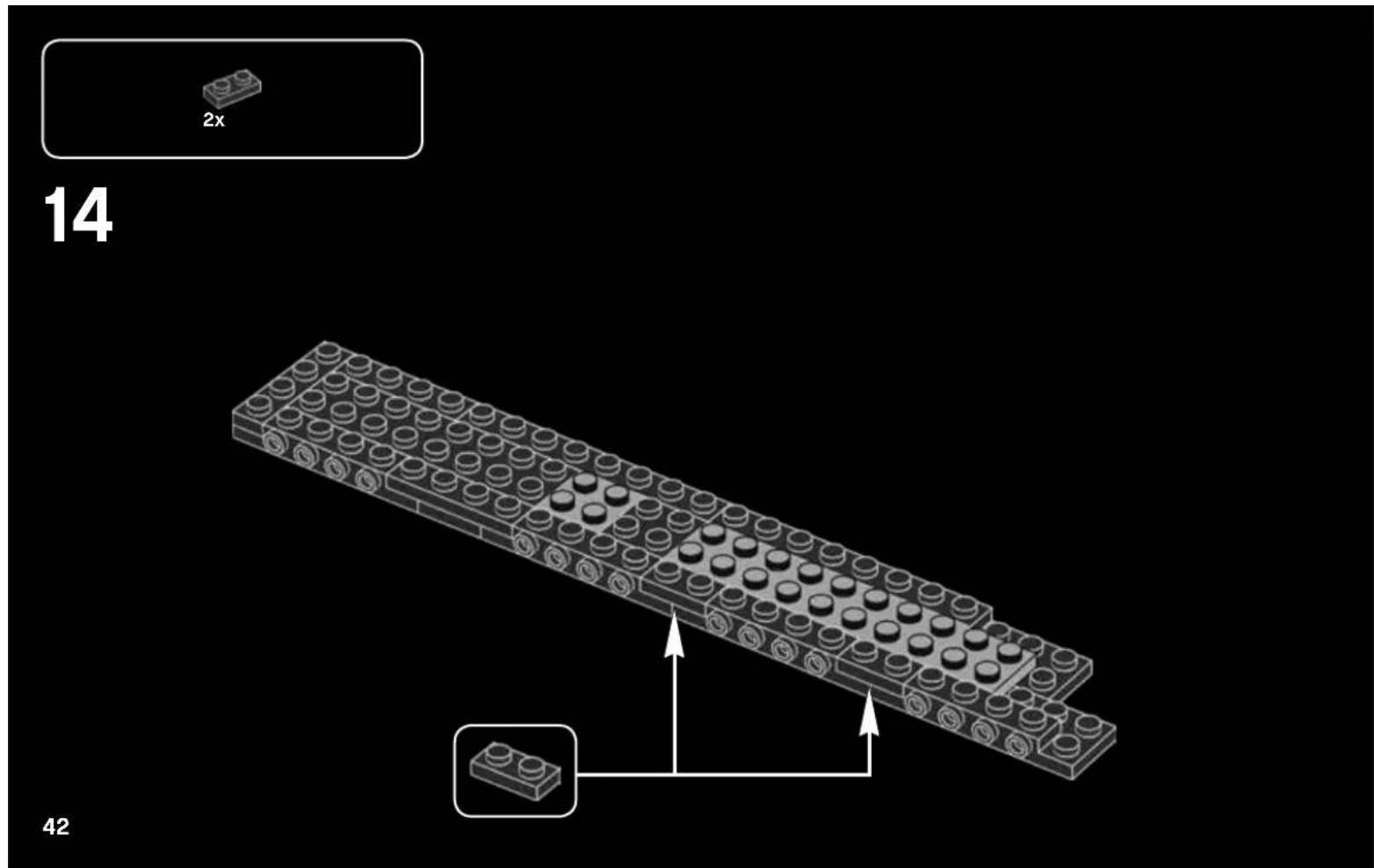

2x 14 42

As many of the small islands in the lagoon were spongy marshland, the majority of buildings sit upon a foundation of wooden piles.

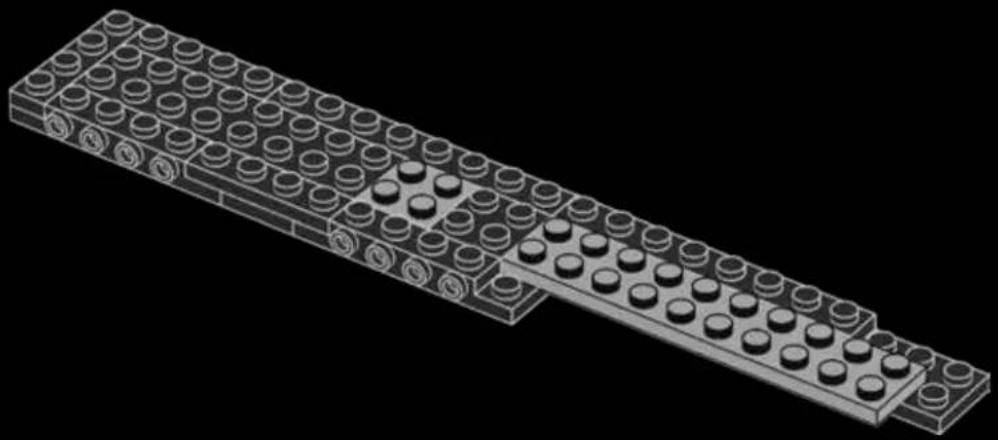

3D architectural rendering of a multi-level LEGO structure with circular holes and rectangular bases (no text or symbols)

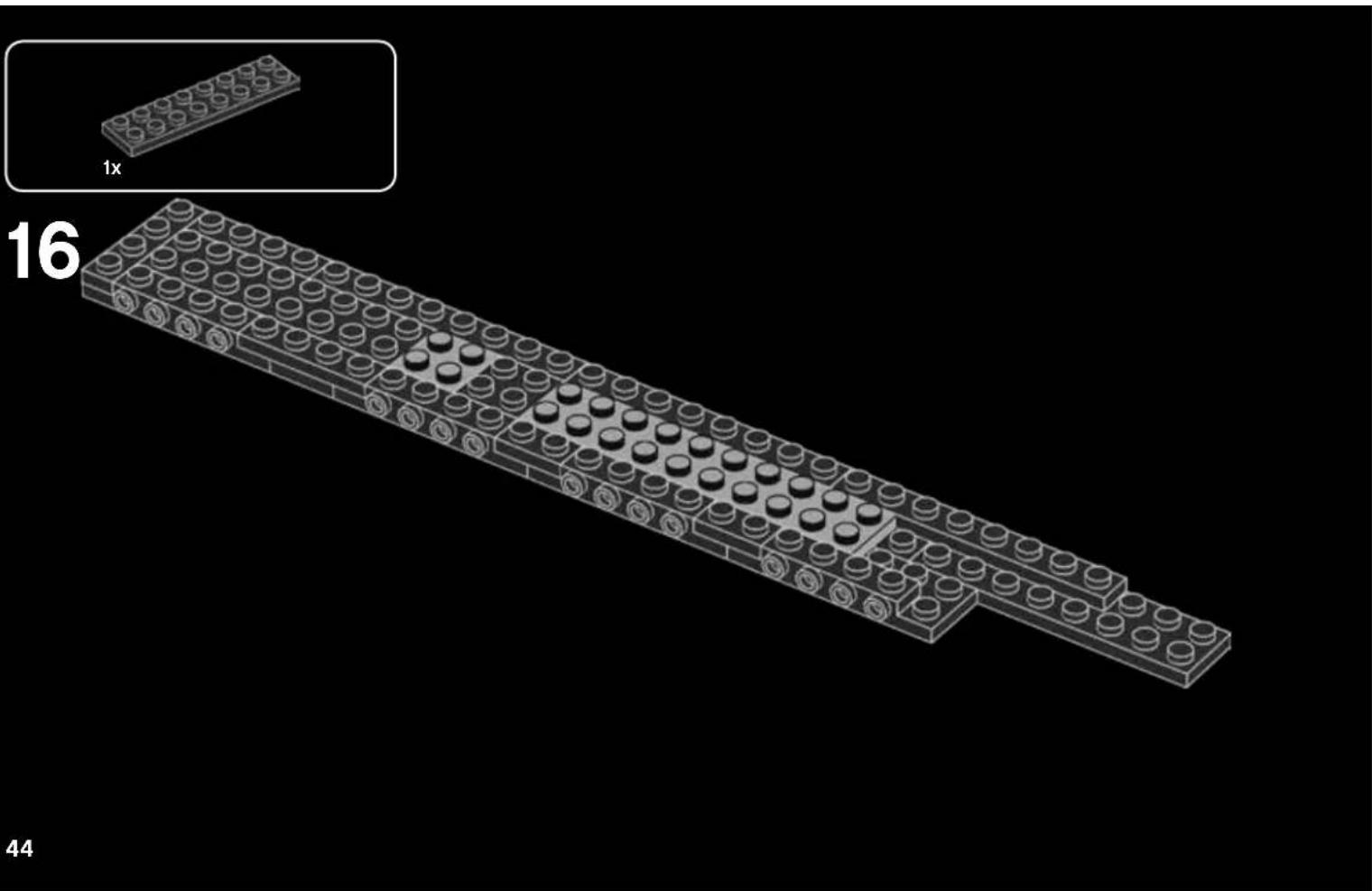

3D diagram of a LEGO brick structure with circular holes, shown with an inset zooming view labeled '1x' and page number '44' (no text or symbols on the diagram itself)

3D rendering of a rectangular plastic object with multiple circular indentations, labeled '1x' at the bottom (no other text or symbols)

17

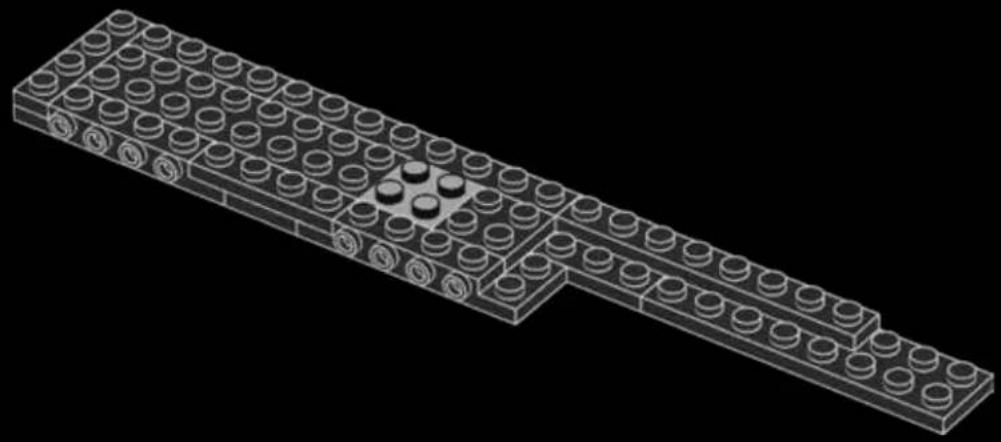

3D architectural rendering of a multi-story building facade with circular and rectangular elements (no text or symbols)

3D rendering of a rectangular electronic component with multiple circular holes, labeled '1x' (no other text or symbols)

18

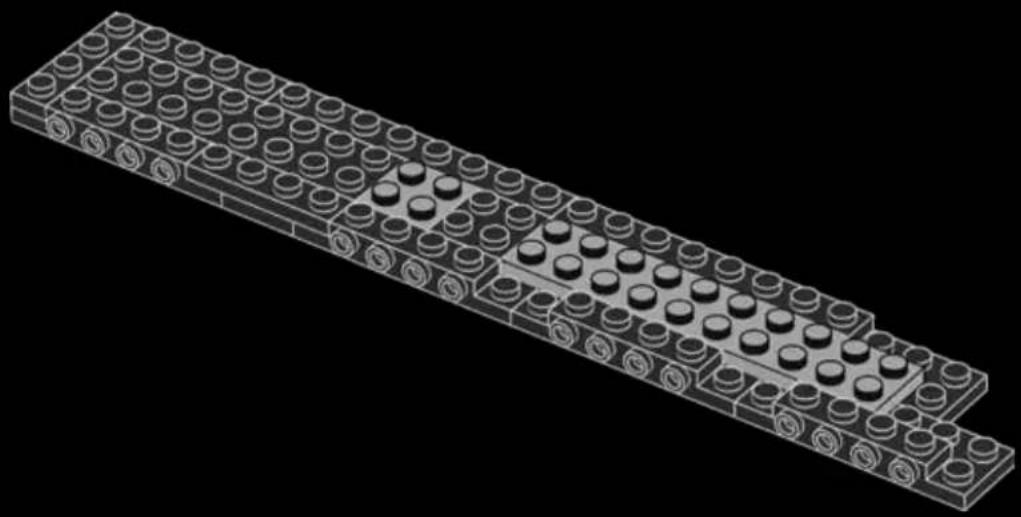

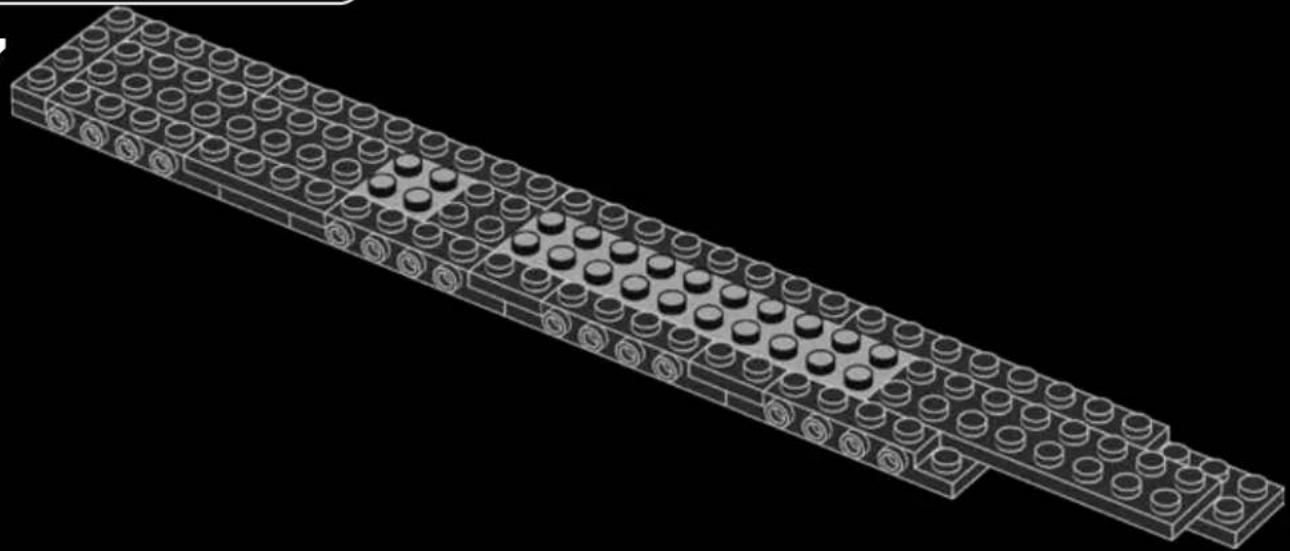

Isometric view of a long rectangular LEGO structure with circular holes and a central slot (no text or symbols)

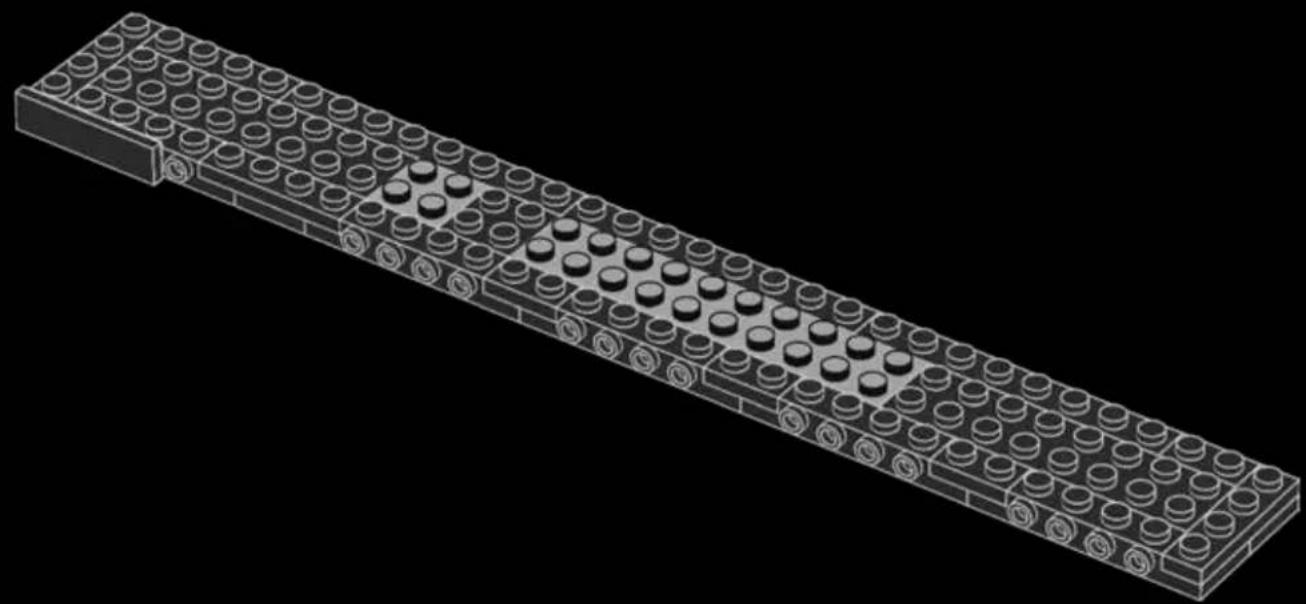

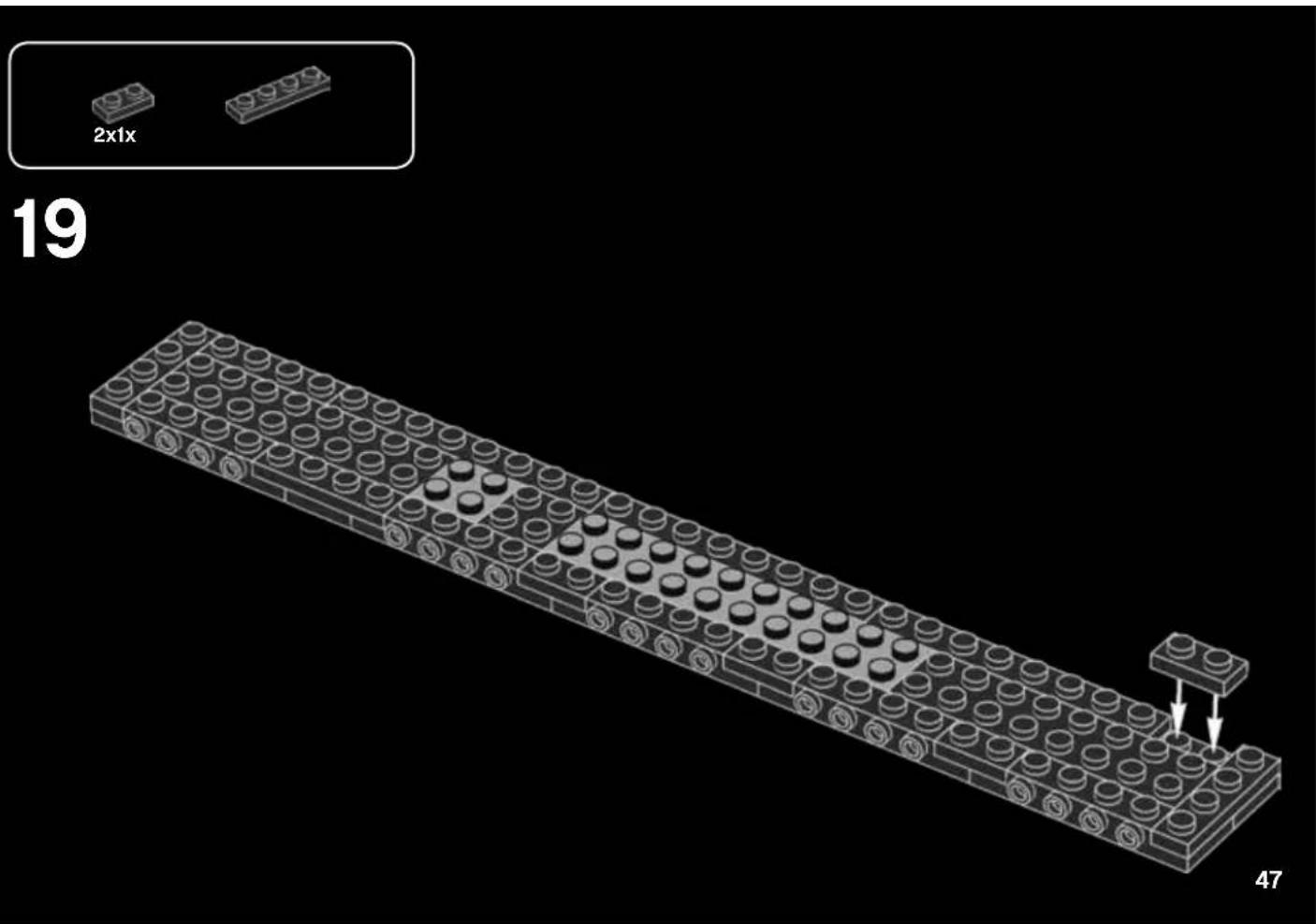

3D diagram of a LEGO brick structure with circular holes and a base, showing two inset blocks labeled '2x1x' and '47', with no readable text or symbols.

Simple 3D rectangular block with label '1x' on black background (no other text or symbols)

20

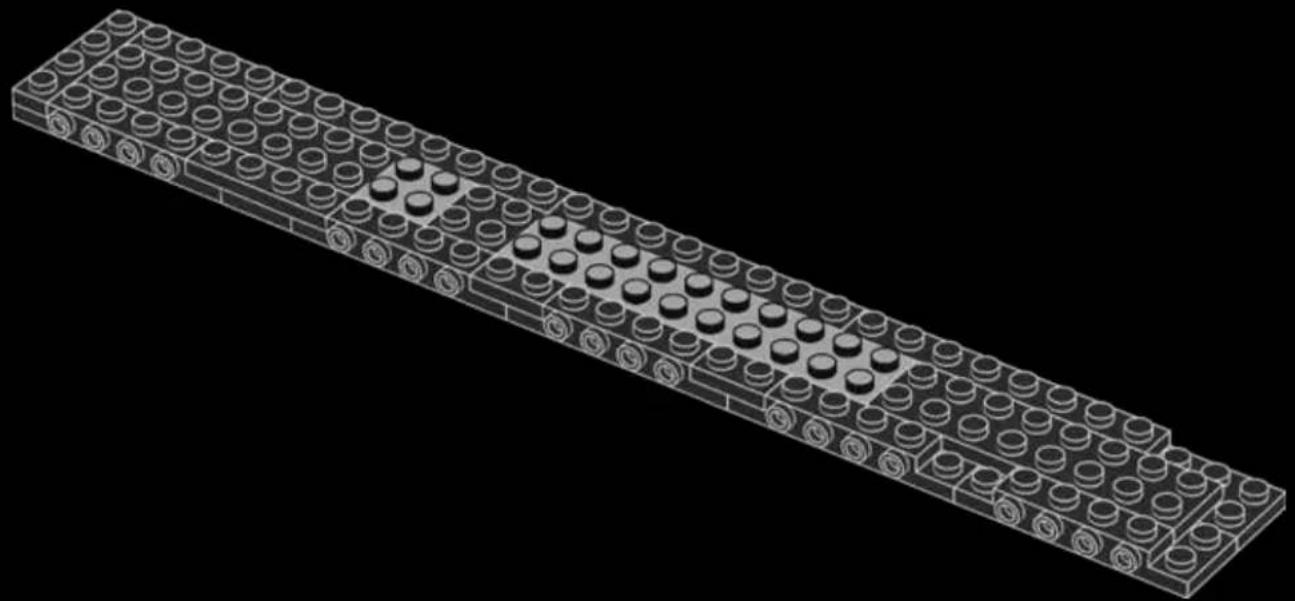

Isometric line drawing of a long rectangular mechanical component with multiple circular holes and a rectangular base (no text or symbols)

Two transparent plastic electronic components with circular tops, one labeled '1x1x' (no other text or symbols)

21

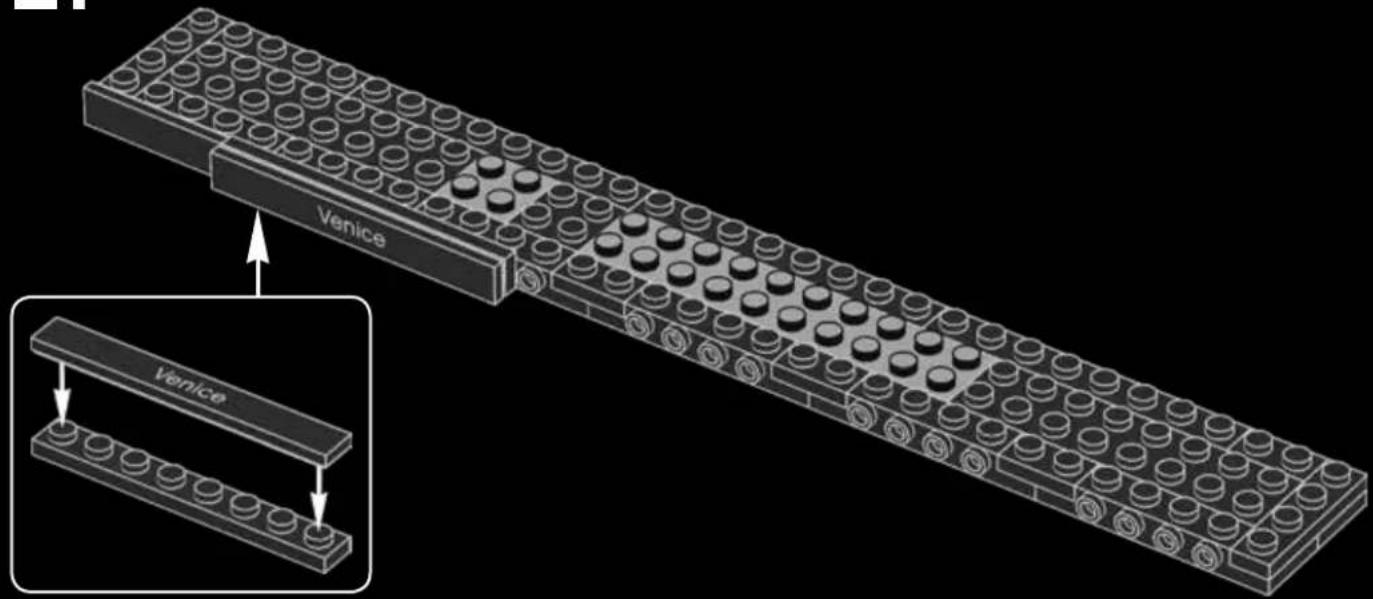

Venice Venice

Two transparent rectangular blocks on a black background, labeled '1x2x' (no other text or symbols)

22

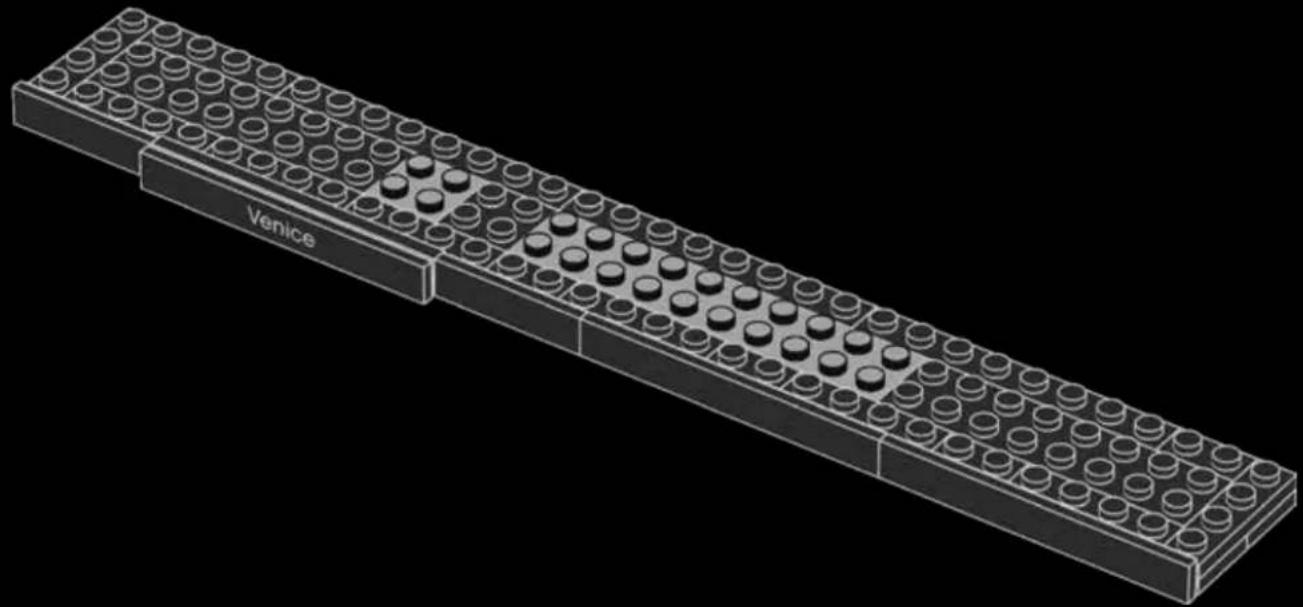

3D architectural diagram of a rectangular building with circular holes, labeled 'Venice' on the side (no other text or symbols)

Four 3D blocks of varying sizes and shapes on a black background, labeled with '1x1x', '2x', and '2x' (no text or symbols on the blocks themselves)

During the Acqua Alta (high water) tides can rise up to 6 ft. (2 m) and often flood St. Mark's Square.

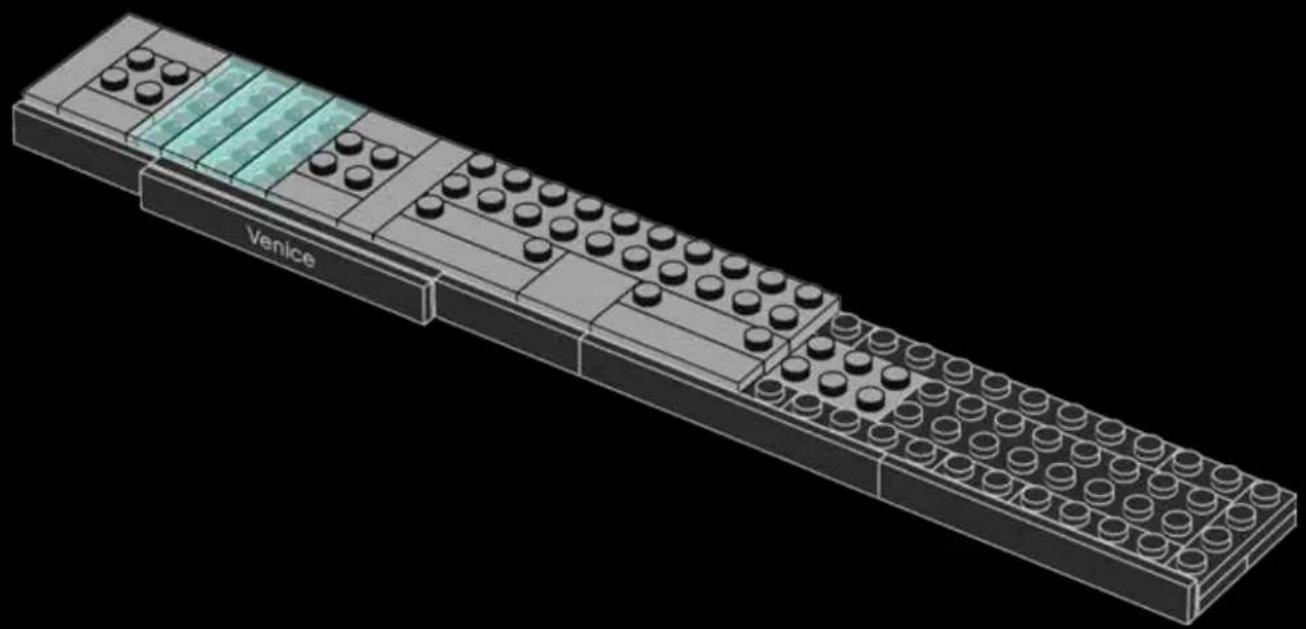

Isometric view of a multi-tiered LEGO structure with circular holes and a green component, labeled 'Venice' at the base (no additional text or symbols)

Four LEGO-shaped objects on a black background, labeled 1x1x, 2x, and 2x (no additional text or symbols)

24

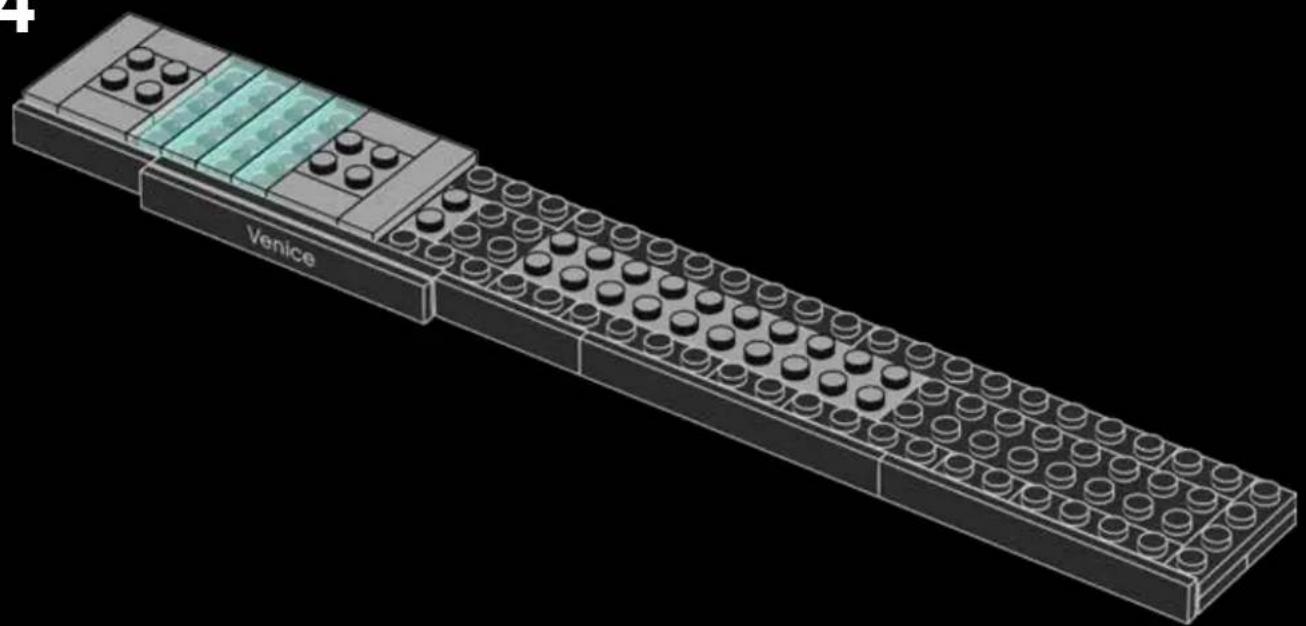

Isometric illustration of a multi-tiered LEGO structure with labeled 'Venice' on the side (no other text or symbols)

3D rendering of a LEGO brick with rounded top surface and 1x label (no text or symbols on the object itself)

25

Isometric illustration of a multi-tiered rectangular electronic device with labeled 'Venice' and page number 53 (no text or symbols on the device itself)

Three gray rectangular electronic components on a black background, labeled '2x1x2x' (no other text or symbols)

26

3D architectural rendering of a multi-level building structure with green and black components, labeled 'Venice' at the base (no other text or symbols)

Four electronic component blocks labeled 6x6x1x, 1x2x, and a small green rectangular block against a black background (no text or symbols on the blocks themselves)

Venice is slowly sinking at the rate of about 0.04 inches (1-2 mm) every year.

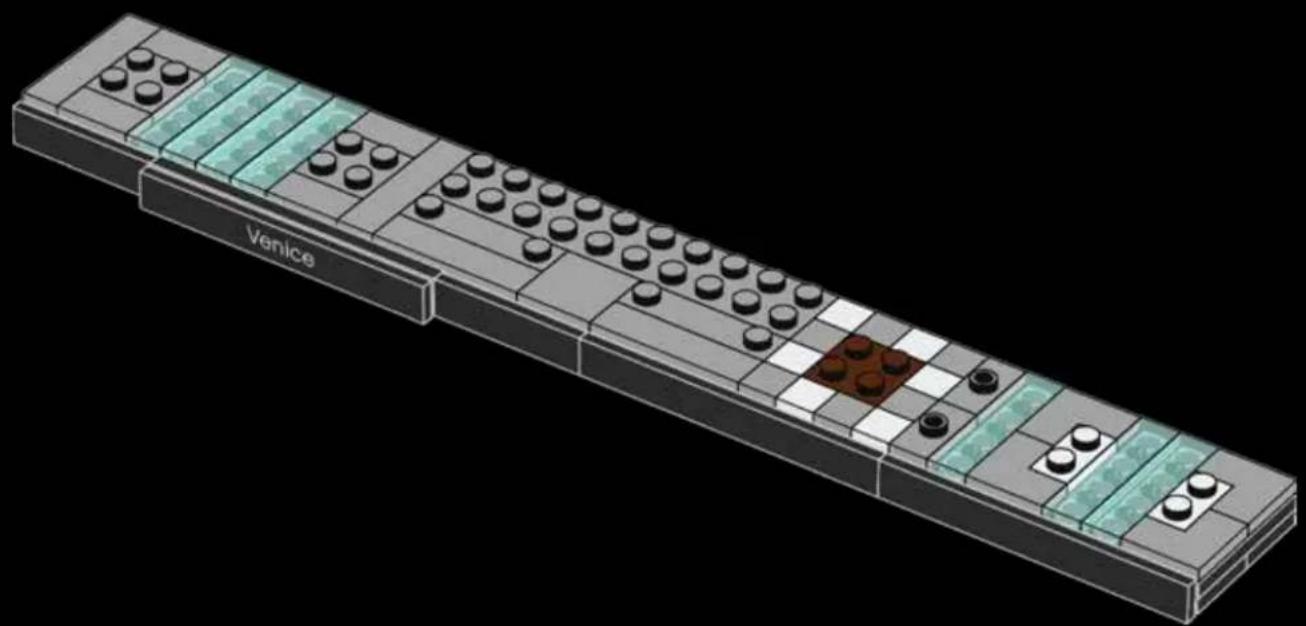

3D architectural model of a rectangular building with LEGO blocks and green panels, labeled 'Venice' at the base (no other text or symbols)

28

Illustration of a Venice remote control with multiple dice and a central button (no text or symbols on the main diagram)

3D rendered mechanical component with circular end caps, labeled '2x' (no other text or symbols)

29

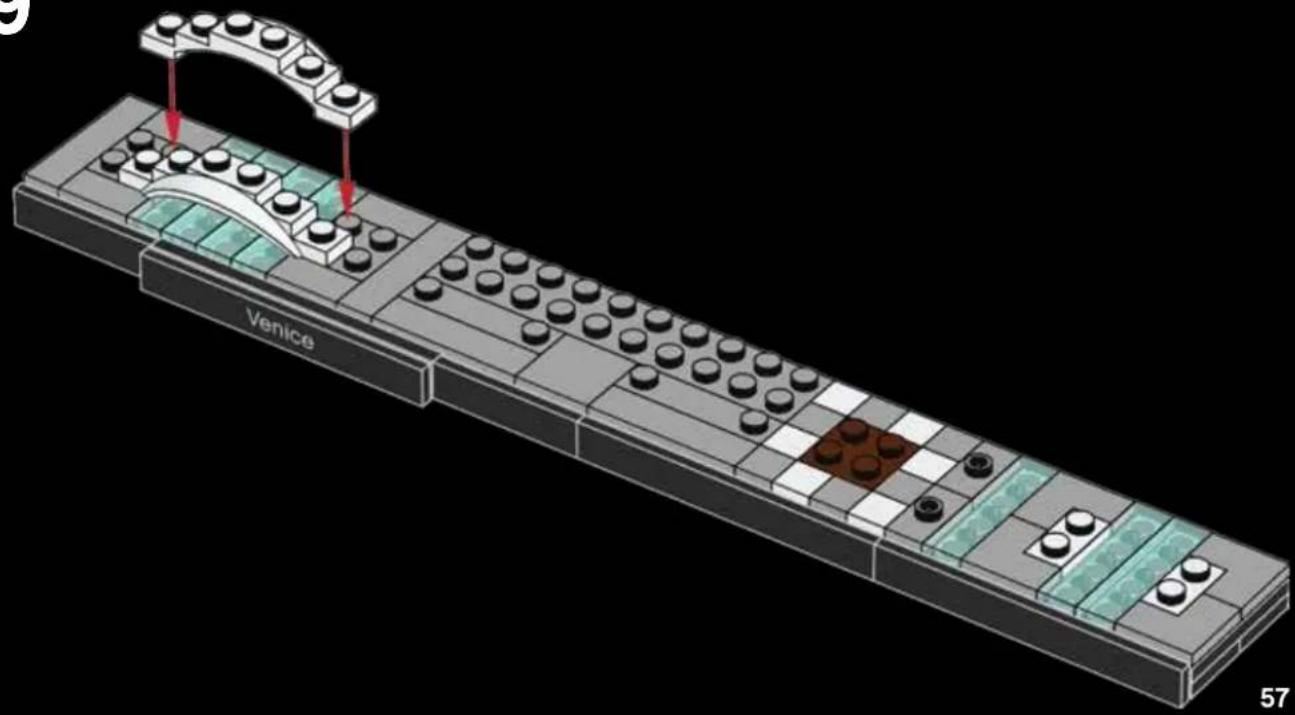

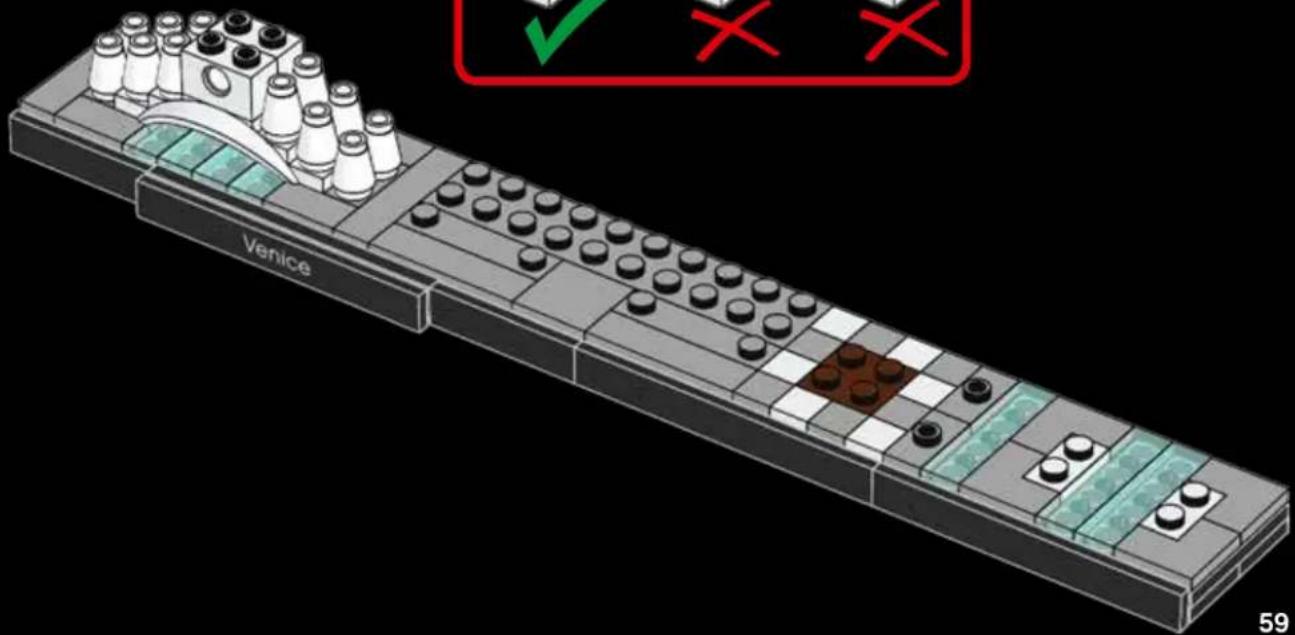

Venice 57

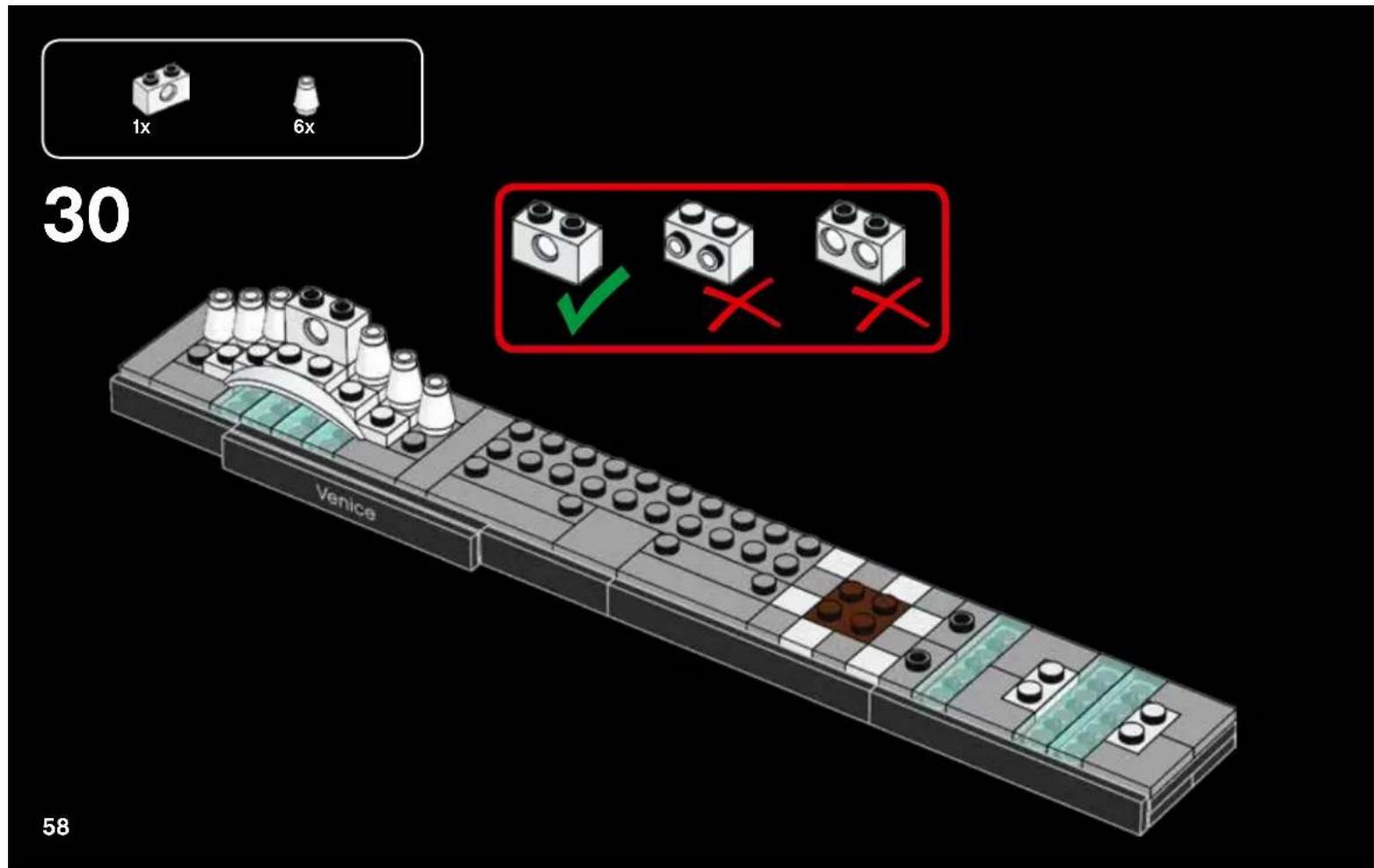

1x 6x 30 Venice 58

Two 3D blocks with circular tops and a small conical object, labeled '1x6x' (no other text or symbols)

31

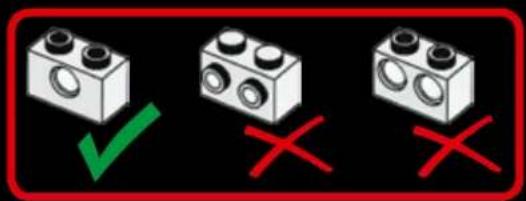

Diagram showing three LEGO blocks with checkmark and red X marks indicating selection or failure

Venice 59

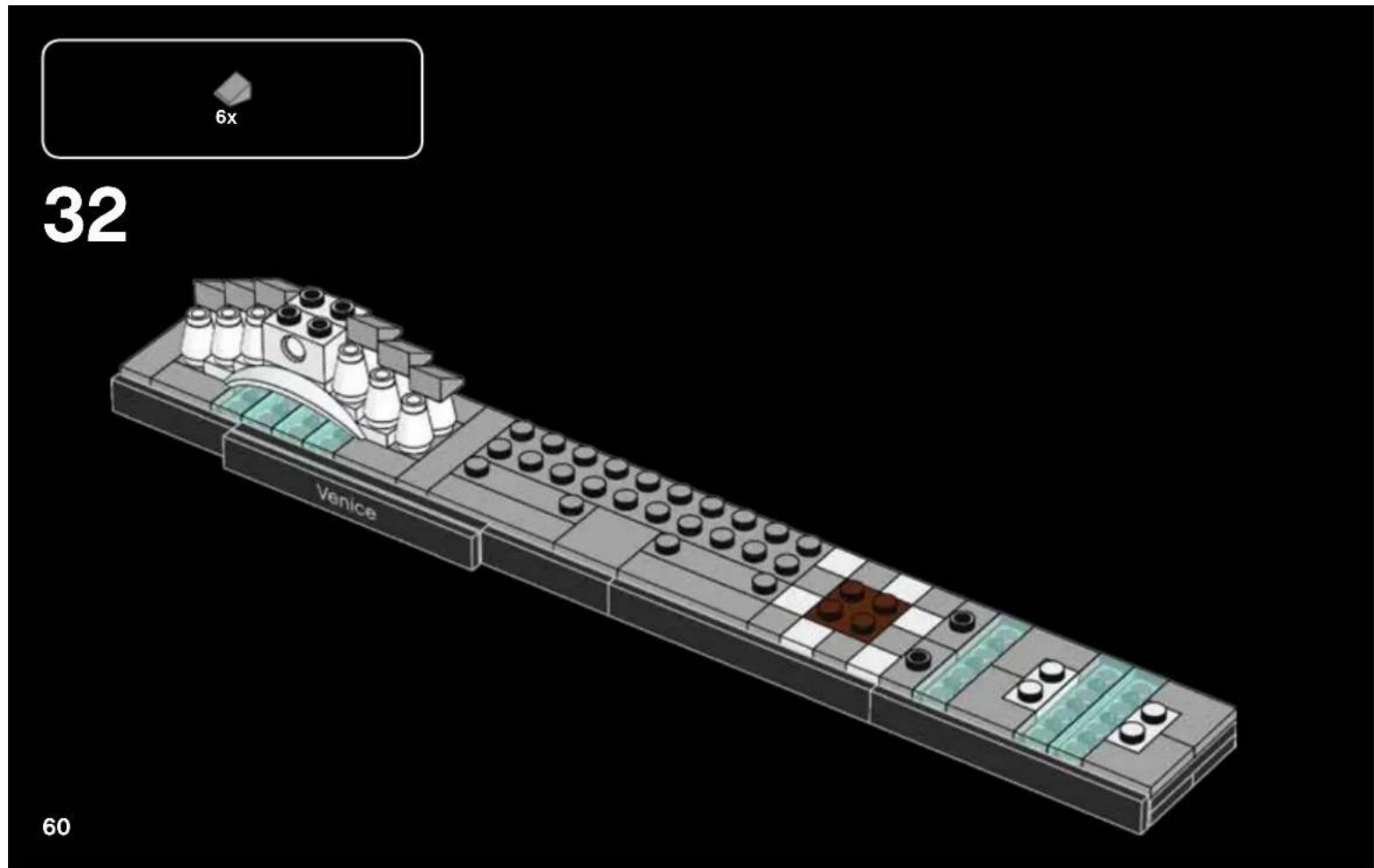

6x 32 Venice 60

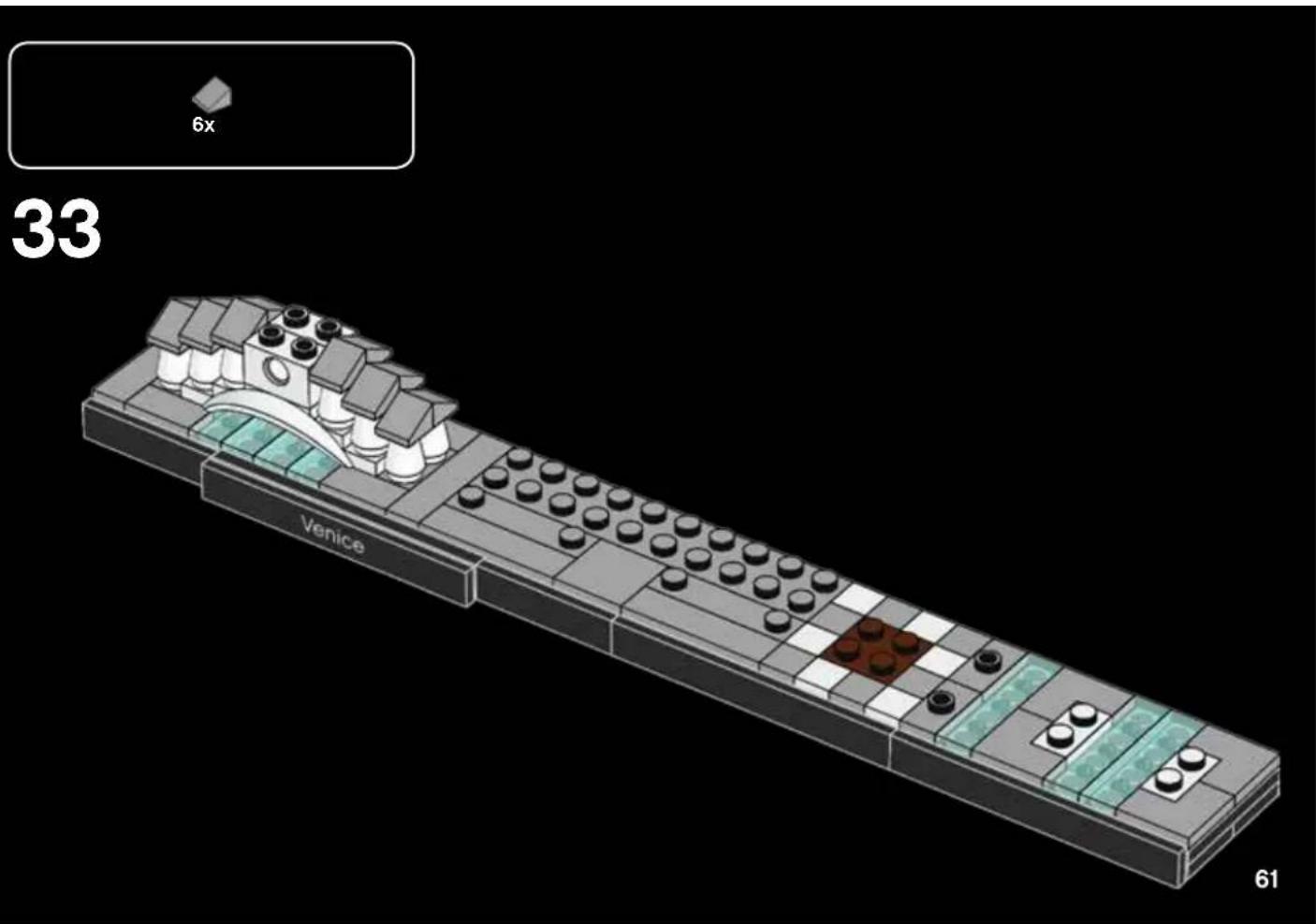

6x 33 Venice 61

4x 34 Venice 62

2x

The Grand Canal is the region's largest canal. Possessing a unique S-shape, it splits the city in half.

Isometric architectural diagram of Venice with LEGO blocks and green flooring (no text or symbols)

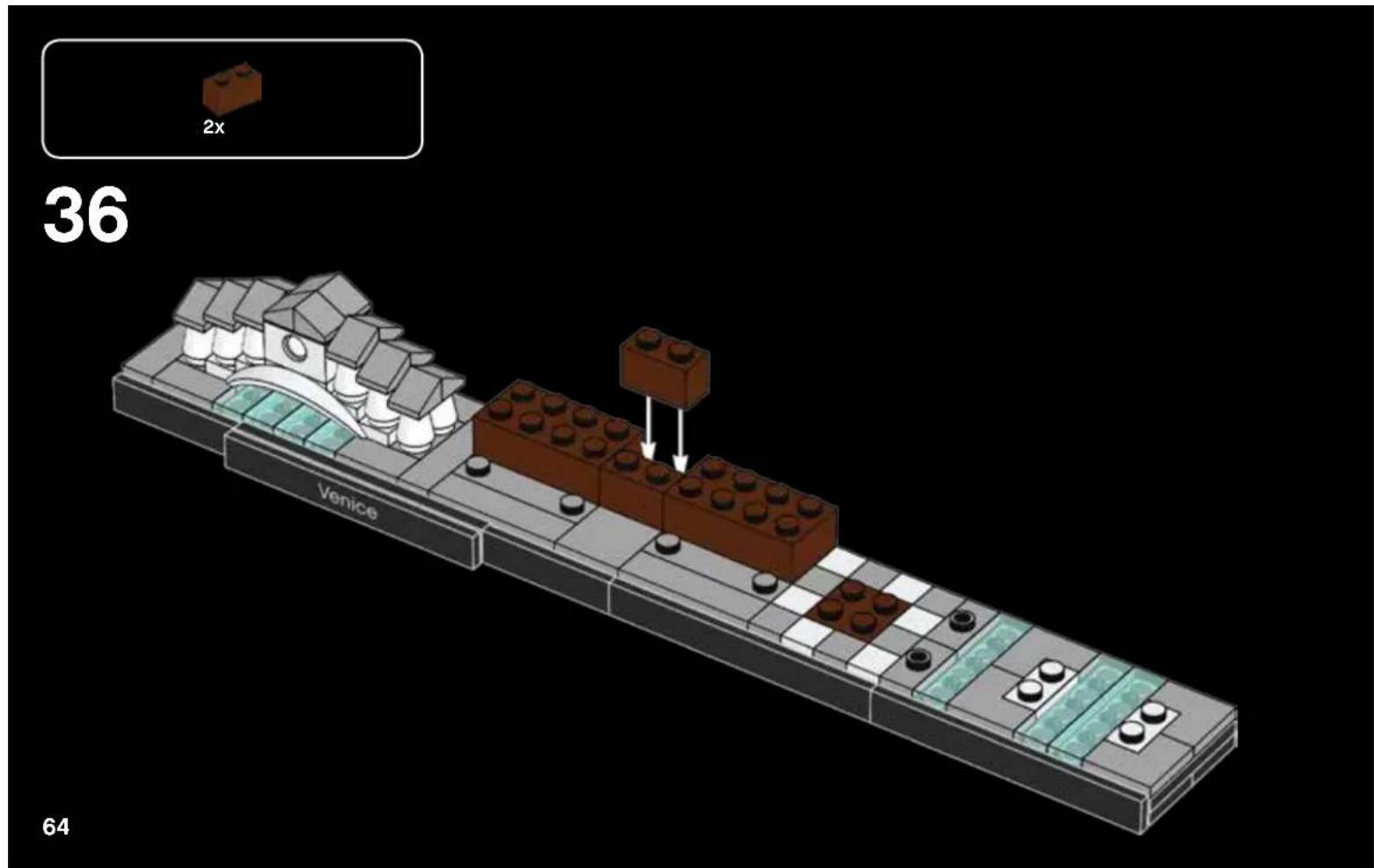

2x 36 Venice 64

2x

2x

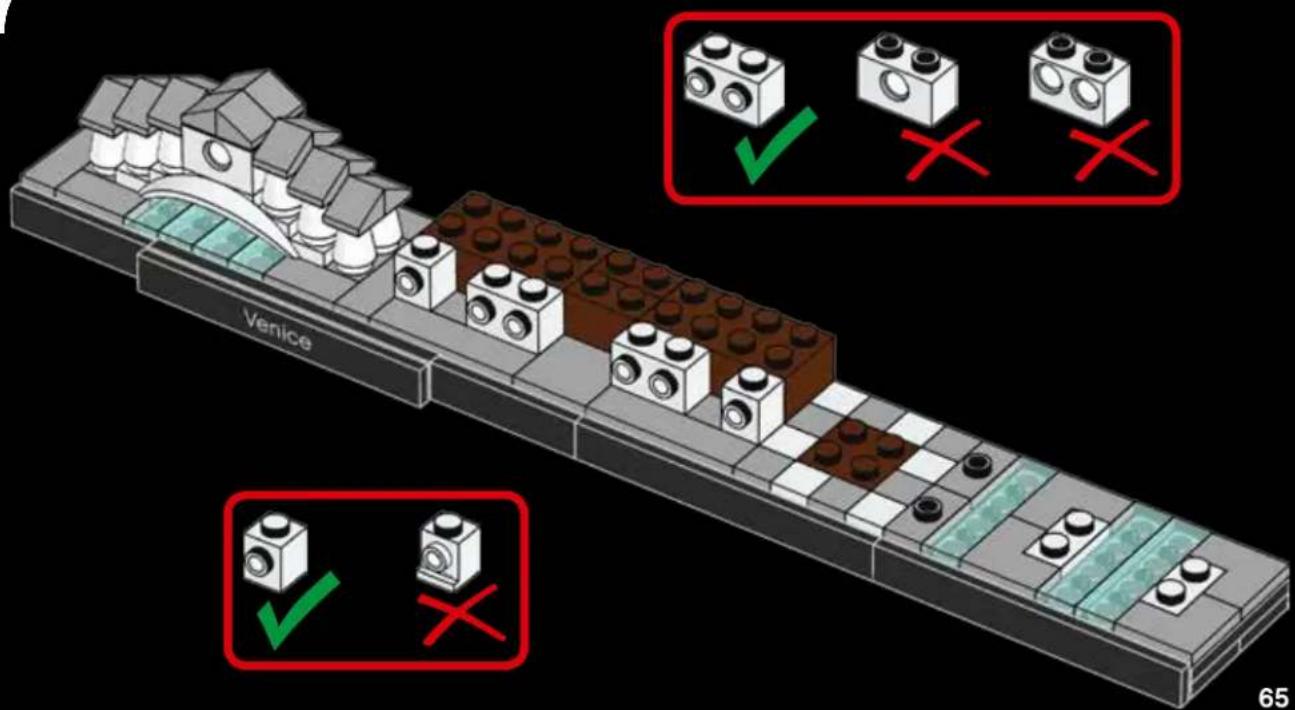

37

Venice 65

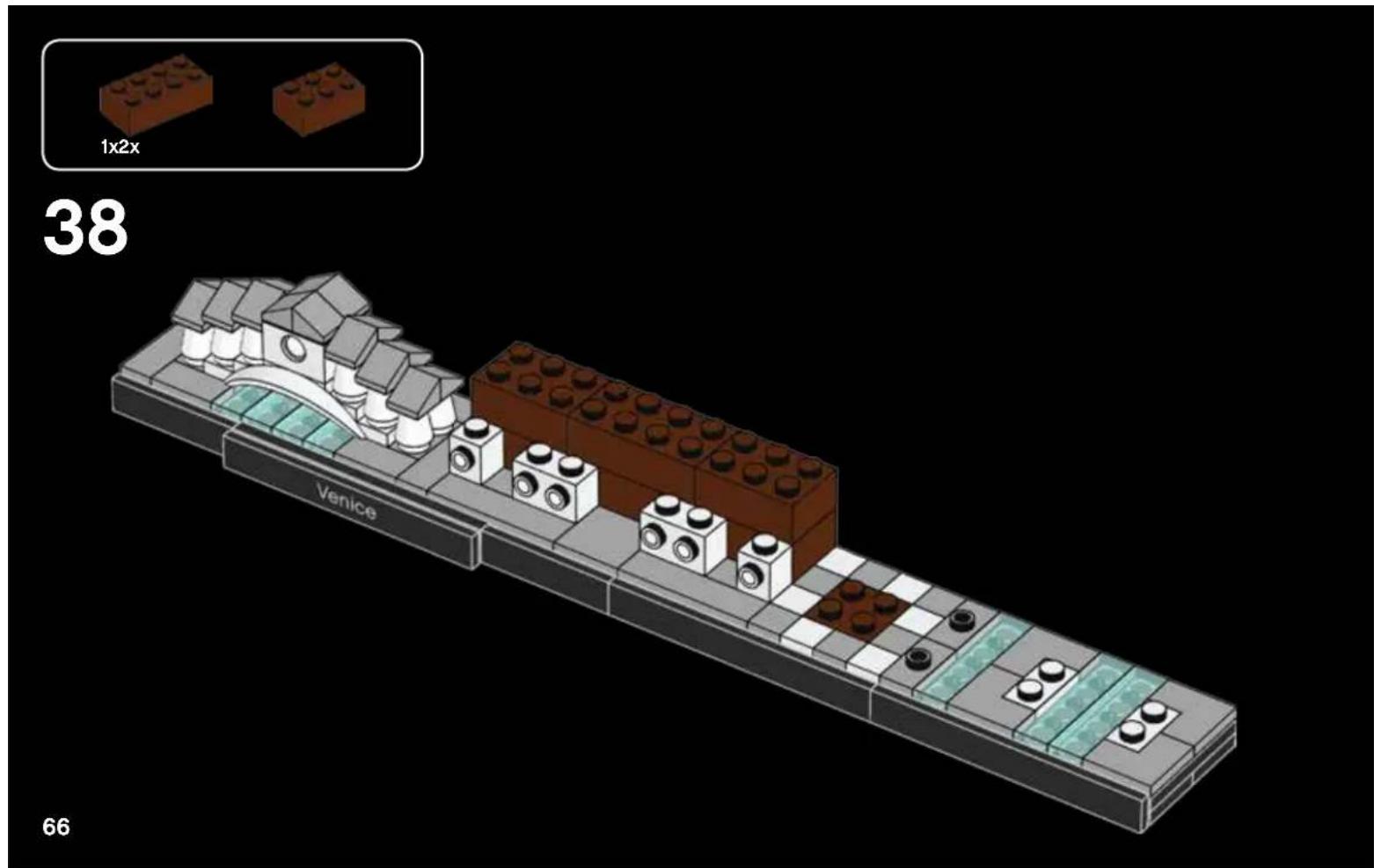

1x2x 38 Venice 66

Lego-style architectural model of Venice with labeled components and a 1x magnified inset (no text or symbols on the diagram itself)

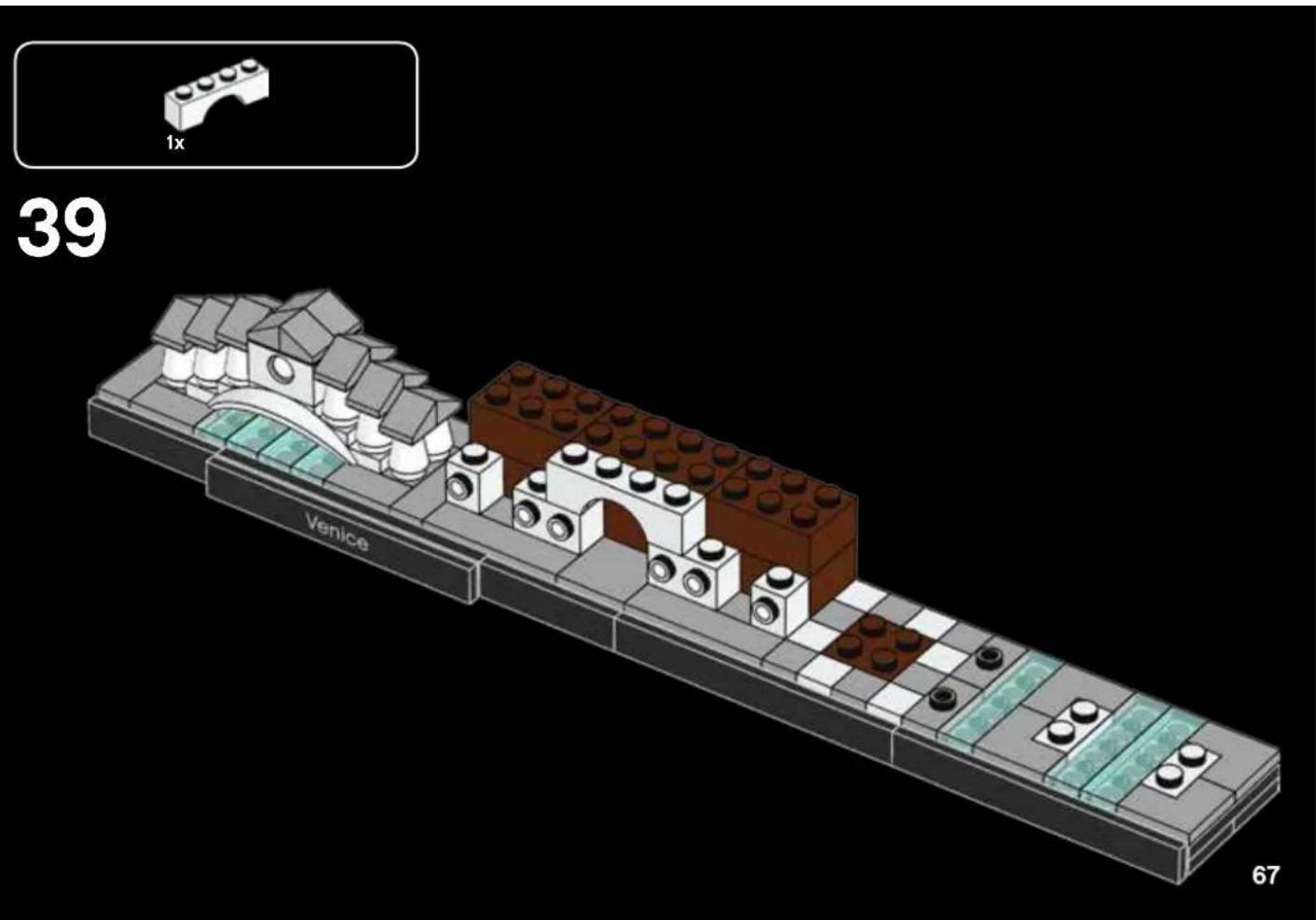

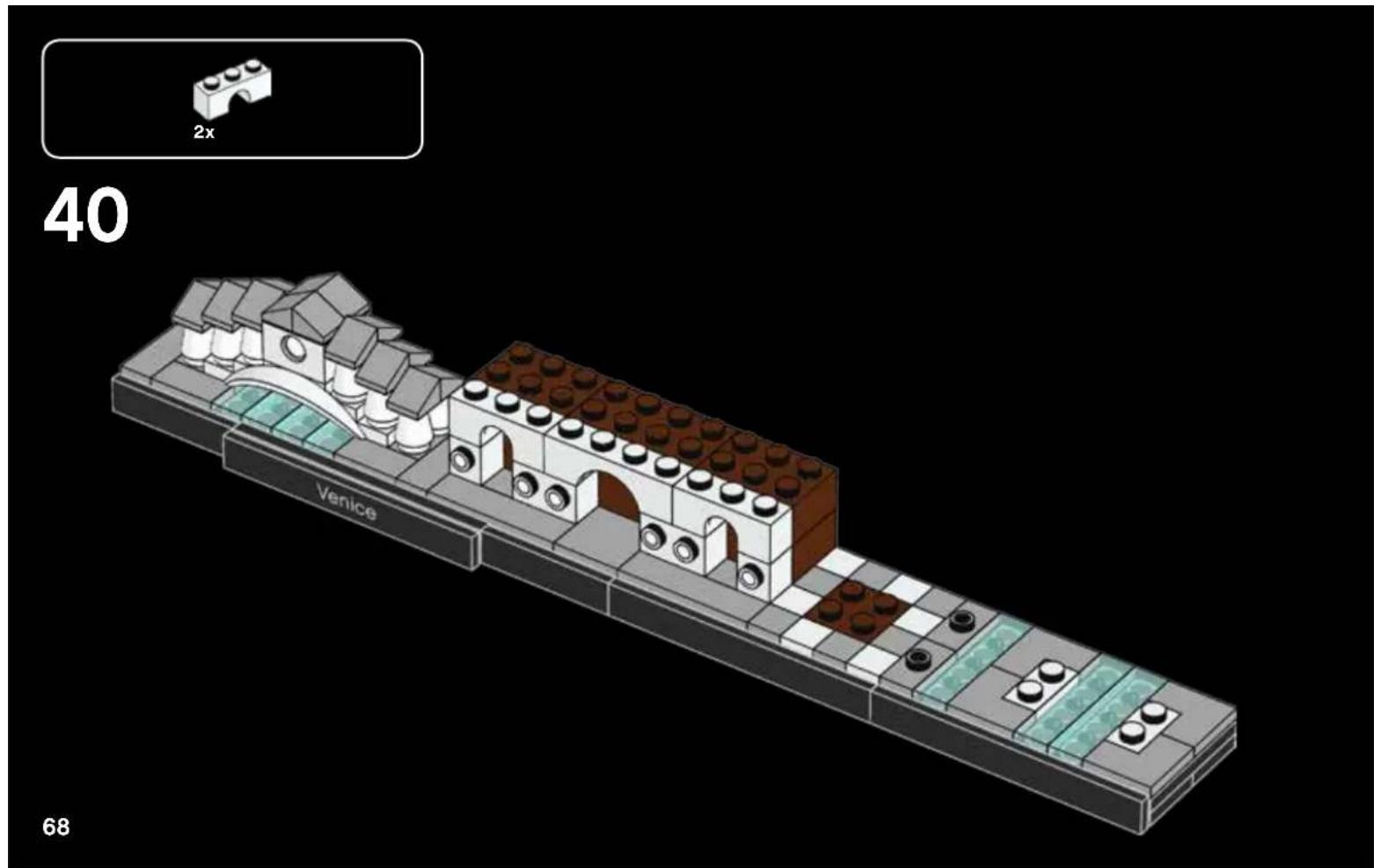

2x 40 Venice 68

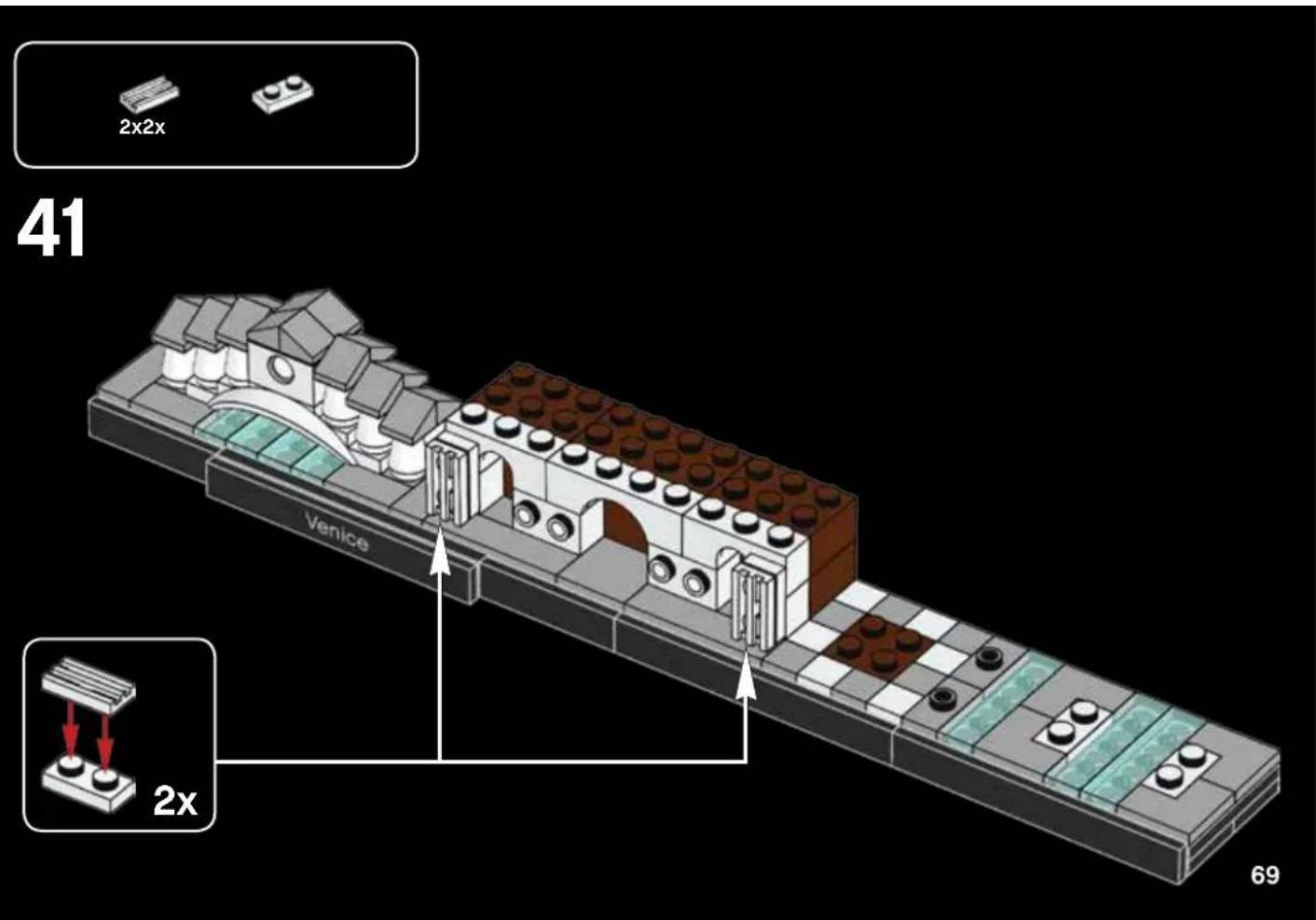

2x2x 41 Venice 2x 69

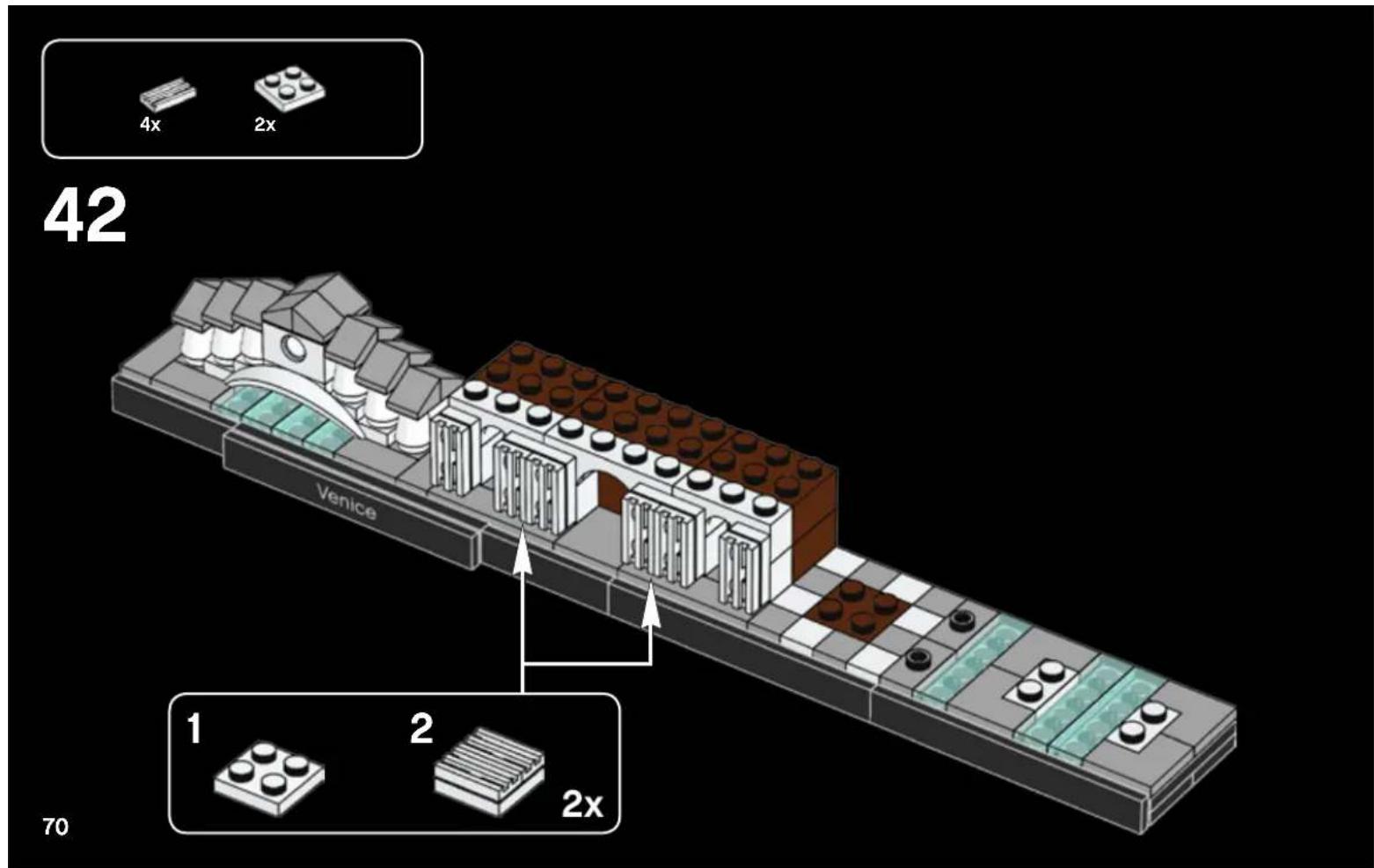

4x 2x 42 Venice 1 2 2x 70

Simple 3D-rendered white object sitting on a green box against a black background (no text or symbols)

Two LEGO brick blocks with visible faces, one labeled '1x1x' (no other text or symbols)

1

Two stacked blocks with circular indentations, one above and one below, showing a transformation or assembly process (no text or symbols)

2x

2

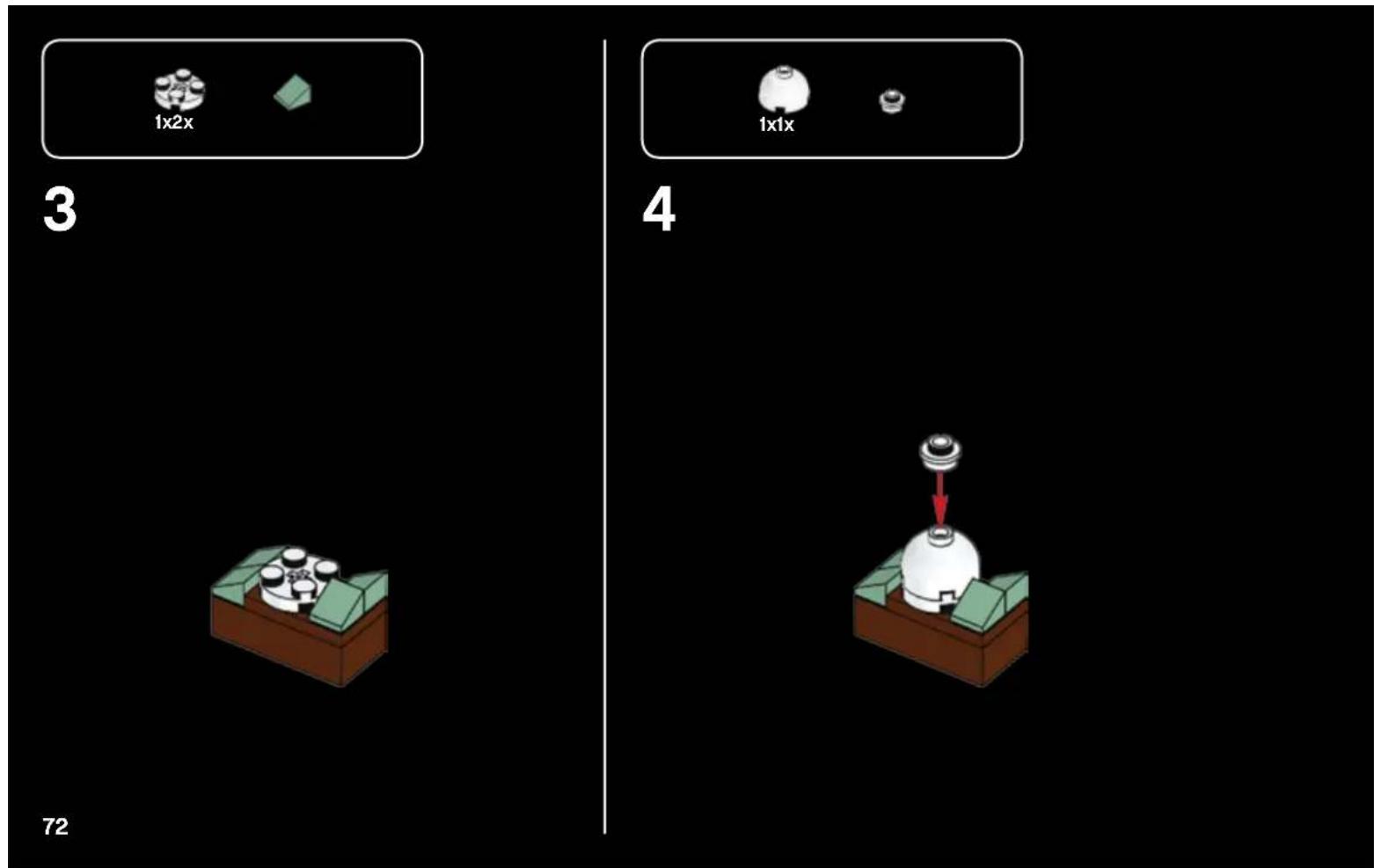

1x2x 3 1x1x 4 72

Venice has over 450 palaces and major buildings built in a mixture of styles: Gothic, Byzantine, Baroque etc.

Isometric architectural diagram of a shipyard with Venice and a building, showing structural layout and water features (no text or symbols)

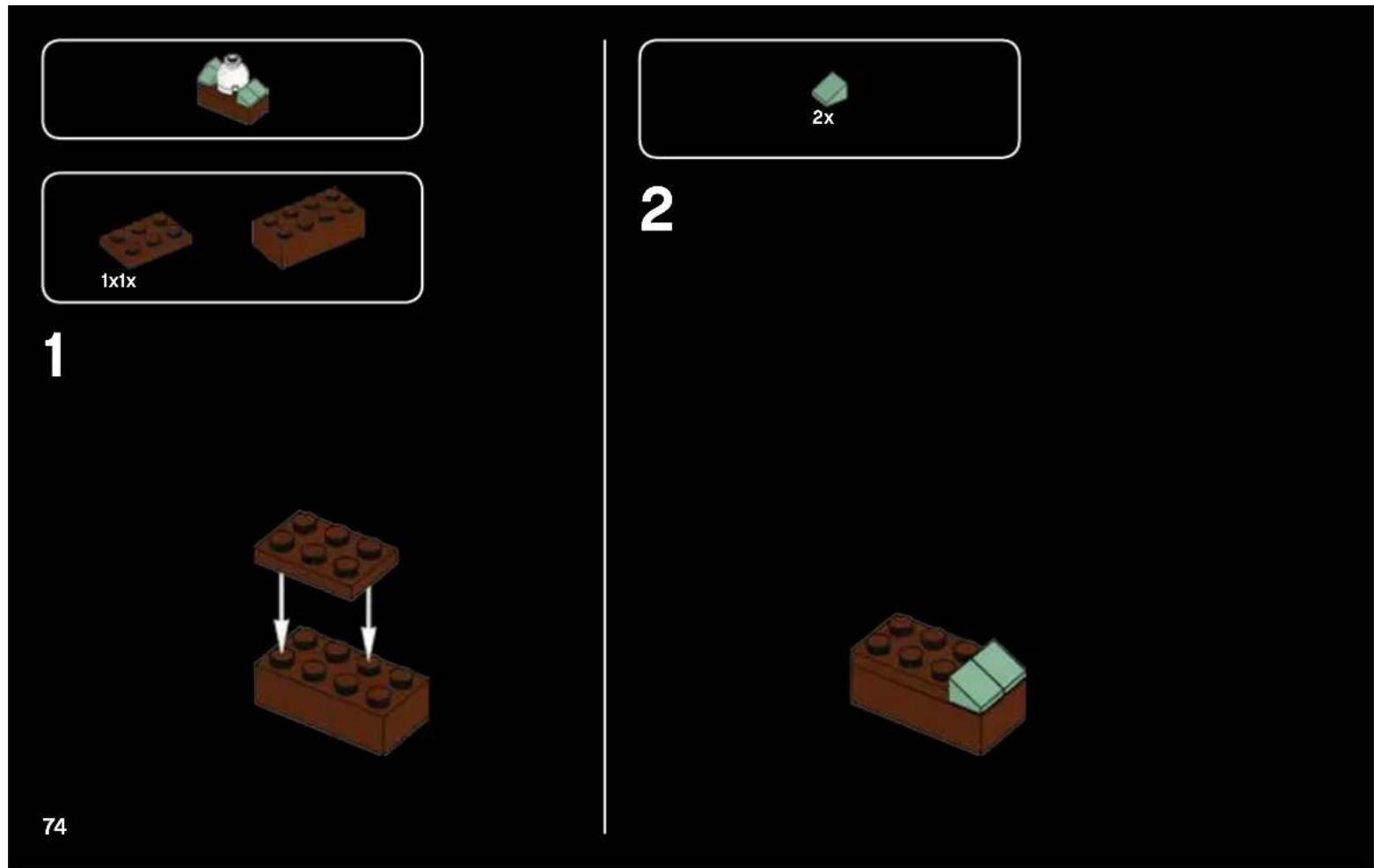

1 1x1x 2 2x 74

Two 3D geometric shapes on a black background, one with circular elements and the other with a green cube labeled '1x2x' (no additional text or symbols)

3

Illustration of a wooden box with green tiled roofs and a central plate (no text or symbols)

Two small, rounded objects on a black background, labeled '1x1x' (no other text or symbols)

4

Diagram of a mechanical assembly with a white dome and green base, showing a red arrow pointing to the top component (no text or symbols present)

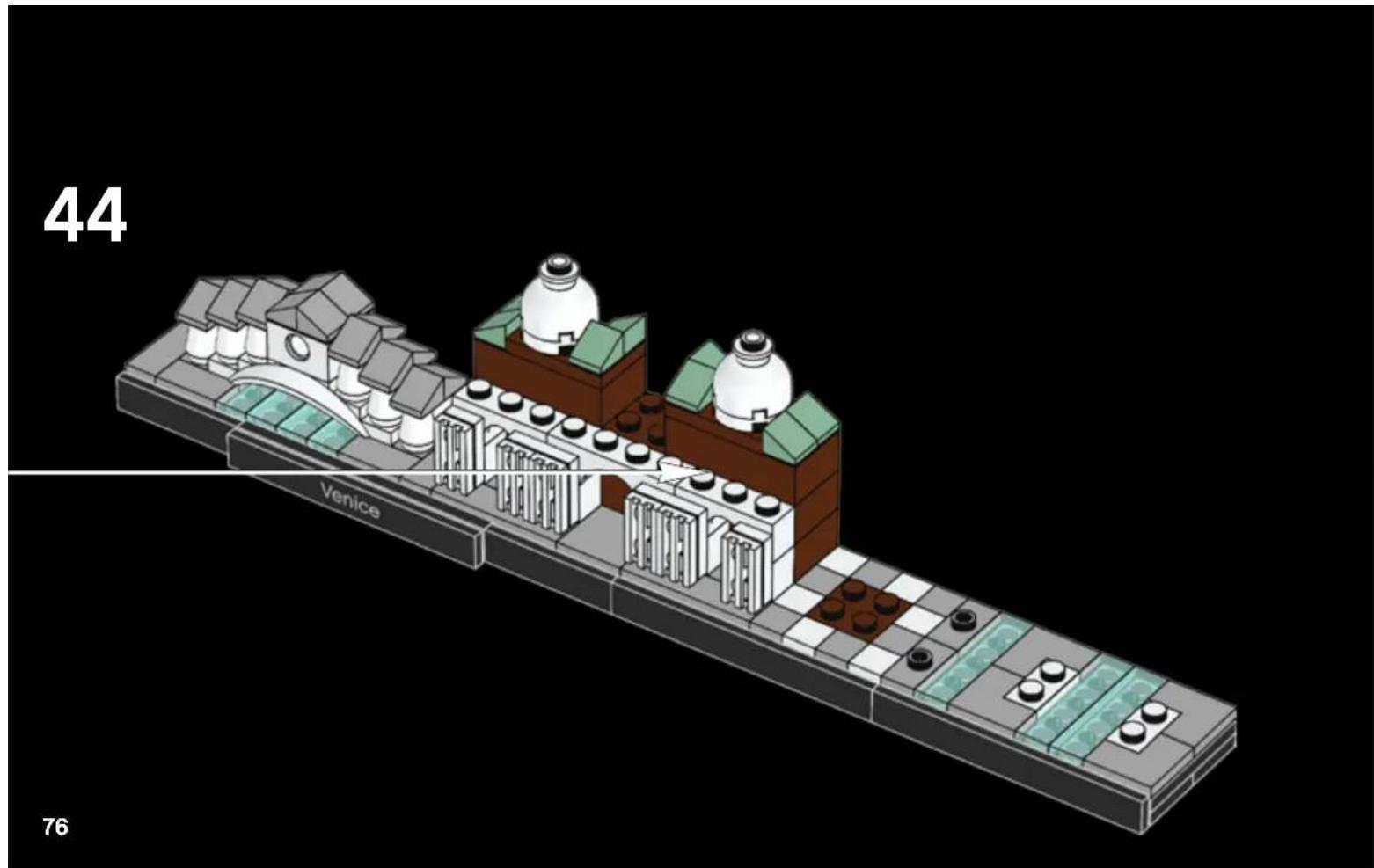

44 Venice 76

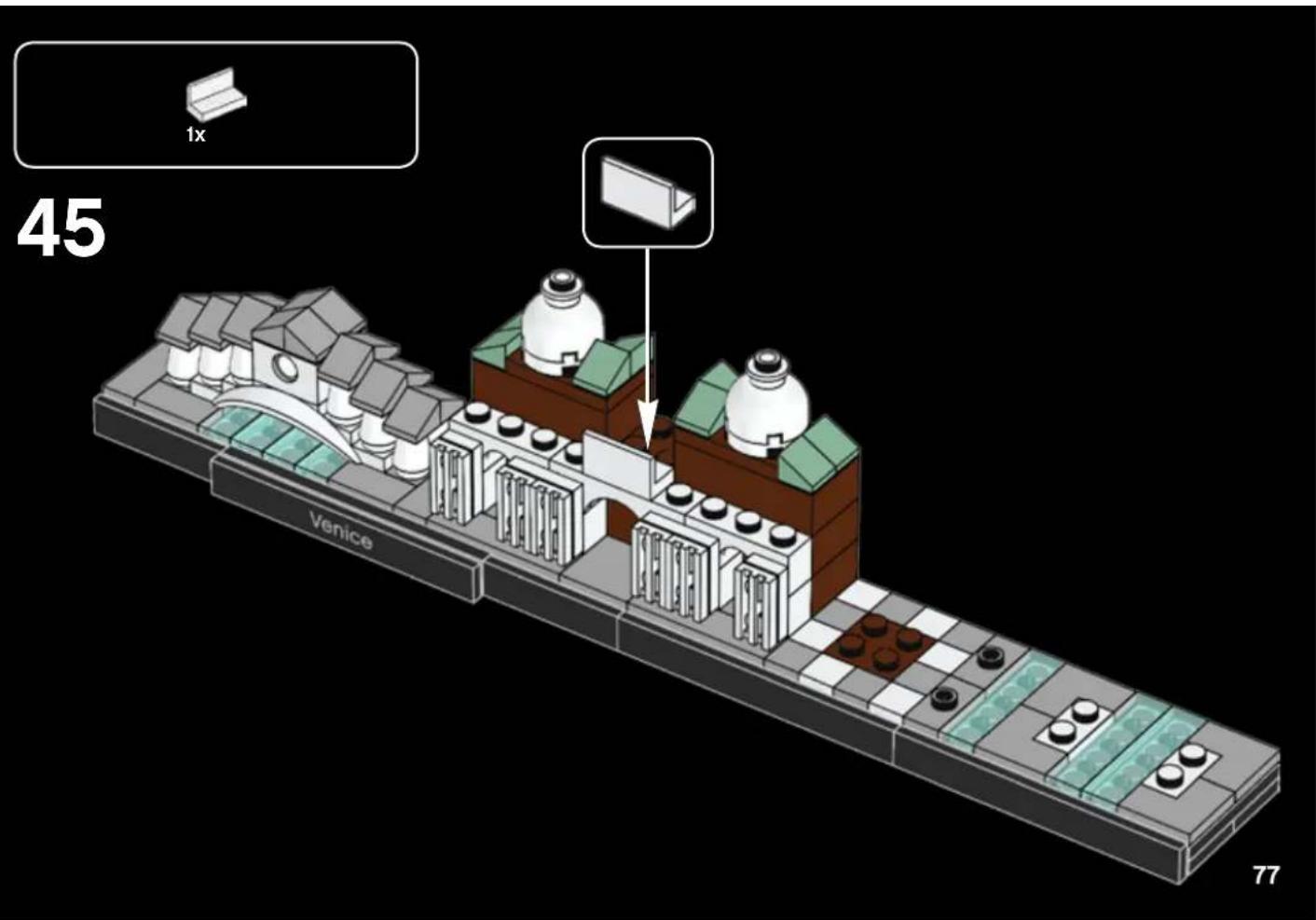

1x 45 Venice 77

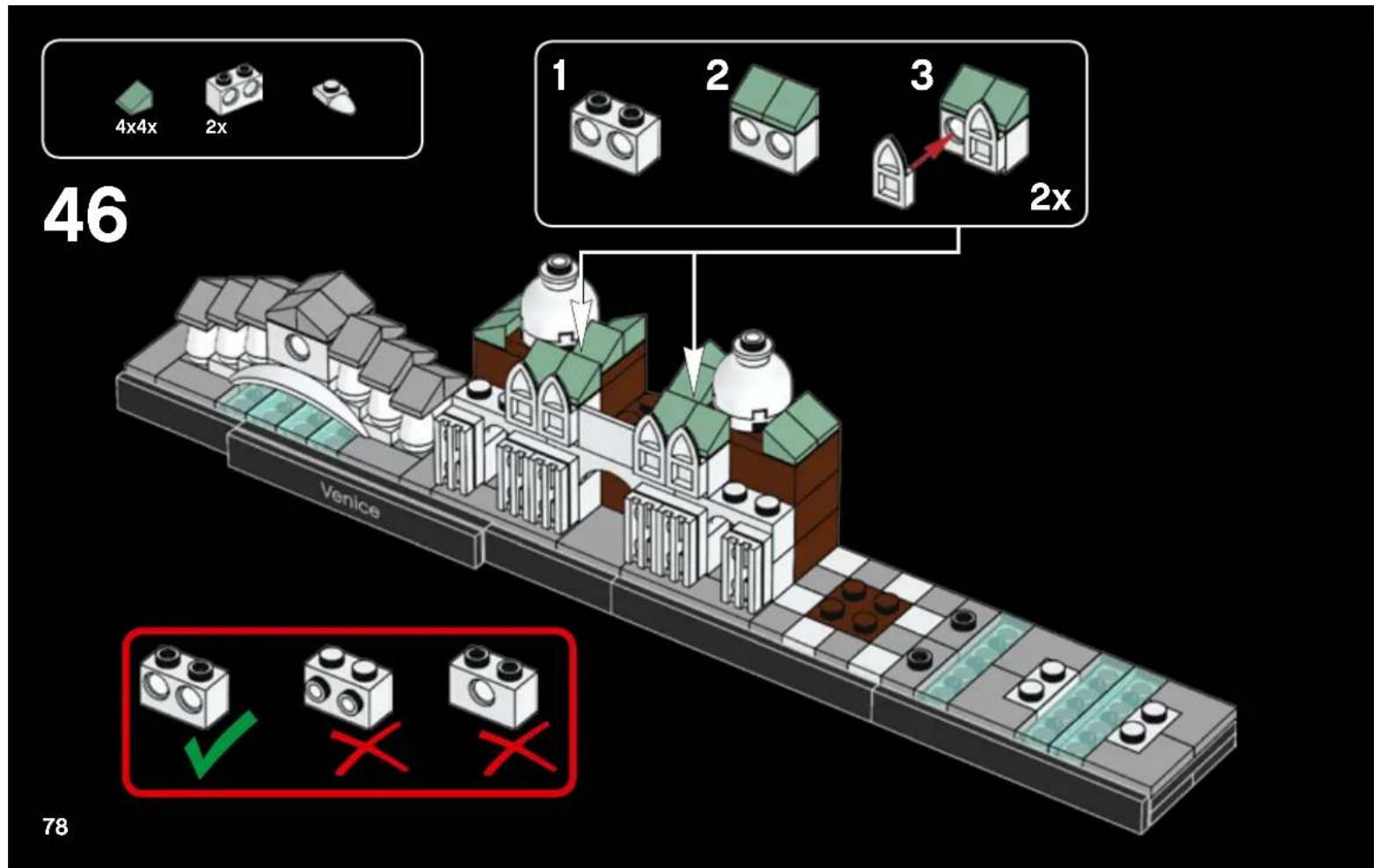

46 1 2 3 2x Venice 78

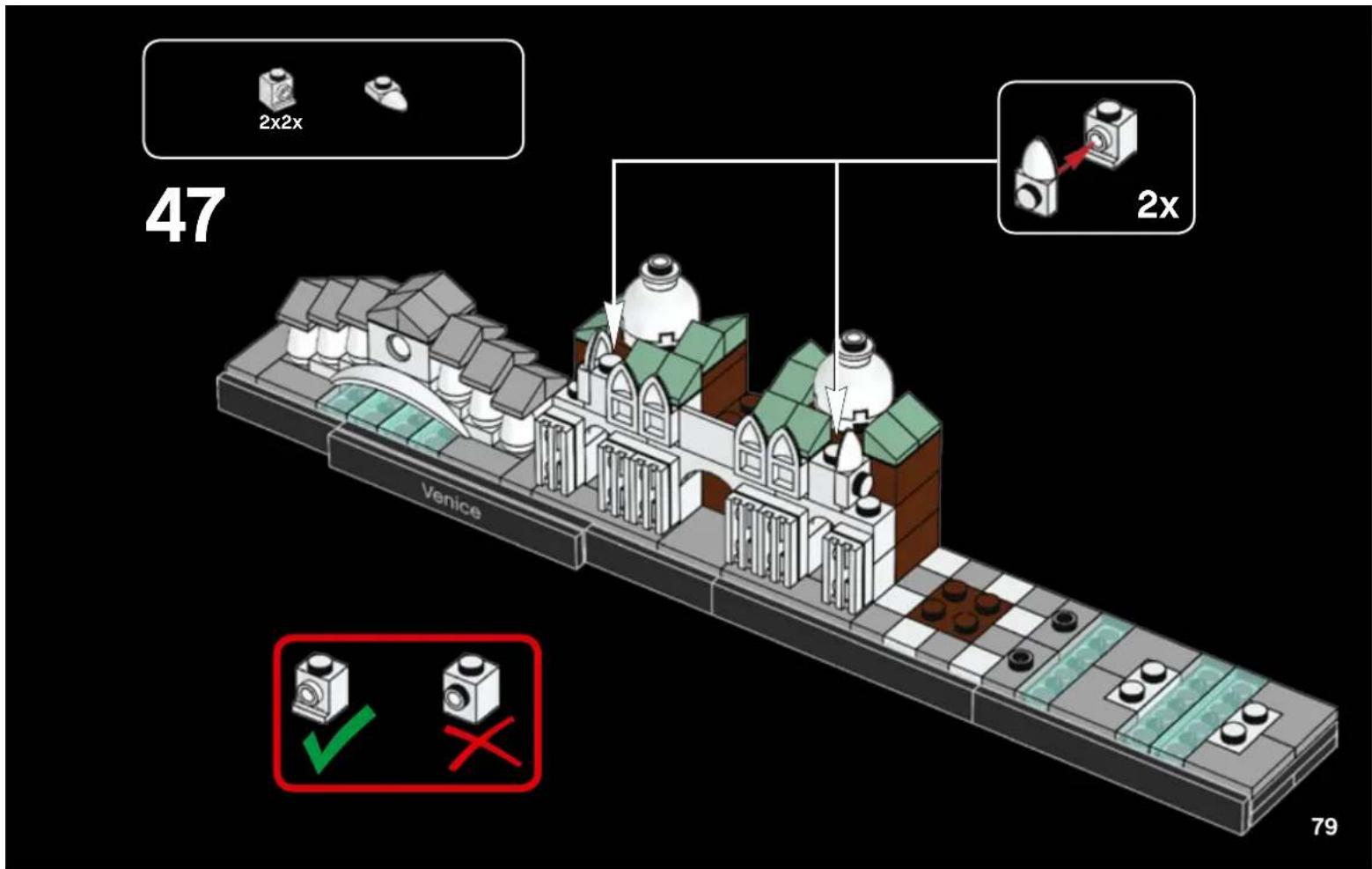

47 2x2x 2x Venice 79

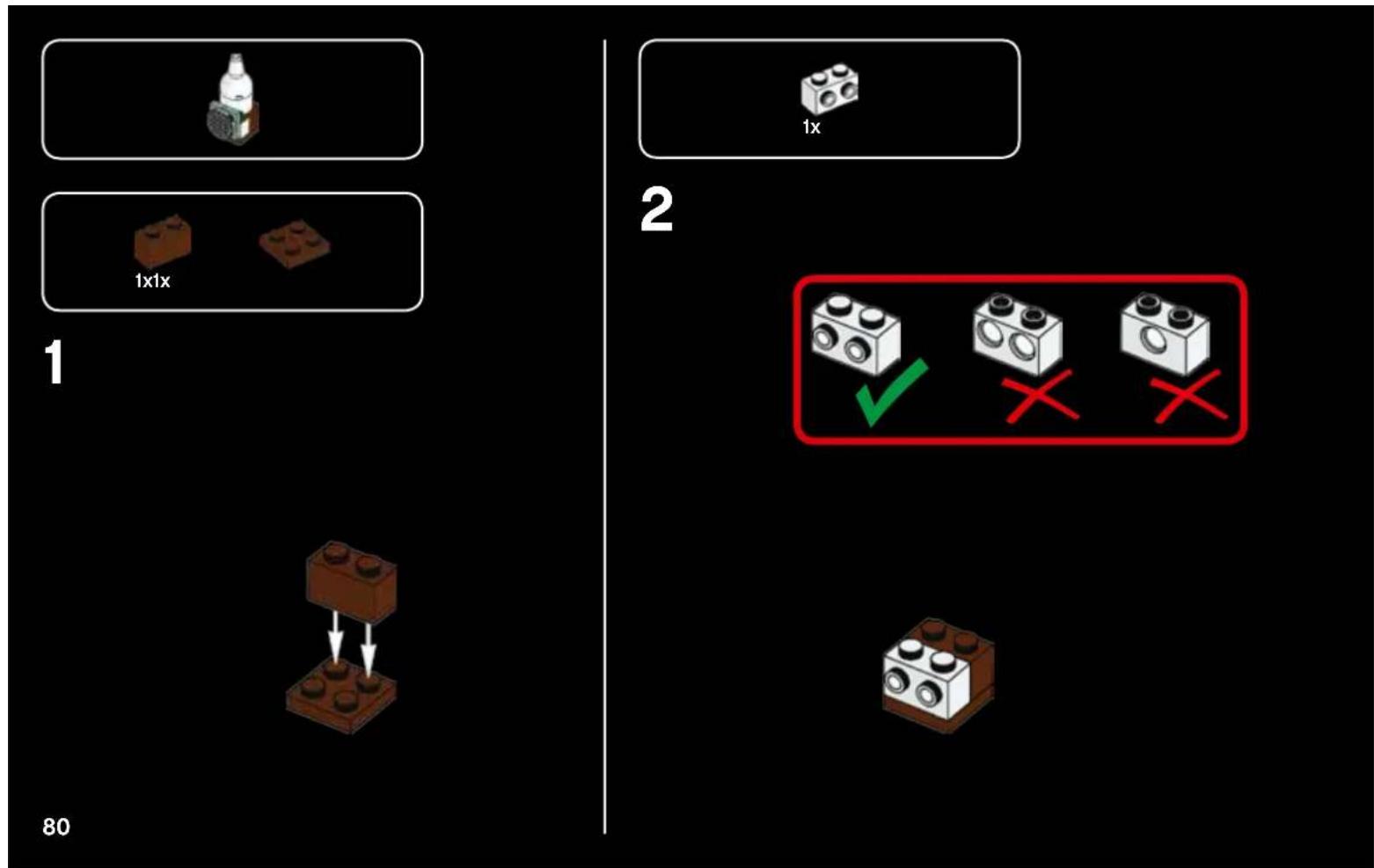

1x1x 2 1x 80

Simple 3D block diagram of a building with no text or symbols on its surface

3

Simple icon of a cylindrical object with four spherical protrusions, labeled '1x' below (no other text or symbols)

4

Two white, rounded objects on a black background, labeled '1x1x' (no other text or symbols)

5

Illustration of a white dome-shaped object with a red arrow pointing downward, mounted on a brown base (no text or symbols)

82

Two green LEGO blocks and a gray circular object on black background (no text or symbols)

6


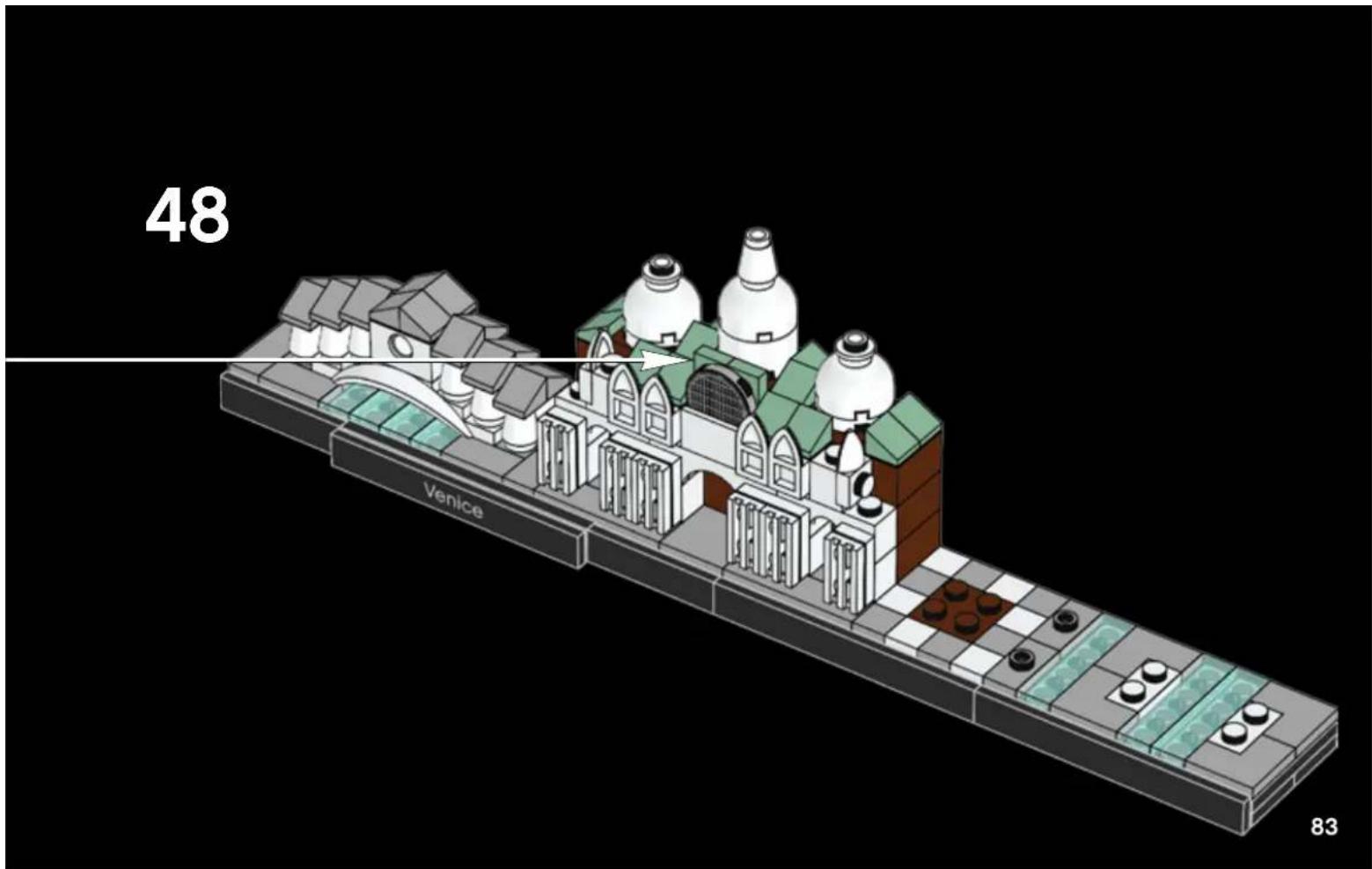

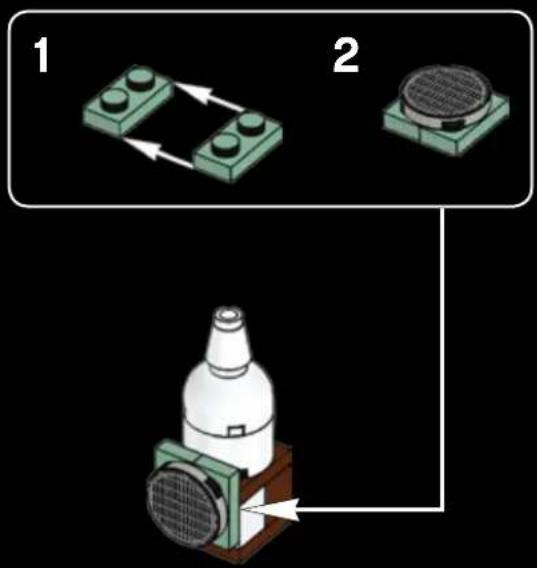

48 Venice 83

3D model of a tall, brown-tinted bottle with green dome and white top (no text or symbols)

Two LEGO blocks, one labeled '1x1x', shown against a black background (no additional text or symbols)

1

Simple 3D brown object with a label '1x' on a black background (no other text or symbols)

2

Simple 3D block diagram with label '2x' on black background (no other text or symbols)

3

Simple 3D brown object with a label '2x' on a black background (no other text or symbols)

4

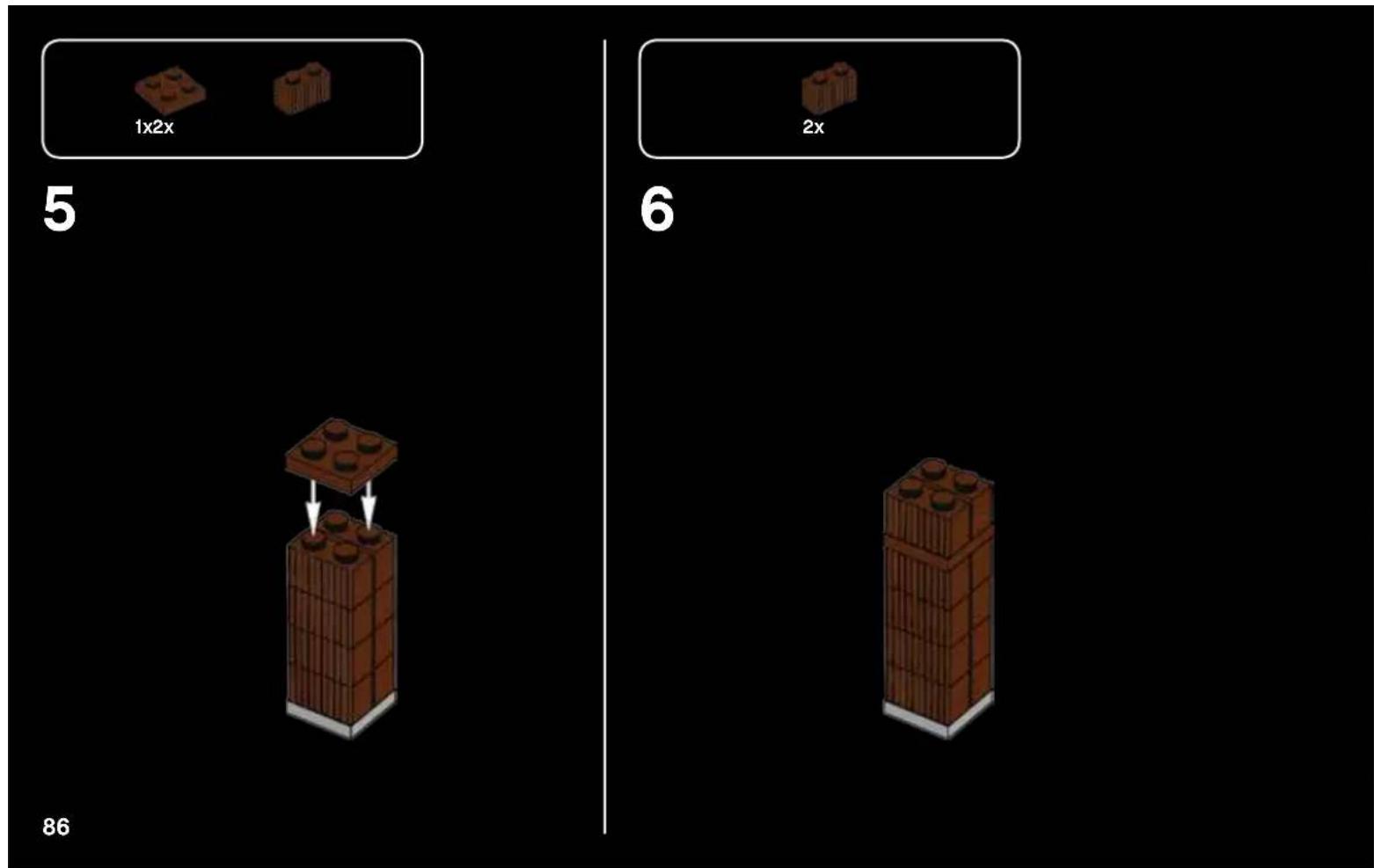

1x2x 5 2x 6 86

Simple 3D block diagram with label '2x' on black background (no other text or symbols)

7

3D illustration of a brick building with stacked bricks and cylindrical tops (no text or symbols)

Simple 3D block diagram with label '2x' on black background (no other text or symbols)

8

Illustration of a multi-story brick building with visible foundation and windows (no text or symbols)

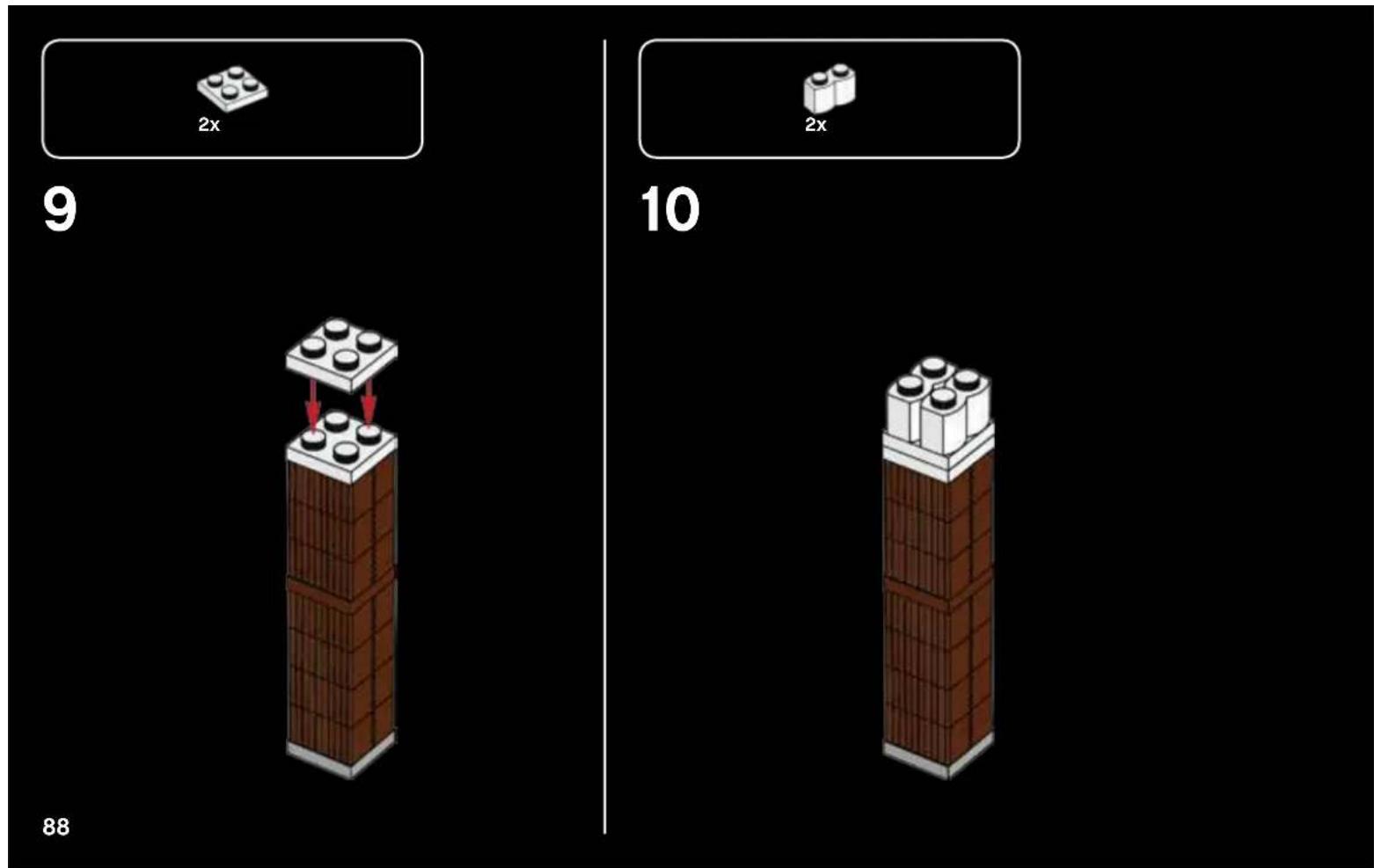

2x 9 2x 10 88

Two LEGO blocks, one labeled '1x1x', shown against a black background (no additional text or symbols)

11

Diagram of a LEGO structure with a brick base and red arrows indicating assembly or component (no text or symbols present)

Simple 3D icon of a LEGO base with rounded corners, labeled '1x' below (no text or symbols on the base itself)

12

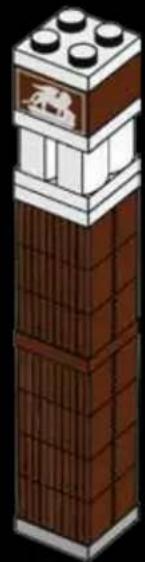

Illustration of a tall brick tower with a wooden base and decorative windows (no text or symbols)

Two 3D geometric shapes: a white cone and a green pyramid, both labeled '1x' (no additional text or symbols)

13

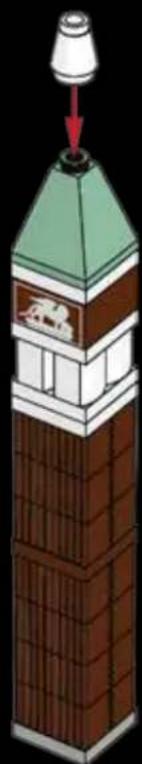

Illustration of a tall building with a green-tiled roof and a red double-headed lamp above it (no text or symbols)

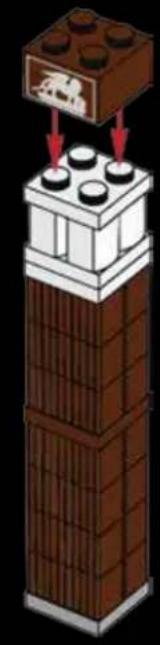

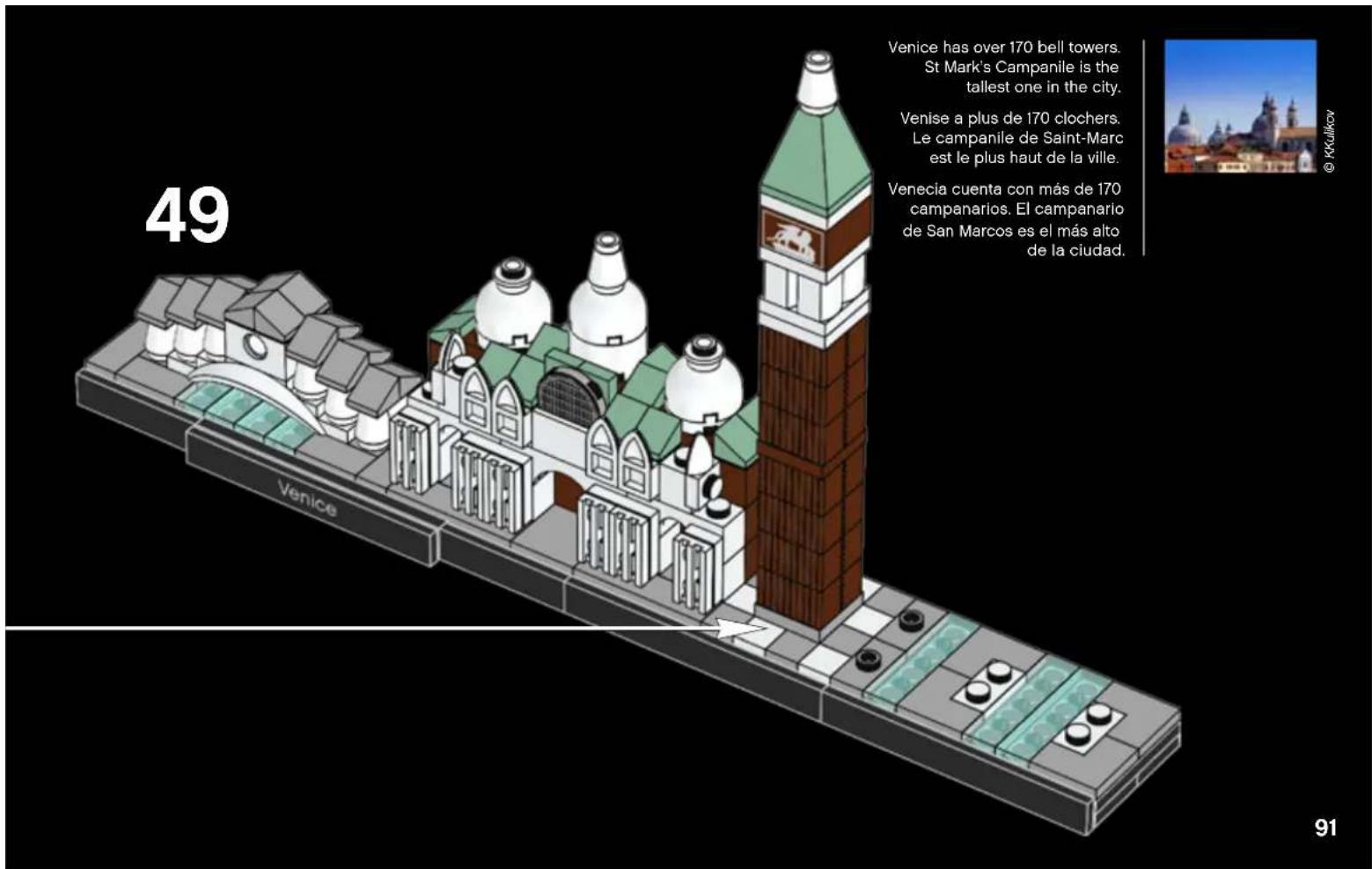

Venice has over 170 bell towers. St Mark's Campanile is the tallest one in the city. Venise a plus de 170 clochers. Le campanile de Saint-Marc est le plus haut de la ville. Venecia cuenta con más de 170 campanarios. El campanario de San Marcos es el más alto de la ciudad. 49 Venice Venice © RKalkov 91

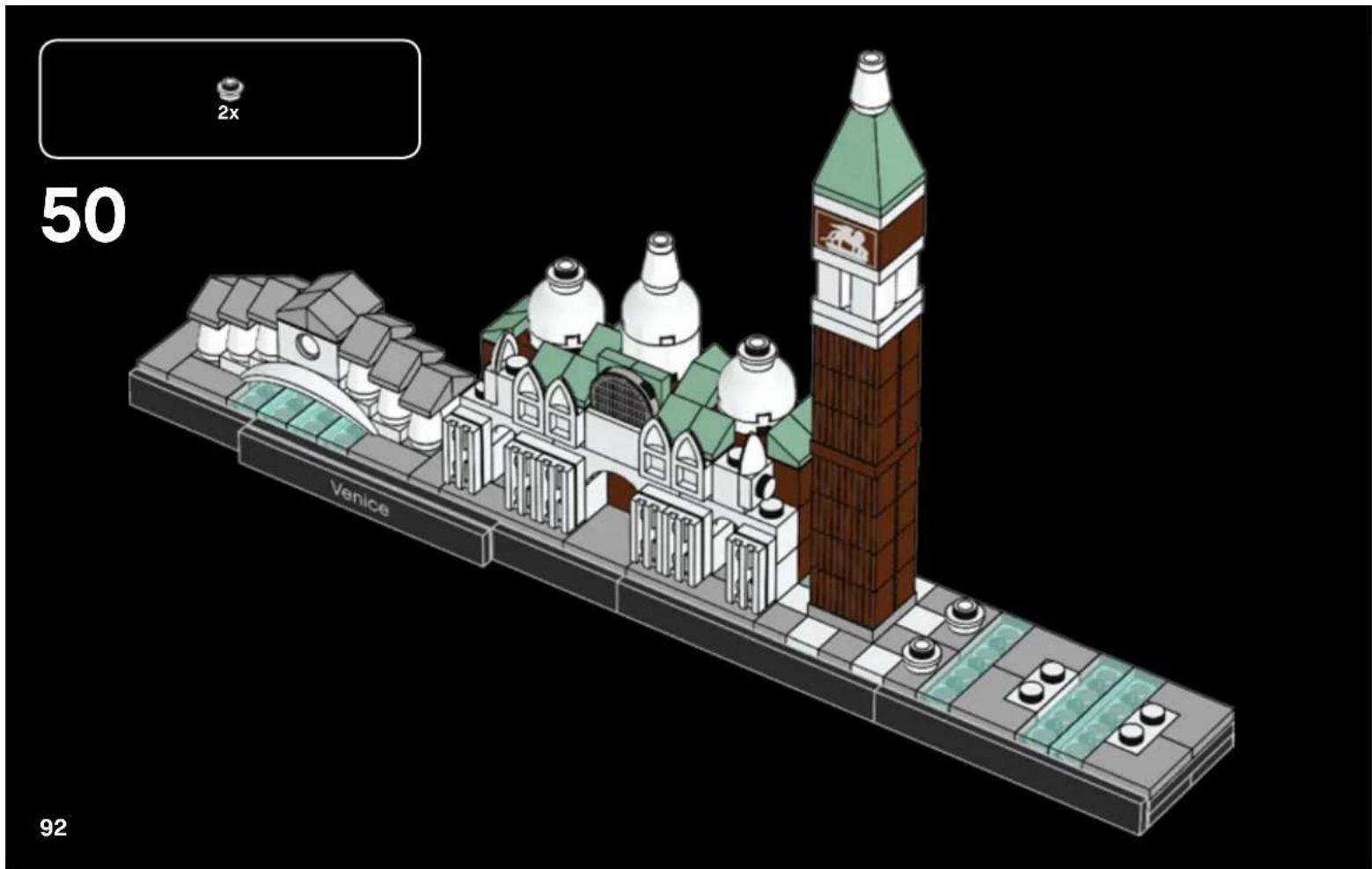

3D architectural model of Venice with a prominent clock tower and domed buildings, labeled 'Venice' at the base (no text or symbols on the model itself)

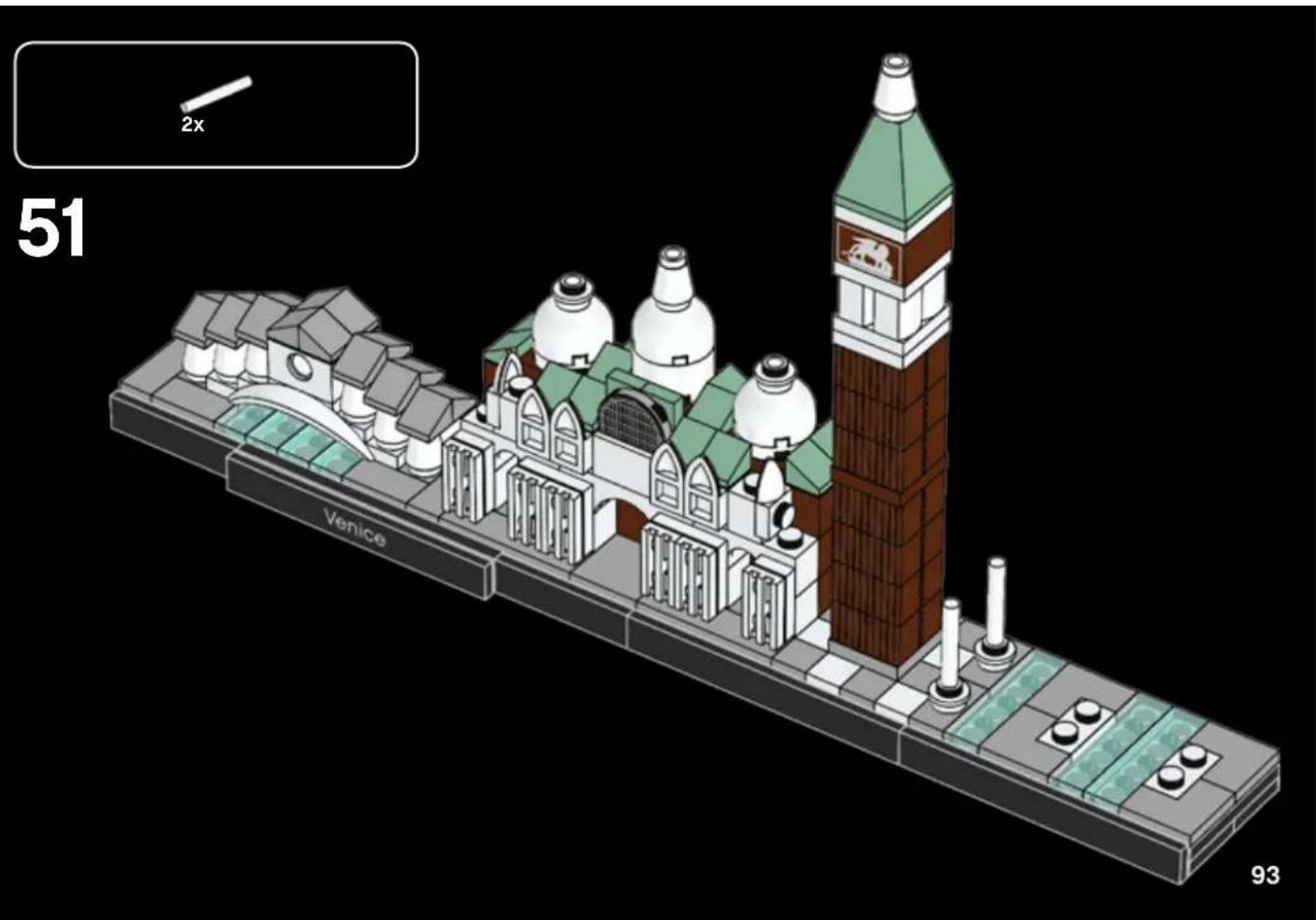

3D architectural model of Venice featuring a prominent clock tower and domed architecture (no text or symbols on the model itself)

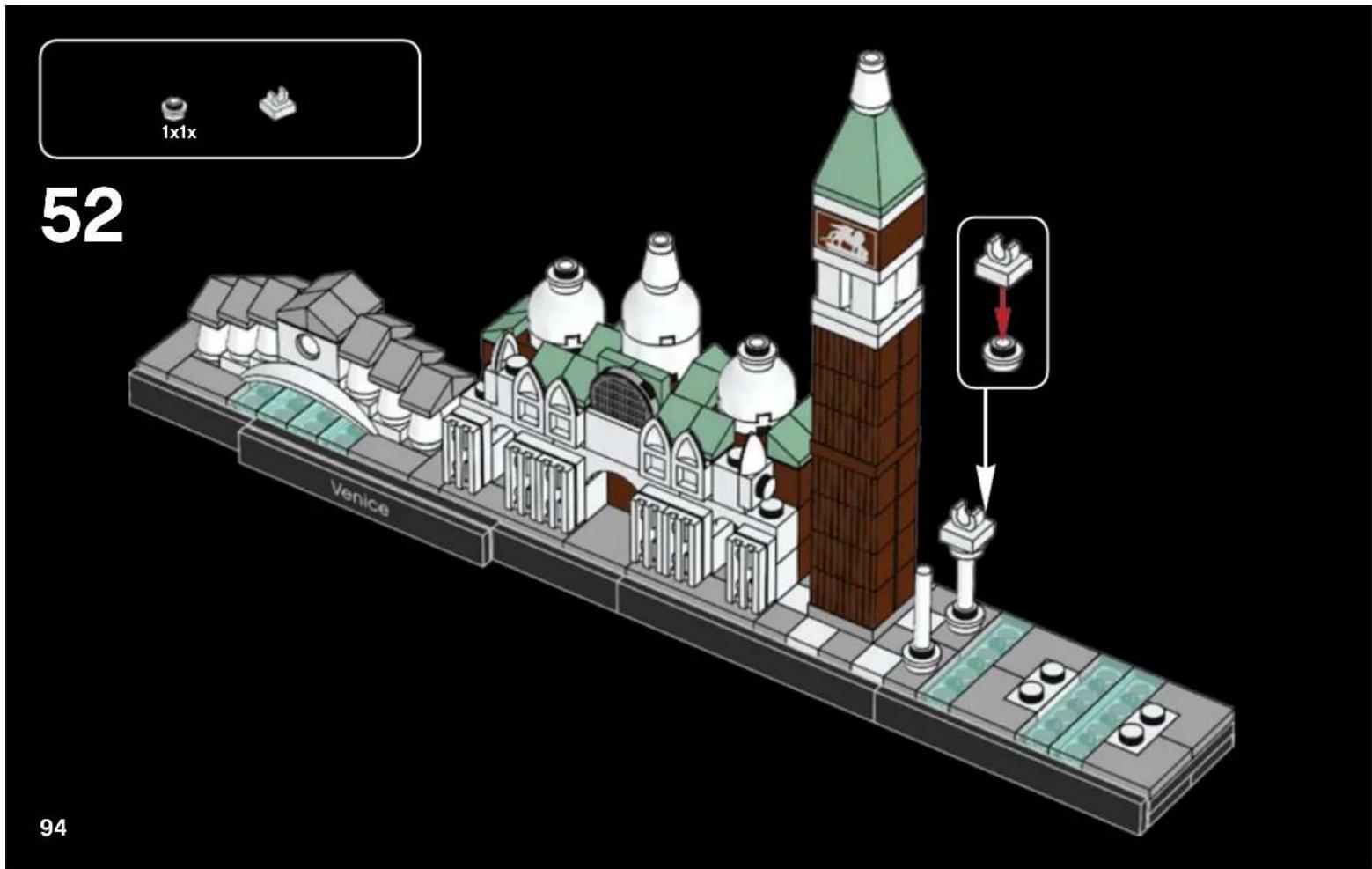

52 1x1x Venice 94

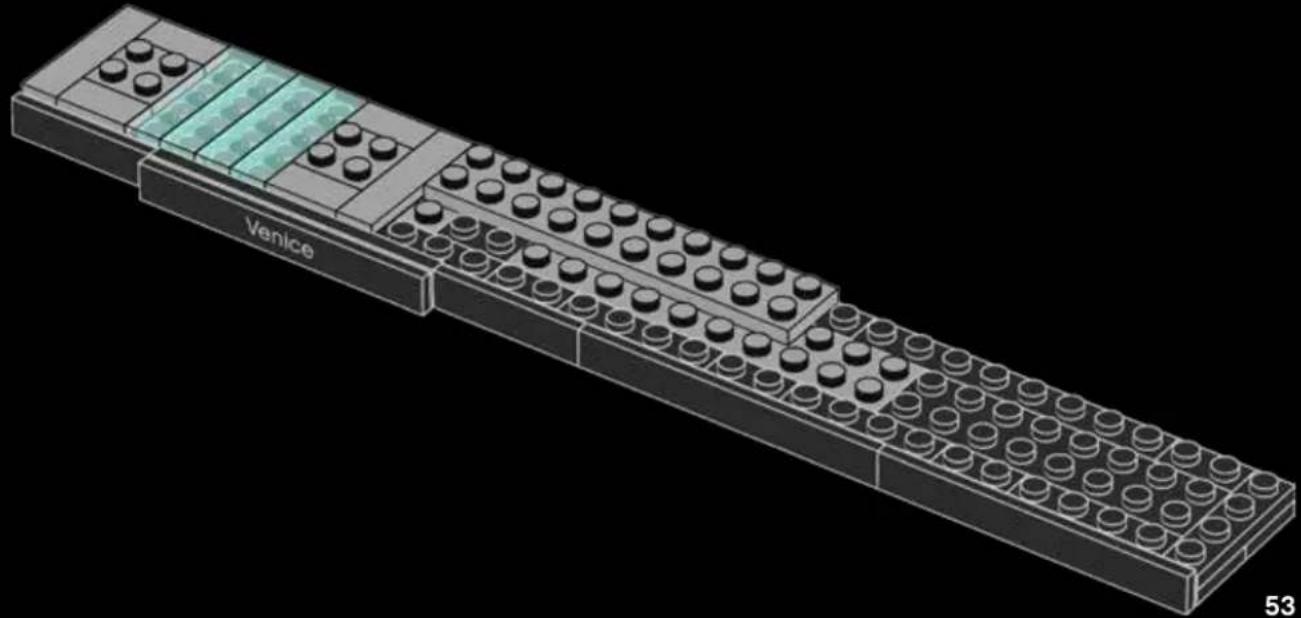

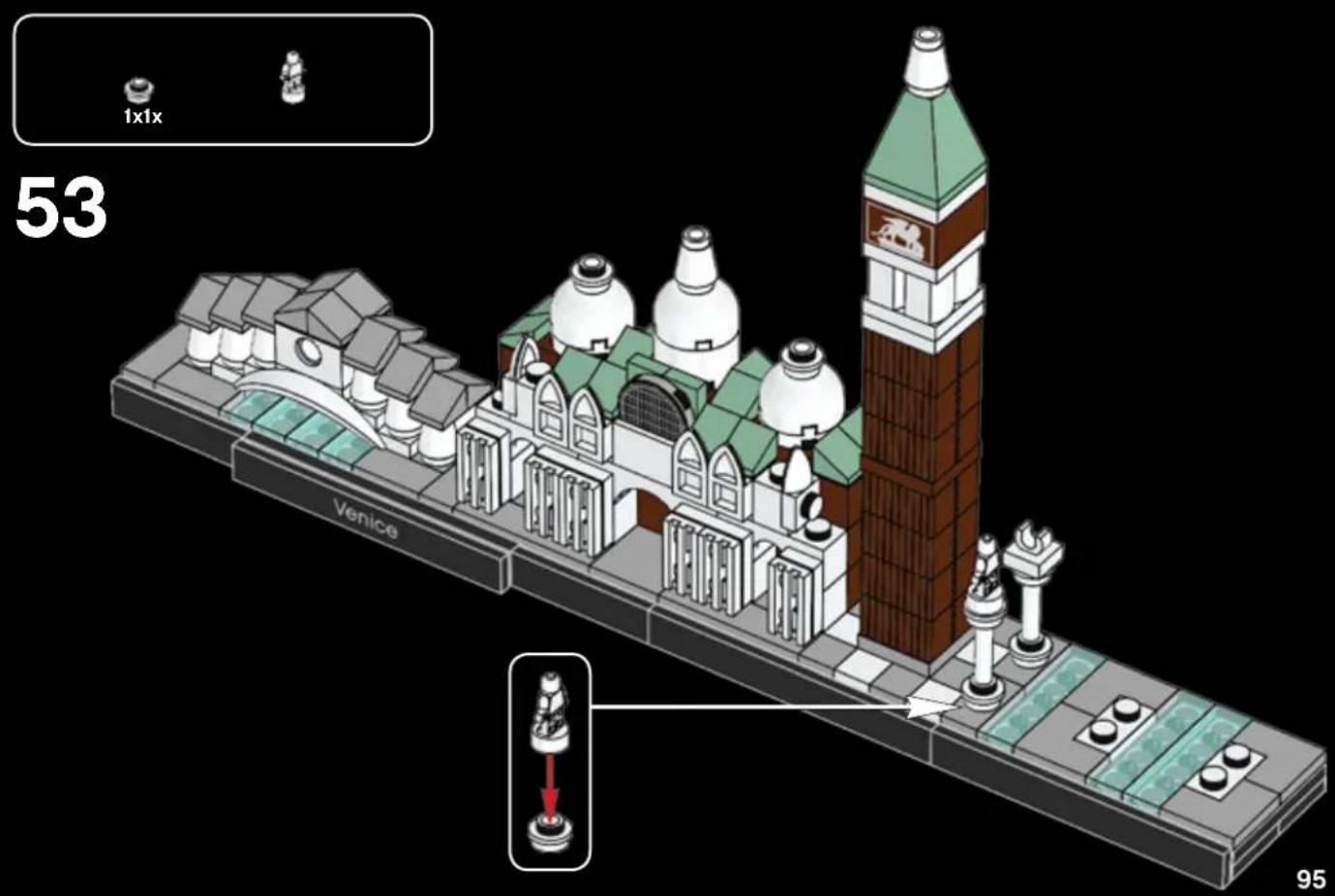

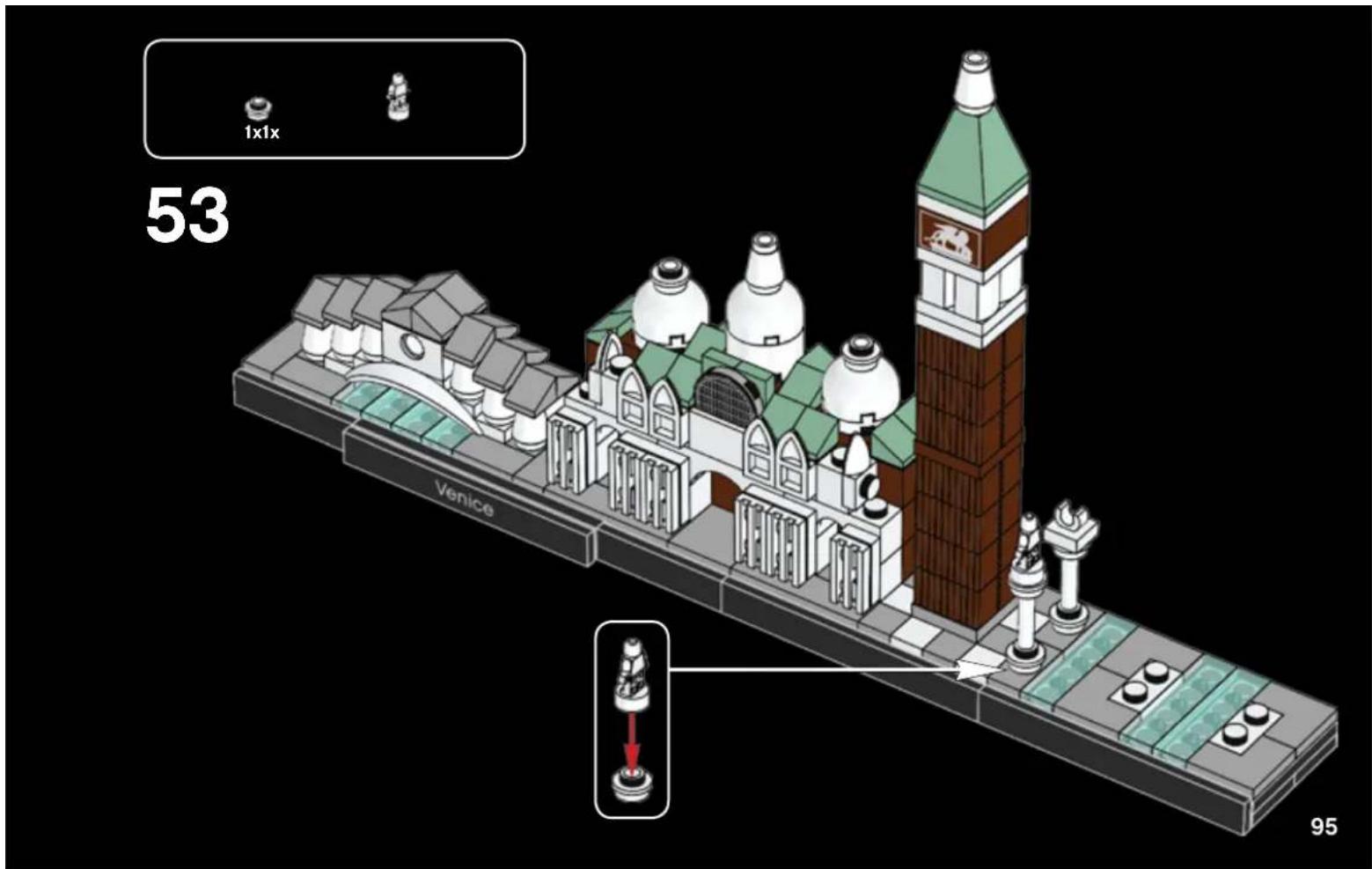

53 Venice 1x1x 95

53 Venice 95

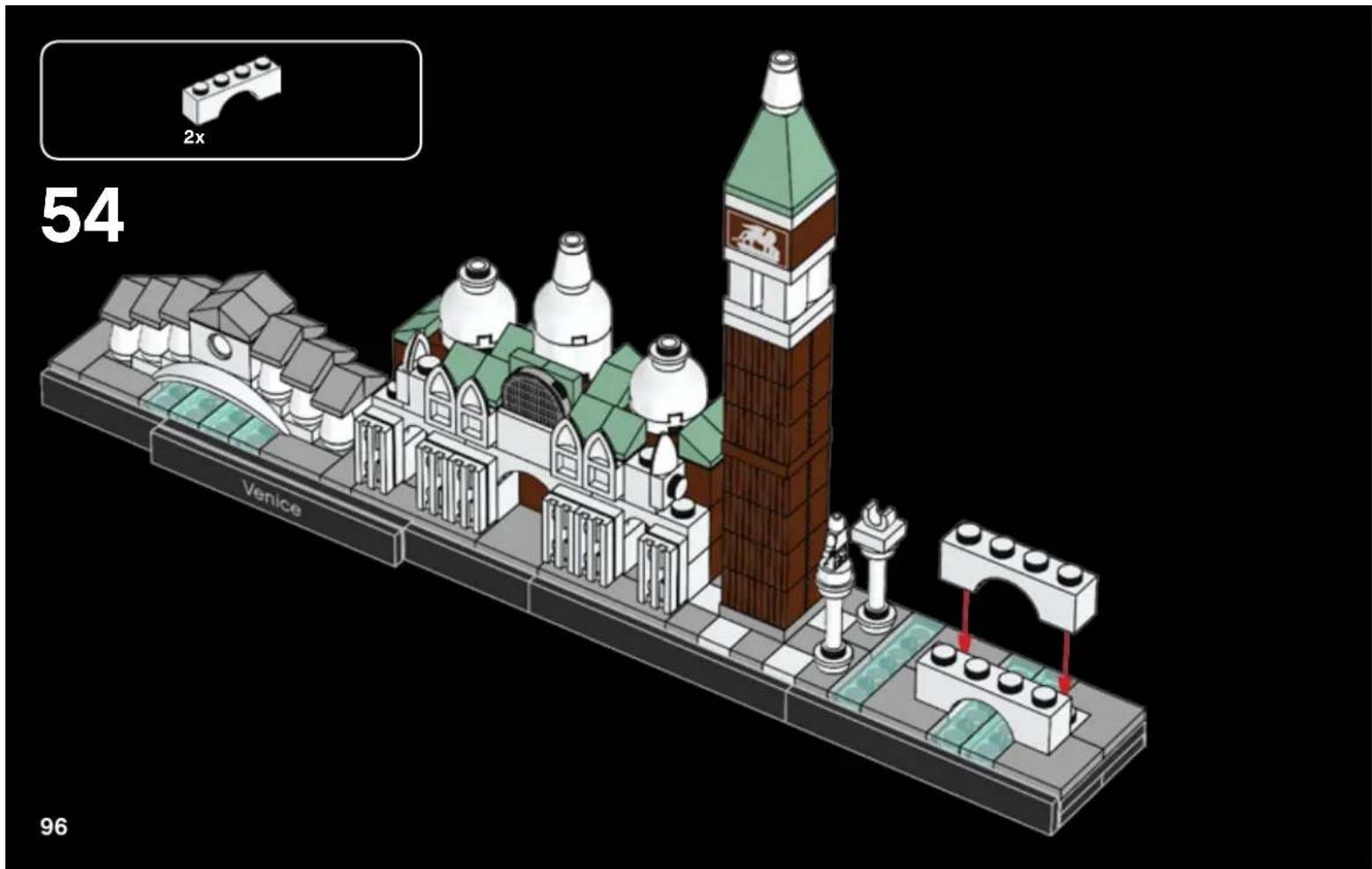

Lego-style 3D architectural model of Venice with a prominent clock tower and domed architecture (no text or symbols on the model itself)

3D architectural model of Venice featuring a prominent clock tower and domed architecture (no text or symbols on the model itself)

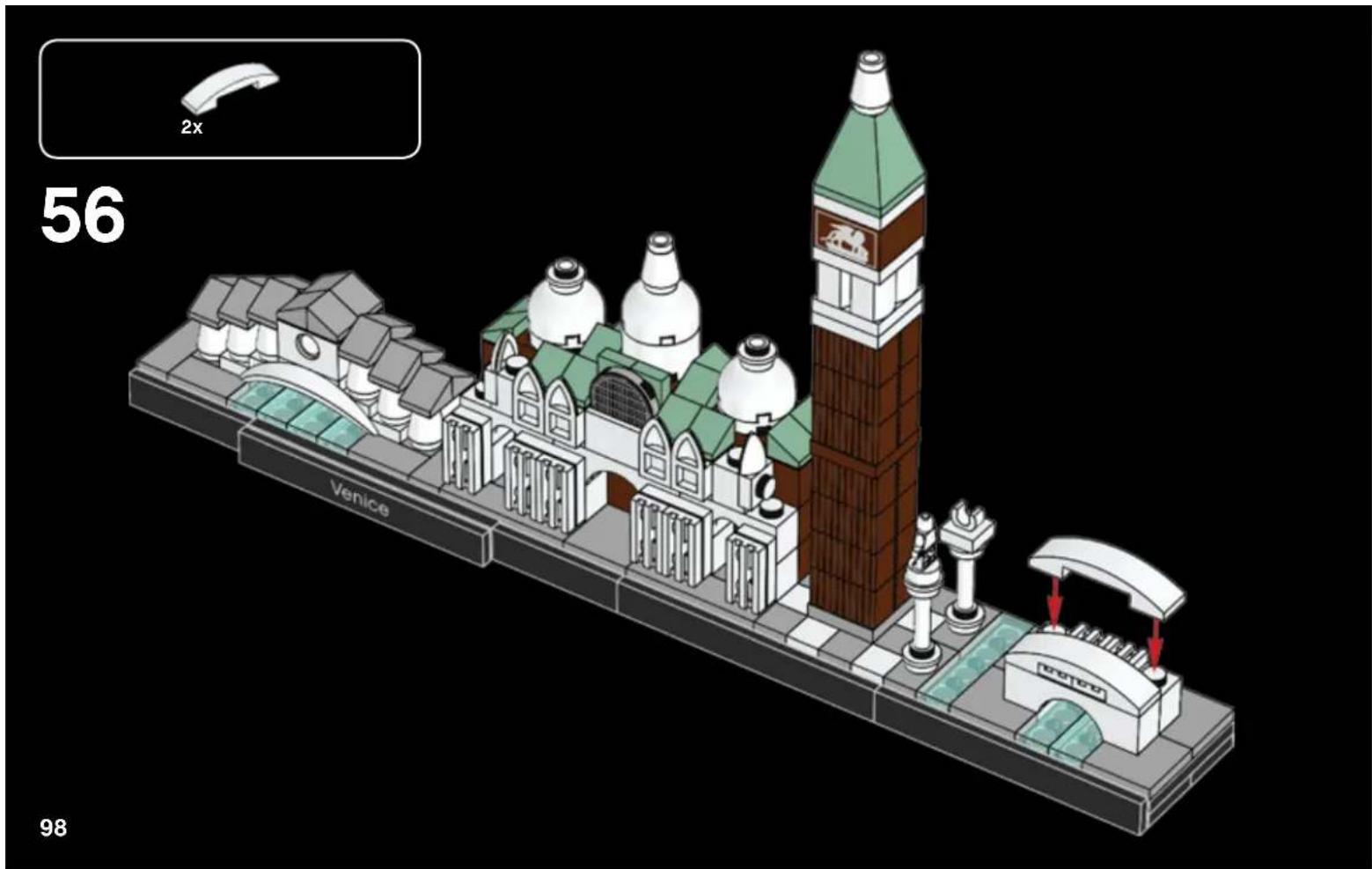

2x 56 Venice 98

Aerial view of a historic European island with a prominent church, a prominent clock tower, and surrounding water under a clear blue sky (no visible text or symbols).

LEGO® Architecture—then and now

There has always been a natural connection between the LEGO® brick and the world of architecture. Fans who build with LEGO elements instinctively develop an interest in the form and function of the structures they create. At the same time, many architects have discovered that LEGO bricks are the perfect way of physically expressing their creative ideas.

This connection was confirmed in the early 1960s with the launch of the LEGO 'Scale Model' line. It matched the spirit of the age where modern architects were redefining how houses look and people were taking an active interest in the design of their new homes. These sets were designed to be different from the normal, brightly colored LEGO boxes; they also included a book on architecture as a source of inspiration.

Decades later, architect and LEGO fan Adam Reed Tucker revived the idea of expressing architecture using LEGO bricks and in partnership with the LEGO Group,

launched the LEGO Architecture line that we know today. His first models, and the original sets in the current LEGO Architecture series, were interpretations of famous skyscrapers from his hometown of Chicago. Since then LEGO Architecture has developed and evolved, first with well-known buildings from other cities in the United States, and now with iconic structures from Europe, the Middle East and Asia.

The introduction of our LEGO Architecture Studio set echoes the ambitions of the earlier LEGO 'Scale Model' line and widens the potential of the LEGO Architecture series. Now you can enjoy building and learning about specific landmark buildings, or create exciting architectural models from your own fantasy. An inspiring 270-page book, featuring a number of renowned architects from around the world, guides you through the principles of architecture and encourages you in your own creative building.

Collection of LEGO building blocks and modules in open and open views, no visible text or symbols on the main objects.

Celebrate the world of architecture and collect all the models Célébrez le monde de l'architecture et collectionnez tous les modèles Celebra el mundo de la arquitectura y colecciona todos los modelos

Architectural line drawing of a tall tower with internal structural elements (no text or symbols)

21013
Big Ben

Architectural line drawing of a multi-story building with symmetrical windows and a central tower (no text or symbols)

21024
Louvre

Line drawing of the Eiffel Tower structure (no text or symbols)

21019
The Eiffel Tower
La tour Eiffel
La torre Eiffel

Architectural line drawing of a traditional building with two figures at the base (no text or symbols)

21020
Trevi Fountain
La fontaine de Trevi
Fontana de Trevi

21022
Lincoln Memorial
Le monument de Lincoln
Monumento a Lincoln

Line drawing of a city skyline featuring the Oriental Pearl Tower and modern skyscrapers (no text or symbols)

21027
Berlin
Berlin

Line drawing of a city skyline featuring iconic skyscrapers and buildings (no text or symbols)

21028
New York City
New York
Nueva York

Architectural line drawing of the Burj Khalifa (no text or symbols)

21031
Burj Khalifa

References

Pictures -

© Shutterstock

© Iakov Kalinin

© pio3

© KKulikov

© TTstudio

© Kite_rin

Text -

www.comune.venezia.it

www.basilicasanmarco.it

Références

Images -

© Shutterstock

© Iakov Kalinin

© pio3

© KKulikov

© TTstudio

© Kite_rin

Texte -

www.comune.venezia.it

www.basilicasanmarco.it

Referencias

Fotografías -

© Shutterstock

© Iakov Kalinin

© pio3

© KKulikov

© TTstudio

© Kite_rin

Texto -

www.comune.venezia.it

www.basilicasanmarco.it

4653049

6135202

346026

2x 416226

6x 303426

4586557

4655080

6136563

14x 4223303

3x 4211149

4x 4216695

1x 6142085

2x 4211189

2x 4216668

5x 4211201

4521921
6x 4211415

IX 6052204

6066097

4x 4211414

4x 4211397

1x 4211413

6065824

2x

4x 4211356

4211462

Customer Service

Kundenservice

LEGO.com/service or dial

LEGO Architecture Venice LEGO and the LEGO logo are trademarks of the/ sont des marques de commerce du/ son marcas registradas de LEGO Group. ©2016 The LEGO Group. 6160898 LEGO.com/architecture

LEGO and the LEGO logo are
trademarks of the/
sont des marques de commerce du
son marcas registradas de LEGO Group. ©2016 The LEGO Group. 6160898
