RY18LMX46A

Important!	It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E’ importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą oraz konserwacją produktu.
Dûležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepoužívejte tento výrobek dříve, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikönyvben található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea întreținerii și opera area produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminj, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Önemli!	Ürünü monte etmeden, kullanmadan ve bakımlı yapmadan önce bu kılavuzdaki talimatları okumanız önemlidir.
Прогохή!	Еівαι полú σημαντικό να διαβάσετε τις οδηγίες στο παρόν εγχειρίδιο πριν συναρμολογήσετε, συντηρήσετε ή λειτουργήσετε το προϊόν.

Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeżeniem modyfikacji technicznych | Změny technických údajů vyhrazeny | A můszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Právo na technické zmeny je vyhradené | Подлежи на технически модификации | Є ob’єктом для технічних змін | Teknik değişikliğe tabidir | техvíków тротпотоїнσεων.

EN ORIGINAL INSTRUCTIONS

Safety, performance, and dependability have been given top priority in the design of your cordless lawnmower.

INTENDED USE

The cordless lawnmower is intended for outdoor use only.

The product is designed for domestic lawn mowing. It is a pedestrian-controlled walk-behind lawnmower designed to be pushed by hand.

The product should never be operated with the wheels off the ground. It should not be pulled or ridden on.

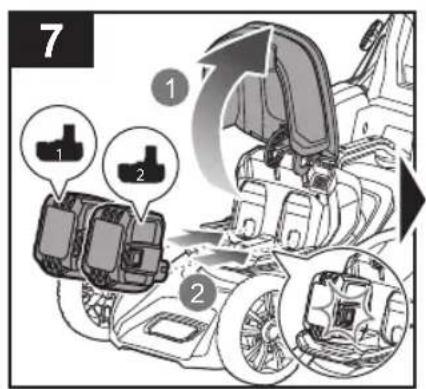

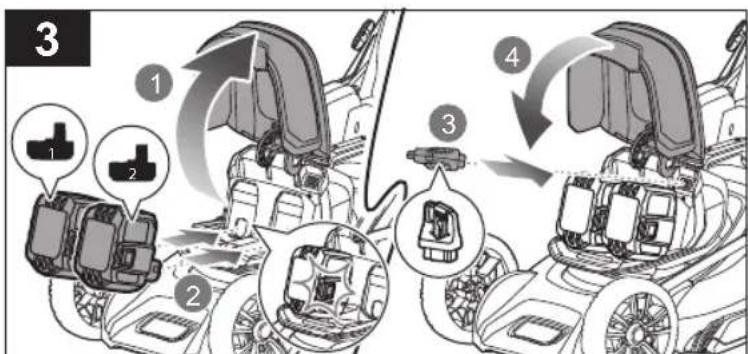

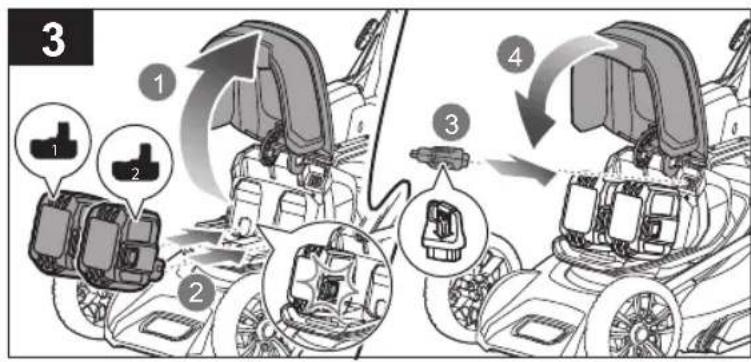

The product requires two 18V battery packs to function. Ensure that a battery pack is inserted into each battery port. Do not use the product for any other purpose.

GENERAL PRODUCT SAFETY WARNINGS

⚠ WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) product or battery-operated (cordless) product.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

■ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
■ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

PERSONAL SAFETY

■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment

of inattention while operating power tools may result in serious personal injury.

■ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
- Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with switch is dangerous and must be repaired.
  ■ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
  ■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  ■ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
- Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
■ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

■ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
■ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

LAWNMOWER SAFETY WARNINGS

• Do not use the lawnmower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
  ■ Thoroughly inspect the area for wildlife where the lawnmower is to be used. Wildlife may be injured by the lawnmower during operation.
  ■ Thoroughly inspect the area where the lawnmower is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury.
  ■ Before using the lawnmower, always visually inspect to see that the blade and the blade assembly are not worn or damaged. Worn or damaged parts increase the risk of injury.

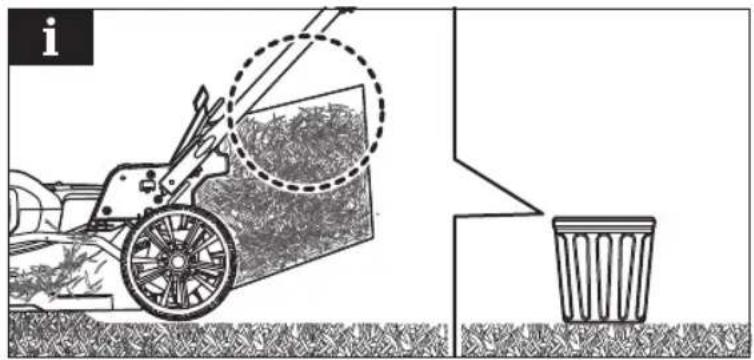

• Check the grass catcher frequently for wear or deterioration. A worn or damaged grass catcher may increase the risk of personal injury.

• Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury.

• Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fire.
  ■ While operating the lawnmower, always wear non-slip and protective footwear. Do not operate the lawnmower when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving blade.
  ■ While operating the lawnmower, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.
• Do not operate the lawnmower in wet grass. Walk, never run. This reduces the risk of slipping and falling which may result in personal injury.
• Do not operate the lawnmower on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.

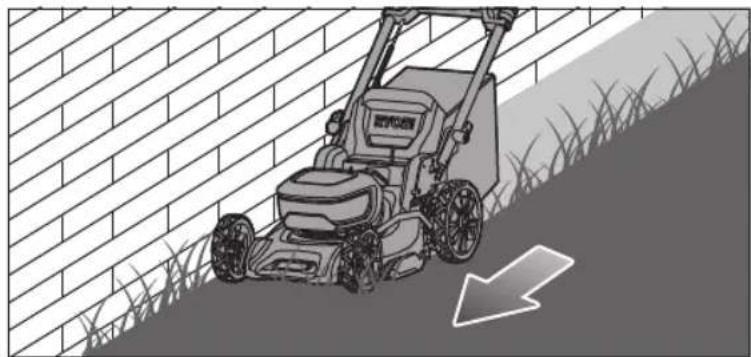

• When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
  ■ Use extreme caution when reversing or pulling the lawnmower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation.
• Do not touch blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.
• When clearing jammed material or cleaning the lawnmower, make sure all power switches are off and the battery pack is disconnected. Unexpected operation of the lawnmower may result in serious personal injury.

ADDITIONAL SAFETY WARNINGS

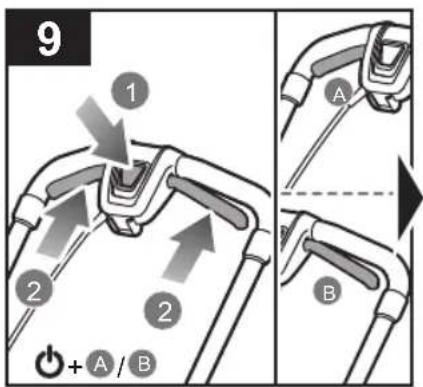

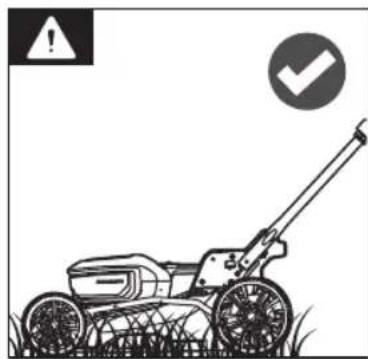

■ The product must be started with the user behind the handlebars in the operator safety zone. Never start the product if:

• The handles are not in the correct position and secured properly.
• The grass discharge opening is exposed and is not protected by the grass catcher or the grass discharge cover.

• Hands and feet of all persons are not clear of the cutting enclosure.

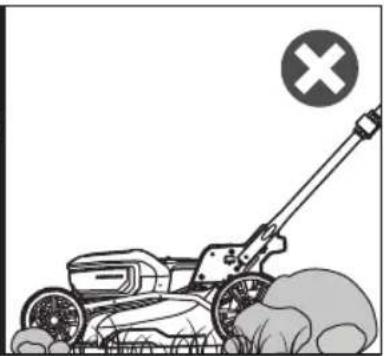

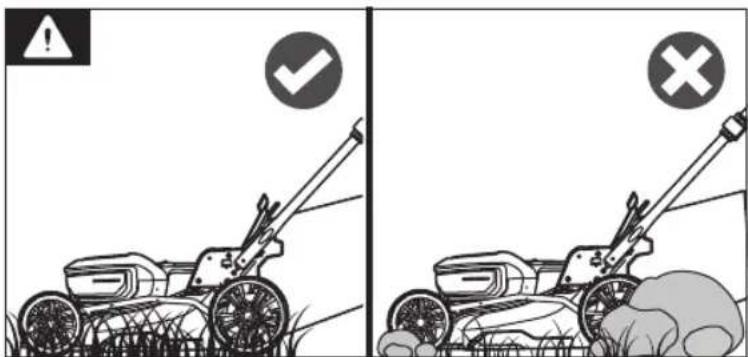

• Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects. Uneven terrain could cause a slip-and-fall accident.
  ■ Turn off the product, remove the isolator key and the battery pack, and allow the blade to stop if the product has to be tilted for transportation, when crossing surfaces other than grass, and when transporting the product to and from the work area.

• Do not tilt the product when turning it on or while it is running. If absolutely necessary, you may raise the front of the product by no more than 5 cm to enable easier starting. Press down on the handlebar to raise the front of the product. Always return the product to its normal position with all the wheels on the ground before cutting. Tilting the product exposes the blade and increases the probability of objects being thrown and accidentally making contact with the blade.

■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop:

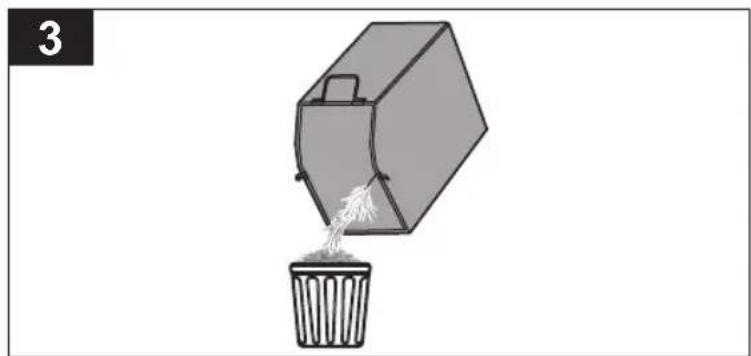

• whenever leaving the product unattended (including disposal of grass clippings)
• before clearing blockages or unclogging the discharge chute
  • before checking, cleaning, or working on the product
• before removing the grass catcher or opening the grass discharge chute cover
• after striking a foreign object; inspect the product for damage and make repairs as necessary before restarting and operating the product
• if the product starts to vibrate abnormally (check immediately)

-inspect for damage, particularly the blades

-replace or repair any damaged parts

-check for and tighten any loose parts

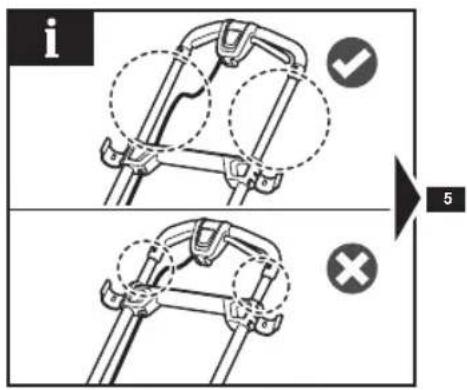

■ Always ensure that the motor control cable is never trapped, pinched, or otherwise damaged during assembly or when folding the handle. Never apply power to the product if this cable is damaged. Have the product serviced by an authorised service centre only.
■ Injuries may be caused, or aggravated, by prolonged use of the product. When using the product for prolonged periods, ensure to take regular breaks.
■ Operate the product only in temperatures between 0 °C and 40 °C.

ADDITIONAL BATTERY SAFETY WARNINGS

■ To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse the tool, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.
- Charge the battery pack in a location where the ambient temperature is between 10 °C and 38 °C.
■ Store the battery pack in a location where the ambient temperature is between 0 °C and 20 °C.
■ Use the battery pack in a location where the ambient temperature is between 0 °C and 40 °C.

PRODUCT FEATURES

OVERLOAD AND OVERHEAT PROTECTION

The product has an overload protection device. When overloading is detected, the product automatically turns off. If the overload protector is actuated, the on/off lever must be released. Press the start button, and squeeze the on/off lever to restart the product. If the product still does not start, reinstall the battery pack.

The battery pack has overheat protection. Excessive temperatures will cause the battery to stop powering the product. If the battery pack is too warm, allow it to cool down before resuming operation. If the product still does not work, recharge the battery.

NOTE: The battery pack LED indicator will not work if the battery protection feature has caused the battery pack to stop powering the product. Turn off the product or remove the battery pack from the product, and the battery pack LED indicator will resume normal function.

GENERAL MOWING TIPS

The run time of the battery depends on the condition, length, and density of the grass.

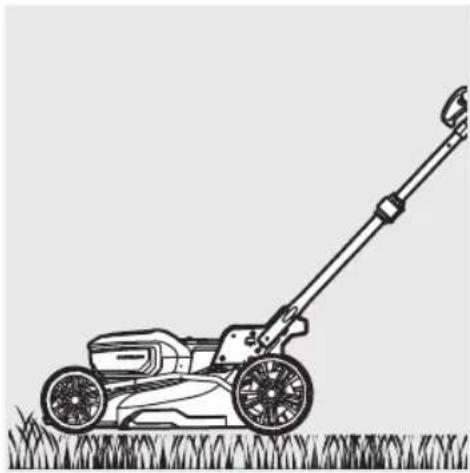

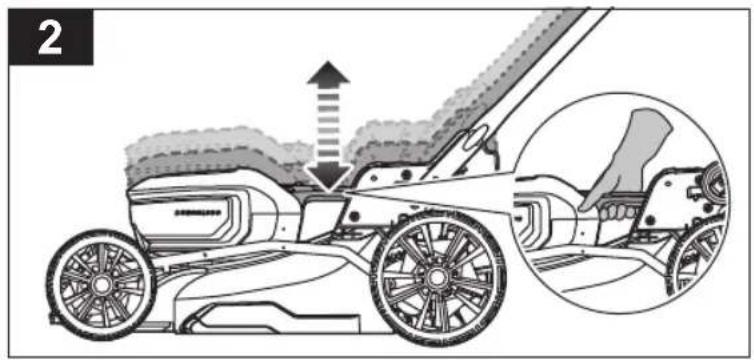

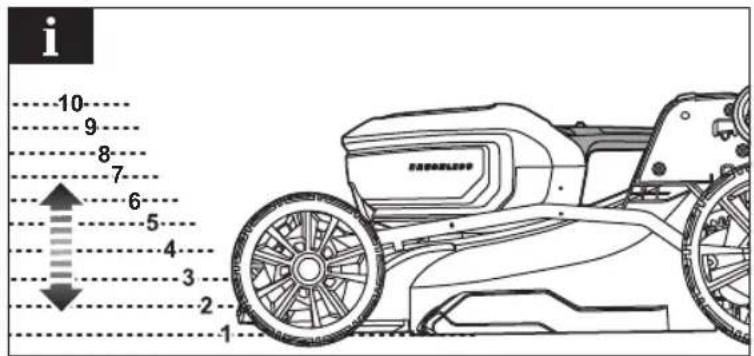

Adjust the cutting height of the lawnmower to suit the current condition of the lawn.

■ For best performance, always cut off one-third or less of the total height of the grass.
- When cutting long grass, reduce walking speed to allow for more effective cutting and a proper discharge of the clippings.
■ A higher cutting height extends the run time of the battery pack.

TRANSPORTATION AND STORAGE

■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop. Allow the product to cool down before storing or transporting.

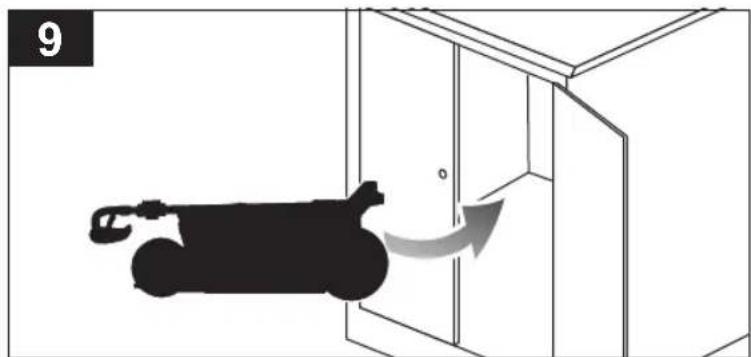

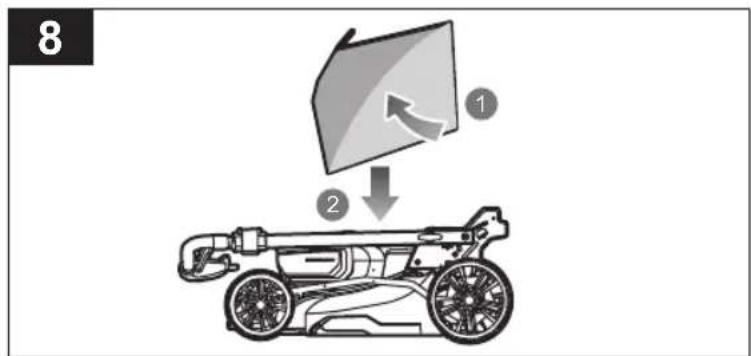

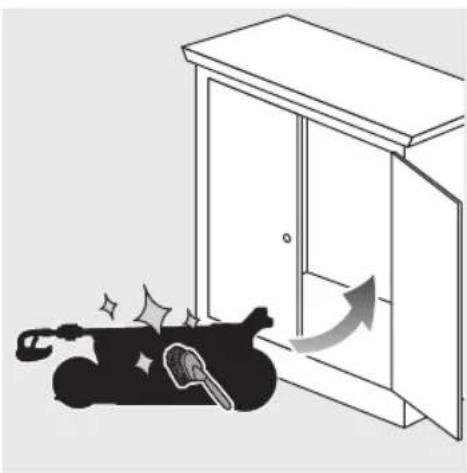

■ Remove all foreign materials from the product. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and deicing salts. Do not store the product outdoors.
■ Store the product in a location where the ambient temperature is between 0 °C and 40 °C.

■ Use extreme caution when lifting or tilting the product for maintenance, cleaning, storage, or transportation. The blade is sharp; keep all body parts away from the blade while it is exposed.

■ For transportation in vehicles, remove the isolator key and the battery pack, and secure the product against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

• Use only original manufacturer's replacement parts accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.
  ■ Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre only.
  ■ You may make adjustments and repairs described in this manual. For other repairs, have the product serviced by an authorised service centre only.
  ■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop before any cleaning or maintenance task.
• Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure that the product is in safe working condition.

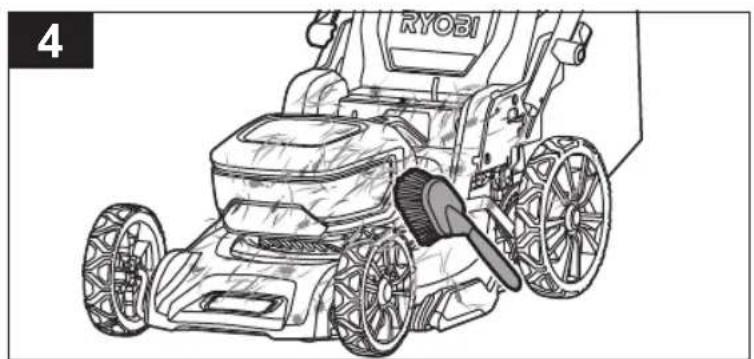

■ After each use, clean the plastic parts with a soft, dry cloth. Any part that is damaged should be properly repaired or replaced by an authorised service centre.

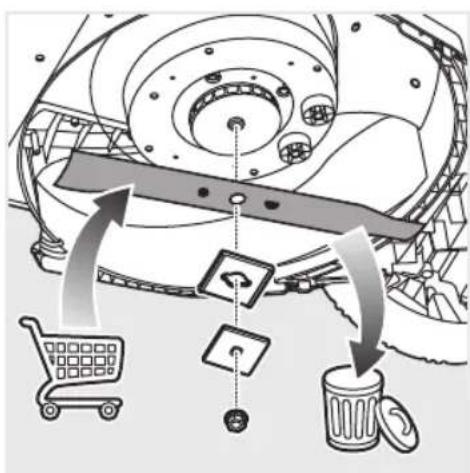

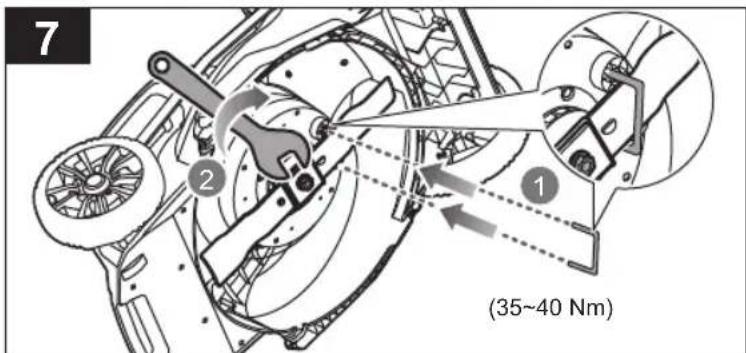

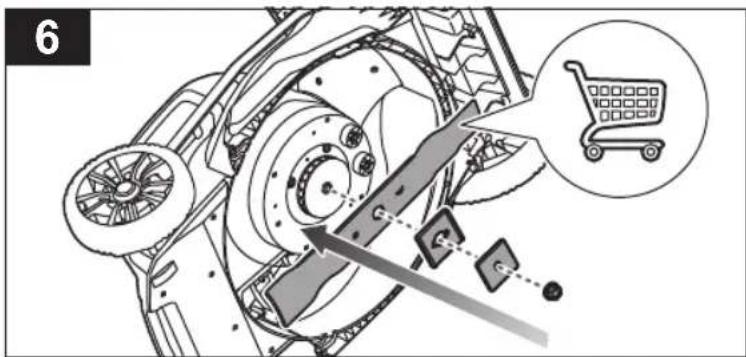

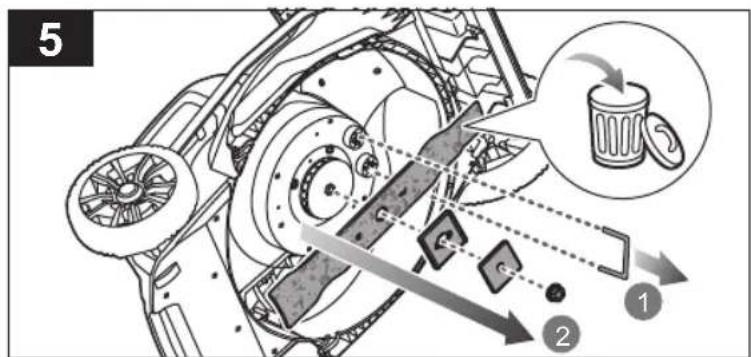

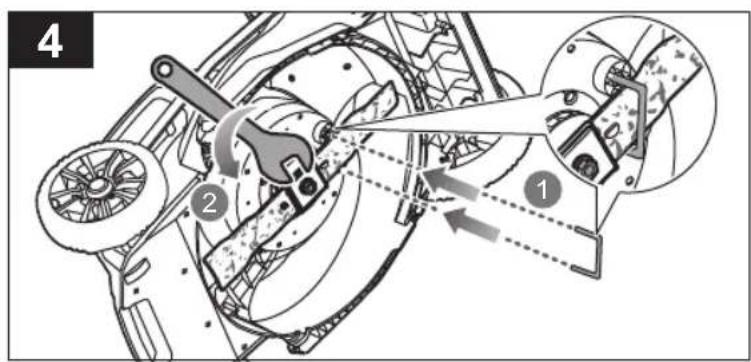

- Replace damaged blades and bolts in sets to preserve balance.
■ Be careful during adjustment of the product to prevent entrapment of the fingers between moving blades and fixed parts of the product.
■ The blade on the product is sharp. Use extreme caution, and wear heavy-duty gloves when fitting, replacing, cleaning, or checking bolt security.
- The blade bolts must be adequately tightened. See the manufacturer's recommendations for blade bolt torque, which can be found in the product specification table in this manual.
■ Be aware that even though the power source is turned off, the blades can still be moved.
■ Never remove or modify safety components.

CLEARING BLOCKAGES

■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop.

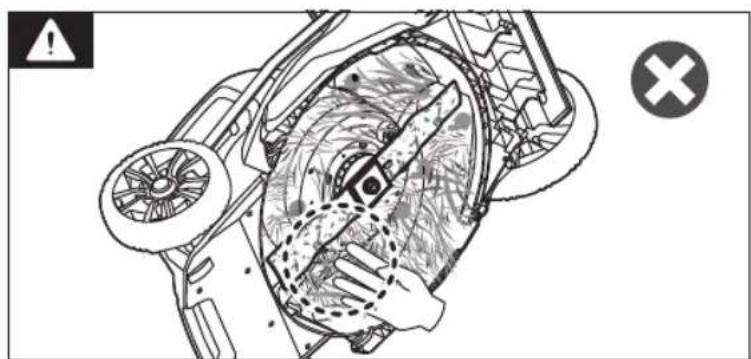

■ Always wear heavy-duty gloves when checking or clearing a blockage. The blades are sharp, and the blockage itself could be a sharp object.

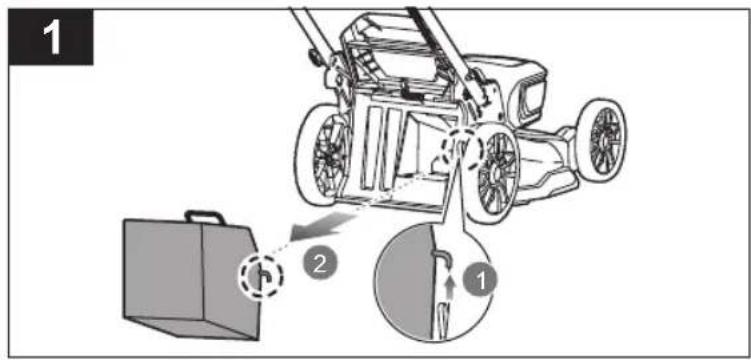

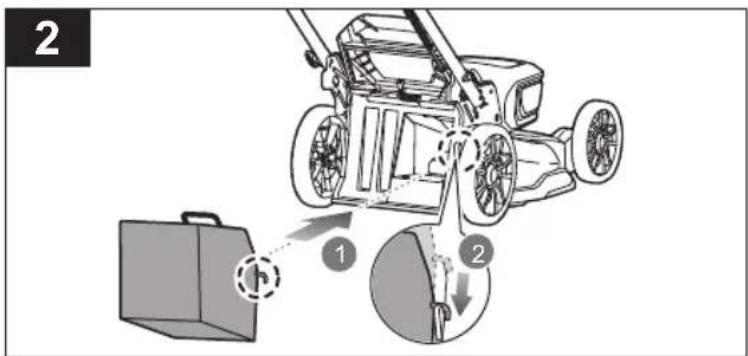

■ Remove the grass catcher. Check and carefully clear the grass catcher for obstructions.
- Check the grass discharge chute, and carefully clear blockages.

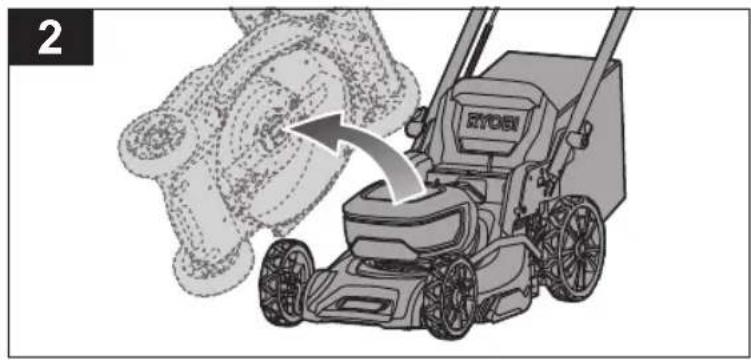

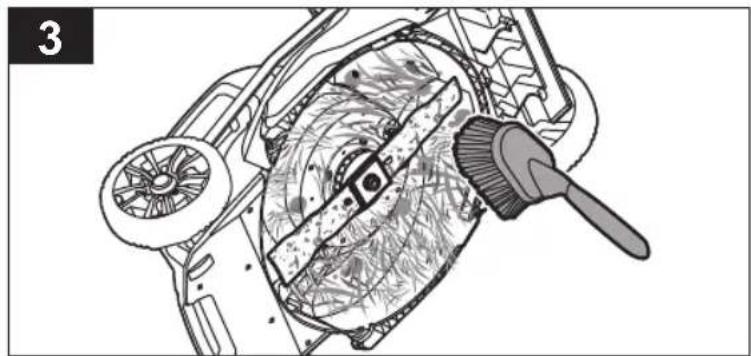

■ Turn the product on its side. Check its underside and the area around the blade. Carefully remove any blockages. Remember that the blade may move during cleaning.

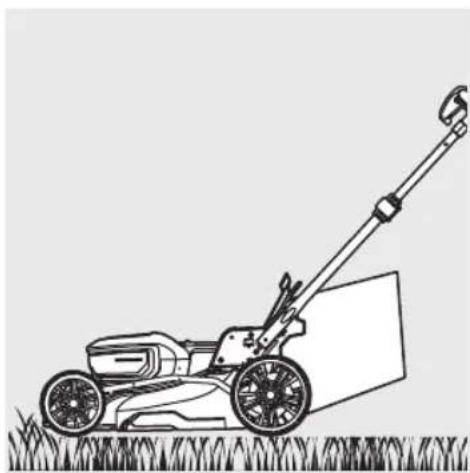

KNOW YOUR PRODUCT

See page 121.

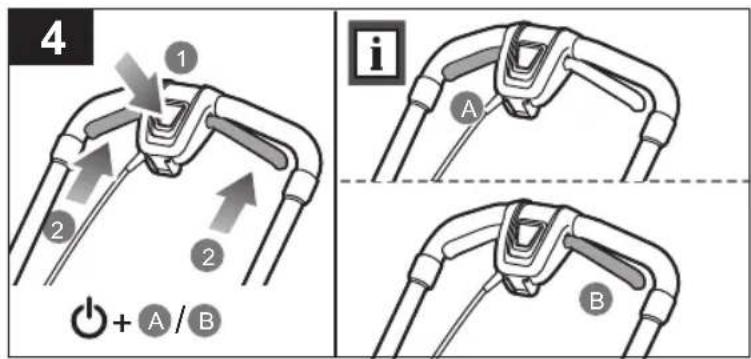

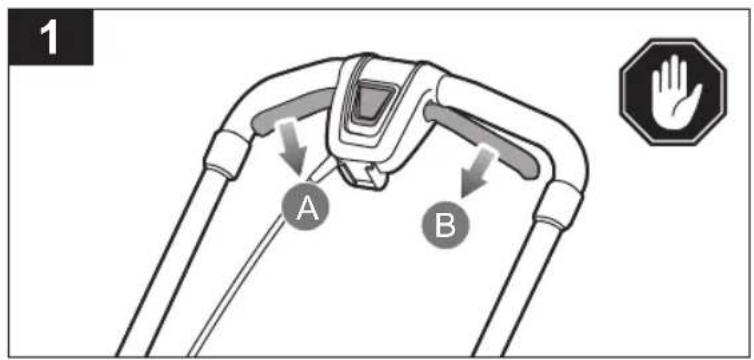

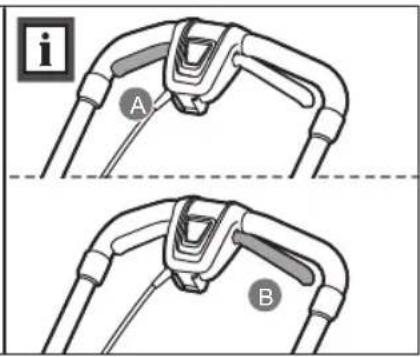

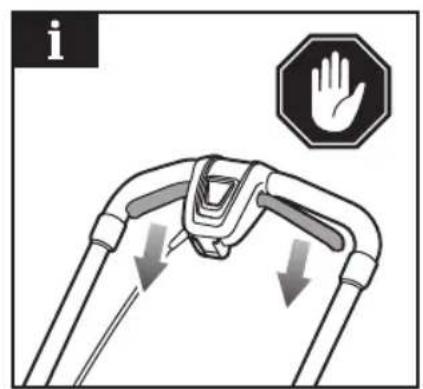

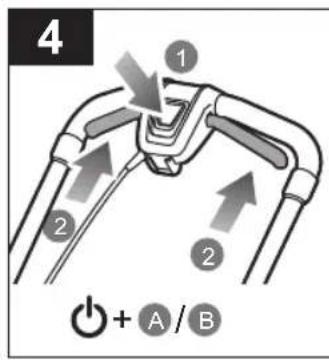

1. On/Off lever
2. Start button
3. Motor control cable

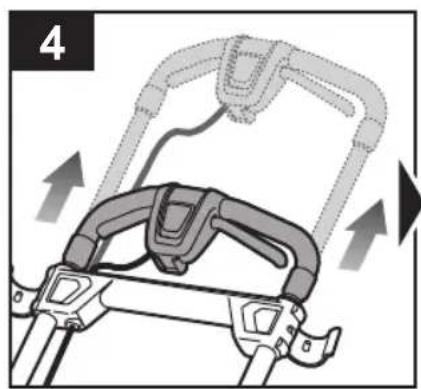

4. Telescopic handle

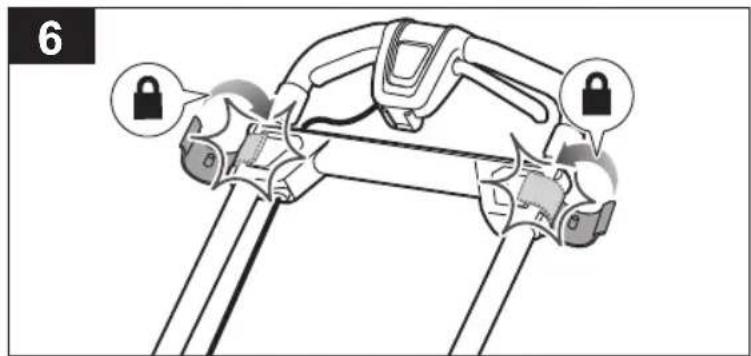

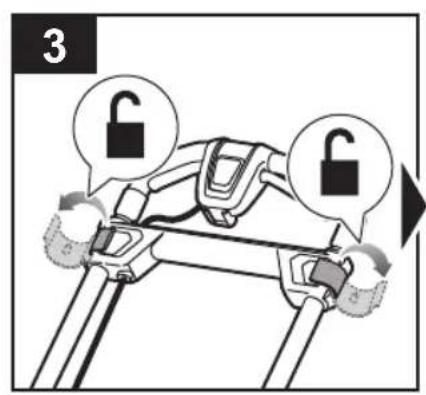

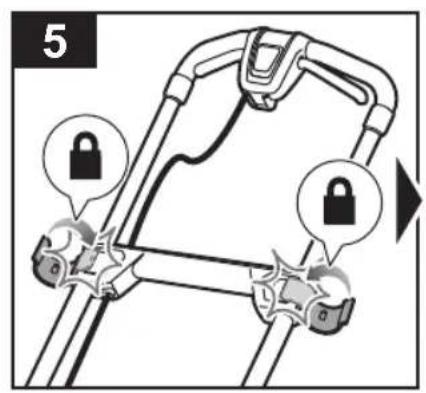

5. Handle lock

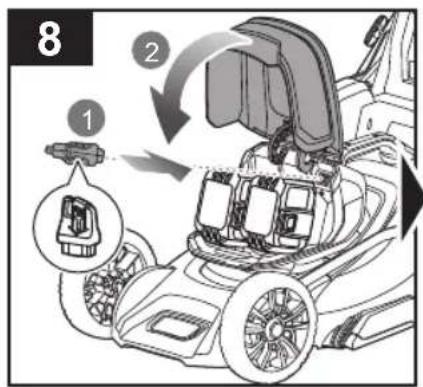

6. Isolator key
7. Grass discharge chute cover
8. Cutting height adjustment lever
9. Quick-release fastener

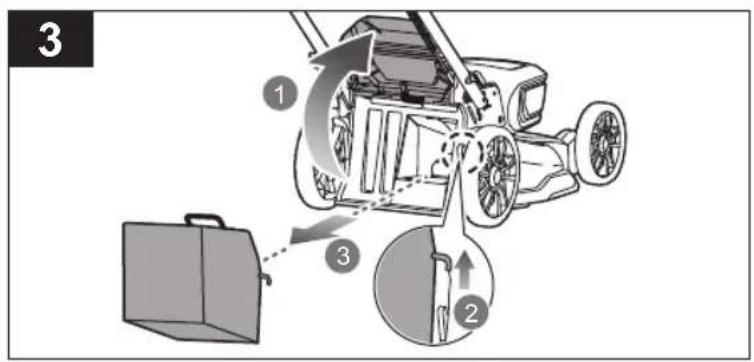

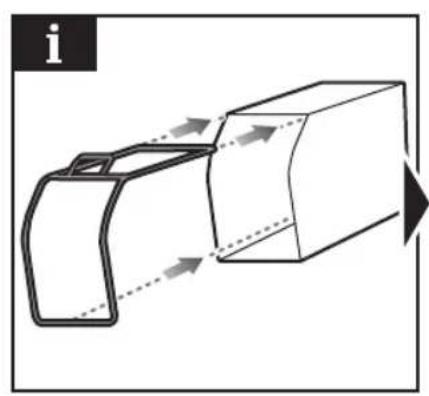

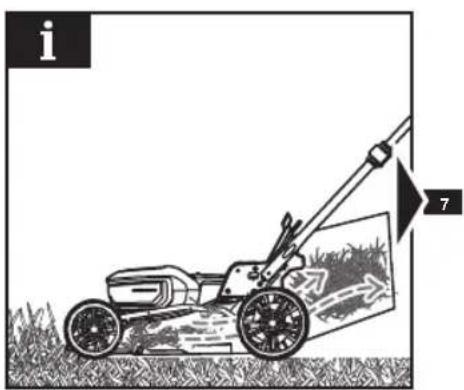

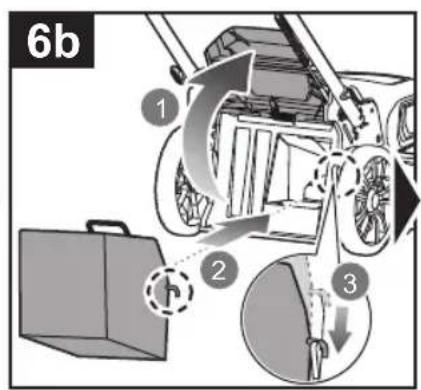

10. Grass catcher
11. Battery door

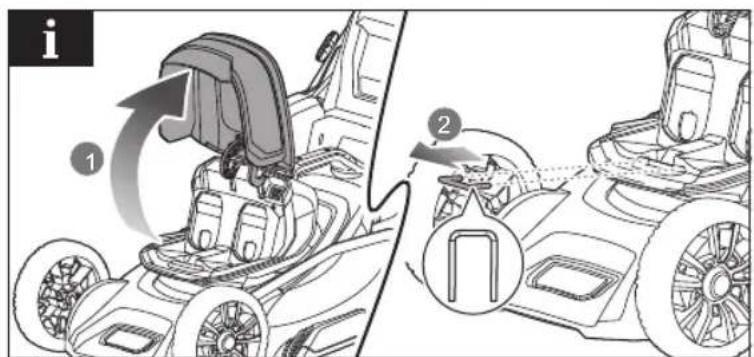

12. Blade change u-bolt
13. Rear wheel
14. Front wheel
15. Operator's manual

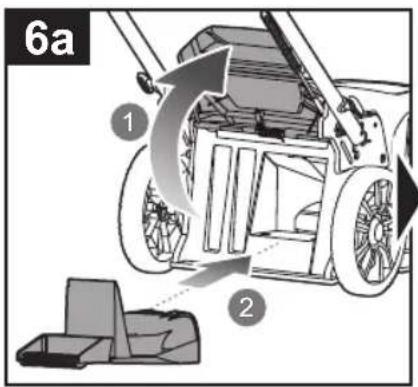

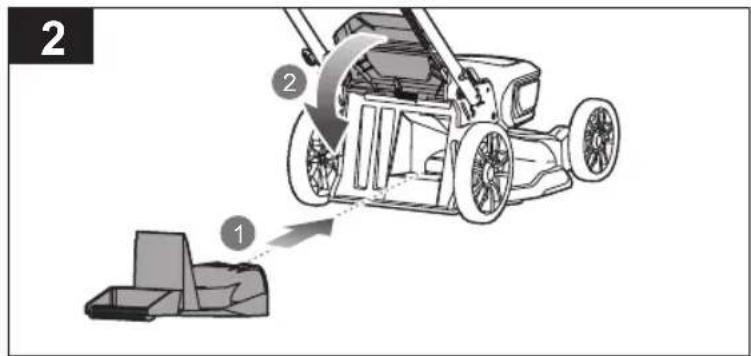

16. Mulching plug
17. Battery pack
18. Charger
19. Wrench

SYMBOLS

Safety alert

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

Wear eye and ear protection.

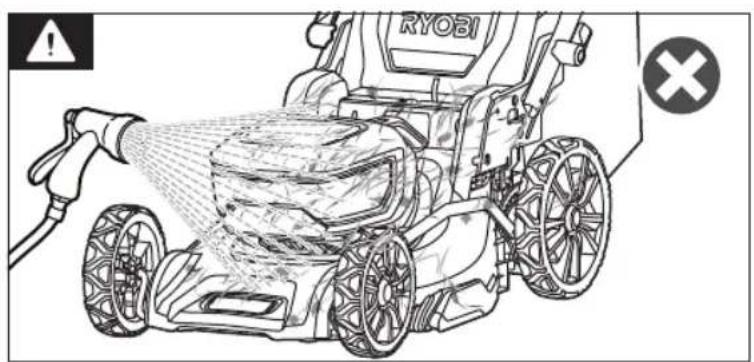

Do not expose the product to rain or damp conditions.

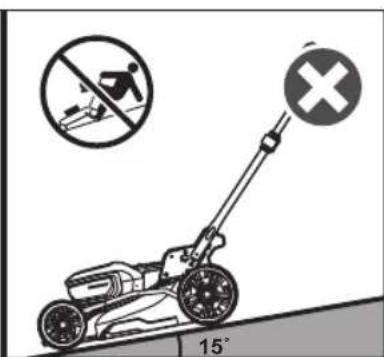

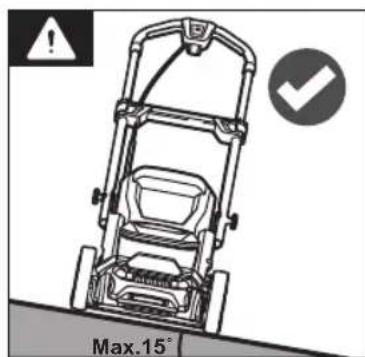

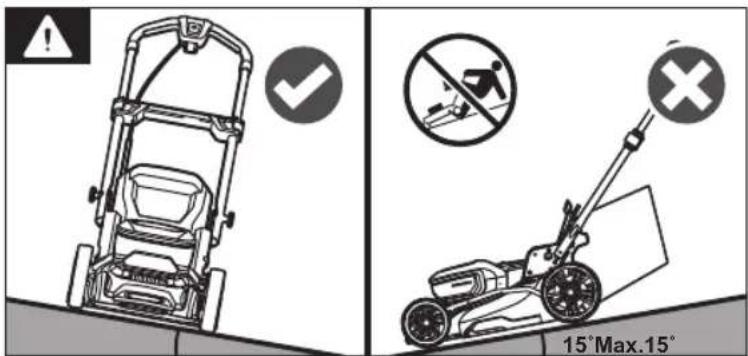

Do not operate the product on inclines greater than 15^ . Mow across the face of slopes, never up and down.

Keep hands and feet away from the blades.

Beware of sharp blades. Blades continue to rotate after the motor is switched off. Remove the battery pack before maintenance.

Guaranteed sound power level

Beware of thrown or fl ying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area.

Do not dispose of waste batteries, waste electrical and electronic equipment as unsorted municipal waste. Waste batteries and waste electrical and electronic equipment must be collected separately. Waste batteries, waste accumulators, and light sources have to be removed from the equipment. Check with your local authority or retailer for recycling advice and collection point. According to local regulations, retailers may have an obligation to take back waste batteries and waste electrical and electronic equipment free of charge. Your contribution to the reuse and recycling of waste batteries and waste electrical and electronic equipment helps to reduce the demand of raw materials. Waste batteries, in particular containing lithium, and waste electrical and electronic equipment contain valuable and recyclable materials, which can adversely impact the environment and the human health if not disposed of in an environmentally compatible manner. Delete personal data from waste equipment, if any.

FR TRADUCTION DE LA NOTICE ORIGINALE

CARACTÉRISTIQUES DU PRODUIT

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 121.

ALGEMENE PRODUCTVEILIGHEIDSWAARSCHUWINGEN

EXTRA VEILIGHEIDSWAARSCHUWINGEN ACCU

TRANSPORT OCH FÖRVARING

KJENN PRODUKTET DITT

Se side 121.

ELIBERAREA UNUI BLOCAJ

NOSPROSTOJUMA NOVĚRŠANA

PAZİSTIET SAVU IERİCI

SEADME ÜLDISED OHUTUSJUHISED

DODATNA VARNOSTNA OPOZORILA

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Pozrite stranu 121.

Diagram illustrating four stages of a robotic device with labeled components and directional arrows indicating motion or assembly.

Diagram illustrating scooter safety actions with check and cross icons indicating inspection or failure points

5

6a 1 2

Line drawing of a lawn mower on grass, no text or symbols present

7 1 2

8 1 2

9 1 2 2 A B + A / B

3

Mechanical assembly diagram showing a clamp mechanism with arrows indicating motion (no text or symbols)

i 5

Diagram of a 3D object with directional arrows indicating movement or force (no text or symbols)

6b 1 2 3

i 7

i

p.128p 5p.126 p.133 RYOBI p.128p 9 p.132

Line drawing of a lawn mower on grass, no text or symbols present

Illustration comparing two lawn lawners with warning symbols: one marked with a checkmark and the other with an 'X' sign.

15° Max.15°

1 ① ②

2 1 2

Diagram illustrating vehicle seat assembly steps with numbered components and directional arrows indicating movement

4 1 2 2 + A / B

i A B

i A B

Line drawing of a lawn mower on grass, no text or symbols present

Illustration of a lawn mower with warning symbols (no text or labels)

Illustration of a lawn mower with a cross symbol (no text or labels)

Max.15°

15°

1 2 1

2 1

4 1 2 2 A i A B + A / B

i A B

Line drawing of a Ryobi agricultural harvester with wheels and a dashed circular annotation (no text or symbols)

Illustration of a lawn mower on a grassy slope next to a brick wall, with a downward arrow indicating direction (no text or symbols)

Technical illustration of a mechanical assembly with magnified detail (no text or symbols)

10 9 8 7 6 5 4 3 2 1

Line drawing of a vintage lawn mower with visible wheel brackets and mounting hardware (no text or symbols)

Line drawing of a car with wheels and a circular inset showing a vehicle's side profile (no text or symbols)

Diagram of a lawn mower with an open hood and hand operating the wheel, showing airflow direction (no text or symbols)

i 10 9 8 7 6 5 4 3 2 1

Diagram illustrating vehicle seatbelt installation steps with numbered instructions and component illustrations

Diagram illustrating vehicle seatbelting process with labeled steps 1 and 2 showing structural changes in a car.

Illustration of a RyD61 lawn mower with a hand operating the blade (no text or symbols)

Technical illustration of a mechanical component with a brush and fan assembly (no text or symbols)

Technical diagram of a car interior showing steering wheel, dashboard, and gear mechanism (no text or labels)

4 ① ②

5 1 2

6

7 2 1 (35~40 Nm)

Technical diagram of a mechanical assembly with labeled components and directional arrows (no readable text or symbols)

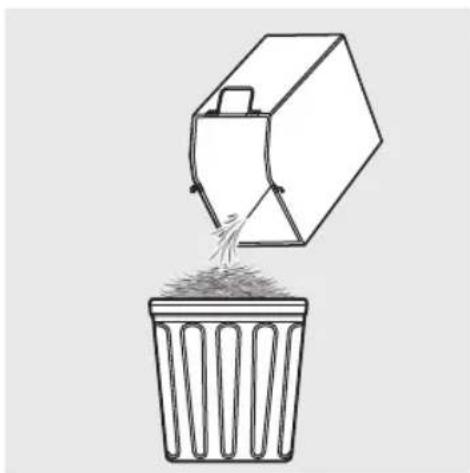

Line drawing of a trash bin with a container pouring liquid from it (no text or symbols)

Diagram showing a mechanical cutter tool applying material to a trash bin, with no text or symbols present.

1 A B

2 ① ③ ②

Simple line drawing of a trash bin pouring liquid into a box (no text or symbols)

Illustration of a dog emerging from a door with a brush, showing motion and decorative sparkles (no text or symbols)

1 A B

Diagram illustrating vehicle seatbelting process with numbered steps and component illustrations

3 1 3 2

Line drawing of a grass lawn mower with a brush applying material, no text or symbols present

RYOBI

5 1 2

6

8 1 2

Diagram showing a person moving inside a doorway with an arrow indicating motion (no text or symbols)

English Français Deutsch Español Italiano Nederlands Português

Product specifications	Caractéristiques produit	Produkt-Spezifikationen	Caracteristicas del producto	Caratteristiche del prodotto	Productgegevens Caracteristicas do aparelho
Cordless lawnmower Tondeuse à gazon sans fil		Akku-Rasenmäher Cortacéspedinalàmbrico		Tosaerba senza cavoSnoerloze grasmaaier Corta-relvas sem fios
Model	Modèle	Modell	Modelo	Modello	Modelo
Rated voltage	Tension nominale	Nennspannung	Tensión nominal	Voltaggio nominale	Toegekende spanning
Width of cut	Largeur de coupe	Schnittbreite	Anchura de fresado	Larghezza di fresatura	Maabreedte
Height of cut	Hauteur de coupe	Schnitthöhe	Altura del corte	Altezza del taglio	Hoogte van de snede
No-load speed	Vitesse à vide	Leerlaufdrehzahl	Velocidad sin carga	Velocità senza carico	Snelheid zonder lading
Maximum load speed	Vitesse de charge maximale	MaximaleLadegeschwindigkeit	Velocidad máxima de carga	Velocità massima di carico	Maximale laadsnelheid
Weight (without battery pack)	Poids (sans batterie)	Gewicht (ohne Akkupack)	Peso (sin la bateria)	Peso (senza batterie) Gewicht (zonder batterij)	Peso (sem a bateria)
Weight (with heaviest battery pack)	Poids (avec le pack de batterie le plus lourd)	Gewicht (mil dem schwersten Akkupack)	Peso (con el paquete de baterías más pesado)	Peso (con la batteria più pesante)	Gewicht (met de zwaarste accu)
Grass catcher capacity	Capacité du bac de ramasage	Fassungsvermögen des Grasauffangbehälters	Capacidad colectora de césped	Capacità del contenitore di raccolta	Capaciteit grasvanger
Blade bolt torque	Couple de serrage du boulon de lame	Drehmoment der Messerschraube	Par de torsión de los pernos de la cuchilla	Coppia di serraggio del bullone della lama	Koppel voor mesbout
Vibration level (in accordance with EN 62841-1 and EN 62841-4-3)	Niveau de vibration (selon EN 62841-1; EN 62841-4-3)	Vibrationsgrad (gemäß EN 62841-1; EN 62841-4-3)	Nivel de vibración (de acuerdo con EN 62841-1; EN 62841-4-3)	Livello vibrazioni (in accordo con la direttiva EN 62841-1; EN 62841-4-3)	Trillingsniveau (in overeenstemming met EN 62841-1; EN 62841-4-3)
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni	Onzekerheid bij meting
Noise emission level (in accordance with EN 62841-1 and EN 62841-4-3)	Niveau d'émission sonore (selon EN 62841-1; EN 62841-4-3)	Schallenergiepegel (gemäß EN 62841-1; EN 62841-4-3)	Nivel de emisión de ruido (de acuerdo con EN 62841-1; EN 62841-4-3)	Livello di emissione rumore (in accordo con la direttiva EN 62841-1; EN 62841-4-3)	Geluidsemissieniveau (in overeenstemming met EN 62841-1; EN 62841-4-3)
A-weighted sound pressure level at operator's position	Niveau de pression sonore pondéré A au niveau de l'opérateur	A-bewerteter Schalldruckpegel an der Position des Anwenders	Nivel de presión sonora ponderado A en la posición del operario	Livello di pressione sonora pesato A alla posizione dell'operatore	A-gewogen geluidsdrukniveau op de plaats van de bediener
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni	Onzekerheid bij meting
A-weighted sound power level	Niveau de puissance sonore pondéré A	A-bewerteter Schalleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A	A-gewogen geluidsniveau
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni	Onzekerheid bij meting
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA
Compatible battery packs	Blocs des batterie compatibles	Kompatible Akkupacks	Paquetes de batería compatibles	Gruppo batterie compatibili	Compatibele accupacks
Compatible chargers	Chargeurs compatibles	Kompatible Ladegeräte	Cargador compatible	Caricatore compatibile	Compatibele oplader

Replacement part	Pièces de rechange	Ersatzteile	Piezas de repuesto	Parti di ricambio	Vervangonderdelen	Peças de substituição
Blade	Lame	Messer	Hoja	Lama	Maaiimes	Lâmina

Dansk Svenska Suomi Norsk Русский Polski

Produktspecifikationer	Produktspecifikationer	Tuotteen tekniset tiedot	Produktspesifikasjoner	Характеристики изделия	Parametry techniczne
Trädlos pläneklipper Sladdlös gräsklippare Laangaton ruohonleikkuri			Kabelfri gressklipper	Беспроводная газонокосилка	Kosiarka bezprzewodowa
Model	Modell	Malli	Modell	Модель	Model	RY18LMX46A
Mærkespænding	Spänning	Nimellisjännite	Nominell spenning	Номинальное напряжение	Napięcie znamionowe	2 x 18 V d.c.
Fräsebredde	Fräsbredd	Jyrsintäleveys	Fresebredde	Ширина фрезеровки	Szerokość frezowania	46 cm
Klippehøjde	Klipphöjd	Leikkuukorkeus	Klippehøyde	Высота стрижки	Wysokość cięcia	25 - 100 mm
Tomgangshastighed	Hastighet utan belastning	Nopeus ilman kuormaa	Tomgangshastighet	Холостая скорость	Prędkość obrotowa bez obciążenia	2800/min
Maksimal loadhastighed	Maximal lasthastighet	Suurin latausnopeus	Maksimum belastningshastighet	Скорость при максимальной нагрузке	Prędkość przy maksymalnym obciążeniu	3100/min
Vægt (uden batteri)	Vikt (utan batteri)	Paino (ilman akkua)	Vekt (uten batteri)	Вес (без батарей)	Masa (bez akumulatora)	21 kg
Vægt med det tungeste batteri	Vikt (med tyngsta batterienhet)	Paino (painavimman akun kanssa)	Vekt (med det tyngste batteriet)	Вес (с самым тяжелым аккумуляторным блоком)	Masa (z najcieższym akumulatorem)	23,4 kg
Grässamlerens kapacitet	Gräsuppsamlarens kapacitet	Ruohonkerääjän kapasiteetti	Oppsamlerens kapasitet	Объем травособирателя	Pojemność pojemnika na trawę	55 L
Moment for klingebolt	Ätdragningsmoment bladskruv	Teräpultin vääntömomentti	Dreiemoment for knivbolten	Усилие затяжки фиксирующего болта лезвия	Moment dokręcania śruby noża	35~40 Nm
Vibrationsniveau (iht. EN 62841-1; EN 62841-4-3)	Vibrationsnivá (enligt EN 62841-1; EN 62841-4-3)	Tärinätaso (standardin EN 62841-1; EN 62841-4-3 mukaisesti)	Vibrasjonsnivá (iht. EN 62841-1; EN 62841-4-3)	Уровень вибрации (в соответствии с EN 62841-1; EN 62841-4-3)	Poziom wibracji (zgodnie z normą EN 62841-1; EN 62841-4-3)	q_h = 0,7 m/s^2
Målingsusikkerhed	Osäkerhet för mått	Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	K_h = 1,5 m/s^2
Stojemissionsniveau (iht. EN 62841-1; EN 62841-4-3)	Bullerutsläppsnivá (enligt EN 62841-1; EN 62841-4-3)	Melutaso (standardin EN 62841-1; EN 62841-4-3 mukaisesti)	Støyutslipsnivá (iht. EN 62841-1; EN 62841-4-3)	Уровень шума (в соответствии с EN 62841-1; EN 62841-4-3)	Poziom emisji hałasu (zgodnie z normą EN 62841-1; EN 62841-4-3)
A-væglet lydtryksniveau ved operatørens position	A-viktad ljudtrycksnivá vid operatörsplats	A-painotettu käyttäjään kohdistuva äänenpainetaso	A-vektet lydtrykk ved operatørposisjon	Амплитудно-взвешенный уровень звукового давления на рабочем месте оператора	Poziom ważonego ciśnienia akustycznego w pozycji operatora	L_pA = 83,2 dB(A)
Målingsusikkerhed	Osäkerhet för mått	Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	K_pA = 3,0 dB
A-væglet lydeffektniveau	A-vägd ljudeffektsnivá A-painotettu äänenteho A-vektet lydeffektnivá Уровень	A-vägd ljudeffektsnivá A-painotettu äänenteho A-vektet lydeffektnivá Уровень	A-vägd ljudeffektnivá Уровень	A-ważony poziom mocy akustycznej	L_WA = 91,88 dB(A)
Målingsusikkerhed	Osäkerhet för mått	Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	K_WA = 0,92 dB
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	93 dB(A)
Kompatible batterier	Kompatibla batteripaket	Yhteensopivat akut Kompatible batteripakker	Somместимая аккумуляторная батарея	Pasujace akumulatory	RB18., RB18L., RB1..C, RB18..X, RB18..T
Kompatibel oplader	Kompatibel laddare	Yhteensopiva laturi	Kompatibel lader	Совместимое зарядное устройство	Zgodna ładowarka	RC18..

Reservedele Utbytesdelar	Varaosat	Erstatningsdeler		Запасные части	Części zamienne
Klinge	Blad	Terä	Blad	Пильное полотно	Ostrze	RAC450 (682262002)
Čeština	Magyar	Română	Latviski	Lietuviškai	Eesti	Hrvatski
Technické údaje produktu	Termék muszaki adatai	Specificatiile produsului	Produkta specifikacijas	Gaminio technines savybes	Toote tehnilised andmed	Specifikacije proizvoda
Akumulátorová sekačka na trávu	Akkumulátoros fünyíró Mašină de tuns gazon fără fir	Māsină de tuns gazon fără fir	Akumulatoru plaujmašina	Akumuliatorinė vejapjově	Juhtmeta muruniiduk Akumulatorska kosilica za travu
Model	Típus	Model	Modelis	Modelis	Mudel	Model
Jmenovité napětí	Névleges feszültség	Tensiunea nominală	Nominălais spriegums	Nominali įtampa	Nimipinge	Nazivní napon
Šířka frézování	Marási szélesség	Látime de frezare	Griežuma platums	Pjovimo plotis	Lõikelaius	Širina glodanja
Výška sečení	Vágásmagasság	Înaltímea de tăiere	Griešanas augstums	Pjovimo aukštis	Lõikekõrgus	Visina rezanja
Rychlost naprázdno	Üresjáratí fordulatszám	Vítezá fără sarcină	Tukšgaitas âtrums	Greitis be apkrovimo	Tühikäigukiirus	Brzina bez opterećenja
Maximální rychlost načítání	Maximális terhelési sebesség	Víteza maximă de încărcare	Maksimálais âtrums pie noslodzes	Maksimalus greitis jrenginiu veikiant su apkrova	Maksimaalne kiirus koormusel	Maksimalna brzina pri opterećenju
Hmotnost (bez baterie)	Tömeg (akkumulátor nélkül)	Greutate (fără accumulator)	Svars (bez baterijas)	Svoris (be akumuliatorinės baterijos)	Kaal (ílma akuta)	Težina (bez baterije)
Hmotnost (s nejtěžšimi bateriemi)	Tömeg (a legnehezebb akkucsomaggal)	Greutatea (cu cel mai greu accumulator)	Svars (ar smagăko akumulatoru bloku)	Svoris (su sunkiausiu akumuliatorių bloku)	Kaal (koos raskeima akuga)	Težina (s najtežom baterijom)
Kapacita sběrného koše	Fůfogó kapacitása Capacitate colector iarbă	Zăles uztvěrěja ietilpíba	Žolės gaudyklės talpa	Žolės gaudyklės talpa	Murukoguja maht	Kapacitet hvatača trave
Utahovací moment šroubu nože	Késcsavar nyomatéka	Cuplul bolțului de fixare a discului táietor	Asmens skrūves novilkšanas spēks	Peilio varžto užveržimo jega	Lõiketera poldi pingutusmoment	Zatezni moment vijka za pričvršćivanje noža
Úroveň vibraci (v souladu s EN 62841-1; EN 62841-4-3)	Vibrációs szint (az EN 62841-1; EN 62841-4-3 szerint)	Nivel de vibrație (în conformitate cu EN 62841-1; EN 62841-4-3)	Vibrácijas līmenis (saskaņa ar EN 62841-1; EN 62841-4-3)	Vibracijos lygis (pagal EN 62841-1; EN 62841-4-3 standartą)	Vibratsioonitase (vastavalt standardile EN 62841-1; EN 62841-4-3)	Razina vibracija (u skladu s EN 62841-1; EN 62841-4-3)
Nejistota měření	Mérės bizonytalansága	Nesiguranța măsurătorii	Měrijuma nenoteiktība	Matavimo paklaïda	Mõõtmismääramatus	Neodređenost mjerenja
Hladina emise hluku (v souladu s EN 62841-1; EN 62841-4-3)	Hangkibocsátási szint (az EN 62841-1; EN 62841-4-3 szerint)	Nivel emisie zgomot (în conformitate cu EN 62841-1; EN 62841-4-3)	Trokšnu emisijas līmenis (saskaņa ar EN 62841-1; EN 62841-4-3)	Skleidžiamo triukšmo lygis (pagal EN 62841-1; EN 62841-4-3 standartą)	Helivõimsuse tase (vastavalt standardile EN 62841-1; EN 62841-4-3)	Razina emisija buke (u skladu s EN 62841-1; EN 62841-4-3)
Hladina akustického tlaku vážená funkcí A v poloze obsluhy	A-súlyozott hangnyomásszint a kezelő helyén	Valoare A nivel presiune zgomot la poziția operatorului	A-novértējuma skaņas spiediena līmenis operatora darba vietă	A dažninės charakteristikos garso slėgio lygis operatoriaus vietoje	A-kaalutud helirōhu tase operaatori töökohal	A-ponderirana razina zvučnog tlaka u položaju operatera
Nejistota měření	Mérės bizonytalansága	Nesiguranța măsurătorii	Měrijuma nenoteiktība	Matavimo paklaïda	Mõõtmismääramatus	Neodređenost mjerenja
Hladina akustického výkonu vážená funkcí A	A-súlyozott hangteljesítményszint	Nivel de putere acustică ponderată A	A-līmeņa skaņas jaudas līmenis	A-svertinis akustinis lygis	A-kaalutud helivõimsuse tase	Ponderirana razina zvučne snage
Nejistota měření	Mérės bizonytalansága	Nesiguranța măsurătorii	Měrijuma nenoteiktība	Matavimo paklaïda	Mõõtmismääramatus	Neodređenost mjerenja
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA
Kompatibilní akumulátory	Kompatibilis akkumulátorok	Acumulatori compatibili	Savietojami akumulatoru komplekti	Suderinami baterijos paketai	Ühilduvad akupaketid	Kompatibilna pakiranja baterija
Kompatibilní nabiječka	Kompatibilis töltő	Încárcător compatibil	Saderigs lădětăjs	Suderinamas įkroviklis	Ühilduv laadija	Kompatibilni punjači

Náhradní díly	Cserealkatrészek	Piese de schimb	Rezerves dajas	Atsarginės detalės	Asendusosad	Zamjena dijelova
Nuž	Kės	Lamā	Asmens	Geležte	Saeleht	Oštrica

The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure.

The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for different applications, used with different accessories, or poorly maintained, the vibration and noise emission may differ. These conditions may significantly increase the exposure levels over the total working period. An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned off or when it is running idle. These conditions may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and noise, such as maintaining the tool and the accessories, keeping the hands warm (in case of vibration), and organising work patterns.

FR

⚠ AVERTISSEMENT

EN RYOBI WARRANTY APPLICATION CONDITIONS

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance – any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries
– any product connected to improper power supply (amps, voltage, frequency)
– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
– Power tool accessories provided with the tool or purchased separately, including but not limited to screw driver bits, drill bits, abrasive discs, sand paper and blades, lateral guide, etc.
- Components (parts and accessories) subject to natural wear and tear, including but not limited to service & maintenance kits, carbon brushes, bearings, chuck, SDS drill bit attachment or reception, power cord, auxiliary handle, transport carry case, sanding plate, dust bag, dust exhaust tube, felt washers, impact wrench pins & springs, etc.

1. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected
3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey, Russia, and the United Kingdom. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

Any request or issue with the product can be addressed to your local authorised service centres (visit www.ryobitools.eu) or directly to: Techtronic Industries GmbH, Max Eyth Straße 10, 71364 Winnenden, Germany. Please state the serial number and product type printed on the label.

FR RYOBI CONDITIONS D'APPLICATION DE LA GARANTIE

EN EC DECLARATION OF CONFORMITY

Cordless lawnmower

Brand: RYOBI | Manufacturer ^1 | Model number ^2 | Serial number range ^3

We declare as the manufacturer under our sole responsibility that the product

mentioned below fulfills all the relevant provisions of the following European Directives,

European Regulations and harmonised standards ^4

Measured sound power level.... 91.88 dB(A)

Guaranteed sound power level.... 96 dB(A)

Conformity assessment method to Annex VI Directive 2000/14/EC amended by

2005/88/EC.

Notified body ^5

Authorised to compile the technical file: ^6

FR DÉCLARATION CE DE CONFORMITÉ

Max-Eyth-Straße 10, 71364 Winnenden, Germany

^2 RY18LMX46A

^3 48698001000001 - 48698001999999

^4 2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 2011/65/EU EN 62841-1:2015+A11:2022, EN IEC 62841-4-3:2021+A11:2021, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 63000:2018

^6 No. 0197 – TÜV Rheinland LGA Products GmbH

Tillystraße 2 - 90431 Nürnberg – Germany

Todd Chipner

Senior Vice President, Quality – Asia

^6 Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

GB-DECLARATION OF CONFORMITY

Manufacturer: Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare as the manufacturer under our sole responsibility that the product mentioned below

Cordless lawnmower

Brand: RYOBI

Model number: RY18LMX46A

Serial number range: 48698001000001 - 48698001999999

fulfills all the relevant provisions of the following Regulations: S.I. 2008/1597

(as amended), S.I. 2016/1091 (as amended), S.I. 2012/3032 (as amended), S.I. 2001/1701 (as amended) and that the following designated standards have been used:

BS EN 62841-1:2015+A11:2022, BS EN IEC 62841-4-3:2021+A11:2021,

BS EN IEC 55014-1:2021, BS EN IEC 55014-2:2021, BS EN IEC 63000:2018

Measured sound power level: 91.88 dB(A)

Guaranteed sound power level: 96 dB(A)

Conformity assessment method to S.I. 2001/1701 Schedule 9 (as amended)

Approved body:

No. 0197 - TÜV Rheinland LGA Products GmbH

Tillystraße 2 - 90431 Nürnberg – Germany

Todd Chipner

Senior Vice President, Quality – Asia

Authorised to compile the technical file:

Techtronic Industries (UK) Ltd

Parkway

Marlow Bucks SL7 1YL

UK

EN RYOBI is a trade mark of Ryobi Limited, and is used under license.

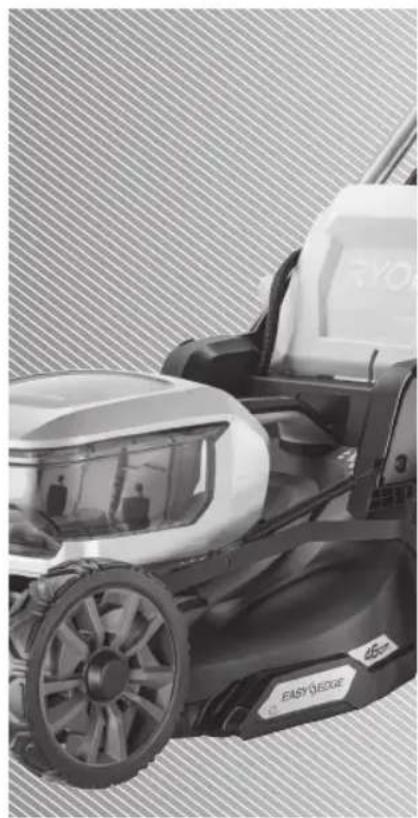

Three vertical panels with diagonal striped patterns, no text or symbols present

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany

Techtronic Industries (UK) Ltd

Parkway

Marlow Bucks SL7 1YL

UK

961479113-01
