Product type	Cordless drill/driver
Brand	DeWalt
Model	DW922K2
Nominal voltage	12 V
No-load speed (1st gear)	0-400 rpm
No-load speed (2nd gear)	0-1,000 rpm
Chuck capacity	10 mm
Drilling capacity steel	12 mm
Drilling capacity wood	20 mm
Weight	1.6 kg
Battery type	NiCd (Nickel-Cadmium)
Included battery part number	DE9074 (x2)
Battery capacity	1.25 Ah
Included charger part number	DE9103
Charger mains voltage	230 V (alternating current)
Charge time	1 hour
Rotation direction selector	Left/right
Mechanical speed selector	2 speeds
Torque adjustment	5 positions
Variable speed	Yes (by trigger)
Chuck brake	Yes
Warranty	1 year
Package contents	Drill, 2 batteries, charger, case, manual, warranty certificate

Frequently Asked Questions - DW922K2 DEWALT

How to charge the battery of the DeWalt DW922K2 drill?

Insert the battery pack into the DE9103 charger until it clicks. The red light flashes during charging. After about 1 hour, the green light turns on indicating the battery is fully charged. The charger automatically switches to maintenance mode.

What is the battery runtime?

The 1.25 Ah NiCd battery offers variable runtime depending on usage. For optimal use, perform several complete charge/discharge cycles after purchase.

How to select the rotation speed?

Use the mechanical speed selector (5) to choose between 1st gear (0-400 rpm, high torque) and 2nd gear (0-1,000 rpm, high speed). Ensure the tool is stopped before changing gears.

How to adjust the tightening torque?

Turn the mode/torque selector (4) to one of the 5 numbered positions. Position 1 corresponds to the lowest torque, ideal for screwdriving. Increase the torque if the screwdriver disengages too early.

Can the drill be used for drilling metal?

Yes, the drilling capacity in steel is 12 mm. Use an appropriate lubricant (except for cast iron and cement) and drill at slow speed.

How to maintain the DeWalt DW922K2 drill?

Clean the housing regularly with a soft cloth and ensure the ventilation slots are unobstructed. No additional lubrication is required. Unplug the charger before cleaning.

What to do if the battery does not charge?

Check that the mains voltage matches the charger (230 V). If the green light comes on immediately, the battery may be too discharged; remove it for a few minutes then reinsert. If the green light comes on too quickly, the battery may be too hot; let it cool down.

How to reverse the rotation direction?

Use the left/right rotation selector (2). Wait until the motor has completely stopped before changing direction. The center position locks the tool in the off position.

What accessories are compatible with the DW922K2?

Use drill bits and screwdriver bits with a 10 mm maximum shank. For drilling, prefer metal, wood, or carbide-tipped bits for masonry. Consult your dealer for recommended accessories.

How to recycle used batteries?

NiCd batteries are recyclable. Completely discharge the battery by using the tool until it stops, then remove it. Take it to a DeWALT authorized service center or a local collection point. Do not dispose of batteries with household waste.

USER MANUAL DW922K2 DEWALT

Technical diagram of a drill putter with numbered parts for identification

A

13

B

Technical diagram of a mechanical device with numbered parts and an inset close-up view showing internal components.

C

Illustration of a hand holding a medical or surgical device with a tool, no text or symbols present

D

Diagram of a drill bit being inserted into a cylindrical device, showing the tool path and component details (no text or symbols present)

G

Dansk 1

Deutsch 8

English 16

Español 23

Français 30

Italiano 37

Nederlands 45

Norsk 52

Português59

Suomi 66

Svenska 73

Ελληνικα 80

TRÅDL∅S BORE/SKRUEMASKINE MED MIDTERHÅNDTAG DW917K2/DW921K2/DW922K2

Tillykke!

DW917K2/DW921K2/DW922K2

DW917K2 DW921K2 DW922K2

L_pA	(lydniveau) dB(A)* <70 <70 <70
L_WA	(akustisk styrke) dB(A) <85 <85 <85

DW917K2 DW921K2 DW922K2

<2,5 m/s2

<2,5 m/s2

<2,5 m/s2

Europachef

DeWALT, County Durham, U.K.

AKKU-BOHRSCHRAUBER DW917K2/DW921K2/DW922K2

DW917K2/DW921K2/DW922K2

DW917K2 DW921K2 DW922K2

DW917K2 DW921K2 DW922K2

< 2,5 m/s2

< 2,5 m/s2

< 2,5 m/s2

Direktor Europa

DeWALT, County Durham, U.K.

Sicherheitshinweise

You have chosen a DEWALT Power Tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional Power Tool users.

Table of contents

Technical data en - 1

Declaration of conformity en - 2

Safety instructions en - 2

Package contents en - 3

Description en - 3

Electrical safety en - 4

Mains plug replacement (U.K. & Ireland only) en - 4

Using an extension cable en - 4

Assembly and adjustment en - 4

Instructions for use en - 5

Maintenance en - 6

Guarantee en - 7

Technical data

		DW917K2* DW921K2* DW922K2*
Voltage V 7.2 9.6 12
No load speed	1st gear	min^-1	0-250	0-350	0-400
	2nd gear	min^-1	0-750	0-1,000	0-1,200
Chuck capacity		mm 10		10	10
Maximum drilling capacity in steel/wood		10/15		12/20	12/22
Weight		kg 1.5 1.5 1.6

* Supplied with two battery packs

Battery pack	DE9064	DE9062	DE9074
Voltage V 7.2 9.6 12
Capacity	Ah 1.25	1.25	1.25
Weight	kg 0.35	0.45	0.55

Charger		DE9100	DE9101	DE9103
Mains voltage	V_AC	230	230	230
Output voltage	V_DC	7.2 9.6 12
Charge current normal	A 1.55		1.55	1.35
maintenance	mA 40		40	40
Charging time	h 1		1	1
Weight	kg 0.75		0.9 1.0

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

Fire hazard!

Declaration of conformity

DW917K2/DW921K2/DW922K2

DeWALT declares that these Power Tools have been designed in compliance with: 89/392/EEC, 89/336/EEC, 73/23/EEC, EN 60335, EN 55104, EN 61000 & EN 55014.

Level of sound pressure according to 86/188/EEC & 89/392/EEC, measured according to DIN 45635 Part 1 and Part 2 (EN 50144):

DW917K2 DW921K2 DW922K2

L_pA	(sound pressure) dB(A)* <70 <70 <70
L_wA	(acoustic power) dB(A) <85 <85 <85

* at the operator's ear

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

Weighted root mean square acceleration value according to EN 50144:

DW917K2 DW921K2 DW922K2

< 2.5 m/s ^2

< 2.5 m/s ^2 < 2.5 m/s ^2

European Director

Product Planning & Development

Brian Cooke

DeWALT, County Durham, U.K.

Safety instructions

When using Power Tools, always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions before attempting to operate this product.

Keep these instructions in a safe place!

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose Power Tools to humidity. Keep work area well lit. Do not use Power Tools in the presence of inflammable liquids or gases.

3 Guard against electric shock

Prevent body contact with earthed surfaces (e.g. pipes, radiators, cookers and refrigerators). For use under extreme conditions (e.g. high humidity, when metal swarf is being produced, etc.) electric safety can be improved by inserting an isolating transformer or a (FI) earth-leakage circuit-breaker.

4 Keep children away

Do not let children come into contact with the tool or charger. Keep all people away from the work area.

5 Store idle tools

When not in use, Power Tools must be stored in a dry place and locked up securely, out of reach of children.

6 Dress properly

Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

7 Wear safety goggles

Also use a face or dust mask in case the operations produce dust or flying particles.

8 Beware of maximum sound pressure

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

9 Secure workpiece

Use clamps or a vice to hold the workpiece. It is safer and it frees both hands to operate the tool.

10 Do not overreach

Keep proper footing and balance at all times.

11 Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

12 Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

13 Use appropriate tool

The intended use is laid down in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

14 Maintain tools with care

Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Inspect the tool cords at regular intervals and, if damaged, have them repaired by an authorized DEWALT repair agent. Keep all controls dry, clean and free from oil and grease.

15 Check for damaged parts

Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function. Check for misalignment and seizure of moving parts, breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed.

Do not use the tool if the switch is defective. Have the switch replaced by an authorized DEWALT repair agent.

16 Remove the battery pack

Remove the battery pack when not in use, before servicing and when changing accessories.

17 Have your tool repaired by an authorized DEWALT repair agent

This Power Tool is in accordance with the relevant safety regulations. To avoid danger, electric appliances must only be repaired by qualified technicians.

Additional safety instructions for battery packs

Fire hazard! Avoid metal short circuiting the contacts of a detached battery pack (e.g. keys carried in the same pocket as a battery pack).

• The battery fluid, a 25-30% solution of potassium hydroxide, can be harmful. In case of skin contact, flush immediately with water. Neutralize with a mild acid such as lemon juice or vinegar. In case of eye contact, rinse abundantly with clean water for at least 10 minutes. Consult a physician.
• Never attempt to open a battery pack for any reason.
• Use the chargers DE9100, DE9101 & DE9103 with their respective battery packs DE9064, DE9062 & DE9074 only.

Labels on charger and battery pack

In addition to the pictographs used in this manual, the labels on the charger and the battery pack show the following pictographs:

---

Battery charging

—

Battery charged

Package contents

The package contains:

1 Cordless Midhandle Drill/Screwdriver
2 Battery Packs
1 Battery Charger
1 Kitbox
1 Instruction manual
1 Guarantee card

• Check for damage to the tool, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. A)

Your DEWALT Cordless Midhandle Drill/Screwdriver has been designed for professional drilling and driving applications.

1 Variable speed switch
2 Forward/reverse slider
3 Keyless chuck
4 Mode selector/torque adjustment collar
5 Two gear selector
6 Ventilation slots
7 Grip
8 Battery pack

Charger

Your DeWALT charger is dedicated to specific voltage battery packs (refer to the technical data).

8 Battery pack

9 Release buttons

10 Charger

11 Charging indicator (red)

12 Charged status indicator (green)

Electrical safety

The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains.

Your DEWALT charger is double insulated in accordance with EN 55014 & EN 50144.

Mains plug replacement (U.K. & Ireland only)

- Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.

- Disconnect the plug from the supply.

- Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.

- Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).

- The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).

- Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

1 2 3 4

Never use a light socket. Never connect the live (L) or neutral (N) wires to the earth pin marked E or 12

Using an extension cable

An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see technical data). The minimum conductor size is 0.5 mm ^2 ; the maximum length is 30 m.

Assembly and adjustment

Prior to assembly and adjustment, always remove the battery pack.

Always switch OFF the tool before inserting or removing the battery pack.

Battery pack (fig. A)

Charging the battery pack

When charging the battery pack for the first time, or after prolonged storage, it will only accept an 80% charge. After several charge and discharge cycles, the battery pack will attain full capacity. Always check the mains prior to charging the battery pack. If the mains is functioning but the battery pack does not charge, take your charger to an authorised DEWALT repair agent. Whilst charging, the charger and the battery pack may become warm to touch. This is a normal condition and does not indicate a problem.

Do not charge the battery pack at ambient temperatures < 5^ or >35^ .

Recommended charging temperature: approx. 24 °C.

- To charge the battery pack (8), insert it into the charger (10) as shown and plug in the charger.

Be sure that the battery pack is fully seated in the charger, but do not force it. The red charging indicator (11) will light. After approx. 1 hour, it will switch off and the green status indicator (12) will light. The battery pack is now fully charged and the charger switches to maintenance mode.

• If the green indicator lights too soon the battery pack may be too hot. Remove the battery pack and allow it to cool before re-attempting to charge.
• If the green indicator lights instantly, the battery pack is fully uncharged.
• Leave the battery pack in the charger for several minutes then re-insert.
• The battery pack can be removed at any time or left in the charger indefinitely.

Inserting and removing the battery pack

• Insert the battery pack into the grip (7) until it clicks in place.
• To remove the battery pack, press the two release buttons (9) simultaneously and pull the pack out of the grip (7).

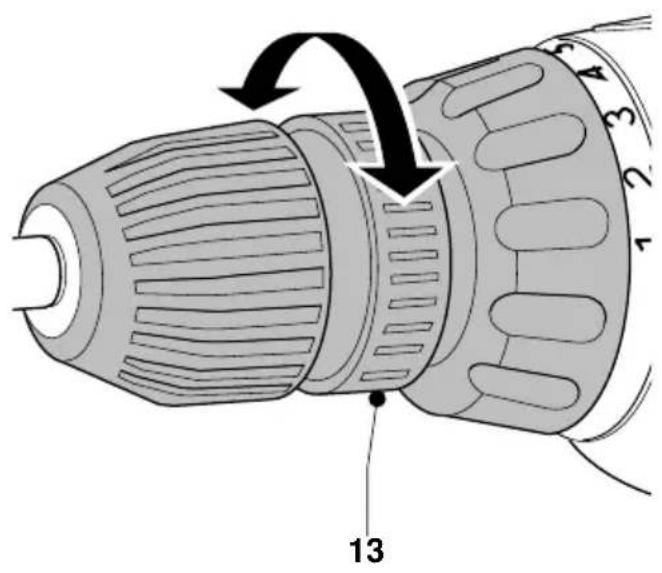

Inserting and removing a bit (fig. A & B)

• Open the chuck by turning the sleeve (13) counterclockwise and insert the bit shank.
• Tighten firmly by turning the sleeve clockwise while holding the rear part of the chuck with one hand.
• To remove the bit, proceed in reverse order.

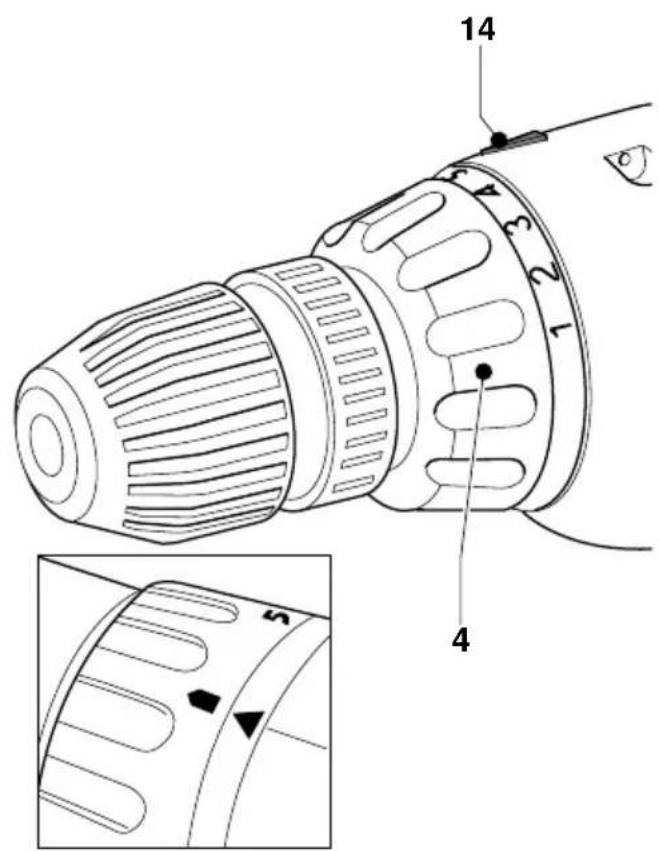

Selecting the operating mode or adjusting the torque (fig. C)

The collar of this tool has 5 positions for the adjustment of the torque to suit the size of the screw and the workpiece material. For torque adjustment, refer to the section “Screwdriving”. Your tool can be used in the following operating modes:

Drilling:

for steel, wood, plastics and masonry

Collar positions:

for screwdriving

- Select the drilling mode or torque by aligning the symbol or number on the collar (4) with the indicator (14) on the housing.

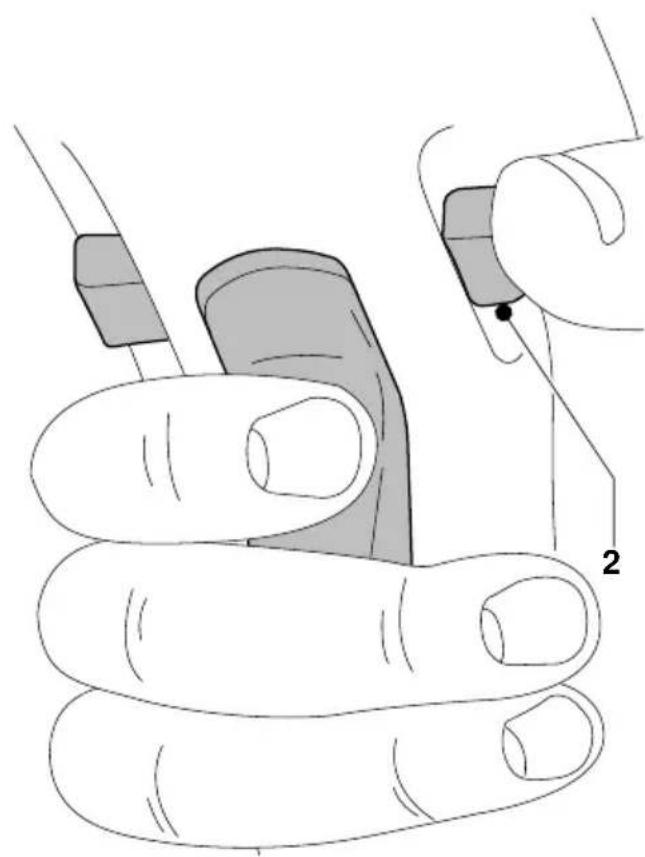

Forward/Reverse slider (fig. D)

- To select forward or reverse rotation, use the forward/reverse slider (2) as shown (see arrows on tool).

Always release the speed switch and wait until the motor has come to a complete standstill before changing the direction of rotation.

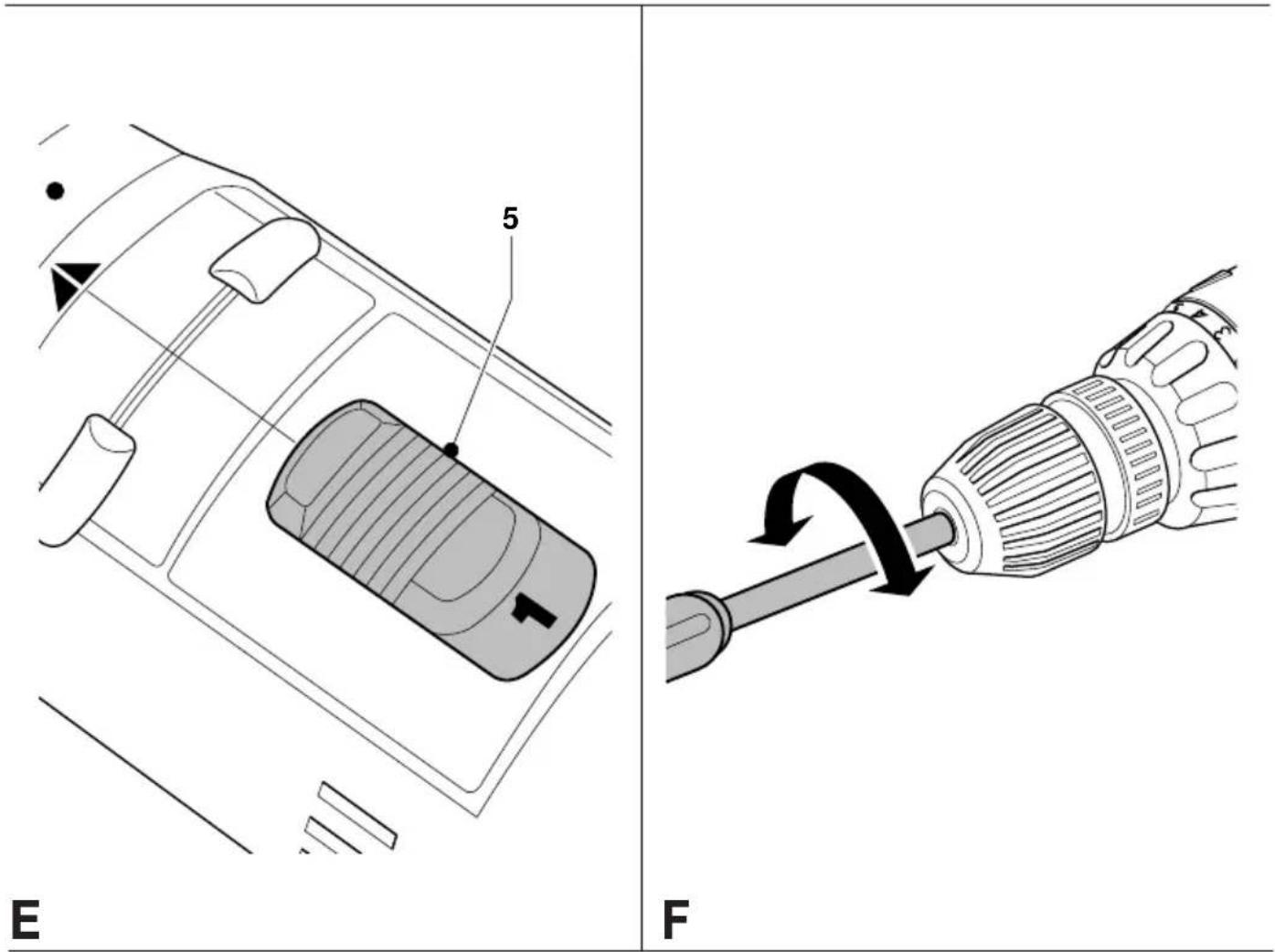

Two gear selector (fig. E)

Your tool is fitted with a two gear selector (5) to vary the speed/torque ratio.

1 low speed/high torque (drilling large holes, driving large screws and mixing paint)
2 high speed/low torque (drilling smaller holes, drilling in wood)

For speed rates, refer to the technical data.

• Always push the two gear selector completely forward or backward.
- Do not change gears at full speed or during use.

Removing and fitting the chuck (fig. F & G)

• Open the chuck jaws as far as possible.
• Insert a screwdriver into the chuck and remove the chuck retaining screw by turning clockwise as shown in figure F.

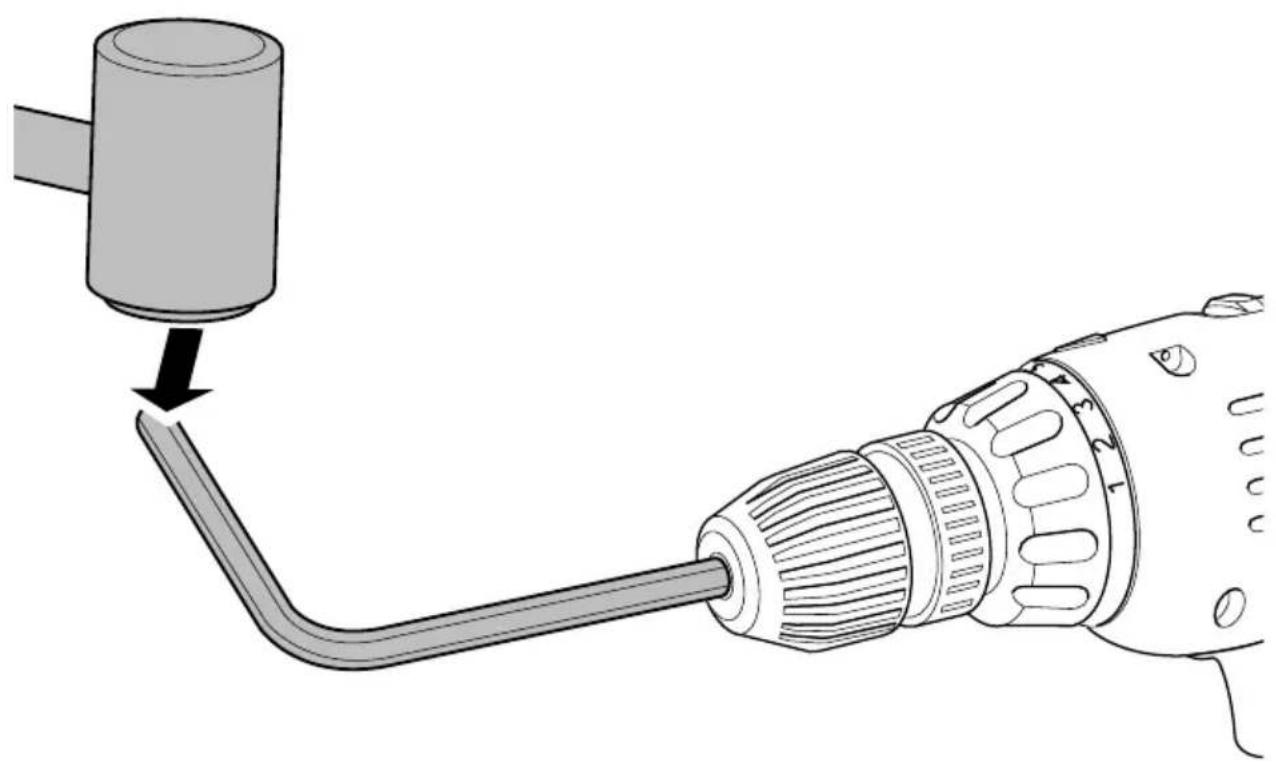

• Tighten an Allen key into the chuck and strike it with a hammer as shown in figure G. This will loosen the chuck so that it can be unscrewed by hand.
• To refit the chuck, proceed in reverse order.

Instructions for use

• Always observe the safety instructions and applicable regulations.
- Be aware of the location of pipework and wiring.
- Apply only a gentle pressure to the tool. Excessive force does not speed up drilling but decreases tool performance and may shorten tool life.
- To minimise stalling on break-through, progressively reduce the drill point pressure towards the end of the operation.
- Keep the motor running when pulling the

bit back out of a drilled hole. This will help prevent jamming.

Prior to operation:

• Make sure your battery pack is (fully) charged.
• Insert the appropriate bit.
• Mark the spot where the hole is to be drilled.
• Select forward or reverse rotation.

Switching ON and OFF (fig. A & D)

• To run the tool, press the variable speed switch (1). The pressure exerted on the variable speed switch determines the tool speed.
• To stop the tool, release the variable speed switch (1).
• To lock the tool in OFF-position, move the forward/reverse slider (2) to the central position.

The drill is equipped with a brake to stop the chuck as soon as the variable speed switch is fully released.

Screwdriving (fig. A)

• Select forward or reverse rotation using the slider (2).
• Set the collar (4) to position 1 and begin screwdriving (low torque).
• If the clutch ratchets too soon, adjust the collar to increase the torque as required.

Drilling (fig. A)

- Select the drilling mode using the collar (4).

Drilling in metal

- Use a cutting lubricant when drilling metals. The exceptions are cast iron and brass which should be drilled dry.

Drilling in masonry

- Use carbide-tipped masonry bits at low speeds. Keep even force on the drill. A smooth, even flow of dust indicates the proper drilling rate.

Drilling in wood

• Holes in wood can be made with the same twist drills used for metal. These bits may overheat unless pulled out frequently to clear chips from the flutes.
• For larger holes use Power Drill wood bits.
• Use a block of wood to back up workpieces that may splinter.

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your DEWALT Power Tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Lubrication

Your Power Tool requires no additional lubrication.

Cleaning

• Unplug the charger before cleaning the housing with a soft cloth.
• Remove the battery pack before cleaning your Power Tool.
• Keep the ventilation slots clear and regularly clean the housing with a soft cloth.

Rechargeable batteries and the environment

DEWALT cordless tools and battery packs can be charged many times to give long life and repeatedly full power.

This symbol indicates that this tool contains nickel cadmium (NiCd) cells. When your tool or battery pack needs replacement, think of the protection of our environment.

DEWALT recommends the following:

• Discharge the energy from the batteries by running the batteries down completely, then remove them from the tool.
• NiCd cells are recyclable, so do not throw them away with your household waste. They may end up in an incinerator or landfill, which must be avoided.
• Instead, take the battery pack to a DEWALT service centre, your local dealer or your local recycling station. If necessary, contact your local municipality for disposal information.
  The collected batteries will be disposed of properly and/or used for recycling purposes.

GUARANTEE

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to a participating Dealer, or an authorized DEWALT repair agent, for a full refund or exchange. Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
- Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual.

TALADRO ATORNILLADOR SIN CABLE DW917K2/DW921K2/DW922K2

¡Enhorabuena!

DW917K2/DW921K2/DW922K2

DW917K2 DW921K2 DW922K2

L_pA	(presión acústica) dB(A)* <70 <70 <70
L_WA	(potenica acústica) dB(A) <85 <85 <85

DW917K2 DW921K2 DW922K2

< 2,5 m/s ^2

< 2,5 m/s ^2

< 2.5 m/s ^2

Director Europeo

DEWALT, County Durham, U.K.

DW917K2/DW921K2/DW922K2

DW917K2 DW921K2 DW922K2

DW917K2 DW921K2 DW922K2

<2,5 m/s^2 <2,5 m/s^2 <2,5 m/s^2

Directeur européen

DEWALT, County Durham, U.K.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic or background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

Pack-batteries chargé

L'emballage contient:

Pack-batteries (fig. A)

DW917K2/DW921K2/DW922K2

DW917K2 DW921K2 DW922K2

L_pA (rumorosità) dB(A) ^* <70 <70 <70

L_NA (potenza sonora) dB(A) <85 <85 <85

DW917K2 DW921K2 DW922K2

<2,5 m/s^2 <2,5 m/s^2 <2,5 m/s^2

Direttore Europeo

Ricerca & Sviluppo

Brian Cooke

DEWALT, County Durham, U.K.

DW917K2/DW921K2/DW922K2

DW917K2 DW921K2 DW922K2

L_p:A (geluidsdruk) dB(A) ^* <70 <70 <70

L_WA (geluidsvermogen) dB(A) <85 <85 <85

* op de werkplek

DW917K2 DW921K2 DW922K2

<2,5 m/s^2 <2,5 m/s^2 <2,5 m/s^2

Direkteur Europa

DEWALT, Spennymoor, County Durham, U.K.

DW917K2/DW921K2/DW922K2

DEWALT erklærer at disse elektroverktøyer er konstruert i henhold til: 89/392/EEC, 73/23/EEC, EN 60335, EN 55104, EN 61000 & EN 55014.

Lydnivået er i overensstemmelse med 86/188/EEC og 89/392/EEC, målt i henhold til DIN 45635 Part 1 & Part 2 (EN 50144):

DW917K2 DW921K2 DW922K2

L_pA

(lydnivå) dB(A)*

<70

<70

<70

L_NA	(akustisk effekt) dB(A) <85 <85 <85

* ved brukerens øre

DW917K2 DW921K2 DW922K2

<2,5 m/s ^2

<2,5 m/s ^2

<2,5 m/s ^2

Europasjef

DeWALT, County Durham, U.K.

Sikkerhetsforskrifter

DW917K2/DW921K2/DW922K2

A DEWALT declara que estas ferramentas eléctricas foram concebidas em conformidade com 89/392/CEE, 89/336/CEE, 73/23/CEE, EN 60335, EN 55104, EN 61000 & EN 55014.

DW917K2 DW921K2 DW922K2

DW917K2 DW921K2 DW922K2

<2,5 m/s ^2

<2,5 m/s ^2

<2,5 m/s ^2

Director Europeu

DeWALT International, County Durham, U.K.

15 Tire as chaves de aperto

DW917K2/DW921K2/DW922K2

DW917K2 DW921K2 DW922K2

DW917K2 DW921K2 DW922K2

< 2,5 m/s2

< 2,5 m/s2

< 2,5 m/s2

Eurooppapäällikkö

DeWALT, County Durham, U.K.

Turvallisuusohjeet

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Akku latautunut

Pakkauksen sisältö

Pakkaus sisältää:

DW917K2/DW921K2/DW922K2

Vi gratulerar!

DW917K2/DW921K2/DW922K2

DW917K2 DW921K2 DW922K2

L_pA (ljudtryck) dB(A) ^* <70 <70 <70

L_WA (ljudeffekt) dB(A) <85 <85 <85

DW917K2 DW921K2 DW922K2

<2,5 m/s^2 <2,5 m/s^2 <2,5 m/s^2

Europachef

DeWALT, County Durham, U.K.

Säkerhetsinstruktioner

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Batteri laddat

DW917K2/DW921K2/DW922K2

Θερμά συγχαρητήρια!

DW917K2/DW921K2/DW922K2

DW917K2 DW921K2 DW922K2

DW917K2 DW921K2 DW922K2

<2,5 m/s^2 <2,5 m/s^2 <2,5 m/s^2

Διενθυντής Ευρώπης

DEWALT, County Durham, U.K.

Οδηγίες ασφαλείας
