USER MANUAL Blizzard CX1 Flex MIELE

Black-and-white photo of a vacuum cleaner spraying white powder onto a textured floor, with no visible text or symbols.

de Gebrauchsanweisung Bodenstaubsauger
en Vacuum cleaner operating instructions
fr Mode d'emploi aspirateur traîneau
it Istruzioni d'uso aspirapolvere a traino
nl Gebruiksaanwijzing stofzuigers

de 4
en 30
fr 59
it 85
nl 111

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Simple 3D cube with three white Y-shaped cutouts on one face (no text or symbols)

3 D 4 U

Warning and Safety instructions.... 30

Caring for the environment 39

Guide to the appliance 40

Notes on the European Regulation (EU) No. 666/2013 42

Illustrations 42

Connection.... 42

Using the supplied accessories 43

Use 43

Setting down, transportation and storage 46

Park system for pauses during vacuuming 46

Park system for storage 46

Maintenance 47

Emptying the dust container 47

Cleaning the dust container 47

Cleaning the filter frame 47

Cleaning the fine dust filter.... 48

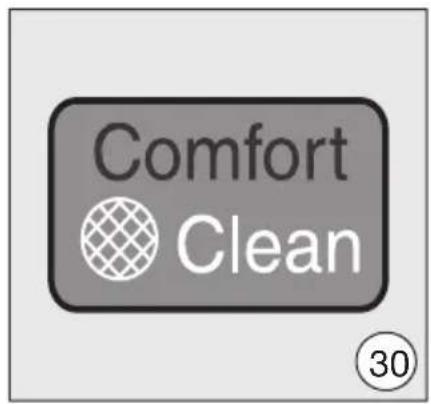

Starting the ComfortClean self-cleaning function manually 48

Changing the battery in the radio-control handle 48

Replacing the thread lifters 49

Cleaning and care 50

Problem solving guide 51

Fault resolution.... 53

Cleaning the pre-filter 53

Cleaning the fine dust filter manually 53

Service.... 54

Contact in case of malfunction 54

Warranty 54

Warranty in the UAE 54

Optional accessories 54

Purchasing accessories 54

Electrical connection for the UK.... 56

Electrical connection AU, NZ 56

Technical data.... 57

EU Conformity declaration 57

UK Conformity declaration.... 57

WARNING AU/NZ! Keep batteries out of reach en.

Coin or button batteries containing lithium can cause severe or fatal injuries within 2 hours of being swallowed or placed inside any part of the body. Non-lithium batteries can also cause serious injuries if swallowed or placed inside any part of the body. Even flat batteries can still be dangerous. If you suspect a child has swallowed a battery or placed a battery inside any part of their body, seek medical advice immediately (Australia: Poisons Information Centre, Tel. 13 11 26; NZ: National Poisons Centre, Tel. [phone]). Examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened. Do not use if compartment is not secure. Used batteries must be kept away from children while awaiting disposal and must be disposed of in a safe manner.

This vacuum cleaner conforms to current safety requirements. Inappropriate use can lead to personal injury and damage to property.

Please read the operating instructions before using the vacuum cleaner for the first time. They contain important information on the safety, use and maintenance of the vacuum cleaner. This will prevent both personal injury and damage to the appliance.

In accordance with standard IEC 60335-1, Miele expressly and strongly advises that you read and follow the instructions in the “Connection” chapter as well as the safety instructions and warnings.

Miele cannot be held liable for injury or damage caused by non-compliance with these instructions.

Keep these operating instructions in a safe place and pass them on to any future owner.

Always disconnect the vacuum cleaner from the power supply when you have finished using it, before changing any accessories, as well as for maintenance work, cleaning and troubleshooting. Switch off at the wall socket and unplug it.

Correct application

This vacuum cleaner is intended for cleaning flooring in domestic households and similar residential environments. This vacuum cleaner is not suitable for use on construction sites.
This vacuum cleaner is not intended for outdoor use.
This vacuum cleaner is intended for use at altitudes of up to 4000 m above sea level.
This vacuum cleaner can be used for all normal cleaning of carpets, rugs and robust hard flooring.
The vacuum cleaner must only be used to vacuum dry floor surfaces. Do not vacuum people or animals. Any other types of use, modifications or alterations are not permitted.
The vacuum cleaner can only be used by people (including children) with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it or have been shown how to use it in a safe way and understand and recognise the consequences of incorrect operation.

Safety with children

Danger of suffocation. Packaging, e.g. plastic wrappings, must be kept out of the reach of babies and children. Whilst playing, children could become entangled in packaging or pull it over their head and suffocate.

Children under 8 years of age must be kept away from the vacuum cleaner unless they are constantly supervised.

Children aged 8 and older may only use the vacuum cleaner without supervision if they have been shown how to use it in a safe manner. Children must be able to understand and recognise the possible dangers caused by incorrect operation.
Children must not be allowed to clean or maintain the vacuum cleaner unsupervised.
▶ Please supervise children in the vicinity of the vacuum cleaner and do not let them play with it.
▶ Models with radio controls on the handle: Keep batteries out of the reach of children.

Technical safety

Before using the vacuum cleaner and its accessories, check for any visible signs of damage. Do not use a damaged appliance.
▶ Compare the connection data on the data plate of the vacuum cleaner (mains voltage and frequency) with that of the mains electricity supply. This data must match exactly. Without modifications, the vacuum cleaner is suitable for 50 Hz or 60 Hz.
The mains electrical plug must be fitted with an appropriate fuse.
▶ AU/NZ: The mains electrical outlet must be fitted with an appropriate circuit breaker.

▶ Temporary or permanent operation on an autonomous power supply system or a power supply system that is not synchronised with the mains power supply (e.g. island networks, back-up systems) is possible. A prerequisite for operation is that the power supply system complies with the specifications of EN 50160 or an equivalent standard.

The function and operation of the protective measures provided in the domestic electrical installation and in this Miele product must also be maintained in isolated operation or in operation that is not synchronised with the mains power supply, or these measures must be replaced by equivalent measures in the installation. As described, for example, in the current version of BS OHSAS 18001–2 ISO 45001.

▶ AU/NZ: Temporary or permanent operation with a self-sufficient or non-mains synchronous energy supply system (e.g. isolated networks, back-up systems) is possible. A requirement for the operation is that the energy supply system complies with all current local and national requirements that apply to stand-alone, solar and/or battery systems.

The protective measures provided in the domestic installation and in this Miele product must also be assured in their function and operation in isolated operation or in non-mains synchronous operation, or replaced with equivalent measures in the installation.

Do not pull or carry the vacuum cleaner by the cable, and be careful not to damage the cable when withdrawing the plug from the socket. Keep the cable away from sharp edges and do not let it get squashed, for example, under a door. Avoid running the vacuum cleaner over the cable. This could damage the cable, plug or socket. The appliance must not be used if any of these have suffered damage.
Do not use the vacuum cleaner if the cable is damaged. If the cable is damaged it must be replaced together with a complete cable rewind. For safety reasons this must only be done by Miele Service or a Miele authorised service technician.
While the vacuum cleaner is under warranty, repairs should only be undertaken by a Miele authorised service technician. Otherwise the warranty will be invalidated.
▶ Repairs should only be carried out by a Miele authorised service technician. Repairs and other work by unqualified persons can cause considerable danger to users.
▶ Miele can only guarantee the safety of the appliance when genuine Miele replacement parts are used. Faulty components must only be replaced with genuine Miele replacement parts.
The packaging material protects the vacuum cleaner from transport damage. We recommend you keep the packaging for transport purposes.

Cleaning

▶ Do not immerse the vacuum cleaner or any accessories supplied with it in water.
▶ Clean the vacuum cleaner and accessories only with a dry cloth or slightly damp cloth. Exception:

- Dust container / fine dust container: clean only with water and a little mild washing-up liquid, then dry thoroughly.

- Fine dust filter: do not clean the inside of the fine dust filter. Rinse the outside under running cold water. Do not use washing-up liquid. Do not use any sharp or pointed objects and do not brush the fine dust filter. After cleaning, leave the fine dust filter to dry for a minimum of 24 hours before placing it back in the fine dust container.

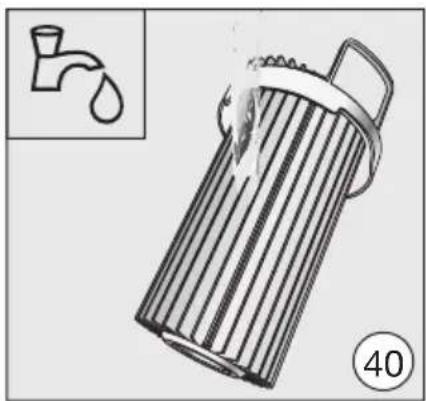

- Pre-filter / filter frame: rinse under running cold water. Do not use washing-up liquid. Do not use any sharp or pointed objects. Dry thoroughly after cleaning.

Correct use

Do not use the vacuum cleaner without the dust container, pre-filter, fine dust container and fine dust filter fitted.

Do not vacuum up anything which has been burning or is still glowing e.g. cigarettes, ashes or coal, whether glowing or apparently extinguished.

Do not use the vacuum cleaner to vacuum up any water, liquid or damp dirt. Wait until any freshly cleaned or shampooed rugs or carpets are completely dry before attempting to vacuum.

Do not use the vacuum cleaner to vacuum toner dust. Toner, such as that used in printers and photocopiers, can conduct electricity.

Do not vacuum up any inflammable or combustible liquids or gases and do not vacuum in areas where such substances are stored.

Do not vacuum at head height and do not let the suction get anywhere near a person's head.

▶ Important information on the handling of batteries (for models with radio controls on the handle):

- Do not short-circuit or recharge the battery, or throw it into a fire.

- Disposing of the battery: Remove the battery from the radio-control handle and dispose of it in a municipal recycling facility. Do not dispose of the battery with normal household waste.

Accessories

▶ To avoid the risk of injury when vacuuming with a Miele Turbobrush, do not touch the rotating roller brush.
It is not advisable to vacuum directly with the handle, i.e. without an accessory attached as the rim could get damaged and you could hurt yourself on sharp edges.
▶ Only use genuine accessories with the “ORIGINAL Miele” logo on the packaging. The manufacturer cannot otherwise guarantee the safety of the product.

Disposing of sales packaging

The packaging material protects the vacuum cleaner from transport damage. The packaging materials used are selected from materials which are environmentally friendly for disposal and can therefore be recycled.

Recycling the packaging material reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.

Disposing of your old appli- ance

Before disposing of your old appliance, remove the fine dust filter and dispose of it with your household waste.

Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.

Please dispose of it at your local community waste collection / recycling centre for electrical and electronic appliances, or contact your dealer or Miele for advice. You are also responsible (by law, depending on country) for deleting any personal data that may be stored on the appliance being disposed of. Please ensure that your old appli-ance poses no risk to children while being stored prior to disposal.

Disposing of old batteries

In many cases, electrical and electronic appliances contain batteries which must not be disposed of with household waste after use. You are legally obliged (depending on country) to remove any old batteries which are not securely enclosed by the vacuum cleaner and to take them to a suitable collection point (e.g. retailer) where they can be handed in free of charge. Insulate the metal contacts with adhesive tape to prevent short circuits. Batteries may contain substances which can be hazardous to human health and the environment. Used batteries must be kept away from children while awaiting disposal and must be disposed of in a safe manner.

The labelling on the battery will provide further information. The bin symbol with a cross through it means that the batteries must not be disposed of in household waste. A bin with a cross through it which also has one or more chemical symbols on it indicates that the battery contains lead (Pb), cadmium (Cd) and/or mercury (Hg).

Old batteries contain valuable raw materials which can be recycled. Disposing of batteries separately makes them easier to handle and recycle.

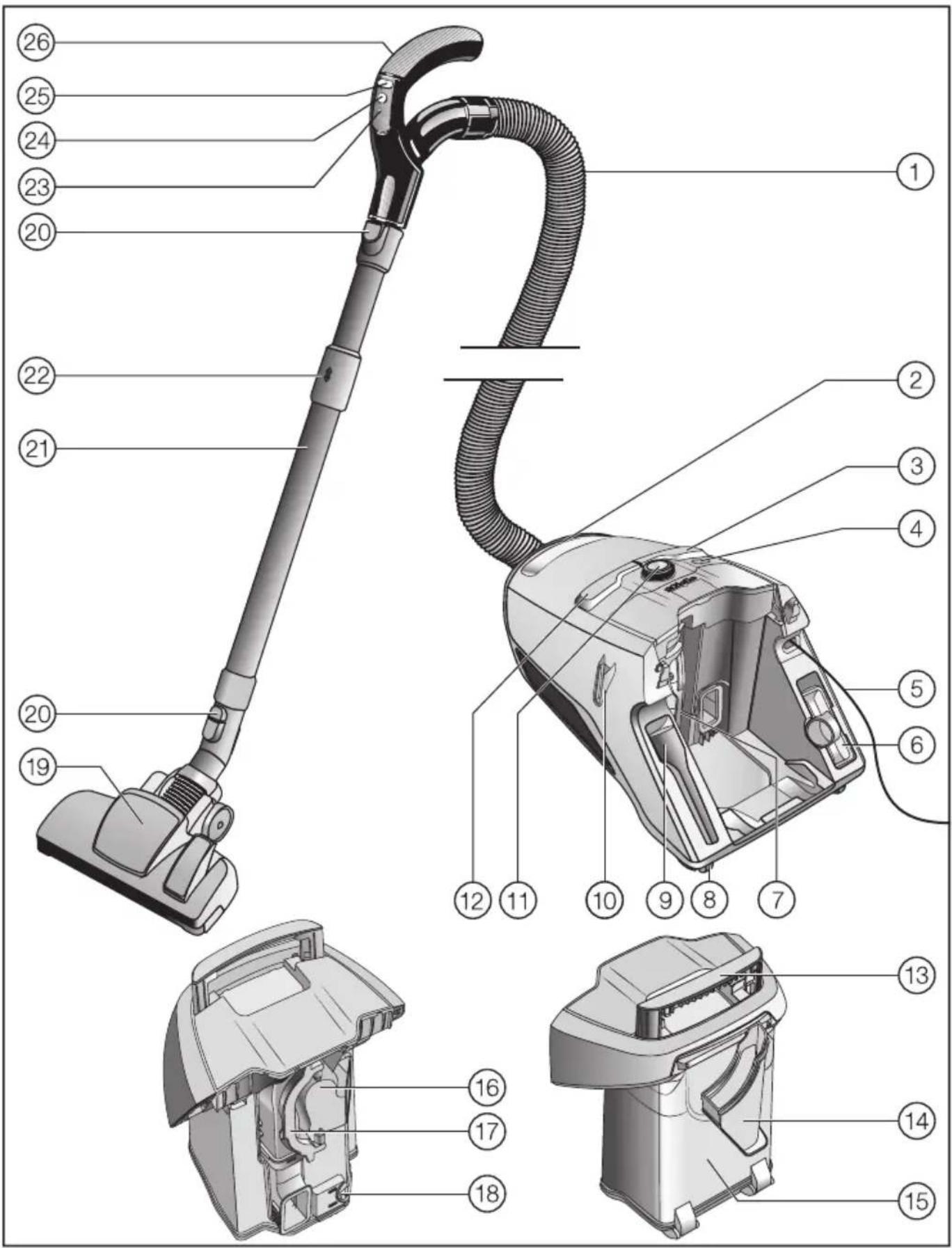

en - Guide to the appliance

Exploded view diagram of a vacuum cleaner with numbered parts for identification

① Suction hose
② Vacuum cleaner carrying handle
③ Foot switch for cable rewind
④ ComfortClean button
⑤ Connection cable
⑥ Upholstery nozzle
⑦ Fine dust container with fine dust filter
⑧ Rollers*
⑨ Crevice nozzle
⑩ Park system for pauses during vacuuming
⑪ Rotary selector (or display, for models with radio control handles)
⑫ On/Off footswitch ①
⑬ Dust container carrying handle
⑭ Filter frame
⑮ Dust container
⑯ Pre-filter
⑰ Pre-filter handle
⑱ Dust container release catch
⑲ Floorhead*
⑳ Release catches
②1 Comfort telescopic suction tube
②2 Release catch for Comfort telescopic suction tube
⑳ LED*
⑳ Standby button for short pauses in vacuuming*
⑲ Suction power selector buttons +/-*
②6 Handle (some models have an air inlet valve in the handle)*

Underneath – park system for storage (not illustrated)

* These special features depend on the model and may vary or may not be available on your vacuum cleaner.

Notes on the European Regulation (EU) No. 666/2013

This vacuum cleaner is a domestic vacuum cleaner and is classified as a universal vacuum cleaner in accordance with the above-mentioned regulation.

These operating instructions and additional information are available to download from the Miele website at www.miele.com.

The annual energy consumption stated in the regulation describes the indicative annual energy consumption (kWh per year), based on 50 cleaning cycles. Actual energy consumption depends on how the vacuum cleaner is used.

All tests and calculations were carried out according to the following harmonised standards applicable at the time in due consideration of the published regulation guidelines of the European Commission from September 2014: a) EN 60312-1 Vacuum cleaners for household use – Part 1: Dry vacuum cleaners – Methods for measuring the performance.

b) EN 60704-2-1 Household and similar electrical appliances – Test code for the determination of airborne acoustical noise – Part 2-1: Particular requirements for vacuum cleaners.

c) EN 60335-2-2 Household and similar electrical appliances – Safety – Part 2-2: Particular requirements for vacuum cleaner and water suction appliances.

Not all floorheads and accessories supplied with the vacuum cleaner are intended for intensive cleaning of carpets or hard floors as described in the regulation. The following floorhead and setting were used to determine the values:

For energy consumption and cleaning class on carpet and hard floors and sound power level on carpet, the adjustable floorhead was used with the brush retracted (press the ◇ foot-switch).

The data given in the regulation refers exclusively to the combinations and settings of the floorhead on the different floor surfaces described here.

Illustrations

The illustrations referred to in the text are shown on the fold-out pages at the end of these operating instructions.

Connection

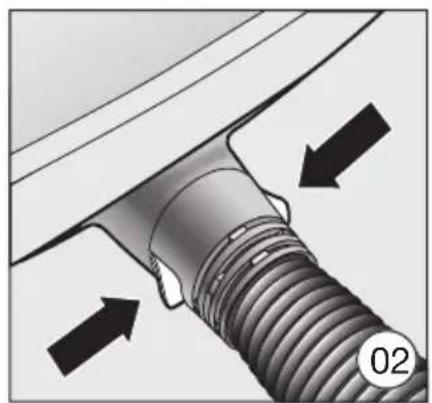

Attaching the suction hose (Fig. 01 + 02)

■ Insert the hose connector into the suction opening on the vacuum cleaner until it clicks into position. To do this, line up the guides on the two pieces.
If you want to separate the pieces again, press the release catches at the side of the hose connector, and pull the suction hose out of the suction opening.

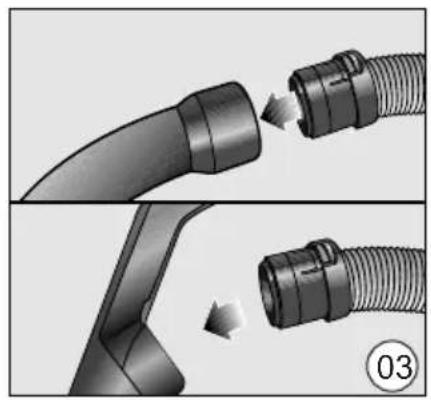

Connecting the suction hose to the handle (Fig. 03)

■ Insert the suction hose into the handle until it clicks into position.

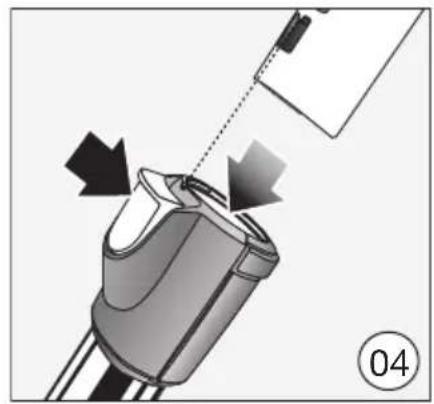

Connecting the handle to the suction tube (Fig. 04)

■ Insert the handle into the suction tube until it clicks into position. To do this, line up the guides on the two pieces.
■ To detach the handle from the suction tube, press the release catch and pull the handle out of the suction tube, twisting it slightly as you do so.

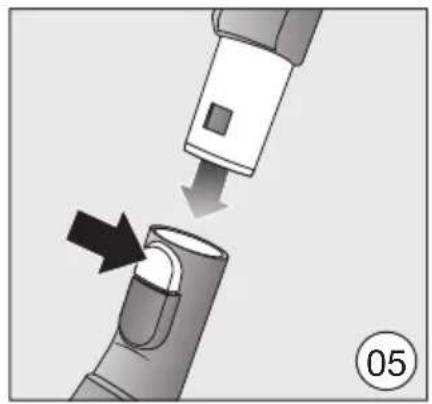

Connecting the telescopic tube to the floorhead (Fig. 05)

■ Push the telescopic tube into the floorhead and turn it clockwise or anti-clockwise until it clicks into position.
■ To detach the floorhead from the suction tube press the release button and pull the suction tube away from the floorhead, twisting it slightly as you do so.

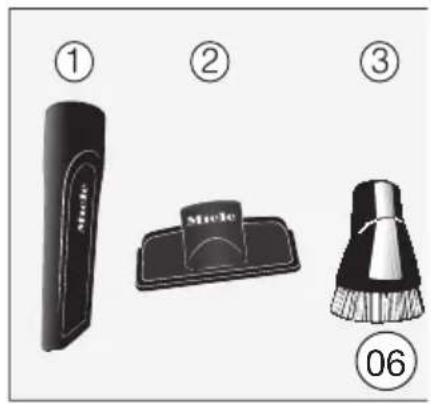

Using the supplied accessories (Fig. 06)

① Crevice nozzle

For cleaning in folds, crevices or corners.

② Upholstery nozzle

For cleaning upholstery, mattresses, cushions, curtains, etc.

③ Dusting brush, supplied loose (depending on model)

For cleaning skirting boards, ornate and carved objects.

The head can be swivelled to adjust the angle.

The crevice nozzle and the upholstery nozzle are located in holders at the rear of the vacuum cleaner.

Certain models are supplied as standard with a turbobrush which is not illustrated. The turbobrush is supplied with its own set of operating instructions.

Use

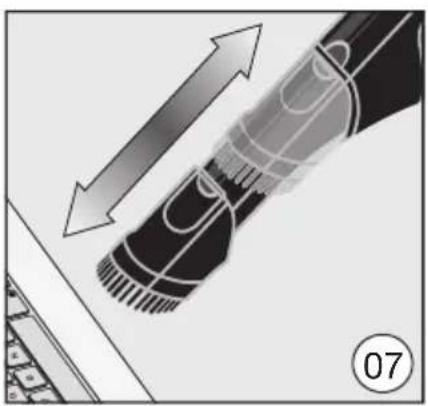

Adjusting the dusting brush integrated in the Eco Comfort handle (Fig. 07)

Some models are equipped with an Eco Comfort handle.

The dusting brush is suitable for vacuuming scratch-resistant surfaces, e.g. keyboards or vacuuming up crumbs.

■ Press the release button on the dusting brush and push the brush out until it clearly engages in position.
■ When you have finished dusting press the release button and push the brush back into its original position until it clicks into place.

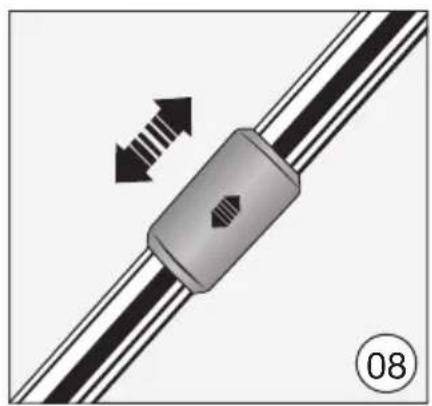

Adjusting the telescopic suction tube (Fig. 08)

One part of the telescopic suction tube is packed inside the other, and it can be adjusted to suit your height for comfortable vacuuming.

■ Grasp the release mechanism and adjust the telescopic suction tube to the required length.

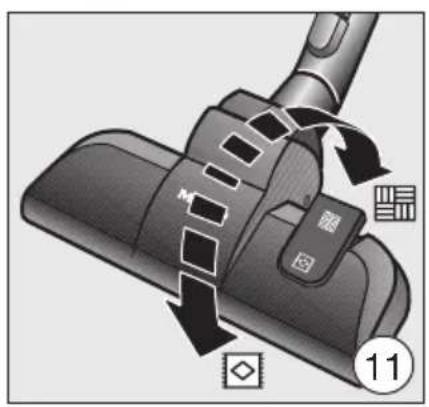

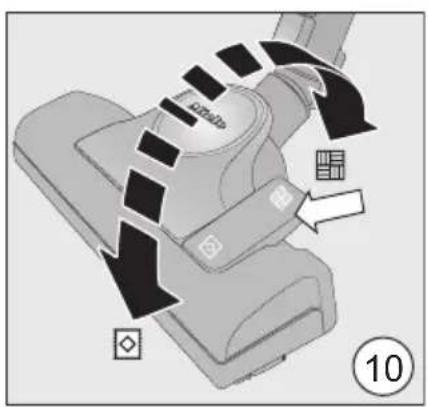

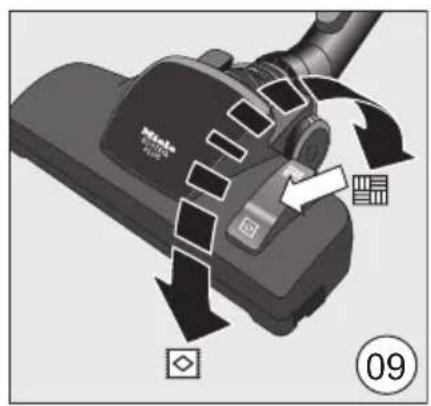

Adjusting the floorhead (Fig. 09, 10 + 11)

Depending on the model, your vacuum cleaner will be fitted as standard with one of the floorheads illustrated.

This vacuum cleaner can be used for daily cleaning of carpets, rugs and robust hard floors.

Miele offers a range of other floorheads, brushes and accessories for other types of flooring and special applications (see "Optional accessories").

Please observe the flooring manufacturer's cleaning and care instructions.

Clean even hard floors which are not susceptible to scratching, as well as flooring with gaps or deep crevices in it with the brush protruding:

■ Press the 📁 footswitch.

Vacuum carpets and rugs with the brush retracted:

■ Press the ◇ footswitch.

If the suction power of the adjustable floorhead seems too high, reduce the suction until the floorhead is easier to manoeuvre (see “Use” – “Regulating the suction power”).

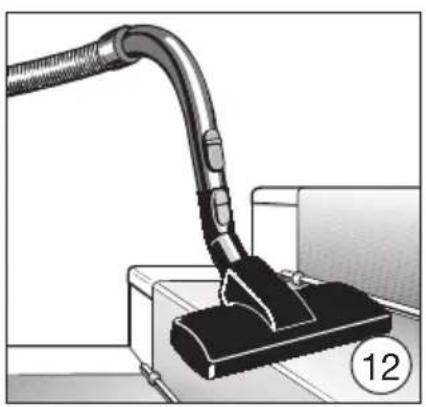

Adjustable floorhead (Fig. 12)

The adjustable floorhead can also be used for vacuuming the stairs.

Risk of injury caused by falling im cleaner.

You may be injured if the vacuum cleaner should fall from the stairs. When vacuuming stairs, it is best to start at the bottom of the stairs and move upwards.

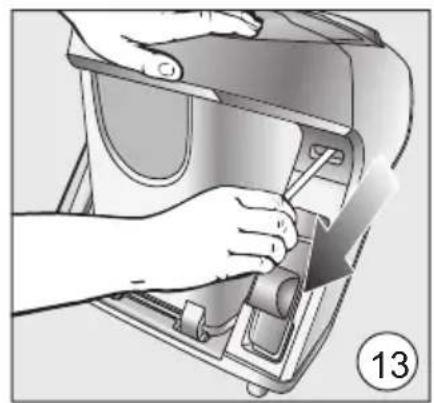

Unwinding the mains cable (Fig. 13)

■ Pull the mains cable out to the required length.
■ Insert the plug into the socket.

Risk of damage due to overheat-

The mains cable may overheat after a long period of use.

If vacuuming for longer than 30 minutes, the cable must be pulled out all the way.

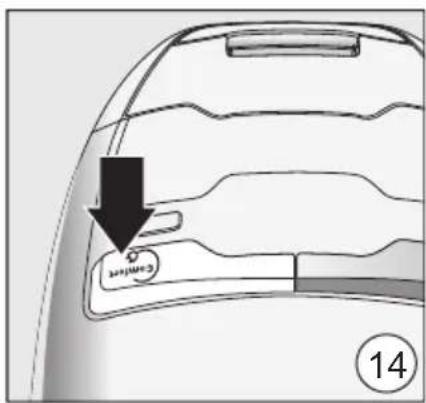

Rewinding the cable (Fig. 14)

■ Switch off at the wall socket and unplug it.
■ Step briefly on the cable rewind foot-switch.

The cable will then retract itself fully into the vacuum cleaner.

If you do not want the cable to retract completely into the vacuum cleaner you can stop it before it does. To do this, take hold of the cable whilst retracting it and give it a short pull when you want the rewinding to end.

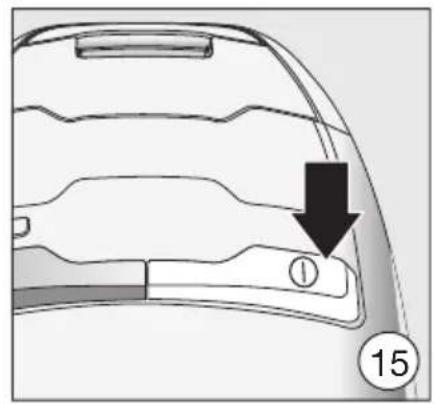

Switching on and off (Fig. 15)

■ Press the On/Off footswitch ①.

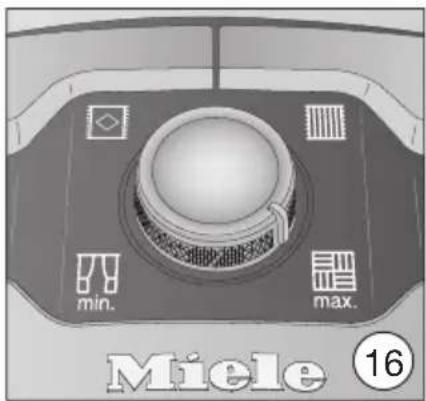

To regulate the suction power

The suction power can be regulated to suit the type of flooring being cleaned. Reducing the suction power reduces the amount of effort required to manoeuvre the floorhead.

The vacuum cleaner has symbols on the controls which indicate the type of use the settings are suitable for.

Curtains, fabric
☐ Cut pile carpets, rugs and runners
Loop pile carpet and rugs
Hard flooring and heavily soiled carpets and rugs (also for cleaning upholstery and mattresses with the upholstery nozzle)

When using the adjustable floorhead, if the suction seems too high, reduce the suction power until the floorhead is easier to manoeuvre.

Depending on the model, your vacuum cleaner will be fitted as standard with one of the following suction power selectors:

• Rotary selector
• Radio-control handle

Rotary selector (Fig. 16)

■ Turn the rotary selector to the suction power setting you require.

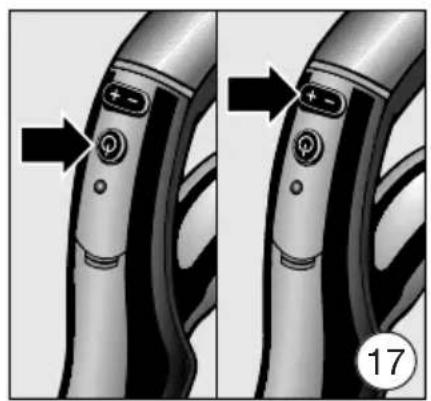

Radio-control handle (Fig. 17)

When the vacuum cleaner is switched on with the On/Off foot control ①, the suction power setting 📁 will flash in the vacuum cleaner display.
■ Press the Standby button ⏻ on the handle.

The suction power setting 📄 will light up in the vacuum cleaner display.

The first time the vacuum cleaner is switched on, the highest setting will be selected automatically.

After that, the vacuum cleaner will switch on at the setting which was used previously. This will flash.

■ Press the + button on the handle to select a higher suction power setting.
■ Press the - button on the handle to select a lower suction power setting.

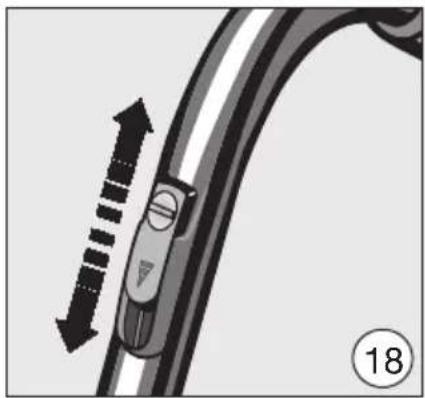

To open the air inlet valve (Fig. 18 + 19)

(not on models with radio-controls on the handle or on Eco Comfort handles)

It is easy to reduce the suction power for a short time, e.g. to prevent rugs or other objects being sucked into the vacuum cleaner.

■ Open the air inlet valve on the handle far enough to reduce the suction power.

The floorhead will be easier to manoeuvre.

During vacuuming

■ When vacuuming, pull the cleaner behind you on its wheels. You can stand it upright for vacuuming stairs and curtains etc.

If you vacuum a large amount of dust in one go, you should start the Comfort-Clean self-cleaning function manually either during a vacuuming pause or immediately afterwards. This enables the vacuum cleaner to achieve the very best cleaning performance again straight away (see “Maintenance” – “Starting the ComfortClean self-cleaning function manually”).

Interrupting operation (Fig. 17)

(for models with radio controls on the handle)

The vacuum cleaner can be paused for short breaks whilst vacuuming.

■ Press the Standby button ⏻ on the handle.

⚠️ The Standby button is designed to pause the vacuum cleaner for short periods of time whilst vacuuming. Do not leave the vacuum cleaner in Standby mode for long periods. This can cause overheating and damage.

An LED will indicate each time a button is pressed on the handle.

At the end of the pause you can do one of the following:

■ Press the Standby button ⏻ again to switch the vacuum cleaner back on at the setting you were using before pausing it.
■ Press the + button to switch the vacuum cleaner back on using the highest power setting.
■ Press the - button to switch the vacuum cleaner back on using the lowest power setting.

Setting down, transportation and storage

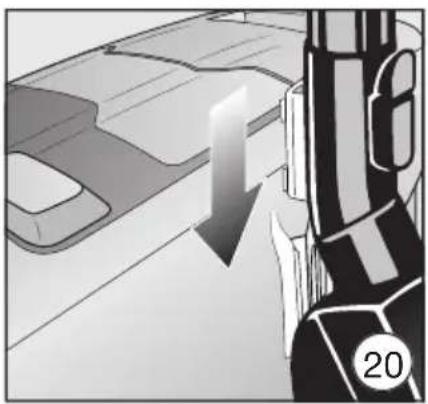

Park system for pauses during vacuuming (Fig. 20)

The Park system allows you to conveniently park the suction tube and floorhead during pauses.

■ Slot the floorhead or floorbrush into the parking attachment on the vacuum cleaner.

If your vacuum cleaner is on a sloping surface, e.g. a ramp, retract the telescopic tube fully.

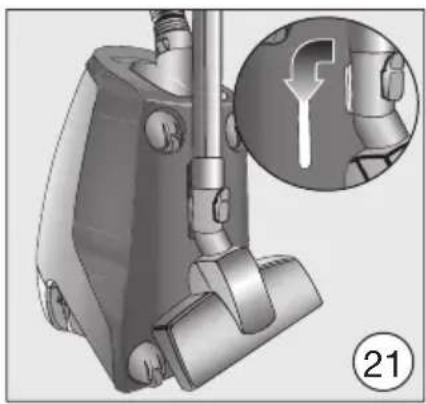

Park system for storage (Fig. 21)

⚠️ Risk of electric shock from mains voltage.

The mains voltage is applied to the appliance even if it is switched off. After use, switch the appliance off at the wall socket and unplug it.

■ Stand the vacuum cleaner upright.
■ Retract the telescopic tube fully.
■ Slot the floorhead downwards into the parking attachment on the vacuum cleaner.

This makes the vacuum cleaner easier to carry or store.

Do not lift the vacuum cleaner by the dust container carrying handle.

Always use the vacuum cleaner carrying handle.

Maintenance

⚠️ Risk of electric shock from mains voltage.

The mains voltage is applied to the appliance even if it is switched off. Before carrying out any maintenance work, switch the appliance off at the wall socket and unplug it.

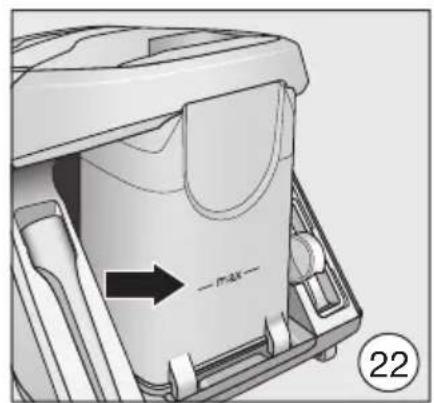

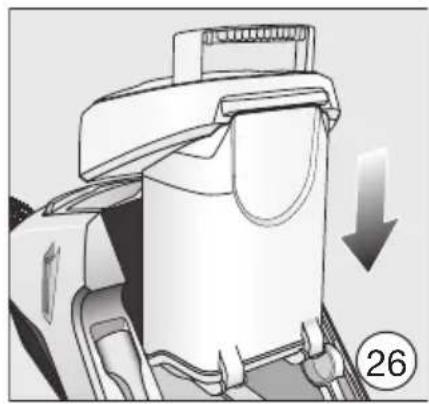

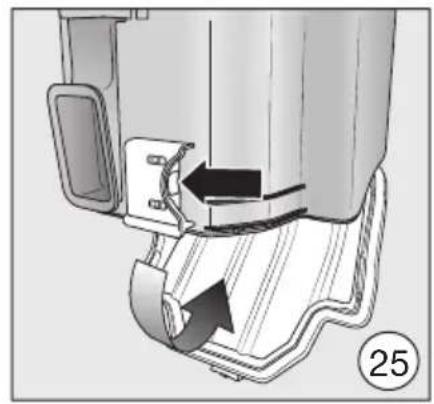

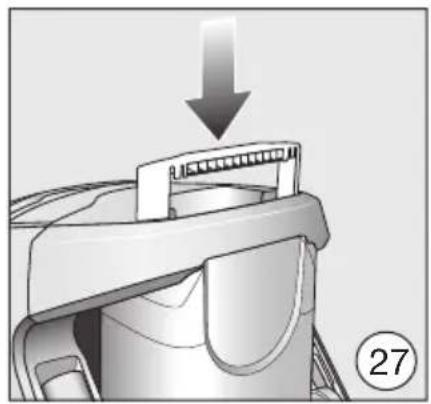

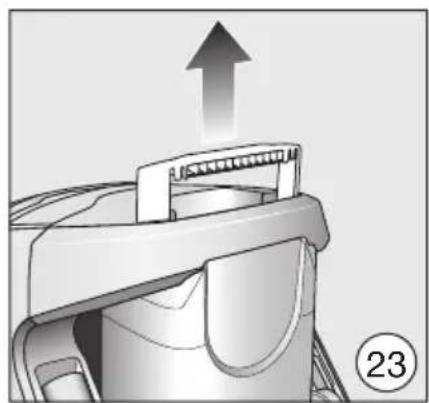

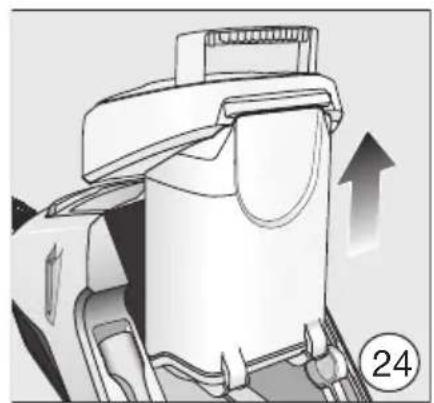

Emptying the dust container (Fig. 22–27)

■ Empty the dust container before the dust has reached the max marking on the dust container.
■ Pull the dust container handle upwards.
■ Lift the dust container upwards to remove it.

The contents of the container can be disposed of with normal domestic waste, providing they consist of general household dust only.

■ Hold the dust container close to the bin to prevent dust from billowing out.
■ Press the yellow release catch on the bottom of the dust container.

The cover will open and the dust will fall out.

■ Close the cover making sure it clicks into place.
■ Insert the dust container into the vacuum cleaner from above so that it audibly clicks into place.
■ Push the handle down.

Cleaning the dust container

Clean the dust container as required.

■ Clean the dust container using water and mild washing-up liquid.
■ Dry the dust container thoroughly.

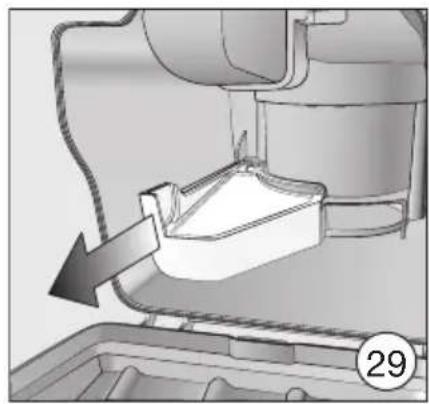

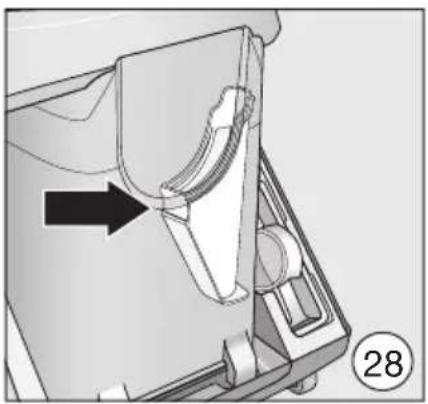

Cleaning the filter frame (Fig. 28 + 29)

A removable filter frame is located in the dust container. This should be cleaned if it is obviously dirty.

■ Place the emptied and open dust container on its front.
■ Release the filter frame and remove it.
■ Empty the filter frame and rinse it under cold running water.

⚠️ Risk of damage caused by incorrect cleaning.

The filter frame can become damaged and be less effective as a result.

Do not use washing-up liquid or any pointed or sharp-edged objects to clean the filter. Dry the filter frame carefully after cleaning.

■ Replace the dry filter frame in the dust container so that it audibly clicks into place.

Cleaning the fine dust filter

The fine dust filter is equipped with a self-cleaning function. When a specified degree of soiling is reached, the vacuum cleaner switches off automatically for approx. 20 seconds and carries out a cleaning process. You will hear this process running.

The ComfortClean button on the vacuum cleaner lights up yellow.

Starting the ComfortClean self-cleaning function manually (Fig. 30)

If you vacuum a large amount of dust in one go, you should start the Comfort-Clean self-cleaning function manually either during a vacuuming pause or immediately afterwards. This enables the vacuum cleaner to achieve the very best cleaning performance again straight away.

■ With the vacuum cleaner switched on, press the ComfortClean button for at least 2 seconds.

The vacuum cleaner is switched off automatically for approx. 20 seconds and a cleaning process is carried out which results in operational noise. The ComfortClean button on the vacuum cleaner lights up yellow. The vacuum cleaner will then switch back on automatically and will operate with the previously selected power level.

We also recommend emptying and cleaning the fine dust container once or twice a year (see “Fault resolution” – “Cleaning the fine dust filter manually”).

Changing the battery in the radio-control handle (Fig. 31)

Change the battery approximately every 18 months. One 3 V battery (CR 2032) is required.

The vacuum cleaner can still be used when the battery has run out or if there is no battery fitted.

■ Switch the vacuum cleaner on using the On/Off footswitch ①.

The suction power setting 📄 will flash in the vacuum cleaner display.

■ Press the ComfortClean button on the vacuum cleaner for at least four seconds (Fig. 30).

The vacuum cleaner can continue to be used in this way, but only at maximum power.

■ Undo the screw on the battery compartment cover using a cross-tip screwdriver and then remove the cover.

■ Replace the battery with a new one, making sure the polarity is correct.

■ Replace the cover and tighten the screw back up again.

■ Dispose of the old battery in a municipal recycling facility.

⚠️ ⏻ WARNING! Keep batteries out of reach of children. Coin or button batteries containing lithium can cause severe or fatal injuries within 2 hours of being swallowed or placed inside any part of the body. Non-lithium batteries can also cause serious injuries if swallowed or placed inside any part of the body. Even flat batteries can still be dangerous. If you suspect a child has swallowed a battery or placed a battery inside any part of their body, seek medical advice immediately (Australia: Poisons Information Centre, Tel. 13 11 26; NZ: National Poisons Centre, Tel. [phone]). Examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened. Do not use if compartment is not secure. Used batteries must be kept away from children while awaiting disposal and must be disposed of in a safe manner.

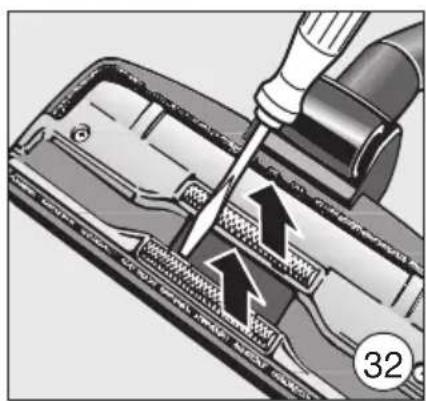

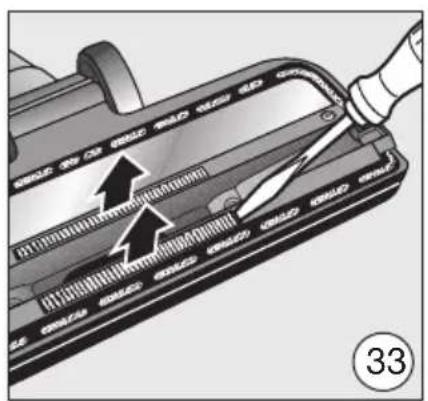

Replacing the thread lifters (Fig. 32 + 33)

(not possible on EcoTeQ Plus floorheads)

The thread lifters on the suction inlet to the floorhead can be replaced. Replace the thread lifters if the pile has worn down.

■ Lever the thread lifters from the slots. To do so use a suitable tool, e.g. a flat blade screwdriver.
■ Fit new thread lifters.

Replacement parts are available from your Miele dealer or from the Miele Spare Parts Dept.

Cleaning and care

⚠️ Risk of electric shock from mains voltage.

The mains voltage is applied to the appliance even if it is switched off.

Before cleaning, switch the appliance off at the wall socket and unplug it.

Vacuum cleaner and accessories

⚠️ Risk of electric shock from mains voltage.

If moisture gets into the vacuum cleaner, there is a risk of electric shock.

Do not let the vacuum cleaner get wet.

Follow the special cleaning instructions for the dust container and filter frame in “Maintenance” and for the fine dust filter, the pre-filter and the fine dust container in “Fault resolution”.

The vacuum cleaner and all plastic accessories can be cleaned with a proprietary cleaner suitable for plastic.

⚠️ Damage due to unsuitable cleaning agents.

All surfaces are susceptible to scratching. Contact with unsuitable cleaning agents can alter or discolour the external surfaces.

Do not use abrasive cleaning agents, glass cleaning agents, all-purpose cleaners or oil-based conditioning agents.

Problem solving guide

Many malfunctions and faults that can occur in daily operation can be easily remedied. Time and money will be saved because a service call will not be needed.

The following guide may help you to find the reason for a malfunction or a fault, and to correct it.

Risk of electric shock from mains voltage.

The mains voltage is applied to the appliance even if it is switched off.

Before dealing with any problems, switch the appliance off at the wall socket and unplug it.

Problem Cause and remedy
The vacuum cleaner switches off automatically.	A temperature limiter switches the vacuum cleaner off automatically if it gets too hot. This can occur when the airways are blocked by bulky objects.■ Switch the vacuum cleaner off immediately using the On/Off footswitch 1. Switch off at the wall socket and unplug it.After removing the cause, wait for approximately 20–30 minutes to allow the vacuum cleaner to cool down. It can then be switched on again.
The ComfortClean button is lit up yellow.	The vacuum cleaner is running an automatic cleaning process which you can hear running.■ Wait for approx. 20 seconds until this cleaning process has finished.
The ComfortClean button lights up red.The vacuum cleaner has switched to the lowest power level.	The dust container is full.■ Empty the dust container.
	The pre-filter is dirty.■ Clean the pre-filter (see “Fault resolution” – “Cleaning the pre-filter”).
	The fine dust filter is dirty.■ Clean the fine dust filter at the next available opportunity (see “Fault resolution” – “Cleaning the fine dust filter manually”).
Cleaning performance is reduced.	The pre-filter is dirty.■ Clean the pre-filter (see “Fault resolution” – “Cleaning the pre-filter”).
	The fine dust container is full.■ Empty and clean the fine dust container at the next available opportunity (see “Fault resolution” – “Cleaning the fine dust filter manually”).

Fault resolution

⚠️ Risk of electric shock from mains voltage.

The mains voltage is applied to the appliance even if it is switched off. Before carrying out any troubleshooting, switch the appliance off at the wall socket and unplug it.

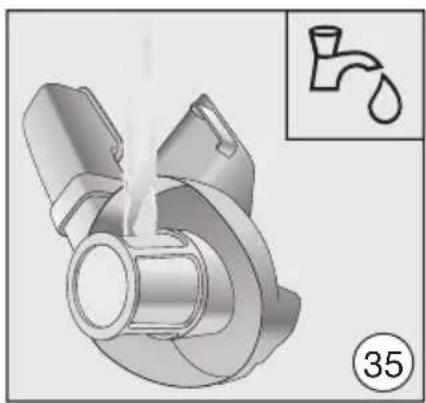

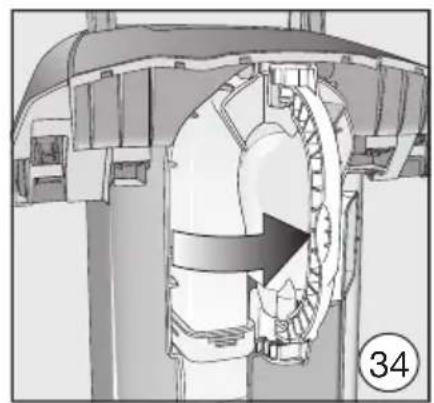

Cleaning the pre-filter (Fig. 34 + 35)

The pre-filter is located at the rear of the dust container.

This should be cleaned if it is obviously dirty.

■ Remove the dust container.
■ Release the handle of the pre-filter and remove the pre-filter.
■ Rinse the pre-filter under cold running water.

⚠️ Risk of damage caused by incorrect cleaning.

The pre-filter can become damaged and be less effective as a result.

Do not use washing-up liquid or any pointed or sharp-edged objects to clean the filter. Dry the pre-filter carefully after cleaning.

• Replace the dry pre-filter in the dust container and lock the handle.
• Replace the dust container in the vacuum cleaner.

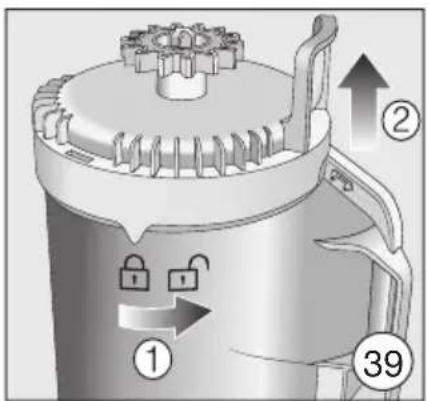

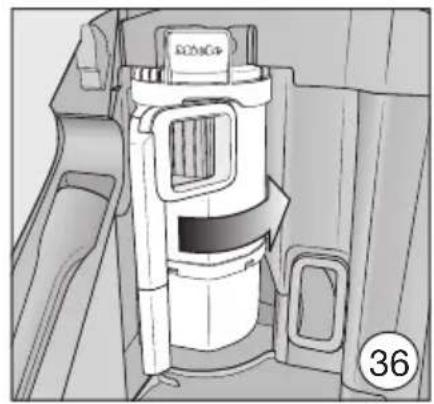

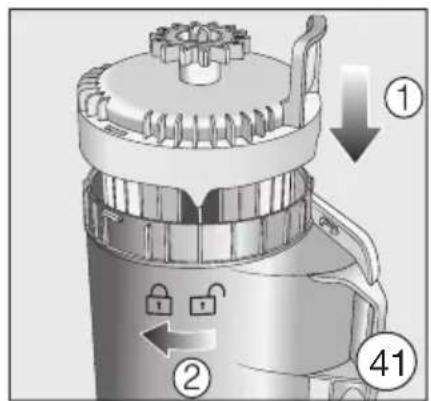

Cleaning the fine dust filter manually (Fig. 36–41)

Allow a drying time of 24 hours.
■ Remove the dust container.

■ Release the fine dust container from the vacuum cleaner in the direction of the arrow and remove it.
■ Run a little water into the opening at the top of the fine dust container.
■ Gently shake the fine dust container back and forth.

This will rinse out the dust.

■ Shake to empty the water out.
■ Turn the upper part in the direction of the arrow so that the marking is pointing to the 🔍 symbol.

This releases the upper part.

■ Carefully lift the fine dust filter upwards and out of the fine dust container.
■ Rinse the outside of the fine dust filter under cold running water.

⚠️ Risk of damage caused by incorrect cleaning.

The fine dust filter can become damaged and be less effective as a result.

Do not clean the inside of the fine dust filter. Do not use washing-up liquid or any pointed or sharp-edged objects to clean the filter. Do not brush the fine dust filter. After cleaning, allow the fine dust filter to dry for a minimum of 24 hours.

■ Clean the fine dust filter container with water and mild washing-up liquid.
■ Dry the fine dust filter container thoroughly.

• Insert the dry fine dust filter into the dry fine dust container so that the marking is pointing to the 🔊 symbol.
  ■ Turn the upper part in the direction of the arrow so that the marking is pointing to the 🔒 symbol.

The upper part is locked.

■ Replace the fine dust container in the vacuum cleaner and lock it into place.
■ Replace the dust container in the vacuum cleaner.

Service

Contact in case of malfunction

In the event of any faults which you cannot remedy yourself, please contact your Miele Dealer or Miele Service.

Contact information for Miele Service can be found at the end of this document.

Please note that telephone calls may be monitored and recorded for training purposes and that a call-out charge will be applied to service visits where the problem could have been resolved as described in this booklet.

Warranty

For information on the appliance warranty specific to your country, please contact Miele. See end of this document for address.

In the UK, your appliance warranty is valid for 2 years from the date of purchase. However, you must activate your cover by calling 0330 160 6640 or registering online at www.miele.co.uk.

Warranty in the UAE

The appliance warranty is valid for 2 years from date of purchase.

For more information on country specific warranty terms and conditions, please contact Miele Customer Service. See end of this document for contact details.

Optional accessories

Follow the flooring manufacturer's cleaning and care instructions.

We recommend using only genuine Miele accessories bearing the “ORIGINAL Miele” logo on the packaging. Only these will guarantee the optimum performance of your vacuum cleaner and the best possible cleaning results.

Please note that faults and damage caused by use of accessories which do not bear the “ORIGINAL Miele” logo on the packaging are not covered by the vacuum cleaner warranty.

Purchasing accessories

Original Miele accessories are available from the Miele webshop, the Miele Customer Service Department and from your Miele dealer.

Original Miele accessories are identified by the “ORIGINAL Miele” logo on the packaging.

ORIGINAL Miele

With 3D4U, Miele also offers free accessories to download for your 3D printer (www.miele.com, Service, 3D4U).

Simple 3D cube with three white Y-shaped cutouts on one face (no text or symbols)

3 D 4 U

Certain models are supplied with one or more of the following accessories as standard.

Floorheads / brushes

(only available in selected countries)

TurboTeQ Turbobrush (STB 305-3)

This brush is ideal for cleaning cut pile carpet.

Hard floorbrush (SBB 235-3)

This brush is designed for use on hard flooring such as tiled or stone floors.

Parquet Twister floorbrush with swivel action (SBB 300-3)

With natural bristles for vacuuming smooth hard floors and small gaps.

Parquet Twister XL floorbrush with swivel action (SBB 400-3)

With natural bristles for quickly vacuuming smooth hard floors and small gaps.

Other accessories

(only available in selected countries)

Turbo Mini hand turbobrush (STB 101)

For vacuuming upholstery, mattresses or car seats, etc.

Universal brush (SUB 20)

For dusting books, shelves, etc.

Radiator brush (SHB 30)

For dusting radiators, narrow shelves and crevices.

Mattress nozzle (SMD 10)

For vacuuming upholstery, mattresses, cushions, curtains, covers etc.

Crevice nozzle, 300 mm (SFD 10)

Extra long crevice nozzle for cleaning in folds, crevices and corners.

Crevice nozzle, 560 mm (SFD 20)

Flexible crevice nozzle for vacuuming hard to reach places.

XL upholstery nozzle (SPD 20)

Wide upholstery nozzle for cleaning upholstery, mattresses and cushions.

Electrical connection for the UK

All electrical work should be carried out by a suitably qualified and competent person in strict accordance with current national and local safety regulations (BS 7671 in the UK). The voltage and frequency are given on the data plate located underneath the vacuum cleaner. Please ensure that these match the household mains supply. The fuse rating is quoted on the plug. The appliance is supplied with a cable and moulded plug ready for connection to a 230-240 V/50 Hz a.c. single phase supply.

Electrical connection AU, NZ

All work should be carried out by a suitably qualified and competent person in strict accordance with national and local safety regulations. The voltage and rated load are given on the data plate located underneath the vacuum cleaner. Please ensure that these match the household mains supply. The appliance is supplied with a cable and moulded plug ready for connection to a 230V/50Hz AC single phase supply.

Test Marks Electrical safety RCM Mark

Electrically sup-

pressed

according to

AS/NZS CISPR

14.1

Technical data

(for models with radio controlled handle)

Frequency band 433.05 MHz - 434.79 MHz

Maximum transmitting power < 10 μW

EU Conformity declaration

Miele hereby declares that this vacuum cleaner complies with Directive 2014/53/EU.

The complete text of the EU declaration of conformity is available from one of the following internet addresses:

• Products, Download from www.miele.ie
• For service, information, operating instructions etc: go to www.miele.ie/domestic/customer-information-385.htm and enter the name of the product or the serial number

UK Conformity declaration

Miele hereby declares that this vacuum cleaner complies with UK Radio Equipment Regulations 2017, as amended.

The complete text of the UK declaration of conformity is available from one of the following internet addresses:

• Products, Download from www.miele.co.uk
• For service, information, operating instructions etc: go to www.miele.co.uk and enter the name of the product or the serial number

Exploded view diagram of a vacuum cleaner with numbered parts for identification

a) EN 60312-1 Vacuum cleaners for household use - Part 1: Dry vacuum cleaners - Methods for measuring the performance
b) EN 60704-2-1 Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for vacuum cleaners
c) EN 60335-2-2 Household and similar electrical appliances - Safety - Part 2-2: Particular requirements for vacuum cleaner and water suction appliances

Simple 3D cube icon with three white Y-shaped cutouts on one face (no text or symbols)

3 D 4 U

Exploded view diagram of a vacuum cleaner with numbered parts for identification

Simple 3D cube with three white Y-shaped cutouts on one face (no text or symbols)

3 D 4 U

Exploded view diagram of a vacuum cleaner with numbered parts for identification

a) EN 60312-1 Vacuum cleaners for household use – Part 1: Dry vacuum cleaners – Methods for measuring the performance
b) EN 60704-2-1 Household and similar electrical appliances – Test code for the determination of airborne acoustical noise – Part 2-1: Particular requirements for vacuum cleaners
c) EN 60335-2-2 Household and similar electrical appliances – Safety – Part 2-2: Particular requirements for vacuum cleaner and water suction appliances

⚠️ Schade door oververhitting.

Stofreservoir legen (afb. 22–27)

Simple 3D cube with three white Y-shaped cutouts on one face (no text or symbols)

3 D 4 U

Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW

Tel: [phone], Internet: www.miele.co.uk/service, E-mail: [e-mail]

Australia

Miele Australia Pty. Ltd.

ACN 005 635 398

ABN 96 005 635 398

Level 4, 141 Camberwell Road

Hawthorn East, VIC 3123

Tel: [phone]

Internet: www.miele.com.au

China Mainland

Miele Electrical Appliances Co., Ltd.

1-3 Floor, No. 82 Shi Men Yi Road

Jing' an District

200040 Shanghai, PRC

Tel: [phone]

Fax: [phone]

E-mail: [e-mail],

Kowloon Bay, Hong Kong

Tel: [phone]

Fax: [phone]

Email:

[e-mail]

Website: www.miele.hk

India

Miele India Pvt. Ltd.

1st Floor, Copia Corporate Suites,

Commercial Plot 9,

Mathura Road, Jasola,

New Delhi - 110025

E-mail: [e-mail]

Website: www.miele.in

Ireland

Miele Ireland Ltd.

2024 Bianconi Avenue

Citywest Business Campus

Dublin 24

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Internet: www.miele.ie

Malaysia

Miele Sdn Bhd

Suite 12-2, Level 12

Menara Sapura Kencana

Petroleum

Solaris Dutamas No. 1

Jalan Dutamas 1

50480 Kuala Lumpur, Malaysia

Phone: [phone]

Fax: [phone]

New Zealand

Miele New Zealand Limited

IRD 98 463 631

8 College Hill

Freemans Bay, Auckland 1011

New Zealand

Tel: [phone]

Internet: www.miele.co.nz

Singapore

Miele Pte. Ltd.

29 Media Circle

11-04 ALICE@Mediapolis

Singapore 138565

sTel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Internet: www.miele.sg

South Africa

Miele (Pty) Ltd.

63 Peter Place

Bryanston 2194

P.O. Box 69434

Bryanston 2021

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

Internet: www.miele.co.za

Thailand

Miele Appliances Ltd.

BHIRAJ TOWER at EmQuartier

43rd Floor Unit 4301-4303

689 Sukhumvit Road

North Klongton Sub-District

Vadhana District

Bangkok 10110, Thailand

United Arab Emirates

Miele Appliances Ltd.

Showroom 1

Eiffel 1 Building

Sheikh Zayed Road, Umm Al She

P.O. Box 114782 - Dubai

Tel. [phone]

Fax. [phone]

800-MIELE (64353)

Mechanical assembly diagram showing a connector inserted into a housing (no text or symbols visible)

Close-up of a threaded bolt with directional arrows indicating movement or force (no text or symbols)

Two-step diagram showing a pipe being inserted into a connector, with arrows indicating the process (no text or symbols present)

Diagram of a device with arrows indicating motion or force, no visible text or symbols

Mechanical assembly diagram showing a tool interacting with a cylindrical component, with an arrow indicating motion (no text or symbols present)

① ② ③ Miele 06

Illustration of a mechanical device with directional arrows indicating motion or force, placed on a laptop (no text or symbols present)

Diagram of a cylindrical component with directional arrows indicating motion or force, labeled with circled number 08 (no text or symbols on the diagram itself)

Nozzle Nozzle Nozzle 09

Diagram showing mechanical component with directional arrows and labeled parts, including a numbered marker '10'

Diagram showing a vacuum cleaner's internal structure with directional arrows and labeled parts, including a numbered marker '11'

Illustration of a vacuum cleaner inserting a component into a device (no text or symbols visible)

Illustration of hands using a device to adjust or install a component, no text or symbols visible

Diagram showing a car rear panel with a labeled button and an arrow pointing to the side panel, marked as number 14.

Diagram of a car's rear window with a black arrow pointing to the front panel, labeled with number 15 (no text or symbols on the diagram itself)

min. max. Miele 16

Close-up of a hand holding a device with two buttons and a plus/minus indicator, showing mechanical components (no text or symbols)

Diagram of a car wheel with directional arrows indicating motion or movement (no text or symbols)

Close-up of a mechanical component with directional arrows and a numbered label (19), no readable text or symbols present.

Diagram showing a mechanical component with a downward arrow indicating motion or force, no text or symbols present.

Mechanical component diagram showing a vacuum cleaner with a close-up inset of its internal structure (no text or symbols)

Technical illustration of a mechanical device with an arrow indicating a component, no visible text or symbols

Mechanical component diagram showing a piston-like structure with an upward arrow, no text or symbols present

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Mechanical assembly diagram showing a component with arrows indicating motion or force direction (no text or symbols present)

Diagram of a mechanical device with a downward arrow indicating motion or force, no visible text or symbols

Mechanical component diagram showing a downward arrow and numbered label (27), no readable text or symbols present.

Mechanical component diagram showing a clamping mechanism with an arrow indicating direction (no text or symbols)

Mechanical component diagram showing a lever mechanism with an arrow indicating motion (no text or symbols present)

Comfort Clean 30

Diagram illustrating tire repair steps with numbered instructions and directional arrows

Close-up of a mechanical component with arrows indicating assembly or repair process (no visible text or symbols)

USB1C 20 CS BHD 750 USB CD DC CINEMA BHD 750 BHD BHD BHD BHD 33

Cross-sectional diagram of a mechanical device showing internal components and a directional arrow (no text or symbols)

Mechanical component diagram showing a valve assembly with a water droplet symbol (no text or labels)

Technical diagram of a mechanical device with no visible text or symbols

Technical diagram of a handwashing device with labeled parts and an inset showing a faucet symbol and water droplet.

Illustration of a mechanical device pouring liquid into a container (no text or symbols visible)

Technical diagram of a mechanical device with numbered parts and directional arrows indicating process flow or assembly.

Illustration of a trash can with water being poured into it, accompanied by an inset showing a faucet (no text or symbols)

Technical diagram of a mechanical device with numbered parts and directional arrows indicating components

Miele

Deutschland:

Miele & Cie. KG
