USER MANUAL TBN7802X BEKO

Exterior view of a beko blender with clear glass and handle (no text or symbols visible)

TBN 7802 X

EN DE FR TR ES PL RO IT

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Suitable for contact with food.

Do not immerse the appliance, power cable, or power plug in water or any other liquids.

Protection class for electric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

CONTENTS

ENGLISH 4-15

DEUTSCH 16-30

FRANÇAIS 31-45

TÜRKÇE 46-58

ESPAÑOL 59-73

POLSKI 74-91

ROMANIAN 92-106

ITALIANO 107-121

1

Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international safety standards.
• This appliance can be used by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers.
• Do not use it if the power cable, blades or the appliance itself is damaged. Contact an authorised service.
• Only use the original parts or parts recommended by the manufacturer.
• Do not attempt to dismantle the appliance.

1

Important safety and environmental instructions

• Do not operate or place any part of this appliance or its parts on or near hot surfaces.
• Do not use the device for hot food.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance with an extension cord.
• Do not touch the plug of the appliance with damp or wet hands.
• Do not pull the power cable when unplugging the appliance.
• Unplug the appliance before cleaning, disassembly, accessory replacement and wait for it to stop completely.
• When emptying the container, during cleaning and grabbing chopping blades with bare hands serious injuries could result due to incorrect use. Use the plastic section trying to hold the chopping blade.
• Never touch blades while using the appliance. There is the possibility of injury due to incorrect usage.

1

Important safety and environmental instructions

• After cleaning, dry the appliance and all parts before connecting it to mains supply and before attaching the parts.
- Do not immerse the appliance, power cable, or power plug in water or any other liquids.
- If you keep the packaging materials, store them out of the reach of children.
- Children shall not use the appliance. Keep the appliance out of the reach of children.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1

Important safety and environmental instructions

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.5 Things to do for energy saving

Cut the solid food into small pieces before placing them in the appliance as stated in the user manual. Follow the other instructions and times specified in the manual. Select low speed levels if suitable for the food to be prepared. Switch off and unplug the appliance after using it.

2 Your blender

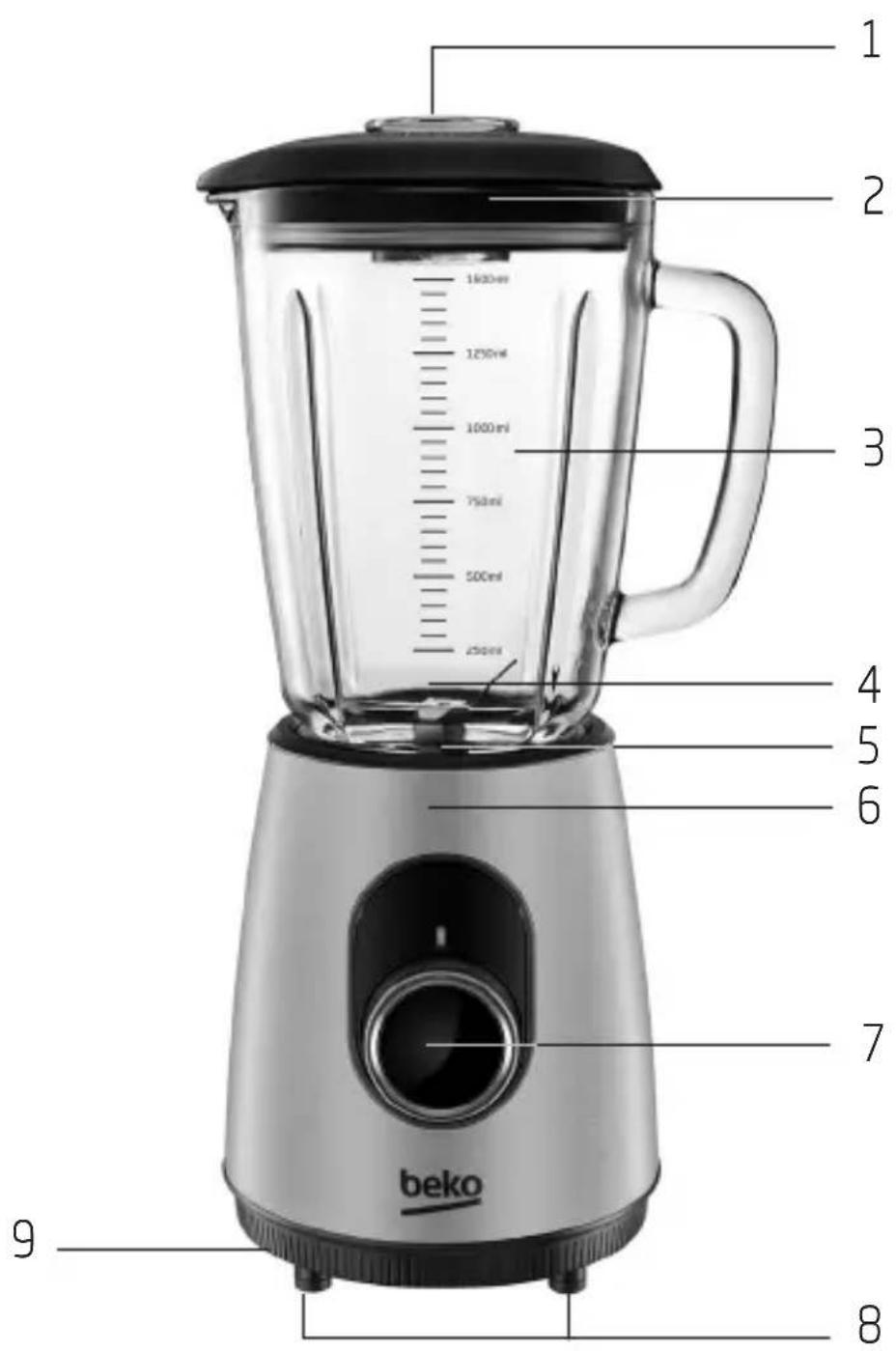

2.1 Overview

1 2 3 4 5 6 7 8 9 beko

The values which are declared in the markings affixed on your product or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

2 Your blender

1. Measuringcap
2. Cover
3. Glass container
4. Cutter blade
5. Silicone ring
6. Motor unit
7. Speed adjustment button
8. Non-slip feet
9. Cable winding bay (under the appliance)

2.2 Technical data

Voltage:220-240 V\~, 50/60 Hz

Power: 800 W

Insulation class: ||

Technical and design modifications reserved.

3 Operation

3.1 Intended use

This appliance is intended only for household use; it is not suitable for professional use. It is designed to chop small amounts of solid foods (onions, potatoes, carrots, etc.) and fruit (strawberries, bananas, etc.).

3.2 Initial use

Clean the appliance parts before initial use (see 4.1).

3.3 Removing the chopping blade

WARNING: Do not touch the blades with your bare hands.

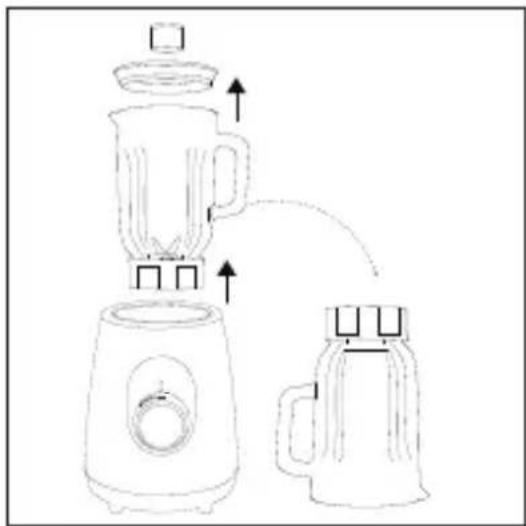

1. Unplug the appliance and move speed adjustment button (7) to "OFF" position.

2. Turn over the glass container (3).

Line drawing of a blender with three different sizes and arrows indicating process flow (no text or symbols)

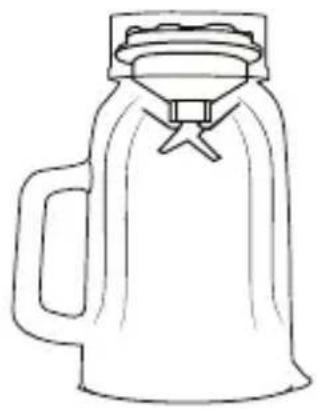

1. Remove chopping blade unit by turning clockwise.

Line drawing of a thermospan with handle and lid (no text or symbols)

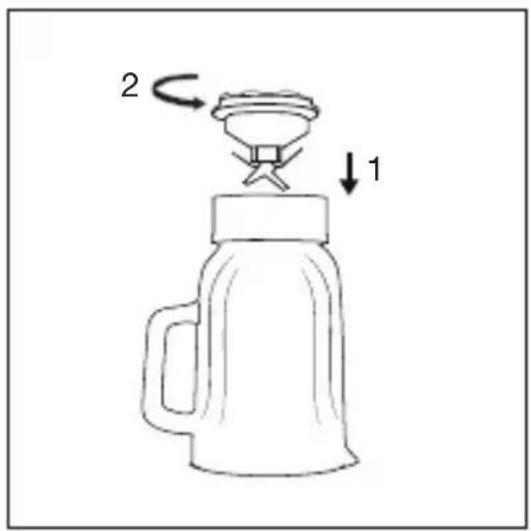

3.4 Installing the chopping blade

1. Put the silicone ring in its place on the chopping blade and place the chopping blade under the glass container.

3 Operation

1. Place it back in by turning counter-clockwise.

2 ↓1

1. Place the glass container onto the motor housing (6).

3.5 Operation

WARNING: Do not operate the appliance when it is empty or its cover is open.

1. Place your appliance on a solid and flat surface.

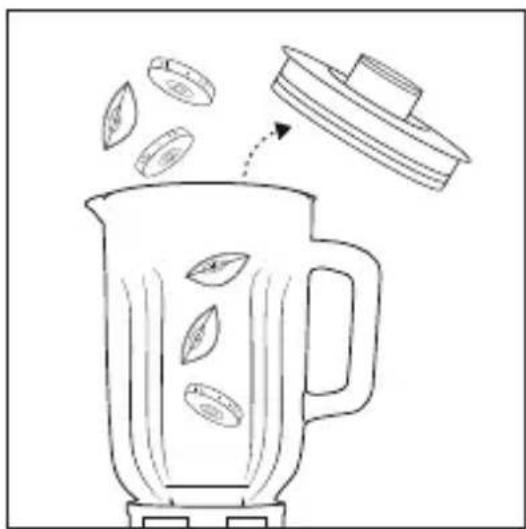

2. Open the lid (2) and put ingredients in the glass container (3).

Line drawing of a blender with leaves being poured into it (no text or symbols)

WARNING: Fill the container with milk up to 1000 ml when you make fruit milk mixes (strawberry, banana, etc.)

Otherwise, overflowing or leaks may occur during the process.

WARNING: Do not use the appliance to chop dry fruits such as almonds or hazelnuts.

3 Operation

WARNING: You can process food with maximum 40°C of temperature in your appliance.

1. Attach cover (2) and measuring cap (1) to glass container.

Line drawing of a blender with leafy contents inside, showing liquid and lid (no text or symbols)

1. Plug in the appliance.
2. Use speed adjustment button (7) to select the desired speed.

Simple line drawing of a circular ring with a small protrusion labeled 'P' and 'OXY' (no text or symbols beyond labels)

WARNING: Do not run the appliance continuously for more than 1 minute. After running the appliance continuously for 1 minutes, let it cool down for 10 minutes before using it again.

During the mixing process, use measuring cap (1) hole to put ingredients in glass container.

WARNING: Do not insert any foreign objects into the glass container (3) when the appliance is in use.

1. Move the speed adjustment button (7) to "OFF" position and unplug the appliance once the operation is over.

3 Operation

WARNING: Do not remove ingredients from the glass container (3) before chopping blade (9) has completely stopped.

1. Remove the glass container (3) by pulling it up from the body (4).
2. Open the lid (2) and remove the ingredients.

3.6 Crushing ice

1. Attach chopping blade (4) in glass container (3) (see. 3.4).
2. Put ice into the glass container (3).
3. Operate speed adjustment button (7) in position "P" for crushing ice (see. 3.8).
4. Open measuring cap (1) to put more ice in glass container (3) during the process. Drop ice cubes in the glass container through this opening one by one.

3.7 Position "P"

Operating the appliance with the speed adjustment button in (7) position "P" for 1-2 seconds is called "PULSE".

Hold speed adjustment button (7) in position "P" for mixing with high speed short pulses. When you release the button, speed adjustment button (7) returns to "OFF" position automatically and the appliance starts stopping.

4 Cleaning and care

4.1 Cleaning

1. Unplug the appliance before cleaning.
2. Wait for the accessories used to stop completely.
3. Remove the accessory from the container after removing the glass container (3) from the appliance (see. 3.3).
4. Clean the residual food in the glass container (3) under running tap water.
5. After installing chopping accessory into the glass container (3), replace the glass container on the (3.4) body (4).
6. Completely fill or fill half of the glass container (3) with warm water and some drops of dish-washing liquid and operate the appliance in highest speed for a couple of seconds.
7. Then remove and rinse the glass container.

Glass container (3) and covers can be washed in the dish-washer.

WARNING: Do not immerse the body (4) in water. You can wipe it with a damp cloth.

WARNING: Chopping blade (9) is sharp. Do not hold the sharp edge or immerse in water while cleaning.

4.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance before lifting it.
• Store the appliance in a cool and dry place.
• Keep the appliance and cable out of the reach of children.

4 Cleaning and care

4.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.
