USER MANUAL VCO 6325 AB BEKO

Exterior view of a modern vacuum cleaner with coiled hose and handle (no text or symbols visible)

VCO 6325 AB

EN TR BG CS|HU RO SL

SV PL IT FR DE ES

01M-8834453200-1819-10

beko

CONTENTS

ENGLISH	4-11
TÜRKÇE	12-16
BULGARIAN	17-22
ČESKY	23-27
MAGYAR	28-32
ROMANIAN	33-39
SLOVENŠČINA	40-44
SVENSKA	45-49
POLSKI	50-56
ITALIANO	57-63
FRANÇAIS	64-68
DEUTSCH	69-74
ESPAÑOL	75-81

14 13 12 11 10 8 9 5 4 3 2 6 7 1 15

Three technical line drawings of a mechanical component with no visible text or symbols

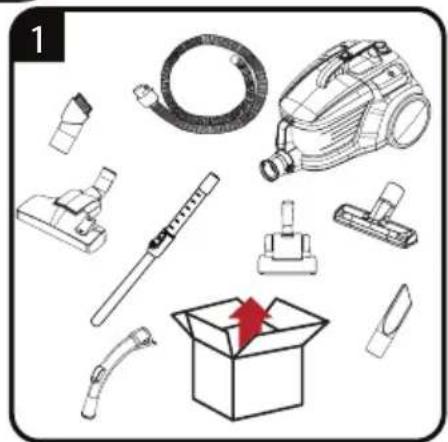

Illustration of various household cleaning and repair tools including a vacuum cleaner, tool holder, and open box (no text or symbols)

Line drawing of a vacuum cleaner with attached hose and pipe, no text or symbols present

Diagram of a medical or surgical device with a red arrow indicating a point of interest (no text or symbols present)

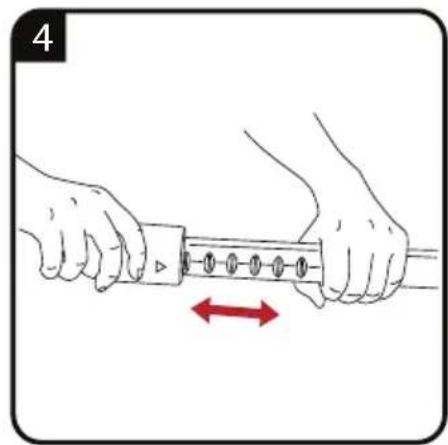

Illustration of hands holding a mechanical component with a red double-headed arrow indicating motion (no text or symbols)

5

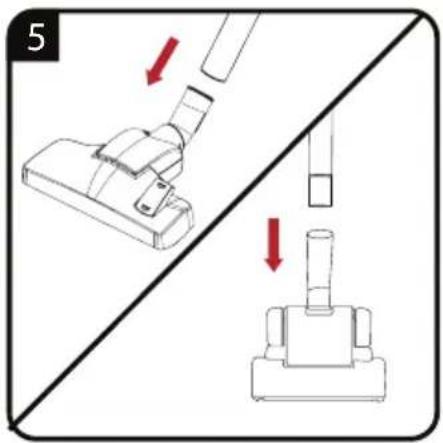

Diagram showing three mechanical components with a red arrow indicating motion (no text or symbols)

7 2 1

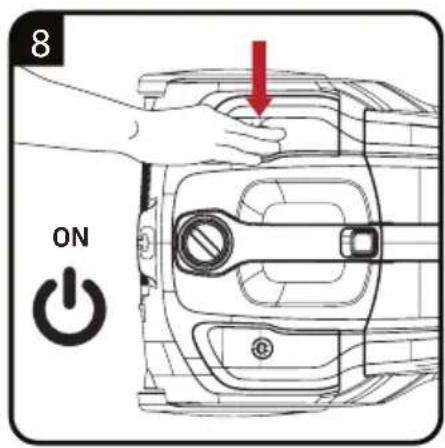

8 ON

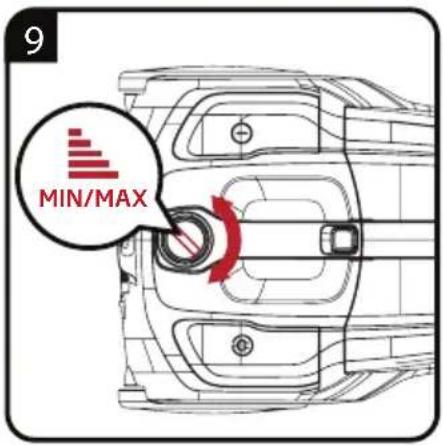

9 MIN/MAX

Line drawing of a vacuum cleaner with a red arrow indicating the component (no text or symbols present)

Line drawing of a car interior with a hand pointing to the engine compartment, showing no text or symbols.

Line drawing of a vacuum cleaner with internal components and mounting bracket (no text or symbols)

3 1 24h- 2

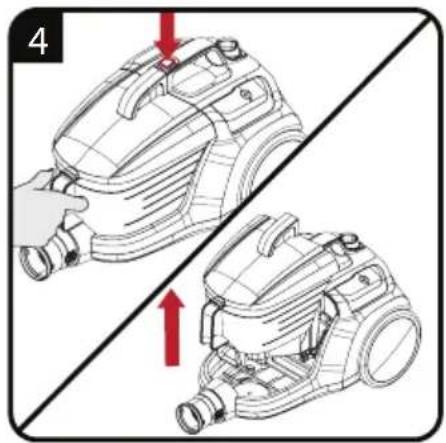

Diagram showing two views of a vacuum cleaner with red arrows indicating assembly or repair (no text or symbols present)

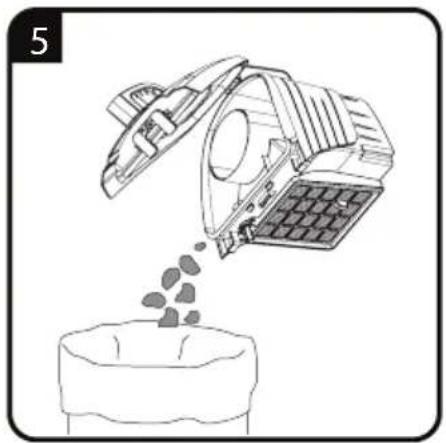

Line drawing of a mechanical device pouring granular material into a container (no text or symbols)

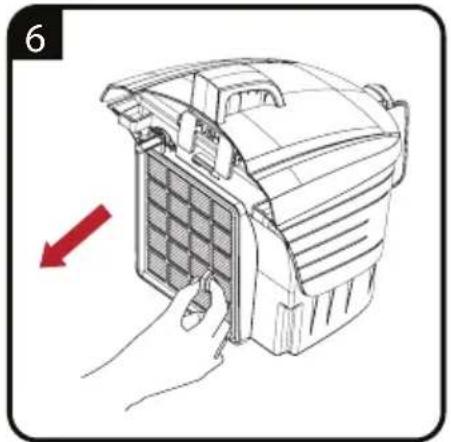

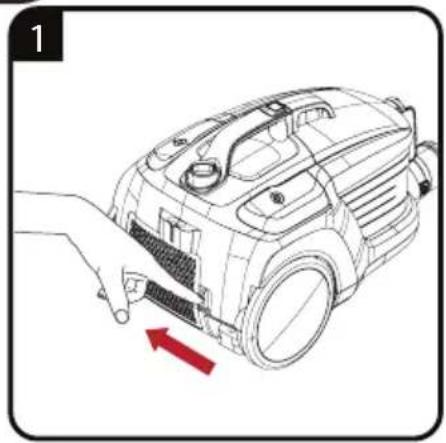

Illustration of a hand inserting a grid into a device housing (no text or symbols)

Exploded view diagram of a device showing internal components and a grid-patterned base (no text or symbols)

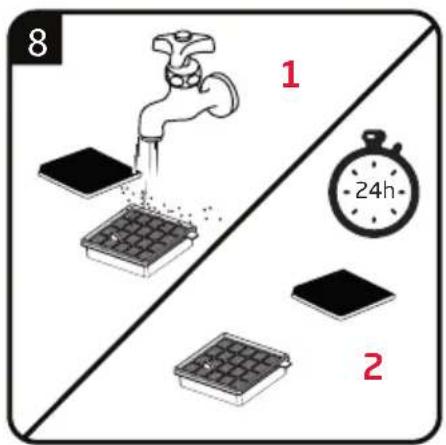

8 1 24h 2

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

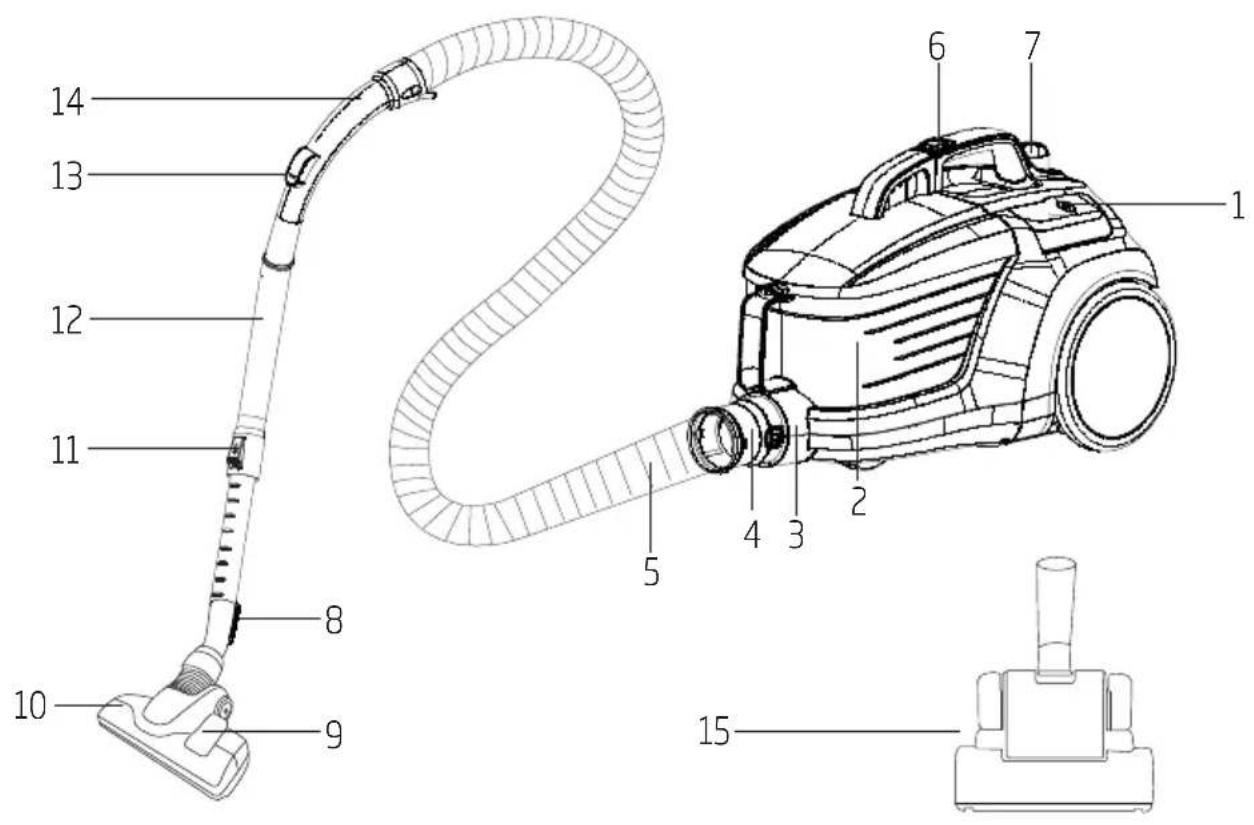

1. On/Off button
2. Dust container
3. Suction nozzle
4. Hose cap
5. Hose
6. Dust container removal button
7. Suction power adjustment knob
8. Parquet/carpet brush parking hook

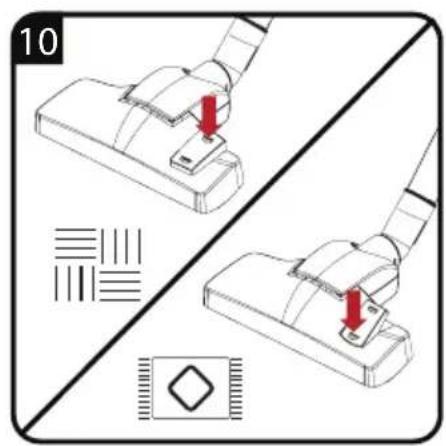

9. Brush adjustment latch
10. High performance parquet/carpet brush
11. Telescopic tube adjustment latch
12. Telescopic tube
13. Vacuum control
14. Handle
15. Special Turbo/Animal Brush

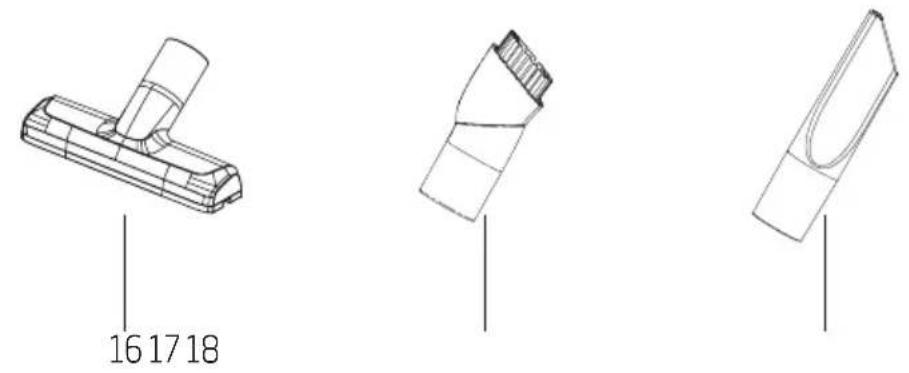

16. Upholstery tool
17. Dust brush
18. Crevice tool

Technical data

Supply voltage : 220-240 V\~, 50/60 Hz

Power : 800 W

Cable length : 7m

Technical and design modification rights are reserved.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies v international safety standards.
- This appliance can be used children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• If the power cable or the appliance itself is damaged, do not use it. Contact an authorised service.
• Your mains power supply should comply with the information on the rating plate of the appliance.
  • The mains supply on which you will use the appliance must

be secured with a 16 A fuse minimum.

by• Do not use the appliance with an extension cable.

• To avoid any damage to the power cable, prevent it from being squeezed, bent or rubbed on sharp edges.
• Do not touch the plug when the appliance is plugged in if your hands are damp or wet.
• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ash, make sure that it has cooled down.
• Do not vacuum water or other liquids.

1 Important safety and environmental instructions

• Protect the appliance from rain, humidity and heat sources.
• Never use the appliance in or near places where combustible or inflammable ambience or places are present.
• Unplug the appliance before cleaning and maintenance.
• Do not immerse the appliance or its power cable in water for cleaning.
• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorised service.
• Do not dismantle the appliance.
• Only use the original parts or parts recommended by the manufacturer.
• Do not use the appliance without filters; otherwise, it can get damaged.
• When vacuum-cleaning the stairs, the appliance should be located below the user.
• If you keep the packaging materials, store them out of the reach of children.

2 Information

2.1 Cleaning and care

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

WARNING: Do not use appliances producing hot air such as hair dryer or heater to dry the filters.

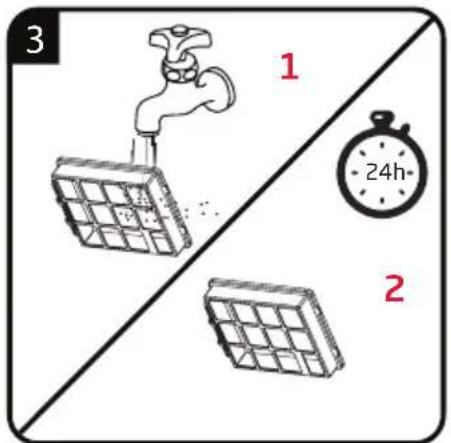

WARNING: Do not install the filters without completely drying them; otherwise, smell of moisture may occur during use, water can leak from the back of the appliance or the filters may get damaged.

WARNING: Attach the filters into their places after they are dried.

Blue status led of the suction power adjustment knob turns into red when suction power decreases or the container is full.

Suction power adjustment knob turns into red when the container is full.

2.2 Storage

- If you do not intend to use the appliance for a long time, store it carefully.

• Unplug the appliance.
• Keep the appliance out of the reach of children.

2.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

2 Information

2.4 Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

2.5 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2.6 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
