Product Type	Above Ground Pool
Brand	Bestway
Model	Fast Set 57416
Pool Dimensions (diameter x height)	3.05 m x 0.76 m (10 ft x 2.5 ft)
Approximate Capacity	5,676 L (1,500 US gal)
Pump Power Supply	220-240 V, 50 Hz, with 30 mA residual current circuit breaker
Filtration	Filter pump with filter cartridge
Pump Flow Rate	1,006 L/h (type A)
Assembly System	Fast Set: inflatable structure and top ring
Cartridge Maintenance	Clean daily and replace every 15 days
Storage Temperature	4 °C to 40 °C (39 °F to 104 °F)
Electrical Safety	Grounded outlet, 30 mA RCD, minimum distance 3.5 m from pool
Minimum Age of Use	8 years with supervision
Use	Household use only, not commercial
Spare Parts	Filter cartridges (P6022ASS16, P6019ASS16), grids, plugs
Warranty	Consult bestwaycorp.com website

Frequently Asked Questions - Fast Set 57416 BESTWAY

How to install the filter pump?

Place the pump on a flat and stable surface, more than 3.50 m from the pool. Fix it on a wooden or concrete support with M8 bolts (spacing 159 mm). Connect the inlet and outlet hoses, open the air vent valve, then plug the pump into an outlet with a 30 mA RCD.

What electrical risks should be avoided?

Always use a grounded outlet with a 30 mA residual current circuit breaker. Never plug the pump with wet hands, do not use an extension cord, and do not run the pump dry. Always unplug before any maintenance.

How to clean the filter cartridge?

Unplug the pump, remove the filter cap, take out the cartridge and rinse it with a garden hose. If it is discolored or dirty, replace it with a new one. Clean it daily and change it every 15 days.

What is the recommended filtration time?

It is recommended to run the pump at least 8 hours per day to maintain clear water. Adjust the duration according to temperature and usage.

How to store the pump in winter?

Unplug the pump, drain the water, remove the cartridge and discard it. Dry all components and store the pump indoors in a dry place, protected from frost (4-40 °C), out of reach of children.

Can I use the pump with chemicals?

No, never add chemicals directly into the pump. Treat the pool water separately, according to recommendations.

What to do if a part is missing or damaged?

Contact Bestway after-sales service via bestwaycorp.com/support. Have your model number (57416) and the spare parts list from the manual ready.

Can children use the pool during filtration?

No, for electrical safety reasons, never use the pump when people are in the water. Turn off and unplug the pump before swimming.

How to bleed air from the pump?

Open the air vent valve located on top of the pump. When water starts to flow, close the valve. This operation removes air from the system.

Where to find the detailed manual?

The full manual is available for free in PDF on notice-facile.com or on the bestwaycorp.com website. You can also request a translation by email.

USER MANUAL Fast Set 57416 BESTWAY

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

58383

OWNER'S MANUAL

bestwaycorp.com/support

Visit Bestway YouTube channel YouTube

FILTER PUMP OWNER'S MANUAL

Visit Bestway YouTube channel

YouTube

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

WARNING

IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS

WARNING - RISK OF ELECTRIC SHOCK - The pump is to be supplied by an isolating transformer or supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.

The plug of pump shall be at least 3.50m away from the pool.

The appliance must be supplied by earthed power source.

Extension cords can't be used.

WARNING - RISK OF ELECTRIC SHOCK - The pump cannot be using while people are inside the pool. Forbid the access of the pool in case of damage of the filter pump.

DO NOT BURY CORD. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment.

WARNING - The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.

CAUTION - This pump is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.

IMPORTANT - Using the pump with an unmatched electrical supply is dangerous and will result in catastrophic failure of pump.

RISK OF ELECTRICAL SHOCK - When working with electricity, turn the electrical power off at the circuit breaker and lock breaker door. Failure to do so will result in increased risk of shock, injury and possibly death.

DO NOT REMOVE THE GROUNDING PRONG OR MODIFY THE PLUG IN ANY WAY. DO NOT USE ADAPTOR PLUGS. Consult a qualified electrician for any questions related to the validity of your plugs grounding.

Handle the pump with care. Do not pull or carry the pump by the power cord. Never pull a plug from the outlet by yanking the power cord. Keep cord free

from abrasions. Sharp objects, oil, moving parts, and heat should never be exposed to the filter pump.

WARNING - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (For EU market)

WARNING - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

(For market other than EU)

Cleaning and user maintenance must be performed by an adult above 18 years old who is familiar with the risk of electric shock. When the appliance will be not used for a long time, such as in the winter, the pool set should be disassembled and stored indoor.

CAUTION - Read the instruction before using the appliance and installation/reassembly every time.

The appliance must be placed more than 2m away from the pool. (For France only). Electric installations should follow national wiring rules. Consult a qualified electrician for any questions.

Only the media provided or specified by the manufacturer is to be used with product installation.

It is essential to check that the suction openings are not obstructed.

It is advisable to stop the filtration during maintenance operations on the filtration system.

Regularly monitor the filter clogging level.

A weekly check is recommended for cleaning.

Minimum daily filtration operating time of 8 hours is recommended to ensure clear pool water.

It is essential to change any damaged element or set of elements as soon as possible. Use only parts approved by person responsible for placing the product on the market.

All filters and filter media shall be inspected regularly to ensure that there is not a build-up of detritus thus preventing good filtration. The disposal of any used filter media should also be in accordance with applicable regulations/legislation. In case of doubt on the pump or any circulation devices, contact a qualified

installer, or the manufacturer/importer/distributor.

The water circulation installation shall comply with the European as well as national/local regulations, especially when dealing with electrical issues.

Any change of valve position, pump size, grille size can cause a change of the flow and the suction velocity can be increased.

Mind all the safety requirements and recommendations described in the manual.

NOTE:

Please examine equipment before use. Notify Bestway at the customer service address listed on this manual for any manufacturing defect or missing parts at the time of purchase. Verify that the equipment components represent the filter pump model that you had intended to purchase.

NOTE:

Place pump on a solid and level ground. Pay attention to position of pool and pump so adequate ventilation, drainage, and access for cleaning is available.

Never place pump in an area that may accumulate water, or in an area where foot traffic will flow around the pool.

It is necessary to have the plug accessible after installation of the pool.

NOTE:

Atmospheric conditions may affect the performance and life span of your filter pump. Unnecessary wear and tear may occur during periods of cold, heat and exposure to sun. Whenever possible shelter pump from these conditions.

It is important to ensure the factory equipped stopper plugs for the inlet and outlet ports replace the screens before removal or maintenance on the pump is attempted.

NOTE:

Do not add chemicals in the filter pump.

Don't plug or unplug the appliance if hand is wet.

Always unplug the appliance:

- On raining days

- Before cleaning or other maintenance

- Leave it unattended on holidays

Safekeeping the instruction. For reconstruction the pool set every time, please always refer to the instructions.

- If instruction is missed, please contact with Bestway or search it in website: www.bestwaycorp.com

NOTE: This product is not intended for commercial use.

Please read the instruction manual carefully and keep it for future reference. SAVE THESE INSTRUCTIONS.

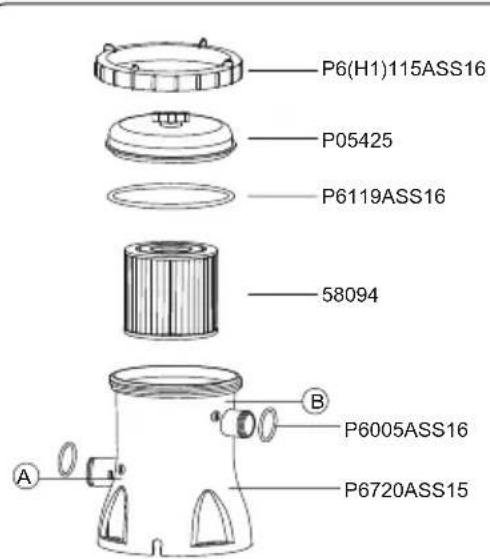

P6(H1)115ASS16 P05425 P6119ASS16 58094 A B P6005ASS16 P6720ASS15

	A	B	C	D
P05425	1	1	1	1
P6(H1)115ASS16	1	1	1	1
P6119ASS16	1	1	1	1
58094	1	1	1	1
P6720ASS15	1	1	1	1
P6022ASS16	0	2	0	2
P6019ASS16	2	0	2	0
P6124ASS16	4	4	2	2
P6005ASS16	2	2	2	2
P61322ASS16	1	1	0	0
P61318ASS16	1	1	0	0

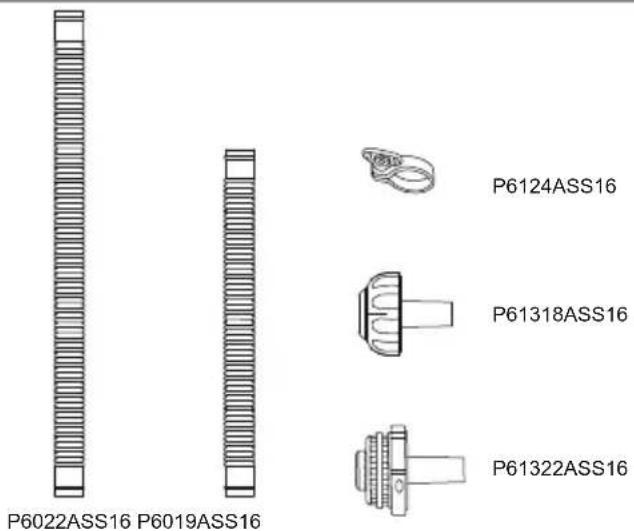

P6022ASS16 P6019ASS16 P6124ASS16 P61318ASS16 P61322ASS16

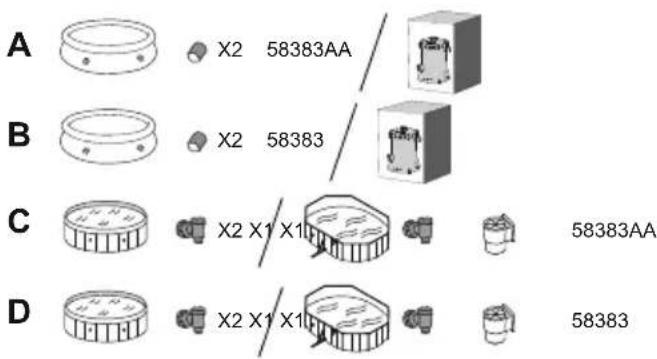

A X2 58383AA B X2 58383 C X2 X1 X1 58383AA D X2 X1 X1 58383

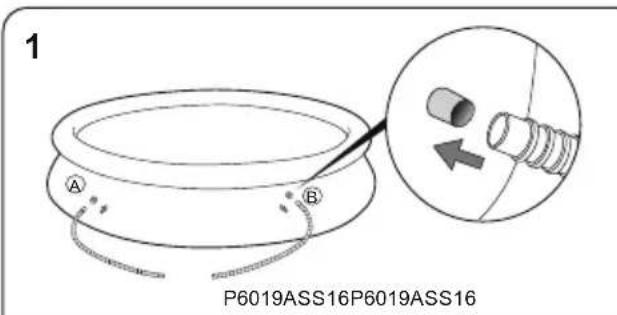

1 A B P6019ASS16P6019ASS16

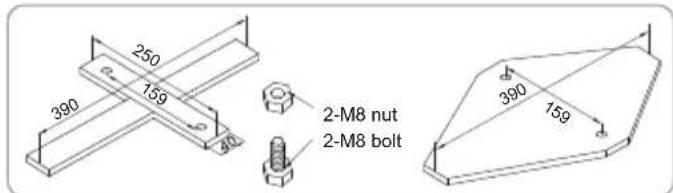

EN60335-2-41 TEST standard requires the filter pump to be vertically fixed on ground or a certain pedestal made of wood or concrete before use. There should be two holes 9mm in diameter on the pedestal, the space between which should be 159mm. Put filter pump on the pedestal and fix them together by fasten the bolts and nuts. All the pedestal parts should weigh over 18kgs at least to prevent the pump from accidentally falling.

2-M8 nut 2-M8 bolt

NOTE: It is imperative to check that the hydraulic connectors are not obturated.

OPERATION

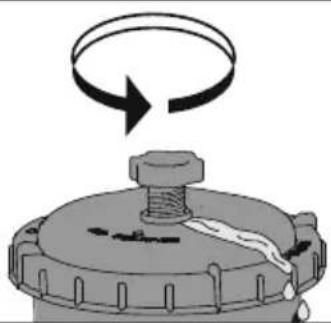

1) Open/unscrew the Air Purge Valve on the top of the Filter Pump; air is released as water fills the Filter Pump.
2) When water comes out of the Air Purge Valve screw it closed and wipe away any water.
3) To start the Filter Pump, insert the plug into a residual current device (RCD).

Diagram of a mechanical component with a rotating arrow and textured base (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)

IMPORTANT: DO NOT DRY RUN THE FILTER PUMP – Make sure both the pool's Inlet and Outlet valves are fully covered by water before operating the Filter Pump.

PUMP MAINTENANCE

CAUTION: YOU MUST ENSURE THE FILTER PUMP IS UNPLUGGED BEFORE ANY MAINTENANCE BEGINS OR SEVERE RISK OF INJURY OR DEATH EXISTS.

1) Unplug the Filter Pump.
2) Loosen the Hose Clamps on the pool's Inlet and Outlet Hoses by unscrewing the fly nut counter-clockwise.
3) Remove Debris Screens from inside of pool.
4) Replace the Debris Screens with the Stopper Plugs in the pool's Inlet and Outlet Valves.
5) Unscrew the Filter Cap Retainer and remove the Filter Cap.
6) Clean the Filter Cartridge with a garden hose, if filter cartridge remains soiled or discolored, it is necessary to replace it with a new one.
7) Insert the cleaned (or new) Filter Cartridge; ensure it is centered in the Filter Pump.
8) Check that the Filter Cap Seal is in place.
9) Replace the Filter Cap and screw the Filter Cap Retainer into position.
10) Replace the Stopper Plugs with the Debris Screens in the pool's Inlet and Outlet Valves. Tighten the Hose Clamps. Water will now flow to the pump.
11) Follow the PUMP INSTALLATION DIRECTIONS section to prepare the system for use.

IMPORTANT: For sanitary reasons we suggest replacing the Filter Cartridge with a new one every two weeks.

PUMP STORAGE

1) Unplug the Filter Pump.
2) Follow the instructions as previously outlined to stop water flowing to the Filter Pump and to remove the Filter Cartridge.
3) Discard the Filter Cartridge.
4) Detach all Hoses.
5) Dry all components thoroughly.

6) Store the filter pump in a dry indoor location out of the reach of children. Storage temperature: 4-40°C (39.2-104°F)

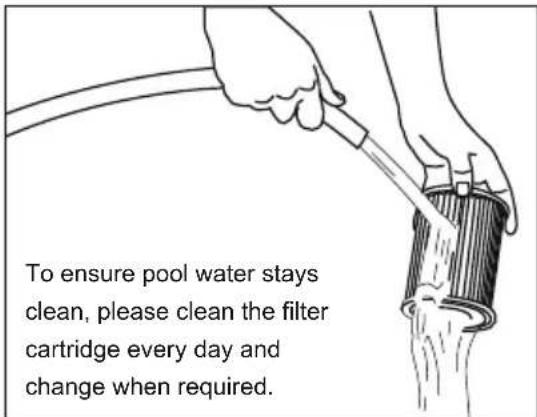

To ensure pool water stays clean, please clean the filter cartridge every day and change when required.

PUMP WARRANTY

For information concerning pump warranty please visit our website at: www.bestwaycorp.com

PUMP DISPOSAL

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

BOMBA DE FILTRO MANUAL DO USUÁRIO

Visite o canal da Bestway no YouTube

YouTube

Diagram of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)

Mechanical component diagram showing a rotating ring and a base with a central hub (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)

Mechanical component diagram showing a rotating ring above a base with a central hub (no text or symbols)

Diagram of a mechanical component with a rotating arrow and internal structure (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating clockwise motion (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)

Mechanical component diagram showing a rotating ring above a base with a central knob (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)

Mechanical component diagram showing a rotating ring and a base with a central hub (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)

Mechanical component diagram showing a rotating ring and a base with a central hub (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating clockwise motion (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

ВАЖНО! НИКОГДА НЕ ЗАПУСКАЙТЕ НАСОС БЕЗ ВОДЫ –

Diagram of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating clockwise motion (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)

Mechanical component diagram showing a rotating ring and a base with a central hub (no text or symbols)

Diagram of a mechanical component with a rotating arrow and internal structure (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)
