Fast Set 57273 - Above ground pool BESTWAY - Free user manual and instructions

Product type	Above ground pool
Brand	Bestway
Model	Fast Set 57273
Material	Reinforced PVC
Structure	Upper inflatable ring
Installation	Approximately 10 minutes with 2-3 people
Included accessories	Repair kit, drain valve
Filtration system	Not included (optional pump)
Chemical maintenance	Tablets or liquid, diffuser recommended
Recommended pH	6.8 to 7.6
Free chlorine (without cyanuric acid)	0.3 to 1.5 mg/l
Free chlorine (with cyanuric acid)	1.0 to 3.0 mg/l
Max cyanuric acid	100 mg/l
Safety	Mandatory adult supervision, do not dive, barrier recommended
Storage temperature	5°C to 38°C
Warranty	Free 6-month extension after registration
Recommended installation surface	Grass, soil, concrete (flat and smooth)
Discouraged surface	Mud, sand, gravel, wooden deck, balcony
Repair	Patch included for leaks
Cleaning	Regular skimming, washing the filter cartridge
Draining	Via drain valve, comply with local regulations
Use	Treated water, do not exceed the indicated level

Frequently Asked Questions - Fast Set 57273 BESTWAY

How to install the Fast Set pool?

Choose a flat and smooth surface. Place the pool, inflate the top ring slightly firm, then fill with water until the wall is straight. Do not overfill. Installation takes about 10 minutes with 2-3 people.

What chemical maintenance is required?

Use tablets or liquid chemicals with a diffuser (Chemconnect or floater). Do not throw tablets directly into the water. Maintain pH between 6.8 and 7.6 and free chlorine between 0.3 and 1.5 mg/l (without cyanuric acid) or 1.0-3.0 mg/l (with cyanuric acid). Test the water regularly.

How to repair a leak?

Use the provided resistant patch. Dry the area, apply the patch pressing firmly. Consult the FAQ on www.bestwaycorp.com for more details.

Should I use a filter pump?

A filter pump is recommended but not included. If you use one, follow its instruction manual. Never operate the pump when people are in the pool.

What are the important safety instructions?

Active and continuous supervision by an adult. Never dive. Install a safety barrier. Keep rescue equipment nearby. Do not leave the pool unattended during filling.

How to store the pool off-season?

Drain completely, dry thoroughly, sprinkle with talc, fold and store dry between 5°C and 38°C. Do not leave the pool empty outdoors.

Can the pool be used on a wooden deck?

No, discouraged surfaces include wooden deck, balcony, gravel, mud, and sand. Use a flat and smooth surface such as grass, soil, or concrete.

What is the correct water level?

Fill until the wall is straight and water reaches the weld line. Do not exceed this level. In case of rain, drain the excess.

How to drain the pool?

Unscrew the drain valve cap, connect a hose, open the valve by turning the control washer. After draining, close the valve and dry the pool. Comply with local regulations.

Where can I find spare parts or assistance?

Visit www.bestwaycorp.com/support for FAQs, manuals, videos, and spare parts. You can also register your product for warranty extension at www.enregistrementbestway.fr.

USER MANUAL Fast Set 57273 BESTWAY

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

bestwaycorp.com/support ?

bestwaycorp.com/support Visit Bestway YouTube channel YouTube

EN

WARNING

smooth out the bottom

Put 1" to 2" water in the pool to cover the floor. Once pool floor is slightly covered, gently smooth out all wrinkles. Start in the center of the pool and work your way clockwise to the outside.

PT

ATENÇÃO

suavizar o fundo

NOTE: Some parts already have been installed on the pool.

PT

Simple line drawing of a mountainous shape with no text or symbols

Technical line drawing of a bolt with threaded base and hexagonal nut (no text or symbols)

Simple line drawing of a rectangular box or container (no text or symbols)

Simple line drawing of a cylindrical object with a flared rim (no text or symbols)

FAST SETTM	2.44 m x 61 cm(8' x 24")	2.44 m x 66 cm(8' x 26")	3.05 m x 66 cm(10' x 26")
	57448;57449;57450	57265;57267;57268	57456;57457;57458
A	x1	x1	x1
B	x1	x1	x1
C	x1	x1	x1
D	x2	x2	x2

FAST SETTM	3.05 m x 76 cm(10' x 30")	3.66 m x 76 cm(12' x 30")	3.96 m x 84 cm(13' x 33")
	57266;57269;57270	57273;57274;57275;57443;57444;57445	57375;57376
A	x1	x1	x1
B	x1	x1	x1
C	x1	x1	x1
D	x2	x2	x2

FAST SETTM	4.57 m x 84 cm(15' x 33")	4.57 m x 1.07 m(15' x 42")	4.57 m x 1.22 m(15' x 48")
	57313;57315	57371;57372	57289
A	x1	x1	x1
B	x1	x1	x1
C	x1	x1	x1
D	x2	x2	x2

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

FAST SET™ POOLS OWNER'S MANUAL

WARNING

Carefully read, understand, and follow all information in this user manual before installing and using the swimming pool. These warnings, instructions, and safety guidelines address some common risks of water recreation, but they cannot cover all risks and dangers in all cases. Always use caution, common sense, and good judgment when enjoying any water activity. Retain this information for future use.

Non Swimmers safety

• Continuous, active, and vigilant supervision of weak swimmers and non-swimmers by a competent adult is required at all times (remembering that children under five are at the highest risk of drowning).
• Designate a competent adult to supervise the pool each time it is being used.
• Weak swimmers or non-swimmers should wear personal protection equipment when using the pool.
• When the pool is not in use, or unsupervised, remove all toys from the swimming pool and its surrounding to avoid attracting children to the pool.

Safety devices

• In order to prevent children from drowning, it is recommended to secure the access to the pool with a protection device. In order to prevent children climbing from the inlet and outlet valve, it is recommended to install a barrier (and secure all doors and windows, where applicable) to prevent unauthorized access to the swimming pool.
• Barriers, pool covers, pool alarms, or similar safety devices are helpful aids, but they are not substitutes for continuous and competent adult supervision.

Safety equipment

- It is recommended to keep rescue equipment (e.g. a ring buoy) by the pool.

- Keep a working phone and a list of emergency phone numbers near the pool.

Safe use of the pool

• Encourage all users especially children to learn how to swim.
• Learn Basic Life Support (Cardiopulmonary Resuscitation - CPR) and refresh this knowledge regularly. This can make a life-saving difference in the event of an emergency.
• Instruct all pool users, including children, what to do in case of an emergency.
• Never dive into any shallow body of water. This can lead to serious injury or death.
• Do not use the swimming pool when using alcohol or medication that may impair your ability to safely use the pool.
• When pool covers are used, remove them completely from the water surface before entering the pool.
• Protect pool occupants from water related illnesses by keeping the pool water treated and practicing good hygiene. Consult the water treatment guidelines in the user's manual.
• Store chemicals (e.g. water treatment, cleaning or disinfection products) out of the reach of children.

- Use the signage as outlined below. Signage is to be displayed in a prominent position within 2m of the pool.

Keep children under supervision in the aquatic environment. No diving.

• Removable ladders shall be placed on a horizontal surface.
• Irrespective of materials used for swimming pool construction, accessible surfaces have to be checked regularly to avoid injuries.
• Regularly monitor bolts and screws. Remove splinters or any sharp edges to avoid injuries.
• ATTENTION: Do not leave the drained pool outside. The empty pool is liable to become deformed and/or displaced due to wind.
• If you have a filter pump, refer to the pump's manual for instructions.
• WARNING! The pump cannot be used while people are inside the pool!
• If you have a ladder, refer to the ladder's manual for instructions.
• WARNING! The use of a swimming pool implies compliance with the safety instructions described in the operating and maintenance guide. In order to prevent drowning or other serious injuries, pay particular attention to the possibility of unexpected access to the swimming pool by children under 5 years by securing the access to it, and, during the bathing period, keep them under constant adult supervision.

Please read carefully and keep for future reference

CHOOSE THE CORRECT LOCATION

The surface chosen to install the pool must respect the following technical characteristics:

1. Because of the combined weight of the water inside the pool and the pool users, it is extremely important that the surface chosen to install the pool is capable of uniformly supporting the total weight for the entire time the pool is installed. When choosing the surface, take into consideration that water may come out of the pool when in use or in the rain. If the water softens the surface, it may lose its capability to support the pool weight.
2. We recommend positioning the pool away from any objects children could use to climb into the pool.
3. Position the pool near an adequate drainage system to deal with overflow or to discharge the pool.
4. The surface must be flat and smooth. If the surface is inclined or uneven, it can create an unbalanced loading on the structure of the pool. This situation can damage the welding point of the liner. In the worst cases, the pool can collapse, causing serious personal injury and/or damage to personal property.
5. The selected surface must be clear of any type of object. Due to the weight of the water, any object under the pool could damage or perforate the bottom of the pool.

6. The selected surface must be clear of aggressive plants and weed species. Those types of strong vegetation could grow through the liner and create water leakage. The grass or other vegetation that may cause odor or slime to develop have to be eliminated from the set-up location.

7. The selected location must not have overhead power lines or trees. Be sure the location does not contain underground utility pipes, lines or cables of any kind.

8. The selected position must be far from house entrance. Do not position any equipment or other furniture around the pool. The water that comes out of the pool during the use or due to a faulty product can damage the furniture inside the house or surrounding the pool.
9. The selected surface must be flat and without holes that can damage the material of the liner.

Follow the important instructions above to choose the correct surface and location to set up your pool. Damaged parts of the pool, due to the fact that the set-up surface and location does not match the instructions, will not be considered as manufacture defect and will avoid the warranty and any service claims.

Suggested set-up surfaces: grass, ground, concrete, and all other surfaces that respect the above set-up conditions.

Not suggested surfaces: mud, sand, gravel, deck, balcony, driveway, platform, soft/loose soil or other surface that does not meet the above set-up conditions.

NOTE: Check with your local city council for by-laws relating to fencing, barriers, lighting and safety requirements and ensure you comply with all laws.

NOTE: If have a filter pump, refer to the pump's manual for instructions.

NOTE: The ladder must match the pool size and should be used only for entering and exiting the pool. It is forbidden to exceed the permitted payload of the ladder. Check regularly if the ladder is properly assembled.

INSTALLATION

Installation usually takes approximately 10 minutes with 2-3 people excluding earthworks and filling.

Bestway will not be responsible for damage caused to the pool due to mishandling or failure to follow these instructions.

ATTENTION: Do not use a high pressure air hose or over-inflate the top ring, it should be slightly stiff to the touch.

NOTE: Do not use extension power cords to power your pump.

ATTENTION: Do not drag the pool on the ground, this can damage the pool.

NOTE: The base or bottom of the pool should be laid out properly (flat without wrinkles).

NOTE: Hot temperatures cause air to expand the ring and may cause damage. Leave some room for expansion. For assistance or FAQs, please visit the support section on our website, www.bestwaycorp.com.

NOTE: Drawings for illustration purposes only. May not reflect actual product. Not to scale.

1

Illustration of a petri dish and a small house with pipes (no text or symbols)

2

Diagram illustrating a laboratory procedure with labeled steps: adding liquid into a container and adding a ring to a test tube.

3

4

Simple line drawing of a cylindrical object with a small inset showing a curved object (no text or symbols)

5

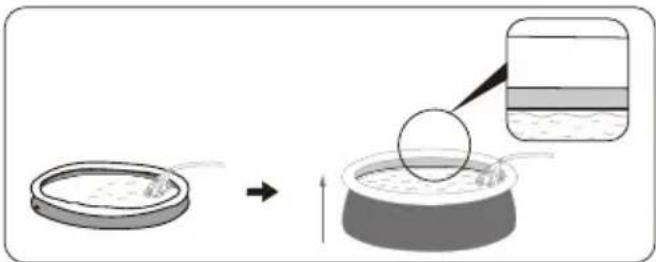

FILLING POOL WITH WATER

ATTENTION: Do not leave pool unattended while filling with water.

1. Fill the water until the wall is straight up, and the water reaches the welding line. DO NOT OVERFILL as this could cause the pool to collapse. In times of heavy rainfall you may need to empty some of the water to ensure the level is correct.

Diagram illustrating a chemical process with a container being added to a liquid-filled container, showing step-by-step transformation.

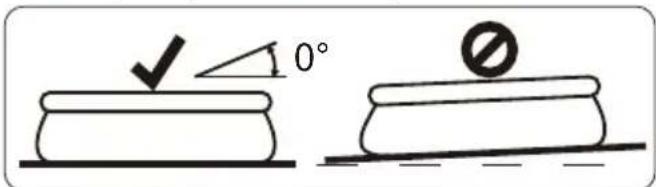

1. When filling the pool is completed, check that the water is not collecting on any side to ensure the pool is level.

0°

IMPORTANT: If pool is not level, drain water and re-level ground by digging out. Never attempt to move the pool with water in it, serious personal injury or damage to the pool may result.

WARNING: Your pool may contain a great deal of pressure. If your pool has any bulge or uneven side, then the pool is not level, the sides may burst and the water may discharge suddenly causing serious personal injury and/or damage to property.

POOL MAINTENANCE

If you do not adhere to the maintenance guidelines below, your health might be at risk, especially that of your children.

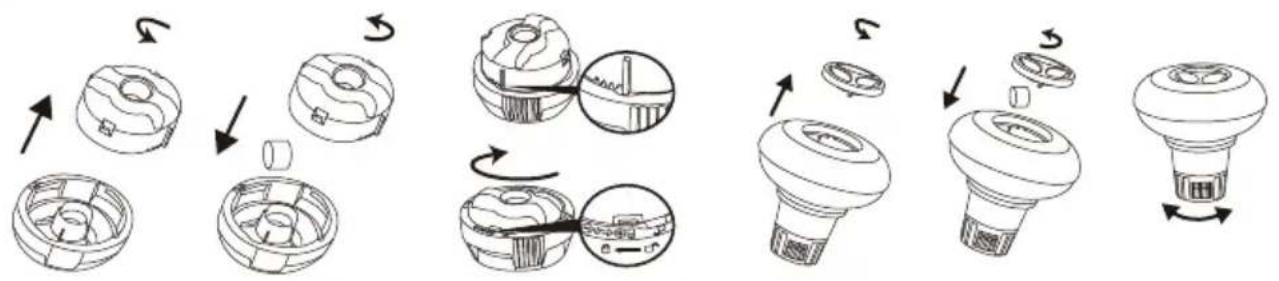

Using chemical tablets (not included):

NOTE: Chemconnect or Chemical Floater must be used when you perform chemical maintenance with tablets. Your purchased item may not include any of those dispensers, in this case you can purchase it by visiting our website www.bestwaycorp.com or at the nearest pool dealer.

IMPORTANT: Don't use granulate tablets or throw the tablet directly in the water. The chemicals can deposit on the bottom, damage the material and discolor the PVC.

Using chemical liquid (not included):

IMPORTANT: Add chemical liquid in small doses and in the center of the pool to avoid direct contact between the chemicals and the PVC surface. Direct contact can damage the material and discolor the surface.

NOTE: Remove the chemical dispenser from pool when the pool is in use.

IMPORTANT: After performing chemical maintenance and before using the pool, use a test kit (not included) to test the water chemistry. We recommend maintaining your water according to the following table.

Parameters	Values
Water clarity	clear view of the pool bottom
Colour of the water	no colour should be observed
Turbidity in FNU/NTU	max. 1,5 (preferably less than 0,5)
Nitrate concentration above that of fill water in mg/l	max. 20
Total organic carbon (TOC) in mg/l	max. 4,0
Redox potential against Ag/AgCl 3,5 m KCl in mV	min. 650
pH value	6,8 to 7,6
Free active chlorine (without cyanuric acid) in mg/l	0,3 to 1,5
Free chlorine used in combination with cyanuric acid in mg/l	1,0 to 3,0
Cyanuric acid in mg/l	max. 100
Combined chlorine in mg/l	max. 0,5 (preferably close to 0,0 mg/l)

NOTE: Damage resulting from chemical imbalance is not covered by the warranty. Pool chemicals are potentially toxic and should be handled with care. There are serious health risks from chemical vapors and the incorrect labeling and storage of chemical containers. Please consult your local pool supply retailer for more information about chemical maintenance. Pay close attention to the chemical manufacturer's instructions. Pool damage resulting from misuse of chemicals and mismanagement of pool water is not covered by the warranty.

IMPORTANT: Over usage of chemicals can discolor the printing and all points of the pool material. It can also damage the structure of the pool liner.

To keep your pool clean:

1. Contact your local pool supply shop for advice and purchase of chemicals and pH kits. One of the most important factors to increase the life of the liner is to keep continuously clean and healthy water. Please strictly follow the instructions from professional technicians for the water treatment through the use of chemicals.
2. Locate a bucket of water next to pool to clean users' feet before entering pool.
3. Cover the pool when not in use.
4. Skim pool regularly to avoid settled dirt.
5. Check and wash the filter cartridge regularly.
6. Gently clean any scum from below the top ring with a clean cloth.
7. Please be careful in case of rain water, kindly check that the water level is not higher than the expected. If so, YOU HAVE TO DISCHARGE THE EXCESS WATER.
8. If it rains, check that the water level is not higher than the specified level. If water exceeds the specified levels, drain the pool to the specified level.

Proper maintenance can maximize the life of your pool.

During the season of use of the swimming pool, the filtration system must be necessarily put into service every day, enough time to assure at least a complete renewal of the volume of water.

NOTE: The pump is used to circulate the water and to filter small particles. In order to keep your pool water clean and hygienic, you must also add chemicals.

REPAIR

In the event of a leak, patch your pool using the underwater adhesive repair patch provided. You can find the instructions in FAQs on the support section of our website, www.bestwaycorp.com.

DISMANTLING

1. Unscrew the drain valve cap counter-clockwise and remove.
2. Connect the adaptor to the hose and put the other end of the hose in the area where you are going to drain your pool. (Check local regulations for drainage by-laws).
3. Screw the control ring of the hose adaptor clockwise onto the drain valve. The drain valve will be open and water will start to drain automatically. Open the drain valve to the maximum position.
4. Deflate the top ring by squeezing the air valve.
5. When the top ring is fully deflated, press the top ring down, and tilt it to drain the pool easily. Completely drain the water in the pool.
6. When draining is finished, unscrew the control ring to close the valve.
7. Disconnect the hose.
8. Screw the cap back onto the drain valve.
9. Air dry pool.

STORAGE

1. Please remove all the accessories and spare parts of the pool and store them clean and dry.
2. Once pool is completely dry, sprinkle with talcum powder to prevent pool from sticking together, fold pool carefully. If pool is not completely dry, mold may result and will damage the pool liner.
3. Store liner and accessories in a dry place with a moderate temperature between 5°C / 41°F and 38°C / 100°F.
4. During the rainy season, pool and accessories should be stored as per above instructions also.
5. Improper draining of the pool might cause serious personal injury and/or damage to personal property.
6. We strongly recommend the pool is disassembled during the off season (winter months). Store in a dry location out of children's reach.

Simple line drawing of a container and a mechanical device (no text or symbols)

2

Diagram illustrating a laboratory procedure with labeled steps and a magnified view of the step being performed.

3

Diagram showing two overlapping rectangular panels with a cross and checkmark, connected by an arrow to a circular base.

4

Simple line drawing of a cylindrical object with an arrow pointing to it, next to a magnified inset showing a curved object (no text or symbols)

5

Diagram illustrating a step-by-step process of a container being added to a liquid-filled container, with an arrow indicating the process.

Diagram showing two overlapping document boxes with a checkmark and an 'X' symbol, connected by arrows to a circular base.

4

Simple line drawing of a container with a small circle and an inset showing a curved object (no text or symbols)

5

Diagram showing a container being added to a liquid-filled container, with an arrow indicating process (no text or symbols)

Diagram illustrating a process with labeled steps and visual indicators, including a magnified view of the process.

3

4

Simple line drawing of a container connected to a magnified view of a curved object (no text or symbols)

5

FÜLLEN DES POOLS MIT WASSER

Diagram showing a container being added to a liquid-filled container, with an arrow indicating process (no text or symbols)

Diagram illustrating a laboratory procedure with labeled components and directional arrows indicating process steps.

3

4

Simple line drawing of a container connected to a curved object with an arrow (no text or symbols)

5

Diagram illustrating a chemical process with a container being added to a liquid-filled container, showing step-by-step transformation.

Diagram illustrating a laboratory procedure with labeled components and a magnified view of the setup.

3

Diagram showing two labeled boxes with checkmarks and a cross, connected by arrows to a circular base, likely illustrating a process or transformation.

4

Simple line drawing of a container connected to a curved object with an arrow (no text or symbols)

5

HET ZWEMBAD VULLEN MET WATER

Diagram illustrating a chemical process involving a petri dish, a reaction step, and a container with liquid being poured into a container.

Diagram showing two labeled boxes with checkmarks and a cross, connected by arrows to a circular base.

4

Simple line drawing of a cylindrical object with an arrow pointing to a curved panel (no text or symbols)

5

RIEMPIMENTO DELLA PISCINA CON ACQUA

Diagram illustrating a step-by-step process of a container being added to a liquid-filled container, with an arrow indicating the process.

Three black circular icons showing pictograms of people swimming, no pictograms, and a person walking (no text or symbols)

Diagram of a mechanical device with a circular component and a block, no visible text or symbols

2

Diagram illustrating a laboratory procedure with labeled components and directional arrows indicating process flow

3

Diagram showing a process with two labeled boxes and directional arrows, one marked with an 'X' and the other with a checkmark.

4

Simple line drawing of a cylindrical object with an arrow pointing to it, next to a magnified inset showing a curved object (no text or symbols)

5

REMLIR D'EAU LA PISCINE

Diagram showing a container being added to a liquid-filled container, with an arrow indicating process (no text or symbols)

Diagram showing a process with two labeled boxes and directional arrows, possibly indicating steps or actions.

4

Simple line drawing of a cylindrical object with a small inset showing a curved arrow and a separate rectangular shape (no text or symbols)

5

Diagram illustrating a chemical process with labeled components and directional arrows, showing a reaction step and resulting product.

Diagram illustrating a mechanical or laboratory procedure with labeled components and directional arrows indicating process flow.

3

Diagram showing a process with a cross and checkmark, indicating a transformation or confirmation step.

4

Simple line drawing of a cylindrical object with an arrow pointing to a curved surface, no text or symbols present.

5

Diagram illustrating a chemical process with a container being added to a liquid-filled container, showing step-by-step transformation.

Diagram illustrating a laboratory procedure with labeled components and directional arrows indicating process flow.

3

Diagram showing a process with a cross mark and checkmark, indicating a transformation or adjustment of a surface.

4

Simple line drawing of a cylindrical object with a separate inset showing a curved object with an arrow (no text or symbols)

5

NAPEŁNIANIE BASENU

Diagram illustrating a chemical process with a container being added to a liquid-filled container, showing step-by-step transformation.

Diagram illustrating a mechanical or laboratory procedure with labeled components and directional arrows indicating process flow.

3

Diagram showing a process with a cross and checkmark, indicating a transformation or confirmation step.

4

Simple line drawing of a cylindrical object with an arrow pointing to a curved surface (no text or symbols)

5

A MEDENCE FELTÖLTÉSE VÍZZEL

Diagram illustrating a chemical process with a container being added to a liquid-filled container, showing step-by-step transformation.

Diagram illustrating a mechanical or industrial process with labeled components and directional arrows indicating assembly or inspection.

3

Diagram showing two labeled boxes with checkmarks and an 'X' symbol, connected by arrows to a circular base.

4

Simple line drawing of a container connected to a curved object with an arrow (no text or symbols)

5

ATT FYLLA POOLEN MED VATTEN

Diagram illustrating a chemical process with a container, reaction arrow, and resulting container with liquid.

For support please visit us at:

bestwaycorp.com/support

©2021 Bestway Inflatables & Material Corp.

All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten/Tutti i diritti riservati

Trademarks used in some countries under license from/

Manufactured, distributed and represented in the European Union by/

Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, Unit 2/98-104 Carnarvon St Silverwater, NSW 2128, Australia

Tel: Australia: ([phone]; New Zealand: 0800 142 101

Distributed in United Kingdom by Bestway Corp UK Ltd. 8 Wentworth Road, Heathfield Industrial Estate, Newton Abbot, Devon, TQ12 6TL

Exported by/Exporté par/Exportado por/Exportiert von/Esportato da

Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited

Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong

Tel: [phone] (For U.S. and Canada)

www.bestwaycorp.com
