USER MANUAL Perfect Smile ZK5000 Concept

White electric toothbrush with labeled function buttons and base (no readable text beyond product name)

Clean White Polish Soft Sensitive concept

ZK5000 | ZK5001

CZ

HU LV DE FRNSK PL

IT ES

RO

PODĚKOVÁNÍ

1 2 3 5 6 7 8 9 concept concept

White concept USB flash drive with a labeled connector (no text or symbols on the device body)

NÁVOD K OBSLUZE

Nabíjení

Illustration of a toothbrush and a battery icon (no text or symbols)

Illustration of toothpaste and toothbrush alongside a circular diagram showing tooth structure (no text or symbols)

Simple line drawing of two symmetrical objects resembling eyes or lenses, with no text or symbols present.

Line drawing of a toothbrush brushing teeth (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Diagram showing two methods of a hairdryer tool: one with a brush tip and arrow, the other with a tool inserted into a tube.

Diagram of a faucet pouring liquid into a pipe with a tool inserted (no text or symbols)

Illustration of hands using a tool to lift a liver (no text or symbols present)

Illustration of a hand holding a shaded object over a curved surface, no text or symbols present

SERVIS

1 2 3 5 6 7 8 9 concept 4

White concept mobile phone case with a handle and label pointing to the number 10 (no additional text or symbols visible)

NÁVOD NA OBSLUHU

Nabíjanie

Illustration of a toothbrush and a battery icon (no text or symbols)

Illustration of toothbrush and toothpaste with a circular diagram showing tooth structure (no text or symbols)

Hlavicu kefky nasadte na telo kefky.

Simple line drawing of two symmetrical objects resembling eyes or lenses, with no text or symbols present.

Kefku prikladajte zl'ahka, aby ste nepoškodili d'asná.

Line drawing of a toothbrush brushing teeth (no text or symbols)

Simple line drawing of a container with tubes and liquid, no text or symbols present

14:28 Teethcare 16:10 Points/U 5 Score Preference 1 rating due Control buttons

RIEŠENIE PROBLÉMOV

1 2 3 5 6 7 8 9 concept

White concept USB flash case with a labeled tag showing '10' (no text or symbols on the device itself)

INSTRUKCJA OBSŁUGI

Ładowanie

Illustration of a toothbrush and a battery icon (no text or symbols)

Illustration of toothpaste and toothbrush alongside a circular diagram showing tooth structure (no text or symbols)

Simple line drawing of two symmetrical objects resembling eyes or lenses, with no text or symbols present.

Line drawing of a toothbrush brushing teeth (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

1 2 3 5 6 7 8 9 concept concept

White concept USB flash drive with a labeled connector (no text or symbols on the device body)

HASZNÁLATI ÚTMUTATÓ

Feltöltés

Illustration of a toothbrush and a battery icon (no text or symbols)

Illustration of toothbrush and toothpaste with a circular diagram showing tooth structure (no text or symbols)

Simple line drawing of two symmetrical objects resembling eyes or lenses, with no text or symbols present.

Line drawing of a toothbrush brushing teeth (no text or symbols)

Simple line drawing of a container with tubes and liquid, no text or symbols present

14:28 Teethcare 16:10 Points/Lv.5 Score Prevalence 1 tracking fee 100% 100%

1. ábra

HIBAELHÁRÍTÁS

1 2 3 5 6 7 8 9 concept concept

White concept mobile phone case with a handle and label pointing to the number 10 (no text or symbols on device body)

LIETOŠANAS INSTRUKCIJA

Uzlāde

Illustration of a toothbrush and a battery icon (no text or symbols)

Illustration of toothpaste and toothbrush alongside a circular diagram showing tooth structure (no text or symbols)

Simple line drawing of two symmetrical objects resembling eyes or lenses, with no text or symbols present.

Viegli piespiediet zobu birsti, lai novērstu smaganu bojājumus.

Line drawing of a toothbrush brushing teeth (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Noskalojiet tirišanas birstiti ar üdeni un nosusiniet.

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it.

Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Voltage 5 V DC
Input 2 W
Functions Clean, White, Polish, Soft, Sensitive
Oscillation 28,200 - 40,000 strokes/min.
Charging Induction charger
Charging time 8 hrs.
Battery Li-ion 800 mAh / 3.7 V
Water resistance IPX7
Frequency range 2402 MHz - 2480 MHz
Transmitter power (max.) -0,48 dBm

IMPORTANT SAFETY PRECAUTIONS

- Do not use the device in any other way than as described in this manual.

- If you have had dental surgery in the last two months, consult your dentist about using the device.

- During the first days of using the device, you may notice a slight bleeding from the gums. If the gums bleed for more than 14 days, stop using the device and consult your dentist.

- Do not use brush heads other than those recommended by the manufacturer.

- If you have a pacemaker or other device installed, consult your doctor about using this toothbrush.

- The device is intended only for cleaning teeth, gums and tongue. Do not use it for other purposes.

- If you experience discomfort or pain, stop using the device and seek medical attention.

- Remove all the covering and marketing materials from the device before the first use.

- Make sure the mains voltage corresponds to the values on the rating plate of the device.

- Do not leave the device unattended when it is switched on or connected to the mains.

- If you put the device down during use, always switch it off.

- Before connecting or disconnecting the device from the mains socket, make sure that the device is switched off.

- When disconnecting the device from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

- Do not allow children or unauthorized people to handle the device, use it out of their reach.

- Do not use the device in the bathtub.

- Do not leave the device in a place from which it can fall into a sink or a bathtub.

- If the device has fallen into water, do not reach for it and unplug it immediately.

- Do not share the brush head with other people.

- Do not place metal objects (coins, staples, etc.) on the charger.

- Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the device only under the supervision of responsible person, who is familiar with the instructions.

- Pay extra attention if the device is used near children.

- Do not use the device as a toy.

- Before cleaning and after use of the device, switch the device off and disconnect it from the mains.

- Do not let the power cord touch hot surfaces.

- Do not allow the device to hang on the power cord.

- Do not use the device in an environment where there are explosive gases and flammable substances (solvents, varnishes, adhesives etc.).

- Do not use coarse and chemically aggressive substances to clean the device.

- Do not use the device if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.

- Do not use the device with a damaged cord or plug and have it repaired immediately by an authorized service centre.

• Do not wrap the power cord around the device body.
• Do not use the device outdoors.
• The device is only suitable for home use and is not intended for commercial use.
• Do not immerse the power cord, plug or device in water or any other liquid.
• Do not use any accessories other than those recommended by the manufacturer.
• Do not repair the device yourself. Contact an authorized service centre.
• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are 8 years old and under supervision. Children under the age of 8 must be kept away from the device and its power supply. Do not let children play with the device.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

CAUTION:

This device is waterproof. It is suitable for cleaning under running water. Do not use or clean the device while it is connected to the power cord.

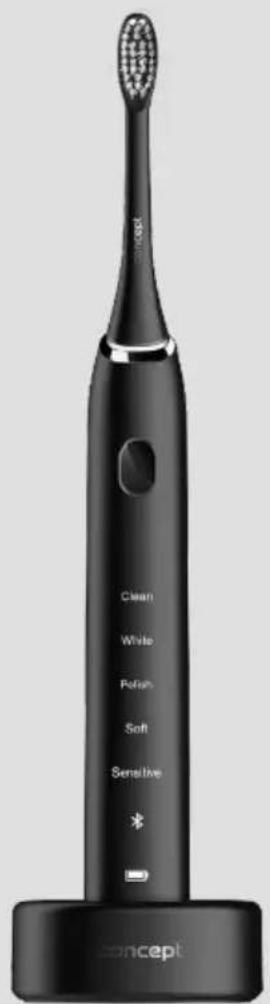

PRODUCT DESCRIPTION

1 Brush head
2 Appliance body
3 Power button
4 Charging base
5 Clean function
6 White function
7 Polish function
8 Soft function
9 Sensitive function

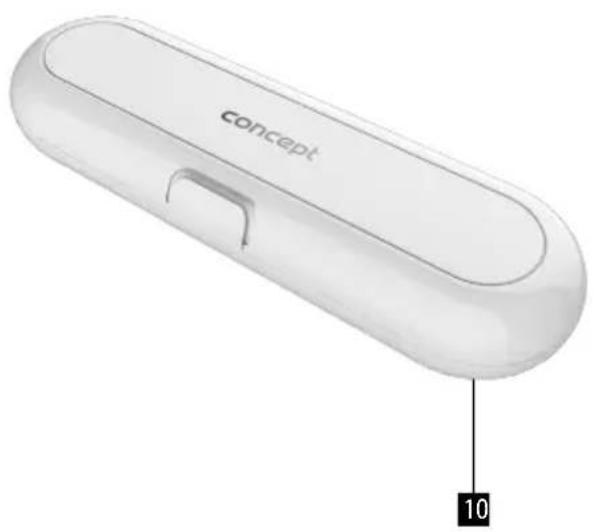

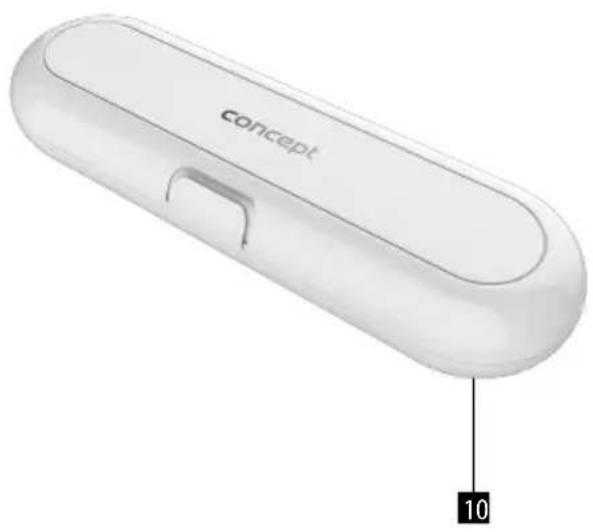

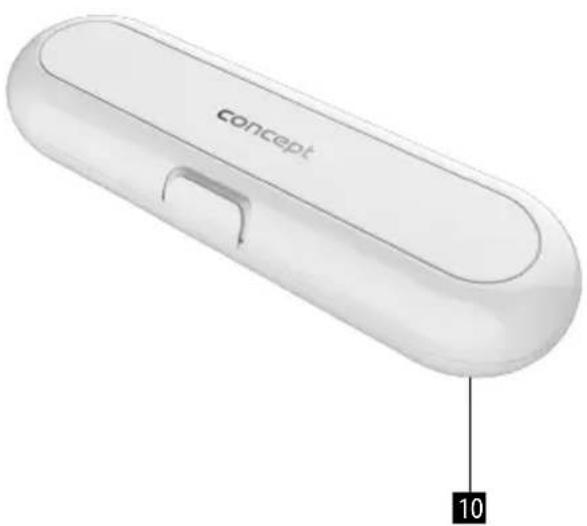

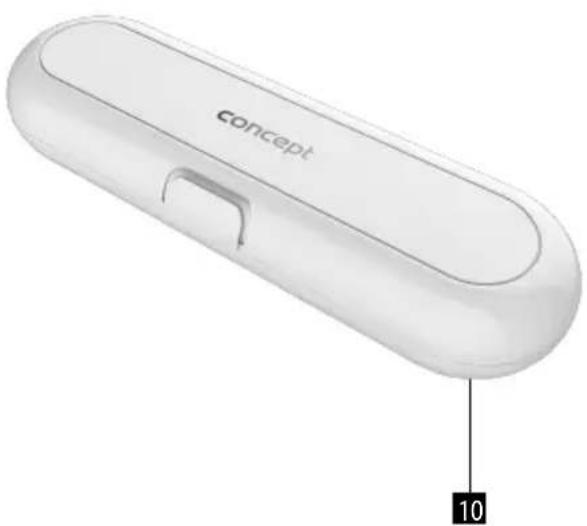

10 Travel case

Package contains

1x smart toothbrush
2x head (1 daily clean, 1 soft)
1x induction charging base
1x charging travel case
1x adapter

1 2 3 5 6 7 8 9 concept

White concept USB flash case with a labeled pin (10) and 'concept' branding, no additional text or symbols visible.

OPERATING INSTRUCTIONS

Charging

• Fully charge the battery before using the device for the first time.
• If the device has not been used for more than 6 months, charge it for more than 8 hours.
• Charge only when the battery is low.
• When fully charged, the indicator light is white.
  • To make better use of the battery, we recommend discharging the battery once a year.

Cleaning modes

Clean - standard choice for cleaning, removes 100 % of plaque

White - teeth whitening, removes surface stains for 2 minutes and brightens front teeth for 30 seconds

Polish - polishing and brightening teeth

Soft - gentle cleaning of teeth and gums

Sensitive - Extra gentle cleaning of sensitive teeth and gums

Illustration of a toothbrush and a battery icon (no text or symbols)

Fully charge the battery before using the device for the first time - the indicator lights up white.

45°

To clean your gums effectively, perform the cleaning at an angle of 45^ .

Illustration of toothbrush and toothpaste with a circular diagram showing tooth structure (no text or symbols)

Place the brush head on the brush body.

Simple line drawing of two symmetrical objects resembling eyes or lenses, with no text or symbols present.

Apply the brush lightly to avoid damaging the gums.

Line drawing of a toothbrush brushing teeth (no text or symbols)

Rinse the brush head, apply the paste, put the brush head in your mouth and then turn on the brush.

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Rinse the brush head with water and dry.

Downloading and installing the app

1. Download the Teethcare app from App Store or Google Play.
2. Enable Bluetooth on your mobile phone.
3. Open the app and click on the "Connect" button (Fig. 1).
4. Select the device (Fig. 2).
5. Click on the "Next" button (Fig. 3).
6. Set up your profile and click on "Next" (Fig. 4).
7. Read and then click on "OK" (Fig. 5).
8. The app is now ready for use (Fig. 6).

Problem Possible cause	Remedy
Weak vibrations	Too much pressure on teeth. Reduce pressure on teeth.
	Improperly fitted brush head. Fit the brush head again.
Loose brush head or abnormal sound	The brush head is damaged. Replace the brush head.
Shorter operating time with a charged battery	Charging error. Charge the toothbrush correctly.
	Empty battery. Charge the brush to full charge.
The toothbrush does not work Power has run out. Charge the battery.

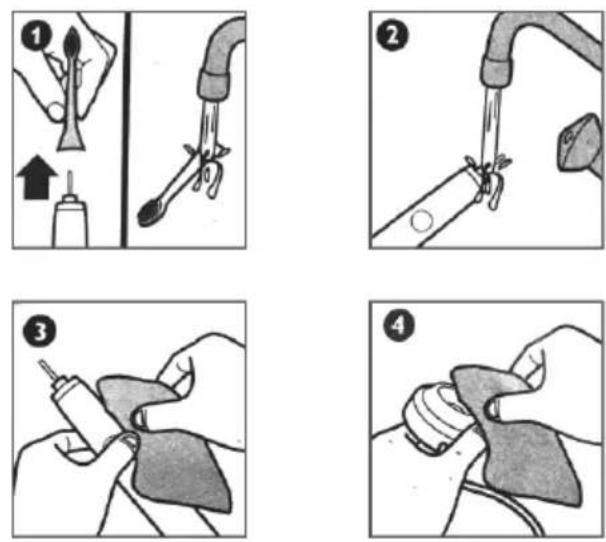

CLEANING AND MAINTENANCE

Brush head - After use, rinse with water and dry.

Brush body - Rinse with water and dry. Do not use water warmer than 40 °C or any cleaning agents.

Charging base - Wipe only with a dry cloth. Wet and damp fabrics can cause a short circuit.

Replacing the brush head - we recommend replacing the brush head every 3 months.

Store the device in a dry and dust-free place.

Do not expose to high temperatures.

Keep out of reach of children.

Warning: The device contains a rechargeable lithium battery. Recycle accordingly.

SERVICE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.

DANKSAGUNG

1 2 3 5 6 7 8 9 concept

White concept USB flash drive with a labeled connector (no text or symbols on the device body)

BEDIENUNGSANLEITUNG

Aufladen

Illustration of a toothbrush and its battery icon (no text or symbols)

Illustration of toothpaste and toothbrush alongside a circular diagram showing tooth structure (no text or symbols)

Simple line drawing of two dental arches with a tooth inserted (no text or symbols)

Line drawing of a toothbrush brushing teeth (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

14:28 Teethcare # 1610 Polica/US Preface Preface rate 1000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Model: 1 mm 10 mm Preface rate: 1 mm Preface rate: 1 mm

1 2 3 5 6 7 8 9 concept 4

White concept mobile phone case with a handle and label pointing to the number 10 (no text or symbols on device body)

MODE D'EMPLOI

Chargement

Illustration of a toothbrush and a battery icon (no text or symbols)

Illustration of toothpaste and toothbrush alongside a circular diagram showing tooth structure (no text or symbols)

Simple line drawing of two eyes with a curved line extending from the center (no text or symbols)

Line drawing of a toothbrush brushing teeth (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

14:28 Teethcare 1610 Pentils & s Prevalence Treatments

DÉPANNAGE GÉNÉRAL

Diagram showing two methods of hair cleaning: one using a tool to clean leaf, the other using a tap wrench.

Diagram of a faucet with water flowing from a pipe to a handle (no text or symbols)

Illustration of hands holding a tool over a shaded fabric or material (no text or symbols)

Illustration of a hand holding a shaded object over a surface, no text or symbols present

ENTRETIEN

1 2 3 5 6 7 8 9 concept 4

White concept USB flash case with a labeled tag showing '10' (no additional text or symbols)

MANUALE D'USO

Ricarica

Illustration of a toothbrush and a battery icon (no text or symbols)

Illustration of toothpaste and toothbrush alongside a circular diagram showing tooth structure (no text or symbols)

Simple line drawing of two symmetrical objects resembling eyes or lenses, with no text or symbols present.

Line drawing of a toothbrush brushing teeth (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

14:28 Toothcare 1610 Polka/2.5 File Finishcare 1 meter Toothcare 10

Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6
SOLUZIONE DEI PROBLEMI

1 2 3 5 6 7 8 9 concept

White concept USB flash case with a labeled pin (10) and 'concept' branding, no additional text or symbols visible.

MANUAL DE USO

Carga

Illustration of a toothbrush and a battery icon (no text or symbols)

Illustration of toothpaste and toothbrush alongside a circular diagram showing tooth structure (no text or symbols)

Simple line drawing of two eyes with a curved line extending from the center (no text or symbols)

Line drawing of a toothbrush brushing teeth (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

14:28 Teethcare 6 16:10 Points/U.S. 16:10 Model: 1 point 20 points Preference: 1 point 20 Prevalence: 1 point 20

1 2 3 5 6 7 8 9 concept concept

White concept USB flash case with a labeled tag showing '10' (no additional text or symbols)

INSTRUCTIUNI DE UTILIZARE

Încărcare

Illustration of a toothbrush and a battery icon (no text or symbols)

Illustration of toothpaste and toothbrush alongside a circular diagram showing tooth structure (no text or symbols)

Simple line drawing of two dental arches with a tooth inserted (no text or symbols)

Line drawing of a toothbrush brushing teeth (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

The manufacturer (or importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
• to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation,
• to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
• to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,
  • to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindřich Valenta - Concept

Vysokomýtská 1800, 565 01 Choceň

Czech Republic

tel.: [phone]

fax [phone]

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:

DEGARANTIEBEDINGUNGEN

Garantie

FR CONDITIONS DE GARANTIE

Garantie

SEZNAM SERVISNÍCH MÍST | List of service points

ver 1.11-2021

Zoznam servisnych stredisiek | Wykaz punktów servisovych | Szolgáltatók listáját Popis uslužnih mjesta | Lista unităților service
