USER MANUAL EKP 43255 KALORIK

Exterior view of a modern stainless steel KALORER electric stove with red heating screen (no visible text or symbols)

EN.....4

SP......9

FR.....16

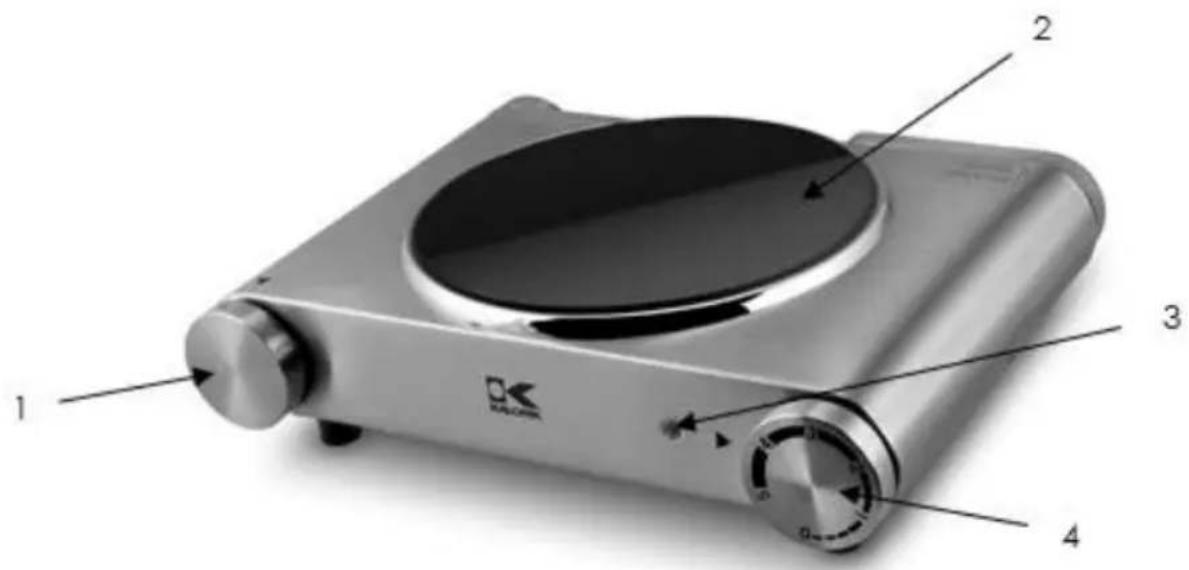

PARTS DESCRIPTION/ DESCRIPTION DES ÉLÉMENTS

1 2 3 4

ENGLISH :

1. Power Dial (On/Off)
2. Heating surface
3. Indicator light
4. Temperature dial

SPANISH:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.

1. Check that your voltage in your home corresponds to what is stated on the appliance.
2. Do no touch hot surfaces. Use handles or knobs.
3. To protect against electrical shocks do not immerse cord, plugs, or the appliance in water or any liquid.
4. Close supervision is necessary when any appliance is used near children. This appliance is not recommended for children to use.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning the appliance or moving the appliance.
6. Never leave the appliance unattended, while it is operating.
7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
9. Do not use outdoors.
10. Do not place the food directly on the heating surfaces.
11. Do not clean with metal scrubbing parts. Pieces can break off the pad and short electrical parts, creating a possibility of electric shock.
12. Do not use appliance for other than intended use.
13. Do not let cord hang over edge of table or counter, or touch hot surfaces.
14. Do not place on or near a hot gas or electric burner, or in a heated oven or microwave oven.
15. Extreme caution must be used when moving an appliance containing hot liquids.
16. A fire may occur if the cooking plate is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.

17. To disconnect, turn any control to "0" or "OFF", then remove plug from wall outlet.

18. Do not pull on the power cord to disconnect, pull on the head of the plug.

19. Always place on a flat, level and heat-resistant surface.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

3-PRONG PLUG INSTRUCTIONS

For your personal safety, this appliance must be grounded. This appliance is equipped with a power supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-prong, grounding type, wall receptacle, grounded in accordance with the National Electrical Code ANSI/NFPA 70 latest edition and all local codes and ordinances. If a mating wall receptacle is not available, it is the personal responsibility and obligation of the customer to have a properly grounded, 3-prong, wall receptacle installed by a qualified electrician.

SHORT CORD INSTRUCTIONS

A short power supply cord is provided to reduce the hazards resulting from becoming entangled in, or tripping over a longer cord. Extension cords may be used if care is exercised in their use.

• The electrical rating of the extension cord should be at least that of the appliance. If the electrical rating of the extension cord is too low, it could overheat and burn.
• The resulting extended cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over.

PARTS DESCRIPTION

See page 2.

• Place on a dry, flat, level, and heat-resistant surface and close to an electric socket.
• For proper ventilation provide at least 4-6 in (10-15 cm) of space above and around the appliance.
• Make sure the temperature dial (4) is set in "0" position, and that the power dial (1) is set to "OFF", before plugging in.
• Plug into a 120 Volt A.C. wall outlet.
• Turn the ON/OFF knob to the ON position by turning clockwise.
• The invisible protective coating must be removed before you can use the appliance. To do this, set the controls to the maximum setting and heat at the "5" level for approximately 10 minutes. Smoke may develop, so make sure that the room is ventilated.
• Set the temperature dials to "0", switch off the cooking plate with the power dial and allow cooling down completely. The cooking plate is now ready for use.
• Keep the surface of the heating element (2) clean and dry.

OPERATING INSTRUCTIONS

• Select a suitable position close to an electric socket, on a dry, flat, level, and heat-resistant surface.
• Make sure the temperature dial (4) is in the “0” position, and the power dial (1) is in the “OFF” position, before plugging in the power outlet.
• Plug into a 120 Volt A.C. wall outlet.
• For maximum heat efficiency, always use flat-bottomed cookware, which makes full contact with the cooking plates. Ideally, the pan's base should be of the same size as the cooking plate that it is placed on.

IMPORTANT! Do not place food directly on the heating plates!

- Place filled cookware on the burner. NOTE: DO NOT operate the burner without filled cookware on the burner.

- Turn the ON/OFF knob to the ON position by turning clockwise.

- Turn the Temperature Control Knob clockwise to the desired setting. NOTE: “5” is the highest setting. The indicator light (3) will illuminate at first, then blink on and off as the temperature is reached and regulated by the thermostat.

CAUTION! The metal surface will become hot! Do not touch while in use.

• After use, turn temperature dial back to "0", turn the power dial back to "OFF", and unplug the appliance from the electrical outlet. Allow the unit to cool before moving or cleaning.
• Due to the cooking plate construction, residual heat will remain after switching off. This may be used to keep food warm for a short period. Be careful not to touch the heating elements until they have completely cooled down, at least for 1 hour.

HINTS AND TIPS

• Do not use with unstable pans or pans that do not have a flat bottom.
• Never switch the unit on without a pan being placed on the heating elements, as it may damage the appliance.

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and wait for it to cool down completely.
• Wipe with a damp cloth. Dry after cleaning.
• To clean the ceramic glass surface, use a ceramic glass cooktop cleaner. Cleaners adapted to this type of surface allow a deep-cleaning of the cooking plate, without risk of damage.
• Do not clean the housing with abrasive scouring pads or steel wool as this will damage the finish. Also, pieces can break off the pad and short electrical parts, creating the possibility of electric shock.
• Do not immerse in water or any other liquid.
• All servicing, other than cleaning, should be performed by an authorized service representative.

We suggest that you complete and return the enclosed Product Registration Card promptly to facilitate verification of the date of original purchase. However, return of the Product Registration Card is not a condition of these warranties. You can also fill out this warranty card online, at the following address: www.KALORIK.com

This KALORIK product is warranted in the U.S.A. and in Canada for 1 year from the date of purchase against defects in material and workmanship. This warranty is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance.

During this period, if the KALORIK product, upon inspection by KALORIK, is proven defective, it will be repaired or replaced, at Kalorik's option, without charge to the customer. If a replacement product is sent, it will carry the remaining warranty of the original product.

This warranty does not apply to any defect arising from a buyer's or user's misuse of the product, negligence, failure to follow KALORIK instructions noted in the user's manual, use on current or voltage other than that stamped on the product, wear and tear, alteration or repair not authorized by KALORIK, or use for commercial purposes. There is no warranty for glass parts, glass containers, filter basket, blades and agitators, and accessories in general. There is also no warranty for parts lost by the user.

ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD.

Some states do not allow limitation on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If the appliance should become defective within the warranty period and more than 30 days after date of purchase, do not return the appliance to the store: often, our Customer Service Representatives can help solve the problem without having the product serviced. If servicing

is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location.

If this is the case, bring the product, or send it, postage prepaid by the user (all Kalorik customers are responsible for the initial shipment back to the warranty center), along with proof of purchase and a return authorization number indicated on the outer package, given by our Customer Service Representatives. Send to the authorized KALORIK Service Center (please visit our website at www.KALORIK.com or call our Customer Service Department for the address of our authorized KALORIK Service Center).

When sending the product, please include a letter explaining the nature of the claimed defect.

If you have additional questions, please call our Customer Service Department (please see below for complete contact information), Monday through Thursday from 9:00am - 5:00pm (EST) and Friday from 9:00am - 4:00pm (EST). Please note hours are subject to change.

If you would like to write, please send your letter to:

KALORIK Customer Service Department

Team International Group of America Inc.

16175 NW 49th Avenue

Miami Gardens, FL 33014 USA

Or call:

Toll Free: +1 888-521-TEAM / +1 888-KALORIK

Only letters can be accepted at this address above. Shipments and packages that do not have a return authorization number will be refused.

Team International Group of America Inc. 16175 NW 49th Avenue Miami Gardens, FL 33014 USA

O llame gratuitamente (U.S.A.) al +1 888-521-TEAM / +1 888-KALORIK

INSTRUCTIONS POUR LES FICHES AVEC MISE A LA TERRE

Team International Group of America Inc.

16175 NW 49th Avenue

Miami Gardens, FL 33014 USA

Team International Group of America Inc.

16175 NW 49th Avenue

Miami Gardens, FL 33014 USA

User manual content and recipes courtesy of Team International Group – Do not reproduce without consent of the authors - All rights reserved.
