USER MANUAL 25304 KORONA

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Black electronic device with attached plug and cable, labeled with number 6 (no text or symbols on body)

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for boiling eggs. Never attempt to heat any other liquids or foods in it. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

This symbol warns of evaporating steam!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
• Always pull the plug – not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
  • in case of malfunction.
• if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, and risk of burns.

• Your egg boiler is only intended for boiling eggs. Never attempt to heat any other liquids or foods in it.
• Place the appliance on an even and heat-resistant surface.
  • Never operate the appliance without water.
• Do not cover the water tray with any aluminium foil or any other material, this could lead to overheating of the appliance and may cause serious damage or may lead to injuries of the user.
• Do not place the egg boiler near any inflammable objects.
• Never exceed the max. water level indication inside the appliance (60 ml) to avoid any boiling water from spilling from the water tray. Danger of serious burns!

• Do not use the appliance without egg tray or lid.
  • Never open the lid during operation.

• During use, hot team escapes through the steam vent on top of the lid. Do not touch or cover it when in use.

• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle.
• Do not move the appliance during operation.
• Let the appliance completely cool down before cleaning.

KORONA® ① ② ④ ⑤ ⑦ ⑧ ③

Black electronic device with attached plug and cable, labeled with number 6 (no text or symbols on body)

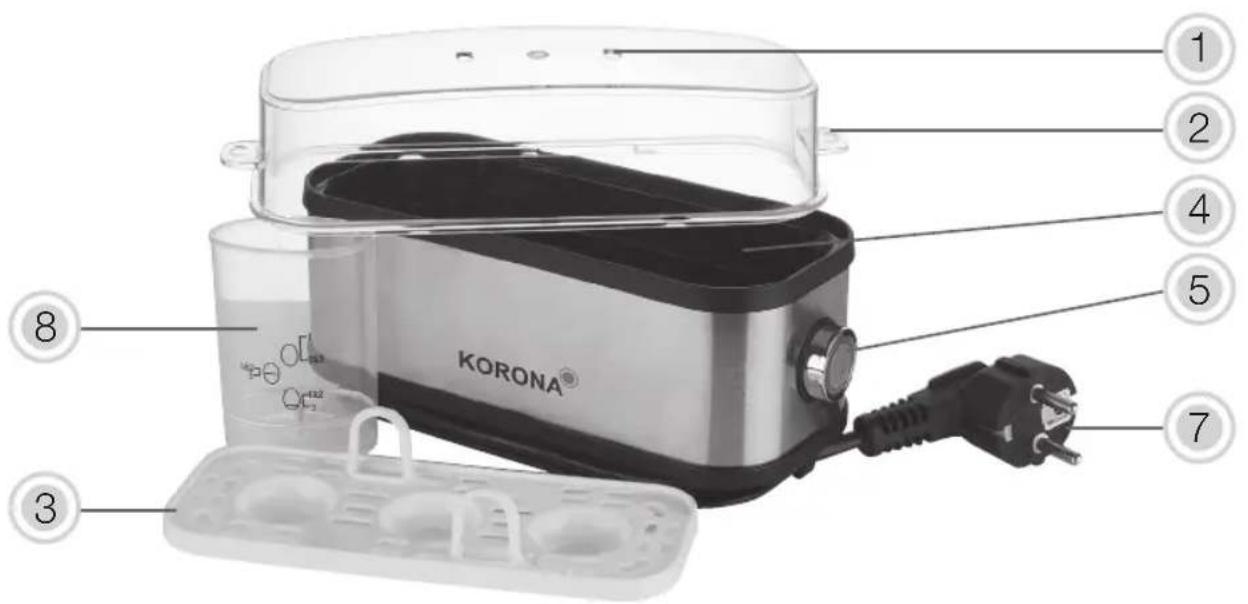

Product Description

1. Steam vent
2. Lid with handle
3. Egg tray
4. Water tray
5. On/off switch with indicator light

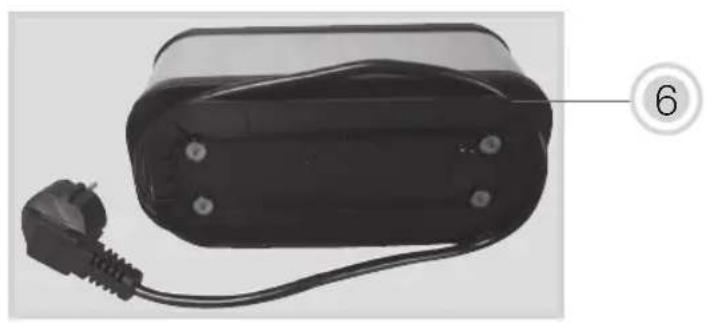

6. Cable storage (rear side)
7. Power cord and plug

8. Measuring cup

9. with integrated egg piercer

10. water level markings for hardness degree

Before First Use

• Remove all packaging material and check whether the appliance is complete.
• Fully unwind the power cord (7).
• Place the appliance on an even and heat resistant surface. Do not place it on top of a metal surface.
• Clean the appliance as described under Cleaning and Care.

Warning: Plastic bags are a danger to toddlers and

babies, therefore keep them away to avoid suffocation.

Operation

You may boil up to three eggs to your liking (soft, medium and hard) with this egg boiler.

1. Place the appliance on an even and heat-resistant surface.
2. Fill the provided measuring cup (8) up to marking indicating the resp hardness degree of the egg(s).

Adjust the quantity of water according to the desired degree of hardness and the number of eggs to be cooked.

1. Pour the water into the water tray (4).
2. Remove the protective cover from the egg piercer and carefully, pierce the blunt end of the eggs with the egg piercer (8). Place the egg(s) blunt size down on the egg tray (3). This should reduce the risk of the eggs cracking during the boiling process.

Warning: Risk of injury!

Handle the measuring cup (8) carefully, as the integrated egg piercer (8) is extremely sharp.

1. Place the egg tray (3) with the eggs properly onto the water tray (4) and close the lid (2).
2. Connect the power plug (7) to a properly installed wall socket.
3. Switch on the appliance by pressing the on/off switch (5). The integrated indicator light (5) lights up.
4. The water starts to heat up. As soon as the set time of the resp hardness degree has ended, a buzzer sound indicates that the water has completely evaporated. The indicator light goes off and the appliances shuts down.

Note: Cooking process can be stopped any time by sing the on/ off button.

1. Press the On/Off button to switch off (5) the buzzer sound and disconnect the appliance from the mains (7).
2. Carefully, lift off the appliance lid (2) by its handle, hot steam might evaporate.
3. Lift off the egg tray (3) by its handle and briefly rinse the eggs under cold tap water. They are now ready to be served.

Cooking times

Doneness Water Volume Number of eggs	time
soft 20mL 1 approx. 6.5 min
Medium well 30mL 1 approx.	9.5 min
Well done 45mL 1 approx.	13 min

Doneness Water Volume Number of eggs	time
soft 20mL 2 approx. 8 min
Medium well 30mL 2 approx.	11 min
Well done 35mL 2 approx.	13 min

Doneness Water Volume Number of eggs	time
soft 15mL 3 approx. 6 min
Medium well 25mL 3 approx. 11.5 min
Well done 35mL 3 approx. 5 min

The times are only recommendations and might vary slightly.

Note: We recommend to use medium size eggs.

Depending on the size, number and freshness of the eggs, the results may vary slightly. In addition, if the eggs are not removed immediately after the boiling process has stopped, they will continue to harden.

Caution: Risk of burns!

During use, hot team escapes through the steam vent (1) on top of the lid (2). Do not touch or cover it when in use.

The egg tray (3) gets very hot during use, therefore, only lift it off by its handles or if necessary use pot handlers.

Dry-boil cut-out

Your egg boiler is equipped with a boil-dry cut-out, which will switch off the appliance automatically, should it accidentally be operated without water or by not observing the minimum water level. In the event of such a safety cut-out, switch off the appliance immediately, unplug it and let it cool down for approx. 15 minutes. Afterwards, the appliance is ready for use again.

Thermal safety cut-out

This egg boiler has a thermal safety device. In case of thermostat failure, the electrical circuit has an automatic cut-out, thus preventing overheating. If this should happen, disconnect the appliance from the mains.

Cleaning and Care

Due to hygienic reasons clean the appliance best after each use, and remove any remaining water or food residues. Not doing so could possibly result in a hazardous situation.

Before cleaning, always switch off the appliance connect it from the mains and let it completely cool

Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance and the water tray (4) with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

Remove calcium deposits in the water tray (4) by mixing a solution of water and vinegar. Wipe again with a moistened soft cloth.

Clean the lid (2), egg tray (3) under running tap water or if necessary in warm water using some dishwashing detergent. Dry all parts including the water tray (4) with a soft cloth.

The accessories are not dishwasher safe.

DESCALING

Descale your appliance in regular intervals (approx. every 3 – 6 months), depending on the frequency of use and the local water quality.

Never use any sharp, pointed or metal objects to remove limescale built up in the appliance.

To remove limescale, use a common gentle descaler, which is suitable for your appliance.

Put some of the descaler liquid onto a soft moistened cloth and apply it to the water tray. Leave it on for a while and then remove it thoroughly with a wet cleaning sponge. Make sure to dry it properly afterwards.

Storage

After use, wind the power cable around the cable storage (6) and store the appliance in a clean and dry place and keep it out of the reach of children.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special on points for disposal or your local dealer.

Your Egg Boiler 25304 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50 / 60 Hz

Rated Power: 210 W

Protection Class: I

Technical data subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Beoogd gebruik

Black electronic device with attached plug and cable, labeled with number 6 (no text or symbols on body)

Productbeschrijving

Black electronic device with attached plug and cable, labeled with number 6 (no text or symbols on body)

Abstract geometric shape with curved and angular gray segments, no text or symbols present

Ref: 25304/2020.02
