Bedienungsanleitung

Suppentopf, 10L

Seite 1 bis 12

D/A/CH

Instruction manual

Soup kettle, 10l

from page 13 to 24

GB/UK

Mode d'emploi

Soupière 10l

Labeled diagram of a kitchen appliance showing interior components and control buttons

Bedienelemente

Bartscher ⑨ ⑩ ⑪

Close-up of a metallic knob with curved black bands and two glossy spheres (no text or symbols visible)

of the original instruction manual

Read these instructions before using and keep them available at all times!

1. General information.... 14

1.1 Information about the instruction manual 14
1.2 Key to symbols.... 14
1.3 Liability and Warrantees.... 15
1.4 Copyright protection 15
1.5 Declaration of conformity.... 15

2.Safety 16

2.1 General information.... 16
2.2 Safety instructions for use of the device 16
2.3 Intended use 17

3. Transport, packaging and storage.... 18

3.1 Delivery check.... 18
3.2 Packaging 18
3.3 Storage.... 18

4. Technical data 19

4.1 Overview of parts 19
4.2 Technical specification 20

5. Installation and operation.... 20

5.1 Safety instructions....20
5.2 Installation and connection.... 21
5.3 Operation 21

6. Cleaning and maintenance.... 23

6.1 Safety advice....23
6.2 Cleaning 23
6.3 Safety instructions for maintenance 24

7. Waste disposal 24

Bartscher GmbH

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury.

Please follow the instructions very carefully and proceed with particular attention in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device.

WARNING! Hot surface!

This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns!

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology.

NOTE!

Read this manual carefully and thoroughly before any operation of the device, and especially before turning it on!

Manufacturer is not liable for any damages or faults caused by:

• violation of advice concerning operation and cleaning;
• use other than designed;
• alterations made by user;
• use of inadequate spare parts.

We reserve the right to make technical changes for purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity.

2.Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

2.1 General information

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device.

If the device is used commercially, the user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications.

Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with.

! CAUTION!

The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers.

○ Children should not play with the device.
○ Cleaning and maintenance cannot be performed by children younger than 8 years old and must be done under supervision.
○ Children under the age of 8 years old must be kept away from the device and its power cord.
- Please keep these instructions and give them to future owners of the device.
- All people using the device should follow the instructions and tips contained in these instructions.
○ Only use the device indoors.

2.3 Intended use

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

The device is intended for home use or in similar places such as:

• in kitchens for store or office employees or in other service locations;
• in suburban properties;
• by guests of hotels, motels and other places of accommodation;
• in Bed & Breakfasts.

The Soup kettle is intended only for maintaining the temperature of soup, goulash, sausages.

Do not use the soup kettle for:

• preparing soup;
• preparing warm or hot water;
• preparing other dishes and beverages;
• heating or boiling liquids containing sugar, sweeteners, acids, bases or alcohol;
• heating flammable, dangerous or easily evaporating liquids or other such materials.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
• In case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

4. Technical data 4.1 Overview of parts

Labeled diagram of a kitchen appliance showing numbered components and control panel

Control panel

Bartscher ⑨ ⑩ ⑪

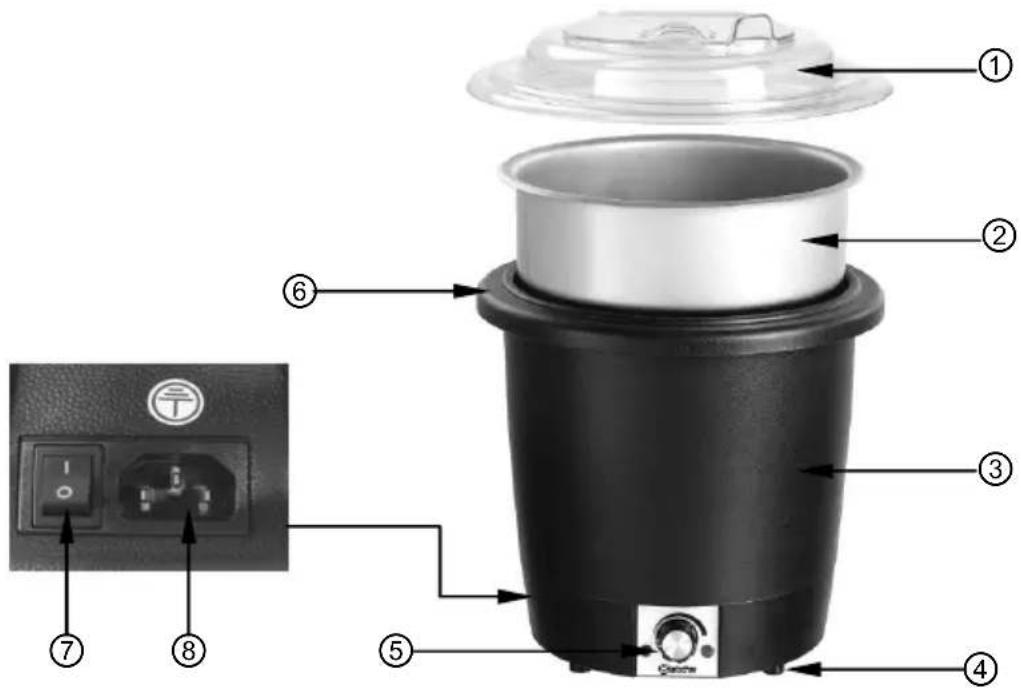

① Rotating and hinged lid with ladle cut-out
② Insert pot
③ External pot
④ Legs (3)
⑤ Controls
⑥ Carrying rim
⑦ ON/OFF switch
⑧ Device socket

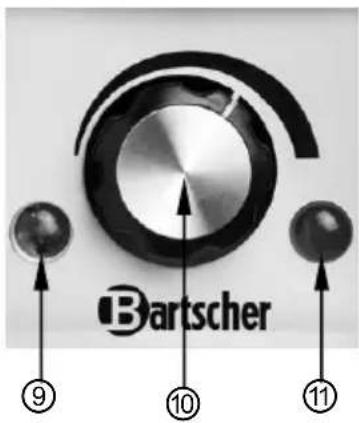

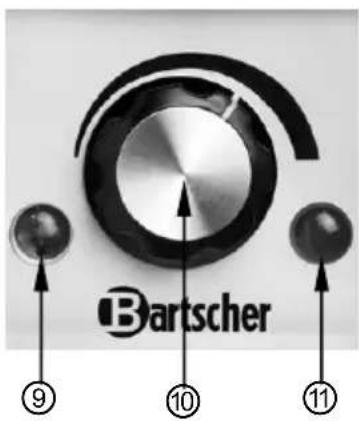

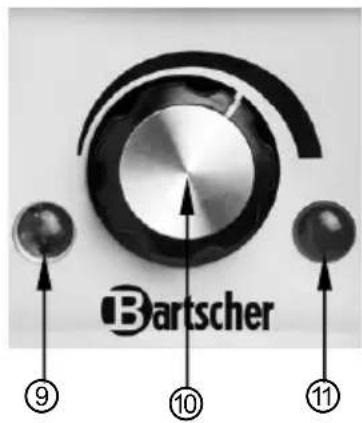

⑨ Heating control light (yellow)
⑩ Temperature dial
⑪ Protection against operating while dry control light (red)

4.2 Technical specification

Name	Soup kettle, 10l
Art. no.:	100048
Material:	External pot: plastic, black;Insert pot: stainless steel; lid: polycarbonate
Capacity: 10.0 litres
Temperature range: 57 °C to 84 °C
Power: 0.45 kW / 230 V~ 50 Hz
Dimensions: H 380 mm, ∅ 330 mm
Weight: 3.0 kg

We reserve the right to make technical changes!

5. Installation and operation

5.1 Safety instructions

WARNING! Risk of electric shock!

The device must only be connected to a properly installed single socket with protective contact.

Never remove the power cable by pulling the cable itself; always grab the plug housing.

• Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable.
• The power cable must not be folded, bent or tangled, and must always remain fully unrolled.
• Never place the device or other objects on the power cable.
• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.
• Do not use the device in case it does not function properly, has been damaged or dropped.
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.
• Do not move or tilt the device when in operation.

5.2 Installation and connection

• Unpack the device and remove all packing material.
• Put the device on a level, stable surface capable of supporting its weight.
• Never put the device on a flammable surface (tablecloth, carpet, etc.).
• Never put the device in a moist or wet environment.
• Do not put the device near an open flame, electric oven, heater or other source of heat.
• Ensure the device is not placed near any flammable materials. Danger of fire!
• Ensure a safe distance is maintained from all walls, shelves, etc. for proper circulation of warm air emitted by the device.

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with that of the device (see type label).

Connect the device only in case of compliance!

Take note of the security advice!

• The electrical circuit of the socket must be secured to at least 16A. Only connect the device to a wall outlet; do not use any extension cords or power strips.
• Place the device so that the plug is easily accessible so as to quickly disconnect the device if the need arises.

5.3 Operation

The soup kettle is composed of a heated external pot with thermostat, a removable stainless steel insert pot and a carrying rim placed over the external pot. The transparent hinged rotating polycarbonate lid with ladle cut-out allows you to see inside the kettle at all times and check the fill level of soup or sauce, avoiding heat loss. To remove or add contents, just tilt the lit up.

• Before use, remove the lid, carrying rim and insert pot, and wash all parts according to the instructions in 6.2 „Cleaning“.
• The soup kettle functions like a water bath. Temperature of food inside is maintained by heated water.

- Pour 2.0 litres of water (up to the „MAX“ marking) into the external pot. Do not pour more than 2.0 litres of water, otherwise some will spill over when the insert pot is placed inside.

NOTE!

Shorten heating time by pouring warm water, cold water takes longer to heat up.

CAUTION!

Never turn the soup kettle on with an empty external pot.

- Prepare the desired dishes and place the warm (hot) food in the insert pot. Place the insert pot through the carrying rim. Hold the carrying rim and place the insert pot into the external pot.

- Place the lid on the soup kettle.

- First, connect the power cord to the device's socket, then insert the plug into a single grounded socket.

- Turn the device on using the ON/OFF switch located on the rear wall.

- Set the appropriate temperature for the dish to be heated. The yellow heating control light will come on.

- The adjustable temperature dial allows for heating of water in the external pot at regular intervals. The yellow heating control light comes on during the heating phase. When the set temperature is reached the control light goes off, and it comes on again when the temperature in the external pot falls.

Close-up of a metallic knob with black ring and two small spheres, no visible text or symbols

- Heating time depends on the volume and temperature of food and of water in the external pot.

- Open the lid to serve food as desired.

• After serving food, close the lid again to avoid heat loss.

- When finished using the device, set the temperature dial all the way to the left by turning it counter-clockwise and remove the device's plug from its socket.

- The unit is equipped with a function protecting against operating while dry. If the unit is accidentally turned on without water or with too little water in the internal pot, the protection function is activated and the unit automatically shuts off. The red control light for protection against operating while dry will come on. If this happens, turn the unit off via the ON/OFF switch located on the rear wall of the unit and wait for it to cool. After it has cooled, fresh water can be poured in and the unit can be used normally.

6. Cleaning and maintenance

6.1 Safety advice

Before beginning with repair or cleaning works make sure the device has been disconnected from power supply and has cooled down.
o Do not use any acid agents and make sure no water ingresses the device.
To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

CAUTION!

The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!

6.2 Cleaning

• The device should be cleaned after every use to avoid leftover food and salt from damaging the device.
• Set the temperature dial to the lowest setting, turn the device off using the ON/OFF switch, remove the plug from its socket and wait for the device to cool.
• Remove the lid, then remove the insert pot from the external pot. Use a soft cloth and warm water with mild cleaning agent to wash the lid, carrying rim and insert pot.
  o Empty the external pot only when the water inside has cooled, otherwise there will be a danger of burns!

o Wipe the external pot on the inside and outside with a soft, moist cloth.

- If limescale has gathered at the bottom of the external pot, remove it with a vinegar and water solution or a common descaling product. Follow the manufacturer's instructions.

o Dry all parts thoroughly.

○ Always use soft cloths, never use harsh cleaners that could scratch the device's surface.

- When finished cleaning, dry and polish the device's surface with a dry cloth.

If the device is to be cleaned, transported or remain unused for a longer period of time, empty the external pot and clean the device thoroughly. Store the device in a dry, clean place protected from frost and sunlight, inaccessible to children. Do not place any heavy objects on the device.

6.3 Safety instructions for maintenance

• Inspect the power cable regularly for damage. Never use the device if the cable is damaged. If the power cable is damaged, have an authorised service center or qualified electrician replace it.
• In case of damage or malfunction, please contact your stockist or our customer service centre.
  ○ Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.

7. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Bartscher GmbH

Labeled diagram of a kitchen appliance showing interior components and control panel with numbered parts

Commandes

Bartscher ⑨ ⑩ ⑪

4.2 Indications techniques

Close-up of a metallic knob with black ring and two small spheres, no visible text or symbols

4. Specifications 79

Labeled diagram of a blender oven with numbered parts and control panel inset

Bedieningselementen

Bartscher ⑨ ⑩ ⑪

Close-up of a metallic knob with three glossy spheres, no visible text or symbols

Labeled diagram of a rice cooker showing interior components and control panel with numbered parts

Elementy obsługi

Bartscher ⑨ ⑩ ⑪

Close-up of a metallic knob with three glossy spheres nearby (no text or symbols visible)
