MA-DA1-01 - Wall mount Gembird - Free user manual and instructions

Product type	Wall mount for flat screen
Brand	Gembird
Model	MA-DA1-01
VESA compatibility	75 x 75 mm, 100 x 100 mm
Maximum screen size	27 inches
Maximum load capacity	15 kg
Material	Steel
Color	Black
Dimensions (W x H x D)	200 x 200 x 30 mm
Net weight	0.5 kg
Mounting type	Fixed wall mount
Tilt	No
Rotation	No
Package contents	Wall mount, screws, wall plugs, installation manual
Compatible wall material	Concrete, brick, wood
Warranty	2 years
Care	Clean with a soft, dry cloth
Safety	Do not exceed maximum load
Repairability	Spare parts not available separately

Frequently Asked Questions - MA-DA1-01 Gembird

How to install the Gembird MA-DA1-01 wall mount?

Follow the steps in the manual: locate the position, drill holes to the provided dimensions, insert wall plugs, attach the mount to the wall with screws, then hang the screen by aligning the VESA brackets.

What type of screen is compatible with this mount?

This mount is designed for flat screens with VESA 75x75 mm or 100x100 mm standard, up to 27 inches and 15 kg.

What tools are needed for installation?

You will need a drill, a drill bit suitable for the wall (concrete, brick, or wood), a spirit level, a screwdriver or Allen key depending on the screws provided.

Does the mount allow tilting or rotating the screen?

No, the Gembird MA-DA1-01 is a fixed wall mount: the screen remains parallel to the wall without tilt or rotation capability.

What is the maximum weight capacity?

The maximum recommended load is 15 kg. Do not exceed this weight to avoid any risk of falling.

Can I install this mount on a plasterboard wall?

It is preferable to install on a solid wall (concrete, brick, wood). For plasterboard, use special appropriate wall plugs and ensure the screen weight does not exceed the wall's capacity.

Are the screws and wall plugs included?

Yes, the box contains the screws and wall plugs needed for standard installation on a concrete or brick wall.

How to clean the mount?

Use a soft, dry cloth. Do not use abrasive products or solvents that could damage the paint.

Is there a warranty on this product?

Yes, the warranty is 2 years. Please keep the receipt and contact Gembird customer service if defective.

What to do if a part is missing or damaged?

Contact Gembird after-sales service at [e-mail] or at 0900-GEMBIRD (Netherlands). Keep the proof of purchase.

USER MANUAL MA-DA1-01 Gembird

ADJUSTABLE DESK DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

Features

• Monitor desk mount with single monitor arm
• Arm rotates, extends and retracts, tilts to change reading angles, and allows to rotate display from landscape-to-portrait mode, etc
• Enables easy ergonomic positioning for reduced strain
• Works with almost any LCD monitor (max. 27")
• Durable adjustable gas-spring suitable for monitors of 2 - 7 kg
  VESA compatible ( 100× 100mm and 75× 75mm

Specifications

Material: steel (1.35 mm)
Max. load: 7 kg (13"-27")
Net weight: 3kg

gembird

MA-DA1-01

ADJUSTABLE DESK DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

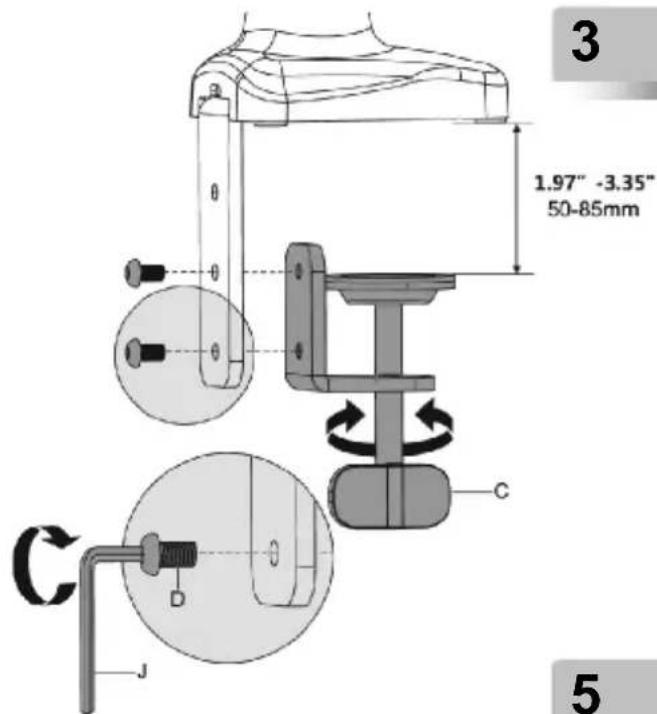

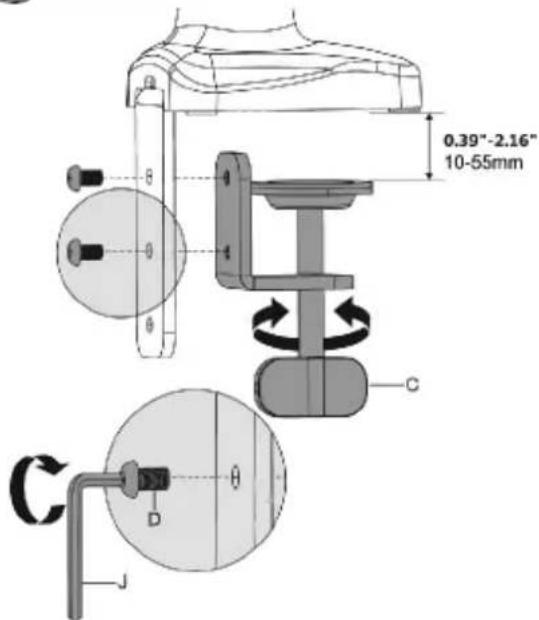

1

M6x10 (x2) D
M6x12 (x3) E

wing nut G (x1)

boit H(x1)

fixing plate 1(x1)

J

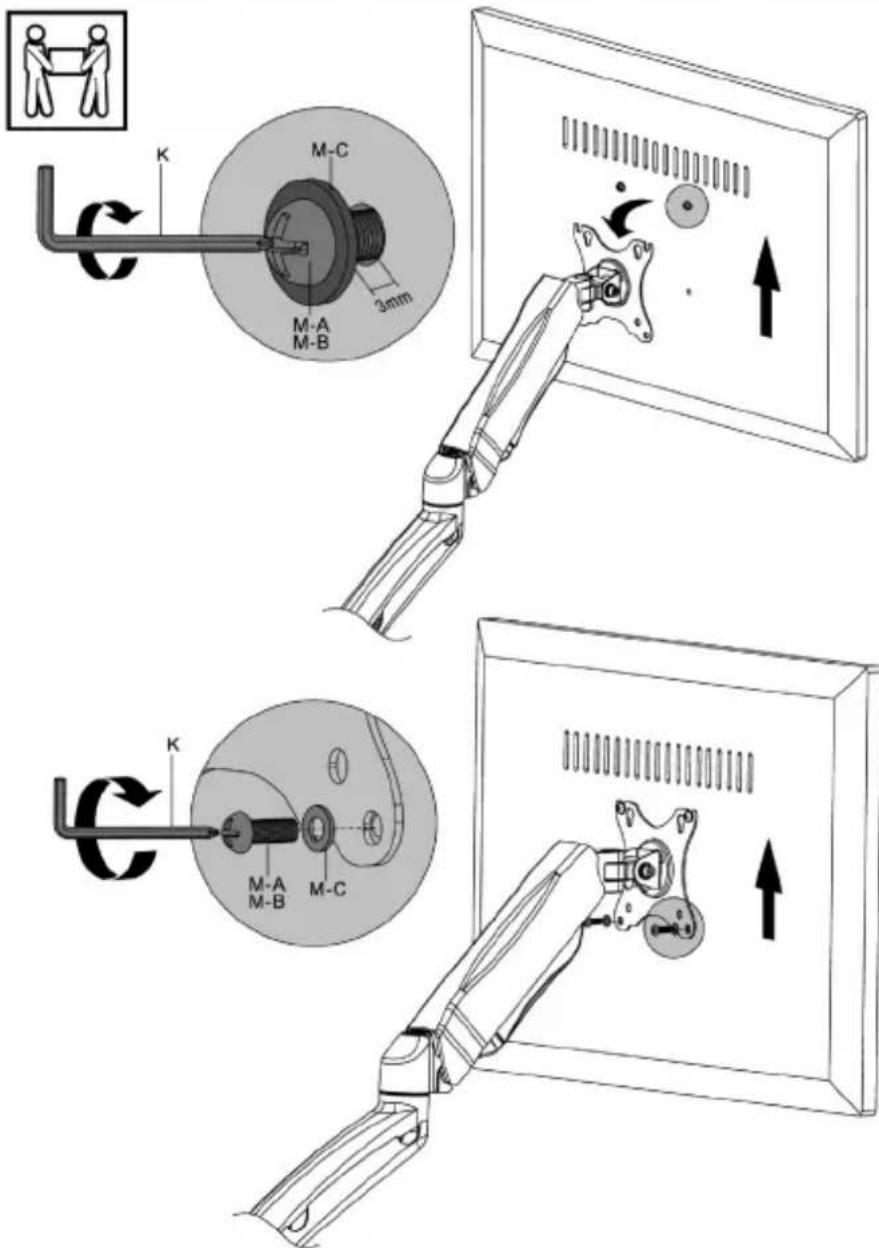

M4x12 (x4) M-A

M6x12 (x4) M-B

washer
D6 (x4)
M-C

gembird

MA-DA1-01

ADJUSTABLE DESK DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

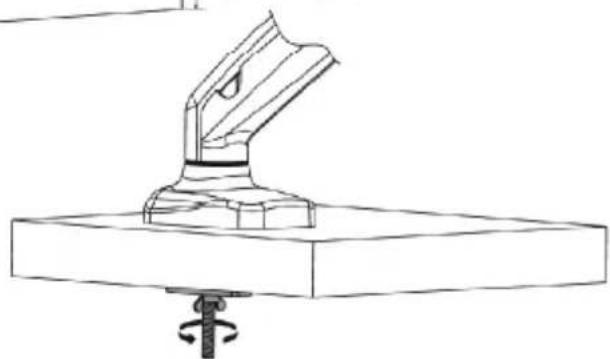

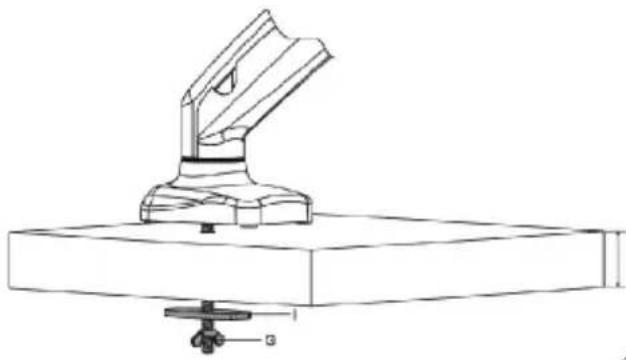

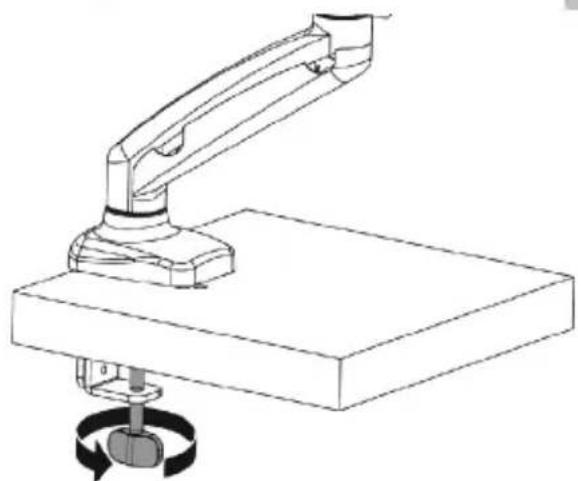

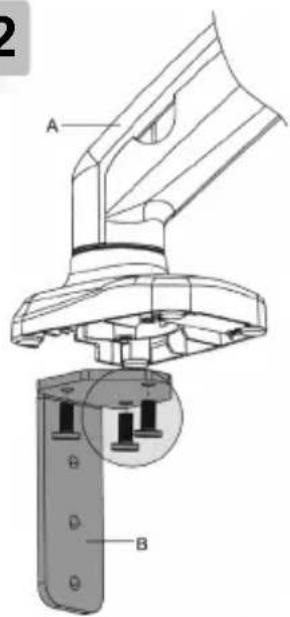

2

4

gembird

MA-DA1-01

ADJUSTABLE DESK DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

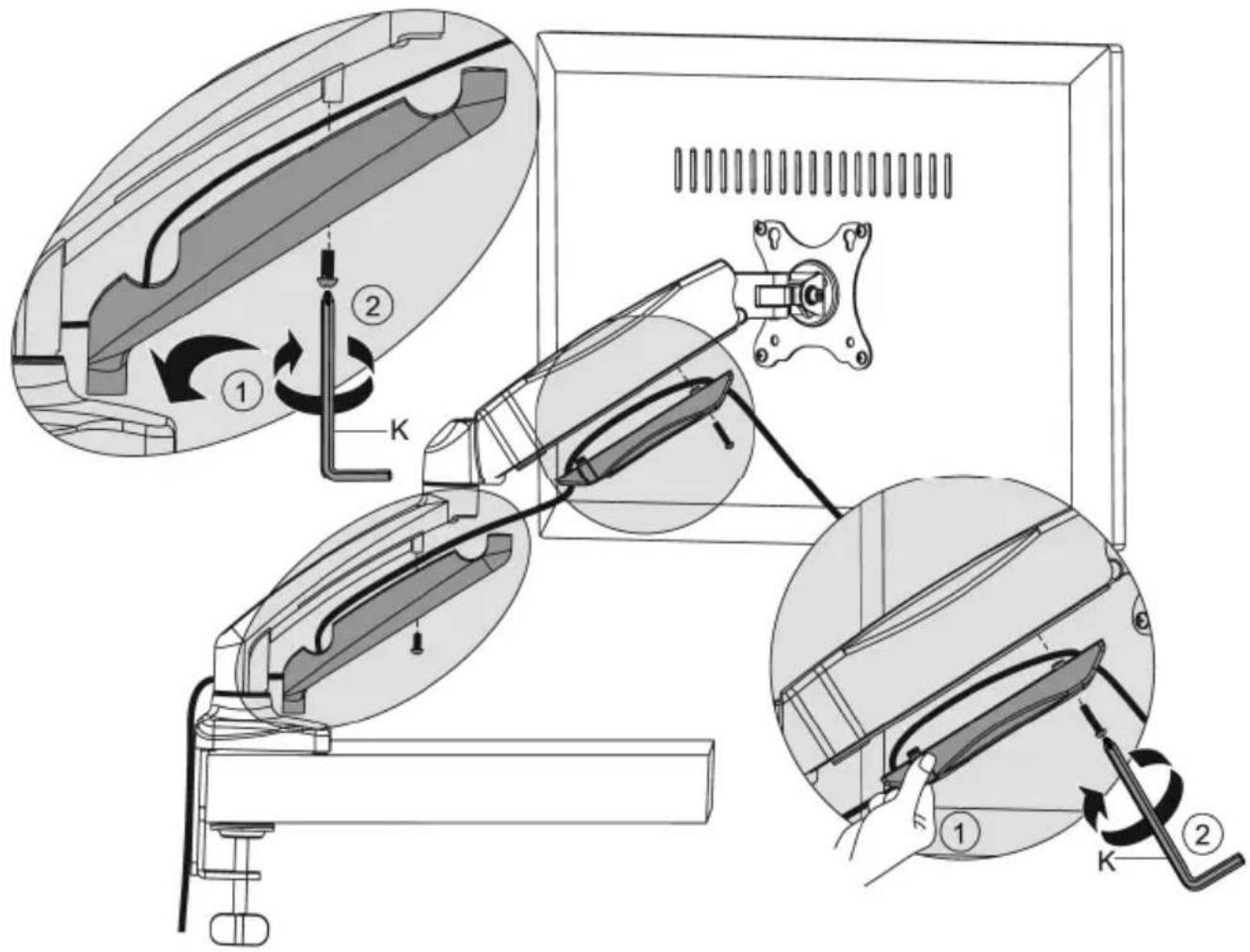

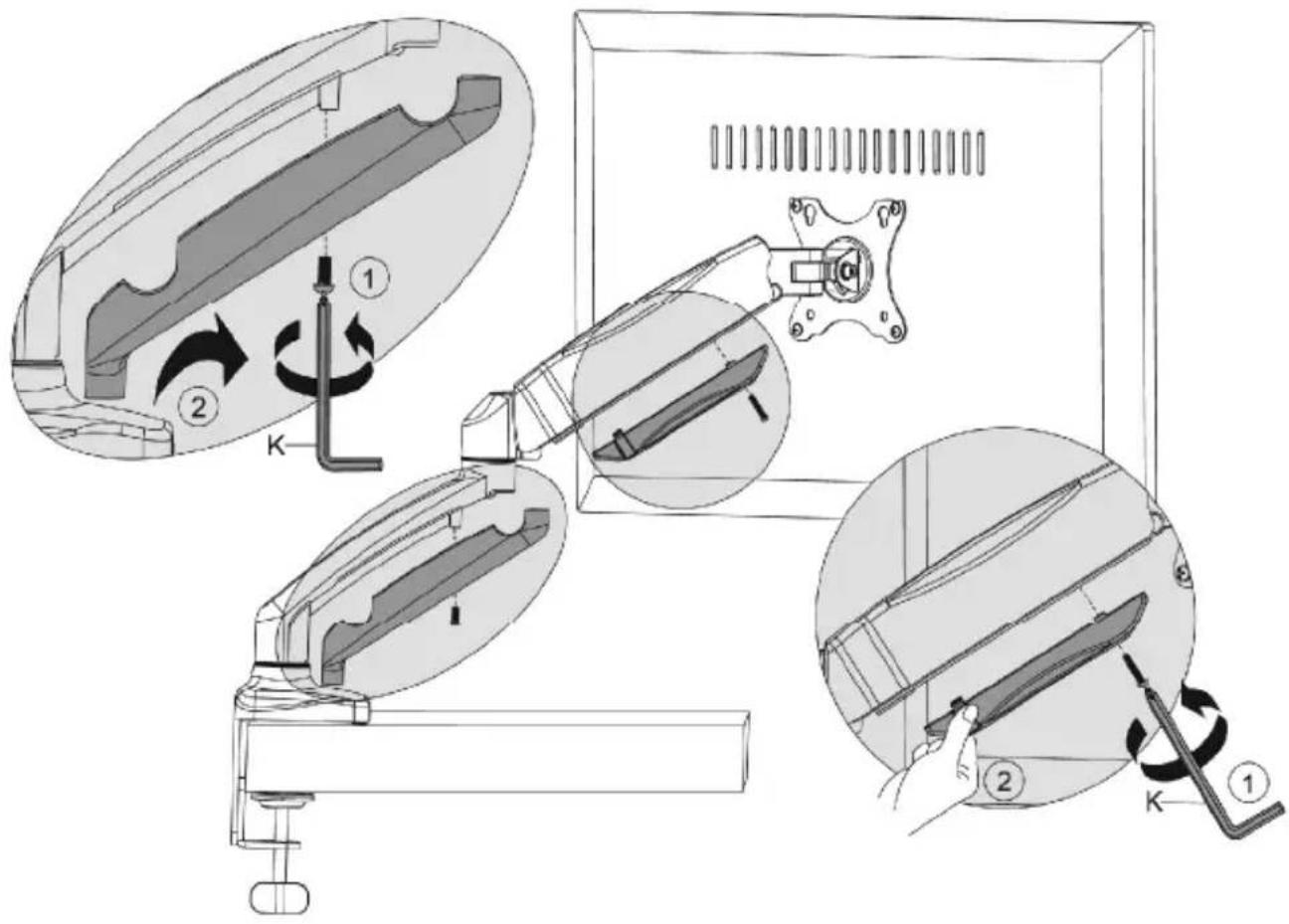

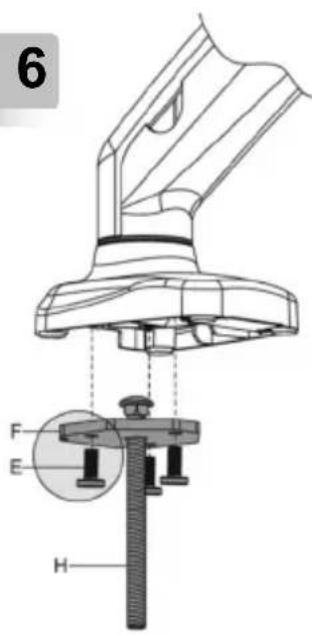

6

Max:2"(60mm)

7

gembird

MA-DA1-01

ADJUSTABLE DESK DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

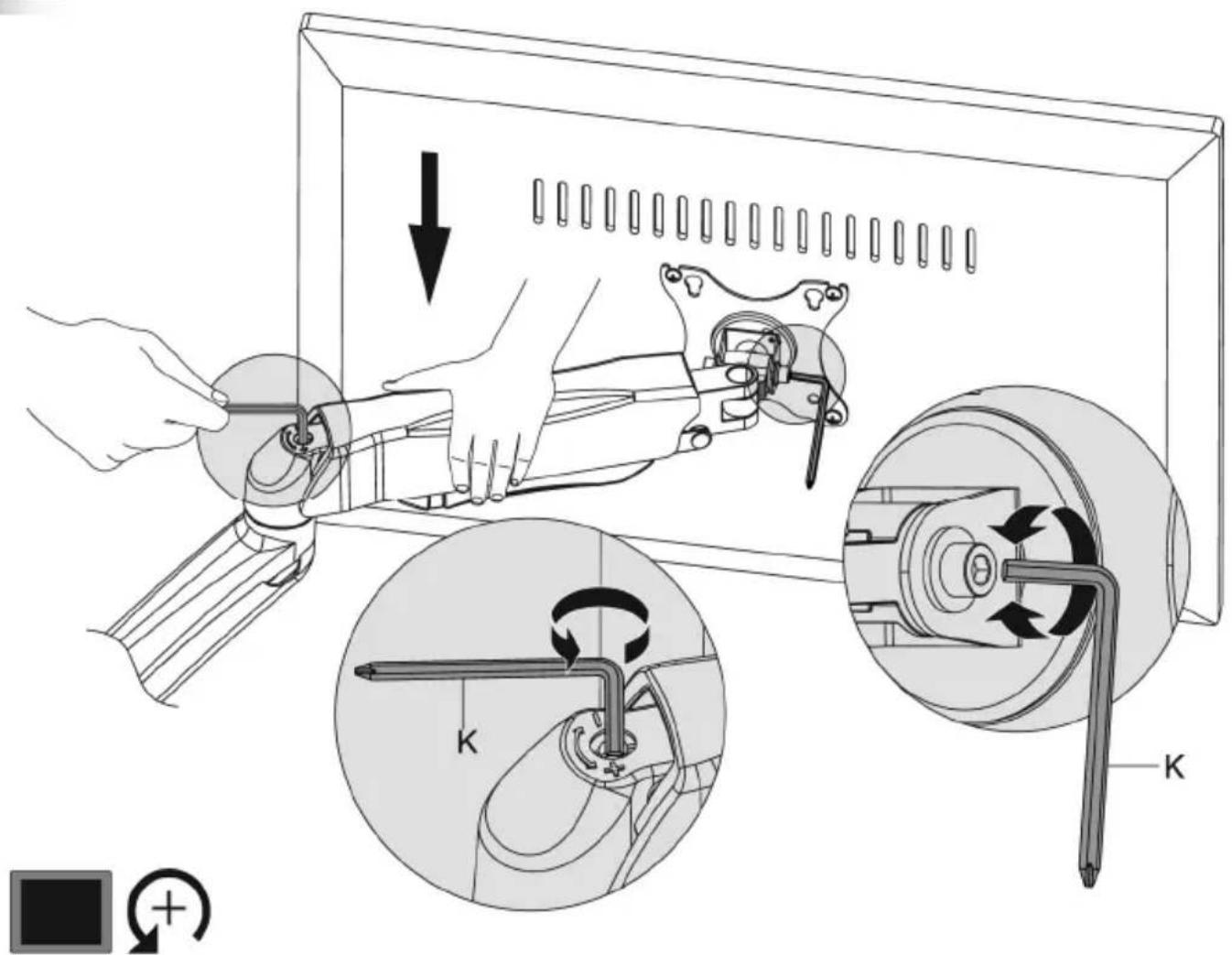

8

gembird

MA-DA1-01

ADJUSTABLE DESK DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

9

gembird

MA-DA1-01

ADJUSTABLE DESK DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

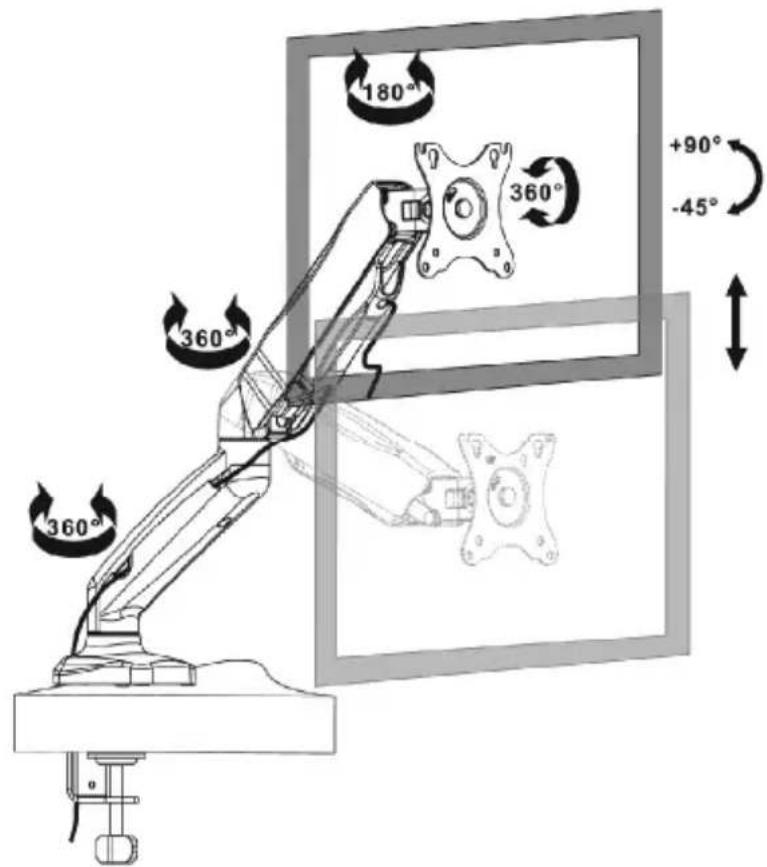

10

gembird

MA-DA1-01

ADJUSTABLE DESK DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

12

gembird

MA-DA1-01

ADJUSTABLE DESK DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

ADJUSTABLE DESK DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

ADJUSTABLE DESK DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG
