EG-WPC10-02 - Phone charger EnerGenie - Free user manual and instructions

Product type	Wireless charger for mobile phone
Brand	EnerGenie
Model	EG-WPC10-02
Dimensions (L x W x H)	Approx. 10 x 10 x 1.5 cm
Weight	Approx. 80 g
Input power	5V / 2A (via included USB-A cable)
Output power	10 W max (fast charging compatible)
Wireless charging standard	Qi
Charging distance	Up to 8 mm (thin case allowed)
LED indicator	Blue (standby) / Green (charging) / Red (fault)
Protection functions	Overcurrent, overheating, short circuit, foreign object detection
Material	ABS plastic with non-slip surface
Included cable length	1 m
Operating temperature	0°C to 45°C
Maintenance and cleaning	Unplug before cleaning; use a slightly damp soft cloth

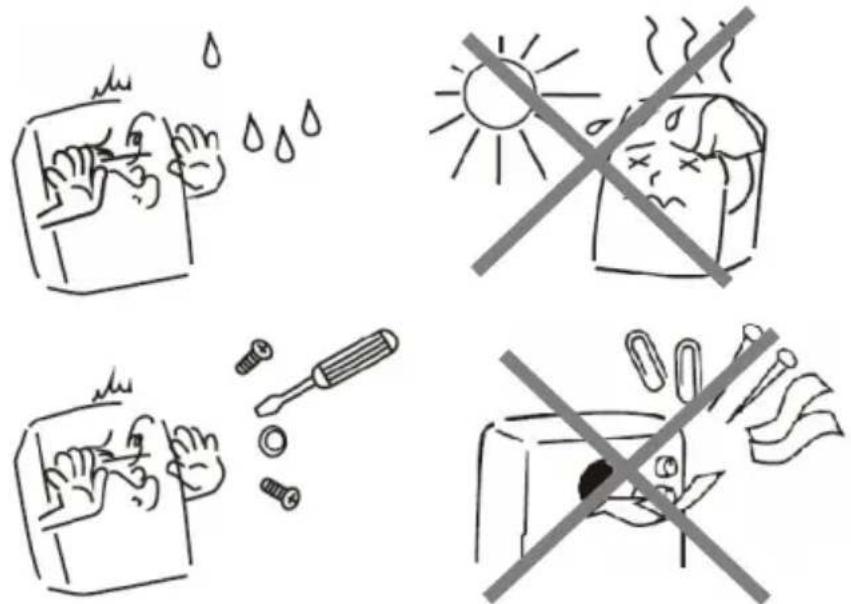

Safety	Do not expose to water or extreme temperatures
Spare parts and repairability	Not user-serviceable; contact EnerGenie support
Country of origin	China
Warranty	2 years

Frequently Asked Questions - EG-WPC10-02 EnerGenie

Which phones are compatible with this charger?

This charger works with any Qi-compatible device, including the latest iPhone, Samsung Galaxy, Huawei, Xiaomi and other wireless smartphones.

Can I use a thick case with this charger?

Yes, if the case thickness does not exceed 5 mm. Metal or magnetic cases may interfere with charging.

How do I know if my phone is charging?

An LED indicator on the charger lights up green when charging is active. When in standby, the indicator is blue.

What should I do if the LED flashes red?

A red flashing light indicates a fault: foreign object detected, overheating or overvoltage. Remove any metal object and check the connection.

Is this charger compatible with a cigarette lighter socket?

Yes, if you use a USB-A adapter for the cigarette lighter (not included), you can plug the cable to charge in the car.

Can I charge multiple devices at the same time?

No, this model is designed for one device at a time. To charge multiple devices, use a multi-charging station.

How do I clean the wireless charger?

Always unplug the charger before cleaning. Use a soft, dry cloth or slightly damp cloth. Do not use harsh chemicals.

Can the charger overheat?

The charger has a built-in thermal protection. In case of overheating, it automatically shuts down until it cools.

What if my phone is not charging?

Check that the charger is plugged in correctly, that your phone is Qi-compatible and positioned in the center of the charging area. Restart if necessary.

How to recycle this charger at the end of its life?

Do not throw the device in household waste. Dispose of it at a recycling center or collection point for electronic devices in accordance with local regulations.

USER MANUAL EG-WPC10-02 EnerGenie

www.energenie.com

EG-WPC10-02

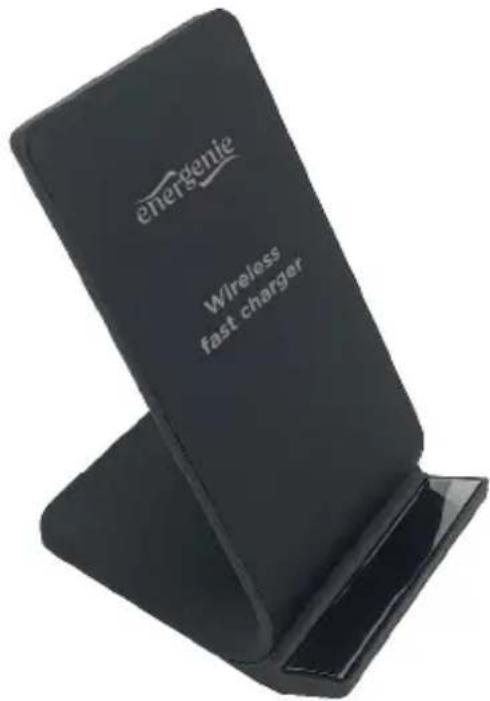

WIRELESS PHONE CHARGER STAND, 10 W

Wireless phone charger stand, 10 W Drahtloses Telefon Ladestation, 10 W Draadloze telefoonlader standaard, 10 W Support chargeur de téléphone sans fil, 10 W Беспроводное зарядное устройство, 10 Вт Підставка для зарядного пристрою для бездротового зв'язку, 10 Вт Podstawka do ładowarki telefonu bezprzewodowego, 10 W

Features

• Wireless QI phone charger stand (10W)
• Supports fast wireless charging
- Compatible with all Qi-certified devices, including several Samsung Galaxy S models, the latest iPhone models and several other phone models of different brands. For a complete list, check online

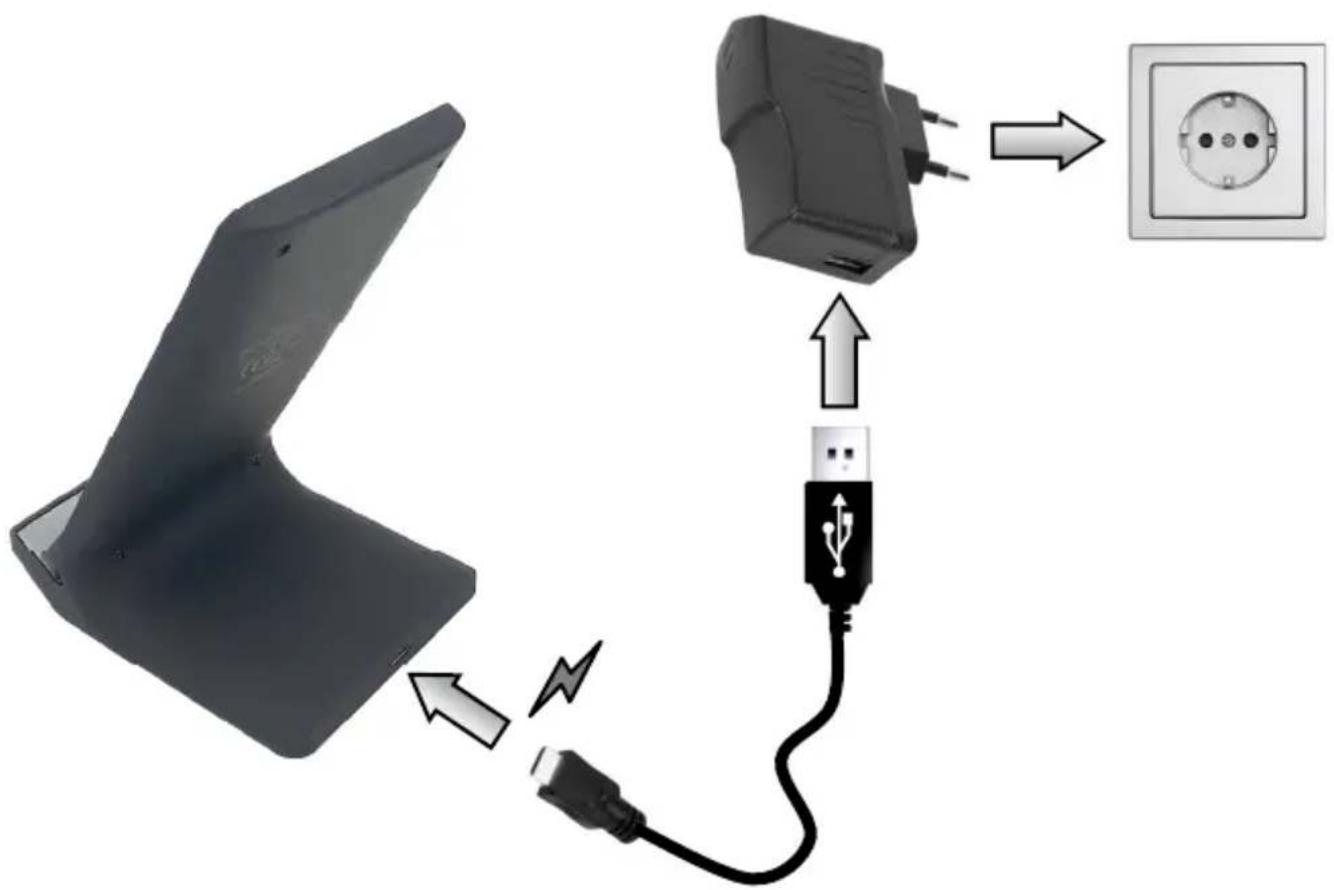

- Requires compatible USB power adapter (not included)

Specifications

• Input: 5V/2A, or 9V/1.67A
• Output: 5V 1A, or 9V/1.1A
• Rated power: max. 10 W
• Dimensions: 135 x 70 x 85 mm

1

All brands and logos are registered trademarks of their respective owners

2

All brands and logos are registered trademarks of their respective owners

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning RED (2014/53/EU). The CE declaration can be found underwww.gembird.eu	(NL/BE) Verklaring van overeenstemmingDit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot RED (2014/53/EU). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op onze website: www.gembird.eu
(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive RED (2014/53/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a: www.gembird.eu	(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie RED (2014/53/EU) überein. Die Konformitätserklärung kann auf unserer Webseite www.gembird.eu heruntergeladen werden.
Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami przepisów ustawowych państw członkowskich dotyczących RED (2014/53/EU). Deklaracja CE znajduje się pod adresem www.gembird.eu

All brands and logos are registered trademarks of their respective owners

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
