EGMC009 - Phone charger EnerGenie - Free user manual and instructions

Product Type	Universal AC-DC Adapter / Mobile Phone Charger
Brand	EnerGenie
Model	EGMC009
Input Voltage	100-240 V AC, 50/60 Hz
Output Voltage	Selectable: 3 V, 4.5 V, 5 V, 6 V, 7.5 V, 9 V, 12 V DC
Maximum Output Current	1.5 A
Maximum Power	15 W
Connector Type	Interchangeable tips (USB, jack, etc.) included
Dimensions	Approximately 7 × 4 × 3 cm
Weight	Approximately 50 g
Material	ABS plastic
Color	Black/White
Cable Length	1 m
Protections	Overload, overvoltage, short circuit, reverse polarity
Compatibility	Devices requiring DC power (phones, tablets, etc.)
LED Indicator	Yes (power-on indicator)
Certifications	CE, RoHS
Operating Temperature	0 °C to 40 °C
Maintenance	Clean with a dry cloth; do not use liquid products
Recycling	Do not dispose of in household waste; take to a recycling center

Frequently Asked Questions - EGMC009 EnerGenie

How to select the appropriate output voltage for my device?

Use the rotary switch or selection buttons on the charger to choose the voltage recommended by your device (usually indicated on the label). Always check the polarity before connecting.

Can I use this charger for my smartphone?

Yes, if your smartphone requires a voltage of 5 V DC and current ≤1.5 A. Most smartphones charge at 5 V. Make sure to use the correct tip (e.g., USB).

What if the provided tip does not fit my device?

The charger comes with several interchangeable tips. Try them one by one. If none fit, you can use a compatible adapter available commercially.

Does the charger heat up during use?

A slight warming is normal during AC-DC conversion. If the temperature becomes too high to touch, unplug immediately and check that the load does not exceed specifications.

How to clean the charger?

Unplug the charger and wipe it with a soft, dry cloth. Never use water, solvents, or abrasive products.

Can I use it abroad?

Yes, because it accepts an input voltage of 100-240 V. You may need a local power plug adapter.

What do the symbols on the label mean?

The crossed-out wheelie bin symbol indicates that the device must not be disposed of with household waste. Refer to the manual for recycling.

How to know if the polarity is correct?

The charger generally has a polarity diagram (center positive or negative). Compare it with the polarity indicated on your device. Reversal may damage the device.

The charger is not working, what should I do?

Check that the wall outlet is powered, the voltage selector is in the correct position, and the tip is properly inserted. If nothing works, contact customer service.

How to dispose of the charger at the end of its life?

Do not throw it in the trash. Deposit it at a collection point for waste electrical and electronic equipment (WEEE) or at a recycling center.

USER MANUAL EGMC009 EnerGenie

Close-up of a black industrial power adapter with terminal connectors and a cable, alongside several small black plastic components (no visible text or symbols)

EG-MC-009

UNIVERSAL AC-DC ADAPTER

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Collection of European and Russian flags arranged in a grid, including the EU, Germany, Switzerland, Austria, France, Russia, and Ukraine.

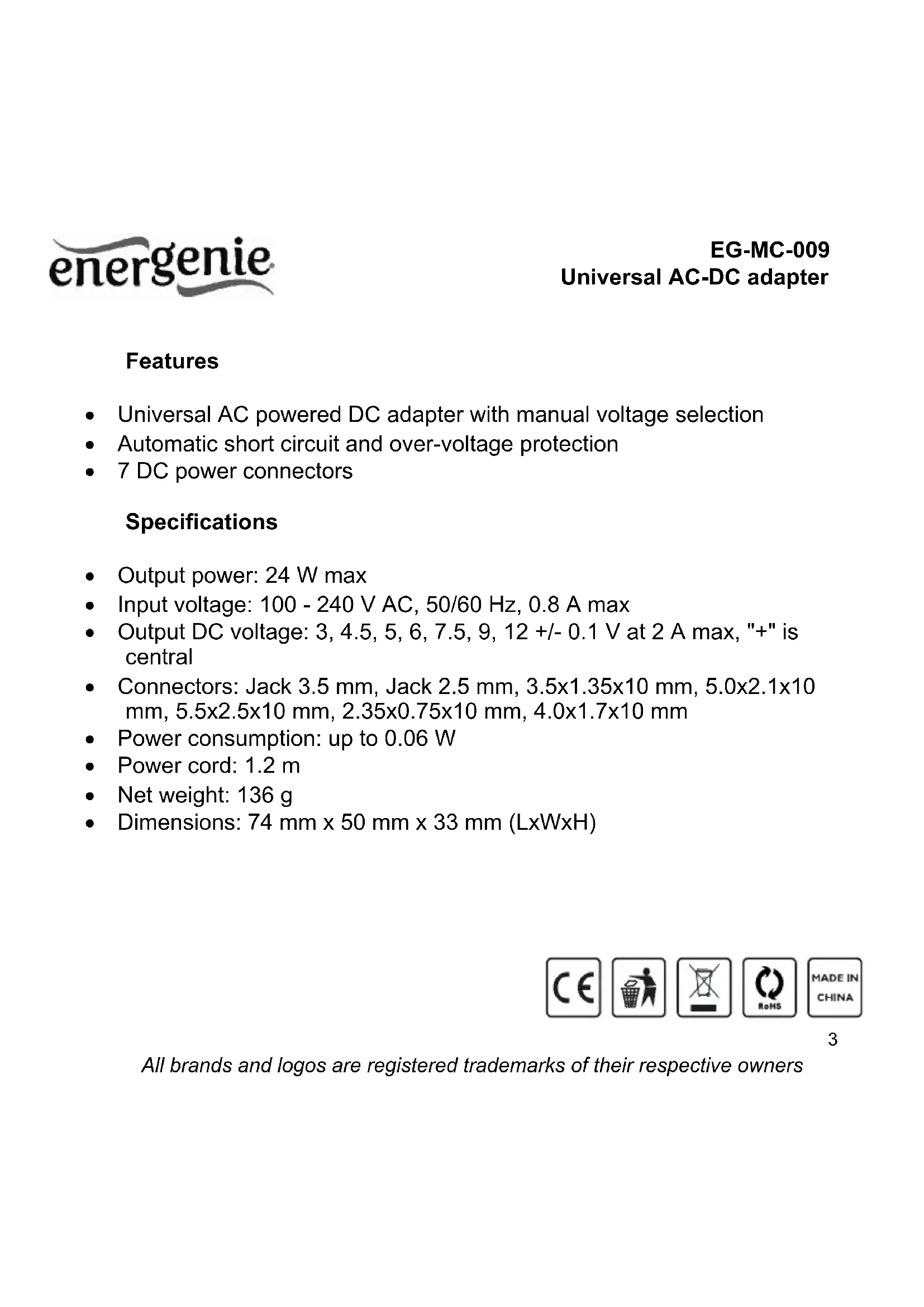

Features

• Universal AC powered DC adapter with manual voltage selection
• Automatic short circuit and over-voltage protection
• 7 DC power connectors

Specifications

• Output power: 24 W max
• Input voltage: 100 - 240 V AC, 50/60 Hz, 0.8 A max
- Output DC voltage: 3, 4.5, 5, 6, 7.5, 9, 12 +/- 0.1 V at 2 A max, "+" is central
- Connectors: Jack 3.5 mm, Jack 2.5 mm, 3.5x1.35x10 mm, 5.0x2.1x10 mm, 5.5x2.5x10 mm, 2.35x0.75x10 mm, 4.0x1.7x10 mm
• Power consumption: up to 0.06 W
• Power cord: 1.2 m
- Net weight: 136 g
• Dimensions: 74 mm x 50 mm x 33 mm (LxWxH)

CE RoHS MADE IN CHINA

energenie

EG-MC-009

Universal AC-DC adapter

All brands and logos are registered trademarks of their respective owners

This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

Simple line drawing of a hand washing a container with water droplets falling (no text or symbols)

Safety warning sign showing sun and a person with fever, crossed by a diagonal line indicating no heat.

Simple line drawing of a hand using a tool to cut a screwdriver into a screwdriver (no text or symbols)

Simple line drawing of a box with a hand holding a flag and a crossed-out diagonal line (no text or symbols)

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

All brands and logos are registered trademarks of their respective owners
