Table of contents

1.Safety 18

1.1 Safety instructions 18
1.2 Key to symbols 20
1.3 Hazard sources 20
1.4 Proper use....22

2. General information 23

2.1 Liability and Warrantees 23
2.2 Copyright protection 23
2.3 Declaration of conformity 23

3. Transport, packaging and storage.... 24

3.1 Delivery check.... 24
3.2 Packaging.... 24
3.3 Storage 24

4. Technical data 25

4.1 Technical specification 25
4.2 Overview of parts 25

5. Installation and operation.... 26

5.1 Installation 26
5.2 Operation.... 27

6. Cleaning 30

7. Possible Malfunctions .... 31

8. Waste disposal 32

Bartscher GmbH

Read this instruction manual before using and keep them available at all times!

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

Please keep these instructions and give them to future owners of the device.

1. Safety

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

All persons using the device must follow the recommendations and instructions in this instruction manual.

1.1 Safety instructions

• This device may only be operated in technically proper and safe condition.
• The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers. Children should not play with the device. Cleaning and maintenance cannot be performed by children. Children under the age of 8 years old must be kept away from the device and its power cord.
  • Never leave the device unattended when in use.
• The device is not adapted for use with an external timer or remote control.

- Do not leave the device unattended during operation since there might occur malfunctions which could result in overheating of the oil. In case of high temperatures oil might ignite

- The deep fryer may not be moved or repositioned as long as the oil is hot. The oil must cool down first. Hot oil splashes and fat explosions respectively may cause burns at hands and face

- Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.

- Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.

- To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

- Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable.

- The power cable must not be folded, bent or tangled, and must always remain fully unrolled.

- Never place the device or other objects on the power cable.

- Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.

- Inspect the power cable regularly for damage. Never use the device if the cable is damaged. If the power cable is damaged, have an authorised service center or qualified electrician replace it.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards which could lead to injury.

WARNING!

This symbol highlights dangerous situations which could lead to injury or death.

HOT SURFACE!

This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns!

CAUTION!

This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device.

NOTE!

This symbol highlights recommendations and information aimed for effective and trouble-free device operation.

1.3 Hazard sources

DANGER!

Electric shock hazard!

To avoid the hazard results please follow the safety instructions below.

Do not use the machine in case of incorrect operation, damages or dropping on the floor.
The supply cable must be disconnected from the socket only by pulling the plug.

➢ Never carry or lift the device by the supply cable. Always use the device handles.

In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.

➢ Never immerse the device or the plug in water or other fluids.

Do not use any acid agents and make sure no water ingresses the device.

➢ Never operate the device with moist hands or standing on wet floor.

Remove the plug from its socket:

- when the device is not used.

- in case of anomalies during operation,

- before cleaning.

DANGER!

Suffocation hazard!

➢ Prevent access of children to the package materials like plastic bags and foamed polystyrene elements.

To avoid the hazard results please follow the safety instructions below.

During the operation the surface of the device is very hot! To avoid burns to the hands and fingers, do not touch the hot surface of the device! Operate the device only using the designated handles and switches.

After switching off, the surface of the device and the oil in the chamber are hot for some time afterwards. Before starting the cleaning of the device or moving it to another place, leave the device to cool down.

You may not use moisten frying goods. Always remove the extra ice from deep frozen goods first. Do not leave any frozen products in the basket hanging over the chamber filled in with the hot oil Even the smallest water drops may cause oil splashes or lead to explosions during frying

WARNING!

Fire or explosion hazard!

To avoid the hazard results please follow the safety instructions below.

➢ Never use the device near flammable materials, such as alcohol, spirits, or petrol.
High temperature may cause their evaporation and due to contact with the ignition sources the deflagration may occur, and in result the injuries and damages.
In case of fire before the fire extinguishing activities remove the plug from the socket or disconnect the device from the power supply (pull the plug!).
Caution: Do not spray the device with water when it is still connected to the power supply: Electric shock hazard!

1.4 Proper use

The operational safety of the device is assured only in case of proper use, according to the operation manual.

The deep fryer is not suitable for continuous commercial use.

All technical activities like installation and maintenance must be performed by the qualified service personnel only.

The device is intended for home use or in similar places such as:

→ in kitchens for store or office employees or in similar business areas;
→ in agricultural farms;
→ by guests of hotels, motels and other typical places of accommodation;
→ in Bed and Breakfast facilities.

The deep fat fryer is designed for the frying of appropriate foods only.

You may not use the deep fat fryer for the following:

- Heating of foods and liquids (fluids).

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

2. General information 2.1 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology.

CAUTION!

Read this manual carefully and thoroughly before any operation of the device, and especially before turning it on!

Manufacturer is not liable for any damages or faults caused by:

• violation of advice concerning operation and cleaning;
• use other than designed;
• alterations made by user;
• use of inadequate spare parts.

We reserve the right to make technical changes for purposes of developing and improving the useful properties.

2.2 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

2.3 Declaration of conformity

The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
• In case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

4. Technical data

4.1 Technical specification

Name Electric deep fryer „PETIT“
Code-no.:	165103
Casing and cover material: stainless steel
Fuse box and handles material: artificial materials
Power: 2000 W / 230 V~ 50 Hz
Oil chambers: 1
Max. oil chamber capacity: 3 litres
Baskets: 1
Oil temeprature range:	0 °C - 190 °C
Dimensions: W 220 x D 400 x H 240 mm
Weight: 2.7 kg

We reserve the right to make technical changes!

4.2 Overview of parts

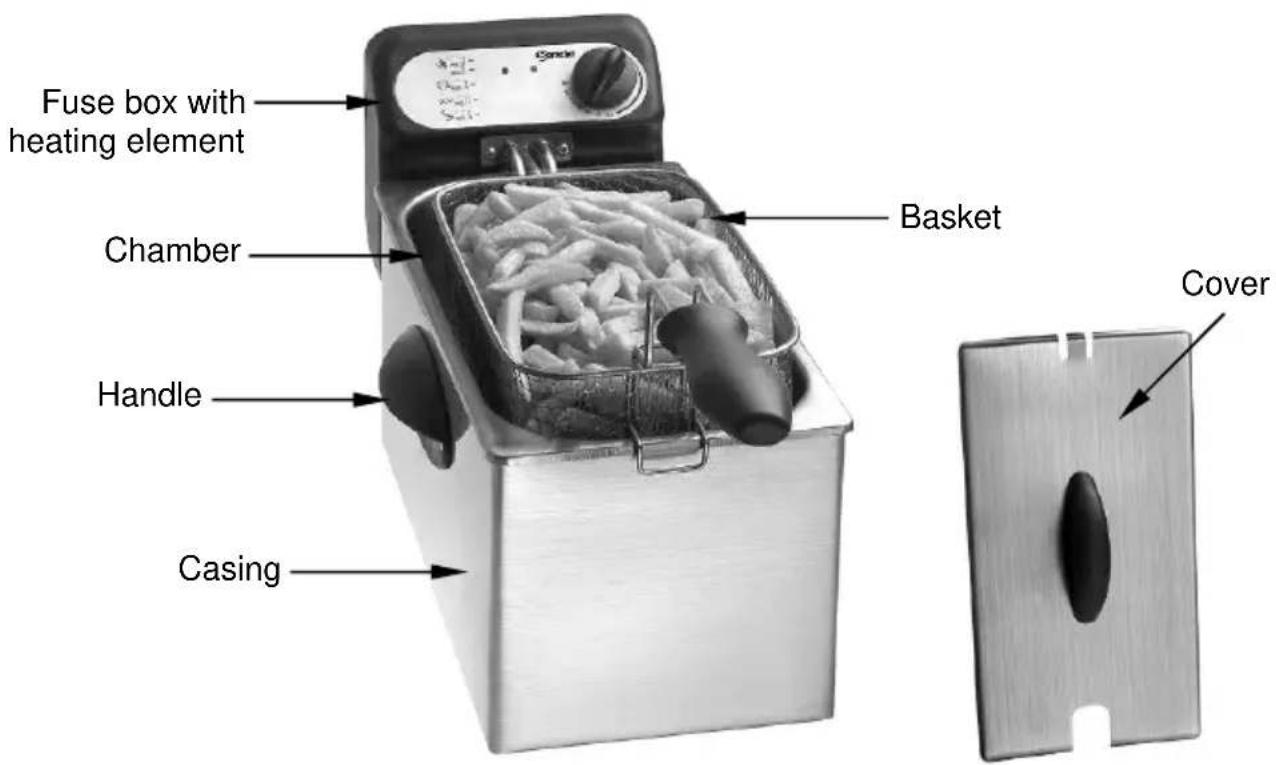

Fuse box with heating element Chamber Handle Casing Basket Cover

5. Installation and operation

5.1 Installation

Positioning

- Unpack the device and remove all packing material.

CAUTION!

➢ Never remove the rating plate and any warning signs from the device.

• Place the device on top of an even, stable, dry, and water-resistant surface which supports the weight of the device and is not heat sensitive.
  • Never place the device at the edge of a table to avoid accidents.
• Never place the device in humid or wet environment.
• Never place the device on the flammable surfaces.
• Place the device so that the plug is easily accessible and can be quickly removed from its socket in case of necessity.

Connection

DANGER! Electric shock hazard!

The device can cause injuries due to improper installation!

Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance!

Connect the device only to properly installed single socket with protective terminal.

- The electrical circuit in the socket must be secured to at least 16A. Only connect the device directly to the wall socket; do not use any extension cords or power strips.

5.2 Operation

CAUTION!

The deep fryer can only be used by individuals who have been instructed in the proper use of the device and dangers that may arise during the frying process.

• Remove the cover, then remove the basket, oil chamber and remaining equipment from the device.
• Remove the fuse box from the device by raising it until a „click“ sound is heard.
  • Grab the oil chamber with both hands and carefully remove from the device.
• Wash the cover, oil chamber, basket and casing with a mild washing-up liquid. Take care to ensure no water gets into the fuse box and electrical systems. Dry the device with the utmost care!
• Insert the oil chamber, then mount the fuse box with heating element to the rear of the device by carefully sliding it into the guides until a „click” sound is heard. This sound means the fuse box has been properly assembled. For safety reasons, the device only operates when the fuse box is properly mounted to it, so that the micro fuses enable the device to function.

Control panel

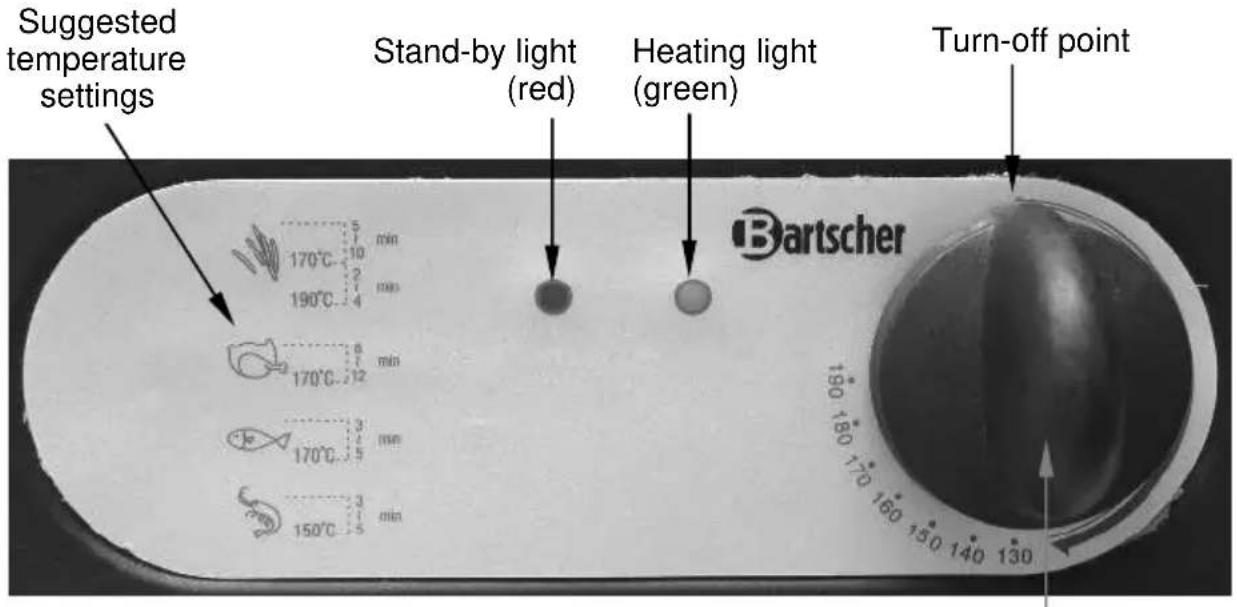

Suggested temperature settings Stand-by light (red) Heating light (green) Turn-off point 170°C 5 min 10 2 min 190°C 4 min 170°C 6 min 12 170°C 3 min 5 150°C 3 min Bartscher 190° 180° 170° 160° 150° 140° 130°

WARNING!

Ensure that the unit is not connected to a power source.

- Before pouring oil into the chamber, check that there is no water inside. The chamber must be clean and dry.

CAUTION!

Use only liquid grease for frying. Solid grease must be dissolved into liquid form before frying!

- Carefully fill the chamber with frying oil until the required level is reached (between the „MIN“ and „MAX“ markings in the chamber). The markings are on the side of the chamber.

CAUTION!

Never turn the device on without oil in the chamber. The oil level must always be between the „MIN“- and „MAX“ markings.

WARNING!

Danger of fire! If the oil level is below MIN, there is an increased risk of oil catching fire.

Danger of burns! If the level of oil is above MAX, hot oil may spill out.

WARNING! Danger of burns!

Do not reuse oil, as its lower combustion point means that it may catch fire and/or easily foam. There is also an increased risk of smoke and unpleasant odours occurring.

• Regularly change frying oil. After used oil has cooled, carefully pour it into a retention tank and dispose of in accordance with environmental protection regulations.
• Insert the plug into an electrical outlet.
• The red stand-by light will come on to inform that the device has been connected to a power source.
• Set the temperature dial by turning it clockwise to the desired temperature (max. 190 °C).

NOTE!

Follow the temperature suggestions located on the control panel when setting the temperature for preparing food products.

- While heating up the green control light comes on, going off when the set temperature has been reached. The deep fryer is equipped with a sensor which automatically heats the oil when its temperature drops, causing the green control light to come back on.

WARNING! Danger of burns!

When in use, the device and oil in the chamber are very hot and the oil is at risk of catching fire.

Do not allow the device to function for long periods of time!

- For best results, wait until the device has reached the desired temperature and then place the food product in to be fried.

- The basket is for frying small amounts of product. It is equipped with a collapsing handle and hook.

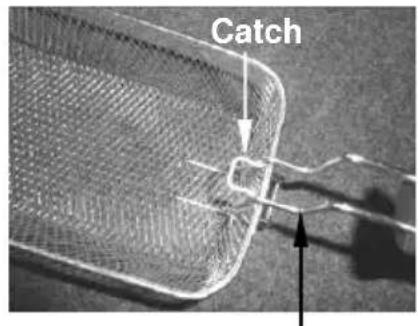

- To mount the basket handle, raise it high and insert the handle's hook into the catch in the basket.

CAUTION!

For safety purposes, the handle must be strongly secured!

Catch

Basket handle

Do not cook more than 0.4 kg of product at a time.

- Slowly lower the basket into the oil.

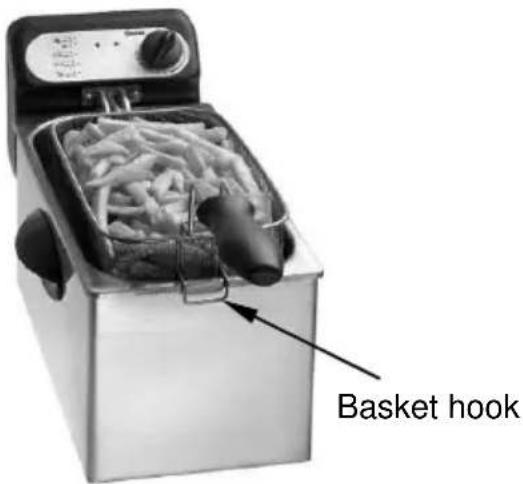

• After frying, carefully pick up the basket and hand it on the hook at the front of the chamber and allow the oil to drip.

Basket hook

WARNING! Danger of injury!

Do not use the deep fryer with its cover on! The cover serves only as protection against dust, and for keeping the oil hot between fryings. Prior to placing the cover on, ensure that it is dry. If water gets into the oil chamber, this may cause oil to splatter.

• If the deep fryer has been accidentally turned on with too little or no oil in the chamber, it will automatically turn itself off at approx. 230 °C, to protect against overheating. If this occurs, disconnect the device by removing its plug from the socket and leave it to cool.
• If the device has turned off to prevent overheating, it can be turned back on after pressing the button marked RESET. This button is located at the rear of the device and can be pressed using a long, thin object such as a wire.

Next, insert the plug into a socket and turn the device on.

CAUTION!

When finished using the unit, turn the temperature dial counterclockwise to the turn-off point (marked on the control panel) and remove the plug from its socket.

6. Cleaning

CAUTION!

Disconnect the unit from the power supply (unplug!) before cleaning.

The unit is not designed to be rinsed with running water.

Do not use a pressure washer to clean the device!

Be careful and do not let the water into the unit.

• Clean the device regularly.
  Before cleaning, disconnect the device from the power supply (pull the plug from the socket!).
• Leave the device to cool down.
  Do not use harsh chemicals or scouring agents when cleaning, as they may damage the deep fryer. Clean the deep fryer with mild cleaning agent. Stubborn dirt may be spot soaked in order to remove it.
  o Remove the basket, empty it and clean with warm water with a mild cleaning agent.

• Remove the oil chamber. After the oil has cooled, pour it carefully to the container. Ensure the container is secure and stable.
  ○ Wipe the oil chamber with a paper towel, then wipe it with a cloth soaked with warm water with a mild cleaning agent. Finally, wipe it with the cloth soaked in fresh water.

• For washing, remove the fuse box with heating element. Never wash the fuse box with heating element with excess amounts of water and do not immerse in water, just wipe it with a slightly moist cloth. Water must not get inside the fuse box, as this may lead to unsafe creepage currents and interference in the device operation.

• Wipe the control panel, external surface of the device and the power cord with a moist cloth and mild cleaning agent.

• Dry all elements thoroughly before reassembling! Reassemble the device.
  ○ If the device is not used for any lengthy period, clean it according to the aforementioned description and store it in dry, clean place protected against cold, sun and children. To protect the device against dirt, cover or pack it. Do not place any heavy objects on the device.

• Possible Malfunctions

Problem Cause	Removal
Device connected to power source, red stand-by light does not come on, and the device does not heat up.	Plug improperly inserted into socketSafety fuse disconnectedFuse box improperly mountedSafety fuse has been activatedMicro fuse contact malfunctionDamaged safety thermostat	Remove plug and insert properly into socketCheck fuse, connect device to another socketCheck that fuse box is properly mountedPress the RESET button on the fuse boxContact a sales agentContact a sales agent
Green control light comes on but temperature does not rise.	Broken heating element fuseDamaged heating element	Contact a sales agentContact a sales agent
Red stand-by light comes on, but after temperature is set the green control light does not come on.	Desired temperature has been reachedDamaged temperature dialDamaged control light	Check functioning after changing temperatureContact a sales agentContact a sales agent
Heating element does not heat after a short time.	• Safety thermostat activated	• Press RESET button on the fuse box

The above mentioned trouble cases are just exemplary and to give you orientation. Should these or similar troubles occur, please switch off the device and stop use immediately. Contact qualified technicians or the manufacturer for inspection and repair.

8. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

CAUTION!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Stale oil

Please remove used frying oil in accordance with all applicable environmental protection regulations.

Bartscher GmbH

4. Specifications 105
