LED-S-RGB500-01 - Lamp Gembird - Free user manual and instructions

Product Type	RGB LED Lamp
Brand	Gembird
Model	LED-S-RGB500-01
Dimensions (approx.)	40 x 10 x 10 cm
Weight	0.5 kg
Power Supply	USB 5V / 1A
Power Consumption	5 W
Cable Length	1.5 m
Housing Material	ABS Plastic
Available Colors	RGB (16 million colors)
Lighting Modes	Static, flash, fade, strobe, smooth
Control	Infrared remote control and touch button
Lighting Angle	120°
Protection Rating	IP20 (indoor use)
Color Temperature	Adjustable from 2700K to 6500K
Main Functions	Decorative RGB lighting, dimmer, settings memory
Maintenance and Cleaning	Unplug before cleaning, wipe with a soft dry cloth
Safety	Do not immerse, keep away from heat sources
Spare Parts and Repairability	Not user-serviceable, no spare parts available
Warranty	2 years
Package Contents	Lamp, remote control, USB cable, user manual

Frequently Asked Questions - LED-S-RGB500-01 Gembird

How to change the lamp color?

Use the provided infrared remote control or the touch button on the lamp to cycle through colors. Press the 'Mode' button to select a fixed color or a dynamic mode.

Remote control not working, what to do?

Check that the remote control batteries are inserted correctly and not drained. Make sure there is no obstacle between the remote and the lamp's IR receiver. If the problem persists, reset the lamp by unplugging it for a few seconds.

Can I use the lamp with a power bank?

Yes, the lamp connects via a standard USB port (5V). You can power it with a power bank, a USB wall adapter, or a computer.

How to adjust brightness?

Press the '+' and '-' buttons on the remote control or hold down the touch button to increase or decrease the brightness.

Does the lamp get hot?

The lamp uses low-power LEDs that generate very little heat. A slight temperature rise on the housing is normal. If it becomes too hot, turn it off and check that the ventilation openings are not blocked.

Can I synchronize multiple lamps?

No, each lamp operates independently. There is no wireless synchronization function between multiple units.

What is the lifespan of the LEDs?

The LEDs have an estimated lifespan of 30,000 hours, which is several years of daily use.

How to clean the lamp?

Always unplug the lamp before cleaning. Use a soft dry cloth to remove dust. Never use chemical or abrasive cleaners.

Does the warranty cover accidental damage?

The warranty does not cover damages caused by misuse, drops, immersion, or power surges. Keep your receipt for any claims.

Where can I download the user manual?

The user manual is available free in PDF on our site notice-facile.com. You can also download it from the product page of the manufacturer Gembird.

USER MANUAL LED-S-RGB500-01 Gembird

Product photo of a smart LED strip with attached control panels and power cord (no visible text or symbols)

RGB LED STRIP, 5 M

RGB LED-STREIFEN, 5 M

RGB LED-STRIP, 5 M

RUBAN LED RGB, 5 M

• IP65 waterproof self adhesive multi-color RGB LED light strip
- Multi-color LED's for red, green or blue color, light effects, etc

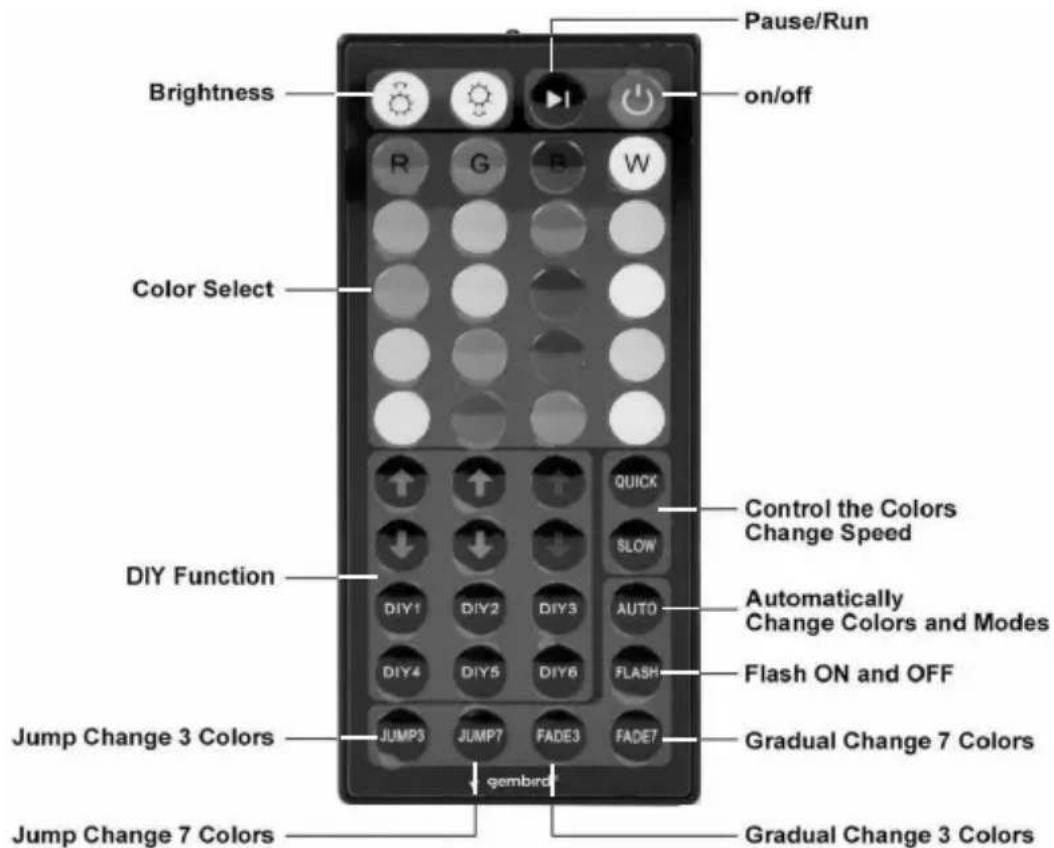

• Practical remote control with 44 buttons
• Power supply included

Specifications

• Color: RGB
• Power: 17 W
  • Luminous flux: up to 280 lm
  • LED strip length: 5.0 m
  • LED's: 150 pcs
  • Led type: 5050 SMD RGB
• Waterproof: IP65
  • Self adhesive: yes
  • Power cable: 1,5 m
  • Input voltage: 12 V DC

gembird®

LED-S-RGB500-01

RGB LED STRIP, 5 M

1

Hand holding a medical catheter with needle insertion (no text or symbols visible)

2

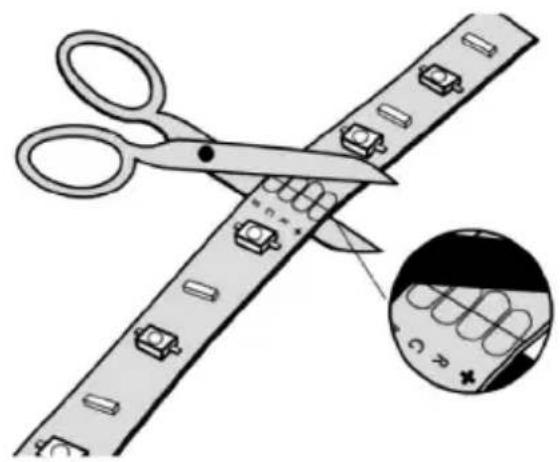

Illustration of scissors cutting a strip with a magnified inset showing a close-up of the band (no text or symbols)

gembird®

LED-S-RGB500-01

RGB LED STRIP, 5 M

3

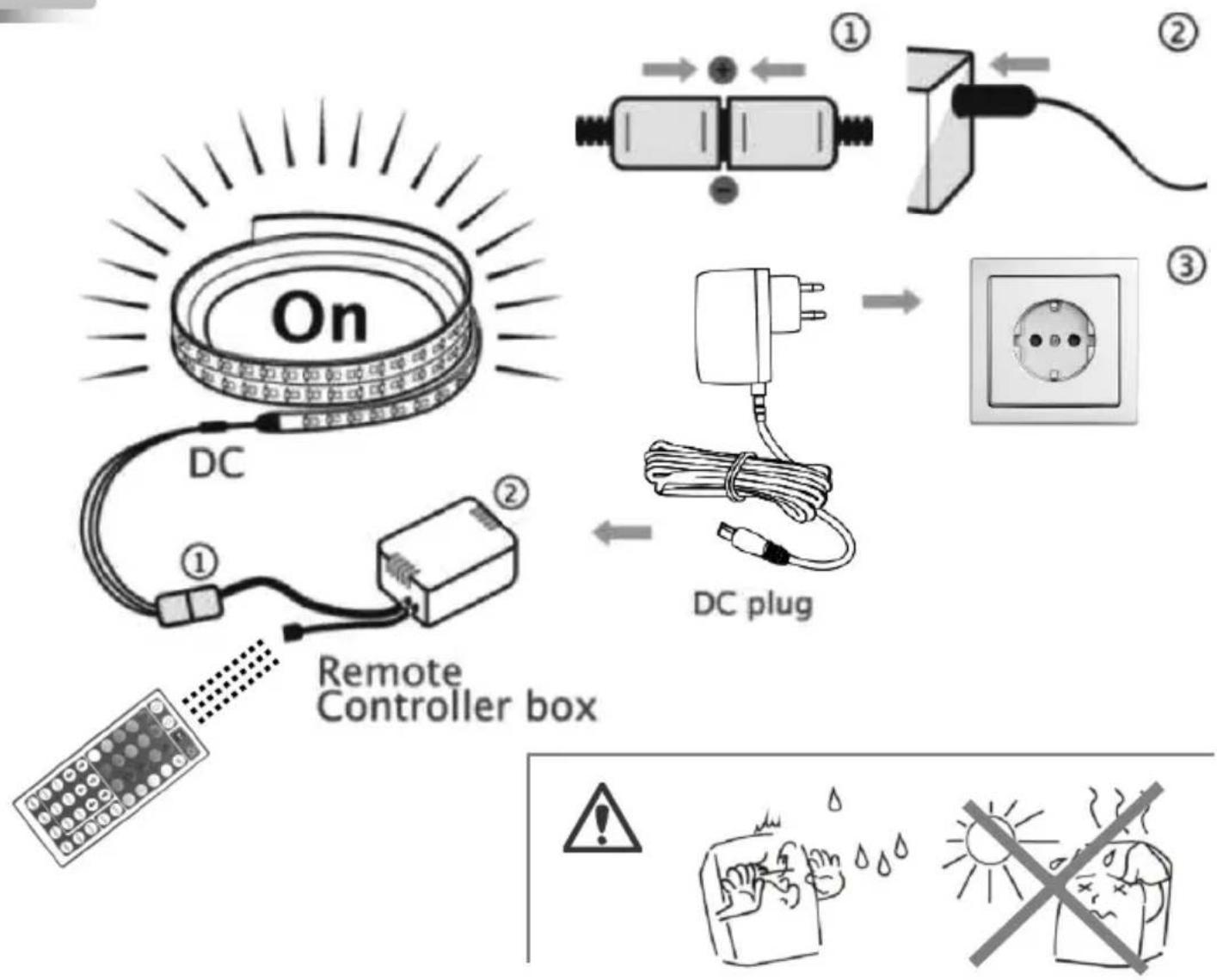


gembird®

LED-S-RGB500-01

RGB LED STRIP, 5 M

4

Close-up of a hand holding a black rectangular device with a small connector (no visible text or symbols)

Close-up of a hand holding a small electronic component, enclosed in a circular frame (no visible text or symbols)

Close-up of a battery component with a magnified inset showing the internal structure (no text or symbols visible)

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found underwww.gembird.eu

(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU) überein. Die Konformitätserklärung kann auf unserer Webseitewww.gembird.euheruntergeladen werden.

(ES) Declaración de conformidadEste producto está probado y cumple con los requisitos esenciales de las leyes de los estados miembros con respecto a LVD(2014/35/EU), EMC (2014/30 / UE), RoHS (2011/65 / UE). La declaración CE se puede encontrar enwww.gembird.eu

(CZ) Prohlášení o shoděTento produkt je testován a splňuje základní požadavky právních předpisů členských států týkajících se LVD(2014/35/EU), EMC (2014/30 / EU), RoHS (2011/65 / EU). Prohlášení CE naleznete nawww.gembird.eu

(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a:www.gembird.eu

(HR) Izjava o sukladnostiOvaj je proizvod testiran i udovoljava osnovnim zahtjevima zakona država članica u vezi LVD(2014/35/EU), EMC-a (2014/30 / EU), RoHS (2011/65 / EU). Izjava CE se može naći podwww.gembird.eu

(IT) Dichiarazione di conformitàQuesto prodotto è testato ed è conforme ai requisiti essenziali delle leggi degli stati membri in materia di LVD(2014/35/EU), EMC (2014/30 / UE), RoHS (2011/65 / UE). La dichiarazione CE è disponibile all'indirizzowww.gembird.eu

(PT) Declaração de conformidadeEste produto foi testado e está em conformidade com os requisitos essenciais das leis dos estados membros sobre LVD(2014/35/EU), EMC (2014/30 / EU), RoHS (2011/65 / EU). A declaração CE pode ser encontrada emwww.gembird.eu

(PL) Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami prawnymi państw członkowskich dotyczącymi LVD(2014/35/EU), EMC (2014/30 / UE), RoHS (2011/65 / UE). Deklaracja CE znajduje się na stroniewww.gembird.eu

(RO) Declaratie de conformitateAcest produs este testat și respectă cerintele esentiale ale legislațiilor statelor membre privind LVD(2014/35/EU), EMC (2014/30 / UE), RoHS (2011/65 / UE). Declarația CE se găsește pewww.gembird.eu

(SK) Vyhlásenie o zhodeTento produkt je testovaný a spĺňa základné požiadavky právnych predpisov členských štátov týkajúcich sa LVD(2014/35/EU), EMC (2014/30 / EÚ), RoHS (2011/65 / EÚ). Vyhlásenie CE nájdete na stránkewww.gembird.eu

(SL) Izjava o skladnostiTa izdelek je preizkušen in ustreza bistvenim zahtevam zakonov držav članic o EMC (2014/30 / EU), RoHS (2011/65 / EU). Izjava CE je na voljo podwww.gembird.eu

(GR) Δήλωση συμμόρφωσηςΑυτό το προϊόν έχει ελεγχθεί και συμμορφώνεται με τις βασικές απαιτήσεις των νομοθεσιών των κρατών μελών όσον αφορά την Ευρωπαϊκή οδηγία g LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Η δήλωση CE μπορεί να βρεθεί κάτω απόwww.gembird.eu

(ENG) Waste disposal:Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

(DE) Entsorgungshinweise:Werfen Sie dieses Gerät nicht in den Hausmüll. Unsachgemäße Entsorgung kann sowohl der Umwelt als auch der menschlichen Gesundheit schaden.Informationen zu Sammelstellen für Altgeräte erhalten Sie bei Ihrer Stadtverwaltung oder einer autorisierten Stelle für die Entsorgung von Elektro-und Elektronikgeräten.

(ES) Deposito de basura:No deposite este equipo con la basura doméstica. La eliminación inadecuada puede dañar tanto el medio ambiente como la salud humana. Para obtener información sobre las instalaciones de recolección de desechos para dispositivos eléctricos y electrónicos usados, comuníquese con su ayuntamiento o una empresa autorizada para la eliminación de equipos eléctricos y electrónicos.

(CZ) Nakládání s odpady:Toto zařízení nevkládejte do domovního odpadu. Nesprávná likvidace může poškodit životní prostředí i lidské zdraví. Informace o zařízení pro sběr odpadu použitych elektrických zařízení získáte u městské rady nebo autorizované společnosti o likvidaci elektrických a elektronických zařízení.

(FR/BE) Traitement des déchets:Ne jetez pas cet appareil dans les déchets domestiques. Un traitement inapproprié peut être dommageable à l'environnement et à la santé humain. Vous trouvez des informations sur les centres de rassemblement des appareils vieux chez l'administration municipale ou chez un centre autorisé pour le traitement des appareils électriques ou électroniques.

(HR) Odlaganje smeća:Ovu opremu ne odlazite zajedno s kućnim otpadom. Nepravilno odlaganje može našteliti okolišu i ljudskom zdravlju. Za informacije o objektima za prikupljanje otpada za rabljene električne i elektroničke uređaje obratite se gradskom vijeću ili ovlaštenom društvu za odlaganje električne i elektroničke opreme.

(IT) Smaltimento dei rifiuti:Non depositare questa apparecchiatura con i rifiuti domestici. Lo smaltimento improprio può danneggiare sia l'ambiente che la salute umana. Per informazioni sulle strutture di raccolta dei rifiuti per i dispositivi elettrici ed elettronici usati, contattare il comune o una società autorizzata per lo smaltimento delle apparecchiature elettriche ed elettroniche.

(PT) Depósito de lixo:Não deposite este equipamento no lixo doméstico. O descarte inadequado pode prejudicar o meio ambiente e a saúde humana. Para obter informações sobre instalações de coleta de lixo para dispositivos elétricos e eletrônicos usados, entre em contato com o conselho da cidade ou uma empresa autorizada para o descarte de equipamentos elétricos e eletrônicos.

(PL) Utylizacja odpadów:Nie należy deponować tego sprzętu razem z odpadami domowymi. Niewłaściwa utylizacja može zaszkodzić zarówno środowisku, jak i zdrowiu ludzkiemu.Aby uzyskać informacje na temat urządzeń do zbierania zużytych urządzeń elektrycznych i elektronicznych, należy skontaktować się z radą miasta lub upoważnioną firmą w celu usunięcia sprzętu elektrycznego i elektronicznego.

(RO) Eliminarea deșeurilor:Nu depuneți acest echipament cu deșeurile menajere. Eliminarea necorespunzătoare poate dăuna atât mediului, cât și sănătății umane. Pentru informații despre instalațiile de colectare a deșeurilor pentru dispozitive electrice și electronice folosite, vă rugăm să contactați consiliul municipal sau o companie autorizată pentru eliminarea echipamentelor electrice și electronice.

(SK) Likvidácia odpadu:Toto zariadenie nevkladajte do domového odpadu. Nesprávna likvidácia môže poškodit životné prostredie a ľudské zdravie. Informácie o zariadeniach na zber použitého odpadu z elektrických a elektronických zariadení získate od mestského zastupitel'stva alebo od autorizovanej spoločnosti o likvidácii elektrických a elektronických zariadení.

(SL) Odlaganje odpadkov:Te opreme ne odlagajte skupaj z gospodinjskimi odpadki. Nepravilno odstranjevanje lahko škoduje okolju in zdravju ljudi. Za informacije o napravah za zbiranje odpadnih električnih in elektronskih naprav se obrnite na mestni svet ali pooblaščeno podjetje za odstranjevanje električne in elektronske opreme.

gembird®

LED-S-RGB500-01

RGB LED STRIP, 5 M

(ENG) WARRANTY CONDITIONS

The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products.

Gembird Europe B.V.

Wittevrouwen 56, 1358CD Almere, The Netherlands

www.gembird.nl/service

[e-mail]

(DE) GARANTIE BEDINGUNGEN

All brands and logos are registered trademarks of their respective owners

gembird®

LED-S-RGB500-01

RGB LED STRIP, 5 M

(PL) WARUNKI GWARANCJI
