LED2SURGB5001 - Lamp Gembird - Free user manual and instructions

Product type	RGB LED strip
Brand	Gembird
Model	LED2SURGB5001
Length	2 meters
Width	10 mm
Thickness	2 mm
Weight	100 g
Power supply	5 V DC via USB (power adapter included)
Power consumption	12 W
Number of LEDs	120 (60 LED/meter)
Colors	RGB (Red, Green, Blue) with color mixing
Main functions	Color change, flash, fade, strobe, rainbow effect
Control	Infrared remote control included
Beam angle	120 degrees
Operating temperature	-20 °C to 60 °C
Protection rating	IP20 (indoor use only)
Care and cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Safety	Use with a compliant power adapter. Do not immerse in water.
Spare parts and repairability	Remote control and adapter available separately. The strip is not repairable; must be replaced in case of failure.
General information	Indoor LED strip, cuttable every 3 LEDs (marked). Observe polarity when connecting.

Frequently Asked Questions - LED2SURGB5001 Gembird

How to install the Gembird LED2SURGB5001 LED strip?

Unpack the strip and check if it is not damaged. Clean the mounting surface. Remove the protective film on the back of the strip and press it firmly. Connect the USB connector to a 5V power adapter. The remote control is ready to use with the supplied batteries.

How to change colors?

Use the infrared remote control. Press the color buttons for a fixed color (red, green, blue, etc.) or the dynamic modes (flash, fade, strobe) for effects. The IR sensor is located on the strip's housing.

Can I cut the strip?

Yes, you can cut the strip at the cut marks located every 3 LEDs (about 5 cm). Cut only at these points. Use strip connectors to extend or reuse the pieces.

Is this LED strip waterproof?

No, it has an IP20 rating, which means it is not protected against water. Use it only indoors in dry places. Do not install it outdoors or in humid areas like bathrooms without additional protection.

What power supply to use?

The strip operates on 5V DC. Use the provided power adapter or a standard USB adapter (e.g., phone charger) capable of delivering at least 2A (12W). Make sure the polarity is correct.

The remote control does not work, what to do?

First check the remote control battery (CR2025). Make sure there is no obstacle between the remote and the IR sensor. If the problem persists, try reconnecting the strip to power. If nothing works, contact customer service.

Can I connect multiple strips together?

Yes, you can connect multiple strips in series using joining connectors. Make sure the total power consumption does not exceed the adapter's capacity (e.g., for 4 meters, use a 24W adapter). Do not exceed the recommended maximum length of 5 meters per power source.

How to clean the LED strip?

Unplug the strip before cleaning. Use a soft, dry cloth to remove dust. Never use chemical products, alcohol, or liquids. Do not rub too hard to avoid damaging the LEDs.

What to do if a part of the strip does not light up?

Check that the connections are firmly inserted and that the strip is not cut at an unintended location. If the dead section is after a cut, there may be a poor contact. Try to remove and reconnect the faulty part. If the problem persists, the strip is likely defective and must be replaced.

Can I use this strip outdoors?

No, this strip is not designed for outdoor use. Its IP20 rating does not protect against moisture or dust. Use it only indoors. For outdoor use, choose a strip with an IP65 rating or higher.

USER MANUAL LED2SURGB5001 Gembird

Product photo of a black LED strip with USB, cable, and remote control (no visible text or symbols)

USB RGB LED STRIP

USB RGB LED STREIFEN

USB RGB LED-STRIP

BANDE LED RGB USB

• 2 x 50 cm self adhesive multi-color RGB LED light strip with USB connector
• Dimmable multi-color LED's for red, green or blue color, rainbow effect, colored moving light effects, etc
• IR remote controller
  • Works on 5 V USB power supply (not included)

Specifications

• Interface: USB
• Color: RGB
• Power: 4 W
  • Luminous flux: up to 85 lm
  • LED strip length: 0.5 m (2x)
  • LED's: 2 x 16 pcs 5050 SMD
  • Self adhesive: yes
  • Power cable: 1 m
  • Input voltage: 5 V DC 1 A
• Net weight: 30 g
  • Remote control battery: CR2025

gembird®

LED-2SU-RGB50-01

USB RGB LED STRIP

1

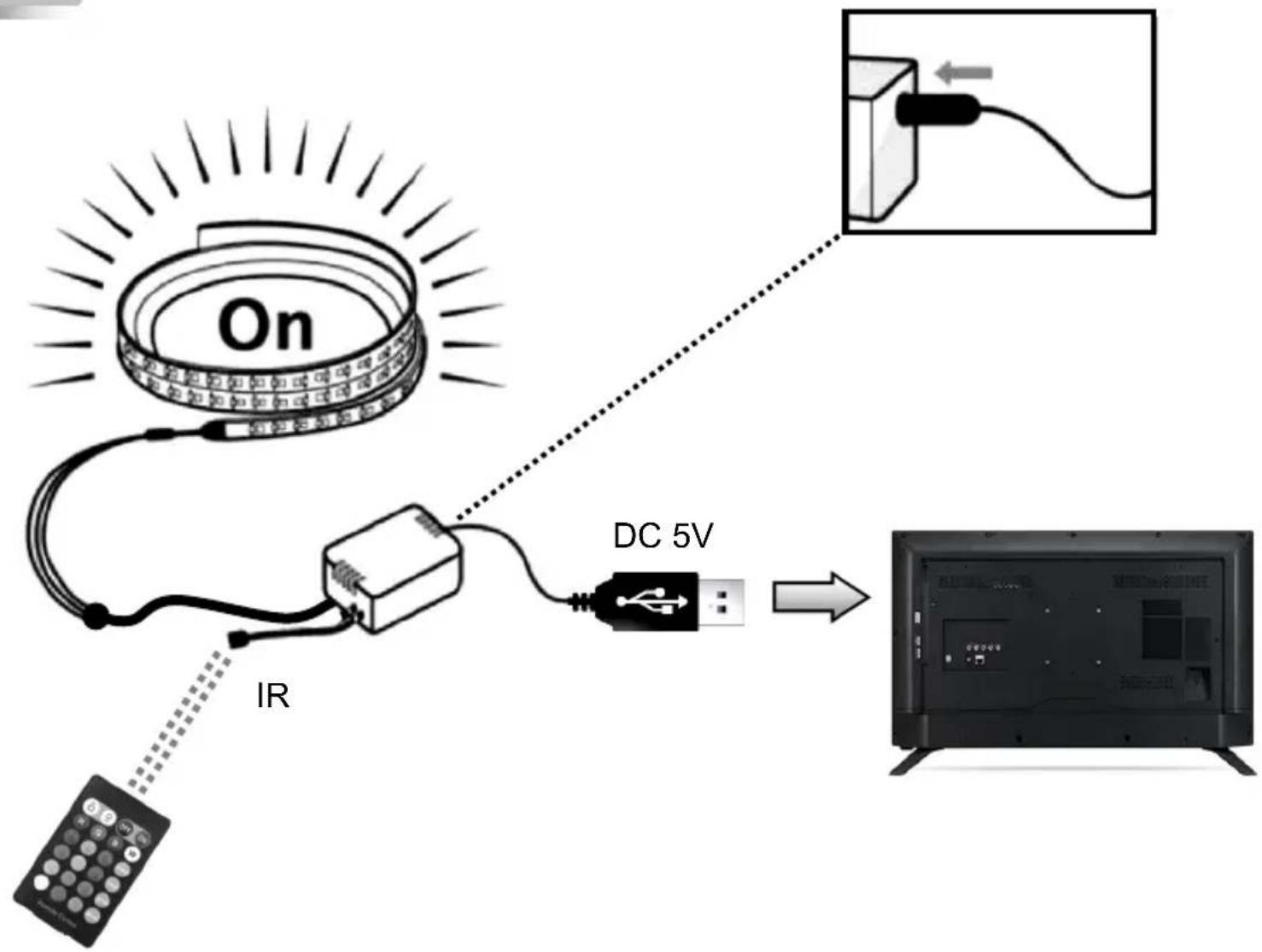


gembird®

LED-2SU-RGB50-01

USB RGB LED STRIP

2

Illustration of a hand holding a medical or surgical tool with square markers (no text or symbols)

Diagram of a structural joint with diagonal braces and radial arrows indicating force or direction (no text or symbols)

3

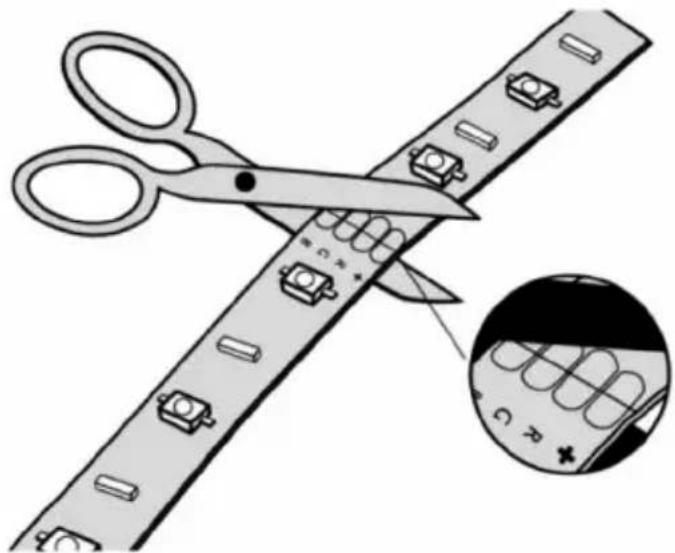

Diagram showing scissors cutting a strip with a magnified inset of a device (no text or symbols)

gembird®

LED-2SU-RGB50-01

USB RGB LED STRIP

4

gembird®

LED-2SU-RGB50-01

USB RGB LED STRIP

5

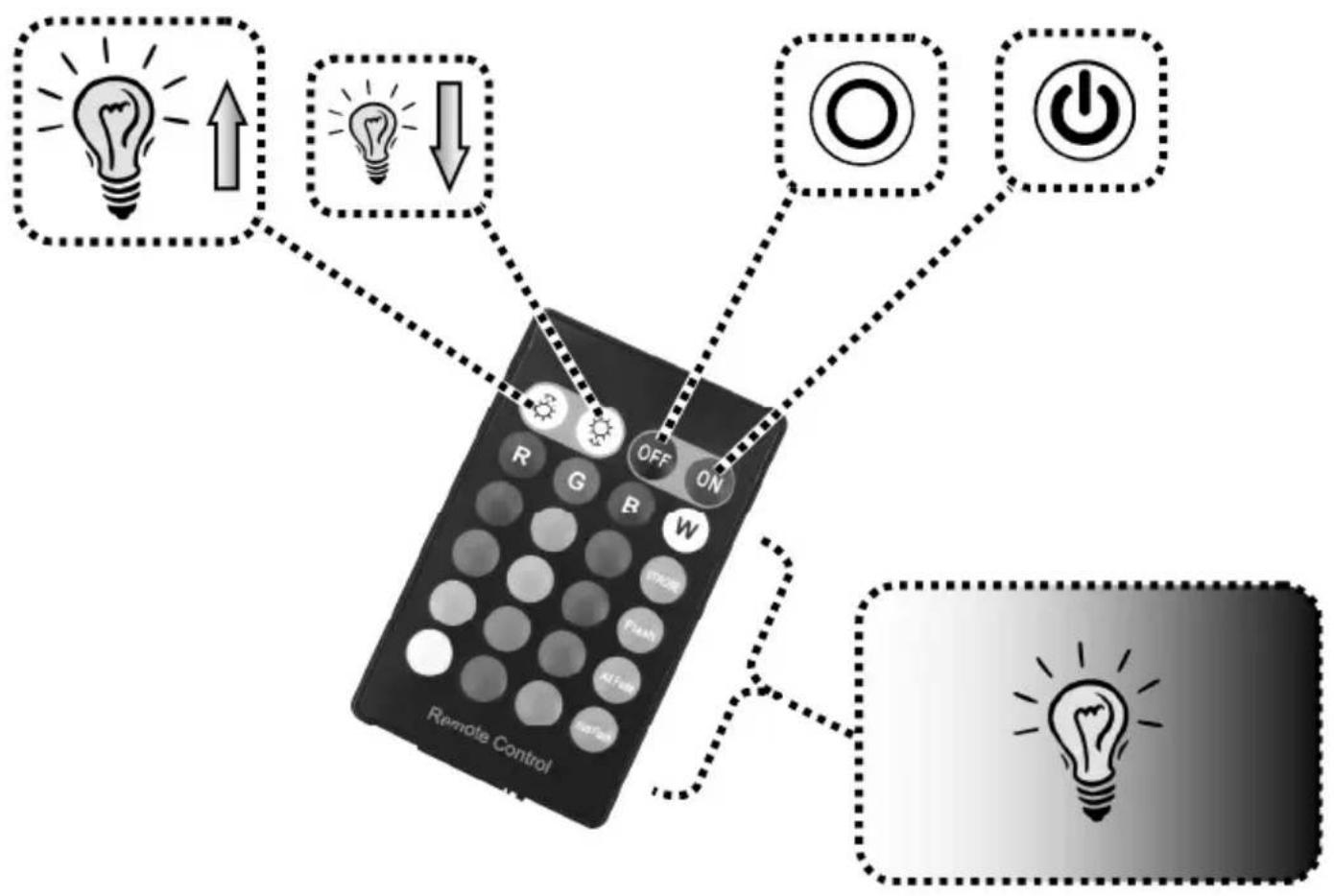


gembird®

LED-2SU-RGB50-01

USB RGB LED STRIP

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found underwww.gembird.eu	(NL/BE) Verklaring van overeenstemmingDit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot EMC(2014/30/EU), RoHS (2011/65/EU). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op onze website:www.gembird.eu
(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a:www.gembird.eu	(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie EMC(2014/30/EU), RoHS (2011/65/EU) überein. Die Konformitätserklärung kann auf unserer Webseitewww.gembird.euheruntergeladen werden.
Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami przepisów ustawowych państw członkowskich dotyczących EMC(2014/30/EU), RoHS (2011/65/EU). Deklaracja CE znajduje się pod adresemwww.gembird.eu

gembird®

LED-2SU-RGB50-01 USB RGB LED STRIP

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
