EE2-U3S-3 - External hard drive enclosure Gembird - Free user manual and instructions
Find the device manual for free EE2-U3S-3 Gembird in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | External Hard Drive Enclosure |
| Brand | Gembird |
| Model | EE2-U3S-3 |
| Interface | USB 3.0 SuperSpeed (backward compatible with USB 2.0) |
| Compatible Disk Formats | SATA 2.5-inch hard drives (7 mm or 9.5 mm) |
| Maximum Supported Capacity | Up to 2 TB (depending on installed drive) |
| Transfer Speed | Up to 5 Gbps via USB 3.0 |
| Power Supply | USB powered (no external source required) |
| Housing Material | Aluminum and ABS plastic |
| Dimensions (L x W x H) | 130 x 80 x 15 mm (approximate) |
| Weight | Approx. 100 g (without disk) |
| Compatible Operating Systems | Windows, macOS, Linux |
| Installation | Plug and Play (no driver needed) |
| Maintenance and Cleaning | Wipe with a dry, soft cloth. Do not use liquids. |
| Safety | Do not expose to moisture, shocks, or dust. |
| Spare Parts and Repairability | Not available. The enclosure is not designed for user repair. |
| Waste Disposal | Do not dispose of with household waste. Recycle according to local regulations. |
Frequently Asked Questions - EE2-U3S-3 Gembird
What type of hard drive can I install in this enclosure?
This enclosure accepts SATA 2.5-inch hard drives (7 mm or 9.5 mm thick). 2.5-inch SSDs are also compatible.
Is this enclosure compatible with a game console?
Yes, it can be used with a PlayStation, Xbox, or Wii, provided the console supports external drives formatted as FAT32 or exFAT.
Do I need to install drivers on Windows?
No, the enclosure is automatically recognized (Plug and Play) under Windows 7, 8, 10, and 11. No drivers are needed.
Can I plug this enclosure into a USB 2.0 port?
Yes, it is backward compatible with USB 2.0, but the transfer speed will be limited to about 480 Mbps instead of 5 Gbps.
How do I format my hard drive so it is recognized?
On Windows, right-click the disk in 'Disk Management' and choose 'Format'. Use NTFS for Windows or exFAT for cross-platform compatibility.
What should I do if the hard drive is not detected?
Check the USB cable, plug it into another port, and make sure the drive is properly inserted. On Windows, open 'Disk Management' to initialize the disk if needed.
Does this enclosure get very hot?
The aluminum enclosure dissipates heat well. It may become warm after prolonged use, but this is normal.
Can I use this enclosure with a USB-C cable?
Yes, provided you use a USB-C to USB-A adapter or a compatible cable. The enclosure itself has a Micro-B USB port.
How to properly turn off the enclosure?
Use your operating system's 'Eject' option before unplugging the USB cable to avoid data loss.
What is the warranty for this product?
The standard warranty is 2 years. Please check Gembird's website for detailed conditions.
User questions about EE2-U3S-3 Gembird
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your External hard drive enclosure in PDF format for free! Find your manual EE2-U3S-3 - Gembird and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EE2-U3S-3 by Gembird.
USER MANUAL EE2-U3S-3 Gembird
USB 3.0 2.5" FESTPLATTEN GEHÄUSE
EXTERNE HDD BEHUIZING 2.5" SATA USB3.0
BOITIER POUR DISQUE DUR 2.5" USB 3.0
- SuperSpeed USB 3.0 HDD access – 10 times faster than USB 2.0
• Backward compatible with USB 2.0
• Supports SATA 2.5" hard disk drives of any capacity
Specifications
- Interface: up to 5 Gbps USB 3.0 mini 10 pin connector, compatible with USB 2.0/1.X
- Supports Serial ATA 2.5" hard drives up to 2 TB of 7 ... 9.5 mm thickness
- Chipset: JMS578
• Material: aluminum and plastic
• Product net weight: 63 g
• Product dimensions: 130 x 78 x 12.3 mm - USB cable: 60 cm
gembird®
EE2-U3S-3
USB 3.0 2.5" ENCLOSURE, BRUSHED ALUMINUM
1


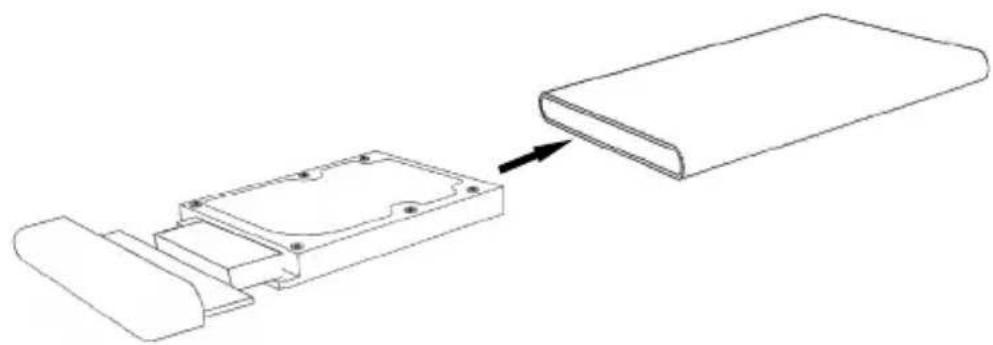

Diagram illustrating the assembly of a device into a physical package, showing internal components and connection paths.
gembird®
EE2-U3S-3
USB 3.0 2.5" ENCLOSURE, BRUSHED ALUMINUM
2
gembird®
EE2-U3S-3
USB 3.0 2.5" ENCLOSURE, BRUSHED ALUMINUM
| (ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found underwww.gembird.eu | (NL/BE) Verklaring van overeenstemmingDit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot EMC(2014/30/EU), RoHS (2011/65/EU). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op onze website:www.gembird.eu |
| (FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a:www.gembird.eu | (DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie EMC(2014/30/EU), RoHS (2011/65/EU) überein. Die Konformitätserklärung kann auf unserer Webseitewww.gembird.euheruntergeladen werden. |
| Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami przepisów ustawowych państw członkowskich dotyczących EMC(2014/30/EU), RoHS (2011/65/EU). Deklaracja CE znajduje się pod adresemwww.gembird.eu | |
Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
