EE2U2S5 - External hard drive enclosure Gembird - Free user manual and instructions

Product type	External hard drive enclosure
Brand	Gembird
Model	EE2U2S5
Connectivity	USB 2.0
Supported disk formats	2.5 inch SATA (thickness up to 9.5 mm)
Maximum transfer rate	480 Mbit/s (USB 2.0)
Power supply	USB bus power (self-powered)
Enclosure material	ABS plastic
Dimensions (L x W x H)	130 x 80 x 15 mm
Weight	Approximately 80 g
Color	Black
LED indicator	Yes (blue: power, blinking: activity)
System compatibility	Windows, Mac OS, Linux
Plug and Play	Yes, without additional driver
Main functions	Storage expansion, backup, data transfer
Maintenance and cleaning	Disconnect before cleaning; use a soft dry cloth
Safety	Do not expose to moisture; avoid shocks
Spare parts and repairability	No detachable parts; contact support for repair
General information	2-year warranty; do not dispose of with household waste

Frequently Asked Questions - EE2U2S5 Gembird

What types of hard drives can I use with this enclosure?

This enclosure accepts 2.5-inch SATA hard drives with a maximum thickness of 9.5 mm.

Does the enclosure require an external power supply?

No, it is self-powered via the USB port. Make sure your computer provides enough power (standard USB port).

Which operating systems are compatible?

The enclosure is compatible with Windows, Mac OS, and Linux without additional driver installation (Plug and Play).

How to install the hard drive in the enclosure?

Open the enclosure by sliding the cover, insert the hard drive aligning the SATA connectors, then close it. No tools are required.

Why doesn't my computer recognize the enclosure?

Check that the hard drive is properly inserted, the USB cable is functional, and the USB port provides enough power. Try a different port or cable.

What is the maximum transfer speed?

The maximum speed is 480 Mbit/s (USB 2.0). Actual performance depends on the hard drive and computer.

Can I use the enclosure with a game console?

Yes, if your console supports external drives in USB 2.0 and FAT32/exFAT format. Check compatibility with your console.

How to clean the enclosure?

Unplug it, then wipe it with a soft dry cloth. Do not use chemical or abrasive products.

What to do in case of failure?

Contact Gembird technical support. The enclosure contains no user-serviceable parts.

How to recycle this product at end of life?

Do not throw it in household trash. Drop it off at an electronic waste collection point or return it to the store.

USER MANUAL EE2U2S5 Gembird

Black portable electronic device labeled 'gembird' with ventilation grille and ports (no additional text or symbols visible)

EXTERNAL USB 2.0 ENCLOSURE FOR 2.5" SATA HDDS EXTERNES USB FESTPLATTENGEHÄUSE FÜR 2.5" SATA LAUFWERKE EXTERNE HDD-BEHUIZING (USB)

DISQUE DUR EXTERNE USB 2.0 POUR SATA 2.5" APPAREILLES ВНЕШНЕЕ МОБИЛЬНОЕ ШАССИ С ИНТЕФЕЙСОМ USB 2.0 ДЛЯ SATA НАКОПИТЕЛЕЙ 2.5 ДЮЙМА

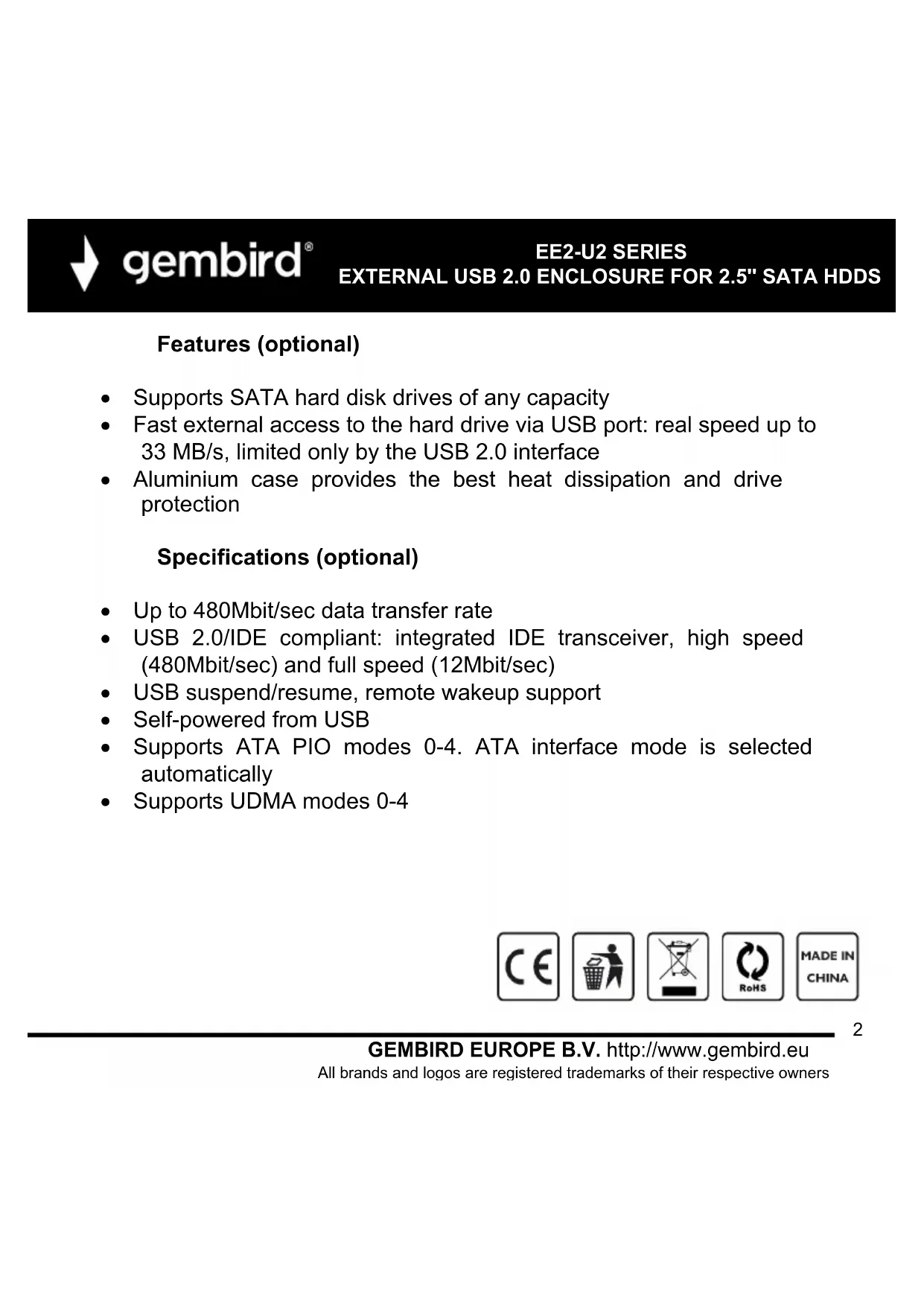

• Supports SATA hard disk drives of any capacity
- Fast external access to the hard drive via USB port: real speed up to 33 MB/s, limited only by the USB 2.0 interface
- Aluminium case provides the best heat dissipation and drive protection

Specifications (optional)

• Up to 480Mbit/sec data transfer rate
• USB 2.0/IDE compliant: integrated IDE transceiver, high speed (480Mbit/sec) and full speed (12Mbit/sec)
  • USB suspend/resume, remote wakeup support
  • Self-powered from USB
  • Supports ATA PIO modes 0-4. ATA interface mode is selected automatically
  • Supports UDMA modes 0-4

gembird®

EE2-U2 SERIES

EXTERNAL USB 2.0 ENCLOSURE FOR 2.5" SATA HDDS

1

2

3

gembird®

EE2-U2 SERIES

EXTERNAL USB 2.0 ENCLOSURE FOR 2.5" SATA HDDS

4

5

gembird®

EE2-U2 SERIES

EXTERNAL USB 2.0 ENCLOSURE FOR 2.5" SATA HDDS

6

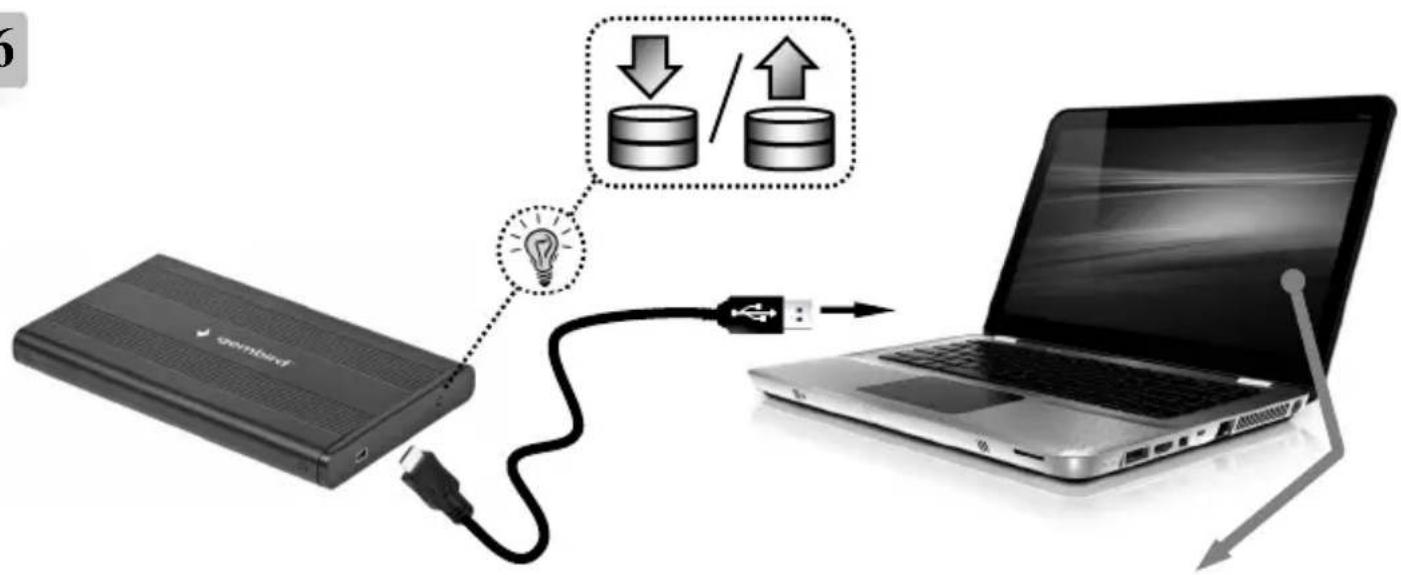


gembird®

EE2-U2 SERIES

EXTERNAL USB 2.0 ENCLOSURE FOR 2.5" SATA HDDS

7 (optional)

gembird®

EE2-U2 SERIES

EXTERNAL USB 2.0 ENCLOSURE FOR 2.5" SATA HDDS

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found underwww.gembird.eu	(NL/BE) Verklaring van overeenstemmingDit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot EMC(2014/30/EU), RoHS (2011/65/EU). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op onze website:www.gembird.eu
(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a:www.gembird.eu	(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie EMC(2014/30/EU), RoHS (2011/65/EU) überein. Die Konformitätserklärung kann auf unserer Webseitewww.gembird.euheruntergeladen werden.
Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami przepisów ustawowych państw członkowskich dotyczących EMC(2014/30/EU), RoHS (2011/65/EU). Deklaracja CE znajduje się pod adresemwww.gembird.eu

Simple line drawing of a hand washing a cup with water droplets falling (no text or symbols)

Simple line drawing of a hand holding a plant with a crossed-out arrow (no text or symbols)

gembird®

EE2-U2 SERIES

EXTERNAL USB 2.0 ENCLOSURE FOR 2.5" SATA HDDS

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
