USER MANUAL 32LD450 LG

Please read this manual carefully before operating your set and retain it for future reference.

Separate purchase

Wall Mounting Bracket

LSW100B or LSW100BG

(19/22/26/32LD3***, 32LD4***, 32LD5***, 19/22/26/32LE3***, 32LE4***, 22/26LE5***, 32LE5***)

LSW200B or LSW200BG

(37/42/47LD4***, 42/46LD5***, 37/42LE4***, 37/42/47LE5***)

LSW400B or LSW400BG or DSW400B or DSW400BG

(52/60LD5***, 55LE5***)

Optional extras can be changed or modified for quality improvement without any notification.

Contact your dealer for buying these items.

This device only works with compatible LG LED LCD TV or LCD TV.

Wireless Media Box

(32/42/46/52/60LD5***, 32LE3***, 32/37/42LE4***, 32/37/42/47/55LE5***)

HDMI

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

PREPARATION

LCD TV Models : 19/22/26/32LD35**, 19/22/26/32LD34** A-1
LCD TV Models : 32/37/42/47LD4***, 26/32LD32** 26/32LD33**......A-14
LCD TV Models : 32/42/46/52/60LD5*** .....A-24
LED LCD TV Models : 19/22/26/32LE3***, 32/37/42LE4***, 22/26LE5***, 32/37/42/47/55LE5*** ..... A-33

EXTERNAL EQUIPMENT SETUP

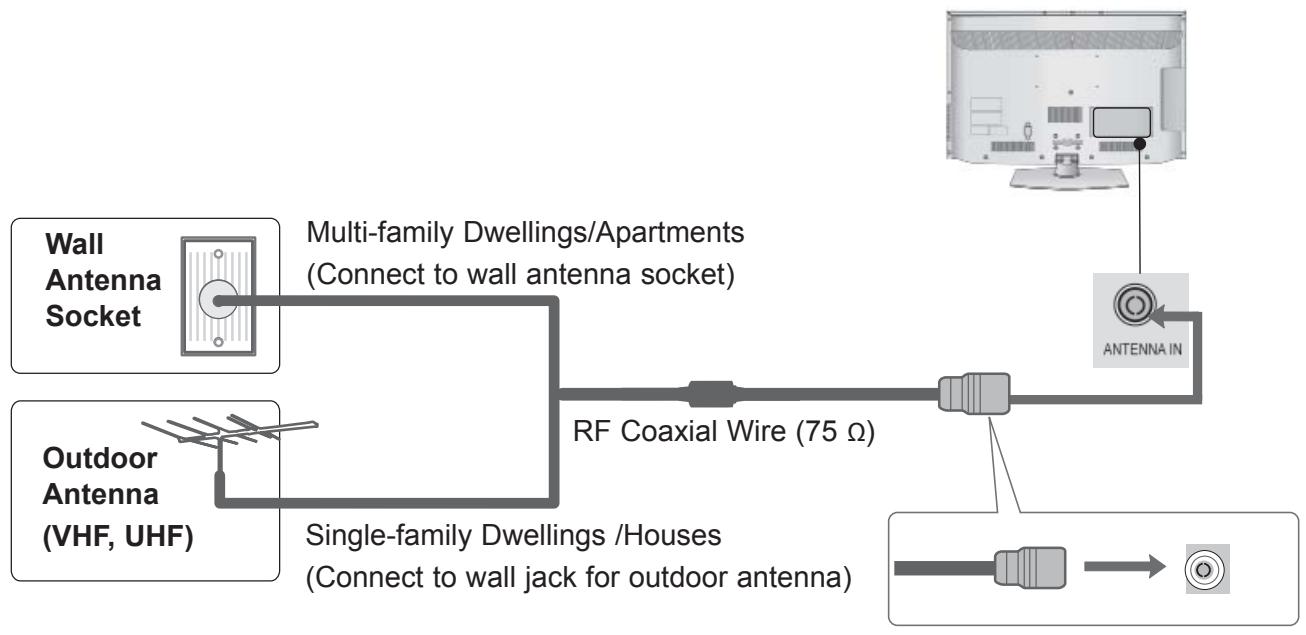

Antenna Connection....1
Connecting with a Component cable....2
Connecting with an HDMI cable 3
Connecting with an HDMI to DVI cable 4
Connecting with a Euro Scart cable ....5
USB setup....6

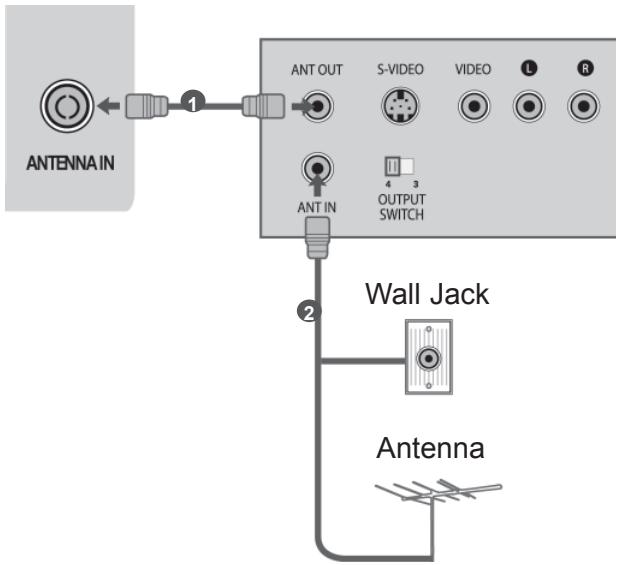

Connecting with a RF Cable....6

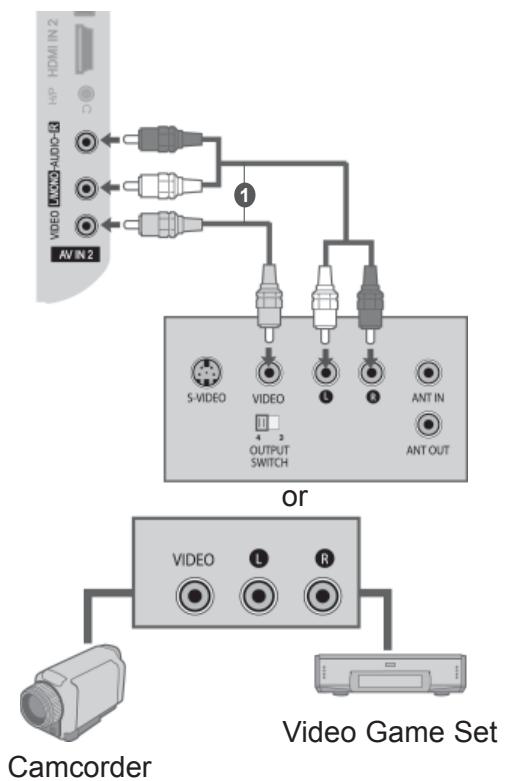

Connecting with a RCA cable 7

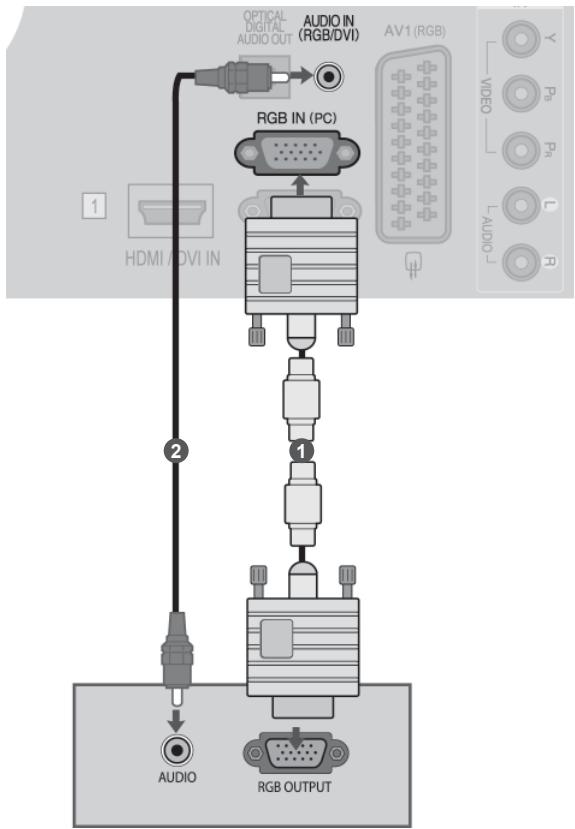

Connecting with a D-sub 15 pin cable....8
Insertion of CI Module....9
Headphone Setup....9
Digital audio out Setup....10
External Equipment Wireless Connection ..... 11
Supported Display Resolution....12

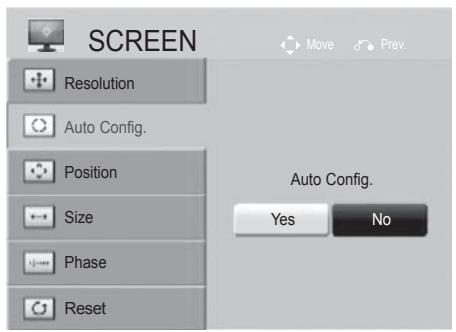

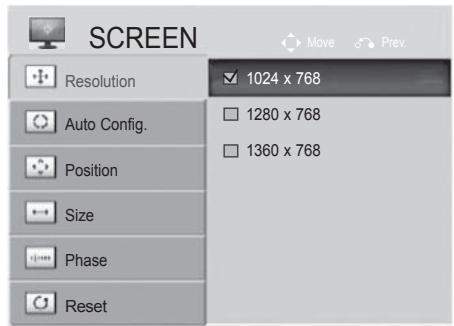

Screen Setup for PC mode....13

WATCHING TV / PROGRAMME CONTROL

Turning on the TV 17
Initializing Setup 17
Programme Selection....17
Volume Adjustment ....17
Quick Menu....18

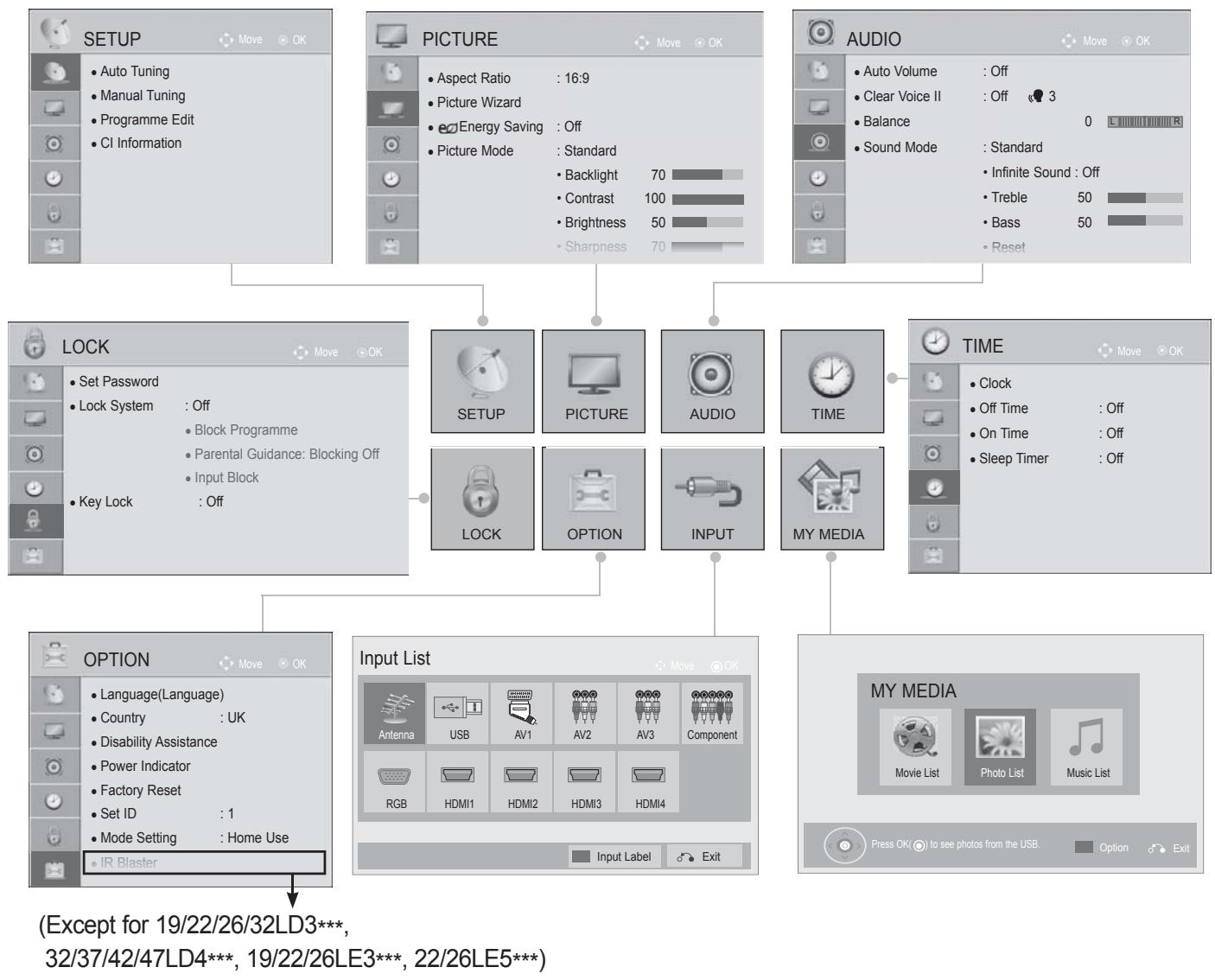

On Screen Menus Selection and adjustment...19

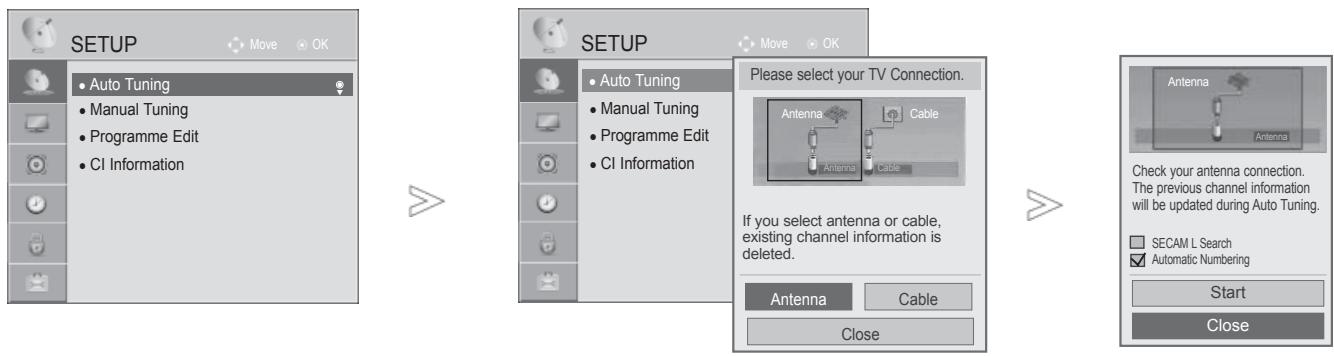

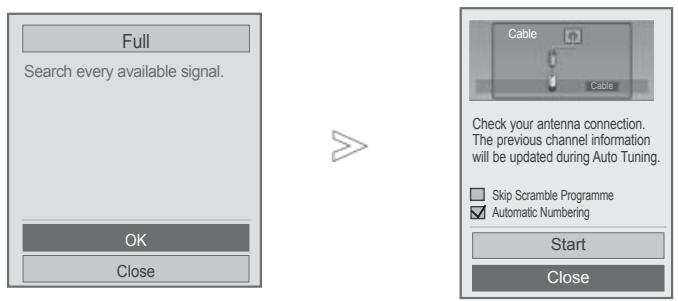

Auto programme tuning ....20

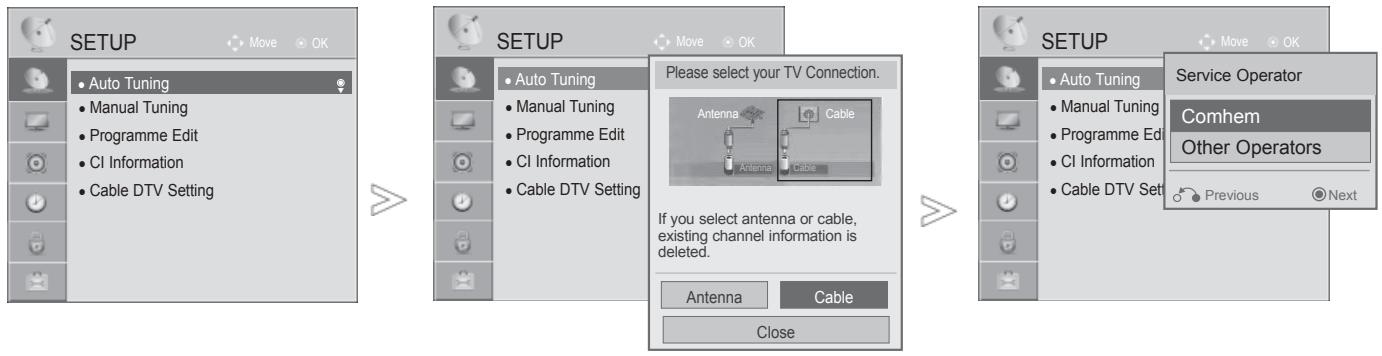

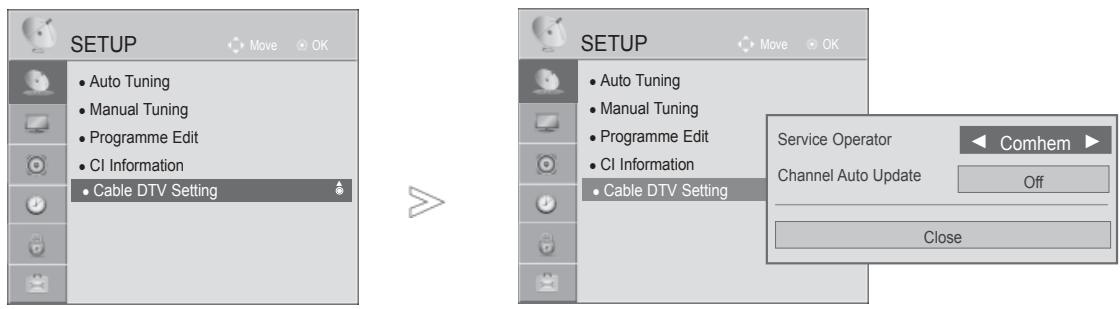

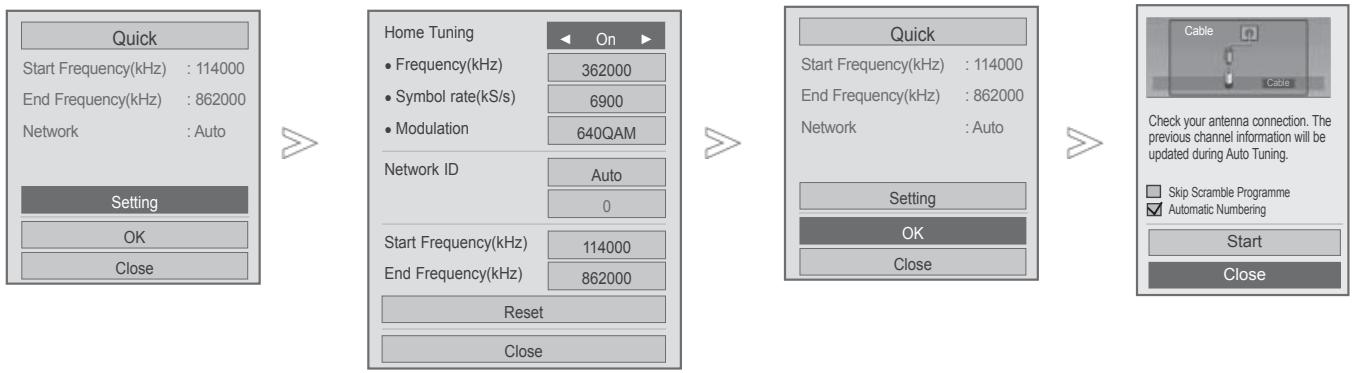

Cable DTV setting....25

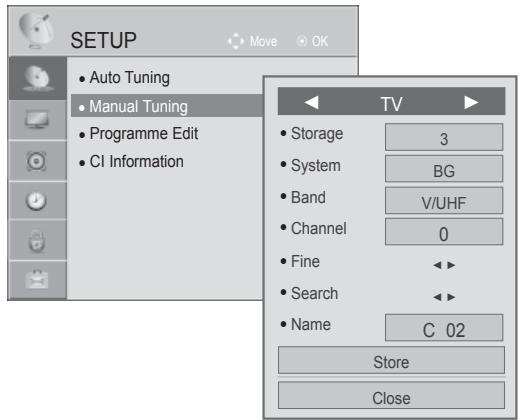

Manual programme Tuning....26

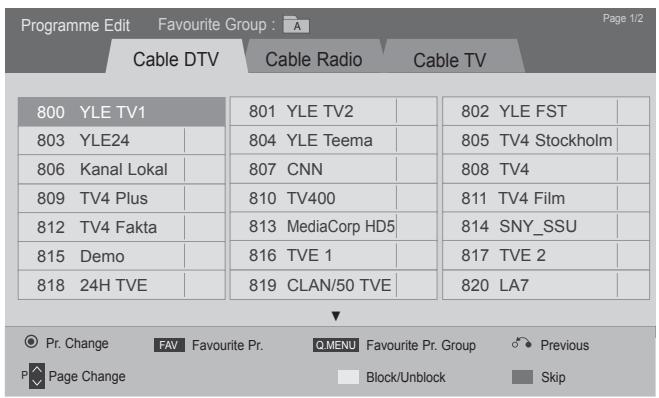

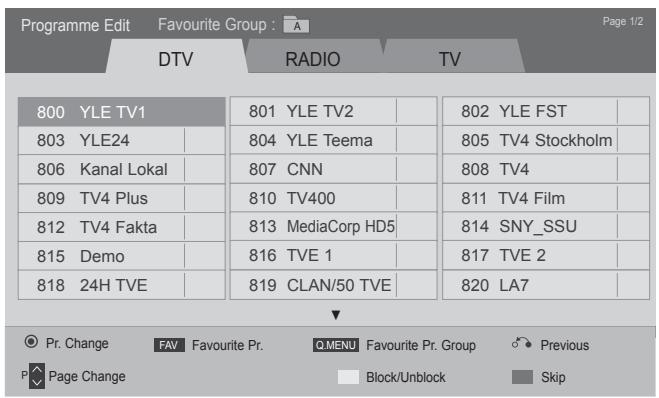

Programme Edit ....30
CI [Common Interface] Information....34
Software Update ....35
Picture/Sound test....37
Diagnostics....38

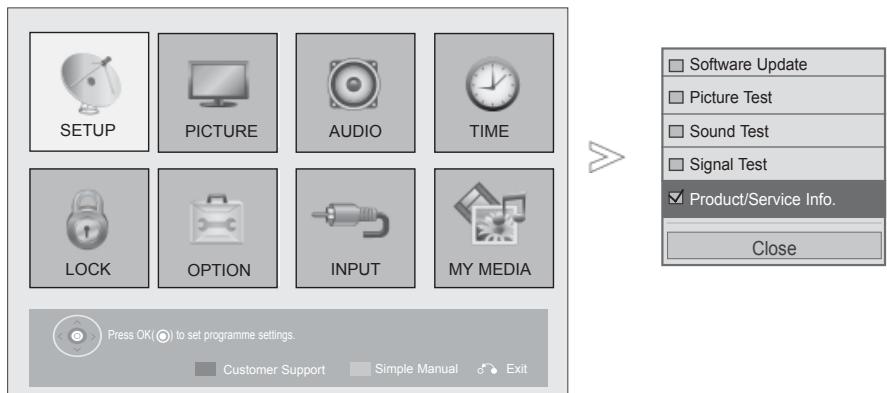

Product/service information....39

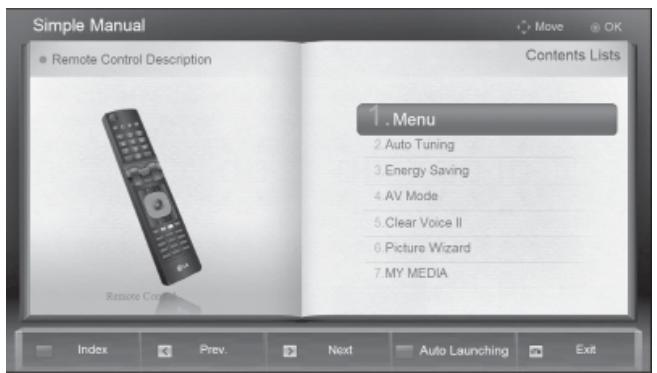

Simple Manual 40
Selecting the Programme List....41

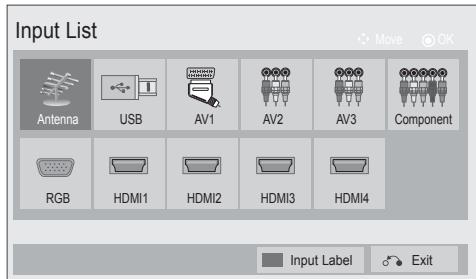

Input List....43
Input Label 44

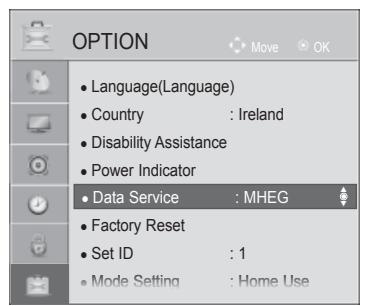

Data Service....45

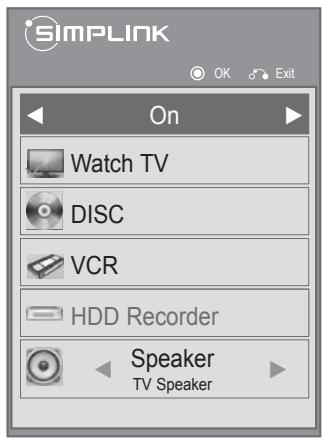

SIMPLINK....46
AV Mode....50

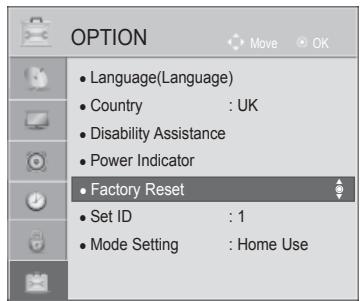

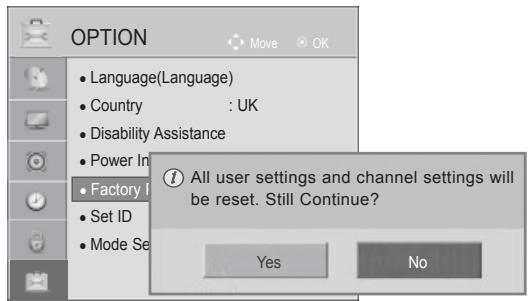

Initializing(Reset to original factory settings) ....51

TO USE A USB DEVICE

When connecting a USB device 52

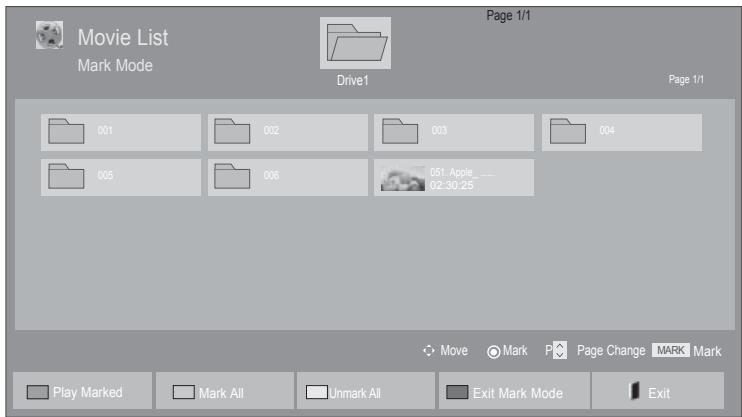

Movie list 54
Photo list....65

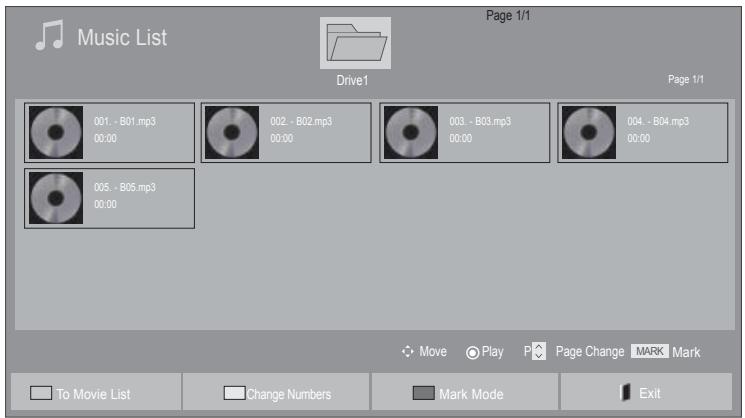

Music list....75
DivX Registration Code 84
Deactivation 85

EPG(ELECTRONIC PROGRAMME GUIDE)(IN DIGITAL MODE)

Switch on/off EPG 87
Select a programme....87
Button Function in NOW/NEXT Guide Mode ...87

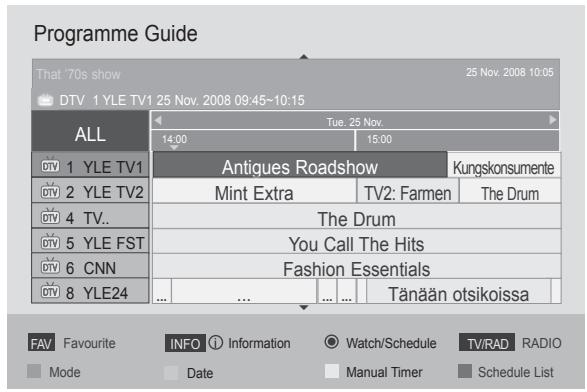

Button Function in 8 Day Guide Mode .....88

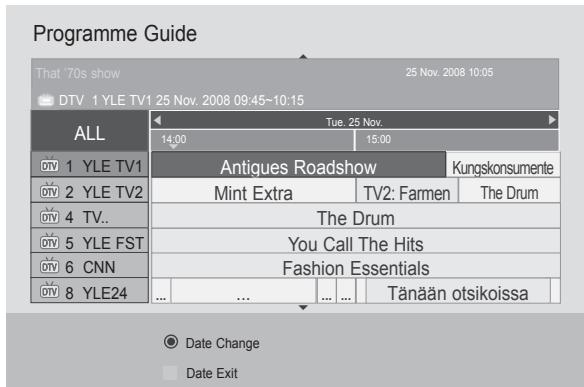

Button Function in Date Change Mode .....89

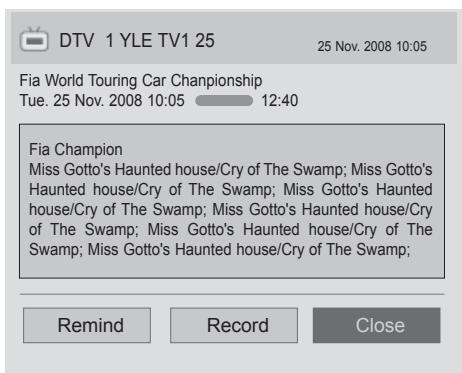

Button Function in Extended Description Box ..89

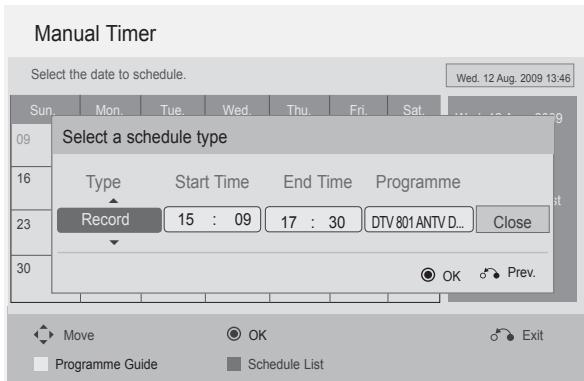

Button Function in Record/Remind Setting Mode 90
Button Function in Schedule List Mode....91

PICTURE CONTROL

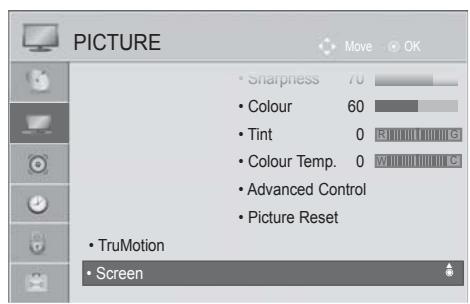

Picture Size (Aspect Ratio) Control 92

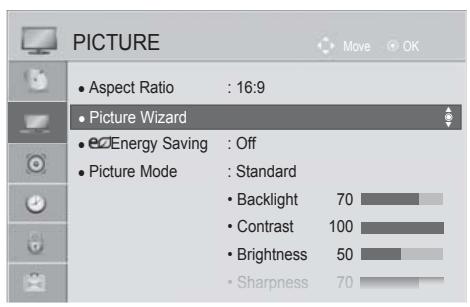

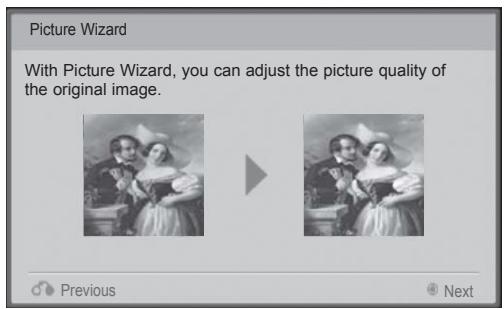

Picture Wizard....94

Energy Saving....95

Preset Picture Settings 96

Manual Picture Adjustment 97

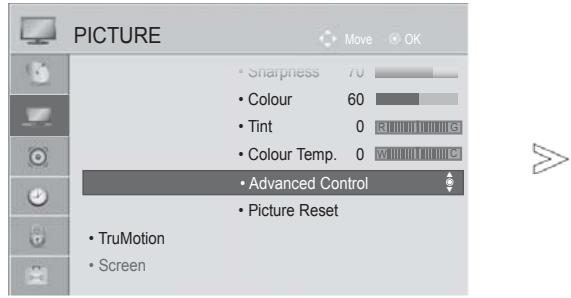

Picture Improvement Technology....98

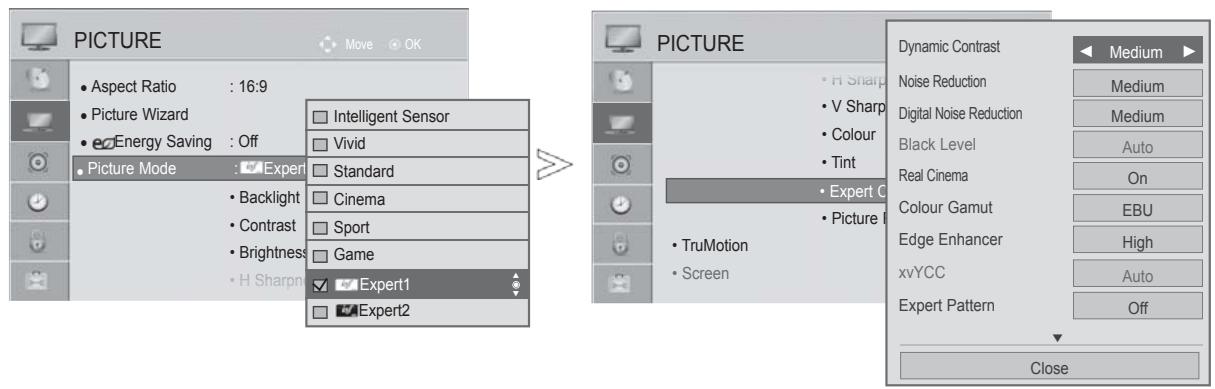

Expert Picture Control....99

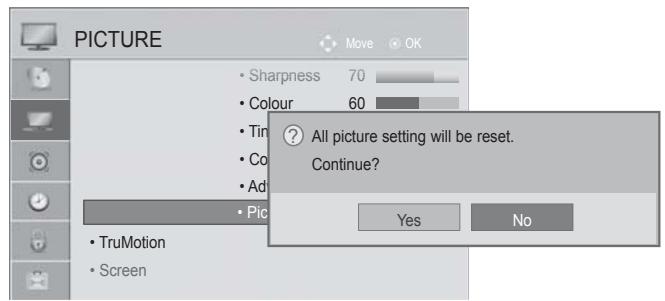

Picture Reset....102

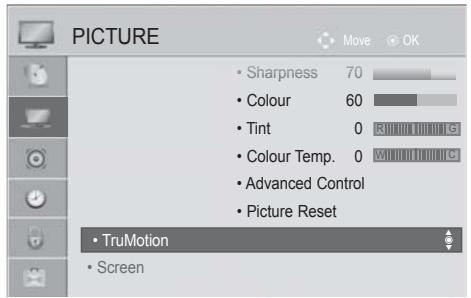

Trumotion ....103

Power Indicator 104

Mode Setting 105

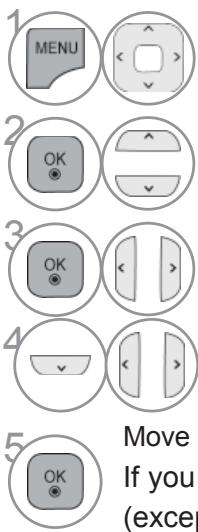

Demo Mode....106

SOUND & LANGUAGE CONTROL

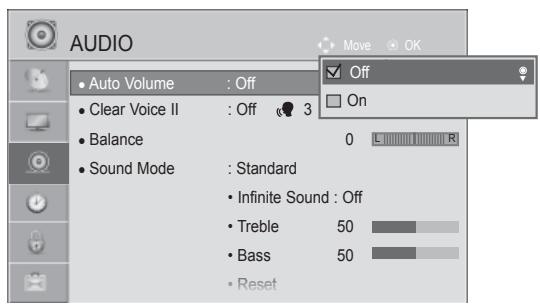

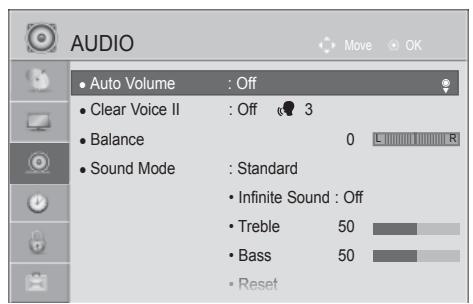

Auto Volume Leveler....107

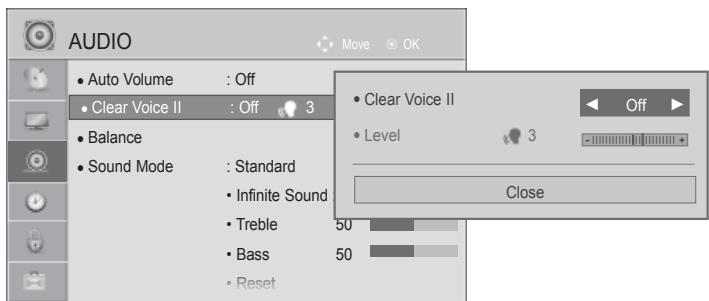

Clear Voice II....108

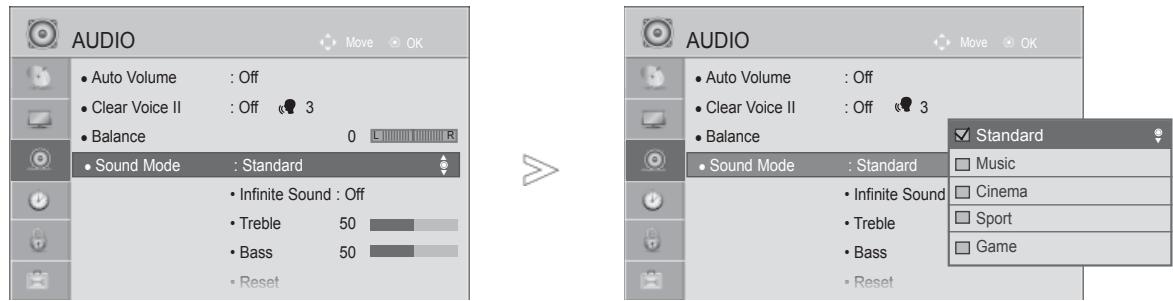

Preset Sound Settings-Sound Mode ....109

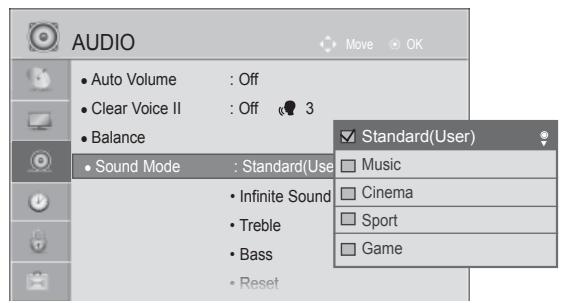

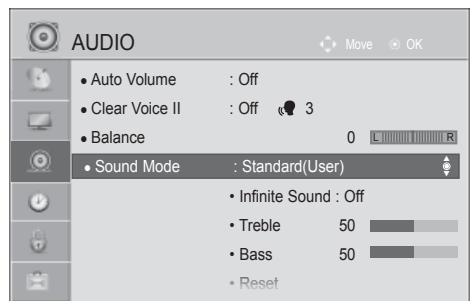

Sound Setting Adjustment -User Mode ..... 110

Infinite Sound 110

Balance 111

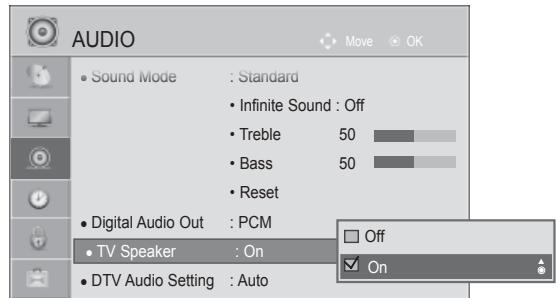

TV Speakers On/ Off Setup 112

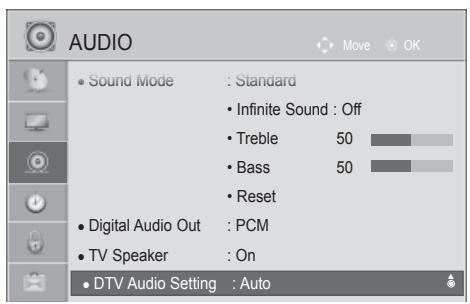

DTV Audio Setting (in digital mode only)......113

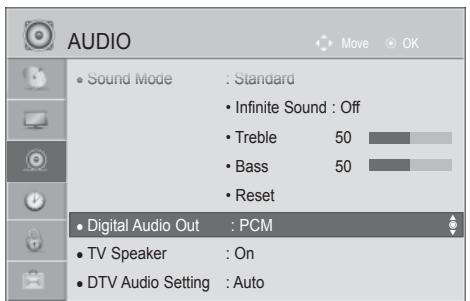

Selecting Digital Audio out 114

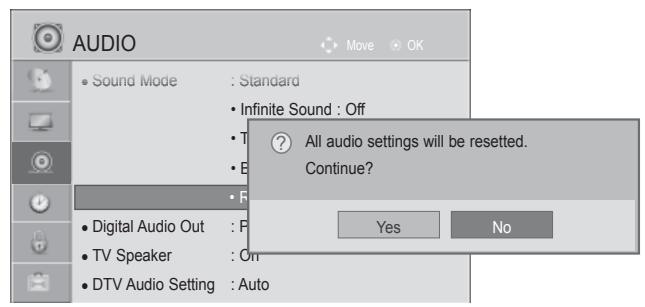

Audio Reset....115

Audio Description (In digital mode only)......116 I/II

- Stereo/Dual Reception (In Analogue Mode Only) 117

- NICAM Reception (In Analogue Mode Only)118

- Speaker Sound Output Selection....118

On-Screen Menu Language / Country Selection 119

Language Selection ....120

TIME SETTING

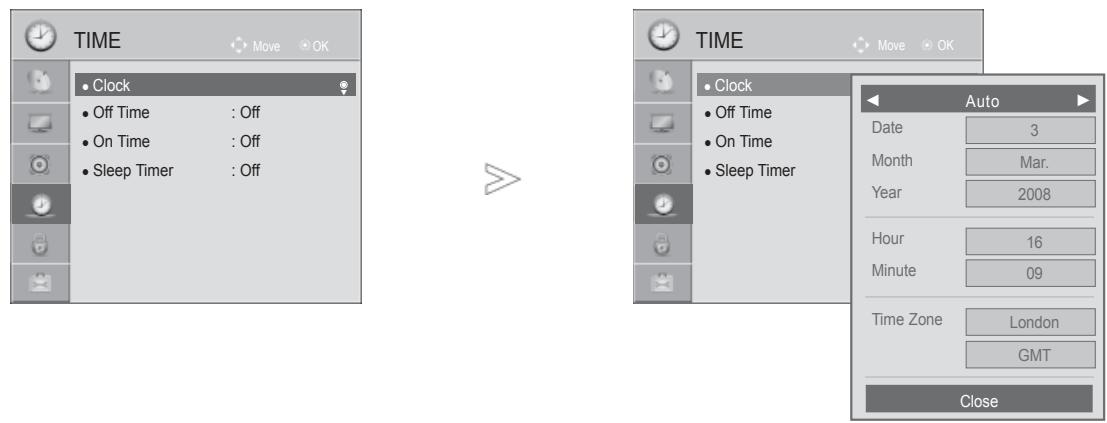

Clock Setup....122

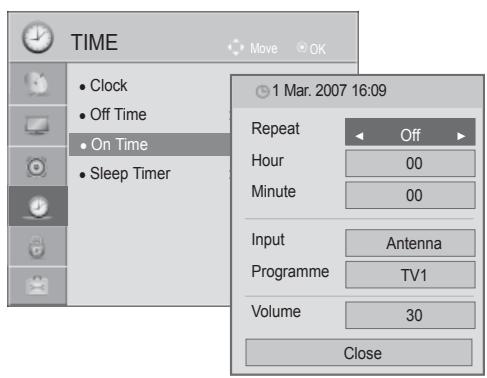

Auto on/off time setting 123

Sleep Timer setting 124

PARENTAL CONTROL / RATINGS

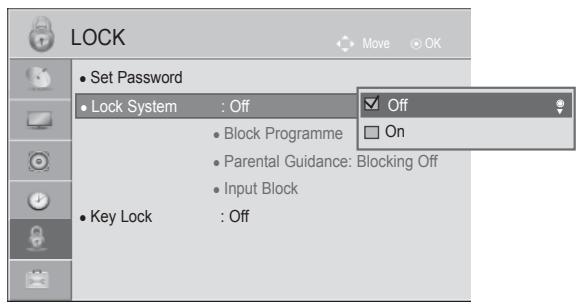

Set Password & Lock System....125

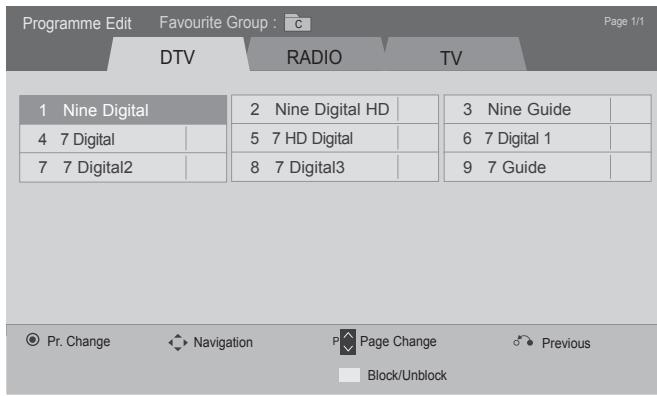

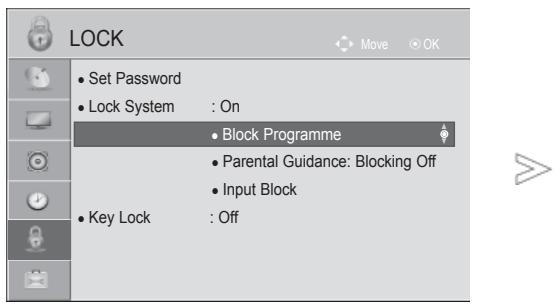

Block Programme....126

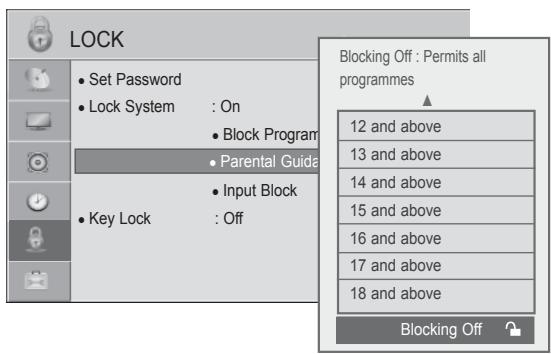

Parental Control (In Digital Mode only)......127

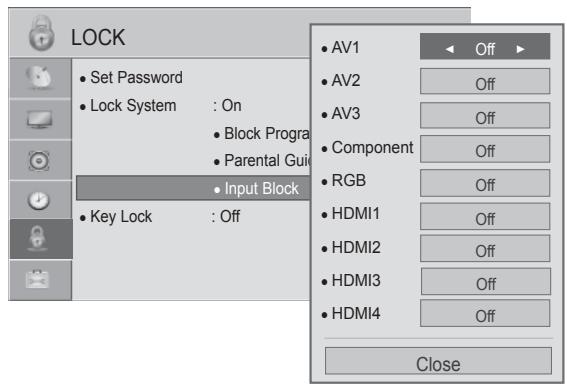

External Input Blocking ....128

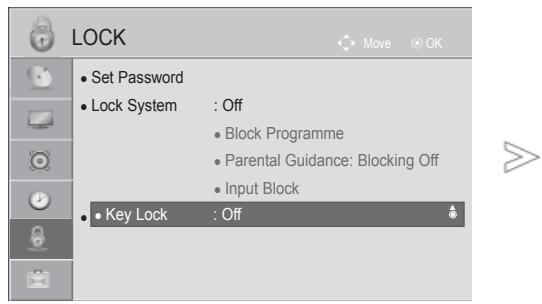

Key Lock....129

TELETEXT

Switch on/off 130

SIMPLE Text....130

TOP Text....131

FASTEXT 131

Special Teletext Functions ....132

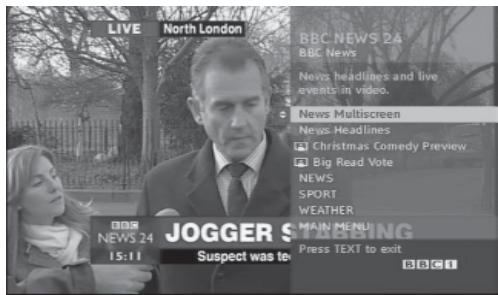

DIGITAL TELETEXT

Teletext within Digital Service ....133

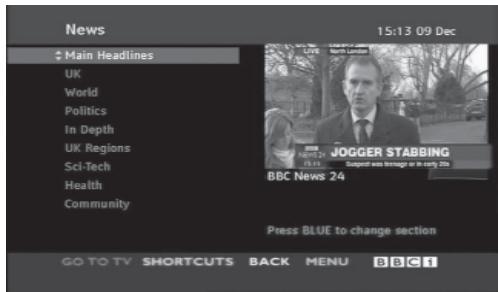

Teletext in Digital Service....133

APPENDIX

Troubleshooting....134

Maintenance....136

Product Specifications....137

IR Codes ....148

External Control Device Setup....149

Open source software notice ....156

LCD TV MODELS : 19/22/26/32LD35\*\*, 19/22/26/32LD34\*\* ACCESSORIES

Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the TV.

■ Image shown may differ from your TV.

■ Image shown may differ from your TV.

Owner's Manual

Owner's Manual

Batteries (AAA)

TV. Th

Remote Control

Ferrite Core (This item is not included for all models.)

Power Cord

This item is not included for all models.

Polishing Cloth Polishing cloth for use on the screen.

* Lightly wipe any stains or fingerprints on the surface of the TV with the polishing cloth.

Do not use excessive force. This may cause scratching or discolouration.

Only 19/22LD35**, 19/22LD34**

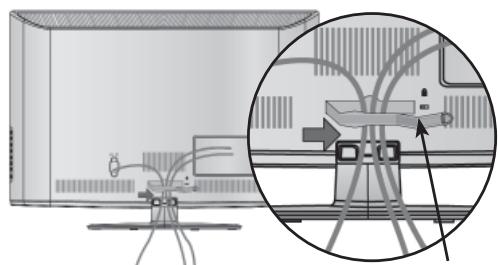

Cable Holder

Protection Cover

Only 26/32LD35**, 26/32LD34**

(M4x20)
Bolts for stand assembly

1-screw for stand fixing

Protection Cover

Use of ferrite core (This feature is not available for all models.)

Ferrite core can be used to reduce the electromagnetic wave when connecting the power cord.

The closer the location of the ferrite core to the power plug, the better it is.

Illustration of a coiled electrical plug with a terminal connector (no text or symbols)

Install the power plug closely.

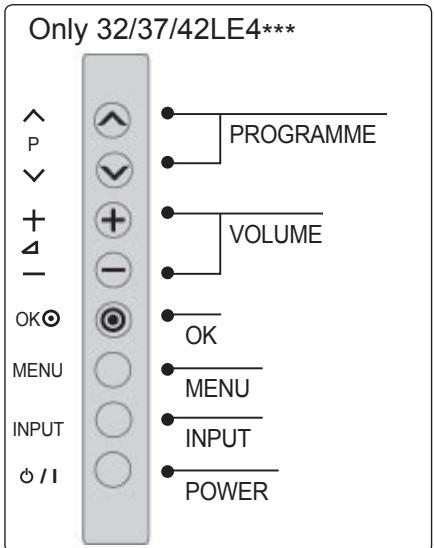

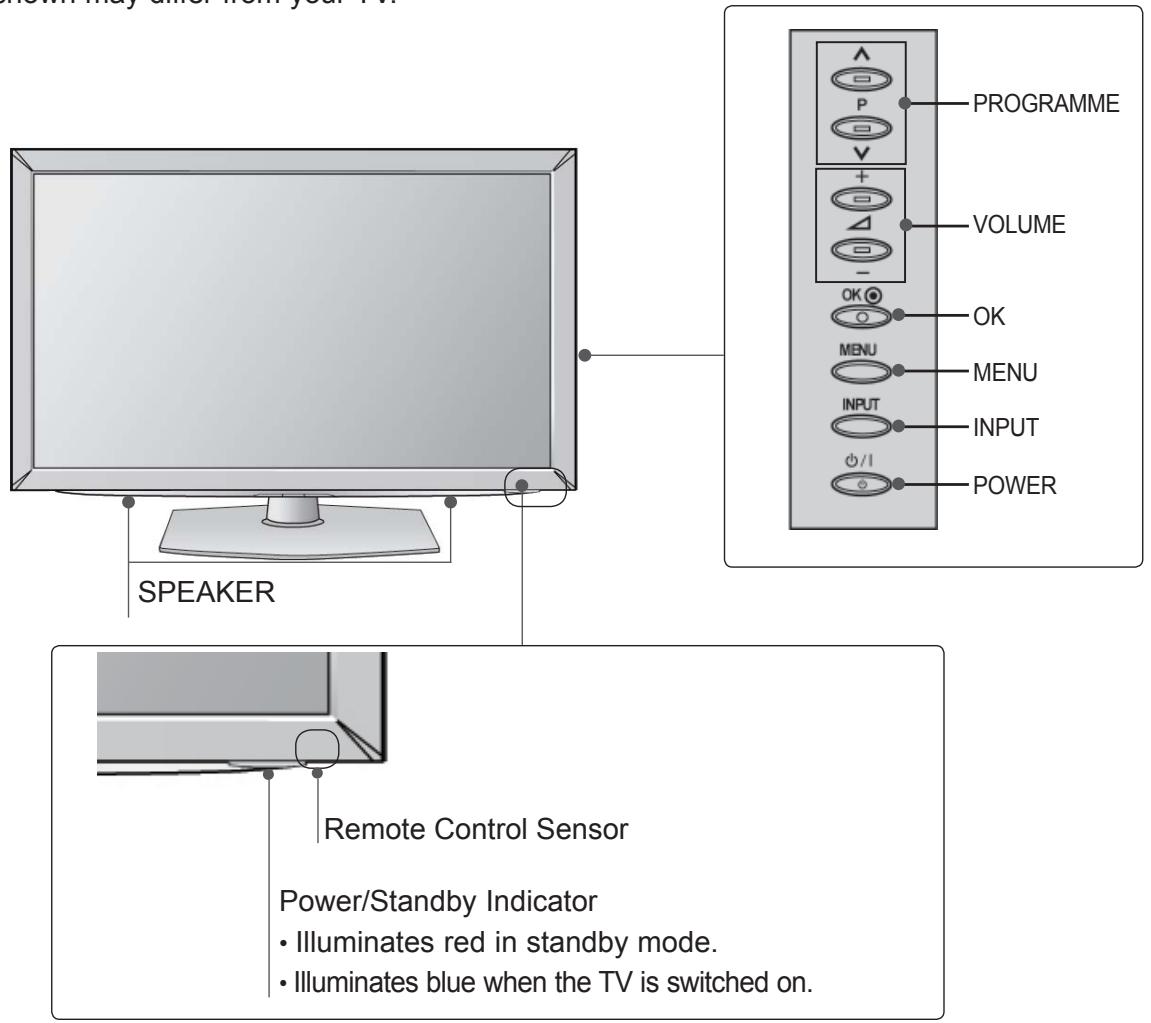

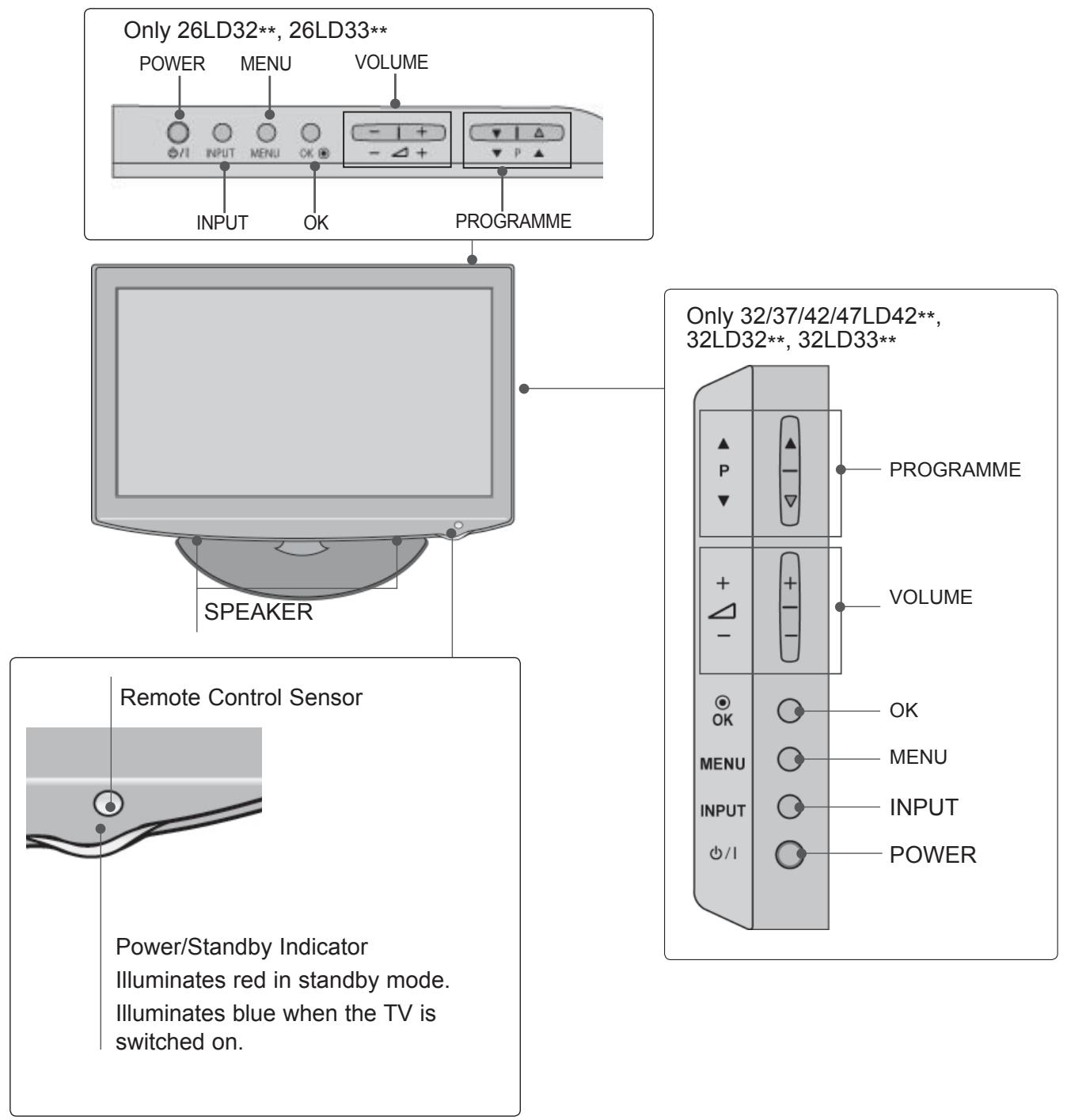

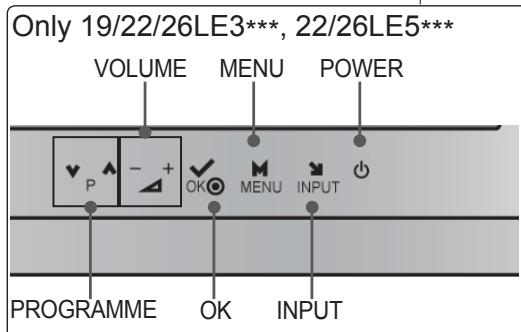

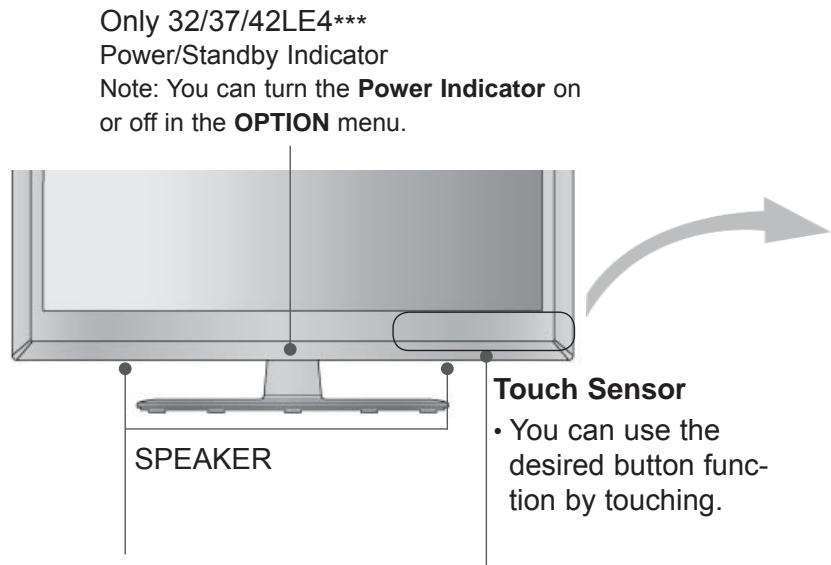

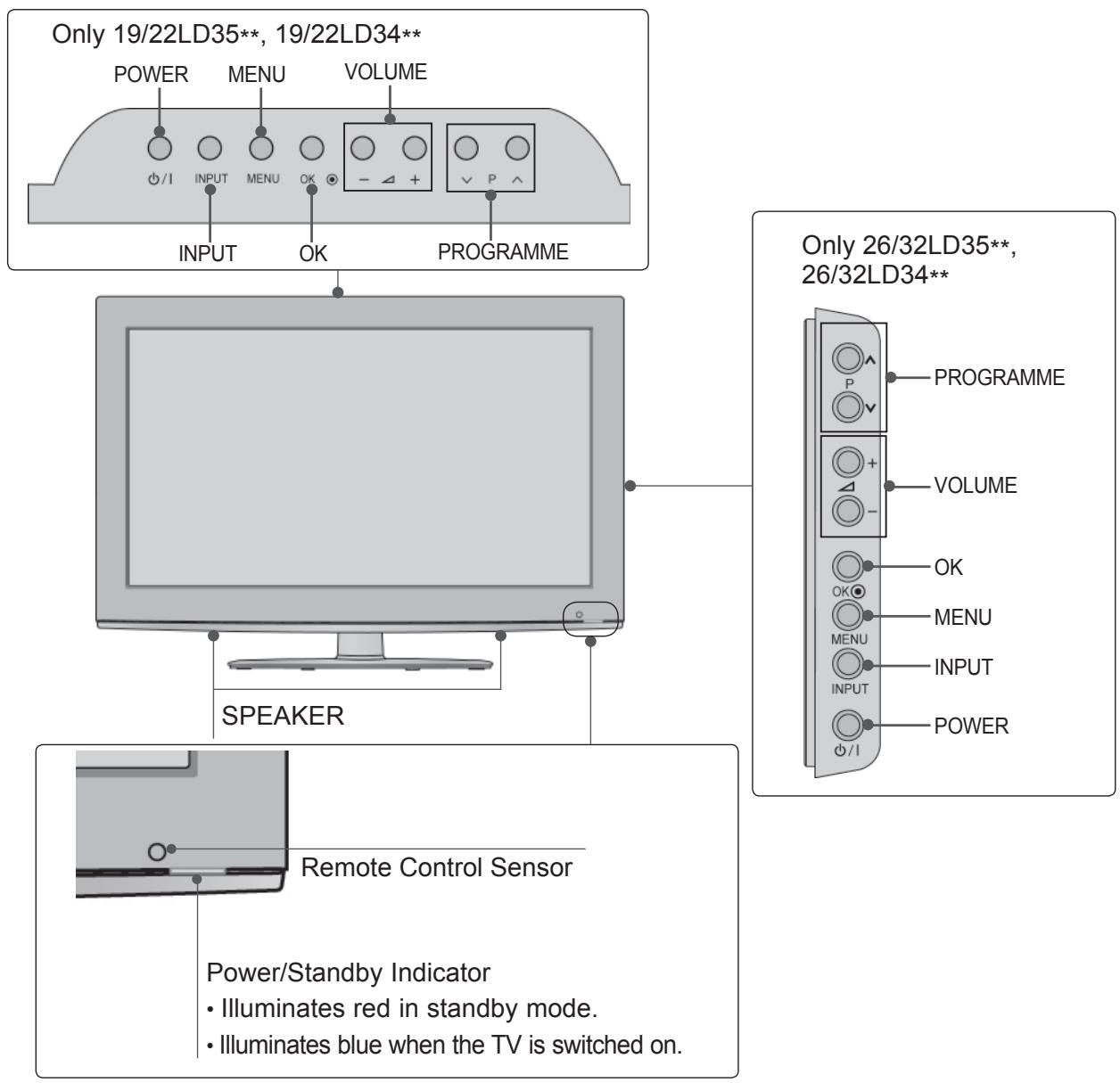

FRONT PANEL CONTROLS

NOTE

▶ TV can be placed in standby mode in order to reduce the power consumption. And TV should be switched off using the power switch on the TV if it will not be watched for some time, as this will reduce energy consumption.
The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

CAUTION

▶ Do not step on the glass stand or subject it to any impact. It may break, causing possible injury from fragments of glass, or the TV may fall.
▶ Do not drag the TV. The floor or the product may be damaged.

■ Image shown may differ from your TV.

Only 19/22LD35**, 19/22LD34** POWER MENU VOLUME +/I INPUT MENU OK - ▲ + ✓ P ^ INPUT OK PROGRAMME Only 26/32LD35**, 26/32LD34** P PROGRAMME VOLUME + - OK MENU INPUT POWER +/I SPEAKER Remote Control Sensor Power/Standby Indicator • Illuminates red in standby mode. • Illuminates blue when the TV is switched on.

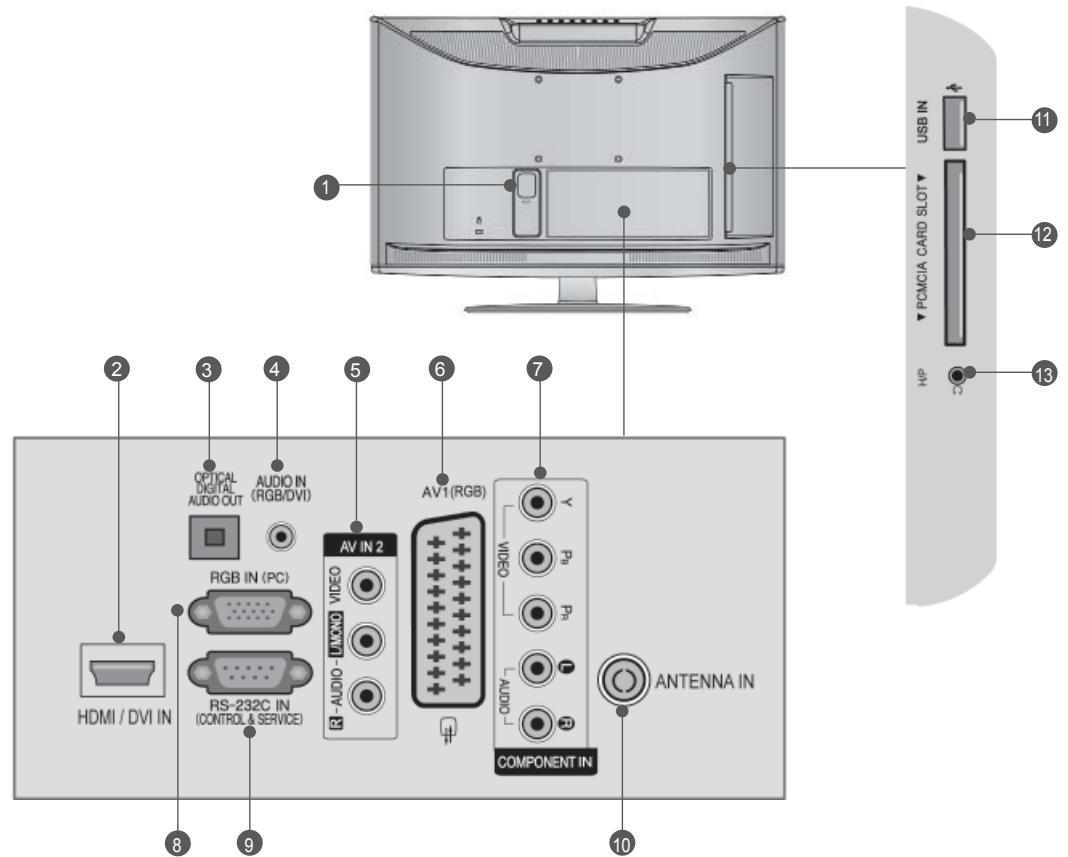

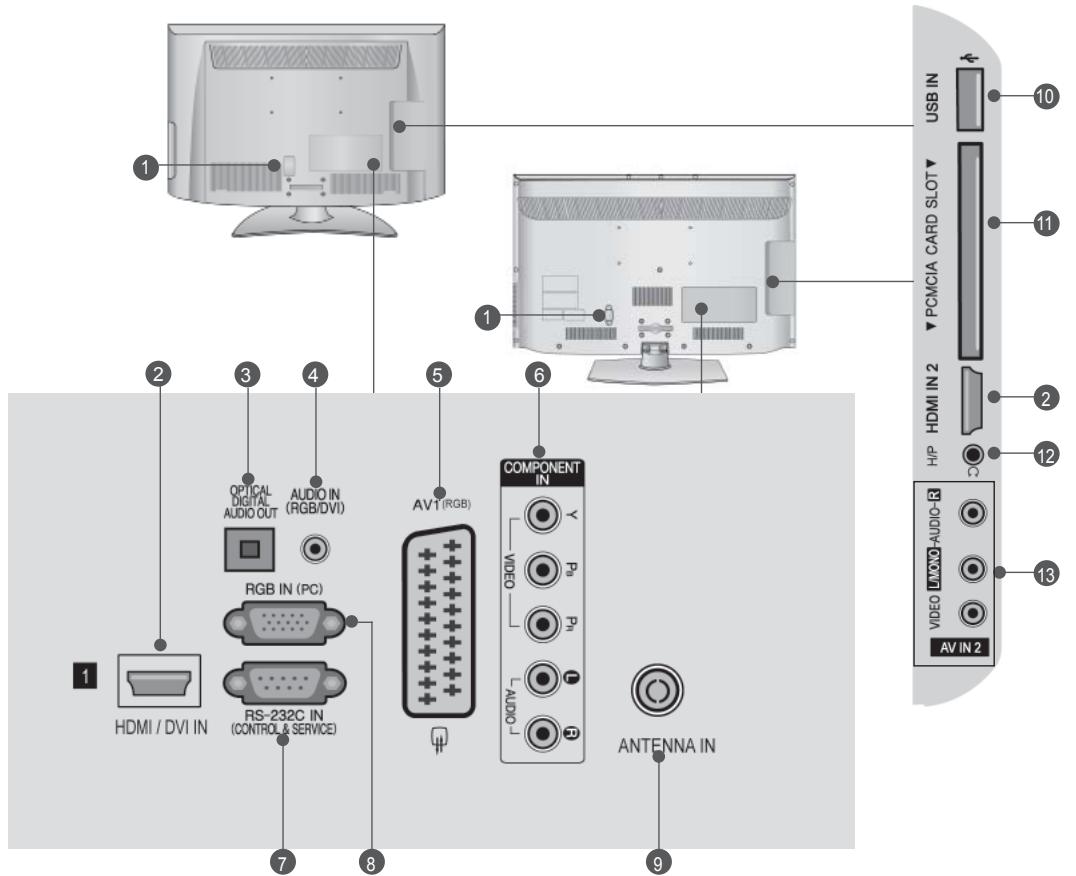

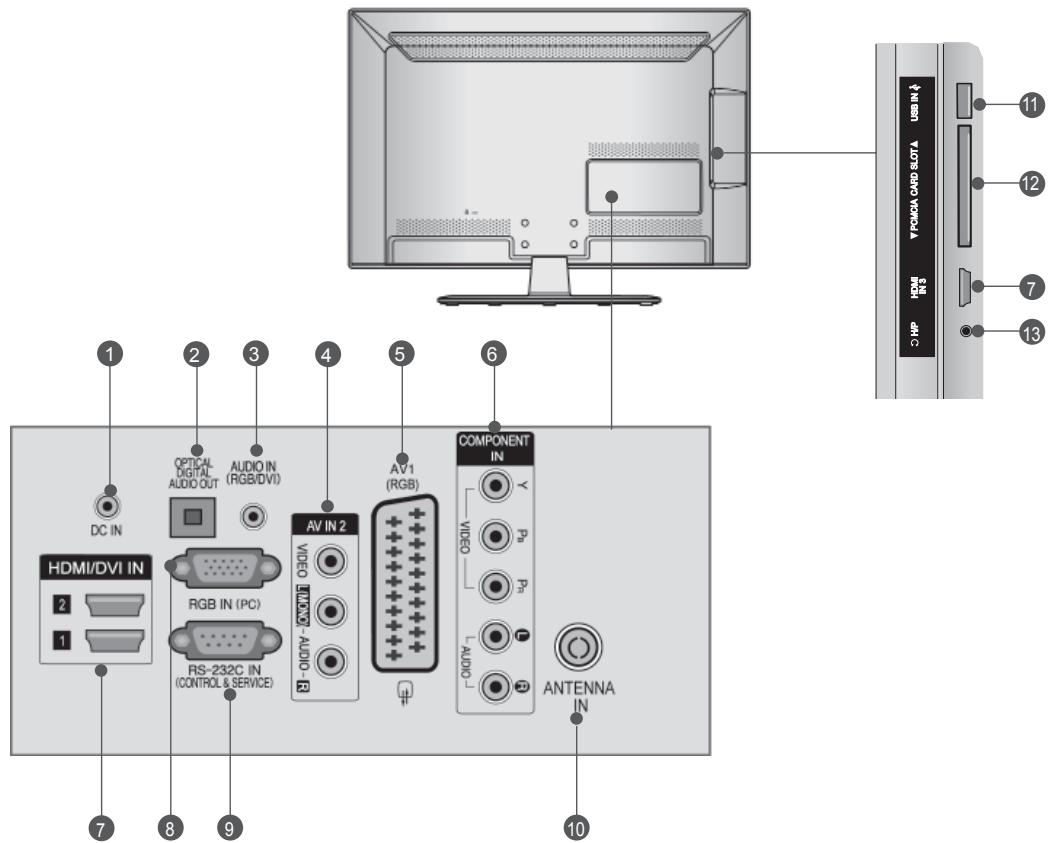

BACK PANEL INFORMATION

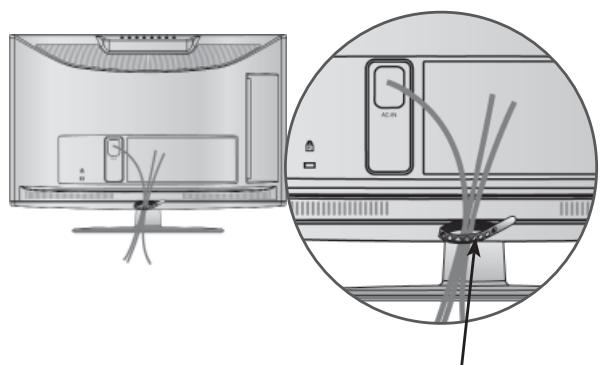

Only 19/22LD35\*\*, 19/22LD34\*\*

■ Image shown may differ from your TV.

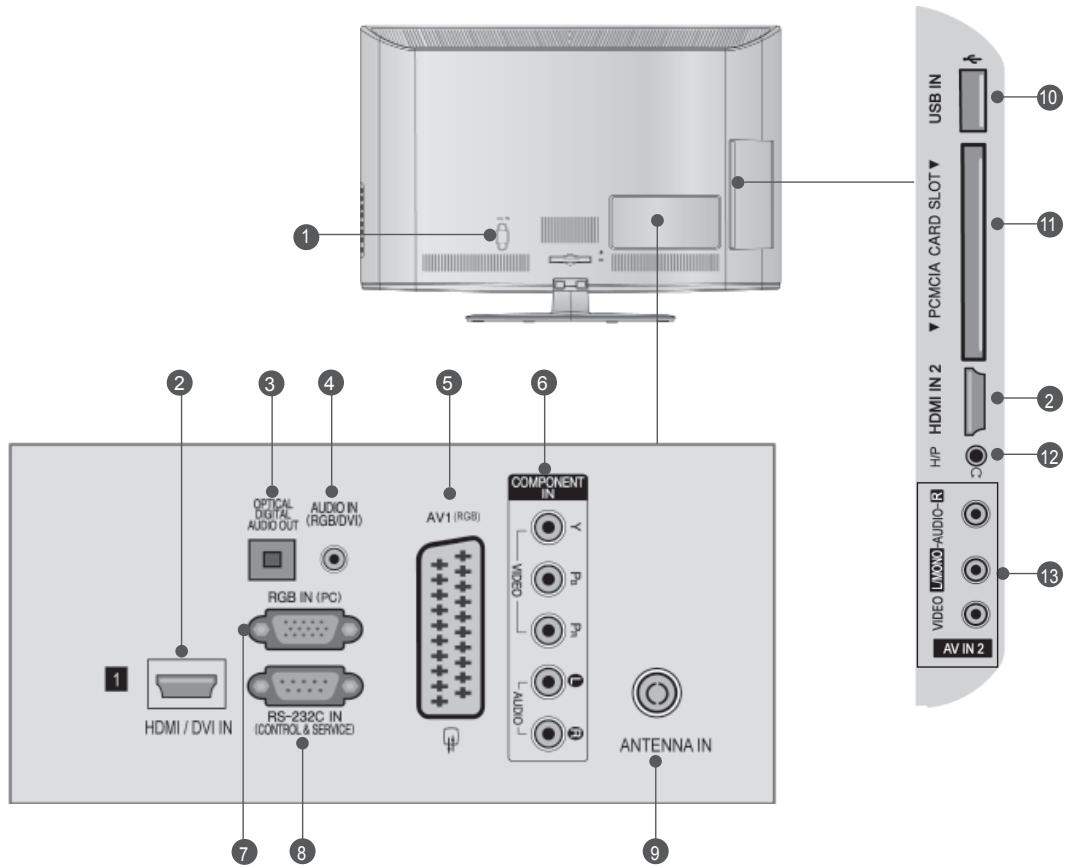

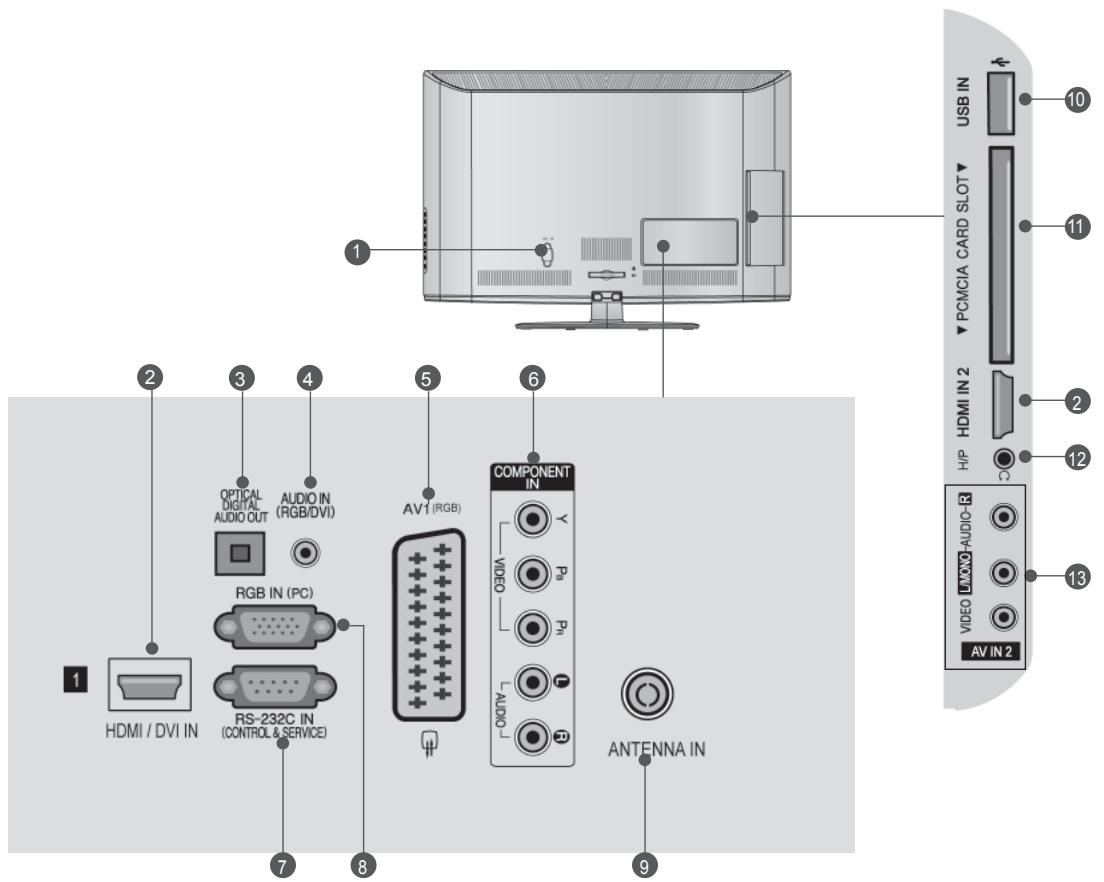

HDMI / DVI IN OPTICAL DIGITAL AUDIO OUT AUDIO IN (RGB/DVI) RGB IN (PC) RS-232C IN (CONTROL & SERVICE) AV IN 2 AV1(RGB) VIDEO AUDIO COMPONENT IN ANTENNA IN USB IN PCMCIA CARD SLOT HIP

1 Power Cord Socket
This TV operates on an AC power. The voltage is indicated on the Specifications page. (▶ p.137 to 147) Never attempt to operate the TV on DC power.
2 HDMI/DVI IN Input
Connect an HDMI signal to HDMI IN. Or DVI (VIDEO) signal to HDMI/DVI port with DVI to HDMI cable.

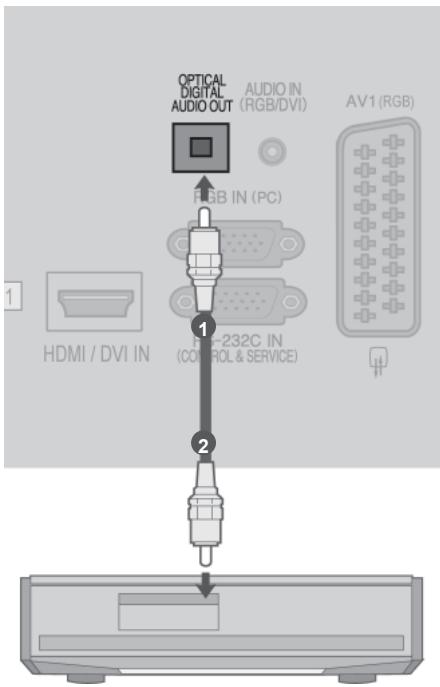

3 OPTICAL DIGITAL AUDIO OUT
Connect digital audio to various types of equipment. Connect to a Digital Audio Component. Use an Optical audio cable.
4 RGB/DVI Audio Input
Connect the audio from a PC or DTV.
5 Audio/Video Input
Connect audio/video output from an external device to these jacks.
6 Euro Scart Socket (AV1)
Connect scart socket input or output from an external device to these jacks.
⑦ Component Input
Connect a component video/audio device to these jacks.
8 RGB IN Input
Connect the output from a PC.
9 RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC. This port is used for Service or Hotel mode.
10 Antenna Input
Connect antenna or cable to this jack.
11 USB Input
Connect USB storage device to this jack.
⑫ PCMCIA (Personal Computer Memory Card International Association) Card Slot Insert the CI Module to PCMCIA CARD SLOT.
(This feature is not available in all countries.)
13 Headphone Socket
Plug the headphone into the headphone socket.

■ Image shown may differ from your TV.

1 2 3 4 5 6 OPTICAL DIGITAL AUDIO IN (RGB/DVI) RGB IN (PC) RS-232C IN (CONTROL & SERVICE) AV1 (RGB) COMPONENT IN Y W/OSO P0 P1 L/AMDIO ANTENNA IN 1 HDMI / DVI IN 7 8 9 USB IN PCMCIA CARD SLOT 2 HDMI IN 2 HP C VIDEO L/AMDIO AUDIO-R AV IN 2

1 Power Cord Socket

This TV operates on an AC power. The voltage is indicated on the Specifications page. (▶ p.137 to 147) Never attempt to operate the TV on DC power.

2 HDMI/DVI IN Input

Connect an HDMI signal to HDMI IN. Or DVI (VIDEO) signal to HDMI/DVI port with DVI to HDMI cable.

3 OPTICAL DIGITAL AUDIO OUT

Connect digital audio to various types of equipment.

Connect to a Digital Audio Component. Use an Optical audio cable.

4 RGB/DVI Audio Input

Connect the audio from a PC or DTV.

⑤ Euro Scart Socket (AV1)

Connect scart socket input or output from an external device to these jacks.

6 Component Input

Connect a component video/audio device to these jacks.

7 RGB IN Input

Connect the output from a PC.

8 RS-232C IN (CONTROL & SERVICE) PORT

Connect to the RS-232C port on a PC.

This port is used for Service or Hotel mode.

9 Antenna Input

Connect antenna or cable to this jack.

10 USB Input

Connect USB storage device to this jack.

11 PCMCIA (Personal Computer Memory Card International Association) Card Slot Insert the CI Module to PCMCIA CARD SLOT.

(This feature is not available in all countries.)

12 Headphone Socket

Plug the headphone into the headphone socket.

13 Audio/Video Input

Connect audio/video output from an external device to these jacks.

■ Image shown may differ from your TV.

1 2 3 4 5 6 COMPONENT IN VIDEO PH AV1 (RGB) HDMI / DVI IN OPTICAL DIGITAL AUDIO OUT AUDIO IN (RGB/DVI) RGB IN (PC) RS-232C IN (CONTROL & SERVICE) 7 8 ANTENNA IN 9 10 USB IN PCMCIA CARD SLOT 2 HP HDMI IN 2 VIDEO LXXX/AUDIO-R AV IN 2 11 12 13

1 Power Cord Socket

This TV operates on an AC power. The voltage is indicated on the Specifications page. (▶ p.137 to 147) Never attempt to operate the TV on DC power.

2 HDMI/DVI IN Input

Connect an HDMI signal to HDMI IN. Or DVI (VIDEO) signal to HDMI/DVI port with DVI to HDMI cable.

3 OPTICAL DIGITAL AUDIO OUT

Connect digital audio to various types of equipment. Connect to a Digital Audio Component. Use an Optical audio cable.

4 RGB/DVI Audio Input

Connect the audio from a PC or DTV.

5 Euro Scart Socket (AV1)

Connect scart socket input or output from an external device to these jacks.

6 Component Input

Connect a component video/audio device to these jacks.

7 RS-232C IN (CONTROL & SERVICE) PORT

Connect to the RS-232C port on a PC. This port is used for Service or Hotel mode.

8 RGB IN Input

Connect the output from a PC.

9 Antenna Input

Connect antenna or cable to this jack.

10 USB Input

Connect USB storage device to this jack.

11 PCMCIA (Personal Computer Memory Card International Association) Card Slot Insert the CI Module to PCMCIA CARD SLOT.

(This feature is not available in all countries.)

12 Headphone Socket

Plug the headphone into the headphone socket.

13 Audio/Video Input

Connect audio/video output from an external device to these jacks.

STAND INSTALLATION

■ Image shown may differ from your TV.

When assembling the desk type stand, check whether the bolt is fully tightened. (If not tightened fully, the product can tilt forward after the product installation.) If you tighten the bolt with excessive force, the bolt can deviate from abrasion of the tightening part of the bolt.

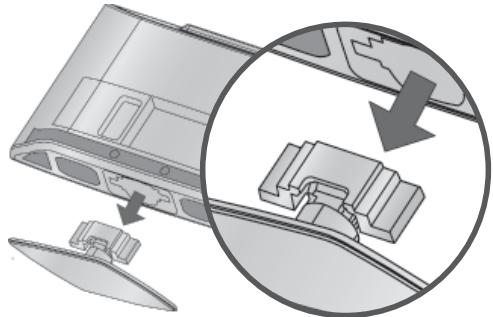

Only 19/22LD35\*\*, 19/22LD34\*\*

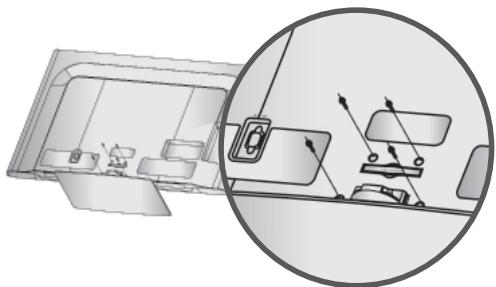

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

3D technical illustration of a mechanical housing or enclosure with internal compartments and mounting brackets (no text or symbols)

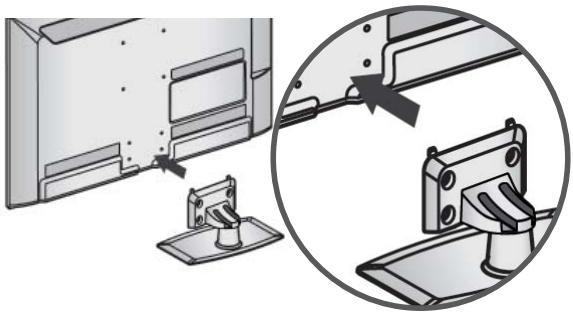

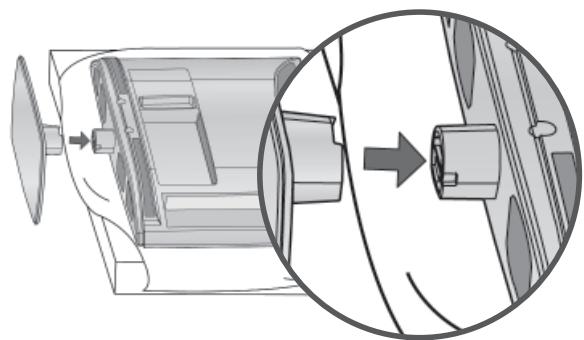

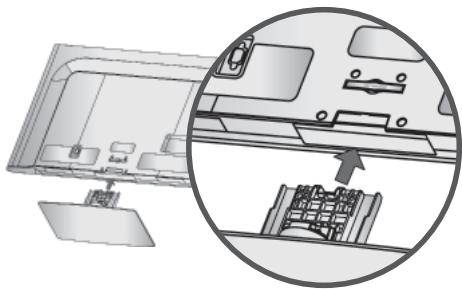

2 Assemble the TV as shown.

Technical illustration of a mechanical device with an inset close-up showing internal components (no text or symbols)

Only 26/32LD35\*\*, 26/32LD34\*\*

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

Isometric line drawing of a rectangular electronic component with a flat top and base, placed on a folded surface (no text or symbols)

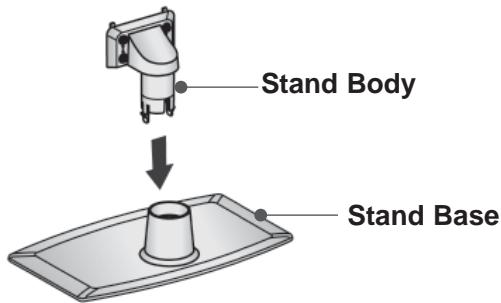

② Assemble the parts of the Stand Body with the Stand Base of the TV.

Stand Body Stand Base

3 Assemble the TV as shown.

Diagram showing a device with internal components and an inset close-up of a component detail (no text or symbols)

4 Fix the 4 bolts securely using the holes in the back of the TV.

3D technical illustration of a mechanical component with mounting holes and internal channels (no text or symbols)

NOT USING THE DESK-TYPE STAND

■ Image shown may differ from your TV.

When installing the wall-mounted unit, use the protection cover.

Only 19/22LD35\*\*, 19/22LD34\*\*

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

3D technical drawing of a mechanical component with no visible text or symbols

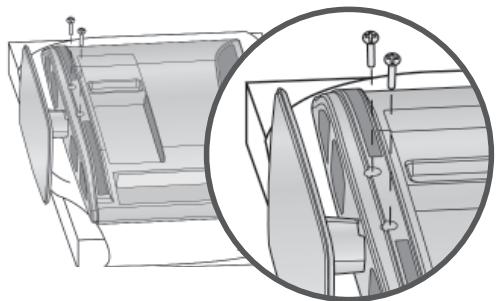

2 Loose the bolts from TV.

Technical illustration of a mechanical component with an inset close-up showing internal parts (no text or symbols)

3 Detach the stand from TV.

Diagram showing a device component with an inset close-up of its internal structure (no text or symbols)

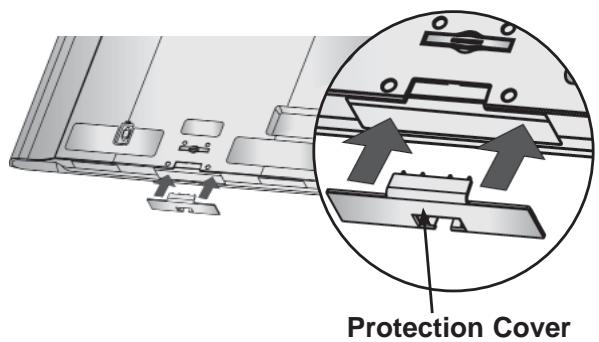

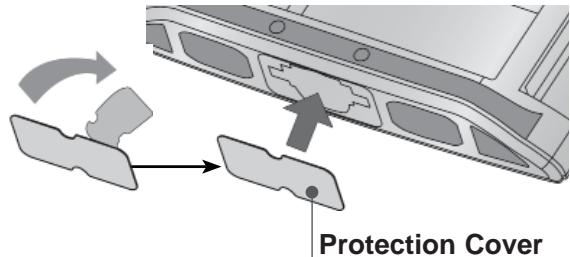

4 Insert the Protection Cover into the TV. After removing the protection paper from the protection cover, adhere it to the TV as shown.

Protection Cover

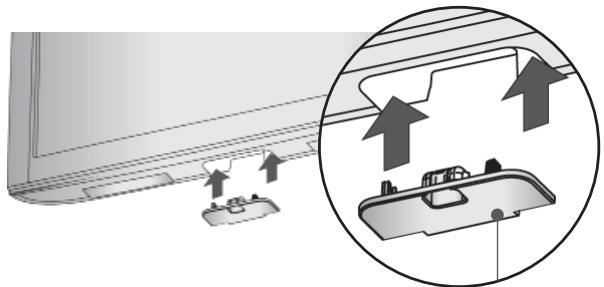

Only 26/32LD35\*\*, 26/32LD34\*\*

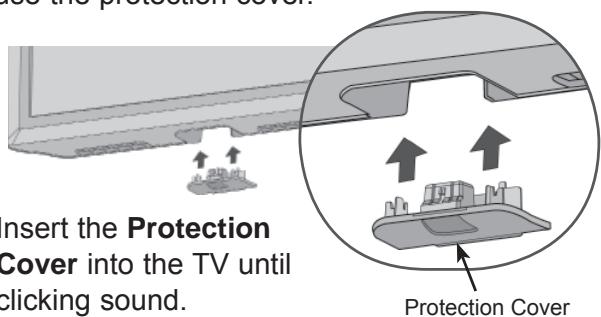

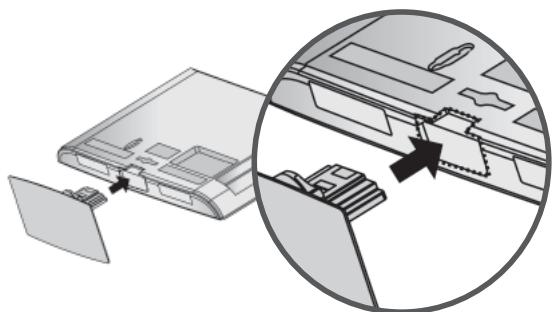

Insert the Protection Cover into the TV until clicking sound.

Diagram showing airflow or ventilation system with arrows pointing to a component inside a device (no text or symbols present)

Protection Cover

BACK COVER FOR WIRE ARRANGEMENT

■ Image shown may differ from your TV.

Only 19/22LD35\*\*, 19/22LD34\*\*

After connecting the cables as necessary, install Cable Holder as shown and bundle the cables.

Illustration of a computer monitor and its rear panel showing cable routing (no text or symbols)

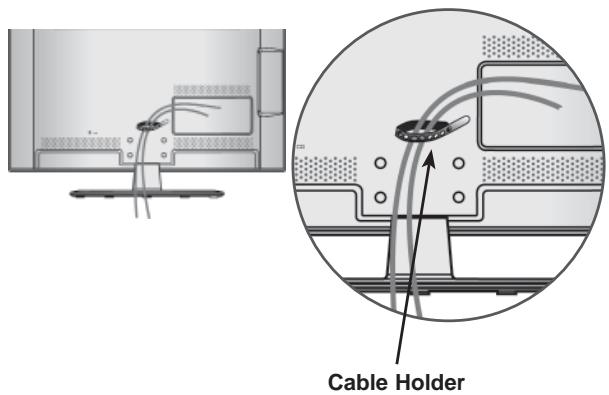

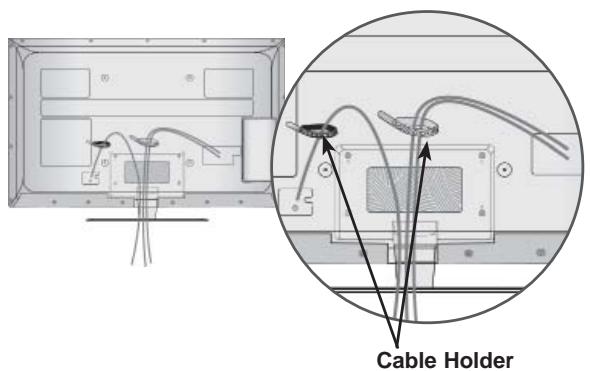

Cable Holder

Only 26/32LD35\*\*, 26/32LD34\*\*

1 Connect the cables as necessary. To connect additional equipment, see the External Equipment Setup section.

Line drawing of a flat-screen TV with cable routing and ventilation slots (no text or symbols)

2 Open the Cable Management Clip as shown.

Diagram showing a monitor setup with an inset close-up of its viewing screen and a mechanical device (no text or symbols present)

Cable Management Clip

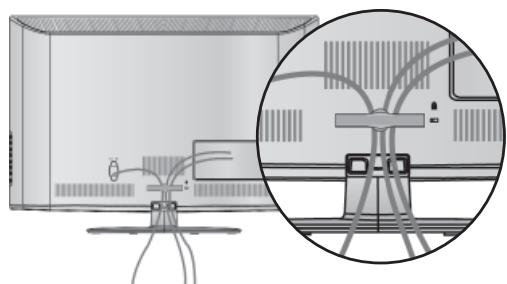

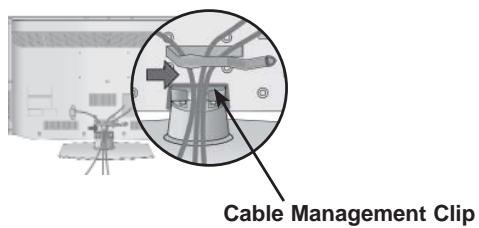

3 Fit the Cable Management Clip as shown.

Illustration of a flat-screen TV with cable connectors and a magnified inset showing internal wiring (no text or symbols)

NOTE

▶ Do not use the Cable Management Clip to lift the TV.
- If the TV is dropped, you may be injured or the TV may be damaged.

SWIVEL STAND

(Except for 19/22LD35**, 19/22LD34**)

■ Image shown may differ from your TV.

After installing the TV, you can adjust the TV set manually to the left or right direction by 20 degrees to suit your viewing position.

Diagram of a mechanical component with angular and linear motion indicators (no text or symbols)

POSITIONING YOUR DISPLAY

(Only 19/22LD35**, 19/22LD34**)

■ Image shown may differ from your TV.

■ Adjust the position of the panel in various ways for maximum comfort.

- Tilt range

12° 0° 0° 3°

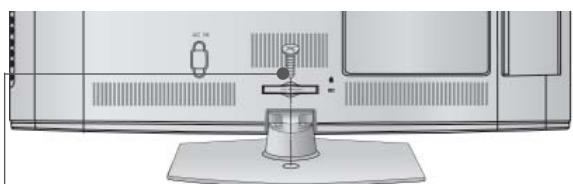

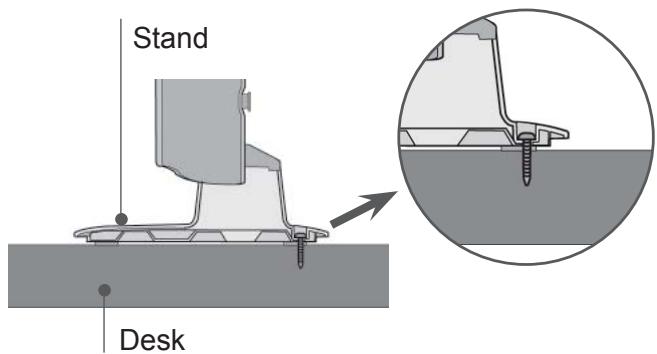

ATTACHING THE TV TO A DESK (Only 26/32LD35\*\*, 26/32LD34\*\*)

■ Image shown may differ from your TV.

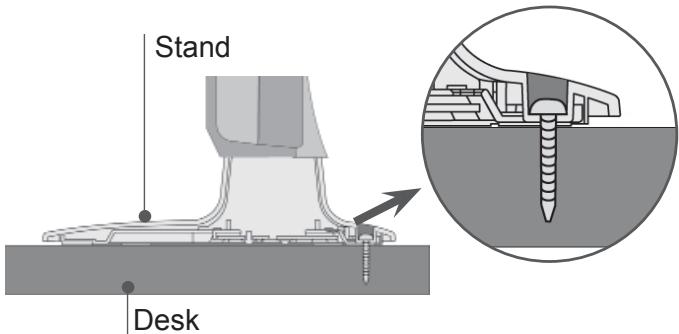

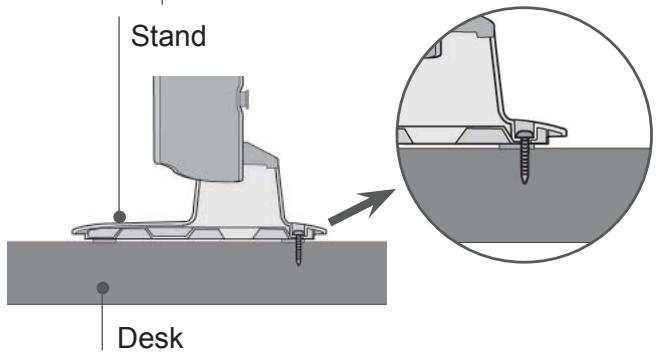

The TV must be attached to desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product. Use only an attached screw.

Technical line drawing of a mechanical assembly with a cylindrical component mounted on a base (no text or symbols visible)

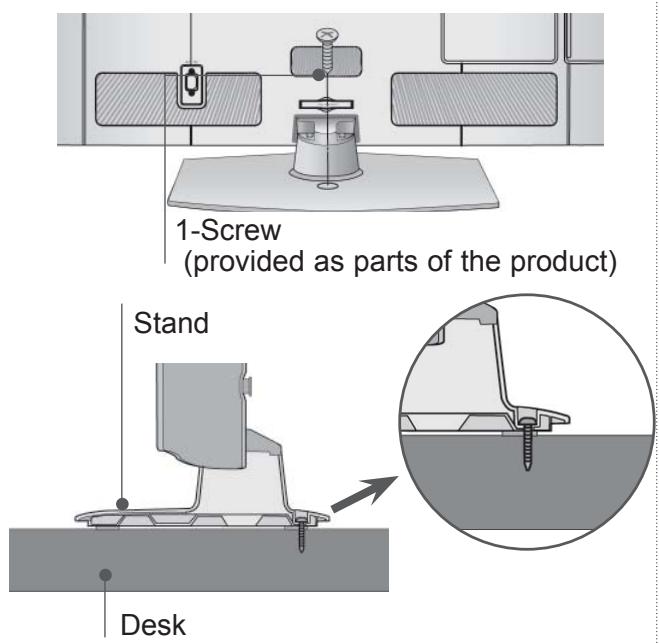

1-Screw (provided as parts of the product)

Stand Desk

! WARNING

▶ To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the machine may cause injury.

KENSINGTON SECURITY SYSTEM

■ This feature is not available for all models.
■ Image shown may differ from your TV.

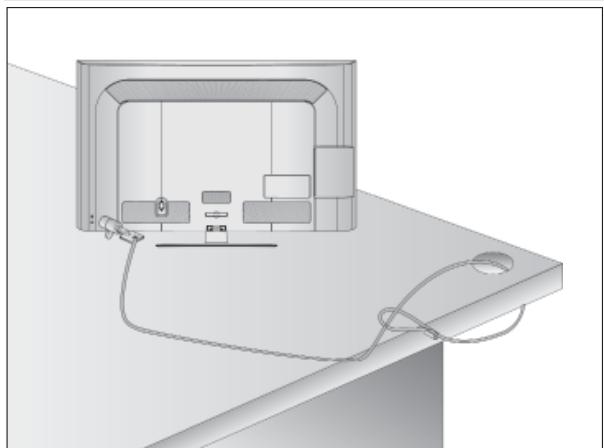

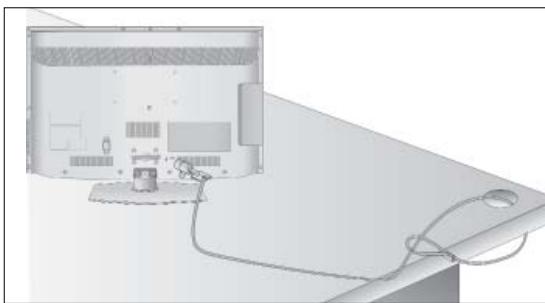

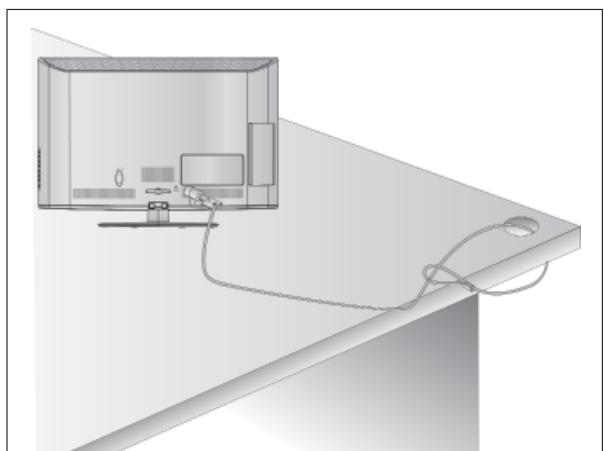

The TV is equipped with a Kensington Security System connector on the back panel. Connect the Kensington Security System cable as shown below.

For the detailed installation and use of the Kensington Security System, refer to the user's guide provided with the Kensington Security System.

For further information, contact http://www.kensington.com, the internet homepage of the Kensington

company. Kensington sells security systems for expensive electronic equipment such as notebook PCs and LCD projectors.

NOTE

▶ The Kensington Security System is an optional accessory.
If the TV feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with TV.
▶ Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance.
▶ Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

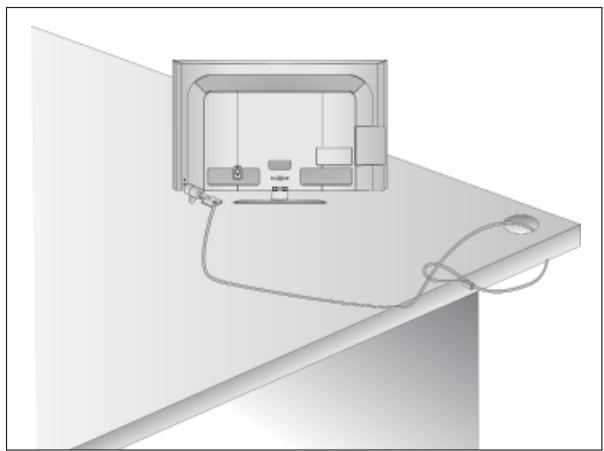

Illustration of a monitor connected to a cable on a flat surface (no text or symbols)

CAREFUL INSTALLATION ADVICE

■ You should purchase necessary components to fix the TV safety and secure to the wall on the market.
■ Position the TV close to the wall to avoid the possibility of it falling when pushed.
■ The instructions shown below are a safer way to set up the TV, by fixing it to the wall, avoiding the possibility of it falling forwards if pulled. This will prevent the TV from falling forward and causing injury. This will also prevent the TV from damage. Ensure that children do not climb or hang from the TV.

1 2

1 2

1 Use the eye-bolts or TV brackets/bolts to fix the product to the wall as shown in the picture.
(If your TV has bolts in the eyebolts, loosen then bolts.)
* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.

2 Secure the wall brackets with the bolts on the wall. Match the height of the bracket that is mounted on the wall.

Simple line drawing of a vertical computer monitor with a base, labeled '3' on the side (no text or symbols on the device itself)

3 Use a sturdy rope to tie the product for alignment. It is safer to tie the rope so it becomes horizontal between the wall and the product.

NOTE

▶ When moving the TV undo the cords first.
▶ Use a platform or cabinet strong and large enough to support the size and weight of the TV.
▶ To use the TV safely make sure that the height of the bracket on the wall and on the TV is the same.

■ The TV can be installed in various ways such as on a wall, or on a desktop etc.
■ The TV is designed to be mounted horizontally.

EARTHING

Ensure that you connect the earth wire to prevent possible electric shock. If grounding methods are not possible, have a qualified electrician install a separate circuit breaker.

Do not try to earth the TV by connecting it to telephone wires, lightening rods or gas pipes.

Power Supply Circuit breaker

DESKTOP PEDESTAL INSTALLATION

■ Image shown may differ from your TV.

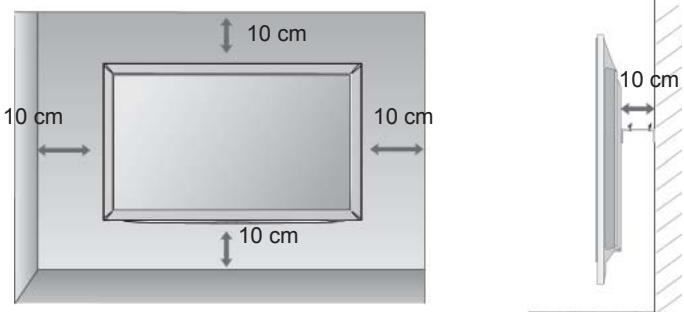

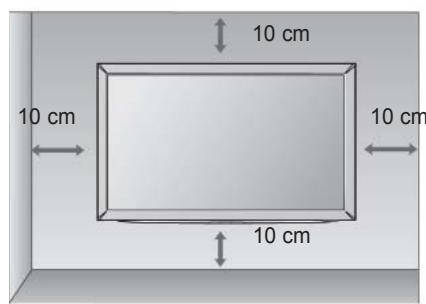

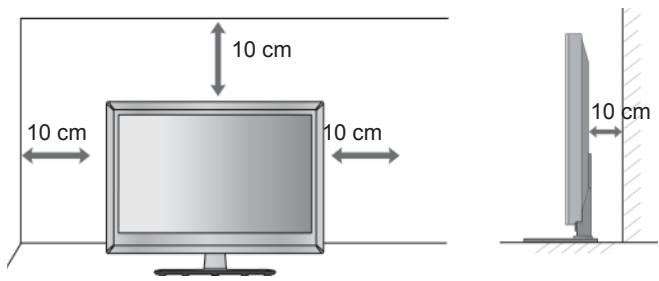

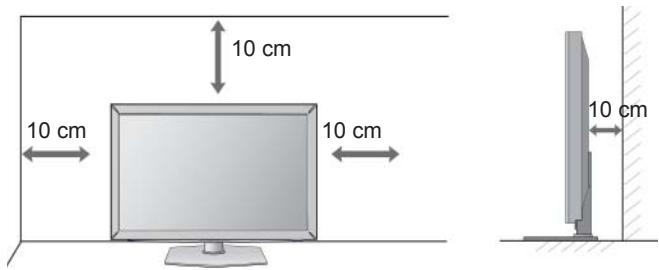

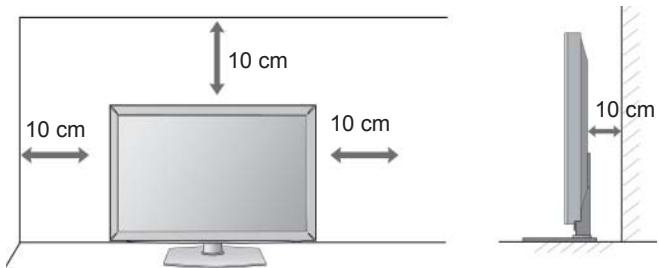

For adequate ventilation allow a clearance of 10 cm all around the TV.

10 cm 10 cm 10 cm 10 cm

WALL MOUNT: HORIZONTAL INSTALLATION

■ We recommend the use of a LG Brand wall mounting bracket when mounting the TV to a wall.
■ We recommend that you purchase a wall mounting bracket which supports VESA standard.
■ LG recommends that wall mounting be performed by a qualified professional installer.

NOTE

▶ Should Install wall mount on a solid wall perpendicular to the floor.
▶ Should use a special wall mount, if you want to install it to ceiling or slanted wall.
The surface that wall mount is to be mounted on should be of sufficient strength to support the weight of TV set; e.g. concrete, natural rock, brick and hollow block.
▶ Installing screw type and length depends on the wall mount used. Further information, refer to the instructions included with the mount.
▶ LG is not liable for any accidents or damage to property or TV due to incorrect installation:

• Where a non-compliant VESA wall mount is used.
• Incorrect fastening of screws to surface which may cause TV to fall and cause personal injury.
• Not following the recommended Installation method.

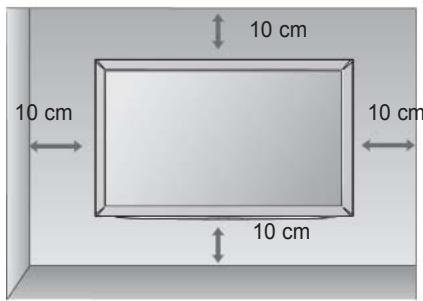

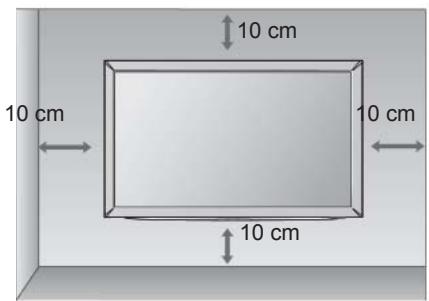

10 cm 10 cm 10 cm 10 cm

10 cm

A B

Model	VESA (A * B)	Standard Screw	Quantity
19/22LD35**	100 * 100	M4	4
26/32LD35**	200 * 100	M4	4
19/22LD34**	100 * 100	M4	4
26/32LD34**	200 * 100	M4	4

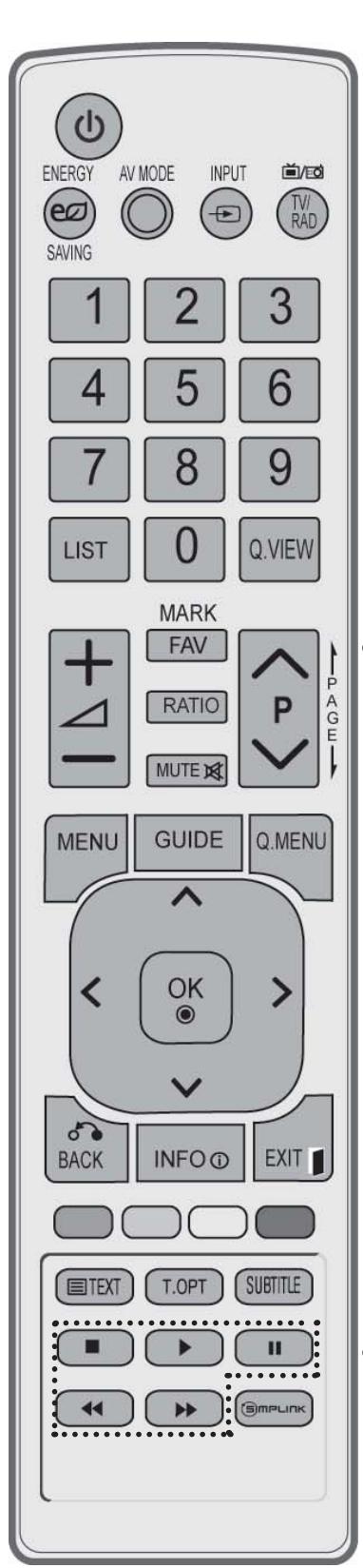

REMOTE CONTROL KEY FUNCTIONS

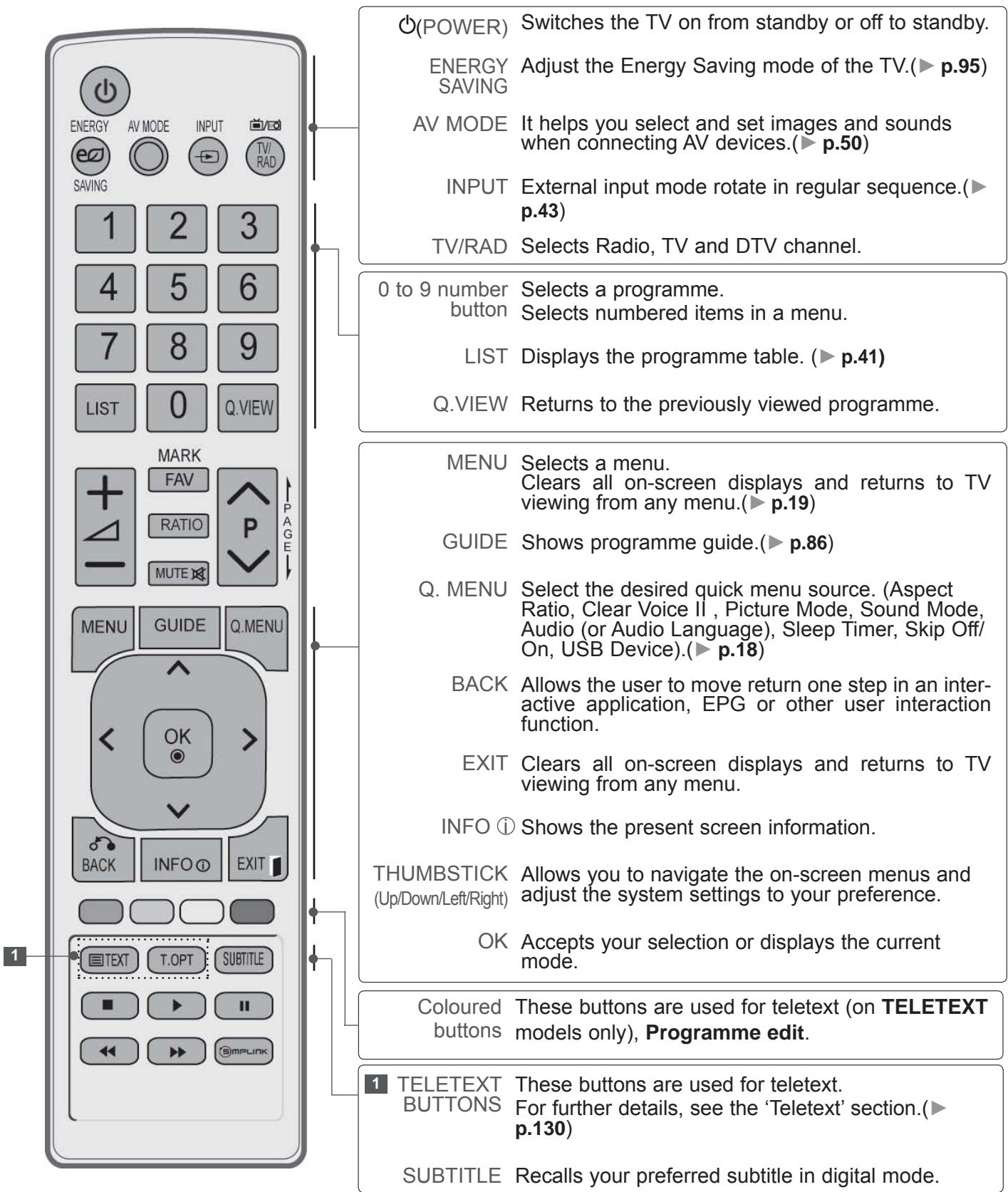

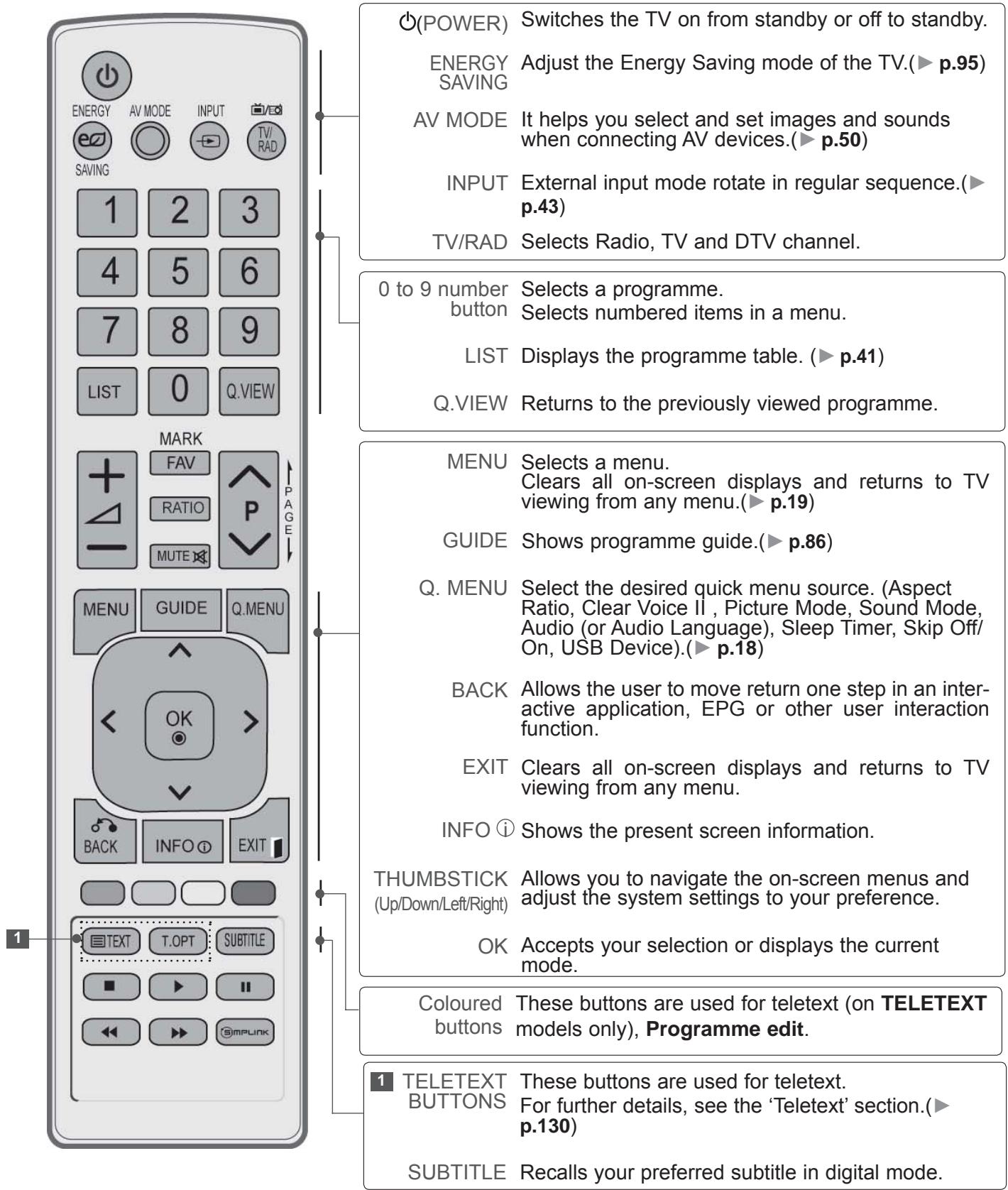

When using the remote control, aim it at the remote control sensor on the TV.

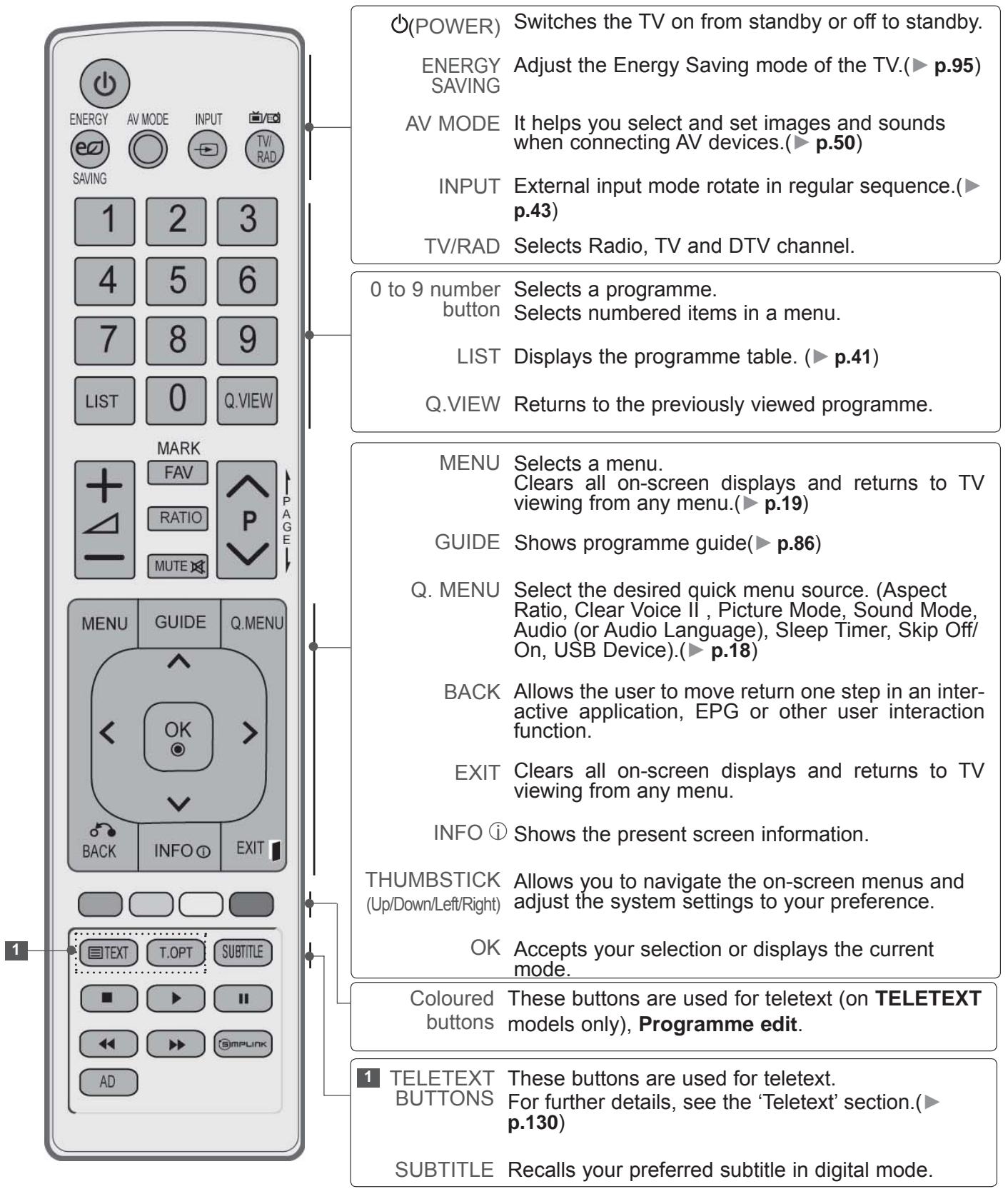

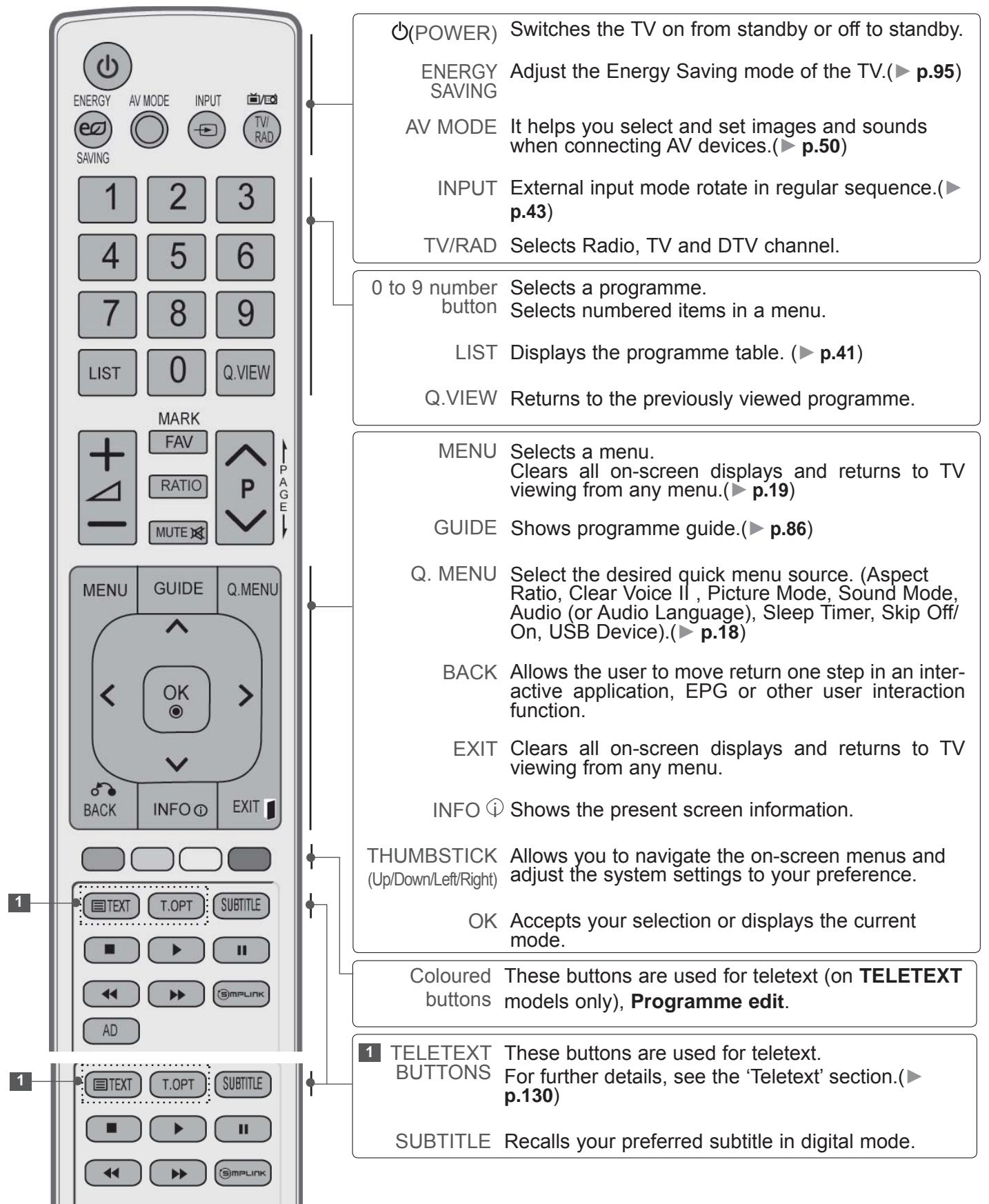

POWER Switches the TV on from standby or off to standby. ENERGY SAVING Adjust the Energy Saving mode of the TV.(► p.95) AV MODE It helps you select and set images and sounds when connecting AV devices.(► p.50) INPUT External input mode rotate in regular sequence.(► p.43) TV/RAD Selects Radio, TV and DTV channel. 0 to 9 number selects a programme. button Selects numbered items in a menu. LIST Displays the programme table. (► p.41) Q.VIEW Returns to the previously viewed programme. MENU Selects a menu. Clears all on-screen displays and returns to TV viewing from any menu.(► p.19) GUIDE Shows programme guide.(► p.86) Q. MENU Select the desired quick menu source. (Aspect Ratio, Clear Voice II , Picture Mode, Sound Mode, Audio (or Audio Language), Sleep Timer, Skip Off/ On, USB Device).(► p.18) BACK Allows the user to move return one step in an interactive application, EPG or other user interaction function. EXIT Clears all on-screen displays and returns to TV viewing from any menu. INFO ① Shows the present screen information. THUMBSTICK Allows you to navigate the on-screen menus and adjust the system settings to your preference. OK Accepts your selection or displays the current mode. Coloured These buttons are used for teletext (on TELETEXT buttons models only), Programme edit. TELETEXT BUTTONS These buttons are used for teletext. For further details, see the 'Teletext' section.(► p.130) SUBTITLE Recalls your preferred subtitle in digital mode.

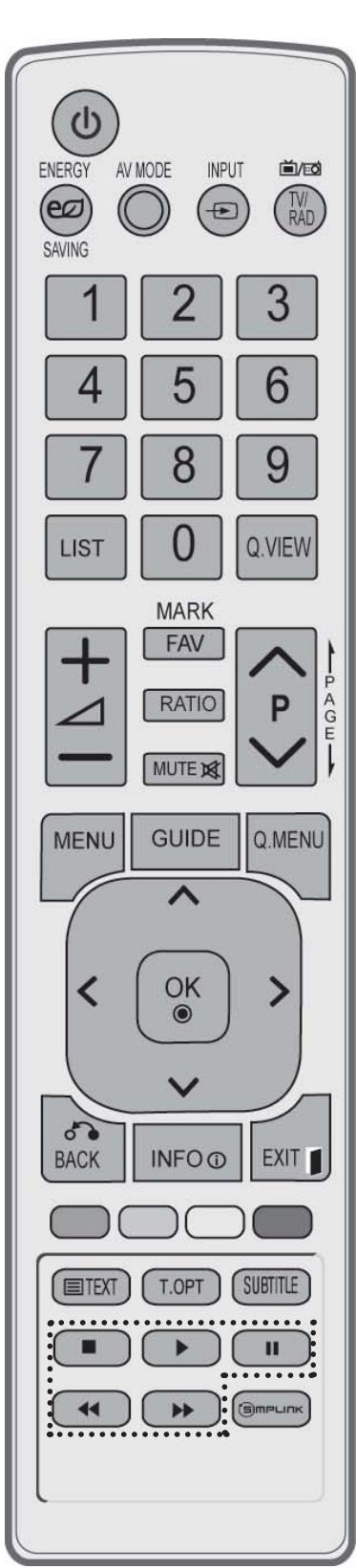

ENERGY AV MODE INPUT TV/RAD SAVING 1 2 3 4 5 6 7 8 9 LIST 0 Q.VIEW MARK FAV RATIO MUTE PAGE MENU GUIDE Q.MENU OK BACK INFO EXIT TEXT T.OPT SUBTITLE ■ ▶ ■ ◀ ▶ Simplink

VOLUME UP /DOWN Adjusts the volume.

FAV Displays the selected favourite programme.

MARK Select the input to apply the Picture Wizard settings. Check and un-check programmes in the USB menu.

RATIO Selects your desired Aspect Ratio of picture. (▶ p.92)

MUTE Switches the sound on or off.

Programme Selects a programme. UP/DOWN

PAGE UP/ DOWN Move from one full set of screen information to the next one.

SIMPLINK / Controls SIMPLINK or MY MEDIA menu(Photo List and Music List). control buttons

See a list of AV devices connected to TV. When you toggle this button, the Simplink menu appears at the screen.(▶ p.46)

Installing Batteries

■ Open the battery compartment cover on the back and install the batteries matching correct polarity (+with +,-with -).
■ Install two 1.5 V AAA batteries. Do not mix old or used batteries with new ones.
■ Close cover.
■ To remove the batteries, perform the installation actions in reverse.

LCD TV MODELS : 32/37/42/47LD4\*\*\*, 26/32LD32\*\*, 26/32LD33\*\*

ACCESSORIES

Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the TV.

■ Image shown may differ from your TV.

Owner's Manual

Owner's Manual

Batteries (AAA)

Front view of a remote control with keypad and function buttons (no visible text or symbols)

Remote Control

Ferrite Core (This item is not included for all models.)

Power Cord

This item is not included for all models.

Polishing Cloth Polishing cloth for use on the screen.

* Lightly wipe any stains or fingerprints on the surface of the TV with the polishing cloth.

Do not use excessive force. This may cause scratching or discolouration.

x 8

x 4

(M4x20) (Only 32/37/ 42/47LD45**)

(M4x24) (Only 32/37/ 42/47LD42**, 26/32LD32**, 26/32LD33**)

1-screw for stand fixing (Only 32/37/42LD4***, 26/32LD32**, 26/32LD33**)

Protection Cover

Bolts for stand assembly

Use of ferrite core (This feature is not available for all models.)

Ferrite core can be used to reduce the electromagnetic wave when connecting the power cord.

The closer the location of the ferrite core to the power plug, the better it is.

Illustration of a coiled cable with connectors and a connector plug, no text or symbols present

Install the power plug closely.

FRONT PANEL CONTROLS

NOTE

▶ TV can be placed in standby mode in order to reduce the power consumption. And TV should be switched off using the power switch on the TV if it will not be watched for some time, as this will reduce energy consumption.
The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

CAUTION

▶ Do not step on the glass stand or subject it to any impact. It may break, causing possible injury from fragments of glass, or the TV may fall.
▶ Do not drag the TV. The floor or the product may be damaged.

Only 32/37/42/47LD45\*\*

■ Image shown may differ from your TV.

Month may alter from your PC SPEAKER PROGRAMME VOLUME OK OK MENU MENU INPUT INPUT POWER Remote Control Sensor Power/Standby Indicator • Illuminates red in standby mode. • Illuminates blue when the TV is switched on.

Only 32/37/42/47LD42**, 26/32LD32**, 26/32LD33**

Only 26LD32**, 26LD33** POWER MENU VOLUME +/I INPUT MENU OK -1 + -△+ - ▲ ▲ P ▲ INPUT OK PROGRAMME SPEAKER Only 32/37/42/47LD42**, 32LD32**, 32LD33** PROGRAMME VOLUME OK MENU INPUT +/I POWER Remote Control Sensor Power/Standby Indicator Illuminates red in standby mode. Illuminates blue when the TV is switched on.

BACK PANEL INFORMATION

■ Image shown may differ from your TV.

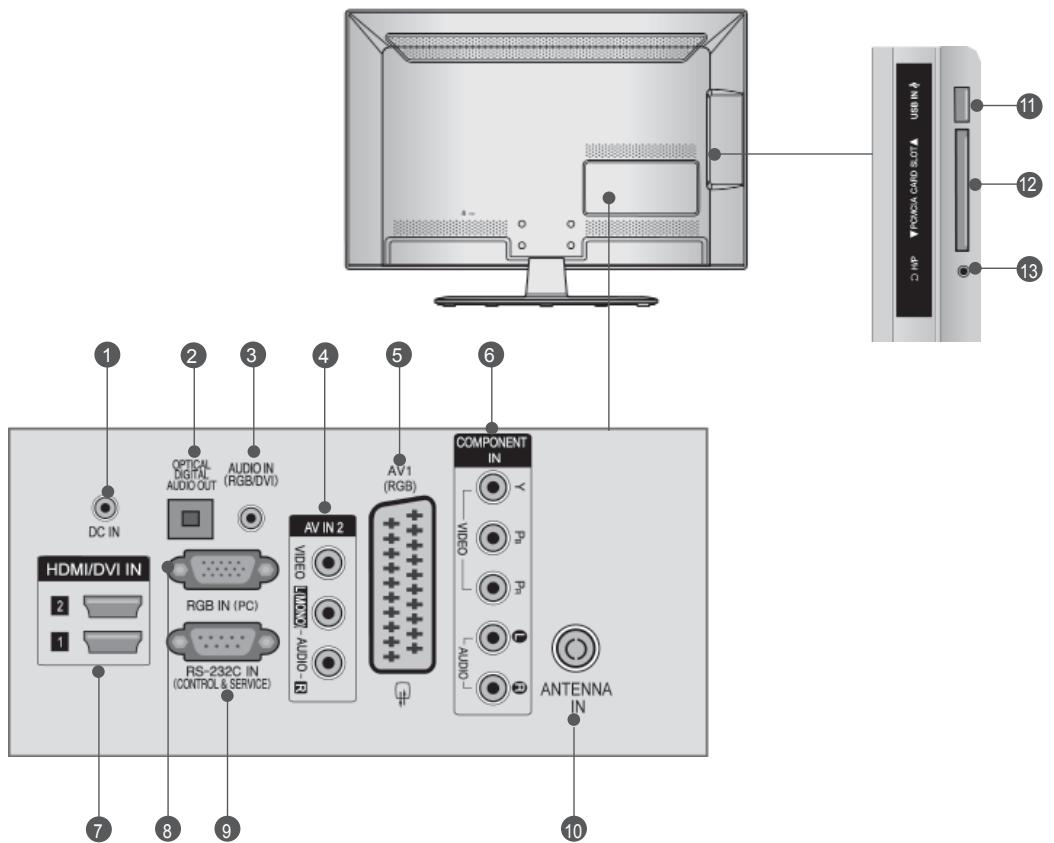

1 2 3 4 5 6 COMPONENT IN VIDEO AV1 (RGB) RGB IN (PC) HDMI / DVI IN RS-232C IN (CONTROL & SERVICE) 7 8 ANTENNA IN 9 10 USB IN 11 PCMCIA CARD SLOT 2 HDMI IN 2 HIP 12 VIDEO AV IN 2 13

1 Power Cord Socket

This TV operates on an AC power. The voltage is indicated on the Specifications page. (▶ p.137 to 147) Never attempt to operate the TV on DC power.

2 HDMI/DVI IN Input

Connect an HDMI signal to HDMI IN. Or DVI (VIDEO) signal to HDMI/DVI port with DVI to HDMI cable.

3 OPTICAL DIGITAL AUDIO OUT

Connect digital audio to various types of equipment. Connect to a Digital Audio Component. Use an Optical audio cable.

4 RGB/DVI Audio Input

Connect the audio from a PC or DTV.

5 Euro Scart Socket (AV1)

Connect scart socket input or output from an external device to these jacks.

6 Component Input

Connect a component video/audio device to these jacks.

7 RS-232C IN (CONTROL & SERVICE) PORT

Connect to the RS-232C port on a PC. This port is used for Service or Hotel mode.

8 RGB IN Input

Connect the output from a PC.

9 Antenna Input

Connect antenna or cable to this jack.

10 USB Input

Connect USB storage device to this jack.

11 PCMCIA (Personal Computer Memory Card International Association) Card Slot Insert the CI Module to PCMCIA CARD SLOT.

(This feature is not available in all countries.)

12 Headphone Socket

Plug the headphone into the headphone socket.

13 Audio/Video Input

Connect audio/video output from an external device to these jacks.

STAND INSTALLATION

■ Image shown may differ from your TV

When assembling the desk type stand, check whether the bolt is fully tightened. (If not tightened fully, the product can tilt forward after the product installation.) If you tighten the bolt with excessive force, the bolt can deviate from abrasion of the tightening part of the bolt.

Only 32/37/42/47LD45\*\*

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

Illustration of a computer monitor with a blank screen, placed on a cushioned surface (no text or symbols)

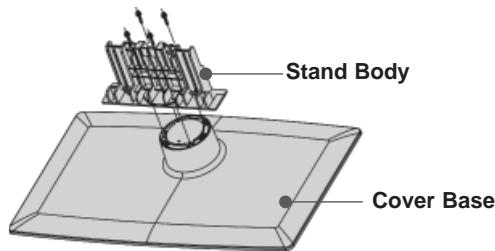

2 Assemble the parts of the Stand Body with the Cover Base of the TV.

Stand Body Cover Base

3 Assemble the TV as shown.

Technical diagram showing a device with internal components and a magnified inset view of a component (no text or symbols present)

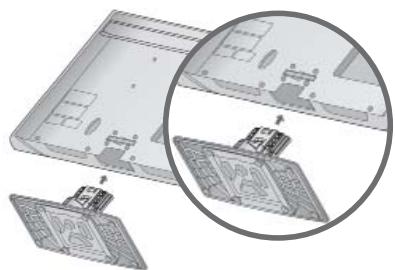

4 Fix the 4 bolts securely using the holes in the back of the TV.

3D technical illustration of a computer case with internal components (no text or symbols)

Only 32/37/42/47LD42\*\*, 26/32LD32\*\*, 26/32LD33\*\*

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

Isometric line drawing of a rectangular electronic device with internal components, placed on a textured base (no text or symbols)

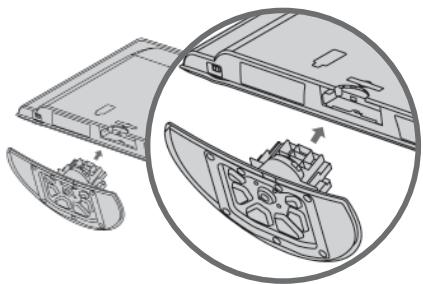

2 Assemble the TV as shown.

Technical illustration of a device's internal components, showing exploded and assembled views (no text or symbols)

3 Fix the 4 bolts securely using the holes in the back of the TV.

3D technical drawing of a mechanical component with mounting holes and internal features (no text or symbols)

BACK COVER FOR WIRE ARRANGEMENT

■ Image shown may differ from your TV.

1 Connect the cables as necessary. To connect additional equipment, see the EXTERNAL EQUIPMENT SETUP section.

2 Open the Cable Management Clip as shown.

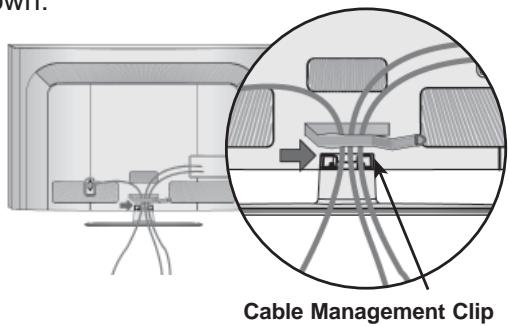

Cable Management Clip

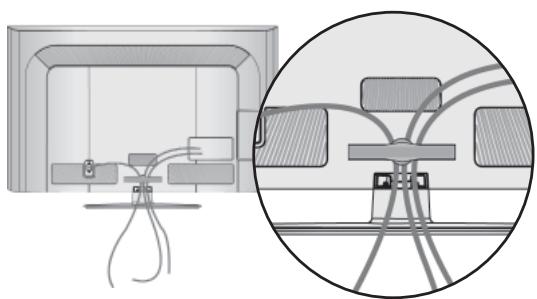

3 Fit the Cable Management Clip as shown.

Illustration of a train station with an inset close-up showing the interior view (no text or symbols)

NOTE

▶ Do not use the Cable Management Clip to lift the TV.
- If the TV is dropped, you may be injured or the TV may be damaged.

ATTACHING THE TV TO A DESK

(Only 32/37/42LD4***, 26/32LD32**, 26/32LD33**)

■ Image shown may differ from your TV. The TV must be attached to desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product. Use only an attached screw.

Technical diagram of a mechanical assembly with a central component and mounting base (no visible text or symbols)

1-Screw

(provided as parts of the product)

Stand Desk

! WARNING

▶ To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the machine may cause injury.

NOT USING THE DESK-TYPE STAND

■ Image shown may differ from your TV. When installing the wall-mounted unit, use the protection cover.

insert the Protection Cover into the TV until clicking sound. Protection Cover

KENSINGTON SECURITY SYSTEM

■ This feature is not available for all models.
■ Image shown may differ from your TV.

The TV is equipped with a Kensington Security System connector on the back panel. Connect the Kensington Security System cable as shown below.

For the detailed installation and use of the Kensington Security System, refer to the user's guide provided with the Kensington Security System.

For further information, contact http://www.kensington.com, the internet homepage of the Kensington

company. Kensington sells security systems for expensive electronic equipment such as notebook PCs and LCD projectors.

NOTE

▶ The Kensington Security System is an optional accessory.
If the TV feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with TV.
▶ Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance.
▶ Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

Diagram of a computer monitor with cable and connector, no text or symbols present

CAREFUL INSTALLATION ADVICE

■ You should purchase necessary components to fix the TV safety and secure to the wall on the market.
■ Position the TV close to the wall to avoid the possibility of it falling when pushed.
■ The instructions shown below are a safer way to set up the TV, by fixing it to the wall, avoiding the possibility of it falling forwards if pulled. This will prevent the TV from falling forward and causing injury. This will also prevent the TV from damage. Ensure that children do not climb or hang from the TV.

1 2

1 10 cm 2

1 Use the eye-bolts or TV brackets/bolts to fix the product to the wall as shown in the picture.
(If your TV has bolts in the eyebolts, loosen then bolts.)
* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.

2 Secure the wall brackets with the bolts on the wall. Match the height of the bracket that is mounted on the wall.

Simple line drawing of a computer monitor with a stand and a vertical line labeled '3' (no text or symbols on the device itself)

3 Use a sturdy rope to tie the product for alignment. It is safer to tie the rope so it becomes horizontal between the wall and the product.

NOTE

▶ When moving the TV undo the cords first.
▶ Use a platform or cabinet strong and large enough to support the size and weight of the TV.
▶ To use the TV safely make sure that the height of the bracket on the wall and on the TV is the same.

■ The TV can be installed in various ways such as on a wall, or on a desktop etc.
■ The TV is designed to be mounted horizontally.

EARTHING

Ensure that you connect the earth wire to prevent possible electric shock. If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to earth the TV by connecting it to telephone wires, lightening rods or gas pipes.

Power Supply Circuit breaker

DESKTOP PEDESTAL INSTALLATION

■ Image shown may differ from your TV.

For adequate ventilation allow a clearance of 10 cm all around the TV.

10 cm 10 cm 10 cm 10 cm

WALL MOUNT: HORIZONTAL INSTALLATION

■ We recommend the use of a LG Brand wall mounting bracket when mounting the TV to a wall.
■ We recommend that you purchase a wall mounting bracket which supports VESA standard.
■ LG recommends that wall mounting be performed by a qualified professional installer.

NOTE

▶ Should Install wall mount on a solid wall perpendicular to the floor.
▶ Should use a special wall mount, if you want to install it to ceiling or slanted wall.
The surface that wall mount is to be mounted on should be of sufficient strength to support the weight of TV set; e.g. concrete, natural rock, brick and hollow block.
▶ Installing screw type and length depends on the wall mount used. Further information, refer to the instructions included with the mount.
▶ LG is not liable for any accidents or damage to property or TV due to incorrect installation:
- Where a non-compliant VESA wall mount is used.
- Incorrect fastening of screws to surface which may cause TV to fall and cause personal injury.
- Not following the recommended Installation method.

10 cm 10 cm 10 cm 10 cm

10 cm

Top-down view of a computer monitor with labeled parts (no text or symbols visible)

Model	VESA (A * B)	Standard Screw	Quantity
32LD4***	200 * 100	M4	4
37/42/47LD4***	200 * 200	M6	4
26/32LD32**	200 * 100	M4	4
26/32LD33**	200 * 100	M4	4

SWIVEL STAND

■ Image shown may differ from your TV.

After installing the TV, you can adjust the TV set manually to the left or right direction by 20 degrees to suit your viewing position.

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

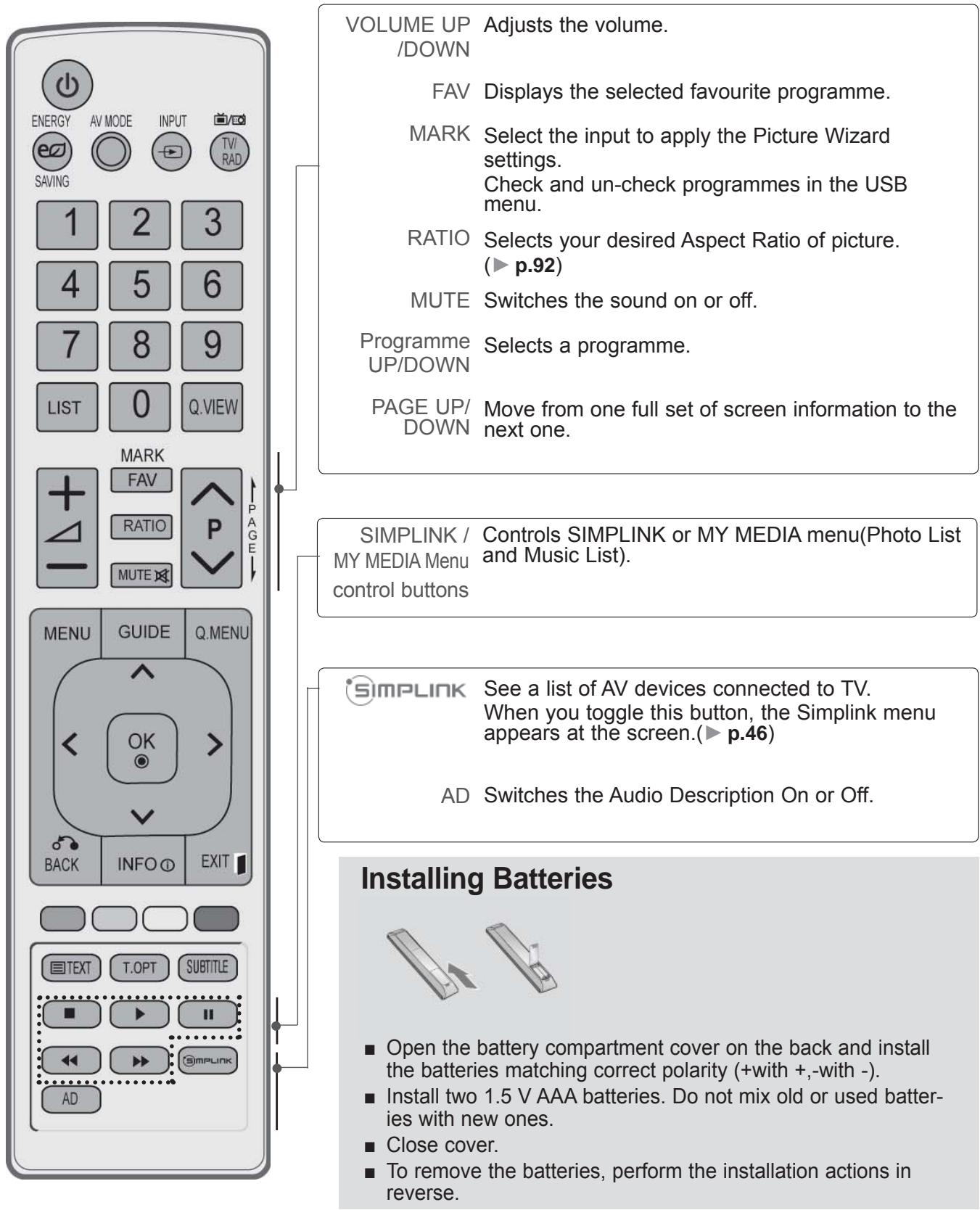

REMOTE CONTROL KEY FUNCTIONS

When using the remote control, aim it at the remote control sensor on the TV.

POWER Switches the TV on from standby or off to standby. ENERGY SAVING Adjust the Energy Saving mode of the TV.(► p.95) AV MODE It helps you select and set images and sounds when connecting AV devices.(► p.50) INPUT External input mode rotate in regular sequence.(► p.43) TV/RAD Selects Radio, TV and DTV channel. 0 to 9 number selects a programme. button Selects numbered items in a menu. LIST Displays the programme table. (► p.41) Q.VIEW Returns to the previously viewed programme. MENU Selects a menu. Clears all on-screen displays and returns to TV viewing from any menu.(► p.19) GUIDE Shows programme guide.(► p.86) Q. MENU Select the desired quick menu source. (Aspect Ratio, Clear Voice II , Picture Mode, Sound Mode, Audio (or Audio Language), Sleep Timer, Skip Off/ On, USB Device).(► p.18) BACK Allows the user to move return one step in an inter-active application, EPG or other user interaction function. EXIT Clears all on-screen displays and returns to TV viewing from any menu. INFO ① Shows the present screen information. THUMBSTICK Allows you to navigate the on-screen menus and adjust the system settings to your preference. OK Accepts your selection or displays the current mode. Coloured These buttons are used for teletext (on TELETEXT buttons from models only), Programme edit. TELETEXT BUTTONS These buttons are used for teletext. For further details, see the 'Teletext' section.(► p.130) SUBTITLE Recalls your preferred subtitle in digital mode.

ENERGY AV MODE INPUT TV/RAD SAVING 1 2 3 4 5 6 7 8 9 LIST 0 Q.VIEW MARK FAV RATIO P MUTE PAGE MENU GUIDE Q.MENU OK BACK INFO EXIT TEXT T.OPT SUBTITLE ■ ▶ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

VOLUME UP Adjusts the volume.

/DOWN

FAV Displays the selected favourite programme.

MARK Select the input to apply the Picture Wizard settings.

Check and un-check programmes in the USB menu.

RATIO Selects your desired Aspect Ratio of picture. (▶ p.92)

MUTE Switches the sound on or off.

Programme Selects a programme.

UP/DOWN

PAGE UP/ DOWN Move from one full set of screen information to the next one.

SIMPLINK / Controls SIMPLINK or MY MEDIA menu(Photo List and Music List).

control buttons

MPLINK

See a list of AV devices connected to TV.

When you toggle this button, the Simplink menu appears at the screen.(▶ p.46)

Installing Batteries

■ Open the battery compartment cover on the back and install the batteries matching correct polarity (+with +,-with -).
■ Install two 1.5 V AAA batteries. Do not mix old or used batteries with new ones.
■ Close cover.
■ To remove the batteries, perform the installation actions in reverse.

LCD TV MODELS : 32/42/46/52/60LD5\*\*\* ACCESSORIES

Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the TV.

■ Image shown may differ from your TV.

Owner's Manual

Owner's Manual

Batteries (AAA)

Illustration of a remote control device with buttons and a central display (no text or symbols visible)

Remote Control

Power Cord

Ferrite Core (This item is not included for all models.)

This item is not included for all models.

Polishing Cloth Polishing cloth for use on the screen.

* Lightly wipe any stains or fingerprints on the surface of the TV with the polishing cloth.

Do not use excessive force. This may cause scratching or discolouration.

Bolts for stand assembly

1-screw for stand fixing (Only 32/42LD5***)

Protection Cover

Use of ferrite core (This feature is not available for all models.)

Ferrite core can be used to reduce the electromagnetic wave when connecting the power cord.

The closer the location of the ferrite core to the power plug, the better it is.

Illustration of a coiled cable with attached plug, no text or symbols present

Install the power plug closely.

FRONT PANEL CONTROLS

NOTE

▶ TV can be placed in standby mode in order to reduce the power consumption. And TV should be switched off using the power switch on the TV if it will not be watched for some time, as this will reduce energy consumption.
The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

CAUTION

▶ Do not step on the glass stand or subject it to any impact. It may break, causing possible injury from fragments of glass, or the TV may fall.
▶ Do not drag the TV. The floor or the product may be damaged.

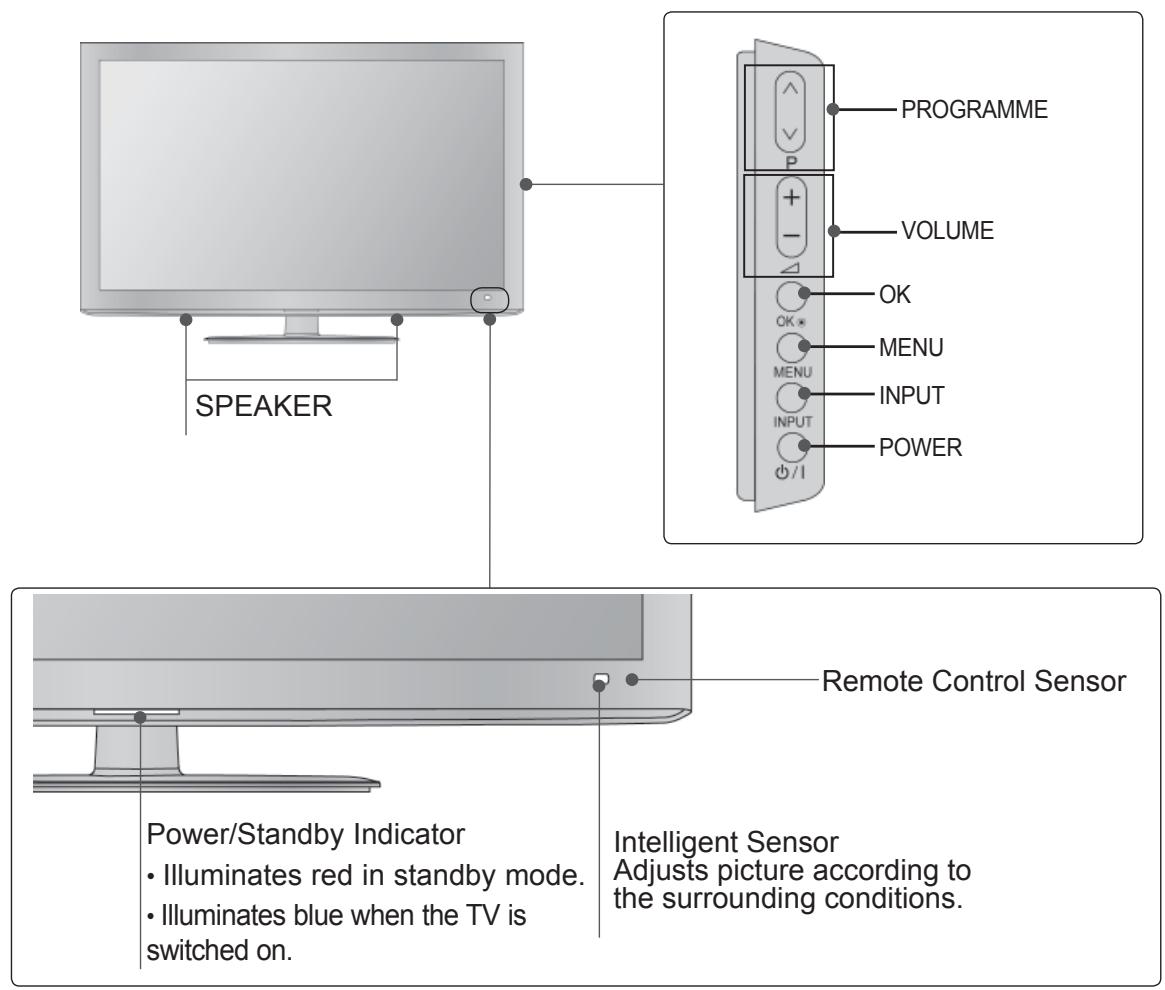

■ Image shown may differ from your TV.

SPEAKER PROGRAMME P VOLUME + - OK OK * MENU MENU INPUT POWER / Remote Control Sensor Power/Standby Indicator • Illuminates red in standby mode. • Illuminates blue when the TV is switched on. Intelligent Sensor Adjusts picture according to the surrounding conditions.

BACK PANEL INFORMATION

■ Image shown may differ from your TV.

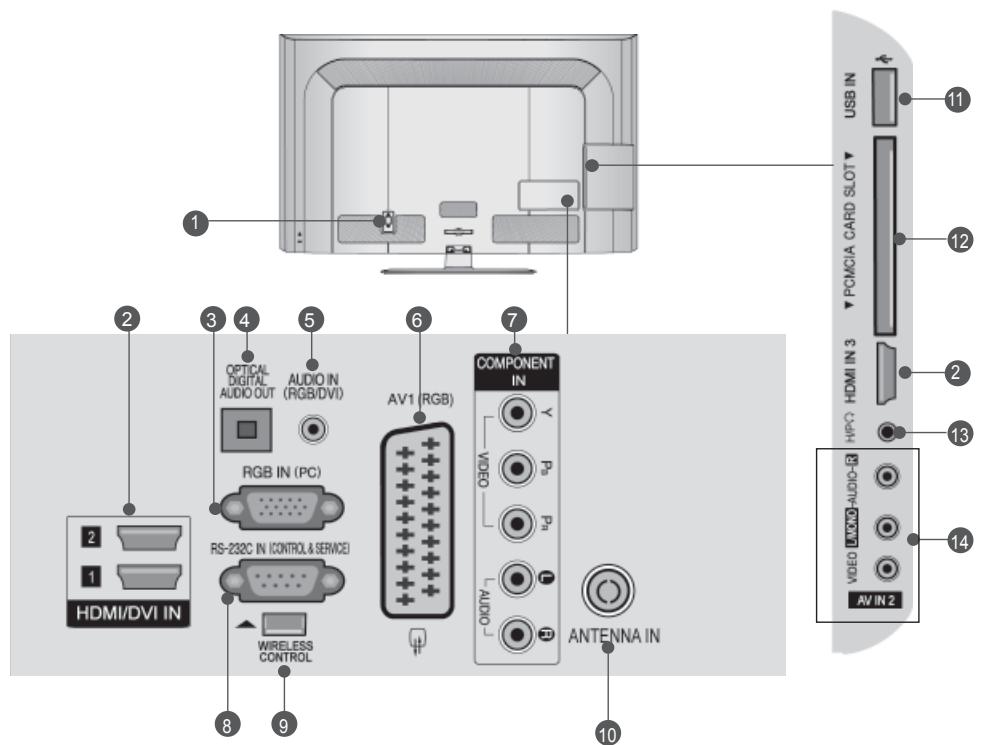

HDMI/DVI IN 2 1 3 4 5 OPTICAL DIGITAL AUDIO OUT AUDIO IN (RGB/DVI) RGB IN (PC) RS-232C IN (CONTROL & SERVICE) WIRELESS CONTROL 6 AV1 (RGB) COMPONENT IN VIDEO AUDIO ANTENNA IN 10 11 USB IN PCMCIA CARD SLOT HDMI IN 3 2 13 14 VIDEO AV IN 2

1 Power Cord Socket
This TV operates on an AC power. The voltage is indicated on the Specifications page. (▶ p.137 to 147) Never attempt to operate the TV on DC power.

② HDMI/DVI IN Input

Connect an HDMI signal to HDMI IN. Or DVI (VIDEO) signal to HDMI/DVI port with DVI to HDMI cable.

3 RGB IN Input

Connect the output from a PC.

4 OPTICAL DIGITAL AUDIO OUT

Connect digital audio to various types of equipment. Connect to a Digital Audio Component. Use an Optical audio cable.

5 RGB/DVI Audio Input

Connect the audio from a PC or DTV.

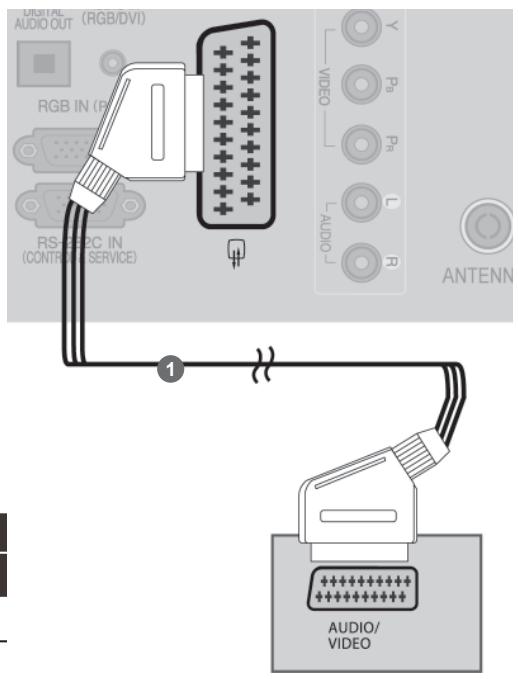

⑥ Euro Scart Socket (AV1)

Connect scart socket input or output from an external device to these jacks.

7 Component Input

Connect a component video/audio device to these jacks.

8 RS-232C IN (CONTROL & SERVICE) PORT Connect to the RS-232C port on a PC. This port is used for Service or Hotel mode.

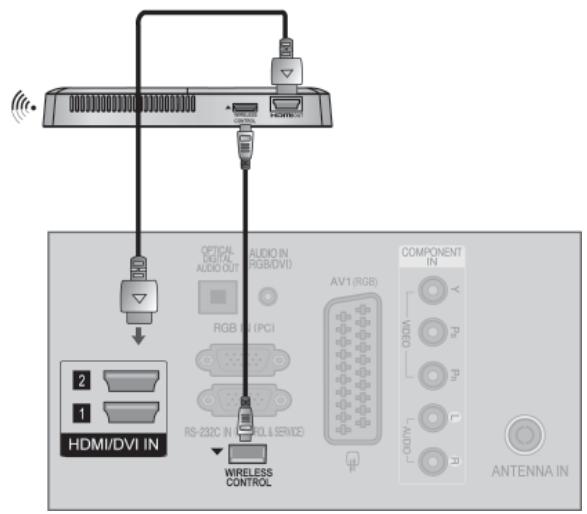

9 WIRELESS Control

Connect the Wireless Media Box to the WIRELESS CONTROL jack on the TV.

10 Antenna Input

Connect antenna or cable to this jack.

11 USB Input

Connect USB storage device to this jack.

12 PCMCIA (Personal Computer Memory Card International Association) Card Slot Insert the CI Module to PCMCIA CARD SLOT. (This feature is not available in all countries.)

13 Headphone Socket

Plug the headphone into the headphone socket.

14 Audio/Video Input

Connect audio/video output from an external device to these jacks.

STAND INSTALLATION

■ Image shown may differ from your TV.

When assembling the desk type stand, check whether the bolt is fully tightened. (If not tightened fully, the product can tilt forward after the product installation.) If you tighten the bolt with excessive force, the bolt can deviate from abrasion of the tightening part of the bolt.

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

Technical line drawing of a mechanical component or housing assembly (no text or symbols visible)

② Assemble the parts of the Stand Body with the Cover Base of the TV.

Stand Body Cover Base

3 Assemble the TV as shown.

Diagram showing a computer monitor with an inset close-up of its internal components (no text or symbols visible)

4 Fix the 4 bolts securely using the holes in the back of the TV.

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or labels)

BACK COVER FOR WIRE ARRANGEMENT

■ Image shown may differ from your TV.

1 Connect the cables as necessary. To connect additional equipment, see the External Equipment Setup section.

Diagram of a TV set with cable routing and a switch, no text or symbols present

2 Open the Cable Management Clip as shown.

WII. Cable Management Clip

3 Fit the Cable Management Clip as shown.

Technical diagram showing a mechanical assembly with a close-up inset of its cross-section (no text or symbols present)

NOTE

▶ Do not use the Cable Management Clip to lift the TV.

- If the TV is dropped, you may be injured or the TV may be damaged.

ATTACHING THE TV TO A DESK (Only 32/42LD5\*\*\*)

■ Image shown may differ from your TV.

The TV must be attached to desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product. Use only an attached screw.

1-Screw (provided as parts of the product) Stand Desk

! WARNING

▶ To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the machine may cause injury.

NOT USING THE DESK-TYPE STAND

■ Image shown may differ from your TV. When installing the wall-mounted unit, use the protection cover.

Insert the Protection Cover into the TV until clicking sound.

Protection Cover

SWIVEL STAND

■ Image shown may differ from your TV. After installing the TV, you can adjust the TV set manually to the left or right direction by 20 degrees to suit your viewing position.

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

KENSINGTON SECURITY SYSTEM

■ This feature is not available for all models.
■ Image shown may differ from your TV.

The TV is equipped with a Kensington Security System connector on the back panel. Connect the Kensington Security System cable as shown below.

For the detailed installation and use of the Kensington Security System, refer to the user's guide provided with the Kensington Security System.

For further information, contact http://www.kensington.com, the internet homepage of the Kensington

company. Kensington sells security systems for expensive electronic equipment such as notebook PCs and LCD projectors.

NOTE

▶ The Kensington Security System is an optional accessory.
If the TV feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with TV.
▶ Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance.
▶ Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

Diagram of a computer monitor setup with cable and display stand (no text or symbols)

CAREFUL INSTALLATION ADVICE

■ You should purchase necessary components to fix the TV safety and secure to the wall on the market.
■ Position the TV close to the wall to avoid the possibility of it falling when pushed.
■ The instructions shown below are a safer way to set up the TV, by fixing it to the wall, avoiding the possibility of it falling forwards if pulled. This will prevent the TV from falling forward and causing injury. This will also prevent the TV from damage. Ensure that children do not climb or hang from the TV.

1 2

1 2

1 Use the eye-bolts or TV brackets/bolts to fix the product to the wall as shown in the picture.

(If your TV has bolts in the eyebolts, loosen then bolts.)

* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.

2 Secure the wall brackets with the bolts on the wall. Match the height of the bracket that is mounted on the wall.

Simple line drawing of a computer monitor with a stand and a vertical line labeled '3' (no text or symbols on the device itself)

3 Use a sturdy rope to tie the product for alignment. It is safer to tie the rope so it becomes horizontal between the wall and the product.

NOTE

▶ When moving the TV undo the cords first.
▶ Use a platform or cabinet strong and large enough to support the size and weight of the TV.
▶ To use the TV safely make sure that the height of the bracket on the wall and on the TV is the same.

■ The TV can be installed in various ways such as on a wall, or on a desktop etc.
■ The TV is designed to be mounted horizontally.

EARTHING

Ensure that you connect the earth wire to prevent possible electric shock. If grounding methods are not possible, have a qualified electrician install a separate circuit breaker.

Do not try to earth the TV by connecting it to telephone wires, lightening rods or gas pipes.

Power Supply Circuit breaker

DESKTOP PEDESTAL INSTALLATION

■ Image shown may differ from your TV.

For adequate ventilation allow a clearance of 10 cm all around the TV.

10 cm 10 cm 10 cm 10 cm

WALL MOUNT: HORIZONTAL INSTALLATION

■ We recommend the use of a LG Brand wall mounting bracket when mounting the TV to a wall.
■ We recommend that you purchase a wall mounting bracket which supports VESA standard.
■ LG recommends that wall mounting be performed by a qualified professional installer.

NOTE

▶ Should Install wall mount on a solid wall perpendicular to the floor.
▶ Should use a special wall mount, if you want to install it to ceiling or slanted wall.
The surface that wall mount is to be mounted on should be of sufficient strength to support the weight of TV set; e.g. concrete, natural rock, brick and hollow block.
▶ Installing screw type and length depends on the wall mount used. Further information, refer to the instructions included with the mount.
▶ LG is not liable for any accidents or damage to property or TV due to incorrect installation:
- Where a non-compliant VESA wall mount is used.
- Incorrect fastening of screws to surface which may cause TV to fall and cause personal injury.
- Not following the recommended Installation method.

10 cm 10 cm 10 cm 10 cm 10 cm

A B

Model	VESA (A * B)	Standard Screw	Quantity
32LD5***	200 * 100	M4	4
42LD5***	200 * 200	M6	4
46LD5***	200 * 200	M6	4
52LD5***	400 * 400	M6	4
60LD5***	400 * 400	M6	4

REMOTE CONTROL KEY FUNCTIONS

When using the remote control, aim it at the remote control sensor on the TV.

POWER Switches the TV on from standby or off to standby. ENERGY SAVING Adjust the Energy Saving mode of the TV.(► p.95) AV MODE It helps you select and set images and sounds when connecting AV devices.(► p.50) INPUT External input mode rotate in regular sequence.(► p.43) TV/RAD Selects Radio, TV and DTV channel. 0 to 9 number button Selects a programme. selects numbered items in a menu. LIST Displays the programme table. (► p.41) Q.VIEW Returns to the previously viewed programme. MENU Selects a menu. Clears all on-screen displays and returns to TV viewing from any menu.(► p.19) GUIDE Shows programme guide(► p.86) Q. MENU Select the desired quick menu source. (Aspect Ratio, Clear Voice II , Picture Mode, Sound Mode, Audio (or Audio Language), Sleep Timer, Skip Off/ On, USB Device).(► p.18) BACK Allows the user to move return one step in an interactive application, EPG or other user interaction function. EXIT Clears all on-screen displays and returns to TV viewing from any menu. INFO ⓘ Shows the present screen information. THUMBSTICK (Up/Down/Left/Right) Allows you to navigate the on-screen menus and adjust the system settings to your preference. OK Accepts your selection or displays the current mode. Coloured These buttons are used for teletext (on TELETEXT buttons models only), Programme edit. TELETEXT BUTTONS These buttons are used for teletext. For further details, see the 'Teletext' section.(► p.130) SUBTITLE Recalls your preferred subtitle in digital mode.

VOLUME UP /DOWN FAV Displays the selected favourite programme. MARK Select the input to apply the Picture Wizard settings. Check and un-check programmes in the USB menu. RATIO Selects your desired Aspect Ratio of picture. (▶ p.92) MUTE Switches the sound on or off. Programme UP/DOWN Selects a programme. PAGE UP/ DOWN Move from one full set of screen information to the next one. SIMPLINK / MY MEDIA Menu (Photo List and Music List). control buttons SIMPLINK See a list of AV devices connected to TV. When you toggle this button, the Simplink menu appears at the screen.(▶ p.46) AD Switches the Audio Description On or Off. Installing Batteries ■ Open the battery compartment cover on the back and install the batteries matching correct polarity (+with +,-with -). ■ Install two 1.5 V AAA batteries. Do not mix old or used batteries with new ones. ■ Close cover. ■ To remove the batteries, perform the installation actions in reverse.

LED LCD TV MODELS : 19/22/26/32LE3\*\*\*, 32/37/42LE4\*\*\*, 22/26LE5\*\*\*, 32/37/42/47/55LE5\*\*\*

ACCESSORIES

Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the TV.

■ Image shown may differ from your TV.

Owner's Manual

Owner's Manual

Batteries (AAA)

or

Remote Control

This item is not included for all models.

Polishing Cloth Polishing cloth for use on the screen.

* Lightly wipe any stains or fingerprints on the surface of the TV with the polishing cloth.

Do not use excessive force. This may cause scratching or discolouration.

Only 19/22/26LE3\*\*\*, 22/26LE5\*\*\*

Cable Holder

DC Adapter

4-Ring spacers (Only 26LE3***, 26LE5***)

Power Cord

(M4x14)
(M4x20)
(Only 26LE3***, 26LE5***)
Bolts for stand assembly

Only 32LE3\*\*\*, 32/37/42LE4\*\*\*, 32/37/42/47/55LE5\*\*\*

Cable Holder

Component gender cable, AV gender cable

(M4x22)
(Only 32LE3***, 32LE4***, 32LE5***)

(M4x24) (Only 37/42LE4***, 37/42LE5***)

Bolts for stand assembly

(M4x26) (Only 47/55LE5***)

(M4x16)

1-screw for stand fixing (Only 32LE3***, 32LE4***, 32LE5***)

Use of ferrite core (This feature is not available for all models.)

Ferrite core can be used to reduce the electromagnetic wave when connecting the power cord.

The closer the location of the ferrite core to the power plug, the better it is.

Illustration of a coiled cable with connectors and a connector pin, no text or symbols present

Install the power plug closely.

Ferrite Core (This item is not included for all models.)

PREPARATION

FRONT PANEL CONTROLS

NOTE

▶ TV can be placed in standby mode in order to reduce the power consumption. And TV should be switched off using the power switch on the TV if it will not be watched for some time, as this will reduce energy consumption.
The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

CAUTION

▶ Do not step on the glass stand or subject it to any impact. It may break, causing possible injury from fragments of glass, or the TV may fall.
▶ Do not drag the TV. The floor or the product may be damaged.

■ Image shown may differ from your TV.

Only 32/37/42LE4*** Power/Standby Indicator Note: You can turn the Power Indicator on or off in the OPTION menu. SPEAKER Touch Sensor • You can use the desired button func- tion by touching.

Only 32/37/42LE4*** ^ P + - OK MENU INPUT

/ I

PROGRAMME VOLUME OK MENU INPUT POWER

Only 19/22/26LE3***, 22/26LE5*** VOLUME MENU POWER P - + OK MENU INPUT PROGRAMME OK INPUT

Only 19/22/26LE33** ① ②

Only 19/22LE34** ① ②

1 Power/Standby Indicator
- Illuminates red in standby mode.
- The LED is off while the TV remains on.

2 Remote Control Sensor

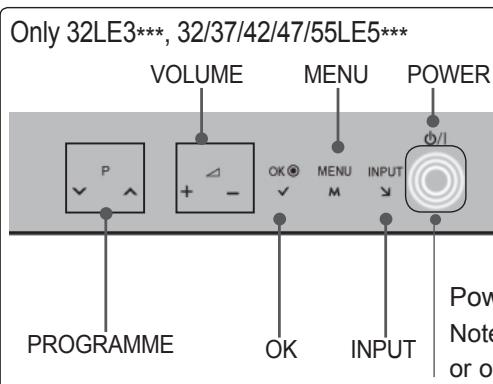

Only 32LE3***, 32/37/42/47/55LE5*** VOLUME MENU POWER PROGRAMME OK INPUT Power Note or of

Simple diagram with two circles and connecting lines, no text or symbols present

Only 32LE3***, 32/37/42LE4***, 32/37/42/47/55LE5***

Remote Control Sensor

Intelligent Sensor Adjusts picture according to the surrounding conditions.

Power/Standby Indicator

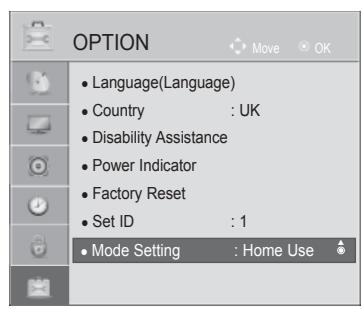

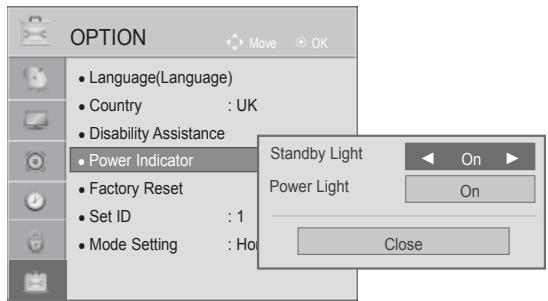

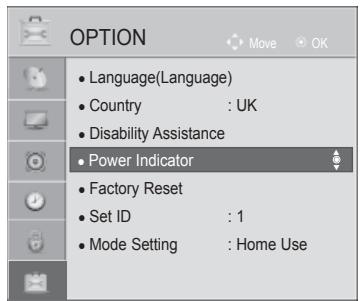

Note: You can turn the Power Indicator on or off in the OPTION menu.

BACK PANEL INFORMATION

Only 19/22LE3\*\*\*, 22LE5\*\*\*

■ Image shown may differ from your TV.

DC IN HDMI/DVI IN 2 1 OPTICAL DIGITAL AUDIO OUT RGB IN (PC) RS-232C IN (CONTROL & SERVICE) AUDIO IN (RGB/DVI) AV IN 2 VIDEO MAX - AUDIO - COMPONENT IN Y Pn Pn AUDIO ANTENNA IN 6 5 4 3 2 1 11 12 13 VOCIA COLD SLOT USB IN

1 DC ADAPTER PORT

Connect to the power cord socket.

2 OPTICAL DIGITAL AUDIO OUT

Connect digital audio to various types of equipment.

Connect to a Digital Audio Component.

Use an Optical audio cable.

3 RGB/DVI Audio Input

Connect the audio from a PC or DTV.

4 Audio/Video Input

Connect audio/video output from an external device to these jacks.

5 Euro Scart Socket (AV1)

Connect scart socket input or output from an external device to these jacks.

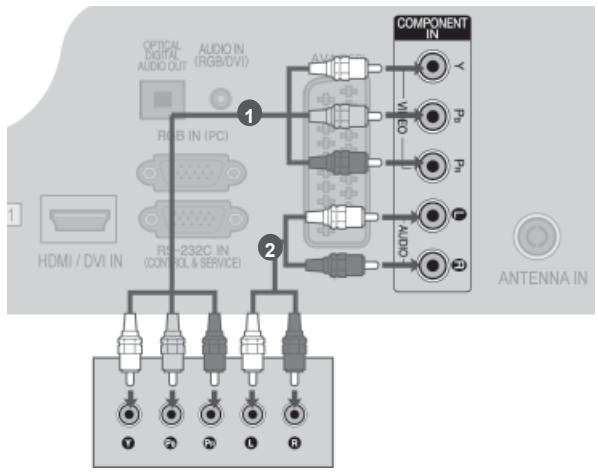

6 Component Input

Connect a component video/audio device to these jacks.

7 HDMI/DVI IN Input

Connect an HDMI signal to HDMI IN. Or DVI (VIDEO) signal to HDMI/DVI port with DVI to HDMI cable.

8 RGB IN Input

Connect the output from a PC.

9 RS-232C IN (CONTROL & SERVICE) PORT

Connect to the RS-232C port on a PC.

This port is used for Service or Hotel mode.

10 Antenna Input

Connect antenna or cable to this jack.

11 USB Input

Connect USB storage device to this jack.

⑫ PCMCIA (Personal Computer Memory Card International Association) Card Slot Insert the CI Module to PCMCIA CARD SLOT.

(This feature is not available in all countries.)

13 Headphone Socket

Plug the headphone into the headphone socket.

Only 26LE3\*\*\*, 26LE5\*\*\*

■ Image shown may differ from your TV.

1 2 3 4 5 6 HDMI/DVI IN DC IN OPTICAL DIGITAL AUDIO OUT AUDIO IN (RGB/DVI) AV IN 2 VIDEO LIMNO - AUDIO - COMPONENT IN Y Video Ph Ph AUDIO ANTENNA IN 7 8 9 10 11 12 13 FOMZA CARD SLOTA USB IN A HDMI C HP

1 DC ADAPTER PORT Connect to the power cord socket.

② OPTICAL DIGITAL AUDIO OUT Connect digital audio to various types of equipment. Connect to a Digital Audio Component. Use an Optical audio cable.

3 RGB/DVI Audio Input Connect the audio from a PC or DTV.

4 Audio/Video Input Connect audio/video output from an external device to these jacks.

⑤ Euro Scart Socket (AV1) Connect scart socket input or output from an external device to these jacks.

6 Component Input Connect a component video/audio device to these jacks.

⑦ HDMI/DVI IN Input Connect an HDMI signal to HDMI IN. Or DVI (VIDEO) signal to HDMI/DVI port with DVI to HDMI cable.
⑧ RGB IN Input Connect the output from a PC.
9 RS-232C IN (CONTROL & SERVICE) PORT Connect to the RS-232C port on a PC. This port is used for Service or Hotel mode.
10 Antenna Input Connect antenna or cable to this jack.
11 USB Input Connect USB storage device to this jack.
12 PCMCIA (Personal Computer Memory Card International Association) Card Slot Insert the CI Module to PCMCIA CARD SLOT. (This feature is not available in all countries.)
13 Headphone Socket Plug the headphone into the headphone socket.

Only 32LE3\*\*\*, 32/37/42LE4\*\*\*, 32/37/42/47/55LE5\*\*\*

■ Image shown may differ from your TV.

1 2 3 4 5 6 7 8 9 10 HDMI/DVI IN 3 2 1(DVI) OPTICAL- DIGITAL AUDIO IN (RGB/DVI) RGB IN (PC) RS-22C IN(CONTROL & SERVICE) WIRELESS CONTROL AV IN 2 VIDEO -R AV1 (RGB) PCMCIA CARD SLOT USB IN HDMI HIP COMPONENT IN (TMP/AUDIO) ANTENNA IN

CAUTION

Technical illustration of two types of electronic connectors with labeled dimensions (A), no text or symbols present.

▶ Use a product with the following thickness for optimal connection to HDMI cable (Only HDMI IN 4) / USB device.

$$ ^ {*} A \leqq 1 0 \mathrm{mm} $$

1 Power Cord Socket

This TV operates on an AC power. The voltage is indicated on the Specifications page. (▶ p.137 to 147) Never attempt to operate the TV on DC power.

② HDMI/DVI IN Input

Connect an HDMI signal to HDMI IN. Or DVI (VIDEO) signal to HDMI/DVI port with DVI to HDMI cable.

3 OPTICAL DIGITAL AUDIO OUT

Connect digital audio to various types of equipment. Connect to a Digital Audio Component. Use an Optical audio cable.

4 RGB/DVI Audio Input

Connect the audio from a PC or DTV.

⑤ Euro Scart Socket (AV1)

Connect scart socket input or output from an external device to these jacks.

6 Component Input

Connect a component video/audio device to these jacks.

7 RGB IN Input

Connect the output from a PC.

8 RS-232C IN (CONTROL & SERVICE) PORT Connect to the RS-232C port on a PC. This port is used for Service or Hotel mode.

9 WIRELESS CONTROL

Connect the Wireless Media Box to the WIRELESS CONTROL jack on the TV.

10 Audio/Video Input

Connect audio/video output from an external device to these jacks.

11 Antenna Input

Connect antenna or cable to this jack.

12 USB Input

Connect USB storage device to this jack.

13 PCMCIA (Personal Computer Memory Card International Association) Card Slot Insert the CI Module to PCMCIA CARD SLOT.

(This feature is not available in all countries.)

14 Headphone Socket

Plug the headphone into the headphone socket.

PREPARATION

STAND INSTALLATION

■ Image shown may differ from your TV.

When assembling the desk type stand, check whether the bolt is fully tightened. (If not tightened fully, the product can tilt forward after the product installation.) If you tighten the bolt with excessive force, the bolt can deviate from abrasion of the tightening part of the bolt.

Only 19/22LE3\*\*\*, 22LE5\*\*\*

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

Pure technical diagram of a layered structure with no text, numbers, or symbols

2 Assemble the parts of the Stand Body with the Stand Base of the TV.

Stand Body Stand Base

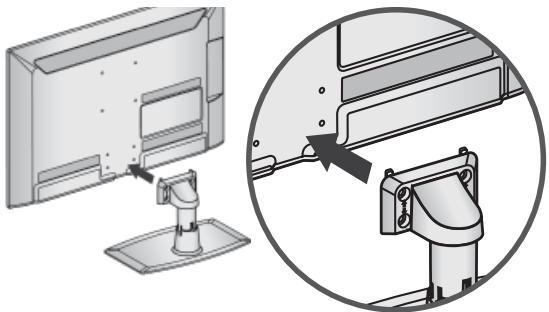

3 Assemble the TV as shown.

Diagram showing a computer monitor mounted on a stand next to a close-up of its cable and bracket assembly (no text or symbols present)

4 Fix the 4 bolts securely using the holes in the back of the TV.

Technical line drawing of a monitor with a base mount and cable connectors (no text or symbols)

M4 X 14

Only 26/32LE3\*\*\*, 32/42/47LE4\*\*\*, 26LE5\*\*\*, 32/37/42/47/55LE5\*\*\*

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

Pure diagram of a 3D rectangular block with internal compartments, no text or symbols present

2 Assemble the parts of the Stand Body with the Stand Base of the TV.

M4 X 22(Only 32LE3***, 32LE4***, 32LE5**)

M4 X 24(Only 37/42LE4***, 37/42LE5***)

M4 X 26 (Only 47/55LE5***)

M4 X 20 (Only 26LE3***, 26LE5***)

Sta Bo

Stand Base

3 Assemble the TV as shown.

Diagram showing a computer monitor with a close-up view of its internal components (no text or symbols present)

4 Assemble the parts of the Stand Rear Cover with the TV.

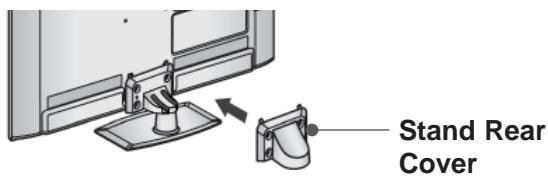

Stand Rear Cover

5 Fix the 4 bolts securely using the holes in the back of the TV.

Technical line drawing of a mechanical assembly with no visible text or symbols

M4 X 14 (Only 26LE3***, 26LE5***)

M4 X 16 (Only 32LE3***, 32/37/42LE4***, '37/42/47/55LE5***)

BACK COVER FOR WIRE ARRANGEMENT

■ Image shown may differ from your TV.

Only 19/22/26LE3\*\*\*, 22/26LE5\*\*\*

After connecting the cables as necessary, install Cable Holder as shown and bundle the cables.

Cable Holder

Only 32LE3\*\*\*, 32/37/42LE4\*\*\*, 32/37/42/47/55LE5\*\*\*

1 Secure the power cord with the Cable Holder on the TV back cover. It will help prevent the power cable from being removed by accident.

Cable Holder

2 After connecting the cables as necessary, install Cable Holder as shown and bundle the cables.

Cable Holder

ATTACHING THE TV TO A DESK (Only 32LE3\*\*\*, 32LE4\*\*\*, 32LE5\*\*\*)

■ Ima4e shown may differ from your TV.

The TV must be attached to desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product. Use only an attached screw.

Technical diagram of a mechanical assembly with mounting base and central component (no text or symbols)

1-Screw
(provided as parts of the product)

Stand Desk

! WARNING

▶ To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the machine may cause injury.

SWIVEL STAND

(Only 26/32LE3***, 32/37/42LE4***, 26LE5***, 32/37/42/47/55LE5***)

■ Image shown may differ from your TV.

After installing the TV, you can adjust the TV set manually to the left or right direction by 20 degrees to suit your viewing position.

Diagram of a mechanical component with angular and linear motion indicators (no text or symbols)

CONNECTION OF TV

(Only 19/22/26LE3***, 22/26LE5***)

■ Image shown may differ from your TV.

DC Adapter

1 Connect the antenna cable to the antenna input port on the TV.
2 Connect the DC adapter plug to the power input jack on the TV.
3 Connect the power cord to the DC adapter first, then plug the power cord into the wall power outlet.

CAUTION

▶ Please be sure to connect the TV to the DC power adapter before connecting the TV's power plug to a wall power outlet.

DESKTOP PEDESTAL INSTALLATION

■ Image shown may differ from your TV.

For adequate ventilation allow a clearance of 10 cm all around the TV.

10 cm 10 cm 10 cm 10 cm

KENSINGTON SECURITY SYSTEM

■ This feature is not available for all models.
■ Image shown may differ from your TV.

The TV is equipped with a Kensington Security System connector on the back panel. Connect the Kensington Security System cable as shown below.

For the detailed installation and use of the Kensington Security System, refer to the user's guide provided with the Kensington Security System.

For further information, contact http://www.kensington.com, the internet homepage of the Kensington

company. Kensington sells security systems for expensive electronic equipment such as notebook PCs and LCD projectors.

NOTE

▶ The Kensington Security System is an optional accessory.
If the TV feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with TV.
▶ Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance.
▶ Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

Diagram of a wall-mounted cable or cable installation with a mounted device (no text or symbols visible)

CAREFUL INSTALLATION ADVICE

■ You should purchase necessary components to fix the TV safety and secure to the wall on the market.
■ Position the TV close to the wall to avoid the possibility of it falling when pushed.
■ The instructions shown below are a safer way to set up the TV, by fixing it to the wall, avoiding the possibility of it falling forwards if pulled. This will prevent the TV from falling forward and causing injury. This will also prevent the TV from damage. Ensure that children do not climb or hang from the TV.

1 2

1 2

1 Use the eye-bolts or TV brackets/bolts to fix the product to the wall as shown in the picture.

(If your TV has bolts in the eyebolts, loosen then bolts.)

* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.

2 Secure the wall brackets with the bolts on the wall. Match the height of the bracket that is mounted on the wall.

Simple line drawing of a vertical monitor with a base and a label '3' on the side (no text or symbols on the device itself)

3 Use a sturdy rope to tie the product for alignment. It is safer to tie the rope so it becomes horizontal between the wall and the product.

NOTE

▶ When moving the TV undo the cords first.
▶ Use a platform or cabinet strong and large enough to support the size and weight of the TV.
▶ To use the TV safely make sure that the height of the bracket on the wall and on the TV is the same.

■ The TV can be installed in various ways such as on a wall, or on a desktop etc.
■ The TV is designed to be mounted horizontally.

EARTHING

Ensure that you connect the earth wire to prevent possible electric shock. If grounding methods are not possible, have a qualified electrician install a separate circuit breaker.

Do not try to earth the TV by connecting it to telephone wires, lightening rods or gas pipes.

Power Supply Circuit breaker

WALL MOUNT: HORIZONTAL INSTALLATION

■ We recommend the use of a LG Brand wall mounting bracket when mounting the TV to a wall.
■ We recommend that you purchase a wall mounting bracket which supports VESA standard.
■ LG recommends that wall mounting be performed by a qualified professional installer.

NOTE

▶ Should Install wall mount on a solid wall perpendicular to the floor.
▶ Should use a special wall mount, if you want to install it to ceiling or slanted wall.
The surface that wall mount is to be mounted on should be of sufficient strength to support the weight of TV set; e.g. concrete, natural rock, brick and hollow block.
▶ Installing screw type and length depends on the wall mount used. Further information, refer to the instructions included with the mount.
▶ LG is not liable for any accidents or damage to property or TV due to incorrect installation:
- Where a non-compliant VESA wall mount is used.
- Incorrect fastening of screws to surface which may cause TV to fall and cause personal injury.
- Not following the recommended Installation method.

10 cm 10 cm 10 cm 10 cm

10 cm

A B

Model	VESA (A * B)	Standard Screw	Quantity
19/22/26LE3***	100 * 100	M4	4
32LE3***	200 * 100	M4	4
32LE4***	200 * 100	M4	4
37/42LE4***	200 * 200	M6	4
22/26LE5***	100 * 100	M4	4
32LE5***	200 * 100	M4	4
37/42/47LE5***	200 * 200	M6	4
55LE5***	400 * 400	M6	4

< Only 26LE3***, 26LE5*** >

■ Image shown may differ from your TV.

4-Ring spacers

Place the ring spacers on the set before installing the wall mounting bracket so that the inclination of the backside of the set can be adjusted perpendicularly.

REMOTE CONTROL KEY FUNCTIONS

When using the remote control, aim it at the remote control sensor on the TV.

■ Image shown may differ from your TV.

POWER Switches the TV on from standby or off to standby. ENERGY Adjust the Energy Saving mode of the TV.(► p.95) SAVING AV MODE It helps you select and set images and sounds when connecting AV devices.(► p.50) INPUT External input mode rotate in regular sequence.(► p.43) TV/RAD Selects Radio, TV and DTV channel. 0 to 9 number button Selects a programme. selects numbered items in a menu. LIST Displays the programme table. (► p.41) Q.VIEW Returns to the previously viewed programme. MENU Selects a menu. Clears all on-screen displays and returns to TV viewing from any menu.(► p.19) GUIDE Shows programme guide.(► p.86) Q. MENU Select the desired quick menu source. (Aspect Ratio, Clear Voice II , Picture Mode, Sound Mode, Audio (or Audio Language), Sleep Timer, Skip Off/ On, USB Device).(► p.18) BACK Allows the user to move return one step in an inter- active application, EPG or other user interaction function. EXIT Clears all on-screen displays and returns to TV viewing from any menu. INFO Shows the present screen information. THUMBSTICK (Up/Down/Left/Right) Allows you to navigate the on-screen menus and adjust the system settings to your preference. OK Accepts your selection or displays the current mode. Coloured buttons These buttons are used for teletext (on TELETEXT models only), Programme edit. TELETEXT BUTTONS These buttons are used for teletext. For further details, see the 'Teletext' section.(► p.130) SUBTITLE Recalls your preferred subtitle in digital mode.

VOLUME UP /DOWN Adjusts the volume. FAV Displays the selected favourite programme. MARK Select the input to apply the Picture Wizard settings. Check and un-check programmes in the USB menu. RATIO Selects your desired Aspect Ratio of picture. (▶ p.92) MUTE Switches the sound on or off. Programme UP/DOWN Selects a programme. PAGE UP/ DOWN Move from one full set of screen information to the next one. SIMPLINK / MY MEDIA Menu Control buttons SIMPLINK / MY MEDIA Menu 控制 buttons See a list of AV devices connected to TV. When you toggle this button, the Simplink menu appears at the screen.(▶ p.46) AD Switches the Audio Description On or Off. Installing Batteries ■ Open the battery compartment cover on the back and install the batteries matching correct polarity (+with +,-with -). ■ Install two 1.5 V AAA batteries. Do not mix old or used batteries with new ones. ■ Close cover. ■ To remove the batteries, perform the installation actions in reverse.

EXTERNAL EQUIPMENT SETUP

■ To prevent damage do not connect to the mains outlet until all connections are made between the devices.

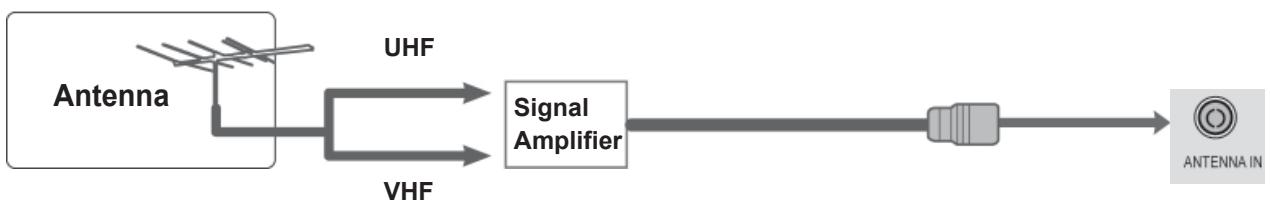

ANTENNA CONNECTION

■ For optimum picture quality, adjust antenna direction.
■ An antenna cable and converter are not supplied.

■ In poor signal areas, to achieve better picture quality it may be necessary to install a signal amplifier to the antenna as shown above.
■ If signal needs to be split for two TVs, use an antenna signal splitter for connection.

EXTERNAL EQUIPMENT SETUP

■ To avoid damaging any equipment, never plug in any power cord until you have finished connecting all equipment.
■ This section on EXTERNAL EQUIPMENT SETUP mainly uses diagrams for the 32/37/42/47LD4*** models.
■ Image shown may differ from your TV.

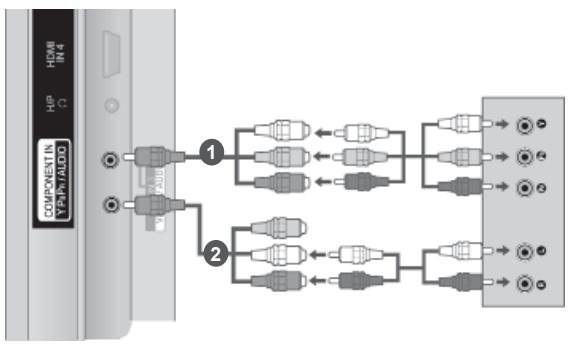

CONNECTING WITH A COMPONENT CABLE

This TV can receive Digital RF/Cable signals without an external digital set-top box. However, if you do receive Digital signals from a digital set-top box or other digital external device, refer to the diagram as shown below.

1 Connect the video outputs (Y, PB, PR) of the external equipment (digital set-top box, DVD, etc.) to the COMPONENT IN VIDEO jacks on the TV.
2 Connect the audio output of the external equipment (digital set-top box, DVD, etc.) to the COMPONENT IN AUDIO jacks on the TV.
3 Turn on the external equipment. (Refer to the external equipment's manual for operating instructions.)
4 Select the Component input source using the INPUT button on the remote control.

▶ HDMI Audio Supported format : Dolby Digital, PCM DTS Audio format is not supported.

Signal	Component	HDMI
480i/576i	O	X
480p/576p	O	O
720p/1080i	O	O
1080p	O(50 Hz / 60 Hz only)	O(24 Hz / 30 Hz / 50 Hz / 60 Hz)

OPTICAL AUDIO IN AUDIO IN (RGB/DVI) RGB IN (PC) RS-232C IN (CONTOL & SERVICE) COMPONENT IN Y M P0 P1 P2 AUDIO R ANTENNA IN HDMI / DVI IN 1 2 1 2 P0 L B

or

COMPONENT IN YPRINT/ALDO HIP HDMI IN 4 1 2

Component Input ports

To achieve better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the TV	Y	P_B	P_R
Video output portson DVD player	Y	P_B	P_R
	Y	B-Y	R-Y
	Y	Cb	Cr
	Y	Pb	Pr

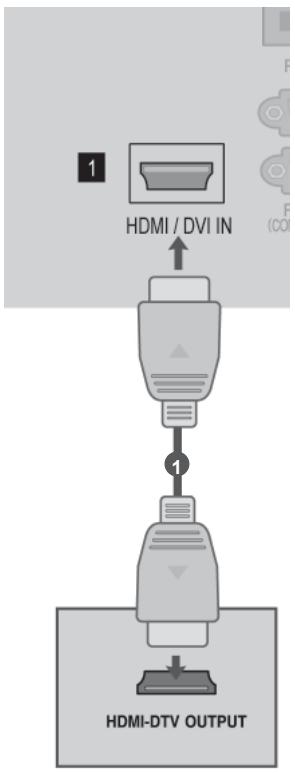

CONNECTING WITH AN HDMI CABLE

1 Connect the HDMI output of the external equipment (digital set-top box, DVD, etc.) to HDMI/DVI IN 1, HDMI IN 2 (Except for 19/22LD3***), HDMI IN 3 (Except for 19/22/26/32LD3***, 32/37/42/47LD4***, 19/22LE3***, 22LE5***) or HDMI IN 4 (Only 32LE3***, 32/37/42LE4***, 32/37/42/47/55LE5***) jack on the TV.
2 Turn on the external equipment. (Refer to the external equipment's manual for operating instructions.)
3 Select HDMI1, HDMI2 (Except for 19/22LD3***), HDMI3 (Except for 19/22/26/32LD3***, 32/37/42/47LD4***, 19/22LE3***, 22LE5***) or HDMI4 (Only 32LE3***, 32/37/42LE4***, 32/37/42/47/55LE5***) input source using the INPUT button on the remote control.

NOTE

The TV can receive video and audio signals simultaneously when using an HDMI cable.
▶ If the DVD does not support Auto HDMI, you must set the output resolution appropriately.
▶ Check that your HDMI cable is High Speed HDMI Cable. If the HDMI cables are not High Speed HDMI Cable, flickering or no screen display can result. Please use the High Speed HDMI Cable.

EXTERNAL EQUIPMENT SETUP

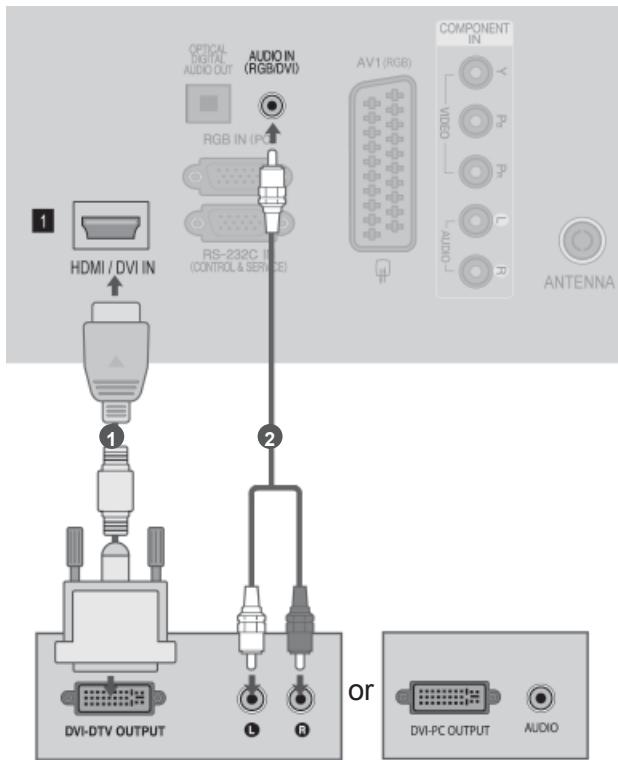

CONNECTING WITH AN HDMI TO DVI CABLE

1 Connect the digital set-top box or the DVI output of the PC to HDMI/DVI IN 1 jack on the TV.
2 Connect the audio output of the digital set-top box or the PC audio output to the AUDIO IN (RGB/DVI) jack on the TV.
3 Turn on the digital set-top box or the PC and the TV. (Refer to the digital set-top box or the PC manual for operating instructions.)
4 Select HDMI1 input source using the INPUT button on the remote control.

OPTICAL DIGITAL AUDIO OUT AUDIO IN (RGB/DVI) RGB IN (PCI) RS-232C IN (CONTROL & SERVICE) AV1 (RGB) COMPONENT IN Y PA PI U AUDIO ANTENNA HDMI / DVI IN 1 2 DVI-DTV OUTPUT L B Or DVI-PC OUTPUT AUDIO

CONNECTING WITH A EURO SCART CABLE

1 Connect the Euro scart socket of the external equipment (DVD, VCR, etc.) to the AV1 Euro scart socket on the TV.
2 Turn on the external equipment. (Refer to the external equipment's manual for operating instructions.)
3 Select AV1 input source using the INPUT button on the remote control.

Scart	Input			Output
	Video	Audio	RGB	Video, Audio
AV1	O	O	O	Analogue TV, Digital TV

Current input model\Output Type	AV1(TV Out)	AV1(When DTV scheduled recording is in progress using recording equipment.)
Digital TV	Digital TV	O
Analogue TV, AV	Analogue TV	O(The input mode is converted to DTV.)
Component/RGB	Analogue TV
HDMI	Analogue TV

DIGITAL AUDIO OUT (RGB/DVI) RGB IN (R) RS/CCC IN (CONTRIE SERVICE) 1 AUDIO VIDEO Y Pb Pb L R ANTENN AUDIO/ VIDEO

▶ TV Out : Outputs Analogue TV or Digital TV signals.

NOTE

▶ Any Euro scart cable used must be signal shielded.

EXTERNAL EQUIPMENT SETUP

USB SETUP

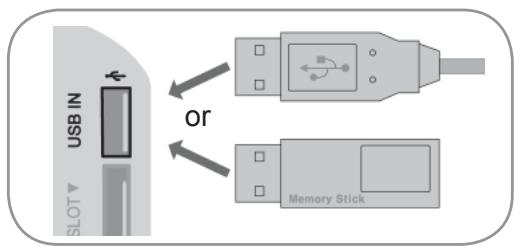

1 Connect the USB device to the USB IN jack on the TV.
2 After connecting the USB IN jack, you use the USB function. (▶ p.52)

USB IN 1 or Memory Stick

CONNECTING WITH A RF CABLE

To avoid picture noise (interference), allow adequate distance between the VCR and TV.

1 Connect the ANT OUT socket of the VCR to the ANTENNA IN socket on the TV.
2 Connect the antenna cable to the ANT IN socket of the VCR.
3 Press the PLAY button on the VCR and match the appropriate channel between the TV and VCR for viewing.

ANTENNA IN 1 ANT OUT S-VIDEO VIDEO L R 4 3 OUTPUT SWITCH ANT IN 2 Wall Jack Antenna

CONNECTING WITH A RCA CABLE

1 Connect the AUDIO/VIDEO jacks between TV and VCR or external equipment. Match the jack colours (Video = yellow, Audio Left = white, and Audio Right = red)
2 Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner's manual.)

Or, Operate the corresponding external equipment.

(Refer to external equipment operating guide.)

3 Select AV2 input source using the INPUT button on the remote control.

If connected to AV IN 3, select AV3 input source.

NOTE

▶ If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.

HV20-AUDIO-R HP HDMI IN 2 AV IN 2 1 S-VIDEO VIDEO 1 ANT IN OUTPUT SWITCH ANT OUT or VIDEO L R Camcorder Video Game Set

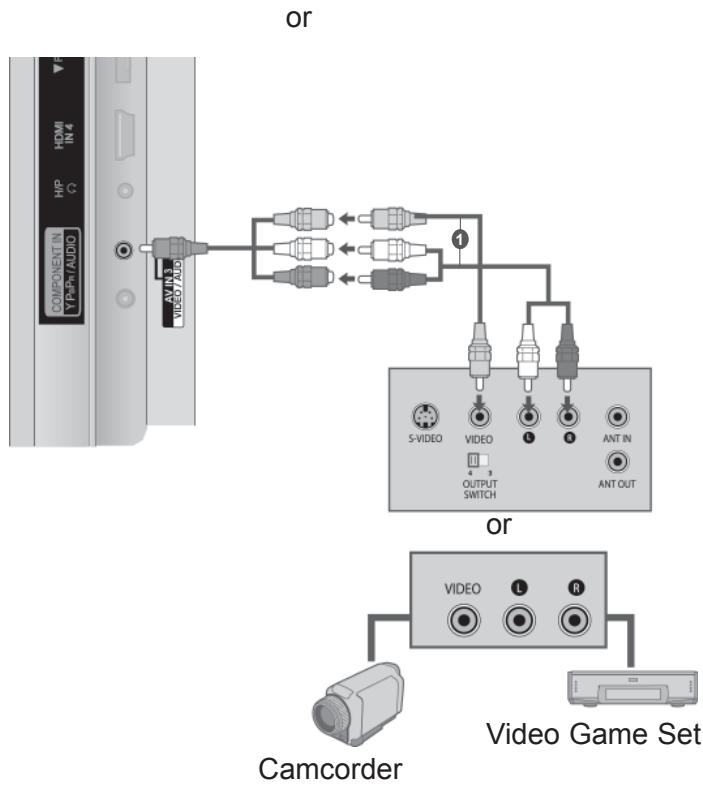

or COMPONENT IN YR-Pr AUDIO AVLAN VIDEO/AUD 1 5-VIDEO VIDEO OUTPUT SWITCH ANT IN ANT OUT or VIDEO L R Camcorder Video Game Set

EXTERNAL EQUIPMENT SETUP

CONNECTING WITH A D-SUB 15 PIN CABLE

This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

1 Connect the RGB output of the PC to the RGB IN (PC) jack on the TV.
2 Connect the PC audio output to the AUDIO IN (RGB/DVI) jack on the TV.
3 Turn on the PC and the TV
4 Select RGB input source using the INPUT button on the remote control.

INSERTION OF CI MODULE

To view the encrypted (pay) services in digital TV mode. This feature is not available in all countries.

1

Insert the CI Module to PCMCIA (Personal Computer Memory Card International Association) CARD SLOT of TV as shown.

For further information, see p.34.

NOTE

▶ Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.

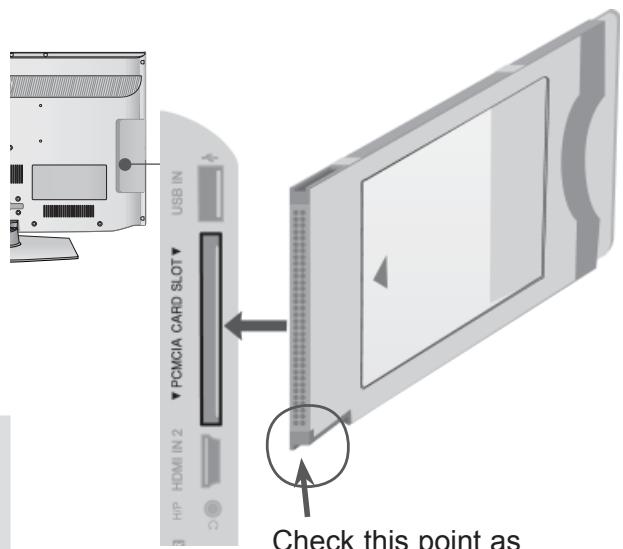

USB IN PCMCIA CARD SLOT HDMI IN 2 Check this point as

Check this point as shown and insert the CI Module.

HEADPHONE SETUP

You can listen the sound through the headphone.

1

Plug the headphone into the headphone socket.

2

To adjust the headphone volume, press the ∠ + or - button. If you press the MUTE button, the sound from the headphone is switched off.

Cartoon illustration of a person wearing headphones connected to a USB cable with a 'HP' and 'C' labels (no text or symbols on the diagram itself)

NOTE

▶ AUDIO menu items are disabled when connecting a headphone.
▶ When changing AV MODE with a headphone connected, the change is applied to video but not to audio.
▶ Optical Digital Audio Out is not available when connecting a headphone.
▶ Headphone impedance: 16 Ω
▶ Max audio output of headphone: 10 mW to 15 mW

EXTERNAL EQUIPMENT SETUP

DIGITAL AUDIO OUT SETUP

Sending the TV's audio signal to external audio equipment via the Digital Audio Output (Optical) port. If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL AUDIO OUT terminal on the back of TV to a Home Theater (or amp).

1 Connect one end of an optical cable to the TV Digital Audio (Optical) Output port.
2 Connect the other end of the optical cable to the digital audio (Optical) input on the audio equipment.
3 Set the "TV Speaker option - Off" in the AUDIO menu.(▶ p.112). Refer to the external audio equipment instruction manual for operation.

CAUTION

▶ Do not look into the optical output port. Looking at the laser beam may damage your vision.

OPTICAL DIGITAL AUDIO OUT AUDIO IN (RGB/DVI) RGB IN (PC) HDMI / DVI IN DC-232C IN (CO#ROL & SERVICE) AV1 (RGB)

EXTERNAL EQUIPMENT WIRELESS CONNECTION

(Only 32/42/46/52/60LD5***, 32LE3***, 32/37/42LE4***, 32/37/42/47/55LE5***)

You can connect between TV and external equipment wirelessly.

For further information, refer to the “LG Wireless Media Box” manual for operating instructions.

1

Connect the Wireless Media Box to the

WIRELESS CONTROL jack and HDMI/DVI IN

1, HDMI IN 2 (Except for 19/22LD3**), HDMI

IN 3 (Except for 19/22/26/32LD3***,

32/37/42/47LD4***, 19/22LE3***, 22LE5***) or

HDMI IN 4 (Only 32LE3***, 32/37/42LE4***,

32/37/42/47/55LE5***) jack on the TV.

LG Wireless Media Box

HDMI/DVI IN 2 1 HDMI/DVI IN OPTICAL DIGITAL AUDIO IN RGB(DVI) RGB (I(PC)) RS-232C IN CONTROL & SERVICE WIRELESS CONTROL AV1(RGB) COMPONENT IN Y VIDEO Ph Ph L AUDIO R ANTENNA IN

SUPPORTED DISPLAY RESOLUTION

RGB-PC, HDMI/DVI-PC mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720x400	31.468	70.08
640x480	31.469	59.94
800x600	37.879	60.31
1024x768	48.363	60.00
1280x768	47.78	59.87
1360x768	47.72	59.80
1280x1024	63.981	60.02
1920x1080 (RGB-PC)	66.587	59.93
1920x1080 (HDMI-PC)	66.587	59.93

(Except for 19/22/26LD3***, 26/32LD32**, 32LD34**, 19/22/26/32LE3***, 26/32LD33**)

HDMI/DVI-DTV mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720x480	31.469	59.94
	31.5	60
720x576	31.25	50
1280x720	37.5	50
	44.96/45	59.94/60
1920x1080	33.72/33.75	59.94/60
	28.125	50
	26.97/27	23.97/24
	33.716/33.75	29.976/30.00
	56.25	50
	67.43/67.5	59.94/60

NOTE

• Avoid keeping a fixed image on the set's screen for prolonged periods of time. The fixed image may become permanently imprinted on the screen; use a screen saver when possible.
  There may be interference relating to resolution, vertical pattern, contrast or brightness in PC mode. Change the PC mode to another resolution or change the refresh rate to another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.
  ▶ The synchronization input waveform for Horizontal and Vertical frequencies are separate.
  ▶ We recommend using 1920x1080, 60 Hz(Except for 19/22/26LD3***, 26/32LD32**, 32LD34**, 19/22/26/32LE3***, 26/32LD33**), 1360x768, 60 Hz(Only 19/22/26LD3***, 26/32LD32**, 32LD34**, 19/22/26/32LE3***, 26/32LD33**) for the PC mode, this should provide the best picture quality.
  ▶ Connect the signal cable from the monitor output port of the PC to the RGB (PC) port of the TV or the signal cable from the HDMI output port of the PC to the HDMI IN (or HDMI/DVI IN) port on the TV.

▶ Connect the audio cable from the PC to the Audio input on the TV. (Audio cables are not included with the TV).
▶ If using a sound card, adjust PC sound as required.
▶ If the graphic card on the PC does not output analogue and digital RGB simultaneously, connect only one of either RGB or HDMI IN (or HDMI/DVI IN) to display the PC output on the TV.
▶ If the graphic card on the PC does output analogue and digital RGB simultaneously, set the TV to either RGB or HDMI; (the other mode is set to Plug and Play automatically by the TV.)
▶ DOS mode may not work depending on the video card if you use an HDMI to DVI cable.
▶ If you use too long an RGB-PC cable, there may be interference on the screen. We recommend using under 5m of cable. This provides the best picture quality.

SCREEN SETUP FOR PC MODE

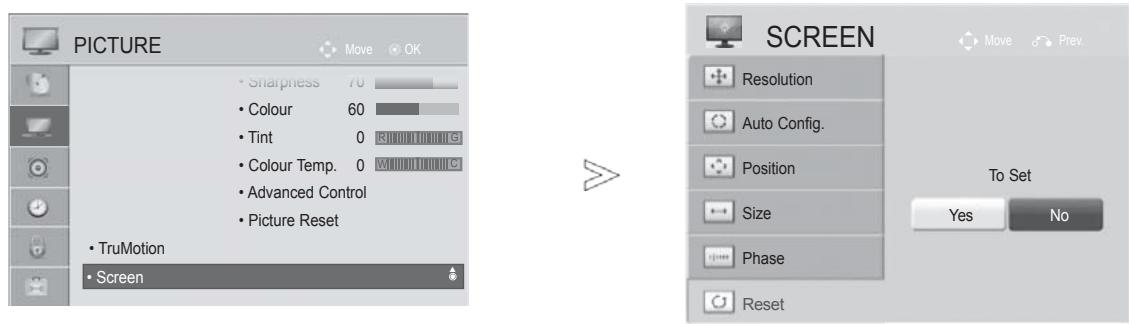

Screen Reset

Returns Position, Size and Phase to the factory default settings.

This function works in the following mode : RGB[PC].

PICTURE • Sharpness 70 • Colour 60 • Tint 0 • Colour Temp. 0 • Advanced Control • Picture Reset • TruMotion • Screen SCREEN • Resolution • Auto Config. • Position • Size • Phase • Reset To Set Yes No

Select PICTURE.

Select Screen.

Select Reset.

Select Yes.

Run Reset.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

EXTERNAL EQUIPMENT SETUP

Auto Configure (RGB [PC] mode only)

Automatically adjusts the picture position and minimizes image instability. After adjustment, if the image is still not correct, your TV is functioning properly but needs further adjustment.

Auto configure

This function is for automatic adjustment of the screen position, size, and phase The displayed image will be unstable for a few seconds while the auto configuration is in progress.

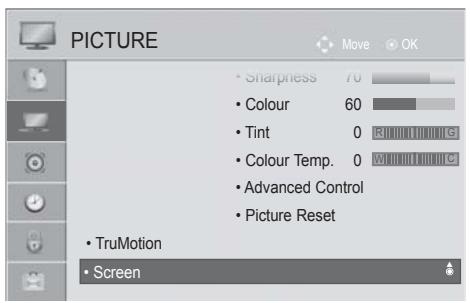

PICTURE • Sharpness 70 • Colour 60 • Tint 0 RIMIIMIG • Colour Temp. 0 MIMIIMIG • Advanced Control • Picture Reset • TruMotion • Screen

SCREEN Resolution Auto Config. Position Size Phase Reset Move Prev. Auto Config. Yes No

Select PICTURE.

Select Screen.

Select Auto Config..

Select Yes.

Run Auto Config..

• If the position of the image is still not correct, try Auto adjustment again.

• If picture needs to be adjusted again after Auto adjustment in RGB (PC), you can adjust the Position, Size or Phase.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

Selecting Resolution

To view a normal picture, match the resolution of RGB mode and selection of PC mode.

This function works in the following mode: RGB[PC]

PICTURE • Sharpness 70 • Colour 60 • Tint 0 R • Colour Temp. 0 W • Advanced Control • Picture Reset • TruMotion • Screen

SCREEN Resolution Auto Config. Position Size Phase Reset 1024 x 768 1280 x 768 1360 x 768

Select PICTURE.

Select Screen.

Select Resolution.

Select the desired resolution.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

EXTERNAL EQUIPMENT SETUP

Adjustment for screen Position, Size, Phase

If the picture is not clear after auto adjustment and especially if characters are still trembling, adjust the picture position manually.

This function works in the following mode : RGB[PC].

PICTURE • Sharpness 70 • Colour 60 • Tint 0 R • Colour Temp. 0 W • Advanced Control • Picture Reset • TruMotion • Screen

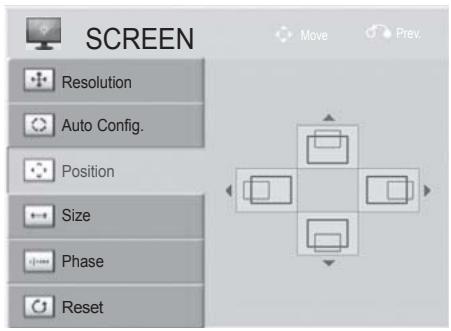

SCREEN Resolution Auto Config. Position Size Phase Reset

Select PICTURE.

Select Screen.

Select Position, Size or Phase.

Make appropriate adjustments.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

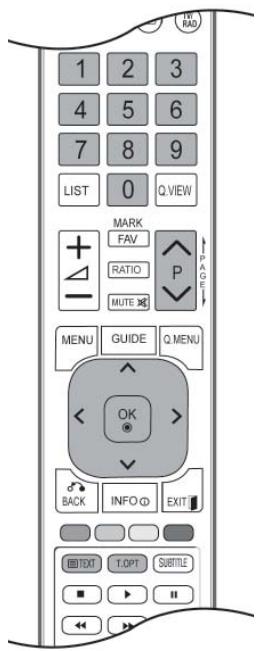

TURNING ON THE TV

When your TV is turned on, you will be able to use its features.

1

Firstly, connect the power cord correctly.

At this stage, the TV switches to standby mode.

2

In standby mode to turn TV on, press the ⏻ / I, INPUT or P ∧ ∨ (or P ▲ ▼) button on the TV or press the POWER, INPUT, P ∧ ∨ or NUMBER button on the remote control and the TV will switch on.

INITIALIZING SETUP

1

If the OSD (On Screen Display) is displayed on the screen after turning on the TV, you can adjust the Language, Mode Setting, Power Indicator(When you select Home Use from Mode Setting - Only LED LCD TV MODELS), Country or TimeZone (When Russia is selected for Country) or Set Password(When France is selected for Country), Auto Tuning.

Note:

a. If you close without completing the initial setting, the Initial Setting menu can be displayed again.
b. Press the BACK button to change the current OSD to the previous OSD.
c. For those countries without confirmed DTV broadcasting standards, some DTV features might not work, depending on the DTV broadcasting environment.
d. "Home Use" mode is the optimal setting for home environments, and is the TV's default mode.
e. "Store Demo" mode is the optimal setting for store environments. If a user modifies image quality data, "Store Demo" mode initializes the product to the image quality set by us after a certain period of time.

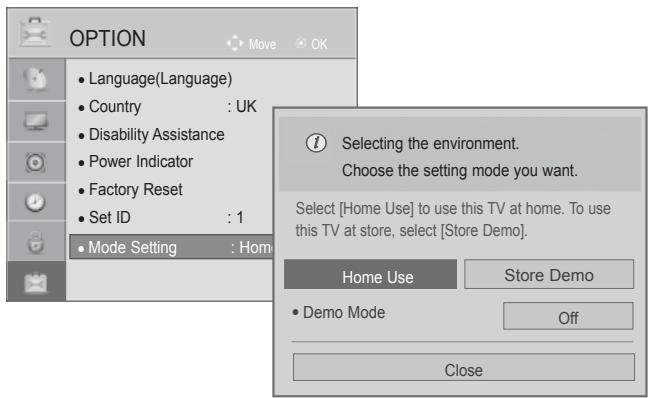

f. The mode (Home Use, Store Demo) can be changed by executing Mode Setting in the OPTION menu.
g. When France is selected for Country, password is not '0', '0', '0', '0' but '1', '2', '3', '4'.

PROGRAMME SELECTION

1

Press the P ^ ∨ or NUMBER buttons to select a programme number.

VOLUME ADJUSTMENT

1

Press the + or - button to adjust the volume.

2

If you wish to switch the sound off, press the MUTE button.

You can cancel this function by pressing the MUTE, ∠ + , - or AV Mode button.

WATCHING TV / PROGRAMME CONTROL

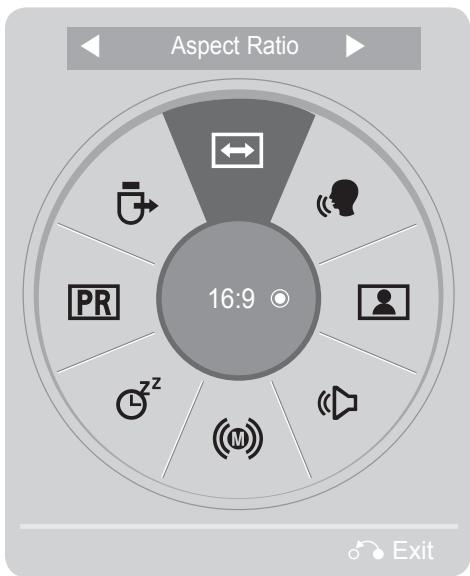

QUICK MENU

Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

Q.Menu (Quick Menu) is a menu of features which users might use frequently.

Aspect Ratio: Selects your desired picture format.
For Zoom Setting, select 14:9, Zoom and Cinema Zoom in Ratio Menu. After completing Zoom Setting, the display goes back to Q.Menu.
Clear Voice II : By differentiating the human sound range from others, it helps users listen to human voices better.
Picture Mode : Selects your desired Picture Mode.
Sound Mode : It is a feature to automatically set the sound combination which it deems the best for the images being watched. Selects your desired Sound Mode.

Audio or Audio Language : Selects the sound output.

^z^2 Sleep Timer : Sets the sleep timer.

PR Skip Off/On : Selects the Skip Off/On.

USB Device : Selects "Eject" in order to eject USB device.

Display each menu.

Select your desired Source.

• Press the Q.MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

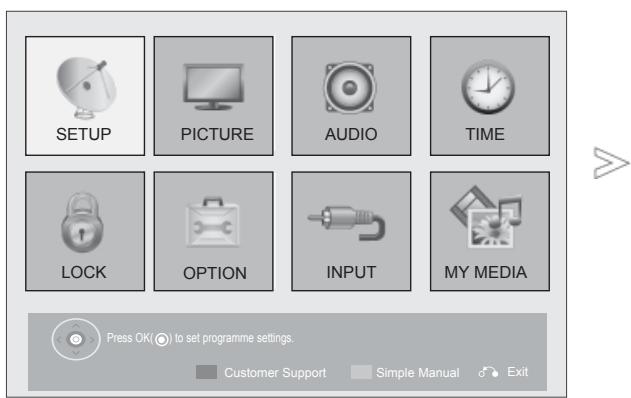

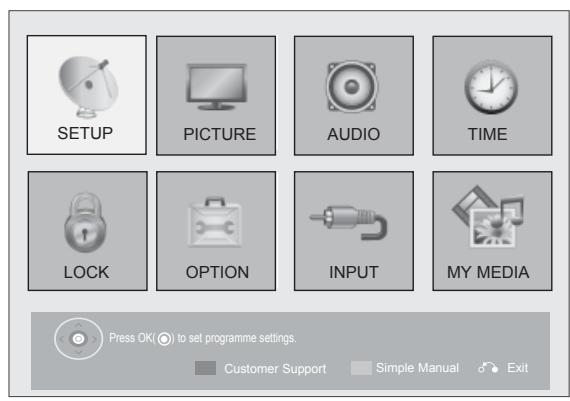

ON SCREEN MENUS SELECTION AND ADJUSTMENT

Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

    X["LOCK"] --> Y["Set Password"]
    X --> Z["Lock System: Off"]
    X --> AA["Block Programme"]
    X --> AB["Parental Guidance: Blocking Off"]
    X --> AC["Input Block"]
    X --> AD["Key Lock: Off"]

    AE["SETUP"] --> AF["TIME"]
    AG["PICTURE"] --> AH["TIME"]
    AI["AUDIO"] --> AJ["TIME"]
    AK["TIME"] --> AL["Clock"]
    AK --> AM["Off Time: Off"]
    AK --> AN["On Time: Off"]
    AK --> AO["Sleep Timer: Off"]

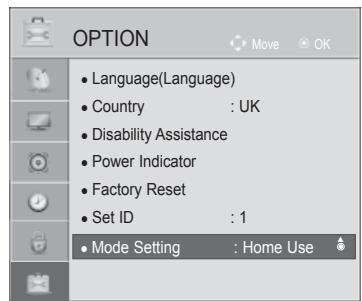

    AP["OPTION"] --> AQ["Language(Language)"]
    AP --> AR["Country: UK"]
    AP --> AS["Disability Assistance"]
    AP --> AT["Power Indicator"]
    AP --> AU["Factory Reset"]
    AP --> AV["Set ID: 1"]
    AP --> AW["Mode Setting: Home Use"]
    AP --> AX["IR Blaster"]

    AY["INPUT List"] --> AZ["Antenna USB AV1 AV2 AV3 Component RGB HDMI1 HDMI2 HDMI3 HDMI4 Input Label Exit"]

    BA["MY MEDIA"] --> BB["Movie List Photo List Music List Press OK( ) to see photos from the USB Option Exit"]

Display each menu.

Select a menu item.

Move to the pop up menu.

• Press the RED button, you can check the Customer Support menu.
• Press the GREEN button, you can check the Simple Manual menu.
• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

NOTE

▶ It is not possible to use CI Information in Analogue mode.
▶ IR Blaster : For further information, refer to the optional “Wireless Media Box” manual for operating instructions.
It is possible to use Movie List menu in 19/22/26/32LE3***, 32/37/42LE4***, 22/26LE5***, 32/37/42/47/55LE5***, 32/42/46/52/60LD56**, 32/37/42/47LD46**, 32/42/46/52/60LD555, 32/3742/47LD455, 19/22/26/32LD355, 19/22/26/32LD356, 19/22/26/32LD345, 19/22/26/32LD346, 32/37/42/47LD425, 32/37/42/47LD426, 26/32LD335, 26/32LD336.

WATCHING TV / PROGRAMME CONTROL

AUTO PROGRAMME TUNING

Use this to automatically find and store all available programmes.

When you start auto programming, all previously stored service information will be deleted.

The maximum number of programmes that can be stored is 1,000. But the number may differ slightly depending on broadcasting signals.

DVB-T, DVB-C Auto Tuning is a menu for users in countries that support DVB cable.

If you want to select the Antenna,

Select SETUP.

Select Auto Tuning.

Select Antenna.

Select Start.

Run Auto tuning.

• Use NUMBER buttons to input a 4-digit password in Lock System 'On'.
• If you wish to keep on auto tuning select Start using the ^ ∨ button. Then, press the OK button. Otherwise select Close.
  • Automatic Numbering: Decide whether to use the programme numbers as sent by broadcasting stations for tuning.

• When select Italy in the County menu, If the pop up is displayed when the conflicted programme after Auto Tuning, select a broadcaster for Conflicting programme number to solve.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

• In the following country, DVB cable can be used: Germany, Netherlands, Sweden, Switzerland, Denmark, Austria, Finland, Norway, Slovenia, Hungary, Ukraine. (The supported country can be added.)

• In the following country, Digital TV can not be used: Slovakia, Bosnia, Serbia, Bulgaria, Albania, Kazakhstan.

If you want to select the Cable,

Select SETUP.

Select Auto Tuning.

Select Cable.

Select Comhem or Other Operators.

Select Quick or Full.

• Use NUMBER buttons to input a 4-digit password in Lock System 'On'.
• When you select the Cable, the Cable Service Operator selection screen can differ or not exist by the Cable situation of the applicable country.
• The popup window to select Service Operator is only shown initially for the 3 cases when you accessing the Initial Setting menu, when you change from Antenna to Cable or when you access the menu after changing the Country.

• When you want to select Service Operator aside from the above 3 cases, you can do so by selecting Setup->Cable DTV Setting->Service Operator.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

• Acquired certification SO : Sweden(Comhem, Canal Digital), Denmark(YouSee, Canal Digital, Stofa), Norway(Canal Digital), Netherlands(Ziggo), Ukraine(Volia-Cable)
- If there are not any Service Operator that you want, select Other Operators.
- If you select “Other Operators”, or the selected country supports “Other Operators” only, it may take some time to search all the channels, or it may not search some of the channels.
If some of the channels do not appear, follow the steps below:

1. SETUP -> Auto Tuning -> Cable -> Setting
2. Switch Home Tuning from "Off" to "On"
3. Input additional values such as the frequency, symbol rate, modulation, and network ID. (You can ask your cable service provider for the above information.)

WATCHING TV / PROGRAMME CONTROL

■ When you select the Quick,

Select Quick.

Select Setting.

Make appropriate adjustments.

Select Close.

Select OK.

Select Start.

Run Auto tuning.

• If you wish to keep on auto tuning, select Start using the ^ ∨ button. Then, press the OK button. Otherwise select Close.
• Automatic Numbering: Decide whether to use the programme numbers as sent by broadcasting stations for tuning.

• Skip Scramble Programme : Scramble Programme is skipped in Auto Tuning and Manual Tuning.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

■ When you select the Full,

Full Search every available signal. OK Close Cable Cable Check your antenna connection. The previous channel information will be updated during Auto Tuning. Skip Scramble Programme Automatic Numbering Start Close

Select Full.

Select OK.

Select Start.

Run Auto tuning.

• If you wish to keep on auto tuning, select Start using the ^ ∨ button. Then, press the OK button. Otherwise select Close.
• Automatic Numbering: Decide whether to use the programme numbers as sent by broadcasting stations for tuning.
• Skip Scramble Programme : Scramble Programme is skipped in Auto Tuning and Manual Tuning.

• You can not select the Full when the service operator is set to "Ziggo" or "Other Operators" of Netherlands.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

Cable Cable Check your antenna connection. The previous channel information will be updated during Auto Tuning. Skip Scramble Programme Automatic Numbering Start Close

WATCHING TV / PROGRAMME CONTROL

The following values are needed in order to search all available programmes quickly and correctly. The commonly used values are provided as "default".

However, for correct settings, please inquire of the cable service provider.

When running Auto Tuning in DVB cable mode, selecting Full will search through all frequencies to find available channels.

In the case when the programme is not searched by selecting the Default, perform the searching by selecting the Full.

However, in the case when the programme is searched by selecting the Full, the Auto Tuning time can be taken too much.

• Frequency : Enter a user-defined frequency.
- Symbol rate : Enter a user-defined symbol rate (Symbol rate: Speed at which a device such as modem sends symbols to a channel).
- Modulation : Enter a user-defined modulation. (Modulation: Loading of audio or video signals onto carrier).
• Network ID : Unique identifier allocated for each user.
- Start Frequency : Enter a user-defined start frequency range.
• End Frequency : Enter a user-defined end frequency range.

CABLE DTV SETTING

(IN CABLE MODE ONLY)

The range that a user can select from the Service Operator menu differs depending on number of Service Operator supported by each country, and if number of supported Service Operator for each country is 1, corresponding function becomes non-activation.

After changing Service Operator, a warning window saying that channel map will be deleted when OK button is pressed or Close is selected, and a Auto-tuning pop-up window appears when 'YES' is selected.

SETUP • Auto Tuning • Manual Tuning • Programme Edit • CI Information • Cable DTV Setting SETUP • Auto Tuning • Manual Tuning • Programme Edit • CI Information • Cable DTV Setting Service Operator Comhem Channel Auto Update Off Close

Select SETUP.

Select Cable DTV Setting.

Select Service Operator or Channel Auto Update.

Select your desired Source.

• If you select Cable, you can see Cable DTV Setting menu.
• When Channel Auto Update is On, you can update information for all the programmes that can be updated, including the programme currently being watched.
• When Channel Auto Update is Off, you can only update information for the programme currently being watched.

• You can not select the Cable DTV Setting when the service operator is set to "Ziggo".

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

MANUAL PROGRAMME TUNING

(IN DIGITAL MODE)

Manual Tuning lets you manually add a programme to your programme list.

If you want to select the Antenna,

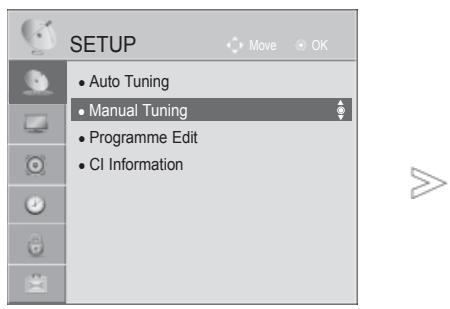

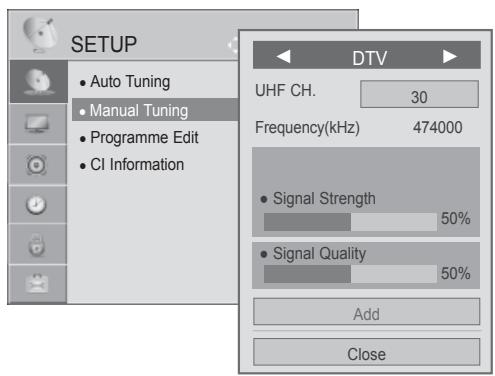

SETUP • Auto Tuning • Manual Tuning • Programme Edit • CI Information

SETUP • Auto Tuning • Manual Tuning • Programme Edit • CI Information DTV UHF CH. 30 Frequency(kHz) 474000 • Signal Strength 50% • Signal Quality 50% Add Close

Select SETUP.

Select Manual Tuning.

Select DTV.

Select the desired channel number.

Select update or add if signal present.

• Use NUMBER buttons to input a 4-digit password in Lock System 'On'.

• You can select SBAND when the country is set to "Norway, Latvia."

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

If you want to select the Cable,

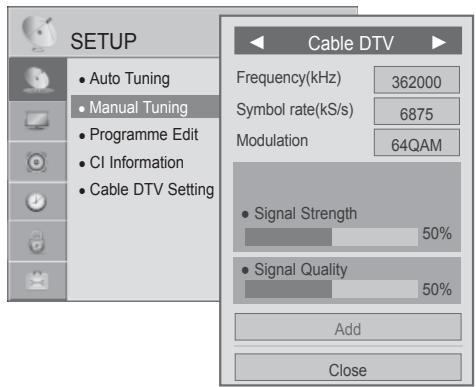

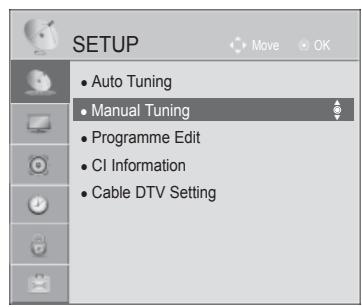

SETUP • Auto Tuning • Manual Tuning • Programme Edit • CI Information • Cable DTV Setting

SETUP • Auto Tuning • Manual Tuning • Programme Edit • CI Information • Cable DTV Setting Cable DTV Frequency(kHz) 362000 Symbol rate(kS/s) 6875 Modulation 64QAM • Signal Strength 50% • Signal Quality 50% Add Close

Select SETUP.

Select Manual Tuning.

Select Cable DTV.

Make appropriate adjustments.

• Use NUMBER buttons to input a 4-digit password in Lock System 'On'.
• Symbol rate : Enter a user-defined symbol rate (Symbol rate: Speed at which a device such as modem sends symbols to a channel).
• Modulation : Enter a user-defined modulation. (Modulation: Loading of audio or video signals onto carrier).

• You can not select the Cable DTV when the service operator is set to "Ziggo" or "Other Operators" of Netherlands.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

MANUAL PROGRAMME TUNING

(IN ANALOGUE MODE)

Manual Tuning lets you manually tune and arrange the stations in whatever order you desire.

Select SETUP.

Select Manual Tuning.

Select TV or Cable TV.

Select the desired programme number on.

Select a TV system.

Select V/UHF or Cable.

Select the desired channel number.

Commence searching.

Select Store.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

• Use NUMBER buttons to input a 4-digit password in Lock System 'On'.
  • L : SECAM L/L' (France)

BG : PAL B/G, SECAM B/G (Europe / East Europe / Asia / New Zealand / M.East / Africa)

I : PAL I (U.K. / Ireland / Hong Kong / South Africa)

DK : PAL D/K, SECAM D/K (East Europe / China / Africa / CIS)

• To store another channel, repeat steps 4 to 9.

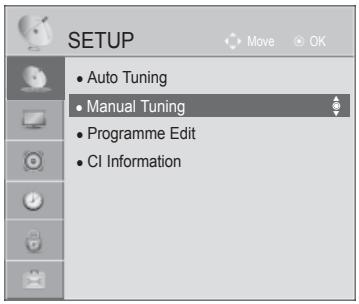

SETUP • Auto Tuning • Manual Tuning • Programme Edit • CI Information

SETUP • Auto Tuning • Manual Tuning • Programme Edit • CI Information TV • Storage 3 • System BG • Band V/UHF • Channel 0 • Fine • Search • Name C 02 Store Close

or

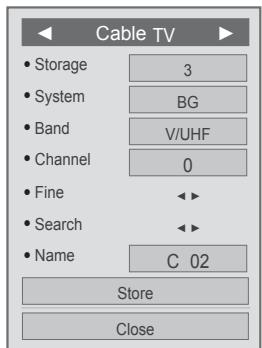

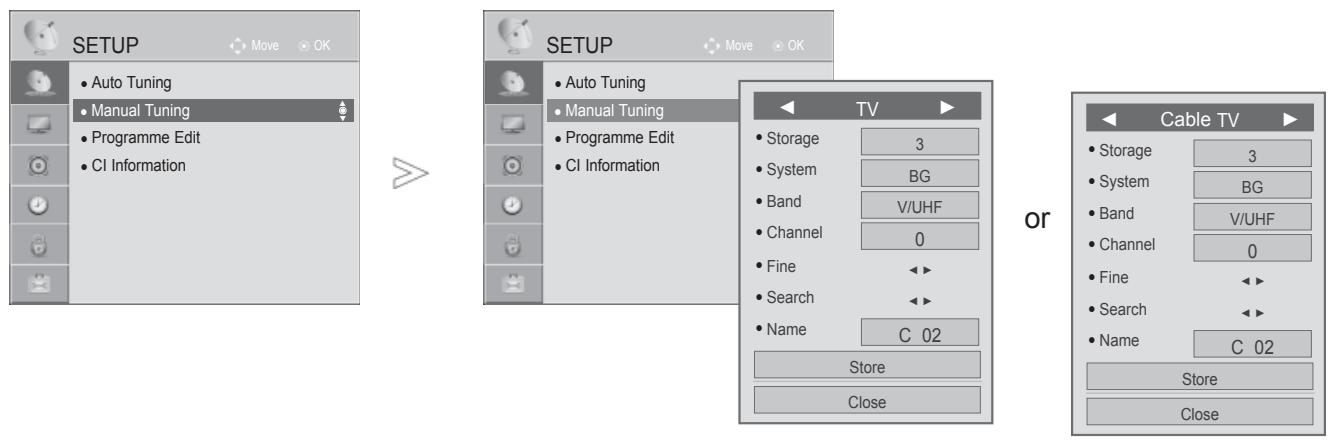

Cable TV Storage 3 System BG Band V/UHF Channel 0 Fine ◀◀ Search ◀◀ Name C 02 Store Close

■ Assigning a station name

You can assign a station name with five characters to each programme number.

Select SETUP.

Select Manual Tuning.

Select TV or Cable TV.

Select Name.

Select the position and make your choice of the second character, and so on.

You can use an the alphabet A to Z, the number 0 to 9, +/- , and blank.

Select Close.

Select Store.

■ Fine Tuning

Normally fine tuning is only necessary if reception is poor.

Select SETUP.

Select Manual Tuning.

Select TV or Cable TV.

Select Fine.

Fine tune for the best picture and sound.

Select Store.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

PROGRAMME EDIT

When a programme number is skipped, it means that you will be unable to select it using P^ ∨ button during TV viewing.

If you wish to select the skipped programme, directly enter the programme number with the NUMBER buttons or select it in the Programme edit menu.

This function enables you to skip the stored programmes.

You can change the programme number using "Move" function, if "Automatic Numbering" is unchecked when you start Auto Tuning.

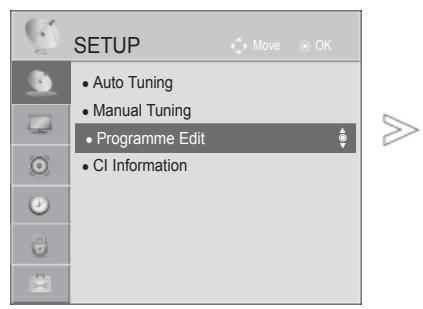

SETUP • Auto Tuning • Manual Tuning • Programme Edit • CI Information

Programme Edit Favourite Group : A DTV RADIO TV 800 YLE TV1 801 YLE TV2 802 YLE FST 803 YLE24 804 YLE Teema 805 TV4 Stockholm 806 Kanal Lokal 807 CNN 808 TV4 809 TV4 Plus 810 TV400 811 TV4 Film 812 TV4 Fakta 813 MediaCorp HD5 814 SNY_SSU 815 Demo 816 TVE 1 817 TVE 2 818 24H TVE 819 CLAN/50 TVE 820 LA7 Pr. Change FAV Favourite Pr. Q.MENU Favourite Pr. Group Previous P Page Change Block/Unblock Skip

or

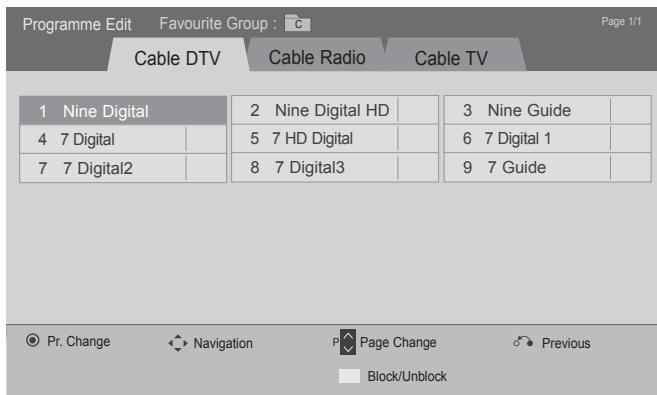

Programme Edit Favourite Group : A Cable DTV Cable Radio Cable TV 800 YLE TV1 801 YLE TV2 802 YLE FST 803 YLE24 804 YLE Teema 805 TV4 Stockholm 806 Kanal Lokal 807 CNN 808 TV4 809 TV4 Plus 810 TV400 811 TV4 Film 812 TV4 Fakta 813 MediaCorp HD5 814 SNY_SSU 815 Demo 816 TVE 1 817 TVE 2 818 24H TVE 819 CLAN/50 TVE 820 LA7 Pr. Change FAV Favourite Pr. Q.MENU Favourite Pr. Group Previous P Page Change Block/Unblock Skip

Select SETUP.

Select Programme Edit.

Enter the Programme Edit.

Select a programme to be stored or skipped.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

■ Skipping a programme number

Select a programme number to be skipped.

Turn the programme number to blue.

Release.

- When programmes are to be skipped, the skipped programme shows in blue and these programmes will not be selected by the P buttons during TV viewing.

- If you wish to select a skipped programme, directly enter the programme number with the NUMBER buttons or select it in the programme edit or EPG.

■ Locking a programme number

Select a programme number to be locked.

- It can be registered as Lock programme even when Lock System is turned Off.

Turn the programme number to yellow.

Release.

IN TV MODE

This function enables you to delete or skip the stored programmes.

You can also move some channels and use other programme numbers.

■ Deleting a programme

Select a programme number to be deleted.

Turn the programme number to red.

- The selected programme is deleted, all the following programmes are shifted up one

■ Moving a programme

Select a programme number to be moved.

GREEN

Release.

Turn the programme number to green.

■ Skipping a programme number

Select a programme number to be skipped.

Turn the programme number to blue.

Release.

• When a programme number is skipped it means that you will be unable to select it using the P ^ ∨ button during normal TV viewing.
• If you wish to select a skipped programme, directly enter the programme number with the NUMBER buttons or select it in the programme edit or EPG.

■ Auto Sort

Start Auto Sort.

• After activating Auto Sort once, you can no longer edit programmes.

■ Locking a programme number

Select a programme number to be locked.

- It can be registered as Lock programme even when Lock System is turned Off.

Turn the programme number to yellow.

Release.

■ Selecting favourite programme

Favourite programmes is a convenient feature that lets you quickly scan up to programmes of your choice without having to wait for the TV to scan through all the in-between programmes.

Select your desired programme.

Add corresponding programme to Favourite list of current Favourite group.

Release.

■ Selecting favourite programme group

Select your desired programme.

Display a pop-up window where Favourite group can be changed.

Select a Favourite group.

WATCHING TV / PROGRAMME CONTROL

CI [COMMON INTERFACE] INFORMATION

This function enables you to watch some encrypted services (pay services). If you remove the CI Module, you cannot watch pay services.

When the module is inserted into the CI slot, you can access the module menu.

To purchase a module and smart card, contact your dealer. Do not repeatedly insert or remove a CI module from the TV. This may cause a malfunction. When the TV is turned on after inserting a CI Module, you may not have any sound output.

This may be incompatible with the CI module and smart card.

CI (Common Interface) functions may not be possible depending upon the country broadcasting circumstances.

When using a CAM(Conditional Access Module), please make sure it meets fully the requirements of either DVB-CI or CI plus.

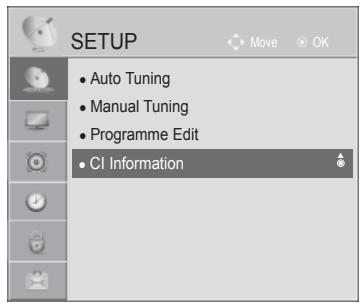

SETUP • Auto Tuning • Manual Tuning • Programme Edit • CI Information

Viaccess Module Consultations Authorizations Module information Select the item

• This OSD is only for illustration and the menu options and screen format will vary according to the Digital pay services provider.
• It is possible for you to change CI (Common Interface) menu screen and service by consulting your dealer.

Select SETUP.

Select CI Information.

Select the desired item: Module information, smart card information, language, or software download etc.

Save.

- Press the BACK/EXIT button to move to the previous menu screen.

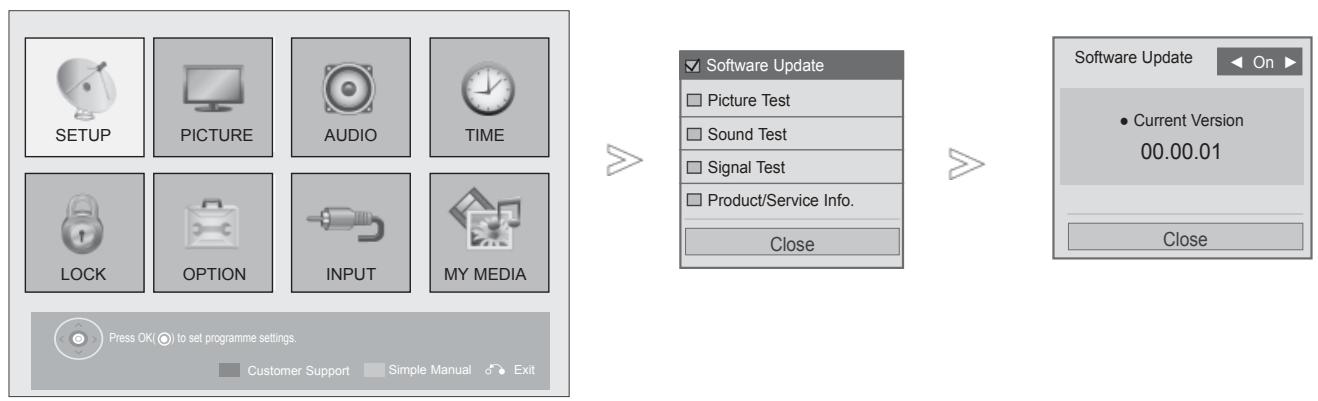

SOFTWARE UPDATE

Software Update means software can be downloaded through the digital terrestrial broadcasting system.

Select Customer Support.

Select Software Update.

Select On or Off.

- If you select On, a user confirm message box will be displayed to notify that new software is found.

Save.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

■ When setting “Software Update”

Occasionally, a transmission of updated digital software information will result in the following menu on the TV screen.

Software update is available. Would you like to download now? Yes No

Simple Update : for current update stream

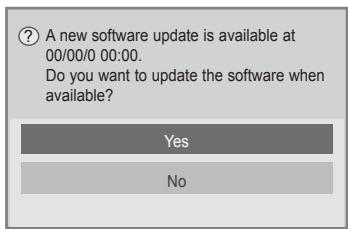

A new software update is available at 00/00/0 00:00. Do you want to update the software when available? Yes No

Schedule Update : for scheduled update stream When the Software Update menu is "Off", the message to change it to "On" appears.

Download starts when "Yes" is selected. At this time, progressing pop-up window does not display.

Download progress status can be checked from Software Update menu.

Software Update Software downloading progress. Ver. 00.00.01 ▶ Ver.00.00.00 4% Close

A window as display below appears when download completes.

TV is restarted when "Yes" is selected.

i New software version is ready. If you want to install now, TV will be turned off and restart. Continue? Yes No

• During Progress of a Software Update, please note the following:
• Power to the TV must not be interrupted.
• The antenna must not be disconnected.
• After Software Update, you can confirm the updated software version in Software Update menu.
• It may take hours to download the software, so make sure that the power stays on during the download.
• The software is downloaded only in Standby mode or in MUX with Software Update Service, and stops when the power cord is unplugged or when viewing MUX without Software Update Service.
• When you return to Standby mode or MUX with Software Update Service, the software download will resume from where it stopped.

PICTURE/SOUND TEST

This function is a customer support function that can execute picture and sound tests.

SETUP PICTURE AUDIO TIME LOCK OPTION INPUT MY MEDIA Press OK( ) to set programme settings. Customer Support Simple Manual Exit

Software Update ✓ Picture Test Sound Test Signal Test Product/Service Info. Close

Do you have a problem in this test screen? Yes No

Select Customer Support.

Select Picture Test or Sound Test.

Select Yes or No.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

DIAGNOSTICS

This function enables you to view information on the Manufacturer, Model/Type, Serial Number and Software Version.

This displays the information and signal strength of the tuned *MUX.

This displays the signal information and service name of the selected MUX.

(*MUX: A higher directory of channels in digital broadcasting (a single MUX contains multiple channels.))

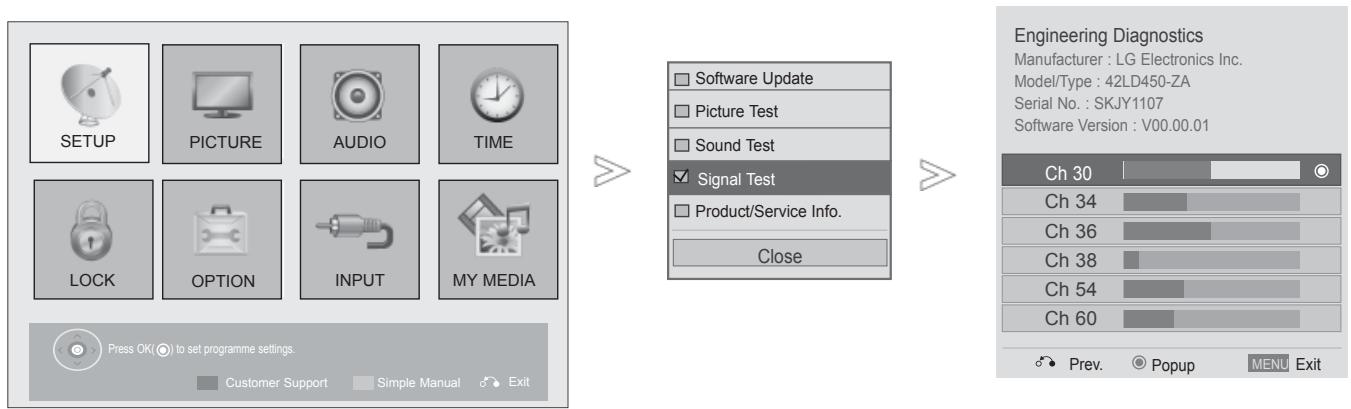

    M["Software Update"] --> N["Signal Test"]
    N --> O["Product/Service Info."]
    O --> P["Close"]

    Q["Picture Test"] --> R["Sound Test"]
    R --> S["Signal Test"]
    S --> T["Product/Service Info."]

    U["Software Update"] --> V["Signal Test"]
    V --> W["Product/Service Info."]

    X["Software Update"] --> Y["Sound Test"]
    Y --> Z["Product/Service Info."]

    AA["Software Update"] --> AB["Signal Test"]
    AB --> AC["Product/Service Info."]

    AD["Software Update"] --> AE["Sound Test"]
    AE --> AF["Product/Service Info."]

    AG["Software Update"] --> AH["Signal Test"]
    AH --> AI["Product/Service Info."]

    AJ["Software Update"] --> AK["Sound Test"]
    AK --> AL["Product/Service Info."]

    AM["Software Update"] --> AN["Signal Test"]
    AN --> AO["Product/Service Info."]

    AP["Software Update"] --> AQ["Sound Test"]
    AQ --> AR["Product/Service Info."]

    AS["Software Update"] --> AT["Signal Test"]
    AT --> AU["Product/Service Info."]

    AV["Software Update"] --> AW["Sound Test"]
    AW --> AX["Product/Service Info."]

    AY["Software Update"] --> AZ["Signal Test"]
    AZ --> BA["Product/Service Info."]

    BB["Software Update"] --> BC["Sound Test"]
    BC --> BD["Product/Service Info."]

    BE["Software Update"] --> BF["Signal Test"]
    BF --> BG["Product/Service Info."]

    BH["Software Update"] --> BI["Sound Test"]
    BI --> BJ["Product/Service Info."]

    BK["Software Update"] --> BL["Signal Test"]
    BL --> BM["Product/Service Info."]

    BN["Software Update"] --> BO["Sound Test"]
    BO --> BP["Product/Service Info."]

    BQ["Software Update"] --> BR["Signal Test"]
    BR --> BS["Product/Service Info."]

    BT["Software Update"] --> BU["Sound Test"]
    BU --> BV["Product/Service Info."]

    BW["Software Update"] --> BX["Signal Test"]
    BX --> BY["Product/Service Info."]

    BY["Software Update"] --> BZ["Sound Test"]
    BZ --> CA["Product/Service Info."]

    CB["Software Update"] --> CC["Signal Test"]
    CC --> CD["Product/Service Info."]

    CE["Software Update"] --> CF["Sound Test"]
    CF --> CG["Product/Service Info."]

    DH["Software Update"] --> DI["Signal Test"]
    DI --> DJ["Product/Service Info."]

    BEQ["Software Update"] --> BEQ
    BEQ --> BF

RED Select Customer Support.

Select Signal Test.

Display Manufacturer, Model/Type, Serial Number and Software Version.

Display the information of Channel.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

PRODUCT/SERVICE INFORMATION

This function is a customer support function that can see product/service information and customer service center information.

SETUP PICTURE AUDIO TIME LOCK OPTION INPUT MY MEDIA Press OK( ) to set programme settings. Customer Support Simple Manual Exit Software Update Picture Test Sound Test Signal Test Product/Service Info. Close

Select Customer Support.

Select Product/Service Info..

Display MODEL/TYPE, Software version, Serial Number, Customer service center and Homepage.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

SIMPLE MANUAL

You can easily and effectively access the TV information by viewing a simple manual on the TV. During the Simple Manual operation, audio will be muted.

SETUP PICTURE AUDIO TIME LOCK OPTION INPUT MY MEDIA Press OK(○) to set programme settings. Customer Support Simple Manual Exit

■ Image shown may differ from your TV.

Simple Manual Remote Control Description Contents Lists 1. Menu 2. Auto Tuning 3. Energy Saving 4. AV Mode 5. Clear Voice II 6. Picture Wizard 7. MY MEDIA Index Prev Next Auto Launching Exit

Select Simple Manual.

• RED : Go to the Index page.
• BLUE : Play the Simple Manual automatically or manually.

Select the part of the manual you want to see.

- Press the EXIT button to return to normal TV viewing.

SELECTING THE PROGRAMME LIST

You can check which programmes are stored in the memory by displaying the programme list.

Mini Glossary

Displayed when the Locked Programme.

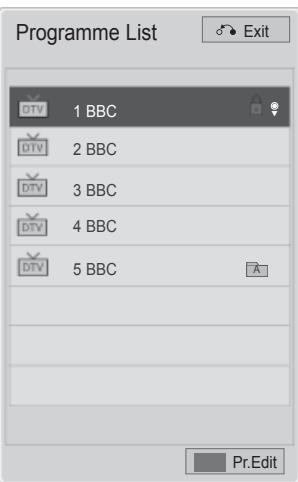

Programme List DTV 1 BBC DTV 2 BBC DTV 3 BBC DTV 4 BBC DTV 5 BBC Pr.Edit

■ Displaying programme LIST

Display the Programme List.

• You may find some blue programmes. These have been set up to be skipped by auto programming or in the programme edit mode.
• Some programmes with the channel number shown in the programme LIST indicate there is no station name assigned.

BLUE

Turn the programme edit.

■ Selecting a programme in the programme list

Select a programme.

Switch to the chosen programme number.

The mode will be switched between TV, DTV, and Radio from the program you are currently watching.

■ Paging through a programme list

Turn the pages.

Return to normal TV viewing.

■ Displaying the favourite programme list

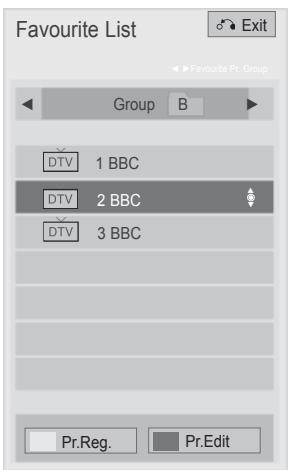

Favourite List Group B DTV 1 BBC DTV 2 BBC DTV 3 BBC Pr.Reg. Pr.Edit

Display the Favourite Programme List.

Turn the programme edit.

Current channel is registered/ cancelled as preferred channel on currently selected Group.

Favourite group is changed.

INPUT LIST

HDMI and AV1 (SCART) can be recognized by a detect pin and thus enabled only when an external device approves voltage.

By using TV/RAD button, you can move from External Input to RF Input and to the last watched programme in DTV/RADIO/TV mode.

■ Image shown may differ from your TV.

Input List Antenna USB AV1 AV2 AV3 Component RGB HDMI1 HDMI2 HDMI3 HDMI4 Input Label Exit

Select the input source.

• Antenna or Cable : Select it when watching the DTV/RADIO/TV.
• USB : Select it when using USB depends on connector.
• AV : Select it when watching the VCR or external equipment.
• Component : Select it when using the DVD or the Digital set-top box depends on connector.
• RGB :Select it when using PC depends on connector.
• HDMI : Select it when using DVD, PC or Digital set-top box depend on connector.

WATCHING TV / PROGRAMME CONTROL

INPUT LABEL

Selects a label for each input source.

■ Image shown may differ from your TV.

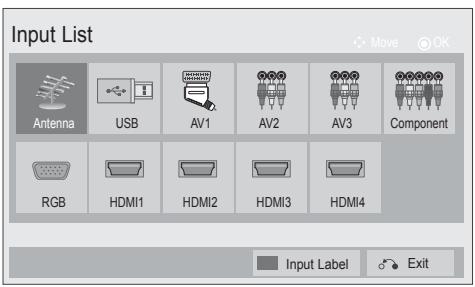

Input List Move OK Antenna USB AV1 AV2 AV3 Component RGB HDMI1 HDMI2 HDMI3 HDMI4 Input Label Exit

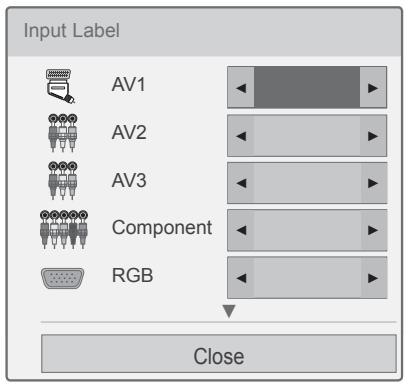

Input Label AV1 AV2 AV3 Component RGB Close

BLUE

Select Input Label.

Select the source.

Select the label.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

DATA SERVICE

(This menu is enabled only in Ireland.)

This function allows users to choose between MHEG(Digital Teletext) and Teletext if both exist at the same time.

If only one of them exists, either MHEG or Teletext is enabled regardless of which option you selected.

OPTION Language(Language) Country : Ireland Disability Assistance Power Indicator Data Service : MHEG Factory Reset Set ID : 1 Mode Setting : Home Use

OPTION Language(Language) Country : Ireland Disability Assistance Power Indicator Data Service : MHEG Factory Reset Set ID : 1 Mode Setting : Home Use

Select OPTION.

Select Data Service.

Select MHEG or Teletext.

Save.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

WATCHING TV / PROGRAMME CONTROL

SIMPLINK

This function operates only with devices with the SIMPLINK logo.

Please check the SIMPLINK logo.

This TV might not function properly when using it with other products with HDMI-CEC function.

This allows you to control and play other AV devices connected to the display through HDMI cable without additional cables and settings.

If you do not want SIMPLINK menu, select "Off".

In wireless external output, SIMPLINK function is not supported.

SIMPLINK On Watch TV DISC VCR HDD Recorder Speaker TV Speaker

Display the SIMPLINK.

Select On or Off.

Save.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

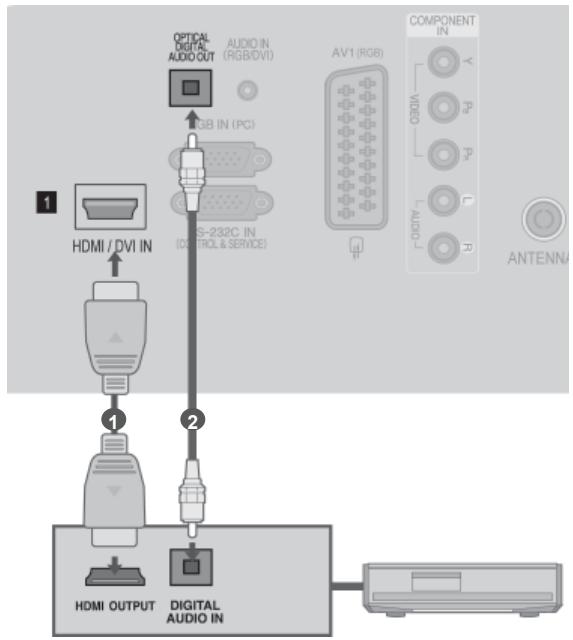

Connecting to Home Theater with the SIMPLINK logo.

1 Connect the HDMI/DVI IN 1, HDMI IN 2 (Except for 19/22LD3***), HDMI IN 3 (Except for 19/22/26/32LD3***, 32/37/42/47LD4***, 19/22LE3***, 22LE5***) or HDMI IN 4 (Only 32LE3***, 32/42/47LE4***, 32/37/42/47/55LE5***) terminal on the back of the TV and the HDMI output terminal of the Home Theater using HDMI cables.
2 Connect the Digital Audio output terminal on the back of the TV and the Digital Audio input terminal of the Home Theater using optical cables.
3 Select Home Theater in the Speaker menu by pushing the SIMPLINK button.

▶ When you select or operate a media device with home theater function, the speaker automatically switches to home theater speaker (HT speaker).

Home Theater

NOTE

• Connect the HDMI/DVI IN or HDMI IN terminal of the TV to the terminal (HDMI terminal) of the SIMPLINK device with the HDMI cable.
  ▶ When you switch the Input source using the INPUT button on the remote control, you can stop the operation of a device controlled by SIMPLINK.

SIMPLINK Functions

Disc playback

Control connected AV devices by pressing the ^ ∨ < >, OK, ▶, ■, II, ◀◀ and ▶▶ buttons.

Direct Play

After connecting AV devices to the TV, you can directly control the devices and play media without additional settings.

Select AV device

Enables you to select one of the AV devices connected to the TV and operate it.

Power off all devices

When you switch off the TV, all connected devices are turned off.

Switch audio-out

Offers an easy way to switch audio-out.

Sync Power on

When the equipment with Simplink function connected HDMI terminal starts to play, The TV will change automatically to turn on mode.

* A device, which is connected to the TV through an HDMI cable but does not support SIMPLINK, does not provide this function.

Note: To operate SIMPLINK, an High Speed HDMI Cable with *CEC function should be used.

(*CEC: Consumer Electronics Control).

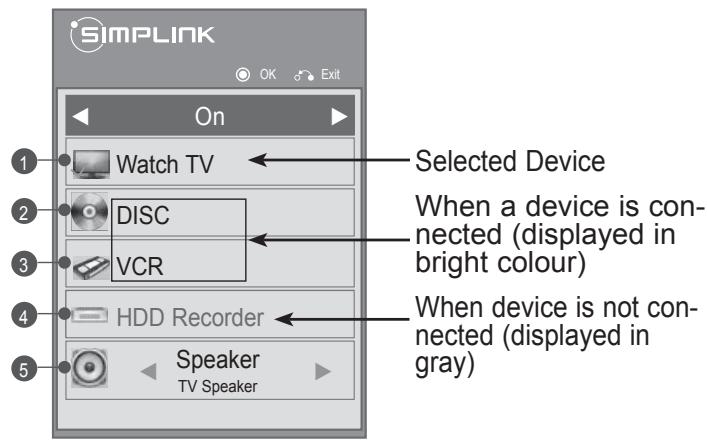

SIMPLINK Menu

Press the ^ v < >button and then OK button to select the desired SIMPLINK source.

1 TV viewing : Switch to the previous TV programme regardless of the current mode.
② DISC playback : Select and play connected discs.
When multiple discs are available, the device type of discs are conveniently displayed at the bottom of the screen.

③ VCR playback : Play and control the connected VCR.

4 HDD Recordings playback : Play and control recordings stored in HDD.

5 Audio Out to Home theater/Audio Out to TV: Select Home theater or TV speaker for Audio Out.

SIMPLINK On Watch TV DISC VCR HDD Recorder Speaker TV Speaker Selected Device When a device is connected (displayed in bright colour) When device is not connected (displayed in gray)

• Home theater: Only one supported at a time
- DVD, Recorder: Up to one(Only 19/22LD3**), two(Only 26/32LD3***, 32/37/42/47LD4***, 19/22LE3***, 22LE5**), three(Only 32/42/46/52/60LD5***, 26LE3***, 26LE5**), four(Only 32LE3***, 32/37/42LE4***, 32/37/42/47/55LE5***) supported at a time.
• VCR: Only one supported at a time

WATCHING TV / PROGRAMME CONTROL

AV MODE

You can select the optimal images and sounds when connecting AV devices to external input.

Off Disables the AV MODE.

Cinema Optimizes video and audio for watching movies.

Sport Optimizes video and audio for watching sports events.

Game Optimizes video and audio for playing games.

Press the AV MODE button repeatedly to select the desired source.

• If you select Cinema in AV mode, Cinema will be selected both for Picture Mode and Sound Mode in PICTURE menu and AUDIO menu respectively.
• If you select "Off" in AV mode, the picture and image which you initially set will be selected.
• When playing a video game using PlayStation or Xbox, it is recommended to use the Game mode.
• When in Game mode, functions related to picture quality will be optimized for playing games.

INITIALIZING(RESET TO ORIGINAL FACTORY SETTINGS)

This function initializes all settings.

But the settings of Day and Night of the Picture Mode cannot be initialized.

It is useful to initialize the product or when you move to other city or country.

When the Factory Reset is completed, you must restart the Initializing setup.

When the Lock System menu is "On", the message to enter the password appears.

OPTION Language(Language) Country : UK Disability Assistance Power Indicator Factory Reset Set ID : 1 Mode Setting : Home Use

OPTION Language(Language) Country : UK Disability Assistance Power In Factory I Set ID Mode Se ① All user settings and channel settings will be reset. Still Continue? Yes No

Select OPTION.

Select Factory Reset.

Select Yes.

Start Factory Reset.

- In Lock System "On", if you forget your password, press '0', '3', '2', '5' on the remote control hands et.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

TO USE A USB DEVICE

WHEN CONNECTING A USB DEVICE

When you connect a USB device, this pop up menu is displayed, automatically.

"POP UP MENU" will not be displayed while the OSD including Menu, EPG or Schedule list is activated.

When the Pop Up menu appears, you can select Music List, Photo List or Movie List in the MY MEDIA menu.

In USB device, you can not add a new folder or delete the existing folder.

1 Connect the USB device to the USB IN jack on the TV.

USB IN SLOT or Memory Stick

Select Movie List (Only

19/22/26/32LE3***, 32/37/42LE4***,

22/26LE5***, 32/37/42/47/55LE5***,

32/42/46/52/60LD56**,

32/37/42/47LD46**

32/42/46/52/60LD555, 32/3742/47LD455,

19/22/26/32LD355, 19/22/26/32LD356,

19/22/26/32LD345, 19/22/26/32LD346

32/37/42/47LD425, 32/37/42/47LD426,

26/32LD335, 26/32LD336), Photo List or

Music List.

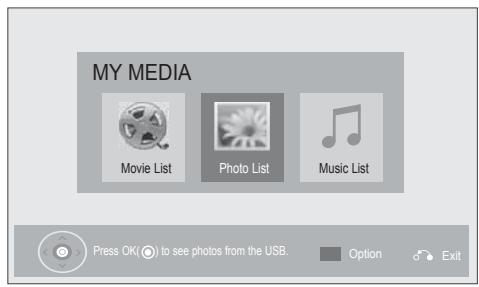

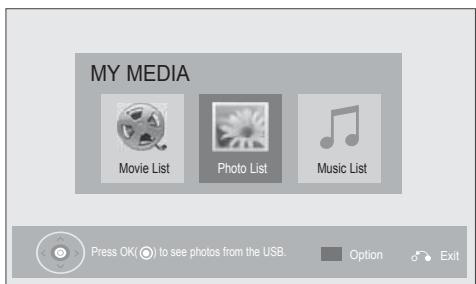

MY MEDIA Movie List Photo List Music List Press OK( ) to see photos from the USB. Option Exit

- Only photo(JPEG), music (MP3) and movie (DAT,MPG,MPEG,VOB,AVI,DIVX,MP4,MKV,T S,TRP,TP,ASF,WMV,FLV) are supported.

When removing the USB device

Select the USB Device menu before removing the USB device.

Select USB Device.

Select Eject.

Precautions when using the USB device

▶ Only a USB storage device is recognizable.
▶ If the USB storage device is connected through a USB hub, the device is not recognizable.
▶ A USB storage device using an automatic recognition programme may not be recognized.
▶ A USB storage device which uses its own driver may not be recognized.
▶ The recognition speed of a USB storage device may depend on each device.
▶ Please do not turn off the TV or unplug the USB device when the connected USB storage device is working. When such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.
▶ Please do not connect the USB storage device which was artificially maneuvered on the PC. The device may cause the product to malfunction or fail to be played. Never forget to use only a USB storage device which has normal music files, image files or movie files.
▶ Please use only a USB storage device which was formatted as a FAT32 file system, NTFS file system provided with the Windows operating system. In case of a storage device formatted as a different utility programme which is not supported by Windows, it may not be recognized.
▶ Please connect power to a USB storage device(over 0.5 A) which requires an external power supply. If not, the device may not be recognized.
▶ Please connect a USB storage device with the cable offered by the device maker.
▶ Some USB storage devices may not be supported or operated smoothly.
▶ File alignment method of USB storage device is similar to Window XP and filename can recognize up to 100 English characters.
▶ Be sure to back up important files since data stored in a USB memory device may be damaged. We will not be responsible for any data loss.
▶ If the USB HDD does not have an external power source, the USB device may not be detected. So be sure to connect the external power source. - Please use a power adaptor for an external power source. We do not guarantee an USB cable for an external power source.
▶ If your USB memory device has multiple partitions, or if you use a USB multi-card reader, you can use up to 4 partitions or USB memory devices.
▶ If a USB memory device is connected to a USB multi-card reader, its volume data may not be detected.
▶ If the USB memory device does not work properly, disconnect and reconnect it.
▶ How fast a USB memory device is detected differs from device to device.
▶ If the USB is connected in Standby Mode, specific hard disk will automatically be loaded when the TV is turned on.
The recommended capacity is 1 TB or less for a USB external hard disk and 32 GB or less for USB memory.
▶ Any device with more than the recommended capacity may not work properly.
▶ If a USB external hard disk with a "Energy Saving" function does not work, turn the hard disk off and on again to make it work properly.
▶ USB storage devices below USB 2.0 are supported as well. But they may not work properly in the movie list.
▶ Maximum of 999 folders or files can be recognized under one folder.

MOVIE LIST

(Only 19/22/26/32LE3***, 32/37/42LE4***, 22/26LE5***, 32/37/42/47/55LE5***, 32/42/46/52/60LD56**, 32/37/42/47LD46**, 32/42/46/52/60LD555, 32/3742/47LD455, 19/22/26/32LD355, 19/22/26/32LD356, 19/22/26/32LD345, 19/22/26/32LD346 32/37/42/47LD425, 32/37/42/47LD426, 26/32LD335, 26/32LD336)

You can play movie files on a USB storage device.

The movie list is activated once USB is detected. It is used when playing movie files on TV.

Displays the movies in the USB folder and supports Play.

Allows playback of all movies in the folder and user desired files.

It is a movie list that displays folder information and movie file.

The On Screen Display may be different from your TV. Images are an example to assist with the TV operation.

Movie(*.mpg/*.mpeg*/dat/*.ts/*.trp/*.tp/*.vob/*.mp4/*.mov/*.mkv/*.dvix/*.avi/*.asf/*.wmv/*.flv/*.avi(motion-jpeg)/*.mp4(motion-jpeg)/*.mkv(motion-jpeg))supporting file

Video format : DivX3.11, DivX4.12, DivX5.x, DivX6, Xvid1.00, Xvid1.01, Xvid1.02, Xvid1.03, Xvid1.10 beta-1/beta-2, Mpeg-1, Mpeg-2, Mpeg-4, H.264/AVC, VC1, JPEG, Sorenson H.263

Audio format : Dolby Digital, AAC, Mpeg, MP3, LPCM, HE-AAC, ADPCM, WMA

Bit rate : within 32 kbps to 320 kbps(MP3)

External Subtitle format : *.smi/*.srt/*.sub(MicroDVD,Subviewer1.0/2.0)/*.ass/*.ssa/*.txt(TMPlayer)/*.psb(PowerDivX)

Internal Subtitle format : only, XSUB (It is the subtitle format used in DivX6 files)

- Some user-created subtitles may not work properly.

- Some special characters are not supported in subtitles.

- HTML tags are not supported in subtitles.

- Subtitles in languages other than the supported languages are not available.

- The screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the audio language is changed.

- A damaged movie file may not be played correctly, or some player functions may not be usable.

- Movie files produced with some encoders may not be played correctly.

- If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.

- HD videos with a maximum of 1920x1080@25/30P or 1280x720@50/60P are supported, depending on the frame.

- Videos with resolutions higher than 1920X1080@25/30P or 1280x720@50/60P may not work properly depending on the frame.

- Movie files other than the specified types and formats may not work properly.

- Max bitrate of playable movie file is 20 Mbps. (only, Motion JPEG : 10 Mbps)

- We do not guarantee smooth playback of profiles encoded level 4.1 or higher in H.264/AVC.

- DTS Audio codec is not supported.

- A movie file more than 30 GB in file size is not supported for playback.

- A DivX movie file and its subtitle file must be located in the same folder.

- A video file name and its subtitle file name must be identical for it to be displayed.

- Playing a video via a USB connection that doesn't support high speed may not work properly.

- Files encoded with GMC(Global Motion Compensation) may not be played.

- When you are watching the movie by Movie List function, you can adjust an image by Energy Saving and AV Mode key on the remote control. User setup for each image mode does not operate.

File Extension name	Video Decoder	Audio Codec	Max Resolution
mpg, mpeg	MPEG1, MPEG2	MP2,MP3,Dolby Digital,LPCM	1920x1080@30p(only , Motion JPEG 640x480@30p)
dat	MPEG1	MP2
ts,trp,tp	MPEG2, H.264, AVS, VC1	MP2,MP3,Dolby Digital,AAC,HE-AAC
vob	MPEG1, 2	MP2,MP3,Dolby Digital,LPCM
mp4, mov	MPEG4,DivX 3.11, DivX 4.12, DivX 5.x, DivX 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2H.264	AAC,HE-AAC,MP3
mkv	H.264, MPEG-1,2,4	MP2,MP3,Dolby Digital,AAC HE-AAC,LPCM
divx, avi	MPEG2, MPEG4,DivX 3.11, DivX 4. DivX 5, DivX 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2H.264	MP2,MP3,Dolby Digital,LPCM, ADPCM,AAC,HE-AAC
Motion JPEG (avi, mp4, mkv)	JPEG	LPCM, ADPCM
asf, wmv	VC1	WMA
flv	Sorenson H.263, H264	MP3, AAC

TO USE A USB DEVICE

Screen Components

You can also adjust USB in the INPUT menu.

Select MY MEDIA.

① Moves to upper level folder
② Current page/Total pages
③ Corresponding buttons on the remote control
④ Contents under the folder focused on ①
⑤ Current page/ total pages of contents under the folder focused on ①

Select Movie List.

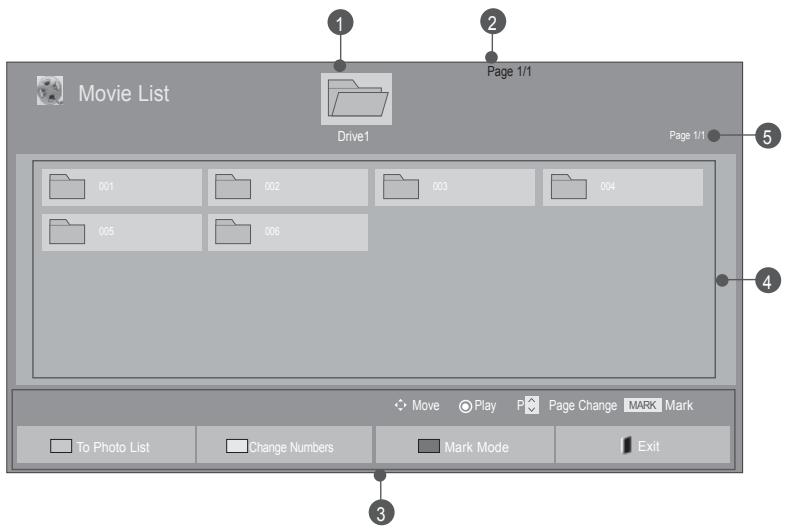

Movie List Drive1 Page 1/1 001 002 003 004 005 006 Page 1/1 Move Play Page Change MARK Mark To Photo List change Numbers Mark Mode Exit

- Some files may be displayed the preview image by icon only.

5

• Non-supported files are displayed the preview image by icon only.

5 !

- Abnormal files are displayed in the form of bitmap.

5 X

Movie Selection

■ When playing movie files

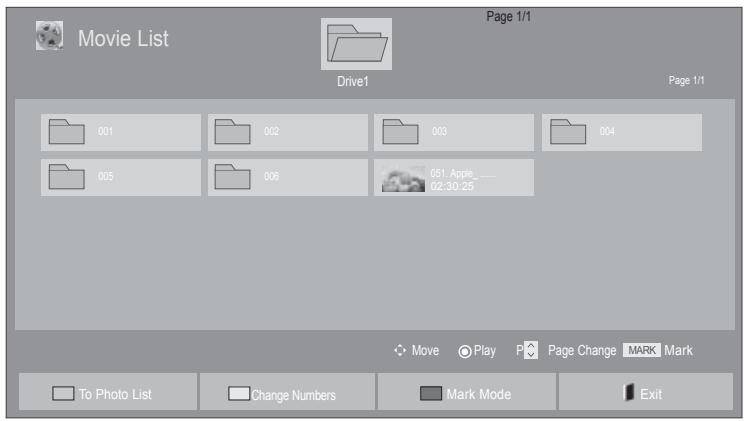

Movie List Drive1 Page 1/1 Page 1/1 001 002 003 004 005 006 051. Apple_..... 02.30.25 Move Play Page Change MARK Mark To Photo List Change Numbers Mark Mode Exit

Select the target folder or drive.

Select the desired movie title.

Movie files are played.

- Use the P button to navigation in the movie page.

Using the remote control

	Repeatedly, press the GREEN button to converted to Photo List->Music List.
	A method to view in 5 large thumbnail or simple list.
	Convert to Mark Mode.
	Return to normal TV viewing.
▶	Press the PLAY(▶) button to return to normal playback.

TO USE A USB DEVICE

■ When selected movie files are played

Movie List Mark Mode Drive1 Page 1/1 001 002 003 004 005 006 051, Apple, ..... 02:30:25 Page 1/1 Move Mark Page Change MARK Mark Play Marked Mark All Unmark All Exit Mark Mode Exit

Select the target folder or drive.

Select the desired movie title.

Convert to Mark Mode.

Mark desired Movie file.

Marked movie file is played.

- When one or more movie files are marked, the marked movies will be played in sequence.

NOTE

▶ In the case of files not supported, a message regarding non-supported file is displayed.

Using the remote control

	Play the selected movie file.Once a movie file finishes playing, the next selected one will be played automatically.
	Mark all movie files on the screen.
	Deselect all marked movie files.
	Exit the Mark Mode.
	Return to normal TV viewing.

NOTE

▶ If you select "Yes" from OSD when playing the same file after the movie file has been stopped, it will restart where it stopped previously.
▶ If continuous series files exist within the folder, the next file will automatically be played. But, this excludes cases when the Repeat function of Movie List Option is turned "On" (Refer to p. 62) or when set as Marked Play.

TO USE A USB DEVICE

Using the Movie List function, play

Black and white photo of assorted fruits including kiwi, kiwi, and peaches with water droplets (no text or symbols)

01:02:30 / 02:30:25 Q.MENU Option Hide Exit

Choose options.

Set Video Play.

Set Video.

Set Audio.

Close

or

Show the Option menu.

Select Set Video Play., Set Video. or Set Audio..

NOTE

▶ Option values changed in Movie List does not affect Photo List and Music List.
▶ Option value changed in Photo List and Music List are changed likewise in Photo List and Music List excluding Movie List.
▶ When replaying the video file after stopping, you can play from where it stopped previously.

Using the remote control

■	Stop the playing movie file.
▶	Press the PLAY(▶) button to return to normal playback.
II	During playback, press the Pause(II) button.■ Still screen is displayed.■ If no buttons are pressed on the remote control for 10 minutes after pausing, the TV returns to the playback state.■ Press the Pause(II) button and then use the FF(▶▶) button for slow motion.
	When playing,repeatedly, press the REW(◀◀) button to speed up ◀◀(x2) -> ◀◀◀(x4) -> ◀◀◀◀(x8) -> ◀◀◀◀◀(x16) -> ◀◀◀◀◀◀(x32).repeatedly, press the FF(▶▶) button to speed up ▶▶(x2)-> ▶▶▶(x4) -> ▶▶▶▶(x8) -> ▶▶▶▶▶(x16) -> ▶▶▶▶▶▶(x32).■ Pressing these buttons repeatedly increases the fast forward/reverse speed.
or	Show the Option menu.
	Hide the menu on the full-sized screen.■ To see the menu again on the full-sized screen, press OK button to display.
	Return to normal TV viewing.
	■ When using the < or > button during playback a cursor indicating the position can be viewed on the screen.
	Press the ENERGY SAVING button repeatedly to change the brightness of your screen.(Refer to p. 95)
	Press the AV MODE button repeatedly to select the desired source.(Refer to p. 50)

TO USE A USB DEVICE

■ When you select the Set Video Play,

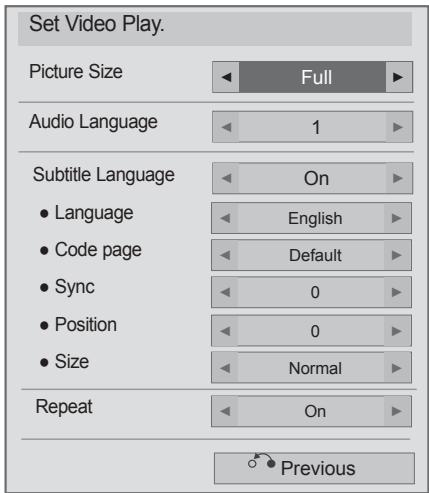

Set Video Play. Picture Size Full Audio Language 1 Subtitle Language On • Language English • Code page Default • Sync 0 • Position 0 • Size Normal Repeat On Previous

Select Picture Size, Audio Language, Subtitle Langugae or Repeat.

Make appropriate adjustments.

Subtitle Language	Support Language
Latin1	English, Spanish, French, German, Italian, Swedish, Finnish, Dutch, Portuguese, Danish, Romanian, Norwegian, Albanian, Gaelic, Welsh, Irish, Catalan,Valencian
Latin2	Bosnian, Polish, Croatian, Czech, Slovak, Slovenian, Serbian, Hungarian
Latin4	Estonian, Latvian, Lithuanian
Cyrillic	Bulgarian, Macedonian, Russian, Ukrainian, Kazakh
Greek	Greek
Turkish	Turkish

▶ Picture Size : Selects your desired picture format during movie play.
▶ Audio Language : Changes the Language Group of the audio during movie play. Files with a single audio track cannot be selected.
▶ Subtitle Langugae : Turn on/off the subtitle.
▶ Language : Activated for SMI subtitle and can select the language within the subtitle.
▶ Code page : Can select the font for subtitle. When set to default, same font as general menu will be used.
▶ Sync : Adjusts the time synchronisation of the subtitle from -10 secs to +10 secs by steps of 0.5 secs during movie play.
▶ Position : Changes the position of the subtitle either up or down during movie play.
▶ Size : Selects your desired Subtitle size during movie play.
▶ Repeat : Turn on/off repeat function of movie playback. When turned on, the file within the folder will be played back repeatedly. Even when the repeated playback is turned off, it can run the playback if the file name is similar to the previous file.

NOTE

▶ Only 10,000 of sync blocks can be supported within the subtitle file.
▶ When playing a video, you can adjust the Picture Size by pressing the RATIO button.

■ When you select the Set Video,

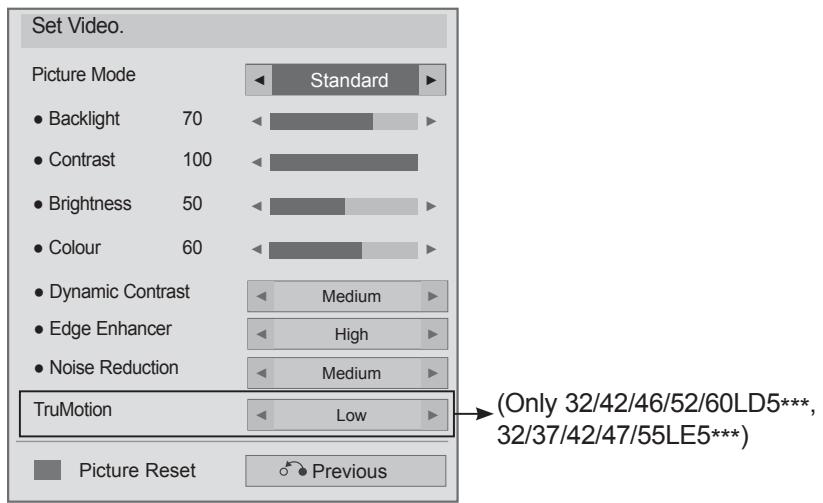

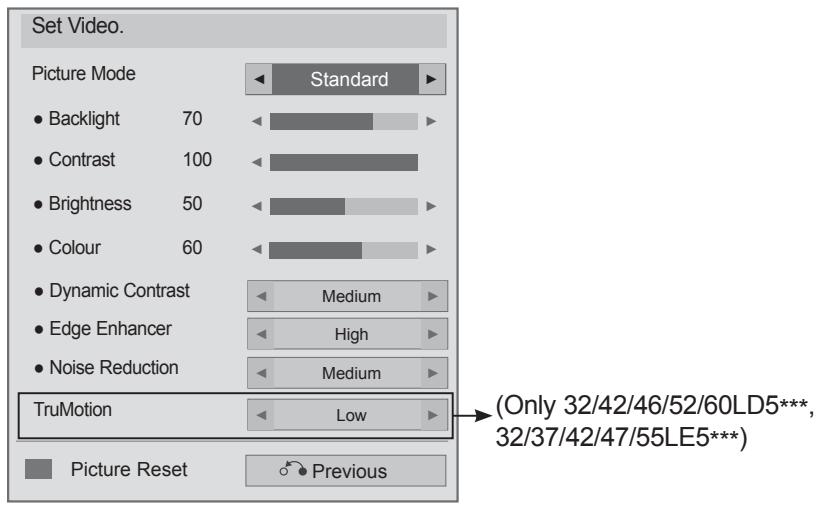

Set Video. Picture Mode Standard • Backlight 70 • Contrast 100 • Brightness 50 • Colour 60 • Dynamic Contrast Medium • Edge Enhancer High • Noise Reduction Medium TruMotion Low • Picture Reset Previous (Only 32/42/46/52/60LD5***, 32/37/42/47/55LE5***)

Select Picture Mode or TruMotion.

Make appropriate adjustments. (Refer to p. 96 to 103)

TO USE A USB DEVICE

■ When you select the Set Audio,

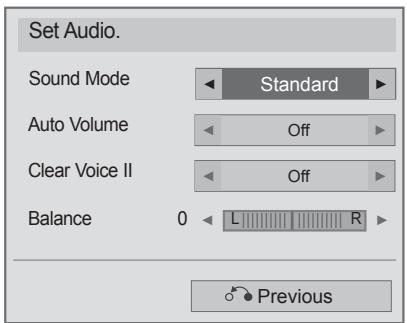

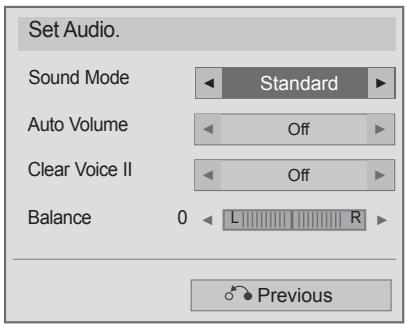

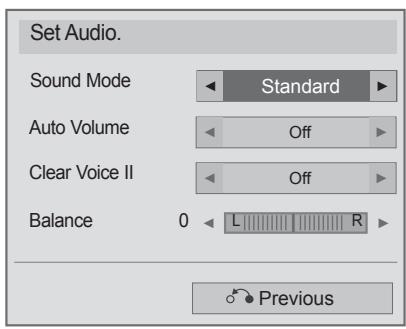

Set Audio. Sound Mode Standard Auto Volume Off Clear Voice II Off Balance 0 L R Previous

Select Sound Mode, Auto Volume, Clear Voice II or Balance.

Make appropriate adjustments. (Refer to p. 107 to 111)

PHOTO LIST

You can view photo files on USB storage device.

The On Screen Display may be different from your TV. Images are an example to assist with the TV operation.

When you are watching the photo by the Photo List function, you can not change the picture mode.

PHOTO(*.JPEG) supporting file

Baseline : 64 x 64 to 15360 x 8640

Progressive : 64 x 64 to 1920 x 1440

- You can play JPEG files only.

• Non-supported files are displayed in the form of predefined icon.

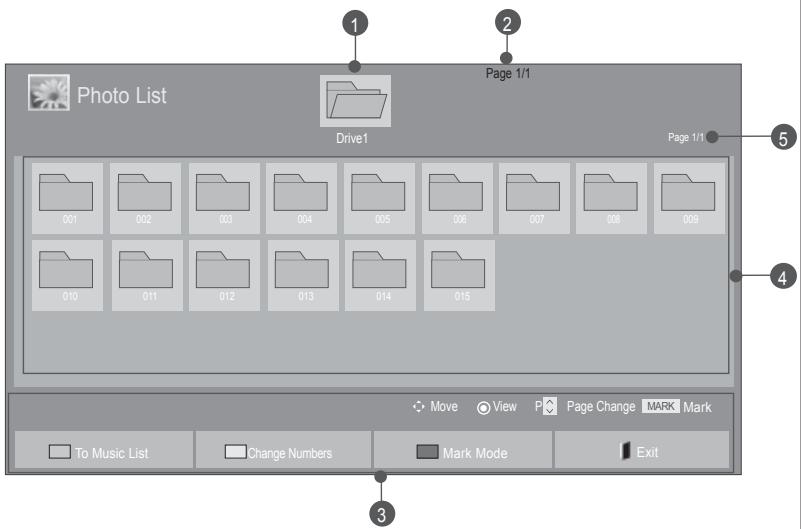

Screen Components

You can also adjust USB in the INPUT menu.

Select MY MEDIA.

2

Select Photo List.

1 Moves to upper level folder
② Current page/Total pages
③ Corresponding buttons on the remote control
④ Contents under the folder focused on ①
⑤ Current page/ total pages of contents under the folder focused on ①

Photo List Drive1 Page 1/1 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 Page 1/1 Move View Page Change MARK Mark To Music List Change Numbers Mark Mode Exit

TO USE A USB DEVICE

Photo Selection

■ When playing photo files

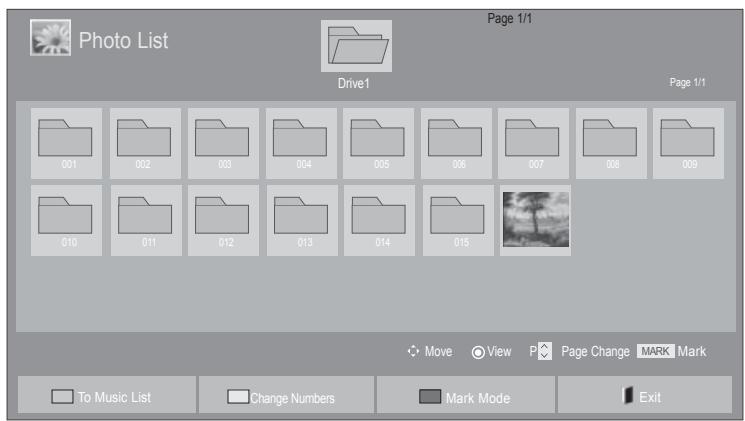

Photo List Page 1/1 Drive1 Page 1/1 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 Move View Page Change MARK Mark To Music List Change Numbers Mark Mode Exit

Select the target folder or drive.

Select the desired photos.

Photo files are displayed.

- Use the P ^ ∨ button to navigation in the photo page.

Using the remote control

	Repeatedly, press the GREEN button to converted to Music List->Movie List.
	A method to view in 5 large thumbnail or simple list.
	Convert to Mark Mode.
	Return to normal TV viewing.

■ When selected photo files are displayed

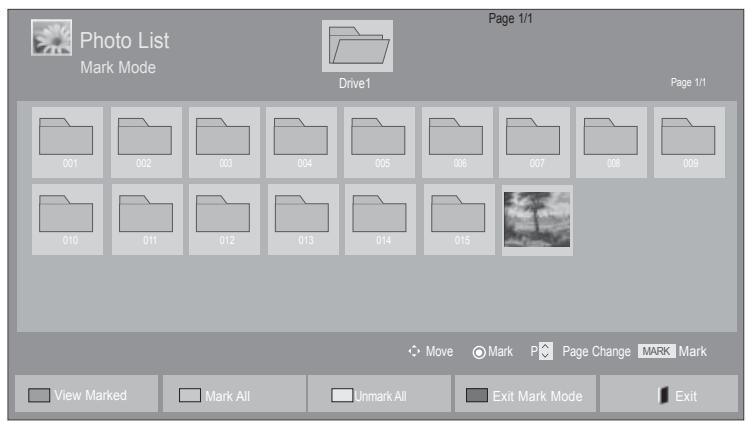

Photo List Mark Mode Page 1/1 Drive1 Page 1/1 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 Move Mark Page Change MARK Mark View Marked Mark All Unmark All Exit Mark Mode Exit

Select the target folder or drive.

Select the desired photos.

Convert to Mark Mode.

Mark desired photo file.

Marked photo file is displayed.

- When one or more photos are marked, you can view each marked photo or a slide show of the marked photos. If no photos are marked, you can view every individual photo in the folder or a slide show of all photos in the folder.

TO USE A USB DEVICE

Using the remote control

	Display the selected photo file.
	Mark all photo files on the screen.
	Deselect all marked photo files.
	Exit the Mark Mode.
	Return to normal TV viewing.

How to view photo

Detailed operations are available on full-sized photo view screen.

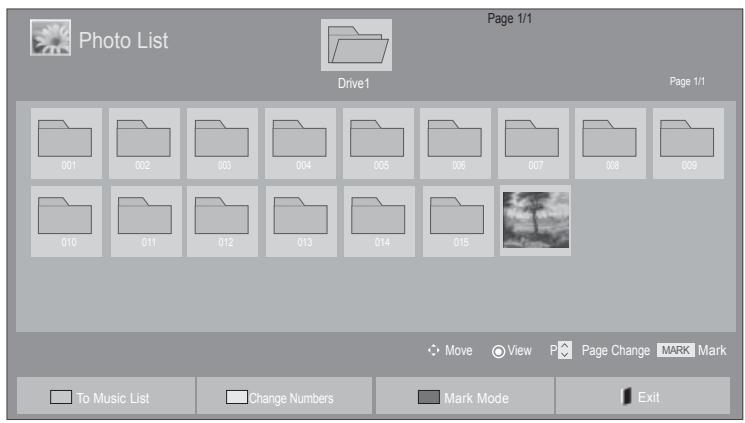

Photo List Page 1/1 Drive1 Page 1/1 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 Move View Page Change MARK Mark To Music List Change Numbers Mark Mode Exit

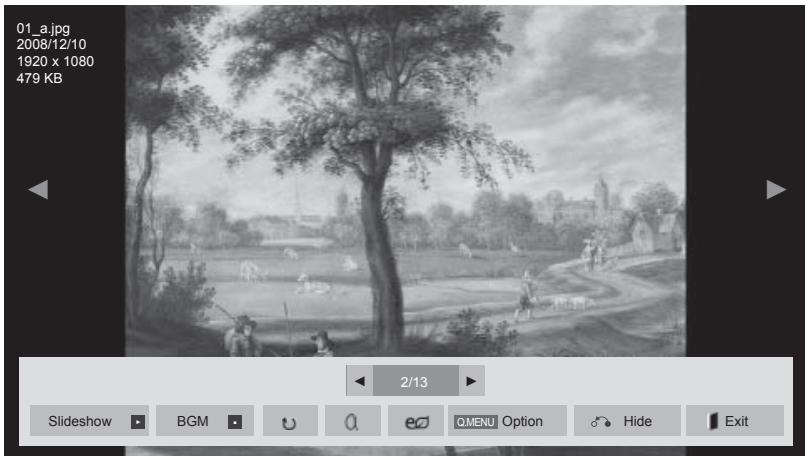

01_a.jpg 2008/12/10 1920 x 1080 479 KB 2/13 Slideshow BGM o Q o O MENU Option Hide Exit

The aspect ratio of a photo may change the size of the photo displayed on the screen in full size. Press the EXIT button to move to the previous menu screen.

Select the target folder or drive.

Select the desired photos.

The selected photo is displayed in full size.

- Use the P button to navigation in the photo page.

• Press the EXIT button to go back to Photo List.
• Press the BACK button to make Help OSD disappear.

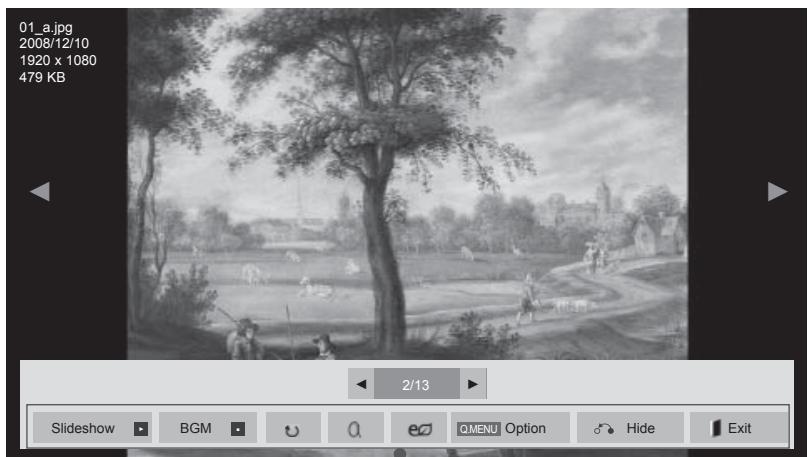

01_a.jpg 2008/12/10 1920 x 1080 479 KB 2/13 Slideshow BGM o Q MENU Option Hide Exit

Select the Slideshow, BGM, ⬇ (Rotate), ¶ (ZOOM IN), e∅, Option, Hide or Exit.

• Use < >button to select the previous or next photo.
• Use <> button to select and control the menu on the full-sized screen.

▶ Slideshow : When no picture is selected, all photos in the current folder are displayed during slide show. If some photos are selected, those photos are displayed in a slide show.
■ Set the time interval of the slide show in Option.
▶ BGM (Background Music) : Listen to music while viewing photos in full size.
■ Set the BGM device and album in Options before using this function.
■ You can adjust Option by Q.MENU or MENU button on the remote control.
▶ ⬇ (Rotate) : Rotate photos.
■ Rotates the photo 90^ , 180^ , 270^ , 360^ clockwise.
■ It can not be rotate when the width of a picture is bigger than supported height.
▶ Q (ZOOM IN): View the photo by zoom in 2, 4 times.
▶ e∅ : Press the ENERGY SAVING button repeatedly to change the brightness of your screen.(Refer to p. 95)

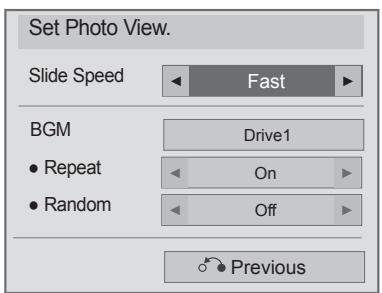

▶ Option : Set values for Slide Speed and BGM.
■ Use ^ ∨ < >button and OK button to set values. Press OK to save the settings.
■ You cannot change BGM while BGM is playing.
▶ Hide : Hide the menu on the full-sized screen.
■ To see the menu again on the full-sized screen, press OK button to display.
Press the EXIT button to go back to Photo List.

Using the Photo List function

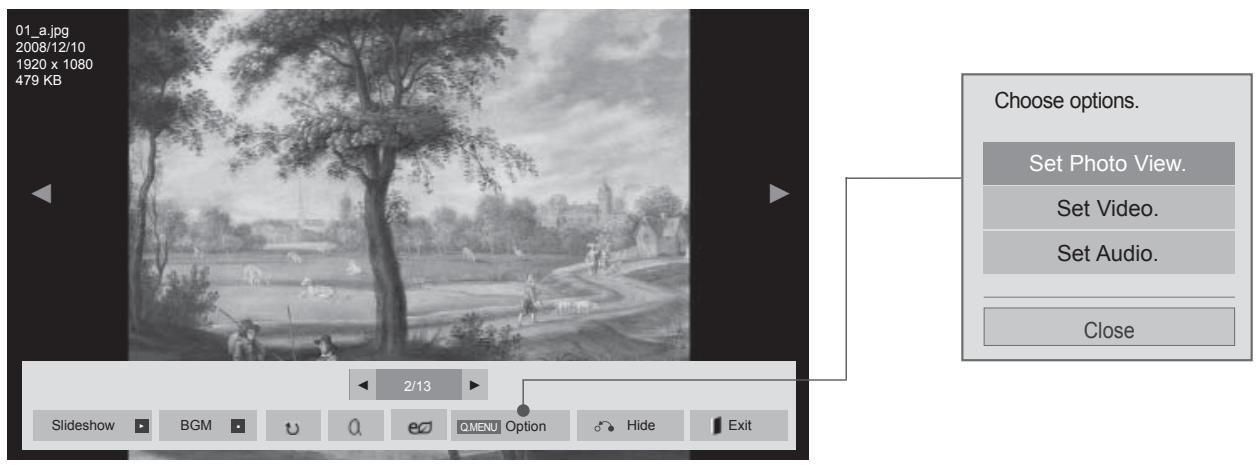

01_a.jpg 2008/12/10 1920 x 1080 479 KB Choose options. Set Photo View. Set Video. Set Audio. Close 2/13 Slideshow BGM o Q o Q MENU Option Hide Exit

Show the Option menu.

Select Set Photo View., Set Video. or Set Audio..

NOTE

▶ Option values changed in Movie List does not affect Photo List and Music List.
▶ Option value changed in Photo List and Music List are changed likewise in Photo List and Music List excluding Movie List.

TO USE A USB DEVICE

■ When you select the Set Photo View,

Set Photo View. Slide Speed Fast BGM Drive1 • Repeat On • Random Off Previous

Select Slide Speed or BGM.

Make appropriate adjustments.

■ When you select the Set Video,

Select Picture Mode or TruMotion.

Make appropriate adjustments. (Refer to p. 96 to103)

TO USE A USB DEVICE

■ When you select the Set Audio,

Set Audio. Sound Mode Standard Auto Volume Off Clear Voice II Off Balance 0 L R Previous

Select Sound Mode, Auto Volume, Clear Voice II or Balance.

Make appropriate adjustments. (Refer to p. 107 to 111)

MUSIC LIST

You can play music files on USB storage device.

Purchased music files(*.MP3) may contain copyright restrictions. Playback of these files may not be supported by this model.

Music file on your USB device can be played by this unit.

The On Screen Display may be different from your TV. Images are an example to assist with the TV operation.

MUSIC (*.MP3) supporting file

Bit rate 32 to 320

• Sampling rate MPEG1 Layer3 : 32 kHz, 44.1 kHz, 48 kHz
• Sampling rate MPEG2 Layer3 : 16 kHz, 22.05 kHz, 24 kHz
• Sampling rate MPEG2.5 Layer3 : 8 kHz, 11.025 kHz, 12 kHz

Screen Components

You can also adjust USB in the INPUT menu.

Select MY MEDIA.

Select Music List.

1 Preview: If any album jacket for the file(Album Art Image) exists, this jacket is displayed.
② Moves to upper level folder
③ Current page/Total pages
4 Corresponding buttons on the remote control
⑤ Contents under the folder focused on ②
⑥ Current page/ total pages of contents under the folder focused on ②

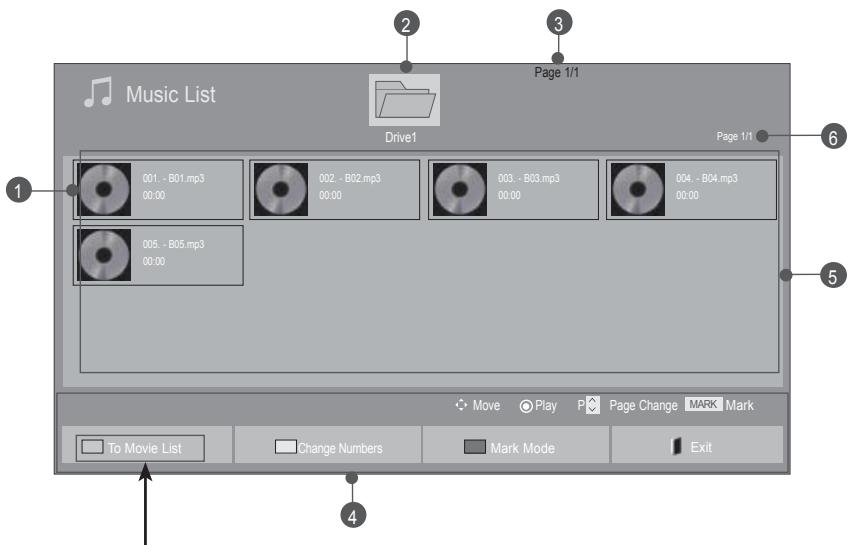

Music List Drive1 001 - B01.mp3 00:00 002 - B02.mp3 00:00 003 - B03.mp3 00:00 004 - B04.mp3 00:00 005 - B05.mp3 00:00 Page 1/1 Page 1/1 6 5 4 Move Play Page Change MARK Mark To Movie List Change Numbers Mark Mode Exit

(Only 19/22/26/32LE3***, 32/37/42LE4***, 22/26LE5***, 32/37/42/47/55LE5***, 32/42/46/52/60LD56**, 32/37/42/47LD46**, 32/42/46/52/60LD555, 32/3742/47LD455, 19/22/26/32LD355, 19/22/26/32LD356, 19/22/26/32LD345, 19/22/26/32LD346, 32/37/42/47LD425, 32/37/42/47LD426, 26/32LD335, 26/32LD336)

TO USE A USB DEVICE

Music Selection

Music List Page 1/1 Drive1 Page 1/1 001. - B01.mp3 00:00 002. - B02.mp3 00:00 003. - B03.mp3 00:00 004. - B04.mp3 00:00 005. - B05.mp3 00:00 Move Play Page Change MARK Mark To Movie List Change Numbers Mark Mode Exit

■ When playing music files

Select the target folder or drive.

Select the desired music title.

Music files are played.

- Use the P button to navigate up/down in the music page.

Using the remote control

	Repeatedly, press the GREEN button to converted to Movie List->Photo List.
	A method to view in 5 large thumbnail or simple list.
	Convert to Mark Mode.
	Return to normal TV viewing.

■ When selected music files are played

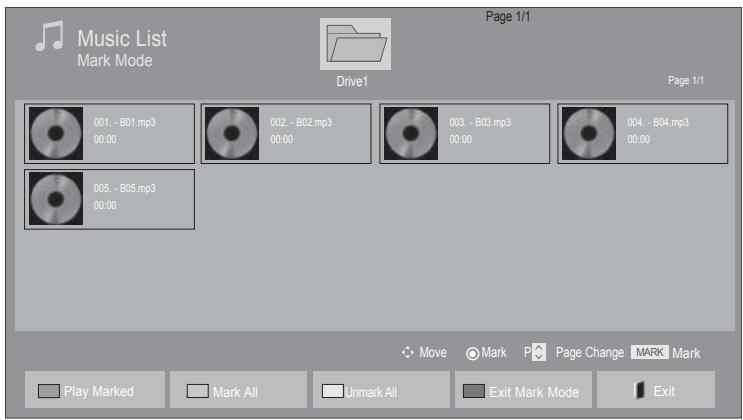

Music List Mark Mode Page 1/1 Drive1 Page 1/1 001 - B01.mp3 00:00 002 - B02.mp3 00:00 003 - B03.mp3 00:00 004 - B04.mp3 00:00 005 - B05.mp3 00:00 Move Mark Page Change MARK Mark Play Marked Mark All Unmark All Exit Mark Mode Exit

Select the target folder or drive.

Select the desired music title.

Convert to Mark Mode.

Mark desired music file.

Marked music file is played.

• When one or more music files are marked, the marked music title will be played in sequence. For example, if you want to listen to only one music repeatedly, just mark the music only and play it. If no music is marked, all the music in the folder will be played in sequence.
• If you want to activate Random playback, you must set Option->Set audio play.->Random to On.

TO USE A USB DEVICE

Using the remote control

	Display the selected music file.
	Mark all music files on the screen.
	Deselect all marked music files.
	Exit the Mark Mode.
	Return to normal TV viewing.

Using the Music List function, play

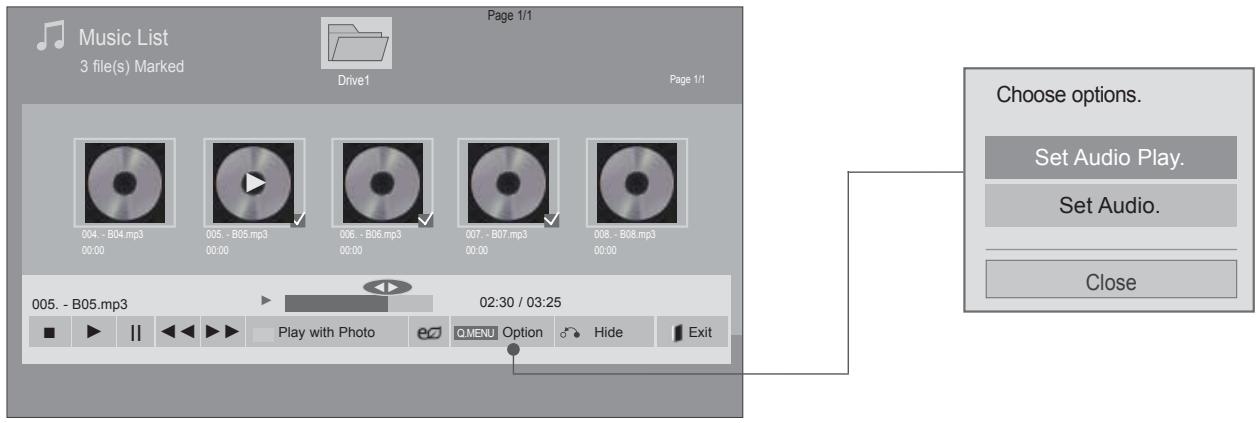

Music List 3 file(s) Marked Page 1/1 Drive1 Page 1/1 004. - B04.mp3 00:00 005. - B05.mp3 00:00 006. - B06.mp3 00:00 007. - B07.mp3 00:00 008. - B08.mp3 00:00 Choose options. Set Audio Play. Set Audio. Close 005. - B05.mp3 Play with Photo 02:30 / 03:25 Q MENU Option Hide Exit

or

Show the Option menu.

Select Set Audio Play. or Set Audio.

NOTE

▶ Option values changed in Movie List does not affect Photo List and Music List.
▶ Option value changed in Photo List and Music List are changed likewise in Photo List and Music List excluding Movie List.

Using the remote control

■	Stop the playing music file.
▶	Press the PLAY(▶) button to return to normal playback.
II	When you press the Pause(II) button while playing the file, the playback will be paused.When you press the Pause(II) button again while the playback is paused, it will resume the playback.
◀◀ / ▶▶	When playing,When you press the REW(◀◀) button, the previous music file will be played.When you press the FF(▶▶) button, the next music file will be played.
	Start playing the selected music files and then move to the Photo List.
SAVING	Press the ENERGY SAVING button repeatedly to change the brightness of your screen.(Refer to p. 95)Only Off/Screen Off operates from the Movie List, Photo List, Music List.
	Show the Option menu.
	■ When you press the Back button while the music is playing, the music player currently playing will be hidden and only the music list will be displayed.
[7ZYS]	■ When you press the Exit button while the Music player is displayed, only the music will be stopped and the player will not return to normal TV viewing.■ When you press the Exit button while the music is stopped or while the music player is hidden, the player will return to normal TV viewing.
< >	■ When using the < or > button during playback a cursor indicating the position can be played.

■ When you select the Set Audio Play,

Set Audio Play. Repeat On Random Off Previous

Select Repeat or Random.

Make appropriate adjustments.

TO USE A USB DEVICE

■ When you select the Set Audio,

Set Audio. Sound Mode Standard Auto Volume Off Clear Voice II Off Balance 0 L R Previous

Select Sound Mode, Auto Volume, Clear Voice II or Balance.

Make appropriate adjustments. (Refer to p. 107 to 111)

■ If you don't press any button for a while during the playing, the play information box (as shown in the below) will float as a screen saver.
■ The 'Screen Saver'?

Screen saver is to prevent screen pixel damage due to an fixed image remaining on the screen for a extended period of time.

NOTE

▶ A damaged or corrupted music does not play but displays 00:00 in playtime.
▶ A music downloaded from a paid service with copyright protection does not start but displays inappropriate information in playtime.
▶ If you press OK, ■ buttons, screen saver is stopped.
▶ The PLAY(▶), Pause(II), ■, ▶▶, ◀◀ buttons on the remote control are also available in this mode.
▶ You can use the ▶▶ button to select the next music and the ◀◀ button to select the previous music.

DIVX REGISTRATION CODE

(Only 19/22/26/32LE3***, 32/37/42LE4***, 22/26LE5***, 32/37/42/47/55LE5***, 32/42/46/52/60LD56**, 32/37/42/47LD46**, 32/42/46/52/60LD555, 32/3742/47LD455, 19/22/26/32LD355, 19/22/26/32LD356, 19/22/26/32LD345, 19/22/26/32LD346 32/37/42/47LD425, 32/37/42/47LD426, 26/32LD335, 26/32LD336)

Confirm the DivX registration code number of the TV. Using the registration number, movies can be rented or purchased at www.divx.com/vod.

With a DivX registration code from other TV, playback of rented or purchased DivX file is not allowed. (Only DivX files matched with the registration code of the purchased TV are playable.)

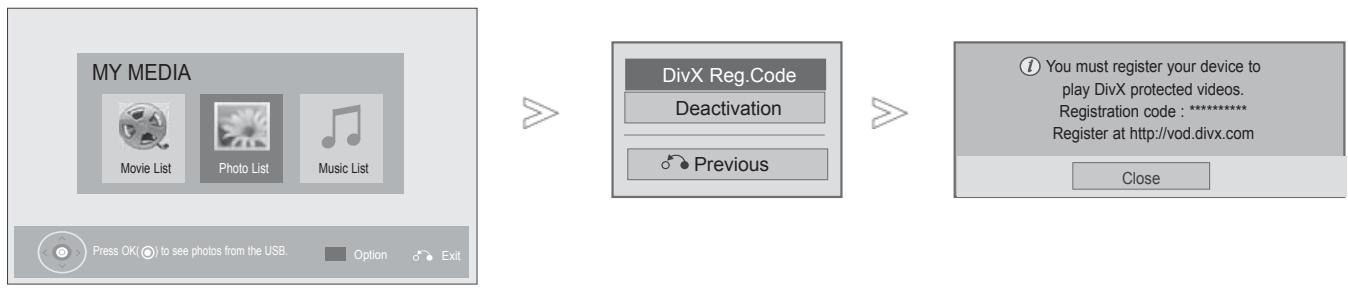

Select MY MEDIA.

Select DivX Reg. Code.

Display DivX Reg. Code.

- Press the MENU/EXIT button to return to normal TV viewing.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

"DivX Certified to play DivX video up to HD 1080p, including premium content"

"Pat. 7,295,673; 7,460,668; 7,515,710; 7,519,274"

NOTE

▶ Movie files are supported as follows

Resolution : under 1920x1080 WxH pixels

Frame rate : under 30 frames/sec(1920x1080), under 60 frames/sec(under 1280x720)

▶ Video Codec : MPEG 1, MPEG 2, MPEG 4, H.264/AVC, DivX 3.11, DivX 4.12, DivX 5.x, DivX 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1, Xvid 1.10-beta2, JPEG, VC1, Sorenson H.263/H.264.

DEACTIVATION

(Only 19/22/26/32LE3***, 32/37/42LE4***, 22/26LE5***, 32/37/42/47/55LE5***, 32/42/46/52/60LD56**, 32/37/42/47LD46**, 32/42/46/52/60LD555, 32/3742/47LD455, 19/22/26/32LD355, 19/22/26/32LD356, 19/22/26/32LD345, 19/22/26/32LD346 32/37/42/47LD425, 32/37/42/47LD426, 26/32LD335, 26/32LD336)

The purpose of deactivation is to allow deactivation of devices for users who have activated all the available devices through the web_server and are blocked from activating more devices. DivX VOD allowed the consumer to activate up to 6 devices under one account, but to replace or deactivate any of those devices, the consumer had to contact DivX Support and request deletion. Now with this added feature, consumers will be able to deactivate the device themselves and hence better manage their DivX VOD devices.

MY MEDIA Movie List Photo List Music List Press OK( ) to see photos from the USB. Option Exit

DivX Reg.Code Deactivation Previous

Deregistration code : ****** Deregister at http://vod.divx.com Continue with registration? Yes No

Select MY MEDIA.

Select Deactivation.

Select Yes.

Display Deactivation.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

EPG(ELECTRONIC PROGRAMME GUIDE) (IN DIGITAL MODE)

This system has an Electronic Programme Guide (EPG) to help your navigation through all the possible viewing options.

The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of these programme details will vary, depending on the particular broadcaster).

This function can be used only when the EPG information is broadcast by broadcasting companies. You must set the Clock in the Time menu, before using EPG function.

The EPG displays the programme details for 8 days.

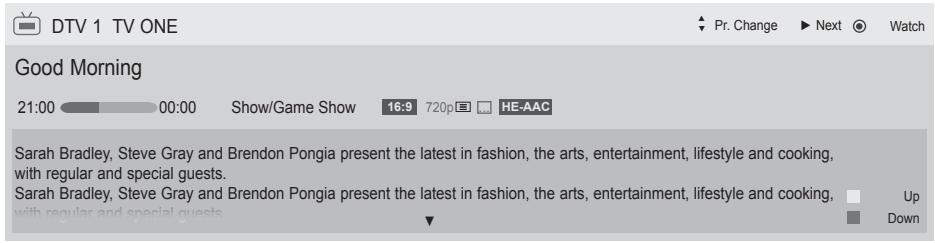

DTV 1 TV ONE Pr. Change ▶ Next ● Watch Good Morning 21:00 00:00 Show/Game Show 16:9 720p HE-AAC Sarah Bradley, Steve Gray and Brendon Pongia present the latest in fashion, the arts, entertainment, lifestyle and cooking, with regular and special guests. Sarah Bradley, Steve Gray and Brendon Pongia present the latest in fashion, the arts, entertainment, lifestyle and cooking, with regular and special guests Up Down

Shows current programme information

	Displayed with a TV or DTV Programme.		Displayed with a Teletext Programme.
	Displayed with a Radio Programme.		Displayed with a Subtitle Programme.
MHEG	Displayed with a MHEG Programme.		Displayed with a Scramble Programme.
HE-AAC	Displayed with a HE-AAC Programme.		Displayed with a Dolby Digital Programme.
4:3	Aspect ratio of broadcasting programme.		Displayed with a Dolby Digital PLUS Programme.
16:9	Aspect ratio of broadcasting programme.	576i/p, 720p, 1080i/p : Resolution of broadcasting programme
	Broadcasted programme with the icon may not be displayed in Monitor Out depending on the informa- tion of the programme.

Shows next programme information.

Shows other programme information.

Tyra DTV 2 TV2 28 Sep. 2008 21:00~00:00 Record Remind Close DTV 2 TV2 Tyra 21:00 00:00 Show/Game Show Pr. Change Now Schedule Talk show host Tyra Banks sits down with Keyshia Cole, the cast of Gossip Girl and Rihanna. Talk show host Tyra Banks sits down with Keyshia Cole, the cast of Gossip Girl and Rihanna.

A pop-up window for record/remind settings appear.

Select Timer Record/Remind setting mode.

Switch on/off EPG

Switch on or off EPG.

Select a programme

or

Select desired programme.

Button Function in NOW/NEXT Guide Mode

You can view a program being broadcasted and one scheduled to follow.

Change EPG mode.

Enter Manual Timer mode.

Enter Schedule List mode.

When ‘Now’ is selected, it is moved to selected program and EPG disappears When ‘Next’ is selected, a reservation pop-up window appears.

Select NOW or NEXT Programme.

Select the Broadcast Programme.

Page Up/Down.

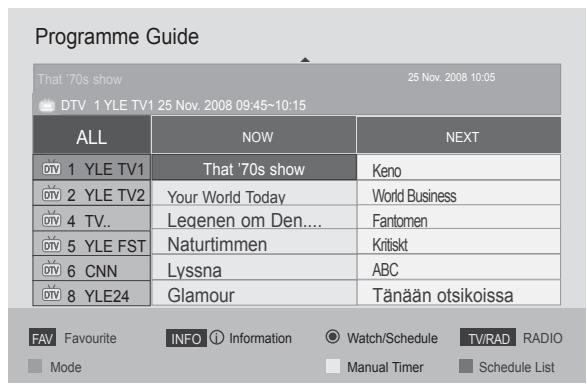

Programme Guide That '70s show 25 Nov. 2008 10:05 DTV 1 YLE TV1 25 Nov. 2008 09:45~10:15 ALL NOW NEXT DTV 1 YLE TV1 That '70s show Keno DTV 2 YLE TV2 Your World Today World Business DTV 4 TV.. Legenen om Den.... Fantomen DTV 5 YLE FST Naturtimmen Kritiskt DTV 6 CNNLyssna ABC DTV 8 YLE24 Glamour Tänään otsikoissa FAV Favourite INFO Information Watch/Schedule TV/RAD RADIO Mode Manual Timer Schedule List

or

or

Switch off EPG.

Select DTV or RADIO Programme.

Detail information on or off

EPG (ELECTRONIC PROGRAMME GUIDE)

Button Function in 8 Day Guide Mode

RED GREEN YELLOW BLUE

Change EPG mode.

Enter Date setting mode.

Enter Manual Timer mode.

Enter Schedule List mode.

When ‘Currently broadcasting programme is selected, it is moved to selected programme and EPG disappears

When ‘Future broadcasting programme is selected, a reservation pop-up window appears.

Select Programme.

Select the Broadcast Programme.

Programme Guide That '70s show 25 Nov. 2008 10:05 DTV 1 YLE TV1 25 Nov. 2008 09:45~10:15 ALL Tue. 25 Nov. 14:00 15:00 TV 1 YLE TV1 Antiques Roadshow Kungskonsumente TV 2 YLE TV2 Mint Extra TV2: Farmen The Drum TV 4 TV.. The Drum TV 5 YLE FST You Call The Hits TV 6 CNN Fashion Essentials TV 8 YLE24 ... ... ... ... Tänään otsikoissa FAV Favourite INFO Information Watch/Schedule TV/RAD RADIO Mode Date Manual Timer Schedule List

Page Up/Down.

Switch off EPG.

Select DTV or RADIO Programme.

Detail information on or off

Button Function in Date Change Mode

Switch off Date setting mode.

Change to the selected date.

Select a date.

Switch off EPG.

Programme Guide That '70s show 25 Nov. 2008 10:05 DTV 1 YLE TV1 25 Nov. 2008 09:45~10:15 ALL Tue. 25 Nov. 14:00 15:00 Antiques Roadshow Kungskonsumente 1 YLE TV1 Mint Extra TV2: Farmen The Drum 2 YLE TV2 The Drum 4 TV.. You Call The Hits 5 YLE FST CNN Fashion Essentials 6 CNN 8 YLE24 ... ... ... ... Tänään otsikoissa Date Change Date Exit

Button Function in Extended Description Box

The detail information on or off.

Text Up/Down.

Select Timer Record/Remind setting mode.

Switch off EPG.

DTV 1 YLE TV1 25 25 Nov. 2008 10:05 Fia World Touring Car Championship Tue. 25 Nov. 2008 10:05 12:40 Fia Champion Miss Gotto's Haunted house/Cry of The Swamp; Miss Gotto's Haunted house/Cry of The Swamp; Miss Gotto's Haunted house/Cry of The Swamp; Miss Gotto's Haunted house/Cry of The Swamp; Miss Gotto's Haunted house/Cry of The Swamp; Miss Gotto's Haunted house/Cry of The Swamp; Remind Record Close

EPG (ELECTRONIC PROGRAMME GUIDE)

Button Function in Record/Remind Setting Mode

Sets a start or end time for recording, and sets only a start time for the reminder with the end time grayed out.

This function is available only when recording equipment that use pin8 recording signalling has been connected to the TV-OUT(AV1) terminal, using a SCART cable.

Recording function is only supported in the Digital mode and not in the Analogue mode.

BACK YELLOW BLUE OK

Switch off Manual Timer mode.

Select Remind or Record function setting.

Select Type, Start Time, End time or Programme.

Change to Guide mode.

Change to Schedule List mode.

Save Timer Record/Remind.

Manual Timer Select the date to schedule. Wed. 12 Aug. 2009 13:46 Sun Mon Tue Wed Thu Fri Sat 09 16 23 30 Select a schedule type Type Start Time End Time Programme Record 15 : 09 17 : 30 DTV 801 ANTV D... Close OK Prev. Move OK Exit Programme Guide Schedule List

Button Function in Schedule List Mode

If you've created a schedule list, a scheduled programme is displayed at the scheduled time even when you are watching a different programme at the time.

Currently recording item cannot be edited or deleted.

Change to Manual Timer mode.

or (GUIDE) Change to Guide mode.

Switch off Schedule List.

Select your desired Option(Modify/Delete/Delete All).

Select programme.

Page Up/Down.

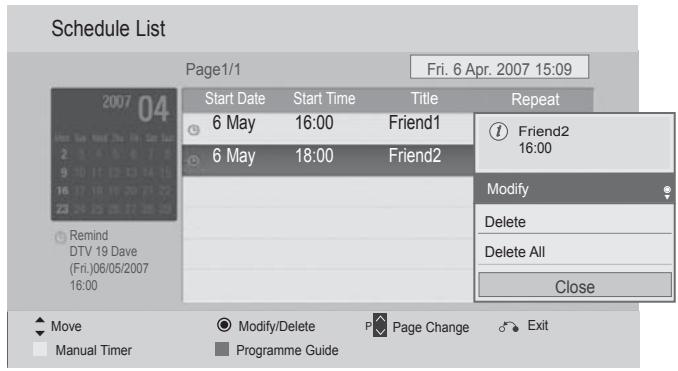

Schedule List Page1/1 Fri. 6 Apr. 2007 15:09 2007 04 Start Date Start Time Title Repeat 6 May 16:00 Friend1 6 May 18:00 Friend2 Modify Delete Delete All Close Move Modify/Delete Page Change Exit Manual Timer Programme Guide

PICTURE CONTROL

PICTURE SIZE (ASPECT RATIO) CONTROL

You can watch the screen in various picture formats; 16:9, Just Scan, Original, Full Wide, 4:3, 14:9, Zoom and Cinema Zoom.

If a fixed image is displayed on the screen for a long time, that fixed image may become imprinted on the screen and remain visible.

You can adjust the enlarge proportion using ^ ∨ button.

This function works in the following signal.

Select Aspect Ratio.

Select the desired picture format.

• You can also adjust Aspect Ratio in the PICTURE menu.
• For Zoom Setting, select 14:9, Zoom and Cinema Zoom in Ratio Menu. After completing Zoom Setting, the display goes back to Q.Menu.

• 16:9

The following selection will allow you to adjust the picture horizontally, in linear proportion, to fill the entire screen(useful for viewing 4:3 formatted DVDs).

Black and white photo of several round balls on a textured surface (no text or symbols visible)

- Just Scan

Following Selection will lead to you view the picture of best quality without loss of original picture in high resolution image.

Note : If there is noise in original Picture, You can see the noise at the edge.

Just Scan

- Original

When your TV receives a wide screen signal it will automatically change to the picture format broadcast.

Original

- Full Wide

When TV receives the wide screen signal, it will lead you to adjust the picture horizontally or vertically, in a linear proportion, to fill the entire screen fully.

4:3 and 14:9 video is supported in full screen without any video distortion through DTV input.

Full Wide

• 4:3

The following selection will allow you to view a picture with an original 4:3 aspect ratio.

Close-up of a small, smooth object with rounded edges on a textured surface (no visible text or symbols)

• 14:9

You can view a picture format of 14:9 or a general TV programme in the 14:9 mode. The 14:9 screen is viewed in the same way as in 4:3, but is moved to the up and down.

Close-up of a ball with three white balls on a textured surface (no text or symbols visible)

- Zoom

The following selection will allow you to view the picture without any alteration, while filling the entire screen. However, the top and bottom of the picture will be cropped.

Close-up of a ball on a surface, showing multiple balls in grayscale (no text or symbols visible)

- Cinema Zoom

Choose Cinema Zoom when you want to enlarge the picture in correct proportion. Note: When enlarging or reducing the picture, the image may become distorted.

Close-up of a ball with white and gray stones on a textured surface (no text or symbols visible)

◀ or ▶ button: Adjust enlarge proportion of Cinema Zoom. The adjustment range is 1 to 16.
▼ or ▲ button: Move the screen.

NOTE

▶ You can only select 4:3, 16:9 (Wide), 14:9, Zoom/Cinema Zoom in Component mode.
▶ You can only select 4:3, Original, 16:9 (Wide), 14:9, Zoom/Cinema Zoom in HDMI mode.
▶ You can only select 4:3, 16:9 (Wide) in RGB-PC, HDMI-PC mode only.
▶ In DTV/HDMI/Component (over 720p) mode, Just Scan is available.
▶ In Analogue/DTV/AV/Scart mode, Full Wide is available.

PICTURE CONTROL

PICTURE WIZARD

This feature lets you adjust the picture quality of the original image.

Use this to calibrate the screen quality by adjusting the Black and White Level etc. General users can calibrate the screen quality by easily following each stage.

When you adjust the image to Low, Recommended or High, you can see the changed result as an example.

In RGB-PC/HDMI-PC/DVI-PC mode, the changed Colour, Tint and H/V Sharpness values are not applied.

PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Off • Picture Mode : Standard • Backlight 70 • Contrast 100 • Brightness 50 • Sharpness 70

Picture Wizard With Picture Wizard, you can adjust the picture quality of the original image.

Select PICTURE.

Select Picture Wizard.

Adjust Standard(Black Level, White Level, Tint, Colour, Horizontal Sharpness, Vertical Sharpness, Backlight) or Preferred(Black Level, White Level, Tint, Colour, Sharpness, Dynamic Contrast, Colour Temperature, Backlight).

• If you stop the setting before the final stage, the changes will not be applied
• The adjustment value is saved to Expert1.
• Once the Picture Wizard sets the image quality, the Energy Saving is changed into Off.
• If the picture quality setting of Expert1 is changed, use the Picture Reset before entering the Picture Wizard to reset the picture quality setting.
• Standard : mode to set standard picture quality.
• Preferred : mode to set user preferred picture quality rather than standard picture.

Select input source to apply the settings.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

eENERGY SAVING

It reduces the TV's power consumption.

The default factory setting is adjusted to the comfortable level to be viewed at home.

You can increase the brightness of your screen by adjusting the Energy Saving level or by setting the Picture Mode.

When adjusting Energy Saving in MHEG mode, the Energy Saving setting is applied after MHEG is finished.

Selecting ‘Screen Off’ while tuned to a radio station channel will reduce power consumption.

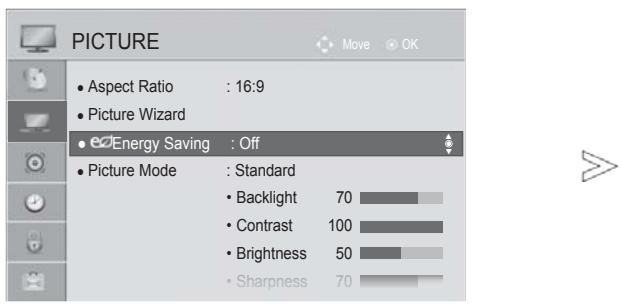

PICTURE Aspect Ratio : 16:9 Picture Wizard Energy Saving : Off Picture Mode : Standard Backlight 70 Contrast 100 Brightness 50 Sharpness 70

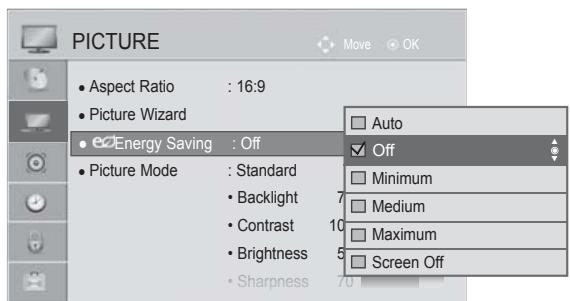

PICTURE Aspect Ratio : 16:9 Picture Wizard Energy Saving : Off Picture Mode : Standard Backlight Contrast 10 Brightness 5 Sharpness 70 Auto Off Minimum Medium Maximum Screen Off

Select PICTURE.

Select e∅ Energy Saving.

Select Auto(Only 32/42/46/52/60LD5***, 32LE3***, 32/37/42LE4***, 32/37/42/47/55LE5**), Off, Minimum, Medium, Maximum or Screen Off.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

• When you select Screen Off, the screen will be turned off in 3 seconds and Screen Off will start.

• If you adjust "Energy Saving-Auto, Maximum", Backlight feature will not work.
• You can also adjust this feature by selecting Energy Saving button on the remote control.
• When selecting Auto, Backlight is automatically adjusted through intelligent sensor according to the surrounding condition when intelligent sensor is in the TV. (Only 32/42/46/52/60LD5***, 32LE3***, 32/37/42LE4***, 32/37/42/47/55LE5**).

PICTURE CONTROL

PRESET PICTURE SETTINGS

Picture Mode-Preset

Vivid Strengthen the contrast, brightness, colour and sharpness for vivid picture.

Standard The most general screen display status.

Cinema Optimizes video for watching movies.

Sport Optimizes video for watching sports events.

Game Optimizes video for playing games.

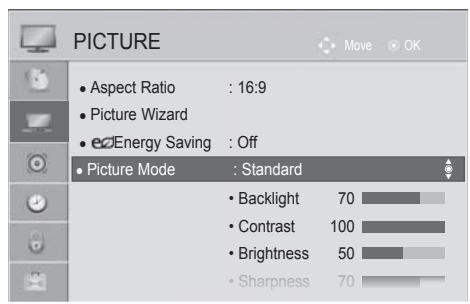

PICTURE • Aspect Ratio : 16:9 • Picture Wizard • Energy Saving : Off • Picture Mode : Standard • Backlight 70 • Contrast 100 • Brightness 50 • Sharpness 70

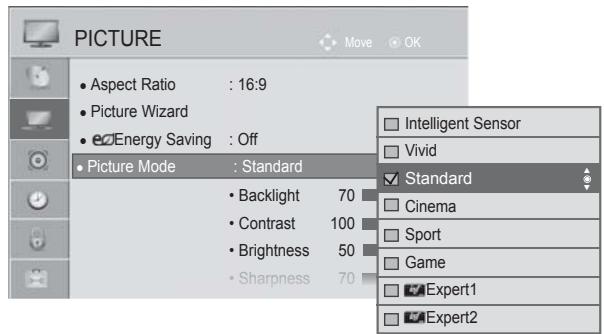

PICTURE Aspect Ratio : 16:9 Picture Wizard Energy Saving : Off Picture Mode : Standard Backlight 70 Contrast 100 Brightness 50 Sharpness 70 Intelligent Sensor Vivid Standard Cinema Sport Game Expert1 Expert2

Select PICTURE.

Select Picture Mode.

Select Intelligent Sensor(Only 32/42/46/52/60LD5***, 32LE3***, 32/37/42LE4***, 32/37/42/47/55LE5**),

Vivid, Standard, Cinema, Sport or Game.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

• Picture Mode adjusts the TV for the best picture appearance. Select the preset value in the Picture Mode menu based on the programme category.

• When the Intelligent sensor function is on, the most suitable picture is automatically adjusted according to the surrounding conditions.
• You can also adjust Picture Mode in the Q. Menu.
• Intelligent Sensor : Adjusts picture according to the surrounding conditions.

MANUAL PICTURE ADJUSTMENT

Picture Mode-User option

Backlight

To control the brightness of the screen, adjust the brightness of LCD panel. Adjusting the backlight when setting the brightness of the set is recommended.

Contrast

Adjusts the signal level between black and white in the picture. You may use Contrast when the bright part of the picture is saturated.

Brightness

Adjusts the base level of the signal in the picture.

Sharpness

Adjusts the level of crispness in the edges between the light and dark areas of the picture. The lower the level, the softer the image.

Colour

Adjusts intensity of all colours.

Tint

Adjusts the balance between red and green levels.

Colour Temp.

Adjust to left direction to make a picture reddish or adjust to right direction to make a picture bluish.

It is not available to use this function in “Intelligent Sensor” (Only 32/42/46/52/60LD5***, 32LE3***, 32/37/42LE4***, 32/37/42/47/55LE5**).

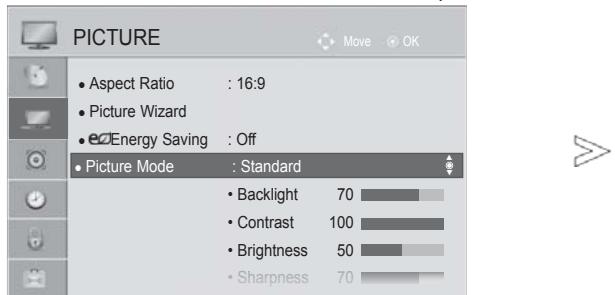

PICTURE Aspect Ratio : 16:9 Picture Wizard Energy Saving : Off Picture Mode : Standard Backlight 70 Contrast 100 Brightness 50 Sharpness 70

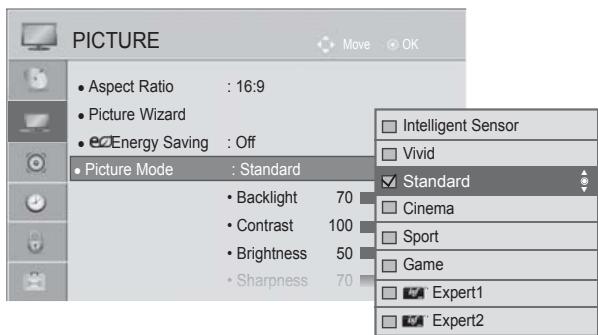

PICTURE Aspect Ratio : 16:9 Picture Wizard Energy Saving : Off Picture Mode : Standard Backlight 70 Contrast 100 Brightness 50 Sharpness 70 Intelligent Sensor Vivid Standard Cinema Sport Game Expert1 Expert2

Select PICTURE.

Select Picture Mode.

Select Vivid, Standard, Cinema, Sport or Game.

Select Backlight, Contrast, Brightness, Sharpness, Colour, Tint or Colour Temp..

Make appropriate adjustments.

• Benefits of using Backlight

• The electricity consumption is reduced by up to 60 %.
• The black brightness is reduced. (As the black has greater depth, you can enjoy a better quality definition.)
• You can adjust brightness with maintaining original signal resolution.

NOTE

▶ You cannot adjust colour, sharpness and tint in the RGB-PC/HDMI-PC mode.
▶ When the Expert 1/2 is selected, you can select Backlight, Contrast, Brightness, H Sharpness, V Sharpness, Colour or Tint.

PICTURE CONTROL

PICTURE IMPROVEMENT TECHNOLOGY

You can calibrate the screen for each Picture Mode or set the video value according to the special video screen.

You can set the video value differently for each input.

To reset to the factory default screen after making adjustments to each video mode, execute the "Picture Reset" function for each Picture Mode.

Image shown may differ from your TV.

PICTURE • Sharpness 70 • Colour 60 • Tint 0 RIMINING • Colour Temp. 0 WIMINING • Advanced Control • Picture Reset • TruMotion • Screen

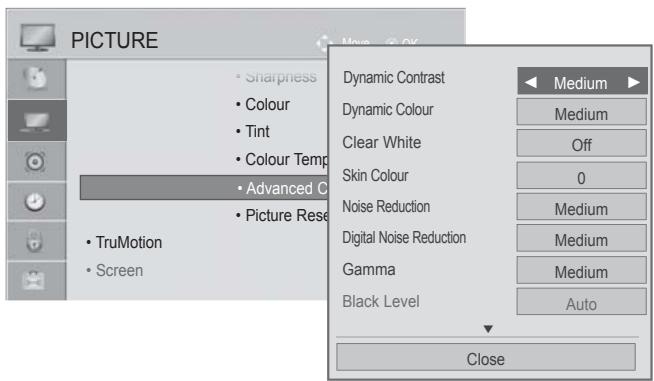

PICTURE • Sharpness • Colour • Tint • Colour Temp • Advanced C • Picture Rese • TruMotion • Screen Dynamic Contrast Dynamic Colour Clear White Skin Colour Noise Reduction Digital Noise Reduction Gamma Black Level Medium Off 0 Medium Medium Medium Auto Close

Select PICTURE.

Select Advanced Control.

Select your desired Source.:

Dynamic Contrast, Dynamic Colour, Clear White, Skin Colour, Noise Reduction, Digital Noise Reduction, Gamma, Black Level, Eye Care, Real Cinema, Colour Gamut or xvYCC. (Refer to p. 100 to 101)

Make appropriate adjustments.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

EXPERT PICTURE CONTROL

By segmenting categories, Expert1 and Expert2 provide more categories which users can set as they see fit, offering the optimal picture quality for users.

This may also be used to help a professional optimize the TV performance using specific videos.

Image shown may differ from your TV.

PICTURE Aspect Ratio : 16:9 Picture Wizard Energy Saving : Off Picture Mode : Expert1 Backlight Contrast Brightness H Sharp Intelligent Sensor Vivid Standard Cinema Sport Game Expert1 Expert2 PICTURE H Sharp V Sharp Colour Tint Expert C Picture 1 TruMotion Screen Dynamic Contrast Medium Noise Reduction Medium Digital Noise Reduction Medium Black Level Auto Real Cinema Colour Gamut On Edge Enhancer High xvYCC Auto Expert Pattern Off Close

Select PICTURE.

Select Picture Mode.

Select ^lsf Expert1 or ^lsf Expert2.

Select Expert Control.

Select your desired Source.

Make appropriate adjustments.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

*This feature is not available for all models.

Dynamic Contrast(Off/Low/Medium/High)	■ Adjusts the contrast to keep it at the best level according to the brightness of the screen. The picture is improved by making bright parts brighter and dark parts darker.
Dynamic Colour(Off/Low/High )	■ Adjusts screen colours so that they look livelier, richer and clearer. This feature enhances hue, saturation and luminance so that red, blue, green and white look more vivid.
Skin Colour(-5 to 5)	■ Adjusts skin colour of the picture so that user can set his favourite skin colour.
Noise Reduction(Off/Low/Medium/High/Auto(In Analogue Mode Only))	■ Reduces screen noise without compromising video quality.
Digital Noise Reduction(Low/Medium/High/Off)	■ Reduces noise regarding MPEG compressed video.
Gamma(Advanced Control:Low/Medium/HighExpert Control:1.9/2.2/2.4 )	■ You can adjust brightness of dark area and middle gray level area of the picture.Low/1.9 : Makes dark and middle gray level area of the picture brighter.Medium/2.2 : Expresses original picture levels.High/2.4: Make dark and middle gray level area of the picture darker.
Black Level(Low/High/Auto)	Low : The picture of the screen gets darker.High : The picture of the screen gets brighter.Auto : Sets black level of the screen to High or Low automatically according to the input signal level.■ Set black level of the screen to proper level.This function enables to select 'Low' or 'High' in the following mode: AV(NTSC-M), HDMI or Component. Otherwise, 'Black level' is set to 'Auto'.
Clear White(Off/Low/High)	■ Makes the white area of the screen brighter and clearer.
Eye Care(Low/High/Off)	*This feature is not available for all models.■ Adjusts the brightness of the screen automatically to the best level for eyes when the screen is too bright.■ This feature is disable in "Picture Mode-Vivid, Cinema, Expert1, Expert2, Intelligent Sensor(Only 32/42/46/52/60LD5*** , 32LE3*** , 32/37/42LE4*** , 32/37/42/47/55LE5***)".
Real Cinema(On/Off)	■ You can watch a cinema-like video by eliminating judder effect.■ Use this function when you watch film-originated movie contents.■ This function can work when TruMotion is off.
Colour Gamut(Advanced Control:Wide/Standard)	• Standard : Mode to use original colour area regardless of the display characteristics.• Wide: Mode to use maximum colour area of the TV display.■ Maximize the utilization for colour area that can be expressed.
Colour Gamut(Expert Control: EBU/SMPTE/BT709/Wide/Standard)	• Standard : Mode to use original colour area regardless of the display characteristics.• Wide : Mode to use maximum colour area of the TV display.• EBU : Mode to display EBU colour area.• SMPTE : Mode to display SMPTE colour area.• BT709 : Mode to display BT709 colour area.
Edge Enhancer(Off/Low/High)	■ Makes the edge of the picture clearer and distinctive.■ This function can use in “Picture Mode-Expert.”
xvYCC(Auto/off/on)	*This feature is not available for all models.■ This is the function to express richer colour.■ This function is enabled in "Picture mode - Cinema, Expert" when xvYCC signal is inputted through HDMI
Expert Pattern(Off/Pattern1/Pattern2)	■ This is the pattern necessary for checking the picture of Digital TV.■ This function is enabled in "Picture Mode - Expert" when you watch DTV.
Colour Filter(Off/Red/Green/Blue)	■ This is the function to filter the specific colours of the video.You can use the RGB filter to set colour saturation and hue accurately.
Colour Temperature(Medium/Warm/Cool)	This is the function to adjust the overall colour of the screen to the feeling you want.a. • Method : 2 Points• Pattern: Inner, Outer• Red/Green/Blue Contrast, Red/Green/Blue Brightness:The adjustment range is -50 to +50.b. • Method : 10 point IRE• Pattern: Inner / Outer• IRE (Institute of Radio Engineers) is the unit to display the size of the video signal and can be set among 10, 20, 30 to 100. You can adjust Red, Green or Blue according to each setting.Luminance: This function displays calculated luminance value for 2.2 gamma. You can input luminance value you want at 100 IRE, than the target luminance value for 2.2 gamma is displayed at every 10 steps from 10 IRE to 90 IRE.• Red/Green/Blue: The adjustment range is -50 to +50.
Colour Management System	■ As the tool used by the experts to make adjustments by using the test patterns, this does not affect other colours but can be used to selectively adjust the 6 colour areas (Red/Green/Blue/Cyan/Magenta/Yellow).Colour difference may not be distinctive even when you make the adjustments for the general video.■ Adjusts Red/Green/Blue/Yellow/Cyan/Magenta.• Red/Green/Blue/Yellow/Cyan, Magenta Colour : The adjustment range is -30 to +30.• Red/Green/Blue/Yellow/Cyan/Magenta Tint : The adjustment range is -30 to +30.■ This feature is disable in RGB-PC and HDMI (PC) mode.

PICTURE CONTROL

PICTURE RESET

Settings of the selected picture modes return to the default factory settings.

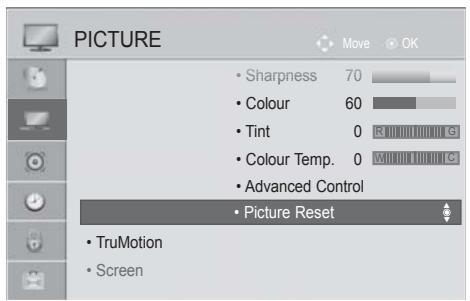

PICTURE • Sharpness 70 • Colour 60 • Tint 0 R • Colour Temp. 0 MINI • Advanced Control • Picture Reset • TruMotion • Screen

PICTURE • Sharpness 70 • Colour 60 • Tin • Co • Ad • Pic • TruMotion • Screen All picture setting will be reset. Continue? Yes No

Select PICTURE.

Select Picture Reset.

Select Yes.

Initialize the adjusted value.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

TRUMOTION

(Only 32/42/46/52/60LD5***, 32/37/42/47/55LE5***)

It is used for the best picture quality without any motion blur or judder when you enter a quick image or Film Source.

High : Provide smoother picture movement.

Low : Provide smooth picture movement. Use this setting for standard use.

Off : Turn off TruMotion Operation.

User : User can adjust Judder and Blur level in TruMotion Operation, separately.

• Judder : Adjust noise of the screen.
• Blur : Adjust after-image of the screen.

This feature is disable in RGB-PC,HDMI-PC mode.

If you enable "TruMotion", noise may appear on the screen.

If this occurs, set "TruMotion" to "Off".

If you select "Picture Mode-Game", set "TruMotion" to "Off".

PICTURE • Sharpness 70 • Colour 60 • Tint 0 R • Colour Temp. 0 M • Advanced Control • Picture Reset • TruMotion • Screen

TruMotion • Judder 3 • Blur 3 Low OK

Select PICTURE.

Select TruMotion.

Select Low, High, User or Off.

Make appropriate adjustments.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

PICTURE CONTROL

POWER INDICATOR

Adjust the power/standby indicator light on the front of the TV.

Standby Light

Determines whether to set the indicator light on the front of the TV to On or Off in standby mode.

Power Light

Determines whether to set the indicator light on the front of the TV to On or Off when the power turns on.

OPTION Language(Language) Country : UK Disability Assistance Power Indicator Factory Reset Set ID : 1 Mode Setting : Home Use

OPTION Language(Language) Country : UK Disability Assistance Power Indicator Factory Reset Set ID : 1 Mode Setting : Ho Standby Light On Power Light On Close

Select OPTION.

Select Power Indicator.

Select Standby Light or Power Light.

Select your desired Source.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

MODE SETTING

We recommend setting the TV to "Home Use" mode for the best picture in your home environment. "Store Demo" mode is an optimal setting for displaying at stores.

OPTION Language(Language) Country : UK Disability Assistance Power Indicator Factory Reset Set ID : 1 Mode Setting : Home Use

OPTION Language(Language) Country : UK Disability Assistance Power Indicator Factory Reset Set ID : 1 Mode Setting : Home Select the environment. Choose the setting mode you want. Select [Home Use] to use this TV at home. To use this TV at store, select [Store Demo]. Home Use Store Demo Demo Mode Off Close

Select OPTION.

Select Mode Setting.

Select Store Demo or Home Use.

Save.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

PICTURE CONTROL

DEMO MODE

It is not possible to use Demo Mode in Home Use mode.

In Store Demo, Demo Mode is automatically set to On.

Once Demo Mode is set to Off in Store Demo, Demo Mode does not run and only the screen is reset.

The screen is reset automatically after 5 minutes in Demo Mode.

OPTION Language(Language) Country : UK Disability Assistance Power Indicator Factory Reset Set ID : 1 Mode Setting : Home Use

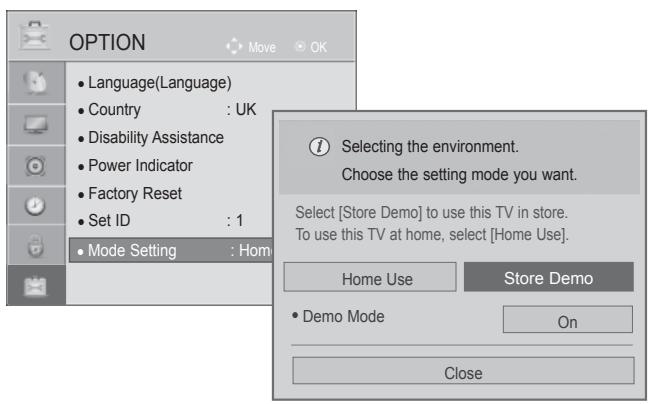

OPTION Language(Language) Country : UK Disability Assistance Power Indicator Factory Reset Set ID : 1 Mode Setting : Home ① Selecting the environment. Choose the setting mode you want. Select [Store Demo] to use this TV in store. To use this TV at home, select [Home Use]. Home Use Store Demo Demo Mode On Close

1 MENU 2 OK 3 OK 4 OK 5 Move If you (exce)

Select OPTION.

Select Mode Setting.

Select Store Demo.

Select On.

Move to the previous menu screen.

If you want to stop the demo, press any button.

(except for MUTE, ∠ + , - button)

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

SOUND & LANGUAGE CONTROL

AUTO VOLUME LEVELER

Auto Volume automatically remains on the same level of volume if you change programmes.

Because each broadcasting station has its own signal conditions, volume adjustment may be needed every time the channel is changed. This feature allows users to enjoy stable volume levels by making automatic adjustments for each programme.

If sound quality or volume is not at the level you want, it is recommended to use a separate home theater system or amp to cope with different user environments.

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 R • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 L R • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset

Select AUDIO.

Select Auto Volume.

Select On or Off.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

SOUND & LANGUAGE CONTROL

CLEAR VOICE II

By differentiating the human sound range from others, it helps users listen to human voices better.

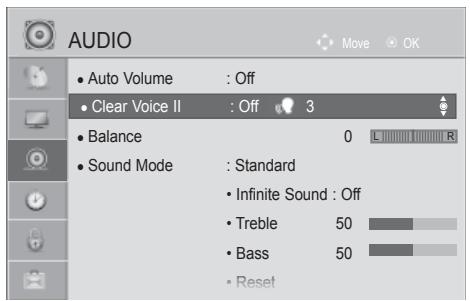

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 L1111R • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance • Sound Mode : Standard • Infinite Sound • Treble 50 • Bass 50 • Reset Clear Voice II Level 3 Close

Select AUDIO.

Select Clear Voice II.

Select On or Off.

• If you select "On" for Clear Voice II, Infinite Sound feature will not work.
• Select levels from '-6' to '+6'.

Adjustment for Clear Voice Level With selecting On

Select Level.

Make desired adjustment.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

You can select your preferred sound setting; Standard, Music, Cinema, Sport or Game and you can also adjust the Treble, Bass.

Sound Mode lets you enjoy the best sound without any Special adjustment as the TV sets the appropriate sound options based on the programme content.

Standard, Music, Cinema, Sport and Game are preset for optimum sound quality at the factory.

Standard Offers standard-quality sound.

Music Optimizes sound for listening to music.

Cinema Optimizes sound for watching movies.

Sport Optimizes sound for watching sports events.

Game Optimizes sound for playing games.

Select AUDIO.

- You can also adjust Sound Mode in the Q. Menu.

Select Sound Mode.

Select Standard, Music, Cinema, Sport or Game.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

SOUND & LANGUAGE CONTROL

SOUND SETTING ADJUSTMENT -USER MODE

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 R • Sound Mode : Standard(User) • Infinite Sound : Off • Treble 50 • Bass 50 • Reset

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance • Sound Mode : Standard(Use) • Infinite Sound • Treble • Bass • Reset Standard(User) Music Cinema Sport Game

Select AUDIO.

Select Sound Mode.

Select Standard, Music, Cinema, Sport or Game.

Select Treble or Bass.

Set the desired sound level.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

INFINITE SOUND

Select this option to sound realistic.

Select AUDIO.

Select Infinite Sound.

Infinite Sound : Infinite Sound is a patented LG proprietary sound processing technology that strives immersive 5.1 surround sound impression with front two loudspeakers.

Select On or Off.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

BALANCE

You can adjust the sound balance of the speakers to preferred levels.

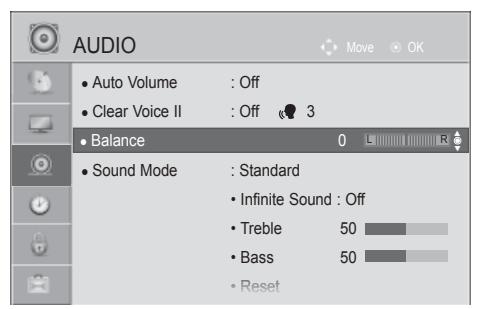

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance 0 R • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset

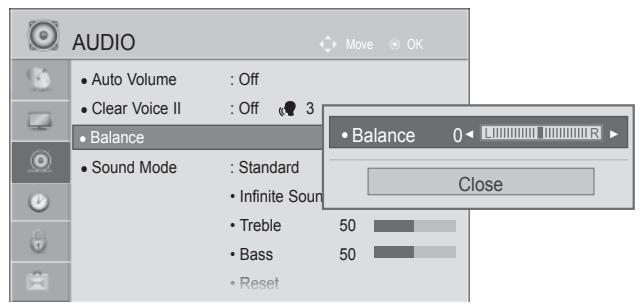

AUDIO • Auto Volume : Off • Clear Voice II : Off 3 • Balance • Sound Mode : Standard • Infinite Sound • Treble 50 • Bass 50 • Reset Balance 0← L1L1L1R → Close

Select AUDIO.

Select Balance.

Make desired adjustment.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

SOUND & LANGUAGE CONTROL

You can adjust the TV internal speaker status.

In AV, COMPONENT, RGB and HDMI1 with HDMI to DVI cable, the TV speaker can be operational even when there is no video signal.

If you wish to use an external Hi-Fi system, turn off the TV's internal speakers.

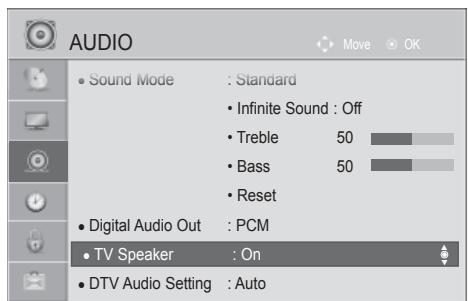

AUDIO • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset • Digital Audio Out : PCM • TV Speaker : On • DTV Audio Setting : Auto

AUDIO • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset • Digital Audio Out : PCM • TV Speaker : On • DTV Audio Setting : Auto Off On

Select AUDIO.

Select TV Speaker.

Select On or Off.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

NOTE

When the TV speaker is turned off while the Simplink home theater is operating, the sound output automatically switches to the Home theater speaker, but when the TV speaker is turned on, the sound output the TV speaker.
▶ Some menus in AUDIO are disabled when TV Speaker is set to Off.

DTV AUDIO SETTING (IN DIGITAL MODE ONLY)

When different audio types exist in an input signal, this function allows you to select the audio type you want.

AUDIO • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset • Digital Audio Out : PCM • TV Speaker : On • DTV Audio Setting : Auto

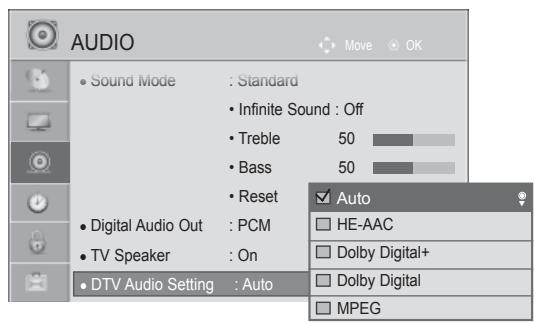

AUDIO Sound Mode : Standard Infinite Sound : Off Treble 50 Bass 50 Reset Digital Audio Out : PCM TV Speaker : On DTV Audio Setting : Auto Auto HE-AAC Dolby Digital+ Dolby Digital MPEG

Select AUDIO.

Select DTV Audio Setting.

Select Auto, HE-AAC, Dolby Digital +, Dolby Digital or MPEG.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

• Auto: Automatically outputs in the order HE-AAC > Dolby Digital+ > Dolby Digital > MPEG. (Except for Italy)
  Auto: Automatically outputs in the order HE-AAC > Dolby Digital+ > MPEG > Dolby Digital. (Only Italy)

• HE-AAC, Dolby Digital+, Dolby Digital, MPEG: Allows users to select the audio type they want. ex) If MPEG is selected, MPEG is always outputted.
  If MPEG is not supported, another audio type is set in that order.
  • Refer to p. 120 to 121 (Audio Language Selection)

SOUND & LANGUAGE CONTROL

SELECTING DIGITAL AUDIO OUT

This function allows you to select your preferred Digital Audio Output.

When Dolby Digital is available, selecting Auto in the Digital Audio Out menu will set SPDIF(Sony Philips Digital InterFace) output to Dolby Digital.

If Auto is selected in the digital audio output menu when Dolby Digital is not available, SPDIF output will be PCM(Pulse-code modulation).

Even if both Dolby Digital and Audio language have been set in a channel which broadcast Dolby Digital Audio, only Dolby Digital will be played.

AUDIO • Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 • Reset • Digital Audio Out : PCM • TV Speaker : On • DTV Audio Setting : Auto

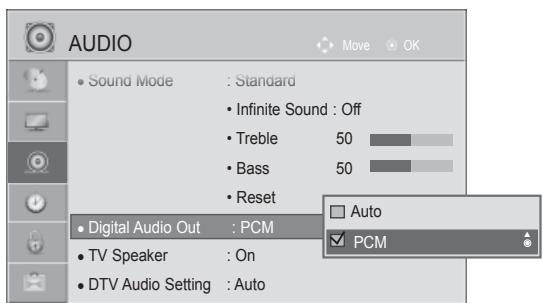

AUDIO Sound Mode : Standard Infinite Sound : Off Treble 50 Bass 50 Reset Digital Audio Out : PCM TV Speaker : On DTV Audio Setting : Auto Auto PCM

1 MENU 2 OK 3 OK

Select AUDIO.

Select Digital Audio Out.

Select Auto or PCM.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

- There is a possibility that when HDMI mode, some DVD players do not make SPDIF sound. At that time, set the output of the digital audio of the DVD player to PCM. (In HDMI, Dolby Digital Plus is not supported).

Item	Audio Input	Digital Audio output
Auto(Speaker On)	MPEGDolby DigitalDolby Digital PlusHE-AAC	PCMDolby DigitalDolby DigitalPCM
Auto(Speaker Off)	MPEGDolby DigitalDolby Digital PlusHE-AAC	PCMDolby DigitalDolby DigitalDolby Digital
PCM	All	PCM

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

AUDIO RESET

Settings of the selected Sound Mode return to the default factory settings.

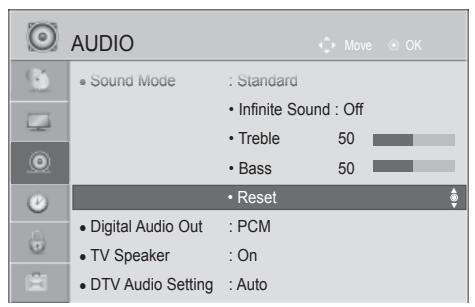

AUDIO Sound Mode : Standard • Infinite Sound : Off • Treble 50 • Bass 50 Reset • Digital Audio Out : PCM • TV Speaker : On • DTV Audio Setting : Auto

AUDIO Sound Mode : Standard Infinite Sound : Off All audio settings will be resetted. Continue? Digital Audio Out : P TV Speaker : On DTV Audio Setting : Auto Yes No

Select AUDIO.

Select Reset.

Select Yes.

Initialize the adjusted value.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

SOUND & LANGUAGE CONTROL

AUDIO DESCRIPTION (IN DIGITAL MODE ONLY)

This function is for the blind, and provides explanatory audio describing the current situation in a TV programme in addition to the basic audio.

When Audio Description On is selected, basic audio and Audio Description are provided only for those programmes that have Audio Description included.

Volume Changes the Audio Description volume

Beep Beeps when a programme with Audio Description information is selected

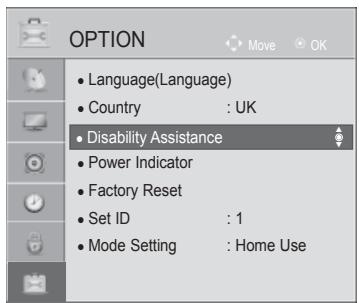

OPTION Language(Language) Country : UK Disability Assistance Power Indicator Factory Reset Set ID : 1 Mode Setting : Home Use

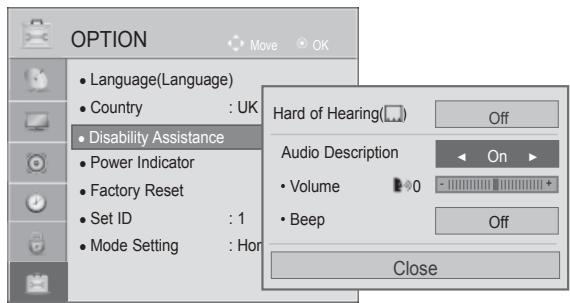

OPTION Language(Language) Country : UK Disability Assistance Power Indicator Factory Reset Set ID : 1 Mode Setting : Hor Hard of Hearing(□) Off Audio Description On ▶ Volume 0 Beep Off Close

Select OPTION.

Select Disability Assistance.

Select Audio Description.

Adjustment for Audio Description Volume With selecting On

Select Volume or Beep.

Make desired adjustment.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

STEREO/DUAL RECEPTION (IN ANALOGUE MODE ONLY)

When a programme is selected, the sound information for the station appears with the programme number and station name.

Select Audio or Audio Language.

Select the sound output.

Broadcast	On Screen Display
Mono	MONO
Stereo	STEREO
Dual	DUAL I, DUAL II, DUAL I+II

■ Mono sound selection

If the stereo signal is weak in stereo reception, you can switch to mono. In mono reception, the clarity of sound is improved.

■ Language selection for dual language broadcast

If a programme can be received in two languages (dual language), you can switch to DUAL I, DUAL II or DUAL I+II.

DUAL I Sends the primary broadcast language to the loudspeakers.

DUAL II Sends the secondary broadcast language to the loudspeakers.

DUAL I+II Sends a separate language to each loudspeaker.

SOUND & LANGUAGE CONTROL

NICAM RECEPTION (IN ANALOGUE MODE ONLY)

If the TV is equipped with a receiver for NICAM reception, high quality NICAM (Near Instantaneous Companding Audio Multiplex) digital sound can be received.

Sound output can be selected according to the type of broadcast received.

1 When NICAM mono is received, you can select NICAM MONO or FM MONO.
2 When NICAM stereo is received, you can select NICAM STEREO or FM MONO. If the stereo signal is weak, switch to FM MONO.
3 When NICAM dual is received, you can select NICAM DUAL I, NICAM DUAL II or NICAM DUAL I+II or FM MONO.

SPEAKER SOUND OUTPUT SELECTION

In AV, Component, RGB and HDMI mode, you can select output sound for the left and right loudspeakers.

Select the sound output.

L+R: Audio signal from audio L input is sent to the left loudspeaker and audio signal from audio R input is sent to the right loudspeaker.
L+L: Audio signal from audio L input is sent to left and right loudspeakers.
R+R: Audio signal from audio R input is sent to left and right loudspeakers.

ON-SCREEN MENU LANGUAGE / COUNTRY SELECTION

The installation guide menu appears on the TV screen when it is switched on for the first time.

Select your desired language.

Select your country.

* If you want to change Language/ Country selection

Select OPTION.

Select Language(Language).

Select Menu Language.

Select your desired language.

Save.

Select OPTION.

Select Country.

Select your country.

Select Yes or No.

Save.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

NOTE

▶ If you do not finish the set-up Installation Guide by pressing BACK or if you time out on the OSD (On Screen Display) the installation menu will continuously appear until the set up is completed whenever the TV is switched on.
▶ If you select the wrong local country, teletext may not appear correctly on the screen and some problems may occur during teletext operation.
The CI (Common Interface) function may not be applied based on country broadcasting circumstances.
▶ DTV mode control buttons may not function based on country broadcasting circumstances.
In country that Digital broadcasting regulation isn't fixed, some DTV function may not work depending on digital broadcasting circumstances.
▶ The Country Setting "UK" should only be activated in UK.
▶ If the country setting is set to "--", European terrestrial digital standard broadcasting programmes are available, but some DTV functions may not work properly.

SOUND & LANGUAGE CONTROL

LANGUAGE SELECTION

The Audio function allows selection of a preferred language.

If audio data in a selected language is not broadcast, the default language audio will be played.

Use the Subtitle function when two or more subtitle languages are broadcast. If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed.

When the languages you selected as the primary for Audio Language and Subtitle Language and Text Language are not supported, you can select language in secondary category.

In Digital mode, use the Text language function when two or more Text languages are broadcast. If tele-text data in a selected language is not broadcast, the default Text language page will be displayed.

Select OPTION.

Select Language(Language).

Select Audio Language, Subtitle Language or Text Language(Except for UK).

Select your desired language.

Save.

Select OPTION.

Select Disability Assistance.

Select Hard of Hearing(□).

Select On or Off.

- Press the BACK button to move to the previous menu screen.

< Audio Language Selection >

▶ When two or more audio languages are broadcast, you can select the audio language.

1 Q.MENU 2 OK

Select Audio or Audio Language.

Select an audio language.

< Subtitle Language Selection >

▶ When two or more subtitle languages are broadcast, you can select the subtitle language with the SUBTITLE button on the remote control.
▶ Press the ^ ∨ button to select a subtitle language.

• The audio/subtitles can be displayed in a simpler form with 1 to 3 characters broadcast by the service provider.
• When you select supplementary Audio (Audio for "Visual/Hearing Impaired") the TV may output a part of the Main audio.

Audio Language OSD Information

Display	Status
N.A	Not Available
MPEG	MPEG Audio
D	Dolby Digital Audio
	Audio for “Visual Impaired”
ABC	Audio for “Hearing Impaired”
D+	Dolby Digital Plus Audio
HE-AAC	HE-AAC Audio

Subtitle Language OSD Information

Display	Status
N.A	Not Available
TXT	Teletext Subtitle
ABC	Subtitle for “Hard of Hearing”

TIME SETTING

CLOCK SETUP

The clock is set automatically when receiving a digital signal in Auto mode. You can set the clock manually in Manual mode.

You must set the time correctly before using on/off timer function.

The TV time is set by the time offset information based on Time Zone and GMT (Greenwich Mean Time) which is received with the broadcast signal and the time is set automatically by a digital signal.

When if the city name in Time Zone is changed into offset, you can change time by 1 hour.

Time Zone menu can be changed in Auto mode.

Select TIME.

Select Clock.

Select Auto or Manual.

Select either the year, month, date, time or Time Zone option.

Set the year, month, date, time or Time Zone option.

Time Zone

Magadan, Kamchatka

Vladivostok

Yakutsk

Irkutsk

Krasnoyarsk

Omsk

Yekaterinburg

Moscow, Samara

Kaliningrad

This Table means the Time Zone table of 9 area of Russia, and when the user selects the Time Zone for his or her area, it automatically sets the time for the corresponding area.

However, even though the user selected his or her area, if the broadcasting station's local time offset is not offered, or if the region information does not match, then the user may select the Offset from the Time Zone to set the correct time.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

AUTO ON/OFF TIME SETTING

The Off time function automatically switches the TV to standby at a preset time.

Two hours after the TV is switched on by the on time function it will automatically switch back to standby mode unless a button has been pressed.

The Off time function overrides the On time function if both are set to the same time.

The TV must be in standby mode for the On time to work.

TIME Clock Off Time : Off On Time : Off Sleep Timer : Off

TIME Clock Off Time On Time Sleep Timer 1 Mar. 2007 16:09 Repeat Off Hour 00 Minute 00 Input Antenna Programme TV1 Volume 30 Close

Select TIME.

Select Off Time or On Time.

Select Repeat.

Select Off, Once, Daily, Mon. \~ Fri., Mon. \~ Sat., Sat. \~ Sun. or Sun..

Set the hour.

Set the minutes.

• To cancel On/Off Time function, select Off.
• For On Time function only

Select Input.

Select the input source.

Set the programme.

Adjust volume level at switch-on.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

TIME SETTING

SLEEP TIMER SETTING

You do not have to remember to switch the TV off before you go to sleep.

The sleep timer automatically switches the TV to standby after the preset time has elapsed.

Select Sleep Timer.

Select Off, 10, 20, 30, 60, 90, 120, 180 or 240 min.

• When you switch the TV off, the preset sleep timer is cancelled.
• You can also adjust Sleep Timer in the TIME menu.

PARENTAL CONTROL / RATINGS

SET PASSWORD & LOCK SYSTEM

Enter the password, press '0', '0', '0', '0' on the remote control handset.

When France is selected for Country, password is not '0', '0', '0', '0' but '1', '2', '3', '4'.

When France is selected for Country, password cannot be set as '0', '0', '0', '0'.

If a channel is locked, enter the password to unlock it temporarily.

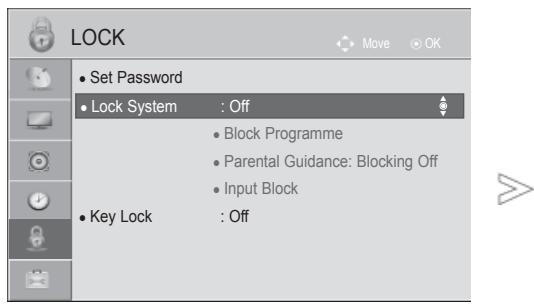

LOCK • Set Password • Lock System : Off • Block Programme • Parental Guidance: Blocking Off • Input Block • Key Lock : Off

LOCK Set Password Lock System : Off Block Programme Parental Guidance: Blocking Off Input Block Key Lock : Off

Select LOCK.

- If you forget your password, press '0', '3', '2', '5' on the remote control handset.

Select Lock System.

Select On.

Set the password.

Input a 4-digit password.

Be sure to remember this number!

Re-enter new password for confirm.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

PARENTAL CONTROL / RATINGS

BLOCK PROGRAMME

Blocks any programme that you do not want to watch or that you do not want your children to watch.

It is available to use this function in Lock System "On".

Enter a password to watch a blocked programme.

LOCK • Set Password • Lock System : On • Block Programme • Parental Guidance: Blocking Off • Input Block • Key Lock : Off

Programme Edit Favourite Group : C DTV RADIO TV 1 Nine Digital 2 Nine Digital HD 3 Nine Guide 4 7 Digital 5 7 HD Digital 6 7 Digital 1 7 7 Digital2 8 7 Digital3 9 7 Guide Pr. Change Navigation Page Change Previous Block/Unblock

or

Programme Edit Favourite Group : c Cable DTV Cable Radio Cable TV 1 Nine Digital 2 Nine Digital HD 3 Nine Guide 4 7 Digital 5 7 HD Digital 6 7 Digital 1 7 7 Digital2 8 7 Digital3 9 7 Guide Pr. Change Navigation Page Change Previous Block/Unblock

Select LOCK.

Select Lock System.

Enter the Block Progra mme.

Enter the Block Programme.

Select a programme to be locked.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

PARENTAL CONTROL (IN DIGITAL MODE ONLY)

This function operates according to information from the broadcasting station. Therefore if the signal has incorrect information, this function does not operate.

A password is required to gain access to this menu.

This set is programmed to remember which option it was last set to even if you switch the set off.

Prevents children from watching certain adult's TV programmes, according to the ratings limit set.

Enter a password to watch a blocked programme.

Rating differs by country.

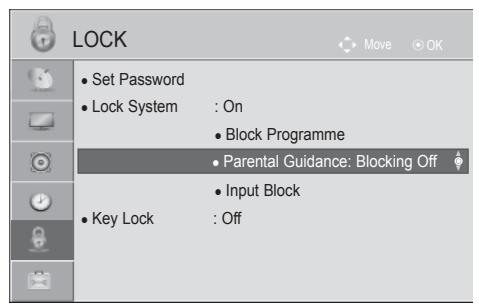

LOCK • Set Password • Lock System : On • Block Programme • Parental Guidance: Blocking Off • Input Block • Key Lock : Off

LOCK • Set Password • Lock System : On • Block Program • Parental Guide • Input Block • Key Lock : Off Blocking Off : Permits all programmes 12 and above 13 and above 14 and above 15 and above 16 and above 17 and above 18 and above Blocking Off

(Except for France)

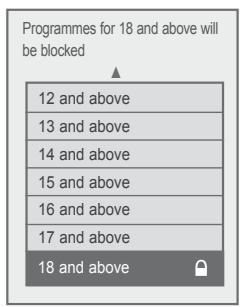

Programmes for 18 and above will be blocked 12 and above 13 and above 14 and above 15 and above 16 and above 17 and above 18 and above

(Only France)

Select LOCK.

Select Lock System.

Select Parental Guidance.

Make appropriate adjustments.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

PARENTAL CONTROL / RATINGS

EXTERNAL INPUT BLOCKING

Enables you to block an input.

It is available to use this function in Lock System "On".

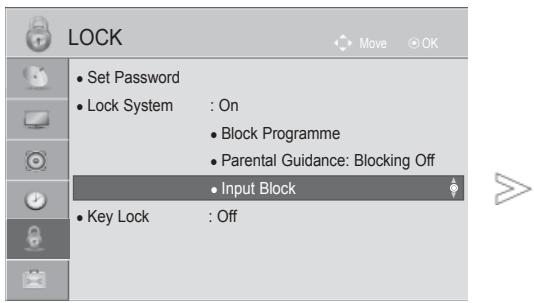

LOCK • Set Password • Lock System : On • Block Programme • Parental Guidance: Blocking Off • Input Block • Key Lock : Off

■ Image shown may differ from your TV.

LOCK • Set Password • Lock System : On • Block Progra • Parental Gui • Input Block • Key Lock : Off • AV1 • AV2 • AV3 • Component • RGB • HDMI1 • HDMI2 • HDMI3 • HDMI4 • Off Off Off Off Off Off Off Close

Select LOCK.

Select Lock System.

Select Input Block.

Select input source.

Select On or Off.

• Press the MENU/EXIT button to return to normal TV viewing.
• Press the BACK button to move to the previous menu screen.

KEY LOCK

This feature can be used to prevent unauthorized viewing by locking out the front panel controls, so that it can only be used with the remote control.

This TV is programmed to remember which option it was last set to even if you turn the TV off.

LOCK • Set Password • Lock System : Off • Block Programme • Parental Guidance: Blocking Off • Input Block • Key Lock : Off

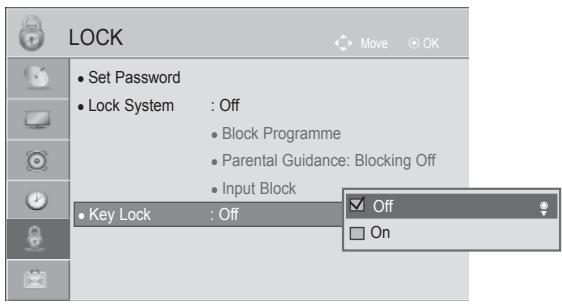

LOCK • Set Password • Lock System : Off • Block Programme • Parental Guidance: Blocking Off • Input Block • Key Lock : Off Off On

Select LOCK.

Select Key Lock.

Select On or Off.

• In Key Lock 'On', if the TV is turned off, press the ⏻ / I, INPUT, P^ ∨ (or P ▲▼) button on the TV or POWER, INPUT, P^ ∨ or NUMBER buttons on the remote control then the set will be turned on.
• With the Key Lock On, the display ' 🔊 Key Lock On' appears on the screen if any button on the front panel is pressed while viewing the TV.

• When another OSD is displayed, ⚠️ ‘Key Lock On ’ will not operate.

• Press the MENU/EXIT button to return to normal TV viewing.

• Press the BACK button to move to the previous menu screen.

This feature is not available in all countries.

Teletext is a free service broadcast by most TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics.

The teletext decoder of this TV can support the SIMPLE, TOP and FASTEXT systems. SIMPLE (standard teletext) consists of a number of pages which are selected by directly entering the corresponding page number. TOP and FASTEXT are more modern methods allowing quick and easy selection of teletext information.

SWITCH ON/OFF

Press the TEXT button to switch to teletext. The initial page or last page viewed appears on the screen.

Two page numbers, TV station name, date and time are displayed on the screen headline. The first page number indicates your selection, while the second shows the current page displayed.

Press the TEXT button to switch off teletext. The previous mode reappears.

■ Image shown may differ from your TV.

1 2 3 4 5 6 7 8 9 LIST 0 Q.VIEW + RATIO P MUTE MENU GUIDE Q.MENU OK > BACK INFO Q EXIT TEXT T.OPT SUBTITLE ■ ▶

SIMPLE TEXT

■ Page selection

① Enter the desired page number as a three digit number with the NUMBER buttons. If during selection you press a wrong number, you must complete the three digit number and then re-enter the correct page number.
② The P ^ ∨ button can be used to select the preceding or following page.

TOP TEXT

The user guide displays four fields-red, green, yellow and blue at the bottom of the screen. The yellow field denotes the next group and the blue field indicates the next block.

■ Block / group / page selection

① With the blue button you can progress from block to block.
② Use the yellow button to proceed to the next group with automatic overflow to the next block.
③ With the green button you can proceed to the next existing page with automatic overflow to the next group.
4 Alternatively the P^ button can be used.
The red button returns to the previous selection. Alternatively the P ∨ button can be used.

■ Direct page selection

As with SIMPLE teletext mode, you can select a page by entering it as a three digit number using the NUMBER buttons in TOP mode.

FASTEXT

The teletext pages are colour coded along the bottom of the screen and are selected by pressing the corresponding coloured button.

■ Page selection

① Press the T.OPT button and then use ^ ∨ button to select Ei menu. Display the index page.
② You can select the pages which are colour coded along the bottom line with corresponding coloured buttons.
③ AS with SIMPLE teletext mode, you can select a page by entering its three digit page number with the NUMBER buttons in FASTEXT mode.
4 The P^ ∨ button can be used to select the preceding or following page.

TELETEXT

SPECIAL TELETEXT FUNCTIONS

■ Press the T. OPT button and then use ^ ∨ button to select the Text Option menu. In UK(In digital mode), T. OPT button does not work.

Index

Select the each index page.

■ Time

When viewing a TV programme, select this menu to display the time at the top right hand corner of the screen.

Text Option Index Time Hold Reveal Update Close

In the teletext mode, press this button to select a sub page number. The sub page number is displayed at the bottom of the screen. To hold or change the sub page, press the RED/GREEN,<> or NUMBER buttons.

■ Hold

Stops the automatic page change which will occur if a teletext page consists of 2 or more sub pages. The number of sub pages and the sub page displayed is, usually, shown on the screen below the time. When this menu is selected the stop symbol is displayed at the top left-hand corner of the screen and the automatic page change is inactive.

■ Reveal

Select this menu to display concealed information, such as solutions to riddles or puzzles.

■ Update

Displays the TV picture on the screen while waiting for a new teletext page. The display will appear at the top left hand corner of the screen. When the updated page is available then display will change to the page number. Select this menu again to view the updated teletext page.

DIGITAL TELETEXT

*This function works in UK, Ireland only.

The TV gives you access to digital teletext which is greatly improved in various aspects such as text, graphics etc.

This digital teletext can access special digital teletext services and specific services which broadcast digital teletext.

TELETEXT WITHIN DIGITAL SERVICE

1 Press the numeric or P ∧ ∨ button to select a digital service which broadcasts digital teletext.
2 Follow the indications on digital teletext and move onto the next step by pressing TEXT, OK, ^ < >, RED, GREEN, YELLOW, BLUE or NUMBER buttons and etc..
3 To change digital teletext service, select a different service by the numeric or P ∧ ∨ button.

LIVE North London BBC NEWS 24 BBC News News headlines and live events in video. News Multiscreen News Headlines Christmas Comedy Preview Big Read Vote NEWS SPORT WEATHER MAIN MENU SCTING Press TEXT to exit 15:11 JOGGER S Suspect was test BBC

TELETEXT IN DIGITAL SERVICE

1 Press the numeric or P ∧ ∨ button to select a certain service which broadcasts digital teletext.
2 Press the TEXT or coloured button to switch on teletext.
3 Follow the indications on digital teletext and move onto the next step by pressing OK, ^ < >, RED, GREEN, YELLOW, BLUE or NUMBER buttons and so on.
4 Press the TEXT or colour button to switch off digital teletext and return to TV viewing.

Some services may allow you to access text services by pressing the RED button.

News 15:13 09 Dec Main Headlines UK World Politics In Depth UK Regions Sci-Tech Health Community VIVE North London 15:13 09 Dec LOGGER STABBING BBC News 24 Press BLUE to change section GO TO TV SHORTCUTS BACK MENU B B C 1

TROUBLESHOOTING

The TV does not operate properly.

The remote control does not work	■ Check to see if there is any object between the TV and the remote control causing an obstruction. Ensure you are pointing the remote control directly at the TV.■ Ensure that the batteries are installed with correct polarity (+ to +, - to -).■ Install new batteries.
Power is suddenly turned off	■ Is the sleep timer set?■ Check the power control settings. Has the Power supply been interrupted.■ If the TV is switched on and there is no input signal, it will switch off automatically after 15 minutes.

The video function does not work.

No picture & No sound	■ Check whether the TV is switched on.■ Try another channel. The problem may be with the broadcast.■ Is the power cord inserted correctly into the mains?■ Check your antenna direction and/or location.■ Test the mains outlet by plugging another TV into the same outlet.
Picture appears slowly after switching on	■ This is normal, the image is muted during the TV startup process. Please contact your service centre, if the picture has not appeared after five minutes.
No or poor colour or poor picture	■ Adjust Colour in menu option.■ Allow a sufficient distance between the TV and the VCR.■ Try another channel. The problem may be with the broadcast.■ Are the video cables installed properly?■ Activate any function to restore the brightness of the picture.
Horizontal/vertical bars or picture shaking	■ Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	■ Station or cable channel experiencing problems, tune to another station.■ Station signal is weak, reposition the antenna to receive weaker stations.■ Check for sources of possible interference.
Lines or streaks in pictures	■ Check antenna (Change the position of the antenna).
No picture when connecting HDMI	■ Check that your HDMI cable is High Speed HDMI Cable. If the HDMI cables are not High Speed HDMI Cable, flickering or no screen display can result. Please use the High Speed HDMI Cable.
The audio function does not work.
Picture OK & No sound	Press the ∠+ or - button.Sound muted? Press MUTE button.Try another channel. The problem may be with the broadcast.Are the audio cables installed properly?
No output from one of the speakers	Adjust Balance in menu option.
Unusual sound from inside the TV	A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV.
No sound when connecting HDMI or USB	Check HDMI cable is High Speed HDMI Cable.Check USB cable over version 2.0.*This feature is not available for all models.

There is a problem in PC mode. (Only PC mode applied)
The signal is out of range(Invalid format)	■ Adjust resolution, horizontal frequency, or vertical frequency.■ Check the input source.
Vertical bar or stripe on background & Horizontal Noise & Incorrect position	■ Use Auto configure or adjust clock, phase, or H/V position. (Option)
Screen colour is unstable or single colour	■ Check the signal cable.■ Reinstall the PC video card.

There is a problem with PICTURE settings.
When the user changes the picture settings, the TV automatically converts back to the initial settings after a certain period of time.	■ It means that the TV is currently set toStore Demo mode.To switch toHome usemode you should do the followings:From the TV Menu, chooseOPTION-> ChooseMode Setting-> ChooseHome use.Now, you have completed switching to theHome usemode.

APPENDIX

MAINTENANCE

Early malfunctions can be prevented. Careful and regular cleaning can prolong the life of your new TV.

Caution: Be sure to switch the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

1 A good way to keep the dust off your screen for a while is to wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it is almost dry, and then use it to wipe the screen.
2 Ensure there is no excess water on the screen. Allow any water or dampness to evaporate before switching on.

Cleaning the Cabinet

■ To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
■ Do not to use a wet cloth.

Extended Absence

CAUTION

▶ If you expect to leave your TV dormant for prolonged periods (such as a holiday), unplug the power cord to protect against possible damage from lightning or power surges.

PRODUCT SPECIFICATIONS

MODELS		19LD35** / 19LD34**	22LD35** / 22LD34**
		19LD350-ZA / 19LD350N-ZA19LD358-ZA / 19LD359-ZB19LD350C-ZA / 19LD351-ZB19LD351N-ZB19LD340-ZA / 19LD341-ZB19LD340N-ZA / 19LD341N-ZB19LD348-ZA / 19LD355-ZA19LD356-ZB / 19LD345-ZA19LD346-ZB	22LD350-ZA / 22LD350N-ZA22LD358-ZA / 22LD359-ZB22LD350C-ZA / 22LD351-ZB22LD351N-ZB22LD340-ZA / 22LD341-ZB22LD340N-ZA / 22LD341N-ZB22LD348-ZA / 22LD355-ZA22LD356-ZB / 22LD345-ZA22LD346-ZB
Dimensions(Width x Height x Depth)	with stand	457.0 mm x 336.0 mm x 164.9 mm	526.0 mm x 377.0 mm x 164.9 mm
	without stand	457.0 mm x 290.0 mm x 65.0 mm	526.0 mm x 331.0 mm x 65.0 mm
Weight	with stand	3.4 kg	4.3 kg
	without stand	3.1 kg	4.0 kg
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power Consumption		30 W	50 W
MODELS		26LD35** / 26LD34**	32LD35** / 32LD34**
		26LD350-ZA / 26LD350N-ZA26LD358-ZA / 26LD359-ZB26LD350C-ZA /26LD351-ZB26LD351N-ZB26LD340-ZA / 26LD341-ZB26LD340N-ZA / 26LD341N-ZB26LD348-ZA / 26LD355-ZA26LD356-ZB / 26LD345-ZA26LD346-ZB	32LD350-ZA / 32LD350N-ZA32LD358-ZA / 32LD359-ZB32LD350C-ZA32LD351-ZB / 32LD351N-ZB32LD340-ZA / 32LD341-ZB32LD340N-ZA / 32LD341N-ZB32LD348-ZA / 32LD355-ZA32LD356-ZB / 32LD345-ZA32LD346-ZB
Dimensions(Width x Height x Depth)	with stand	663.0 mm x 484.0 mm x 206.8 mm	800.0 mm x 565.0 mm x 206.8 mm
	without stand	663.0 mm x 423.0 mm x 79.9 mm	800.0 mm x 509.0 mm x 73.8 mm
Weight	with stand	7.3 kg	9.2 kg
	without stand	6.2 kg	8.2 kg
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power Consumption		100 W	120 W
CI Module Size(Width x Height x Depth)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	OperatingTemperatureOperating Humidity	0 °C to 40 °CLess than 80 %
	Storage TemperatureStorage Humidity	-20 °C to 60 °CLess than 85 %

■ The specifications shown above may be changed without prior notice for quality improvement.

MODELS		32LD4***
		32LD420-ZA / 32LD420N-ZA32LD428-ZA / 32LD420C-ZA32LD425-ZA	32LD421-ZB / 32LD421N-ZB32LD426-ZB	32LD450-ZA / 32LD450N-ZA32LD458-ZA / 32LD450C-ZA32LD465-ZA / 32LD465N-ZA32LD468-ZA / 32LD455-ZA
Dimensions(Width x Height x Depth)	with stand	805.0 mm x 583.0 mm x 224.0 mm	805.0 mm x 586.0 mm x 211.0 mm	799.0 mm x 555.0 mm x 207.0 mm
	without stand	805.0 mm x 531.0 mm x 79.9 mm	805.0 mm x 531.0 mm x 79.9 mm	799.0 mm x 506.0 mm x 73.5 mm
Weight	with stand	10.8 kg	10.8 kg	9.1 kg
	without stand	9.7 kg	9.7 kg	8.1 kg
Power requirementPower Consumption		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
		140 W	140 W	120 W
MODELS		37LD4***
		37LD420-ZA / 37LD420N-ZA37LD428-ZA / 37LD420C-ZA37LD425-ZA	37LD421-ZB / 37LD421N-ZB37LD426-ZB	37LD450-ZA / 37LD450N-ZA37LD458-ZA / 37LD450C-ZA37LD465-ZA 37LD465N-ZA37LD468-ZA / 37LD455-ZA
Dimensions(Width x Height x Depth)	with stand	922.0 mm x 659.0 mm x 297.0 mm	922.0 mm x 660.0 mm x 270.6 mm	916.0 mm x 625.0 mm x 261.0 mm
	without stand	922.0 mm x 595.0 mm x 88.0 mm	922.0 mm x 595.0 mm x 88.0 mm	916.0 mm x 575.0 mm x 77.4 mm
Weight	with stand	14.0 kg	14.0 kg	12.5 kg
	without stand	12.2 kg	12.2 kg	10.8 kg
Power requirementPower Consumption		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
		150 W	150 W	160 W
CI Module Size(Width x Height x Depth)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	OperatingTemperatureOperating Humidity	0 °C to 40 °CLess than 80 %
	Storage TemperatureStorage Humidity	-20 °C to 60 °CLess than 85 %

■ The specifications shown above may be changed without prior notice for quality improvement.

MODELS		42LD4***
		42LD420-ZA / 42LD420N-ZA42LD428-ZA / 42LD420C-ZA42LD425-ZA	42LD421-ZB / 42LD421N-ZB42LD426-ZB	42LD450-ZA / 42LD450N-ZA42LD458-ZA / 42LD450C-ZA42LD465-ZA / 42LD465N-ZA42LD468-ZA / 42LD455-ZA
Dimensions(Width x Height x Depth)	with stand	1028.0 mm x 715.4 mm x 297.0 mm	1028.0 mm x 716.4 mm x 270.6 mm	1023.0 mm x 685.0 mm x 261.0 mm
	without stand	1028.0 mm x 658.6 mm x 88.7 mm	1028.0 mm x 658.6 mm x 88.7 mm	1023.0 mm x 635.0 mm x 76.6 mm
Weight	with stand	17.3 kg	17.3 kg	15.1 kg
	without stand	15.5 kg	15.5 kg	13.5 kg
Power requirementPower Consumption		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
		190 W	190 W	190 W
MODELS		47LD4***
		47LD420-ZA / 47LD420N-ZA47LD428-ZA / 47LD420C-ZA47LD425-ZA	47LD421-ZB / 47LD421N-ZB47LD426-ZB	47LD450-ZA / 47LD450N-ZA47LD458-ZA / 47LD450C-ZA47LD465-ZA / 47LD465N-ZA47LD468-ZA / 47LD455-ZA
Dimensions(Width x Height x Depth)	with stand	1140.6 mm x 784.8 mm x 337.4 mm	1140.6 mm x 788.3 mm x 318.9 mm	1136.0 mm x 757.0 mm x 270.0 mm
	without stand	1140.6 mm x 722.9 mm x 99.0 mm	1140.6 mm x 722.9 mm x 99.0 mm	1136.0 mm x 698.0 mm x 76.5 mm
Weight	with stand	21.6 kg	21.6 kg	19.5 kg
	without stand	19.0 kg	19.0 kg	17.5 kg
Power requirementPower Consumption		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
		260 W	260 W	260 W
CI Module Size(Width x Height x Depth)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	OperatingTemperatureOperating Humidity	0 °C to 40 °CLess than 80 %
	Storage TemperatureStorage Humidity	-20 °C to 60 °CLess than 85 %

■ The specifications shown above may be changed without prior notice for quality improvement.

MODELS		32LD5***
		32LD550-ZC / 32LD550N-ZC32LD558-ZC / 32LD559-ZA32LD565-ZC / 32LD565N-ZC	32LD551-ZA / 32LD551N-ZA32LD566-ZA / 32LD568-ZC32LD569-ZA / 32LD555-ZC
Dimensions(Width x Height x Depth)	with stand	800.0 mm x 563.0 mm x 207.0 mm	800.0 mm x 563.0 mm x 207.0 mm
	without stand	800.0 mm x 503.0 mm x 74.7 mm	800.0 mm x 503.0 mm x 74.7 mm
Weight	with stand	9.7 kg	9.7 kg
	without stand	8.7 kg	8.7 kg
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power Consumption		150 W	150 W
MODELS		42LD5***
		42LD550-ZC / 42LD550N-ZC42LD558-ZC / 42LD559-ZA42LD565-ZC / 42LD565N-ZC	42LD551-ZA / 42LD551N-ZA42LD566-ZA / 42LD568-ZC42LD569-ZA / 42LD555-ZC
Dimensions(Width x Height x Depth)	with stand	1024.0 mm x 695.0 mm x 261.0 mm	1024.0 mm x 695.0 mm x 261.0 mm
	without stand	1024.0 mm x 632.0 mm x 78.7 mm	1024.0 mm x 632.0 mm x 78.7 mm
Weight	with stand	15.4 kg	15.4 kg
	without stand	13.8 kg	13.8 kg
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power Consumption		210 W	210 W
CI Module Size(Width x Height x Depth)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	OperatingTemperatureOperating Humidity	0 °C to 40 °CLess than 80 %
	Storage TemperatureStorage Humidity	-20 °C to 60 °CLess than 85 %

■ The specifications shown above may be changed without prior notice for quality improvement.

MODELS		46LD5***
		46LD550-ZC / 46LD550N-ZC46LD558-ZC / 46LD559-ZA46LD565-ZC /46LD565N-ZC	46LD551-ZA / 46LD551N-ZA46LD566-ZA / 46LD568-ZC46LD569-ZA/ 46LD555-ZC
Dimensions(Width x Height x Depth)	with stand	1115.0 mm x 752.0 mm x 270.0 mm	1115.0 mm x 752.0 mm x 270.0 mm
	without stand	1115.0 mm x 680.0 mm x 77.0 mm	1115.0 mm x 680.0 mm x 77.0 mm
Weight	with stand	18.6 kg	18.6 kg
	without stand	16.6 kg	16.6 kg
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power Consumption		240 W	240 W
MODELS		52LD5***
		52LD550-ZC / 52LD550N-ZC52LD558-ZC / 52LD559-ZA52LD565-ZC / 52LD565N-ZC	52LD551-ZA / 52LD551N-ZA52LD566-ZA / 52LD568-ZC52LD569-ZA/ 52LD555-ZC
Dimensions(Width x Height x Depth)	with stand	1266.0 mm x 851.0 mm x 330.0 mm	1266.0 mm x 851.0 mm x 330.0 mm
	without stand	1266.0 mm x 775.0 mm x 96.4 mm	1266.0 mm x 775.0 mm x 96.4 mm
Weight	with stand	26.9 kg	26.9 kg
	without stand	23.6 kg	23.6 kg
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power Consumption		300 W	300 W
CI Module Size(Width x Height x Depth)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	OperatingTemperatureOperating Humidity	0 °C to 40 °CLess than 80 %
	Storage TemperatureStorage Humidity	-20 °C to 60 °CLess than 85 %

■ The specifications shown above may be changed without prior notice for quality improvement.

MODELS		60LD5***
		60LD550-ZC / 60LD550N-ZC60LD558-ZC / 60LD559-ZA60LD565-ZC / 60LD565N-ZC	60LD551-ZA / 60LD551N-ZA60LD566-ZA / 60LD568-ZC60LD569-ZA / 60LD555-ZC
Dimensions(Width x Height x Depth)	with stand	1441.0 mm x 963.0 mm x 345.0 mm	1441.0 mm x 963.0 mm x 345.0 mm
	without stand	1441.0 mm x 877.0 mm x 109.0 mm	1441.0 mm x 877.0 mm x 109.0 mm
Weight	with stand	40.0 kg	40.0 kg
	without stand	35.7 kg	35.7 kg
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power Consumption		380 W	380 W
MODELS		26LD32**	32LD32**
		26LD325-ZA / 26LD325N-ZA26LD328-ZA26LD335-ZA / 26LD336-ZB	32LD325-ZA / 32LD325N-ZA32LD328-ZA32LD335-ZA / 32LD336-ZB
Dimensions(Width x Height x Depth)	with stand	667.0 mm x 504.0 mm x 224.0 mm	805.0 mm x 583.0 mm x 224.0 mm
	without stand	667.0 mm x 446.2 mm x 80.0 mm	805.0 mm x 528.0 mm x 79.9 mm
Weight	with stand	8.9 kg	11.5 kg
	without stand	7.8 kg	10.3 kg
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power Consumption		100 W	120 W
CI Module Size(Width x Height x Depth)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	OperatingTemperatureOperating Humidity	0 °C to 40 °CLess than 80 %
	Storage TemperatureStorage Humidity	-20 °C to 60 °CLess than 85 %

■ The specifications shown above may be changed without prior notice for quality improvement.

MODELS		32LE4***	37LE4***
		32LE4500-ZA / 32LE450N-ZA32LE4508-ZA	37LE4500-ZA / 37LE450N-ZA37LE4508-ZA
Dimensions(Width x Height x Depth)	with stand	786.0 mm x 559.0 mm x 221.0 mm	907.0 mm x 630.0 mm x 270.0 mm
	without stand	786.0 mm x 500.0 mm x 39.9 mm	907.0 mm x 565.0 mm x 39.9 mm
Weight	with stand	12.4 kg	14.6 kg
	without stand	10.6 kg	12.1 kg
Power requirementPower Consumption		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
		130 W	140 W
MODELS		42LE4***
		42LE4500-ZA / 42LE4500N-ZA42LE4508-ZA
Dimensions(Width x Height x Depth)	with stand	1018.0 mm x 692.0 mm x 270.0 mm
	without stand	1018.0 mm x 627.0 mm x 29.8 mm
Weight	with stand	19.7 kg
	without stand	17.2 kg
Power requirementPower Consumption		AC 100-240 V~ 50 / 60 Hz
		150 W
CI Module Size(Width x Height x Depth)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	OperatingTemperature	0 °C to 40 °CLess than 80 %
	Operating Humidity
	Storage Temperature	-20 °C to 60 °CLess than 85 %
	Storage Humidity
Supported movie files		Refer to p. 54 to 55

■ The specifications shown above may be changed without prior notice for quality improvement.

MODELS		19LE3***
		19LE3300-ZA / 19LE330N-ZA19LE3308-ZA / 19LE3400-ZA19LE340N-ZA / 19LE3408-ZA	19LE3310-ZB / 19LE331N-ZB19LE3410-ZB / 19LE341N-ZB
Dimensions(Width x Height x Depth)	with stand	471.2 mm x 365.9 mm x 155.4 mm	471.2 mm x 365.9 mm x 155.4 mm
	without stand	471.2 mm x 315.5 mm x 34.4 mm	471.2 mm x 315.5 mm x 34.4 mm
Weight	with stand	3.4 kg	3.4 kg
	without stand	3.2 kg	3.2 kg
Power requirement		19LE3***: DC 24 V, 1.6 A, 38 WAC-DC adaptor : 24 V , 3.42 A / AC 100-240 V~ 50 / 60 Hz
MODELS		22LE3***
		22LE3300-ZA / 22LE330N-ZA22LE3308-ZA / 22LE3400-ZA22LE340N-ZA / 22LE3408-ZA	22LE3310-ZB / 22LE331N-ZB22LE3410-ZB / 22LE341N-ZB
Dimensions(Width x Height x Depth)	with stand	542.9 mm x 407.1 mm x 155.4 mm	542.9 mm x 407.1 mm x 155.4 mm
	without stand	542.9 mm x 357.6 mm x 34.4 mm	542.9 mm x 357.6 mm x 34.4 mm
Weight	with stand	4.2 kg	4.2 kg
	without stand	3.9 kg	3.9 kg
Power requirement		22LE3***: DC 24 V, 1.7 A, 40 WAC-DC adaptor : 24 V , 3.42 A / AC 100-240 V~ 50 / 60 Hz
MODELS		22LE5***
		22LE5500-ZA / 22LE550N-ZA22LE5508-ZA	22LE5510-ZB / 22LE551N-ZB22LE5518-ZB
Dimensions(Width x Height x Depth)	with stand	542.9 mm x 407.1 mm x 155.4 mm	542.9 mm x 407.1 mm x 155.4 mm
	without stand	542.9 mm x 357.6 mm x 34.4 mm	542.9 mm x 357.6 mm x 34.4 mm
Weight	with stand	4.2 kg	4.2 kg
	without stand	3.9 kg	3.9 kg
Power requirement		22LE5***: DC 24 V, 1.7 A, 40 WAC-DC adaptor : 24 V , 3.42 A / AC 100-240 V~ 50 / 60 Hz
CI Module Size(Width x Height x Depth)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	OperatingTemperatureOperating Humidity	0 °C to 40 °CLess than 80 %
	Storage TemperatureStorage Humidity	-20 °C to 60 °CLess than 85 %
Supported movie files		Refer to p. 54 to 55

■ The specifications shown above may be changed without prior notice for quality improvement.

MODELS		26LE3***
		26LE3300-ZA / 26LE330N-ZA26LE3308-ZA	26LE3310-ZB / 26LE331N-ZB
Dimensions(Width x Height x Depth)	with stand	652.0 mm x 480.8 mm x 191.4 mm	652.0 mm x 480.8 mm x 191.4 mm
	without stand	652.0 mm x 420.3 mm x 34.4 mm	652.0 mm x 420.3 mm x 34.4 mm
Weight	with stand	6.1 kg	6.1 kg
	without stand	5.1 kg	5.1 kg
Power requirement		26LE3*** : DC 24 V, 1.8 A, 48 WAC-DC adaptor : 24 V = , 3.42 A / AC 100-240 V~ 50 / 60 Hz
MODELS		26LE5***
		26LE5500-ZA / 26LE550N-ZA26LE5508-ZA	26LE5510-ZB / 26LE551N-ZB26LE5518-ZB
Dimensions(Width x Height x Depth)	with stand	652.0 mm x 480.8 mm x 191.4 mm	652.0 mm x 480.8 mm x 191.4 mm
	without stand	652.0 mm x 420.3 mm x 34.4 mm	652.0 mm x 1 420.3 mm x 34.4 mm
Weight	with stand	6.1 kg	6.1 kg
	without stand	5.1 kg	5.1 kg
Power requirement		26LE5*** : DC 24 V, 2.1 A, 55 WAC-DC adaptor : 24 V = , 3.42 A / AC 100-240 V~ 50 / 60 Hz
MODELS		32LE3***	32LE5***
		32LE3300-ZA / 32LE330N-ZA32LE3308-ZA	32LE5300-ZA / 32LE530N-ZA32LE5308-ZA32LE5310-ZB / 32LE531N-ZB32LE5318-ZB / 32LE530C-ZA32LE531C-ZA
Dimensions(Width x Height x Depth)	with stand	771.8 mm x 552.3 mm x 221.0 mm	784.6 mm x 558.1 mm x 221.0 mm
	without stand	771.8 mm x 489.3 mm x 39.9 mm	784.6 mm x 499.5 mm x 39.9 mm
Weight	with stand	11.8 kg	12.65 kg
	without stand	10.0 kg	10.5 kg
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power Consumption		90 W	130 W
CI Module Size(Width x Height x Depth)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	OperatingTemperatureOperating Humidity	0 °C to 40 °CLess than 80 %
	Storage TemperatureStorage Humidity	-20 °C to 60 °CLess than 85 %
Supported movie files		Refer to p. 54 to 55

■ The specifications shown above may be changed without prior notice for quality improvement.

APPENDIX

MODELS		37LE5***
		37LE5300-ZA / 37LE530N-ZA37LE5308-ZA / 37LE530C-ZA	37LE5310-ZB / 37LE531N-ZB37LE5318-ZB / 37LE531C-ZA
Dimensions(Width x Height x Depth)	with stand	905.0 mm x 630.0 mm x 270.0 mm	905.0 mm x 630.0 mm x 270.0 mm
	without stand	905.0 mm x 568.0 mm x 39.9 mm	905.0 mm x 568.0 mm x 39.9 mm
Weight	with stand	15.3 kg	15.3 kg
	without stand	12.8 kg	12.8 kg
Power requirementPower Consumption		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
		140 W	140 W
MODELS		42LE5***
		42LE5300-ZA / 42LE530N-ZA42LE5308-ZA / 42LE530C-ZA	42LE5310-ZB / 42LE531N-ZB42LE5318-ZB / 42LE531C-ZA
Dimensions(Width x Height x Depth)	with stand	1016.0 mm x 692.0 mm x 270.0 mm	1016.0 mm x 692.0 mm x 270.0 mm
	without stand	1016.0 mm x 630.0 mm x 29.3 mm	1016.0 mm x 630.0 mm x 29.3 mm
Weight	with stand	19.2 kg	19.2 kg
	without stand	16.7 kg	16.7 kg
Power requirementPower Consumption		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
		150 W	150 W
CI Module Size(Width x Height x Depth)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	OperatingTemperatureOperating Humidity	0 °C to 40 °CLess than 80 %
	Storage TemperatureStorage Humidity	-20 °C to 60 °CLess than 85 %
Supported movie files		Refer to p. 54 to 55

■ The specifications shown above may be changed without prior notice for quality improvement.

MODELS		47LE5***
		47LE5300-ZA / 47LE530N-ZA47LE5308-ZA / 47LE530C-ZA	47LE5310-ZB / 47LE531N-ZB47LE5318-ZB / 47LE531C-ZA
Dimensions(Width x Height x Depth)	with stand	1126.6 mm x 757.9 mm x 284.4 mm	1126.6 mm x 757.9 mm x 284.4 mm
	without stand	1126.6 mm x 692.0 mm x 29.3 mm	1126.6 mm x 692.0 mm x 29.3 mm
Weight	with stand	22.9 kg	22.9 kg
	without stand	19.6 kg	19.6 kg
Power requirementPower Consumption		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
		170 W	170 W
MODELS		55LE5***
		55LE5300-ZA / 55LE530N-ZA55LE5308-ZA / 55LE530C-ZA	55LE5310-ZB / 55LE531N-ZB55LE5318-ZB / 55LE531C-ZA
Dimensions(Width x Height x Depth)	with stand	1306.0 mm x 867.0 mm x 328.0 mm	1306.0 mm x 867.0 mm x 328.0 mm
	without stand	1306.0 mm x 797.0 mm x 30.7 mm	1306.0 mm x 797.0 mm x 30.7 mm
Weight	with stand	34.05 kg	34.05 kg
	without stand	29.35 kg	29.35 kg
Power requirementPower Consumption		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
		200 W	200 W
CI Module Size(Width x Height x Depth)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	OperatingTemperatureOperating Humidity	0 °C to 40 °CLess than 80 %
	Storage TemperatureStorage Humidity	-20 °C to 60 °CLess than 85 %
Supported movie files		Refer to p. 54 to 55

■ The specifications shown above may be changed without prior notice for quality improvement.

	Digital TV	Analogue TV
Television System	DVB-T	PAL/SECAM B/G/D/K, PAL I/II, SECAM L/L'
	DVB-C
Programme Coverage	VHF, UHF	VHF: E2 to E12, UHF: E21 to E69, CATV: S1 to S20, HYPER: S21 to S47
Maximum number of storable programmes	1,000
External Antenna Impedance	75 Ω	75 Ω

■ The specifications shown above may be changed without prior notice for quality improvement.

IR CODES

*This feature is not available for all models.

Code (Hexa)	Function	Note
95	Energy Saving	R/C BUTTON
08	POWER	R/C BUTTON(POWER ON/OFF)
0B	INPUT	R/C BUTTON
79	RATIO	R/C BUTTON
F0	TV/RAD	R/C BUTTON
45	Q.MENU	R/C BUTTON
43	MENU	R/C BUTTON
AB	GUIDE	R/C BUTTON
40	Up (^)	R/C BUTTON
41	Down ( √ )	R/C BUTTON
07	Left (< )	R/C BUTTON
06	Right ( > )	R/C BUTTON
44	OK(◎)	R/C BUTTON
28	BACK	R/C BUTTON
5B	EXIT	R/C BUTTON
AA	INFO i	R/C BUTTON
30	AV MODE	R/C BUTTON
02	Δ+	R/C BUTTON
03	Δ-	R/C BUTTON
1E	FAV ( MARK )	R/C BUTTON
09	MUTE	R/C BUTTON
00	P ∧	R/C BUTTON
01	P √	R/C BUTTON
10 to 19	Number Key 0 to 9	R/C BUTTON
53	LIST	R/C BUTTON
1A	Q.VIEW	R/C BUTTON
72	RED Key	R/C BUTTON
71	GREEN Key	R/C BUTTON
63	YELLOW Key	R/C BUTTON
61	BLUE Key	R/C BUTTON
20	TEXT	R/C BUTTON
21	T.OPT(T.Option)	R/C BUTTON
39	SUBTITLE	R/C BUTTON
7E	SIMPLINK	R/C BUTTON
91	AD	R/C BUTTON
B1	■	R/C BUTTON
B0	▶	R/C BUTTON
BA	II	R/C BUTTON
8F	◀◀	R/C BUTTON
8E	▶▶	R/C BUTTON

EXTERNAL CONTROL DEVICE SETUP

RS-232C Setup

Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product's functions externally.

Connect the serial port of the control device to the RS-232C jack on the product back panel.

Note: RS-232C connection cables are not supplied with the product.

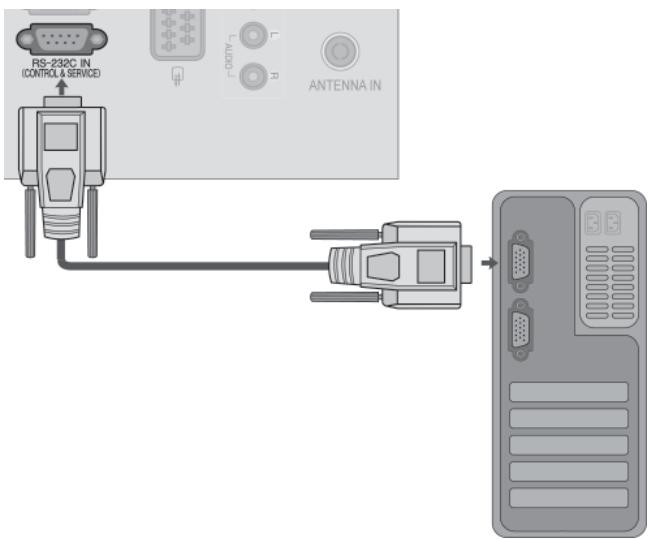

RS-232C IN (CONTROL & SERVICE) ANTENNA IN

Type of Connector; D-Sub 9-Pin Male

No. Pin Name

1	No connection
2	RXD (Receive data)
3	TXD (Transmit data)
4	DTR (DTE side ready)
5	GND
6	DSR (DCE side ready)
7	RTS (Ready to send)
8	CTS (Clear to send)
9	No Connection

1 5 6 9

RS-232C Configurations

7-Wire Configurations (Standard RS-232C cable)

	PC	TV
RXD	2	3	TXD
TXD	3	2	RXD
GND	5	5	GND
DTR	4	6	DSR
DSR	6	4	DTR
RTS	7	8	CTS
CTS	8	7	RTS
	D-Sub 9	D-Sub 9

3-Wire Configurations(Not standard)

	PC	TV
RXD	2 ●	3	TXD
TXD	3 ●	2	RXD
GND	5 ●	5	GND
DTR	4	6	DTR
DSR	6	4	DSR
RTS	7	7	RTS
CTS	8	8	CTS
	D-Sub 9	D-Sub 9

APPENDIX

Set ID

Use this function to specify a set ID number.

Adjust Set ID to choose the desired TV ID number.

The adjustment range of SET ID is 1 to 99.

- Press the BACK button to move to the previous menu screen.

Communication Parameters

■ Baud rate : 9600 bps (UART)
■ Data length : 8 bits
■ Parity : None
■ Stop bit : 1 bit
■ Communication code : ASCII code

■ Use a crossed (reverse) cable.

Command Reference List

	COMMAND1	COMMAND2	DATA(Hexadecimal)
01. Power	k	a	00 to 01
02. Aspect Ratio	k	c	Refer to p. 152
03. Screen Mute	k	d	Refer to p. 152
04. Volume Mute	k	e	00 to 01
05. Volume Control	k	f	00 to 64
06. Contrast	k	g	00 to 64
07. Brightness	k	h	00 to 64
08. Colour	k	i	00 to 64
09. Tint	k	j	00 to 64
10. Sharpness	k	k	00 to 64
11. OSD Select	k	l	00 to 01
12. Remote control lock mode	k	m	00 to 01
13. Treble	k	r	00 to 64
14. Bass	k	s	00 to 64
15. Balance	k	t	00 to 64
16. Colour Temperature	x	u	00 to 64
17. Energy Saving	j	q	00 to 05
18. Auto Configuration	j	u	01
19. Tune Command	m	a	Refer to p. 154
20. Programme Add/Skip	m	b	00 to 1
21. Key	m	c	Key Code
22. Control Back Light	m	g	00 to 64
23. Input select (Main)	x	b	Refer to p. 155

* Note : During USB operations such as DivX or EMF, all commands except Power(ka) and Key(mc) are not executed and treated as NG.

Transmission / Receiving Protocol Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

* [Command 1] : First command to control the TV. (j, k, m or x)
* [Command 2] : Second command to control the TV.
* [Set ID] : You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment range is 1 to 99. When selecting Set ID '0', every connected set is controlled. Set ID is indicated as decimal (1 to 99) on menu and as Hexa decimal (0x0 to 0x63) on transmission/receiving protocol.
* [DATA] : To transmit command data. Transmit 'FF' data to read status of command.
* [Cr] : Carriage Return ASCII code '0x0D'
* [ ] : ASCII code 'space (0x20)'

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors.

Data 00: Illegal Code

01. Power (Command: k a)

▶ To control Power On/Off of the set.

Transmission

[k][a][ ][Set ID][ ][Data][Cr]

Data 00 : Power Off 01 : Power On

Ack

[a][ ][Set ID][ ][OK/NG][Data][x]

▶ To show Power On/Off.

Transmission

[k][a][ ][Set ID][ ][FF][Cr]

Ack

[a][ ][Set ID][ ][OK/NG][Data][x]

* Similarly, if other functions transmit '0xFF' data based on this format, Acknowledgement data feed back presents status about each function.
* OK Ack., Error Ack. and other message may display on the screen when TV is power On.

02. Aspect Ratio (Command: k c) (Main Picture Size)

▶ To adjust the screen format. (Main picture format) You can also adjust the screen format using the Aspect Ratio in the Q.MENU. or PICTURE menu.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Data 01 : Normal screen (4:3)	07 : 14:9
02 : Wide screen (16:9)	09 : Just Scan
04 : Zoom	0B : Full Wide
06 : Original	10 to 1F : Cinema Zoom 1 to 16

Ack

[c][ ][Set ID][ ][OK/NG][Data][x]

* Using the PC input, you select either 16:9 or 4:3 screen aspect ratio.
* In DTV/HDMI (1080i 50 Hz / 60 Hz, 720p 50Hz / 60 Hz, 1080p 24 Hz / 30 Hz / 50 Hz / 60 Hz), Component( 720p, 1080i, 1080p 50 Hz / 60 Hz) mode, Just Scan is available.
* Full Wide is supported only for Digital, Analogue, AV.

03. Screen Mute (Command: k d)

▶ To select screen mute on/off.

Transmission

[k][d][ ][Set ID][ ][Data][Cr]

Data 00 : Screen mute off (Picture on)Video mute off

01 : Screen mute on (Picture off)

10 : Video mute on

Ack

[d][ ][Set ID][ ][OK/NG][Data][x]

* In case of video mute on only, TV will display On Screen Display(OSD). But, in case of Screen mute on, TV will not display OSD.

04. Volume Mute (Command: k e)

▶ To control volume mute on/off. You can also adjust mute using the MUTE button on remote control.

Transmission

[k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Volume mute on (Volume off) 01 : Volume mute off (Volume on)

Ack

[e][ ][Set ID][ ][OK/NG][Data][x]

05. Volume Control (Command: k f)

▶ To adjust volume. You can also adjust volume with the VOLUME buttons on remote control. Transmission

[k][f][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64 * Refer to ‘Real data mapping 1’. See page 154. Ack

[f][ ][Set ID][ ][OK/NG][Data][x]

06. Contrast (Command: k g)

▶ To adjust screen contrast. You can also adjust contrast in the PICTURE menu. Transmission

[k][g][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64 * Refer to 'Real data mapping 1'. See page 154. Ack

[g][ ][Set ID][ ][OK/NG][Data][x]

07. Brightness (Command: k h)

▶ To adjust screen brightness. You can also adjust brightness in the PICTURE menu. Transmission

[k][h][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64 * Refer to ‘Real data mapping 1’. See page 154. Ack

[h][ ][Set ID][ ][OK/NG][Data][x]

08. Colour (Command: k i)

▶ To adjust the screen colour. You can also adjust colour in the PICTURE menu. Transmission

[k][i][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64 * Refer to ‘Real data mapping 1’. See page 154. Ack

[i][ ][Set ID][ ][OK/NG][Data][x]

09. Tint (Command: k j)

▶ To adjust the screen tint. You can also adjust tint in the PICTURE menu.

Transmission

[k][j][ ][Set ID][ ][Data][Cr]

Data Red : 00 to Green : 64

* Refer to ‘Real data mapping 1’. See page 154.

Ack

[j][ ][Set ID][ ][OK/NG][Data][x]

10. Sharpness (Command: k k)

▶ To adjust the screen sharpness. You can also adjust sharpness in the PICTURE menu.

Transmission

[k][k][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to ‘Real data mapping 1’. See page 154.

Ack

[k][ ][Set ID][ ][OK/NG][Data][x]

11. OSD Select (Command: k l)

▶ To select OSD (On Screen Display) on/off when controlling remotely.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Data 00: OSD off 01: OSD on

Ack

[1][ ][Set ID][ ][OK/NG][Data][x]

12. Remote control lock mode (Command: k m)

▶ To lock the front panel controls on the monitor and remote control.

Transmission

[k][m][ ][Set ID][ ][Data][Cr]

Data 00 : Lock off 01 : Lock on

Ack

[m][ ][Set ID][ ][OK/NG][Data][x]

* If you are not using the remote control, use this mode.
When main power is on/off, external control lock is released.
* In the standby mode, if key lock is on, TV will not turn on by power on key of IR & Local Key.

13. Treble (Command: k r)

▶ To adjust treble. You can also adjust treble in the AUDIO menu.

Transmission

[k][r][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to ‘Real data mapping 1’. See page 154.

Ack

[r][ ][Set ID][ ][OK/NG][Data][x]

▶ To adjust bass. You can also adjust bass in the AUDIO menu.

Transmission

[k][s][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to ‘Real data mapping 1’. See page 154.

Ack

[s][ ][Set ID][ ][OK/NG][Data][x]

15. Balance (Command: k t)

▶ To adjust balance. You can also adjust balance in the AUDIO menu.

Transmission

[k][t][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to ‘Real data mapping 1’. See page 154.

Ack

[t][ ][Set ID][ ][OK/NG][Data][x]

16. Colour Temperature (Command: x u)

▶ To adjust colour temperature. You can also adjust Colour Temperature in the PICTURE menu.

Transmission

[x][u][ ][Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

* Refer to ‘Real data mapping 1’. See page 154.

Ack

[u][ ][Set ID][ ][OK/NG][Data][x]

17. Energy Saving (Command: j q)

▶ To reduce the power consumption of the TV. You can also adjust Energy Saving in PICTURE menu.

Transmission

[j][q][ ][Set ID][ ][Data][Cr]

Power Saving Function					Level				Description
7	6	5	4		3	2	1	0
0	0	0	0	Low Power	0	0	0	0	Off
0	0	0	0	Low Power	0	0	0	1	Minimum
0	0	0	0	Low Power	0	0	1	0	Medium
0	0	0	0	Low Power	0	0	1	1	Maximum
0	0	0	0	Low Power	0	1	0	0	Auto←
0	0	0	0	Low Power	0	1	0	1	Screen Off

(Only 32/42/46/60LD5***, 32LE3***,

32/37/42LE4***, 32/37/42/47/55LE5***)

Ack

[q][ ][Set ID][ ][OK/NG][Data][x]

18. Auto Configure(Command: j u)

▶ To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode.

Transmission

[j][u][ ][Set ID][ ][Data][Cr]

Data 01: To set

Ack

[u][ ][Set ID][ ][OK/NG][Data][x]

19. Tune Command (Command: m a)

▶ Select channel to following physical number.

Transmission

[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][Cr]

Data00 : High channel data

Data01 : Low channel data

ex. No. 47 -> 00 2F (2FH)

No. 394 -> 01 8A (18AH),

DTV No. 0 -> Don't care

Data02:0x00:Analogue Main

0x10 : DTV Main

0x20 : Radio

Channel data range

Analogue - Min: 00 to Max: 63 (0 to 99)

Digital - Min: 00 to Max: 3E7 (0 to 999)

(Except For Sweden, Finland, Norway, Denmark, Ireland)

Digital - Min: 00 to Max: 270F (0 to 9999)

(Only Sweden, Finland, Norway, Denmark, Ireland)

Ack

[a][ ][Set ID][ ][OK/NG][Data][x]

Data Min: 00 to Max: 7DH

20. Programme Add/Skip(Command: m b)

▶ To set skip status for the current Programme.

Transmission

[m][b][ ][Set ID][ ][Data][Cr]

Data 00:Skip 01:Add

Ack

[b][ ][Set ID][ ][OK/NG][Data][x]

* Real data mapping 1

00: Step 0

:

A : Step 10 (Set ID 10)

:

F : Step 15 (Set ID 15)

10: Step 16 (Set ID 16)

:

64: Step 100

:

6E: Step 110

:

73 : Step 115

74: Step 116

:

CF: Step 199

:

FE: Step 254

FF: Step 255

21. Key(Command: m c)

▶ To send IR remote key code.

Transmission

[m][c][ ][Set ID][ ][Data][Cr]

Data Key code - Refer to page 148.

Ack

[c][ ][Set ID][ ][OK/NG][Data][x]

22. Control Back Light (Command: m g)

▶ To Control the back light.

Transmission

[m][g][ ][Set ID][ ][Data][Cr]

Data : data Min: 00 to Max: 64

Ack

[g][ ][Set ID][ ][OK/NG][Data][x]

23. Input select (Command: x b) (Main Picture Input)

▶ To select input source for main picture.

Transmission

[x][b][ ][Set ID][ ][Data][Cr]

Data Structure

MSB

LSB

0	0	0	0	0	0	0	0
External Input			Input Number

External Input				Data
0	0	0	0	DTV
0	0	0	1	Analogue
0	0	1	0	AV
0	1	0	0	Component
0	1	1	0	RGB
0	1	1	1	HDMI
1	0	0	0
1	0	0	1
1	0	1	0

Input Number				Data
0	0	0	0	Input1
0	0	0	1	Input2
0	0	1	0	Input3
0	0	1	1	Input4

Ack

[b][ ][Set ID][ ][OK/NG][Data][x]

OPEN SOURCE SOFTWARE NOTICE

The following GPL executables and LGPL, MPL libraries used in this product are subject to the GPL2.0/LGPL2.1/MPL1.1 License Agreements:

GPL EXECUTABLES:

- Linux kernel 2.6, busybox, e2fsprogs, gdbserver, jfsutils, mtd-utils, procps, u-boot, udhcpc

LGPL LIBRARIES:

- directFB, glibc, gconv

MPL LIBRARIES:

- Nanox

LG Electronics offers to provide source code to you on CD-ROM for a charge covering the cost of performing such distribution, such as the cost of media, shipping and handling upon e-mail request to LG Electronics at: [e-mail]

This offer is valid for a period of three (3) years from the date of the distribution of this product by LG Electronics.

You can obtain a copy of the GPL, LGPL and MPL licenses on the CD-ROM provided with this product. Also you can obtain the translation of GPL, LGPL licenses from http://www.gnu.org/licenses/old-licenses/gpl-2.0-translations.html, http://www.gnu.org/licenses/old-licenses/lgpl-2.1-translations.html.

This product includes other open source software

- expat:

■ copyright © 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper
■ copyright © 2001, 2002, 2003, 2004, 2005, 2006 Expat maintainers.

• freetype: copyright © 2003 The FreeType Project (www.freetype.org).
  • ICU: copyright © 1995-2008 International Business Machines Corporation and others.
• libcurl: copyright © 1996 - 2008, Daniel Stenberg.
• libjpeg: This software is based in part on the work of the Independent JPEG Group copyright © 1991 – 1998, Thomas G. Lane.
• libmng: copyright © 2000-2007 Gerard Juyn, Glenn Randers-Pehrson
• libpng: copyright © 1998-2008 Glenn Randers-Pehrson
• md5: copyright © 1991-2, RSA Data Security, Inc
• md5 checksum : copyright © 1999, 2000, 2002 Aladdin Enterprises
• ncurses: copyright © 1998 Free Software Foundation, Inc.
• openSSL:

■ cryptographic software written by Eric Young.
■ software written by Tim Hudson.
■ software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org)

- strace :

■ copyright © 1991, 1992 Paul Kranenburg.
■ copyright © 1993 Branko Lankester.
■ copyright © 1993 Ulrich Pegelow.
■ copyright © 1995, 1996 Michael Elizabeth Chastain.

■ copyright © 1993, 1994, 1995, 1996 Rick Sladkey.
■ copyright © 1998-2003 Wichert Akkerman.
■ copyright © 2002-2008 Roland McGrath.
■ copyright © 2003-2008 Dmitry V. Levin.
■ copyright © 2007-2008 Jan Kratochvil.

• tinyxml: copyright © 2000-2006 Lee Thomason
• xyssl: Copyright (C) 2009 Paul Bakker
• zlib: copyright © 1995-2005 Jean-loup Gailly and Mark Adler

All rights reserved.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

OPEN SOURCE LICENSE

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

APPENDIX

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

3. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright (C)

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w'. This is free software, and you are welcome to redistribute it under certain conditions; type `show c' for details.

The hypothetical commands `show w' and `show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than `show w' and `show c'; they could even be mouse-clicks or menu items--whatever suits your program.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision' (which makes passes at compilers) written by James Hacker.

, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a "work based on the library" and a "work that uses the library". The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as "you".

A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The "Library", below, refers to any such software library or work which has been distributed under these terms. A "work based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modification".)

"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.

d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

APPENDIX

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

1. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

1. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a "work that uses the Library" uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

1. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things:

a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.)

b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.

c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

1. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.

1. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.
3. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.
4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

APPENDIX

1. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright (C)

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library 'Frob' (a library for tweaking knobs) written by James Random Hacker.

, 1 April 1990 Ty Coon, President of Vice

MOZILLA PUBLIC LICENSE

Version 1.1

1. Definitions.

1.0.1. "Commercial Use" means distribution or otherwise making the Covered Code available to a third party.
1.1. "Contributor" means each entity that creates or contributes to the creation of Modifications.
1.2. "Contributor Version" means the combination of the Original Code, prior Modifications used by a Contributor, and the Modifications made by that particular Contributor.
1.3. "Covered Code" means the Original Code or Modifications or the combination of the Original Code and Modifications, in each case including portions thereof.
1.4. "Electronic Distribution Mechanism" means a mechanism generally accepted in the software development community for the electronic transfer of data.
1.5. "Executable" means Covered Code in any form other than Source Code.
1.6. "Initial Developer" means the individual or entity identified as the Initial Developer in the Source Code notice required by Exhibit A.
1.7. "Larger Work" means a work which combines Covered Code or portions thereof with code not governed by the terms of this License.
1.8. "License" means this document.
1.8.1. "Licensable" means having the right to grant, to the maximum extent possible, whether at the time of the initial grant or subsequently acquired, any and all of the rights conveyed herein.
1.9. "Modifications" means any addition to or deletion from the substance or structure of either the Original Code or any previous Modifications. When Covered Code is released as a series of files, a Modification is:
A. Any addition to or deletion from the contents of a file containing Original Code or previous Modifications.
B. Any new file that contains any part of the Original Code or previous Modifications.
1.10. "Original Code" means Source Code of computer software code which is described in the Source Code notice required by Exhibit A as Original Code, and which, at the time of its release under this License is not already Covered Code governed by this License.
1.10.1. "Patent Claims" means any patent claim(s), now owned or hereafter acquired, including without limitation, method, process, and apparatus claims, in any patent Licensable by grantor.
1.11. "Source Code" means the preferred form of the Covered Code for making modifications to it, including all modules it contains, plus any associated interface definition files, scripts used to control compilation and installation of an Executable, or source code differential comparisons against either the Original Code or another well known, available Covered Code of the Contributor's choice. The Source Code can be in a compressed or archival form, provided the appropriate decompression or de-archiving software is widely available for no charge.
1.12. "You" (or "Your") means an individual or a legal entity exercising rights under, and complying with all of the terms of, this License or a future version of this License issued under Section 6.1.
For legal entities, "You" includes any entity which controls, is controlled by, or is under common control with You. For purposes of this definition, "control" means (a) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (b) ownership of more than fifty percent (50%) of the outstanding shares or beneficial ownership of such entity.

2. Source Code License.

2.1. The Initial Developer Grant.

The Initial Developer hereby grants You a world-wide, royalty-free, non-exclusive license, subject to third party intellectual property claims:

(a) under intellectual property rights (other than patent or trademark) Licensable by Initial Developer to use, reproduce, modify, display, perform, sublicense and distribute the Original Code (or portions thereof) with or without Modifications, and/or as part of a Larger Work; and

(b) under Patents Claims infringed by the making, using or selling of Original Code, to make, have made, use, practice, sell, and offer for sale, and/or otherwise dispose of the Original Code (or portions thereof).
(c) the licenses granted in this Section 2.1(a) and (b) are effective on the date Initial Developer first distributes Original Code under the terms of this License.
(d) Notwithstanding Section 2.1(b) above, no patent license is granted: 1) for code that You delete from the Original Code; 2) separate from the Original Code; or 3) for infringements caused by: i) the modification of the Original Code or ii) the combination of the Original Code with other software or devices.

2.2. Contributor Grant.

Subject to third party intellectual property claims, each Contributor hereby grants You a world-wide, royalty-free, non-exclusive license

(a) under intellectual property rights (other than patent or trademark) Licensable by Contributor, to use, reproduce, modify, display, perform, sublicense and distribute the Modifications created by such Contributor (or portions thereof) either on an unmodified basis, with other Modifications, as Covered Code and/or as part of a Larger Work; and
(b) under Patent Claims infringed by the making, using, or selling of Modifications made by that Contributor either alone and/or in combination with its Contributor Version (or portions of such combination), to make, use, sell, offer for sale, have made, and/or otherwise dispose of: 1) Modifications made by that Contributor (or portions thereof); and 2) the combination of Modifications made by that Contributor with its Contributor Version (or portions of such combination).
(c) the licenses granted in Sections 2.2(a) and 2.2(b) are effective on the date Contributor first makes Commercial Use of the Covered Code.
(d) Notwithstanding Section 2.2(b) above, no patent license is granted: 1) for any code that Contributor has deleted from the Contributor Version; 2) separate from the Contributor Version; 3) for infringements caused by: i) third party modifications of Contributor Version or ii) the combination of Modifications made by that Contributor with other software (except as part of the Contributor Version) or other devices; or 4) under Patent Claims infringed by Covered Code in the absence of Modifications made by that Contributor.

3. Distribution Obligations.

3.1. Application of License.

The Modifications which You create or to which You contribute are governed by the terms of this License, including without limitation Section 2.2. The Source Code version of Covered Code may be distributed only under the terms of this License or a future version of this License released under Section 6.1, and You must include a copy of this License with every copy of the Source Code You distribute. You may not offer or impose any terms on any Source Code version that alters or restricts the applicable version of this License or the recipients' rights hereunder. However, You may include an additional document offering the additional rights described in Section 3.5.

3.2. Availability of Source Code.

Any Modification which You create or to which You contribute must be made available in Source Code form under the terms of this License either on the same media as an Executable version or via an accepted Electronic Distribution Mechanism to anyone to whom you made an Executable version available; and if made available via Electronic Distribution Mechanism, must remain available for at least twelve (12) months after the date it initially became available, or at least six (6) months after a subsequent version of that particular Modification has been made available to such recipients. You are responsible for ensuring that the Source Code version remains available even if the Electronic Distribution Mechanism is maintained by a third party.

3.3. Description of Modifications.

You must cause all Covered Code to which You contribute to contain a file documenting the changes You made to create that Covered Code and the date of any change. You must include a prominent statement that the Modification is derived, directly or indirectly, from Original Code provided by the Initial Developer and including the name of the Initial Developer in (a) the Source Code, and (b) in any notice in an Executable version or related documentation in which You describe the origin or ownership of the Covered Code.

3.4. Intellectual Property Matters

(a) Third Party Claims.

If Contributor has knowledge that a license under a third party's intellectual property rights is required to exercise the rights granted by such Contributor under Sections 2.1 or 2.2, Contributor must include a text file with the Source Code distribution titled "LEGAL" which describes the claim and the party making the claim in sufficient detail that a recipient will know whom to contact. If Contributor obtains such knowledge after the Modification is made available as described in Section 3.2, Contributor shall promptly modify the LEGAL file in all copies Contributor makes available thereafter and shall take other steps (such as notifying appropriate mailing lists or newsgroups) reasonably calculated to inform those who received the Covered Code that new knowledge has been obtained.

(b) Contributor APIs.

If Contributor's Modifications include an application programming interface and Contributor has knowledge of patent licenses which are reasonably necessary to implement that API, Contributor must also include this information in the LEGAL file.

(c) Representations.

Contributor represents that, except as disclosed pursuant to Section 3.4(a) above, Contributor believes that Contributor's Modifications are Contributor's original creation(s) and/or Contributor has sufficient rights to grant the rights conveyed by this License.

3.5. Required Notices.

You must duplicate the notice in Exhibit A in each file of the Source Code. If it is not possible to put such notice in a particular Source Code file due to its structure, then You must include such notice in a location (such as a relevant directory) where a user would be likely to look for such a notice. If You created one or more Modification(s) You may add your name as a Contributor to the notice described in Exhibit A. You must also duplicate this License in any documentation for the Source Code where You describe recipients' rights or ownership rights relating to Covered Code. You may choose to offer, and to charge a fee for, warranty, support, indemnity or liability obligations to one or more recipients of Covered Code. However, You may do so only on Your own behalf, and not on behalf of the Initial Developer or any Contributor. You must make it absolutely clear than any such warranty, support, indemnity or liability obligation is offered by You alone, and You hereby agree to indemnify the Initial Developer and every Contributor for any liability incurred by the Initial Developer or such Contributor as a result of warranty, support, indemnity or liability terms You offer.

3.6. Distribution of Executable Versions.

You may distribute Covered Code in Executable form only if the requirements of Section 3.1-3.5 have been met for that Covered Code, and if You include a notice stating that the Source Code version of the Covered Code is available under the terms of this License, including a description of how and where You have fulfilled the obligations of Section 3.2. The notice must be conspicuously included in any notice in an Executable version, related documentation or collateral in which You describe recipients' rights relating to the Covered Code. You may distribute the Executable version of Covered Code or ownership rights under a license of Your choice, which may contain terms different from this License, provided that You are in compliance with the terms of this License and that the license for the Executable version does not attempt to limit or alter the recipient's rights in the Source Code version from the rights set forth in this

License. If You distribute the Executable version under a different license You must make it absolutely clear that any terms which differ from this License are offered by You alone, not by the Initial Developer or any Contributor. You hereby agree to indemnify the Initial Developer and every Contributor for any liability incurred by the Initial Developer or such Contributor as a result of any such terms You offer.

3.7. Larger Works.

You may create a Larger Work by combining Covered Code with other code not governed by the terms of this License and distribute the Larger Work as a single product. In such a case, You must make sure the requirements of this License are fulfilled for the Covered Code.

1. Inability to Comply Due to Statute or Regulation.

If it is impossible for You to comply with any of the terms of this License with respect to some or all of the Covered Code due to statute, judicial order, or regulation then You must: (a) comply with the terms of this License to the maximum extent possible; and (b) describe the limitations and the code they affect. Such description must be included in the LEGAL file described in Section 3.4 and must be included with all distributions of the Source Code. Except to the

extent prohibited by statute or regulation, such description must be sufficiently detailed for a recipient of ordinary skill to be able to understand it.

1. Application of this License.

This License applies to code to which the Initial Developer has attached the notice in Exhibit A and to related Covered Code.

1. Versions of the License.

6.1. New Versions.

Netscape Communications Corporation ("Netscape") may publish revised and/or new versions of the License from time to time. Each version will be given a distinguishing version number.

6.2. Effect of New Versions.

Once Covered Code has been published under a particular version of the License, You may always continue to use it under the terms of that version. You may also choose to use such Covered Code under the terms of any subsequent version of the License published by Netscape. No one other than Netscape has the right to modify the terms applicable to Covered Code created under this License.

APPENDIX

6.3. Derivative Works.

If You create or use a modified version of this License (which you may only do in order to apply it to code which is not already Covered Code governed by this License), You must (a) rename Your license so that the phrases "Mozilla", "MOZILLAPL", "MOZPL", "Netscape", "MPL", "NPL" or any confusingly similar phrase do not appear in your license (except to note that your license differs from this License) and (b) otherwise make it clear that Your version of the license contains terms which differ from the Mozilla Public License and Netscape Public License. (Filling in the name of the Initial Developer, Original Code or Contributor in the notice described in Exhibit A shall not of themselves be deemed to be modifications of this License.)

7. DISCLAIMER OF WARRANTY.

COVERED CODE IS PROVIDED UNDER THIS LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES THAT THE COVERED CODE IS FREE OF DEFECTS, MERCHANTABILITY, FIT FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE COVERED CODE IS WITH YOU. SHOULD ANY COVERED CODE PROVE DEFECTIVE IN ANY RESPECT, YOU (NOT THE INITIAL DEVELOPER OR ANY OTHER CONTRIBUTOR) ASSUME THE COST OF ANY NECESSARY SERVICING, REPAIR OR CORRECTION. THIS DISCLAIMER OF WARRANTY CONSTITUTES AN ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY COVERED CODE IS AUTHORIZED HEREUNDER EXCEPT UNDER THIS DISCLAIMER.

8. TERMINATION.

8.1. This License and the rights granted hereunder will terminate automatically if You fail to comply with terms herein and fail to cure such breach within 30 days of becoming aware of the breach. All sublicenses to the Covered Code which are properly granted shall survive any termination of this License. Provisions which, by their nature, must remain in effect beyond the termination of this License shall survive.

8.2. If You initiate litigation by asserting a patent infringement claim (excluding declaratory judgment actions) against Initial Developer or a Contributor (the Initial Developer or Contributor against whom You file such action is referred to as "Participant") alleging that:

(a) such Participant's Contributor Version directly or indirectly infringes any patent, then any and all rights granted by such Participant to You under Sections 2.1 and/or 2.2 of this License shall, upon 60 days notice from Participant terminate prospectively, unless if within 60 days after receipt of notice You either: (i) agree in writing to pay Participant a mutually agreeable reasonable royalty for Your past and future use of Modifications made by such Participant, or (ii) withdraw Your litigation claim with respect to the Contributor Version against such Participant. If within 60 days of notice, a reasonable royalty and payment arrangement are not mutually agreed upon in writing by the parties or the litigation claim is not withdrawn, the rights granted by Participant to You under Sections 2.1 and/or 2.2 automatically terminate at the expiration of the 60 day notice period specified above.

(b) any software, hardware, or device, other than such Participant's Contributor Version, directly or indirectly infringes any patent, then any rights granted to You by such Participant under Sections 2.1(b) and 2.2(b) are revoked effective as of the date You first made, used, sold, distributed, or had made, Modifications made by that Participant.

8.3. If You assert a patent infringement claim against Participant alleging that such Participant's Contributor Version directly or indirectly infringes any patent where such claim is resolved (such as by license or settlement) prior to the initiation of patent infringement litigation, then the reasonable value of the licenses granted by such Participant under Sections 2.1 or 2.2 shall be taken into account in determining the amount or value of any payment or license.

8.4. In the event of termination under Sections 8.1 or 8.2 above, all end user license agreements (excluding distributors and resellers) which have been validly granted by You or any distributor hereunder prior to termination shall survive termination.

9. LIMITATION OF LIABILITY.

UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL THEORY, WHETHER TORT (INCLUDING NEGLIGENCE), CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL DEVELOPER, ANY OTHER CONTRIBUTOR, OR ANY DISTRIBUTOR OF COVERED CODE, OR ANY SUPPLIER OF ANY OF SUCH PARTIES, BE LIABLE TO ANY PERSON FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY CHARACTER INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF GOODWILL, WORK STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, OR ANY AND ALL OTHER COMMERCIAL DAMAGES OR LOSSES, EVEN IF SUCH PARTY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. THIS LIMITATION OF LIABILITY SHALL NOT APPLY TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULTING FROM SUCH PARTY'S NEGLIGENCE TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THIS EXCLUSION AND LIMITATION MAY NOT APPLY TO YOU.

10. U.S. GOVERNMENT END USERS.

The Covered Code is a "commercial item," as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of "commercial computer software" and "commercial computer software documentation," as such terms are used in 48 C.F.R. 12.212 (Sept. 1995). Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4 (June 1995), all U.S. Government End Users acquire Covered Code with only those rights set forth herein.

11. MISCELLANEOUS.

This License represents the complete agreement concerning subject matter hereof. If any provision of this License is held to be unenforceable, such provision shall be reformed only to the extent necessary to make it enforceable. This License shall be governed by California law provisions (except to the extent applicable law, if any, provides otherwise), excluding its conflict-of-law provisions. With respect to disputes in which at least one party is a citizen of, or an entity chartered or registered to do business in the United States of America, any litigation relating to this License shall be subject to the jurisdiction of the Federal Courts of the Northern District of California, with venue lying in Santa Clara County, California, with the losing party responsible for costs, including without limitation, court costs and reasonable attorneys' fees and expenses. The application of the United Nations Convention on Contracts for the International Sale of Goods is expressly excluded. Any law or regulation which provides that the language of a contract shall be construed against the drafter shall not apply to this License.

12. RESPONSIBILITY FOR CLAIMS.

As between Initial Developer and the Contributors, each party is responsible for claims and damages arising, directly or indirectly, out of its utilization of rights under this License and You agree to work with Initial Developer and Contributors to distribute such responsibility on an equitable basis. Nothing herein is intended or shall be deemed to constitute any admission of liability.

13. MULTIPLE-LICENSED CODE.

Initial Developer may designate portions of the Covered Code as "Multiple-Licensed". "Multiple-Licensed" means that the Initial Developer permits you to utilize portions of the Covered Code under Your choice of the NPL or the alternative licenses, if any, specified by the Initial Developer in the file described in Exhibit A.

EXHIBIT A -Mozilla Public License.

`The contents of this file are subject to the Mozilla Public License Version 1.1 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.mozilla.org/MPL/

Software distributed under the License is distributed on an "AS IS" basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the License for the specific language governing rights and limitations under the License.

The Original Code is ____.

The Initial Developer of the Original Code is ____.

Portions created by ____ are Copyright (C) ____. All Rights Reserved.

Contributor(s): ____.

Alternatively, the contents of this file may be used under the terms of the ____ license (the "[____] License"), in which case the provisions of [____] License are applicable instead of those above. If you wish to allow use of your version of this file only under the terms of the [____] License and not to allow others to use your version of this file under the MPL, indicate your decision by deleting the provisions above and replace them with the notice and other provisions required by the [____] License. If you do not delete the provisions above, a recipient may use your version of this file under either the MPL or the [____] License."

[NOTE: The text of this Exhibit A may differ slightly from the text of the notices in the Source Code files of the Original Code. You should use the text of this Exhibit A rather than the text found in the Original Code Source Code for Your Modifications.]

LG

Life's Good

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

Model : ____

Serial No.: ____
